This document provides a summary of Amy Oetting's UX portfolio, including 4 projects: 1. A driver-vehicle interface for cooperative adaptive cruise control with iterative design and user testing. 2. Research on household drones to support independent living for elderly adults and a prototype tablet interface. 3. A proposed health portal to facilitate shared situation awareness between medical staff, patients, and families to reduce hospital readmissions. 4. A mobile app to help new groups "break the ice" through an interactive guessing game to reveal facts about participants.

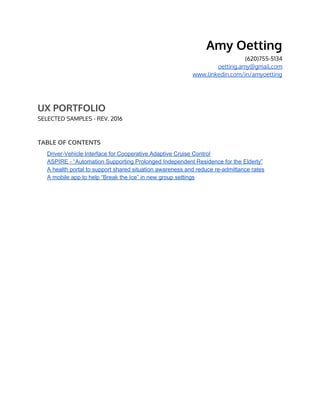

1. Amy Oetting
(620)755-5134
oetting.amy@gmail.com
www.linkedin.com/in/amyoetting
UX PORTFOLIO
SELECTED SAMPLES - REV. 2016
TABLE OF CONTENTS
Driver­Vehicle Interface for Cooperative Adaptive Cruise Control
ASPIRE ­ “Automation Supporting Prolonged Independent Residence for the Elderly”
A health portal to support shared situation awareness and reduce re­admittance rates
A mobile app to help “Break the Ice” in new group settings

2.

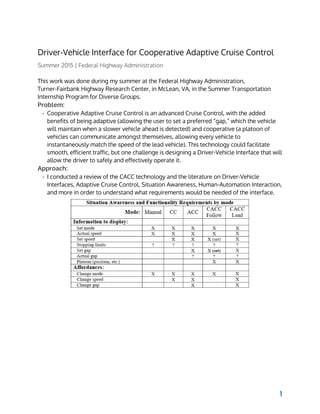

Driver-Vehicle Interface for Cooperative Adaptive Cruise Control
Summer 2015 | Federal Highway Administration
This work was done during my summer at the Federal Highway Administration,
Turner-Fairbank Highway Research Center, in McLean, VA, in the Summer Transportation
Internship Program for Diverse Groups.
Problem:
- Cooperative Adaptive Cruise Control is an advanced Cruise Control, with the added
benefits of being adaptive (allowing the user to set a preferred “gap,” which the vehicle
will maintain when a slower vehicle ahead is detected) and cooperative (a platoon of
vehicles can communicate amongst themselves, allowing every vehicle to
instantaneously match the speed of the lead vehicle). This technology could facilitate
smooth, efficient traffic, but one challenge is designing a Driver-Vehicle Interface that will
allow the driver to safely and effectively operate it.
Approach:
- I conducted a review of the CACC technology and the literature on Driver-Vehicle
Interfaces, Adaptive Cruise Control, Situation Awareness, Human-Automation Interaction,
and more in order to understand what requirements would be needed of the interface.
1

3.

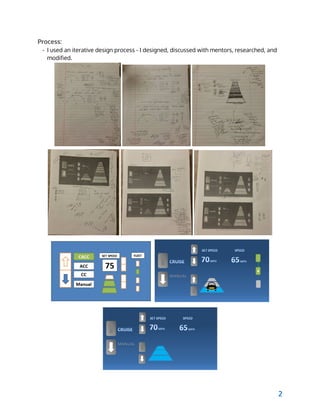

Process:
- I used an iterative design process - I designed, discussed with mentors, researched, and
modified.
2

4.

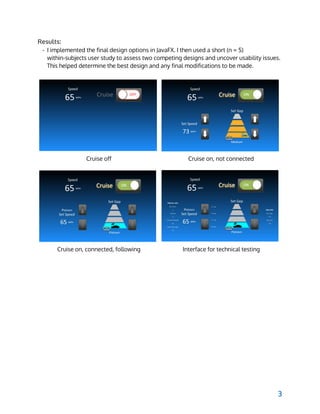

Results:
- I implemented the final design options in JavaFX. I then used a short (n = 5)
within-subjects user study to assess two competing designs and uncover usability issues.
This helped determine the best design and any final modifications to be made.
Cruise off Cruise on, not connected
Cruise on, connected, following Interface for technical testing
3

5.

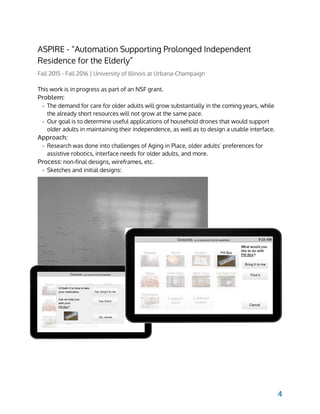

ASPIRE - “Automation Supporting Prolonged Independent
Residence for the Elderly”
Fall 2015 - Fall 2016 | University of Illinois at Urbana-Champaign
This work is in progress as part of an NSF grant.
Problem:
- The demand for care for older adults will grow substantially in the coming years, while
the already short resources will not grow at the same pace.
- Our goal is to determine useful applications of household drones that would support
older adults in maintaining their independence, as well as to design a usable interface.
Approach:
- Research was done into challenges of Aging in Place, older adults’ preferences for
assistive robotics, interface needs for older adults, and more.
Process:​ non-final designs, wireframes, etc.
- Sketches and initial designs:
4

6.
Results:
- The current prototype (done in Axure) will be used via tablet, and is being implemented
in Unity. Future prototypes may also include more natural user interfaces, such as voice
and gestures.
5

7.

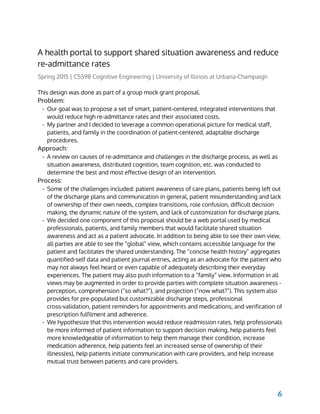

A health portal to support shared situation awareness and reduce
re-admittance rates
Spring 2015 | CS598 Cognitive Engineering | University of Illinois at Urbana-Champaign
This design was done as part of a group mock grant proposal.
Problem:
- Our goal was to propose a set of smart, patient-centered, integrated interventions that
would reduce high re-admittance rates and their associated costs.
- My partner and I decided to leverage a common operational picture for medical staff,
patients, and family in the coordination of patient-centered, adaptable discharge
procedures.
Approach:
- A review on causes of re-admittance and challenges in the discharge process, as well as
situation awareness, distributed cognition, team cognition, etc. was conducted to
determine the best and most effective design of an intervention.
Process:
- Some of the challenges included: patient awareness of care plans, patients being left out
of the discharge plans and communication in general, patient misunderstanding and lack
of ownership of their own needs, complex transitions, role confusion, difficult decision
making, the dynamic nature of the system, and lack of customization for discharge plans.
- We decided one component of this proposal should be a web portal used by medical
professionals, patients, and family members that would facilitate shared situation
awareness and act as a patient advocate. In addition to being able to see their own view,
all parties are able to see the “global” view, which contains accessible language for the
patient and facilitates the shared understanding. The “concise health history” aggregates
quantified-self data and patient journal entries, acting as an advocate for the patient who
may not always feel heard or even capable of adequately describing their everyday
experiences. The patient may also push information to a “family” view. Information in all
views may be augmented in order to provide parties with complete situation awareness -
perception, comprehension (“so what?”), and projection (“now what?”). This system also
provides for pre-populated but customizable discharge steps, professional
cross-validation, patient reminders for appointments and medications, and verification of
prescription fulfilment and adherence.
- We hypothesize that this intervention would reduce readmission rates, help professionals
be more informed of patient information to support decision making, help patients feel
more knowledgeable of information to help them manage their condition, increase
medication adherence, help patients feel an increased sense of ownership of their
illness(es), help patients initiate communication with care providers, and help increase
mutual trust between patients and care providers.
6

8.

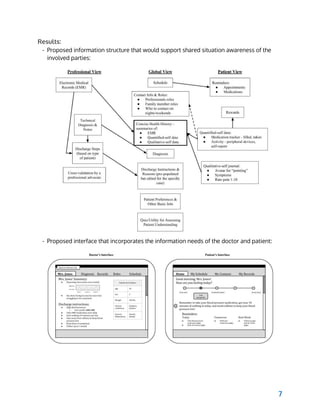

Results:
- Proposed information structure that would support shared situation awareness of the
involved parties:
- Proposed interface that incorporates the information needs of the doctor and patient:
7

9.

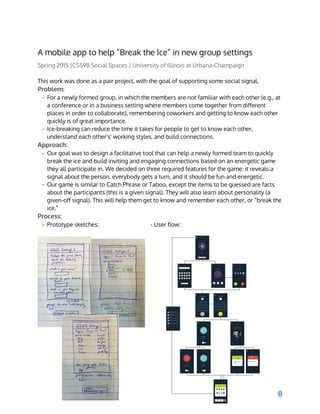

A mobile app to help “Break the Ice” in new group settings
Spring 2015 |CS598 Social Spaces | University of Illinois at Urbana-Champaign
This work was done as a pair project, with the goal of supporting some social signal.
Problem:
- For a newly formed group, in which the members are not familiar with each other (e.g., at
a conference or in a business setting where members come together from different
places in order to collaborate), remembering coworkers and getting to know each other
quickly is of great importance.
- Ice-breaking can reduce the time it takes for people to get to know each other,
understand each other's' working styles, and build connections.
Approach:
- Our goal was to design a facilitative tool that can help a newly formed team to quickly
break the ice and build inviting and engaging connections based on an energetic game
they all participate in. We decided on three required features for the game: it reveals a
signal about the person, everybody gets a turn, and it should be fun and energetic.
- Our game is similar to Catch Phrase or Taboo, except the items to be guessed are facts
about the participants (this is a given signal). They will also learn about personality (a
given-off signal). This will help them get to know and remember each other, or “break the
ice.”
Process:
- Prototype sketches: - User flow:
8

10.

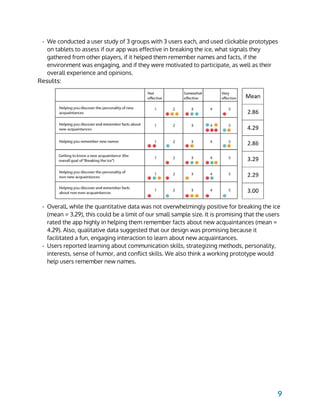

- We conducted a user study of 3 groups with 3 users each, and used clickable prototypes
on tablets to assess if our app was effective in breaking the ice, what signals they
gathered from other players, if it helped them remember names and facts, if the
environment was engaging, and if they were motivated to participate, as well as their
overall experience and opinions.
Results:
- Overall, while the quantitative data was not overwhelmingly positive for breaking the ice
(mean = 3.29), this could be a limit of our small sample size. It is promising that the users
rated the app highly in helping them remember facts about new acquaintances (mean =
4.29). Also, qualitative data suggested that our design was promising because it
facilitated a fun, engaging interaction to learn about new acquaintances.
- Users reported learning about communication skills, strategizing methods, personality,
interests, sense of humor, and conflict skills. We also think a working prototype would
help users remember new names.
9
