The document provides specifications for the MAB 150 portable magnetic drill. It has a 9.25 amp motor, weighs 24 lbs, and can drill holes up to 1.5 inches in diameter. It features automatic internal lubrication, integrated cable routing for safety, and electronic torque control. The MAB 150 comes with standard equipment like annular cutters, a shipping case, safety gear, and an operating manual.

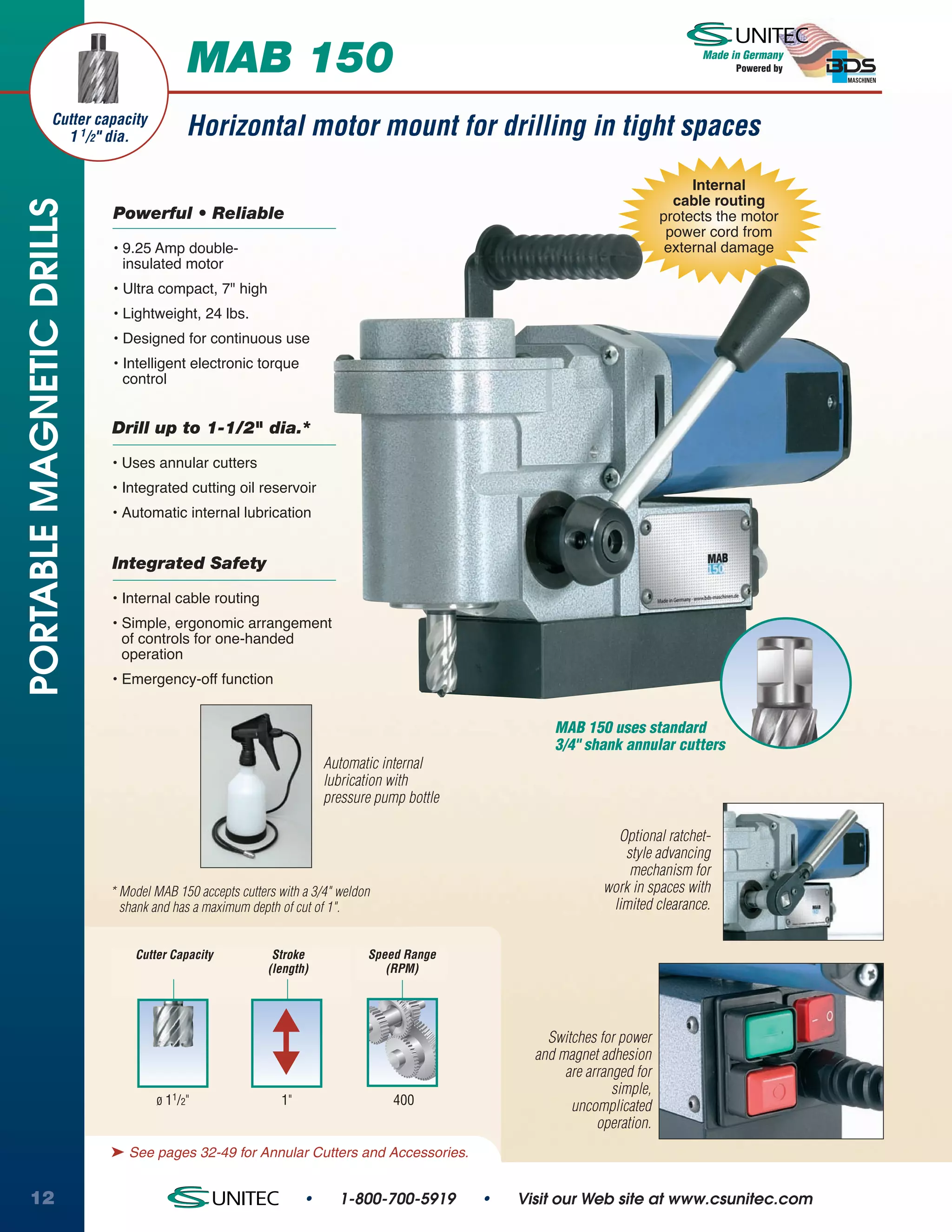

1. MAB 150 Made in Germany
Powered by
Cutter capacity
1 1/2" dia. Horizontal motor mount for drilling in tight spaces
Internal
cable routing
PORTABLE MAGNETIC DRILLS
Powerful • Reliable protects the motor
power cord from
• 9.25 Amp double- external damage
insulated motor
• Ultra compact, 7" high
• Lightweight, 24 lbs.
• Designed for continuous use
• Intelligent electronic torque
control
Drill up to 1-1/2" dia.*
• Uses annular cutters
• Integrated cutting oil reservoir
• Automatic internal lubrication
Integrated Safety
• Internal cable routing
• Simple, ergonomic arrangement
of controls for one-handed
operation
• Emergency-off function
MAB 150 uses standard
3/4" shank annular cutters
Automatic internal
lubrication with
pressure pump bottle
Optional ratchet-
style advancing
mechanism for
* Model MAB 150 accepts cutters with a 3/4" weldon work in spaces with
shank and has a maximum depth of cut of 1". limited clearance.
Cutter Capacity Stroke Speed Range
(length) (RPM)
Switches for power
and magnet adhesion
are arranged for
simple,
ø 11/2" 1" 400 uncomplicated
operation.
® See pages 32-49 for Annular Cutters and Accessories.
12 • 1-800-700-5919 • Visit our Web site at www.csunitec.com

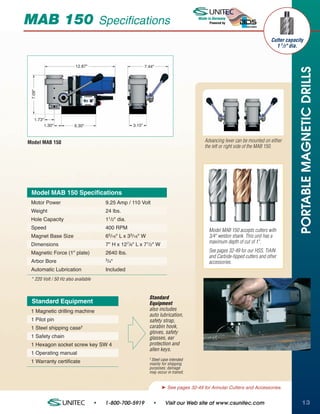

2. MAB 150 Specifications Made in Germany
Powered by
Cutter capacity
1 1/2" dia.
12.87" 7.44"
PORTABLE MAGNETIC DRILLS
7.09"
1.73"
1.30" 6.30" 3.15"
Model MAB 150 Advancing lever can be mounted on either
the left or right side of the MAB 150.
Model MAB 150 Specifications
Motor Power 9.25 Amp / 110 Volt
Weight 24 lbs.
Hole Capacity 11/2" dia.
Speed 400 RPM Model MAB 150 accepts cutters with
Magnet Base Size 65/16" L x 33/16" W 3/4" weldon shank. This unit has a
maximum depth of cut of 1".
Dimensions 7" H x 127/8" L x 71/2" W
Magnetic Force (1" plate) 2640 lbs. See pages 32-49 for our HSS, TiAlN
and Carbide-tipped cutters and other
Arbor Bore 3/4"
accessories.
Automatic Lubrication Included
* 220 Volt / 50 Hz also available
Standard
Standard Equipment Equipment
1 Magnetic drilling machine also includes
auto lubrication,
1 Pilot pin safety strap,
1 Steel shipping case† carabin hook,
gloves, safety
1 Safety chain glasses, ear
1 Hexagon socket screw key SW 4 protection and
allen keys.
1 Operating manual
† Steel
case intended
1 Warranty certificate mainly for shipping
purposes; damage
may occur in transit.
® See pages 32-49 for Annular Cutters and Accessories.
• 1-800-700-5919 • Visit our Web site at www.csunitec.com 13
