Polyglot Alchemy : JSR 223 In Action

©2013AmadeusITGroupSA©2012AmadeusITGroupSA
Polyglot alchemy: JSR 223 in action
Fabrice Matrat
Marc Campora

©2013AmadeusITGroupSA
 Marc Campora
 Sr Manager
 Java Middleware
 mcampora@amadeus.com
 @mcampora

 Fabrice Matrat
 System Architect
 Technical Evangelist
 fmatrat@amadeus.com
 @fabricematrat

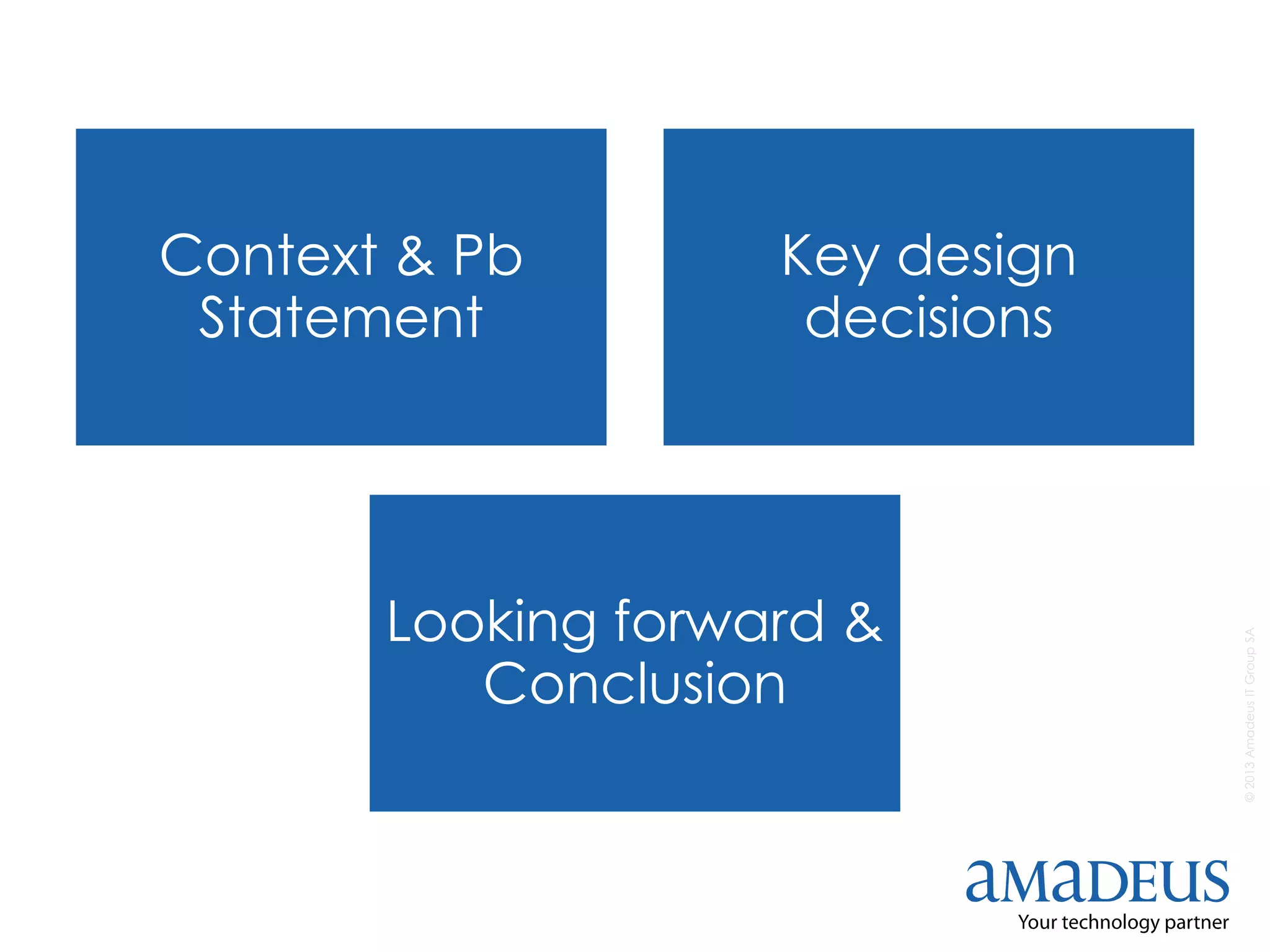

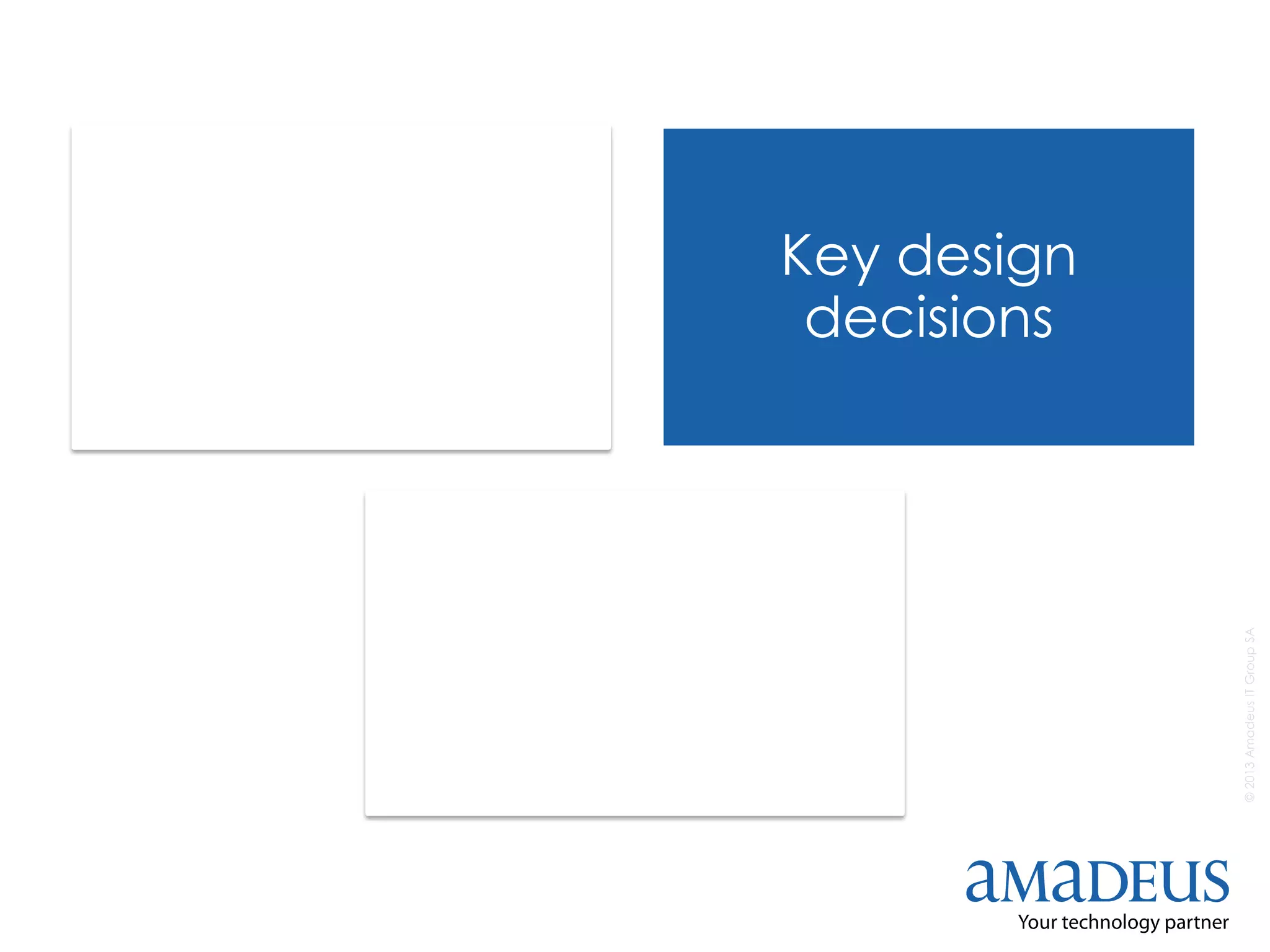

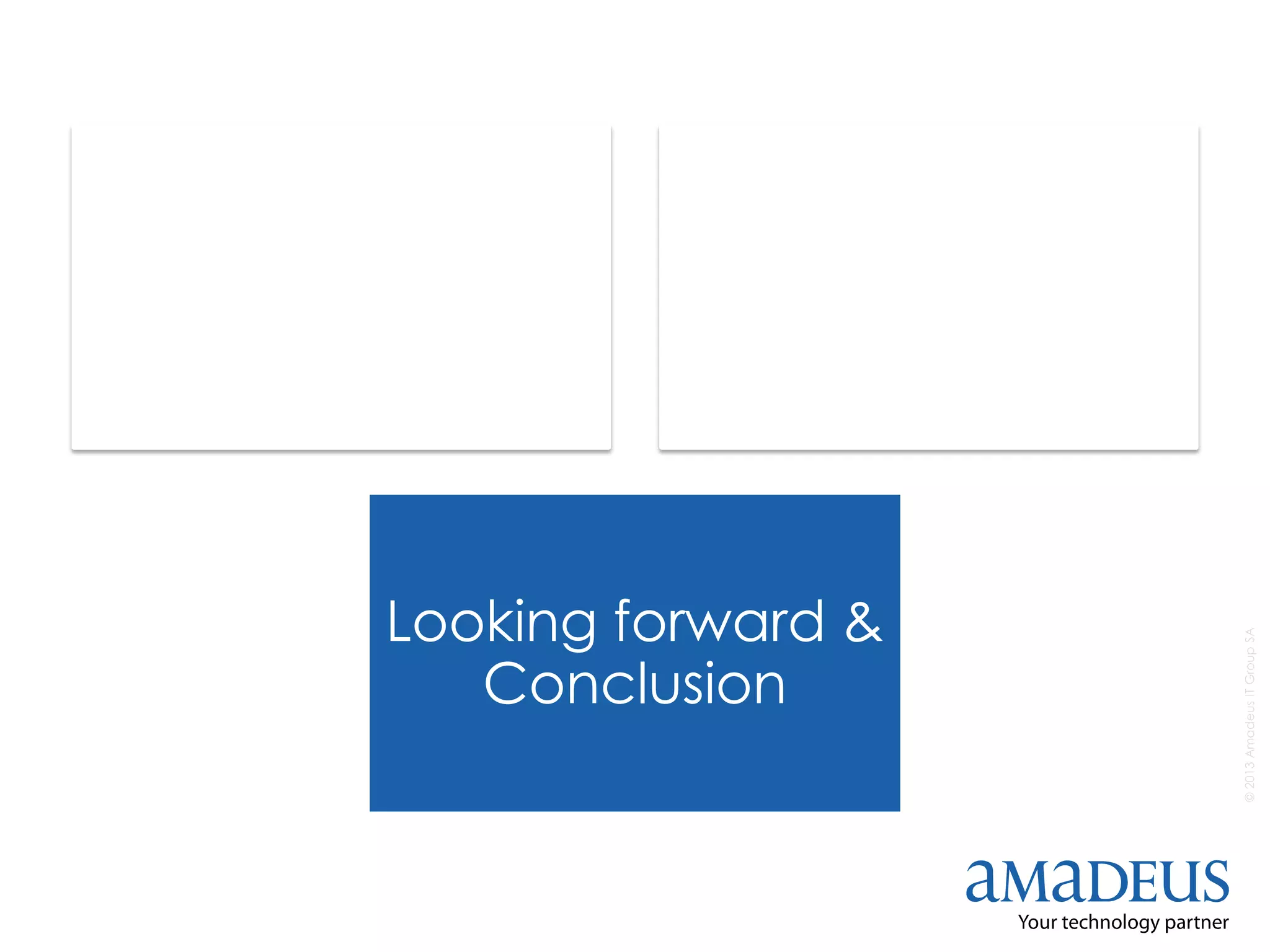

Context & Pb
Statement
Key design
decisions
Looking forward &
Conclusion

Amadeus
 Leading provider of IT solutions for the travel
industry
 Connect Providers (ex. airlines) and Resellers (ex. TAs)
 Provide IT solutions (ex. check-in or inventory system)

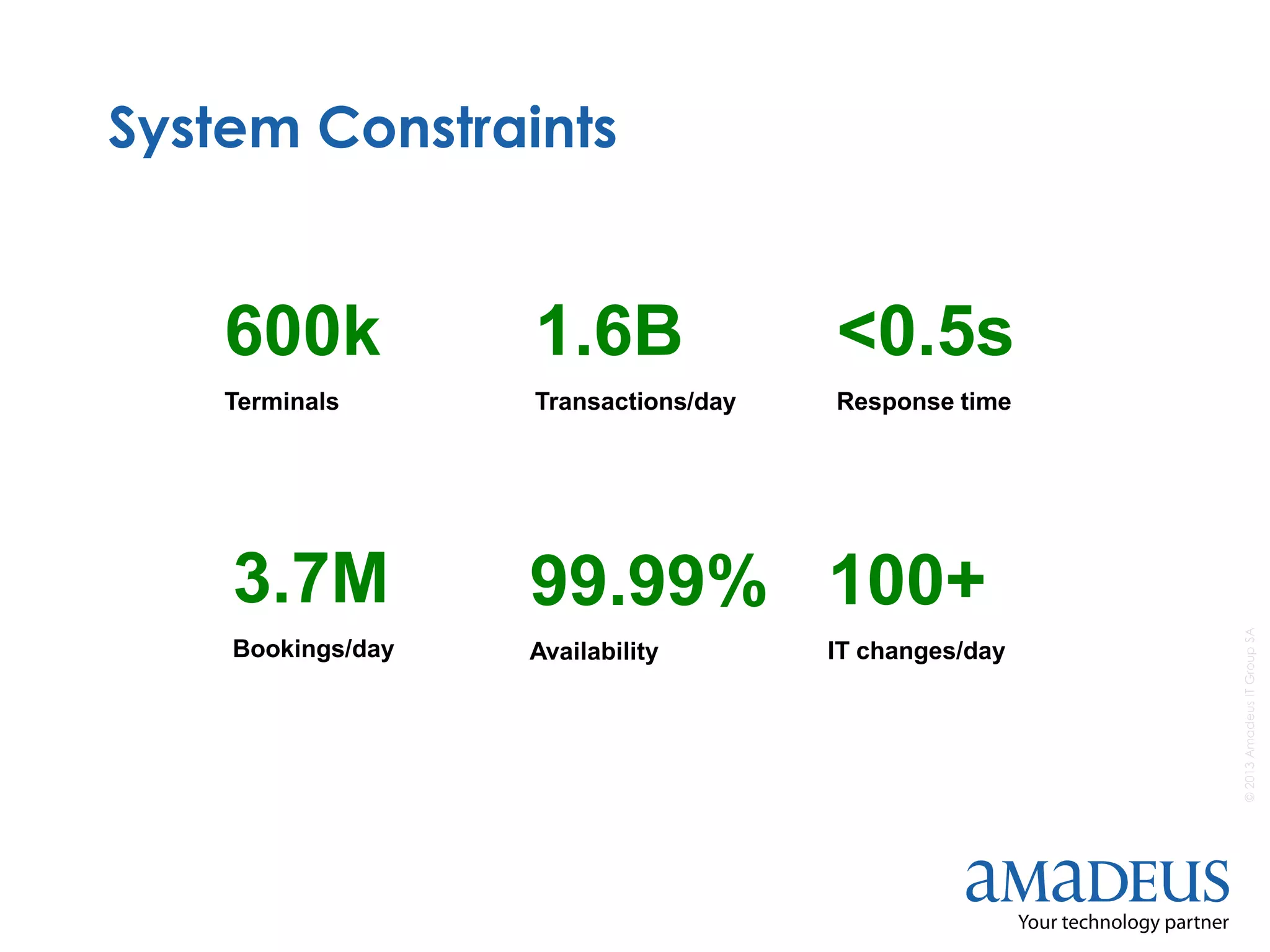

System Constraints
3.7M
Bookings/day
1.6B
Transactions/day
100+
IT changes/day
<0.5s
Response time
99.99%
Availability
600k
Terminals

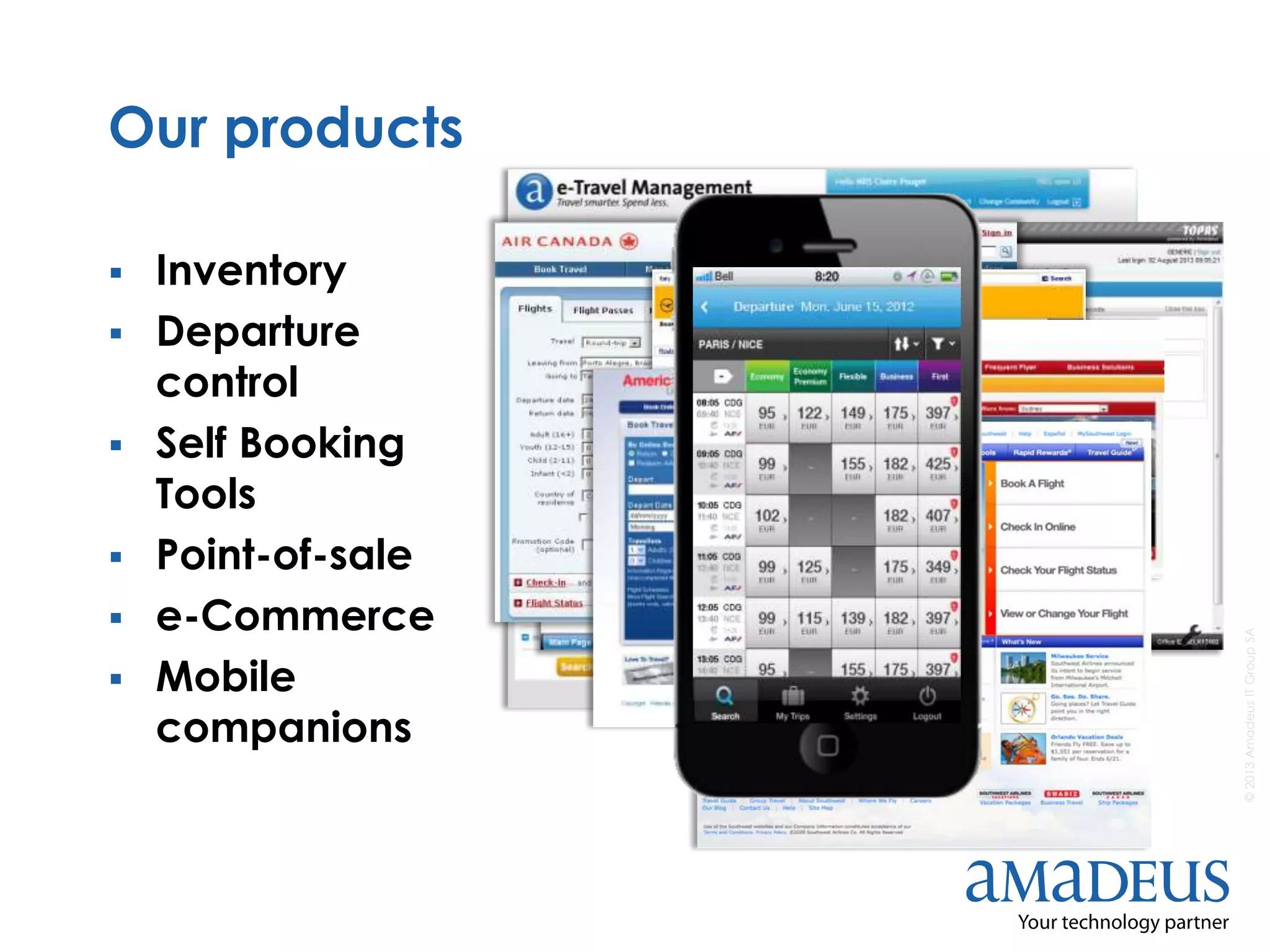

Our products
 Inventory
 Departure
control
 Self Booking
Tools
 Point-of-sale
 e-Commerce
 Mobile
companions

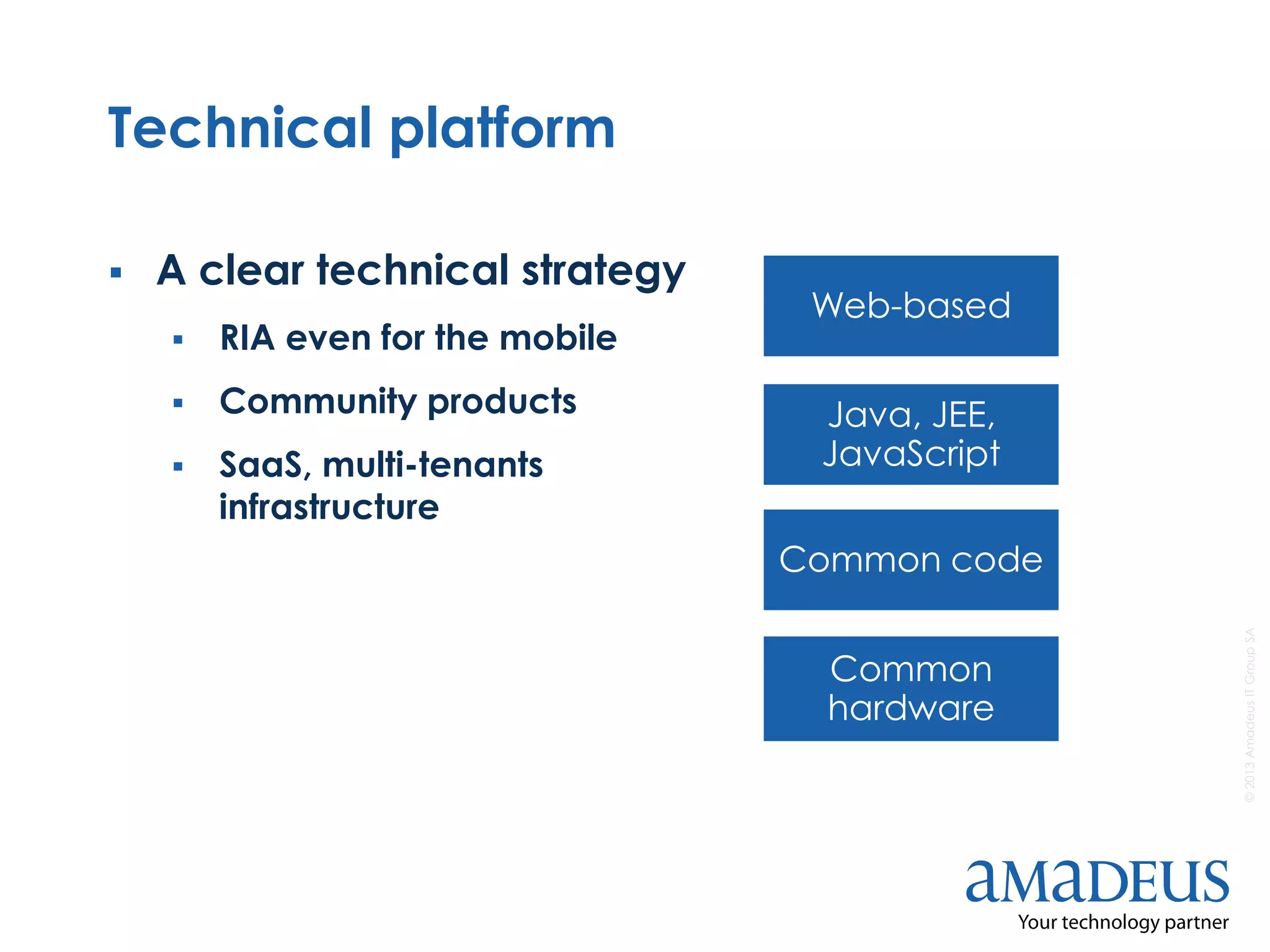

Technical platform
 A clear technical strategy
 RIA even for the mobile
 Community products
 SaaS, multi-tenants
infrastructure
Web-based
Common
hardware
Common code
Java, JEE,
JavaScript

Problem statement
 Community versus specific

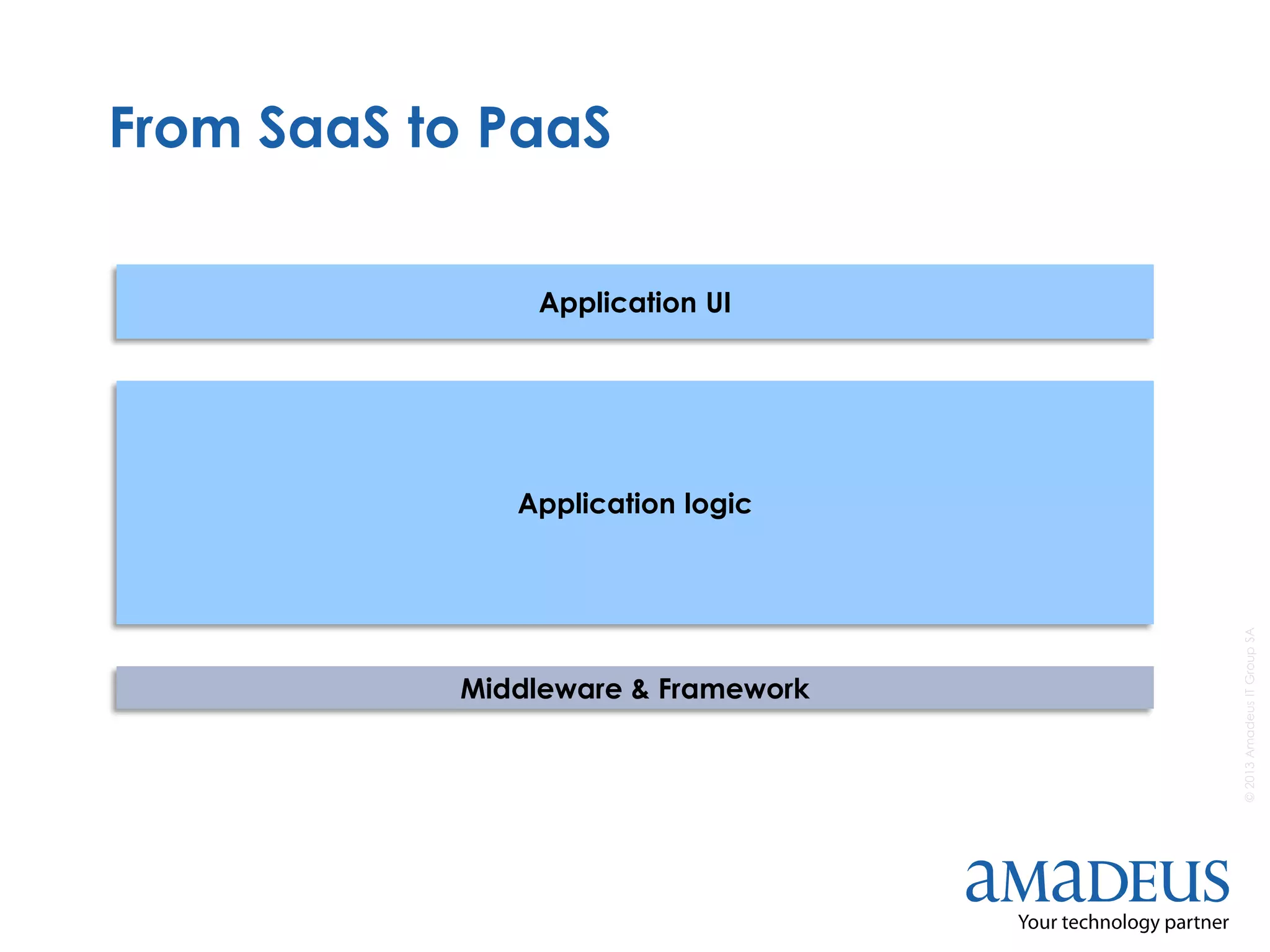

From SaaS to PaaS
Application logic
Middleware & Framework
Application UI

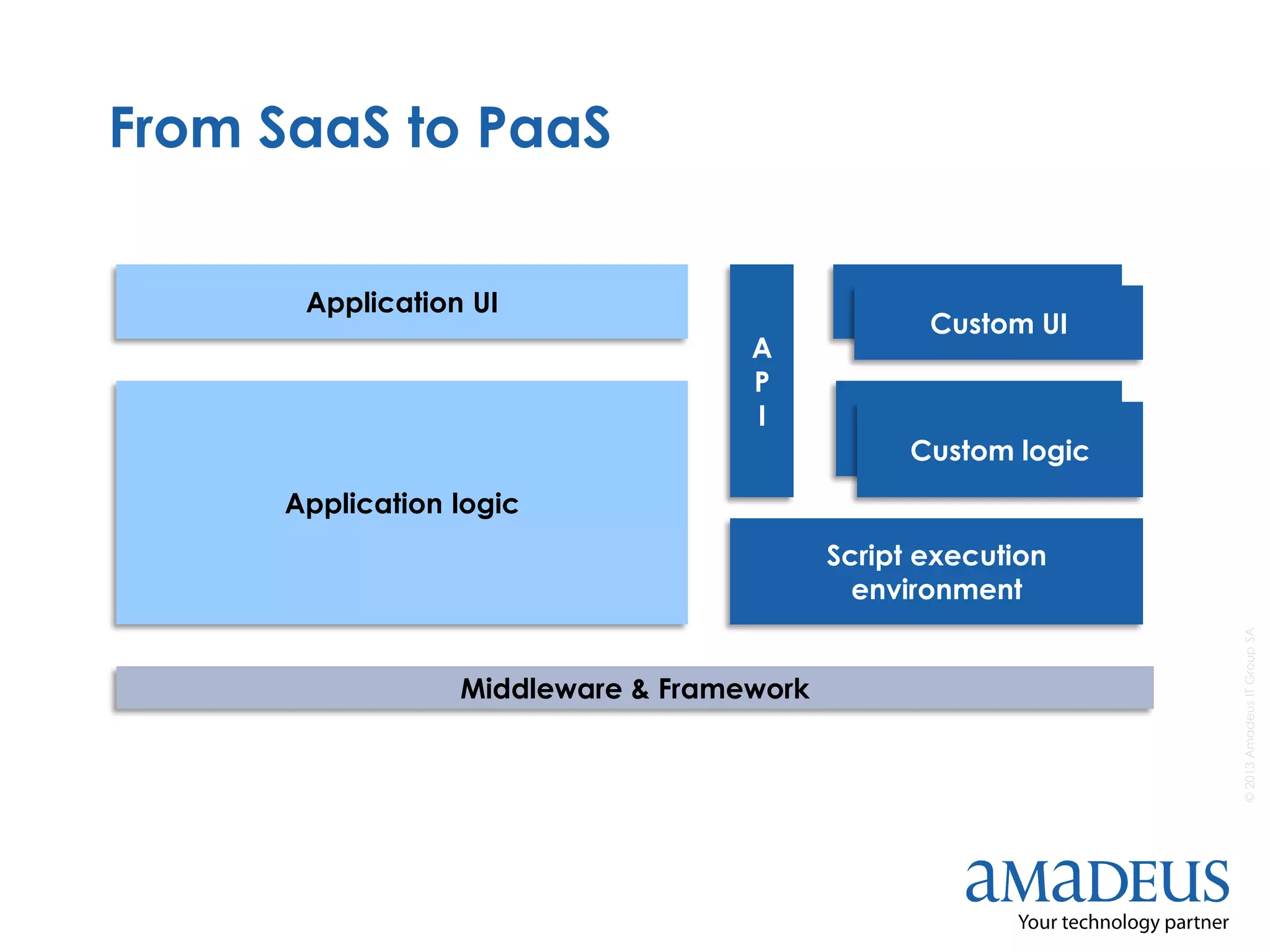

From SaaS to PaaS
Application logic
Script execution
environment
A
P
I
Application UI
Custom logic
Custom UI
Custom UI

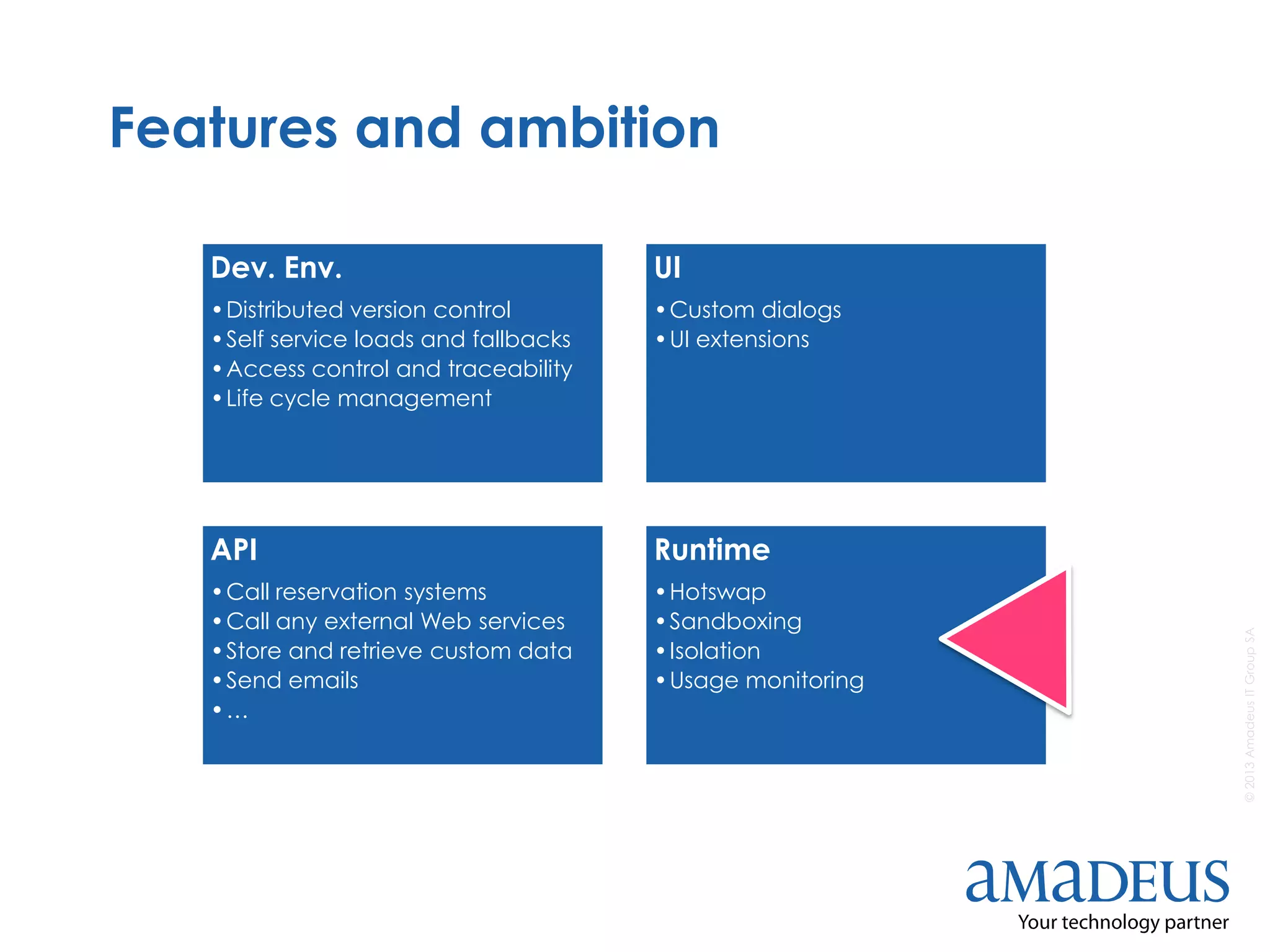

Features and ambition
Dev. Env.
•Distributed version control
•Self service loads and fallbacks
•Access control and traceability
•Life cycle management
UI
•Custom dialogs
•UI extensions
API
•Call reservation systems
•Call any external Web services
•Store and retrieve custom data
•Send emails
•…
Runtime
•Hotswap
•Sandboxing
•Isolation
•Usage monitoring

JSR 223 Sandbox Integration

Scripting on JVM
Application logic
Script execution
environment
A
P
I
Application UI
Script
Script
Script

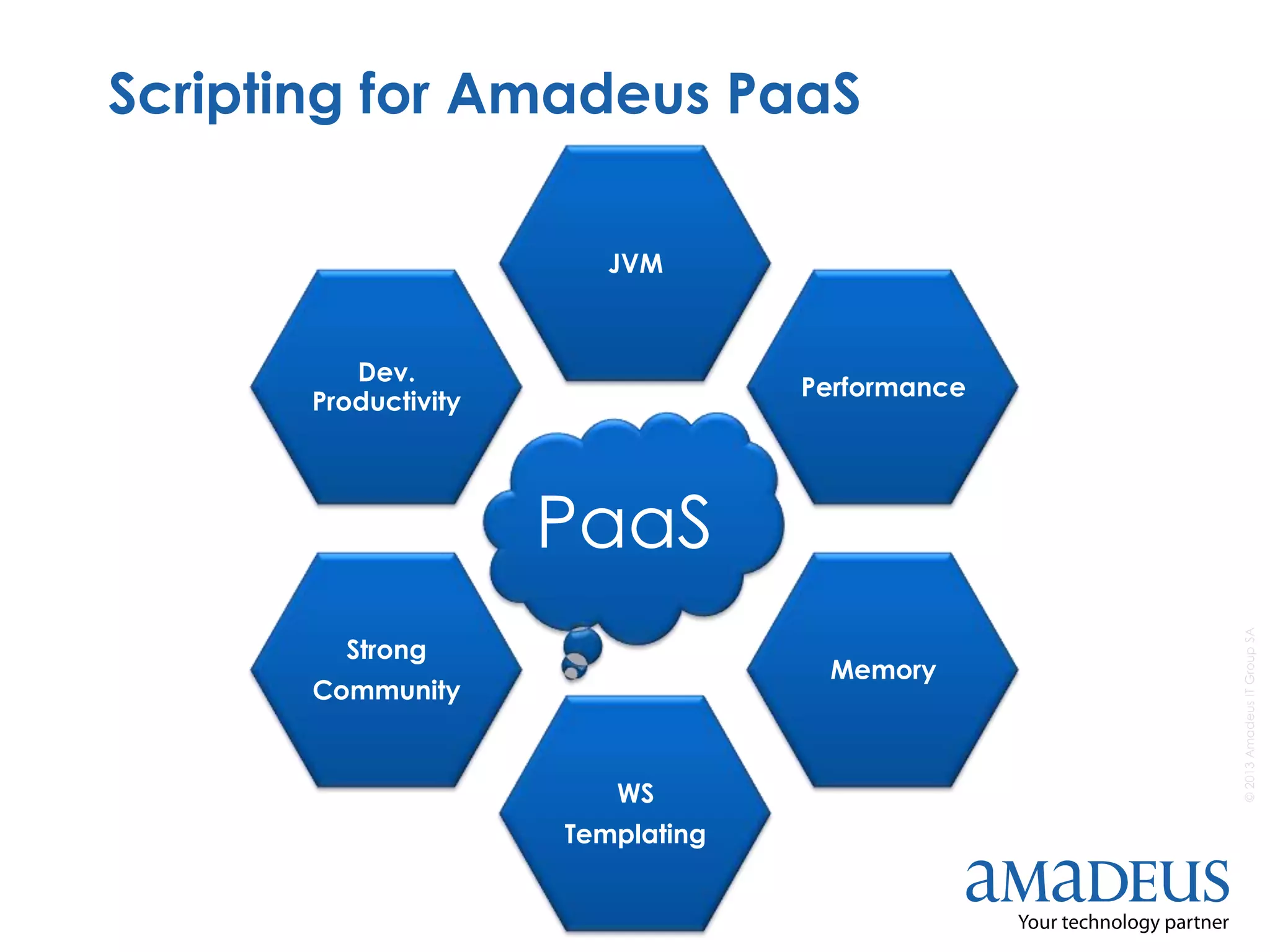

Scripting for Amadeus PaaS
PaaS
JVM
Performance
Memory
WS
Templating
Strong
Community
Dev.
Productivity

Language Choice (2010)
Language
•Java 1.6
•Groovy 1.6
•Jython 2.5
•JRuby 1.4
•Rhino 1.7
Methodology
•Popularity
•Documentation
•Depth-first search
•Fibonacci
•Templating
•WebService

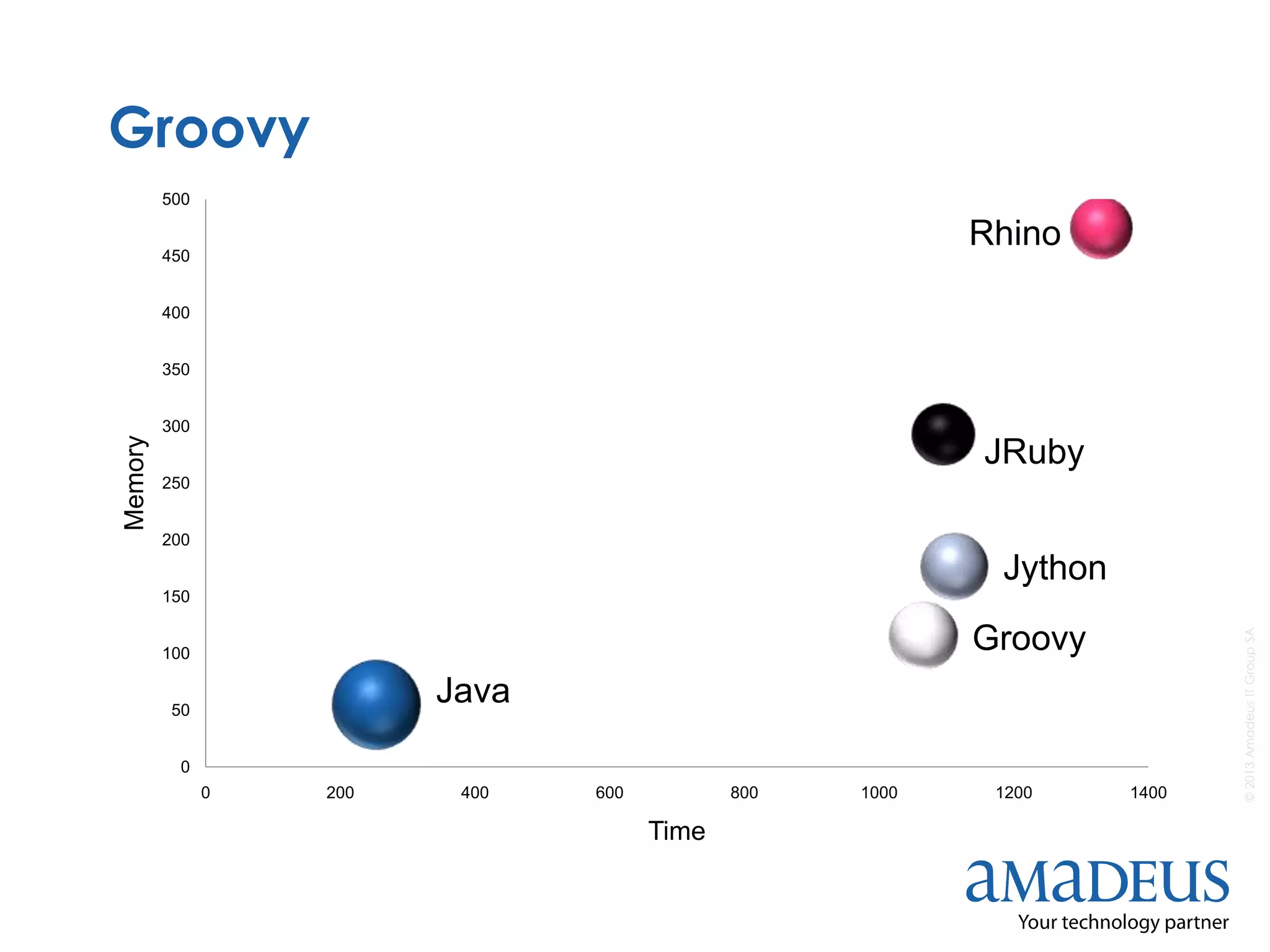

Groovy
Java
Rhino
Groovy
JRuby
Jython
0
50
100
150
200
250
300
350
400
450
500
0 200 400 600 800 1000 1200 1400
Memory
Time

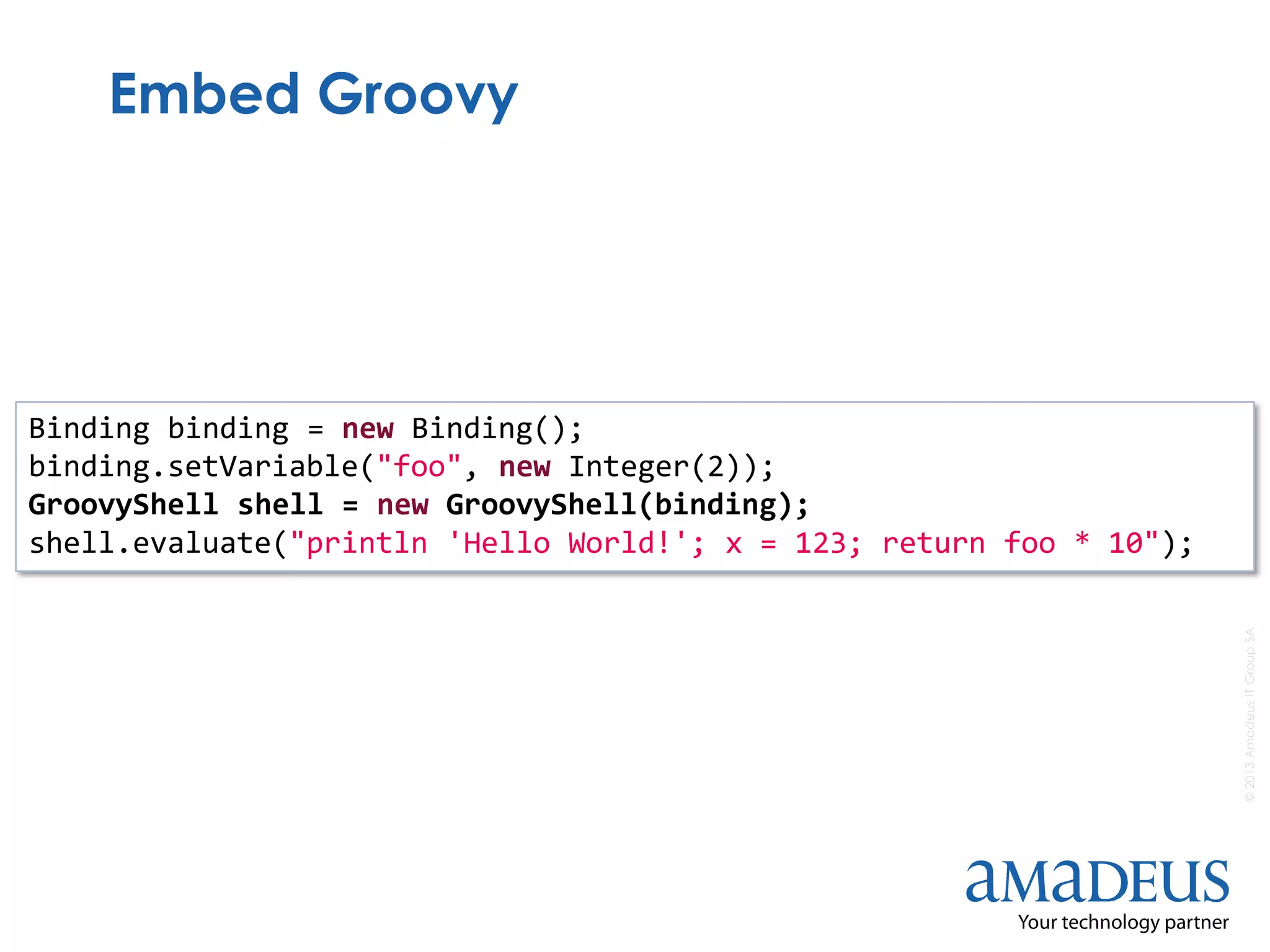

Embed Groovy
Binding binding = new Binding();
binding.setVariable("foo", new Integer(2));
GroovyShell shell = new GroovyShell(binding);
shell.evaluate("println 'Hello World!'; x = 123; return foo * 10");

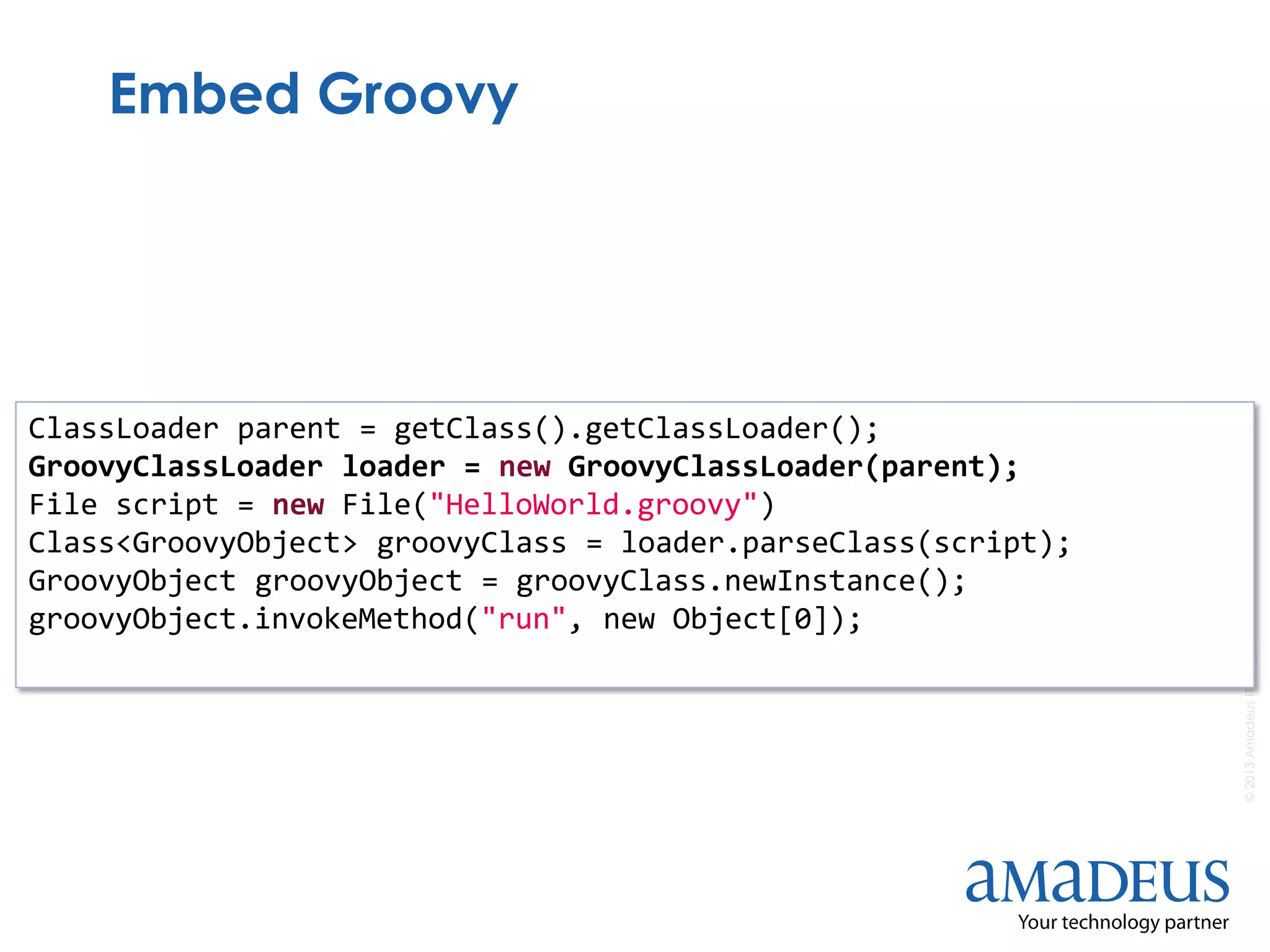

Embed Groovy
ClassLoader parent = getClass().getClassLoader();
GroovyClassLoader loader = new GroovyClassLoader(parent);
File script = new File("HelloWorld.groovy")
Class<GroovyObject> groovyClass = loader.parseClass(script);
GroovyObject groovyObject = groovyClass.newInstance();
groovyObject.invokeMethod("run", new Object[0]);

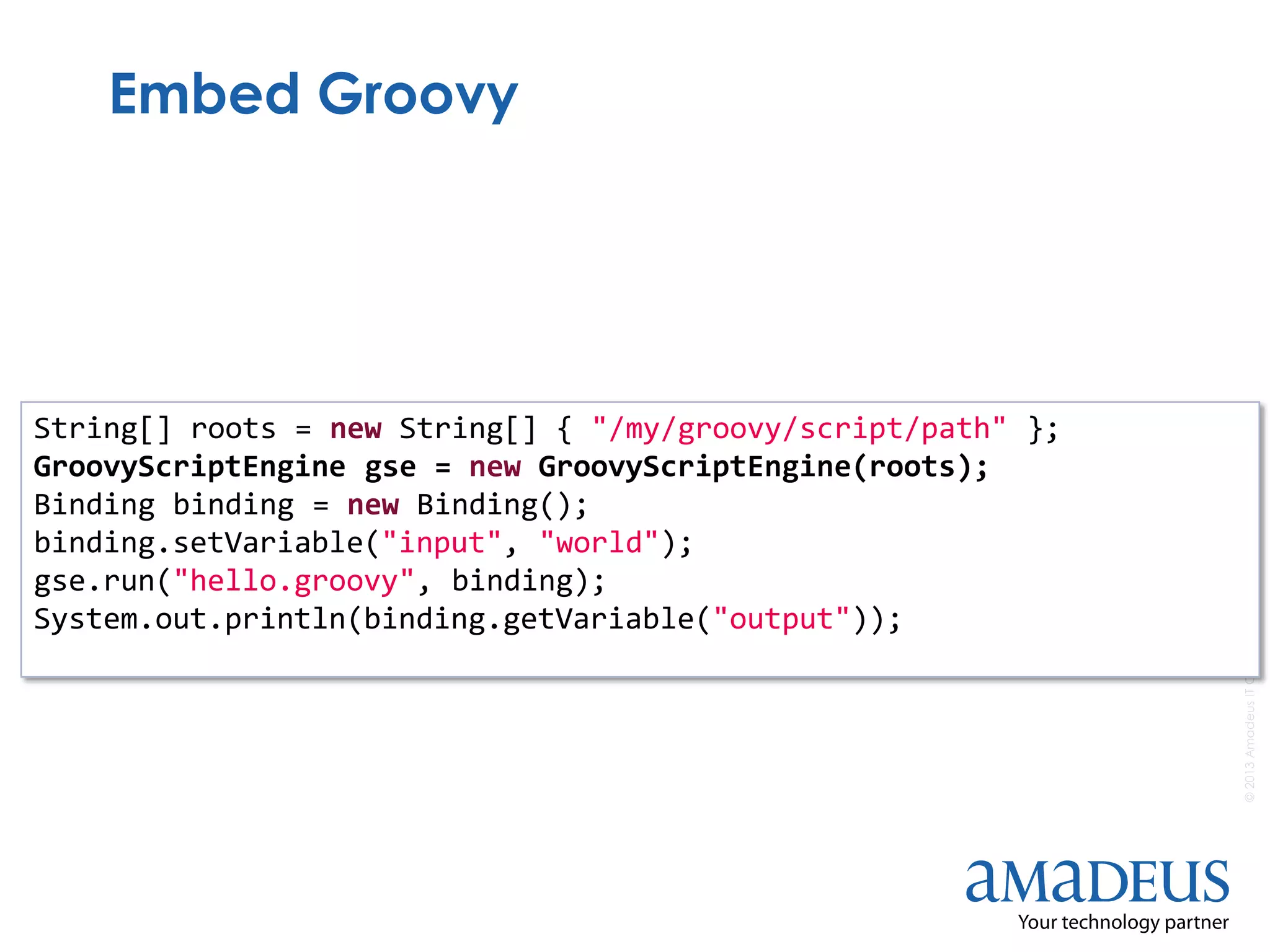

Embed Groovy
String[] roots = new String[] { "/my/groovy/script/path" };
GroovyScriptEngine gse = new GroovyScriptEngine(roots);
binding.setVariable("input", "world");
gse.run("hello.groovy", binding);
System.out.println(binding.getVariable("output"));

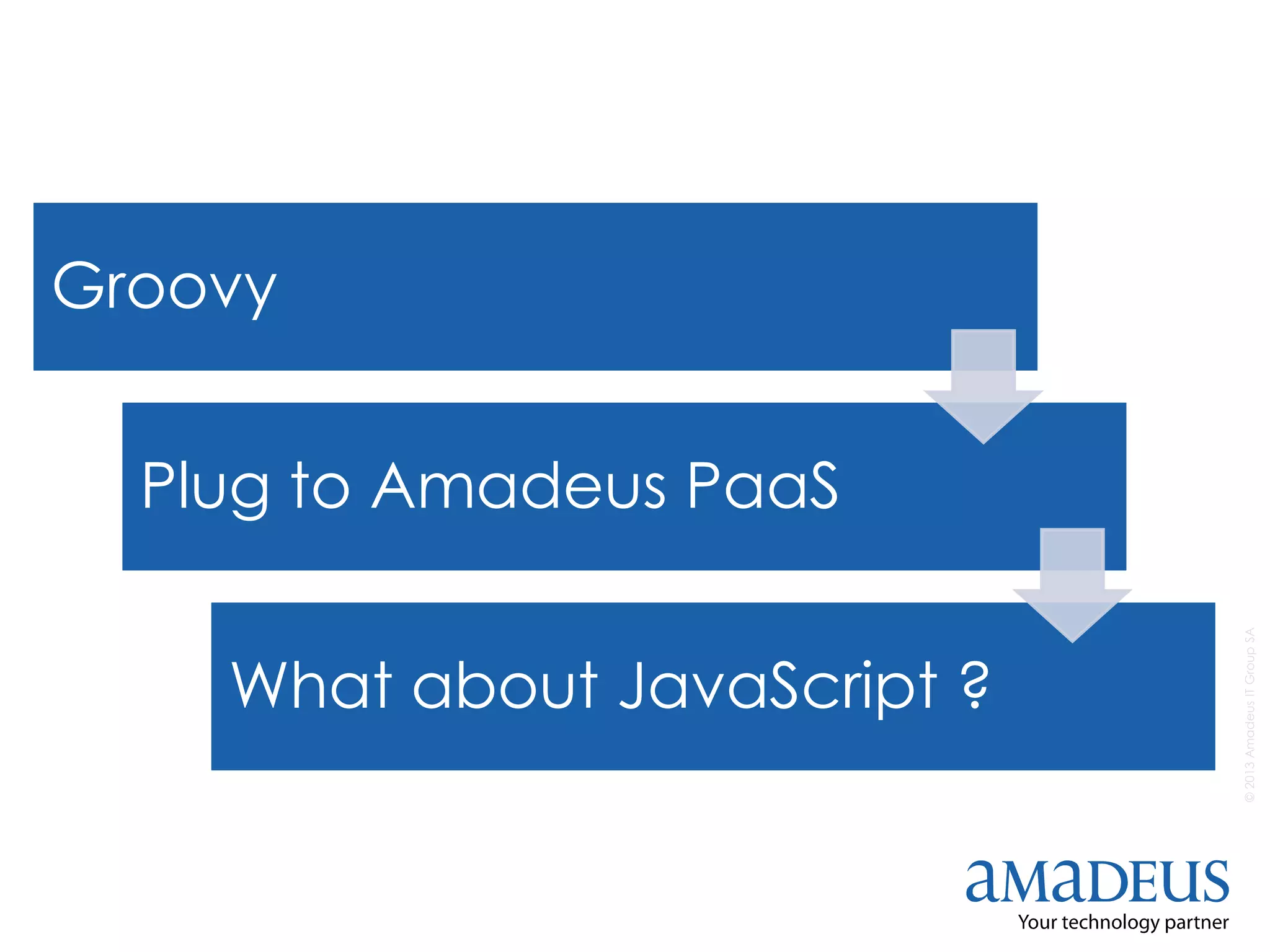

Groovy
Plug to Amadeus PaaS
What about JavaScript ?

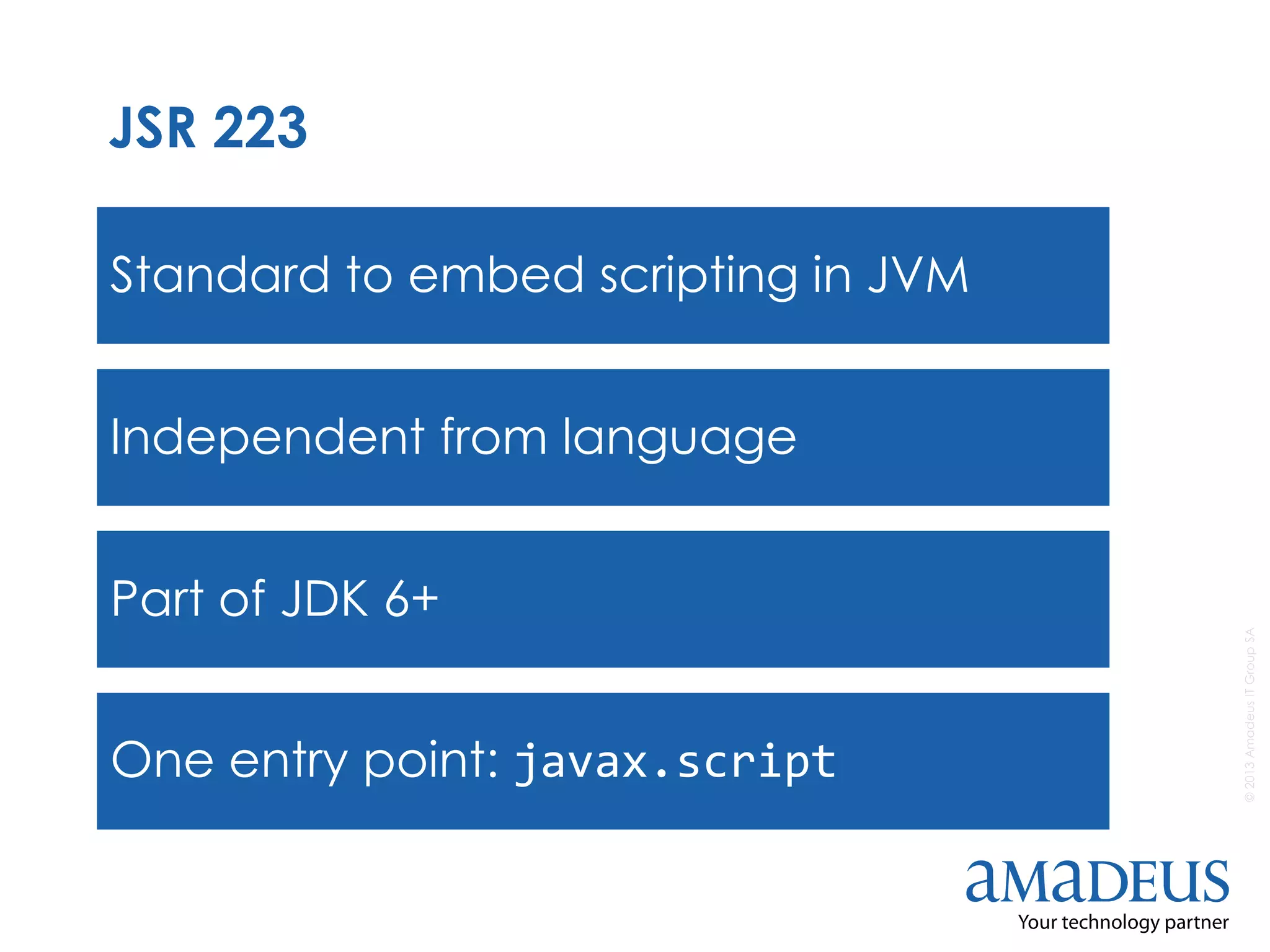

JSR 223
Standard to embed scripting in JVM
Independent from language
Part of JDK 6+
One entry point: javax.script

Groovy vs. JSR 223
binding.setVariable("foo", new Integer(2));
GroovyShell shell = new GroovyShell(binding);
shell.evaluate("println 'Hello World!'; x = 123; return foo * 10");
ScriptEngineManager mgr = new ScriptEngineManager();
ScriptEngine engine= mgr.getEngineByName("groovy");
Bindigs bindings = engine.createBindings();
bindings.put("foo", new Integer(2));
engine.eval("println 'Hello World!'; x = 123; return foo *
10", bindings);

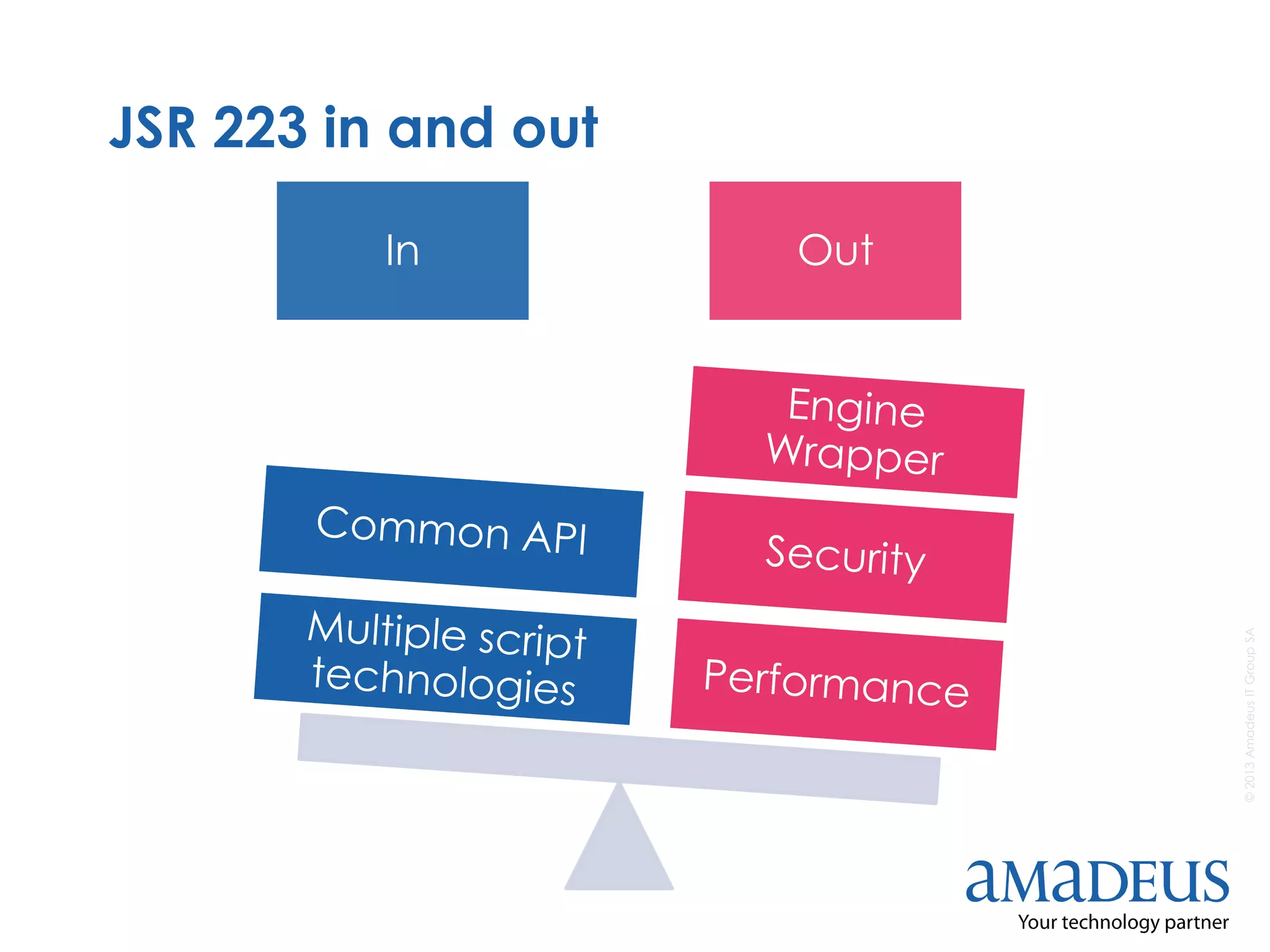

JSR 223 in and out
In Out

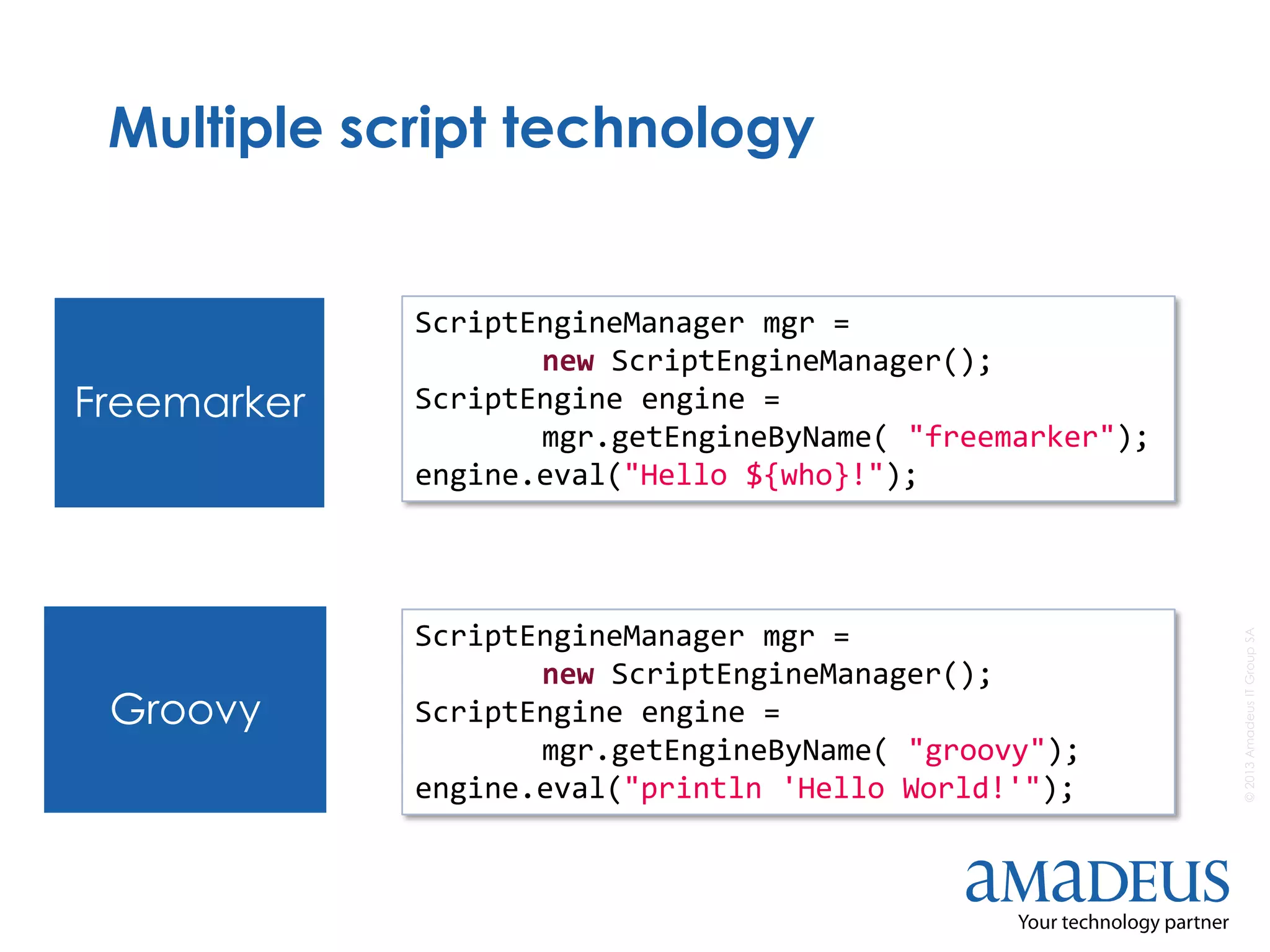

Multiple script technology
Freemarker
Groovy
ScriptEngineManager mgr =
new ScriptEngineManager();
ScriptEngine engine =
mgr.getEngineByName( "groovy");
engine.eval("println 'Hello World!'");
ScriptEngineManager mgr =
new ScriptEngineManager();
ScriptEngine engine =
mgr.getEngineByName( "freemarker");
engine.eval("Hello ${who}!");

Common API
Interface Description
ScriptEngine Main wrapper
ScriptEngineFactory Factory for ScriptEngine
Compilable
ScriptEngine which contains methods
to compile script
Invocable
ScriptEngine whose methods allow
scripts to be executed.
Bindings
A mapping of key/value pairs, all of
whose keys are Strings.
ScriptContext Context
Classes Description
ScriptEngineManager
Discovery and instantiation
mechanism for ScriptEngine
AbstractScriptEngine Super Class
CompiledScript Store results of compilations.
SimpleBindings HashMap bindings
SimpleScriptContext Simple ScriptContext.

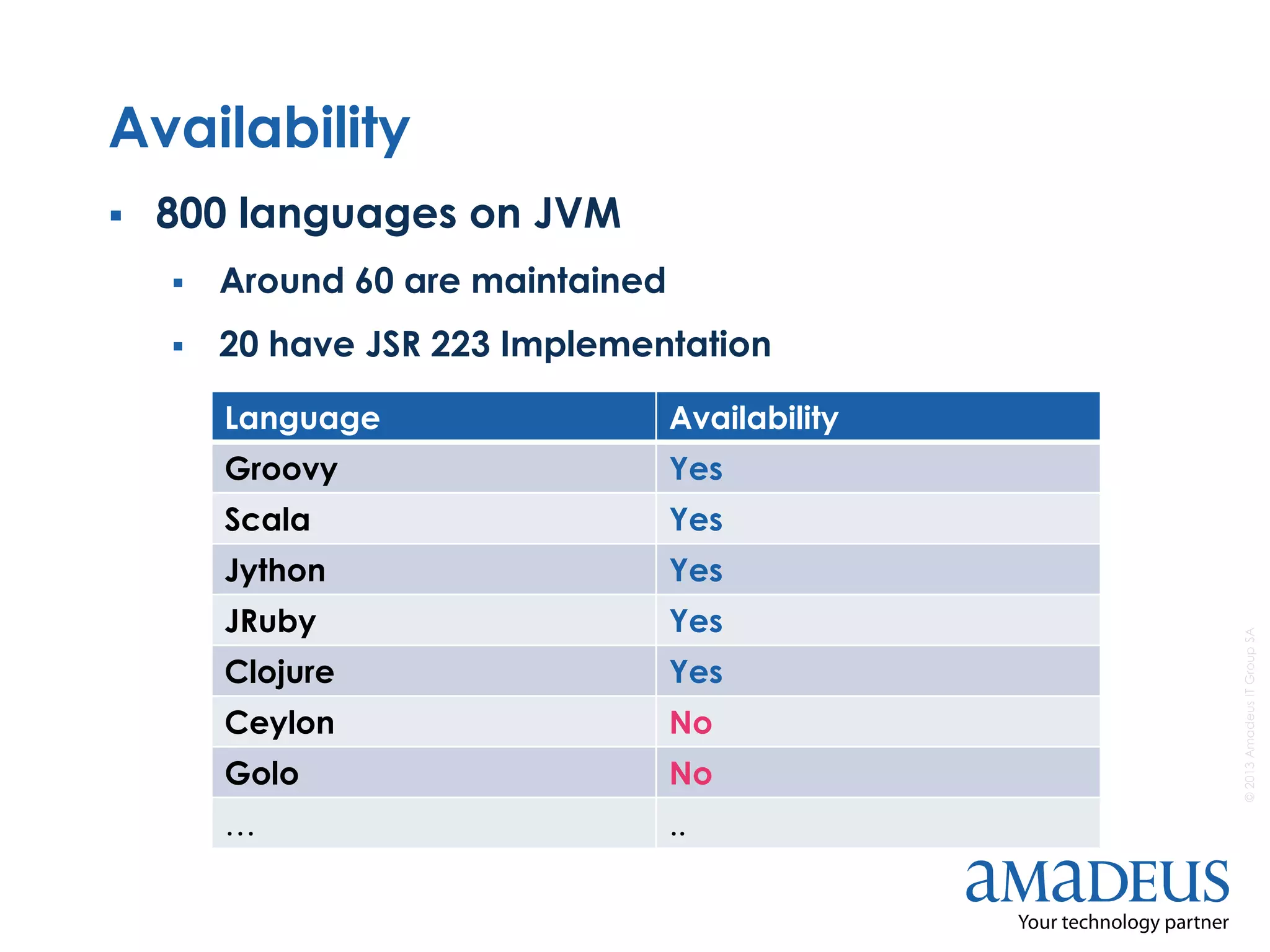

Availability
 800 languages on JVM
 Around 60 are maintained
 20 have JSR 223 Implementation
Language Availability
Groovy Yes
Scala Yes
Jython Yes
JRuby Yes
Clojure Yes
Ceylon No
Golo No
… ..

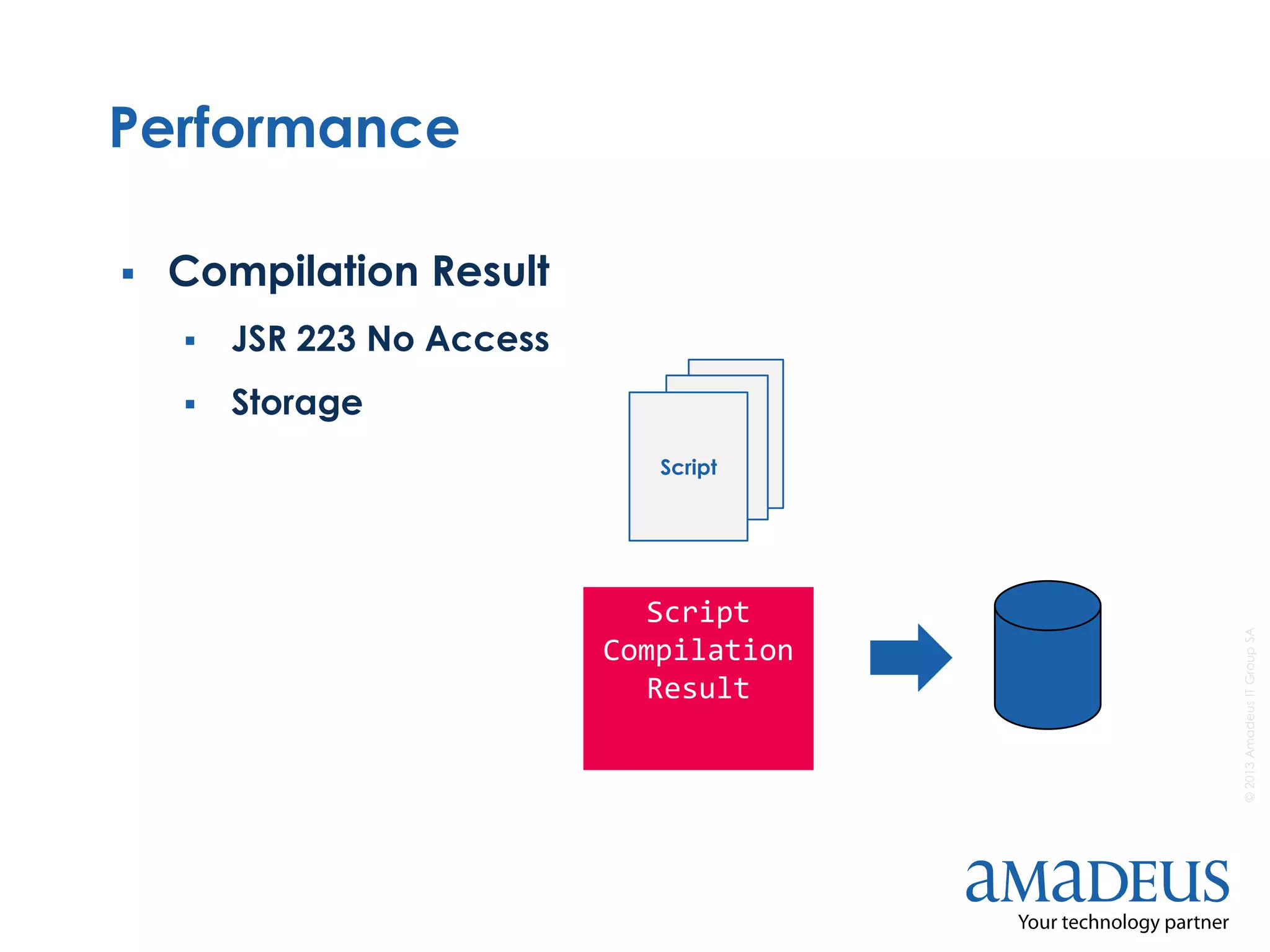

Performance
 Compilation Result
 JSR 223 No Access
 Storage
Script
Compilation
Result
Script
Script
Script

 Cache
Performance
Byte
Code
Custom
classloader
Cache

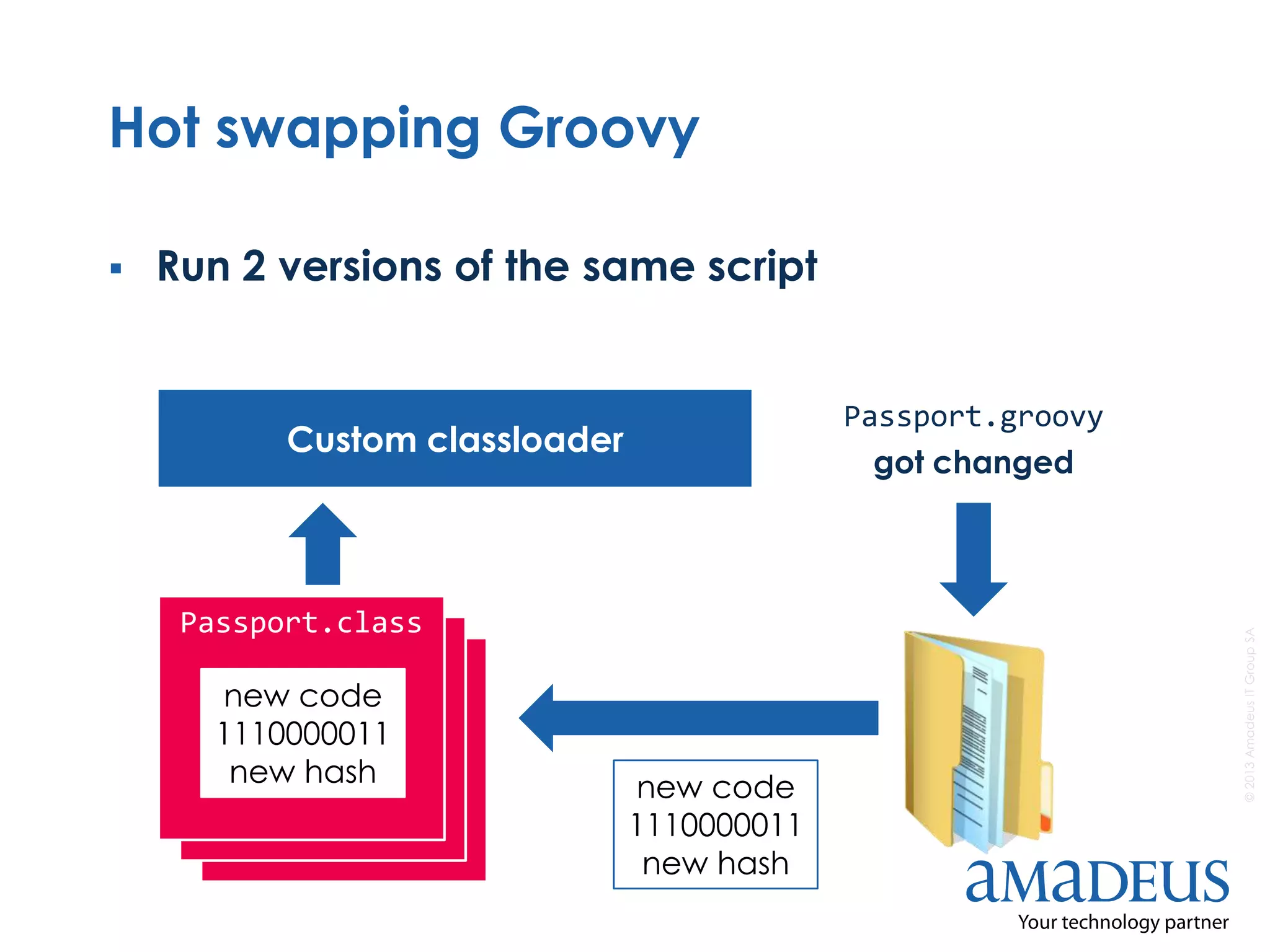

Hot swapping Groovy
 Run 2 versions of the same script
Passport.groovy
got changed
Passport.class
new code
1110000011
new hash
new code
1110000011
new hash
Custom classloader

 Script in JVM sharing platform and resources
Sandbox

 Bad things can happen
 Consume resources (CPU, disk, threads)
 Java and Amadeus API is available
Sandbox
java.lang.System.exit(1)

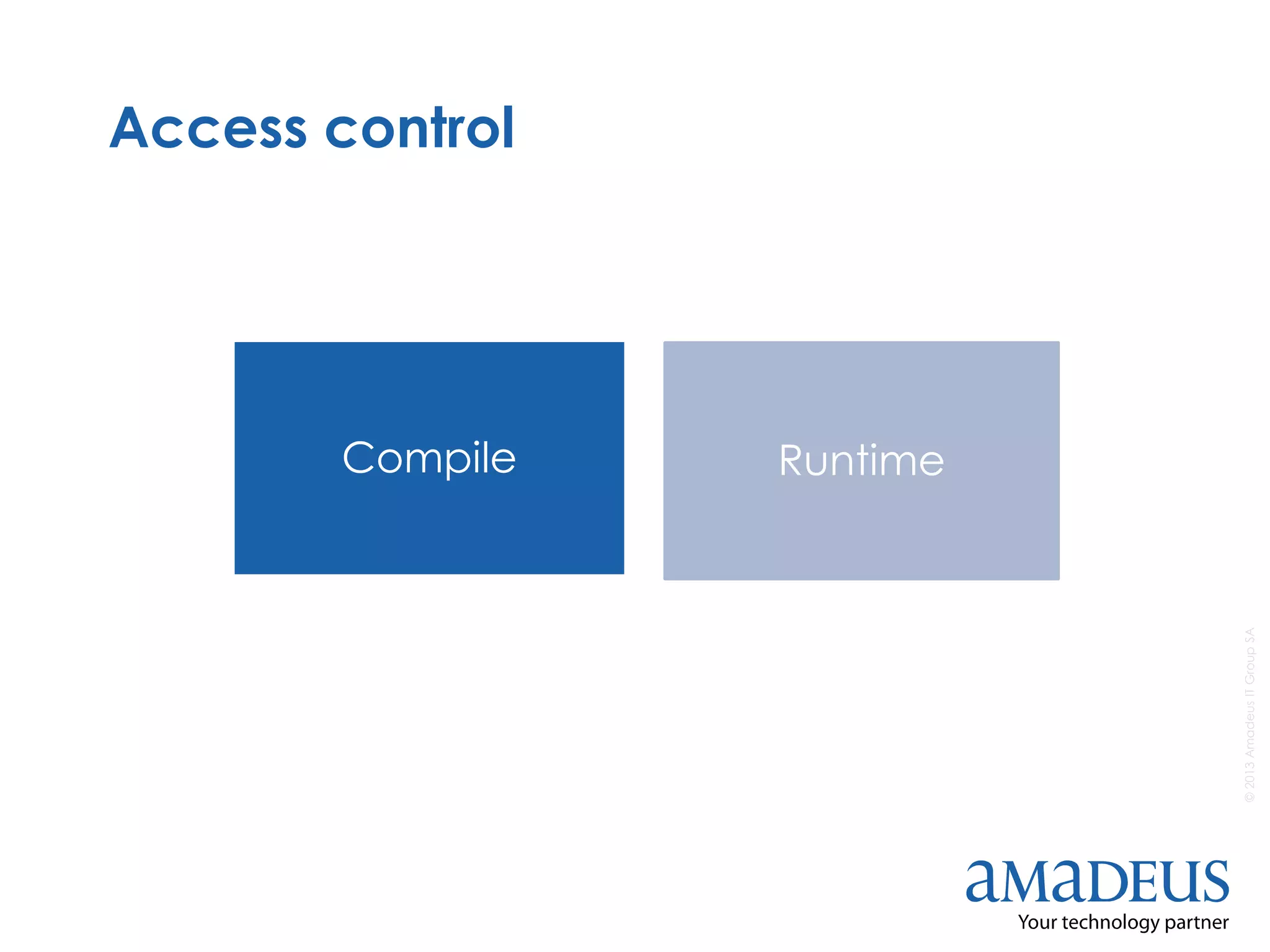

Access control
Compile Runtime

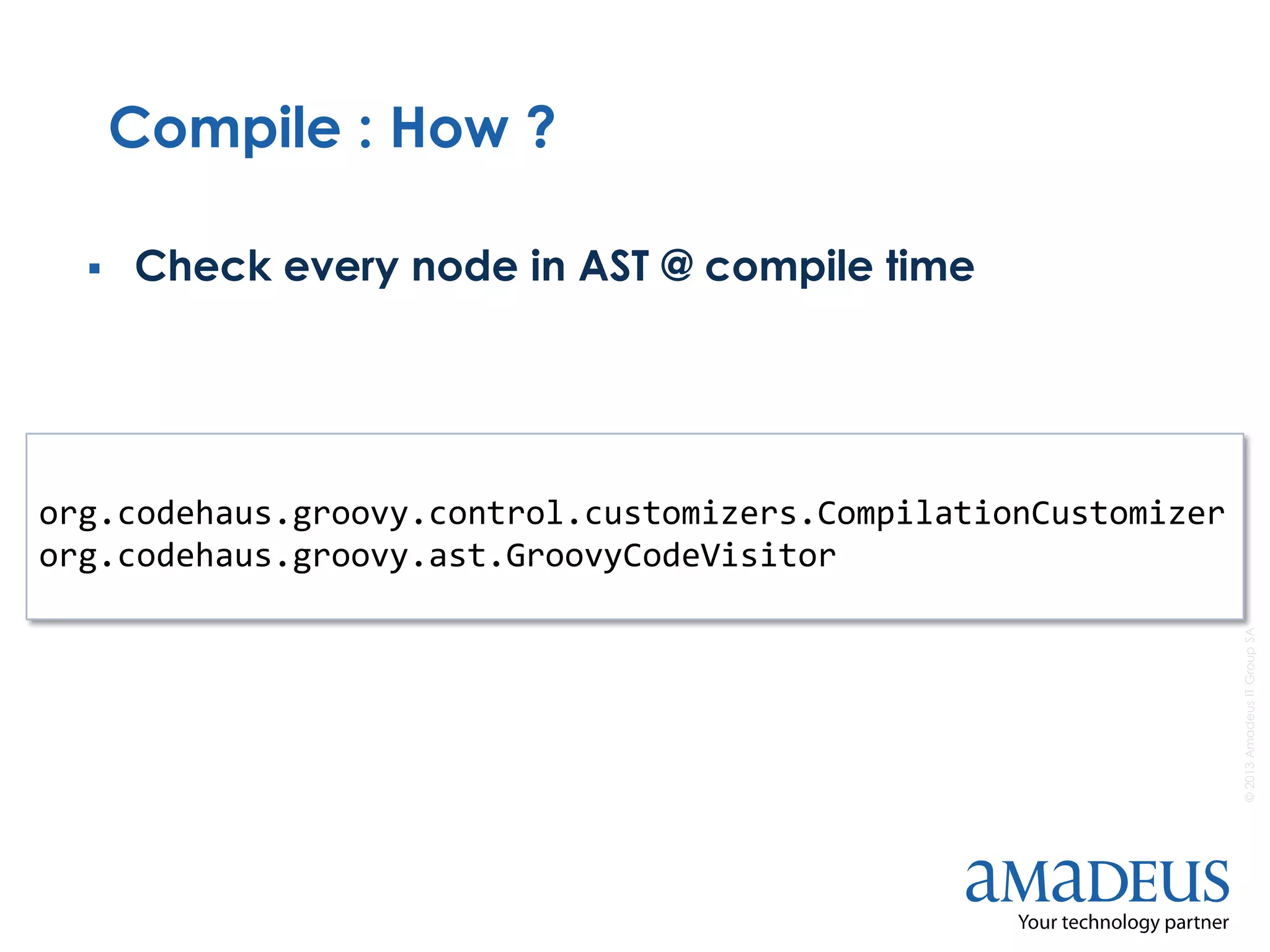

Compile : How ?
 Check every node in AST @ compile time
org.codehaus.groovy.control.customizers.CompilationCustomizer
org.codehaus.groovy.ast.GroovyCodeVisitor

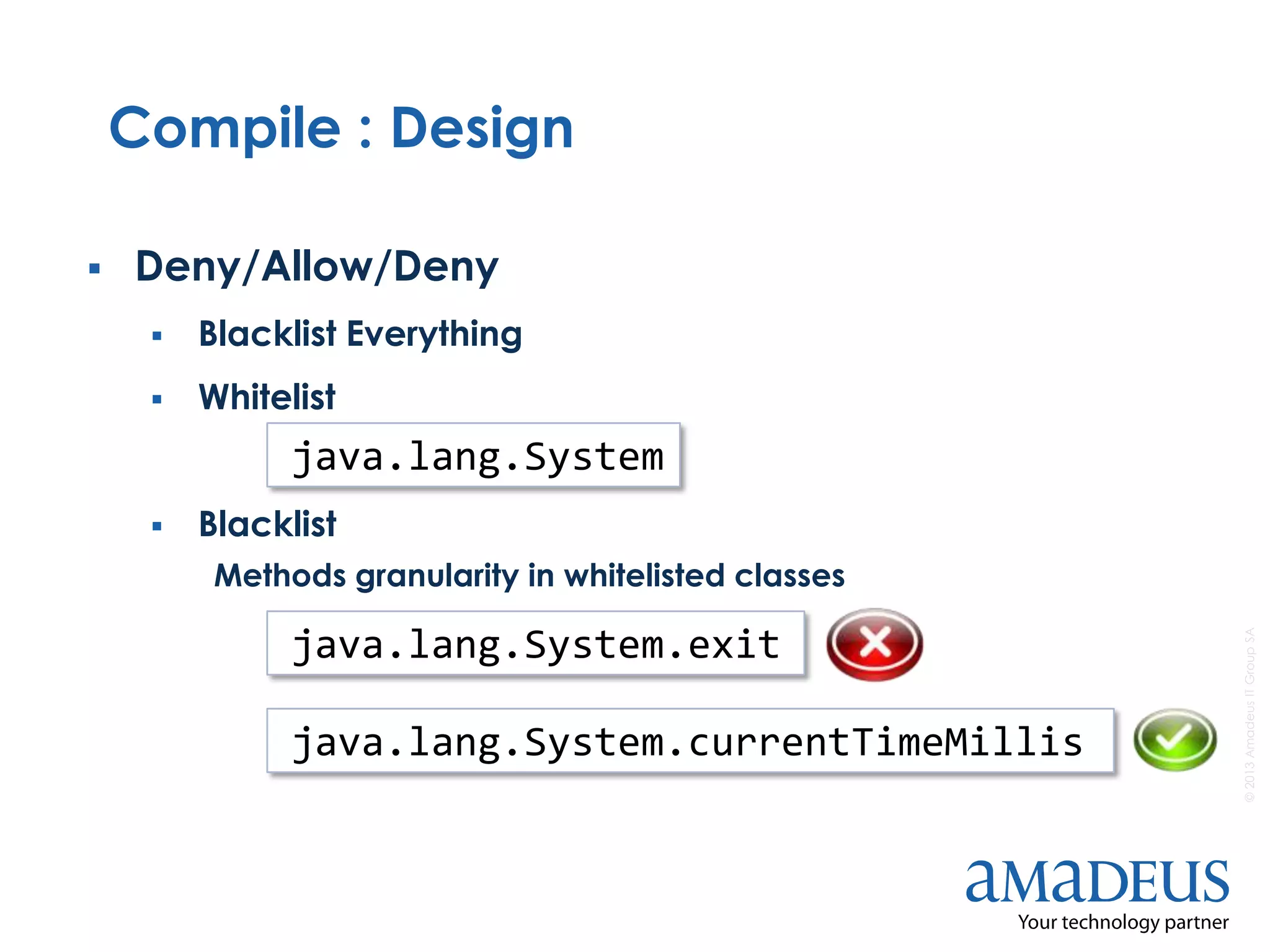

Compile : Design
 Deny/Allow/Deny
 Blacklist Everything
 Whitelist
 Blacklist
Methods granularity in whitelisted classes
java.lang.System
java.lang.System.exit
java.lang.System.currentTimeMillis

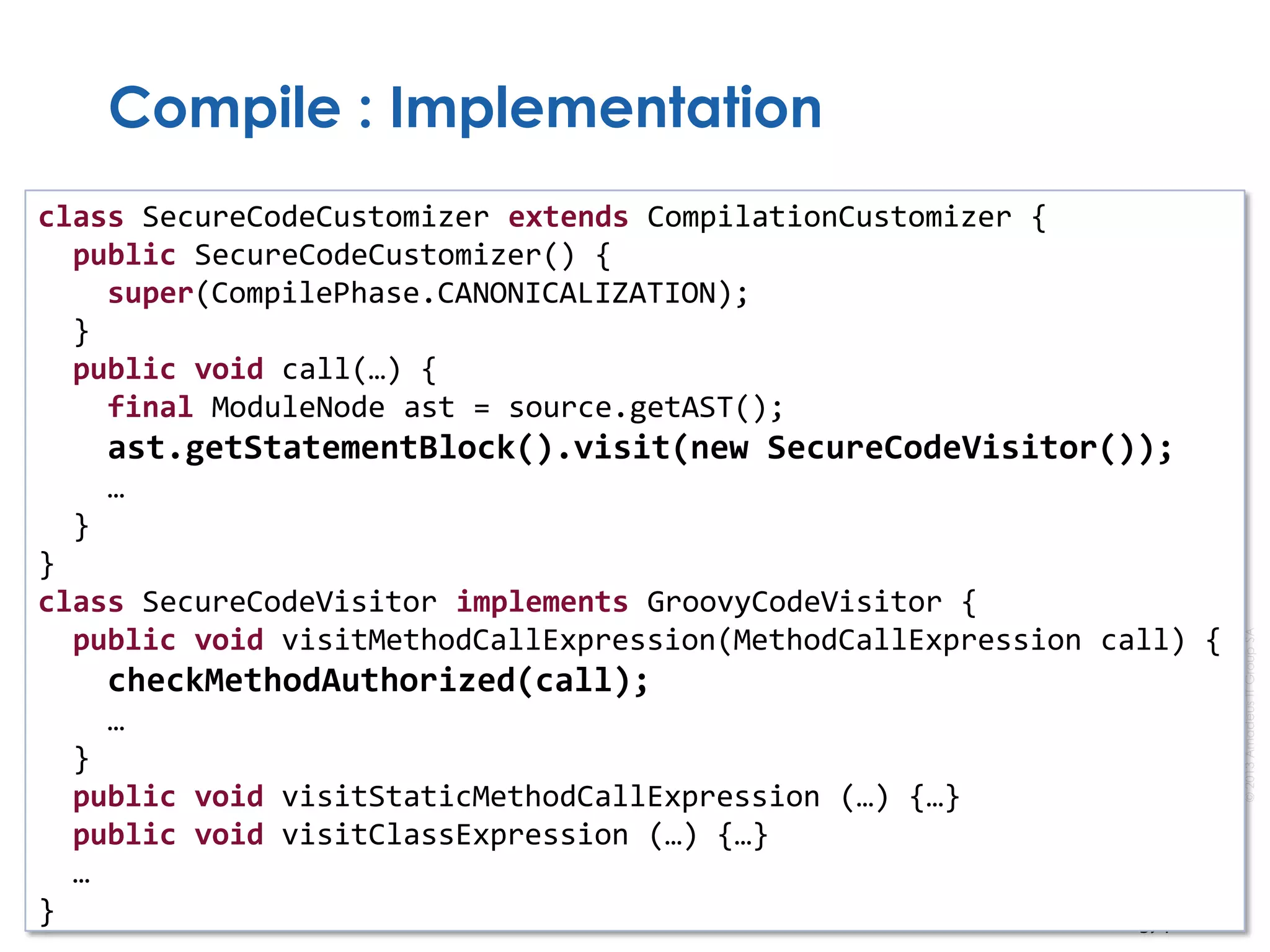

Compile : Implementation
class SecureCodeCustomizer extends CompilationCustomizer {
public SecureCodeCustomizer() {
super(CompilePhase.CANONICALIZATION);
}
public void call(…) {
final ModuleNode ast = source.getAST();
ast.getStatementBlock().visit(new SecureCodeVisitor());
…
}
}
class SecureCodeVisitor implements GroovyCodeVisitor {
public void visitMethodCallExpression(MethodCallExpression call) {
checkMethodAuthorized(call);
…
}
public void visitStaticMethodCallExpression (…) {…}
public void visitClassExpression (…) {…}
…
}

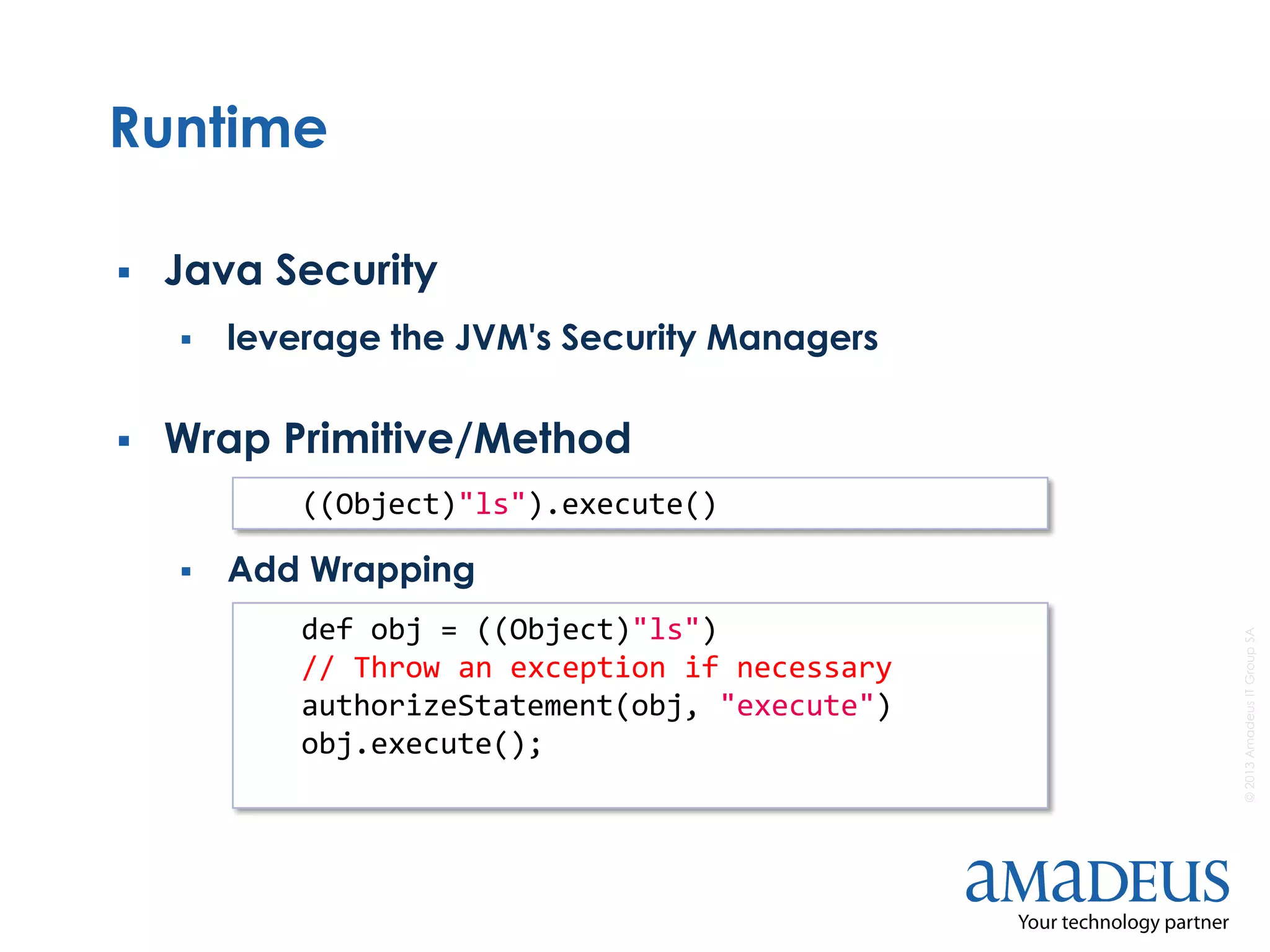

Runtime
 Java Security
 leverage the JVM's Security Managers
 Wrap Primitive/Method
 Add Wrapping
((Object)"ls").execute()
def obj = ((Object)"ls")
// Throw an exception if necessary
authorizeStatement(obj, "execute")
obj.execute();

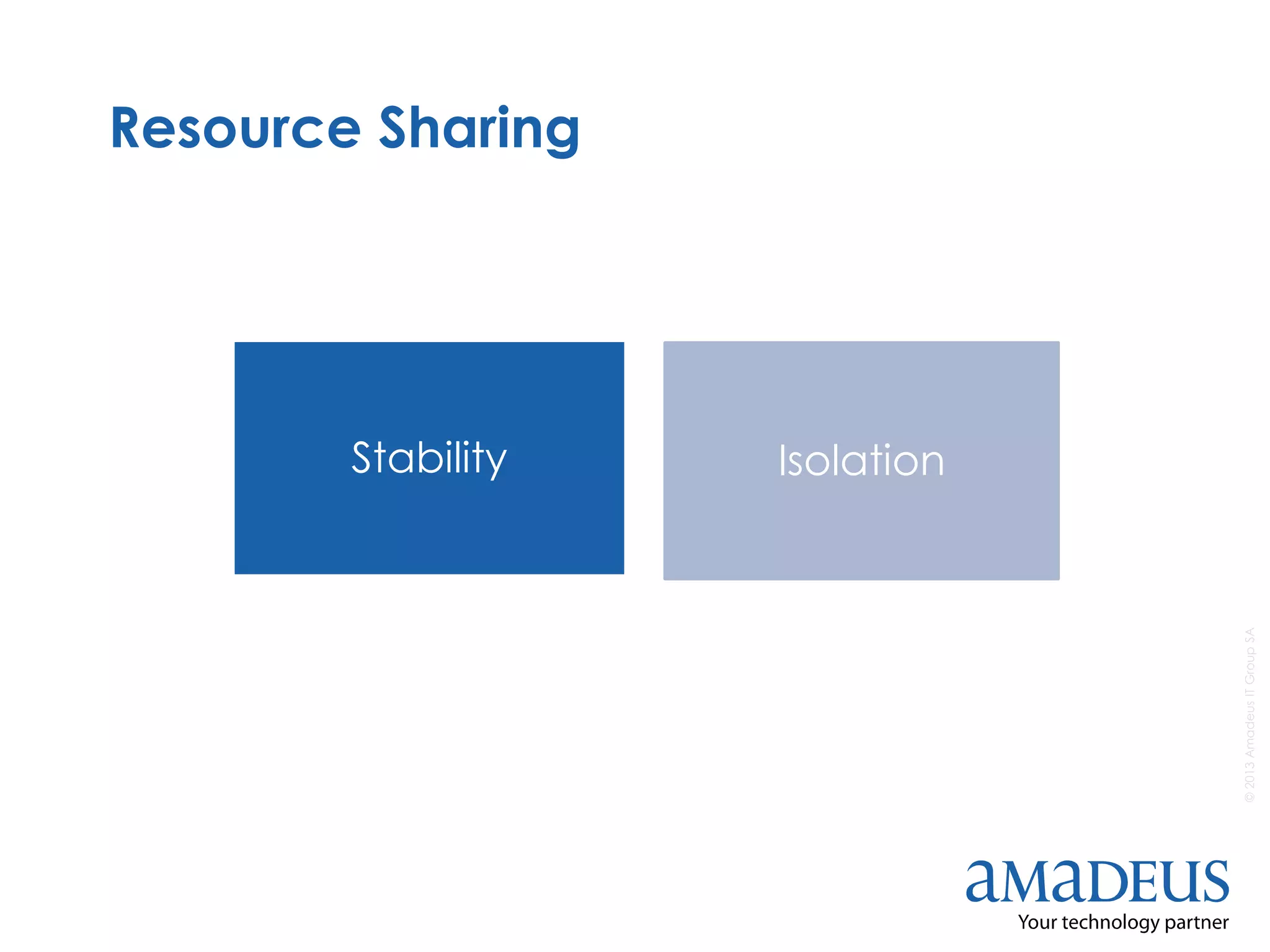

Resource Sharing
Stability Isolation

Sandbox code (for stability)
 Timeout enforcement
 Protection against infinite loops and other patterns
 Injected @ compile time via AST transformation
@groovy.transform.TimedInterrupt(
value = 10L,
unit = TimeUnit.SECONDS
)
def config = new CompilerConfiguration()
def customizer = new ASTTransformationCustomizer(
[value:10L, unit:TimeUnit.SECONDS],
TimedInterrupt)
config.addCompilationCustomizers(customizer)

We are not alone
 Oracle Application Developer Framework
 https://github.com/sjurgemeyer/GR8ConfUS2013/tree/
master/JimDriscoll
 Jenkins
 http://kohsuke.org/2012/04/27/groovy-
secureastcustomizer-is-harmful/
 Call to the community for improvement !

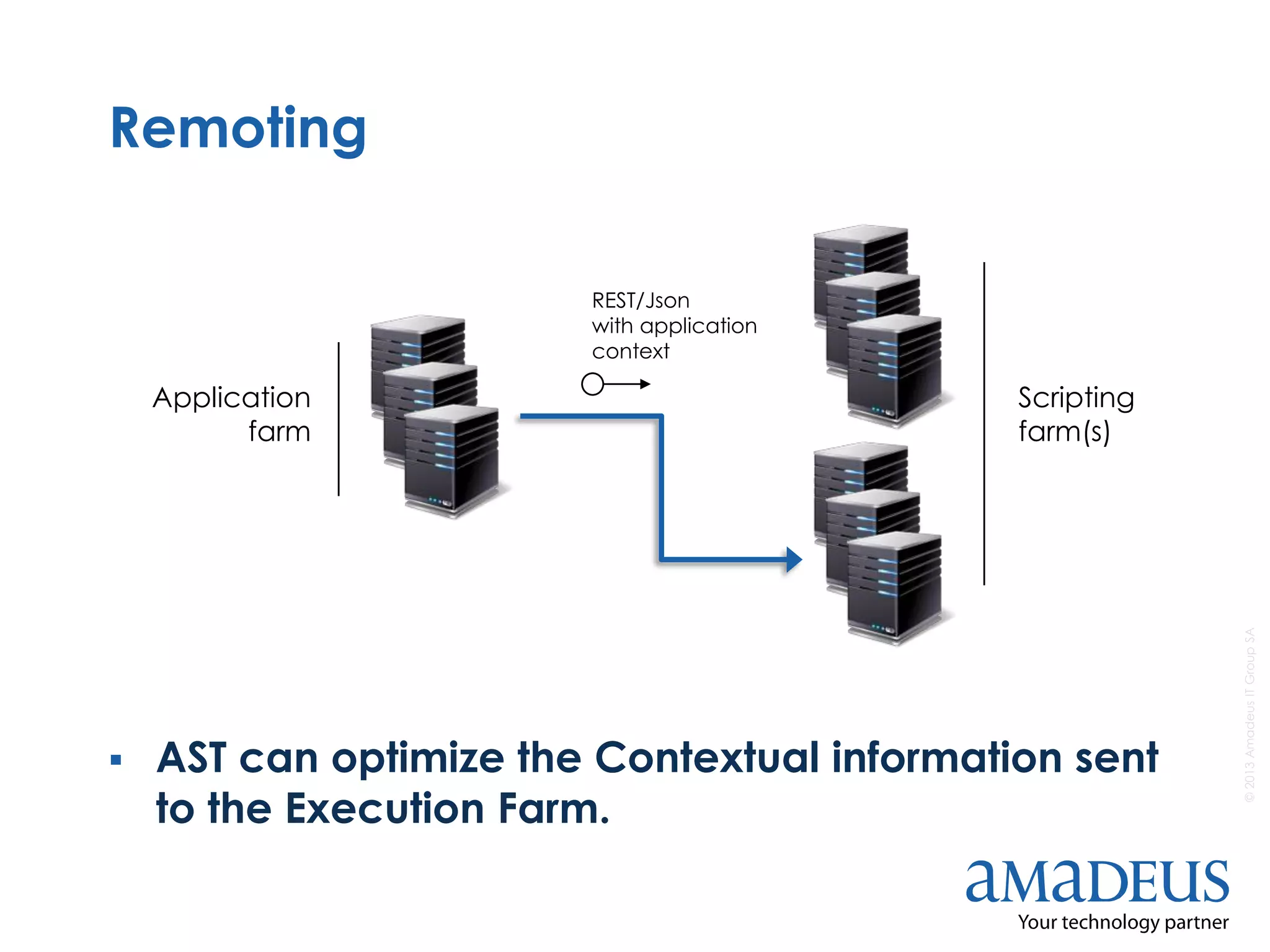

Remoting
 AST can optimize the Contextual information sent
to the Execution Farm.
Application
farm
Scripting
farm(s)
REST/Json
with application
context

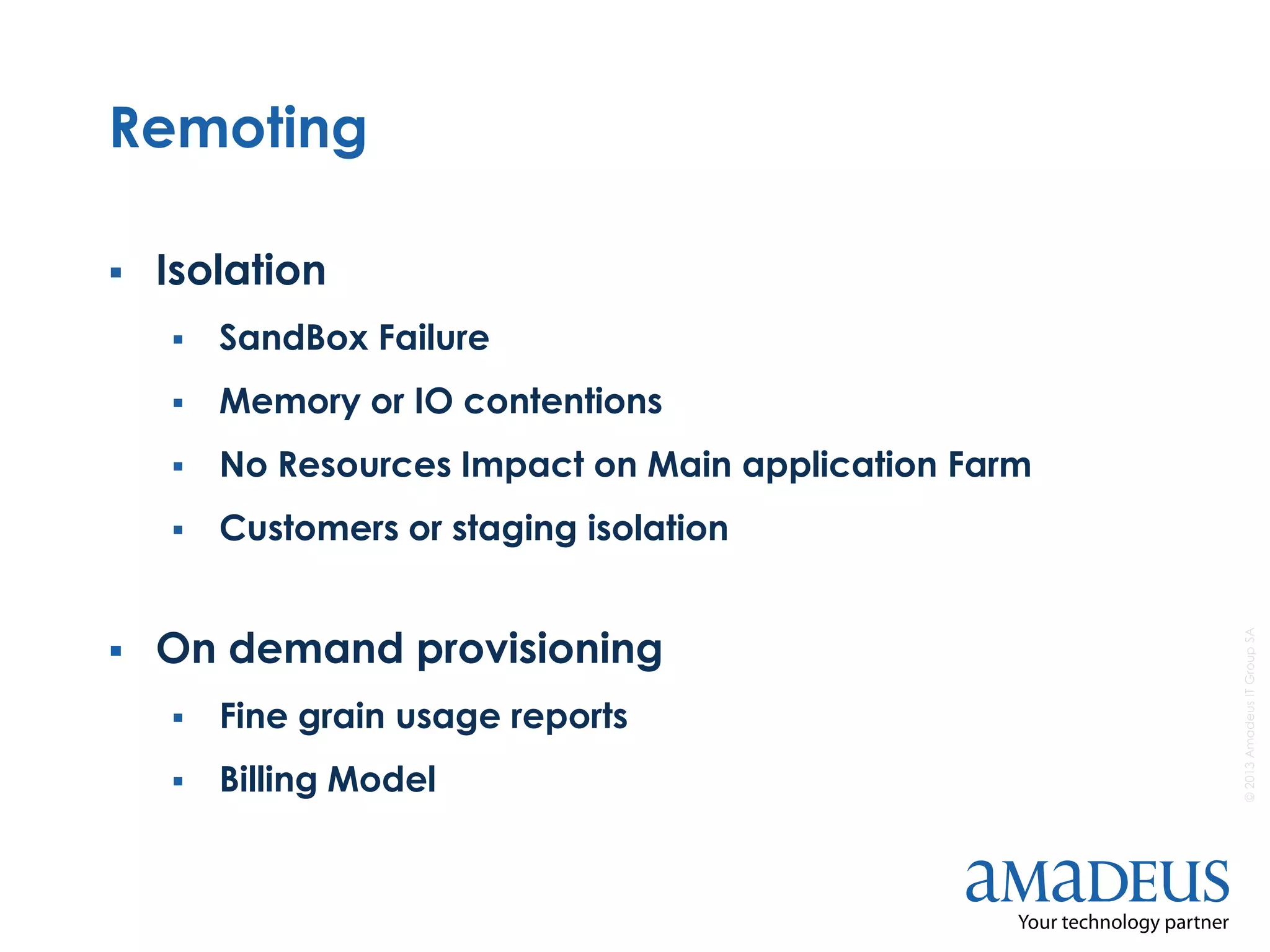

Remoting
 Isolation
 SandBox Failure
 Memory or IO contentions
 No Resources Impact on Main application Farm
 Customers or staging isolation
 On demand provisioning
 Fine grain usage reports
 Billing Model

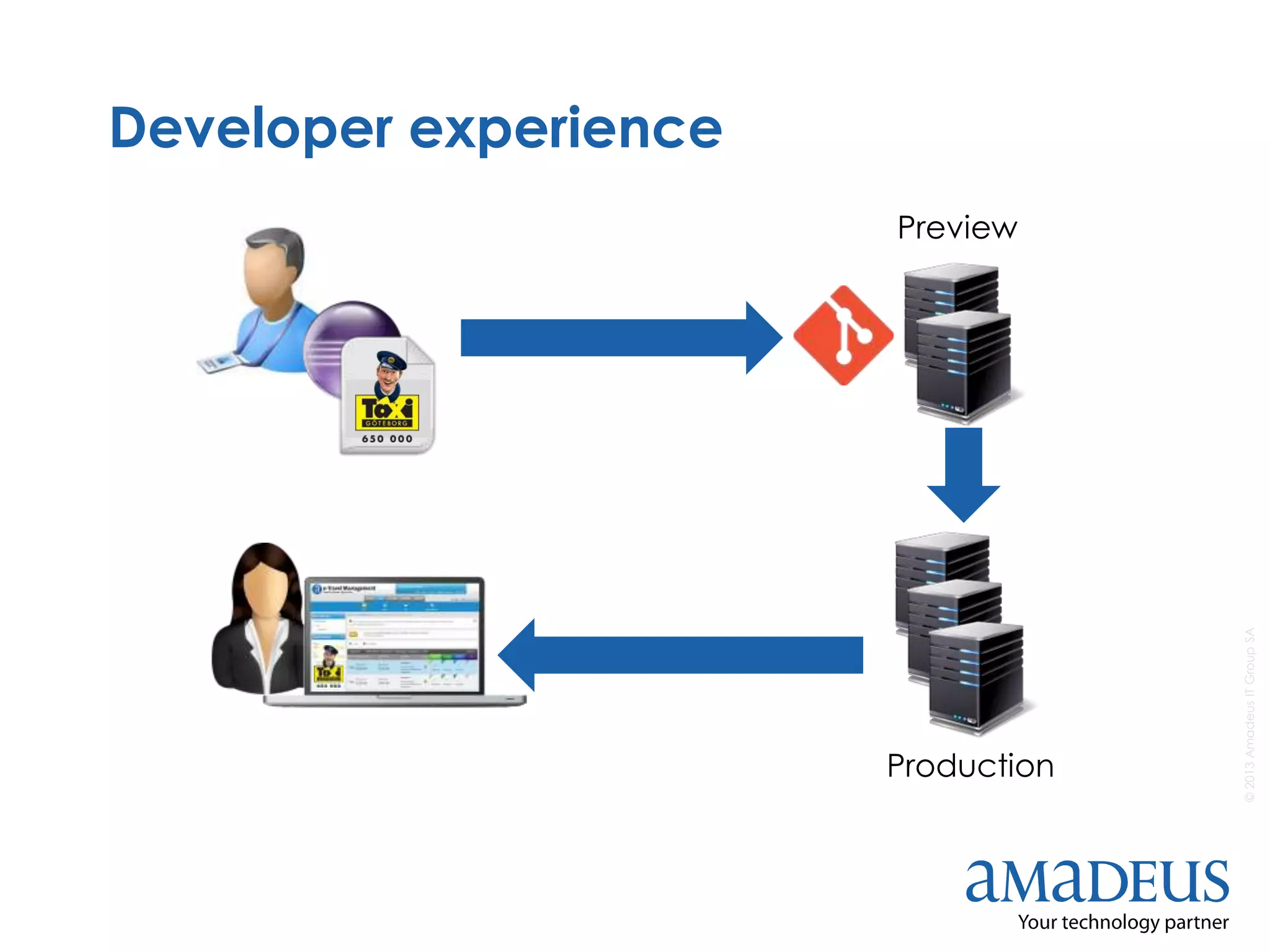

Developer experience
Production
Preview

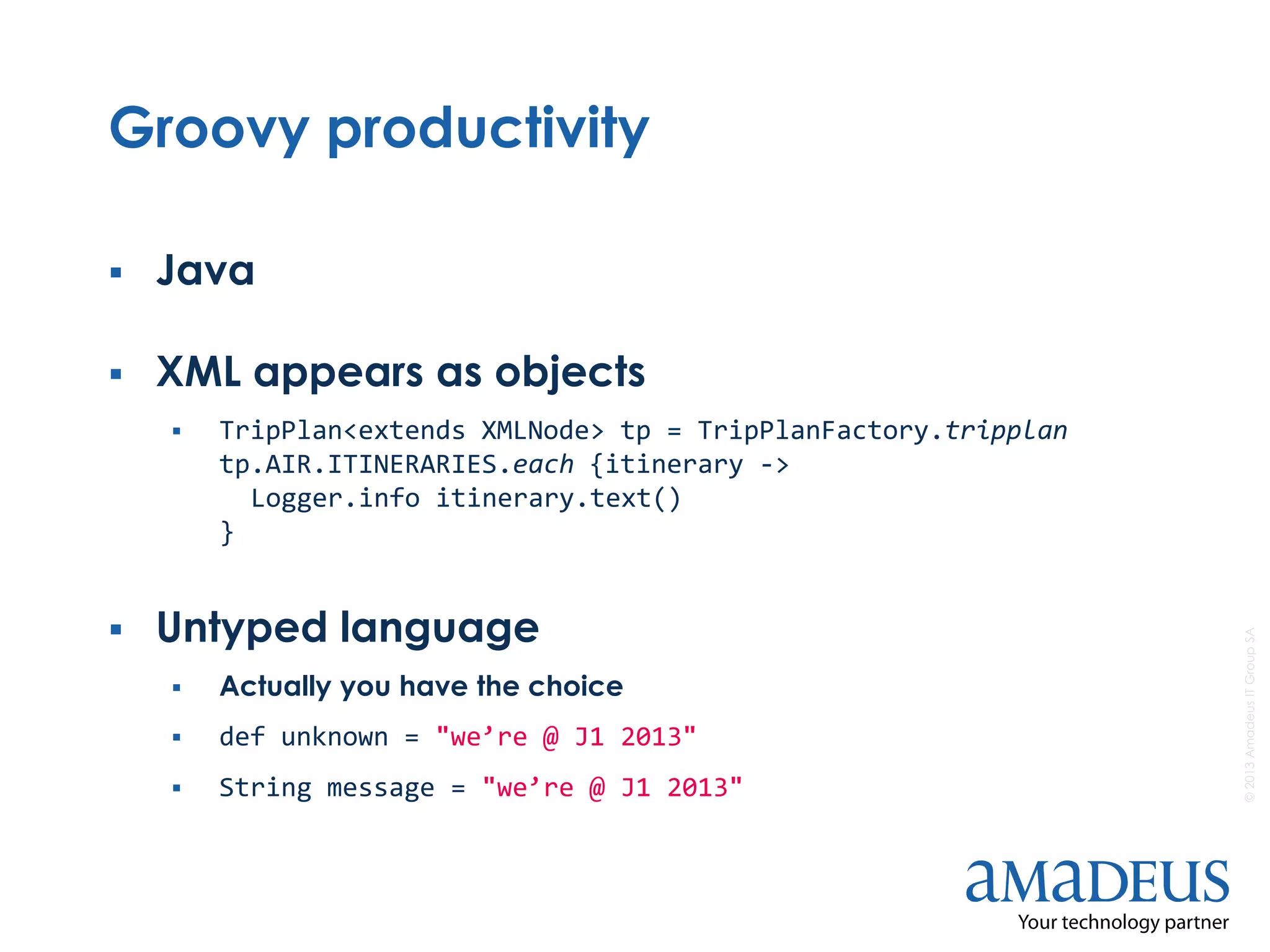

Groovy productivity
 Java
 XML appears as objects
 TripPlan<extends XMLNode> tp = TripPlanFactory.tripplan
tp.AIR.ITINERARIES.each {itinerary ->
Logger.info itinerary.text()
}
 Untyped language
 Actually you have the choice
 def unknown = "we’re @ J1 2013"
 String message = "we’re @ J1 2013"

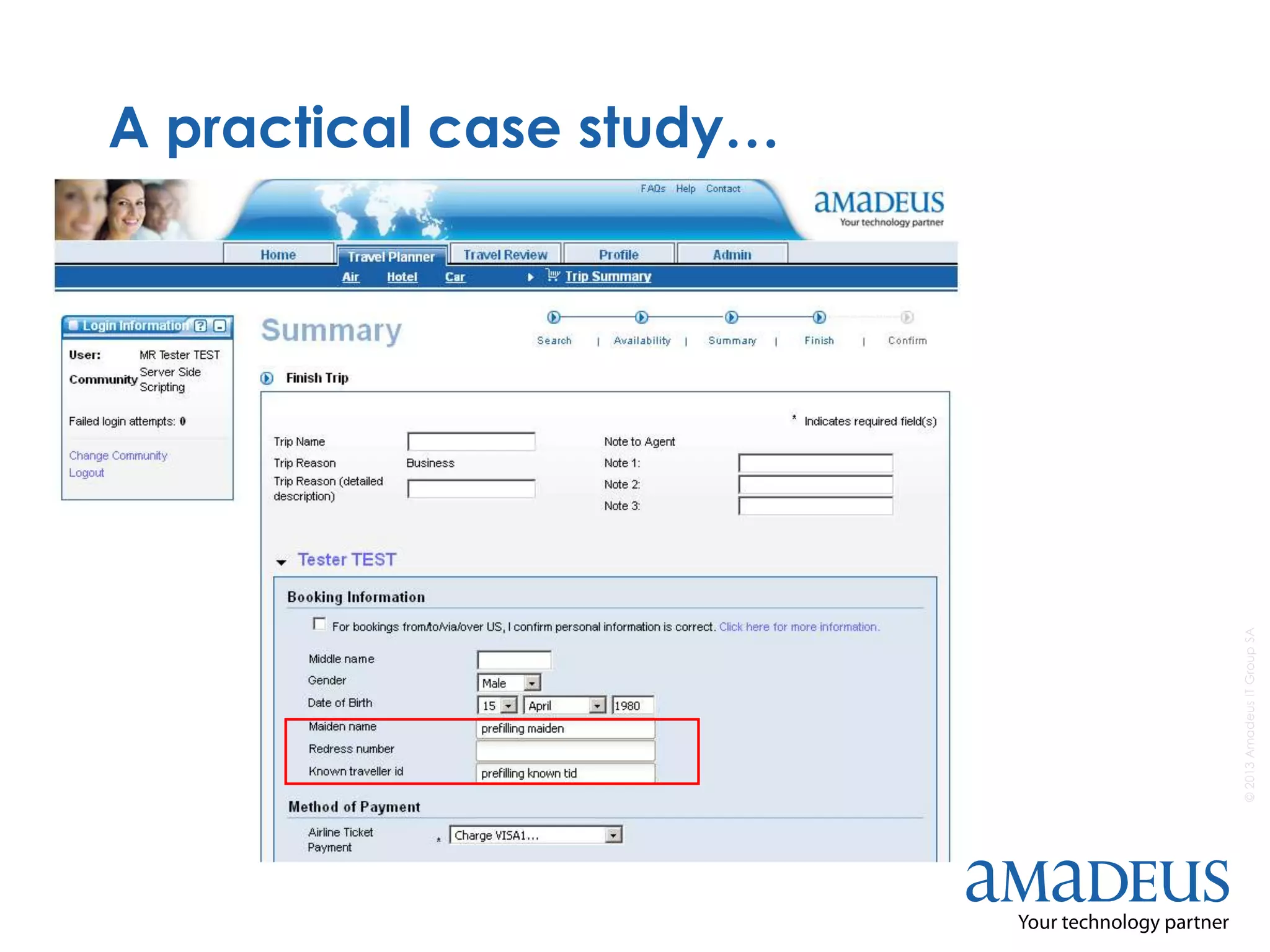

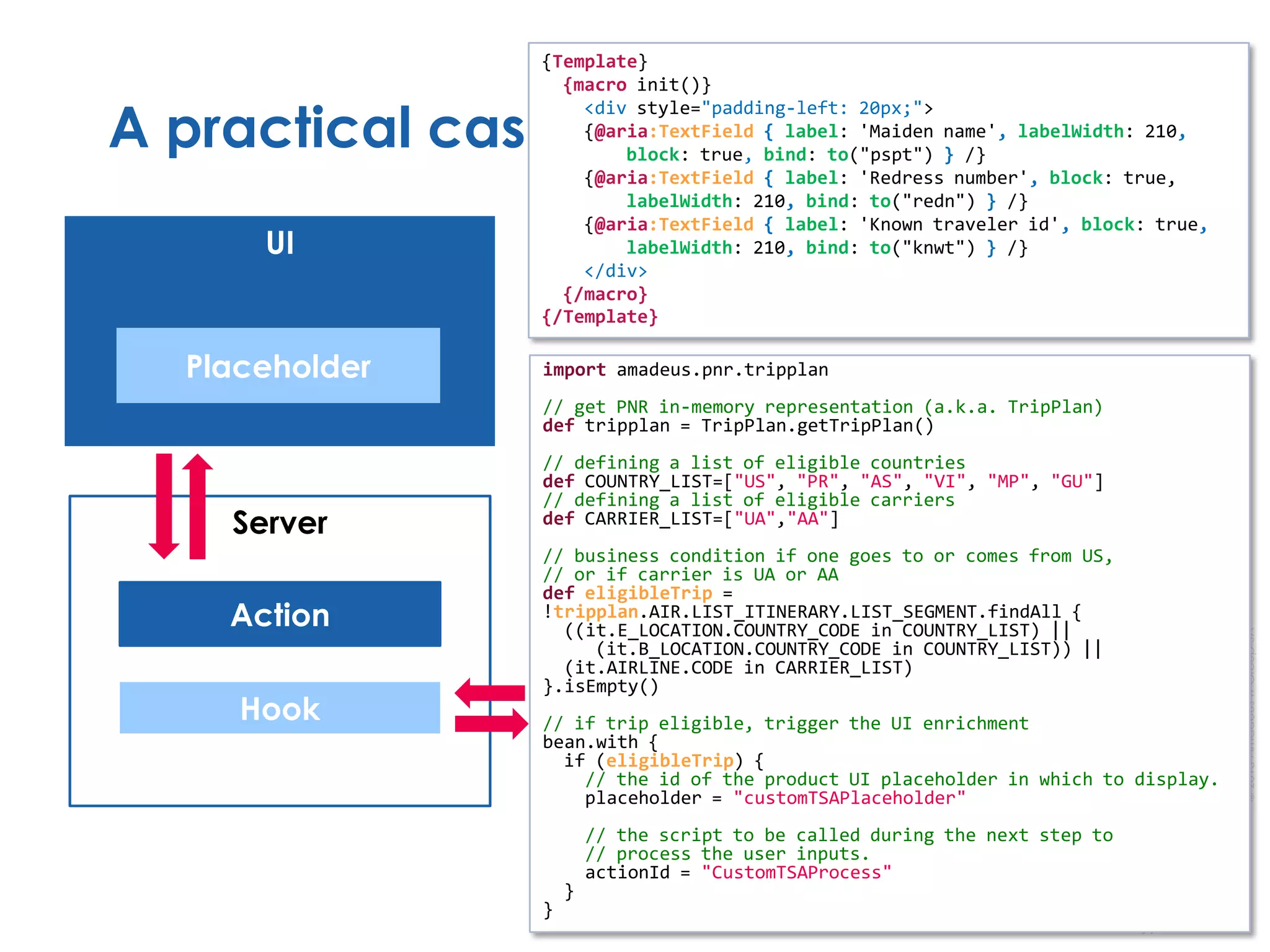

A practical case study…

A practical case study…
UI
Hook
Action
Server
Placeholder import amadeus.pnr.tripplan
// get PNR in-memory representation (a.k.a. TripPlan)
def tripplan = TripPlan.getTripPlan()
// defining a list of eligible countries
def COUNTRY_LIST=["US", "PR", "AS", "VI", "MP", "GU"]
// defining a list of eligible carriers
def CARRIER_LIST=["UA","AA"]
// business condition if one goes to or comes from US,
// or if carrier is UA or AA
def eligibleTrip =
!tripplan.AIR.LIST_ITINERARY.LIST_SEGMENT.findAll {
((it.E_LOCATION.COUNTRY_CODE in COUNTRY_LIST) ||
(it.B_LOCATION.COUNTRY_CODE in COUNTRY_LIST)) ||
(it.AIRLINE.CODE in CARRIER_LIST)
}.isEmpty()
// if trip eligible, trigger the UI enrichment
bean.with {
if (eligibleTrip) {
// the id of the product UI placeholder in which to display.
placeholder = "customTSAPlaceholder"
// the script to be called during the next step to
// process the user inputs.
actionId = "CustomTSAProcess"
}
}
{Template}
{macro init()}
<div style="padding-left: 20px;">
{@aria:TextField { label: 'Maiden name', labelWidth: 210,
block: true, bind: to("pspt") } /}
{@aria:TextField { label: 'Redress number', block: true,
labelWidth: 210, bind: to("redn") } /}
{@aria:TextField { label: 'Known traveler id', block: true,
labelWidth: 210, bind: to("knwt") } /}
</div>
{/macro}
{/Template}

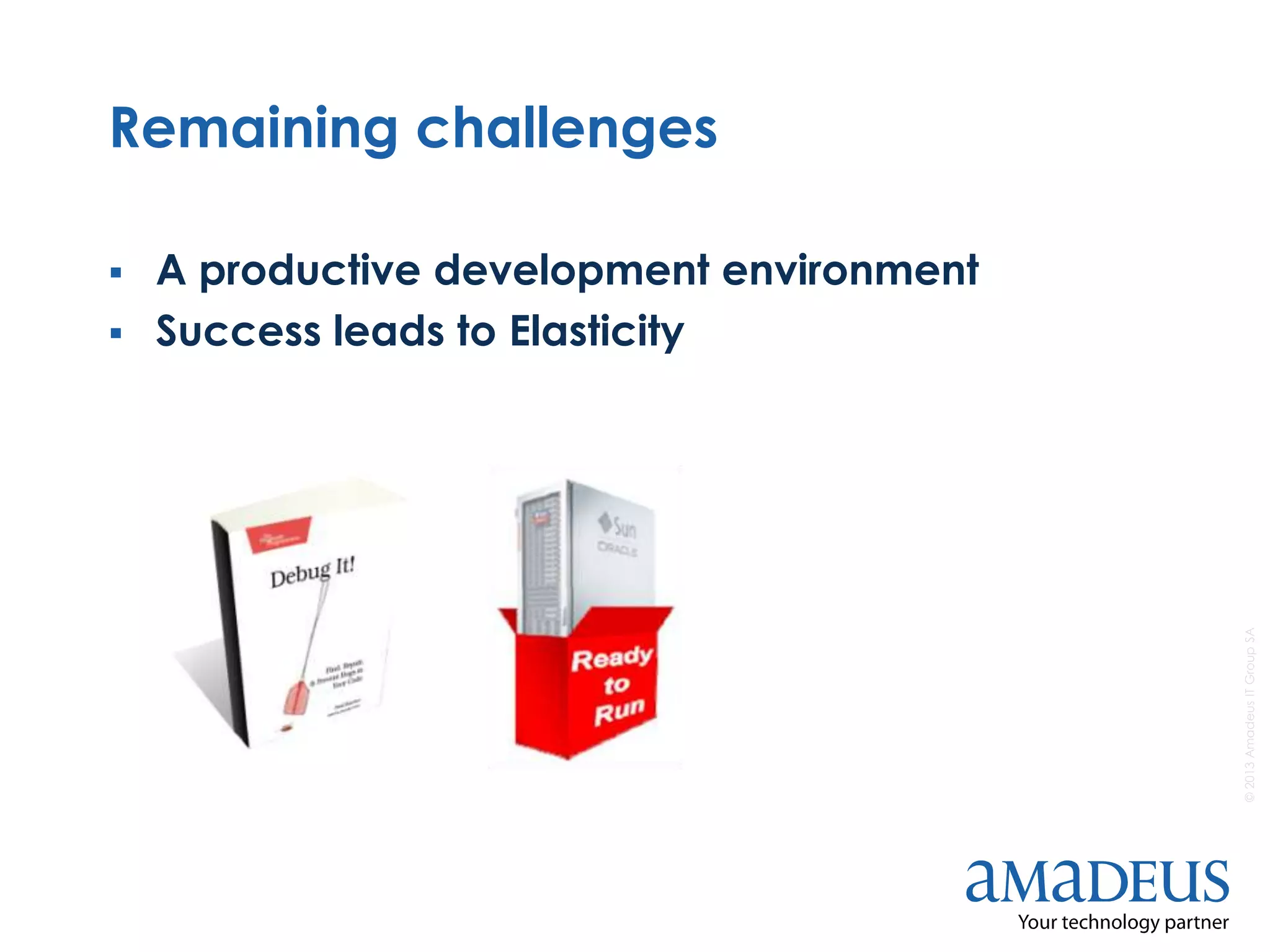

Remaining challenges
 A productive development environment

 Success leads to Elasticity

 Success leads to Elasticity
 Add new languages to enlarge the user base

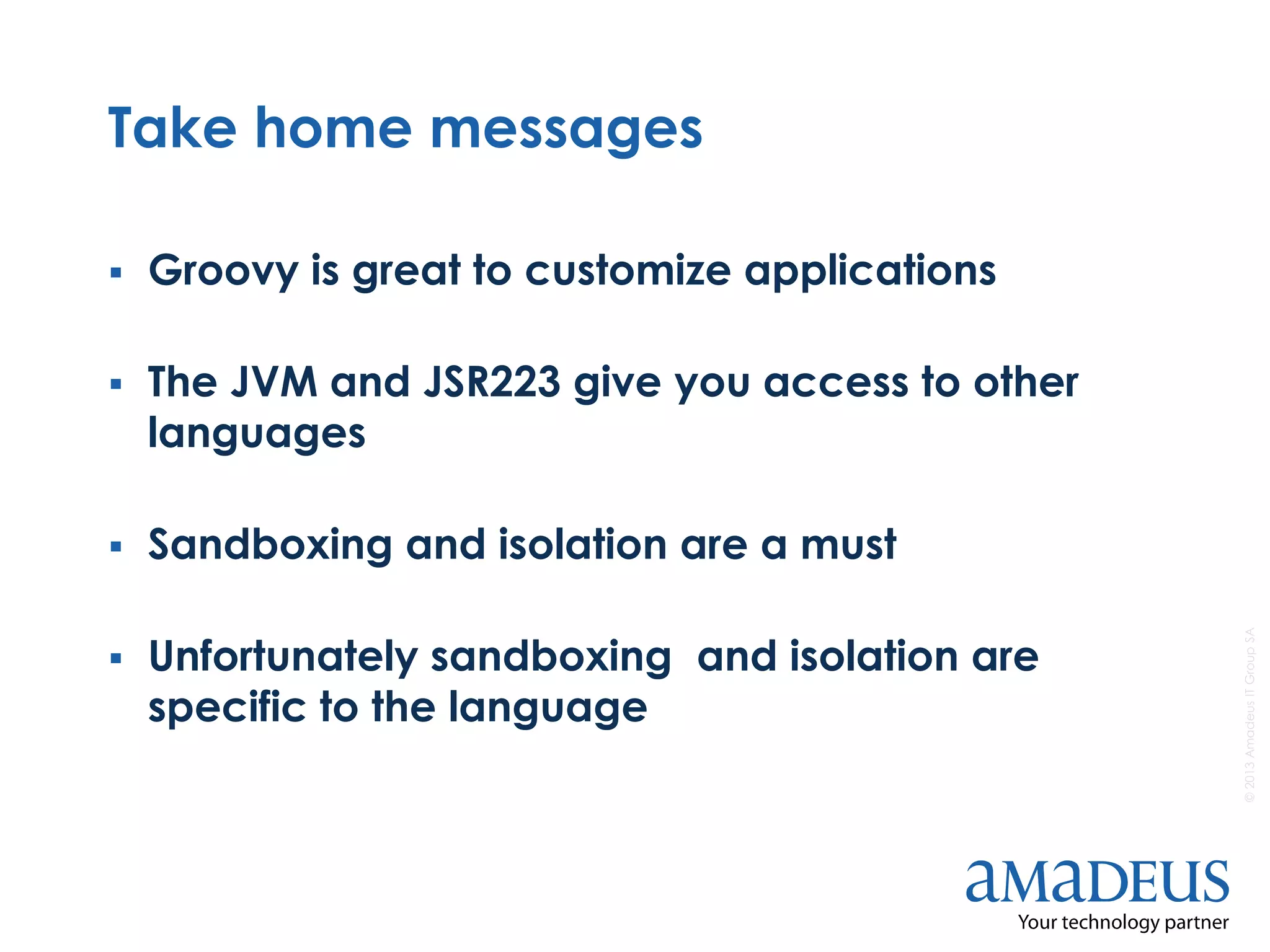

Take home messages
 Groovy is great to customize applications
 The JVM and JSR223 give you access to other
languages
 Sandboxing and isolation are a must
 Unfortunately sandboxing and isolation are
specific to the language

Some more…
Special thanks to the team!
UI produced using AriaTemplates ™ (github.com/ariatemplates)
To know more about Amadeus: http://www.amadeus.com
JavaOne
 Polyglot Enterprise Development on the JVM [CON2382]
Mark Little – VP Red Hat Inc
 The JVM Is Over: The Polyglot Virtual Machine Is Here [CON5344]
Marcus Lagergren - Runtime Futurist, Oracle
 Liftoff with Groovy 2.1 [CON2591]
Guillaume Laforge - Pivotal
 Embedded DSL: Groovy and Scala Fair Duel [TUT4524]
Corinne Krych - RedHat and Pascal Cohen - Amadeus
