1. NoSQL & JavaScript
a Love Story!
by Alexandre Morgaut
TakeOff Conf - Lille 2013

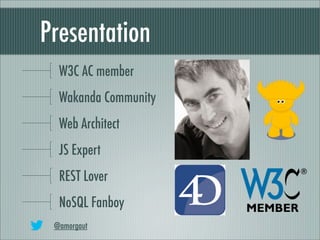

2. Presentation
W3C AC member
Wakanda Community
Web Architect
JS Expert
REST Lover
NoSQL Fanboy
@amorgaut

3. NoSQL facts

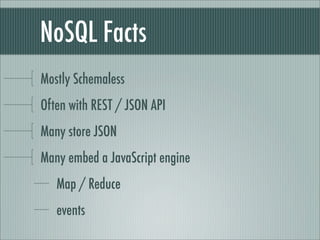

4. NoSQL Facts
Mostly Schemaless
Often with REST / JSON API
Many store JSON
Many embed a JavaScript engine
Map / Reduce
events
Many propose a JavaScript Shell

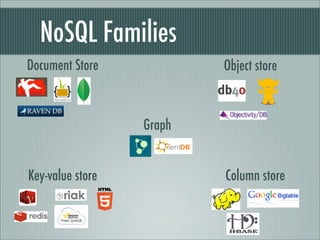

5. NoSQL Families
Document Store Object store
Graph
Key-value store Column store

6. NoSQL Families
Document Store Object store
Graph
Key-value store Column store

7. NoSQL Families
Document Store Object store
Graph
Key-value store Column store

8. JavaScript facts

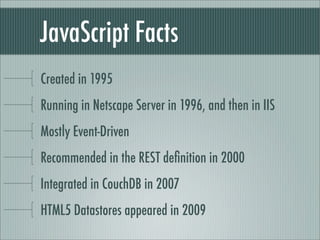

9. JavaScript Facts
Created in 1995
Running in Netscape Server in 1996, and then in IIS
Mostly Event-Driven
Recommended in the REST definition in 2000
Integrated in CouchDB in 2007
HTML5 Datastores appeared in 2009

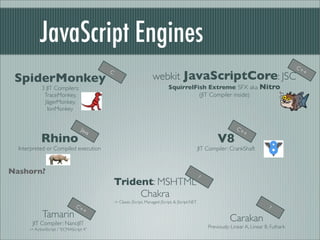

10. JavaScript Engines
C+
C +
SpiderMonkey webkit JavaScriptCore: JSC
3 JIT Compilers: SquirrelFish Extreme: SFX aka Nitro
TraceMonkey, (JIT Compiler inside)
JägerMonkey,
IonMonkey
Jav C+
a +
Rhino V8
Interpreted or Compiled execution JIT Compiler: CrankShaft
Nashorn?
?
Trident: MSHTML
Chakra
-> Classic JScript, Managed JScript, & JScript.NET
C+ ?
+
Tamarin Carakan
JIT Compiler: NanoJIT
-> ActionScript / “ECMAScript 4”
Previously: Linear A, Linear B, Futhark

11. Server-Side JavaScript
SpiderMonkey JavaScriptCore
Rhino V8
Trident / Chakra

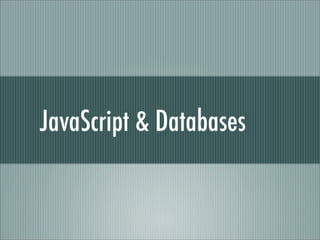

12. JavaScript & Databases

13. JavaScript & Databases
Netscape Enterprise Server
Microsoft: JScript, JScript.NET, ActiveX
Mozilla Rhino
JSDB
APE Project
W3C Web SQL

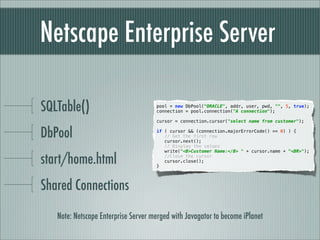

14. Netscape Enterprise Server
SQLTable() pool = new DbPool("ORACLE", addr, user, pwd, "", 5, true);
connection = pool.connection("A connection");
cursor = connection.cursor("select name from customer");
DbPool if ( cursor && (connection.majorErrorCode() == 0) ) {
// Get the first row
cursor.next();
// Display the values
write("<B>Customer Name:</B> " + cursor.name + "<BR>");
start/home.html }
//Close the cursor
cursor.close();
Shared Connections
Note: Netscape Enterprise Server merged with Javagator to become iPlanet

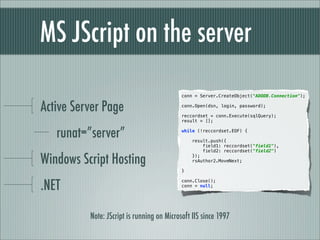

15. MS JScript on the server
conn = Server.CreateObject("ADODB.Connection");
Active Server Page conn.Open(dsn, login, password);
reccordset = conn.Execute(sqlQuery);
result = [];
runat=”server” while (!reccordset.EOF) {
result.push({
field1: reccordset("field1"),
field2: reccordset("field2")
Windows Script Hosting });
rsAuthor2.MoveNext;
}
.NET
conn.Close();
conn = null;
Note: JScript is running on Microsoft IIS since 1997

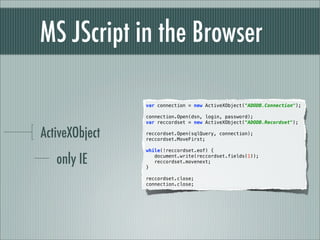

16. MS JScript in the Browser
var connection = new ActiveXObject("ADODB.Connection");
connection.Open(dsn, login, password);
var reccordset = new ActiveXObject("ADODB.Recordset");
ActiveXObject
reccordset.Open(sqlQuery, connection);
reccordset.MoveFirst;
while(!reccordset.eof) {
only IE }
document.write(reccordset.fields(1));
reccordset.movenext;
reccordset.close;
connection.close;

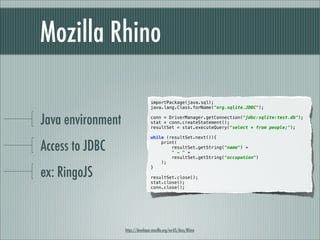

17. Mozilla Rhino
importPackage(java.sql);
java.lang.Class.forName("org.sqlite.JDBC");
Java environment conn = DriverManager.getConnection("jdbc:sqlite:test.db");
stat = conn.createStatement();
resultSet = stat.executeQuery("select * from people;");
while (resultSet.next()){
Access to JDBC print(
resultSet.getString("name") +
" - " +
resultSet.getString("occupation")
);
ex: RingoJS
}
resultSet.close();
stat.close();
conn.close();
https://developer.mozilla.org/en-US/docs/Rhino

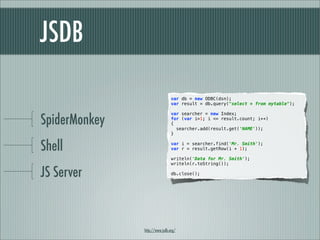

18. JSDB
var db = new ODBC(dsn);
var result = db.query("select * from mytable");
SpiderMonkey
var searcher = new Index;
for (var i=1; i <= result.count; i++)
{
searcher.add(result.get('NAME'));
}
Shell var i = searcher.find('Mr. Smith');
var r = result.getRow(i + 1);
writeln('Data for Mr. Smith');
writeln(r.toString());
JS Server db.close();
http://www.jsdb.org/

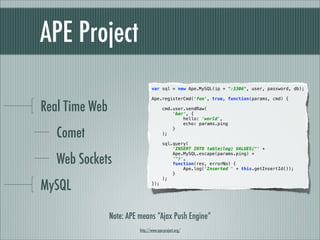

19. APE Project
var sql = new Ape.MySQL(ip + ":3306", user, password, db);
Ape.registerCmd('foo', true, function(params, cmd) {
Real Time Web cmd.user.sendRaw(
'bar', {
hello: 'world',
echo: params.ping
Comet
}
);
sql.query(
'INSERT INTO table(log) VALUES("' +
Web Sockets
Ape.MySQL.escape(params.ping) +
'")',
function(res, errorNo) {
Ape.log('Inserted ' + this.getInsertId());
}
MySQL
);
});
Note: APE means “Ajax Push Engine”
http://www.ape-project.org/

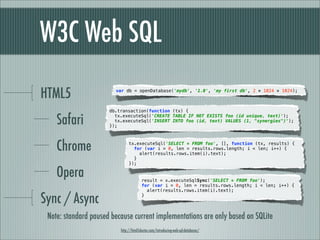

20. W3C Web SQL
HTML5 var db = openDatabase('mydb', '1.0', 'my first db', 2 * 1024 * 1024);
db.transaction(function (tx) {
Safari tx.executeSql('CREATE TABLE IF NOT EXISTS foo (id unique, text)');
tx.executeSql('INSERT INTO foo (id, text) VALUES (1, "synergies")');
});
Chrome tx.executeSql('SELECT * FROM foo', [], function (tx, results) {
for (var i = 0, len = results.rows.length; i < len; i++) {
alert(results.rows.item(i).text);
}
});
Opera result = x.executeSqlSync('SELECT * FROM foo');
for (var i = 0, len = results.rows.length; i < len; i++) {
alert(results.rows.item(i).text);
Sync / Async }
Note: standard paused because current implementations are only based on SQLite
http://html5doctor.com/introducing-web-sql-databases/

21. Data as a Service (DaaS)

22. Data as a Service
Amazon APIs
OData
APP
GData Twitter APIs

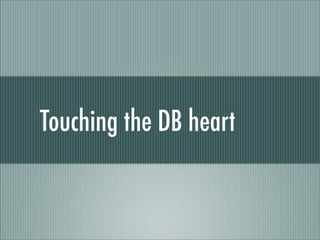

23. Touching the DB heart

24. Touching the DB Heart
Key-Value: Web Storage, Riak
Document: CouchDB, MongoDB, IndexedDB
Object: JavaScriptDB, WakandaDB
Multi-Model: OrientDB & ArangoDB

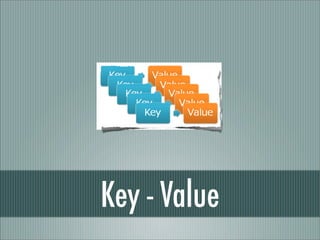

25. Key - Value

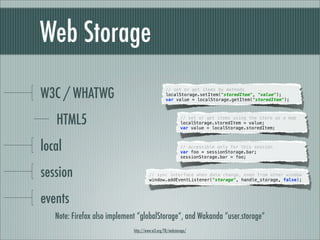

26. Web Storage
W3C / WHATWG // set or get items by methods
localStorage.setItem("storedItem", "value");
var value = localStorage.getItem("storedItem");
HTML5 // set or get items using the store as a map
localStorage.storedItem = value;
var value = localStorage.storedItem;
local // accessible only for this session
var foo = sessionStorage.bar;
sessionStorage.bar = foo;
session // sync interface when data change, even from other window
window.addEventListener("storage", handle_storage, false);
events
Note: Firefox used to propose “globalStorage”, Wakanda implements “user.storage”
http://www.w3.org/TR/webstorage/

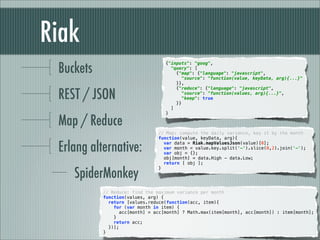

27. Riak
Buckets
{"inputs": "goog",
"query": [
{"map": {"language": "javascript",
"source": "function(value, keyData, arg){...}"
}},
REST / JSON
{"reduce": {"language": "javascript",
"source": "function(values, arg){...}",
"keep": true
}}
]
}
Map / Reduce
// Map: compute the daily variance, key it by the month
function(value, keyData, arg){
Erlang alternative: var data = Riak.mapValuesJson(value)[0];
var month = value.key.split('-').slice(0,2).join('-');
var obj = {};
obj[month] = data.High - data.Low;
return [ obj ];
SpiderMonkey
}
// Reduce: find the maximum variance per month
function(values, arg) {
return [values.reduce(function(acc, item){
for (var month in item) {
acc[month] = acc[month] ? Math.max(item[month], acc[month]) : item[month];
}
return acc;
})];
}

28. Document

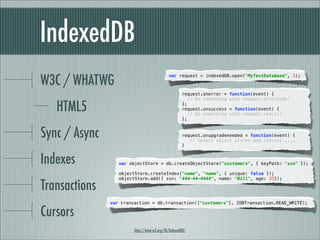

29. IndexedDB
W3C / WHATWG
var request = indexedDB.open("MyTestDatabase", 3);
request.onerror = function(event) {
// Do something with request.errorCode!
HTML5 };
request.onsuccess
// Do something
= function(event) {
with request.result!
};
Sync / Async request.onupgradeneeded = function(event) {
// Update object stores and indices ....
}
Indexes var objectStore = db.createObjectStore("customers", { keyPath: "ssn" });
objectStore.createIndex("name", "name", { unique: false });
Transactions
objectStore.add({ ssn: "444-44-4444", name: "Bill", age: 35});
var transaction = db.transaction(["customers"], IDBTransaction.READ_WRITE);
Cursors
http://www.w3.org/TR/IndexedDB/

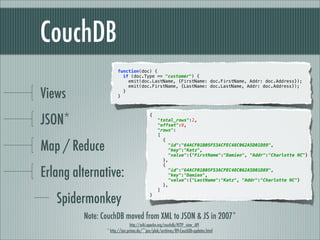

30. CouchDB
function(doc) {
if (doc.Type == "customer") {
emit(doc.LastName, {FirstName: doc.FirstName, Addr: doc.Address});
emit(doc.FirstName, {LastName: doc.LastName, Addr: doc.Address});
Views }
}
JSON*
{
"total_rows":2,
"offset":0,
"rows":
[
Map / Reduce
{
"id":"64ACF01B05F53ACFEC48C062A5D01D89",
"key":"Katz",
"value":{"FirstName":"Damien", "Addr":"Charlotte NC"}
},
{
Erlang alternative: "id":"64ACF01B05F53ACFEC48C062A5D01D89",
"key":"Damien",
"value":{"LastName":"Katz", "Addr":"Charlotte NC"}
},
]
Spidermonkey }
Note: CouchDB moved from XML to JSON & JS in 2007*
http://wiki.apache.org/couchdb/HTTP_view_API
* http://jan.prima.de/~jan/plok/archives/89-CouchDb-updates.html

31. CouchBase
CouchDB alternative
using V8
adding memcache
meant to be more scalable
http://www.couchbase.com/

32. MongoDB
{ text: "lmao! great article!",
Spidermonkey }
author: 'kbanker',
votes: 2
BSON var map = function() {
emit(this.author, {votes: this.votes});
};
Map / Reduce // Add up all the votes for each key.
var reduce = function(key, values) {
var sum = 0;
REST / JSON values.forEach(function(doc) {
sum += doc.votes;
});
return {votes: sum};
};
REST / JS
var op = db.comments.mapReduce(map, reduce, {out: "mr_results"});
Shell
http://www.mongodb.org/display/DOCS/MapReduce

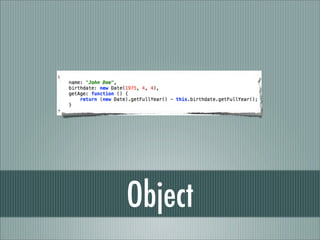

33. Object

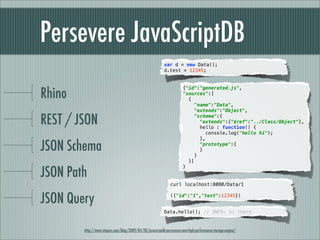

34. Persevere JavaScriptDB
var d = new Data();
d.test = 12345;
Rhino
{"id":"generated.js",
"sources":[
{
"name":"Data",
"extends":"Object",
REST / JSON "schema":{
"extends":{"$ref":"../Class/Object"},
hello : function() {
console.log("hello hi");
},
JSON Schema }
"prototype":{
}
}]
JSON Path
}
curl localhost:8080/Data/1
JSON Query ({"id":"1","test":12345})
Data.hello(); // INFO: hi there
http://www.sitepen.com/blog/2009/04/20/javascriptdb-perseveres-new-high-performance-storage-engine/

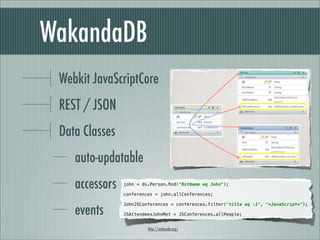

35. WakandaDB
Webkit JavaScriptCore
REST / JSON
Data Classes
auto-updatable
accessors
john = ds.Person.find("fistName eq John");
events conferences = john.allConferences;
JohnJSConferences = conferences.filter("title eq :1", "*JavaScript*");
methods JSAttendeesJohnMet = JSConferences.allPeople;
http://wakanda.org/

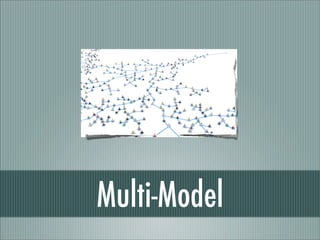

36. Multi-Model

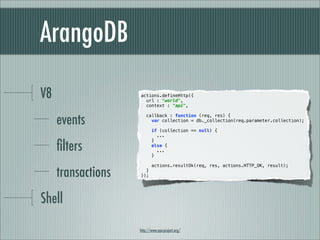

37. ArangoDB
V8 actions.defineHttp({
url : "world",
context : "api",
events
callback : function (req, res) {
var collection = db._collection(req.parameter.collection);
if (collection == null) {
...
filters
}
else {
...
}
transactions
actions.resultOk(req, res, actions.HTTP_OK, result);
}
});
Shell
http://www.ape-project.org/

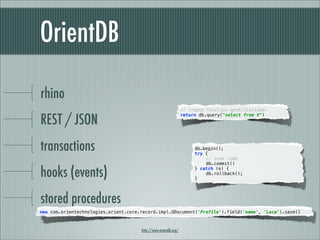

38. OrientDB
rhino
// create function getAllCustomer
REST / JSON
return db.query("select from V")
transactions db.begin();
try {
" // some code
" db.commit()
hooks (events) } catch (e) {
"
}
db.rollback();"
stored procedures
new com.orientechnologies.orient.core.record.impl.ODocument('Profile').field('name', 'Luca').save()
http://www.orientdb.org/

39. Reaching the DB

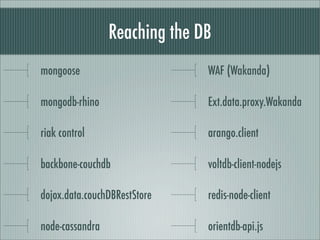

40. Reaching the DB
mongoose WAF (Wakanda)
mongodb-rhino Ext.data.proxy.Wakanda
riak control arango.client
backbone-couchdb voltdb-client-nodejs
dojox.data.couchDBRestStore redis-node-client
node-cassandra orientdb-api.js

41. Thank you!
Let’s keep in touch...
Client & Server
@amorgaut
JavaScript APIs
http://about.me/amorgaut http://w3.org/community/jseverywhere/
@wakandasoft @jseverywhere
http://wakanda.org http://jseverywhere.org
