1. L i g h t i n g I n n o v a t i o n
POLA -05
Light

2. 0202
L i g h t i n g I n n o v a t i o n

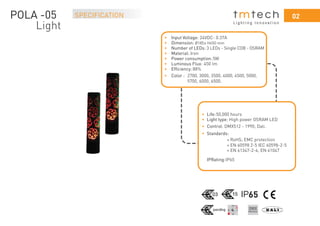

SPECIFICATION
65
• Input Voltage: 24VDC- 0.37A
• Dimension: x H650 mm
• Number of LEDs: 3 LEDs - Single COB - OSRAM
• Material: Iron
• Power consumption:5W
• Luminous Flux: 450 lm
• Efficiency: 88%
• Color :
• Life:50,000 hours
• Light type: High power OSRAM LED
• Standards:
RoHS; EMC protection
• Control: DMX512 - 1990; Dali.
+ EN 60598 2-5 IEC 60598-2-5
+ EN 61347-2-4; EN 61047
IPRating:IP65
+
2700, 3000, 3500, 4000, 4500, 5000,
5700, 6000, 6500.
POLA -05
Light
Ø185

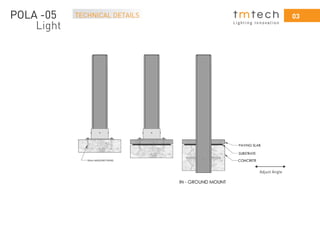

3. TECHNICAL DETAILS 03
L i g h t i n g I n n o v a t i o n
POLA -05
Light
Adjust Angle

4. 04
L i g h t i n g I n n o v a t i o n

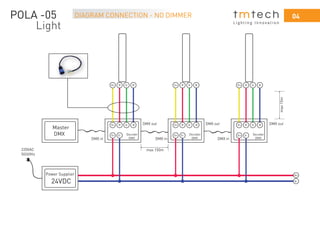

DIAGRAM CONNECTION - NO DIMMERPOLA -05
Light
V-
V+
Decoder
DMX
Master
DMX
DMX in DMX inDMX in
DMX out DMX out DMX out
220VAC
50/60Hz
V+ R G B
V+
V+ V-
R G B
Decoder
DMX
V+ R G B
V+
V+ V-
R G B
Decoder
DMX
V+ R G B
V+
V+ V-
R G B
max15m
max 150m
Power Supplier
24VDC

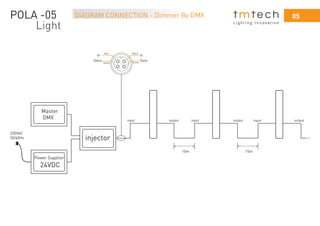

5. 05DIAGRAM CONNECTION - Dimmer By DMX
L i g h t i n g I n n o v a t i o n
POLA -05
Light
Power Supplier
Master
DMX
24VDC
220VAC
50/60Hz injector
V+
Data+ Data-
V-
Red Black
Yellow Green
15m 15m
...
input output input output input output

6. 06
L i g h t i n g I n n o v a t i o n

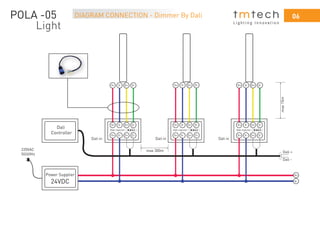

DIAGRAM CONNECTION - Dimmer By DaliPOLA -05
Light
V-
V+
Dali in
Dali +
Dali -
Dali inDali in
220VAC
50/60Hz
V+ V-
V+ V- D+ D-
D+ D- D+ D- D+ D-
V+ V- D+ D-
V+ V-
V+ V-
D+ D-V+ V-
V+ V-
D+ D-
V+ V- D+ D- V+ V- D+ D-
Dali injectorDali injectorDali injector
max15m
max 300m
Dali
Controller
Power Supplier
24VDC

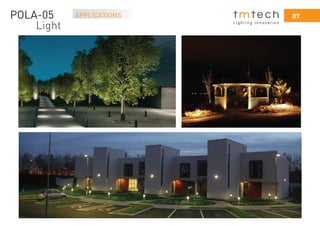

7. APPLICATIONS 07
L i g h t i n g I n n o v a t i o n
POLA-05
Light

8. 08
L i g h t i n g I n n o v a t i o n
ORDERING INFORMATIONPOLA -05
Light
Example: TM - POLA05 -
Table: Ordering information scheme
Company name
TM = TMTECH Electronics Company Limited
Sub-family
POLA05 = Floodlight Square 5Watt Full Color
DMX -
Housing Color
DMX : DMX512 - 1990
Dal : Dali Protocol
W
Control Signal

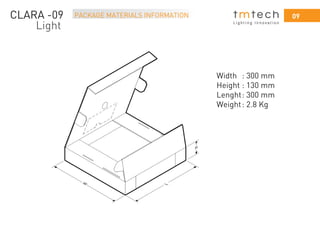

9. 09PACKAGE MATERIALS INFORMATION
L i g h t i n g I n n o v a t i o n
CLARA -09
Light
Width : 300 mm
Height : 130 mm
Lenght: 300 mm
Weight: 2.8 Kg

10. THANKS FOR YOUR
ATTENTION
CONTACT US:
TMtech Electronics Co., Ltd
Add: No.2C, 17 Street, Linh Chieu Ward, Thu Duc District, Ho Chi Minh City.,VN
Website: www.tmtech.vn
Tel: (+84)8.668.222.73 Hotline: (+84) 934.943.273
Email: support@tmtech.vn Sales.maria@tmtech.vn
L i g h t i n g I n n o v a t i o n
