1. L i g h t i n g I n n o v a t i o n
AMATO
LIGHT

2. 0202
L i g h t i n g I n n o v a t i o n

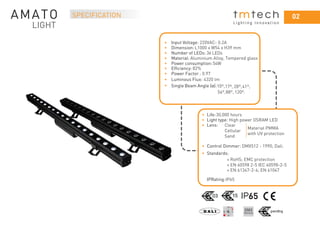

SPECIFICATION
65
• Input Voltage: 220VAC- 0.2A
• Dimension: L1000 x W54 x H39 mm
• Number of LEDs: 36 LEDs
• Material: Aluminium Alloy, Tempered glass
• Power consumption:54W
•
•
Efficiency: 82%
•
• Single Beam Angle (α):10º,17º, 28º,41º,
54º,88º, 120º.
• Life:30,000 hours
• Light type: High power OSRAM LED
• Lens:
• Standards:
RoHS; EMC protection
• Control Dimmer: DMX512 - 1990; Dali.
+ EN 60598 2-5 IEC 60598-2-5
+ EN 61347-2-4; EN 61047
IPRating:IP65
Clear
Cellular
Sand
Material PMMA
with UV protection
+
Power Factor : 0.97
Luminous Flux: 4320 lm

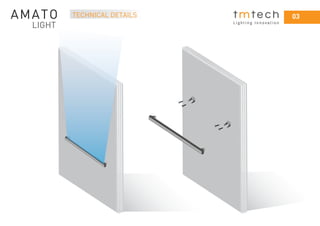

3. TECHNICAL DETAILS 03
L i g h t i n g I n n o v a t i o n

4. 04
L i g h t i n g I n n o v a t i o n

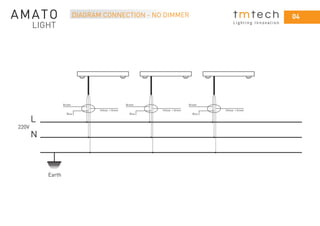

DIAGRAM CONNECTION - NO DIMMER
L
N
Brown
Blue
Yellow + Green
Brown
Blue
Yellow + Green
Brown
Blue
Yellow + Green
Earth
220V

5. 05
L i g h t i n g I n n o v a t i o n

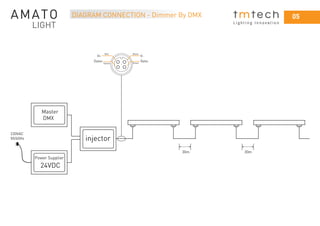

DIAGRAM CONNECTION - Dimmer By DMX
Power Supplier
Master
DMX
24VDC
220VAC
50/60Hz injector
V+
Data+ Data-
V-
Red Black
Yellow Green
30m 30m

6. 06
L i g h t i n g I n n o v a t i o n
DIAGRAM CONNECTION - Dimmer By Dali
V-
V+Power Supplier
24VDC
Dali in
Dali +
Dali -
Dali inDali in
220VAC
50/60Hz
V+ V-
V+ V- D+ D-
D+ D- D+ D- D+ D-
V+ V- D+ D-
V+ V-
V+ V-
D+ D-V+ V-
V+ V-
D+ D-
V+ V- D+ D- V+ V- D+ D-
Dali injectorDali injectorDali injector
max15m
max 300m
Dali
Controller

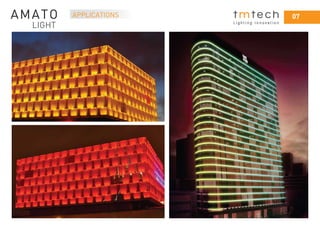

7. APPLICATIONS 07
L i g h t i n g I n n o v a t i o n

8. 08
L i g h t i n g I n n o v a t i o n

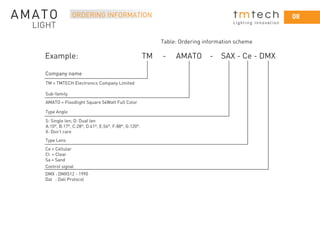

ORDERING INFORMATION
Example: TM - AMATO - SAX - Ce - DMX
Table: Ordering information scheme
Company name
TM = TMTECH Electronics Company Limited
Sub-family
AMATO = Floodlight Square 54Watt Full Color
Type Angle
Type Lens
Ce = Cellular
Cl = Clear
Sa = Sand
Control signal
DMX : DMX512 - 1990
Dal : Dali Protocol
S: Single len; D: Dual len
A:10º, B:17º, C:28º, D:41º, E:54º, F:88º, G:120º.
X: Don’t care

9. 09
L i g h t i n g I n n o v a t i o n

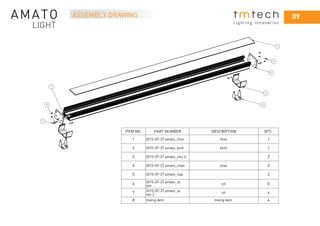

ASSEMBLY DRAWING
2
6
5
3
4
7
8
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 2015-07-27 amato_than than 1
2 2015-07-27 amato_kinh kinh 1
3 2015-07-27 amato_chu U 2
4 2015-07-27 amato_chan chan 2
5 2015-07-27 amato_nap 2
6 2015-07-27 amato_oc
van
vit 8
7 2015-07-27 amato_oc
van 2
vit 4
8 mieng dem mieng dem 4

10. 10
L i g h t i n g I n n o v a t i o n

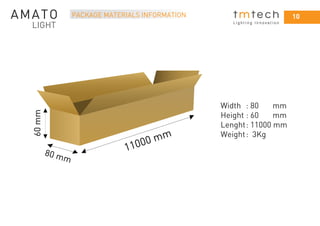

PACKAGE MATERIALS INFORMATION
Width : 80 mm
Height : 60 mm
Lenght: 11000 mm
Weight: 3Kg
11000 mm
80 mm
60mm

11. L i g h t i n g I n n o v a t i o n
THANKS FOR YOUR
ATTENTION
CONTACT US:
TMtech Electronics Co., Ltd
Add: No.2C, 17 Street, Linh Chieu Ward, Thu Duc District, Ho Chi Minh City.,VN
Website: www.tmtech.vn
Tel: (+84)8.668.222.73 Hotline: (+84) 934.943.273
Email: support@tmtech.vn Sales.maria@tmtech.vn
