1. Water supply
Domestic Cold water system :-1
1 Prepared by Eng. Mohamed Abdelghafar
Contents:
A- Over view of the system .
B- System component
C- Some phenomenon in water supply system .
D- System sizing
E-System Drafting

2. Water supply
Domestic Cold water system :-1
2 Prepared by Eng. Mohamed Abdelghafar
The primary task of a building cold water service and
distribution system is to provide adequate flow, pressure
and volume suitable for human consumption at every
device that uses water , even when the system at peak
demand.
System component :
1- Water meter
2- Piping
3- Valves
4- Water delivery system

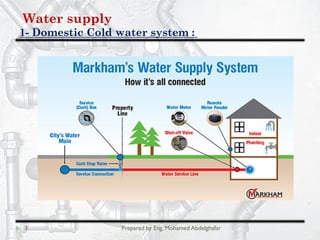

3. Water supply
Domestic Cold water system :-1
3 Prepared by Eng. Mohamed Abdelghafar

4. Water supply
Domestic Cold water system :-1
4 Prepared by Eng. Mohamed Abdelghafar

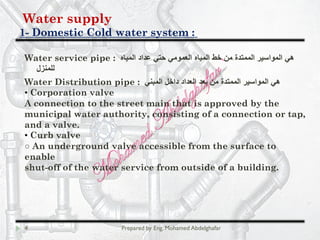

Water service pipe : ‫اﻟﻣﯾﺎه‬ ‫ﻋداد‬ ‫ﺣﺗﻲ‬ ‫اﻟﻌﻣوﻣﻲ‬ ‫اﻟﻣﯾﺎه‬ ‫ﺧط‬ ‫ﻣن‬ ‫اﻟﻣﻣﺗدة‬ ‫اﻟﻣواﺳﯾر‬ ‫ھﻲ‬
‫ﻟﻠﻣﻧزل‬
Water Distribution pipe : ‫اﻟﻣﺑﻧﻲ‬ ‫داﺧل‬ ‫اﻟﻌداد‬ ‫ﺑﻌد‬ ‫ﻣن‬ ‫اﻟﻣﻣﺗدة‬ ‫اﻟﻣواﺳﯾر‬ ‫ھﻲ‬
• Corporation valve
A connection to the street main that is approved by the
municipal water authority, consisting of a connection or tap,
and a valve.
• Curb valve
○ An underground valve accessible from the surface to
enable
shut-off of the water service from outside of a building.

5. Water supply
Domestic Cold water system :-1
5 Prepared by Eng. Mohamed Abdelghafar

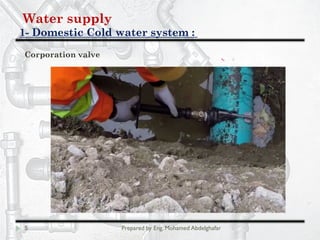

Corporation valve

6. Water supply
Domestic Cold water system :-1
6 Prepared by Eng. Mohamed Abdelghafar

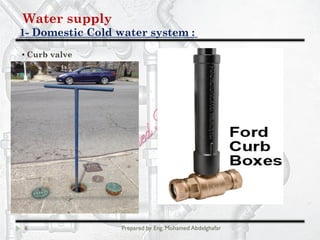

• Curb valve

7. Water supply
Domestic Cold water system :-1
7 Prepared by Eng. Mohamed Abdelghafar

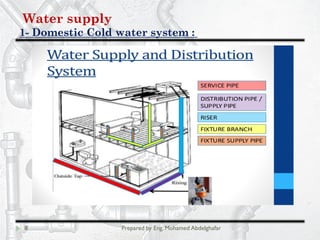

8. Water supply
Domestic Cold water system :-1
8 Prepared by Eng. Mohamed Abdelghafar

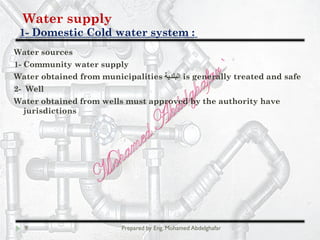

9. Water supply
Domestic Cold water system :-1
9 Prepared by Eng. Mohamed Abdelghafar
Water sources
1- Community water supply
Water obtained from municipalities ‫اﻟﺑﻠدﯾﺔ‬ is generally treated and safe
2- Well
Water obtained from wells must approved by the authority have
jurisdictions

10. Water supply
Domestic Cold water system :-1
10 Prepared by Eng. Mohamed Abdelghafar

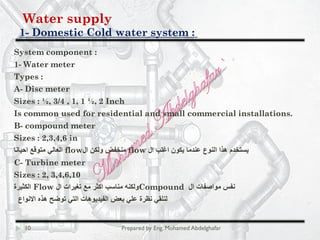

System component :
1- Water meter
Types :
A- Disc meter
Sizes : ½, 3/4 , 1, 1 ½, 2 Inch
Is common used for residential and small commercial installations.
B- compound meter
Sizes : 2,3,4,6 in
‫ال‬ ‫اﻏﻠب‬ ‫ﯾﻛون‬ ‫ﻋﻧدﻣﺎ‬ ‫اﻟﻧوع‬ ‫ھذا‬ ‫ﯾﺳﺗﺧدم‬flow‫ال‬ ‫وﻟﻛن‬ ‫ﻣﻧﺧﻔض‬flow‫اﺣﯾﺎﻧﺎ‬ ‫ﻣﺗوﻗﻊ‬ ‫اﻟﻌﺎﻟﻲ‬
C- Turbine meter
Sizes : 2, 3,4,6,10
‫ال‬ ‫ﻣواﺻﻔﺎت‬ ‫ﻧﻔس‬Compound‫ال‬ ‫ﺗﻐﯾرات‬ ‫ﻣﻊ‬ ‫اﻛﺛر‬ ‫ﻣﻧﺎﺳب‬ ‫وﻟﻛﻧﮫ‬Flow‫اﻟﻛﺛﯾرة‬
‫اﻻﻧواع‬ ‫ھذه‬ ‫ﺗوﺿﺢ‬ ‫اﻟﺗﻲ‬ ‫اﻟﻔﯾدﯾوھﺎت‬ ‫ﺑﻌض‬ ‫ﻋﻠﻲ‬ ‫ﻧظرة‬ ‫ﻟﻧﻠﻘﻲ‬

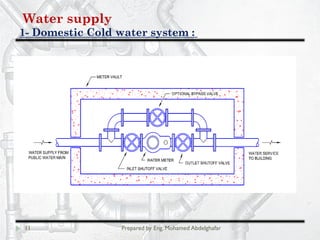

11. Water supply
Domestic Cold water system :-1
11 Prepared by Eng. Mohamed Abdelghafar

12. Water supply
Domestic Cold water system :-1
12 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :
‫اﻟﻣﺛﺎل‬ ‫ﺳﺑﯾل‬ ‫ﻋﻠﻲ‬ ‫ﻣﻧﮭﺎ‬ ‫اﻟﺷرب‬ ‫ﻣﯾﺎه‬ ‫ﻣواﺳﯾر‬ ‫ﻣﻧﮭﺎ‬ ‫ﺗﺻﻧﻊ‬ ‫اﻟﺗﻲ‬ ‫اﻟﻣواد‬ ‫ﻣن‬ ‫ﻣﺗﻌددة‬ ‫اﻧواع‬ ‫ﯾوﺟد‬:

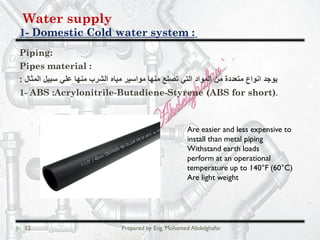

1- ABS :Acrylonitrile-Butadiene-Styrene (ABS for short).
Are easier and less expensive to
install than metal piping
Withstand earth loads
perform at an operational
temperature up to 140°F (60°C)
Are light weight

13. Water supply
Domestic Cold water system :-1
13 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :

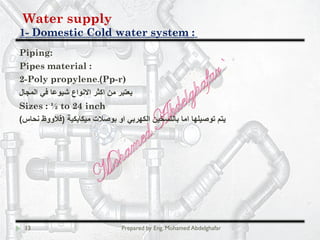

Pp-r)(2-Poly propylene.
‫اﻟﻣﺟﺎل‬ ‫ﻓﻲ‬ ‫ﺷﯾوﻋﺎ‬ ‫اﻻﻧواع‬ ‫اﻛﺛر‬ ‫ﻣن‬ ‫ﯾﻌﺗﺑر‬
Sizes : ½ to 24 inch
‫ﻣﯾﻛﺎﯾﻛﯾﺔ‬ ‫ﺑوﺻﻼت‬ ‫او‬ ‫اﻟﻛﮭرﺑﻲ‬ ‫ﺑﺎﻟﺗﺳﺧﯾن‬ ‫اﻣﺎ‬ ‫ﺗوﺻﯾﻠﮭﺎ‬ ‫ﯾﺗم‬)‫ﻧﺣﺎس‬ ‫ﻗﻼووظ‬(

14. Water supply
Domestic Cold water system :-1
14 Prepared by Eng. Mohamed Abdelghafar

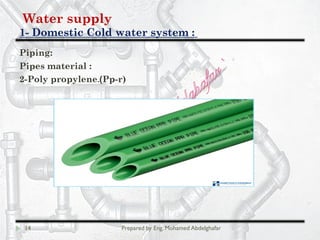

Piping:
Pipes material :
Pp-r)(2-Poly propylene.

15. Water supply
Domestic Cold water system :-1
15 Prepared by Eng. Mohamed Abdelghafar

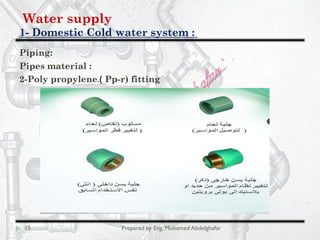

Piping:
Pipes material :

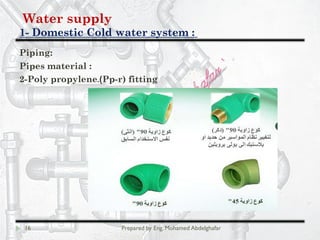

Pp-r) fitting(2-Poly propylene.

16. Water supply
Domestic Cold water system :-1
16 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :
Pp-r) fitting(2-Poly propylene.

17. Water supply
Domestic Cold water system :-1
17 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :
Pp-r) fitting(2-Poly propylene.

18. Water supply
Domestic Cold water system :-1
18 Prepared by Eng. Mohamed Abdelghafar

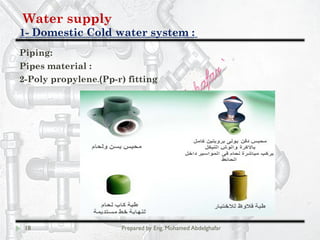

Piping:
Pipes material :
Pp-r) fitting(2-Poly propylene.

19. Water supply
Domestic Cold water system :-1
19 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :
3- Galvanised steel .
‫ﻛﻠﻣﺔ‬ ‫ﻣﻌﻧﻲ‬galvanised‫واﻟﺧﺎرج‬ ‫اﻟداﺧل‬ ‫ﻣن‬ ‫ﺑﺎﻟزﻧك‬ ‫اﻟﻣواﺳﯾر‬ ‫طﻼء‬ ‫ھﻲ‬ ‫واﻟﺟﻠﻔﻧﺔ‬ ‫ﻣﺟﻠﻔن‬ ‫اي‬
Ranging from schedule 10 to schedule 40
Most common schedule 40 or schedule 80
‫ﻋﯾوﺑﮫ‬ ‫اﻛﺑر‬:‫اﻟزﻣن‬ ‫ﻣرور‬ ‫ﻣﻊ‬ ‫اﻟﺻدأ‬

20. Water supply
Domestic Cold water system :-1
20 Prepared by Eng. Mohamed Abdelghafar

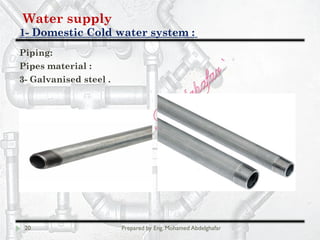

Piping:
Pipes material :
3- Galvanised steel .

21. Water supply
Domestic Cold water system :-1
21 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :

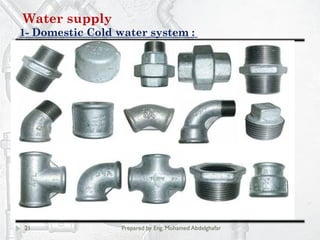

3- Galvanised steel .

22. Water supply
Domestic Cold water system :-1
22 Prepared by Eng. Mohamed Abdelghafar

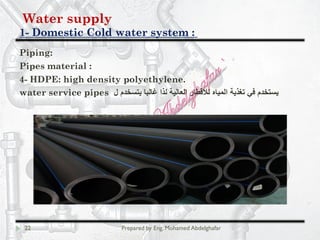

Piping:
Pipes material :
4- HDPE: high density polyethylene.
‫ل‬ ‫ﯾﺗﺳﺧدم‬ ‫ﻏﺎﻟﺑﺎ‬ ‫ﻟذا‬ ‫اﻟﻌﺎﻟﯾﺔ‬ ‫ﻟﻼﻗطﺎر‬ ‫اﻟﻣﯾﺎه‬ ‫ﺗﻐذﯾﺔ‬ ‫ﻓﻲ‬ ‫ﯾﺳﺗﺧدم‬water service pipes

23. Water supply
Domestic Cold water system :-1
23 Prepared by Eng. Mohamed Abdelghafar
Piping:
Pipes material :
5- Cupper tube
‫اﻟﻧوع‬ ‫ﻣن‬ ‫اﻟﻧﺣﺎس‬ ‫ﻣواﺳﯾر‬ ‫ﺗﻛون‬ ‫ان‬ ‫ﯾﺟب‬seamless‫ﺑﺛق‬ ‫ﻣواﺳﯾر‬ ‫اي‬
‫اﻟﻧﺣﺎس‬ ‫ﻣواﺳﯾر‬ ‫ﻣن‬ ‫اﻧواع‬ ‫ﺛﻼث‬ ‫ﯾوﺟد‬K,L,M‫اﻟﺣﺎﺋط‬ ‫ﺳﻣﺎﻛﺔ‬ ‫ﻓﻲ‬ ‫ﯾﻛون‬ ‫ﺑﯾﻧﮭم‬ ‫واﻻﺧﺗﻼف‬
K: large thickness
L: Medium thickness
M: Minimum thickness
‫ﻟﻠﺻدأ‬ ‫ﻣﻘﺎوم‬ ‫اﻧﮫ‬ ‫ﻣﻣﯾزاﺗﮫ‬ ‫اھم‬ ‫ﻣن‬

24. Water supply
Domestic Cold water system :-1
24 Prepared by Eng. Mohamed Abdelghafar

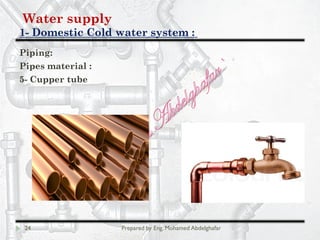

Piping:
Pipes material :
5- Cupper tube

25. Water supply
Domestic Cold water system :-1
25 Prepared by Eng. Mohamed Abdelghafar

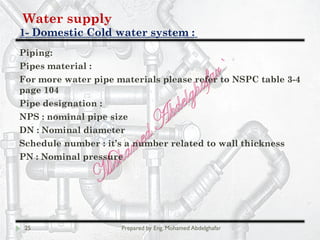

Piping:
Pipes material :
For more water pipe materials please refer to NSPC table 3-4
page 104
Pipe designation :
NPS : nominal pipe size
DN : Nominal diameter
Schedule number : it’s a number related to wall thickness
PN : Nominal pressure

26. Water supply
Domestic Cold water system :-1
26 Prepared by Eng. Mohamed Abdelghafar

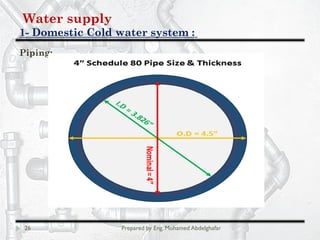

Piping:

27. Water supply
Domestic Cold water system :-1
27 Prepared by Eng. Mohamed Abdelghafar

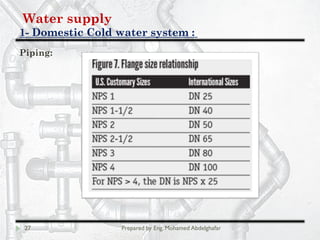

Piping:

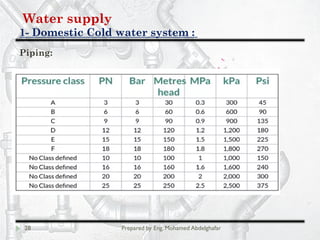

28. Water supply
Domestic Cold water system :-1
28 Prepared by Eng. Mohamed Abdelghafar
Piping:

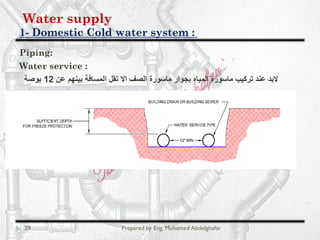

29. Water supply
Domestic Cold water system :-1
29 Prepared by Eng. Mohamed Abdelghafar
Piping:
Water service :
‫ﻋن‬ ‫ﺑﯾﻧﮭم‬ ‫اﻟﻣﺳﺎﻓﺔ‬ ‫ﺗﻘل‬ ‫اﻻ‬ ‫اﻟﺻف‬ ‫ﻣﺎﺳورة‬ ‫ﺑﺟوار‬ ‫اﻟﻣﯾﺎه‬ ‫ﻣﺎﺳورة‬ ‫ﺗرﻛﯾب‬ ‫ﻋﻧد‬ ‫ﻻﺑد‬12‫ﺑوﺻﺔ‬

30. Water supply
Domestic Cold water system :-1
30 Prepared by Eng. Mohamed Abdelghafar
Valves :
Main types
1- Gate valve
2- Globe valve
3- Ball valve
4- Butterfly valve
5- Check valve
Valves Function:
1- Starting and stopping flow
2- Throttling (regulating flow )
3- preventing the reversal of the flow .

31. Water supply
Domestic Cold water system :-1
31 Prepared by Eng. Mohamed Abdelghafar

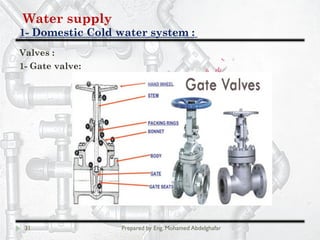

Valves :
1- Gate valve:

32. Water supply
Domestic Cold water system :-1
32 Prepared by Eng. Mohamed Abdelghafar

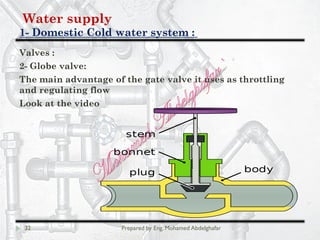

Valves :
2- Globe valve:
The main advantage of the gate valve it uses as throttling
and regulating flow
Look at the video

33. Water supply
Domestic Cold water system :-1
33 Prepared by Eng. Mohamed Abdelghafar

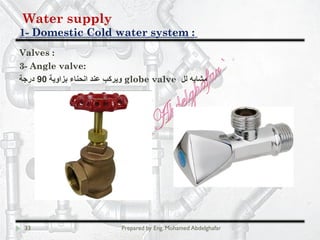

Valves :
3- Angle valve:
‫ﻟل‬ ‫ﻣﺷﺎﺑﮫ‬globe valve‫ﺑزاوﯾﺔ‬ ‫اﻧﺣﻧﺎء‬ ‫ﻋﻧد‬ ‫وﯾرﻛب‬90‫درﺟﺔ‬

34. Water supply
Domestic Cold water system :-1
34 Prepared by Eng. Mohamed Abdelghafar

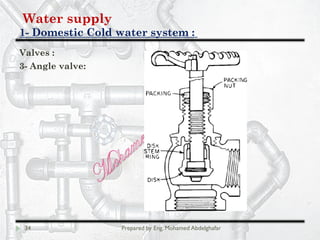

Valves :
3- Angle valve:

35. Water supply
Domestic Cold water system :-1
35 Prepared by Eng. Mohamed Abdelghafar
Valves :

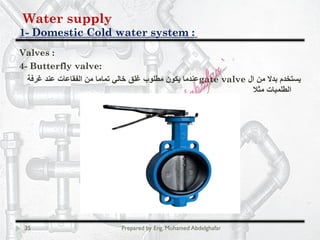

4- Butterfly valve:
‫ال‬ ‫ﻣن‬ ‫ﺑدﻻ‬ ‫ﯾﺳﺗﺧدم‬gate valve‫ﻏرﻓﺔ‬ ‫ﻋﻧد‬ ‫اﻟﻔﻘﺎﻋﺎت‬ ‫ﻣن‬ ‫ﺗﻣﺎﻣﺎ‬ ‫ﺧﺎﻟﻲ‬ ‫ﻏﻠق‬ ‫ﻣطﻠوب‬ ‫ﯾﻛون‬ ‫ﻋﻧدﻣﺎ‬
‫ﻣﺛﻼ‬ ‫اﻟطﻠﻣﺑﺎت‬

36. Water supply
Domestic Cold water system :-1
36 Prepared by Eng. Mohamed Abdelghafar

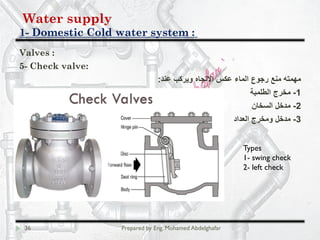

Valves :
5- Check valve:
‫ﻋﻧد‬ ‫وﯾرﻛب‬ ‫اﻻﺗﺟﺎه‬ ‫ﻋﻛس‬ ‫اﻟﻣﺎء‬ ‫رﺟوع‬ ‫ﻣﻧﻊ‬ ‫ﻣﮭﻣﺗﮫ‬:
1-‫اﻟطﻠﻣﺑﺔ‬ ‫ﻣﺧرج‬
2-‫اﻟﺳﺧﺎن‬ ‫ﻣدﺧل‬
3-‫اﻟﻌداد‬ ‫وﻣﺧرج‬ ‫ﻣدﺧل‬
Types
1- swing check
2- left check

37. Water supply
Domestic Cold water system :-1
37 Prepared by Eng. Mohamed Abdelghafar
Valves :
5- Check valve:
Types
1- swing check

38. Water supply
Domestic Cold water system :-1
38 Prepared by Eng. Mohamed Abdelghafar

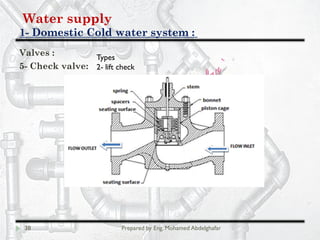

Valves :
5- Check valve:
Types
2- lift check

39. Water supply
Domestic Cold water system :-1
39 Prepared by Eng. Mohamed Abdelghafar

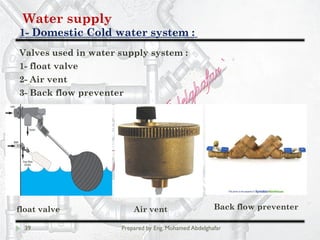

Valves used in water supply system :
1- float valve
2- Air vent
3- Back flow preventer
float valve Air vent Back flow preventer

40. Water supply
Domestic Cold water system :-1
40 Prepared by Eng. Mohamed Abdelghafar
Water Delivery system :
‫ﺻﺣﻲ‬ ‫ﺟﮭﺎز‬ ‫ﻻﺑﻌد‬ ‫اﻟﻣطﻠوب‬ ‫واﻟﺿﻐط‬ ‫اﻟﻣطﻠوﺑﺔ‬ ‫ﺑﺎﻟﻛﻣﯾﺔ‬ ‫اﻟﻣﯾﺎه‬ ‫ﺗوﺻﯾل‬ ‫ﻋﻠﻲ‬ ‫اﻟﺑﻠدﯾﺔ‬ ‫ﻣﯾﺎه‬ ‫ﻗدرة‬ ‫ﻋدم‬ ‫ﻋﻧد‬
‫اﻻﺗﯾﺔ‬ ‫اﻟطرق‬ ‫ﻻﺣدي‬ ‫ﻧﻠﺟﺄ‬:
1- Booster pump system :
‫ال‬ ‫ﻟﺗوﺻﯾل‬ ‫ﻣﺣددة‬ ‫ﺑﻘدرات‬ ‫اﻟﻣﺿﺧﺎت‬ ‫ﻣن‬ ‫ﻣﺟﻣوﻋﺔ‬ ‫ﻋن‬ ‫ﻋﺑﺎرة‬flow‫اﻟﻣطﻠوﺑﺎن‬ ‫واﻟﺿﻐط‬ ‫ﺑﺎﻟﻛﻣﯾﺔ‬
‫ﺻﺣﻲ‬ ‫ﺟﮭﺎز‬ ‫ﻻﺑﻌد‬.

41. Water supply
Domestic Cold water system :-1
41 Prepared by Eng. Mohamed Abdelghafar

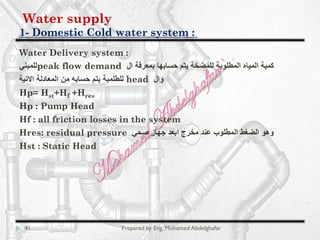

Water Delivery system :
‫ال‬ ‫ﺑﻣﻌرﻓﺔ‬ ‫ﺣﺳﺎﺑﮭﺎ‬ ‫ﯾﺗم‬ ‫ﻟﻠﻣﺿﺧﺔ‬ ‫اﻟﻣطﻠوﺑﺔ‬ ‫اﻟﻣﯾﺎه‬ ‫ﻛﻣﯾﺔ‬peak flow demand‫ﻟﻠﻣﺑﻧﻲ‬
‫وال‬head‫اﻻﺗﯾﺔ‬ ‫اﻟﻣﻌﺎدﻟﺔ‬ ‫ﻣن‬ ‫ﺣﺳﺎﺑﮫ‬ ‫ﯾﺗم‬ ‫ﻟﻠطﻠﻣﺑﺔ‬
Hp= Hst+Hf +Hres
Hp : Pump Head
Hf : all friction losses in the system
Hres: residual pressure ‫ﺻﺣﻲ‬ ‫ﺟﮭﺎز‬ ‫اﺑﻌد‬ ‫ﻣﺧرج‬ ‫ﻋﻧد‬ ‫اﻟﻣطﻠوب‬ ‫اﻟﺿﻐط‬ ‫وھو‬
Hst : Static Head

42. Water supply
Domestic Cold water system :-1
42 Prepared by Eng. Mohamed Abdelghafar

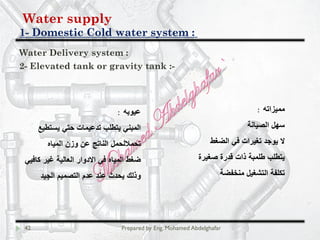

Water Delivery system :
2- Elevated tank or gravity tank :-
: ‫ﻣﻣﯾزاﺗﮫ‬
‫اﻟﺻﯾﺎﻧﺔ‬ ‫ﺳﮭل‬
‫اﻟﺿﻐط‬ ‫ﻓﻲ‬ ‫ﺗﻐﯾرات‬ ‫ﯾوﺟد‬ ‫ﻻ‬
‫ﺻﻐﯾرة‬ ‫ﻗدرة‬ ‫ذات‬ ‫طﻠﻣﺑﺔ‬ ‫ﯾﺗطﻠب‬
‫ﻣﻧﺧﻔﺿﺔ‬ ‫اﻟﺗﺷﻐﯾل‬ ‫ﺗﻛﻠﻔﺔ‬
: ‫ﻋﯾوﺑﮫ‬
‫ﯾﺳﺗطﯾﻊ‬ ‫ﺣﺗﻲ‬ ‫ﺗدﻋﯾﻣﺎت‬ ‫ﯾﺗطﻠب‬ ‫اﻟﻣﺑﻧﻲ‬
‫اﻟﻣﯾﺎه‬ ‫وزن‬ ‫ﻋن‬ ‫اﻟﻧﺎﺗﺞ‬ ‫ﺗﺣﻣﻼﻟﺣﻣل‬
‫ﻛﺎﻓﯾﻲ‬ ‫ﻏﯾر‬ ‫اﻟﻌﺎﻟﯾﺔ‬ ‫اﻻدوار‬ ‫ﻓﻲ‬ ‫اﻟﻣﯾﺎه‬ ‫ﺿﻐط‬
‫اﻟﺟﯾد‬ ‫اﻟﺗﺻﻣﯾم‬ ‫ﻋدم‬ ‫ﻋﻧد‬ ‫ﯾﺣدث‬ ‫وذﻟك‬

43. Water supply
Domestic Cold water system :-1
43 Prepared by Eng. Mohamed Abdelghafar

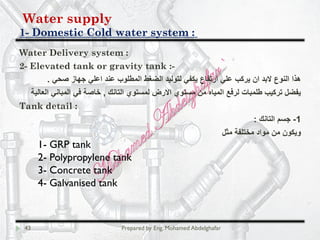

Water Delivery system :
2- Elevated tank or gravity tank :-
‫ﺻﺣﻲ‬ ‫ﺟﮭﺎز‬ ‫اﻋﻠﻲ‬ ‫ﻋﻧد‬ ‫اﻟﻣطﻠوب‬ ‫اﻟﺿﻐط‬ ‫ﻟﺗوﻟﯾد‬ ‫ﯾﻛﻔﻲ‬ ‫ارﺗﻔﺎع‬ ‫ﻋﻠﻲ‬ ‫ﯾرﻛب‬ ‫ان‬ ‫ﻻﺑد‬ ‫اﻟﻧوع‬ ‫ھذا‬.
‫اﻟﺗﺎﻧك‬ ‫ﻟﻣﺳﺗوي‬ ‫اﻻرض‬ ‫ﻣﺳﺗوي‬ ‫ﻣن‬ ‫اﻟﻣﯾﺎه‬ ‫ﻟرﻓﻊ‬ ‫طﻠﻣﺑﺎت‬ ‫ﺗرﻛﯾب‬ ‫ﯾﻔﺿل‬,‫اﻟﻌﺎﻟﯾﺔ‬ ‫اﻟﻣﺑﺎﻧﻲ‬ ‫ﻓﻲ‬ ‫ﺧﺎﺻﺔ‬
Tank detail :
1-‫اﻟﺗﺎﻧك‬ ‫ﺟﺳم‬:
‫ﻣﺛل‬ ‫ﻣﺧﺗﻠﻔﺔ‬ ‫ﻣواد‬ ‫ﻣن‬ ‫وﯾﻛون‬
1- GRP tank
2- Polypropylene tank
3- Concrete tank
4- Galvanised tank

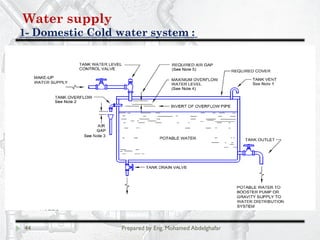

44. Water supply
Domestic Cold water system :-1
44 Prepared by Eng. Mohamed Abdelghafar
Water Delivery system :

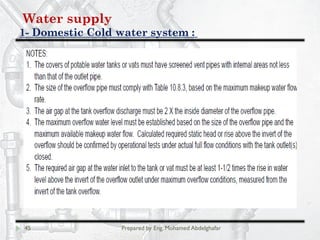

45. Water supply
Domestic Cold water system :-1
45 Prepared by Eng. Mohamed Abdelghafar

46. Water supply
Domestic Cold water system :-1
46 Prepared by Eng. Mohamed Abdelghafar

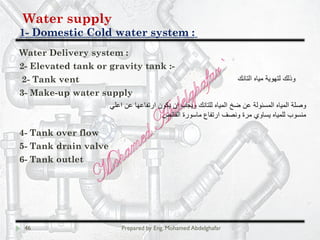

Water Delivery system :
2- Elevated tank or gravity tank :-
2- Tank vent
3- Make-up water supply
4- Tank over flow
5- Tank drain valve
6- Tank outlet
‫اﻟﺗﺎﻧك‬ ‫ﻣﯾﺎه‬ ‫ﻟﺗﮭوﯾﺔ‬ ‫وذﻟك‬
‫اﻋﻠﻲ‬ ‫ﻋن‬ ‫ارﺗﻔﺎﻋﮭﺎ‬ ‫ﯾﻛون‬ ‫ان‬ ‫وﯾﺟب‬ ‫ﻟﻠﺗﺎﻧك‬ ‫اﻟﻣﯾﺎه‬ ‫ﺿﺦ‬ ‫ﻋن‬ ‫اﻟﻣﺳﺋوﻟﺔ‬ ‫اﻟﻣﯾﺎه‬ ‫وﺻﻠﺔ‬
‫اﻟﻔﺎﺋض‬ ‫ﻣﺎﺳورة‬ ‫ارﺗﻔﺎع‬ ‫وﻧﺻف‬ ‫ﻣرة‬ ‫ﯾﺳﺎوي‬ ‫ﻟﻠﻣﯾﺎه‬ ‫ﻣﻧﺳوب‬

47. Water supply
Domestic Cold water system :-1
47 Prepared by Eng. Mohamed Abdelghafar

48. Water supply
Domestic Cold water system :-1
48 Prepared by Eng. Mohamed Abdelghafar

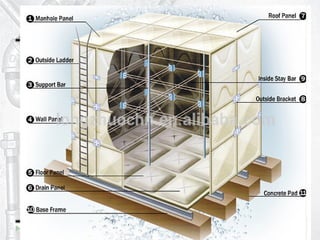

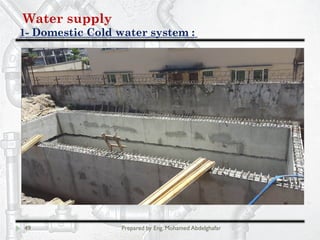

49. Water supply
Domestic Cold water system :-1
49 Prepared by Eng. Mohamed Abdelghafar

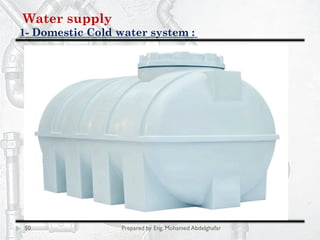

50. Water supply
Domestic Cold water system :-1
50 Prepared by Eng. Mohamed Abdelghafar

51. Water supply
Domestic Cold water system :-1
51 Prepared by Eng. Mohamed Abdelghafar

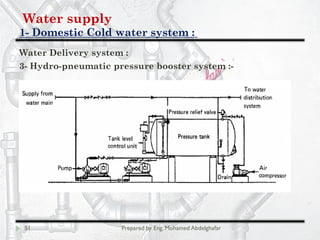

Water Delivery system :
3- Hydro-pneumatic pressure booster system :-

52. Water supply
Domestic Cold water system :-1
52 Prepared by Eng. Mohamed Abdelghafar
Water Delivery system :
3- Hydro-pneumatic pressure booster system :-

53. Water supply
Domestic Cold water system :-1
53 Prepared by Eng. Mohamed Abdelghafar
Water Delivery system :
‫اﻻرض‬ ‫اﺳﻔل‬ ‫او‬ ‫اﻟﺑدروم‬ ‫ﻓﻲ‬ ‫ﺗرﻛﯾﺑﮫ‬ ‫ﯾﻣﻛن‬ ‫وﻟﻛن‬ ‫اﻻﻋﻠﻲ‬ ‫ﻓﻲ‬ ‫اﻟﺧزان‬ ‫ﺗرﻛﯾب‬ ‫ﯾﺗم‬ ‫داﺋﻣﺎ‬ ‫ﻟﯾس‬
Installation of tank:-
1- Elevated
2- Underground tank
‫اﻟﻣﺑﻧﻲ‬ ‫اﺣﻣﺎل‬ ‫ﻋﻠﻲ‬ ‫اﻟﺗﺎﺛﯾر‬ ‫دون‬ ‫اﻟﻣﯾﺎه‬ ‫ﻣن‬ ‫ﻛﺑﯾرة‬ ‫ﻛﻣﯾﺔ‬ ‫ﺗﺧزﯾن‬ ‫ﻻﻣﻛﺎﻧﯾﺔ‬ ‫وذﻟك‬ ‫ﺑﻛﺛرة‬ ‫اﺳﺗﺧداﻣﮫ‬ ‫وﯾﺗم‬
‫ال‬ ‫ﻣﻊ‬ ‫ﺗرﻛﯾﺑﮫ‬ ‫وﯾﺗم‬booster pump system

54. Water supply
Domestic Cold water system :-1
54 Prepared by Eng. Mohamed Abdelghafar

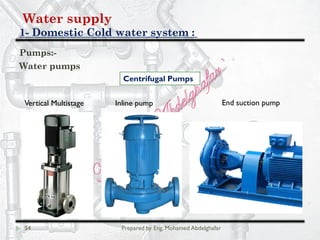

Pumps:-
Water pumps
Centrifugal Pumps
Vertical Multistage Inline pump End suction pump

55. Water supply
Domestic Cold water system :-1
55 Prepared by Eng. Mohamed Abdelghafar

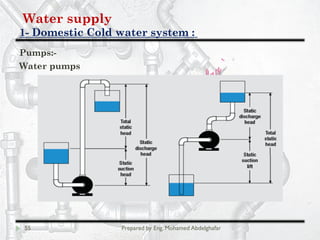

Pumps:-
Water pumps

56. Water supply
Domestic Cold water system :-1
56 Prepared by Eng. Mohamed Abdelghafar

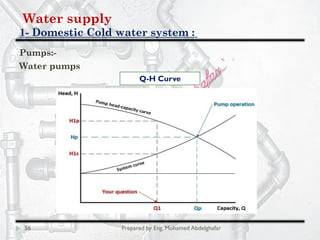

Pumps:-
Water pumps
Q-H Curve

57. Water supply
Domestic Cold water system :-1
57 Prepared by Eng. Mohamed Abdelghafar
Pumps:-
Water pumps
Pumps in parallel

58. Water supply
Domestic Cold water system :-1
58 Prepared by Eng. Mohamed Abdelghafar

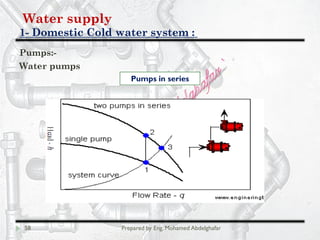

Pumps:-
Water pumps
Pumps in series

59. Water supply
Domestic Cold water system :-1
59 Prepared by Eng. Mohamed Abdelghafar

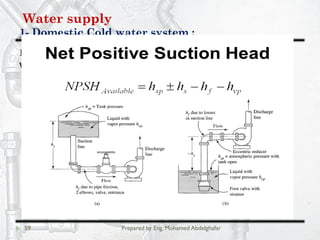

Pumps:-
Water pumps Net positive suction Head
