1. Architectural Project Solutions

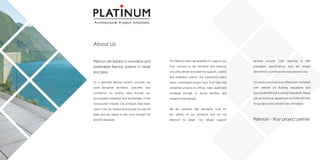

2. Platinum are leaders in innovative and
sustainable framing systems in metal
and glass.
As a specialist glazing solution provider, we
work alongside architects, specifiers and
contractors by adding value through our
accumulated expertise and knowledge of the
construction industry. Our products have been
used in the UK, Ireland and Europe for over 50
years and are tested to the most stringent BS
and EN standards.
The Platinum team are available to support you
from concept to site handover and beyond,
including design and planning support, costing
and installation advice. Our experience spans
every conceivable project type from high end
residential projects to offices, retail, apartment
buildings through to leisure facilities and
transport interchanges.
We set ourselves high standards, both for
the quality of our products and for our
attention to detail. Our design support
services include: CAD drawings & NBS
equivalent specifications and are always
delivered in a professional and personal way.
All products and services offered are compliant
with relevant UK Building regulations and
appropriateBritish&EuropeanStandards.Please
call our technical department on 01924 601 044
for guidance and relevant test information.
Architectural Project Solutions
About Us

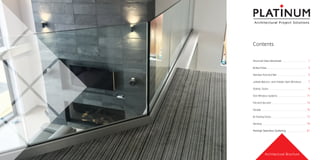

3. Structural Glass Balustrade
Bolted Glass
Stainless Post and Rail
Juliette Balcony and Hidden Sash Windows
Sliding Doors
Slim Window Systems
Fire and Security
Facade
Bi-Folding Doors
Decking
Prestige Seamless Guttering
1
3
5
7
9
11
13
15
17
19
21
Contents
Architectural Project Solutions
Architectural Brochure

4. 1

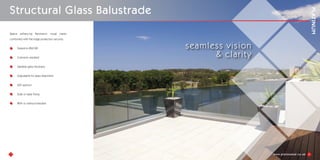

Space enhancing Panoramic visual clarity
combined with the edge protection security.
Tested to BS6180
Corrosion resistant
Variable glass thickness
Adjustable for glass alignment
LED options
Side or base fixing
With or without handrail
Structural Glass Balustrade
seamless vision
& clarity
2

5. 3

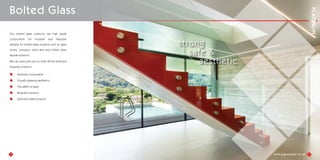

Our bolted glass solutions use high grade
components for modular and bespoke
designs for bolted glass projects such as glass
boxes, canopies, stairs atria and bolted glass
façade solutions.
We can work with you on both off the shelf and
bespoke solutions.
Modular components
Visually pleasing aesthetics
The safety of glass
Bespoke solutions
Specialist glass projects
Bolted Glass
strong
safe &
aesthetic
4

6. 5

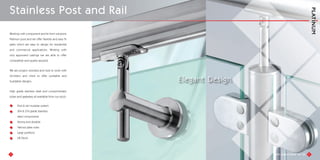

Working with component and kit form solutions
Platinum post and rail offer flexible and easy fit
parts which are easy to design for residential
and commercial applications. Working with
only approved castings we are able to offer
compatible and quality assured.
We are project oriented and look to work with
Architect and client to offer workable and
buildable designs.
High grade stainless steel and complimentary
tubes and gasketary all available from our stock.
Post & rail modular system
304 & 316 grade stainless
steel components
Strong and durable
Various glass sizes
Large portfolio
UK Stock
Stainless Post and Rail
6
Elegant Design

7. 7

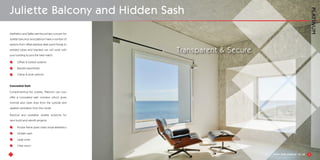

Aesthetics and Saftey are the primary concern for
Juliette balconys and platinum have a number of
options from offset stainless steel point fixings to
welded tubes and brackets we will work with
your building to pick the best match.
Offset & bolted systems
Bracket assemblies
Clamp & post options
Concealed Sash
Complimenting the Juliette, Platinum can now
offer a concealed sash window which gives
minimal and clean lines from the outside and
useable ventilation from the inside.
Practical and workable Juliette solutions for
new build and retrofit projects.
Picture frame gives clean visual aesthetics
Hidden sash
Large sizes
Clear vision
Juliette Balcony and Hidden Sash
8
Transparent & Secure

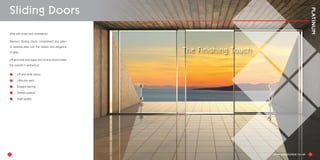

8. Ultra slim slider and minimalistic
Platinum Sliding doors compliment any patio
or veranda area with the beauty and elegance
of glass.
Lift and slide and super slim sliding doors create
the outside in ambience.
Lift and slide doors
Ultra slim sash
Elegant framing
Tested systems
High quality
9
Sliding Doors
10
The Finishing Touch

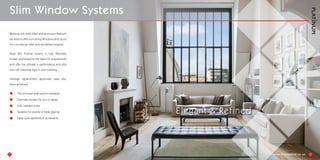

9. Working with both Steel and aluminium Platinum
are able to offer slim strong Windows and doors
for commercial retail and residential projects.
Steel ISO fineline system is fully thermally
broken and tested to the latest CE requirements
and offer the ultimate in performance and ultra
slim will maximise light in your building.
Heritage replacement approvals have also
been achieved.
The slimmest steel section available
Thermally broken for low U values
Fully welded joints
Suitable for double & triple glazing
Large span apertures & achievable
11 12
Elegant & Refined
Slim Window Systems

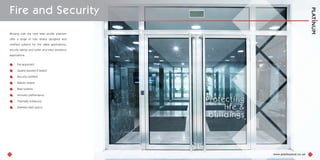

10. Fire and Security
Working with the best steel profile platinum
offer a range of fully tested designed and
certified systems for Fire rated applications,
security ratings and bullet and blast resistance
applications.
Fire approved
Quality assured & tested
Security certified
Ballistic tested
Blast systems
Acoustic performance
Thermally enhanced
Stainless steel option
13 14
Protecting
life &
buildings

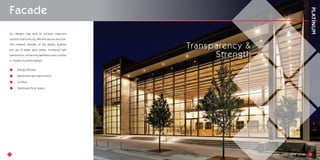

11. Facade
For designs that seek to achieve maximum
visibility with a strong, safe and secure structure.
The inherent strength of the design enables
the use of larger glass panes, increasing light
transmission, enhancing aesthetics and comfort
in modern building design.’
Energy efficient
Maximised light transmission
Comfort
Optimised floor space
15 16
Transparency &
Strength

12. Bi-Folding Doors
Bi-fold system with Thermal Break specially
designed to cover large gaps with the most
avant-garde aesthetic.
Its design is distinguished by its versatility. lt
has a great range of configurations of up to 14
sashes outside and inside opening, with the
possibility of an even or odd number of sashes.
With the objective of facilitate the access to the
rooms, it allows to insert the bottom frame in
the pavement, leaving the threshold completely
hidden. Additionally, the rollers and wheels
are hidden In close position, providing a more
attractive and clear aesthetic.
Transmittance: Uw from 1,5 (W/m2
K)
Accoustic Insulation: Maximum glazing 34mm
Different Finishes
Air Permeability (EN 12207:2000): Class 4
Water Tightness (EN 12208:2000): Class 9A
Wind Resistance (EN 12210:2000): Class A3
security Test (PAS 24:2012): APT
17 18
Bringing the
outdoors in

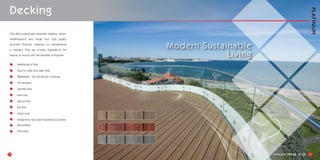

13. Decking
Our deck boards are extremely durable, stylish,
weatherproof, and made from high quality
recycled Polymer, meaning no maintenance
is needed. They are unique. Experience the
beauty of wood with the benefits of Polymer.
Maintenance free
Easy to clean and stain free
Watertight - do not absorb moisture
UV resistant
Splinter free
Non-slip
Mould free
Rot free
Solid core
Made from recycled household polymer
Recyclable
Non-toxic
19 20
Modern Sustainable
Living

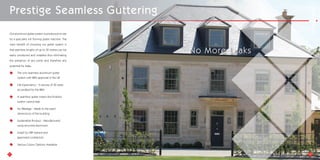

14. Prestige Seamless Guttering
Our aluminium gutter system is produced on site
by a specialist roll forming gutter machine. The
main benefit of choosing our gutter system is
that seamless lengths of up to 30 metres can be
easily produced and installed thus eliminating
the presence of any joints and therefore any
potential for leaks.
The only seamless aluminium gutter
system with BBA approval in the UK
Life Expectancy - In excess of 30 years
accredited by the BBA
A seamless gutter means the finished
system cannot leak
No Wastage - Made to the exact
dimensions of the building
Sustainable Product - Manufactured
using recycled aluminium
Install by ARP trained and
approved contractors
Various Colour Options Available
21 22
No More Leaks

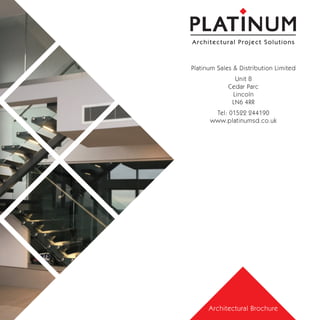

15. Platinum Sales & Distribution Limited
Unit 8
Cedar Parc
Lincoln
LN6 4RR
Tel: 01522 244190
www.platinumsd.co.uk
