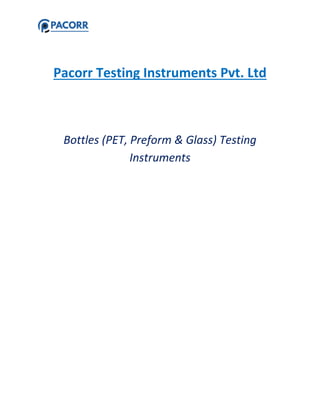

Pacorr Testing Instruments Pvt. Ltd. offers a range of testing instruments tailored for the quality assurance of PET and glass bottles, including top load testers, hot wire bottle cutters, vacuum leak testers, and carbonation assemblies. These instruments provide precise measurements for assessing bottle integrity, strength, and performance under various conditions. The comprehensive technical specifications and features ensure manufacturers can maintain high standards in bottle production and packaging.

1. Pacorr Testing Instruments Pvt. Ltd
Bottles (PET, Preform & Glass) Testing
Instruments

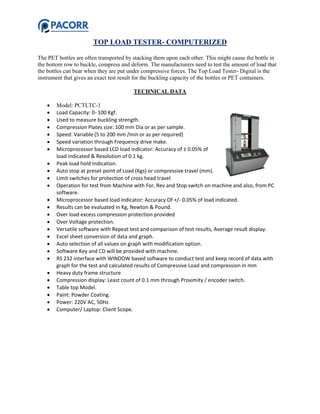

2. TOP LOAD TESTER- COMPUTERIZED
The PET bottles are often transported by stacking them upon each other. This might cause the bottle in
the bottom row to buckle, compress and deform. The manufacturers need to test the amount of load that
the bottles can bear when they are put under compressive forces. The Top Load Tester- Digital is the
instrument that gives an exact test result for the buckling capacity of the bottles or PET containers.
TECHNICAL DATA
 Model: PCTLTC-1
 Load Capacity: 0- 100 Kgf.
 Used to measure buckling strength.
 Compression Plates size: 100 mm Dia or as per sample.
 Speed: Variable (5 to 200 mm /min or as per required)
 Speed variation through Frequency drive make.
 Microprocessor based LCD load indicator: Accuracy of ± 0.05% of
load indicated & Resolution of 0.1 kg.
 Peak load hold Indication.
 Auto stop at preset point of Load (Kgs) or compressive travel (mm).
 Limit switches for protection of cross head travel
 Operation for test from Machine with For, Rev and Stop switch on machine and also, from PC
software.
 Microprocessor based load indicator: Accuracy Of +/- 0.05% of load indicated.
 Results can be evaluated in Kg, Newton & Pound.
 Over load excess compression protection provided
 Over Voltage protection.
 Versatile software with Repeat test and comparison of test results, Average result display.
 Excel sheet conversion of data and graph.
 Auto selection of all values on graph with modification option.
 Software Key and CD will be provided with machine.
 RS 232 interface with WINDOW based software to conduct test and keep record of data with
graph for the test and calculated results of Compressive Load and compression in mm
 Heavy duty frame structure
 Compression display: Least count of 0.1 mm through Proximity / encoder switch.
 Table top Model.
 Paint: Powder Coating.
 Power: 220V AC, 50Hz.
 Computer/ Laptop: Client Scope.

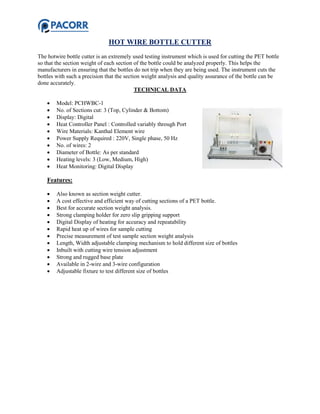

3. HOT WIRE BOTTLE CUTTER
The hotwire bottle cutter is an extremely used testing instrument which is used for cutting the PET bottle
so that the section weight of each section of the bottle could be analyzed properly. This helps the
manufacturers in ensuring that the bottles do not trip when they are being used. The instrument cuts the
bottles with such a precision that the section weight analysis and quality assurance of the bottle can be
done accurately.
TECHNICAL DATA
 Model: PCHWBC-1
 No. of Sections cut: 3 (Top, Cylinder & Bottom)
 Display: Digital
 Heat Controller Panel : Controlled variably through Port
 Wire Materials: Kanthal Element wire
 Power Supply Required : 220V, Single phase, 50 Hz
 No. of wires: 2
 Diameter of Bottle: As per standard
 Heating levels: 3 (Low, Medium, High)
 Heat Monitoring: Digital Display
Features:
 Also known as section weight cutter.
 A cost effective and efficient way of cutting sections of a PET bottle.
 Best for accurate section weight analysis.
 Strong clamping holder for zero slip gripping support
 Digital Display of heating for accuracy and repeatability
 Rapid heat up of wires for sample cutting
 Precise measurement of test sample section weight analysis
 Length, Width adjustable clamping mechanism to hold different size of bottles
 Inbuilt with cutting wire tension adjustment
 Strong and rugged base plate
 Available in 2-wire and 3-wire configuration
 Adjustable fixture to test different size of bottles

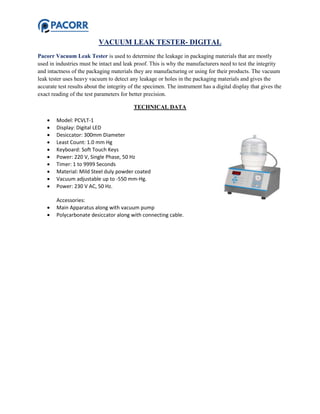

4. VACUUM LEAK TESTER- DIGITAL
Pacorr Vacuum Leak Tester is used to determine the leakage in packaging materials that are mostly
used in industries must be intact and leak proof. This is why the manufacturers need to test the integrity
and intactness of the packaging materials they are manufacturing or using for their products. The vacuum
leak tester uses heavy vacuum to detect any leakage or holes in the packaging materials and gives the
accurate test results about the integrity of the specimen. The instrument has a digital display that gives the
exact reading of the test parameters for better precision.
TECHNICAL DATA
 Model: PCVLT-1
 Display: Digital LED
 Desiccator: 300mm Diameter
 Least Count: 1.0 mm Hg
 Keyboard: Soft Touch Keys
 Power: 220 V, Single Phase, 50 Hz
 Timer: 1 to 9999 Seconds
 Material: Mild Steel duly powder coated
 Vacuum adjustable up to -550 mm-Hg.
 Power: 230 V AC, 50 Hz.
Accessories:
 Main Apparatus along with vacuum pump
 Polycarbonate desiccator along with connecting cable.

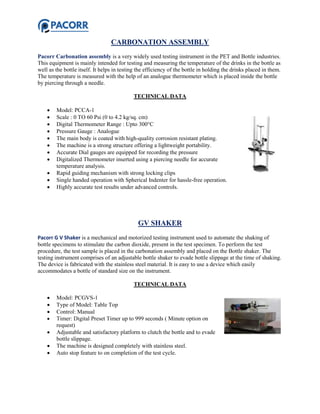

5. CARBONATION ASSEMBLY
Pacorr Carbonation assembly is a very widely used testing instrument in the PET and Bottle industries.
This equipment is mainly intended for testing and measuring the temperature of the drinks in the bottle as
well as the bottle itself. It helps in testing the efficiency of the bottle in holding the drinks placed in them.
The temperature is measured with the help of an analogue thermometer which is placed inside the bottle
by piercing through a needle.
TECHNICAL DATA
 Model: PCCA-1
 Scale : 0 TO 60 Psi (0 to 4.2 kg/sq. cm)
 Digital Thermometer Range : Upto 300°C
 Pressure Gauge : Analogue
 The main body is coated with high-quality corrosion resistant plating.
 The machine is a strong structure offering a lightweight portability.
 Accurate Dial gauges are equipped for recording the pressure
 Digitalized Thermometer inserted using a piercing needle for accurate
temperature analysis.
 Rapid guiding mechanism with strong locking clips
 Single handed operation with Spherical Indenter for hassle-free operation.
 Highly accurate test results under advanced controls.
GV SHAKER
Pacorr G V Shaker is a mechanical and motorized testing instrument used to automate the shaking of
bottle specimens to stimulate the carbon dioxide, present in the test specimen. To perform the test
procedure, the test sample is placed in the carbonation assembly and placed on the Bottle shaker. The
testing instrument comprises of an adjustable bottle shaker to evade bottle slippage at the time of shaking.
The device is fabricated with the stainless steel material. It is easy to use a device which easily
accommodates a bottle of standard size on the instrument.
TECHNICAL DATA
 Model: PCGVS-1
 Type of Model: Table Top
 Control: Manual
 Timer: Digital Preset Timer up to 999 seconds ( Minute option on
request)
 Adjustable and satisfactory platform to clutch the bottle and to evade
bottle slippage.
 The machine is designed completely with stainless steel.
 Auto stop feature to on completion of the test cycle.

6. TORQUE TESTER- DIGITAL
Pacorr Torque Tester- Digital is the instrument that helps in calculation of the force that is required to
open the cap of the PET bottles. The instrument comes with a digital display that gives the accurate
results of the force applied on the bottle caps during the test. With this test, the manufacturers can rest
assured that the bottles they are manufacturing have the optimum cap tightness and the bottles are
efficient enough to save the products inside them from spilling.
TECHNICAL DATA
 Model: PCTTD-1
 Ranges Available: 5 Nm & 10 Nm
 Accuracy: 0.5% of FSD
 Display: LED
 Sample diameter range: Ф20-200 mm
 Power Supply: 230 V AC
Features:
 20-200mm diameter bottles/ Jars can be tested
 Choice of different Units available like Lbs-Inch, N-Cm
 Peak Hold Facility
 Can measure clockwise and anti-clockwise torque value
 Tare Facility
 Facility to set upper and lower torque limits.
ILLUMINATED MAGNIFIER
Pacorr illuminated magnifier is mainly used of online inspection of products. The magnifier comes with
an LED illuminated strip which makes it easy for the users to locate nay anomaly or defect in the products
which are not visible through naked eye. The illumines that are used in the magnifier are known to give
stable and smooth white light which makes it even easier to inspect the products.
TECHNICAL DATA
 Model: PCM-1
 Magnification: 5X
 Lens Used: Imported Convex Lens
 Light Used: White CFL
 Changeable viewing angle and height of light.

7. Polariscope Strain Viewer- Dlx
Pacorr Polariscope, a highly efficient strain viewer that helps the manufacturers in testing the quality and
transparency of the products so that best quality assurance could be ensured to the customers. The
working of the Polariscope is based on the principle that any change in refractive index is due to different
strain distribution and this leads to lower transparency of the material.
TECHNICAL DATA
 Model: PCPSV
 Viewing Area: 260 * 240 mm
 Power: 220V, Single phase, 50 Hz
 Lights: CFL Light, Sodium Light
 Standard Template Measuring Angle: 45º and 90º
 The Polariscope strain viewer-Dlx offers very easy operation.
 Two light intensity offered: Monochromatic light and Sodium
Lamp.
 Sharper and clearer optical viewing experience.
 Large Viewing glass area.
COLOUR MATCHING CABINET
Colour matching cabinet is a very extensively used testing instrument to match the colours of different
products under different lighting conditions. This instrument is used in many different industries such as
textile industries, food industries, paint industries etc. The instrument is a closed cabinet with different
light sources installed in it. The specimen is placed under different lights at an angle of 450 along with the
reference standard.
TECHNICAL DATA
 Model: PCCMC-1
 The equipment is fitted with FIVE Light Sources as per CIE International Standards:
 D – 65 – Artificial daylight.
 TFL Light-Tungsten Filament.
 TL – 84 Light-Point of Sale
 UVB Light-Ultra Violet
 CWF Light-Cool white fluorescent
 Angle of viewing booth – 45 degree
 Viewing Booth Material – Wood or Steel
 Time Totalizer – Upto 99999.9 hours
 Pacorr color matching cabinet is manufactured strictly as per ASTM standards.

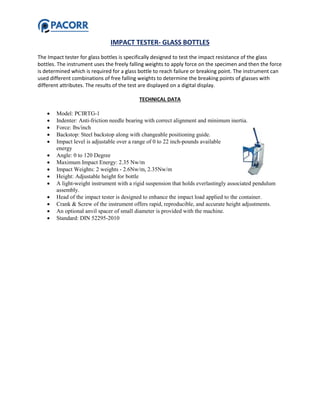

8. IMPACT TESTER- GLASS BOTTLES
The Impact tester for glass bottles is specifically designed to test the impact resistance of the glass
bottles. The instrument uses the freely falling weights to apply force on the specimen and then the force
is determined which is required for a glass bottle to reach failure or breaking point. The instrument can
used different combinations of free falling weights to determine the breaking points of glasses with
different attributes. The results of the test are displayed on a digital display.
TECHNICAL DATA
 Model: PCIRTG-1
 Indenter: Anti-friction needle bearing with correct alignment and minimum inertia.
 Force: lbs/inch
 Backstop: Steel backstop along with changeable positioning guide.
 Impact level is adjustable over a range of 0 to 22 inch-pounds available
energy
 Angle: 0 to 120 Degree
 Maximum Impact Energy: 2.35 Nw/m
 Impact Weights: 2 weights - 2.6Nw/m, 2.35Nw/m
 Height: Adjustable height for bottle
 A light-weight instrument with a rigid suspension that holds everlastingly associated pendulum
assembly.
 Head of the impact tester is designed to enhance the impact load applied to the container.
 Crank & Screw of the instrument offers rapid, reproducible, and accurate height adjustments.
 An optional anvil spacer of small diameter is provided with the machine.
 Standard: DIN 52295-2010

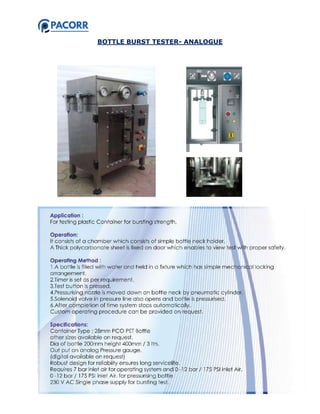

9. BOTTLE BURST TESTER- ANALOGUE

10. CAPS/ CLOSURES PULL OUT TESTER
Pacorr Cap Pullout tester is used to determine the maximum pull-out strength which is required to pull
out the cap of the bottles. It is an important principle used to ensure the quality and the strength of the cap
of the bottles. The instrument is widely used by the manufacturers in PET & Preform industries and
packaging industries to test the strength of the caps or corks of the bottles to make sure that the cap on the
bottles is fixed correctly. To avoid the leakage of the bottles, it is mandatory to perform cap pull out
strength on the bottles. Pacorr offers a high quality of Cap Pull Out tester to perform this test efficiently.
TECHNICAL DATA
 Model: PCCPOUT
 Capacity: 50 Kg
 Least Count of the machine: 10 grams
 Operating Motor Requirements– ¼ HP Single Phase 220 / 110 V
AC Supply
 Display of Test Results: Digital (LED)
 Accuracy/Tolerance: ± 3% of Full scale
Features:
 Advanced load sensor is sensing through advanced electronics.
 Highly sensitive load sensor with linearity feature and repeatability
 Single column rugged structure
 Safety limit switches for over travel safety
 Hardened lead screws for frictionless movement
 High accurate micro-controller based system controls
 Peak Hold facility available
 Bright LED display
 Immediate analysis of results after test with complete accuracy & precision.

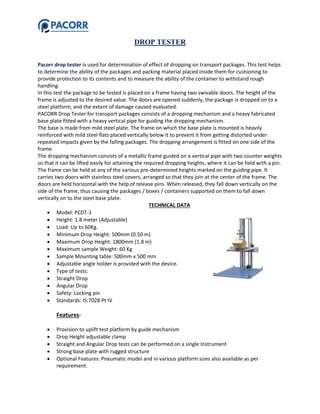

11. DROP TESTER
Pacorr drop tester is used for determination of effect of dropping on transport packages. This test helps
to determine the ability of the packages and packing material placed inside them for cushioning to
provide protection to its contents and to measure the ability of the container to withstand rough
handling.
In this test the package to be tested is placed on a frame having two swivable doors. The height of the
frame is adjusted to the desired value. The doors are opened suddenly, the package is dropped on to a
steel platform, and the extent of damage caused evaluated.
PACORR Drop Tester for transport packages consists of a dropping mechanism and a heavy fabricated
base plate fitted with a heavy vertical pipe for guiding the dropping mechanism.
The base is made from mild steel plate. The frame on which the base plate is mounted is heavily
reinforced with mild steel flats placed vertically below it to prevent it from getting distorted under
repeated impacts given by the falling packages. The dropping arrangement is fitted on one side of the
frame.
The dropping mechanism consists of a metallic frame guided on a vertical pipe with two counter weights
so that it can be lifted easily for attaining the required dropping heights, where it can be held with a pin.
The frame can be held at any of the various pre-determined heights marked on the guiding pipe. It
carries two doors with stainless steel covers, arranged so that they join at the center of the frame. The
doors are held horizontal with the help of release pins. When released, they fall down vertically on the
side of the frame, thus causing the packages / boxes / containers supported on them to fall down
vertically on to the steel base plate.
TECHNICAL DATA
 Model: PCDT-1
 Height: 1.8 meter (Adjustable)
 Load: Up to 60Kg.
 Minimum Drop Height: 500mm (0.50 m)
 Maximum Drop Height: 1800mm (1.8 m)
 Maximum sample Weight: 60 Kg
 Sample Mounting table: 500mm x 500 mm
 Adjustable angle holder is provided with the device.
 Type of tests:
 Straight Drop
 Angular Drop
 Safety: Locking pin
 Standards: IS:7028 Pt IV
Features:
 Provision to uplift test platform by guide mechanism
 Drop Height adjustable clamp
 Straight and Angular Drop tests can be performed on a single Instrument
 Strong base plate with rugged structure
 Optional Features: Pneumatic model and in various platform sizes also available as per
requirement.

12. HEIGHT GAUGE- DIGITAL
Pacorr Height gauge offers a digital reading of height of the test specimen with great precision. The
manufacturers in industries can rely on this instrument for precise and accurate measurement of heights
of different products. With the easy and simple operation of the instrument, it becomes very easy for
the user to take the measurements.
TECHNICAL DATA
 Model: PCHGD-1
 Resolution: 0.01mm or .0005″/0.01mm
 Display: LCD, 6-digit
 Length standard: ABSOLUTE electrostatic capacitance type linear
encoder
 Max. Response speed: Un limited
 Battery life: Approx. 5000 hours under normal use
FILL HEIGHT GAUGE
The Fill height gauge is used in labs for measurements of the containers. This is mainly used in plastic,
PET and glass bottle industries. The instrument helps in determining the fill level of the containers and
bottles so that the users could set the level according to the prescribed international standards.
 Model: PCFHG-1
 Measurement Range: 50mm and 500 mm.
 Operation: Manual

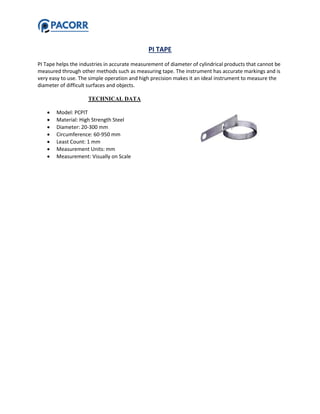

13. PI TAPE
PI Tape helps the industries in accurate measurement of diameter of cylindrical products that cannot be
measured through other methods such as measuring tape. The instrument has accurate markings and is
very easy to use. The simple operation and high precision makes it an ideal instrument to measure the
diameter of difficult surfaces and objects.
TECHNICAL DATA
 Model: PCPIT
 Material: High Strength Steel
 Diameter: 20-300 mm
 Circumference: 60-950 mm
 Least Count: 1 mm
 Measurement Units: mm
 Measurement: Visually on Scale

14. MOISTURE ANALYZER (MB90)
The Moisture Analyzer uses a halogen lamp to produce heat so that the moisture content is vaporized and
then the moisture content is analyzed by the sensors and the result is displayed on the digital LED display.
The instrument is very beneficial for the industries such as food industry, cement industry, pharmaceutical
industries and so forth. The Instrument is capable of giving highly precise test results again and again
with great repeatability.
TECHNICAL DATA
 Maximum Capacity: 90gm
 Readability Moisture Content: 1mg/0.01%
 Pan Size: 90mm
 Heater Type: Halogen
 Communication: USB Device, RS-232
 Display: Full- Color 4.3in Touchscreen WQVGA
 Heating Profile: Standard, Fast
 In Use Cover: Included
 Moisture Range: 0% - 100%
 Net Weight: 11.53 lb (5.23Kg)
 Operating Range: 10 °C – 40 °C
 Power: 115V, 60 Hz
 Sample Size: 0.5gm – 90gm
 Shut off Criteria: Manual, Auto
 Temperature Range: 40 °C – 200 °C
 Dimensions: 7.09in x 13.98in x 8.31in (180mm x 355mm x 211mm)
 Unit of Measurement: Gram; %MC; %RG; %DC
 Working Environment: 50°F–104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-
condensing)

15. PRECISION WALL THICKNESS GAUGE (USA)
The MTG-99 is simple to use to non-destructively measure the thickness of any non-ferrous material up
to 1" with access to both sides. The MTG-99 is portable, battery operated, can change color and vibrate
on alarm, has an internal data logger and is proudly made in the USA. Typical applications include plastic
bottles, containers, tubing, Titanium, Aluminum and Copper tubes and pipes as well as composite
structures.
TECHNICAL DATA
 Overall Dimension: 7.25" L x 4.00" W x-2.00" H (184mm x 101.6mm x 50.8mm)
 Weight: 1.15 lbs (.52 kg) with internal Li-Ion battery
 Operation temperature: -4 to 122F (-20 to 50C)
 Keypad: Illuminating rubber keypad
 Languages: English, French, German, Spanish,
Italian, Russian, Czech, Finnish, Chinese, Japanese,
Hungarian
 Data Storage: Onboard & removable up to 32 GB
Micro-SD card
 Battery Life: 16 h (lithium-ion) (TBD) AC
 Power Requirements: AC Mains: 100 VAC to120
VAC, 200 VAC to 240 VAC
 Display Type: 3.5" high resolution color TFT
display, 320 x 240 pixels (1/4 VGA), sunlight
readable, including multiple color pallets
 Backlight: Light Emitting Diode (LED) backlight.
Includes variable light intensity.
 Display Dimensions: (W x H, Diag.) 2.76 in. x 2.07 in., 3.5 in. (70.08 mm x 52.56 mm, 88.9 mm)
 Min/Max Capture Mode: Captured at 60 Hz measurement rate Display
 Formats: 4 modes; Thickness only, Thickness with 3 additional customizable choices, Thickness
and Strip chart, Grid View
 Display Update Rate: 4, 8, 16 and 20 Hz
 Alarm: High and Low alarms with vibrate feature
 Thickness Range: 0.0001"-1.00" (0.001-25.4 mm) of any non-ferrous material with access to both
sides
 Resolution: 0.01 in. (0.1 mm), 0.001 in. (0.01 mm), 0.0001 in. (0.001 mm), (depending on
thickness range)
 Data Logger: Internal file-based alphanumeric data logger
 Memory Card: Maximum capacity: 32 GB removable Micro-SD memory card
 Shutoff: selectable 1-31 minutes or "Never" shut off
 Inputs/Outputs: USB 2.0 peripheral, port RS-232 (Optional), Bluetooth (optional): Send and
receive readings and files via Bluetooth
 Environmental Testing: Designed for IP67
 Warranty: One year warranty under normal use on parts, 90 days for the probe. The probe should
not be dropped or used around ferrous materials such as iron, steel, doing so will void the
warranty.

16. TRANSPARENCY TESTER
Pacorr Transparency tester is used to check the transparency of wall of pet preforms & bottles.
Product Details:
Material Aluminium- Powder coated
Measuring range 0.0 to 100.0%,
Least count 0.1%
Size of the specimen 50mm x 50mm
Power supply 220V AC
Frequency 50 Hz
PERPENDICULARITY TESTER
Pacorr Perpendicularity Tester is useful to check the perpendicularity of preforms or bottles. It is
provided by digital gauge for more accurate measurements.
Product Details:
Accuracy 0.1%
Range 0-12mm
Least count 0.001mm
LCD Display Digital
Approx. Weight 4 Kg
DIGITAL ECCENTRICITY TESTER
Pacorr Eccentricity/thickness tester is useful to check the eccentricity/thickness of preforms or bottles.
It is provided by digital gauge for more accurate measurements.
Product Details:
Range 0-12mm
Accuracy 0.1%
Least count 0.001mm
LCD Display Digital
Approx. Weight 4Kg

17. PRE-FORM GO NO GO GAUGE
 Custom made: As per the client’s requirements
SECURE SEAL TESTER FOR BOTTLES
Bottle Closure Seal Tester is designed to check bottle and closure thread integrity and Seal
strength for Glass / PET Beverage Containers with Plastic Closures Most Useful for
Carbonated Drinks. Change Parts are available for different size closures.
TECHNICAL DATA
 Measuring range: 0 to 12.00 bar
 Resolution: 0.5 bar
 Input Medium : Carbon Di Oxide / Compressed Air / Nitrogen
 Test on bottles & cans.
 Display: Analogue Gauge
 Units: bar/Psi
 Setting of the level of pressure (regulator)
 Setting maximum pressure: 12 bar
Opacity Tester
Technical Specifications:
 Display: Digital (LED)
 Range: 0-99.9%
 Resolution: 0.01%
 Direct Displays: % Opaque
 Power: 230V AC, 50Hz
 Paint: Powder Coated
