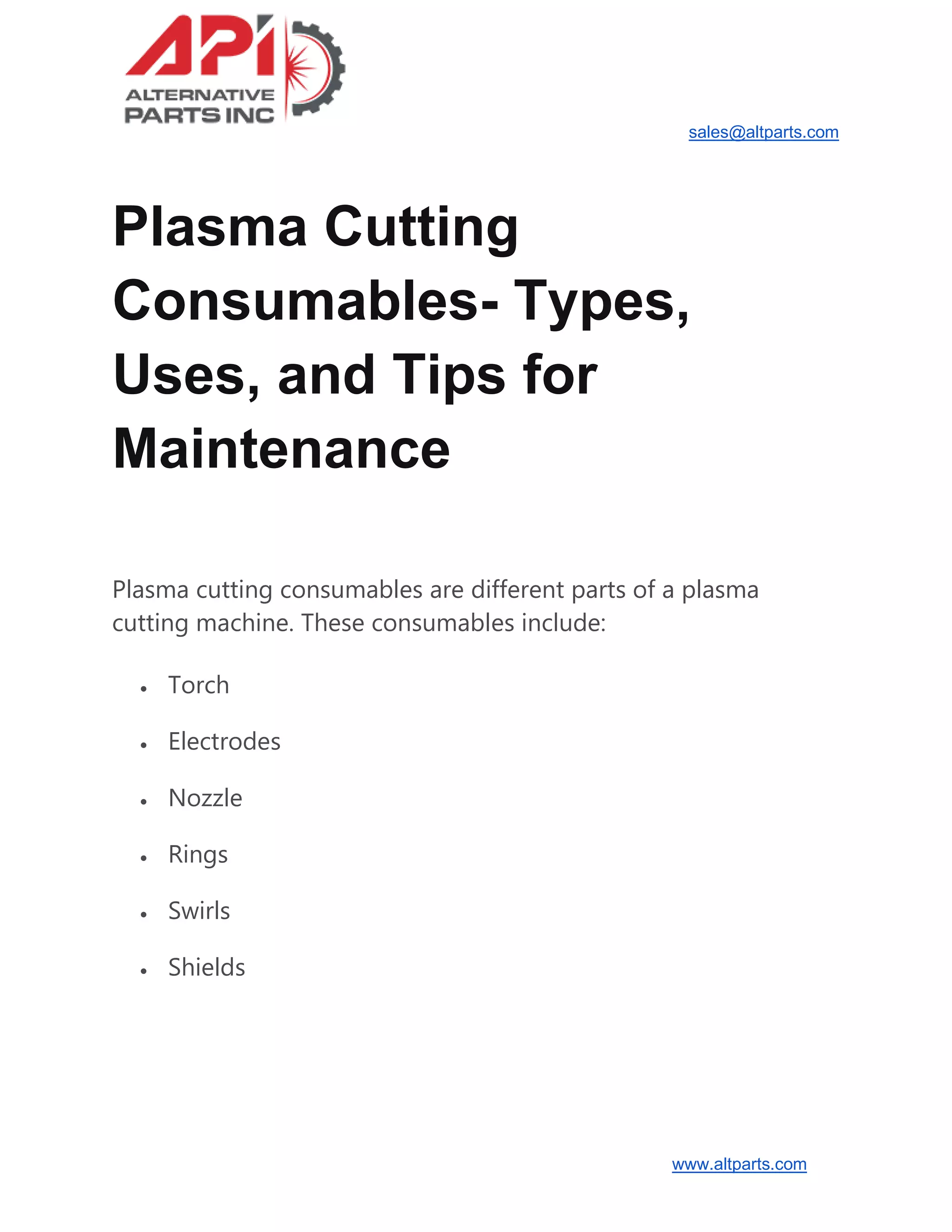

Plasma Cutting
Consumables- Types,
Uses, and Tips for
Maintenance
Plasma cutting consumables are different parts of a plasma
cutting machine. These consumables include:
• Torch
• Electrodes
• Nozzle
• Rings
• Swirls
• Shields

2. sales@altparts.com
www.altparts.com

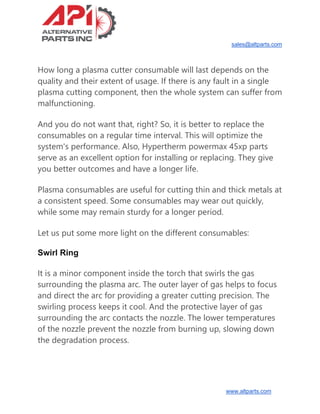

How long a plasma cutter consumable will last depends on the
quality and their extent of usage. If there is any fault in a single
plasma cutting component, then the whole system can suffer from
malfunctioning.
And you do not want that, right? So, it is better to replace the
consumables on a regular time interval. This will optimize the
system's performance. Also, Hypertherm powermax 45xp parts
serve as an excellent option for installing or replacing. They give
you better outcomes and have a longer life.
Plasma consumables are useful for cutting thin and thick metals at
a consistent speed. Some consumables may wear out quickly,
while some may remain sturdy for a longer period.
Let us put some more light on the different consumables:
Swirl Ring
It is a minor component inside the torch that swirls the gas
surrounding the plasma arc. The outer layer of gas helps to focus
and direct the arc for providing a greater cutting precision. The
swirling process keeps it cool. And the protective layer of gas
surrounding the arc contacts the nozzle. The lower temperatures
of the nozzle prevent the nozzle from burning up, slowing down
the degradation process.

3. sales@altparts.com
www.altparts.com
Electrode
It is a narrow piece of copper-containing hafnium. Its job includes:
• Receiving an electrical current from a cathode block placed
inside the torch to which it is connected
• Focusing the charge through its tip
This causes it to arc onto the workpiece.
Nozzle
It focuses on the plasma arc and the gas surrounding it to provide
a clean and precise cut. A nozzle with a larger opening is useful
for gouging. And a nozzle with a smaller opening is useful for
providing delicate and detailed work.
Retaining Cap
It essentially holds all of the consumable parts of the torch
together. The temperatures at this end of the machine are
incredibly high, and thus, not only the parts that create and focus
the arc worn down but the component holding them together
also degrades over time.

4. sales@altparts.com
www.altparts.com

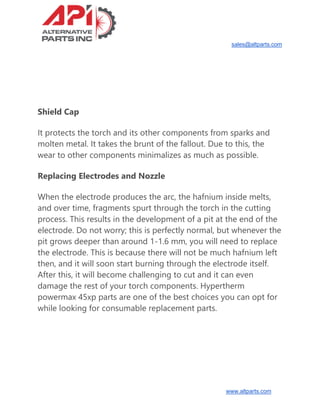

Shield Cap
It protects the torch and its other components from sparks and
molten metal. It takes the brunt of the fallout. Due to this, the
wear to other components minimalizes as much as possible.
Replacing Electrodes and Nozzle
When the electrode produces the arc, the hafnium inside melts,
and over time, fragments spurt through the torch in the cutting
process. This results in the development of a pit at the end of the
electrode. Do not worry; this is perfectly normal, but whenever the
pit grows deeper than around 1-1.6 mm, you will need to replace
the electrode. This is because there will not be much hafnium left
then, and it will soon start burning through the electrode itself.
After this, it will become challenging to cut and it can even
damage the rest of your torch components. Hypertherm
powermax 45xp parts are one of the best choices you can opt for
while looking for consumable replacement parts.

5. sales@altparts.com
www.altparts.com

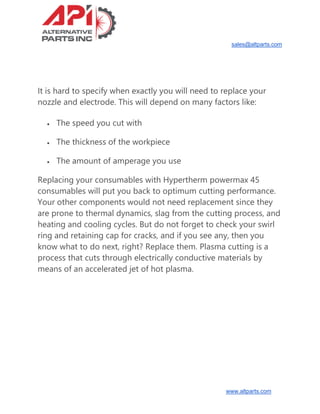

It is hard to specify when exactly you will need to replace your
nozzle and electrode. This will depend on many factors like:
• The speed you cut with
• The thickness of the workpiece
• The amount of amperage you use
Replacing your consumables with Hypertherm powermax 45
consumables will put you back to optimum cutting performance.
Your other components would not need replacement since they
are prone to thermal dynamics, slag from the cutting process, and
heating and cooling cycles. But do not forget to check your swirl
ring and retaining cap for cracks, and if you see any, then you
know what to do next, right? Replace them. Plasma cutting is a
process that cuts through electrically conductive materials by
means of an accelerated jet of hot plasma.

6. sales@altparts.com
www.altparts.com

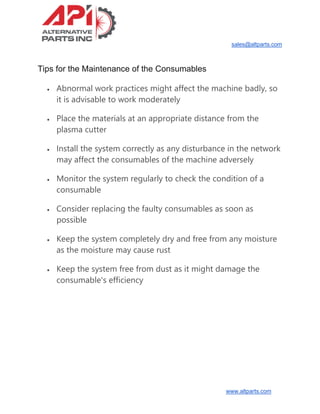

Tips for the Maintenance of the Consumables
• Abnormal work practices might affect the machine badly, so
it is advisable to work moderately
• Place the materials at an appropriate distance from the
plasma cutter
• Install the system correctly as any disturbance in the network
may affect the consumables of the machine adversely
• Monitor the system regularly to check the condition of a
consumable
• Consider replacing the faulty consumables as soon as
possible
• Keep the system completely dry and free from any moisture
as the moisture may cause rust
• Keep the system free from dust as it might damage the
consumable's efficiency

7. sales@altparts.com
www.altparts.com

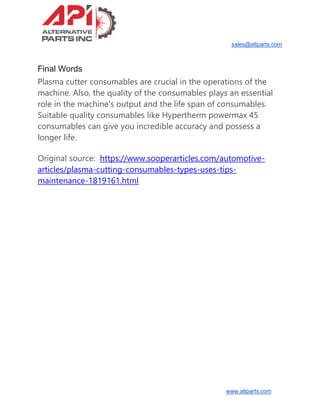

Final Words
Plasma cutter consumables are crucial in the operations of the
machine. Also, the quality of the consumables plays an essential
role in the machine's output and the life span of consumables.
Suitable quality consumables like Hypertherm powermax 45
consumables can give you incredible accuracy and possess a
longer life.
