1. Plan the approach based on the angiogram
Markus Meyer-Geßner Augusta-Krankenhaus Düsseldorf

2. 2
Alexander von
Humboldt,
Born in Berlin 250 years
ago 14th of september
A Pioneer of scientific expeditions through terra incognita
Roadmap of several expeditions

3. 3
The roadmap with terra incognita:
Bilateral angiogram
Complete overview (limited collimation)
No panning
Adequate angulations
Start with retrograde injection

4. 4
Retrograd septal via ACVB und RIVP

5. 5
Barriers inside terra incognita
4 C of complexity: Cap, Calcium, Curve, Channel length

6. „RECALL“
= 4C + Redo
J Am Coll Cardiol Intv. 2011;4(2):213-221. doi:10.1016/j.jcin.2010.09.024
J-CTO Score 0-5

7. J Am Coll Cardiol Intv. 2011;4(2):213-221. doi:10.1016/j.jcin.2010.09.024

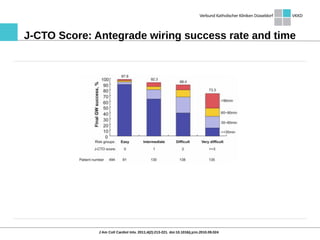

J-CTO Score: Antegrade wiring success rate and time

8. 8

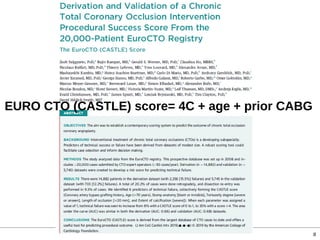

EURO CTO (CASTLE) score= 4C + age + prior CABG

9. 9
EURO CTO (CASTLE) Score
JACC CVI 2019
JACC CVI 2019

10. 10
From roadmap to expedition plan
J-CTO score 3, CASTLE score 3 – success rate antegrade
<80%
Interventional collaterals -> retrograde septal access
Cap: not tapered
Channel length: >20mm
Calcification: moderate
Collaterals: septals and epicardials, septal approach feasible

11. 11
Retrograde septal PDA-LAD

12. 12
Easy case for beginners – J CTO score 0
Basics: contralateral injection, microcatheter

13. 13
Challenging case for experts - CASTLE score 6
CTO RCA 2007 before CABG

14. 14
Multilevel CTO RCA 2017 10 y post CABG, CASTLE Score 6
Part 1: proximal opening, retrograde via ACVB

15. 15
Part 2: distal opening retrograde via
epicardial channel LCX to PLB

16. 16
CTO RCA 2007 - result 2017

17. 17
A challenge for men and material:
RG3

18. Consensus Paper from Euro CTO Club Eurointervention 2019

19. Conclusion
A carefully performed and analyzed
roadmap is the key for planning the
expedition through terra incognita
