Pinot: Near Real-Time Analytics @ Uber
U B E R | Data
Xiang Fu

Sr Software Engineer II @ Uber

Streaming Analytics Team
Quick Introduction
U B E R | Data

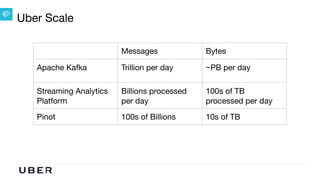

Uber Scale
Messages Bytes
Apache Kafka Trillion per day ~PB per day

Streaming Analytics
Platform
Billions processed
per day
100s of TB
processed per day
Pinot 100s of Billions 10s of TB
U B E R | Data
Agenda
● Pinot @ Uber

● Architecture

● Case Study

● Pinot Perf
Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed
quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent.
Pinot @ Uber
U B E R | Data
Experimentation platform (Internal Dashboard)
A / B Tests

See progress of
tests in real-time
U B E R | Data

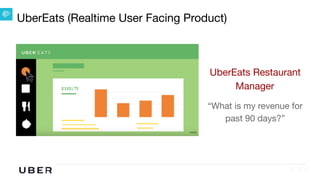

UberEats (Realtime User Facing Product)
UberEats Restaurant
Manager

“What is my revenue for
past 90 days?”
U B E R | Data

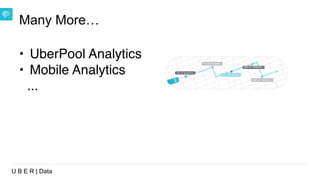

Many More…
• UberPool Analytics
• Mobile Analytics
...
Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed
quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent.
Architecture
U B E R | Data

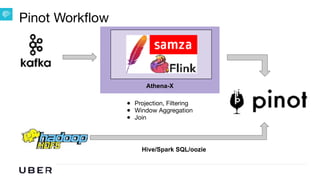

Pinot Workflow
Athena-X
Hive/Spark SQL/oozie
● Projection, Filtering

● Window Aggregation

● Join
U B E R | Data

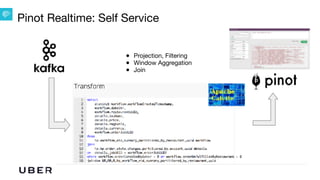

Pinot Realtime: Self Service
● Projection, Filtering

● Window Aggregation

● Join
Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed
quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent.
Case Study
U B E R | Data

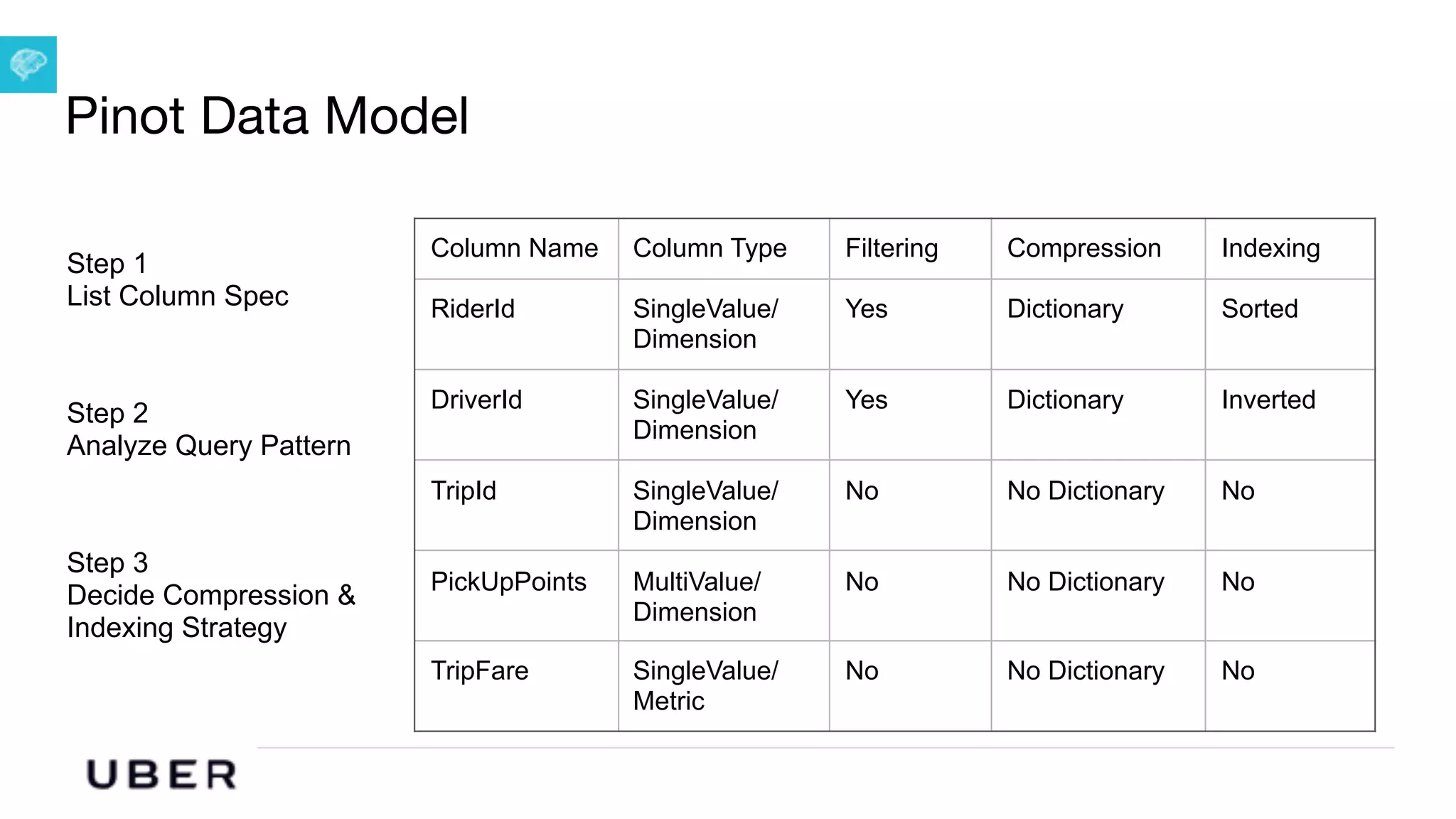

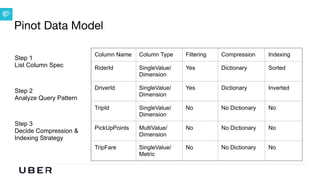

Pinot Data Model
Column Name Column Type Filtering Compression Indexing
RiderId SingleValue/
Dimension
Yes Dictionary Sorted
DriverId SingleValue/
Dimension
Yes Dictionary Inverted
TripId SingleValue/
Dimension
No No Dictionary No
PickUpPoints MultiValue/
Dimension
No No Dictionary No
TripFare SingleValue/
Metric
No No Dictionary No
Step 1
List Column Spec
Step 2
Analyze Query Pattern
Step 3
Decide Compression &
Indexing Strategy
U B E R | Data

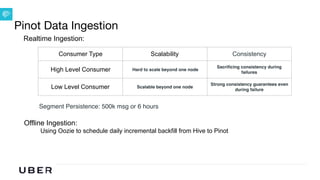

Pinot Data Ingestion
Realtime Ingestion:
Consumer Type Scalability Consistency
High Level Consumer Hard to scale beyond one node
Sacrificing consistency during
failures
Low Level Consumer Scalable beyond one node
Strong consistency guarantees even
during failure
Segment Persistence: 500k msg or 6 hours
Offline Ingestion:
Using Oozie to schedule daily incremental backfill from Hive to Pinot
Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed
quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent.
Pinot Perf
U B E R | Data

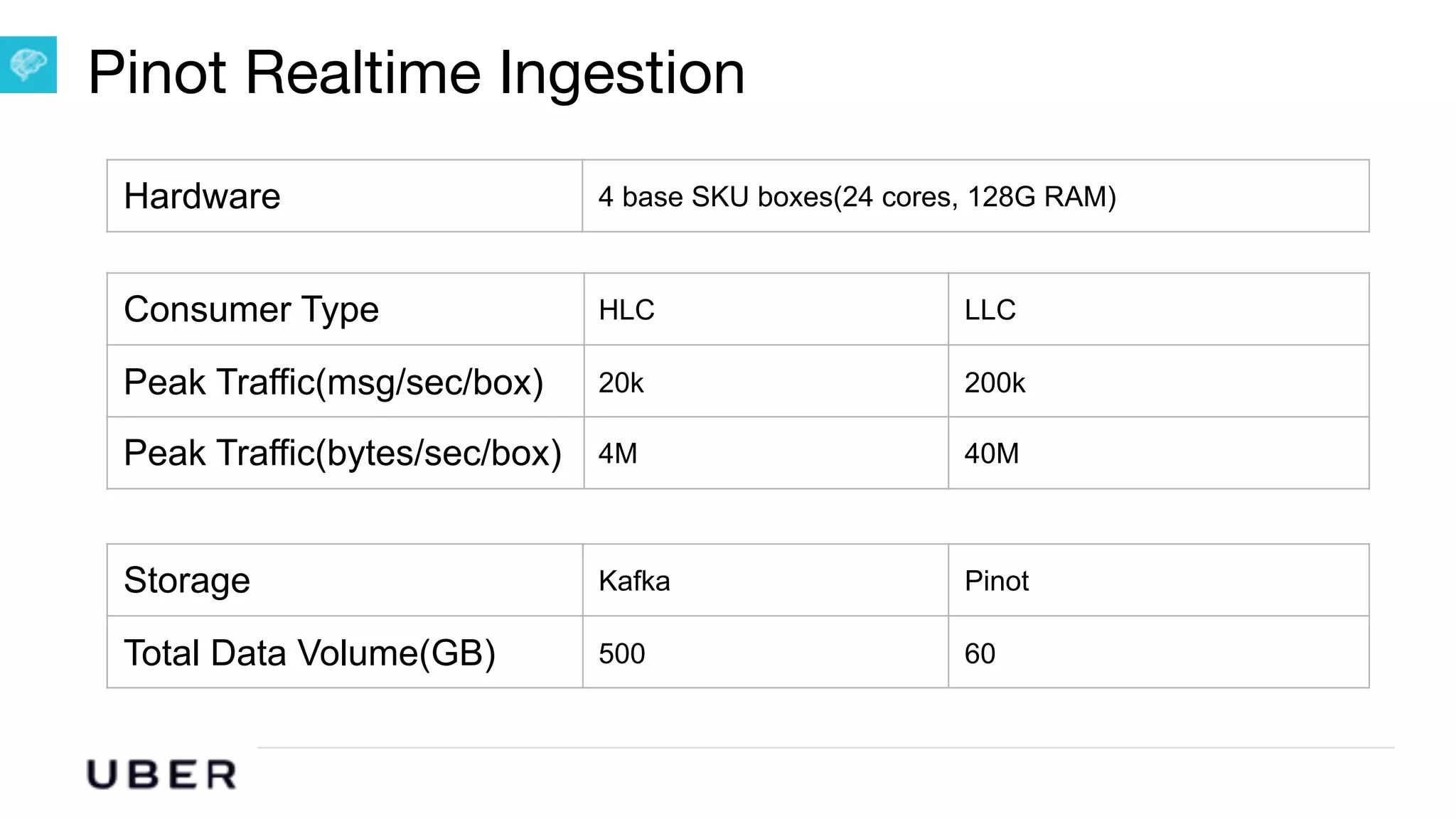

Pinot Realtime Ingestion
Hardware 4 base SKU boxes(24 cores, 128G RAM)
Consumer Type HLC LLC
Peak Traffic(msg/sec/box) 20k 200k
Peak Traffic(bytes/sec/box) 4M 40M
Storage Kafka Pinot
Total Data Volume(GB) 500 60
U B E R | Data

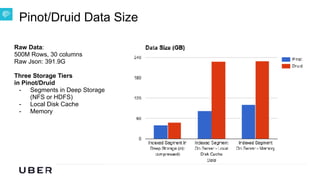

Pinot/Druid Data Size
Raw Data:

500M Rows, 30 columns

Raw Json: 391.9G
Three Storage Tiers

in Pinot/Druid
- Segments in Deep Storage

(NFS or HDFS)
- Local Disk Cache
- Memory
U B E R | Data
Pinot/Druid Query Performance
Max Duration:
select max(duration) from trips
Count All Grouped by City:
select count(*) from trips
group by city_id top 10000
Count All in One Month:
select count(*) from trips
where Month = '201601'
Count All in SF:
select count(*) from trips
where city_id=1 group by Month
Unique Drivers in SF:
select distinctCountHLL(driver_uuid)
from trips where city_id=1
Unique Drivers By Date:
select distinctCountHLL(driver_uuid)
from trips group by Date
U B E R | Data

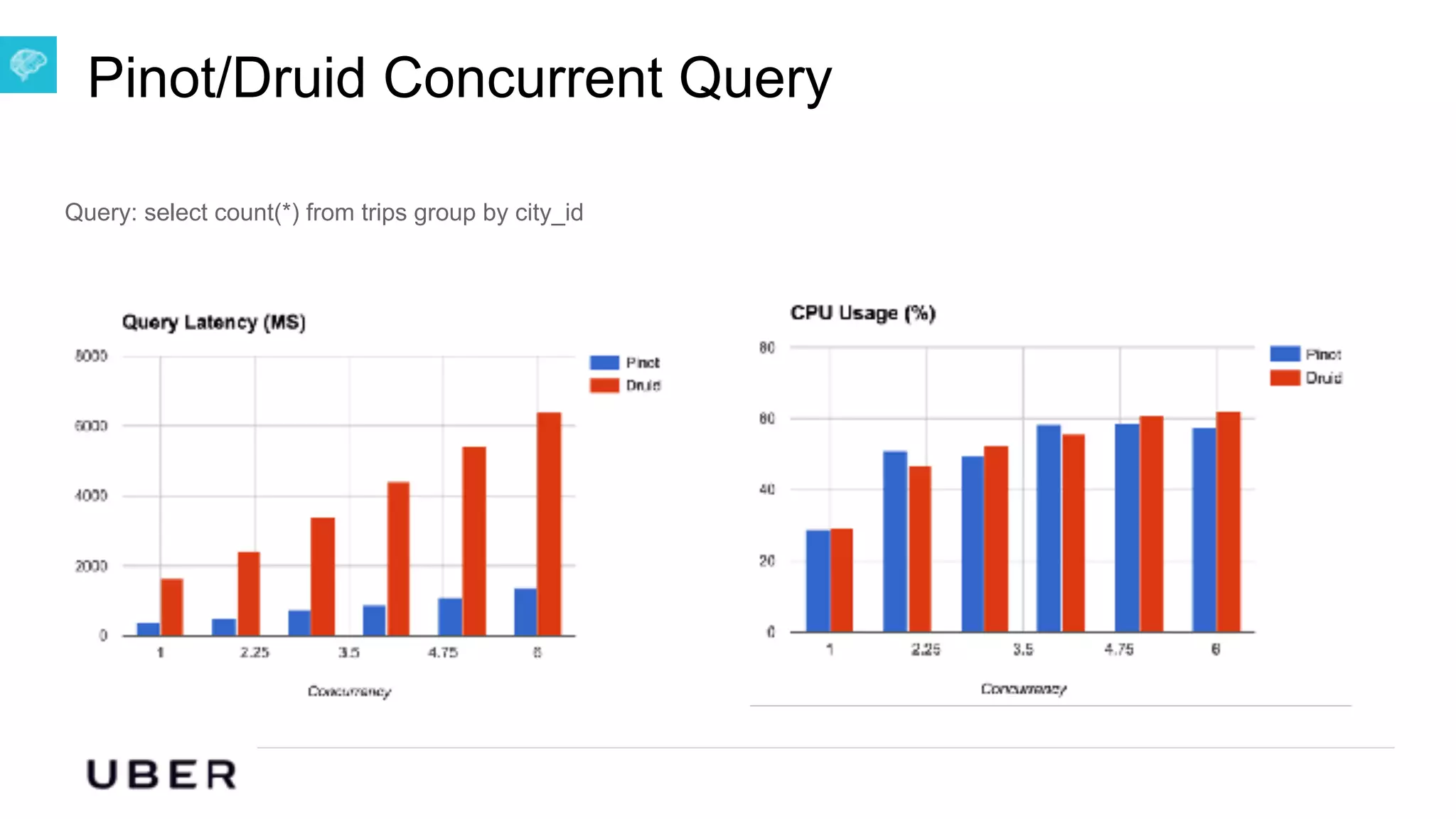

Pinot/Druid Concurrent Query
Query: select count(*) from trips group by city_id
U B E R | Data

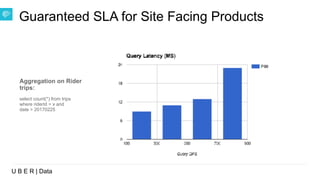

Guaranteed SLA for Site Facing Products
Aggregation on Rider
trips:
select count(*) from trips
where riderId = x and
date > 20170225
Edit or delete footer text in Master ipsandella doloreium dem isciame ndaestia nessed
quibus aut hiligenet ut ea debisci eturiate poresti vid min core, vercidigent.
Thank you
