This is part 1 of a webinar trilogy on MySQL Query Tuning, in which we look at query tuning process and tools to help with that. We’ve covered topics such as SQL tuning, indexing, the optimizer and how to leverage EXPLAIN to gain insight into execution plans. Part 1: Query tuning process and tools. AGENDA • Query tuning process - Build - Collect - Analyze - Tune - Test • Tools - tcpdump - pt-query-digest SPEAKER Krzysztof Książek, Senior Support Engineer at Severalnines, is a MySQL DBA with experience managing complex database environments for companies like Zendesk, Chegg, Pinterest and Flipboard.

1. Copyright 2016 Severalnines AB
1

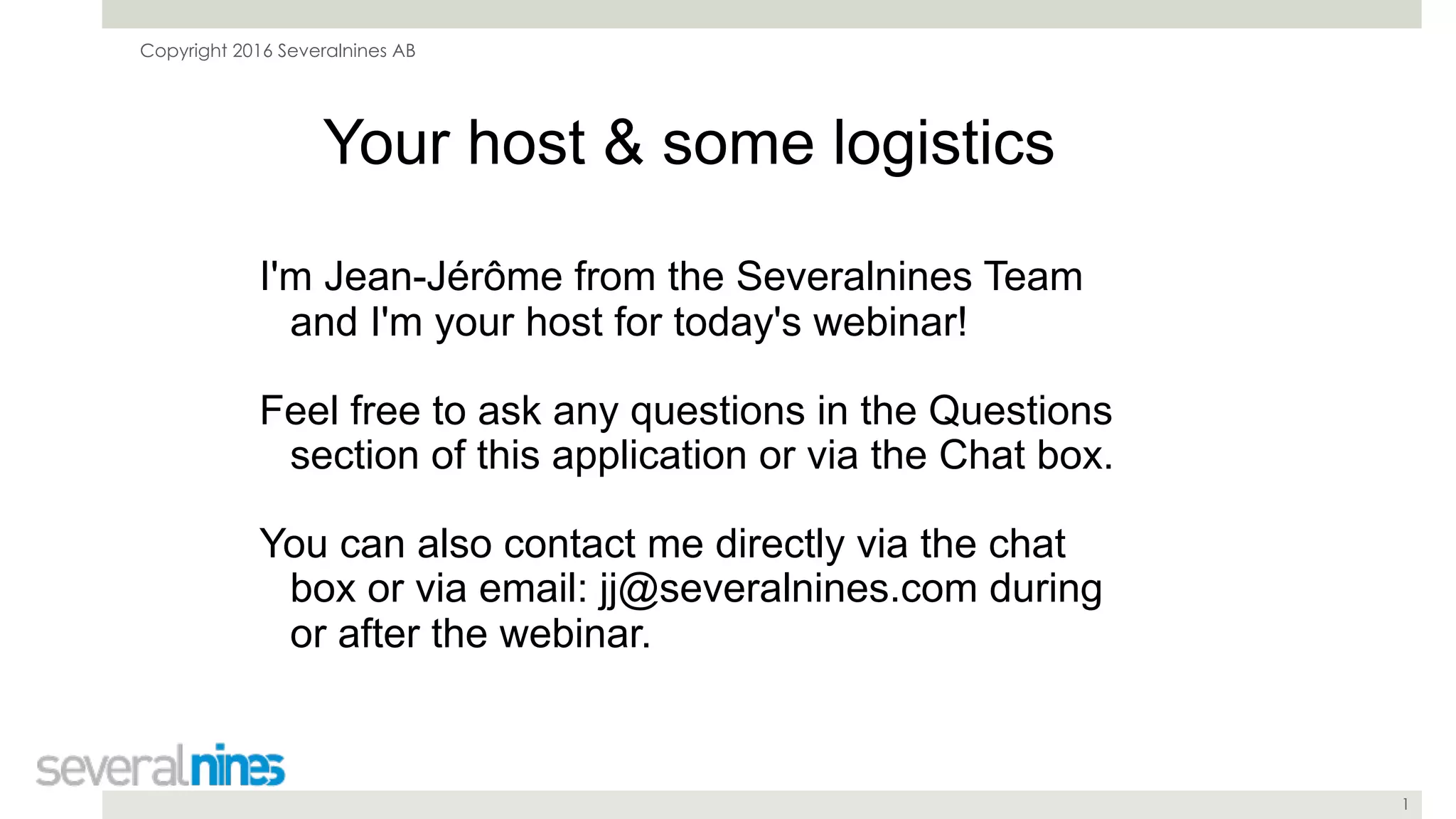

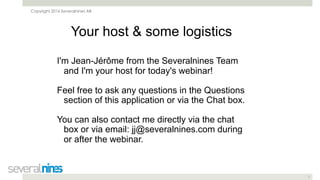

Your host & some logistics
I'm Jean-Jérôme from the Severalnines Team
and I'm your host for today's webinar!
Feel free to ask any questions in the Questions
section of this application or via the Chat box.
You can also contact me directly via the chat
box or via email: jj@severalnines.com during
or after the webinar.

2. Copyright 2016 Severalnines AB
2
About Severalnines and ClusterControl

3. Copyright 2016 Severalnines AB
3

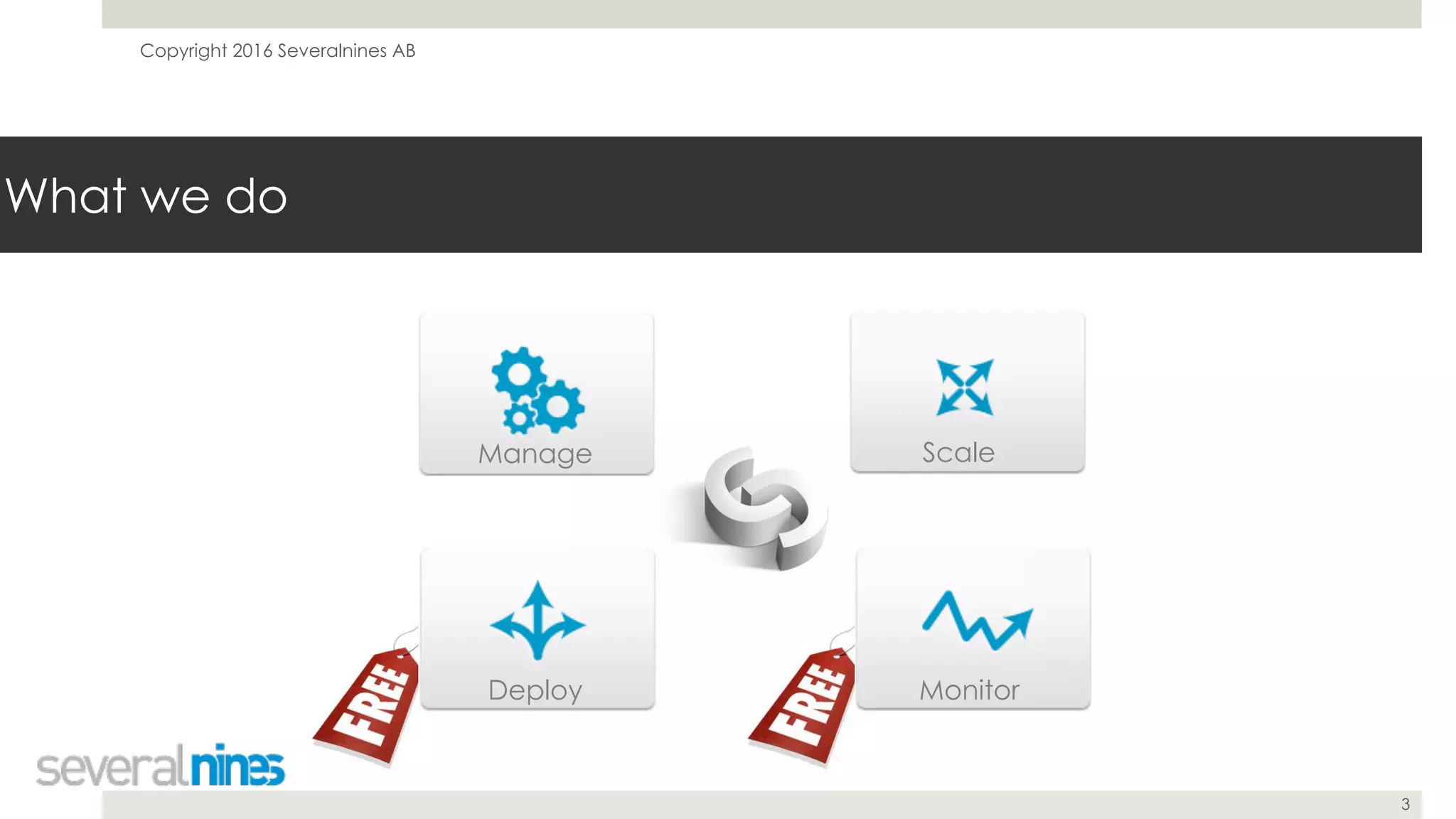

What we do
Manage Scale
MonitorDeploy

4. Copyright 2016 Severalnines AB
4

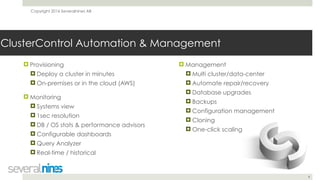

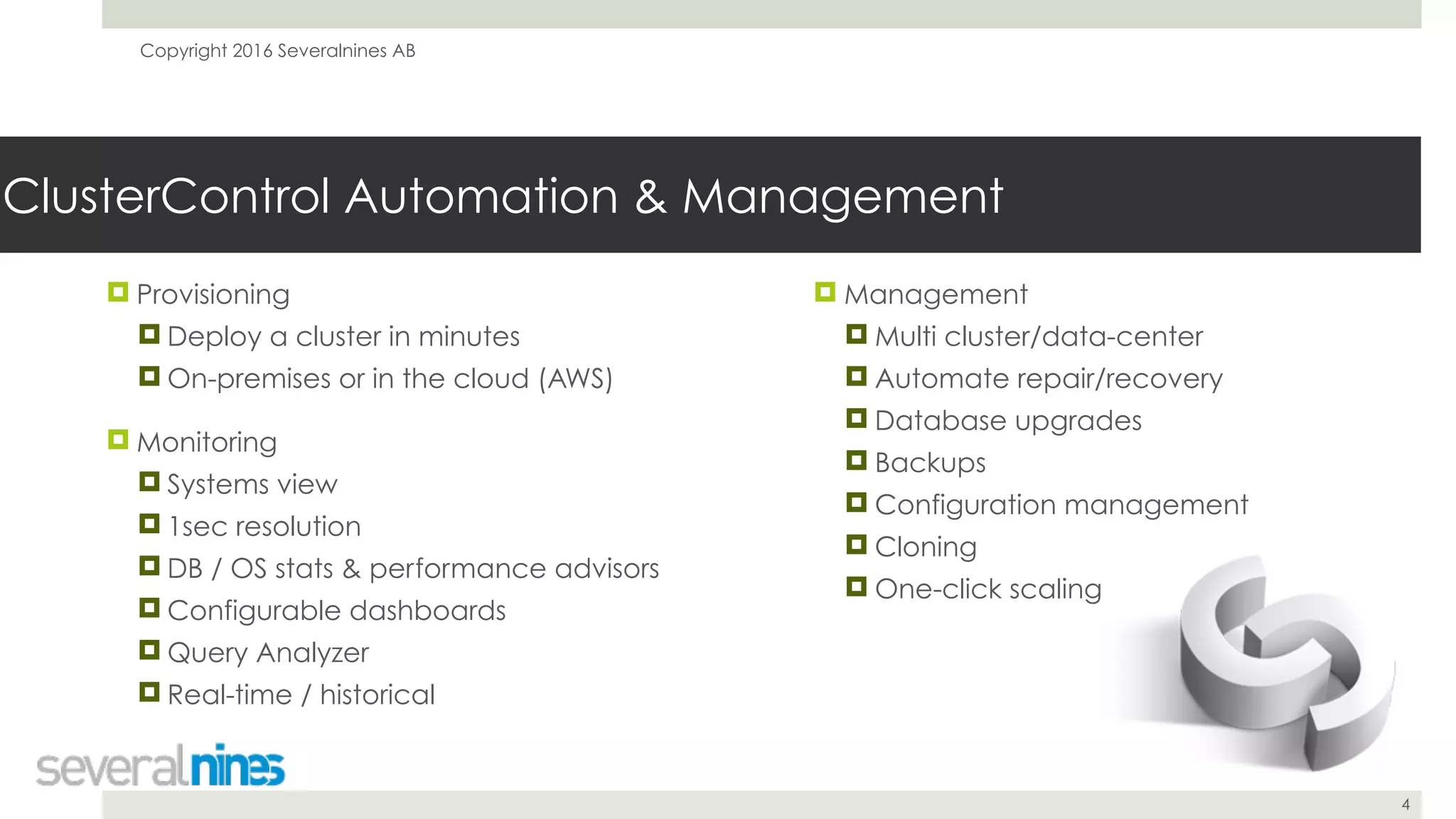

ClusterControl Automation & Management
! Provisioning
! Deploy a cluster in minutes
! On-premises or in the cloud (AWS)
! Monitoring
! Systems view
! 1sec resolution
! DB / OS stats & performance advisors
! Configurable dashboards
! Query Analyzer
! Real-time / historical
! Management
! Multi cluster/data-center
! Automate repair/recovery
! Database upgrades
! Backups
! Configuration management
! Cloning
! One-click scaling

5. Copyright 2016 Severalnines AB
5

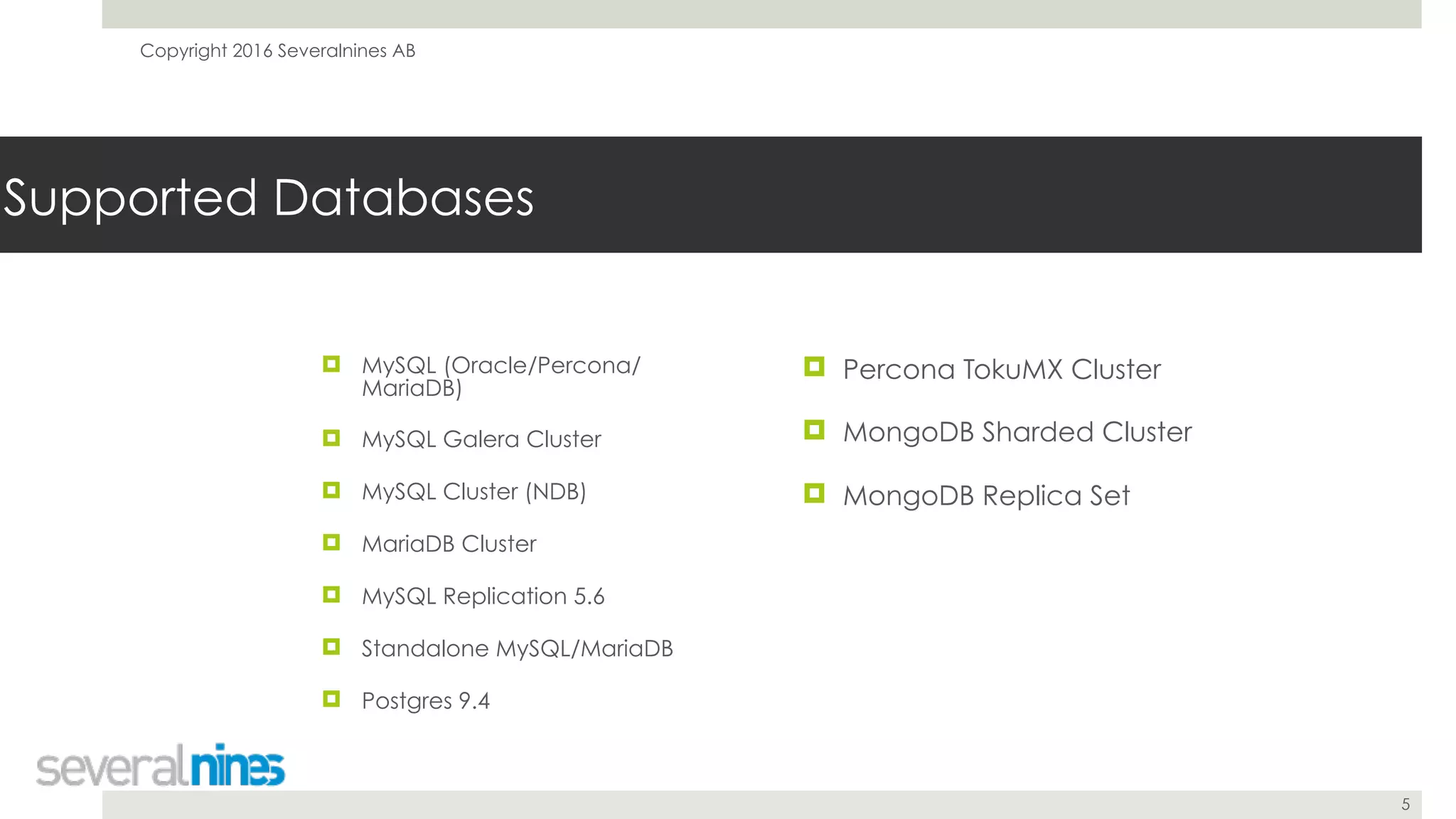

Supported Databases
! MySQL (Oracle/Percona/
MariaDB)
! MySQL Galera Cluster
! MySQL Cluster (NDB)
! MariaDB Cluster
! MySQL Replication 5.6
! Standalone MySQL/MariaDB
! Postgres 9.4
! Percona TokuMX Cluster
! MongoDB Sharded Cluster
! MongoDB Replica Set

6. Copyright 2016 Severalnines AB
6
Customers

7. Copyright 2016 Severalnines AB
MySQL Query Tuning - Process & Tools
August 30, 2016
Krzysztof Książek
Severalnines
krzysztof@severalnines.com
7

8. Copyright 2016 Severalnines AB
8

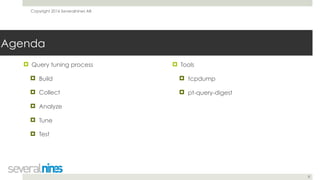

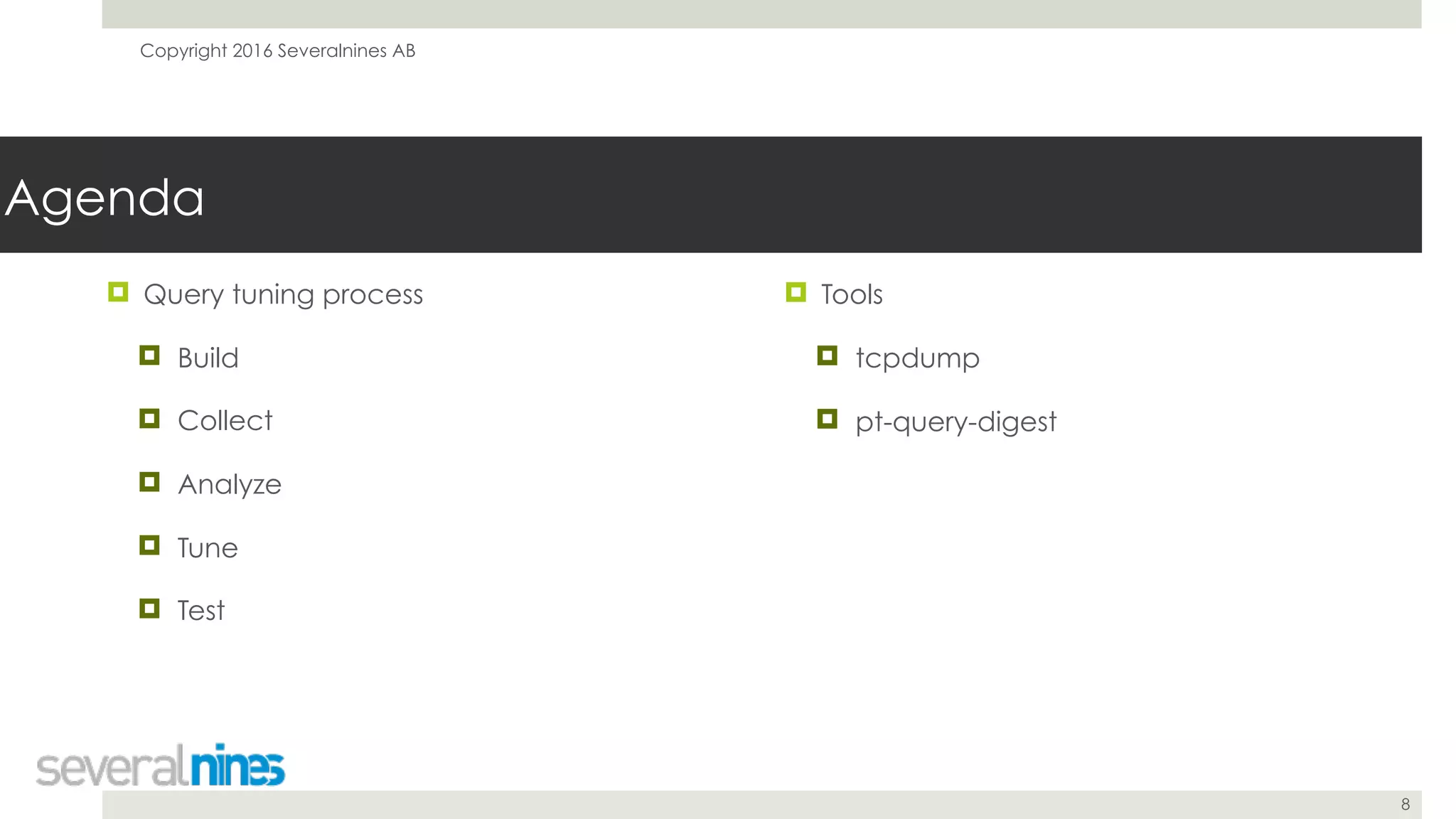

Agenda
! Query tuning process
! Build
! Collect
! Analyze
! Tune
! Test
! Tools
! tcpdump
! pt-query-digest

9. Copyright 2016 Severalnines AB
9

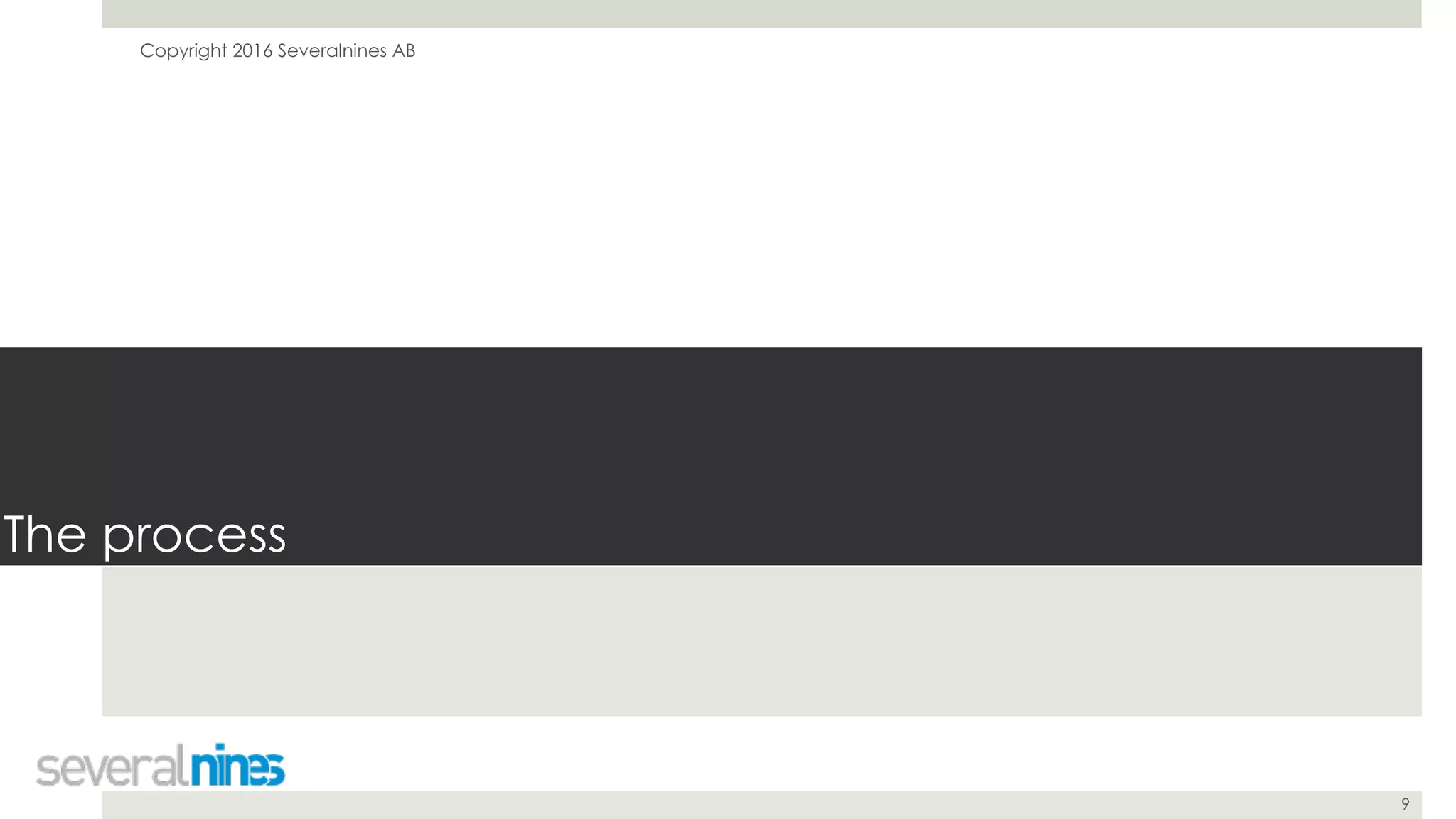

The process

10. Copyright 2016 Severalnines AB
10

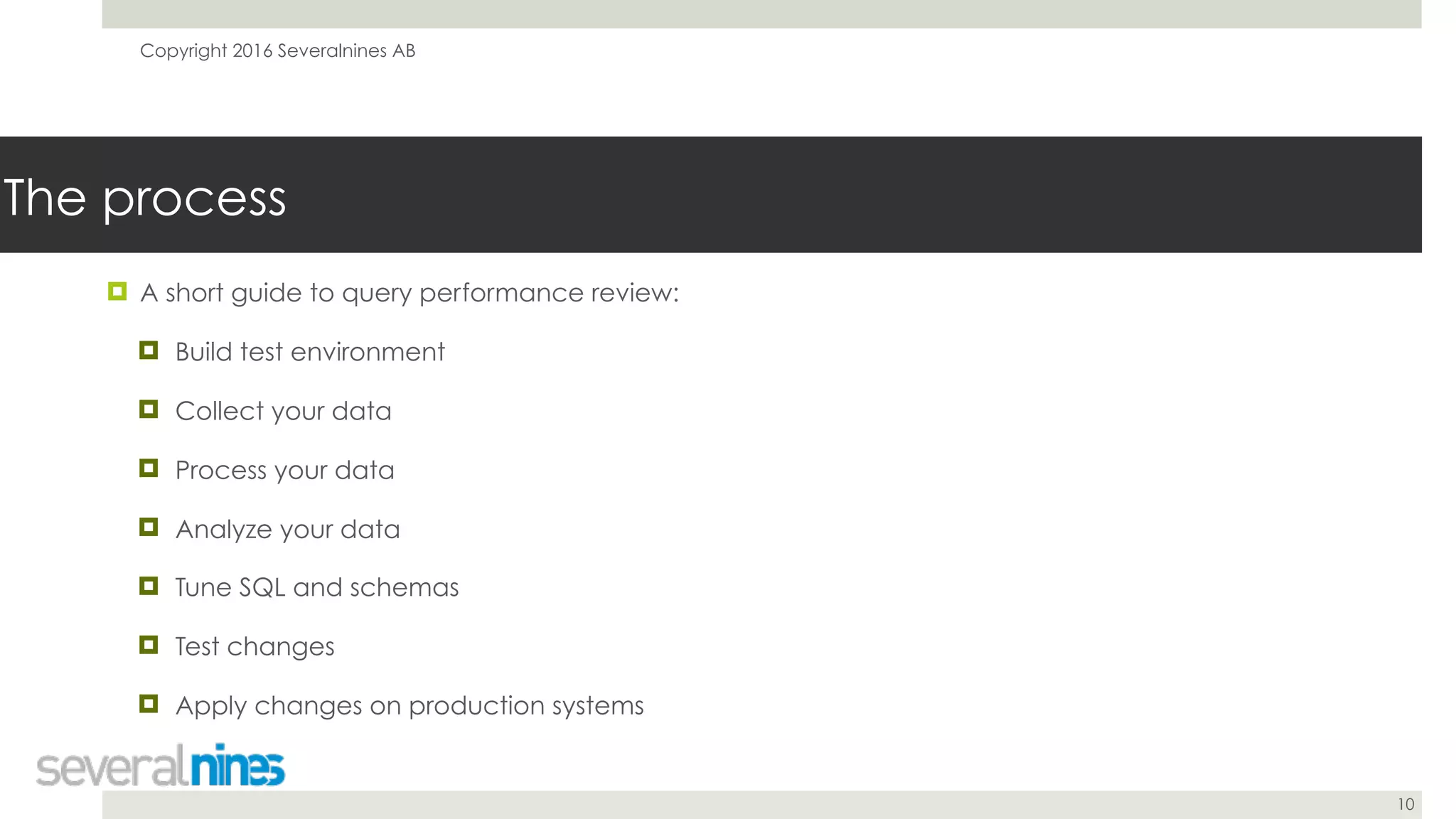

The process
! A short guide to query performance review:
! Build test environment
! Collect your data
! Process your data
! Analyze your data
! Tune SQL and schemas
! Test changes
! Apply changes on production systems

11. Copyright 2016 Severalnines AB
11

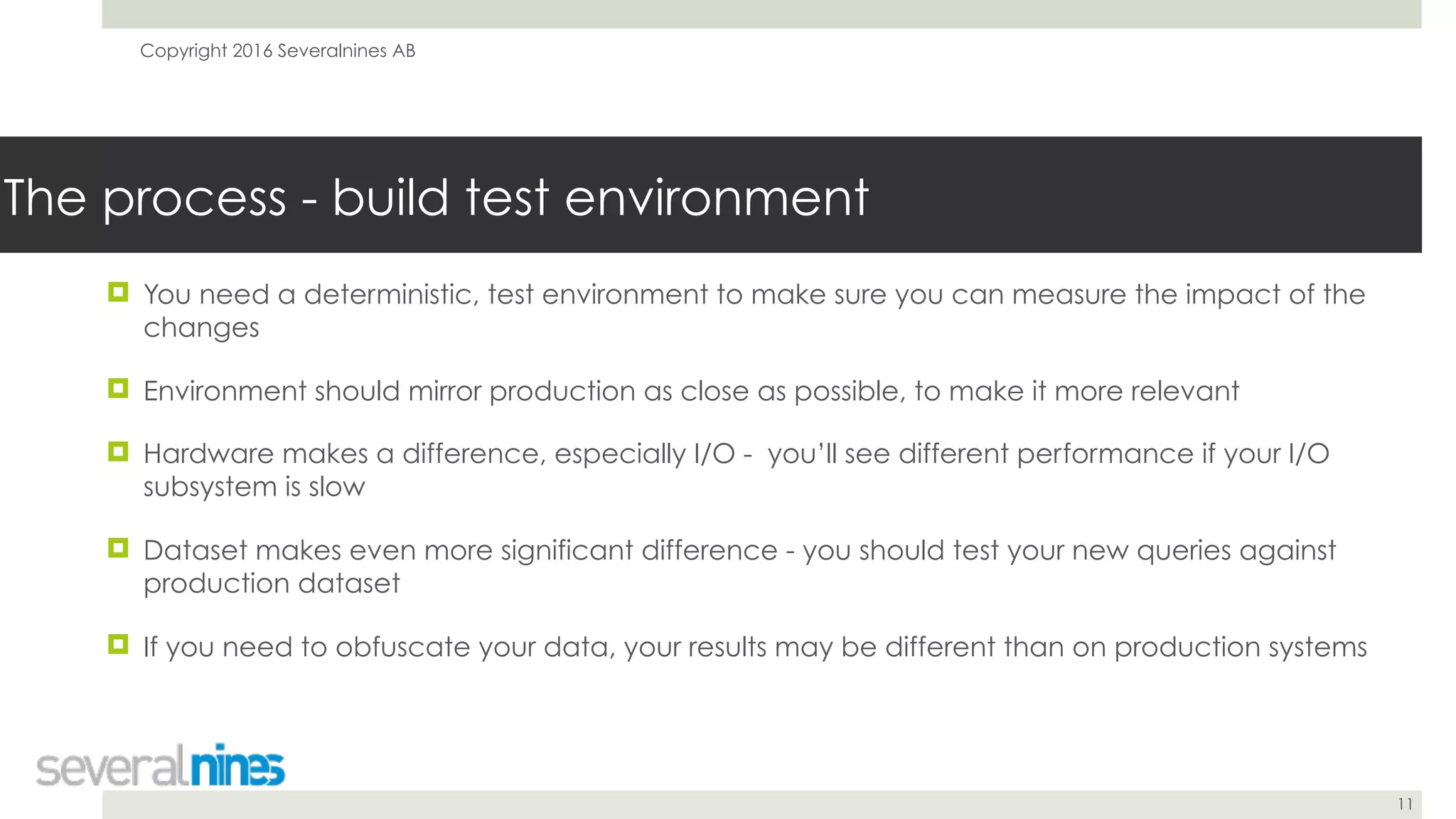

The process - build test environment
! You need a deterministic, test environment to make sure you can measure the impact of the
changes
! Environment should mirror production as close as possible, to make it more relevant
! Hardware makes a difference, especially I/O - you’ll see different performance if your I/O
subsystem is slow
! Dataset makes even more significant difference - you should test your new queries against
production dataset
! If you need to obfuscate your data, your results may be different than on production systems

12. Copyright 2016 Severalnines AB
12

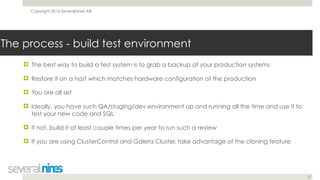

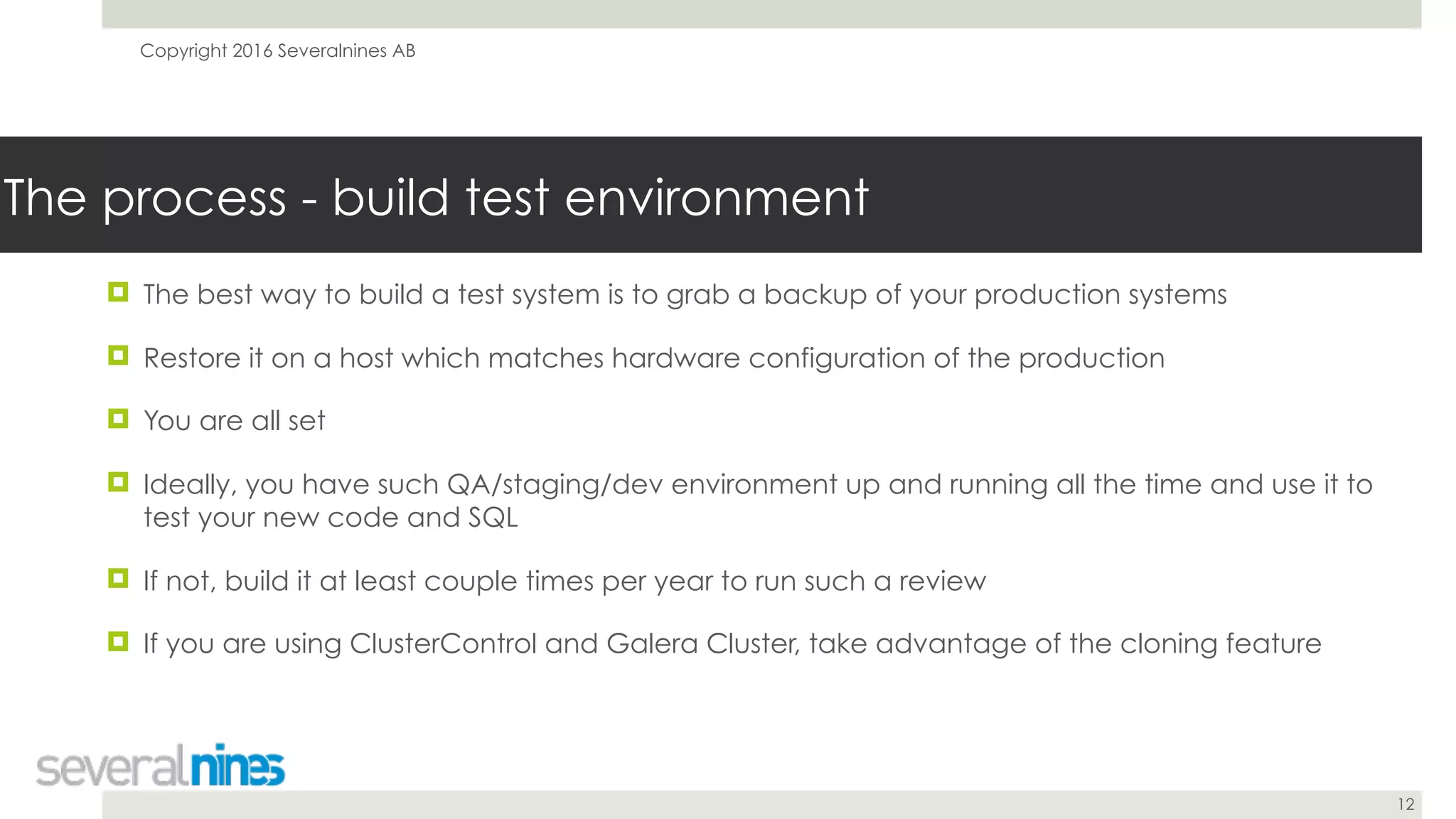

The process - build test environment
! The best way to build a test system is to grab a backup of your production systems
! Restore it on a host which matches hardware configuration of the production
! You are all set
! Ideally, you have such QA/staging/dev environment up and running all the time and use it to
test your new code and SQL
! If not, build it at least couple times per year to run such a review
! If you are using ClusterControl and Galera Cluster, take advantage of the cloning feature

13. Copyright 2016 Severalnines AB
13

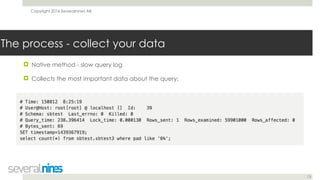

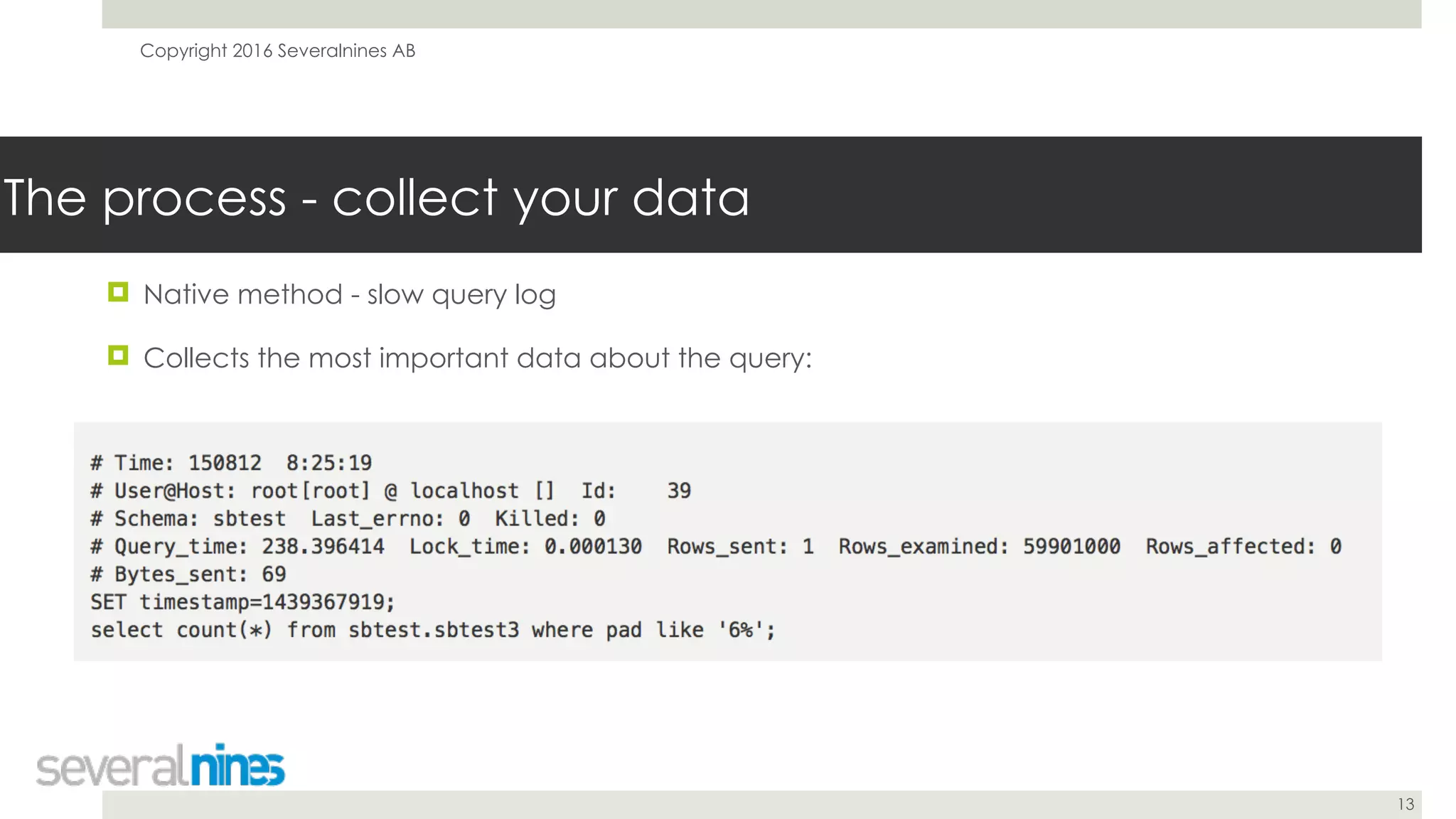

The process - collect your data
! Native method - slow query log
! Collects the most important data about the query:

14. Copyright 2016 Severalnines AB
14

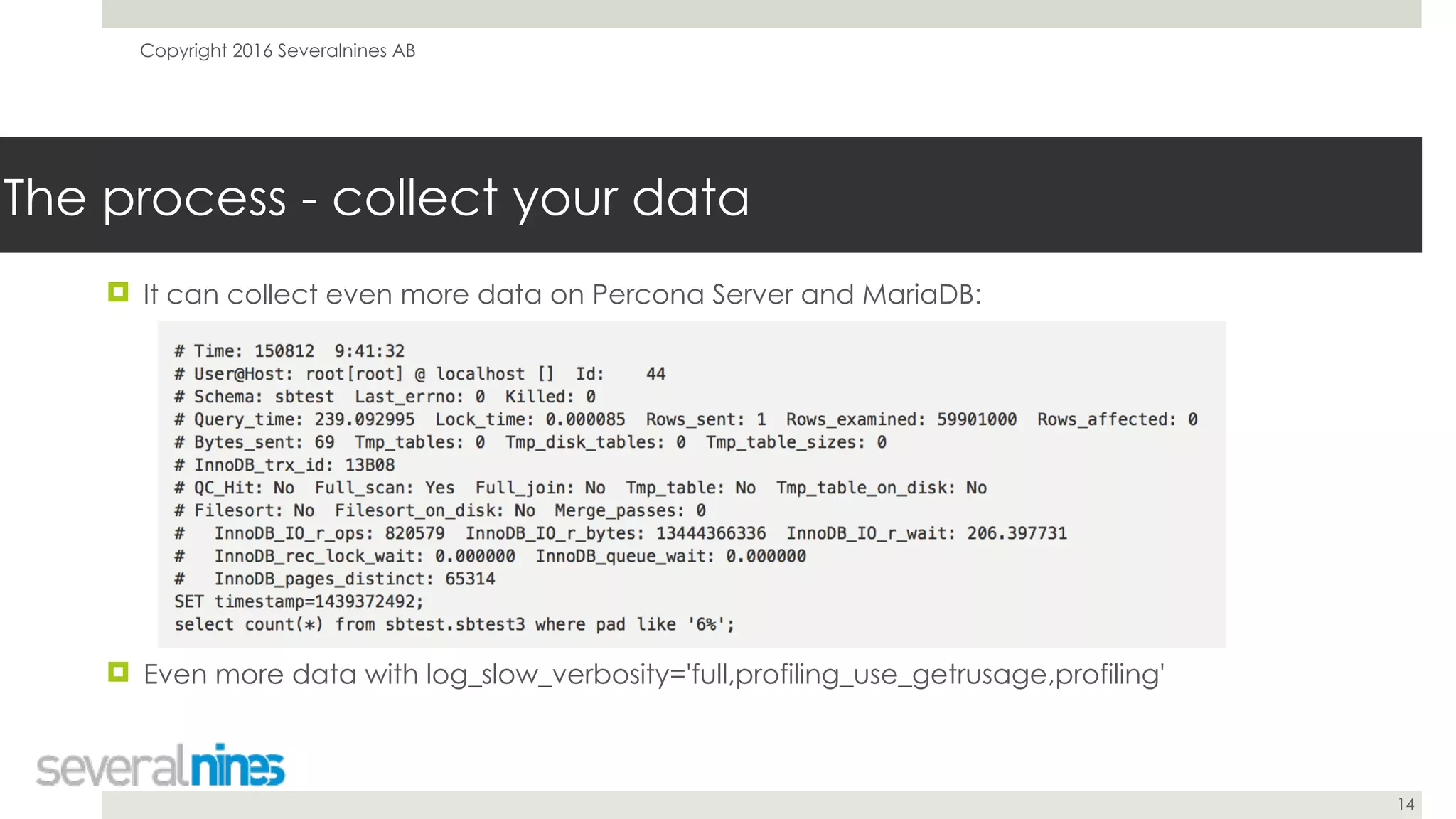

The process - collect your data
! It can collect even more data on Percona Server and MariaDB:
! Even more data with log_slow_verbosity='full,profiling_use_getrusage,profiling'

15. Copyright 2016 Severalnines AB
15

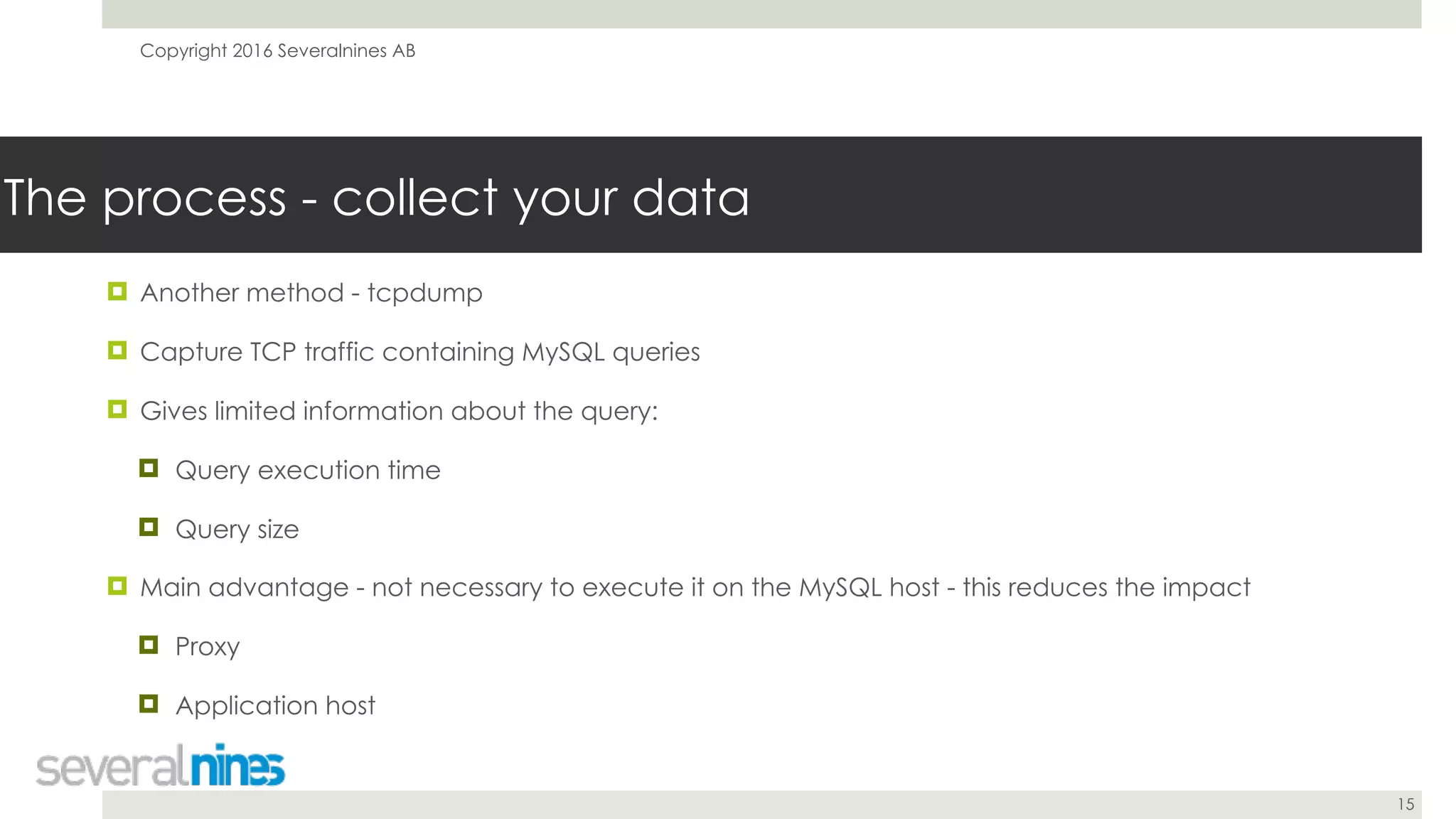

The process - collect your data
! Another method - tcpdump
! Capture TCP traffic containing MySQL queries
! Gives limited information about the query:
! Query execution time
! Query size
! Main advantage - not necessary to execute it on the MySQL host - this reduces the impact
! Proxy
! Application host

16. Copyright 2016 Severalnines AB
16

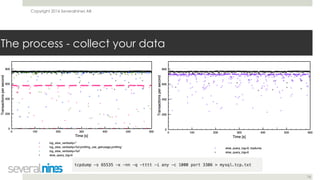

The process - collect your data

17. Copyright 2016 Severalnines AB
17

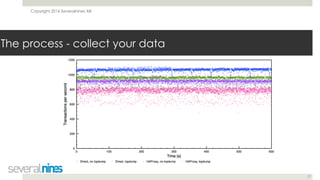

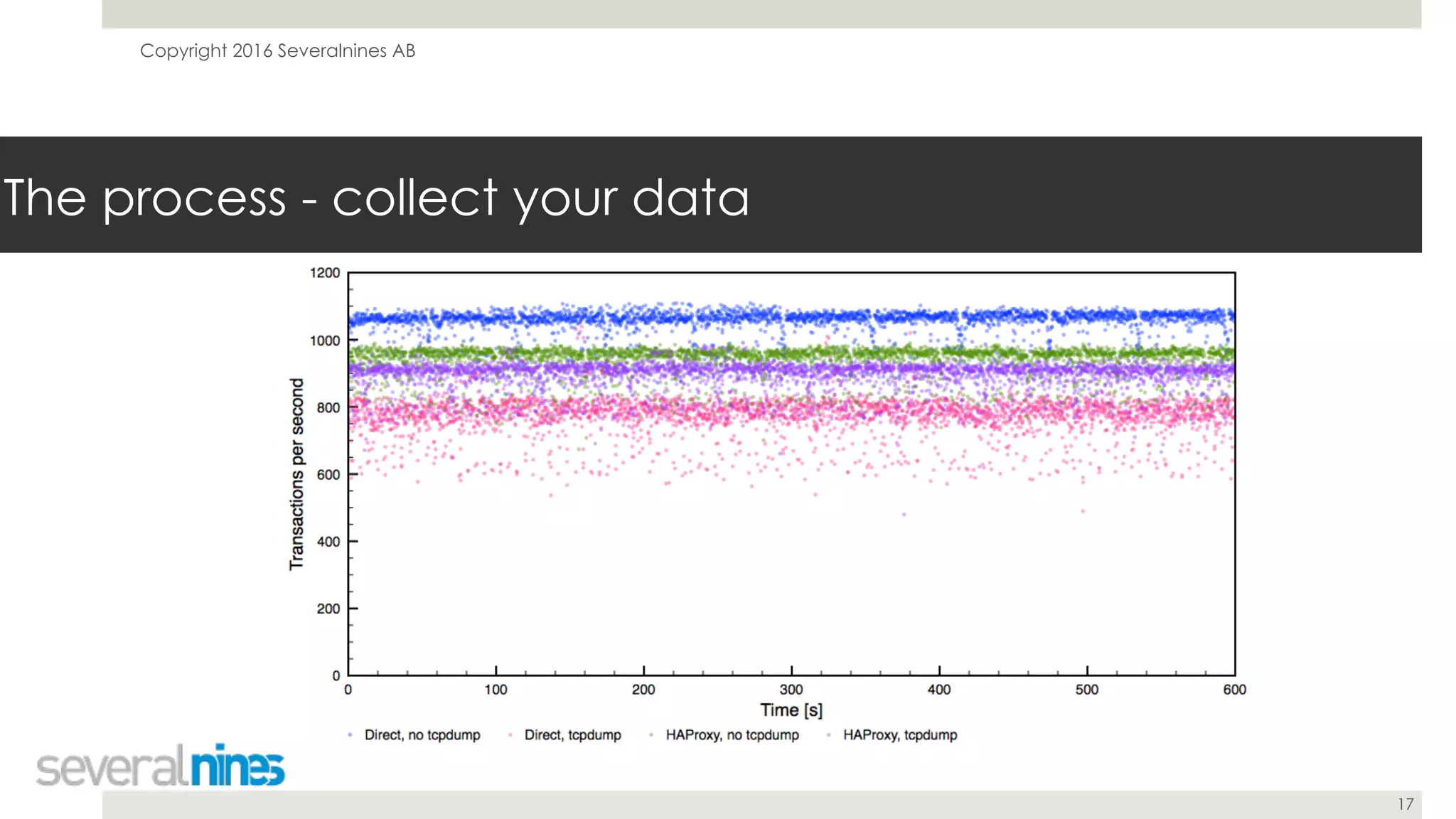

The process - collect your data

18. Copyright 2016 Severalnines AB
18

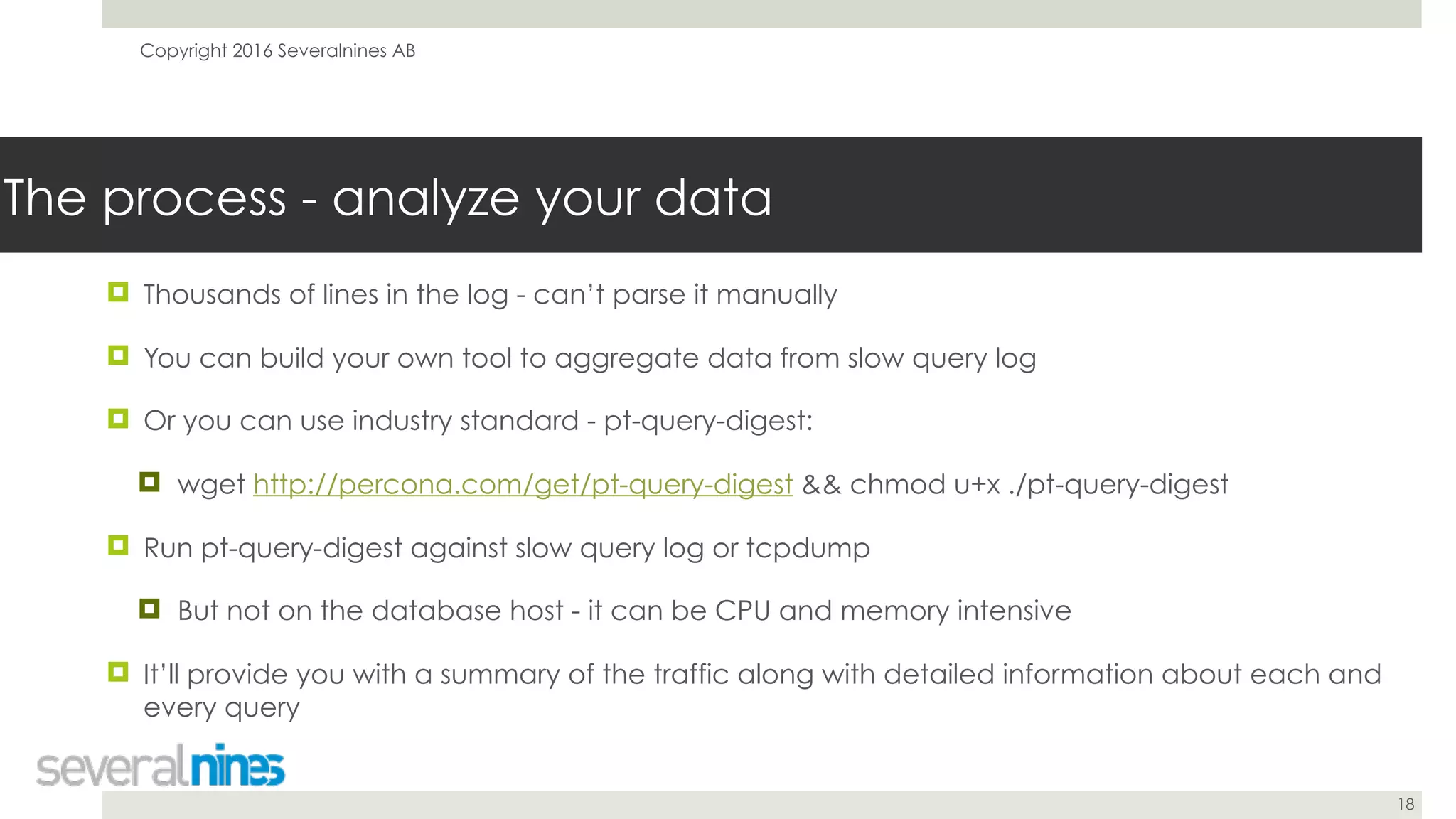

The process - analyze your data
! Thousands of lines in the log - can’t parse it manually
! You can build your own tool to aggregate data from slow query log
! Or you can use industry standard - pt-query-digest:
! wget http://percona.com/get/pt-query-digest && chmod u+x ./pt-query-digest
! Run pt-query-digest against slow query log or tcpdump
! But not on the database host - it can be CPU and memory intensive
! It’ll provide you with a summary of the traffic along with detailed information about each and
every query

19. Copyright 2016 Severalnines AB
19

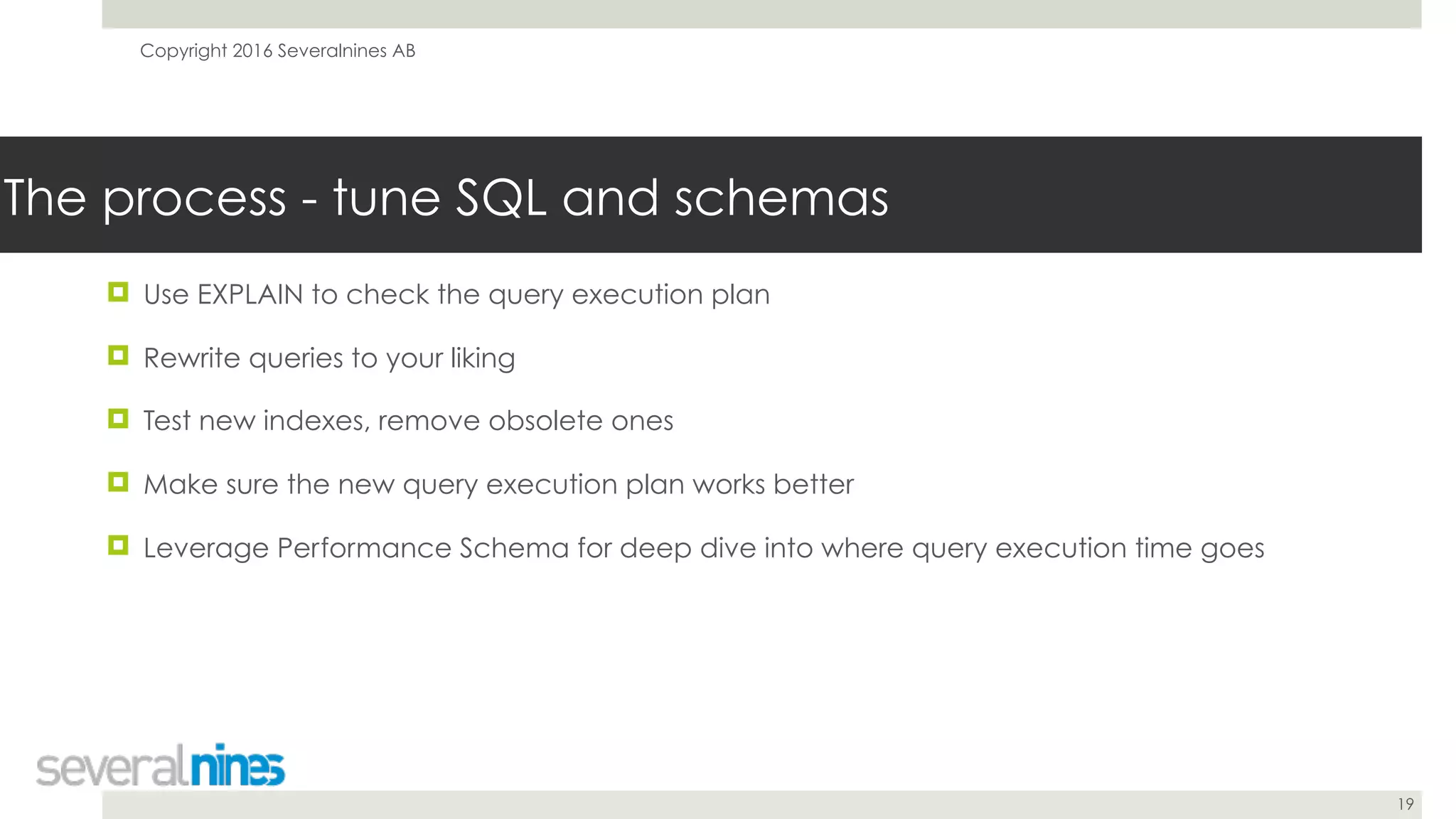

The process - tune SQL and schemas
! Use EXPLAIN to check the query execution plan
! Rewrite queries to your liking
! Test new indexes, remove obsolete ones
! Make sure the new query execution plan works better
! Leverage Performance Schema for deep dive into where query execution time goes

20. Copyright 2016 Severalnines AB
20

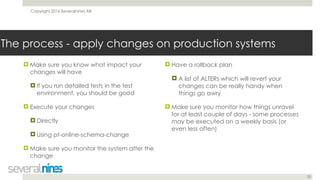

The process - apply changes on production systems
! Make sure you know what impact your
changes will have
! If you run detailed tests in the test
environment, you should be good
! Execute your changes
! Directly
! Using pt-online-schema-change
! Make sure you monitor the system after the
change
! Have a rollback plan
! A list of ALTERs which will revert your
changes can be really handy when
things go awry
! Make sure you monitor how things unravel
for at least couple of days - some processes
may be executed on a weekly basis (or
even less often)

21. Copyright 2016 Severalnines AB
21
The tools

22. Copyright 2016 Severalnines AB
22

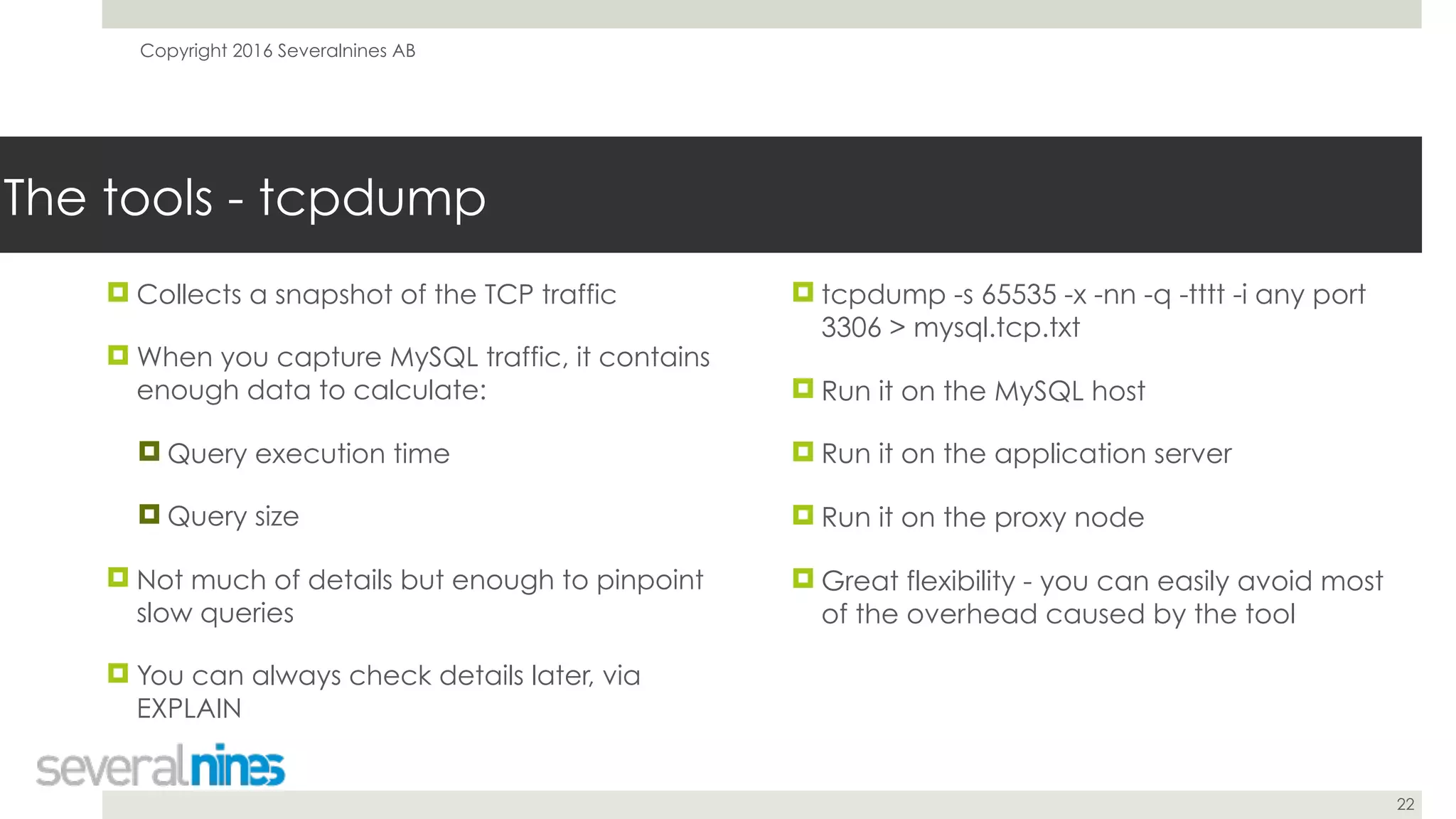

The tools - tcpdump
! Collects a snapshot of the TCP traffic
! When you capture MySQL traffic, it contains
enough data to calculate:
! Query execution time
! Query size
! Not much of details but enough to pinpoint
slow queries
! You can always check details later, via
EXPLAIN
! tcpdump -s 65535 -x -nn -q -tttt -i any port
3306 > mysql.tcp.txt
! Run it on the MySQL host
! Run it on the application server
! Run it on the proxy node
! Great flexibility - you can easily avoid most
of the overhead caused by the tool

23. Copyright 2016 Severalnines AB
23

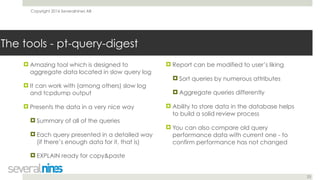

The tools - pt-query-digest
! Amazing tool which is designed to
aggregate data located in slow query log
! It can work with (among others) slow log
and tcpdump output
! Presents the data in a very nice way
! Summary of all of the queries
! Each query presented in a detailed way
(if there’s enough data for it, that is)
! EXPLAIN ready for copy&paste
! Report can be modified to user’s liking
! Sort queries by numerous attributes
! Aggregate queries differently
! Ability to store data in the database helps
to build a solid review process
! You can also compare old query
performance data with current one - to
confirm performance has not changed

24. Copyright 2016 Severalnines AB
24

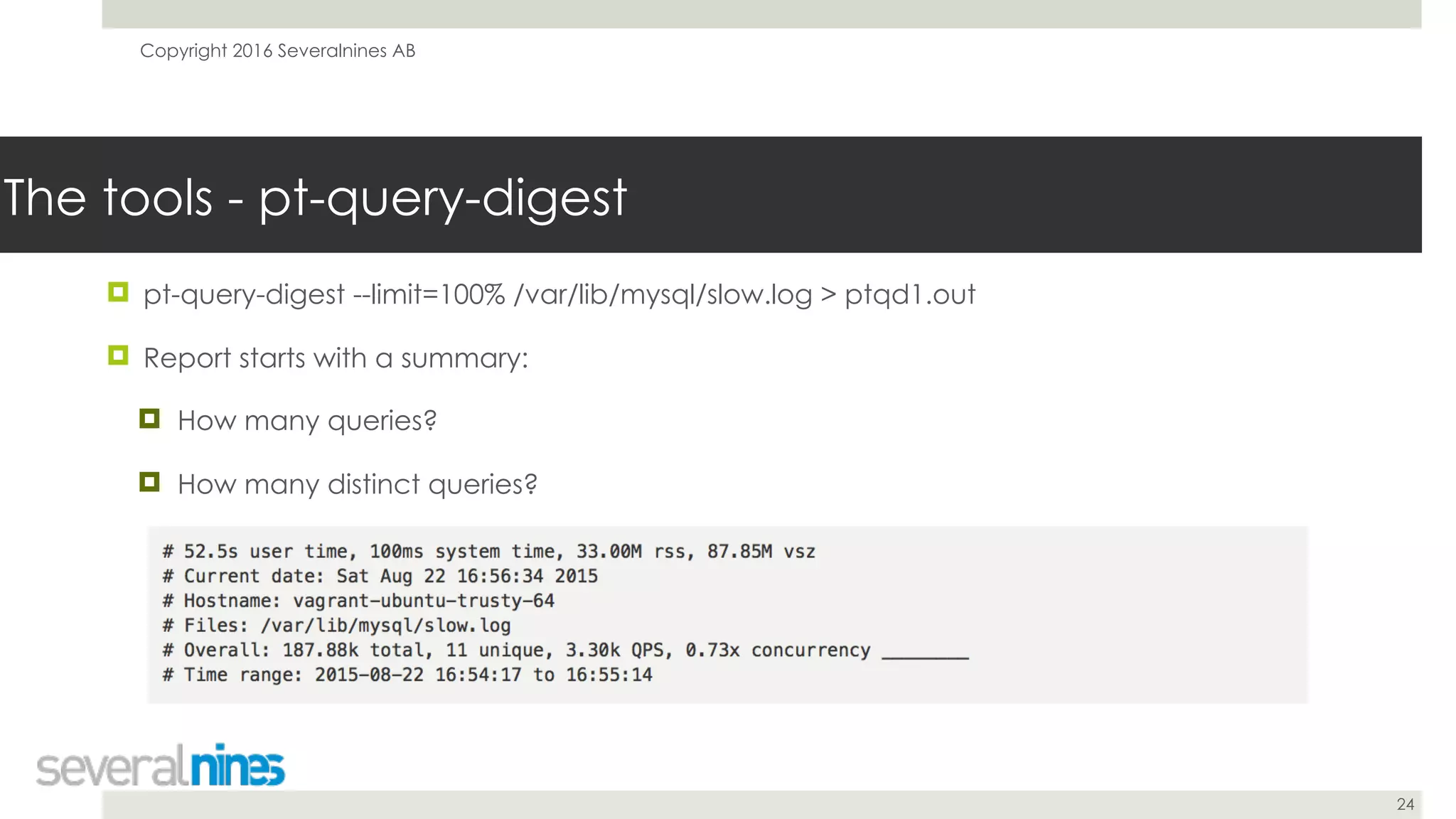

The tools - pt-query-digest
! pt-query-digest --limit=100% /var/lib/mysql/slow.log > ptqd1.out
! Report starts with a summary:
! How many queries?
! How many distinct queries?

25. Copyright 2016 Severalnines AB
25

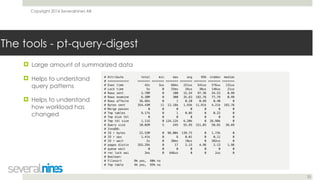

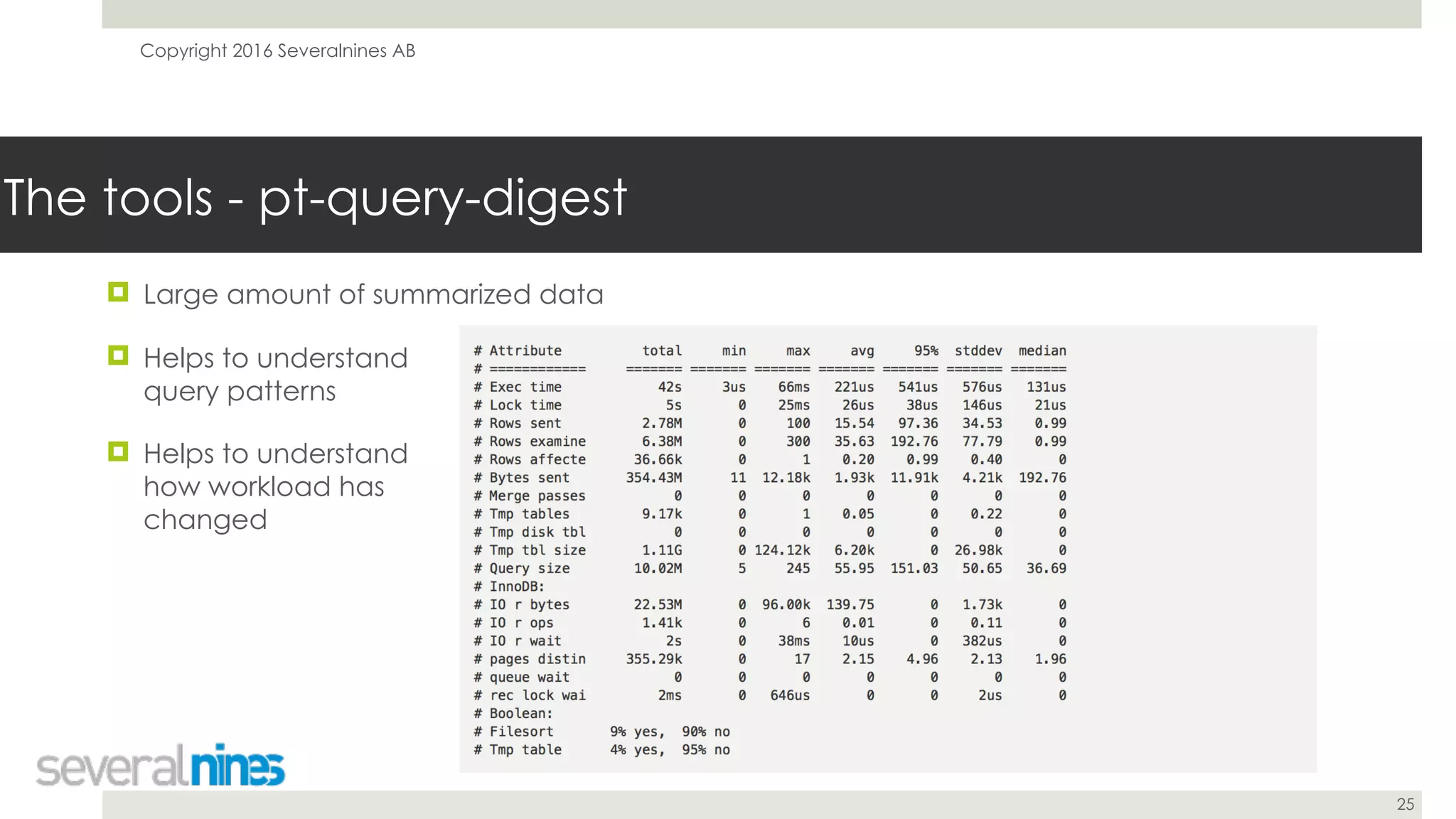

The tools - pt-query-digest
! Large amount of summarized data
! Helps to understand
query patterns
! Helps to understand
how workload has
changed

26. Copyright 2016 Severalnines AB
26

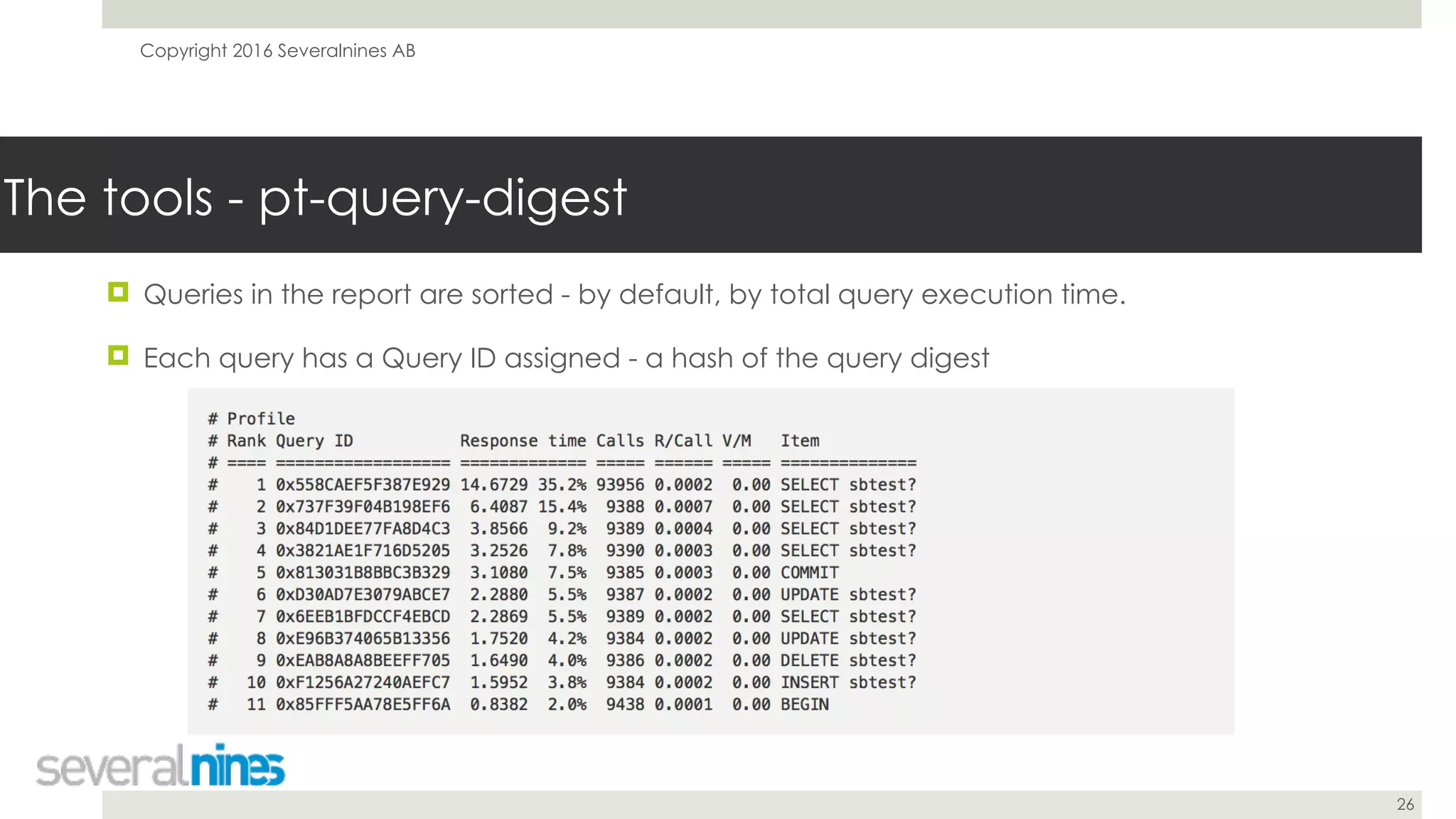

The tools - pt-query-digest
! Queries in the report are sorted - by default, by total query execution time.
! Each query has a Query ID assigned - a hash of the query digest

27. Copyright 2016 Severalnines AB
27

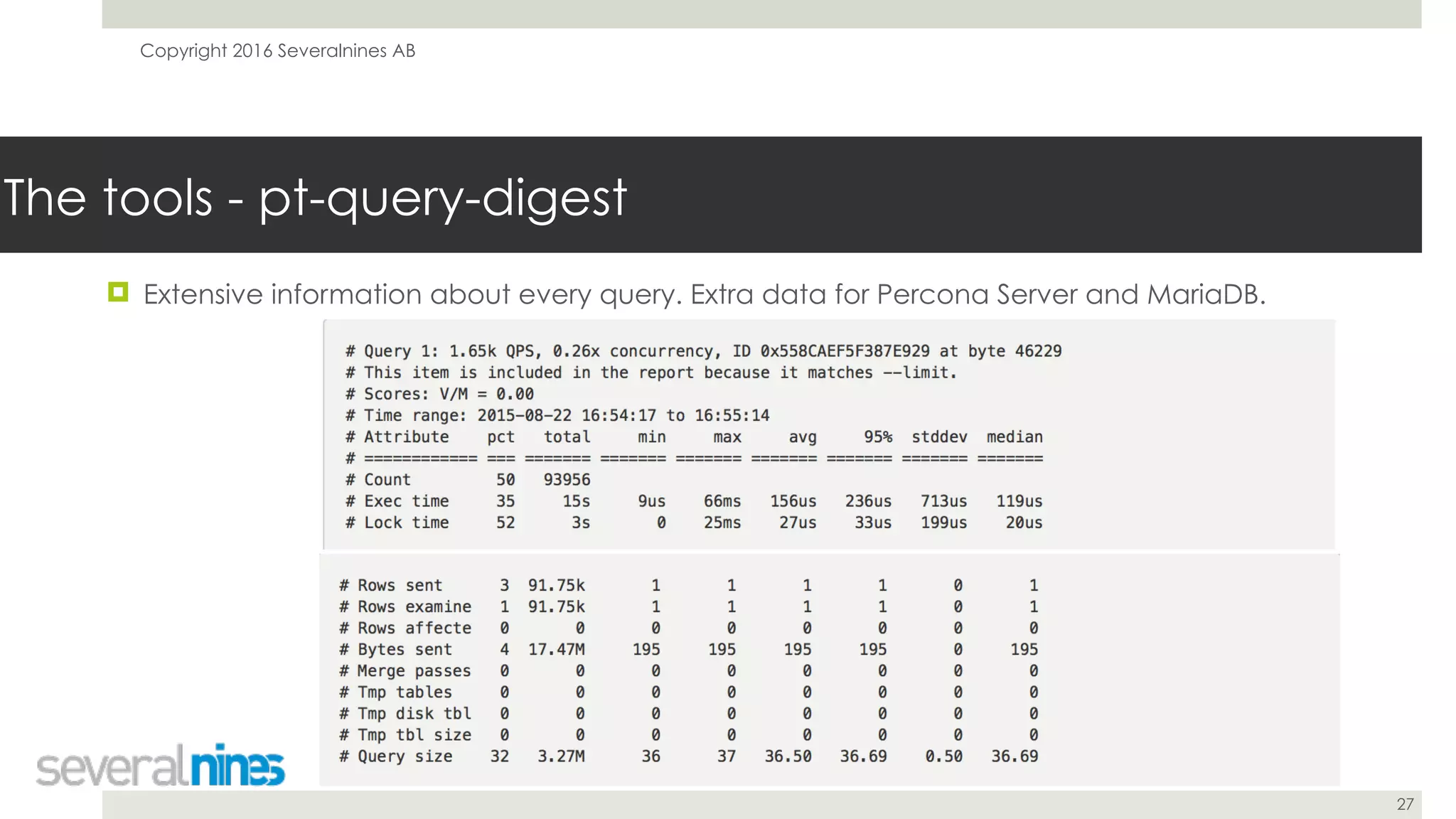

The tools - pt-query-digest
! Extensive information about every query. Extra data for Percona Server and MariaDB.

28. Copyright 2016 Severalnines AB
28

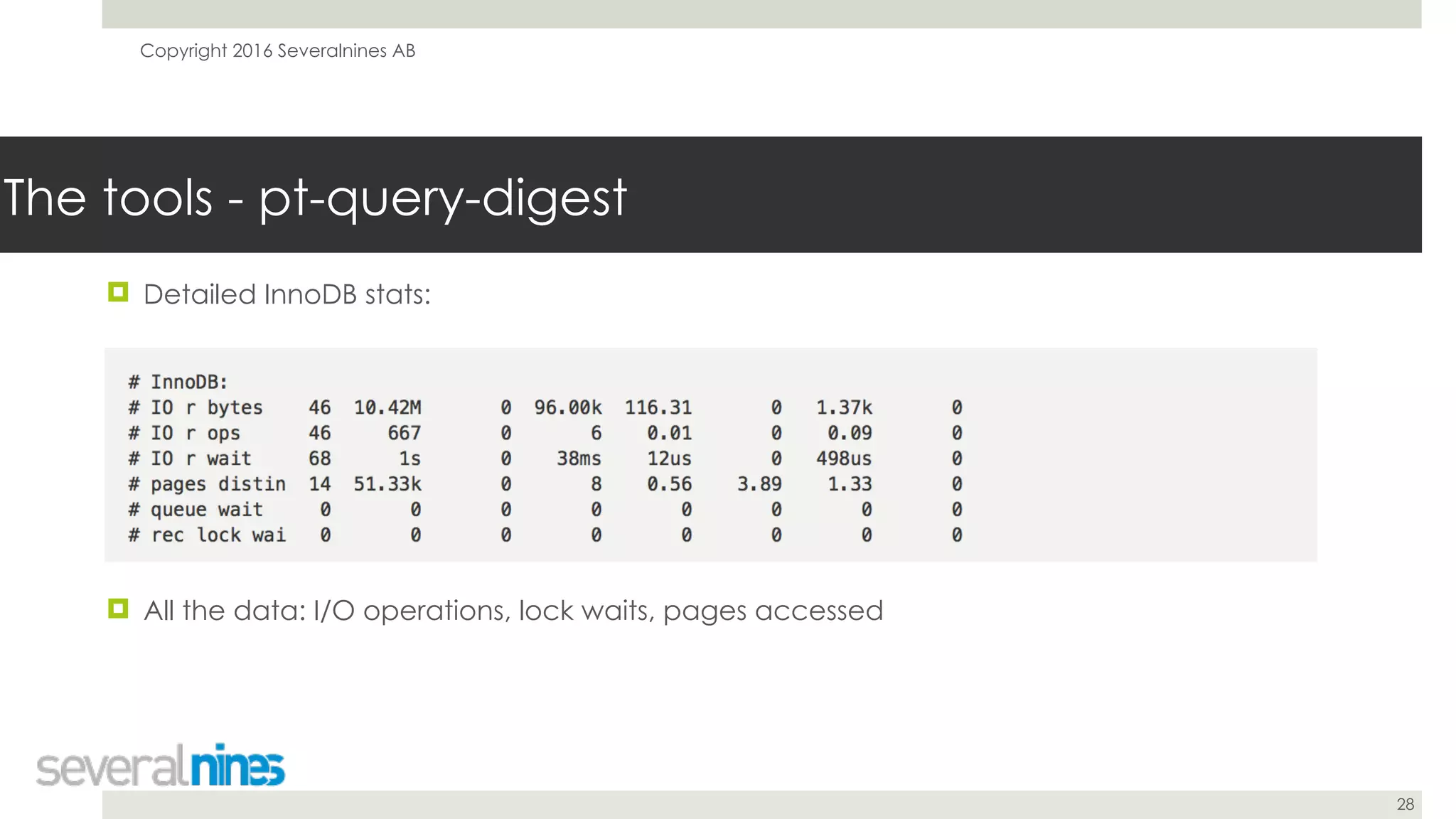

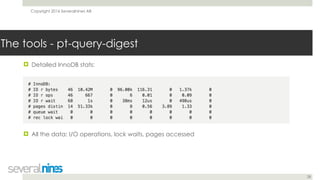

The tools - pt-query-digest
! Detailed InnoDB stats:
! All the data: I/O operations, lock waits, pages accessed

29. Copyright 2016 Severalnines AB
29

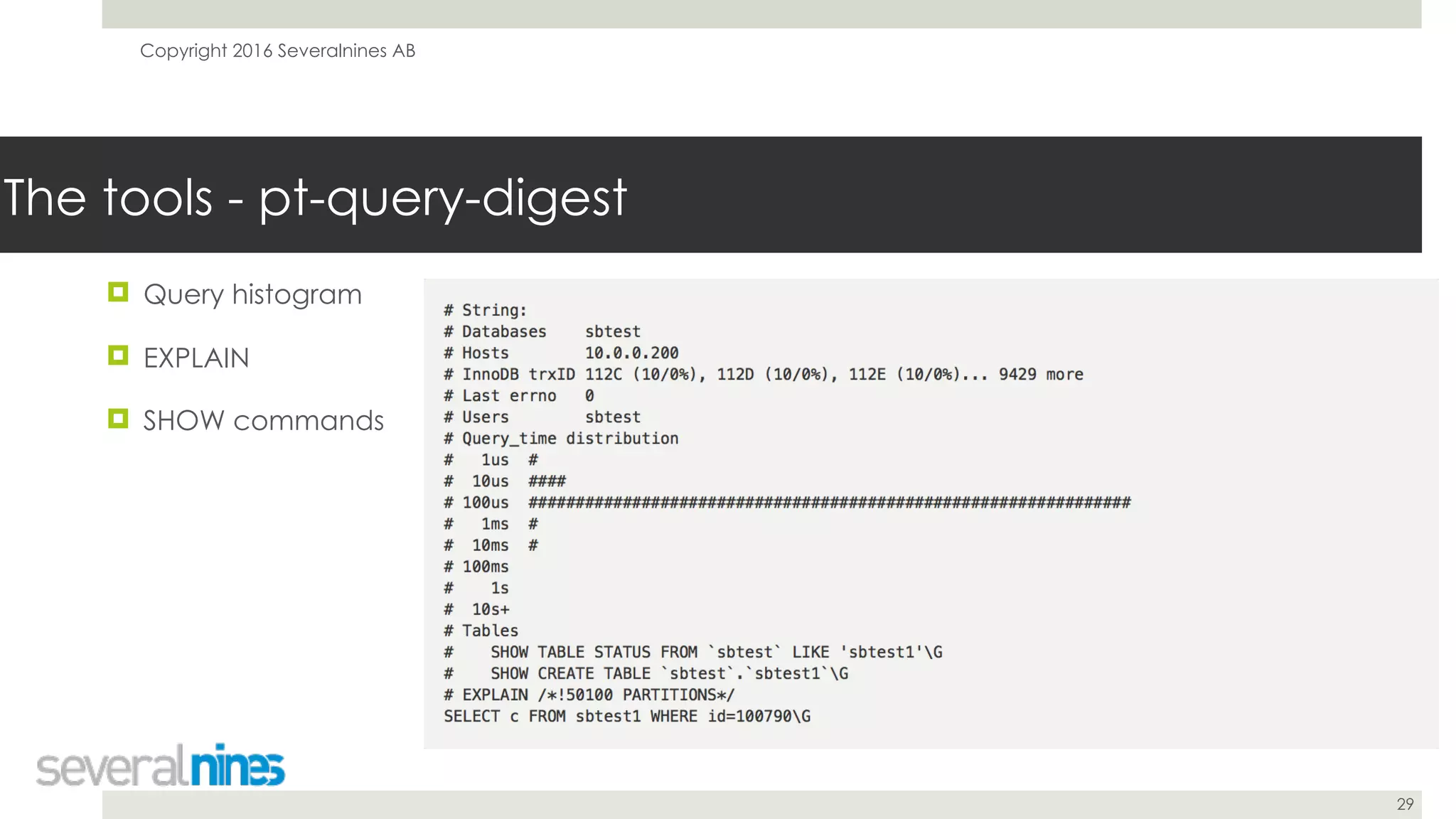

The tools - pt-query-digest
! Query histogram
! EXPLAIN
! SHOW commands

30. Copyright 2016 Severalnines AB
30

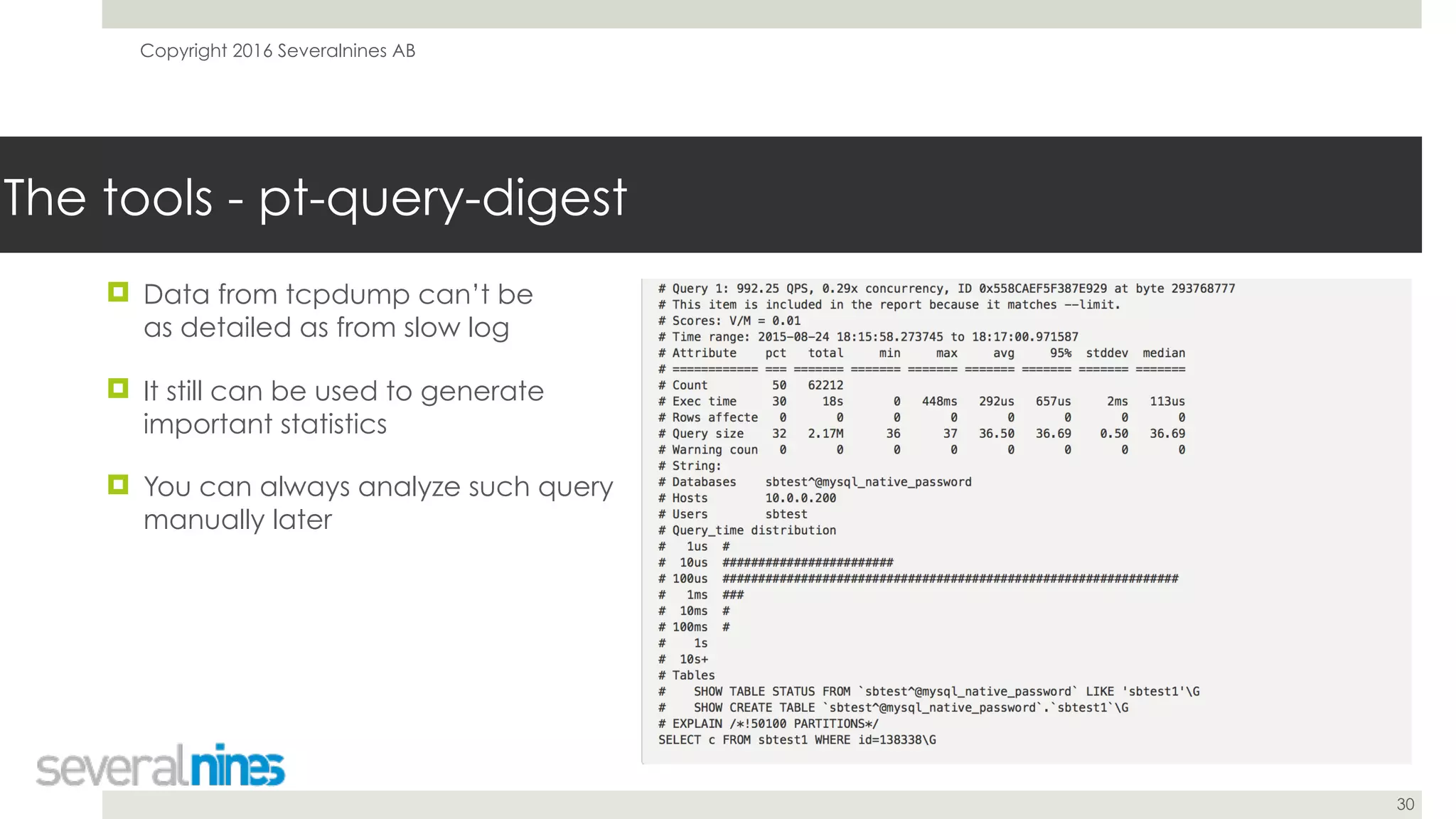

The tools - pt-query-digest
! Data from tcpdump can’t be
as detailed as from slow log
! It still can be used to generate
important statistics
! You can always analyze such query
manually later

31. Copyright 2016 Severalnines AB
31

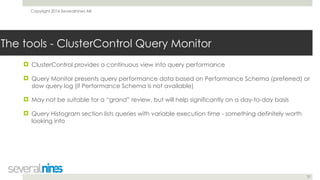

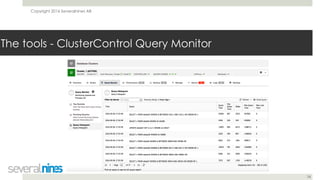

The tools - ClusterControl Query Monitor
! ClusterControl provides a continuous view into query performance
! Query Monitor presents query performance data based on Performance Schema (preferred) or
slow query log (if Performance Schema is not available)
! May not be suitable for a “grand” review, but will help significantly on a day-to-day basis
! Query Histogram section lists queries with variable execution time - something definitely worth
looking into

32. Copyright 2016 Severalnines AB
32

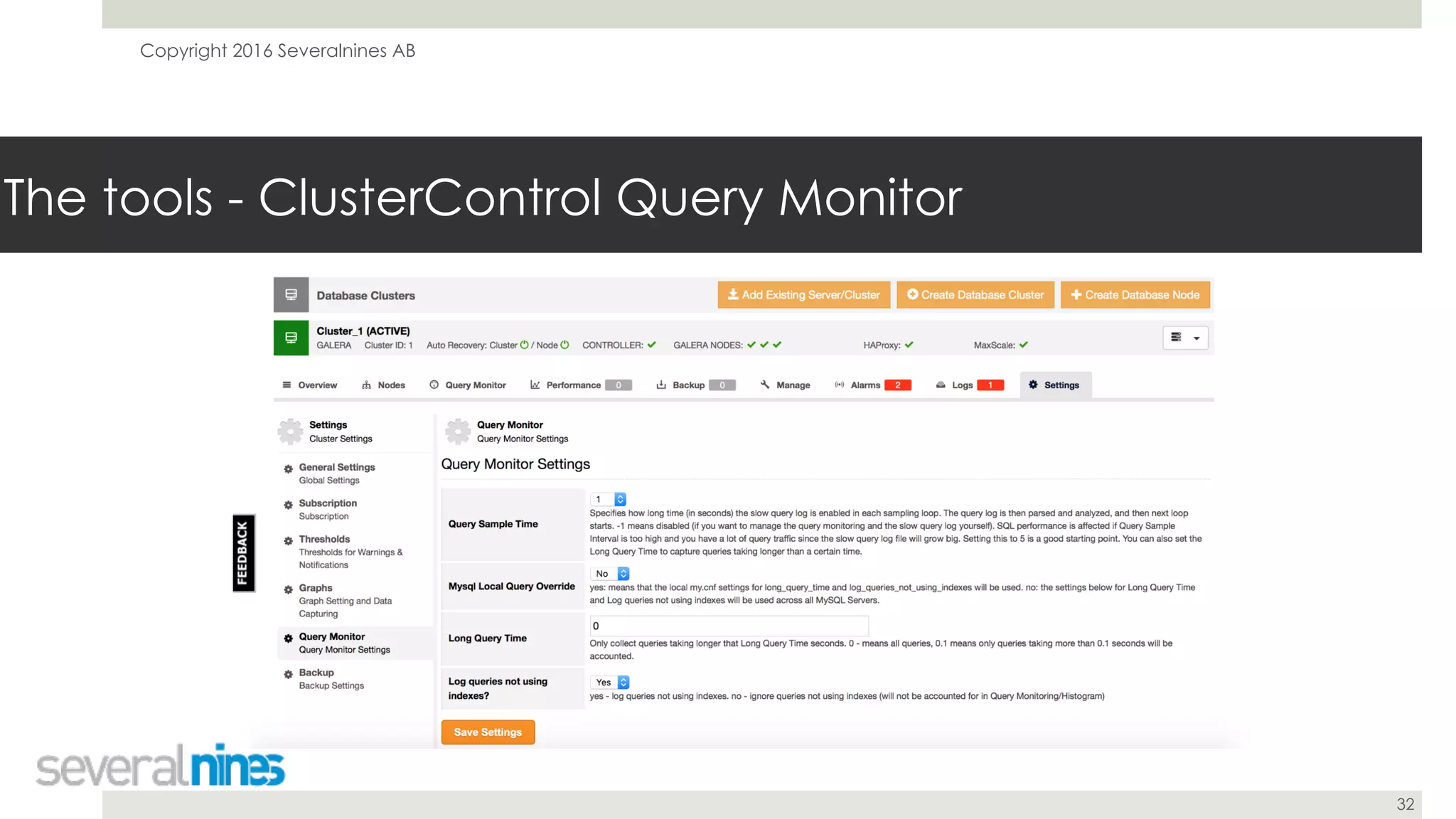

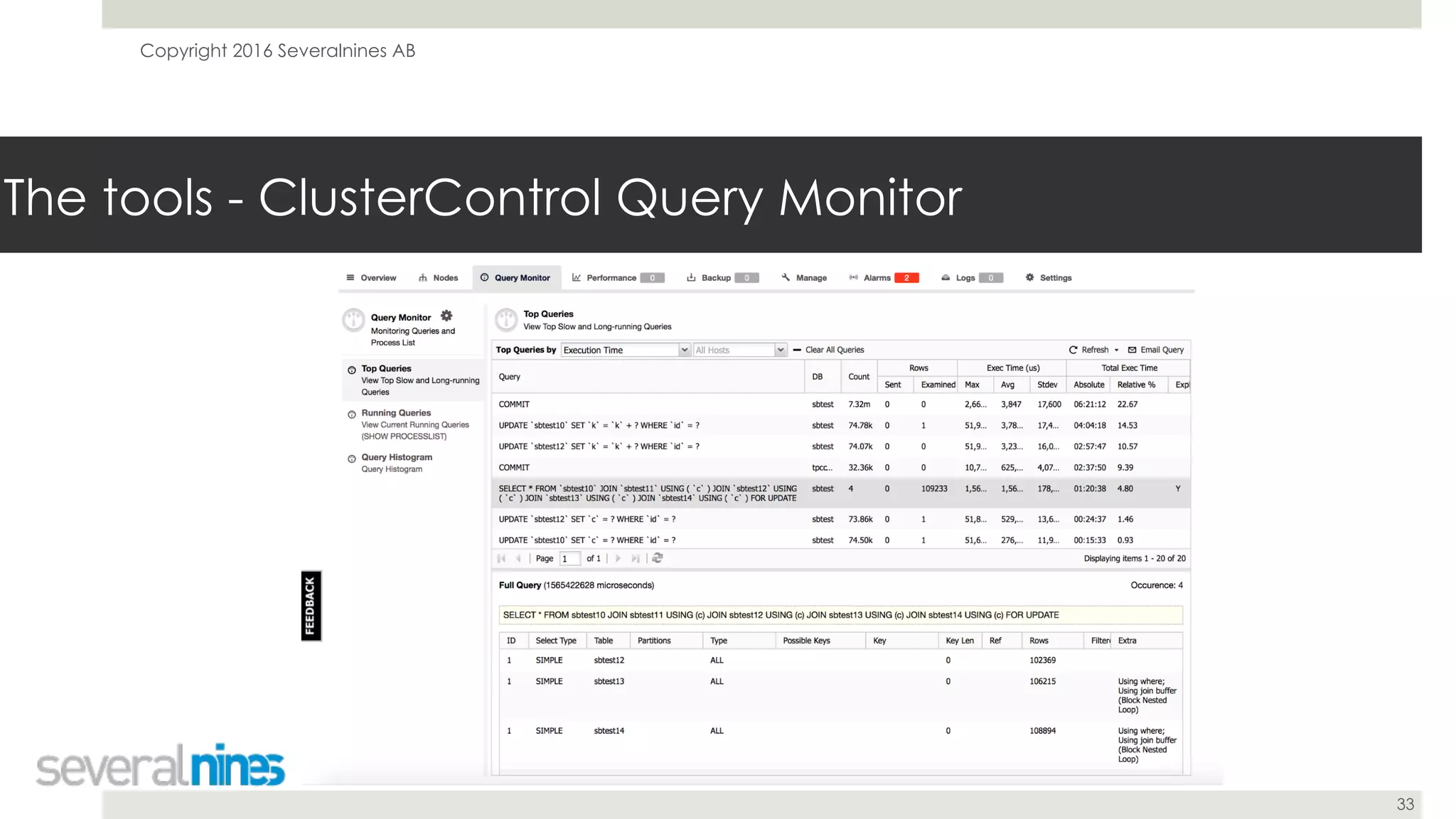

The tools - ClusterControl Query Monitor

33. Copyright 2016 Severalnines AB
33
The tools - ClusterControl Query Monitor

34. Copyright 2016 Severalnines AB
34

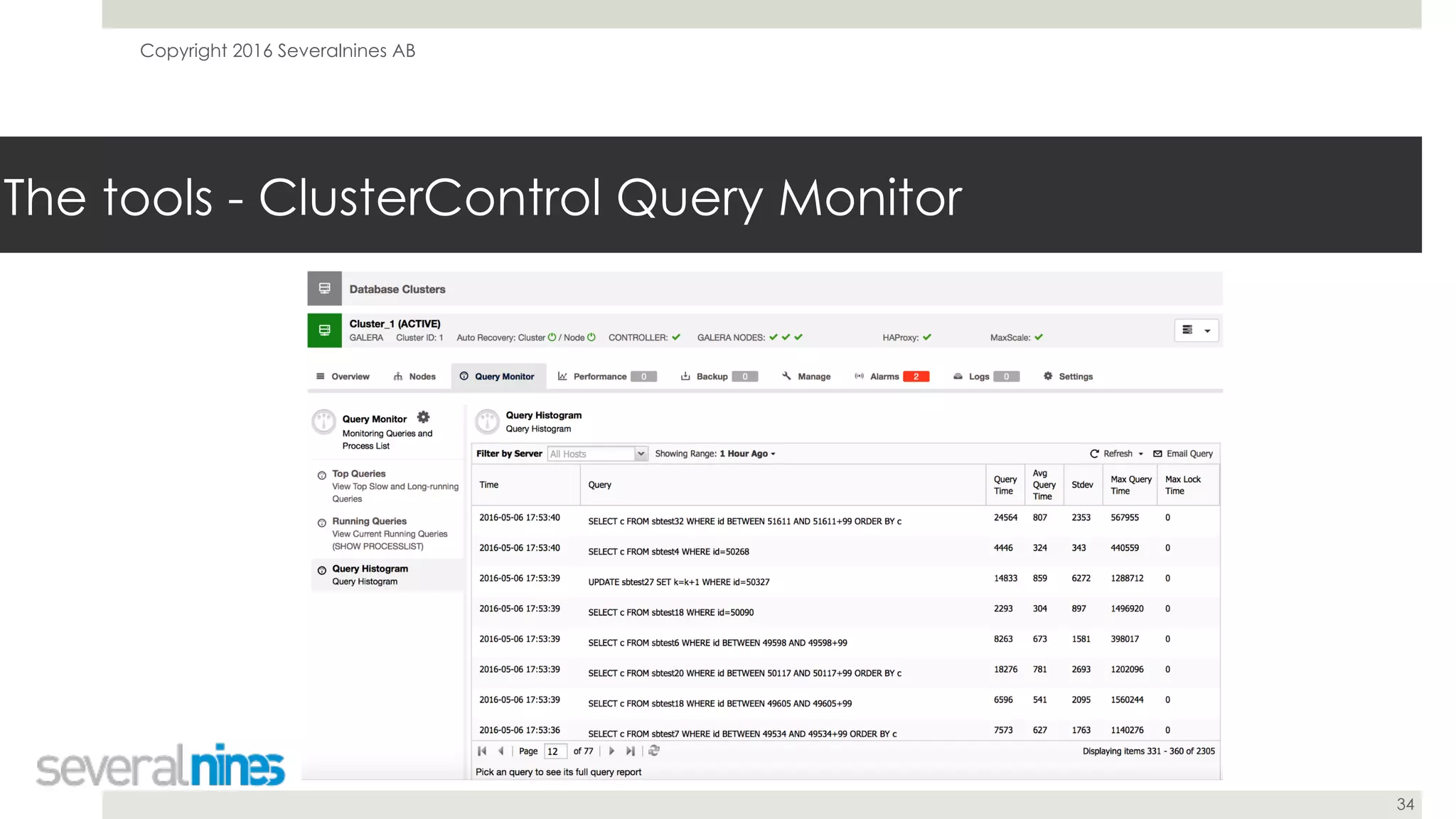

The tools - ClusterControl Query Monitor

35. Copyright 2016 Severalnines AB
35

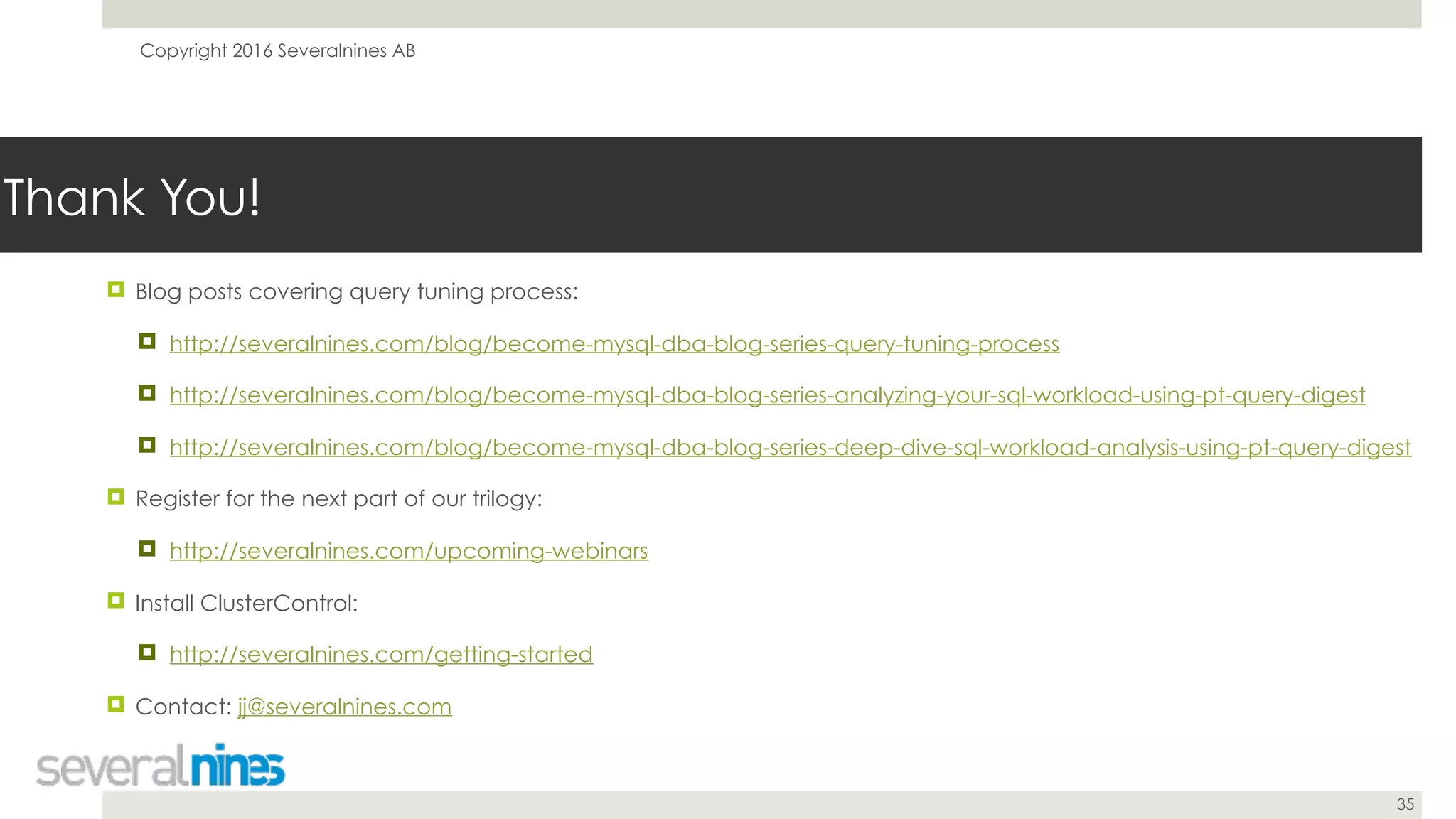

Thank You!
! Blog posts covering query tuning process:
! http://severalnines.com/blog/become-mysql-dba-blog-series-query-tuning-process
! http://severalnines.com/blog/become-mysql-dba-blog-series-analyzing-your-sql-workload-using-pt-query-digest
! http://severalnines.com/blog/become-mysql-dba-blog-series-deep-dive-sql-workload-analysis-using-pt-query-digest
! Register for the next part of our trilogy:
! http://severalnines.com/upcoming-webinars
! Install ClusterControl:
! http://severalnines.com/getting-started
! Contact: jj@severalnines.com
