Pinot: Realtime Distributed OLAP datastore

  1. Pinot Kishore Gopalakrishna Tuesday, August 18, 15

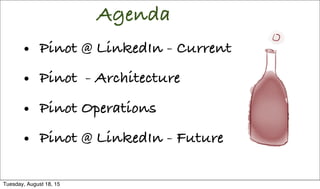

  2. Agenda • Pinot @ LinkedIn - Current • Pinot - Architecture • Pinot Operations • Pinot @ LinkedIn - Future Tuesday, August 18, 15

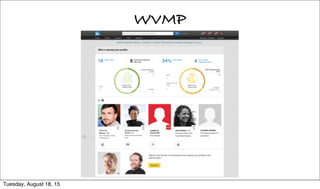

  3. WVMP Tuesday, August 18, 15
  4. Slice and Dice Metrics Tuesday, August 18, 15
  5. Pinot @ LinkedIn Customers Members Internal tools Tuesday, August 18, 15
  6. • 100B documents • 1B documents ingested per day • 100M queries per day • 10’s of ms latency • 30 tables in prod, 250 * 3 std app nodes Pinot @ LinkedIn Tuesday, August 18, 15
  7. Key features SQL-like interface Columnar storage and indexing Real-time data load Tuesday, August 18, 15
  8. (S)QL: Filters and Aggs SELECT count(*) FROM companyFollowHistoricalEvents WHERE entityId = 121011 AND 'day' >= 15949 AND 'day' <= 15963 AND paid = 'y’ AND action = 'stop' Tuesday, August 18, 15
  9. (S)QL: Group By SELECT count(*) FROM companyFollowHistoricalEvents WHERE entityId = 121011 AND 'day' >= 15949 AND 'day' <= 15963 AND paid = 'y’ GROUP BY action Tuesday, August 18, 15
  10. (S)QL: ORDER BY and LIMIT SELECT * FROM companyFollowHistoricalEvents WHERE entityId = 121011 AND entityId = 1000 AND action = 'start' ORDER BY creationTime DESC LIMIT 1 Tuesday, August 18, 15
  11. Whats not supported • JOIN: unpredictable performance • NOT A SOURCE OF TRUTH • Mutation Tuesday, August 18, 15
  12. Pinot • Data flow • Query Execution • How to use/operate • Pinot @ LinkedIn - Future Tuesday, August 18, 15
  13. Broker Helix Real time Historical Kafka Hadoop Pinot Architecture Queries Raw Data Tuesday, August 18, 15
  14. Pinot • Pinot segments Tuesday, August 18, 15
  15. Pinot Segment layout: Columnar storage Tuesday, August 18, 15
  16. Pinot Segment layout: Sorted Forward Index Tuesday, August 18, 15
  17. Pinot Segment layout: Other techniques • Indexes: Inverted index, Bitmap, RoaringBitmap • Compression: Dictionary Encoding, P4Delta • Multi Valued columns, skip lists, • Hyperloglog for unique • T-digest for Percentile, Quantile Tuesday, August 18, 15
  18. Data aware pre-computation Star tree Index Tuesday, August 18, 15
  19. Pinot • Query Execution Tuesday, August 18, 15
  20. Pinot Query Execution: Distributed Servers S1 S3 S2 S1 S3 S2 Helix Brokers Tuesday, August 18, 15
  21. Pinot Query Execution: Distributed Servers 1.Query S1 S3 S2 S1 S3 S2 Helix Brokers Tuesday, August 18, 15
  22. Pinot Query Execution: Distributed Servers 1.Query S1 S3 S2 S1 S3 S2 Helix 2. Fetch routing table from HelixBrokers Tuesday, August 18, 15
  23. Pinot Query Execution: Distributed Servers 1.Query S1 S3 S2 S1 S3 S2 Helix 2. Fetch routing table from HelixBrokers 3. Scatter Request Tuesday, August 18, 15
  24. Pinot Query Execution: Distributed Servers 1.Query S1 S3 S2 S1 S3 S2 Helix 2. Fetch routing table from HelixBrokers 3. Scatter Request 4. Process Request & send response Tuesday, August 18, 15
  25. Pinot Query Execution: Distributed Servers 1.Query S1 S3 S2 S1 S3 S2 Helix 2. Fetch routing table from HelixBrokers 3. Scatter Request 4. Process Request & send response 5. Gather Response Tuesday, August 18, 15
  26. Pinot Query Execution: Distributed Servers 1.Query S1 S3 S2 S1 S3 S2 Helix 2. Fetch routing table from HelixBrokers 3. Scatter Request 4. Process Request & send response 5. Gather Response 6. Return Response Tuesday, August 18, 15
  27. Pinot Query Execution: Single Node Architecture EXECUTION ENGINE INVERTED INDEX BITMAP INDEX COLUMN FORMAT PLANNER Tuesday, August 18, 15
  28. Pinot Query Execution: Single Node Architecture SELECT campaignId, sum(clicks) FROM Table A WHERE accountId = 121011 AND 'day' >= 15949 GROUP BY campaignId account Id daycampaign Id click Filter Operator Projection Operator Aggregation Group by Operator Combine Operator Pinot Segments Data sources Matching doc ids campaignId,Click tuple Tuesday, August 18, 15
  29. Pinot • Operations Tuesday, August 18, 15
  30. Cluster Management: Deployment Helix Brokers Servers • Brokers and Servers register themselves in Helix • All servers start with no use case specific configuration Controller Tuesday, August 18, 15
  31. On boarding new use case Helix Brokers Servers XLNT XLNT XLNT Create Table command Controller XLNT XLNTTag Servers TableName Brokers 3 XLNT_T1 1 Tuesday, August 18, 15
  32. Segment Assignment Servers S3 S2 S1 Upload Segment S2 S1 S3 S2 S1 S3 Helix Brokers Copies TableName 2 XLNT_T1 Controller Tuesday, August 18, 15
  33. • AUTO recovery mode: Automatically redistribute segments on failure/addition of new nodes • Custom mode: Run in degraded mode until node is restarted/replaced. Pinot - Fault tolerance/Elasticity Tuesday, August 18, 15
  34. Pinot vs Druid Druid Pinot Architecture Realtime + Offline, Realtime only Realtime + Offline Realtime only -> consistency is hard and schema evolution/Bootstrap is hard Inverted Index Always On all columns, Fixed Configurable on per column basis Allows trade off between scanning v/s inverted index + scanning. More data can be fit in given memory size Data organization N/A Sorts data Organizing data provides speed/better compression and removes the need for inverted index Smart pre- materialization N/A star-tree Allows trade off between latency and space Query Execution Layer Fixed Plan Split into Planning and execution Smart choices can be made at runtime based on metadata/query. Tuesday, August 18, 15
  35. • Documentation & tooling • In progress - consistency among real time replicas. • Improve cost to serve - leverage SSD, partial pre materialization • ThirdEye - Business Metrics Monitoring Pinot - Future Tuesday, August 18, 15
  36. Thank You 30 Tuesday, August 18, 15

×
