The document discusses implementing SOA and BPM in applications. It covers business requirements, common acronyms, using open source frameworks, and provides an example implementation. The presentation agenda includes SOA and BPM architectures, an ontology example, BPMN and BPEL standards, and a JBoss-based reference architecture with jBPM, JBoss ESB, and rules components.

1. Implementing SOA and BPM in your application
Wiesław Pilarczyk
wp@vdel.com
Ljubljana, 9.10.2008

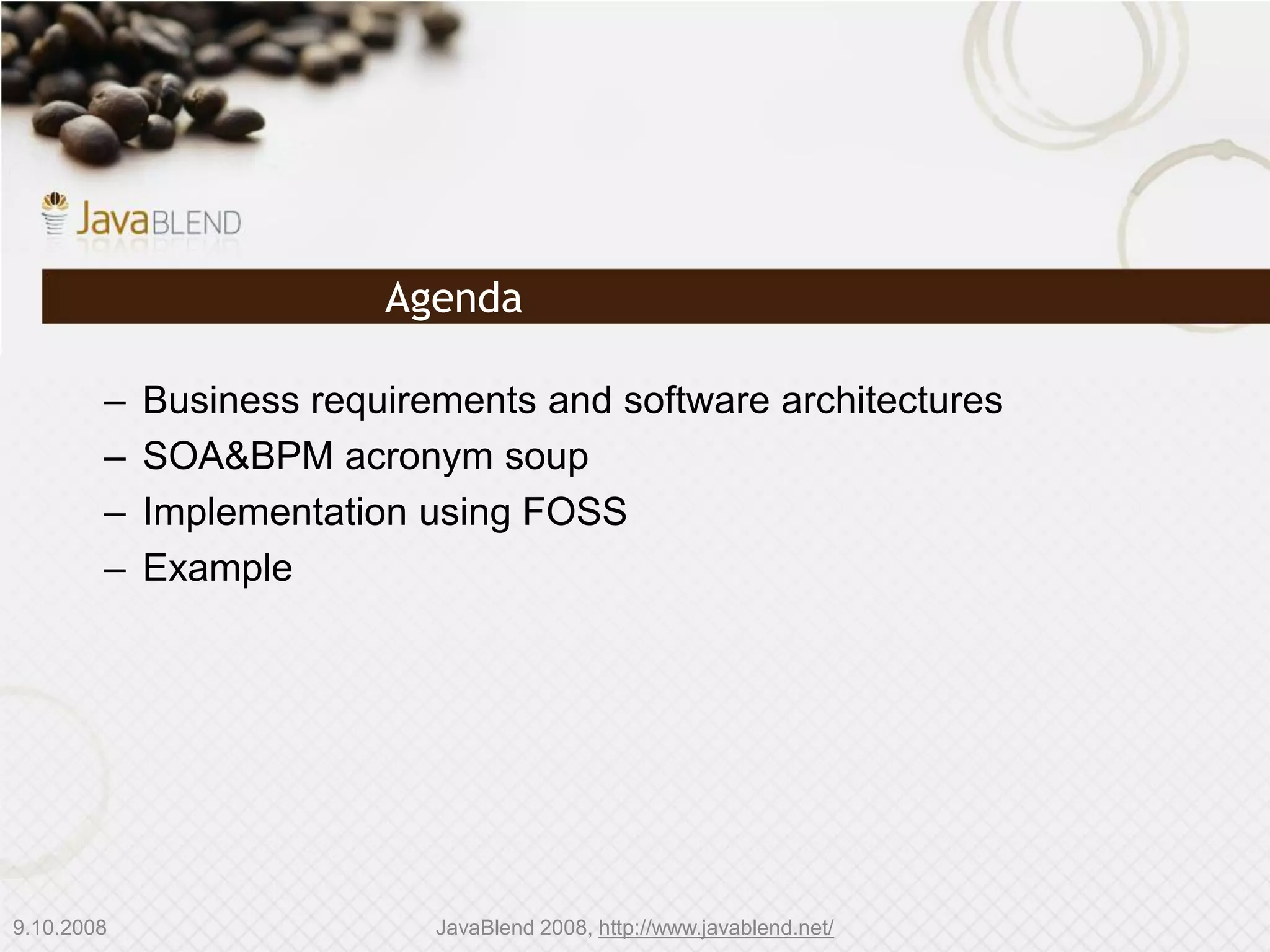

2. Agenda
– Business requirements and software architectures
– SOA&BPM acronym soup
– Implementation using FOSS
– Example
9.10.2008 JavaBlend 2008, http://www.javablend.net/

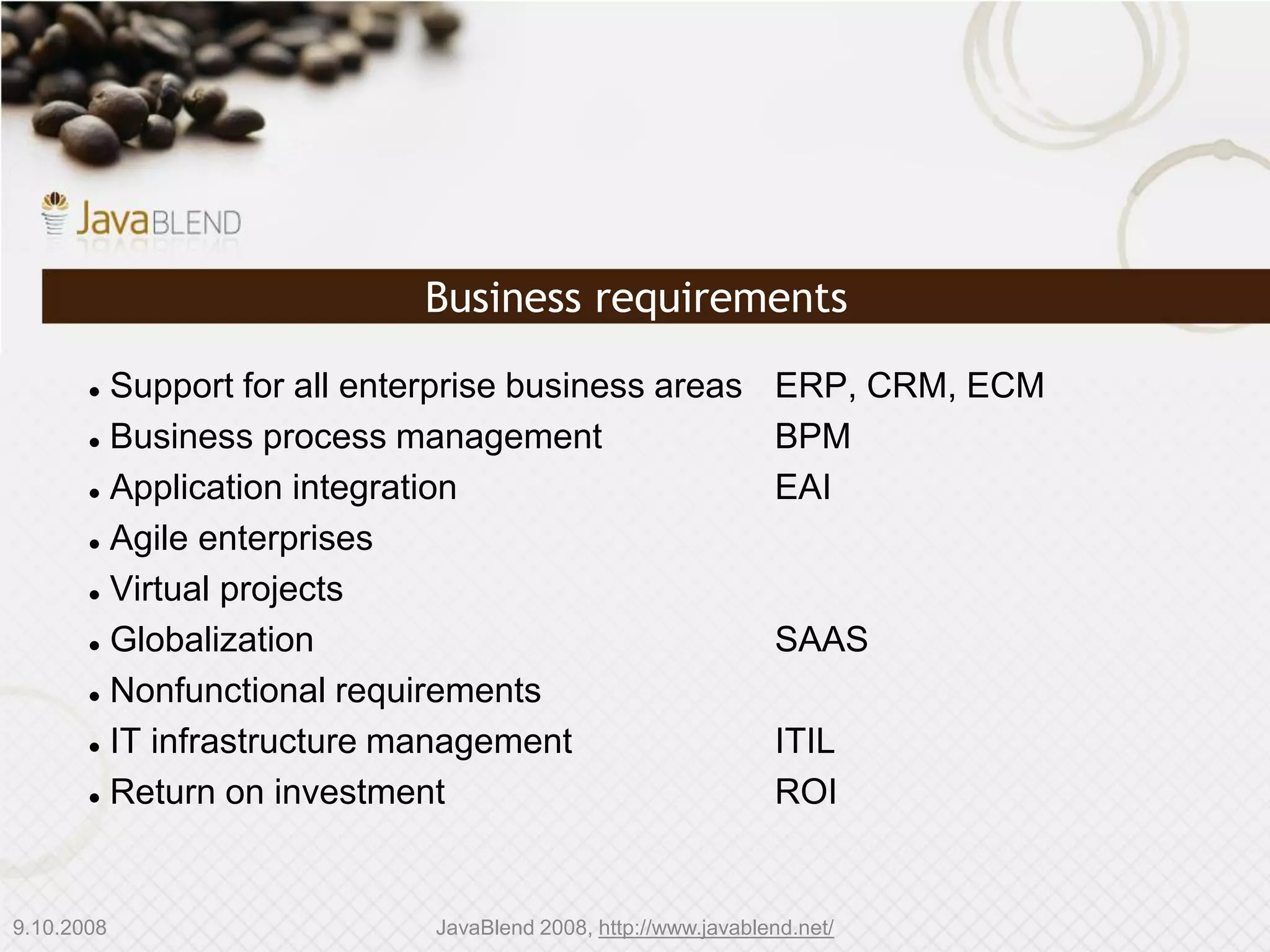

3. Business requirements
 Support for all enterprise business areas ERP, CRM, ECM
 Business process management BPM
 Application integration EAI
 Agile enterprises
 Virtual projects
 Globalization SAAS
 Nonfunctional requirements
 IT infrastructure management ITIL
 Return on investment ROI
9.10.2008 JavaBlend 2008, http://www.javablend.net/

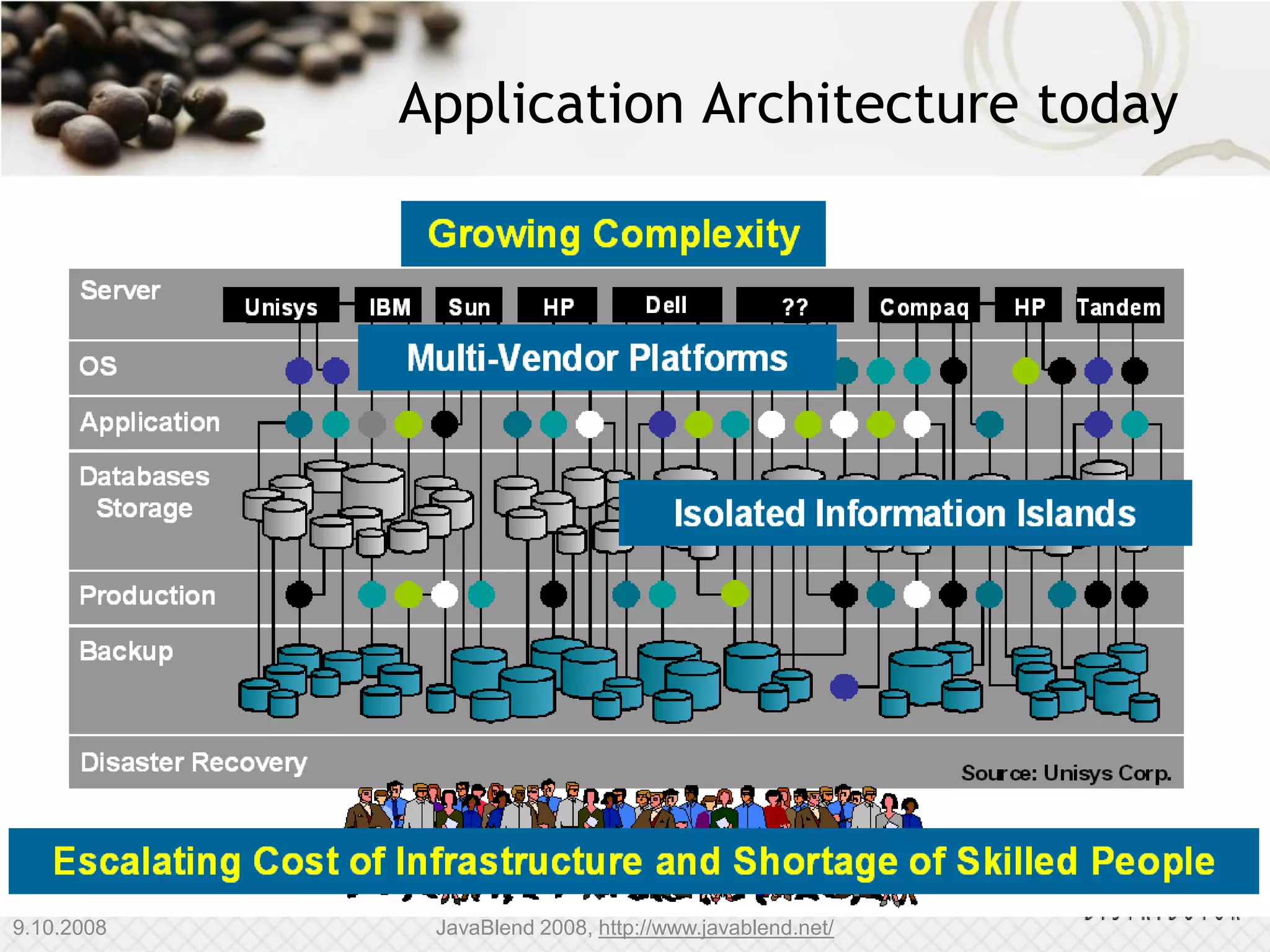

4. Application Architecture today
9.10.2008 JavaBlend 2008, http://www.javablend.net/

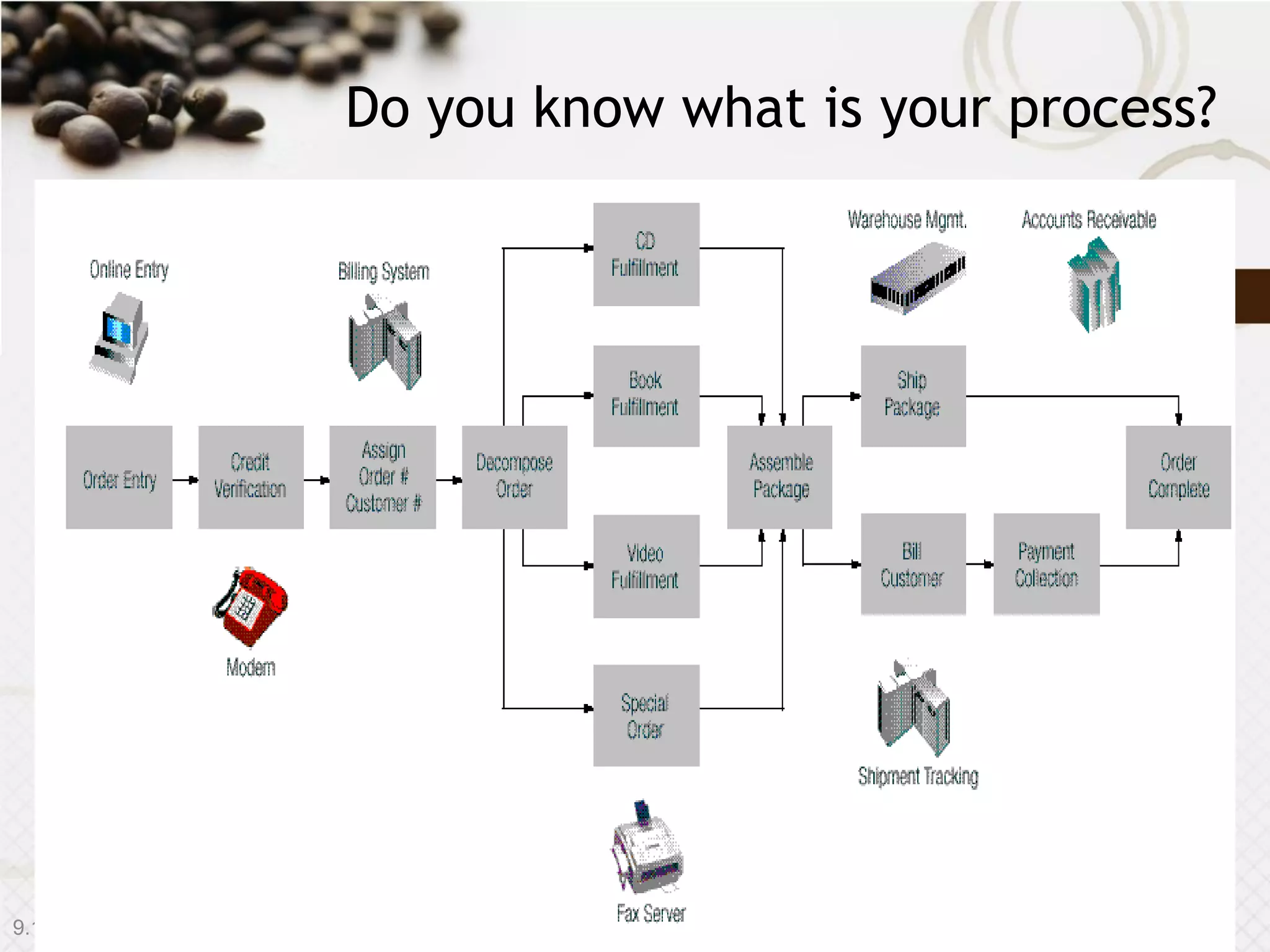

5. Do you know what is your process?
9.10.2008 JavaBlend 2008, http://www.javablend.net/

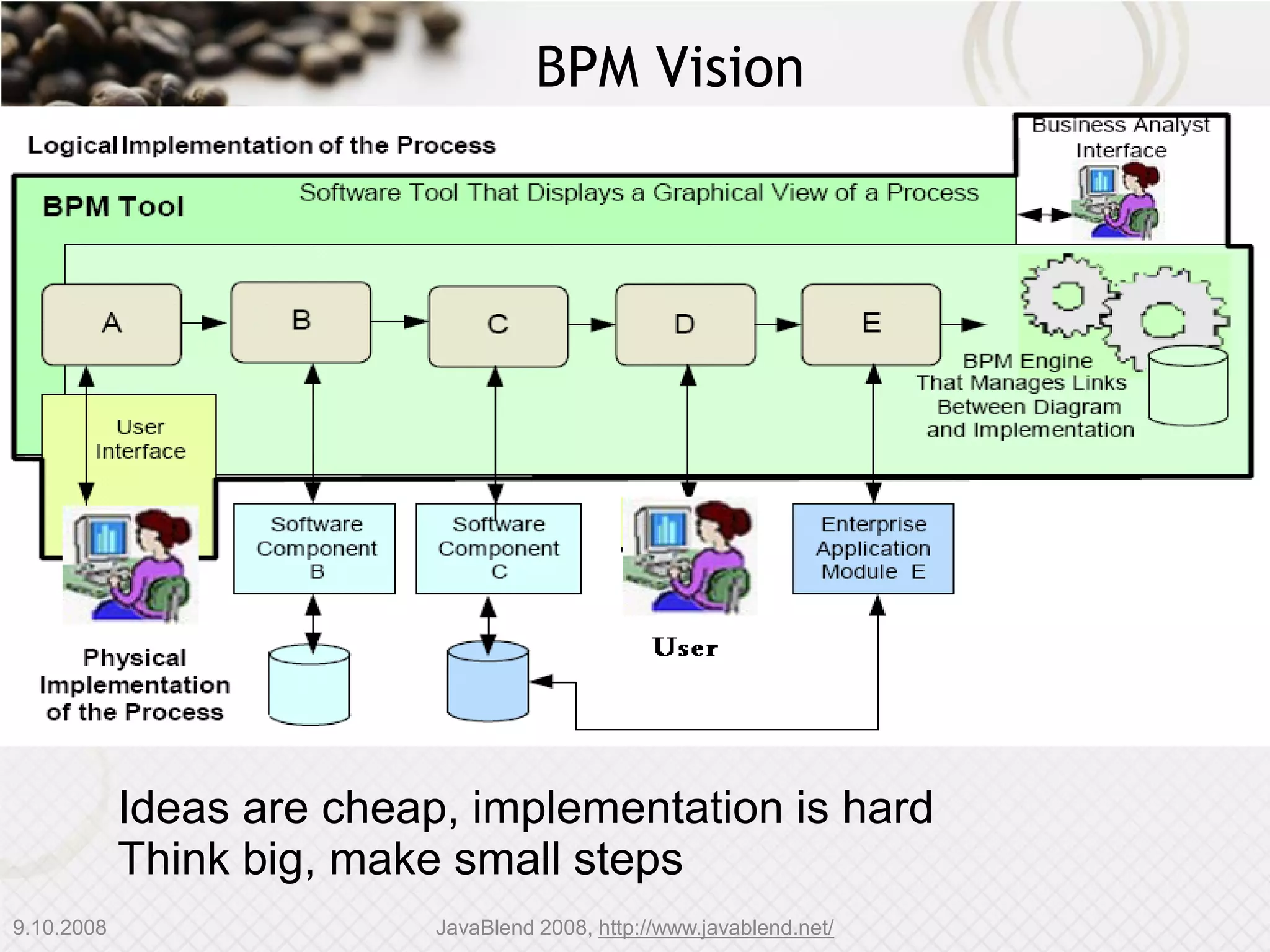

6. BPM Vision
Ideas are cheap, implementation is hard
Think big, make small steps
9.10.2008 JavaBlend 2008, http://www.javablend.net/

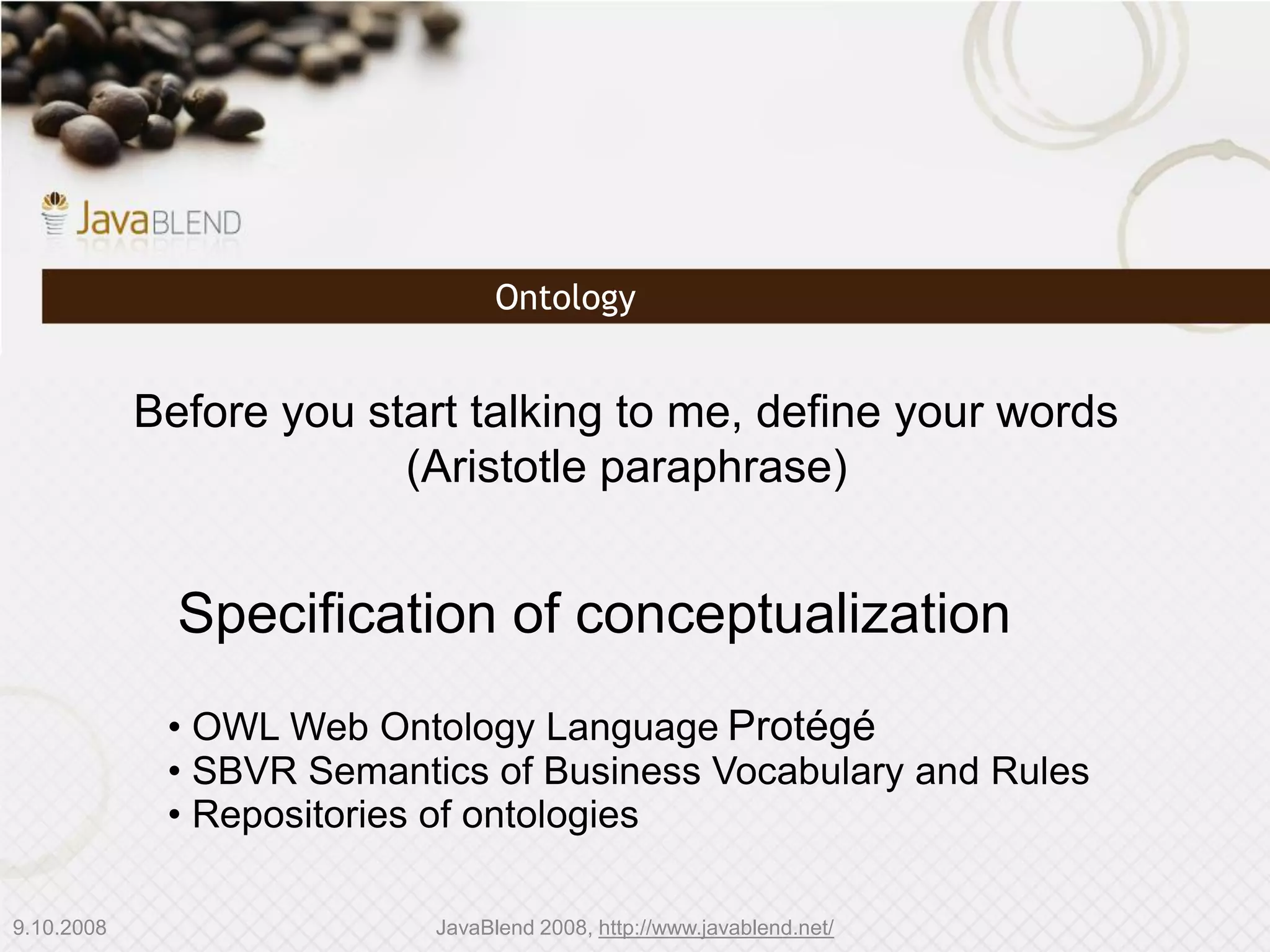

7. Ontology
Before you start talking to me, define your words
(Aristotle paraphrase)
Specification of conceptualization
• OWL Web Ontology Language Protégé
• SBVR Semantics of Business Vocabulary and Rules
• Repositories of ontologies
9.10.2008 JavaBlend 2008, http://www.javablend.net/

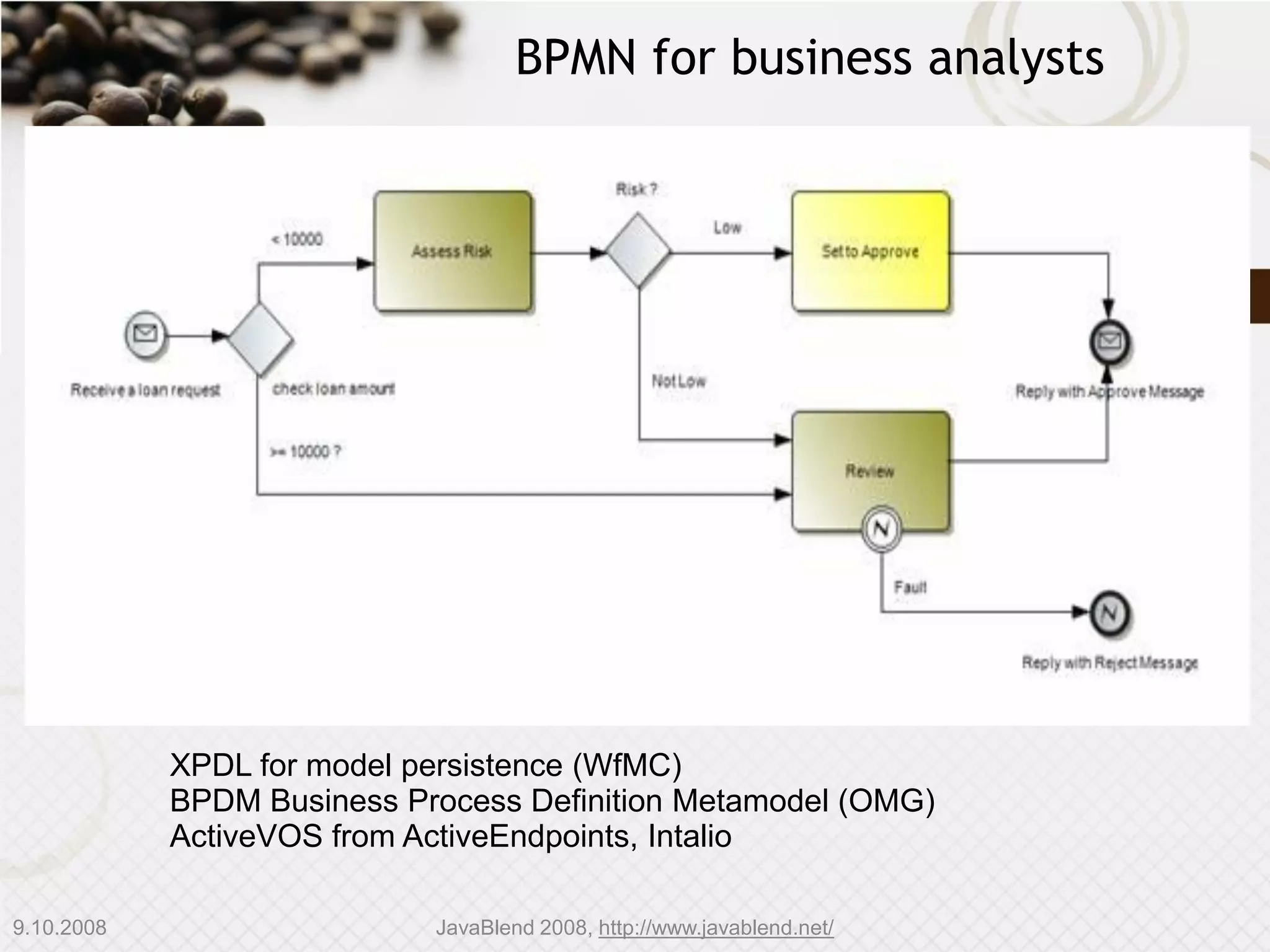

8. BPMN for business analysts
XPDL for model persistence (WfMC)
BPDM Business Process Definition Metamodel (OMG)
ActiveVOS from ActiveEndpoints, Intalio
9.10.2008 JavaBlend 2008, http://www.javablend.net/

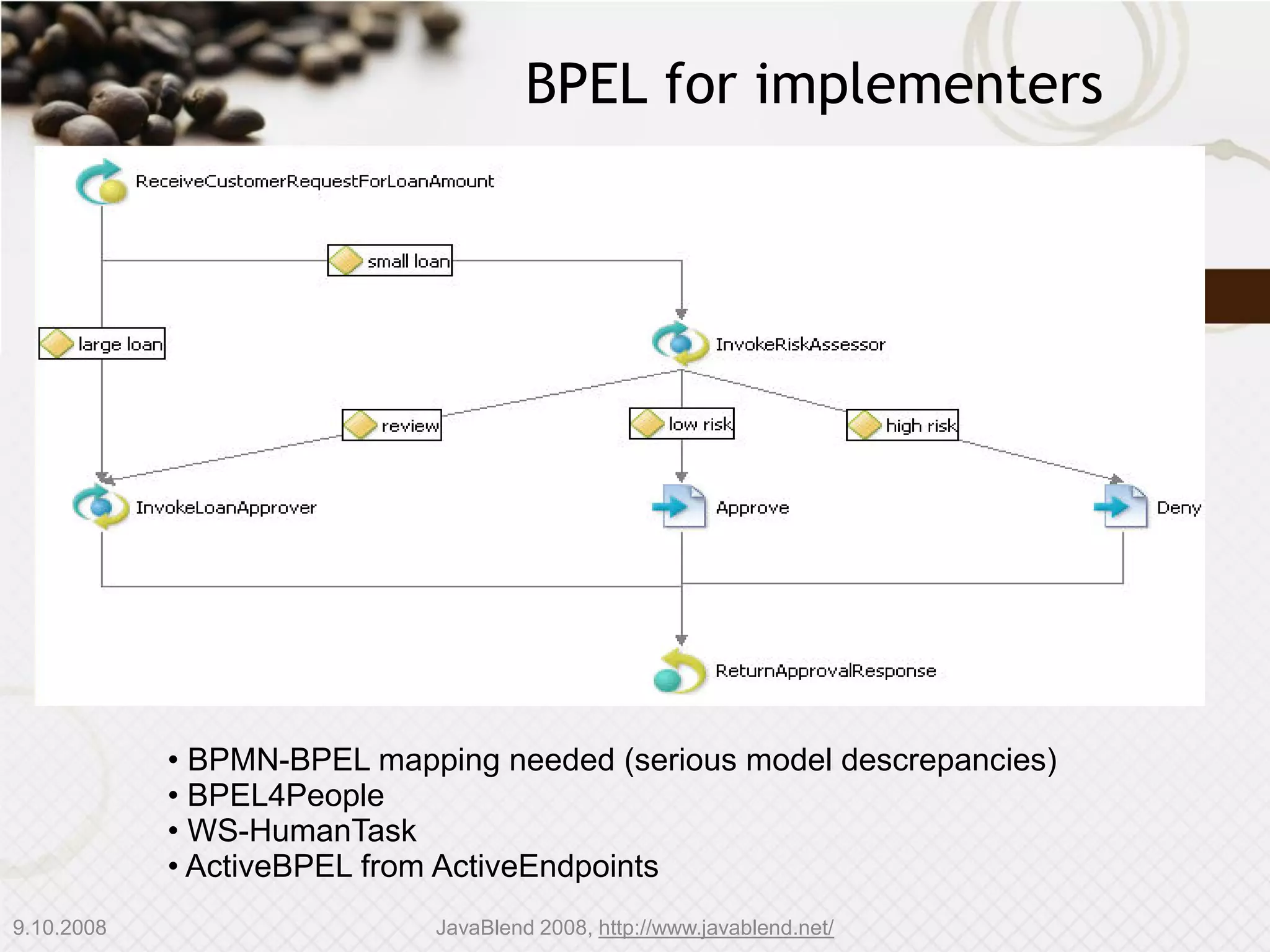

9. BPEL for implementers
• BPMN-BPEL mapping needed (serious model descrepancies)
• BPEL4People
• WS-HumanTask
• ActiveBPEL from ActiveEndpoints
9.10.2008 JavaBlend 2008, http://www.javablend.net/

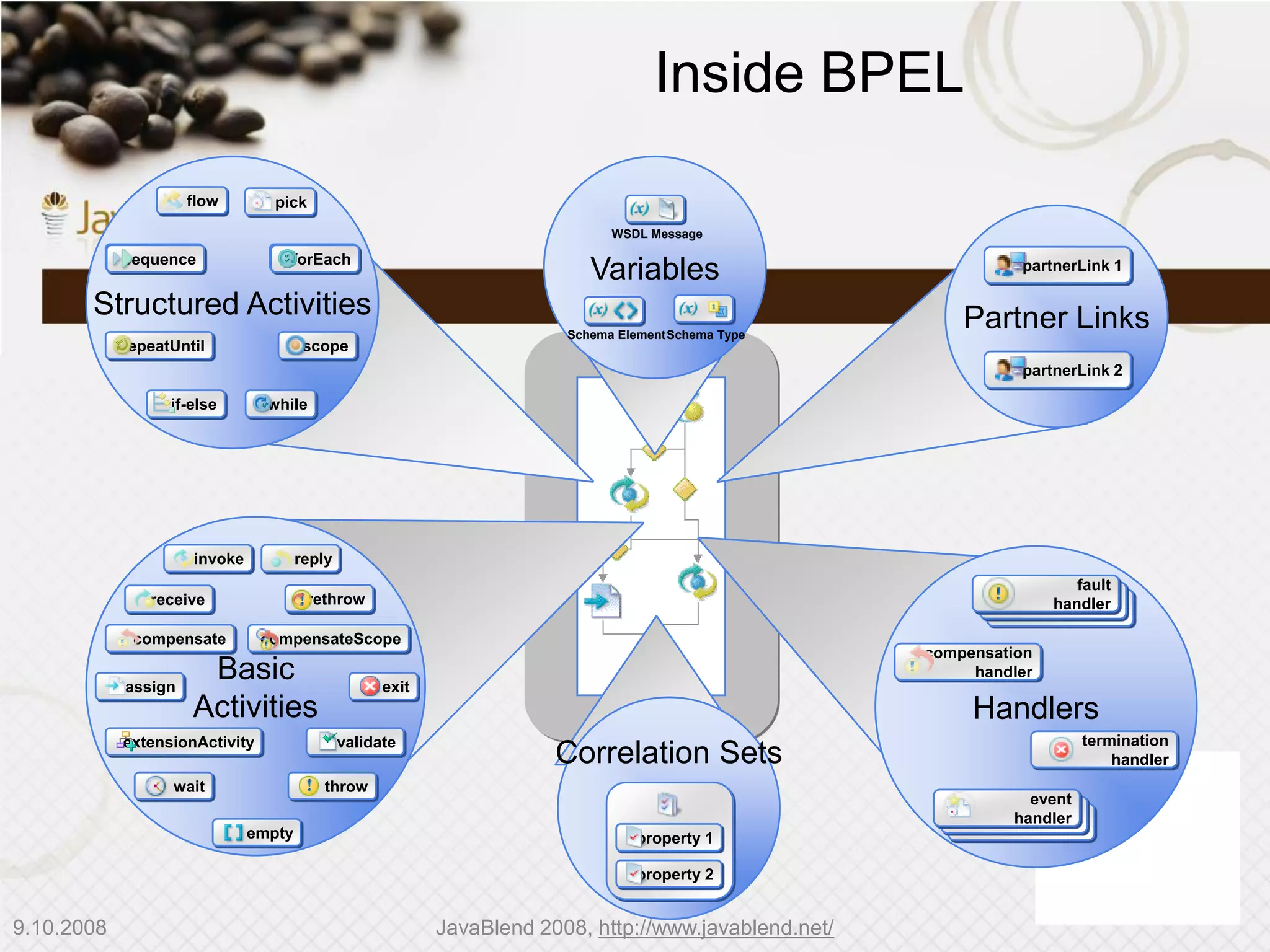

10. Inside BPEL
flow pick
WSDL Message
sequence forEach
Variables partnerLink 1
Structured Activities Partner Links
Schema ElementSchema Type
repeatUntil scope
partnerLink 2
if-else while
invoke reply
fault
receive rethrow handler
compensate compensateScope
compensation
assign
Basic exit
handler
Activities Handlers
extensionActivity validate termination
Correlation Sets handler
wait throw
event
handler
empty property 1
property 2
9.10.2008 JavaBlend 2008, http://www.javablend.net/

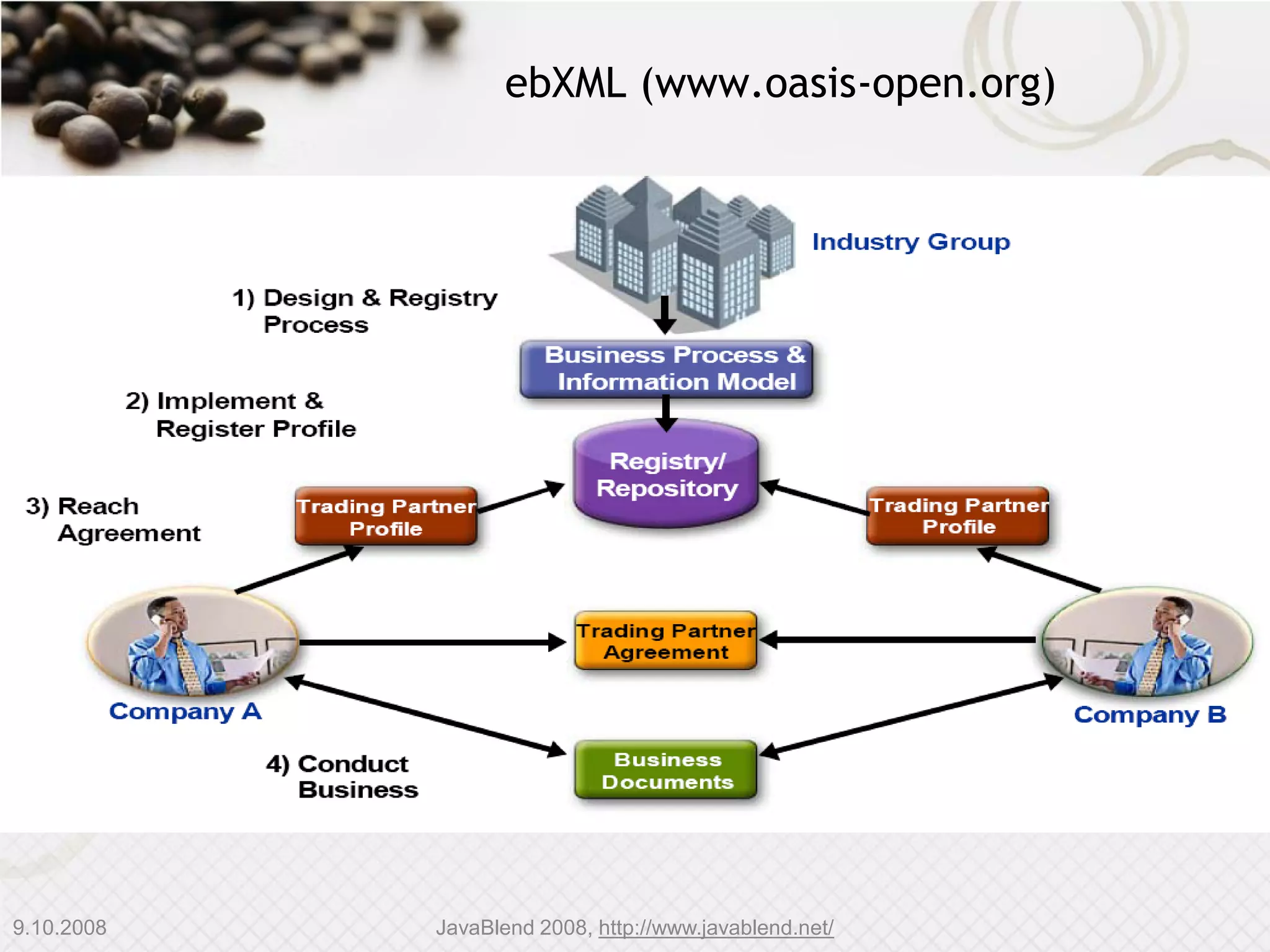

11. ebXML (www.oasis-open.org)
9.10.2008 JavaBlend 2008, http://www.javablend.net/

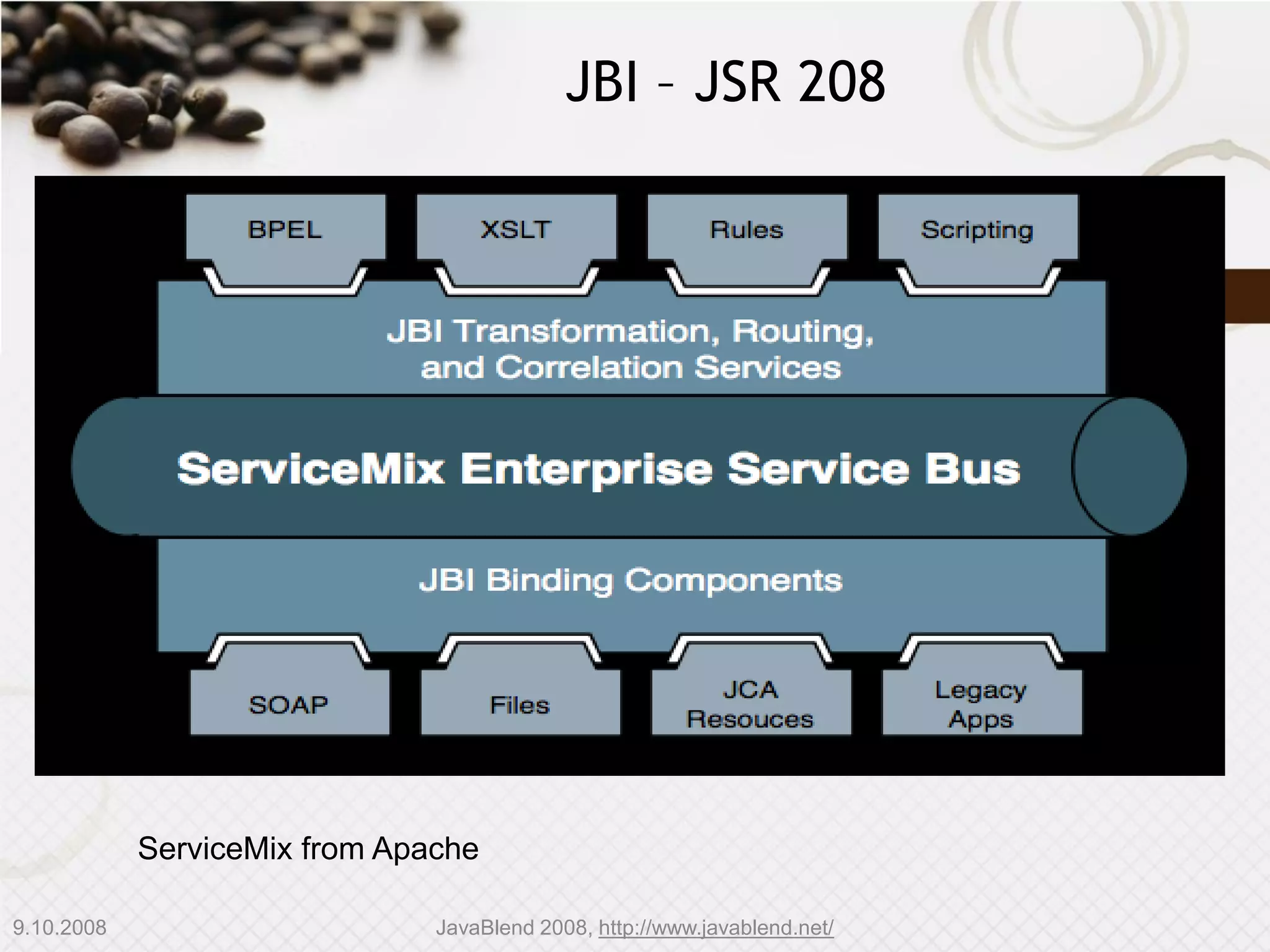

12. JBI – JSR 208
ServiceMix from Apache
9.10.2008 JavaBlend 2008, http://www.javablend.net/

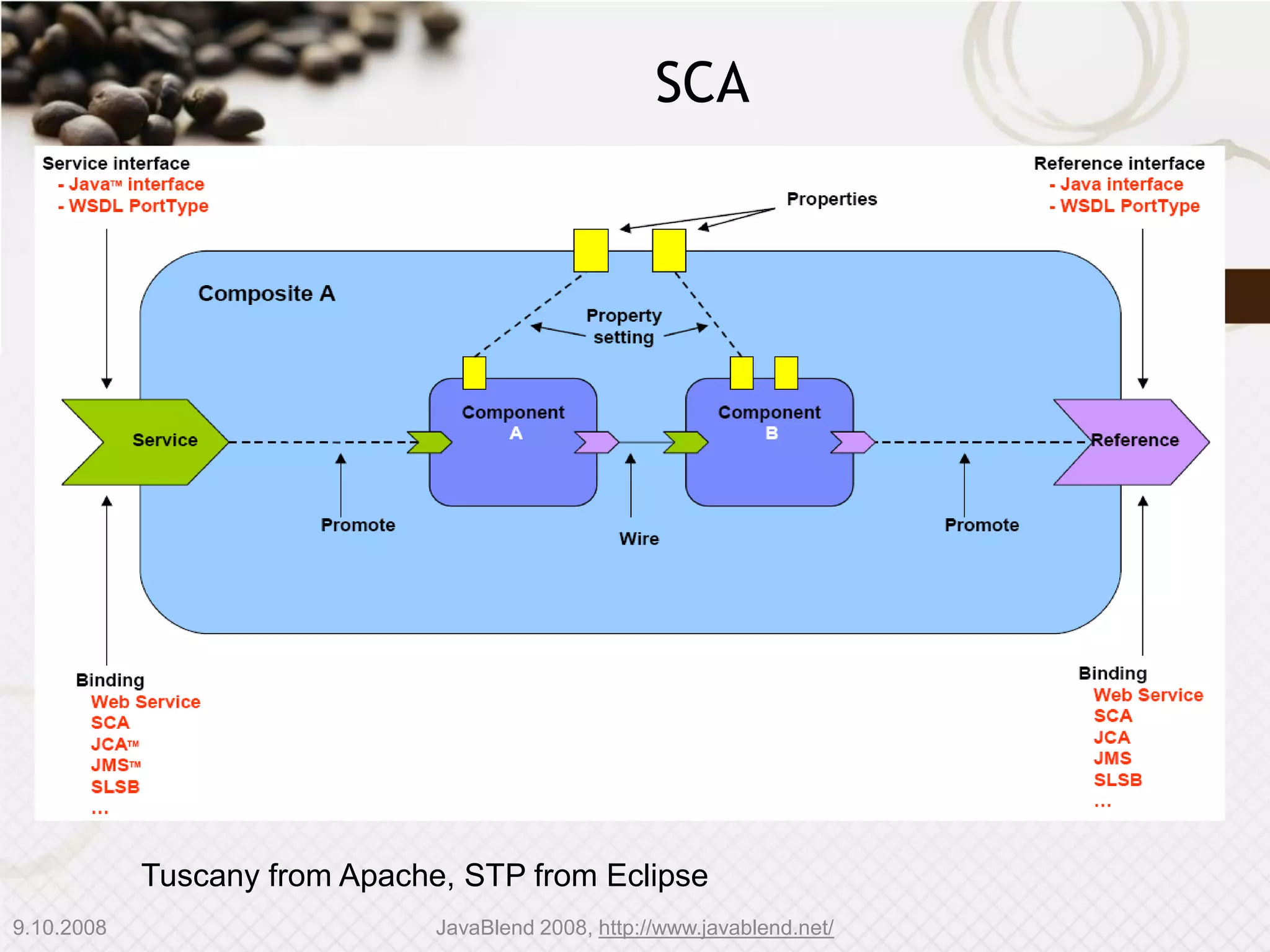

13. SCA
Tuscany from Apache, STP from Eclipse
9.10.2008 JavaBlend 2008, http://www.javablend.net/

14. SOA Governance
Implementing SOA without a solid governance model is the
equivalent to having an airport without a control tower.
* Not enough process creates chaos
* Too much process stifles innovation and deters agility
* Evolve governance over time
(Mike Kavis, CIO Magazine)
ebxmlrr
Mule Galaxy
WSO2 Registry
9.10.2008 JavaBlend 2008, http://www.javablend.net/

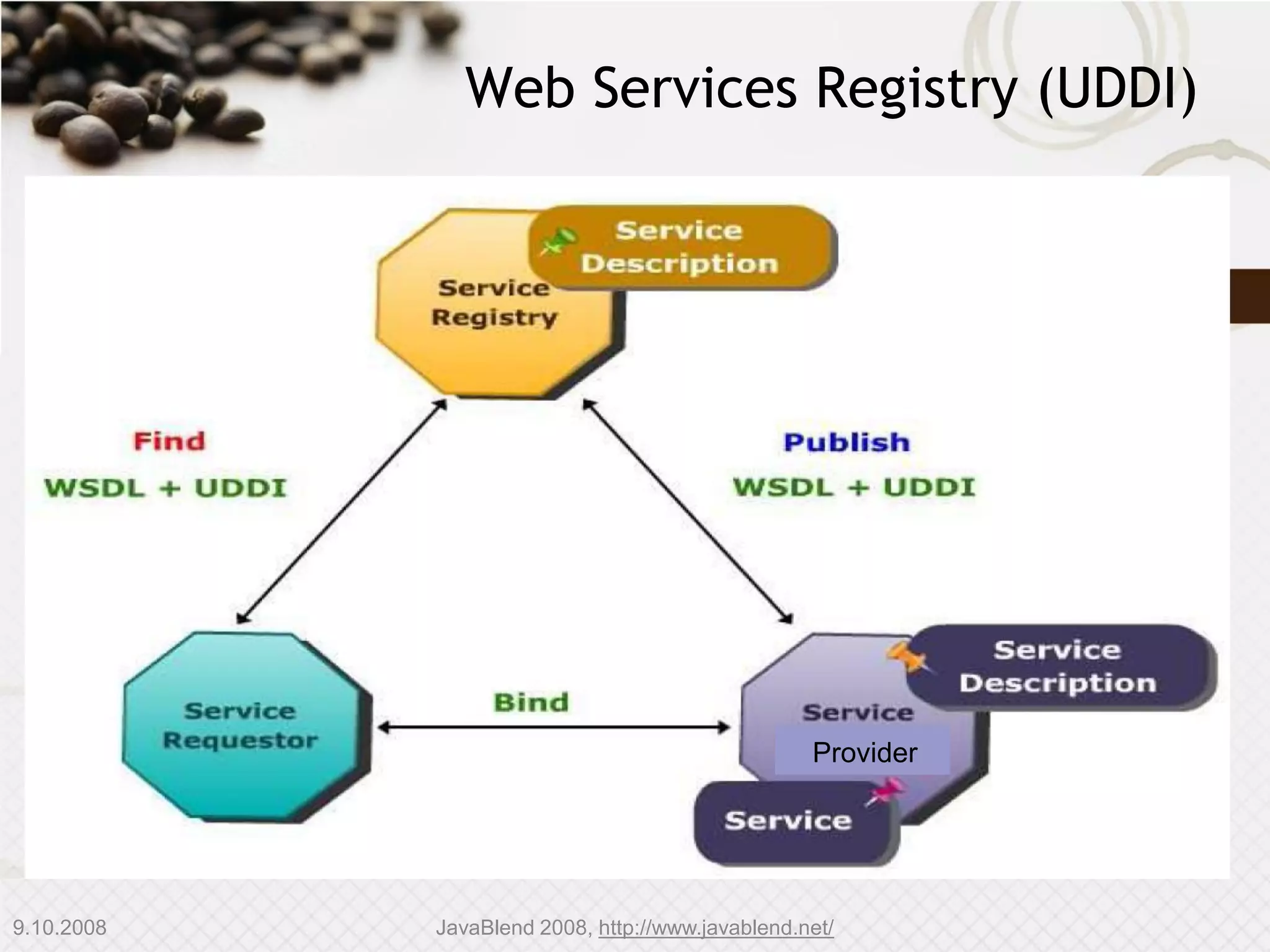

15. Web Services Registry (UDDI)
Provider
9.10.2008 JavaBlend 2008, http://www.javablend.net/

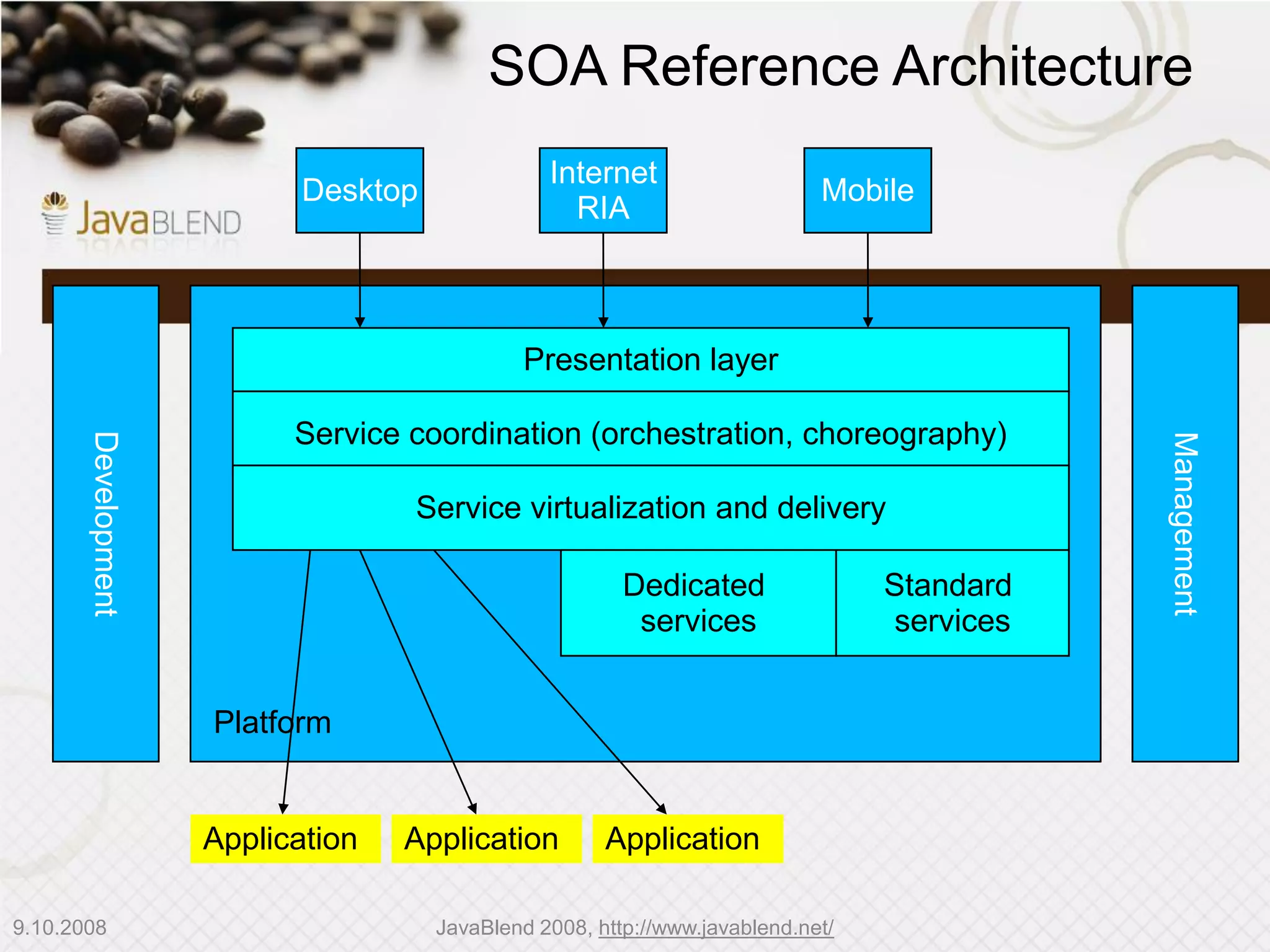

16. SOA Reference Architecture
Internet
Desktop Mobile
RIA
Presentation layer
Service coordination (orchestration, choreography)
Development
Management
Service virtualization and delivery
Dedicated Standard
services services
Platform
Application Application Application
9.10.2008 JavaBlend 2008, http://www.javablend.net/

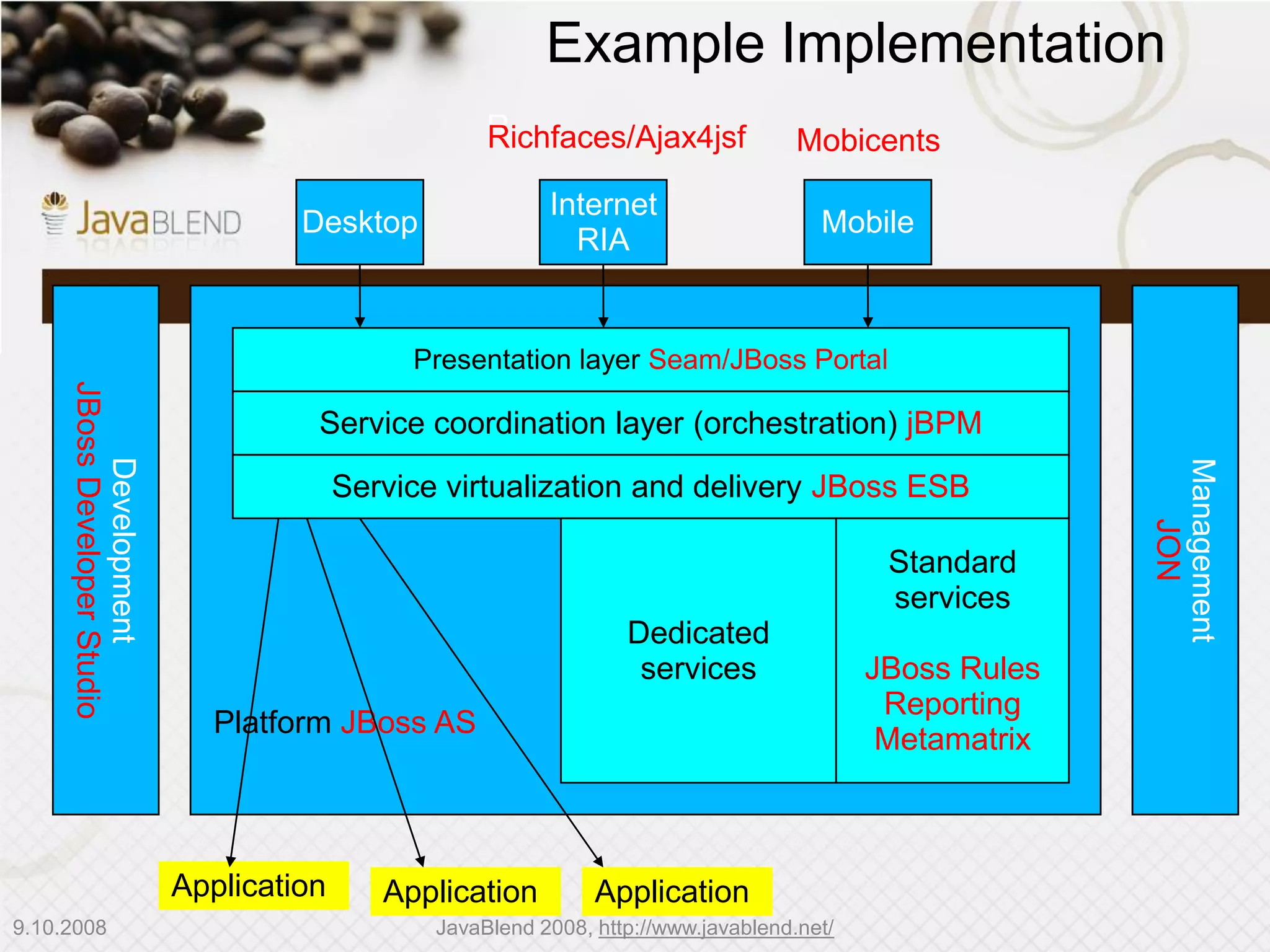

17. Example Implementation
R
Richfaces/Ajax4jsf Mobicents
Internet
Desktop Mobile
RIA
Presentation layer Seam/JBoss Portal
JBoss Developer Studio
Service coordination layer (orchestration) jBPM
Development
Management
Service virtualization and delivery JBoss ESB
JON
Standard
services
Dedicated
services JBoss Rules
Reporting
Platform JBoss AS
Metamatrix
Application Application Application
9.10.2008 JavaBlend 2008, http://www.javablend.net/

18. Application using BPM and SOA
9.10.2008 JavaBlend 2008, http://www.javablend.net/

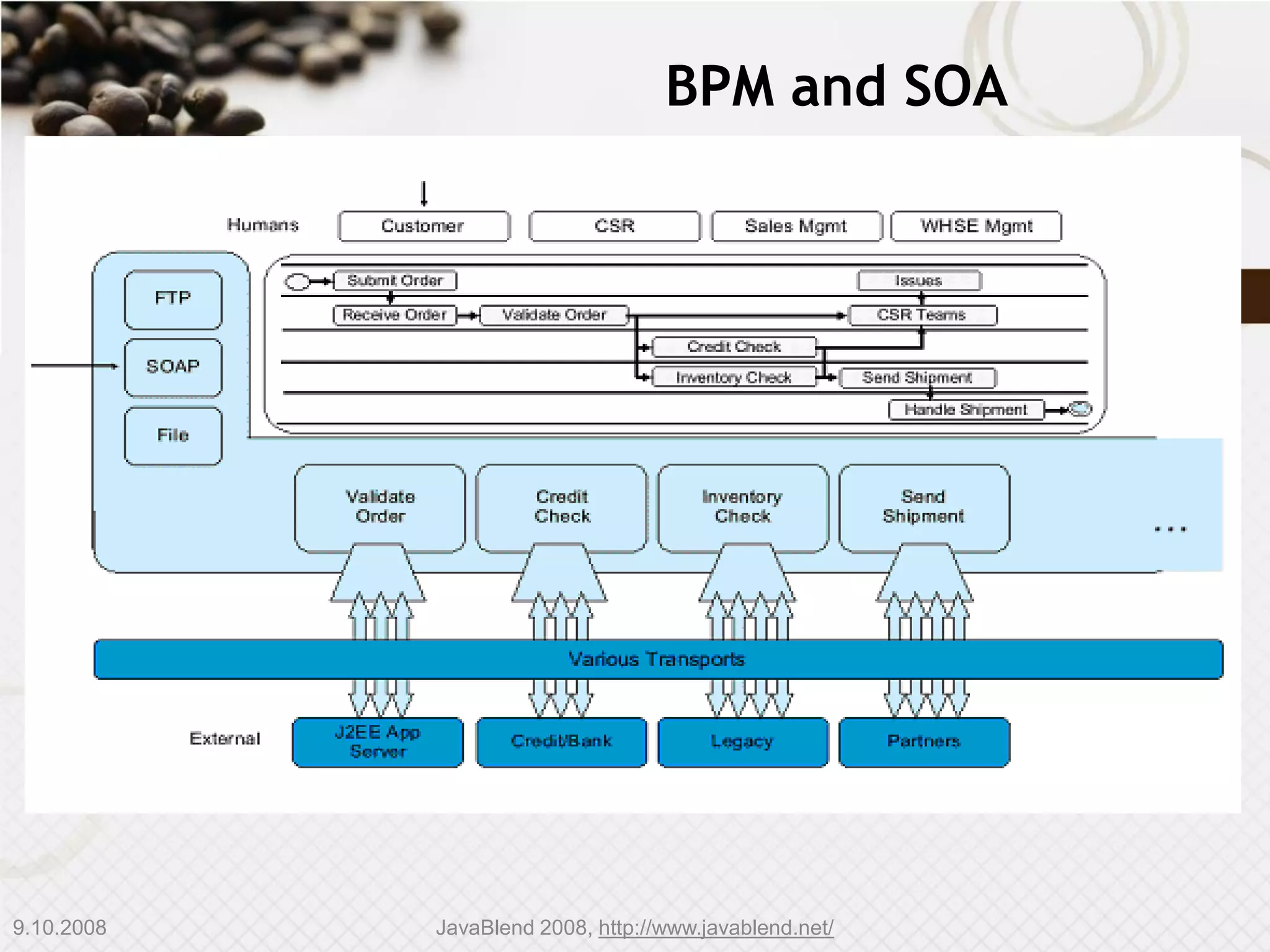

19. BPM and SOA
9.10.2008 JavaBlend 2008, http://www.javablend.net/

20. jPDL Process Editor
9.10.2008 JavaBlend 2008, http://www.javablend.net/

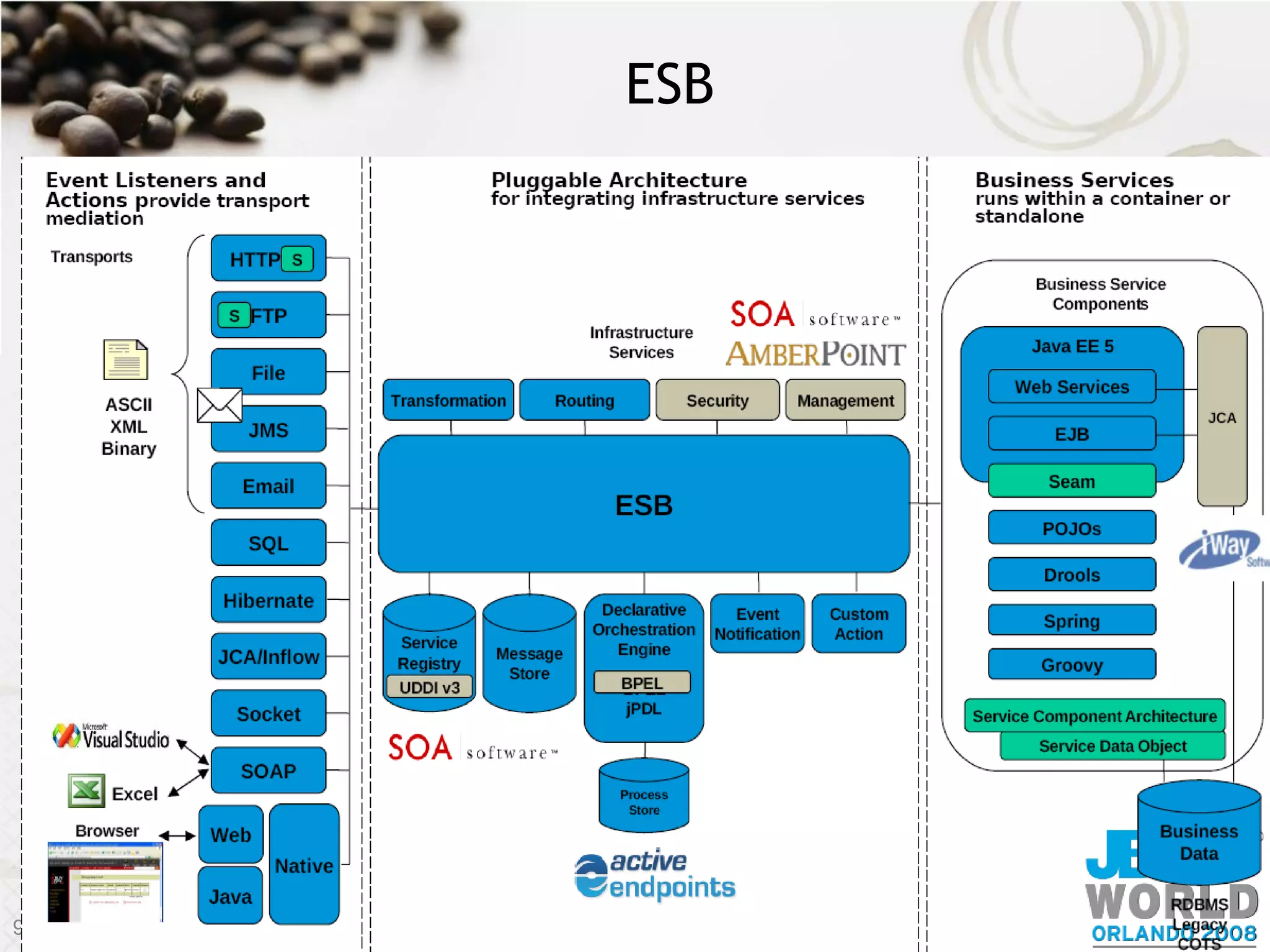

21. ESB
9.10.2008 JavaBlend 2008, http://www.javablend.net/

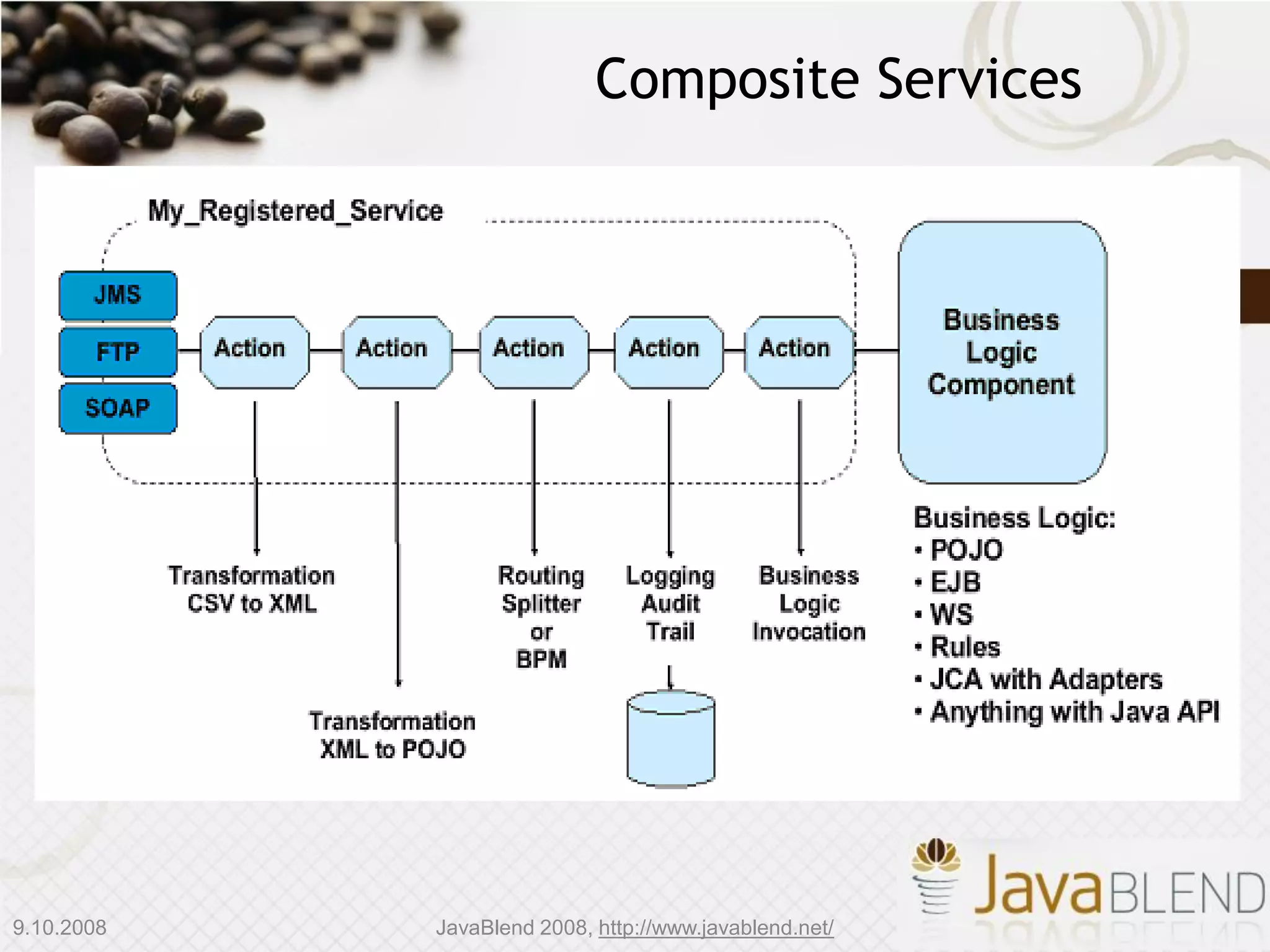

22. Composite Services
9.10.2008 JavaBlend 2008, http://www.javablend.net/

23. Enterprise Integration
Patterns
www.eaipatterns.com
9.10.2008 JavaBlend 2008, http://www.javablend.net/

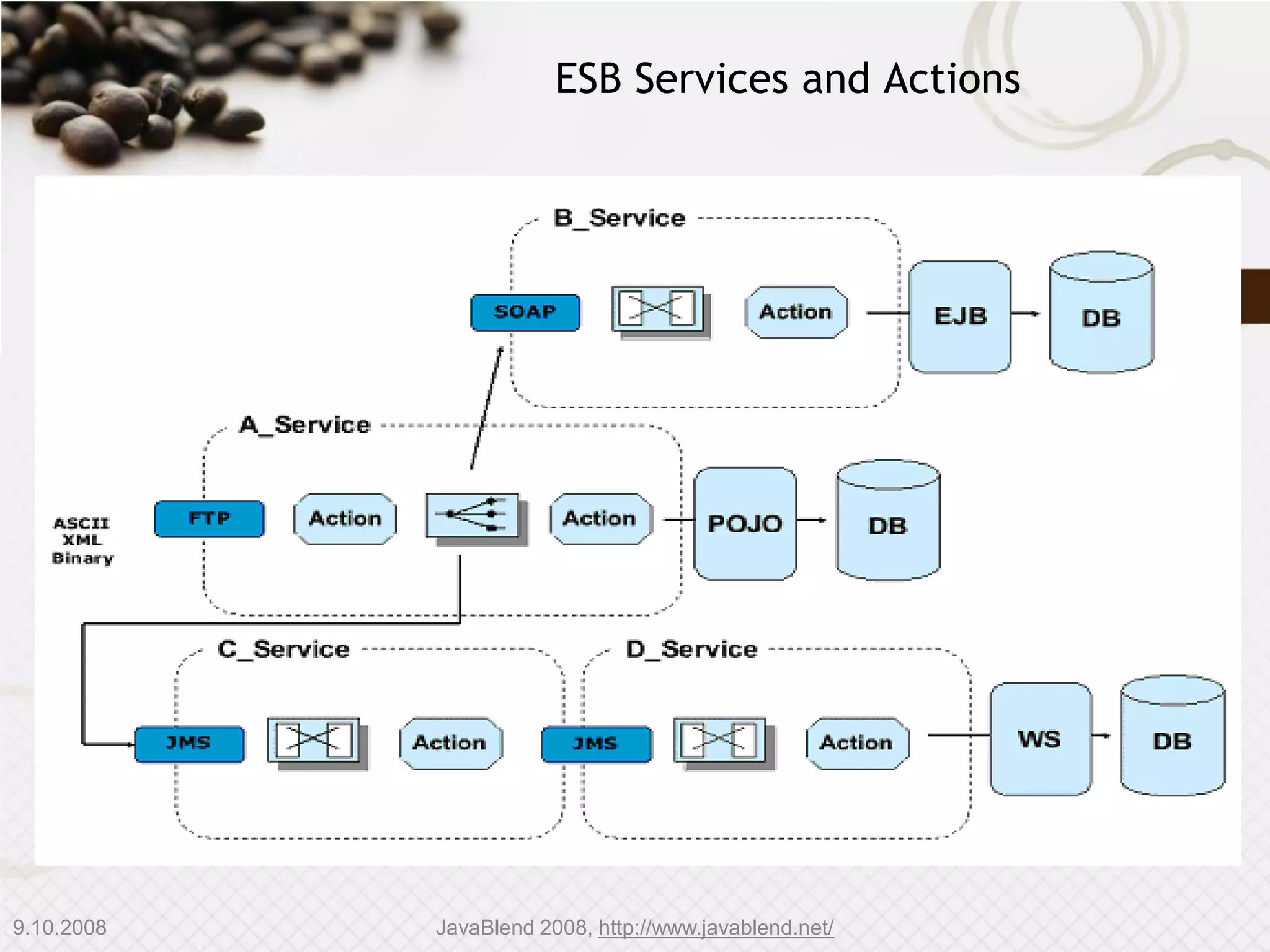

24. ESB Services and Actions
9.10.2008 JavaBlend 2008, http://www.javablend.net/

25. ESB Content Based Routing
9.10.2008 JavaBlend 2008, http://www.javablend.net/

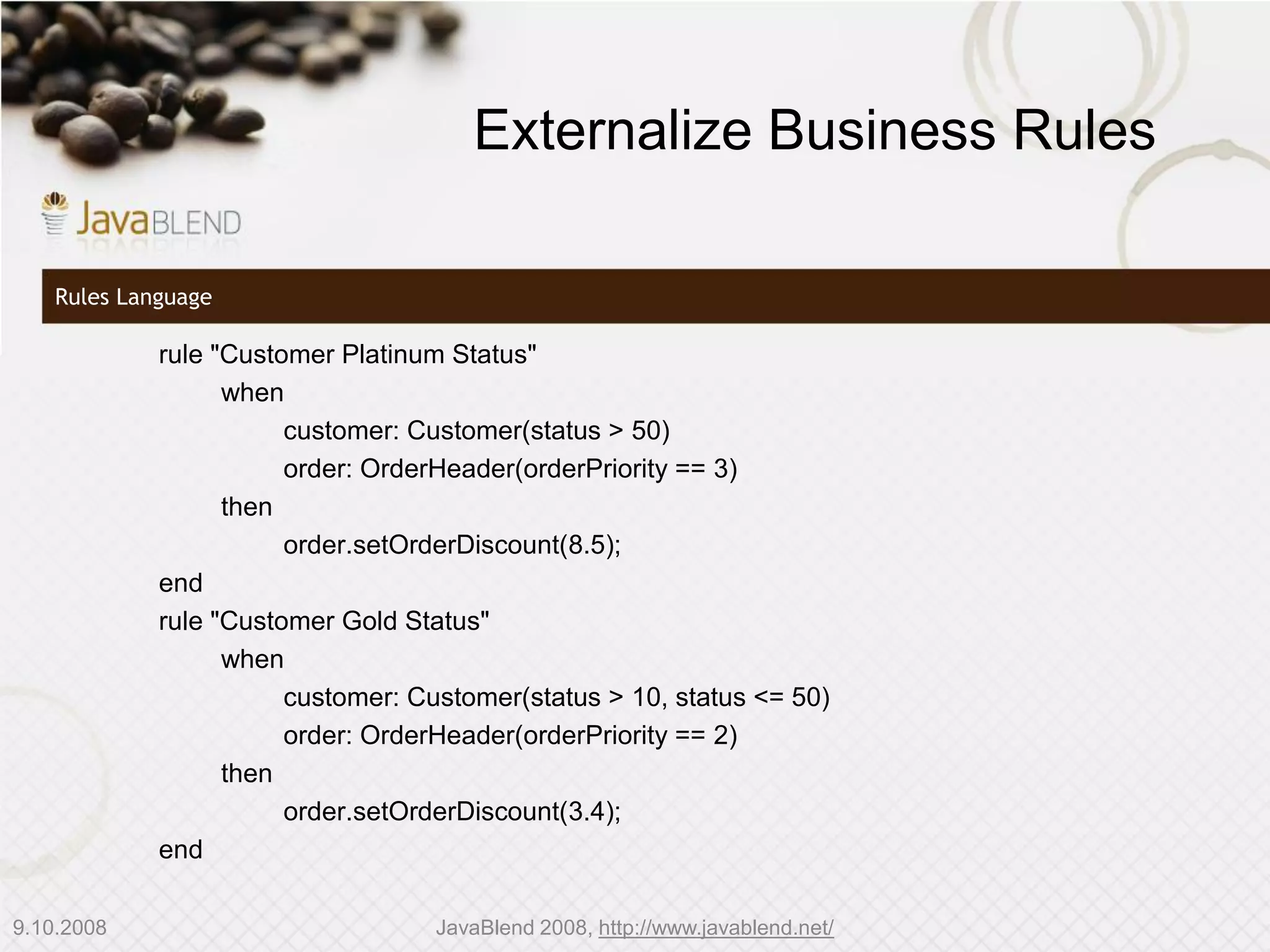

26. Externalize Business Rules
Rules Language
rule quot;Customer Platinum Statusquot;
when
customer: Customer(status > 50)
order: OrderHeader(orderPriority == 3)
then
order.setOrderDiscount(8.5);
end
rule quot;Customer Gold Statusquot;
when
customer: Customer(status > 10, status <= 50)
order: OrderHeader(orderPriority == 2)
then
order.setOrderDiscount(3.4);
end
9.10.2008 JavaBlend 2008, http://www.javablend.net/

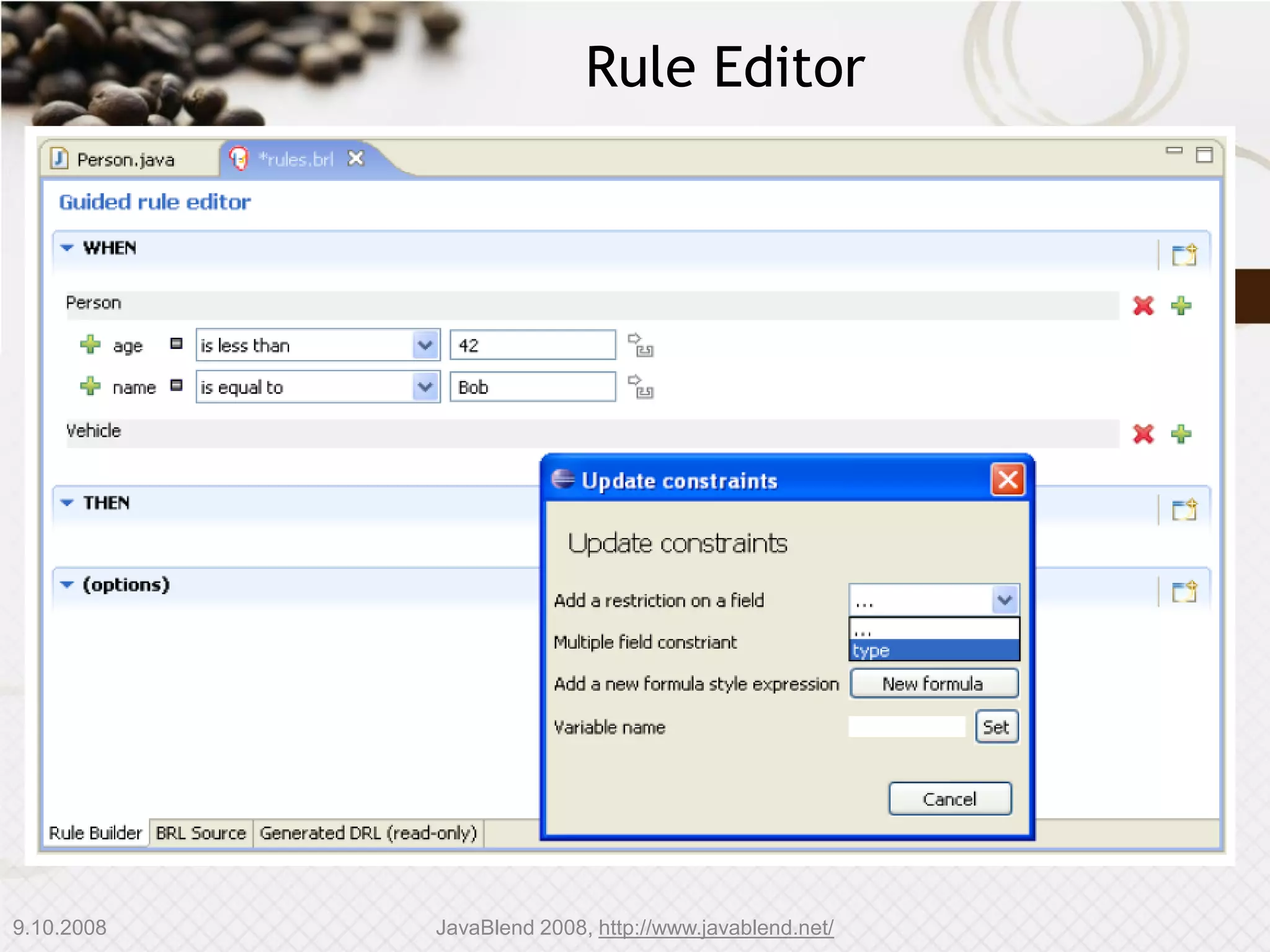

27. Rule Editor
9.10.2008 JavaBlend 2008, http://www.javablend.net/

28. DSL
9.10.2008 JavaBlend 2008, http://www.javablend.net/

29. Decision Tables Excel/OpenOffice)
9.10.2008 JavaBlend 2008, http://www.javablend.net/

30. Aggregate applications - Portal
9.10.2008 JavaBlend 2008, http://www.javablend.net/

31. Use what is available
9.10.2008 JavaBlend 2008, http://www.javablend.net/

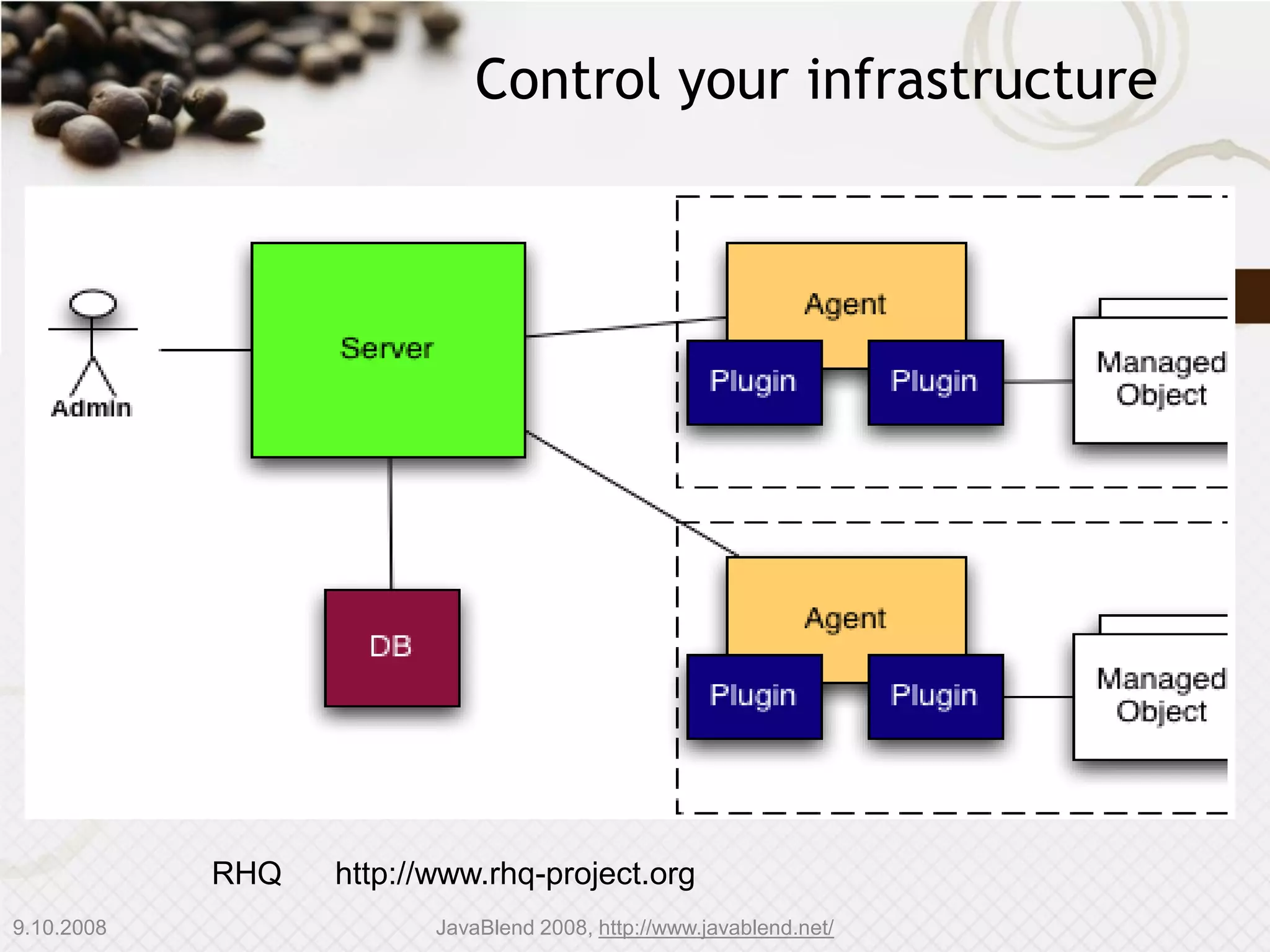

32. Control your infrastructure
RHQ http://www.rhq-project.org
9.10.2008 JavaBlend 2008, http://www.javablend.net/

33. Management Console
9.10.2008 JavaBlend 2008, http://www.javablend.net/

34. Management Console Dashboard
9.10.2008 JavaBlend 2008, http://www.javablend.net/

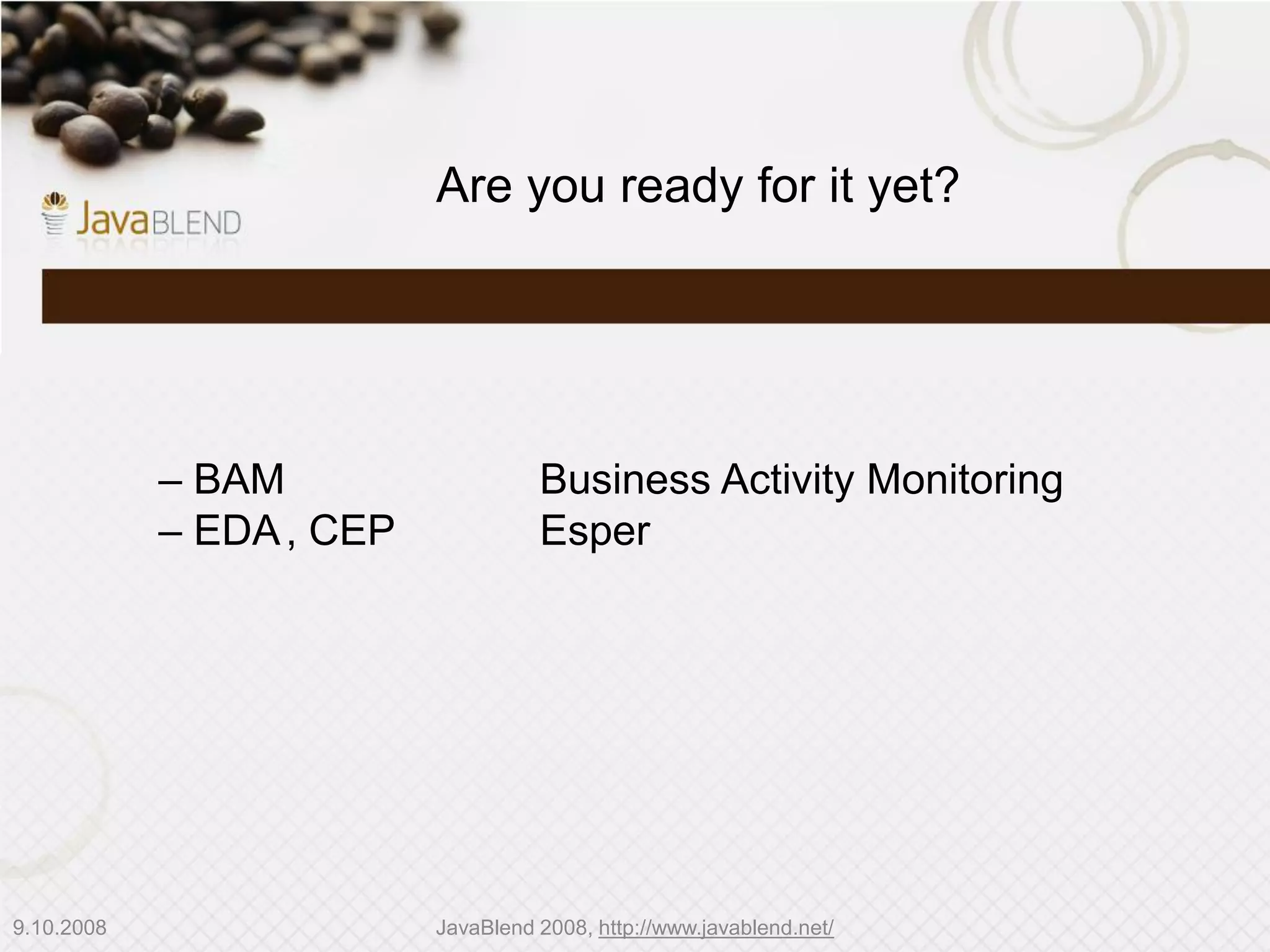

35. Are you ready for it yet?
– BAM Business Activity Monitoring
– EDA , CEP Esper
9.10.2008 JavaBlend 2008, http://www.javablend.net/

36. Business Process Maturity
Model BPMM (OMG)
Level 1 Not coordinated just do it
applications
Level 2 Defined services increased effectivity
written instructions
Level 3 Defined processes automatization
Level 4 Process management better control
Level 5 Dynamic process full optimalization cycle:
optimalization define
implement
deploy
monitor
9.10.2008 JavaBlend 2008, http://www.javablend.net/

37. Roadmap
Level 1 Not coordinated Application Server
applications
Level 2 Defined services ESB
written instructions
Level 3 Defined processes BPM
Level 4 Process management Rules
Level 5 Dynamic process BPMS
optimalization
9.10.2008 JavaBlend 2008, http://www.javablend.net/

38. Q&A
Wiesław Pilarczyk
wp@vdel.com
9.10.2008 JavaBlend 2008, http://www.javablend.net/
