PH Renewables, Inc. is developing a 75 MWAC solar power project in Pinugay, Rizal, with commissioning expected by December 2022 and commercial operation by February 2023. The project involves the construction of a connection line to the Malaya-Awoc-Teresa 115 kV line and includes technical specifications for solar modules, inverters, and transformers. As of October 2022, construction progress stands at approximately 86.24%, with various components at different stages of completion.

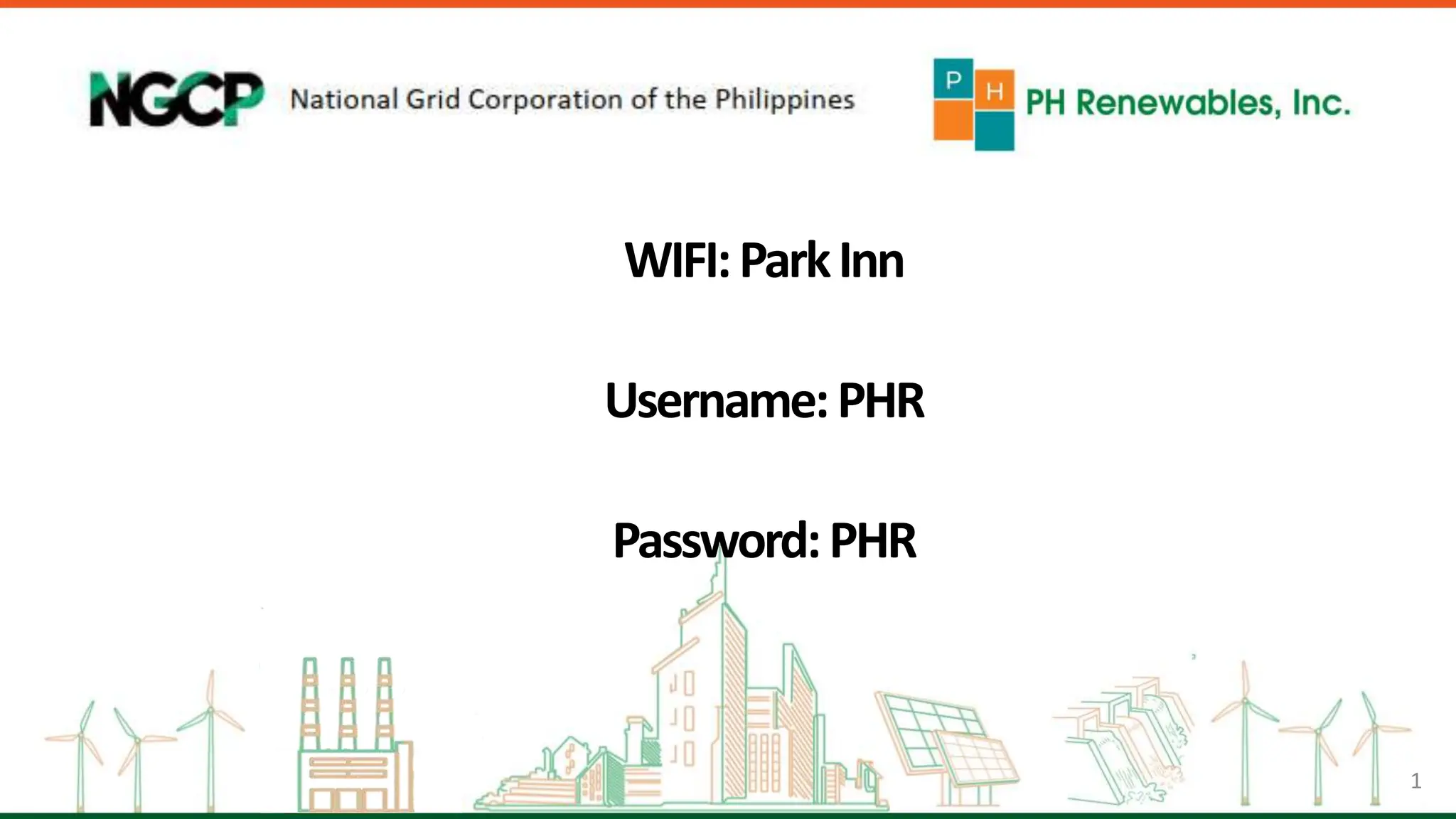

1. WIFI:ParkInn
Username:PHR
Password:PHR
1

2. 75MWAC PINUGAY SOLAR POWER PROJECT
NGCP-PHRI WORKSHOP
13 October 2022
2

3. 3 3
Company Profile
PH Renewables, Inc. (PHRI) is in the
business of exploring, investing in,
developing, building, constructing, installing,
operating and maintaining power generation
plants and related facilities utilizing renewable
energy sources.
PHRI a company owned by MERALCO Power
Gen - Global Business Power located at
Rockwell Business Center Tower 1, Ortigas
Avenue, Barangay Ugong, 1604 Pasig City.

4. 4 4

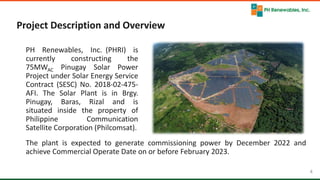

Project Description and Overview
PH Renewables, Inc. (PHRI) is
currently constructing the
75MWAC Pinugay Solar Power
Project under Solar Energy Service
Contract (SESC) No. 2018-02-475-
AFI. The Solar Plant is in Brgy.
Pinugay, Baras, Rizal and is
situated inside the property of
Philippine Communication
Satellite Corporation (Philcomsat).
The plant is expected to generate commissioning power by December 2022 and
achieve Commercial Operate Date on or before February 2023.

5. 5 5
Project Description and Overview

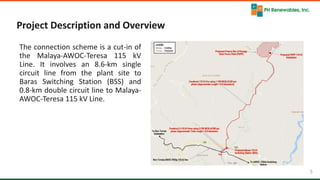

The connection scheme is a cut-in of
the Malaya-AWOC-Teresa 115 kV
Line. It involves an 8.6-km single
circuit line from the plant site to
Baras Switching Station (BSS) and
0.8-km double circuit line to Malaya-
AWOC-Teresa 115 kV Line.

6. 6 6
Project Description and Overview

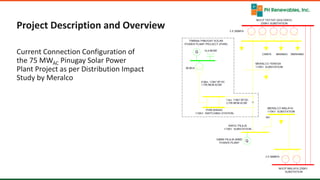

Current Connection Configuration of
the 75 MWAC Pinugay Solar Power
Plant Project as per Distribution Impact
Study by Meralco

7. 7 7
Equipment Technical Details

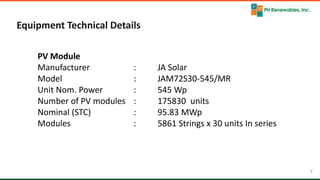

PV Module
Manufacturer : JA Solar
Model : JAM72S30-545/MR
Unit Nom. Power : 545 Wp
Number of PV modules : 175830 units
Nominal (STC) : 95.83 MWp
Modules : 5861 Strings x 30 units In series

8. 8 8

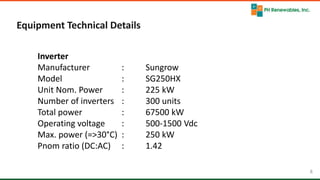

Equipment Technical Details
Inverter
Manufacturer : Sungrow
Model : SG250HX
Unit Nom. Power : 225 kW
Number of inverters : 300 units
Total power : 67500 kW
Operating voltage : 500-1500 Vdc
Max. power (=>30°C) : 250 kW
Pnom ratio (DC:AC) : 1.42

9. 9 9
Equipment Technical Details

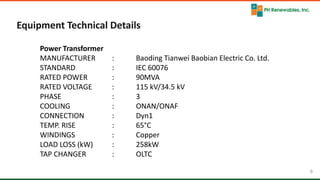

Power Transformer
MANUFACTURER : Baoding Tianwei Baobian Electric Co. Ltd.
STANDARD : IEC 60076
RATED POWER : 90MVA
RATED VOLTAGE : 115 kV/34.5 kV
PHASE : 3
COOLING : ONAN/ONAF
CONNECTION : Dyn1
TEMP. RISE : 65°C
WINDINGS : Copper
LOAD LOSS (kW) : 258kW
TAP CHANGER : OLTC

10. 10 10
Equipment Technical Details
Capacitor Bank
MANUFACTURER : Eaton Cooper
Standard : IEC 60871
TYPE : Outdoor Type
MVAR CAPACITY : 15 MVAR (4 STEPS)
RATED KV : 34.5KV
FREQUENCY : 60
NO. OF PHASE : 3

11. 11 11

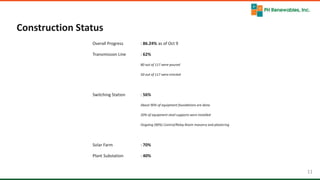

Construction Status
Overall Progress : 86.24% as of Oct 9
Transmission Line : 62%
80 out of 117 were poured
50 out of 117 were erected
Switching Station : 56%
About 90% of equipment foundations are done.
20% of equipment steel supports were installed
Ongoing (90%) Control/Relay Room masonry and plastering
Solar Farm : 70%
Plant Substation : 40%

12. 12 12

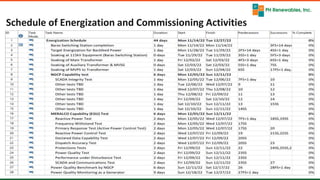

Schedule of Energization and Commissioning Activities
