PHP Starter Application
- 1. PHP STARTER APPLICATION For ComplexBusiness Logic http://github.com/KimPrince/zf2-starter

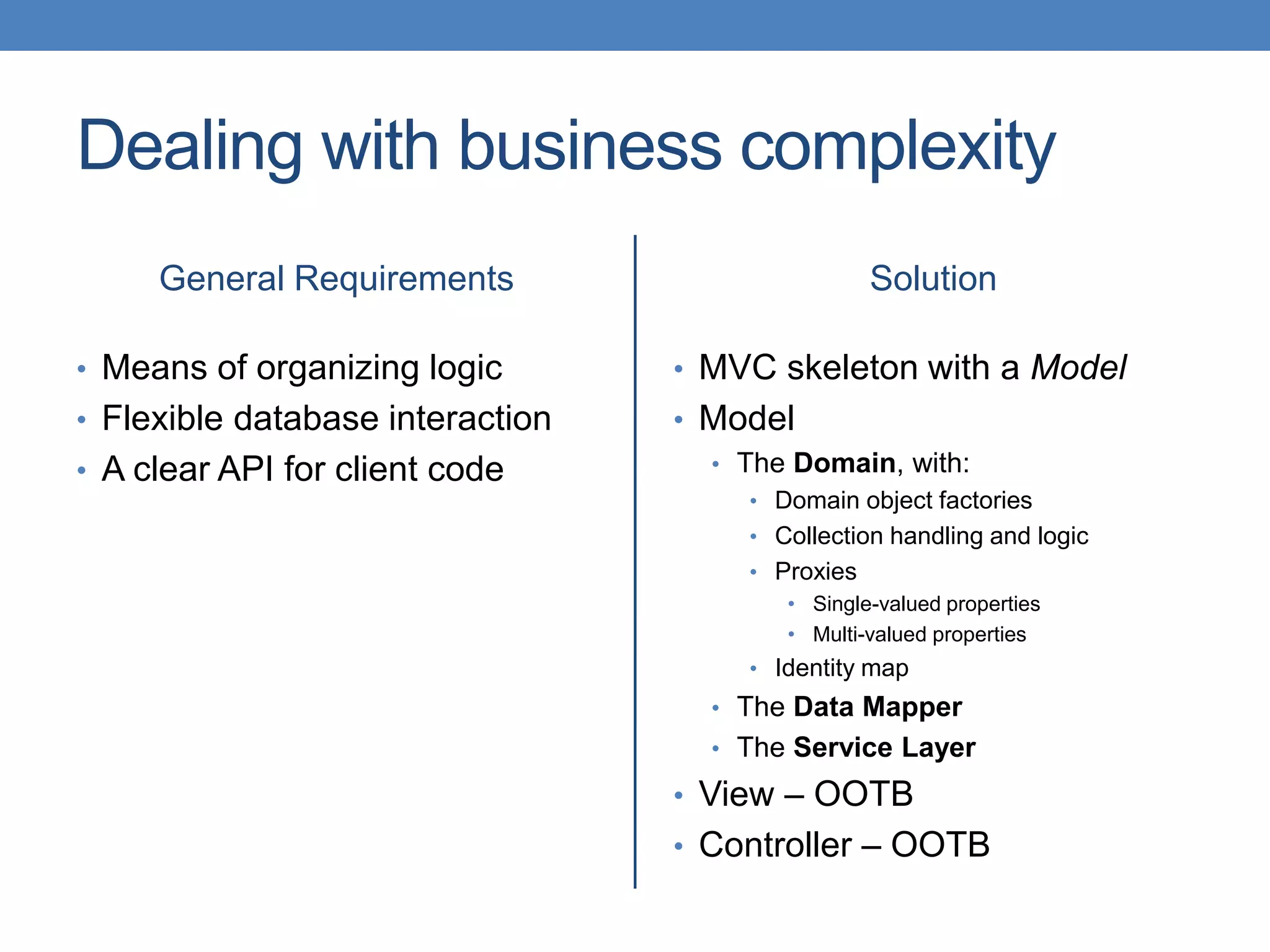

- 2. Dealing with businesscomplexity General Requirements • Means of organizing logic • Flexible database interaction • A clear API for client code Solution • MVC skeleton with a Model • Model • The Domain, with: • Domain object factories • Collection handling and logic • Proxies • Single-valued properties • Multi-valued properties • Identity map • The Data Mapper • The Service Layer • View – OOTB • Controller – OOTB

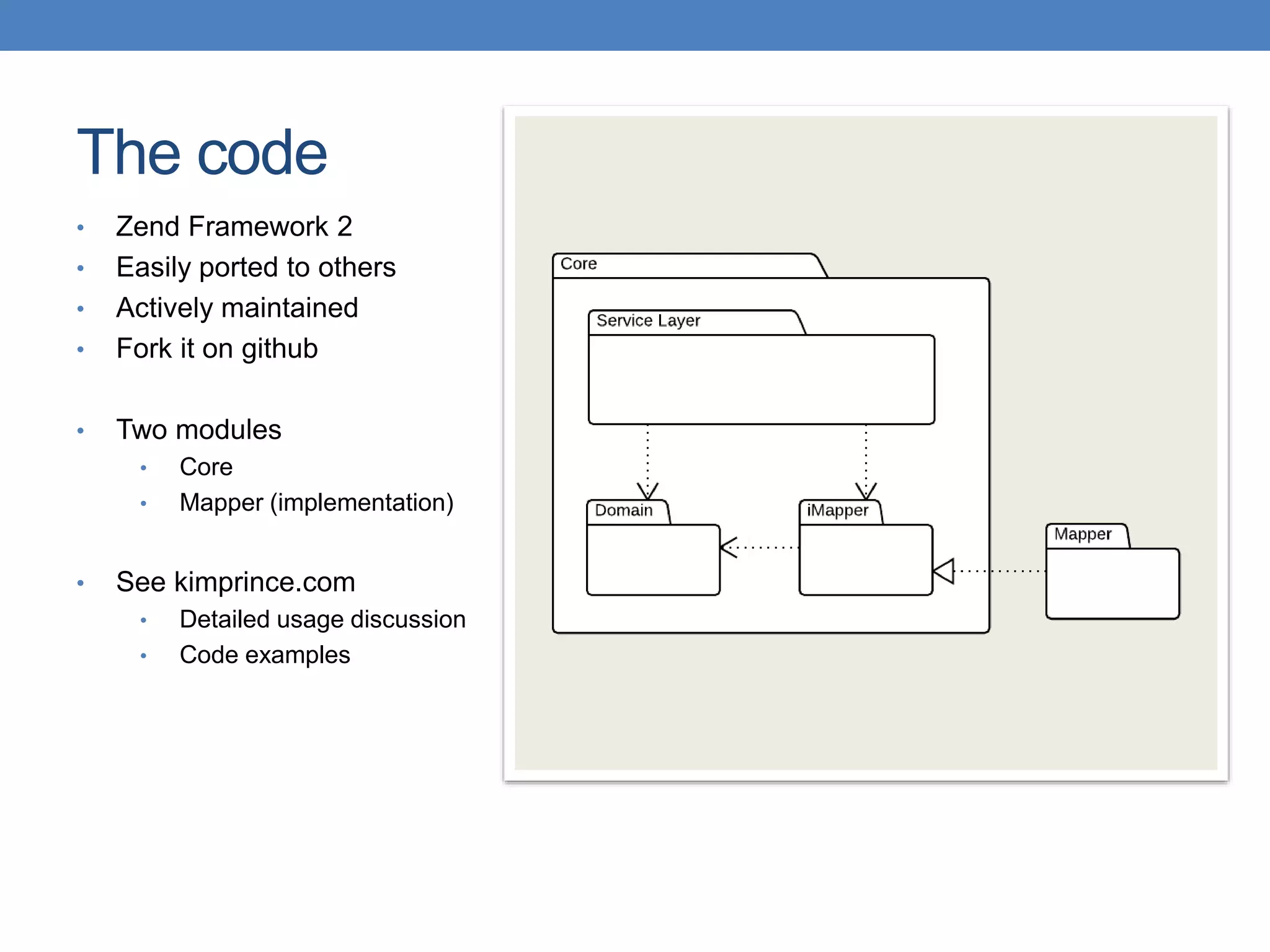

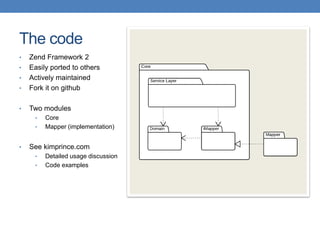

- 3. The code • ZendFramework 2 • Easily ported to others • Actively maintained • Fork it on github • Two modules • Core • Mapper (implementation) • http://kimprince.com • Detailed usage discussion • Code examples

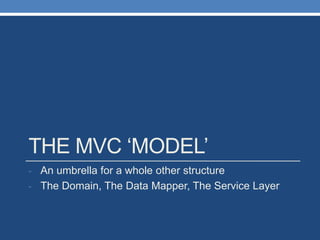

- 4. THE MVC ‘MODEL’ -An umbrella for a whole other structure - The Domain, The Data Mapper, The Service Layer

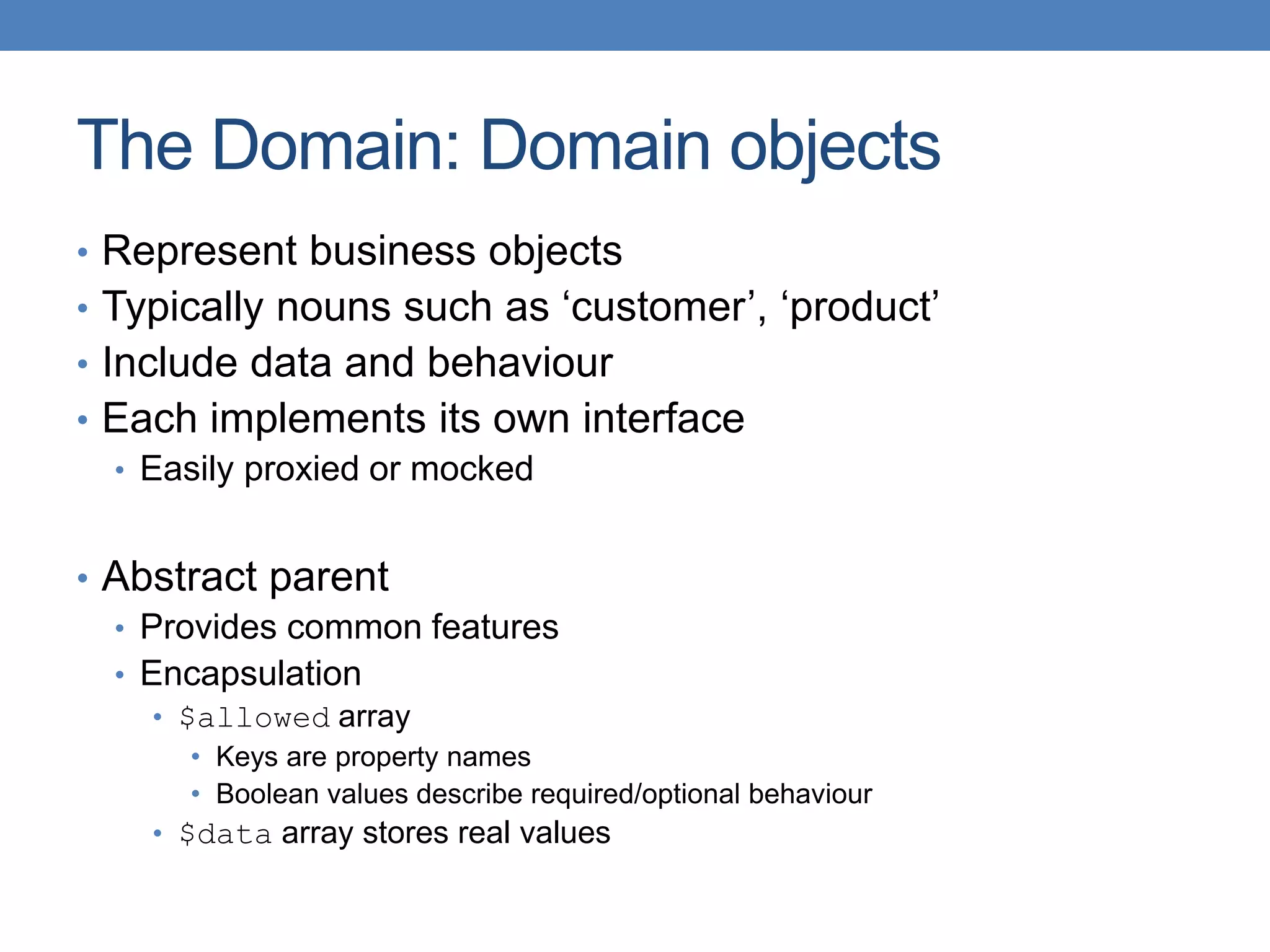

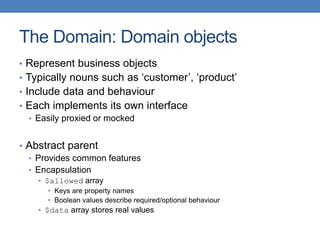

- 5. The Domain: Domainobjects • Represent business objects • Typically nouns such as ‘customer’, ‘product’ • Include data and behaviour • Each implements its own interface • Easily proxied or mocked • Abstract parent • Provides common features • Encapsulation • $allowed array • Keys are property names • Boolean values describe required/optional behaviour • $data array stores real values

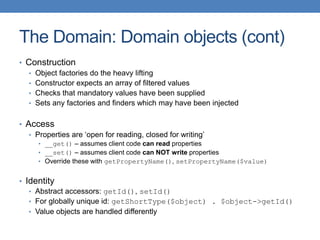

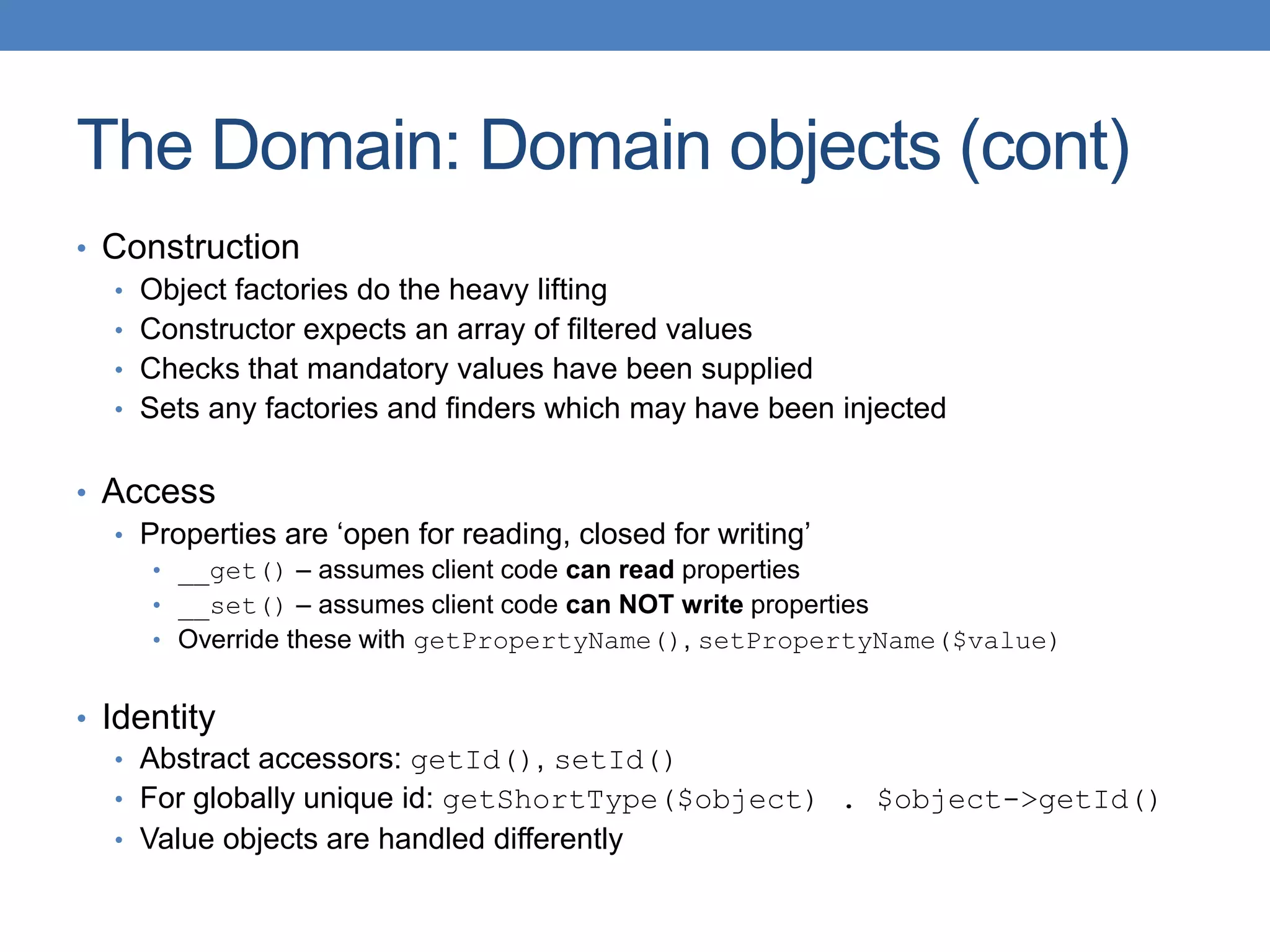

- 6. The Domain: Domainobjects (cont) • Construction • Object factories do the heavy lifting • Constructor expects an array of filtered values • Checks that mandatory values have been supplied • Sets any factories and finders which may have been injected • Access • Properties are ‘open for reading, closed for writing’ • __get() – assumes client code can read properties • __set() – assumes client code can NOT write properties • Override these with getPropertyName(), setPropertyName($value) • Identity • Abstract accessors: getId(), setId() • For globally unique id: getShortType($object) . $object->getId() • Value objects are handled differently

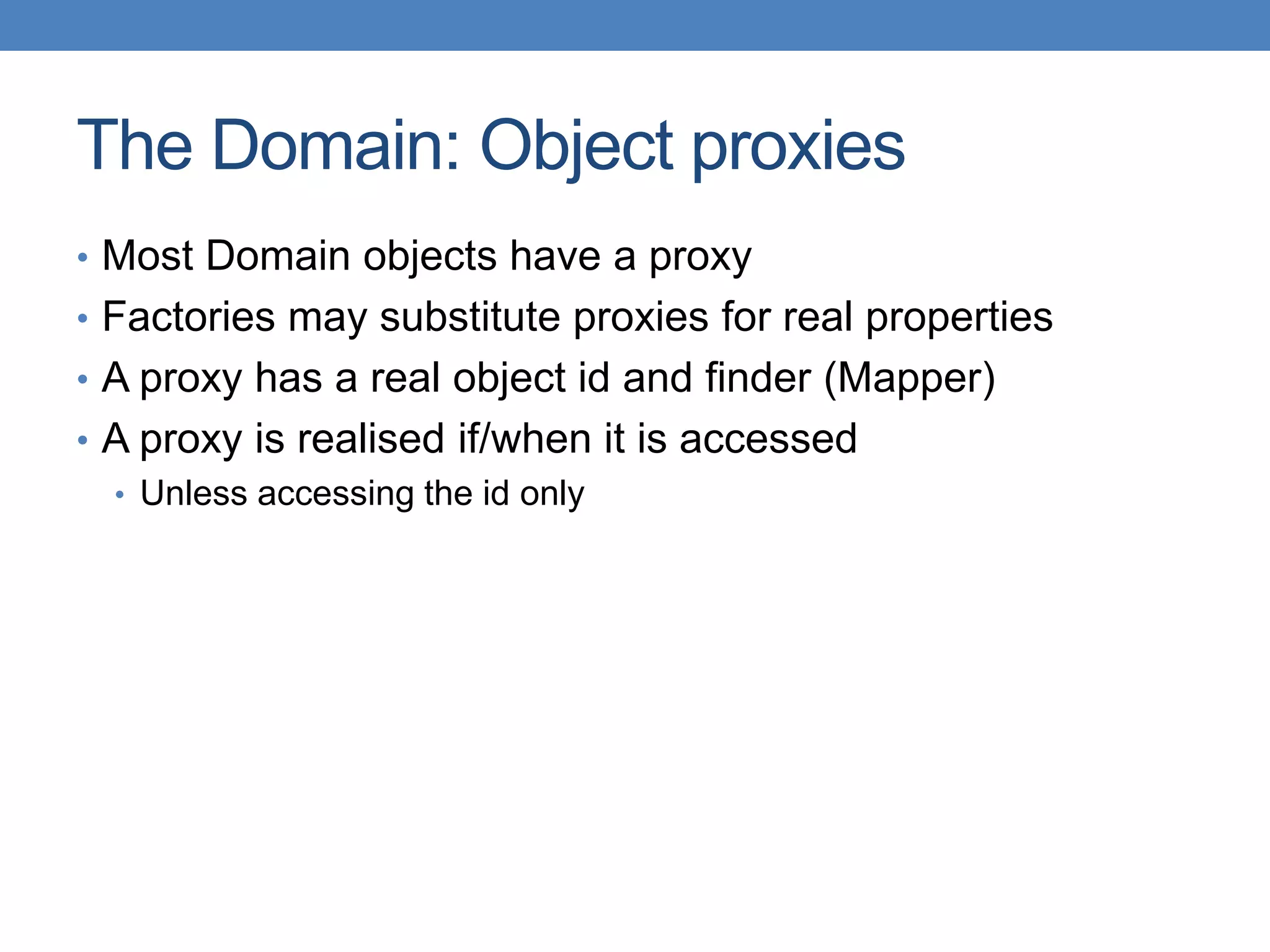

- 7. The Domain: Objectproxies • Most Domain objects have a proxy • Factories may substitute proxies for real properties • A proxy has a real object id and finder (Mapper) • A proxy is realised if/when it is accessed • Unless accessing the id only

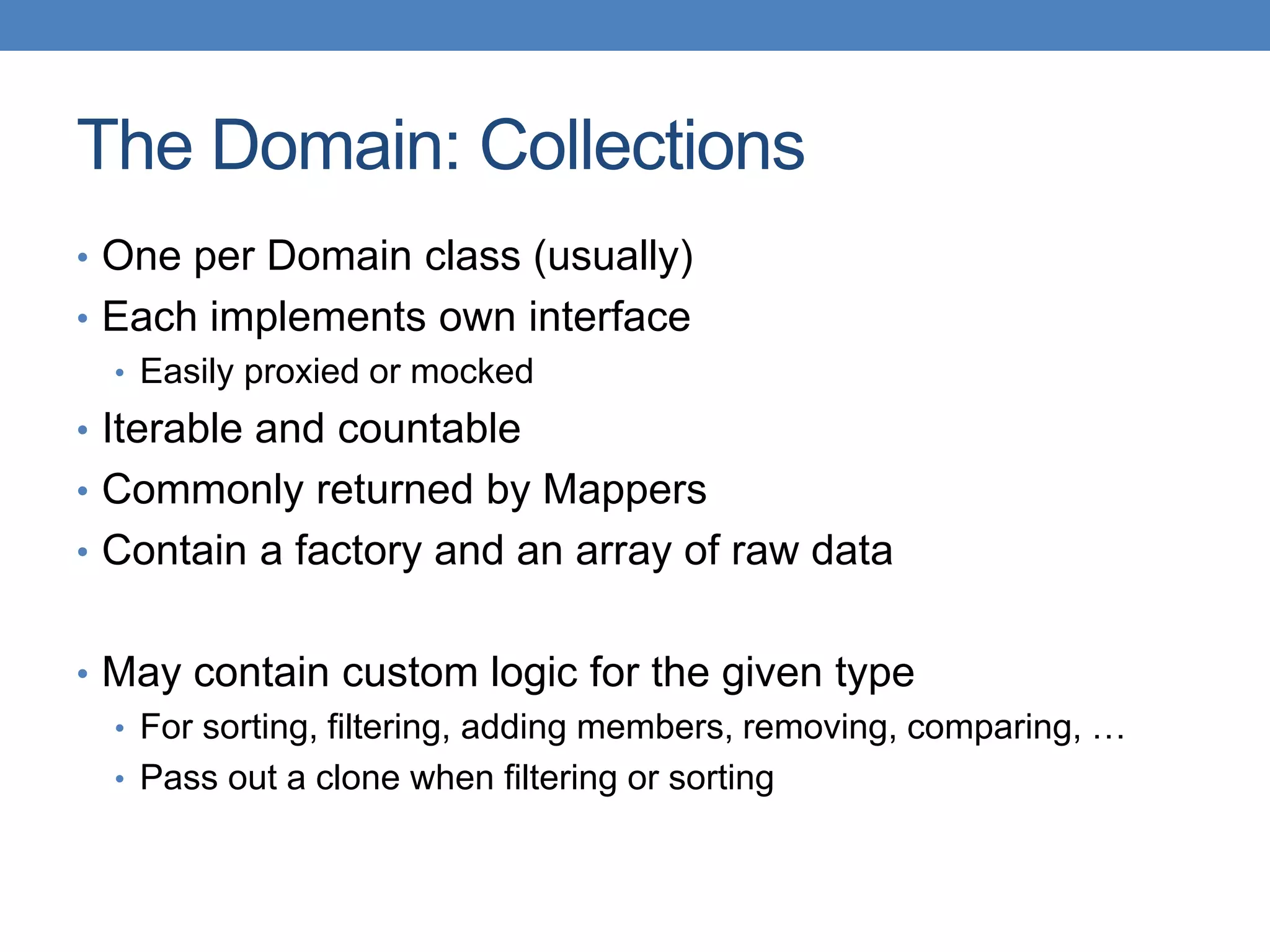

- 8. The Domain: Collections •One per Domain class (usually) • Each implements own interface • Easily proxied or mocked • Iterable and countable • Commonly returned by Mappers • Contain a factory and an array of raw data • May contain custom logic for the given type • For sorting, filtering, adding members, removing, comparing, … • Pass out a clone when filtering or sorting

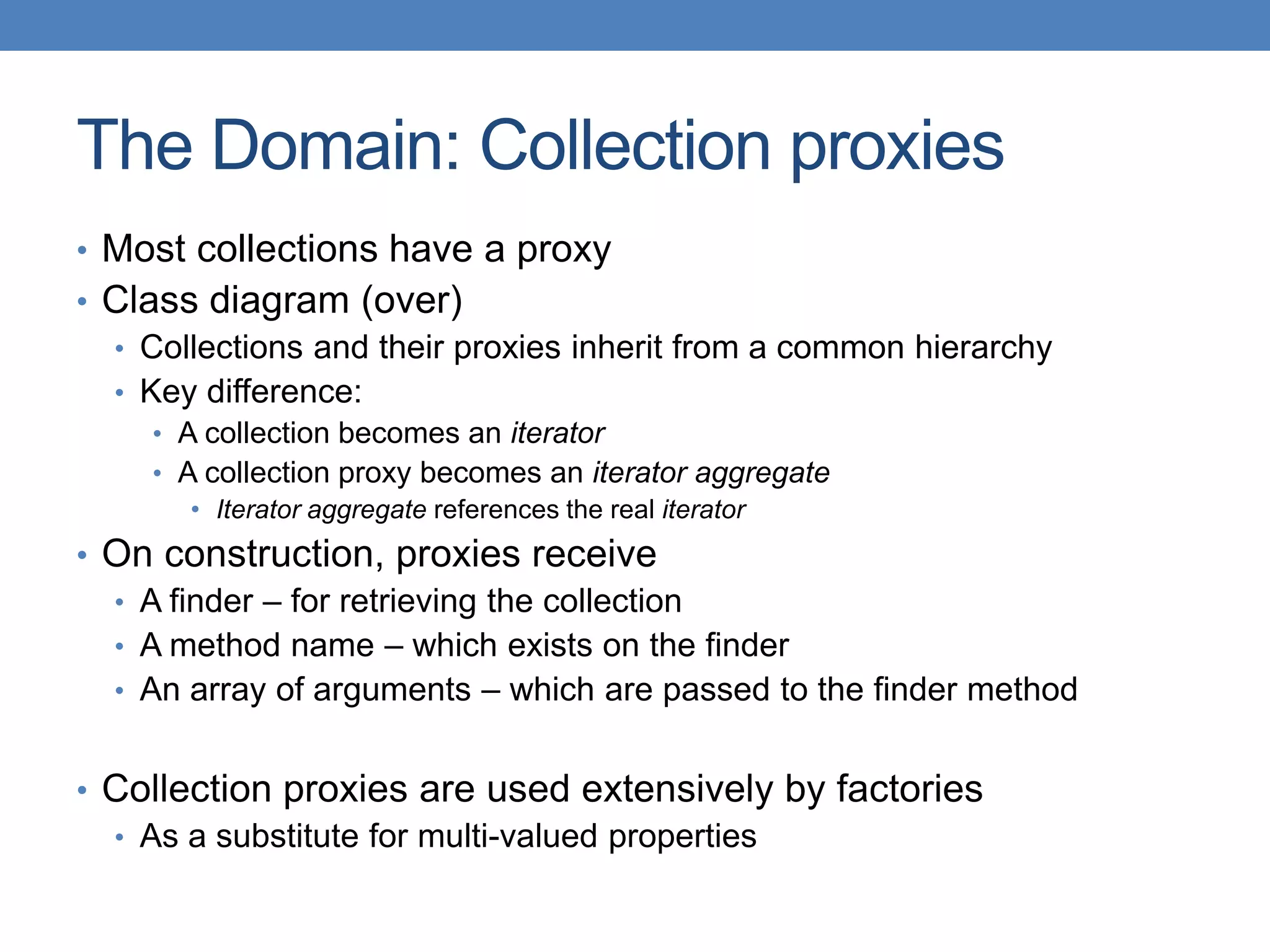

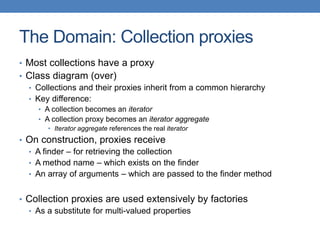

- 9. The Domain: Collectionproxies • Most collections have a proxy • Class diagram (over) • Collections and their proxies inherit from a common hierarchy • Key difference: • A collection becomes an iterator • A collection proxy becomes an iterator aggregate • Iterator aggregate references the real iterator • On construction, proxies receive • A finder – for retrieving the collection • A method name – which exists on the finder • An array of arguments – which are passed to the finder method • Collection proxies are used extensively by factories • As a substitute for multi-valued properties

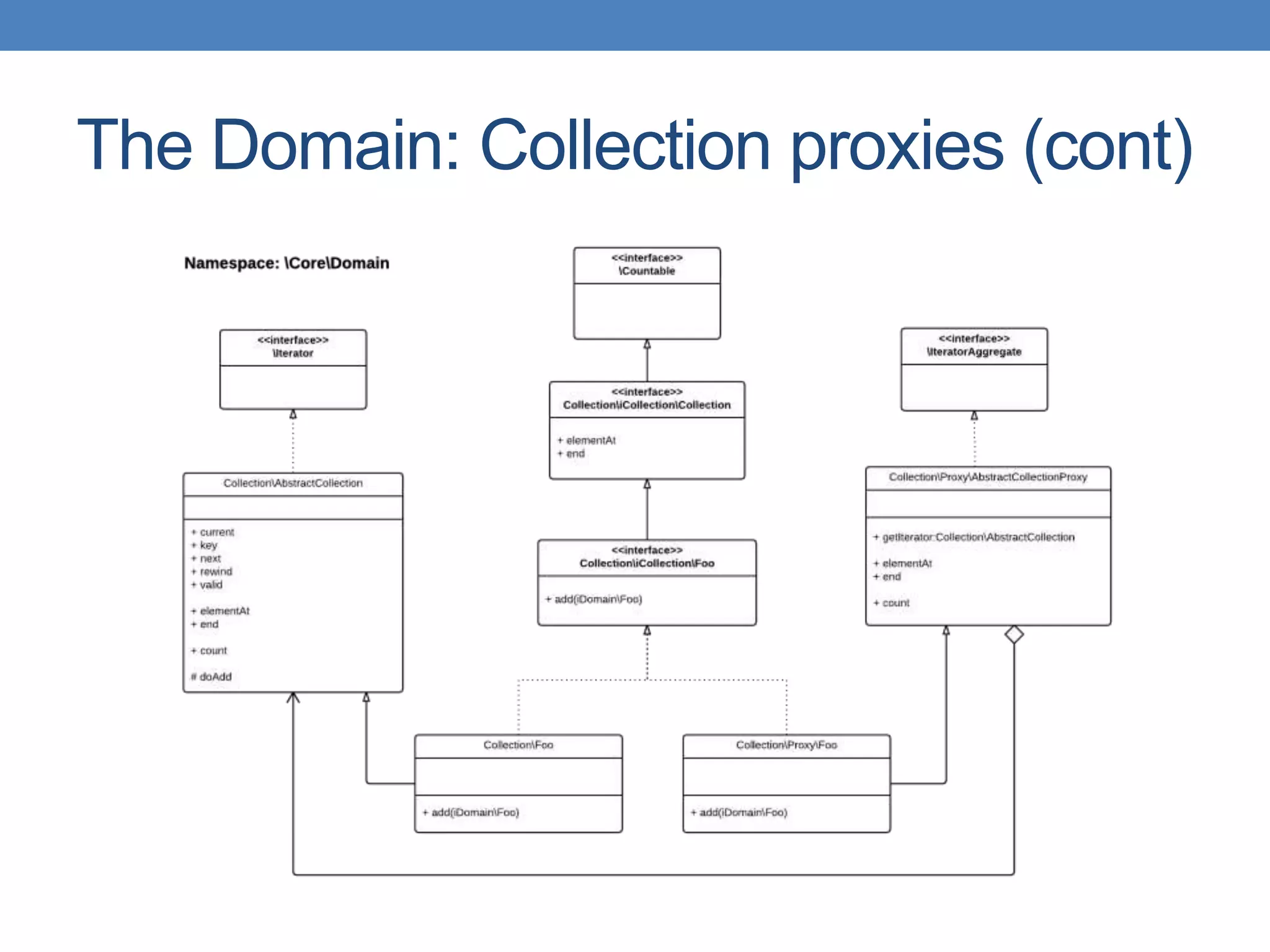

- 10. The Domain: Collectionproxies (cont)

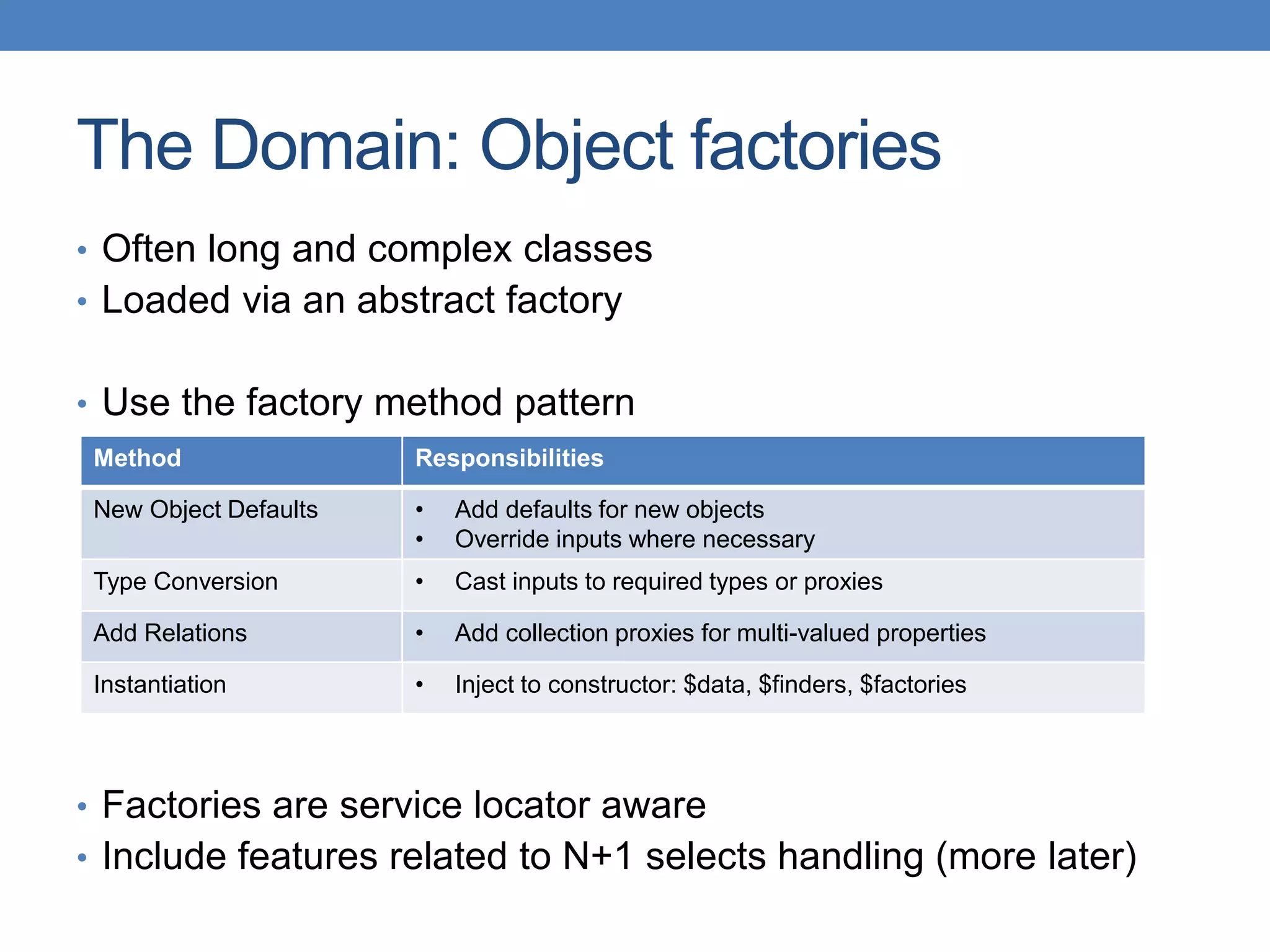

- 11. The Domain: Objectfactories • Often long and complex classes • Loaded via an abstract factory • Use the factory method pattern • Factories are service locator aware • Include features related to N+1 selects handling (more later) Method Responsibilities New Object Defaults • Add defaults for new objects • Override inputs where necessary Type Conversion • Cast inputs to required types or proxies Add Relations • Add collection proxies for multi-valued properties Instantiation • Inject to constructor: $data, $finders, $factories

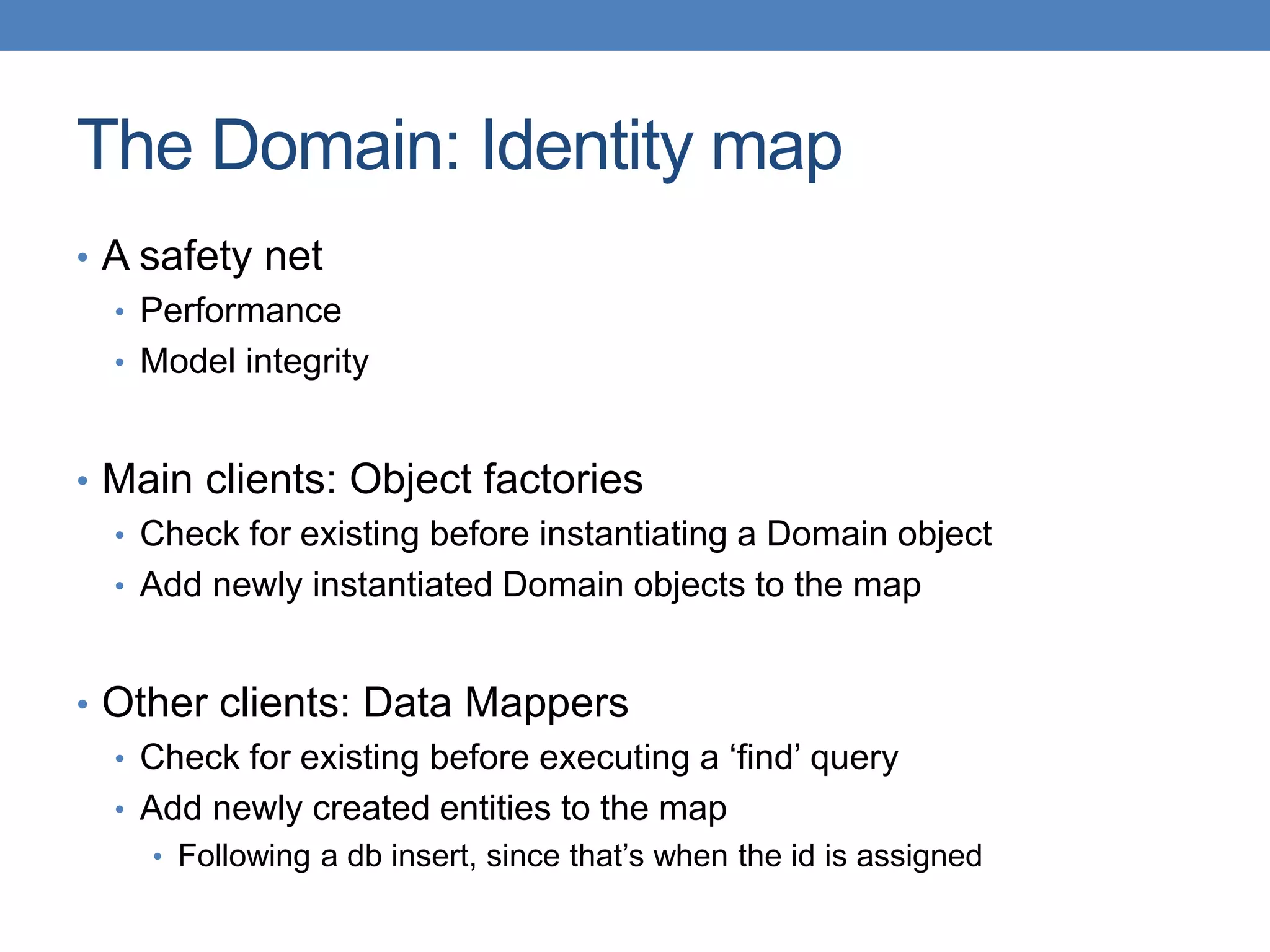

- 12. The Domain: Identitymap • A safety net • Performance • Model integrity • Main clients: Object factories • Check for existing before instantiating a Domain object • Add newly instantiated Domain objects to the map • Other clients: Data Mappers • Check for existing before executing a ‘find’ query • Add newly created entities to the map • Following a db insert, since that’s when the id is assigned

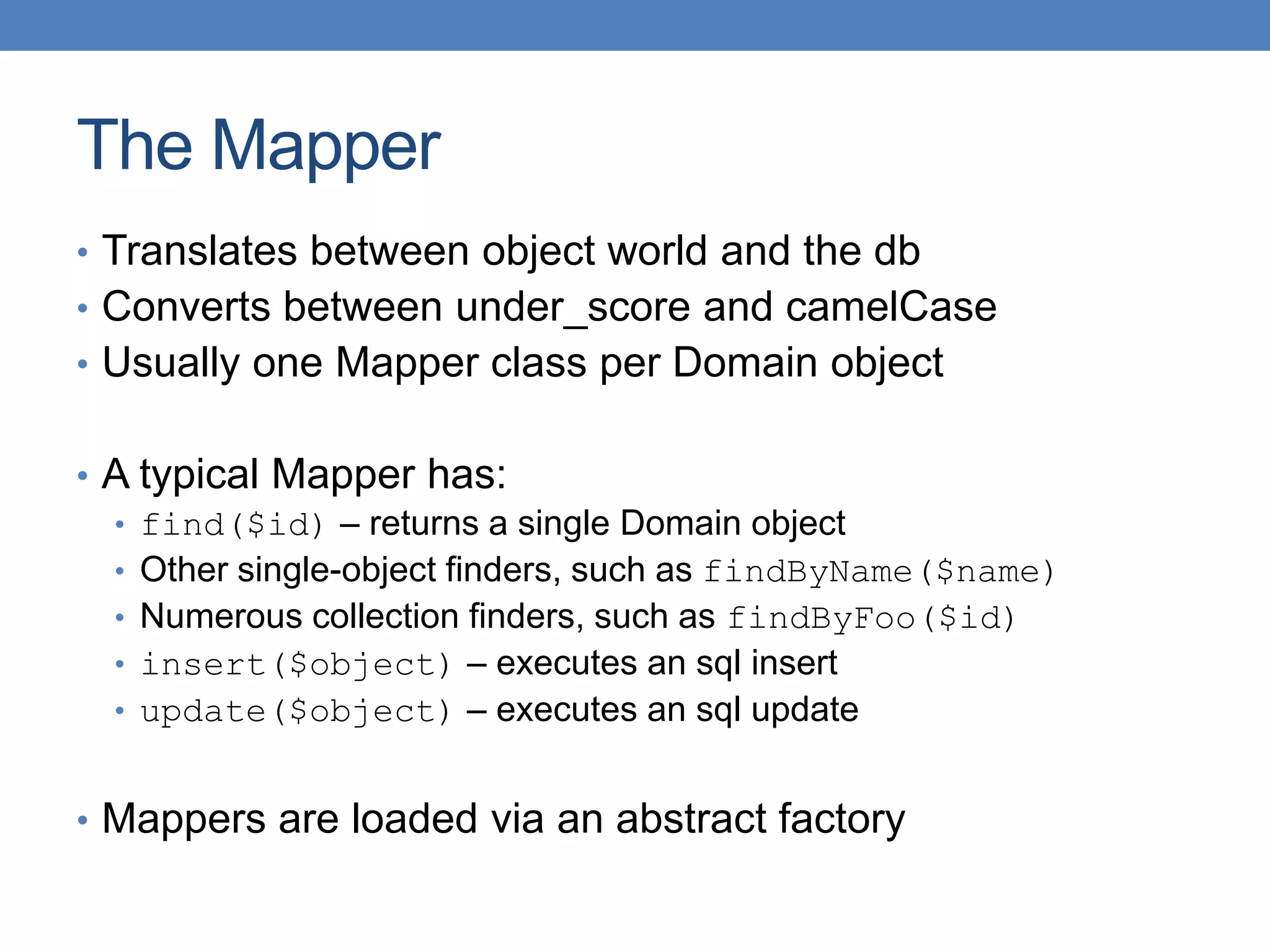

- 13. The Mapper • Translatesbetween object world and the db • Converts between under_score and camelCase • Usually one Mapper class per Domain object • A typical Mapper has: • find($id) – returns a single Domain object • Other single-object finders, such as findByName($name) • Numerous collection finders, such as findByFoo($id) • insert($object) – executes an sql insert • update($object) – executes an sql update • Mappers are loaded via an abstract factory

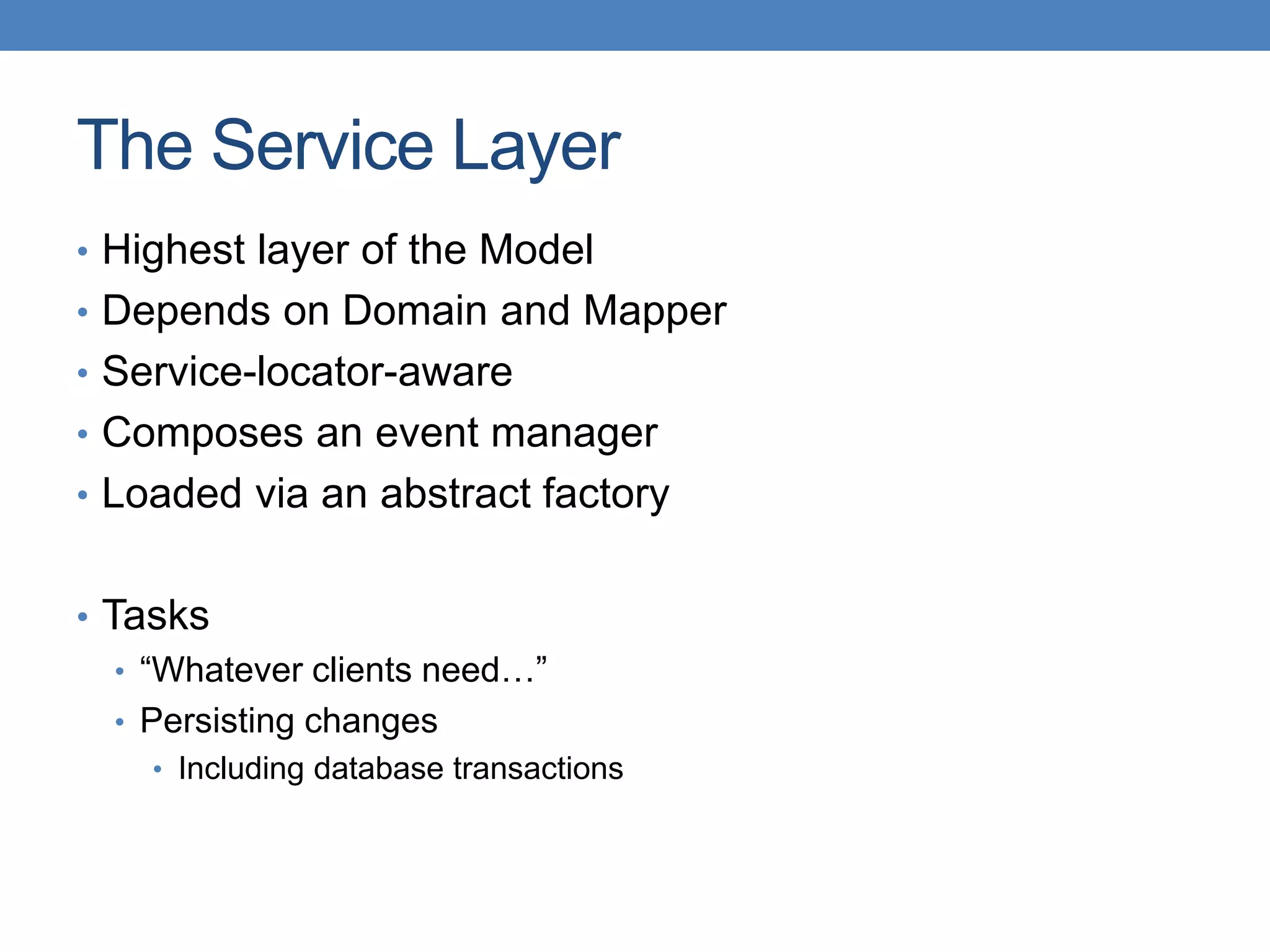

- 14. The Service Layer •Highest layer of the Model • Depends on Domain and Mapper • Service-locator-aware • Composes an event manager • Loaded via an abstract factory • Tasks • “Whatever clients need…” • Persisting changes • Including database transactions
- 15.

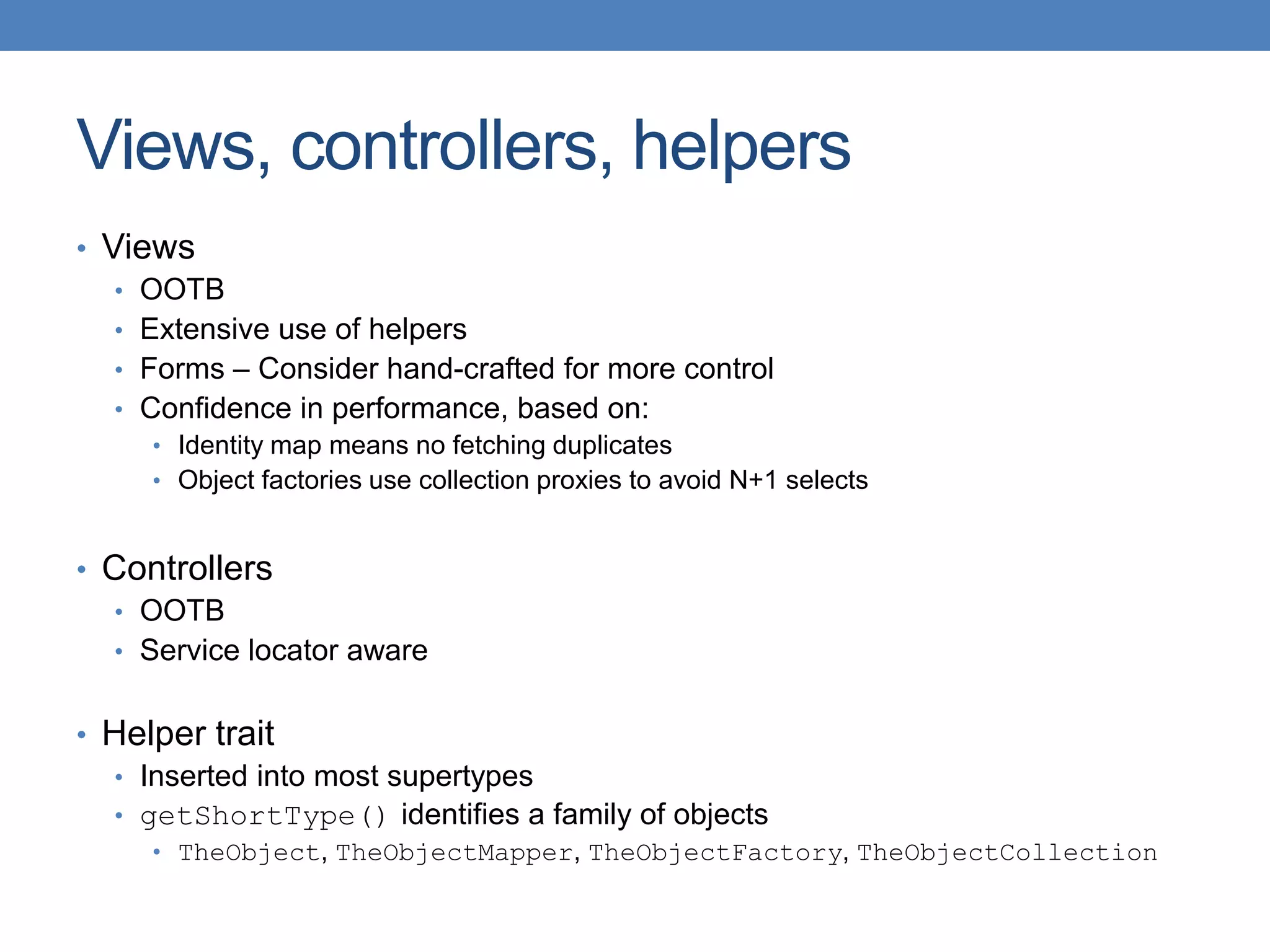

- 16. Views, controllers, helpers •Views • OOTB • Extensive use of helpers • Forms – Consider hand-crafted for more control • Confidence in performance, based on: • Identity map means no fetching duplicates • Object factories use collection proxies to avoid N+1 selects • Controllers • OOTB • Service locator aware • Helper trait • Inserted into most supertypes • getShortType() identifies a family of objects • TheObject, TheObjectMapper, TheObjectFactory, TheObjectCollection

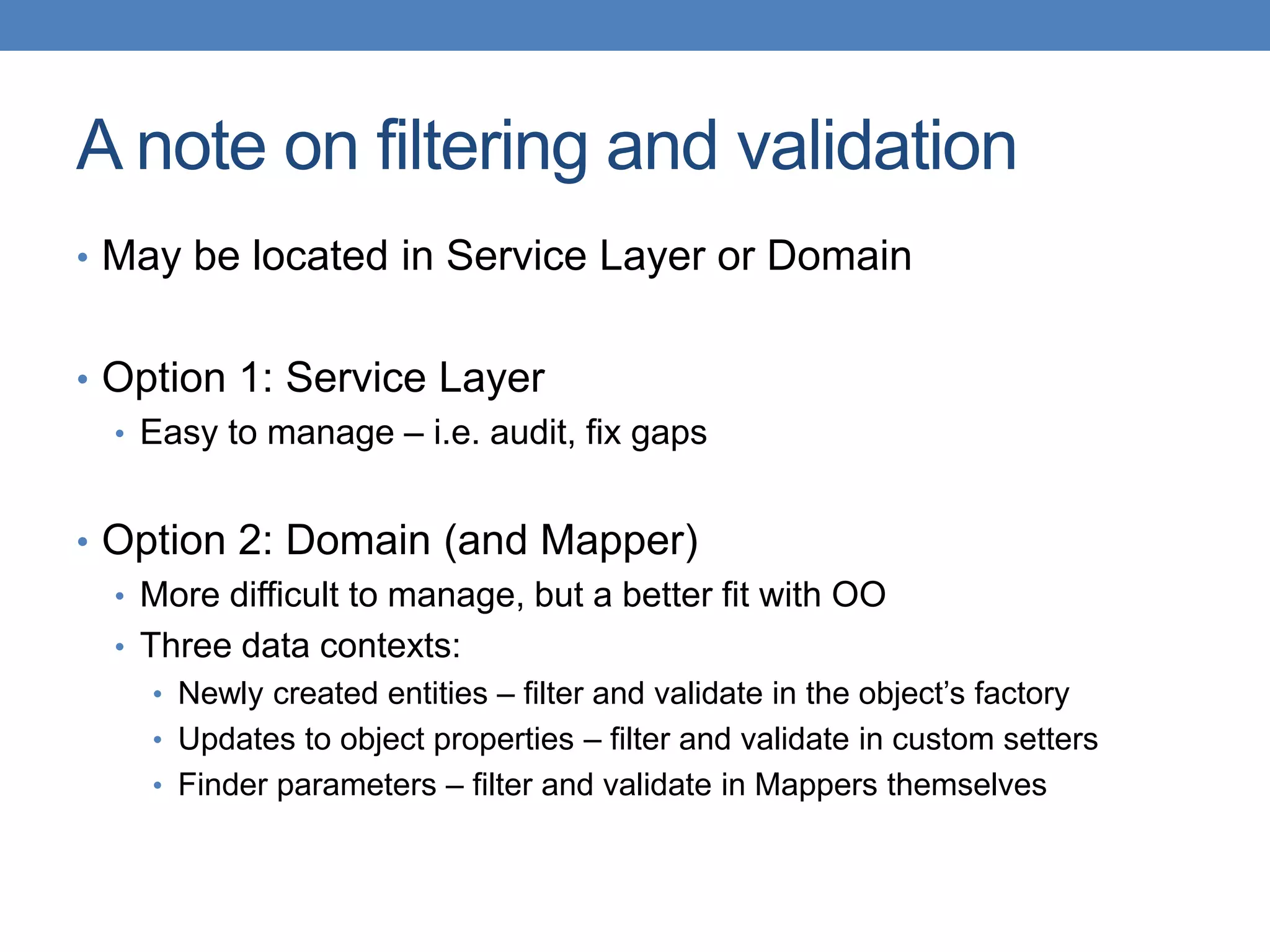

- 17. A note onfiltering and validation • May be located in Service Layer or Domain • Option 1: Service Layer • Easy to manage – i.e. audit, fix gaps • Option 2: Domain (and Mapper) • More difficult to manage, but a better fit with OO • Three data contexts: • Newly created entities – filter and validate in the object’s factory • Updates to object properties – filter and validate in custom setters • Finder parameters – filter and validate in Mappers themselves

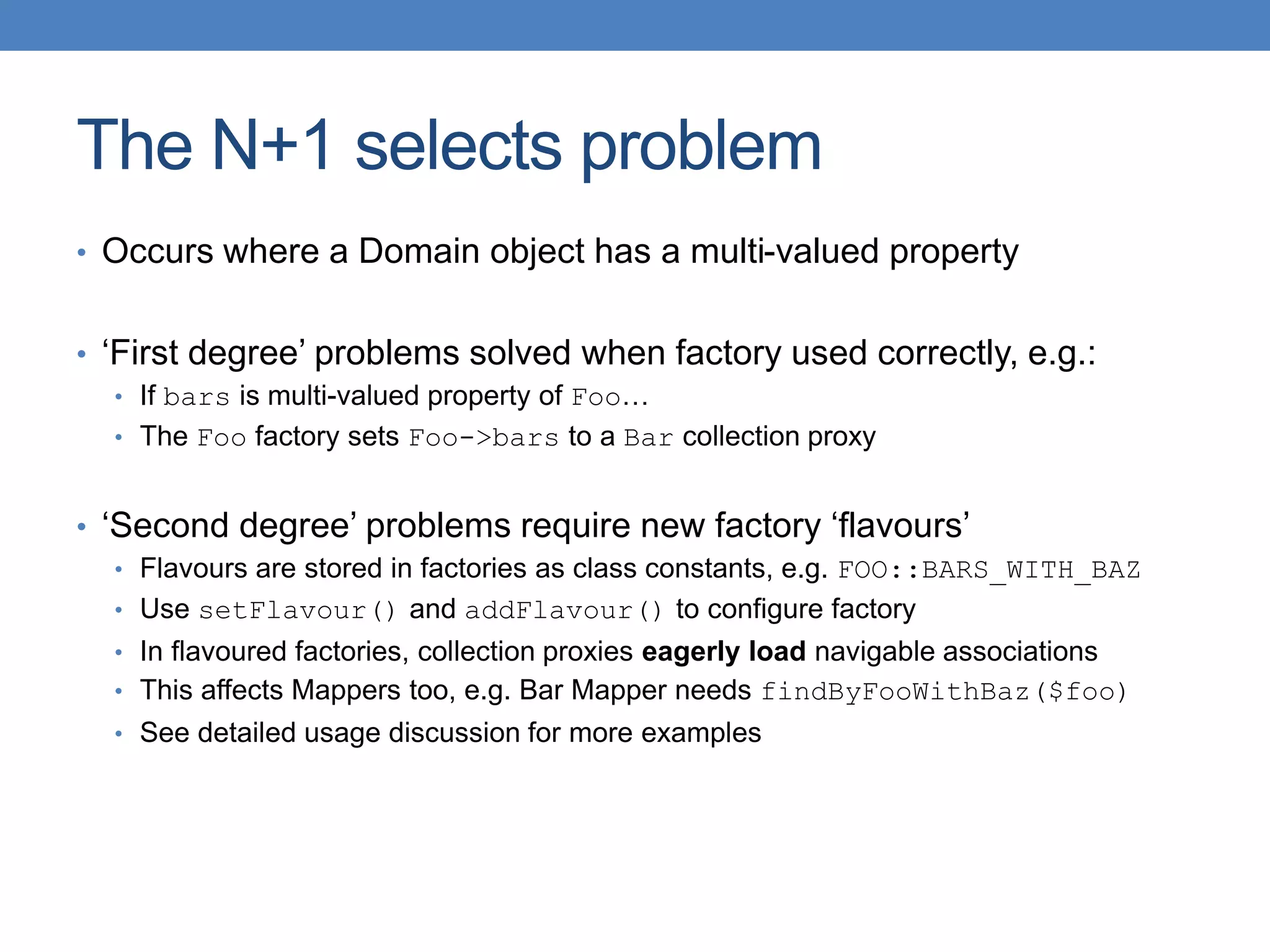

- 18. The N+1 selectsproblem • Occurs where a Domain object has a multi-valued property • ‘First degree’ problems solved when factory used correctly, e.g.: • If bars is multi-valued property of Foo… • The Foo factory sets Foo->bars to a Bar collection proxy • ‘Second degree’ problems require new factory ‘flavours’ • Flavours are stored in factories as class constants, e.g. FOO::BARS_WITH_BAZ • Use setFlavour() and addFlavour() to configure factory • In flavoured factories, collection proxies eagerly load navigable associations • This affects Mappers too, e.g. Bar Mapper needs findByFooWithBaz($foo) • See detailed usage discussion for more examples

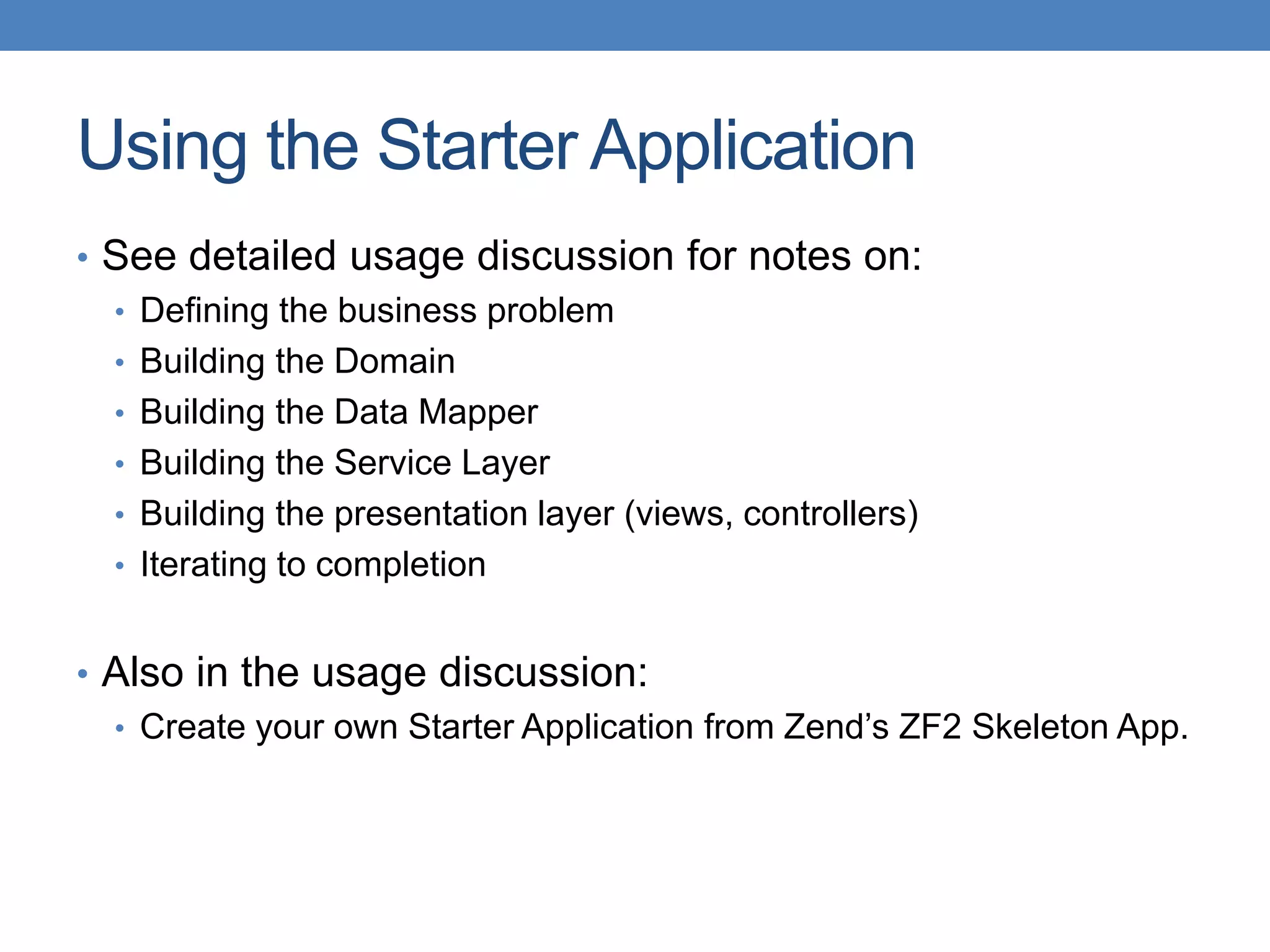

- 19. Using the StarterApplication • See detailed usage discussion for notes on: • Defining the business problem • Building the Domain • Building the Data Mapper • Building the Service Layer • Building the presentation layer (views, controllers) • Iterating to completion • Also in the usage discussion: • Create your own Starter Application from Zend’s ZF2 Skeleton App.
