1. Code Above Lab LLC
Performance optimization
(balancer optimization)
Vitaly Pronto & Max Hwang

2. Metrics
1. Choose metrics:
a. TPS
b. Latency
c. Memory
d. CPU
e. HA
2. Prove correctness of metric:
a. Relevantness
b. Repeatable

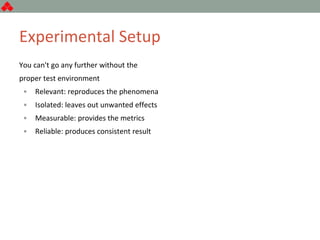

3. Experimental Setup
You can't go any further without the
proper test environment
• Relevant: reproduces the phenomena
• Isolated: leaves out unwanted effects
• Measurable: provides the metrics
• Reliable: produces consistent result

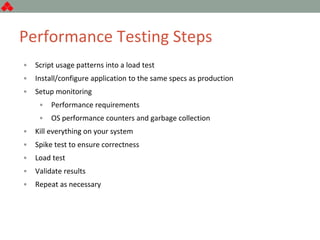

4. Performance Testing Steps
• Script usage patterns into a load test
• Install/configure application to the same specs as production
• Setup monitoring
• Performance requirements
• OS performance counters and garbage collection
• Kill everything on your system
• Spike test to ensure correctness
• Load test
• Validate results
• Repeat as necessary

5. TPS vs Latency

6. Utilization
Utilization = ResourceBusyTime/TotalTime
Idle = 1 - Utilization
Efficiency != Utilization

7. Amdahl's law
Amdahl's Law is a law governing the speedup of using parallel processors on a
problem, versus using only one serial processor. Before we examine Amdahl's Law, we
should gain a better understanding of what is meant by speedup.
Speedup:
The speed of a program is the time it takes the program to excecute. This could be
measured in any increment of time. Speedup is defined as the time it takes a program
to execute in serial (with one processor) divided by the time it takes to execute in
parallel (with many processors).
Performance( A seq B ) ??? Performance( A par B ) No one really knows

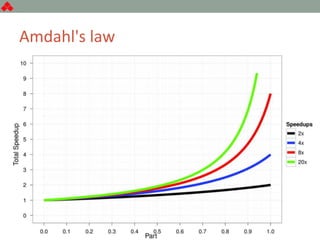

8. Amdahl's law

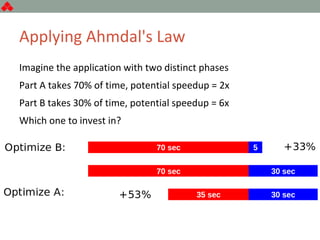

9. Applying Ahmdal's Law
Imagine the application with two distinct phases
Part A takes 70% of time, potential speedup = 2x
Part B takes 30% of time, potential speedup = 6x
Which one to invest in?

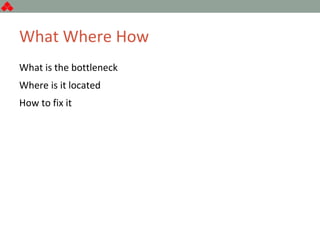

10. What Where How
What is the bottleneck
Where is it located
How to fix it

11. Top-Down Approach (classic)
• System Level
• Network
• IO
• OS
• CPU/memory
• JVM
• Heap/GC tuning
• JVM tuning
• JIT
• Application level
• Locks
• Execution threads
• API
• Algorithms
• Microarch level
• Code/data alignment
• Cache optimization
• Processor stalls
• Branch prediction

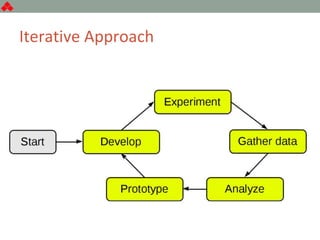

12. Iterative Approach

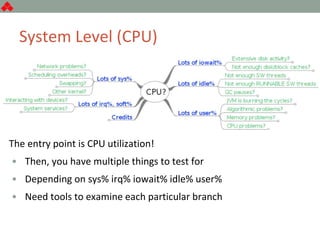

13. System Level (CPU)
The entry point is CPU utilization!
• Then, you have multiple things to test for
• Depending on sys% irq% iowait% idle% user%
• Need tools to examine each particular branch

14. Gateway TPS

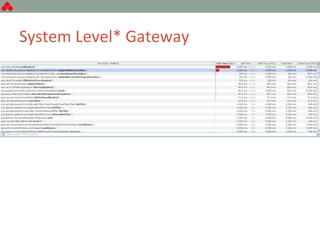

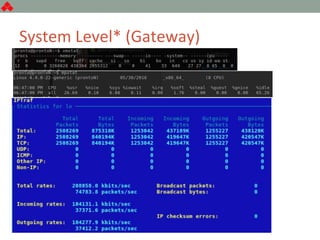

15. System Level* (Gateway)

16. System Level* Gateway

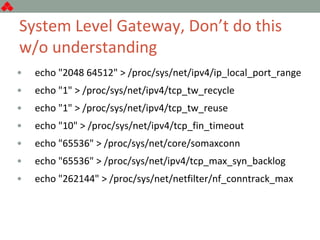

17. System Level Gateway, Don’t do this
w/o understanding
• echo "2048 64512" > /proc/sys/net/ipv4/ip_local_port_range
• echo "1" > /proc/sys/net/ipv4/tcp_tw_recycle
• echo "1" > /proc/sys/net/ipv4/tcp_tw_reuse
• echo "10" > /proc/sys/net/ipv4/tcp_fin_timeout
• echo "65536" > /proc/sys/net/core/somaxconn
• echo "65536" > /proc/sys/net/ipv4/tcp_max_syn_backlog
• echo "262144" > /proc/sys/net/netfilter/nf_conntrack_max

18. System Level* Gateway

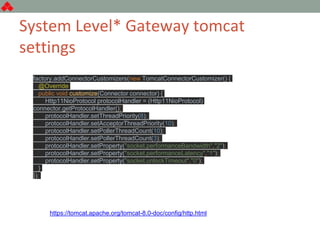

19. System Level* Gateway tomcat
settings
factory.addConnectorCustomizers(new TomcatConnectorCustomizer() {
@Override
public void customize(Connector connector) {
Http11NioProtocol protocolHandler = (Http11NioProtocol)
connector.getProtocolHandler();
protocolHandler.setThreadPriority(8);
protocolHandler.setAcceptorThreadPriority(10);
protocolHandler.setPollerThreadCount(10);
protocolHandler.setPollerThreadCount(3);
protocolHandler.setProperty("socket.performanceBandwidth","2");
protocolHandler.setProperty("socket.performanceLatency","1");
protocolHandler.setProperty("socket.unlockTimeout","0");
}
});
https://tomcat.apache.org/tomcat-8.0-doc/config/http.html

20. System Level* Gateway tomcat
settings

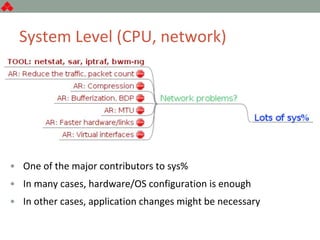

21. System Level (CPU, network)
• One of the major contributors to sys%
• In many cases, hardware/OS configuration is enough
• In other cases, application changes might be necessary

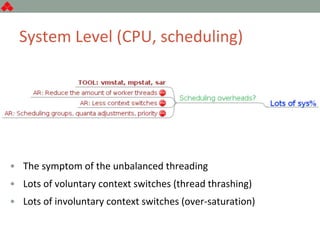

22. System Level (CPU, scheduling)
• The symptom of the unbalanced threading
• Lots of voluntary context switches (thread thrashing)
• Lots of involuntary context switches (over-saturation)

23. System Level (CPU, swapping)
• Swapping is the killer for Java performance
• The target is to avoid swapping at all costs
• Swapping out other processes to save the memory is good

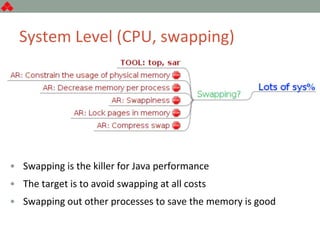

24. System Level (CPU, swapping)
• Swapping is the killer for Java performance
• The target is to avoid swapping at all costs
• Swapping out other processes to save the memory is good

25. System Level (irq%, soft%)
• Swapping is the killer for Java performance
• The target is to avoid swapping at all costs
• Swapping out other processes to save the memory is good

26. System Level (irq%, soft%)
• Swapping is the killer for Java performance
• The target is to avoid swapping at all costs
• Swapping out other processes to save the memory is good

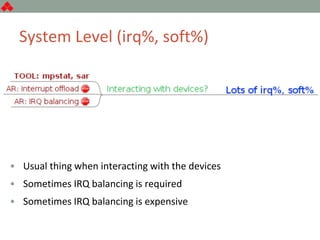

27. System Level (irq%, soft%)
• Usual thing when interacting with the devices
• Sometimes IRQ balancing is required
• Sometimes IRQ balancing is expensive

28. System Level (iowait%)
• Expected contributor with disk I/O
• Watch for disk activity
• Watch for disk throughput
• Watch for disk IOPS

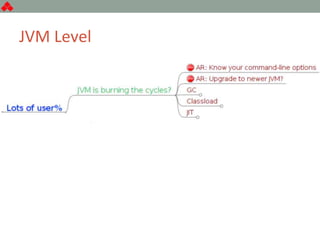

29. JVM Level

30. JVM Level (GC)
• Most usual contender in JVM layer
• Lots of things to try fixing (not covered here, see elsewhere)

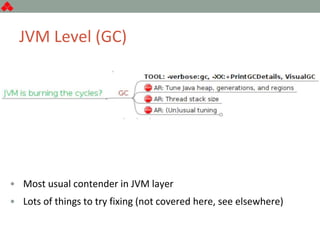

31. JVM Level (GC)
• Most usual contender in JVM layer
• Lots of things to try fixing (not covered here, see elsewhere)

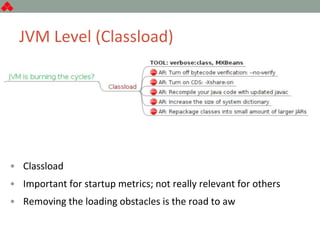

32. JVM Level (Classload)
• Classload
• Important for startup metrics; not really relevant for others
• Removing the loading obstacles is the road to aw
