This is the slide deck from my June 2016 presentation on using gRPC and Cassandra to build high performance web services in an IoT enviroment

1. Copyright 2016 Expero, Inc. All Rights Reserved 1

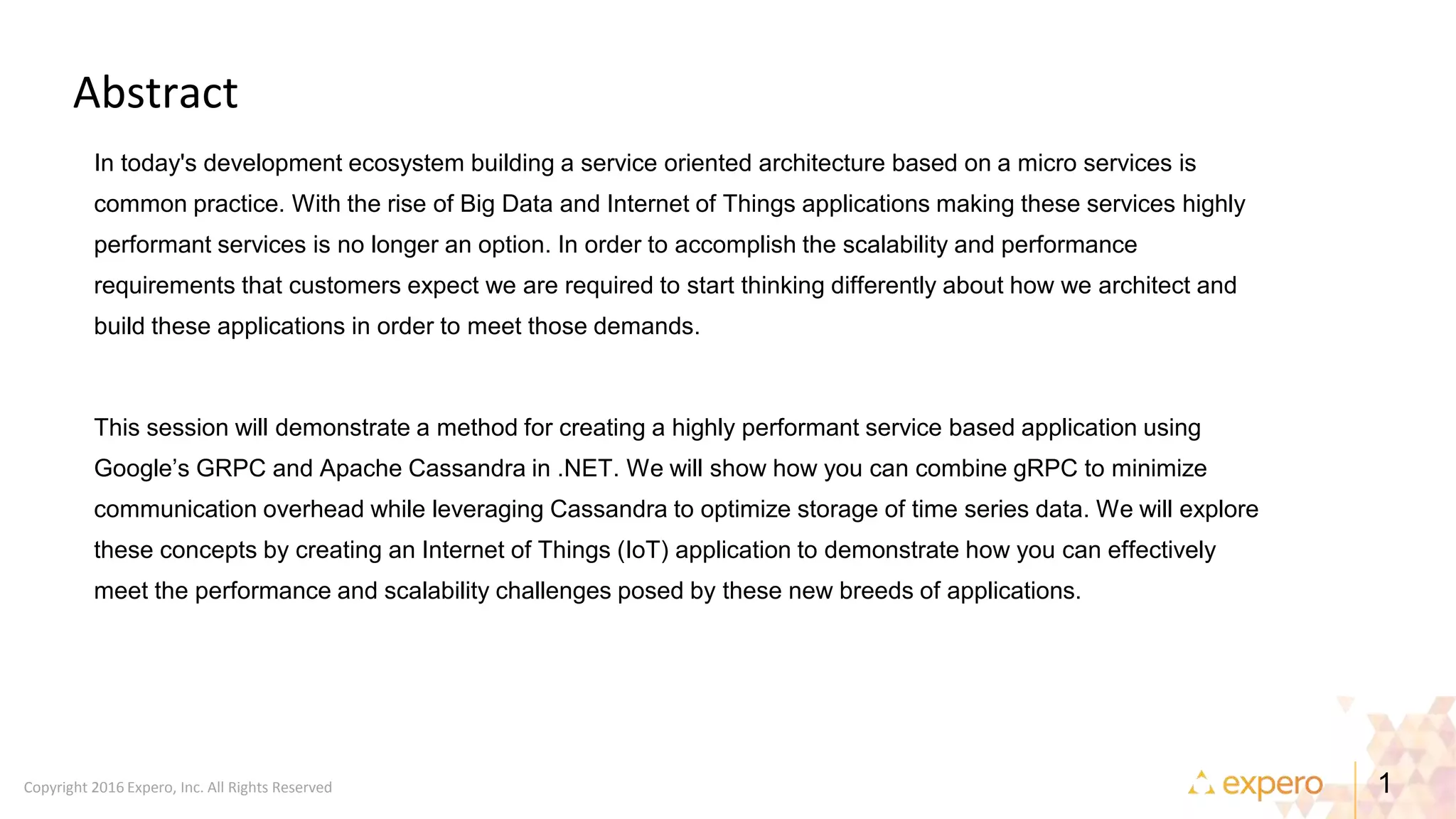

In today's development ecosystem building a service oriented architecture based on a micro services is
common practice. With the rise of Big Data and Internet of Things applications making these services highly
performant services is no longer an option. In order to accomplish the scalability and performance
requirements that customers expect we are required to start thinking differently about how we architect and
build these applications in order to meet those demands.
This session will demonstrate a method for creating a highly performant service based application using
Google’s GRPC and Apache Cassandra in .NET. We will show how you can combine gRPC to minimize
communication overhead while leveraging Cassandra to optimize storage of time series data. We will explore
these concepts by creating an Internet of Things (IoT) application to demonstrate how you can effectively
meet the performance and scalability challenges posed by these new breeds of applications.
Abstract

2. Copyright 2016 Expero, Inc. All Rights Reserved
Performance is not an
Option
Building High performance Web Services
with gRPC and Cassandra
June 9th, 2016
#build4prfrmnc

3. Copyright 2016 Expero, Inc. All Rights Reserved 3
● What is gRPC
● What is Cassandra
● How to build a simple gRPC Microservice
● How to persist time series data in Cassandra
● Why you might want to use gRPC/Cassandra instead of a
more traditional REST/RDBMS for a Time-Series IoT
application
What I hope you take away

4. Copyright 2016 Expero, Inc. All Rights Reserved 4
Dave Bechberger
Senior Architect
dave@experoinc.com
@bechbd
https://www.linkedin.com/in/davebechberger
About me

5. Copyright 2016 Expero, Inc. All Rights Reserved 5
Expero - Bringing challenging product ideas to reality
Architecture &
Development
Product Strategy
User Experience
Domain
Expert

6. Copyright 2016 Expero, Inc. All Rights Reserved 6
Expero - Select Clients
6
Austin(HQ) • Houston • New York City • Founded 2003

7. Copyright 2016 Expero, Inc. All Rights ReservedCopyright 2016 Expero, Inc. All Rights Reserved
What is gRPC?
7

8. Copyright 2016 Expero, Inc. All Rights Reserved
● gRPC is a general purpose RPC
framework
● Built on standards
● Free and Open Source
● Built for distributed systems
8
What is gRPC?

9. Copyright 2016 Expero, Inc. All Rights Reserved
● Allows client to call methods on
the server as if they were local
● Built for low latency highly
scalable microservices
● Payload agnostic
● Bi-Directional Streaming
● Pluggable and Extensible
9
gRPC Architecture

10. Copyright 2016 Expero, Inc. All Rights Reserved 10
Simple Model and Service Definition

11. Copyright 2016 Expero, Inc. All Rights Reserved 11
Optimized Speed and Performance

12. Copyright 2016 Expero, Inc. All Rights Reserved 12
Code Generation

13. Copyright 2016 Expero, Inc. All Rights ReservedCopyright 2016 Expero, Inc. All Rights Reserved
What is Cassandra?
13

14. Copyright 2016 Expero, Inc. All Rights Reserved
What is Cassandra?
● Distributed Datastore
● Open Source Apache Project
● No Single Point of Failure
● Scalable
14

15. Copyright 2016 Expero, Inc. All Rights Reserved
CAP Theorem - Pick 2
● Consistency - all nodes see the same data
at the same time
● Availability - every requests receives a
response
● Partition Tolerant - the system continues
to operate even during network failures
15

16. Copyright 2016 Expero, Inc. All Rights Reserved
ACID vs. BASE
RDBMS World
● Atomic - transactions are “all or nothing”
● Consistency - On completion all data is
the same
● Isolated - transactions do not interfere
with one another
● Durable - results of a transaction are
permanent
16
NoSQL World
● Base Availability - The datastore works
most of the time
● Soft State - Stores are not write
consistent, data can differ between
replicas
● Eventually Consistent - Stores become
consistent over time

17. Copyright 2016 Expero, Inc. All Rights Reserved
Cassandra Architecture
17

18. Copyright 2016 Expero, Inc. All Rights Reserved
Hash Ring Architecture
18
● All nodes own a portion of the token
ring
● All nodes know which token ranges
belong to which nodes
● Partitioner generates a token from the
Partition Key
● Tokens determine where data is
located on the ring

19. Copyright 2016 Expero, Inc. All Rights Reserved
How Tokens Work
19
Partitioner
Token:12
Client Driver
PK: Expero
Data Written

20. Copyright 2016 Expero, Inc. All Rights Reserved
Data Replication
● Data replication is automatic
● Number of replicas is called the Replication Factor or RF
● Data is replicated between Data Centers
● Hinted Handoff

21. Copyright 2016 Expero, Inc. All Rights Reserved
Data Replication in Action
Client
Write A
Data Written
Replica Written
Replica Written
Coordinator
Driver
Partitioner
Token:12
PK: Expero

22. Copyright 2016 Expero, Inc. All Rights Reserved
What does it mean to be Eventually Consistent?
22
● Data will “eventually” match on all replicas, usually in terms of
milliseconds
● Consistency Level or CL (11 for writes, 10 for reads)
● Tuning consistency affects performance and availability
● CL can be tuned for R/W performance on a per query basis using CQL

23. Copyright 2016 Expero, Inc. All Rights Reserved
Why use Cassandra over your RDBMS?
● Performance
● Linearly Scalable
● Natively built as a distributed datastore
● Always-On Architecture
23

24. Copyright 2016 Expero, Inc. All Rights Reserved
What is DataStax vs. Apache Cassandra?
● Certified Cassandra – Delivers highest quality
Cassandra software for confidence and peace of
mind for production environments
● Enterprise Security – Full protection for sensitive
data
● Automatic Management Services – Automates
key maintenance functions to keep the database
running smoothly
● OpsCenter – Advanced management and
monitoring functionality for production applications
● Expert Support – Answers and assistance from the
Cassandra experts for all production needs
24

25. Copyright 2016 Expero, Inc. All Rights ReservedCopyright 2016 Expero, Inc. All Rights Reserved
The Problem - Engine Monitoring
25

26. Copyright 2016 Expero, Inc. All Rights Reserved
● Truck Engine Monitoring
Software
● Currently ~ 1000 trucks taking
readings every 10 seconds
● WebAPI REST on a SQL Server
2014 Database
26
Setup

27. Copyright 2016 Expero, Inc. All Rights Reserved
● You were recently landed a huge
new client Expero Trucking Inc.
● Sensor readings now 1/second
and add geolocation (lat/long)
data
● Adding 10,000 trucks.
● Minimize costs and zero
downtime
27
The Requirements

28. Copyright 2016 Expero, Inc. All Rights Reserved
● 100 measurements/second to
22,000 measurements/second
● Data load from ~35 MB/day to
~2.2 GB/day
● Your architecture needs to
change
28
The Problem

29. Copyright 2016 Expero, Inc. All Rights ReservedCopyright 2016 Expero, Inc. All Rights Reserved
The Solution - gRPC and Cassandra
29
Code Available Here https://github.com/experoinc/NDC-Oslo-2016/tree/master/NDC.Oslo

30. Copyright 2016 Expero, Inc. All Rights Reserved
● Change SQL Server Database to a Cassandra Cluster
● Replace REST based services with gRPC services
30
Proposed Solution

31. Copyright 2016 Expero, Inc. All Rights Reserved 31
Defining a Model and Service

32. Copyright 2016 Expero, Inc. All Rights Reserved 32
Generating Client/Server Stubs
Model Definition Service Definition

33. Copyright 2016 Expero, Inc. All Rights Reserved 33
Creating Cassandra KeySpace and Table

34. Copyright 2016 Expero, Inc. All Rights Reserved 34
Connecting to Apache Cassandra using DataStax Driver
DataStax Open Source C# Driver - https://github.com/datastax/csharp-driver

35. Copyright 2016 Expero, Inc. All Rights Reserved 35
Writing Data to Cassandra

36. Copyright 2016 Expero, Inc. All Rights Reserved 36
Reading Data From Cassandra

37. Copyright 2016 Expero, Inc. All Rights Reserved 37
Time to See Some Running Code
Average Ping Time
Running in Oregon

38. Copyright 2016 Expero, Inc. All Rights ReservedCopyright 2016 Expero, Inc. All Rights Reserved
Tradeoffs of gRPC and Cassandra
38

39. Copyright 2016 Expero, Inc. All Rights Reserved 39
● Not for Browsers
● Chunk “Big” (>1MB ) Data
● No Nullable Data Types
● Not Production Yet
Tradeoffs of using gRPC

40. Copyright 2016 Expero, Inc. All Rights Reserved 40
● No joins between tables
● No Ad-Hoc queries
● Minimal Aggregations
● Complexity
● Cassandra is Not Relational
Tradeoffs of using Cassandra

41. Copyright 2016 Expero, Inc. All Rights Reserved 41
● gRPC
○ http://www.grpc.io/
○ https://developers.google.com/protocol-buffers/docs/proto3
● Cassandra
○ http://cassandra.apache.org/
○ http://www.planetcassandra.org/
○ https://academy.datastax.com/
○ http://www.datastax.com/
Learning More

42. Copyright 2016 Expero, Inc. All Rights ReservedCopyright 2016 Expero, Inc. All Rights Reserved
Thank you, any Questions?
42
