The document discusses the transition from Cloud Foundry's DEA to Diego, which addresses various limitations of the DEA system by using a distributed architecture for managing containerized workloads. Diego supports multiple container formats and improves orchestration through its core components such as auctioneer, converger, and others. The document also outlines the migration process and new features available with Diego, emphasizing its capabilities for handling modern applications.

1. PCF1: Cloud Foundry Diego:
What to Expect
Amulya Sharma
amulya.sharma1@ge.com
@amulyasharma

2. 2PREDIX TRANSFORM
Agenda
Why Diego1
What is Diego
Migrating
Demo
2
3
4

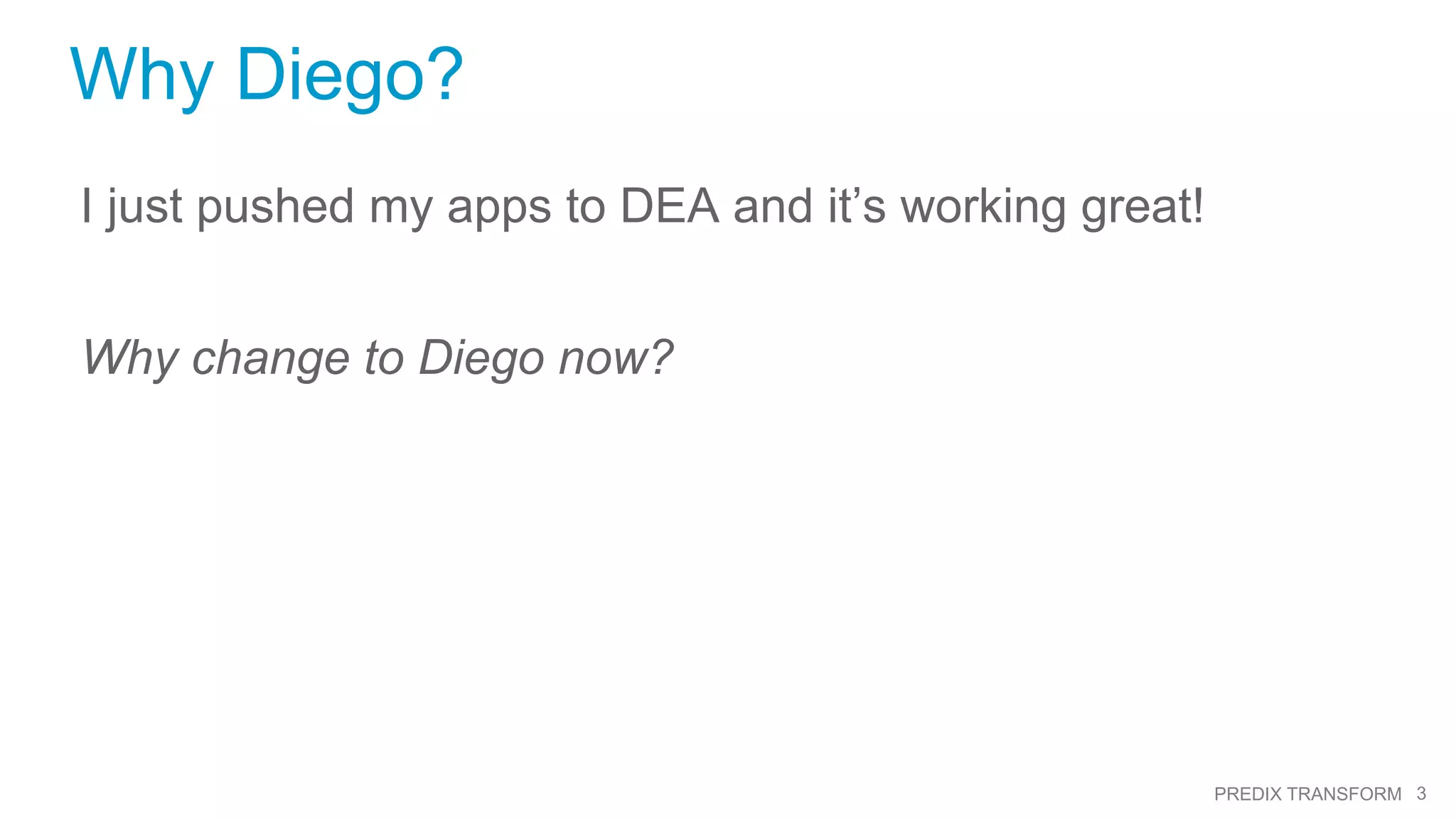

3. 3PREDIX TRANSFORM
Why Diego?
I just pushed my apps to DEA and it’s working great!
Why change to Diego now?

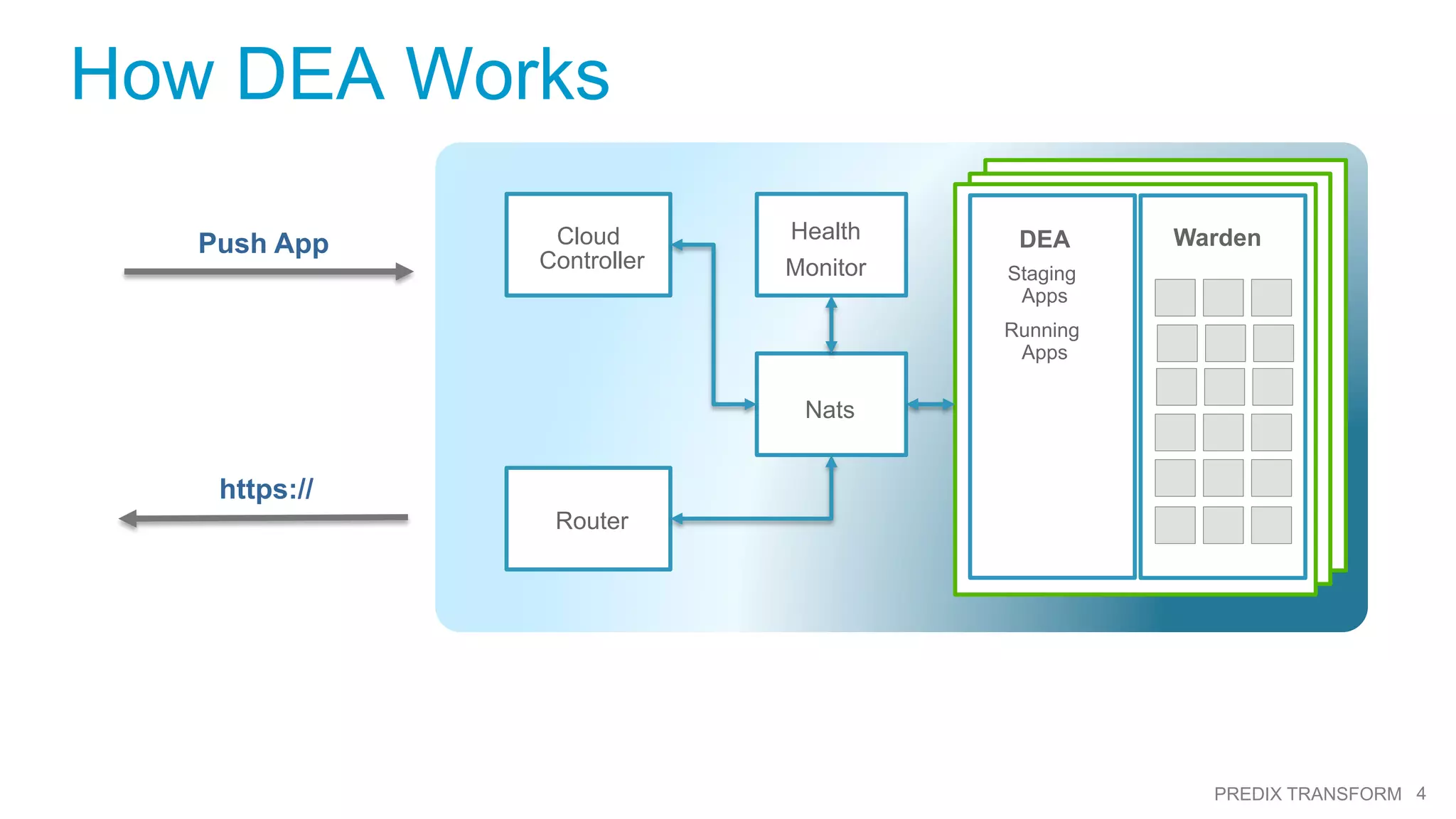

4. 4PREDIX TRANSFORM
How DEA Works
Cloud
Controller
Router
Nats
Health
Monitor
DEA
Staging
Apps
Running
Apps
WardenPush App
https://

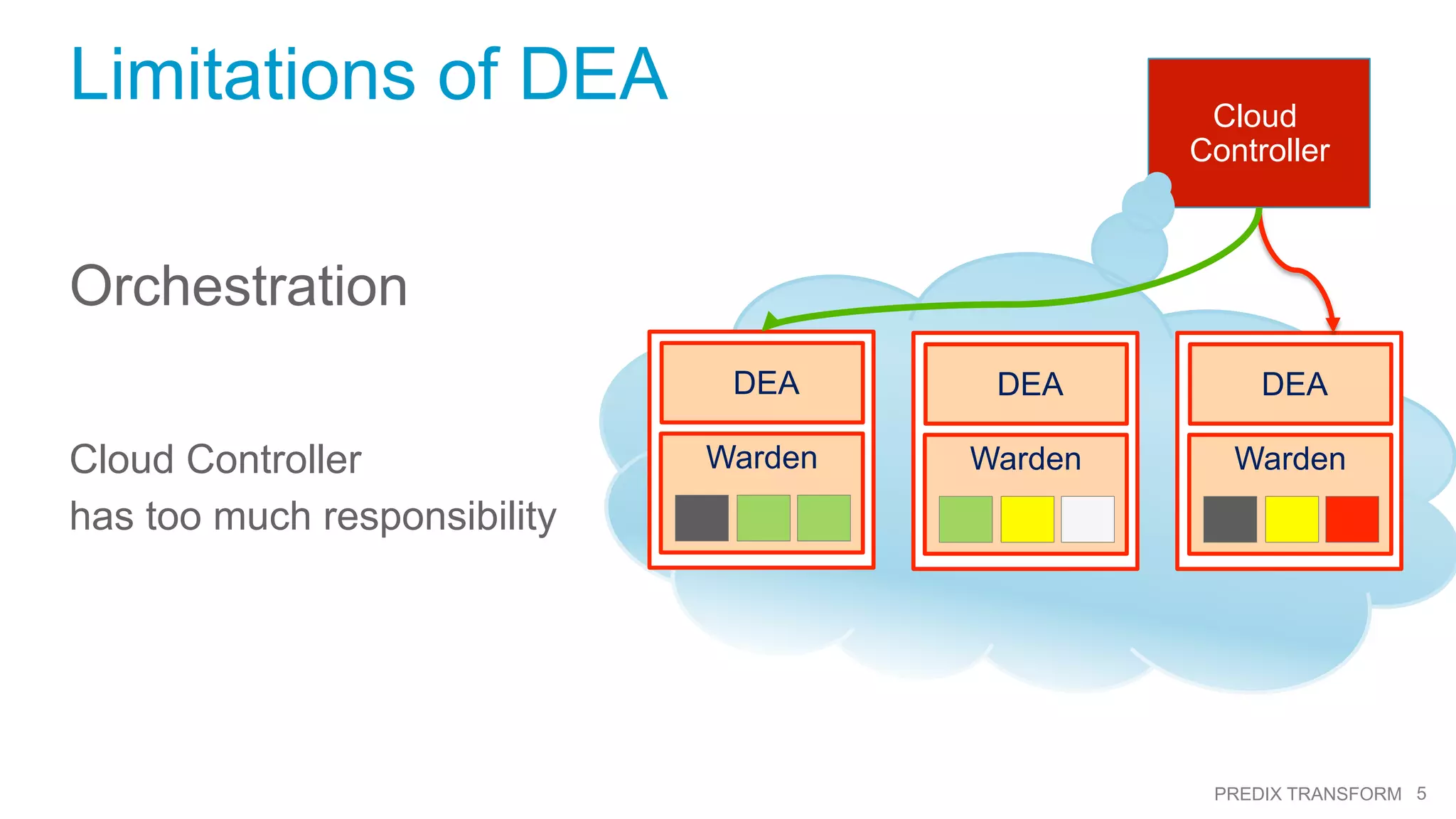

5. 5PREDIX TRANSFORM
Limitations of DEA
Orchestration
Cloud Controller
has too much responsibility
Cloud
Controller
DEA
Warden
DEA
Warden
DEA
Warden

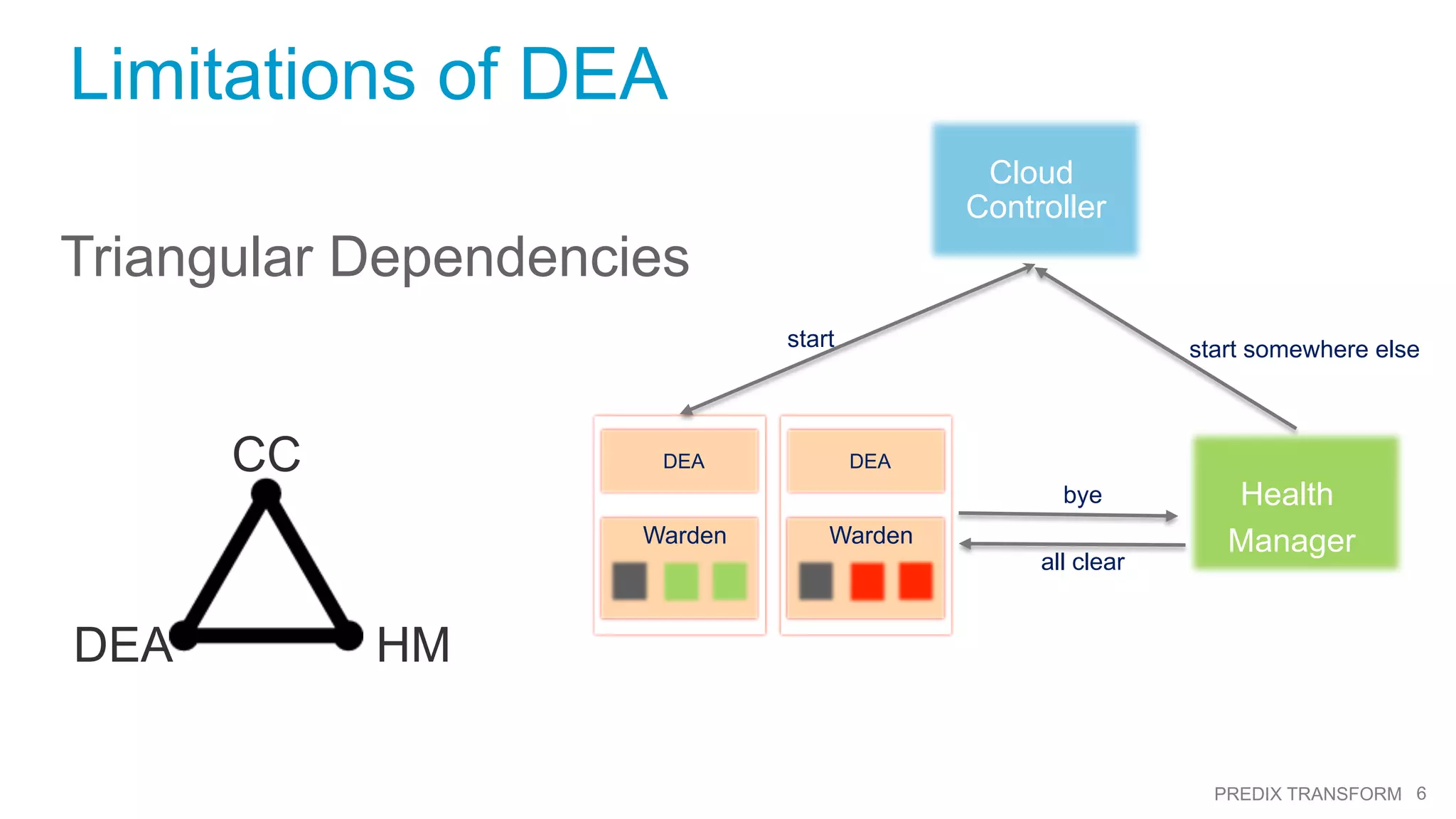

6. 6PREDIX TRANSFORM
Limitations of DEA
Triangular Dependencies
CC
DEA HM
Cloud
Controller
DEA
Warden
DEA
Warden
Health
Manager
bye
all clear
start somewhere elsestart

7. 7PREDIX TRANSFORM

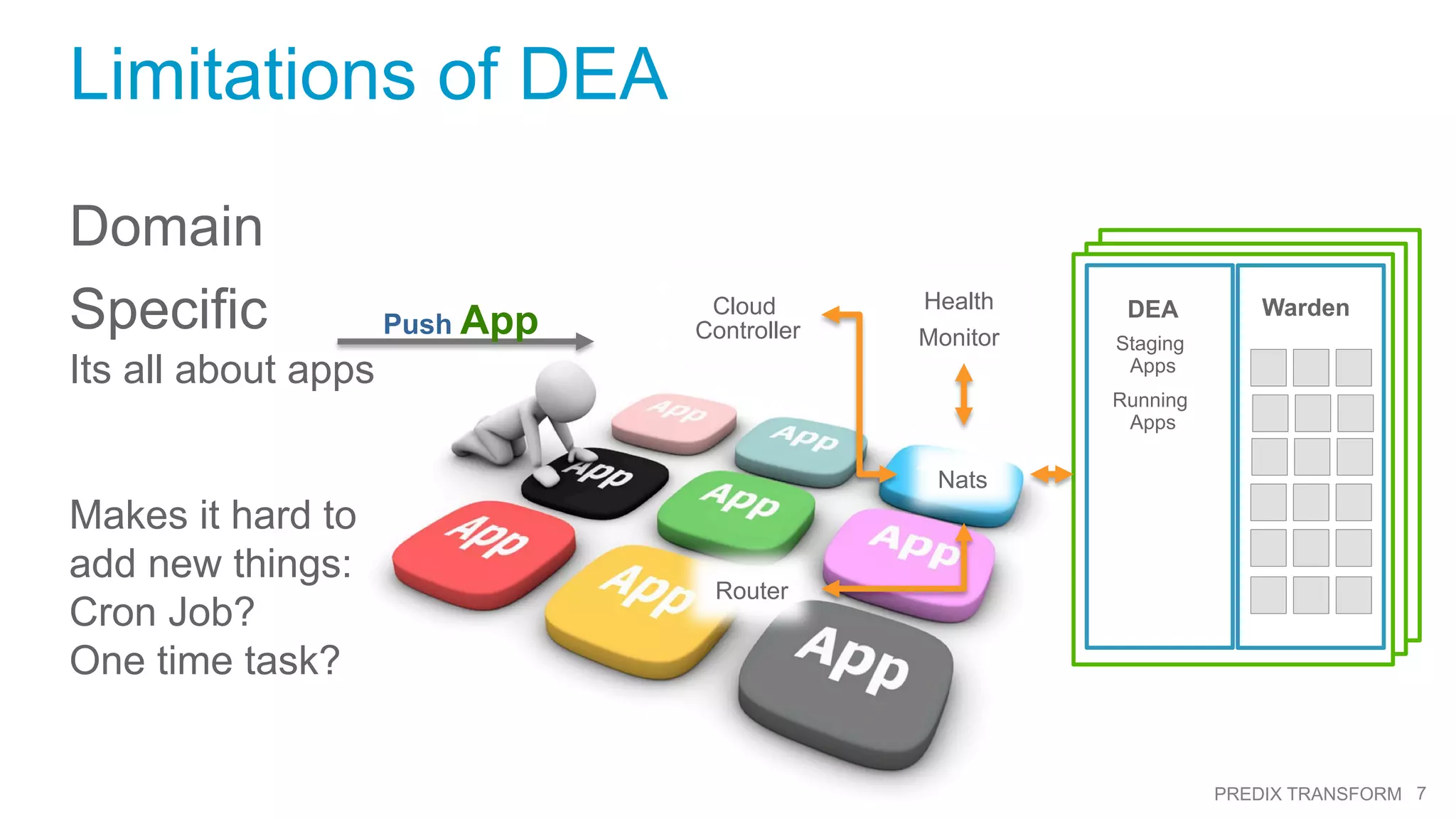

Limitations of DEA
Domain
Specific
Its all about apps
Makes it hard to
add new things:
Cron Job?
One time task?
Cloud
Controller
Router
Nats
Health
Monitor
DEA
Staging
Apps
Running
Apps
Warden
Push App

8. 8PREDIX TRANSFORM
Limitations of DEA
DEA and Warden
• Longed – lived processes
• Concurrency
• Low level OS Interactions

9. 9PREDIX TRANSFORM

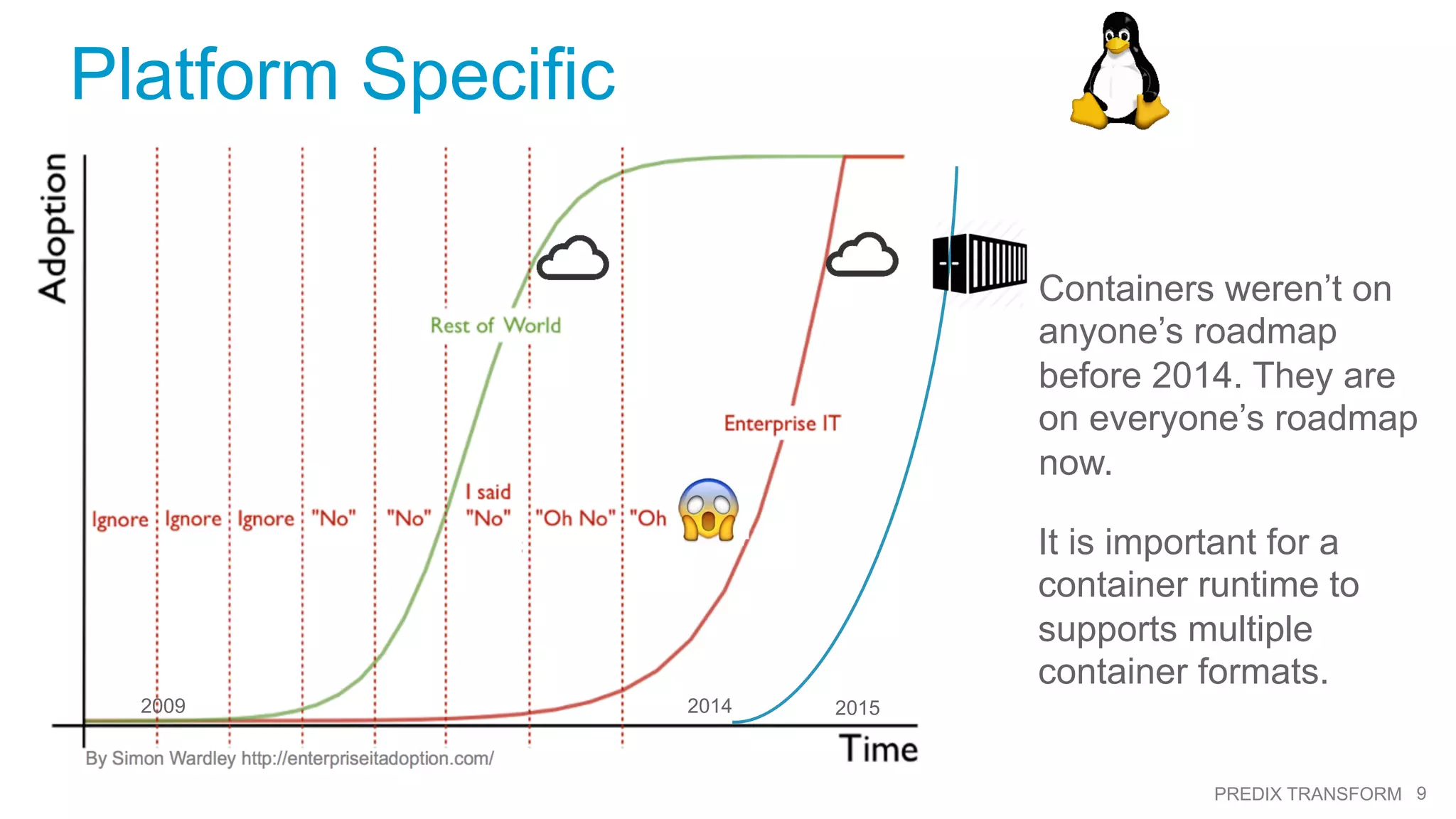

Platform Specific
2009 20152014
Containers weren’t on
anyone’s roadmap
before 2014. They are
on everyone’s roadmap
now.
It is important for a
container runtime to
supports multiple
container formats.

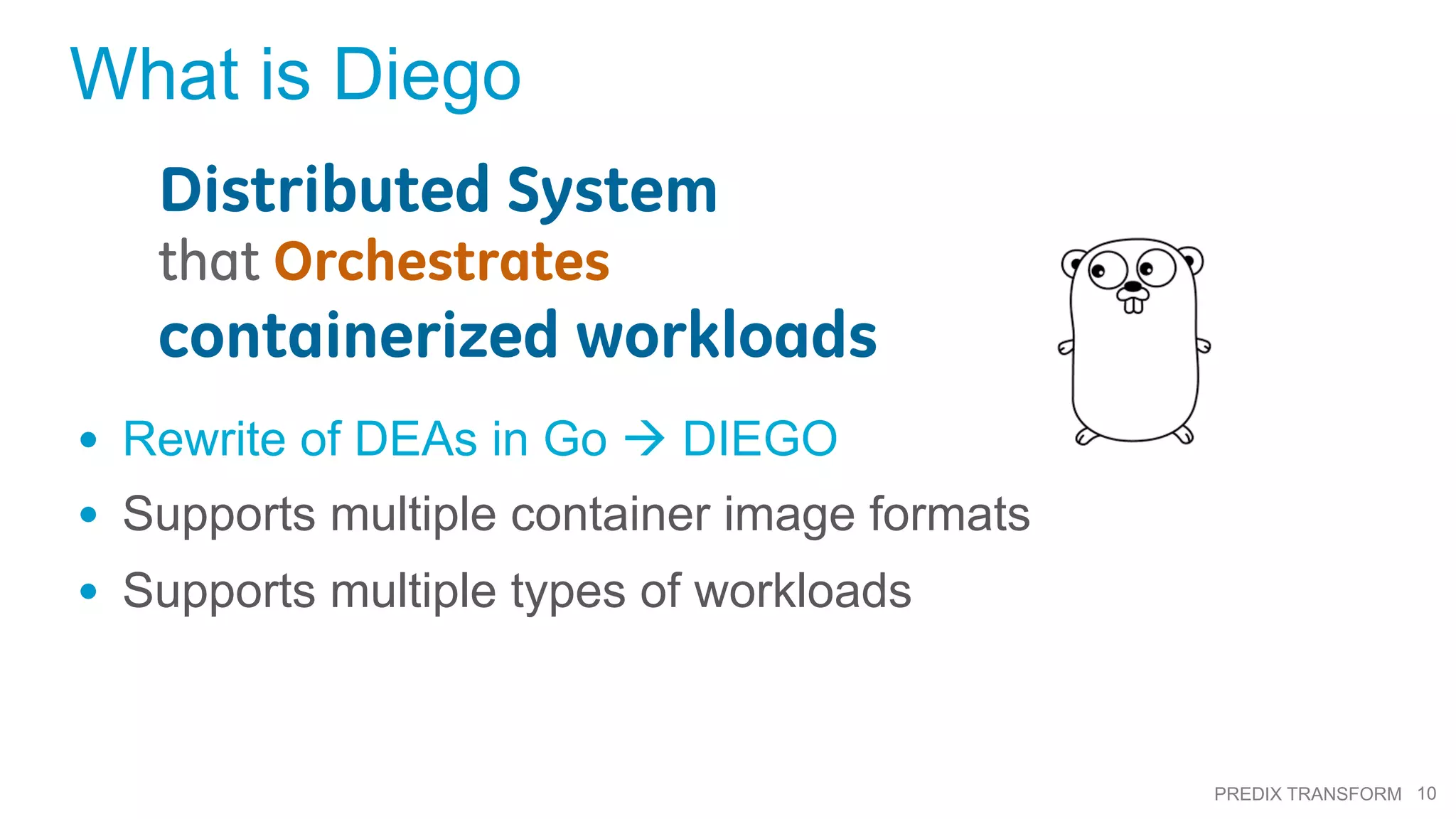

10. 10PREDIX TRANSFORM
What is Diego
• Rewrite of DEAs in Go à DIEGO
• Supports multiple container image formats
• Supports multiple types of workloads
Distributed System
that Orchestrates
containerized workloads

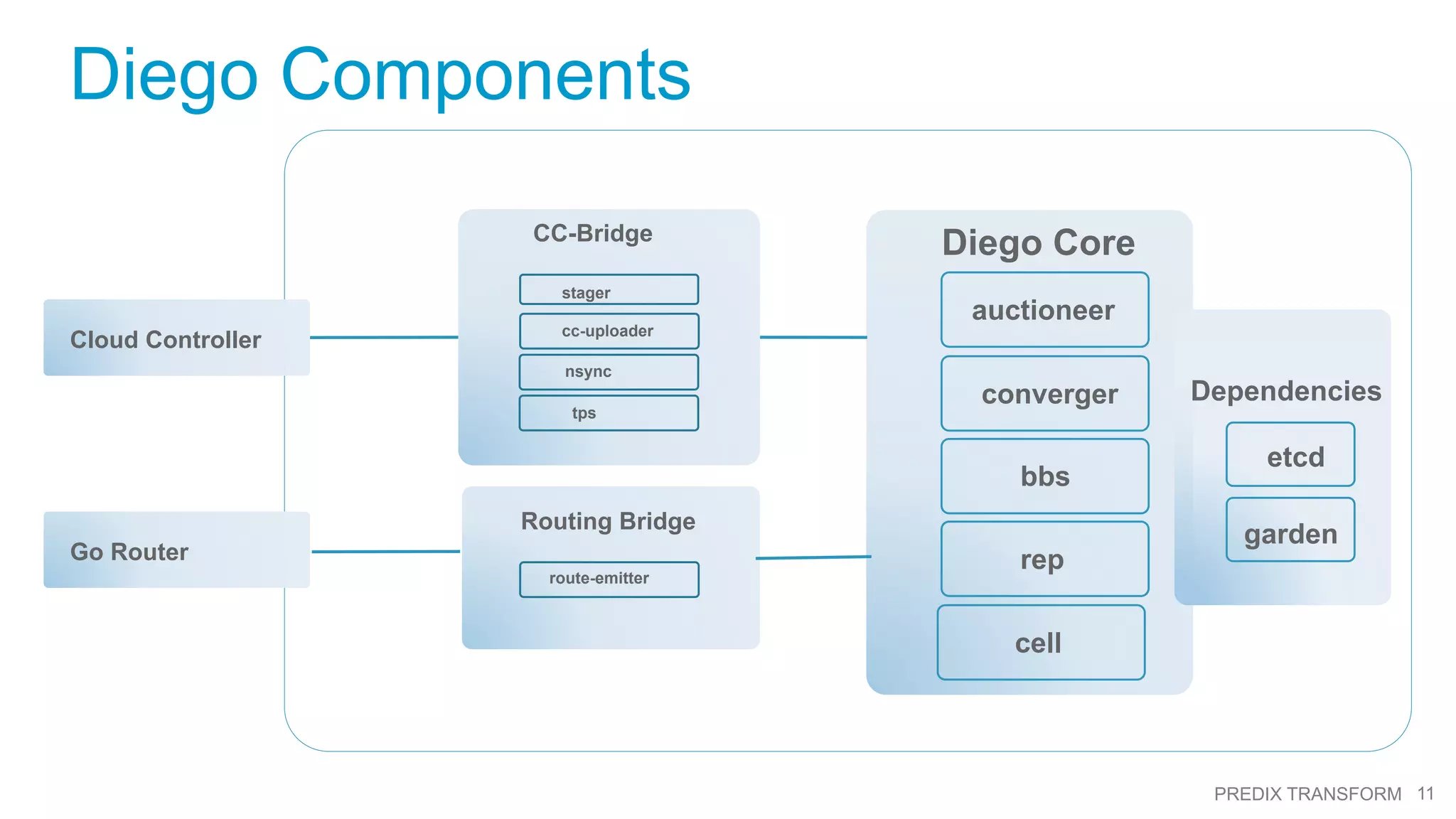

11. 11PREDIX TRANSFORM
Diego Components
Diego Core
auctioneer
converger
bbs
rep
Dependencies
etcd
garden
CC-Bridge
stager
cc-uploader
nsync
tps
Routing Bridge
route-emitter
Cloud Controller
Go Router
cell

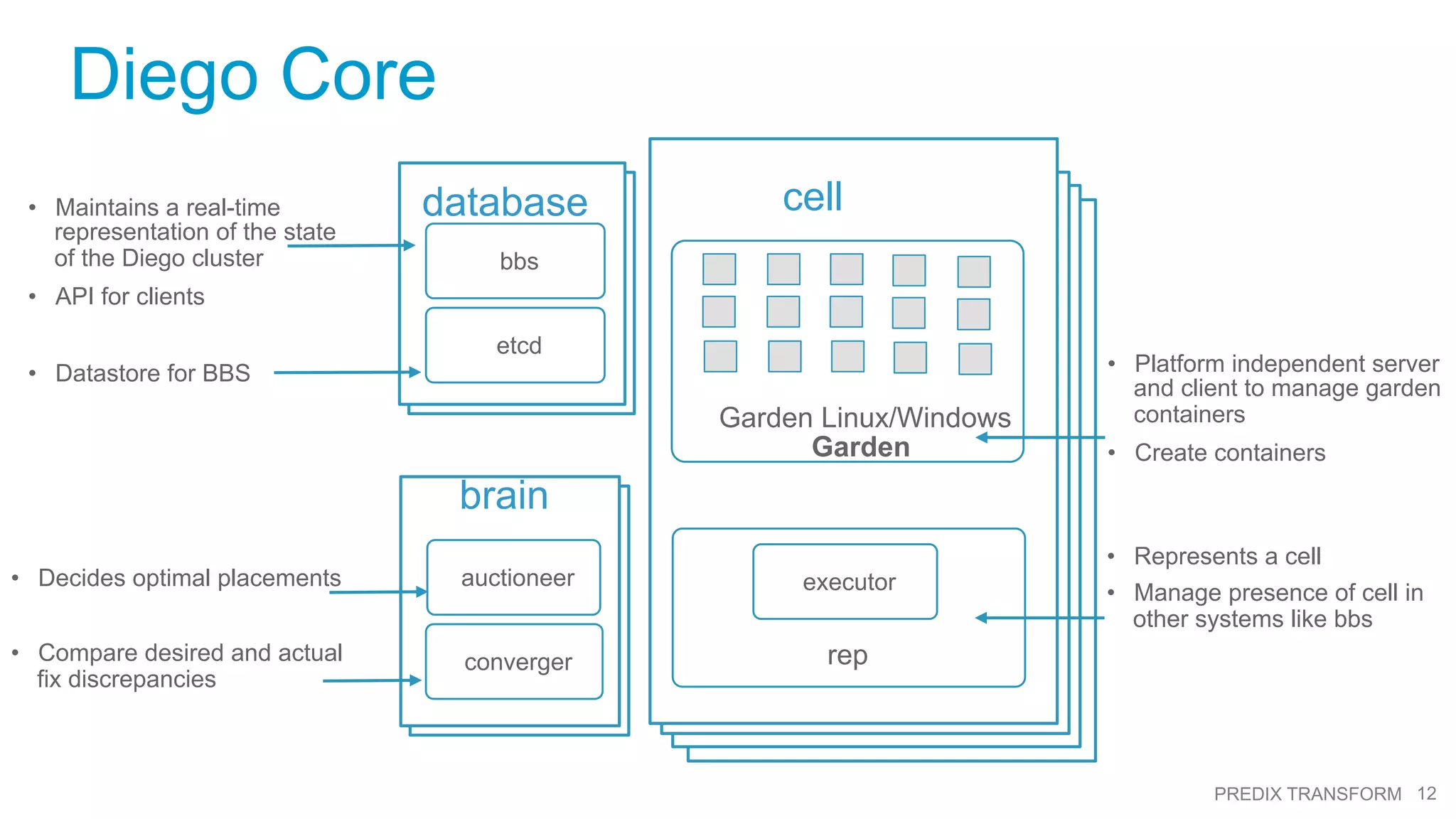

12. 12PREDIX TRANSFORM
Diego Core
cell
Garden Linux/Windows
Garden
rep
executor
brain
auctioneer
converger
database
bbs
etcd
• Platform independent server
and client to manage garden
containers
• Create containers
• Represents a cell
• Manage presence of cell in
other systems like bbs
• Decides optimal placements
• Compare desired and actual
fix discrepancies
• Maintains a real-time
representation of the state
of the Diego cluster
• API for clients
• Datastore for BBS

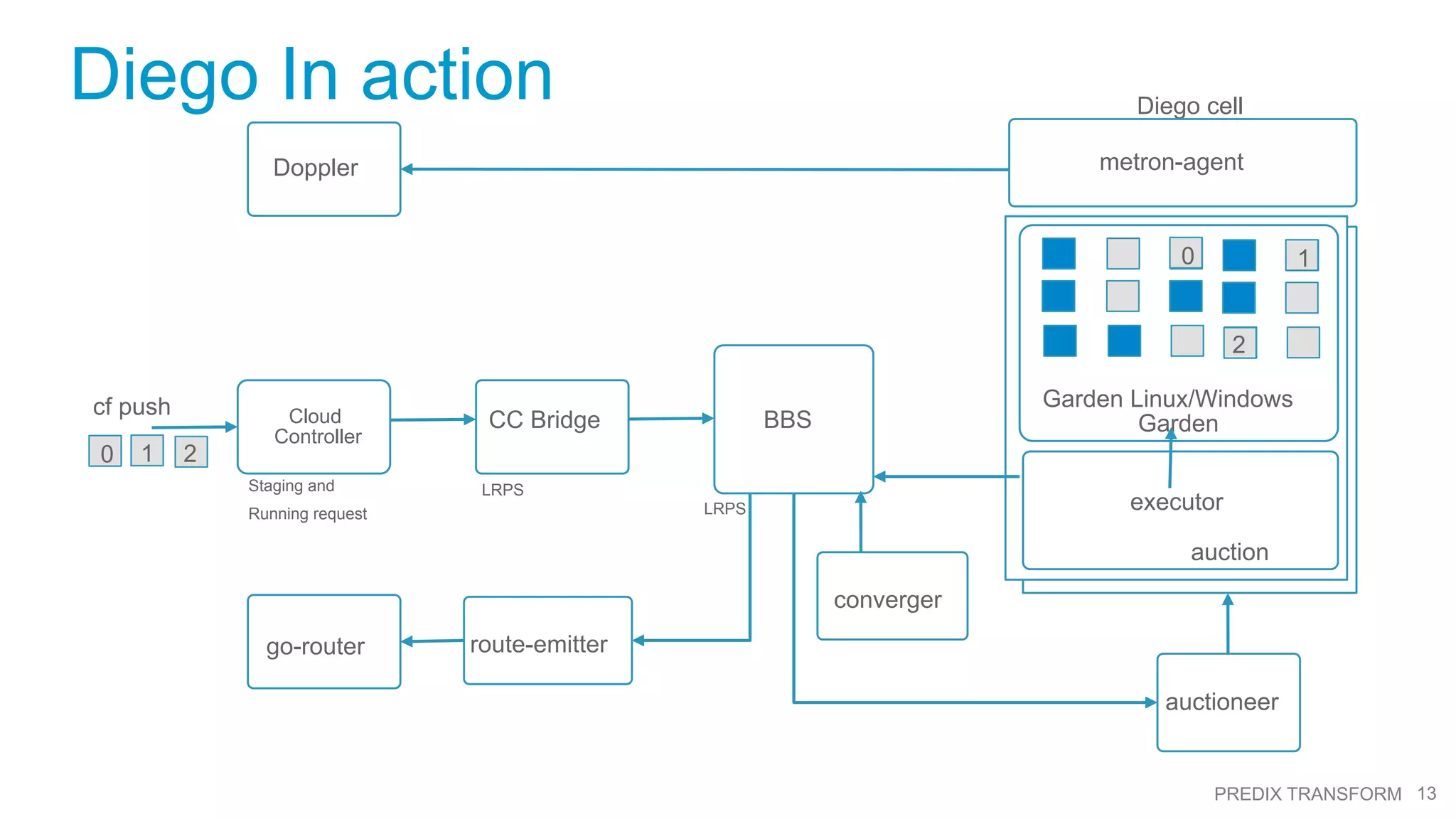

13. 13PREDIX TRANSFORM
Diego In action
Cloud
Controller
cf push
CC Bridge BBS
auctioneer
executor
Staging and
Running request
LRPS
LRPS
auction
Garden Linux/Windows
Garden
0 1 2
0 1
2
Diego cell
converger
metron-agentDoppler
go-router route-emitter

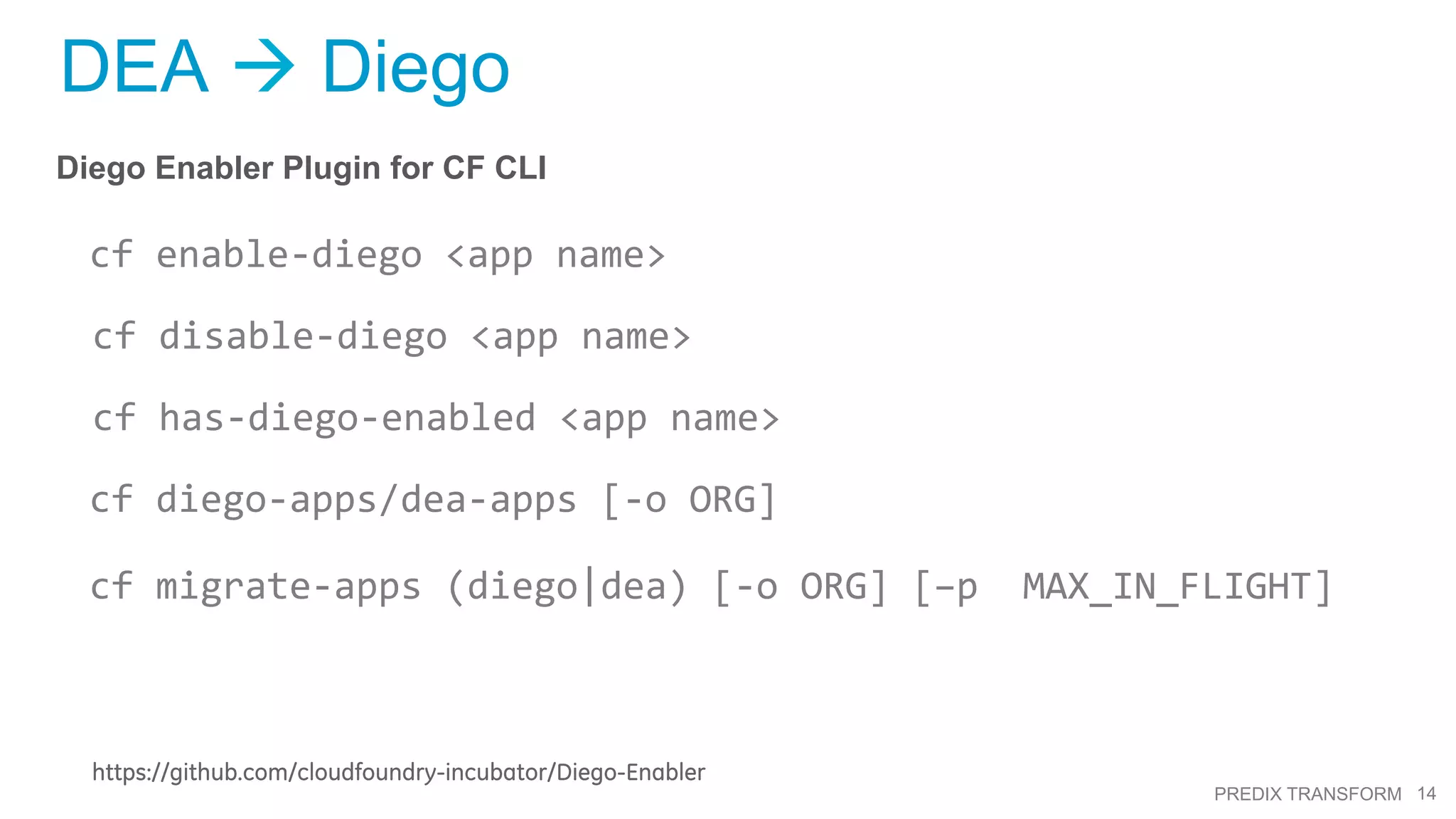

14. 14PREDIX TRANSFORM
DEA à Diego
Diego Enabler Plugin for CF CLI
cf
enable-­‐diego
<app
name>
cf
disable-­‐diego
<app
name>
cf
has-­‐diego-­‐enabled
<app
name>
cf
diego-­‐apps/dea-­‐apps
[-­‐o
ORG]
cf
migrate-­‐apps
(diego|dea)
[-­‐o
ORG]
[–p
MAX_IN_FLIGHT]
https://github.com/cloudfoundry-incubator/Diego-Enabler

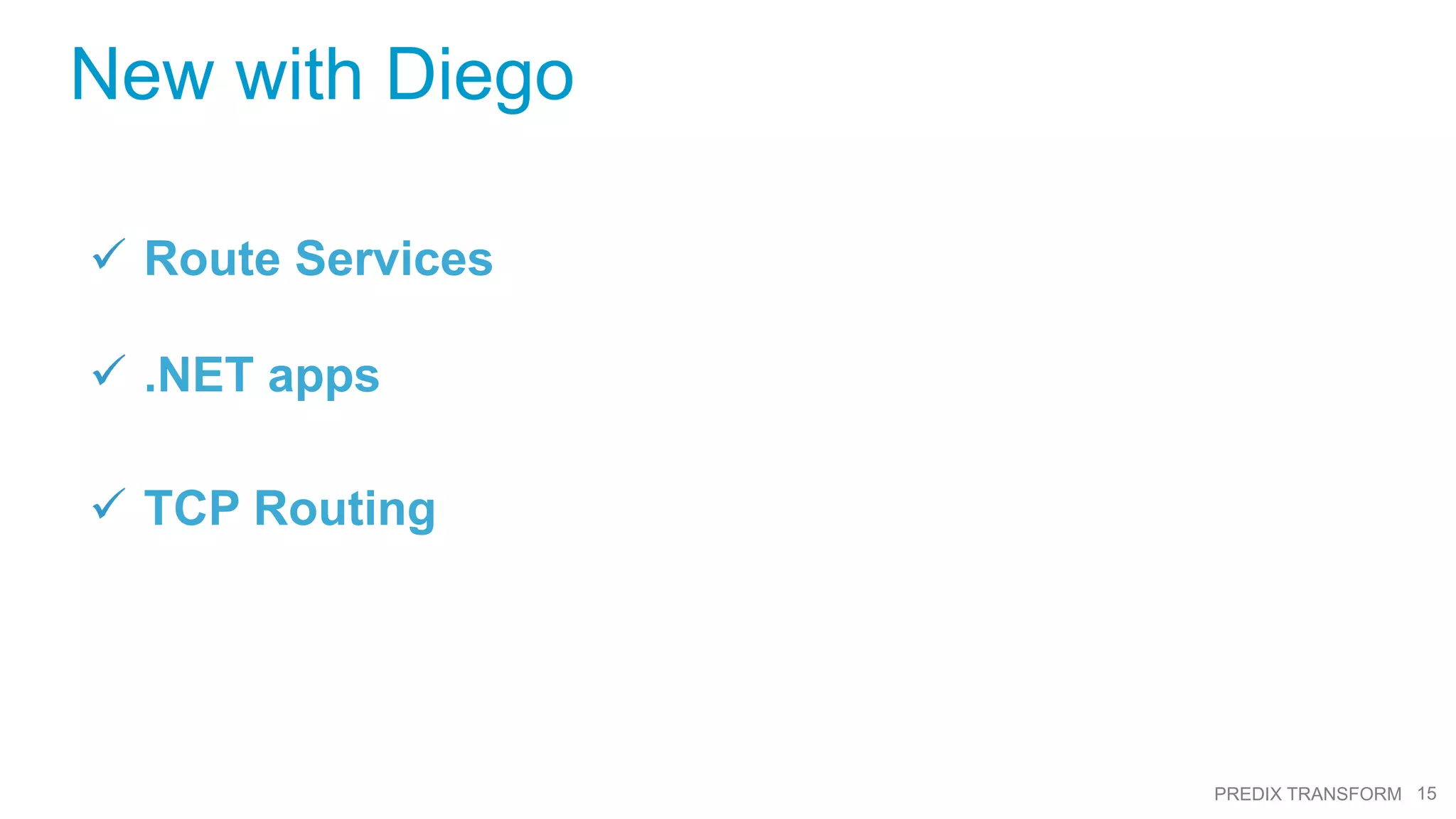

15. 15PREDIX TRANSFORM
New with Diego
ü Route Services
ü .NET apps
ü TCP Routing
