D2: Predix Migration & IT Integration (Predix Transform 2016)
- 1. D2: Predix Migration & IT Integration Matt Momont, Aditi Shete, Sudhakar Reddy

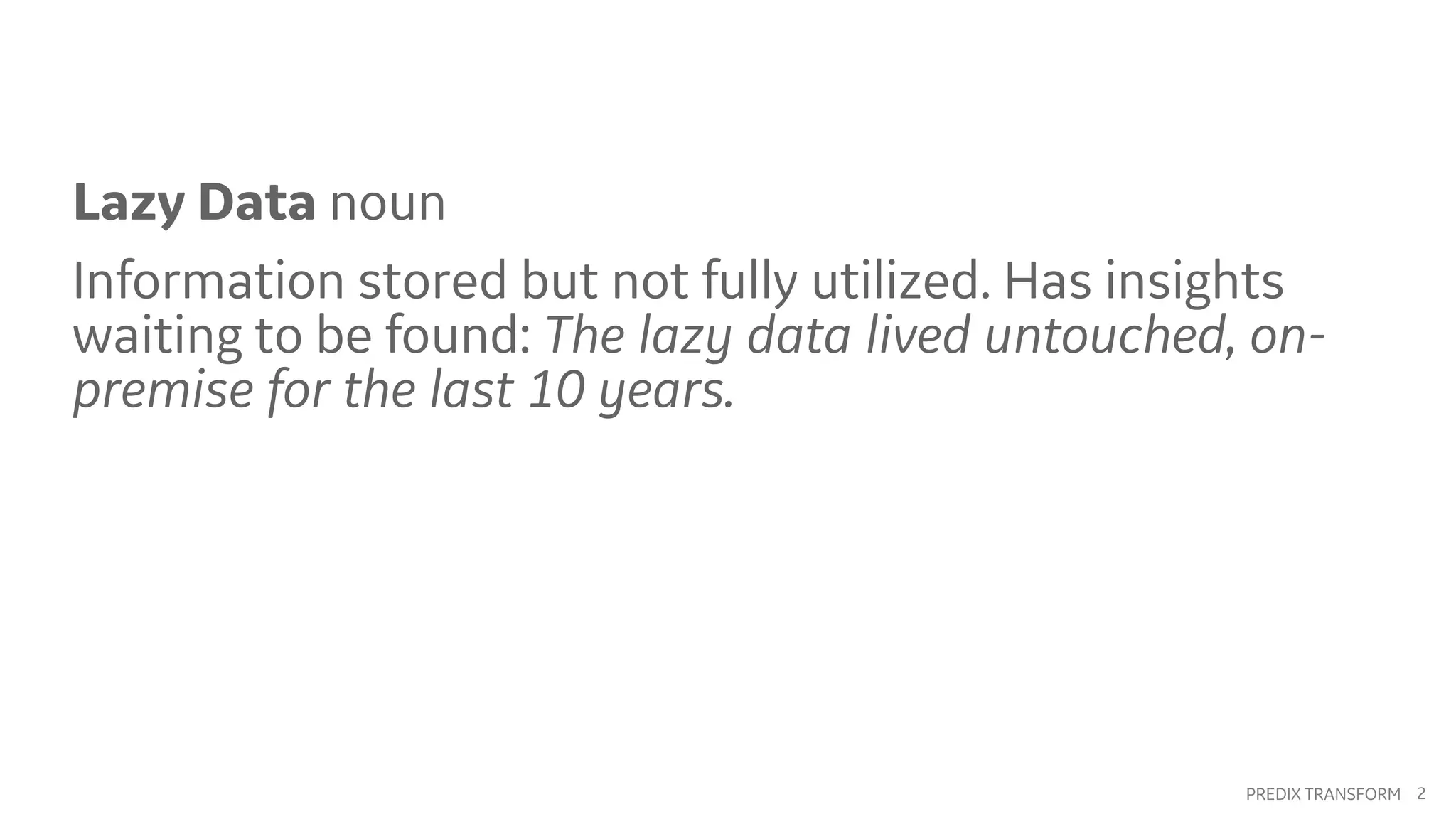

- 2. 2PREDIX TRANSFORM Lazy Data noun Information stored but not fully utilized. Has insights waiting to be found: The lazy data lived untouched, on- premise for the last 10 years.
- 3. 3PREDIX TRANSFORM Agenda Application Migration1 Data Integration Monolith to Microservices GE O&G Demo 2 3 4 Get Started5
- 4. 4PREDIX TRANSFORM Picture Here Your Migration Gurus Matt Momont • Software Director, GE Power • Predix developer for 3 years • Developer #1 predix.io Aditi Shete • Staff Developer, GE Digital • Predix developer for 2 years • Previously Yahoo, EMC, Oracle Sudhakar Reddy • Sr. Architect, GE Oil & Gas • Predix developer for 3 years • Previously VISA, Charles Schwab, AT&T
- 5. 5PREDIX TRANSFORM Agenda Application Migration1 Data Integration2 Monolith to Microservices GE O&G Demo 3 4 Get Started5
- 7. 7PREDIX TRANSFORM Migrating Monolith Problems • Resists change • Spaghetti code • Tightly coupled to framework
- 8. 8PREDIX TRANSFORM Monolith Migration Tips • Pick independent functionality • Refactor towards SOA • Keep business logic framework agnostic
- 9. 9PREDIX TRANSFORM Application Migration Images: unisci24.com, Toyota Hybrid – Monolith to microservices Forklift – Scoop up and replant
- 15. 15PREDIX TRANSFORM Agenda Application Migration1 Data Integration2 Monolith to Microservices GE O&G Demo 3 4 Get Started5
- 16. 16PREDIX TRANSFORM Picture Here Example Infrastructure
- 17. 17PREDIX TRANSFORM Data Opportunities • Data is not replicated • Hard to scale • Limited data analysis • Cables are a trip hazard
- 18. 18PREDIX TRANSFORM Data Integration • Expose your data via API • WebSockets stream to Time Series • Predix Machine bridges on-premise to cloud
- 19. 19PREDIX TRANSFORM Data Integration • Expose your data via API • WebSockets stream to Time Series • Predix Machine bridges on-premise to cloud
- 20. 20PREDIX TRANSFORM Predix Predix Machine On-premise Predix Machine Sensor Time Series WebSocket OPC-UA HTTP
- 21. 21PREDIX TRANSFORM Agenda Application Migration1 Data Integration2 Monolith to Microservices GE O&G Demo 3 4 Get Started5
- 22. 22PREDIX TRANSFORM Data Tier Middle Tier Client Tier Typical Client Server Architecture
- 23. 23PREDIX TRANSFORM Basics • Spring Boot, embedded Tomcat • Create Service Instances – RDBMS - PostgreSql,MySql – Message Broker – RabbitMQ – Key Value store - Redis • Predix Services – Asset, TImeSeries, Blob Store • Custom User Provided Services • Unified Logs – ELK stack – Logstash – Elastic Search storage and indexing – Kibana for visualization • Application Monitoring – New Relic Manifest.yml applications: - name: app-services path: ./target/app-services.jar memory: 1024M instances: 2 services: - app-rabbitmq cf push cf env cf logs app-services --recent cf create-service p-rabbitmq-35 standard app-rabbitmq cf cups app-oracle -p ‘{“host”:”3.349.7.240”, “port”:”1433”,"username”:"someadmin","password":"pa55woRD"}’
- 24. 24PREDIX TRANSFORM Extracting to Microservices Dashboard UI ConfigurationService LegacyProxyBusinessFunction2BusinessFunction1 ServiceFacadeA AssetModel Customers Redis MongoDB RDBMS Predix Asset MetaData
- 25. 25PREDIX TRANSFORM Design Patterns & Challenges • Facade • Caching • Circuit Breaker – Netflix (Hystrix) • Distributed Transactions – Distributed locks – Event / Subscribe Model • Service Registration and Discovery – (Netflix Eureka) Service A Service E Service C Service F Service B Service D Service G Dashboard UI FacadeService
- 26. 26PREDIX TRANSFORM Spring Cloud Netflix • REST Client Builder Netflix Feign • Circuit Breaker Netflix Hystrix • Service Registration and Discovery, Health Monitoring Netflix Eureka • Configuration – External Properties, Static Data – Spring Cloud Bus • Client side Load Balancing Netflix Ribbon
- 27. 27PREDIX TRANSFORM Agenda Application Migration1 Data Integration2 Monolith to Microservices GE O&G Demo 3 4 Get Started5
- 29. 29PREDIX TRANSFORM Source System Data Collector PredixMachine / Field Agent Time SeriesServices Asset Services Alarm Services Waveform Services Asset Machine &Equipment Health Maintenance Optimization User Management Device Management Repository Management Reliability Management Target Architecture Message Broker API AMQPS PredixUI Time Series Alarms Waveform Legacy Apps (System 1) Refactored/ Migration Code Predix WebSocket/HTTPS HTTPS MQTT Time SeriesServices Asset Services Alarm Services Waveform Services
- 31. 31PREDIX TRANSFORM Recap Make your lazy data actionable with Predix • Hybrid application migration • Predix Machine bridges on-premise to cloud
- 32. 32PREDIX TRANSFORM Get Started • Training • Documentation • Sample Code • Tutorials • Partners predix.io
- 33. 33PREDIX TRANSFORM Resources • Deploying microservice architectures with Pivotal Cloud Foundry • Microservices Resource Guide - Martin Fowler • Spring Cloud Netflix
