This document summarizes a study investigating the relationship between blood lactate levels and central venous oxygen saturation (ScvO2) in patients with severe sepsis and septic shock. The hypothesis is that lactate levels and ScvO2 are inversely correlated, as lower oxygen delivery would result in more anaerobic metabolism and higher lactate. The study uses medical record data from over 1,300 patients matched to the criteria. Preliminary findings show relationships between lactate, ScvO2 and patient survival. The author contributed to designing the study methodology, analyzing the data using statistical software, and helping write the results.

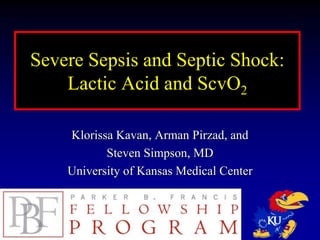

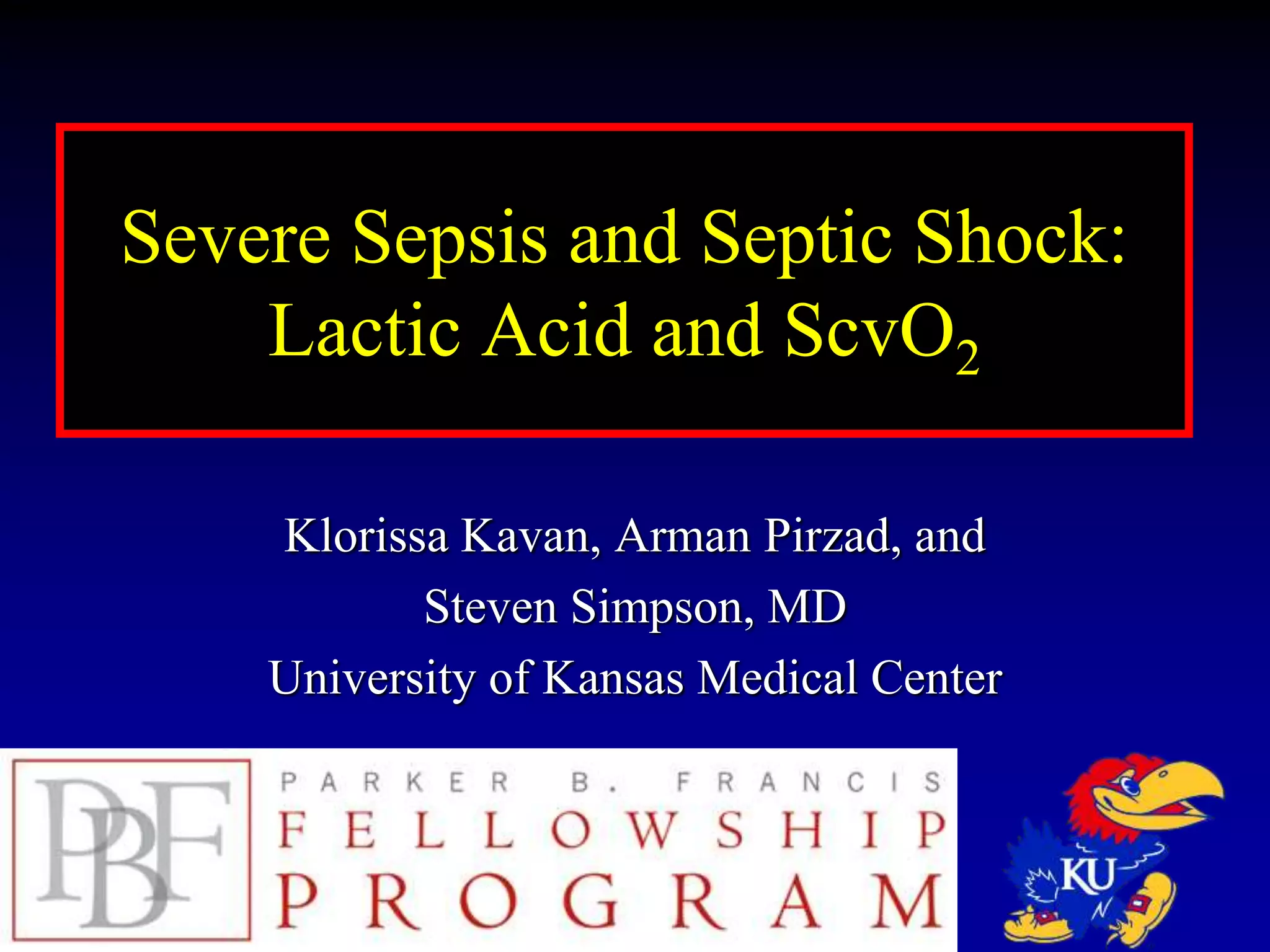

1. Severe Sepsis and Septic Shock:
Lactic Acid and ScvO2
Klorissa Kavan, Arman Pirzad, and
Steven Simpson, MD
University of Kansas Medical Center
2. Hypothesis
We hypothesize that in patients with severe sepsis
and/or septic shock, levels of blood lactate and central
venous oxygen saturation percentages are inversely
correlated.
3. What is Sepsis?
Infection
SIRS
– Systemic Inflammatory Response Syndrome
Fever or Hypothermia (>101º F or <96.8º F)
Tachycardia (>90 bpm)
Tachypnea (>20 rpm)
Leukocytosis or Leukopenia
– WBC Count >4 or <12
– 10% Neutrophil Immaturity
Sepsis
– Infection + ≥2 SIRS Criteria
Severe Sepsis
– Sepsis + Organ Dysfunction
Septic Shock
– Severe sepsis that persists despite fluid resuscitation
Increasinglikelihoodofmortality
4. Lactic Acid
Organic Compound that plays a role in many biochemical processes
Formation
– A molecule formed when the body breaks down Glucose in order to
produce usable energy
– Product of anaerobic metabolism
– Doesn’t produce nearly as much ATP
2 molecules, rather than 36 in aerobic respiration
– Predictor of mortality
No Oxygen Oxygen
No Oxygen
6. Central Venous Oxygen Saturation (ScvO2)
Reflects the relationship between oxygen consumption and
oxygen delivery to the bodily tissues
Read through a catheter placed in the superior vena cava, which
brings deoxygenated blood back to the right atrium of the heart
Tissue Oxygenation is dependent on:
– Tissue Perfusion
– DO2 = Cardiac Output x CaO2
Cardiac Output × (Hemoglobin × 1.34 × % Sat) × 10
– Metabolic demand of cells
– Etc.
Normal: ~70% or 0.7
7. So how are ScvO2 and lactate levels related?
Anything below a normal 70% ScvO2 level indicates:
– Potential tissue hypoxia
– Anaerobic metabolism
There is very limited research connecting the two.
8. Hypothesis
We hypothesize that in patients with severe sepsis
and/or septic shock, levels of blood lactate and central
venous oxygen saturation percentages are inversely
correlated.
ScvO2 declines with decreased O2
decreased O2 delivery results in increased lactate
production
9. HERON
The Healthcare Enterprise Repository for Ontological
Narration
Integration method for clinical and biomedical data for
translational research
Iteration of the i2b2 research database
Provides complete clinical data on all patients admitted
to the University of Kansas Hospital
Allows development of queries to refine a list of
patients that meet a researcher’s criteria
10.
11.
12. SPSS
Statistical Package for the Social Sciences
IBM software package designed for statistical analyses
– Designed to handle data sets much larger than could
be run using Microsoft Excel
Common researching tool to determine statistical
relationships
14. Modifications to the Original Study
Removal of peripheral venous gases from the data set
Redefining our time constraints
– One hour for all measurements read, rather than two
Just shy of 1300 patients matched our researching
criteria
15. My Role
May 26, 2015-August 14, 2015
Reading and learning to comprehend
medical research studies
Daily meetings with Dr. Simpson and
shadowing him in the ICU
Meetings with the KUMC Data
submission team
Designing Clinical Research
Designing HERON queries
SPSS to statistically analyze our data
Helping to write the Abstract
16. Where Are We Now?
Recently submitted our final data submission and
received the filtered data back from the KUMC
medical informatics team
Currently running SPSS analyses on data to determine
relationships between lactate levels and ScvO2
Although my fellowship is now over, I still am
planning to work with Dr. Simpson until the
completion of our research paper, which we will then
submit to medical journals.
17. Acknowledgements
•Parker B. Francis Foundation Board of Directors
•Dr. Steven Simpson
•Dr. Navneet Dhillon
•Christina Hopkins
•Dr. Thomas Martin
•Deborah Snapp
Editor's Notes
**need to add citations
INFECTION:
First, the body must experience some sort of infection.
Sepsis occurs when chemicals released into the bloodstream to fight the infection trigger inflammatory responses throughout the body. This inflammation can trigger a cascade of changes that can damage multiple organ systems, causing them to fail.
Anyone can develop sepsis, but it's most common and most dangerous in older adults or those with weakened immune systems.
SIRS:
WBC less than 4000 cells/mm³ (4 x 109 cells/L) or greater than 12,000 cells/mm³ (12 x 109 cells/L)
SEPSIS:
SEVERE SEPSIS:
SEPTIC SHOCK:
Likelihood of mortality increases as the infection develops from sepsis, to severe sepsis, to septic shock
Most commonly understood as “why we get sore” post-exercise
Critical Oxygen Extraction Ratio (ERO2crit)
If SvO2 is low (below 60 percent) then the oxygen supply is insufficient or the oxygen demand has increased.
If SvO2 is high (above 80 percent) then the oxygen demand has declined or the oxygen supply has increased.
Anything below normal
Tissue hypoxia
Anaerobic metabolism (increasing levels of lactate production and impaired organ function)
So when tissues aren’t getting enough oxygen, they begin anaerobic respiration, and thus the production of lactic acid to help meet their demands.
So we’re using HERON to determine all the patients who have been diagnosed with Severe Sepsis or Septic Shock at KU within the last ten years. HERON allows us to refine our search to select patients with Lactate levels greater than 4mmol who have also had a ScvO2 reading within one hour of each other.
Originally, Venous Gases were assumed to have only been measures of ScvO2 and MvO2
We found that not only had certain gas readings been incorrectly labeled, allowing for the inclusion of Peripheral Venous Gas readings in the original study.
Our new query only includes Mixed Venous and as of implementation of ICDX10, Central Venous.
There are many, many problems with using Peripheral Gas readings over a Central or Mixed Venous reading.
In order to draw peripheral blood, a tourniquet is placed and compressed over the bicep. The patient is usually then asked to squeeze their fist a few times so that a vein may be found.
In doing so, this tourniquet limits the oxygen flow to the tissues, allowing for some lactate production. This influences the readings that come back from the venous test as they are not a true reflection of the data we are trying to collect.
Secondly, Peripheral blood tests are not as high priority as central blood tests. As they sit and wait for the lab, for sometimes up to two hours, metabolic processes can still occur within the sample. By the time the tests are read, they can reflect a value that is again, not true of the patient.
