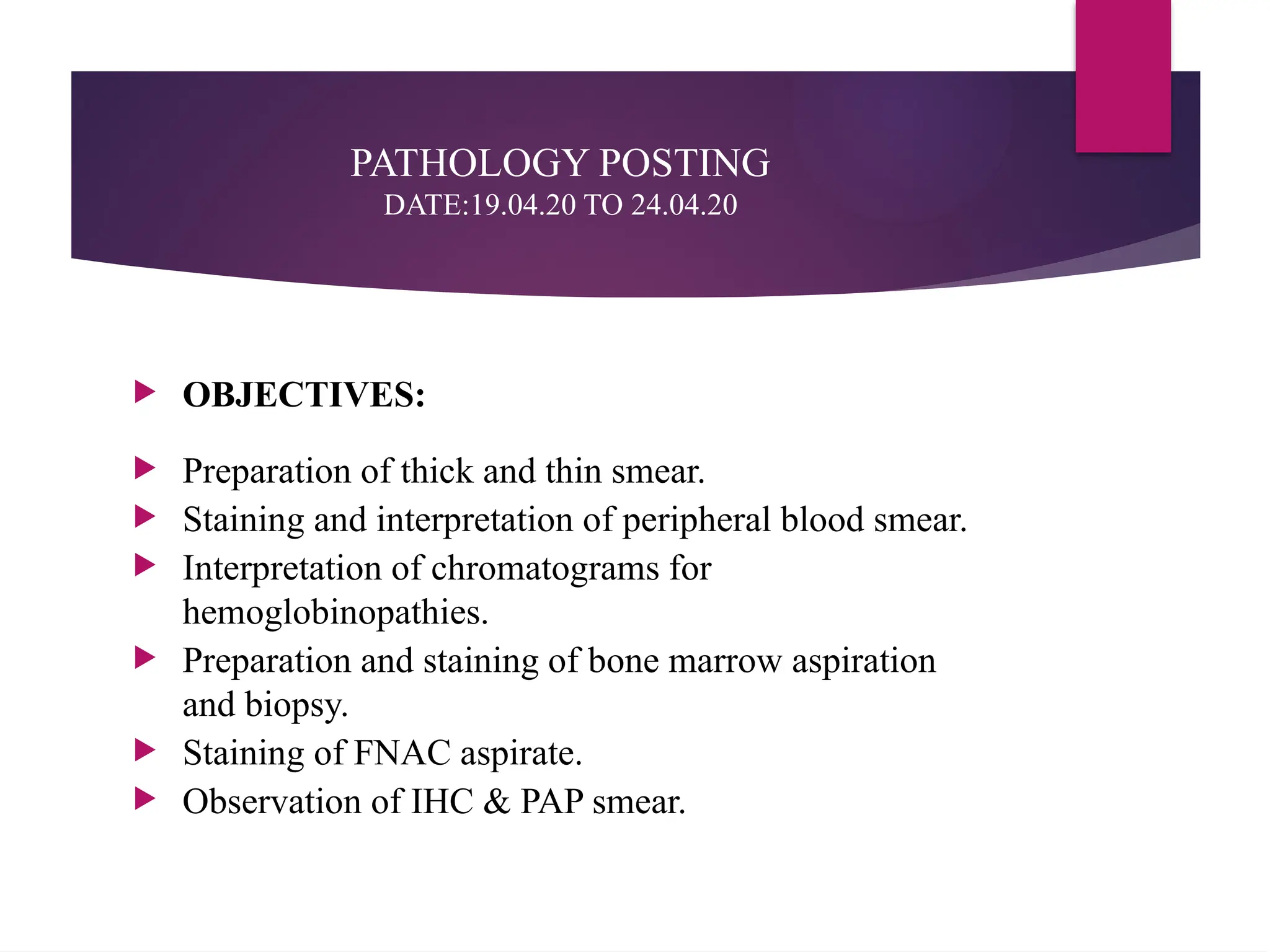

1. PATHOLOGY POSTING
DATE:19.04.20 TO 24.04.20
 OBJECTIVES:
 Preparation of thick and thin smear.
 Staining and interpretation of peripheral blood smear.
 Interpretation of chromatograms for
hemoglobinopathies.
 Preparation and staining of bone marrow aspiration
and biopsy.
 Staining of FNAC aspirate.
 Observation of IHC & PAP smear.

2. Preparation of thick and thin smear: slide method
THIN SMEAR PREPARATION
 Place a small drop of blood on the pre-
cleaned, labeled slide, near its frosted
end.
 Bring another slide at a 30-45° angle up
to the drop, allowing the drop to spread
along the contact line of the 2 slides.
 Quickly push the upper (spreader) slide
toward the unfrosted end of the lower
slide to make a tongue shape.
 Air dry.

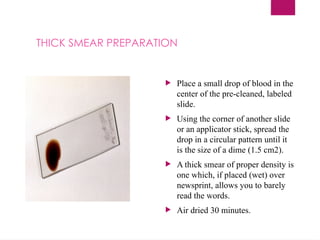

3.  Place a small drop of blood in the
center of the pre-cleaned, labeled
slide.
 Using the corner of another slide
or an applicator stick, spread the
drop in a circular pattern until it
is the size of a dime (1.5 cm2).
 A thick smear of proper density is
one which, if placed (wet) over
newsprint, allows you to barely
read the words.
 Air dried 30 minutes.
THICK SMEAR PREPARATION

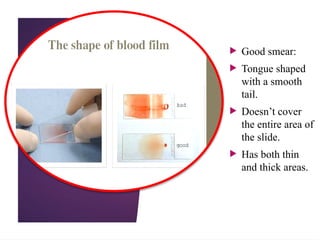

4.  Good smear:
 Tongue shaped
with a smooth
tail.
 Doesn’t cover
the entire area of
the slide.
 Has both thin
and thick areas.

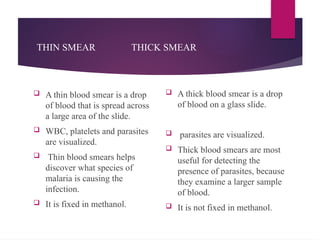

5. THIN SMEAR THICK SMEAR
 A thin blood smear is a drop
of blood that is spread across
a large area of the slide.
 WBC, platelets and parasites
are visualized.
 Thin blood smears helps
discover what species of
malaria is causing the
infection.
 It is fixed in methanol.
 A thick blood smear is a drop
of blood on a glass slide.
 parasites are visualized.
 Thick blood smears are most
useful for detecting the
presence of parasites, because
they examine a larger sample
of blood.
 It is not fixed in methanol.

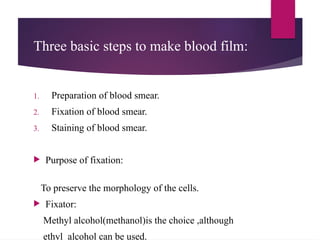

6. Three basic steps to make blood film:
1. Preparation of blood smear.
2. Fixation of blood smear.
3. Staining of blood smear.
 Purpose of fixation:
To preserve the morphology of the cells.
 Fixator:
Methyl alcohol(methanol)is the choice ,although
ethyl alcohol can be used.

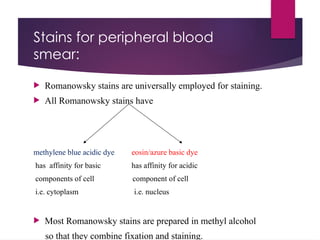

7. Stains for peripheral blood
smear:
 Romanowsky stains are universally employed for staining.
 All Romanowsky stains have
methylene blue acidic dye eosin/azure basic dye
has affinity for basic has affinity for acidic
components of cell component of cell
i.e. cytoplasm i.e. nucleus
 Most Romanowsky stains are prepared in methyl alcohol
so that they combine fixation and staining.

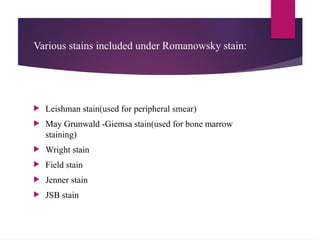

8. Various stains included under Romanowsky stain:
 Leishman stain(used for peripheral smear)
 May Grunwald -Giemsa stain(used for bone marrow
staining)
 Wright stain
 Field stain
 Jenner stain
 JSB stain

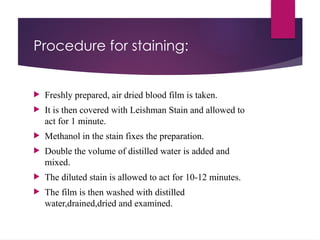

9. Procedure for staining:
 Freshly prepared, air dried blood film is taken.
 It is then covered with Leishman Stain and allowed to
act for 1 minute.
 Methanol in the stain fixes the preparation.
 Double the volume of distilled water is added and
mixed.
 The diluted stain is allowed to act for 10-12 minutes.
 The film is then washed with distilled
water,drained,dried and examined.

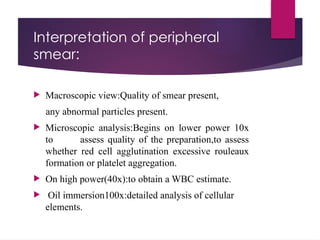

10. Interpretation of peripheral
smear:
 Macroscopic view:Quality of smear present,
any abnormal particles present.
 Microscopic analysis:Begins on lower power 10x
to assess quality of the preparation,to assess
whether red cell agglutination excessive rouleaux
formation or platelet aggregation.
 On high power(40x):to obtain a WBC estimate.
 Oil immersion100x:detailed analysis of cellular
elements.

11. RBC: PERIPHERAL SMEAR
Normal human red blood cells
are:
• biconcave discs
• mean diameter of about 7.5 μm.
• They are slightly smaller than small
lymphocytes.
• The hemoglobin of red cells is
located peripherally, leaving an area
of central pallor
• equal to approximately 30 to 45% of
the diameter of the cell..

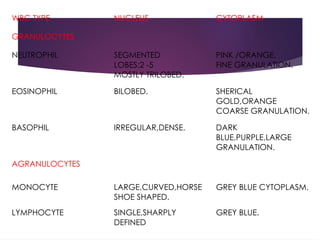

12. WBC TYPE NUCLEUS CYTOPLASM
GRANULOCYTES
NEUTROPHIL SEGMENTED
LOBES:2 -5
MOSTLY TRILOBED.
PINK /ORANGE,
FINE GRANULATION.
EOSINOPHIL BILOBED. SHERICAL
GOLD,ORANGE
COARSE GRANULATION.
BASOPHIL IRREGULAR,DENSE. DARK
BLUE,PURPLE,LARGE
GRANULATION.
AGRANULOCYTES
MONOCYTE LARGE,CURVED,HORSE
SHOE SHAPED.
GREY BLUE CYTOPLASM.
LYMPHOCYTE SINGLE,SHARPLY
DEFINED
GREY BLUE.

13. Platelet: peripheral
smear
• Size:1-3 µm
• Non nucleated cells
derived from
cytoplasmic
fragments of
megakaryocytes.
• Has purple red
granules.
• Lilac colour.

14.  A RBC
 B REACTIVE
LYMPHOCYTE
 C ,E ,I
NEUTROPHIL
 D EOSINOPHIL
 F MONOCYTE
 H
LYMPHOCYTE
 J BASOPHIL

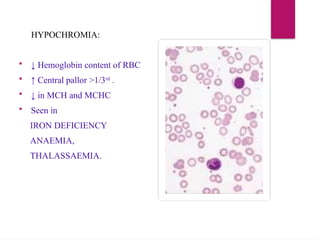

15. HYPOCHROMIA:
 ↓ Hemoglobin content of RBC
 ↑ Central pallor >1/3rd
.
 ↓ in MCH and MCHC
 Seen in
IRON DEFICIENCY
ANAEMIA,
THALASSAEMIA.

16. SICKLE CELL ANAEMIA:
• Cells are sickle (boat) or
crescent shaped.
• Present in film of patient
with homozygous HbS
• Absent in neonates and rare
in high HbF percentage.

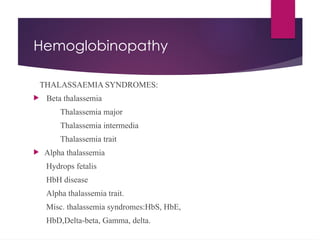

17. Hemoglobinopathy
THALASSAEMIA SYNDROMES:
 Beta thalassemia
Thalassemia major
Thalassemia intermedia
Thalassemia trait
 Alpha thalassemia
Hydrops fetalis
HbH disease
Alpha thalassemia trait.
Misc. thalassemia syndromes:HbS, HbE,
HbD,Delta-beta, Gamma, delta.

18. Sickle cell disease
HbS
 Heterozygous : Sickle cell trait : Hb AS
 Homozygous: Sickle cell anemia : Hb SS
 Combined : Sickle cell β thalassemia :
Sickle cell Hemoglobin C disease
 Hb S provides protection against falciparum malaria

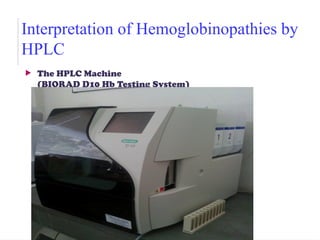

19. Interpretation of Hemoglobinopathies by
HPLC
 The HPLC Machine
(BIORAD D10 Hb Testing System)

20. Chromatography:
• Chromatography is the separation of a mixture into
its components

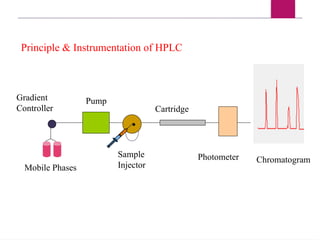

21. Principle & Instrumentation of HPLC
Pump
Sample
Injector
Cartridge
Photometer
Mobile Phases
Gradient
Controller
•
Chromatogram

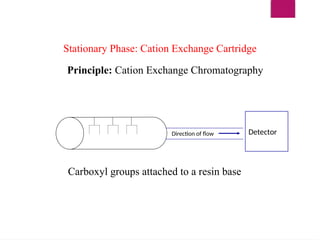

22. Stationary Phase: Cation Exchange Cartridge
Carboxyl groups attached to a resin base
Direction of flow Detector
Principle: Cation Exchange Chromatography

23. Hemoglobin Introduction
Positively charged hemoglobin fragments attach to the
carboxyl groups at varying strengths.

24. Starting Gradient:
Low Ionic Strength Buffer
The gradient starts with a low % of Buffer B and high %
Buffer A
At this gradient, hemoglobin fragments with an ionic
strength lower than the buffer gradient, such as F, are
displaced from the cartridge and pass into the detector

25. Ending Gradient:
High Ionic Strength Buffer
• As the % of the High Ionic Strength Buffer B increases, more
hemoglobin fragments will be displaced.
• Once the gradient is 100% Buffer B all remaining hemoglobin
fragments, including any variant hemoglobin such as S, D and C,
will be removed.

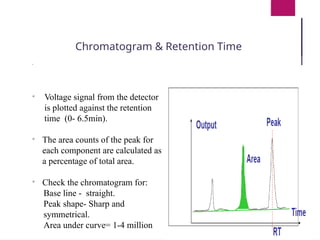

26. Chromatogram & Retention Time
•

Voltage signal from the detector
is plotted against the retention
time (0- 6.5min).

The area counts of the peak for
each component are calculated as
a percentage of total area.

Check the chromatogram for:
Base line - straight.
Peak shape- Sharp and
symmetrical.
Area under curve= 1-4 million

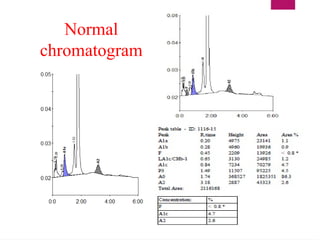

27. Normal
chromatogram

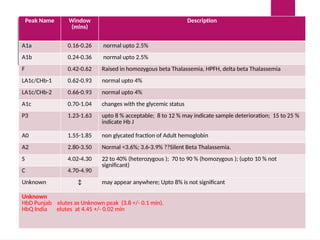

28. Peak Description
Peak Name Window
(mins)
Description
A1a 0.16-0.26 normal upto 2.5%
A1b 0.24-0.36 normal upto 2.5%
F 0.42-0.62 Raised in homozygous beta Thalassemia, HPFH, delta beta Thalassemia
LA1c/CHb-1 0.62-0.93 normal upto 4%
LA1c/CHb-2 0.66-0.93 normal upto 4%
A1c 0.70-1.04 changes with the glycemic status
P3 1.23-1.63 upto 8 % acceptable; 8 to 12 % may indicate sample deterioration; 15 to 25 %
indicate Hb J
A0 1.55-1.85 non glycated fraction of Adult hemoglobin
A2 2.80-3.50 Normal <3.6%; 3.6-3.9% ??Silent Beta Thalassemia.
S 4.02-4.30 22 to 40% (heterozygous ); 70 to 90 % (homozygous ); (upto 10 % not
significant)
C 4.70-4.90
Unknown ↕ may appear anywhere; Upto 8% is not significant
Unknown
HbD Punjab elutes as Unknown peak (3.8 +/- 0.1 min).
HbQ India elutes at 4.45 +/- 0.02 min

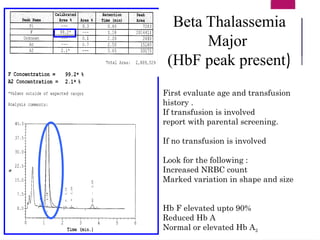

29. First evaluate age and transfusion
history .
If transfusion is involved
report with parental screening.
If no transfusion is involved
Look for the following :
Increased NRBC count
Marked variation in shape and size
Hb F elevated upto 90%
Reduced Hb A
Normal or elevated Hb A2
Beta Thalassemia
Major
(HbF peak present)

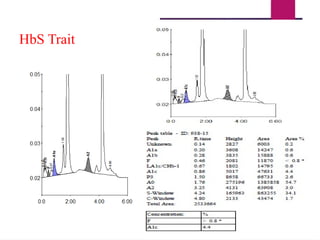

30. HbS Trait

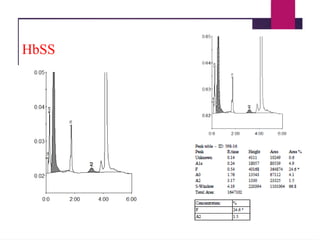

31. HbSS

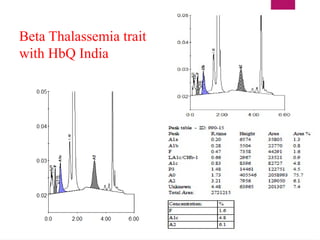

32. Beta Thalassemia trait
with HbQ India

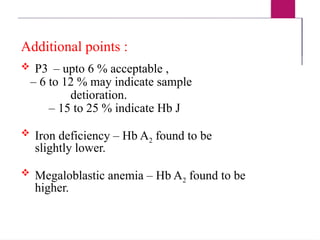

33. Additional points :
 P3 – upto 6 % acceptable ,
– 6 to 12 % may indicate sample
detioration.
– 15 to 25 % indicate Hb J
 Iron deficiency – Hb A2 found to be
slightly lower.
 Megaloblastic anemia – Hb A2 found to be
higher.

34. Preparation and staining
bone marrow aspiration
and biopsy
BONE MARROW
ASPIRATION
Preparation:
Make films of aspirated marrow 3-5
cm in length using:
Smooth edge glass spreader 2cm in
width.
Put a drop of marrow on slide.
Drag the drop by spreader leaving a
trail of cells behind it.
Fix the film and stain them.
Staining:
Most commonly done using May
Grunwald -Giemsa stain or Wright
stain.

35. FNAC
STAINING :
 AIR DRYING: Followed by staining with a hematological stain such as MG-Giemsa stain or
Jenner Giemsa stain .
 ALCOHOL FIXATION: Followed by staining according to PAP or with H&E.

36. Pap smear and IHC

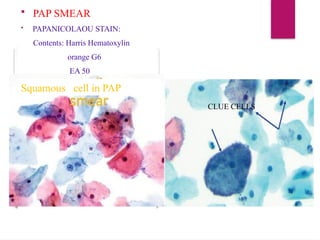

 PAP SMEAR
 PAPANICOLAOU STAIN:
Contents: Harris Hematoxylin
orange G6
EA 50
CLUE CELLS
Squamous cell in PAP

37. IMMUNOHISTOCHEMISTRY
STEPS IN IHC
1.TISSUE SECTIONS
2.ANTIGEN RETRIEVAL
3.BLOCKING ENDOGENOUS
ENZYMES
4.PRIMARY ANTIBODY
5.SECONDARY ANTIBODY
6.CHROMOGEN SUBSTRATE
7.COUNTER STAIN
8.MOUNTING
9.MICROSCOPIC OBSERVATION
FULLY AUTOMATED IHC
MACHINE
