Party + REST = Win
- 1. PARTY + REST = WIN! BUILDINGA RESTFUL WEB SERVICE AS A COMPANION APP FOR A LIVE EVENT Jimmy Sieben Lead Programmer, Gearbox Software Twitter: @jimmys jimmy.sieben@gearboxsoftware.com
- 2. A WORD ABOUTME I have been programming for 20+ years (15 professionally) I am a game maker since 1995 I joined Gearbox in 2002 Network & Game Programming on multiple titles • Halo: Combat Evolved (PC) • Brothers in Arms: Road to Hill 30 (PC/Xbox) • Brothers in Arms: Hell’s Highway (PC/PS3/Xbox 360) • Borderlands 1 (PC/PS3/Xbox 360) • Borderlands 2 (PC/PS3/Xbox 360)
- 3.
- 4. WHAT ARE WEB SERVICES? Webservices enable devices to communicate over the web HTTP is used as the underlying protocol Data is sent and received in a machine-readable encoding • XML • JSON • Protocol Buffers • Various vendor-specific encodings Services are written in a wide variety of languages Many frameworks exist to support creating Web Services
- 5. WHY WEB SERVICES? ProvideAPI for a Web Application HTTP is a well-known protocol HTTP easily traverses firewalls Take advantage of widely deployed tools Every language implements it well Stateless design is simple to implement and scale
- 6. WHAT ARE WEB SERVICESUSED FOR? Social Networking Software as a Service Infrastructure as a Service System Integration Mashups
- 7. WEB SERVICE ARCHITECTURES Two dominantarchitectures for Web Services exist: SOAP / XML-RPC • Focused on exposing business rules and state • Formal descriptions of protocol, automated tools • Relies on complex infrastructure components • XML is usually the encoding RESTful • Focused on resources and relationships between them • Informal specs; not a standard – a technique or style • Typically simpler and lighter weight • JSON is a popular encoding
- 8.
- 9. REPRESENTATIONAL STATE TRANSFER Architecture described byRoy Fielding in his Doctoral dissertation Architectural Styles and the Design of Network- based Software Architectures (2000) available here: http://www.ics.uci.edu/~fielding/pubs/dissertation/rest_arch_style.htm • Client–server • Stateless • Cacheable • Layered system • Uniform interface • Code on demand (optional)
- 10. PRINCIPLES OF RESTFUL SERVICES •Identification of Resources • Identify resources via URIs • Resources are independent of representation • Manipulate Resources Through Representations • Resource representation & associated metadata is enough information for a client to modify or delete it • Self-descriptive Messages • MIME types determine how to interpret content • Cache control defined by the response • HATEOAS: Hypermedia As The Engine of Application State • Clients make state transitions based on actions defined in representations
- 11. OH, CRUD! Use HTTPVerbs on Resources Create Read Update Delete POST GET PUT DELETE
- 12. MIME TYPES DESCRIBE CONTENT •RFC 2046 describes a system to identify content format • Syntax: type/subtype; optional parameters • image/jpeg • text/html; charset=UTF-8 • HTTP Headers use these to negotiate content • Accept allows client to request format • Content-type required on responses to identify format • Common MIME types • text/plain • text/html • application/json • application/xml • image/jpeg • image/png
- 13. HTTP STATUS CODES •RESTful Services use these to communicate application state • 1xx: Informational • 2xx: Successful • 200 Success • 201 Created • 3xx: Redirection • 301 Moved Permanently • 4xx: Client Error • 401 Unauthorized • 404 Not Found • 5xx: Server Error • 500 Internal Server Error • 503 Service Unavailable
- 14.
- 15. Person: {name: “Bob”,age: 25} http://www.example.com/person/123 {name: “Bob”, age: 25, mother: “http://www.example.com/person/78} {name: “Martha”, age: 58, mother: “http://www.example.com/person/11”} Define the Resources important for your application Expose resources as paths in the URI Build relationships between those resources DESIGNING A RESTFUL SERVICE
- 16. CREATE: POST TOA COLLECTION REQUEST POST /people HTTP/1.1 Content-type: application/json Content-length: nnn {name: “Bob”, age: 25} RESPONSE HTTP/1.1 201 Created Content-type: application/json Content-length: nnn Location: http://www.example.com/person/123 Etag: 74bef98a330ac {name: “Bob”, age: 25, updated: “2013-01- 31T18:24:36Z”}
- 17. READ: GET A RESOURCE REQUEST GET/person/123 HTTP/1.1 Accept: application/json RESPONSE HTTP/1.1 200 OK Content-type: application/json Content-length: nnn Location: http://www.example.com/person/123 Etag: 74bef98a330ac {name: “Bob”, age: 25, updated: “2013-01- 31T18:24:36Z”}
- 18. UPDATE: PUT A RESOURCE REQUEST PUT/person/123 HTTP/1.1 Content-type: application/json Content-length: nnn {name: “Bob”, age: 24} RESPONSE HTTP/1.1 200 OK Content-type: application/json Content-length: nnn Location: http://www.example.com/person/123 Etag: 83c092fdb32b {name: “Bob”, age: 24, updated: “2013-01- 31T18:47:02Z”}
- 19. DELETE: DELETE A RESOURCE REQUEST DELETE/person/123 HTTP/1.1 DELETE /person/123 HTTP/1.1 Authorization: Basic X738bjNhsk2j== RESPONSE HTTP/1.1 401 Unauthorized WWW-Authenticate: Basic realm=“administration” HTTP/1.1 204 No Content
- 20. BE CAREFUL WITHBASIC AUTHORIZATION • Basic Authorization passes credentials Base64 encoded • This is easily decoded – equivalent to cleartext! • Fine for toy examples, be careful for production services • Can be OK to use if the service is deployed on SSL • Recommended to consider application-level scheme such as OAuth 2.0 • See the following for more information • http://blog.apigee.com/detail/api_authentication_and_how_ it_got_that_way_from_http_basic_to_oauth_2.0 • http://stackoverflow.com/questions/549/the-definitive- guide-to-forms-based-website-authentication
- 21. PARTY ON! A RESTFULSERVICE IN PRACTICE
- 22. GEARBOX HOLIDAY PARTY For thepast few years, the party features an extended presentation that the partygoers watch as gifts are awarded For 2012, we wanted to extend this with some interactivity The idea was born to allow participants to vote on their smartphones by building a companion app • Ugly Christmas Sweater Contest • White Elephant – Choose Their Fate The companion app tabulates votes via RESTful service The presentation asks the service for the results in real-time

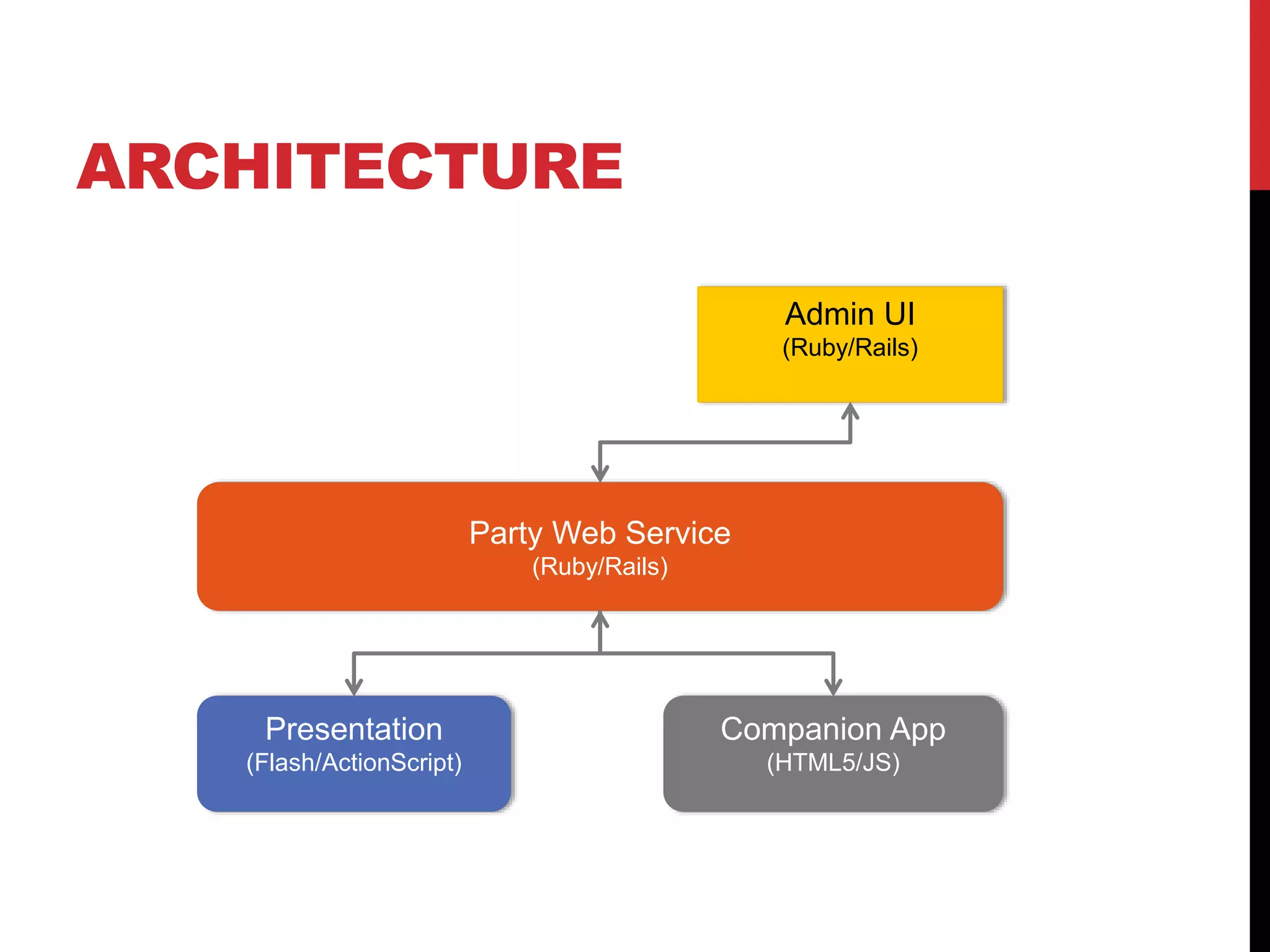

- 23. ARCHITECTURE Party Web Service (Ruby/Rails) Presentation (Flash/ActionScript) CompanionApp (HTML5/JS) Admin UI (Ruby/Rails)
- 24. Splash screen whilevoting is closed COMPANION APP
- 25. The ballot isnot yet open for voting PRESENTATION
- 26. Voting is happeningon the Companion App PRESENTATION
- 27. Participants can tapon sweaters any number of times to vote COMPANION APP
- 28. Polls closed, winnerchosen PRESENTATION
- 29. White Elephant votingis in progress PRESENTATION
- 30. Participants can tapon words any number of times to vote COMPANION APP
- 31.
- 32. Ballots defined, CRUDoperations, controls to manually activate & deactivate SERVICE ADMINISTRATION http://partyservice/ballots
- 33. Choices defined, CRUDoperations SERVICE ADMINISTRATION http://partyservice/ballot/1/choices
- 34. Edit a choice,view the choice SERVICE ADMINISTRATION http://partyservice/ballot/1/choice/2
- 35. Entrants defined, CRUDoperations SERVICE ADMINISTRATION http://partyservice/entrants
- 36. Edit an entrant,view an entrant SERVICE ADMINISTRATION http://partyservice/entrant/3
- 37.
- 38. IMPLEMENTING A RESOURCE Examples arein Ruby 1.9 with Rails 3.2 The principles apply to any RESTful design, irrespective of language and framework First we will look at the routes which define resources Then we will see CRUD operations implemented along with a special custom action Finally we will bring it all together in the companion app and the presentation
- 39. Defines Resources andprovides a means to access them via HTTP verbs ROUTES: THE HEART OF THE SERVICE
- 40. This method supportsJSON encoding and creates a ballot from the POST body CREATE BALLOT
- 41. This method displaysa ballot either in HTML for the admin UI, or JSON for the app READ BALLOT
- 42. This method readsthe JSON ballot, saves it, then renders again in desired format UPDATE BALLOT
- 43. This method deletesa ballot. In the admin UI, it redirects to the ballot listing DELETE BALLOT
- 44. Not 100% RESTful,but a convenient pattern to add another verb CUSTOM METHOD: ACTIVATE
- 45. Also not 100%RESTful, this method records a vote CUSTOM METHOD: RECORD VOTE
- 46. JavaScript in thebrowser loads choices from the service, inspecting JSON result APP: LOAD CHOICES
- 47. JavaScript in thebrowser sends votes to a custom action APP: VOTE ON A CHOICE
- 48. Presentation ActionScript prefetchesthe ballot, choices, and images (HTTP GET) PRESENTATION: PREFETCH
- 49. Presentation ActionScript activatesa ballot to open the polls (HTTP POST) PRESENTATION: ACTIVATE BALLOT
- 50. Presentation ActionScript requestsresults in real-time (HTTP GET) PRESENTATION: GET RESULTS
- 51.
- 52. RESULTS! The party service,app, and presentation were a big hit We processed over 50,000 votes in approximately 10 minutes Partygoers reported they really enjoyed the experience Future work: • More interactivity • Mini-game?
- 53. PARTING THOUGHTS RESTful WebServices are great because they are a simple way to take advantage of the whole web pipeline There are some downsides • Ad-hoc implementations mean little guidance, especially on crucial topics like security and I18N • There’s not necessarily one way to do things • May need to roll-your-own connections to services from different vendors Embrace the architecture, be pragmatic Build a companion app that pushes the boundary Have fun!
- 54. ADDITIONAL RESOURCES Sun Cloud APIexploration http://kenai.com/projects/suncloudapis/pages/HelloCloud REST Anti-Patterns http://www.infoq.com/articles/rest-anti-patterns RESTFul Web Services Leonard Richardson, Sam Ruby O'Reilly Media, May 2007 Jimmy Sieben Lead Programmer, Gearbox Software Twitter: @jimmys jimmy.sieben@gearboxsoftware.com
