1
TABLE OF CONTENTS
Amana.............................................................................................................. 4-8
Frigidaire.................................................................................................... 9-23
General Electric................................................................... 24-31
Maytag..............................................................................................................32-63
Whirlpool................................................................................................. 64-108
109-112
Greenwald Industries, Inc...................113-114
Eagle.............................................................................................................. 115
N.E.T............................................................................................................... 116
Stevens..............................................................................................................116
Escort............................................................................................................. 116
PARTS
BRAND PAGE
Amana
Dryer Parts................................................................................................................................................................. 4

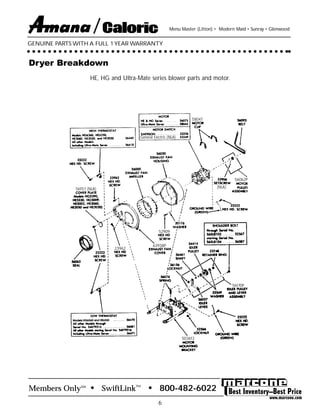

Dryer Breakdown.......................................................................................................................................... 5
Dryer Breakdown.......................................................................................................................................... 6
Washer Parts........................................................................................................................................................... 7
Commercial Laundry............................................................................................................................. 8
Frigidaire
Dryer Parts, Belts.......................................................................................................................................... 9
Dryer Parts, Ignitors................................................................................................................................. 10

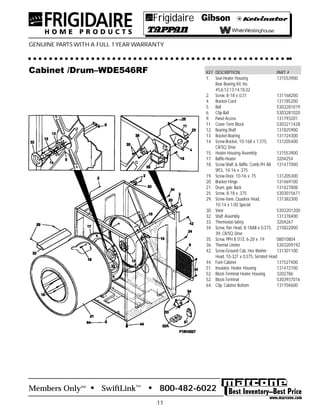

Cabinet/Drum Breakdown......................................................................................................... 11

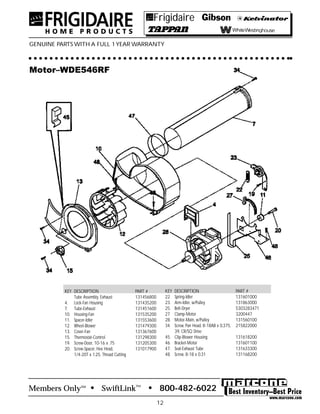

Motor Breakdown....................................................................................................................................... 12
Burner Breakdown...................................................................................................................................... 13
27” Electric Dryer Breakdown............................................................................................. 14
27” Dryer Breakdown........................................................................................................................... 15
27” Dryer Breakdown........................................................................................................................... 16
27” Dryer Breakdown........................................................................................................................... 17
Washer Parts.............................................................................................................................................................. 18
Cabinet, Door & Top Breakdown................................................................................. 19
Tub & Motor Breakdown.............................................................................................................. 20
Motor Tub Breakdown........................................................................................................................ 21
27” Washer & Laundry Center Breakdown........................................... 22
27” Washer & Laundry Center Transmission Breakdown.... 23
General Electric
Dryer Parts, Orifice Kit, Heater Coils, Thermostats,................... 24
Belts, Repair Manual, Door Switch............................................................................ 24
Washer Parts, Motor Relays, Timer Switches,............................................ 25
Transmission, Motors....................................................................................... ...................................... 25
Hubs, Repair Manual Flexible Coupling, Foot Pad,................. 26
Agitaotr Coupling, Floor Tray, Filter pan, Drive Belt,........... 26
BRAND PAGE
General Electric (Cont.)
Leveling Leg Pads, Drain Hoses....................................................................................... 26
Hose Adaptors, Turbo Bailer, Clamp Assemblies,...................... 27
Washer Boot, Rinse Aid Dispenser, Boot Adhesive.................. 27
Washer Timers, Cross Reference............................................................ 28
Controls & Backsplash Breakdown.................................................. 29

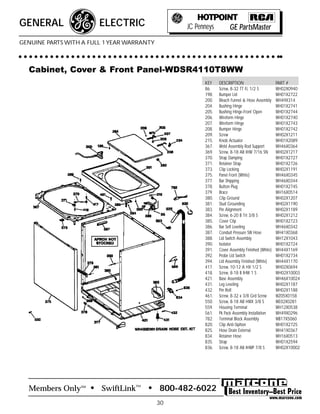

Cabinet, Cover & Front Panel Breakdown................................... 30
Tub, Basket & Agitator Breakdown.................................................. 31
Maytag
Dryer Parts, Motors, Drum Rollers, Thermostats,................. 32
Heating Elements......................................................................................................................................... 32
Ignitors, Dryer Coils, Lint Screens, Belts......................................................... 33
Dryer Accessories......................................................................................................................................... 34
Breakdown.......................................................................................................................................... 35
Control Panel Breakdown................................................................................................. 36
Door Breakdown................................................................................................................................. 37
Cabinet, Front Breakdown................................................................... 38
Cabinet, Rear Breakdown..................................................................... 39
Tumbler Breakdown.................................................................................. 40
Heater Breakdown..................................................................................... 41
Gas Valve Breakdown............................................................................. 42
Motor Drive Breakdown........................................................................ 43
Lint Screen, Tumbler (Front & Back) Breakdown.................. 44
Motor, Blower, Base Frame & Thermostats Breakdown... 45
Inlet Duct & Heater Assembly Breakdown............................... 46
Washer Parts, Pumps, Belts.................................................................... 47
Washer Parts, Accessories........................................................................................................... 48
Accessories............................................................................................................................................................. 49
Accessories (Cont.).................................................................................................................................. 50
Control Panel Breakdown........................................................................................................... 51

2
BRAND PAGE
Maytag (Cont.)
Top Breakdown................................................................................................................................................ 52
Door & Front Panel Breakdown..................................................................................... 53
Door Shroud & Door Latch Assembly Breakdown................. 54
Cabinet Front Breakdown.......................................................................................................... 55
Cabinet, Rear Breakdown............................................................................................................ 56
Spinner Assembly & Outer Tub Cover Breakdown................ 57
Outer Tub & Motor Breakdown................................................................................... 58

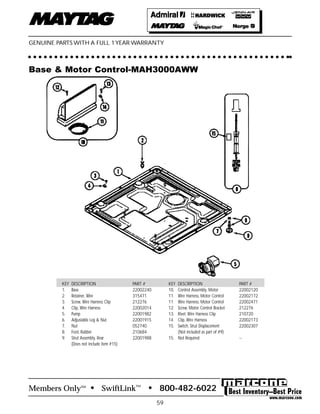

Base & Motor Control Breakdown......................................................................... 59
Tub, Agitator, Mounting Stem & Seal Breakdown.................... 60
Clutch, Brake & Belts Breakdown.............................................................................. 61
Base, Pump, Motor & Components Breakdown............................ 62
Section, Orbital Transmission Breakdown................................................... 63
Whirlpool
Dryer Parts, Belts, Thermostats, Rollers, Door Cables,..... 64
Heater Kit..................................................................................................................................................................... 64
Drum Support Roller & Components....................................................... 65

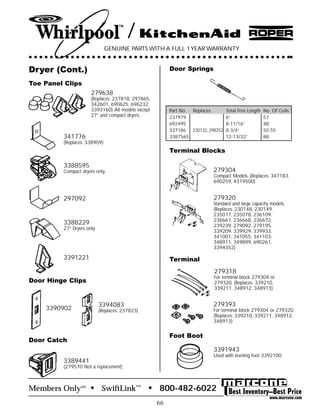

Clips, Door Catch, Door Springs, Terminal Blocks,................... 66
Terminal, Foot Boot.................................................................................................................................. 66
Power Relays, Drum Seal, Door Strikes, Bearing Supports67
Mobile Home Feet....................................................................................................................................... 67
Leveling Feet, Thermal Fuse, Cut-Off, Heater, Thermistor...... 68
Lint Screens, Drive Belts......................................................................... 69
Ignitor Parts,, Posi-Lite Ignition, Main Drive Motor,............ 70
Idler Pulley, Pad, Top Lock Clip, Ground Clamp,................. 70
Blower Wheel, Terminal Wire, Heating Elements.................. 70
Dryer Drum Parts Breakdown............................................................. 71
Bulkhead Parts Breakdown................................................................... 72
Top & Console Parts Breakdown.................................................... 73
Cabinet Parts Breakdown...................................................................... 74
Laundry Accessories................................................................................................................................. 75-76
Washer Parts, Wigwag Kits, Hoses, Belts Motors,.................. 77
Pumps, Valves........................................................................................................................................................ 77
filters, Drives, Breaks................................................................................................................................ 78
Fabric Softener Dispenser, Hoses, Snubber Springs &... 79
Pads, Switches, Harness Clip............................................................................................... 79
Lid Switch Actuators, Jumper Plug, Pressure Switches.... 80
Tub Repair Kit and Ring Vlips........................................................................................... 80
Leveling Feet.......................................................................................................................................................... 81
Main Drive Motors, Motor Switches, Capacitors......................... 82
BRAND PAGE
Whirlpool (Cont.)
Water Pumps........................................................................................................................................................... 83
Detergent Dispenser, Valves, Adapter.................................................................... 84
Mixing Valves, Side Check Valves............................................................ 85
Drain Hoses, Protector, Siphon Break, Susp. Springs.............. 86
Drain Hose Connectors, Drive Belts........................................................................ 87
Gearcase Assemblies, Basket Drive Blocks........................................ 88
Gearcase Parts (Belt Drive) Breakdown.............................................................. 89
Gearcase Parts (Direct Drive) Breakdown....................................................... 90
Brake & Drive Tube Parts Breakdown..................................................................... 91
Basket Drive & Brake Assemblies........................................................................... 92
Basket Drive & Brake Parts Breakdown............................................................... 93
Centerpost Seals, Spin Tube Supports, Lock Nuts,.............. 94
Centerpost Bearings, Agitator Studs & Screw, .................... 94
Centerpost Gasket...................................................................................................................................... 94

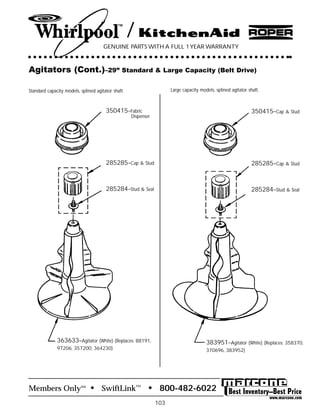

Agitatos............................................................................................................................................................................ 95-105
Machine Base Parts Breakdown......................................................................................... 106
Agitator, Basket & Tub Parts Breakdown........................................................ 107
Brake, Clutch, Gearcase, Motor & Pump Parts Breakdown 108
Hose Fittings & Aerator Adaptors...................................................................... 109
Hoses, Hose Clamps & Tape.................................................................................. 110
Dryer/Bath & All Purpose Venting...................................................................... 111
Switches.................................................................................................................................. 112
Greenwald Industries, Inc.
Commercial Laundry, Chutes, Coin Meters, Bolts,............... 113
Start Mechanisms, Boxes................................................................................................................. 113
Lock & Key Quick Reference................................................................................................. 114
Eagle
Receptacles, Adapter/Fuses, Appliance Cords....................................... 115
N.E.T.
Hand Truck Accessories................................................................................................................... 115
Stevens/Escort
Dollies................................................................................................................................................................................... 116
Notes.............................................................................................................................................................................. 117

3
The Top 10 Reasons Marcone is Chosen
More Than Any Other Parts Distributor
10. Largest Appliance Parts Inventory in the Nation
9. More Than 5,000 Years Combined Experience
8. Same-Day Shipping Available
7. Marcone Recommended Inventory
6. Hassle-Free Warranty Processing
5. Members Only Web-Based Services
4. Friendliest Staff in the Business
3. SwiftLink™ Point of Sale Software
2. Largest Selection of OEM Parts
1. Big Enough to Fill Your Needs,
Small Enough to Know Your Business
THE #1 Software Solution For
The Retail & Service Industry!
Our software handles every aspect of your business.
• Service Tracking • Price & Availability
• NARDA/NESDA • Model Number Lookup
• Point of Sale • Electronic Ordering
• Reports & Inquiry • Inventory Control
• Purchasing & Receiving • Integrated Accounting
Whether your business is small or large contact us at
1-800-SWIFTLINK (794-3854) www.swiftlink.com

GENUINE PARTS WITH A FULL 1 YEAR WARRANTY
4
R9900464
Blower Bearing. Used on models with
51994 blower drive belt. (Old #51991)
Dryer
/ Menu Master (Litton) • Modern Maid • Sunray • Glenwood
51994
V-Belt, blower drive. Used on “D”, “C”,
“F”, “K”, and most 113 through 266F
models. (Replaces LB250 and
8195-994)
52556
Belt, dryer drum, 4-rib/3 groove, 98”
length. Used on most gas and electric
models series “D”, “C”, “F”, and most
113 through 266F models.
56095
length. Used on most gas and electric
models series “H”, “R”, “S” and some “F”
series.
40051502
length. Used on most production
models. (1980-current) (59174)
56088
Dryer Drum Seal. “HE”, “HG” and
“Ultra-mate” series models.
55438
Round ignitor for gas dryers. Universal
application. (Replaces DE350)
(WE4X444, 303376, 5300600831)
40069801P
Gas Dryer Ignitor, replaces flat style.
(Old #60868)
56231
Flame Sensor, senses ignitor for heat
and flame allowing gas valve to open.
(303377, 338906)
61927
Dryer Heating Element Kit. 5000 Watt,
240V. Includes limit thermostat and
thermal fuse. Used on all production
models. (1980-current)
56000
Exhaust Fan Impeller. Used on “HE”, “HG”
and “Ultra-mate” series models.
56082
Dryer Hi-limit Thermostat. 300˚, flush
mount.
58804A
Booster and holding coil for White
Rodgers style “M” gas valves since 1984.
(5303931775 Kit, 279834 Kit,
12001349 Kit) (306106)
58804B
Secondary coil for White Rodgers style
“M” gas valves since 1984.
(5303931775 Kit, 279834 Kit,
12001349 Kit) (306105)
56225A
Gas Valve Coil Kit. For both domestic &
commercial gas dryers, using White
Rodgers system. Complete w/wiring
harness for quick replacement.
(Replaces DE381) (279137)
56285P
Drum Support Roller and Shaft Assembly.
(Replaces DE703 and 85-285)
62649P
Dryer Drum Roller. Used on all
production models. (1980-current)
58044
Dryer Motor. Used on “H”, “N” and
“Ultra-mate” series models.
61376P
Lint Filter. Used on all production models.
(1980-current)
504570
Dryer Door Switch. Used in current
production on “AEM”, “AGM”, “LEM”,
“LGM”, “LE” and “LG” models.

5
HE, HG and Ultra-Mate series rear bulkhead, felt seal and cylinder roller.
Dryer Breakdown
M400664
56090P
58520 (NLA)
M400664
62649P

6
HE, HG and Ultra-Mate series blower parts and motor.
Dryer Breakdown
58047
General Electric (NLA)
23962
63938P
52909
503613
56170P
(NLA)
56062P
56157 (NLA)

7
20058
Solenoid. Used for many functions
including spin, agitate, drain and brake,
115 VAC.
(Replaces LP244, 626-612 & 7612)
Washer
27155
V-Belt, notched pump belt. Use on all
(Replaces LB140 and 8195-155)
R9900467
4-port Plastic Pump. Used on Amana &
Speed Queen models. (1980 to current)
(Old #31968)
(Replaces 8100-065)
R9900468
2-port Plastic Pump for commercial and
some domestic washers. Used on Speed
Queen models. (1980 to current)
(Old #31969) (Replaces 8100-237)
40040301
Washer Pump, new style. Used in current
production on “AWM”, “LWM”, “CW”,
“LW” and “TW” models. (Old #36863P)
26069
Washer Motor, 2-speed. Used on “DA”
and “FA”
27179P
Washer Motor, 2-speed. Used on all
27658P
Washer Motor, 1-speed. Used on “HA”
and “SA” models.
33930
Water Inlet Valve. Used on all production
models. (1980-current)
28808
V-Belt, drive belt. Use on all production
models. (1980-current) (Replaces LB142
and 8195-808)
364P3
Idler Pulley Kit. Includes 28808 belt,
bracket, pulley and spring. Use on all
40004201P
Upper Tub Bearing in triangular housing.
Used on all production models.
(1980-current) (Old #27182)
20129
Rubber Boot for seal between outer tub
and main bearing. Auto models through
“FA” series (Speed Queen only).
356P3
Tub Seal Kit for long post transmissions.
(Not for use with 33227 short post
transmissions).
R9900552
Hub & Seal Kit. Used in current
production on “AWM”, “LWM” “CW”, “LW”
and “TW” models. Also used on “AA” and
“NA” models. (495P3)
548P3
Brake Pad Package. Includes 3 pads, bolts
and grommets. (Old #348P3)

8
M400086P
Fan & Key. (DT1181D)
Commercial Laundry
M400090P
Sprocket, 72 teeth, cast (50 lb. dryer).
1” hole.
M400091P
Sprocket, 72 teeth, aluminum
(30 lb. dryer). 3/4” hole.
M401365
Drive Sprocket, 11 teeth-Sintere, 30 lb.
idler drive, (TW 623-1)
M401366
Sprocket, 11 teeth, 50 lb. idler drive,
(TW 623-3)
M401369
Idler Sprocket, chain take-up, nylon.
M401425
Drive Chain, roller #41, 48”.
M400092P
Sheave used on 30 and 50 lb. dryers.
(DT1332)
M401182
V-Belt, 67”. (TT-128)
M400383
Motor, 1/3 HP, 1 ph. (203210)
M400609
Timer Motor, 1/60 RPM. (ST129)
M400522
Lint Screen, large 24” x 24”. (ST73)
M400523
Lint Screen, small 20” x 20”. (ST731)
M400944
Switch, Actuator-Airflow. (T18337)
M400954
Switch, push-to-start.
M400962P
Rubber Seal, 21” door glass. (PVT2757)
M406129
Door Gasket, door ring. (SH)
M401223
Door Latch. (TT-188-1)
M413921
Ball Bearing, 2-13/16” O.D., 1-3/8” I.D.
(WA-107)
M400592
Ball Bearing, 1-13/16” O.D., 3/4” I.D.
(ST-108)
M402745
Spring and Connector for ignitor.
M404101
Panel Lock and Key.
M405430
Coil, main.
M400331
Burner Coil, 208/240 V.
M406297
Spring, coin retainer.
M406789
Control, ignition-IEI board.

5300063510–Belt, 3-rib/2 groove,
9/32” wide. (F63510)
5303281154–Flat Style Drum Belt.
Current production. (Q63807) (LB260)
1/4” wide. (08027638) (WE12X51)
5308057424–Drum Belt. (Replaces
08001651 & F131654-000) (LB210 &
1970-1979, 24” Frigidaire models.
(LB201 & 98195-957)
3/8” wide. (00639357)
1/4” wide. (Q000133321) (WE12X85)
3/8” wide. (07537239)
5300633665–White Lint Screen, 16”
wide. (00633665)
5308950156–Duct Kit.
(08950156) (WE14X187)
Frigidaire
9
Dryer
5366021400
Universal Door Latch Kit. (279570)
5303937088
Drum Felt with high temp. adhesive.
(F136009-000) (WE9X98)
5308950059
Rear Drum Felt Seal with adhesive.
(DE732)
5308950195
Felt Seal with 2 adhesive.
(F141782-000)
5301133954
Front and Rear Drum Seal for all
Frigidaire “R”, “S” and “T” models.
(1974-1979)
5308057415
Rear Drum Roller with metal bushing.
(2 used).
5308057416
Center Rear Roller and Shaft Assembly
with metal bushing.
5309956509
Drum Support Roller with shaft. For
Frigidaire models. (1979-1979)
(85-509)
5301167943
Drum Support Roller and Nylon Bearing
Assembly. Used on Frigidaire, Gibson &
Kelvinator models (85-943)
Belts
Part # Old # Size
06567783 6567783 4L440
5300063510 F63510 895J3
5300077011 F77011 (NLA) 4L310
5300622451 Q622451 3L329
5300638957 638957 904J4
5300639357 639357 810J3
5301134393 634914(Agit set of 2) 2L220
5301134395 634913 (Spin set of 2) 2L320
5302834353 638006 3L310
5303261151 8015096, Q12970 4L470
5303261153 8015133, Q62152 4L535
5303261155 8015132, Q62149 3L415
Part # Old # Size
5303280326 8004064, F133171, WH7X86 4L320
5303281154 Q63807, Q63812 50F88
5307529550 7529550 3L454
5307537239 7537239 890J4
5308001832 8001832, Q181625, 6594663 3L317
5308002451 8002451, F78794 4L325
5308006498 Q181624 3L319
5308011289 8011289, F139318 3L319
5308027638 F7448, WE12X51, WE12X79 776H4
5308057424 8001651, F131654, F141297 912J3
F11-14 11-14, 95405 4L480

10
5300603182
Motor. (Q000603182)
Frigidaire
Dryer
5300603185
Motor. 1/4 HP, 115 V, 4.2 amp,
1725 R.P.M. Pulley not included.
(Q000603185)
5303212849
Idler Pulley Assembly. Current WCI/Wards
UAN series. Used w/most models having
flat drum belt.
(Original White-Westinghouse Q128472)
5303281153
Drum Bearing Kit. (Replaces Q142850,
DE724 & 85-852)
131825900
Rear Drum Bearing, included in
5303281153 kit. (Q000143951)
5304409888
Terminal Block for universal application.
(Q000134264) (WE4X168, 258076)
5308013595
Thermostat, L200-40˚F. (F140800-000)
(303396)
5300184701
Switch, 15 amp, 120V/240V.
(Q000184701) (16200 & 27612)
5300600831
Universal replacement for gas dryer
ignitor. (WE4X446, 303376)
Ignitors
5303281151
Universal replacement for gas dryer
ignitor. (279311, 304970)
5300622032
Restring Kit for later style Westinghouse
type dryers, larger diameter coil.
(3937010)
5308001554
Restring Heater Element for
5303937005.
5303931775
Coil Kit for new “M” series models.
(12001349 & 279834)
5303937005
Dryer Element, used on 1980-1992
models for Frigidaire, in round canister.
(DE108)
5309956777
Element in oval canister. (09956777)
5300142885
Heavy Duty Coil, 5200 W, 255V, 83”
long. (Q000142885)
5306599498
Blower Wheel and clamp, 8” diameter.
(06599498)

11
Frigidaire
Cabinet /Drum–WDE546RF KEY DESCRIPTION PART #
1. Seal-Heater Housing 131553900
Rear Bearing Kit, Inc.
#5,6,12,13,14,18,32
2. Screw, 8-18 x 0.31 131168200
4. Bracket-Cord 131785200
5. Ball 5303281019
6. Clip-Ball 5303281020
9. Panel-Access 131793201
11. Cover-Term Block 5303211428
12. Bearing-Shaft 131825900
13. Bracket-Bearing 131724300
14. Screw-Bracket, 10-168 x 1.375, 131205400
CR/SQ Drive
15. Heater-Housing Assembly 131553900
17. Baffle-Heater 3204254
18. Screw-Shaft & Baffle, Comb PH AB 131477000
SPCL, 10-16 x .375
19. Screw-Door, 10-16 x .75 131205300
20. Bracket-Hinge 131469100
21. Drum, galv. Back 131427808
25. Screw, 8-18 x .375 5303015671
29. Screw-Vane, Quadrex Head, 131382300
10-14 x 1.00 Special
30. Vane 5303201200
32. Shaft Assembly 131378400
33. Thermostat-Safety 3204267
34. Screw, Pan Head, 8-18AB x 0.375, 215822000
39, CR/SQ Drive
35. Screw, PPH B ST/Z, 6-20 x .19 08010804
36. Thermal Limiter 5303209192
42. Screw-Ground Cab, Hex Washer 131301100
Head, 10-32T x 0.375, Serrated Head
44. Foot-Cabinet 131527400
51. Insulator, Heater Housing 131472100
52. Block-Terminal Heater Housing 3202786
52. Block-Terminal 5303937016
64. Clip, Cabinet Bottom 131704600

12
Frigidaire
Motor–WDE546RF
KEY DESCRIPTION PART #
Tube Assembly, Exhaust 131456800
4. Lock-Fan Housing 131435200
7. Tube-Exhaust 131451600
10. Housing-Fan 131535200
11. Spacer-Idler 131553600
12. Wheel-Blower 131479300
13. Cover-Fan 131367600
15. Thermostat-Control 131298300
19. Screw-Door, 10-16 x .75 131205300
20. Screw-Spacer, Hex Head, 131017900
1/4-20T x 1.25, Thread Cutting
22. Spring-Idler 131601000
23. Arm-Idler, w/Pulley 131863000
25. Belt-Dryer 5303283471
27. Clamp-Motor 3200447
28. Motor-Main, w/Pulley 131560100
34. Screw, Pan Head, 8-18AB x 0,375, 215822000
39, CR/SQ Drive
45. Clip-Blower Housing 131618200
46. Bracket-Motor 131601100
47. Seal-Exhaust Tube 131633300
48. Screw, 8-18 x 0.31 131168200

13
Frigidaire
Burner–WDG546RF
2. Screw, 8-18 x 0.31 131168200
19. Screw, CR Truss Head, 8-18AB x 131420300
0.750
39, CR/SQ Drive
55. Harness-Gas Valve 5303281137
56. Screw, Bracket Top, Pan HD Locking, 131243800
8-32CA x 0.375, CR/SQ Drive
60. Clip-Wiring, Gas Bracket 3281126
61. Bracket-Burner 131418701
64. Pipe 5303286873
65. Cap-Pipe 08015112
66. Elbow-Coupler 131512000
68. Union-Male Connector, Brass 5362791200
69. Nut-Union, Hex 08015194
70. Valve-Gas 5303207409
71. Coil Kit-Both Coils 5303931775
72. Same as above Same as above
73. Orifice, Natural Gas 5303207410
74. Ignitor Assembly 5303281151
75. Washer 3201209
77. Burner Assembly 131637300
79. Sensor 5303281135
80. Tube-Burner Assembly 3201240

14
27” Electric Dryer Breakdown
NLA
Only
3937010
Coil w/insulators
Frigidaire

15
27” Dryer Breakdown
5303307784
Frigidaire
131367101

16
Frigidaire
3281102 CLIPS (5)
(NLA)
(NLA)
(NLA)
(NLA)
• ORDER 5308014365 GREASE 1 OZ. LUBRICANT

17
Frigidaire
(NLA)
(NLA)
(NLA)
(NLA)
(NLA)
(NLA)
(NLA)
5304409888 BLOCK
TERMINAL
(NLA)
3161189 SCREW-
5306001567-1

18
131208500
Direct Drive Pump. Fits late model
Westinghouse, Frigidaire, Gibson, Kelvinator
and Tappan models. (WH23X77)
Frigidaire
Washer
5303912510
Direct Drive Washer Pump. (Franklin Style).
(WH23X61)
5308950197
Tub Seal Kit with instructions.
(F141783-000)
5303207418
Universal Fill valve with 1/2” outlet.
(08015532) (525)
5308014901
Motor, 1/2 HP, 2-speed. (F1403223-000)
5300008364
Spring. (WQ83640)
5300137158
Bearing and Seal Kit for front load washers.
(Q000137158)
5300198163
Pump Impeller and Seal Kit, used when pump
is mounted above the motor (not direct
drive). (Q000198163)
5303015649
Washer Timer.
(3015649, D142454-000-B) (WH12X844)
5303261132
Boot, front load washer door seal.
(Q000133321)
5303912532
5 ft. high pressure fill hose packaged with
washers. (F140162-000) (555 & 89503)
5303937080
Washer Transmission Pulley. Offset style, with
new style set screw to prevent loosening.
(Q000199040 & F140999-100)
5303931779
Universal Hose Washer for high pressure
inlet hoses. Also for garden hoses and
attachments. 100/pack. (18-300)
131686100
Belt for late model top-load washer with
131208500 pump. (WH7X113)
(5308002451)
5308001832
Washer Drive Belt. Used on most “H”
models. Original White-Westinghouse
Q181625. (LB111) (659-4663)
(5308002451)
5300622451
Washer V-Belt. Used on most “J” model
White-Westinghouse top loaders.
5303261151
Front Load Washer Idler Belt. Original
White-Westinghouse Q12970. (LB150)
5303261153
Front Load Washer Spin Belt. Original White-
Westinghouse Q62152. (LB154)
5303261155
Front Load Washer Drive Belt. Original
White-Westinghouse Q62149.
5303280326
Top Load Washer Belt. Used on most
current production machines. (08004064,
F133171 & LB116) (WH7X86)
5302834353
Grooved V-Belt. (02834353)
5308002451
V-Belt. (08002451)
5308011289
Washer Belt, thin, green. (08011289)
5303161428
Pulley for 3/8” belt width. (Q000631112)

19
Frigidaire
Cabinet, Door & Top–FWT445GE KEY DESCRIPTION PART #
Panel-Top, galvanized 13144500
Plug-Hole, rear panel 131396100
1. Hose-Inlet cold 131279600
2. Screw, 8-18 x 0.31 131168200
3. Hose-Inlet hot N6561384
4. Control-Speed 131690700
5. Box-Control 131268900
6. Washer, .21 x .71 x .06, .21 131304300
x .71 x .06
8. Lock-Door Assembly 131269400
9. Screw-Lock, PH AB, 10-16 x .50 131302800
10. Door-Outer 131278700
11. Glass-Door 131278800
12. Door-Inner 131278900
13. Screw, 10-16 x .75 5300806890
14. Catch-Door 131279001
15. Hinge/Bushing Door 131688300
16. Screw-Hinge to Dr, Quad FH AB, 131302900
10-16 x .750
17. Pin-Locating 131346400
18. Panel-Service White 131279300
19. Screw-Panel, HWHD AB, 8-18 131358400
x 1.125
20. Bracket-Top Front 131460900
CR/SQ Drive
22. Retainer-Spring 131279500
24. Panel-Top White 131677308
25. Hinge-Top Panel 131668200
26. Screw, Quadrex PH AB, 8-18 x 1/2 131311900
27. Bracket-Top Rear 131461000
28. Panel-Back 131279200
30. Nut 5303314118
31. Cord-Service 5303208765
32. Bushing-Cord 5303209428
33. Valve-Water 5303207418
35. Bracket 131273900
36. Leg, Pad/Nut 131003900
37. Roller-Assembly 131304200
38. Filter-Noise 131468100
45A. Hose-Drain 90” 131461200
45B. Hose-Drain 118” (Not Illustrated) 131461201
46. Washer 131426200

20
Frigidaire
Tub & Motor–FWT445GE KEY DESCRIPTION PART #
1. Ring-Weight 131793400
2. Bolt, 1/4-20 x 4.50 131303401
3. Bolt, 1/4-20 x 4.05 131793300
4. Weight-Lower Left 131276500
5. Weight-Top Front 131276600
6. Weight-Lower Right 131851900
7. Spring Boot 131277300
8. Boot 5303937140
9. Reinforcement 131277200
10. Nut 131304700
11. Washer-Spring 131276900
12. Plate-Weight 131793500
13. Shell-Front Tub 131618600
14. Spring-Tub 131663600
Sleeve-Upper Spring, Tub 131592200
Sleeve-Lower Spring, Tub 131560000
15. Screw, Hxwhd A, 1/4-10 x 2.165 131303900
16. Tub-Spin 131648500
17. Vane 131274600
18. Screw-Vane, Quad PH AB, 10-16 x .375131302800
19. Motor-Main, 850 131276200
20. Screw-Motor, HWHD AB, 12-14 x 1.50 131303500
21. Seal-Shell 131275900
22. Shell-Rear/Bearing 131525500
23. Weight-Rear Top 131709300
25. Belt 131276300
26. Pulley-Drum 131276100
27. Washer, .41 x 1.500 x 1.20 131304400
28. Washer-Lock, 3/8 131304500
29. Screw-Pulley, M10 x .92 131303700
30. Level-Shock 131268200
31. Pin-Level 131268300
32. Bracket-Shock 131268100
33. Screw-Bracket, HWHD AB, 10-16 x .625 131303100
34. Washer, .21 x .71 x .06, .21 x .71 x .06 131304300
35. Pump-Drain 131268401
41. Trap 131784700
42. Clamp 131333101
43. Chamber-Air 131277500
44. Tube-Pressure 131277600
45. Clamp 131306202
48. Clamp-Pump 131306234
50. Grommet-Pump 131268600
60. Spacer-Pump 131268700
61. Bracket-Pump 131268500
63. Shield-Pump 131351500
64. Screw, Pump/Brk/Shield 5303283072

21
Frigidaire
Insert, Spring Adj. 5303212877
1. Cap, Agitator 3204395
2. Seal, Cap 3204396
3. Cover, Splash Tub 131398300
4. Capacitor 131212301
6. Hose, Inlet N6561384
7. Washer, Inlet Hose 5303161296
9. Clamp 5303304824
10. Hose & Nozzle 3204400
11. Agitator 3204401
12. Tub, Spin, & Trunnion 131370400
13. Screw, Trunnion, UNC2A X .625, 5303283293
312-18, (5)
14. Screw, Lockplate, Hx, .312-18 x 1.625 131192800
15. Lock Plate 5308001923
16. Trunnion 131545101
17. Filter, Lint 131076600
18. Tub, Splash 131557200
19. Screw, 10-16 x .75 131205300
20. Screw, Tub Bearing, 3205150
PPH 8 ST/Z, 8-12 x .75
21. Washer, Spin Bearing, Upper 5308002401
22. Leg & Dome Assembly. 131373610
23. Spring, Vertical 5303208860
23. Spring, Vertical, Short 5303208858
24. Spring, Horizontal 131373900
25. Dispenser, Fabric 3205405
26. Bearing, Outer Tub 3204405
27. Screw, Set, Hhd Cup PT, 5303270023
5/16-18 x .85, Pulley, Transom
28. Belt, Washer 131686100
29. Pulley, Transmission 131489300
30. Arm, Idler 131862900
31. Pulley, Motor 3204423
32. Pin, Roll 3204424
33. Spring, Torsion 3204425
34. Sleeve, Idler 3204426
35. Ring, Retaining 3161433
36. Washer, Pivot Shaft 5303261031
37. Washer, Spring 5303161306
38. Nut, Lock, Motor 5303283079
40. Motor, Main 5303284905
41. Shield, Motor 131513300
43. Pump, Complete 131268401
45A. Hose, Drain 131461200
45B. Clip, Drain Hose (Not Illus.) 131506500
47. Clamp, Drain Hose 5303294768
48. Clamp, Pump Hose 131306234
49. Hose, Pump to Tub 131434500
50. Grommet, Pump 131268600
51. Screw, Leg to Tub, Hwh 23, 3204459
.31-18 x .875
52. Washer, Leg, ID x .040, 3005891
1.25 OD x .335
53. Tube, Pressure 5300771996
58. Screw, Pump to Bracket 131464900
59. Clip, Shield 5303283052
60. Spacer, Pump 131268700
61. Bracket, Pump 131268500
62. Screw,, Lint Frame, CR Truss Head, 131420300
8-18AB x 0.750
63. Shield, Pump 131494300
64. Screw, Pump/Brk/Shield 5303283072
Motor Tub-TWX545RB

22
27” Washer & Laundry Center Breakdown
Frigidaire
5303010202
131398300
3204401
N6561384
131192800
131545101
131557200
131373610
131862900
131373900
131686100
131498300
5303308427
131430600
3005891
5300771996

23
27” Washer & Laundry Center Transmission
Frigidaire
131475100
131586600
5304412079
131417600

GENERAL ELECTRIC JC Penneys GE PartsMaster
24
WE25X60
Front Drum Glide Kit, 1 pair, standard
capacity. (1960-present) (DE731)
Dryer
WE3X75
Dryer Bearing Sleeve, (Old WE3X74)
(1961-present)
WE4X168
Terminal Block for electric dryers,
universal application. (1960-1988)
(5304409888, 7401P039-60, 258076)
WE11X260
Heater Coil, 220-240V. 2 per pkg.
(1959-present)
Heater Coils
WE11X261
Heater Coil, 220-240V. 2 per pkg.
(1960-1979)
WE4X584
Hi-Limit Thermostat, 258˚F.
(1961-present)
Thermostats
WE4X800
Safety Thermostat, 310/210˚ resetable.
WE4X197
Door Switch, 3-terminal. (1961-present)
WE4X444
Round Gas Ignitor, universal application.
(1971-present)
(303376, 55438, 5300600831)
WE12X81
Idler Pulley. (1971-1986) (DE401)
WE12X41
Motor Pulley with set screw.
(1969-present)
WE17X32
Motor. “T” form, 1/3 HP, 1725 RPM,
115V, 6.4A, CW (1969-present)
WE18X26
Lint Filter (1957-present) (DE520)
WE25X205
Rear Drum Bearing and Shaft Kit, new
style, (Old WE25X62) (1911-present)
Orifice Kit
WE25X217 & WE25M32
LP Conversion Kit. (1985-present)
WX10X116
Step-By-Step Dryer Repair Manual.
Dryer Repair Manual
Dryer Door Switch
WE4X197
Door Switch, 3-terminal. (1961-present)
Dryer Belts
WE12X36P–Drive Belt, 3-Ribs,
87-7/8”. (1959-1969)
87-7/8”. (1969-present)
99-1/2”. (1973-1982)
Belts
Part # Old # Size
WE12X36P 109B3827 877J3
WE12X46 681H3
WE12X49P WE12X43 996J4
WE12X79 WE12CX51, 5308027638 776H4
WE12X82P WE12X42, 109B8327 878H4
WE12X5009 54581 3L320
WH1X2026 109B4949 4L302
WH7X86 8004064, F133171, 4L320
5303280326

25
WH8X292
Plastic Hub Boot. (1970-present)
Washer
WH8X305
Outer Tub Gasket. (1972-present)
WH1X2118
Short Hub for clamshell timer, 1-1/8”
long. (1971-1981)
WH1X2193
Long Hub for clamshell timer.
(1972-1981)
WH1X2760
Knob for clamshell timer. (1971-present)
(Replaces WH1X2119)
(WH1X1942 Metal Knob)
WH1X2296
Friction Pad for yoke clamp. (1965-present)
WH12X235
Motor Relay, 1/3 HP, for motors WH20X47
& WH20X64. (1961-present)
WH12X468
Motor Relay, 1/2 HP, for motor WH20X52.
(1969-1981)
Hubs
Motor Relays
WH12X94
#1 Switch (2-terminal) for clamshell timer.
(1956-1979)
Timer Switches
WH12X97
#4 Switch (5-terminal) for clamshell timer.
(1956-1979)
WH38X38
Washer 14 lb. transmission. Shaft length
14-1/4”, 20 splines.
Transmission
WH38X39
Washer 18 lb. transmission. Shaft length
16”, 20 splines.
WH38X53
Late model washer transmission. Shaft
length 14-1/4”, 9 splines.
WH20X52
Washer Motor, “T” form, 1/2 HP,
1725 RPM, 115V, 8.5A. (1969-1981)
Washer Motors
WH20X520
Washer Motor Kit. Includes WH20X52 &
WH12X468 relay.
WH20X10002
Washer Motor, “T” form, 1/3 HP,
1725 RPM, 115V, 8.0A. (1969-present)
WH49X271
Motor & Clutch Assembly. Replaces
either 1/3 or 1/2 HP motor. Assembly.
includes: WH20X10002 motor,
WH49X265 clutch, WH12X235 relay,
WH7X45 plate, WH12X851 shifter &
Wh1X2026 belt.

26
WH49X231
Single Speed Clutch Assembly.
(1957-present)
Washer (Cont.)
Hubs
WH49X265
2-Speed Clutch Assembly.
(1977-present)
WH7X110
Primary Clutch Shoes, pack of 2.
(1970-present)
WH4X12
Ball Bearing for outer clutch drum.
(1950-present)
WH13X81
Washer Inlet Valve. Universal application.
(1974-present) (358296, 525)
WH23X42
4-Port Washer Pump.
(1964-present)
WH10X114
Step-by-step washer repair manual.
Washer Repair Manual
Flexible Coupling
WH1X1722
Flexible coupling. First used 1961
(clutch to pump). Uses 2 ea. WH1X1621
clamps.
Agitator Coupling
WH1X1944
Agitator coupling. Used on WH38X38
& WH38X39 transmissions.
WH1X2641
Agitator coupling. 9 Spline for
WH38X53 transmissions.
Washer Floor Tray
Wx7X1
Catches water leaks, prevents floor
damage from overflows.
27” x 30” x 2” deep-interior dim,
30” x 32”-exterior dim.
Individually boxed.
Washer Filter Pan
WH1X2531
Catches lint during recycling of water.
Large Foot Pad
WL1X165
Prevents washing machine movement. Peel-
off adhesive back secures foot pad to floor.
WH1X484
Leveling Leg Foot Pad to keep washer
balanced during operation.
WH2X1137
Leveling Leg Foot Pad 1992 washers
and later.
Leveling Leg Pads
WH1X2026
Drive Belt. First used 1966 (motor to
transmission).
Drive Belt
Drain Hoses
WH41X324–36” Washer Drain Hose.
WH41X325–45” Washer Drain Hose.
WH41X184–6’ Washer Drain Hose.
WH49X301–Extension drain hose kit
adapter and clamp included. (43” length)

27
WH41X35
Gooseneck Kit. Includes gooseneck nozzle and rubber hose adapter.
WH41156
Washer (grommet) Hose Adapter for drain hose.
WH41157
Gooseneck Nozzle Hose Adapter for drain hose.
WH1X2036
Not Shown.
Hose Adapters
Turbo Bailer
Clamp Assemblies
Washer Boot
Washer Boot Adhesive
WX14X53
Pumps water out of tub for
ease of serviceability. For
home and marine use.
WH1X1292
Small Upper Boot Clamp.
(First used 1956-present)
WH1X1580
Large Lower Boot Clamp.
(First used 1959-present)
WH8X246
Mechanism Boot. (First
used 1961)
WH60X15
Industrial Sealant (Red).
Should be used with
washer boot above to
assure correct seal.
WH47X39
Dispenses fabric softener for heavy
duty washers. Filter-Flo®
GE Washer
Center Filter Pan. (Pre-1993)
WH47X40
Hotpoint Style Perimeter Filter Ring.
(Pre-1993)
WH47X42
Perimeter Filter Ring. (1993 & later)
WH47X43
Center Filter Pan. (1993 & later)
Rinse Aid Dispenser
Don’t Always Know
Where To Turn When
Faced With Complicated
Technical Problems?
1.800.482.6022
www.marconeworld.com
EXCELLENCE THROUGH
INFORMATION
magazine is your newest
source for technical,
business management,
and parts information.
magazine is your newest
source for technical,
business management,
and parts information.

28
WH12X929
5/22 RPM, 3 Watts
WH12X930
1/3 RPM, 3 Watts
WH12X931
1/2.214 RPM, 3 Watts
WH12X932
1/2.4 RPM, 3 Watts
WH12X933
1 RPM, 3 Watts
WH12X935
1/5.333 RPM, 3 Watts
Washer Timers
Washer Timers
Cross Reference
Part # # on Timer
WH12X640 905C969G006
WH12X691 905C9696027
WH12X702 904D129G005
WH12X898 905C969G064
WH12X904 175D1432G006
WH12X929 905C969G043
WH12X930 905C969G044
WH12X931 905C969G045
WH12X932 905C969G046
WH12X933 905C969G047
WH12X935 905C969G051
WH12X961 175D1432G019
WH12X990 905C969G060
WH12X992 905C969G061
Part # GE HOTPOINT RCA
WH12X929
WWA5304VPL WLW1500BAL WRW3305KBL
WWA5411BAL WLW1500BBL WRW3305MAL
WWA5411GAL WLW1500BCL WRW1505KAL
WWA5412BAL - WRW1505KBL
WWA5412GAL WLW3310BBL WRW1605MAL
WWA5600BAL WLW3310BCL WRW330RKAL
WWA5600GAL WLW5304VNL -
WWA5600GBL - -
WWA5636MAL - -
WWA5669MAL - -
WWA5800BAL - -
WWA5800GBL - -
WWA5806MAL - -
WWA5828MAL - -
WWA6800MAL - -
WWA8072BAL - -
WWA8072GAL - -
WWA8300BAL - -
WWA8300GAL - -
WWA8300GBL - -
WWA8301MA - -
WWA8306LAL - -
WWA8306LBL - -
WH12X930
WWA7050BAL WLW2500BAL WRW2505KAL
WWA7050GAL WLW2500BBL WRW2505KBL
WWA7050GBL WLW2500BCL WRW2525MAL
WWA7070BAL WLW2500BNL WRW3505KAL
WWA7070GAL WLW3500BAL WRW3505KBL
WWA7070GBL WLW3500BBL WRW3505MAL
WWA7800MAL WLW3500BCL WRW3705KAL
WWA7826MAL WLW3500BNL WRW3705KBL
WWT2450GAV WLW3700BAL WRW3705MAL
WWT2470GAV WLW3700BBL -
- WLW3700BCL -
- WLW3700BNL -
- WLW3750BAL -
- WLW3750BBL -
- WLW3750BNL
WH12X681
- WLW2500AAL -
WH12X931
WWA7619MA N/A N/A
WWA8318LAL - -
WWA8318LBL - -
WWA8320BAL - -
WWA8320GAL - -
WWA8320GBL - -
WWA8330BAL - -
WWA8330GAL - -
WWA8330GBL - -
WWA8340BAL - -
WWA8340GAL - -
WWA8340GBL - -
WWA8620MAL - -
WH12X932
WWA7646MAL N/A N/A
WWA7678MAL - -
WWA8350BAL - -
WWA8350GAL - -
WWA8350GBL - -
WWA8354VLL - -
WWA8354VML - -
WWA8354VNL - -
WWA8500GAL - -
WWA8500GBL - -
WWA8500GCL - -
WWA8606MAL - -
WWA8808MAL - -
WWA9800MAL - -
WH12X933
WWA8360BAL WLW5700BAL WRW5705KAL
WWA8360GAL WLW5700BBL WRW5705KBL
WWA8360GBL WLW5700BCL WRW5705MAL
WWA8366LAL WLW5700BNL -
WWA8366LBL WLW5900MAL -
WWA8480BAL WLW5900MNL -
WWA8480GAL - -
WWA8600GAL - -
WWA8600GBL - -
WWA8600GCL - -
WWA8700LAL - -
WWA8700LBL - -
WWA8889MAL - -
WWA8887MAL - -
WWA9850MAL - -
WWA9690MAL - -
WH12X935
WWA6407LBL WLW2330BAL N/A
WWA7010GAL WLW3300BBL -
WWA7010GBL WLW3300BCL -
WWA8307LBL WLW3300BNL -
WWA8307LBL - -
WWA8310GAL - -
WWA8310GBL - -
WWA8324GAL - -
WWA8324GBL - -
WWA8326LAL - -
WWA8326LBL - -

29
Note: Harness Wire WH19X0163
Controls & Backsplash-WDSR4110T8WW
2. Support Switch WH46X10019
3. End Cap LH WH WH42X2397
4. End Cap RH WH WH42X2398
6. Ring Comp WH2X650
7. Dial Assembly WH11X10015
8. Knob Assembly Control WH1X2754
9. Clip Spring WH1X2117
10. Switch Pressure WH12X10069
11. SCR 8-18 ABFLT 5/8 SN WH WH2X1206
12. Buzzer WH12X1005
13. Control Panel Assembly WH42X2392
14. Switch Rotary X/Rinse WH12X1007
16. Switch, Rotary WH12X1013
19. Knob Clip Assembly Wh. WH1X2721
21. Scr 8-18 B Ihw 5/16 WH2X1185
24. Bracket Relay WH16X520
25. Relay WH12X1012
41. U Clip WE1X980
69 Support Board WH02X10036
71. Scr 8-18 B 1/2 Hxw P Wh2X1205
72. Panel Back WH46X337
73. Cover Bottom WH46X341
74. Gasket Backsplash WH08X0379
100.
151. Scr 8-18 B IHW 1/2 S N WH2X1210
546. Housing Terminal Block WH12X870
555. Terminal WB17X5053
556. Housing Terminal WH12X497
627. Strain Relief WH12X10025
769. Scr 8-18 B Hxw 1/4 S WB1X500
790. Clamp Hose WH1X2036
803. Water Inlet Hose WH41X10037
805. Valve Assembly Hose WH13X0086
807. Hose Washer (Doz. Lot Only) WH2X42D
808. Hose Assembly Intake WH41X58DS
811. Hose Pressure Switch WH41X365
935. Terminal Special WD1X1434

30
Cabinet, Cover & Front Panel-WDSR4110T8WW
86. Screw, 8-32 TT FL 1/2 S WH02X0940
198. Bumper Lid WH01X2722
200. Bleach Funnel & Hose Assembly WH49X314
204. Bushing Hinge WH01X2741
205. Bushing Hinge-Front Open WH01X2744
206. Wireform Hinge WH01X2740
207. Wireform Hinge WH01X2743
208. Bumper Hinge WH01X2742
209. Screw WH02X1211
215. Knob Actuator WH01X2089
367. Weld Assembly Rod Support WH46X0364
369. Screw, 8-18 AB IHW 7/16 SN WH02X1217
370. Strap Damping WH01X2727
371. Retainer Strap WH01X2726
373. Clip Locking WH02X1191
375. Panel Front (White) WH46X0345
377. Bar Shipping WH46X0344
378. Button Plug WH01X2745
379. Brace WH16X0514
380. Clip Ground WH02X1207
381. Stud Grounding WH02X1190
383. Pin Alignment WH02X1189
384. Screw, 6-20 B Trt 3/8 S WH02X1212
385. Cover Clip WH01X2723
386. Bar Self Leveling WH46X0342
387. Conduit Pressure SW Hose WH41X0368
388. Lid Switch Assembly WH12X1043
390. Isolator WH01X2724
391. Cover Assembly Finished (White) WH44X1169
392. Probe Lid Switch WH01X2734
394. Lid Assembly Finished (White) WH44X1170
417. Screw, 10-12 A HX 1/2 S WH02X0694
418. Screw, 8-18 B IHW 1 S WH02X10003
421. Base Assembly WH46X10024
431. Leg Leveling WH02X1187
432. Pin Roll WH02X1188
461. Screw, 8-32 x 3/8 Grd Screw WZ05X0158
550. Screw, 8-18 AB HWX 3/8 S WE02X0281
559. Housing Terminal WH12X0538
561. Pk Pack Assembly Installation WH49X0296
782. Terminal Block Assembly WB17X5060
820. Clip Anti-Siphon WH01X2725
825. Hose Drain External WH41X0367
834. Retainer Hose WH16X0513
835. Strap WH01X2594
836. Screw, 8-18 AB IHWP 7/8 S WH02X10002

31
Tub, Basket & Agitator-WDSR4110T8WW
293. Clamp Tub Outlet WH01X2753
298. Dispenser Assembly FS WH43X0139
300. Agitator Assembly Multi. WH43X0142
301. Screw, 1/4-20 Mch Hxw 5/8 S WH02X10037
304. Hose Drain Inlet WH41X0371
305. Hose Drain Assembly WH41X0374
307. Clamp-Tub WH01X2730
308. Screw, 5/16-18 Tpt IHW S N WH02X1209
310. Coupling Air Bell WH43X10009
311. Seal Tub WH02X10032
313. Ring Split WH02X1195
314. Washer Tub Bearing WH02X1197
315. Washer Hub WH02X1199
316. Basket Extra Large WH45X10014
317. Tub Assembly X/Large WH45X10028
321. Filter Self Clean WH01X2728
322. Screw WH02X1194
323. Hub WH45X10027
325. Nut Hub WH02X1193
327. Balance Ring Assembly WH45X0152
329. Tub Cover Assembly WH49X10010
331. Screw, 14-10 A Trt 7/8 S WH02X10001
790. Clamp Hose WH01X2036
851. Gasket Flood Head WH01X2729
853. Hose Flood WH41X0369

32
306436
Door Latch Kit.
Dryer
303705
Idler Pulley with bearing. Late models.
53-2366
Idler Arm with Pulley. (LA-1056-
includes 53-2366, 53-1029,
31531589 & 25-7815)
Dryer Motors
Dryer Drum Rollers
LA-1004
Motor Kit.
303358
1/4 HP Motor, single speed. Double
shaft, 1725 RPM, 115V.
(Replaces 4128, AM219 & LD4205)
63-2839N
Motor (Norge). Non-reversible.
LA-1008
Rear Drum Roller Kit, 2-pack.
303373
Maytag Drum Roller & Bearing (2 used).
31001096
Drum Roller. (53-1578)
LA-1053
Thermal Fuse Kit. Contains: (1)
53-1182 thermal fuse, (1) 53-0771
high limit thermostat-electric, (1)
53-1096 high limit thermostat-gas,
and instructions.
53-0771
53-1182 53-1096
63-5753
Idler Pulley for standard Norge dryers.
63-2821K
Blower Hub and Cylinder Shaft Kit. Includes
63-1258 cylinder bearing and 63-2979
cushion assembly.
Thermostats
53-0771
High Limit Thermostat for electric dryers.
303396
High Limit Thermostat, 200˚F.
(5308013595)
LA-1044
Heater Kit with High Limit Thermostat.
Heating Elements
311946
Heater Element, 4800 W/240V.
303404
Heater Assembly, can-type, complete.
(Restring is 313538).
313538
Restring Heating Element, 5300 W/240V.
(Complete assembly is 303404).
303836
Blower Wheel for Maytag dryers that use
303358 motor. Mounts on motor shaft.
Includes mounting clip.
53-0106
Norge Built Blower Wheel. Mounts to
motor shaft with clip.

33
303376
Glow-type Ignitor, round style. Used on
automatic ignition models. (63-5877)
(WE4X444, 55438, 5300600831)
Dryer (Cont.)
Dryer Coils
33001003
Lint Screen. Old #306665, 306666.
Lint Screens
311012
Drive Belt from reduction pulley to
drum drive pulley.
Dryer Belts
Ignitors
304970
Gas Dryer Ignitor, flat style.
(279311, 5303281151, 4391996)
305603
Secondary Holding Coil for gas valve.
(303388)
305604
Holding Coil for gas valve. (303388)
305605
Booster Coil for gas valve. (303388)
12001348
Includes 305603, 305604 & 305605
306105
Secondary Coil.
306106
Booster and Holding Coil.
12001349
Includes 306105 & 306106.
306195
Conversion Kit, from natural to LP.
306508
Front Glide and Felt Kit, (2 used).
312238
Door Seal for “06” models.
311534
Drum Felt Seal for “06” models.
055980
Hi-Temp Adhesive, 2 oz. tube.
53-0701
Lint Screen. Both sides 3/8” wide.
53-0918
Norge Built Lint Screen. Left guide 3/8”
and right guide 5/8”.
311013
Drive Belt from motor pulley to
reduction pulley.
312959
Drum Drive Belt, 5-rib, 4-groove.
53-1512
Belt, 5-rib, 4-groove, late model.
31531589
Norge 4-groove Belt, late model.
63-3201
Fan Drive V-Belt, 3/8” wide, 47” long.
63-4663
Drum Belt. 100” long, 4-rib, 3-groove.
63-4664
Drum Belt. 100” long, 5-rib, 4-groove.

34
311353
Designed for use when no outside vent
is available.
Dryer Accessories
Dacron Lint Bag
308116
Fits inside dryer to prevent tennis shoes
from tumbling while drying. For Maytag
10-digit models.
Drying Rack
21001495
Fits inside dryer to prevent tennis shoes
from tumbling while drying. For all
Maytag brands prior to10-digit models.
Drying Rack
33001917
Fits all Neptune and dependable care
models beginning with “MD”.
Drying Rack (Neptune Dryer)
20001016
For use in cleaning static style
condensers and cloth dryer lint filters.
Measures 3” by 6” and is also an
ideally suited brush for use in the
home, workshop and car.
Lint Brush
18001033
Used to clear accumulated lint out of
venting, 10 foot.
18001034
Used to clear accumulated lint out of
venting, 20 foot.
Vent Brush

35
320. Transmission & Brake Assembly WH38X10002
401. Shield, Tub WH45X10025
403. Leg & Platform Weld Assembly WH17X0101
405. Scr. 1/4-20 B Hxw 3/4 Sns WH02X1201
411. Nut Pulley WH02X1203
412. Clip Clutch Spring WH01X2733
413. Nut Motor Hex WH02X1204
414. Rod & Spring Assembly WH16X0544
419. Socket Rod Support WH01X10001
603. Belt WH01X2026
608. Clutch Assembly WH5X256
630. Motor Assembly 2 Spd. KH-K WH20X10006
642. Housing Special WH12X1059
655. Pump Bracket Assembly WH23X10003
725. Pulley transmission WH07X0126
NOTE: REF. 412 (WH1X2733) SHOULD BE
REPLACED EACH TIME CLIP IS REMOVED.

36
Control Panel-MDE3000AYA KEY DESCRIPTION PART #
1. Panel, Control (White) 33001857
1. (ALM) 33001858
1. Screw, Control Panel 22002339
2. Skirt, Timer Dial (White) 33001621
2. (ALM) 33001622
3. Knob, Timer (Gray) 22001659
4. Insert, Timer Knob (White) 22001664
4. (ALM) 22001665
5. Button, Push to Start (White) 33001619
5. (ALM) 33001620
6. Screw, Timer 33001690
7. Timer 33001730
8. Screw, Ground Wire 210186
9. Wire, Ground 33001859
10. Screw, End of Cycle Signal 33001860
11. Signal, End of Cycle 33001660
11. Signal, End of Cycle (Chime) 33001848
12. Switch, Push to Start (White) 33001861
12. (ALM) 33001862
13. Wire Harness, Main 33001863
14. Switch, Option (4-Pos. White) 22001908
14. (4-Pos. ALM) 22001919
15. Button (White-End) 22001788
15. (ALM-End) 22001790
16. Button (White-MDL) 22001789
16. (ALM-MDL) 22001791
17. Display, Dryness (White) 33002389
17. (ALM) 33001662
18. Switch, Temperature (White) 33001656
18. (ALM) 33001658
19. Back, Console Panel 22002529
19. Screw, Console Back Panel 216423
20. Console (White) 33002286
20. (ALM) 22002286
20. Manual, Use & Care 33001874

37
Door-MDE3000AYA KEY DESCRIPTION PART #
1. Seal, Shroud 33001767
2. Hook, Security 22002247
3. Shroud (White) 33001778
3. (ALM) 33001779
3. Label, Safety 33002116
4. Screw, Tumbler Front & Shroud 22001995
5. Screw, Shroud & Outlet Duct 33001768
6. Switch, Door 33001508
7. Bracket, Hinge 33001760
8. Plug, Door Catch 33001174
9. Catch, Door 304578
9. Catch, Door (w/Plug) 33001791
10. Seal, Door 33002094
11. Clip, Double Door 22002038
12. Bracket, Strike 33001793
13. Strike, Door 33001761
14. Clip, Single Door 22002039
15. Plug, Inner Door 33001763
16. Inner Door (White) 33001750
16. (ALM) 33001751
17. Panel, Door (White-w/medallion) 22002260
17. (ALM-w/medallion) 22002261
17. Pad, Sound Damper (Ft. Panel) 22001817
17. Label, Open Door (Dryer) 33001893
18. Hinge, Door 33001759
19. Screw, Hinge to Clip 22002062
20. Screw, Outer Door (White) 22002063
20. (ALM) 22002064
21. Cover, Hinge Hole (White) 33001764
21. (ALM) 33001765
22. Screw, Hinge Hole Cover 33001787
23. Screw, Hinge Bracket 22002012
24. Panel, Front (White) 22002836
24. (ALM) 22002242
24. Pad, Sound Damper 33001221
24. Pad, Front 33001867

38
Cabinet, Front-MDE3000AYA KEY DESCRIPTION PART #
1. Cover, Top (White) 33001865
1. (ALM) 33001866
4. Bracket, Terminal Block 33001826
5. Screw, Terminal Block Bracket 22001995
6. Block, Terminal 33001244
7. Screw, Terminal Block 312209
8. Washer, Terminal Block 312270
9. Strap, Ground 312184
10. Screw, Ground Strap 33001245
11. Nut, Terminal Block 311484
12. Washer, Terminal Block 311093
13. Cabinet (White) 33001843
13. (ALM) 22002242
14. Pin, Locator 33001872
15. Clip, Front Panel 22002049
16. Retainer, Front Panel 204439
17. Screw, Front Panel 22001995
18. Clip, Wire Harness 310376
19. Screw, Cabinet 213007

39
Cabinet, Rear-MDE3000AYA
1. Cabinet, (White) 22002548
1. (ALM) 22002549
1. Label, Safety (Exhaust) 33002118
1. Label, Safety (Install) 33002119
2. Bracket, Cabinet Hinge 33001827
3. Cover, Terminal Block 33001795
4. Screw, Terminal Block Cover 22001995
5. Nut, Strain Relief 33001425
6. Cord, Power (Canada) 305168

40
Tumbler-MDE3000AYA KEY DESCRIPTION PART #
1. Outlet Duct Assembly 33001799
2. Filter, Lint 33001808
3. Seal, Blower 33002082
4. Screw, Cabinet to Tumbler 33002190
6. Front, Tumbler (w/seal) 33001868
(Incl. Sensor/Light Assembly)
7. Lens, Drum Light 33001869
7. Screw, Drum Light 33001871
8. Lamp (w/Housing & Holder) 33001870
9. Nut, Lamp Holder 214872
10. Sensor, Ground Wire 303711
10. Screw, Ground Wire Sensor 211294
11. Sensor, Bar Assembly 33001809
11. Screw, Sensor Bar Assembly 22001078
12. Screw, Outlet Duct (Phillips) 312311
13. Screw, Duct to Tumbler (Hex) 33001855
14. Seal, Tumbler 33001807
15. Baffle (Tall) 33002032
16. Baffle (Short) 33001755
17. Tumbler (w/Sound Pads) 33001889
18. Belt, Tumbler 33001777
19. Screw Baffle 33001788
20. back, Tumbler (w/Seal) 33001801
21. Nut, Hex (Roller Shaft) 33001443
22. Washer, Spring (Roller Shaft) 313347
23. Shaft, Tumbler Roller 312948
24. Roller (w/Bearing) 303373
25. Washer, Roller Shaft 312535
27. Screw, Inlet Duct 210932
29. Rivet, Tumbler 210720
30. Tumbler Bearing Kit 306508
31. Cover, Thermostat (Elec. Only) 33001837
32. Rack, Drying 33001917
32. Pad, Drying Rack 33001052

41
Heater-MDE3000AYA KEY DESCRIPTION PART #
1. Screw, Heater 211294
2. Duct, Assembly, Inlet 33001803
3. Chamber, Heater 314995
4. Insulator, Terminal 314998
5. Heater Sub-Assembly (240V) 308612
6. Shield, Radiant 314999
7. Screw,Terminal Insulator 25-9103
8. Thermostat, Hi-Limit 303396
9. Heater Assembly (Complete) 307178
10. Wire, Jumper 307173
11. Fuse, Thermal 307473
12. Screw 33001860
13. Bracket, Thermal Fuse 315346
14. Screw, Radiant Shield 22001996
14. Conversion Kit (240V to 280V) 308590

42
Gas Valve-MDG9706AWW
1. Conversion Kit (Nat. to LP) 306195
2. Conversion Kit (LP to Nat.) 306204
3. Screw, Igniter 304971
4. Igniter, gas Valve Pilot 304970
5. Burner Assembly 33001247
6. Valve, Gas 306176
7. Coil, Holding & Booster 306106
8. Coil, Secondary 306105
9. Screw, Gas Valve 313561
10. Bracket, Gas Valve 33001834
13. Connector, Angle 33001842
14. Pipe & Bracket Assembly 33001735
15. Screw, Duct 211294
16. Inlet Duct Assembly 33001810
18. Sensor, Gas Valve 303377
19. Cone Assembly, Combustion 33001835
19. Screw, Combustion Cone Assembly 22001996
20. Cone, Extension (Combustion) 303841
21. Retainer, Heater Chamber 312890
21. Screw, Heater Chamber Retainer 22001996
22. Plug, Gas Valve 33001693
23. Screw, Duct 211294

43
Motor Drive-MDE3000AYA KEY DESCRIPTION PART #
1. Housing, Blower 33001789
2. Duct Assembly, Outlet 330018002.
2. Screw, Exhaust Duct Assembly 22001995
4. Wheel, Blower 33001790
5. Clamp, Blower Housing 312967
6. Screw, Housing Cover 33001855
7. Screw, Housing Cover 313561
8. Thermostat, Multi-Temp. 306911
9. Screw, Thermostat 22001996
11. Screw, Thermal Cut-Off 33001860
12. Seal, Blower Cover NLA
13. Cover, Blower Housing 33001873
14. Screw, Blower Housing 314818
15. Motor 33002478
16. Clip, Motor 015825
17. Switch, Motor 33001854
18. Spring, Idler 33002460
18. Grommet, Idler Spring/Base 33002157
19. Idler Arm & Shaft Assembly 33001840
20. Washer, Idler Shaft (Qty-1) 312527
21. Idler Pulley & Bearing Assembly 33001783
22. Lock Ring, Idler Shaft 312958
23. Sleeve, Idler Arm 315772
24. Screw, Siphon Break 014874
25. Support, Motor 33002466
26. Screw, Motor & Blower 313561
27. Base 33001845
28. Spring, Wire Harness 410490
29. Adjustable Leg & Unit 305086
30. Nut 052740
31. Foot, Rubber 314137
33. Screw, Clip 310632
34. Clip, Grounding 22002244

44
Lint Screen, Tumbler (Front & Back)-DE8000
1. Duct, Outlet Assembly 307112
2. Lint Filter 33001171
3. Front, Tumbler (w/Seal) 33001179
3. Screw 310632
3. Screw 313561
3. Screw NLA
5. Cover, Thread NLA
7. Lamp 33001496
8. Seal, Tumbler 314820
9. Screw 310759
9. Baffle (Short) 314803
10. Washer 314158
11. Tumbler w/Baffles 305187
11. Tumbler w/Out Baffles 33001108
12. Screw 211294
12. Back, Tumbler (w/Seal) 308544
13. Nut, Roller Shaft 33001443
14. Washer, Spring (Roller Shaft) 313347
15. Shaft, Tumbler Roller 312948
16. Roller w/Bearing 303373
17. Washer, Roller Shaft 312535
19. Belt, Tumbler & Motor 312959
20. Screw 310759
20. Baffle (Tall) 314804
21. Rivet 210720
22. Tumbler Bearing Kit 306508
23. Reed Switch & Housing 307207
24. Screw 25-9103
24. Switch Housing 315020
25. Screw 211294
25. Sensor Ground Wire 303711
26. Screw 251119
26. Sensor 304997
27. Receptacle, Sensor Ground Wire 312658
28. Lamp 33001496

45
Motor, Blower, Base Frame & Thermostats-DE8000
2. Clamp, Blower Housing 312967
3. Impeller, Blower (w/Clamp) 303836
4. Screw 310632
5. Screw 211294
6. Motor 303358
7. Switch, Motor Start Production 303877
No. 3-3358-2, 3-3358-4 & 3-3358-7
No. 3-3358 & 3-3358-6
No. 3-3358-8 & 3-3358-9
8. Clip, Motor 015825
9. Set Screw, Pulley 053241
10. Pulley, Motor (w/Set Screw) 305185
11. Idler Spring Assembly 303945
12. Belt, Tumbler & Motor 312959
13. Lock Ring, Idler Shaft 312958
14. Washer, Idler Shaft (Qty. 1) 312527
15. Pulley, Idler 303705
16. Sleeve, Idler Arm 315772
17. Screw, Siphon Break 014874
17. Idler Arm & Shaft Assembly 303363
17. Screw 312961
18. Spacer, Idler Bracket 313582
19. Support, Motor 33001729
19. Screw 313561
20. Screw 312961
20. Screw 313561
20. Cover, Blower Housing 314846
22. Exhaust Duct Assembly 303442
22. Screw 310632
23. Spring, Wire Harness 410490
24. Retainer, Wire Harness 315471
26. Adjustable Leg & Nut 305086
27. Nut 052740
28. Base Assembly 303361

46
Inlet Duct & Heater Assembly-DE8000
1. Screw 211294
1. Inlet Duct Assembly 307120
2. Screw 211294
2. Retainer, Heater Chamber 312890
3. Insulator For Heater Element 313270
4. Clip And Insulator Assembly 303881
5. Screw 211294
5. Heater Assembly Complete 303778
6. Screw 33001860
7. Screw 211294
7. Mounting Bracket 315046
8. Heater Element, 240V. 313538
9. Heater, Chamber, Bottom 313576
10. Terminal Insulator Assembly 304596
11. Nut, Terminal Block 311484
12. Screw 211294
12. Heater Shield 304124
13. Washer, 7/32” 311093
14. Wire Terminal 210745
15. Jumper Wire 304693
16. Screw 211294
16. Hi-Limit Thermostat-Canada 303896
17. Heater Chamber, Top 313575

47
12500036
Transmission Pulley and Bearing Kit.
Washer
33-9952
Norge Washer Drive Pulley.
200816
Motor Pulley.
200720
Transmission Bearing
200835
Brake Rotor Bearing.
204210
C.D.L. Spray, 5 oz.
200846
Tub Clamp.
211232
Tub Seal used with 200846 tub clamp.
35-1069
Standard Washer Pump, Norge.
22204012
Maytag Mounting Stem Kit & Boot.
205000
Roller and Spring Kit.
204968
Lid Switch Plunger, bracket, 2 screws
and spring.
Washer Pumps
205415
Lid Switch.
205613
Domestic Washer Fill Valve.
205614
Commercial Washer Fill Valve.
35-2374N
Washer Fill Valve.
211124
Maytag Washer Pump Belt.
211125
Maytag Washer Drive Belt.
21352320
Drive Belt. (35-2320)
35-0425
Washer V-Belt, Norge.
(Replaces 33-604)
206154
Washer Injector Hose.
206638
Siphon with clamp.
12001413
Screen Washer for fill hoses.
212989
Automatic Washer Tub to Pump Hoses.
Washer Belts

48
207166
Micro Switch used on 207176 lid
switch assembly.
Washer (Cont.)
22001682
Lid Switch Assembly with 4 amp fuse
(replaces 1 amp fuse).
(Replaces: 207176)
LA-1010
Washer Motor for older production
Norge. (33-9224)
213015
Injector Nozzle.
22213057
Injector Sleeve.
216201
Rubber Injector.
201805
Maytag Washer Motor, single speed.
201807
Maytag Washer Motor, two speed.
Maytag
PART #OLD #SIZE
014772 14772 Wringer 4L310
211124 3L410
211125 4L420
251021 GR1180
251023 3L310
311012 3L470
311013 3L560
312512 55060 4R740
312544 770J3
312959 3-14774 1000H5
313328 162507 770H4
902115 7R520
Crosley-Magic Chef
PART #OLD #SIZE
35-0425 33-0388, 33-6104, 3RN428
35-0465
35-2320 3RN515
53-0186 341241, 53-1080 920H4
53-1589 349533 920H5
60-1267 3L740
63-3201 63-1187 3L476
63-3410 63-2604 3L438
214697
Fits over existing knobs to provide an
easy grip for persons with arthritis or
other problem which make gripping
difficult.
Easy-Grip Knob
High Volume Pump
21001092
For use on Magic Chef, Admiral,
Norge and Crosley automatic washers
to assist in proper drainage when
connected to a drain greater than 5’
in height.
Hose Washer
013783
Durable inlet hose washer. 100/pack.
(12001413, 5303931779)
Neptune Drain Hose Accessory Kit
12001429
Used to extend Neptune washer drain
hose up to 10’. Kit includes one
splice kit.
Washer Accessories

49
Neptune Washer Drain Hose
22002364
For use with kit 12001429. Splice kit
available. 50 foot roll.
(part #22002465).
Non-Slip Disc
211692
Designed to prevent slippage on
smooth surfaces. For use on all brand
washers/stack units.
Pulley With Set Screw Pump Belt
202507
Pulley with set screw.
211451
Pump Belt.
For use on Maytag automatic washers to assist in proper
drainage when connected to a drain greater than 5’ in height.
201112
Kit includes siphon break assembly,
hose clamp, clamp and screw. (76660)
Siphon Break Kit
204013
For use with Maytag washers.
204986
For use to stabilize automatic washers
when installed on carpet.
12500095
Includes hose washer and hose
washer/screen for all washer fill hoses.
For use on all brands.
202203
For use with Maytag washers.
Tub Bearing and Sleeve
Washer Installation Carpet Kit
Washer Kit
Water Pump
202860
5 ft. Inlet Hose, single. Includes inlet
hose washer, screen washer and dome
inlet hose assembly.
200672–5 ft. Fill Hose 90˚ Elbow.
555–5 ft. Fill Hose.
200688–6 ft. Fill Hose 90˚ Elbow.
21001466–6 ft. Fill Hose.
21001467–10 ft. Fill Hose.
Hoses
056080
Prevents foaming, resists heat and oxidation,
flows freely to reduce friction and tolerates
moisture without breakdown. For Maytag laundry
only. 34 fl. oz. Available individually or packaged
10 per case.
203775
(Case of 10).
Heavy-Duty Transmission Lubricant
055968
For lubrication of all Maytag Model E-J. N-R
series wringer washer transmission. 12 fl. oz.
High Temp Adhesive
055980
Single Tube. Designed for use on Maytag Dryers
to adhere felt seals to tumbler. Also has many
other uses. 2 oz. Available individually or
packaged 72 per case.
055984
(Case of 72).
Lubriplate®
20000030
Protects machines from rust and corrosion,
1-3/4 oz.

50
Non-Pareil Turbine Oil
055977
Single Bottle. Formulated to prevent oxidation,
rust and foaming and is fast trailing for instant
lubrication. Ideal for lubricating bearings which
operate under constant or extreme load and
high temperature conditions. 4 fl. oz. Available
individually or packaged 24 per case.
2041416–(Case of 24).
Lubriplate®
056078
For Maytag wringer heads, washer models
E-J-E2-J2-N2. Also for use on power units,
washer models 80-90, A-30, 32-32L,
10-N10-110, 15, F & G, 25, FRED, K, 18,
108 and F Series Ironer. 16 oz.
Center Seal Grease
056016
For use on automatic washers, wringer washers
and dryers. 4 oz.
CDL
204210
Single Can. Cleans by penetrating microscopic
pores to loosen rust and corrosion.
Demoisturizes by displacing moisture and water.
lubricates moving parts and protects surfaces by
sealing with a rust inhibiting molecular film. 5 oz.
Available individually or packaged 12 per case.
204211–(Case of 12).
Dow Corning® 732™ Multi-Purpose Sealant
17001001
Clear. Applications include adhering, bonding,
caulking, formed-in-place gaskets and sealing.
Adheres to glass, non-oily woods, metal.
porcelain, ceramic, painted surfaces and many
plastics and rubbers. 3 fl. oz.
058700–White.
Dow Corning® 737™ Neutral Cure Sealant
17001002
Clear. Applications include adhering auto and
appliance parts; bonding in general assembly
operations; formed-in-place gaskets for
compressors, gear boxes, pumps, and small
motors; and sealing electrical equipment.
Odorless. 3 fl. oz.
204999
A Silicone lubricant for use on Maytag washers,
damper pads and Maytag dishwasher belts.
Contains enough lubricant for one application.
Poly-Lube Grease
203959
A Silicone lubricant for use on Maytag washers,
damper pads and Maytag belt drive dishwasher
belts. 3 oz.
Poly-Lube Silicone Grease
204314
Highly resistant to water, steam, oxidation,
gumming and chemical attack. heat stable rust
inhibitors protect metal parts exposed to adverse
environments. Maintains lubricity and viscosity at
temperatures from 0˚ to 500˚F. Chemically inert.
Outstanding for plastics and rubber parts.
4 fl. oz.
Poly-Lube Silicone Grease
055978
Multi-purpose rubber adhesive for gluing damper
pads, seals and any other rubber or felt material
to metal applications. 2 oz.
Rubber Adhesive
055975
Formulated specifically for lubricating
sintered iron bearings. 4 fl. oz.
SBL Synthetic Lubricant
95099-1
Multi-purpose food grade silicone grease.
Silicone Grease

51
Control Panel-MAH3000AWW KEY DESCRIPTION PART #
1. Tube, Water Level Switch 22002010
2. Insert, Timer Knob (White) 22001664
2. (ALM) 22001665
3. Panel, Control (White) 22002275
3. (ALM) 22002276
4. Switch, Temperature (White) 22002268
4. (ALM) 22002269
4. (White-Middle) 22001789
4. Button (ALM-End) 22001790
4. (ALM-Middle) 22001791
5. Switch, Options (ALM) 22002272
5. (White) 22002278
5. (ALM-Middle) 22001791
6. Light, On/Delay & Door Locked 903115
6. Light, Delay & Door Locked 903115
6. Light, On 22002281
7. Switch, Push to Start (White) 22002273
7. (ALM) 22002274
9. Timer 22002277
9. Timer (Use 22002441) 22002338
9. Timer 22002441
9. Screw 22001662
10. Bezel, Timer Dial (White) 22002282
10. (ALM) 22002283
11. Knob, Timer (Gray) 22001659
12. Board, Machine Control 12001454
12. Board, Control 22002988
12. Screw, Machine Control 22002287
12. Locknut, Machine Control 912077
13. Switch, Pressure 22002048
14. Switch, Fabric (White) 22002270
14. (ALM) 22002271
14. (ALM-Middle) 22001791
15. Bracket 22002284
16. Console (White) 33002286
16. (ALM) 22002286
16. Lens, Indicator Light 22001948
17. Bracket, Water 22002178
17. Screw, Bracket Water 22001996
17. Tie, Wire 22002345
18. Back, Console Panel 22002529
18. Screw, Back to Top Cover 22001996
18. Screw, Console Back 22002339
18. Manual, Use & Care 22002298
18. Video, U & C (Burgundy) 22002303

52
Top-MAH3000AWW
1. Cover, Top (White) 22002116
1. (ALM) 22002117
2. Dispenser Assembly (Complete) 22002264
2. Cup, Siphon 22002265
2. Cap, Siphon 22002266
2. Cup, Turboclean Detergent 22002309
(Used inside with wash load)
2. Not Required --
3. Lid Dispenser (White) 22002288
3. (ALM) 22002289
4. Bezel, Dispenser (White) 22002290
4. (ALM) 22002291
5. Pin, Hinge (Long) 912678
6. Pin, Hinge (Short) 912679
7. Screw, Dispenser Bezel 22002230
8. Clamp, Shower Hose 22002054
8. Clamp, Shower Hose 22002561
9. Hose, Shower 22002084
9. Hose, Shower 22002556
10. Clamp, Hose (Tub Outlet) 201011
11. Wire Tie, Twist Lock 22002027
11. Screw, Wire Tie 212276
12. Cord, Power 22003062
13. Grommet, Cord 211881
14. Screw, Power Cord & Ground 705026
15. Hose, Bleach 22002551
16. Hose, Fabric Softener 22002552
17. Hose, Detergent 22002553
18. Bottom, Dispenser 12001558
19. Top, Dispenser 22002555
20. Preventer, back Flow 22001900
21. Clamp, Hose 205161

53
Door & Front Panel-MAH3000AWW
1. Hoop, Lock 22002002
2. Spring, Latch 22002003
3. Support, Lock Hoop 22002168
4. Door, Inner (White) 22002252
4. (ALM) 22002253
4. Door, Inner (w/Vent-White) 22002539
4. (W/Vent-Almond) 22002540
5. Clip, Double Door 22002038
6. Clip, Single Door 22002039
7. Frame, Wire 22002104
8. Spring, Door Plate 22002356
9. Plate 22002094
10. Screw, Wire Frame 22002007
11. Panel, Door (White-w/Medallion) 22002260
11. (Almond w/Medallion) 22002261
11. Pad, Sound Damper 22001817
11. Label, Open Door (Washer) 22002333
12. Hinge, Door 22002000
12. Cover, Hinge (White) 22002095
12. (ALM) 22002096
13. Screw, Hinge 22002062
14. Screw, Outer Door (White) 22002063
14. (ALM) 22002064
15. Panel, Front (White) 22002241
15. (ALM) 22002242
15. Screw, Front Panel Clip 22001995
15. Insulation, Front Panel 22002305
16. Screw, Hinge 22002012

54
Door Shroud & Door Latch Assembly-MAH3000AWW
1. Mechanism, Door latch 22002918
2. Support, Door Latch 22002015
3. Screw, Door Latch Support 22001995
5. Cover, Hinge (White) 22002095
5. (ALM) 22002096
6. Shroud, Plastic (White) 22002234
6. (ALM) 22002235
7. Cover, Bulb 22002234
8. Screw, Lamp Cover 22002435
9. Bulb (10 Watt) 22002263
10. Bulb Holder Assembly 22002433

55
Cabinet Front-MAH3000AWW
1. Cabinet Kit (White) 12001424
1. (ALM) 12001425
1. Cabinet Assembly (White) 22002548
1. (ALM) 22002549
1. Insulation Cabinet 22002293
(One on each side)
2. Bracket, Cabinet Hinge 33001827
2. Stop, Shipping 22002013
3. Retainer, Wire 315471
4. Strap, Top Cover Support 33001836
5. Spring 22002100
6. Support, Spring 22002297
7. Spacer, Top Cover 22001997
9. Brace, Corner (Right) 22002090
9. (Left) 22002292
10. Screw, Security Hook 22001995
11. Support, Hinge 22002001
12. Hook, Security 22002247
13. Bracket, Shroud Support (Right) 22002034
14. Bracket, Shroud Support (Left) 22002035
15. Bridge, Shroud Support 22001993
16. Brace,, Cross 22002259
17. Screw, Cross Brace 22001995
18. Bracket, Air Dome Hose 22002178
18. Screw, Air Dome Hose Bracket 22001996
19. Screw, Front Cabinet 22001995

56
Cabinet, Rear-MAH3000AWW KEY DESCRIPTION PART #
1. Cabinet Kit (White) 12001424
1. (ALM) 12001425
1. Cabinet Assembly (White) 22002548
1. (ALM) 22002549
1. Label, Energy 22002444
2. Valve, Water 22002294
(Bleach Hose)
(Fabric Softener Hose)
(Detergent Hose)
3. Screw, Water Valve 313561
3. Screw, Water Valve 22002436
4. Clamp, Stepless 22002054
5. Wire Tie, Twist Lock 22002027
6. Hose, Injector 22002296
6. Tie, Cable 22002179
7. Clamp, Injector Hose 216169
8. Bracket, Water Valve 22002089
8. Bracket, Water Valve 33002212
9. Screw, Water Valve Bracket 22001996
10. Strap, Drain Hose 22002076
12. Spacer, Access Panel 22002022
13. Panel, Access 22002092
14. Screw, Access Panel Spacer 22002295
15. Screw, Access Panel 22001996
16. Inlet Hose Assembly 202860
16. Strainer 22002229
17. Washer, Inlet Hose 013783
18. Cover, Drain Hose 22002093
19. Screw, Drain Hose Cover 22001995
21. Hose, Drain 22002085
22. Screw, Ground Lug 33001245
23. Washer, Ground Lug NLA
23. Drain Hose Accessory Kit 12001429

57
Spinner Assembly & Outer Tub Cover-MAH3000AWW
1. Sleeve, Shaft Seal 12001478
2. Lip Seal Service Assembly 12001478
3. Support Assembly, Spinner 22002897
3. Tube, Molykote 22002123
4. Washer, Plastic 22002023
5. Spinner Assembly (w/Balance Ring) 22002115
(Balance Ring Not Available as a Separate Part
6. Washer, Profile 22002482
7. Washer, Spinner Support 22002020
8. Nut, Spinner Attachment 22002122
9. Baffle, Drip (Rear) 22001985
10. Grommet, Baffle (Rear) 22002009
11. Grommet, Baffle (Front) 22001999
12. Screw, Baffle (Rear) 22002325
13. Baffle, Drip (Front) `22001986
14. Screw, Baffle (Front) 22002059
15. Seal, Tub Cover 22002077
16. Clip, Tub to Cover 22002050
17. Cover, Tub (w/Seal) 22002946
18. Boot, Door 22002987
19. Spring, Tub 22002099
20. Wire, Boot Clamp 22002327

58
Outer Tub & Motor-MAH3000AWW KEY DESCRIPTION PART #
1. Tub Assembly (Outer) 22002907
(Spacer & Bearings Available
With Outer Tub Assembly)
2. Switch, Inertial Unbalance 22002045
3. Screw, Inertial Switch 22002300
4. Wire Harness, Displacement 22002581
4. Wire Harness, Displacement 22002216
6. Bolt (Long) 22001991
7. Washer, Counter balance 22002067
8. Bolt (Short) 22002056
9. balance, Counter 22002102
11. Clamp, Injector Hose 22002052
12. Clip, U 22002103
13. Deflector, Water 22002004
14. Clip, Wire Harness & Outer Tub 22002006
14. Wire Wrap 22002583
15. Nut, Counter Balance 22002065
16. Switch, Tub Displacement 22002044
17. Screw, Wire Harness 22002061
18. Clip, Air Dome Retaining 22002051
19. Hose, Air Dome 22002010
19. Tie, Wire Air Dome Hose 22002345
21. Hose, Tub Outlet 22002081
22. Clamp, Sump Hose 22002053
23. Weight Assembly (Front.) 22002579
24. Strap 22002008
25. Screw, Spinner 22002057
26. Washer, Spinner Shaft 22002055
27. Pulley, Spinner 22001998
28. Drive Belt Kit 12001435
29. Isolator, Motor 22002082
30. Motor (w/Isolator) 12001426
31. Bolt, Motor 22002058
32. Adjuster, belt Tension 22002086
34. Screw, Wire Harness Clip 22002019
35. Cushion 22002011

59
Base & Motor Control-MAH3000AWW
1. Base 22002240
2. Retainer, Wire 315471
3. Screw, Wire Harness Clip 212276
5. Pump 22001982
6. Adjustable Leg & Nut 22001915
7. Nut 052740
9. Strut Assembly, Rear 22001988
(Does not include item #15)
10. Control Assembly, Motor 22002120
11. Wire Harness, Motor Control 22002172
11. Wire Harness, Motor Control 22002471
12. Screw, Motor Control Bracket 212276
13. Rivet, Wire Harness Clip 210720
15. Switch, Strut Displacement 22002307
(Not included as part of #9)
15. Not Required --

60
Tub, Agitator, Mounting Stem & Seal-LA8200
1. Agitator w/Lock Screw 207538
2. Air Dome And Tube 22001619
3. Liner, Tub Bearing 211130
4. Bolt & Gasket Assembly (Short) 200744
4. Bolt & Gasket Assembly (Long) 205254
5. Nut & Bolt Kit, Tub Clamp 205529
6. Bumper, Unbalance 215232
7. Cap, Spout (Outer Tub) 214725
8. Clamp (1-1/16”) 211641
9. Clamp, Tub Cover 200846
10. Clamp, Water Level Switch Tube 410296
11. Nut, Clamping (Inner Tub) 211047
12. Part Not Used 214434
14. Cup, Dispensing 215733
16. Hose, Outer Tub 212989
17. Clamp, Spray Arm Hose 904030
19. Clamp, Hose (1-1/16”) 202515
21. Clamp, Bleach Hose 205161
22. Fill Hose, Injector 215234
24. Nozzle, Injector 213015
25. Tube, Injector 215235
23. Tub, Inner 201523
26. Tub, Inner (w/Plug) 207830
27. Filter, Lint (Shallow) 207427
28. Clip, Lock 015667
29. Washer, Lock 054867
30. Stem, Mounting (NLA-Use 22204012) 202521
31. Kit, Mounting Stem Repair 22204012
32. Tub, Outer 205486
34. Washer, Retaining 015666
35. Screw & Washer, Agitator 206478
36. Screw, Stems (#10-16 x 1/2”) 312620
37. Set Screw, Mounting Stem 211618
38. Seal 211232
39. Seal, Agitator Drive Shaft 0A4298
40. Seal & Spring (NLA-Use 22204012) 201537
41. Seal, Injector Tube 215233
42. Sleeve, Injector Tube 215447
43. Clamp, Spring Hose 214739
44. Bearing, Tub 200824
45. Kit, Tub Bearing Repair 204013
46. Cover, Tub 206380
48. Valve, Injector 216201
49. Washer, Clamping Nut 211210
50. Washer, Cushion 211100

61
Clutch, Brake & Belts-LA8200
1. Ball Bearing, Radial 200720
2. Bearing, Brake Rotor 200835
3. Drum, Brake (NLA, Use 201190) 211043
3. Screw, Hex Head (Brake Drum) 211000
4. Housing, Brake (NLA, Use 201190) 211045
5. Package, Brake 201190
6. Rotor, Brake (w/Facing) 201126
(NLA, Use 201190)
7. Pulley, Drive 22211059
8. Gasket, Brake Drum 211042
(NLA, Use 201190)
10. Cap, Oil Retainer 211038
11. Retainer, Brake Spring 211039
(NLA, Use 201190)
12. Retainer Clip, Damper 213325
13. Screw, Stop Lug 211375
14. Bolt, Retaining Clip 213326
15. Lug, Stop 211089
16. Spring, Brake (NLA, Use 201190) 211041
17. Tool, Brake Package Assembly 038315
18. V-Belt, Pump 211124
19. V-Belt, Drive Pulley 211125

62
Base, Pump, Motor & Components-LA8200
1. Leg, Adjustable (w/nut) 302699
2. Base w/Damper Pads 203274
3. Bolt, Tub Brace 015627
4. Bolt & Gasket Assembly (Short) 200744
4. Bolt & Gasket Assembly (Long) 205254
5. Brace, Tub 213100
6. Spring, Centering (3 Used) 213054
7. Damper w/Bolt & Clip 203725
8. Damper Pad Kit (w/Poly Lube) 203956
9. Washer, Double 213073
10. Hose, Pump 22001448
11. Eye Bolt, Center Spring 216416
12. Ground Wire, Support Plate 204807
13. Hose, Outer Tub 212989
14. Clamp, Hose (1-5/8”) 202574
16. Keps Nut, Motor Base 311426
17. Mount, Motor (Lower) 205908
19. Motor (One Speed) 201805
21. Assembly, Motor Mount (Complete) 205999
22. Switch, Motor External Start 205131
22. Switch, Motor External Start NLA
22. Screw 213121
24. Nut, Brace to Tub 052734
25. Nut, Brace to Damper 052785
26. Nut, Lock 210385
27. Nut, Eyebolt 211949
28. Pump 202203
28. Screw, Bearing Insert 015408
28. Screw, Hex Hd (#10 x 1/2”) 211880
29. Kit, Glide (4 w/Poly Lube) 204998
30. Kit, Glide & Spring 205000
32. Springs, Tension 202718
33. Transmission 22002127
34. Plate, Motor Mount (Upper) 214956
36. Washer, Cushion 211100
37. Washer, Tub Brace 212979
38. Washer, Lock (Brace) 911852
39. Deflector, Water (Drive Tube) 22001586

63
Section–Orbital Transmission-LA8200
1. Agitator w/Lock Screw 207538
1. Screw & Washer, Agitator 206478
2. Shaft, Agitator (w/Spring) 22002132
3. Gear, Bevel 206713
4. Shaft, Center 12001451
5. Collar, Lower 215415
6. Parts Not Used 215721
7. Cup, Dispensing 215733
8. Pulley, Drive 22211059
9. Filter, Lint (Shallow) 207427
10. Seal, Lip (Center Shaft) 207843
11. Pin, Collar 206629
12. Pinion 215401
13. Plate, Clutch 215395
14. Seal, Rubber 210690
15. Silastic, Adhesive. Sealant 058700
16. Spring, Agitator Shaft 215581
17. Lug, Stop 211089
17. Screw, Stop Lug 211375
18. Torque Block & Yoke 206685
19. Transmission 22002127
20. Cover, Transmission 206628
20. Screw, Transmission Cover 215417
21. Housing, Transmission 206625
(NLA, Use 22002127)
22. Washer, Bevel Gear 215394
24. Washer, Splined 211483

64
/
279711
Dryer Blower Wheel.
Dryer
Dryer Belts
Dryer Thermostats
Heater Kit
Drum Rollers
Door Cables
349533
Poly “V” Belt, 5-rib, drum belt, 92”.
691371
Blower Belt, clear/round urethane,
32” x 5/16” dia.
(LB273, DE411, 8195-371)
688865
Timer Knob.
338906
Flame Sensor. Senses flame for heat
allowing gas valve to open.
(303377, 56231)
279054
Safety Thermostat. 3-wire, 290˚
(ET149, 8620-408)
279136
Dryer Thermostat.
279137
Split Coil Kit for “K” series W-R gas valve.
(DE381, 41-137)
279311
Posi-Lite (glow-type) ignitor for gas dryers.
Replaces round ignitor. (DE351, 41-311)
(304970, 4391996, 5303281151)
349241T
Drum Support Roller. Used on 1965
through current models. (Pkg. of 2)
(85-241, DE702)
3396802
Heavy Duty Drum Support Roller with
bronze bushing.
691366
Drum Idler Pulley. Used on 1965 through
current and commercial models.
(DE411, 85-691)
279827
Main Drive Motor. Old #695925.
1/3HP, 1725 RPM. Used on direct drive
blower models from 1965 through
current. (AM211, 4096)
230131
Door Cable.
337186
Spring Door Cable.
4391960
Dryer Element. 5200 W/240V. Replaces
both 279698 and 279455.
(DE698/DE195, 8700-378)

65
349241T
26/8205 Sears Retail Item. White. For 1965 and later 24” and 29” rearless drum models. (2 per package). (Replaces: 340352,
337089, 661562, 3389901, 3397588, 3401846)
Dryer (Cont.)
/
Drum Support Roller & Components
Includes: (2) Tri-Rings, (1) Clip
337433 Nut 3/8”-16
348197 washer 15/16” O.D.
239480 Shaft-Left side 3” long
339489 Shaft-Right side 3-3/16” long
279608 Tri-Ring-Package of (4)
Roller
90296 Clip
3396802
Red. For 1987 and later 27” rearless drum models. (Replaces: 3388342, 3389902, 3396801, 3401846)
Includes: (2) Tri-Rings, (1) Clip
3387709 Nut, 3/8”-16 L.H. (Use with 3399509 Shaft)
358160 Nut, 3/8”-16 L.H. (Use with 3399508 Shaft)
3387459 Washer 15/16” O.D.
3399509 Shaft-Left hand thread (Rear Mounting)-2-7/16” long
3399508 Shaft-Right hand thread (Front Mounting)-2-7/16” long
Roller
90296 Clip

66
/
341776
(Replaces: 338909)
3388595
Compact dryers only.
297092
3388229
27” Dryers only.
3391221
Door Springs
3390902
Door Hinge Clips
3394083
(Replaces: 237823)
Part No. Replaces Total Free Length No. Of Coils
237979 6” 57
692495 8-11/16” 88
337186 230132, 298252 8-3/4” 50-55
3387565 12-13/32” 88
279638
(Replaces: 237818, 297865,
342601, 690625, 696232,
3393160) All models except
27” and compact dryers.
Toe Panel Clips
279304
Compact Models. (Replaces: 347183,
690259, 4319500)
Terminal Blocks
279320
Standard and large capacity models.
(Replaces: 230148, 230149,
235077, 235078, 236109.
236667, 236668, 236672,
239239, 279092, 279195,
339209, 339929, 339933,
341001, 341055, 341103,
348911, 349899, 690261,
3394352)
279318
For terminal block 279304 or
279320. (Replaces: 339210,
339211, 348912, 348913)
Terminal
279393
For terminal block 279304 or 279320.
(Replaces: 339210, 339211, 348912,
348913)
3389441
(279570 Not a replacement)
Door Catch
Dryer (Cont.)
3391943
Used with leveling foot 3392100.
Foot Boot

67
/
691360
5 Volt DC. (Replaces 693891)
696300
12 Volt DC.
697812
115 Volt DC.
Single pole single throw solid state
models.
Power Relays
696819
12 Volt DC.
Single pole single throw solid state
models.
697811
120 Volt AC.
(Replaces 3147643)
Double pole double throw solid
state models.
279570
26/8208 Sears retail item. (Replaces:
237876, 236877. 241282, 241286,
241890, 261847, 263067, 279280,
279337, 279469, 291949, 342295,
347813, 690081, 690082, 693717,
694343, 696144, 830751, 834767,
834813, 834943, 834944, 3390239,
4165234) (5366021400)
Includes: 690081 Catch.
Door Strikes
3390193
Adhesive backed. Used with magnetic
catch.
3403431
239087
26-9/16” Dia. Standard capacity, w/
green thread. Includes adhesive, rear
(vinyl). (Replaces: 337449, 337499,
4319323)
279408
24-13/16” Dia. Large capacity, w/
red thread. Includes adhesive, rear
(vinyl). (Replaces: 347885)
279857
25-1/4” Dia. Includes adhesive, rear
(PVC coated woven fabric, 29” dryer).
(Replaces: 3406130)
Drum Seal
Dryer (Cont.)
279264
Front. Includes adhesive. (Replaces:
237636, 239068, 239249, 239255,
239309, 239422, 279082, 296644,
297422, 297786, 299807, 299895,
299996, 337345, 337562, 337961,
337963, 341458, 341927, 342820,
349462, 349464)
Bearing Supports
3406129
Front. Felt seal does not include the bear-
ing ring. For large capacity, wide opening
models. (Replaces: 692493)
346764
Used to fasten the dryer securely to
the floor in a mobile home.
(Replaces: 6701, 346765)
Mobile Home Feet
689172
Plastic.

68
/
233550
Steel, 3/8”-16 x 1-7/8” long.
(Replaces: 75070)
868880
(NLA) Steel, 5/16”-18 x
1-3/4” long.
(Replaces: 217682, 241246,
252617, 262030, 680519,
Leveling Feet
279810
Plastic.
3392100
26/8221 Sears retail
item. Plastic. (Replaces:
688222, 4319350)
3390719
(Replaces: 279650, 660877, 688841,
690798, 690198, 3389639, 3389640)
(306604)
Thermal Fuse
3392519
(Replaces: 694511, 3388651)
3399849
3403327
1/4” terminals.
279858
3/16” terminals.
Dryer (Cont.)
279769
Opens 182˚. (Replaces: 279584,
695563, 3387812, 3389946,
3398671)
Thermal Cut-Off
3403607 (Replaces: 3391927)
61894
4W, 120V (Replaces: 61298)
Thermostat Heater
3406294 (Replaces: 772546)
Thermistor
285432
Terminals

69
/
339392
Standard and commercial models.
(Replaces: 337133, 337448,
337451, 338405, 338406,
339391, 339392, 341030,
Lint Screens
348851–White. 26/8211 Sears retail
item.
689465–Almond. 26/8219 Sears retail
item.
689466–Coffee. (Replaces: 348853)
689467–Golden Wheat.
(Replaces: 348854)
689468–New Avocado.
(Replaces: 348852)
695178–Toast.
695179–Platinum.
Large and extra capacity models.
348855–White. (Replaces: 341256)
689469–Almond.
689470–Coffee.
(Replaces: 348857)
689471–Golden Wheat.
(Replaces: 348858)
689472–New Avocado.
(Replaces: 348856)
696021–Toast.
696022–Platinum.
Standard models.
349639
Extra capacity limited edition models.
(Replaces: 693845, 786054, 3387232)
Dryer (Cont.)
691371
32” long. Round belt, blower drive.
(Replaces: 238739, 287371, 296326,
298422, 337942) (LB271)
Drive Belts
337019
3-Rib drum drive. 94-5/16” 93-1/2” long.
(Replaces: 237555)
337388
3-Rib drum drive. 92-5/16” 91-1/2” long.
It is recommended to also replace the idler
pulley, belt and supports.
341241
4-Rib drum drive. 26/8210 Sears retail
item. 92-5/16” 91-5/8” long. (Replaces:
345473, 660996, 694868, 695055,
697388, 3394651) (LB276)
237683
4-Rib blower drive. 38-3/16” 37-13/16”
long.
3405160
4-Rib drum drive. 9-39/64” long
It is recommended to also replace the idler
pulley, belt and supports.

70
/
279311
(Replaces: 239233, 239300,
239302, 279185, 338899,
338900, 340607, 343128,
660991, 685211, 686590,
686833, 687399, 691039,
3389895) (304970, 4391996,
5303281151)
Ignitor Parts
Posi-Lite Ignition
ORIGINAL MAY LOOK LIKE THIS.
279827
115V. 60 Hz. (1965 to present) Used on
commercial models.
Main Drive Motor
691366
26/8207 Sears retail item. (Replaces:
239477, 337116, 337407, 337510,
338946, 347034, 347226, 347227,
688166, 4319391) (DE411)
Idler Pulley
357609
Lid Switch. (Replaces: 355511)
Pad
18776
(Replaces: 230555, 353145, 688904,
690363)
Top Lock Clip
3934475
3/4” wide x 5” long. (Replaces: 22965)
Ground Clamp
Dryer (Cont.)
279711
8-5/8” dia. wheel. Includes
3392123 seal.
(Replaces: 279500, 299678,
338840, 343939, 343941,
694089, 695499)
Blower Wheel
279457
For spade terminal elements.
Terminal Wire
4391960
5200W, 240V. Includes wires and wire connectors. (Replaces:
279218, 279247, 279248, 279410, 279411, 279455,
279458, 279598, 279698, 337378, 337430, 339655,
340468, 348774, 348775, 349542, 349543, 349545,
349546, 660933, 660965, 660982, 685182, 685942,
689805, 689980, 690241, 690983, 691724, 692758,
693061, 693062, 693295, 693297, 693298, 693299,
693300, 696324, 696579, 697290, 786077)
Heating Elements
3387747
5400W, 240V.
5/16” FEMALE

71
/
Dryer Drum Parts-Breakdown KEY DESCRIPTION PART #
1. Lint Chute Assembly 3396352
2. Screw, 10-16 x 1/2” 681414
4. Seal, Lint Chute 347139
5. Screw, 8A x 3/8” 90767
6. Dry Rack Assembly 692990
7. Thermal Fuse 3390719
8. Thermostat, Operating (150˚F) 694674
(65.6˚C)
9. Thermostat, Operating (155˚F) 694674
(68.3˚C)
10. Wheel, Blower 279711
12. Clip 279771
13. Screw, 10-16 x 1/2” 681414
14. Box, heater 685457
15. Thermostat, (250˚F) (121.1˚C) 279052
16. Nut, Push-In 98460
17. Element, Heater 4391960
18. Thermostat, Operating (140˚F) (60˚C) 694674
19. Wire Kit, Terminal (For Heater 279457
Element Wiring Harness Repair)
20. Support Protector 686769
41. Ring, Tri 690997
42. Shaft, L.H. 3399506
43. Shaft, R.H. 339489
44. Roller, Support 349241T
46. Washer, Support 348197
47. Nut, 3/8”-16 358160
48. Bulkhead 279796
62. Ring, Bearing 279441
63. Screw, 11-16 x 7/8” 690372
66. Seal, Rear Drum 279408
67. Drum Assembly 695587
68. Baffle, Drum (2) 692490
69. Bracket, Support 3976434
70. Clip 90296
71. Baffle, Drum (1) 3403636
73. Seal 339956

72
/
Bulkhead Parts-LEL8858EQ1 KEY DESCRIPTION PART #
1. Lint Chute Assembly 3405161
(Incl. Illus. 6, 16 & 21)
5. Screw, 8A x 3/8 90767
6. Nut, 8-32 Hex 3403606
7. Thermal Fuse 3392519
8. Thermostat, Internal-Bias 3398128
9. Thermal Cut-Off 279816
(Hi-Limit Therm. Illus. 15 Included)
10. Wheel, Blower (Incl. Illus. 22) 279711
12. Clip 279771
13. Screw, 10-16 x 1/2 681414
14. Box, Heater 3397566
15. Thermostat, (250˚F) (121.1˚C) 3399693
16. Bracket, Lint Chute 3403568
17. Element, Heater 279838
18. Screw, Hex Washer Head 489069
19. Wire Kit, Terminal 279457
(For Heater Element Wiring Harness Repair)
20. Screw 489463
21. Seal, Lint Chute 347139
24. Screw, 10-16 x 1/2 681414
26. Screw, 10-16 x 1/2 308685
27. Bracket, Drum Light 3404232
28. Clip, Sensor 3394231
29. Washer, Insulated 298877
30. Pad, Sensor 279366
31. Electrode, Inside 348859
32. Electrode, Outside 348860
33. Bulb 17512
34. Lens, Drum Light 3403635
35. Transport Tube Assembly 3405475
41. Ring, Tri 690997
42. Shaft, L.H. 3399506
43. Shaft, R.H. 339489
44. Roller, Support 349241T
47. Nut, 3/8-16 3359452
48. Bulkhead 3403414
49. Socket Assembly 3403634
62. Ring, Bearing 279441
63. Screw, 11-16 x 3/4 63027
66. Seal, Rear Drum 279857
67. Drum Assembly 695587
68. Baffle, Drum (2) 692490
69. Bracket, Support 3976434
70. Clip 90296

73
/
Top & Console Parts-LEL8858EQ1 KEY DESCRIPTION PART #
Guide, Use & Care
Label, Witing Diagram
Paint, Touch-up (1/2 oz.), White 72017
Paint, Touch-up (1/2 oz.), Almond 72107
Paint, Pressurized Spray (13 oz.), White 350930
Paint, Pressurized Spray (13 oz.), Almond350930
Primer, Gray 350938
Paint, Bulk (1 Qt.) White (Uncut) 799344
Paint, Bulk (1 Qt.) Almond (Uncut) 978883
Dryer LIT677818
1. Panel, Rear Console 3397545
2. Screw, Hex Head 489069
3. Connector (Relay/Buzzer) 3401144
4A. Cap, End (L.H.), White 3358528
6. Screw, Console 388326
7. Buzzer, Mini 694419
8A Cap, End (R.H.), White 3358513
9A Switch, Clean Touch, White 3403969
10A. Lid Assembly, White 3403621
11. Basket, Collector 3399994
12. Tray Assembly (Complete) (Also 279862
Includes Transport Tube)
13. Tube, Recirculation 3399992
14. Clip, Harness 3394427
15A. Wire, Jumper, Violet 3393811
15B. Wire, Jumper, Blue 3393812
16A. Top, White 3403611
17. Plate, Bottom Tray 3403615
18. Connector (Motor) 3395683
19. Screw,, 8-18 x 1/2 3400809
20. Seal, Lid 3402261
21. Timer, 60 Hz. 3973570
22. Seal (Tray to Basket) 3402260
23A. Magnetic Latch Assembly, White 3404451
24. Hinge, Lid (2) 3402247
26. Terminal 94614
29. Screw, Mounting (8-18 x 5/16) 90767
30. Nut, Push-In (2) 357213
31. Harness, Wiring (Incl. 3397659 3394310
Terminal Block)
32. Wire, Jumper (Signal Bypass) 3396032
33. Connector (Timer) 3397269
39. Relay, Push-To-Start 3398094
48A. Timer Knob Assembly, White 3406143
49A. Knob, Push To Start, White 3406133
50. Connector (Door Switch) 691707
51. Control, Electronic 3390537
52. Connector, Edge (NLA) 3391885
53. Bracket, Control 8054300
54A. Panel, Control, White 3976764
55. Screw, 10-16 x 1/2 681414

74
/
Cabinet Parts-LEL8858EQ1 KEY DESCRIPTION PART #
1. Boot, Foot 3391943
2. Screw, 10-16 x 1/2 343641
3. Belt, Drive (Blower Wheel) 3405160
4. Bumper 238614
5. Cover, Block 3396795
6. Screw, 10-32 x 1/2 342043
7. Panel, Rear 3396805
10. Door Switch Assembly 3406101
11. Screw, 6-20 x 7/8 697773
13. Screw, 10-16 x 1/2 3357011
14. Spring, Door (2) 692495
15. Clip, Front Panel (2) 3394083
16. Foot, Dryer 3392100
16A. Foot-Optional (Extended length 279810
package of 2-Not included)
17. Terminal, Tinned & Brass (3) 279318
(Includes illustration 39)
19. Clip, Ground 98234
20. Lock, Front Top (2) 18776
21A. Panel, Front (White) 695620
22. Plug, Cabinet (2) 3404283
23. Clip, Felt Pad (3) 685203
24. Catch, Door Assembly 3398175
25. Screw, Hex Head 693995
26. Clip, Hinge (2) 337189
27. Screw (6) 694091
28. Hinge, R.H. 692498
28A. Hinge, L.H. 692501
30. Locator, Top (2) 98669
33. Strike, Door 696144
35. Door, Rear 695737
36A. Door, Front (White) 3393549
37A. Handle, Door (White) 690270
38. Seal & Bearing Assembly 3406129
39. Terminal Block Kit 279393
(For Terminal Block)
40. Screw, 10-16 x 1/2 697776
41. Block, Terminal 3397659
51. Hinge, Top (2) 238088
53. Idler & Pulley Assembly 691366
56. Belt, Drive (Drum) 660996
57. Base, Motor 3406228
58. Bolt, 5/16-18 x 3/4 3400500
59. Pulley, 60 HZ. 3389627
60. Bracket, Idler 3401805
62. Motor Assembly 60 HZ. 3405478
63. Clamp, Motor (1) 660658
64. belt Shield Assembly 3401800
67. Seal, Door 3390731
87. Screw, 10-16 x 1/2 3393008

With a dryer rack you no longer have to listen to shoes clunking
around in the dryer. A dryer rack is perfect for sweaters, gloves or
any lay-flat-to-dry items that you want to dry in a much shorter
time. Easy to install and remove.
75
/
689790
Fits standard and large capacity
dryers (5.9 cu. ft) with round
door opening and flat rear
panel: 19-3/4” deep x 18-1/2”
wide.
Fits Roper E-line 29” extra large
capacity.
Dryer Racks for All-Other Lines and
Models
Laundry Accessories
692990
Fits large and super capacity
dryers (6.8 cu. ft.) with round or
oval door opening:
Round door without extended
rear panel: 22-3/8” deep x
13-3/4” wide.
Oval door with extended rear
panel: 23” deep x 8-1/2” wide.
692989
Bracket for dryer rack #692990
which fits large and super
capacity dryers (6.8 cu. ft.) with
around or oval door opening &
extended rear panel.
3397713
Fits extra-large capacity dryers
(6.3 cu. ft) with round door
opening and extended rear
panel: 23” deep x 13-3/4”
wide.
Dryer Racks for Whirlpool E-Line
Models
3406839
Fits models with 4-1/2” wide
dimples in rear of dryer drum. 6.9 cu.
ft. through 7.09 cu. ft. Fits 29” dryers
only.
3406911
The bottom rack routes heat directly
to wet items to shorten drying time.
Fits 27” dryers only. Includes:
3395679–Top non
heat directed rack.
3387663–Bottom heat
directed rack.
Heat-Directed Rack
346764
Kit is used to fasten dryer securely to
the floor in a mobile home. Helps
avoid damage to the dryer due to
movement during operation and
normal expansion and contraction
which is common to mobile homes.
Can be used on any dryer with
stationary feet.
Hold Down Kit For Mobile Homes
4378951
Wall rack to organize mops and brooms .
Provides three hooks and two pole
holders. Can be installed with either
screws or peel-off adhesive. Both are
included.
Organizer
Converts natural gas to liquid
propane. Must be installed by a
trained service technician.
49572–All Whirlpool, KitchenAid
and Roper dryers.
49573–All Compact dryers and
Thin Twin®
system.
3392235–Whirlpool Large
Capacity Thin Twin®
system.
Gas Burner Conversion Kit
3404351
Fits models with 9-1/2” wide
dimples in rear of dryer drum.

76
/
Laundry Accessories (Cont.)
4378420
Convenience hanger. A neat way to hang
clothes that are fresh out of the dryer.
Great for permanent press clothes and
other no-iron items. Easy to install, fits on
either side of the dryer and can even be
used as a pair–one on each side. Fits all
Whirlpool dryers.
Dryer Hanger
350924
Test for water hardness in less than a
minute. The color chart on the bottle
provides an instant read out of the strip to
help determine the proper amount of
detergent needed fro best washing results
in the washer or dishwasher. (50) Test
Strips. (038184)
Water Hardness Test
Touch-Up Paints
Keep your appliances looking like
new with a .6 fluid ounce bottle of
touch-up paint. Includes brush.
72017–White.
72107–Almond.
72032–Black.
Caster Kit
3392794
For portable application for use in
conjunction with the compact
laundry stack kit. Use only on
electric compact washer and dryers.
Siphon Break
285320
Provides an air gap in the drain to
prevent siphoning of dirty water
back into the washer. Designed for
use with rubber and plastic drain
hose applications. Fits all washers.
Drain Protector
367031
Designed to break up excessive
amounts of lint into smaller
particles and catch threads and
strings from shag rugs and chenille
spreads that could clog the drain.
Saves money by preventing costly
plumbing repair charges. Fits all
washers.
Miscellaneous Appliance Paint
242756–Bronzetone-Conventional & self
-clean oven liner touch-up. 1 oz. can.
261869–Citrine White-Microwave oven
liner. 1/2 oz. bottle.
261891–Harvest Gold. 1 qt. can.
285367–Toast-Acrylic. 1 qt. can.
285368–Platinum-Acrylic. 1 qt. can.
485426–Starlight Gary Synthetic Lacquer
(uncut). 8 oz. can.
511873–White Porcelain touch-up. 2 oz.
bottle.
799344–White-Acrylic. 1 qt. can.
978883–Almond.. 1 qt. can.
Compact Dryer Wall Mount Kit
3406534
Hefty steel bracket secures to will studs and
supports dryer. Wall must be solidly
constructed to support dryer weight. Washer
fits conveniently under dryer. Caution: Do
not use on gas dryers. Caution: Do not use
in mobile homes.

77
/
Wigwag Kits
Washer
84867
Wig Wag, new style used with small
plungers-solenoids only.
(LP246, 8410-867)
89814
Wig Wag with plungers-old style.
(LP247, 8410-814)
350384
Plunger Kit for Wig Wags.
Hoses
350004
4’ Washer Inlet Hose.
4391969
It’s incredible. A 4’ universal flexible
drain hose that extends to 5’ and
bends around corners! It makes the
tough connections, easy connections.
And, it fits all makes and models.
25/case.
Belts
95405
Main Drive Belt. Used on standard
capacity washers.
(Available in pkgs. of 50). (LB160)
96388
Thin Washer “V” Belt, 1/4” x 47-1/2”,
used on large capacity washers.
95440
Elbow Connector. (LP928)
279347
Switch Kit to replace washer lid switch or
dryer door switch. (80-347, 16300)
285134
Center Post Bearing Kit. Used on all
belt-drive models except compacts.
(LP73, 83-134)
Washer Motors
285222
1/2 HP, 2-Speed Motor. Used on belt drove
models from 1947-1985.
(AM115, AM102, 4091)
389248
Direct Drive Washer Motor, 2-speed.
Replaces single speed motors on Whirlpool
& Kenmore.
285753
Direct Drive Washer Coupling Assembly,
connects motor to transmission.
(Replaces 285140)
Washer Pumps
3363394
Direct Drive Pump. Replaces all direct-drive
pumps without check valve. (LP116)
285317
3-Port Washer Pump. Used on recirculating
manual clean, or basket mount filters on
standard, large capacity and compact
models. (LP115, 8100-317)
350365
2-Port Pump.Used on standard, large
capacity and some portable self-clean
models. (1965-1985) (LP113, 8100-365)
350367
4-Port Pump.
Water Valves
358276
Universal Washer Fill Valve. Comes complete
with plastic adapter. (Replaces LP960,
CW50, CW151) (WH13X81, 525)
358277
Water Inlet Valve. New universal style
mounting bracket. Two-coil, non-
thermostatic for late 1965-1985 belt drive
models. (Replaces 363425) (CW50)
3360391
Two coil, Non-thermostatic Inlet Valve for
compact and direct drive models. (CW50)

78
/
Washer
285285
Agitator Cap (LP951)
363633
Agitator.
383727
Center Post Gasket.
Washer Filters
358790
Washer Filter Assembly. (Sears/Kenmore
models). (LP810, LP813)
18776
Top Clip.
76673
Tub Repair Kit. Used to repair leakage
around tub mounting bolts. Contains 4
screws, 4 rubber & 4 metal washers.
(LP655)
368772
Washer Filter Assembly, mounts on side
of tub.
63580
Fabric Conditioner Dispenser.
Basket Drives
383929
Basket Drive and Brake Assembly. Use on
29” large capacity models with
13-11/32” spin tube.
383923
Basket Drive and Brake Assembly. Use on
29” standard capacity and 24” portable
models with 18-1/2” spin tube.
350902
Snubber Kit, late model for machines with
plastic tub top ring.
(1974-present models)
359689
(285450 Kit contains 3-359689 and
1-359690).
Siphon Breaks
76660
Siphon Break. For use on rubber
automatic washer drain hose. Splices
into drain hose to eliminate
siphoning of water back into
machine. (LP930) (210002)
285320
Siphon Break for plastic drain hose.
How Can We Serve You?
• There are 35 loations
• www.marcone.com
• Members Only
• 1-800-482-6022

79
/
Save a trip to the washer to add fabric softener. Our dispenser
automatically adds softener during the deep rinse cycle. Dispenser
attaches to the top of your automatic washers agitator.
389142–KitchenAid–1984 and newer 24” and 27” washers.
63580–Whirlpool–1984 and newer 24” and 27” washers.
3350834–Whirlpool–Large capacity Thin Twin®
washers.
350415–29” Automatic washers.
63594–Fabric softener dispenser in white plastic. Fits Kenmore dual
action & straight vane agitators-direct drive models.
359163–Fabric softener dispenser in white plastic. Fits Kenmore
dual action agitators–belt drive models.
Fabric Softener Dispenser
285363
Replacement fill hose–fits all washers.
Fill Hose
Drain Hose
Snubber Pads
358336
(Replaces: 357976)
285702
21” long hose includes clamp.
383915
3-piece to reduce or eliminate noisy snubber.
350902
For plastic tub ring application. Replaces
snubber and springs for models 1974 thru
1976, 24” 29” standard and 29” large
capacity models. (Replaces: 353635,
355853, 356806. 357391, 357392,
363635)
Snubber Springs
350906
For steel tub ring application.
Replaces snubber and springs fro
models 1955 thru 1973, 24”, 29”
standard and 29” large capacity
models.
(Replaces: 21057, 75512, 76227,
76485, 76611, 76675, 80039,
80892, 89013, 91100, 93061,
93434)
285671
(Replaces: 335629, 3352630, 3352631,
3352632, 3352634, 3355808)
Lid Switches
279347
This is a single-pole, double-throw switch. It replaces single-
pole, single-throw switches.
(Replaces: 24198, 75958, 83333, 84144, 86628, 89556,
99788, 99838, 89556, 233480, 235462, 237194,
238775, 238980, 239868, 247207, 279290, 287219,
287220, 291679, 291679, 291697, 292212, 296141,
296144, 338883, 344475, 347207, 350526, 359230,
359484, 364090, 364091, 367034, 388322, 389105,
660308, 661517, 687428, 687429, 3347287, 3388222,
3388223, 3391839, 3392266, 3397503, 3399991,
4319330)
97513
Lid switch harness (Replaces: 351329)
Harness Clip

Rotary Shaft
80
/
285513
Permits technician to operator washer wit
cabinet removed. Can be used on all direct
drive automatic washers except compact
models.
Jumper Plug
3366845–Level-Infinite.
3366846–Level-5.
3366847–Level-4.
3366848–Level-3.
Pressure Switch
350733
(Replaces: 354242, 354252,
354362, 355307, 357141)
Lid Switch Actuators
357126
(Replaces: 356354)
285450
Includes:
3 359689 Clip (Brown or Green)
1 359689 Clip (Black)
1 Instruction Sheet
Tub Ring Clips
350987
Package of 4. This tub ring tab repair is used to
replace broken tabs on the tub ring. Compact
352155
359689
(Brown or Green)
359690
(Black)
359763
(Red)
356141
76673
Use to repair leakage around tub
mounting bolts. Includes:
4 10747 Washer
4 10748 Washer
419021 Screw
Tub Repair Kit
92286
(Replaces: 91301)

81
/
86815
Rear-Steel (1/2” dia.), with molded boot.
(Replaces: 17232, 21126, 88729, 93606,
94033, 94714, 94979, 95879)
Leveling Feet
95878
Front-Steel (1/2” dia.), with molded boot.
(Replaces: 16586, 89692, 93604,
286332, 356684)
285244
Direct Drive Models. (Replaces: 62596)
358594
Rear-Steel (3/8”
dia.) with molded
boot.
367594
Front-Plastic, no boot required.
3429895
Front-Plastic, no boot required. 22” & 24”
compact belt drive models only.
389102
Compact Belt drive and direct drive
models. (Replaces: 386047, 388094,
388743, 675021, 775183, 775526,
776101)
62739
Direct Drive Models.
(Replaces: 389137)
85114
Used on leveling feet that have removable boot.
(Replaces: 15648)
285627
To correct a condition where rear leveling
legs collapse or won’t stay set causing
machine vibration. Direct drive models.
359364
Clip for 358594 rear leveling foot.
(Replaces: 358639, 358993)
The World's Largest
Servicers Association!
Marcone has paid your membership dues for the year 2000!
Call the MSA Team at 1-800-482-6022
mem@marcone.com, www.msaworld.com
Benefits include:
• MSA Group Rates on business, auto
and liability insurance!
• Discounts on MSU (Marcone Servicers
University)
• Discounts on shop tools
• Discounts on shirts & uniforms
• FREE subscription to
Marcone World Magazine
• National Appliance Certification
Program
What Are YouWaiting For?

82
/
285222
115v., 60 Hz., 2-speed, includes
capacitor. 29” standard, large
capacity, commercial & compact
belt drive models. 2-speed motor
replaces single-speed motors.
Main Drive Motors
389248
115v., 60 Hz., 2-speed. Direct Drive
Models.
62850
Used on Emerson motors direct
drive models. (Replaces: 62851)
359642
Used on G.E. motors belt drive
models. (Replaces: 88993, 350357,
362086)
362738
Used on Emerson motors belt drive
Motors Switches
482156
189/227 MFD 60 Hz.,
125V. (Replaces: 279667,
357021, 357201, 11015)
Capacitors
3429938
45 MFD 50/60
Hz., 220/250V.
3949170
324/389 MFD 60 Hz., 110V.
(Replaces: 3348058, 3350419,
3949168, 3949170)
Don’t Always Know Where To Turn When Faced
With Complicated Technical Problems?
1.800.482.6022 www.marconeworld.com
EXCELLENCE THROUGH INFORMATION
magazine is your newest source for technical,
business management, and parts information.
magazine is your newest source for technical,
business management, and parts information.

83
/
285317
26/8204 Sears retail
item. Standard, large
capacity and compact
belt drive models.
Manual clean and
basket mount filter
(ring filter) belt drive
models. (Replaces:
357729, 358258,
367068, 367103,
369617, 370403,
383957)
Water Pumps
RUBBER CAP( MAY BE
REMOVED WHEN THIS
PORT IS REQUIRED)
PLASTIC PULLEY
(USE WHEN
REQUIRED AS
PRODUCED ON
PRODUCT)
IT IS RECOMMENDED TO ALSO REPLACE THE DRIVE BELT.
3363394
26/8235 Sears retail item.
Without check valve. All Direct
drive models. (Replaces: 62516,
63347, 64076, 3348015,
3352492)
3363892
With check valve. All Direct drive
2-Port Non-Recirculating Models
350365
Standard, Large capacity
and some portable belt
drive models. 1956
through current belt drive
models self-clean models.
(Replaces: 76505, 83338,
84849, 87075, 87393,
87796, 88434, 89561,
89563, 89981, 350160,
350366, 358036,
358037, 358038,
362174, 362180,
367158, 370402)
359131
With removable cleanout
cover commercial models.
NOTE: TO BE INTERCHANGEABLE
ON SOME MODELS, YOUR
ORIGINAL PUMP PULLEY MAY
HAVE TO BE USED ON THIS
REPLACEMENT PUMP.
3968362
22” & 24” Compact belt
drive models. Included
motor & fan.
3-Port Recirculating Models

84
/
285027
Triple Detergent Dispenser.
(Replaces: 365323)
Detergent Dispenser
350657
(Replaces: 353279, 363550, 366671)
Detergent Dispenser Valves
366672
(Replaces: 87731, 87875, 88559,
350306, 363165)
378058
White. Mechanical Dispenser, liquid or dry
detergent. (Replaces: 368703, 368704,
368705, 376014, 376995, 376996,
377681, 377682, 378059, 378060,
378061, 378062)
Dispenser
359269
For Triple liquid detergent dispenser.
(Replaces: 358958, 358961)
Adapter
64164
Three coil 27” direct drive models.
Dispenser Valve Two-Way Valve (Suds-Saver)
Key Part No. Description Replaces
1 285144 Two-Way Valve (Does not include Illus. 5) 16297, 75282, 75618, 85205, 89348, 89510,
89765, 99830, 350626, 359634, 360168,
359985, 3351454
2 488661 Screw
3 285173 Ground Strap 358343
4 90296 Clip 308593, 786631
5 89346 Solenoid 75280, 75615, 86798
6 90455 Pin, Cotter 90228, 90236, 90685, 121222, 4173319,
4332570
7 359089 Rivet 356990, 451637
8 96262 Clip
9 358317 Diaphragm (For plastic bodies)
75183 Diaphragm (For die-cast bodies)
285144
Belt Drive Model Only.

85
/
358277
26/8227 Sears retail item. Yellow
body. Two coil, non-thermostatic.
For late 1965 to current belt drive
models.
(Replaces: 86729, 86743, 86793,
86794, 86829. 86962, 86963,
87234, 88349, 88652, 89577,
96161, 97639, 97640, 97643,
97647, 97648, 97649, 350487,
358971, 360090, 360093,
363425, 365211, 660749)
Mixing Valves
DO NOT USE ON
DIRECT DRIVE
MODELS!
3967755
Brown body. 2” & 24” compact belt
drive models.
3357901
Blue body. Three coil non-thermostatic.
Direct drive models only.
(Replaces: 64163)
3362048–Red body.
3360388–Green body. Two coil,
non-thermostatic. Compact and direct
drive models. (Replaces: 3349451)
3360391–26/8228 Sears retail item.
Grey body. (Replaces: 292197,
358992, 370067, 388328, 3354565,
3360392, 3360387, 3360389)
3360393–Tan body. 240V.
(Replaces: 3348789, 3360394)
285457–Tan body. 240V. Includes
hose & clamp. (Replaces: 84555,
89881, 350489, 365423, 387876)
358276
Blue body.
3429537
White body.
3934904
Grey body. (Replaces: 3430029)
350229
Color: Brown
(Replaces: 87426,
87784, 88677)
350397
Color: Natural. 1/2” Water restriction.
(Replaces: 86935)
350924
The degree of hardness in water
can be easily determined in less
than a minute with our water hard-
ness test tabs. Regular use will also
help determine if automatic water
softeners are functioning properly.
(038184
89888
Color: Blue. 1/4” Water restriction.
(Replaces: 84403, 84984, 92230,
92233, 92242, 92369, 93227)
Side Check Valves

86
/
285771
Includes: 3357331 Clamp. (Replaces:
384499, 384688, 385528, 387325,
387975, 388417, 388422, 388423,
661575, 3352971, 3357092, 3357102)
Drain Hoses
285666
384498, 388418, 661577, 3357094,
3357104)
285702
3357090)
358790
(Replaces: 360367, 360368, 367007,
3674312)
363407
350981
(Replaces: 350874, 366560, 371743)
367031
Designed to break up the larger
chunks of lint before being
discharged into the drain.
Drain Protector Siphon Break
285320
(Replaces: 76614, 76660)
26/8201 Sears retail item. 47-13/16” long.
V-Cogged (38˚ drive), standard capacity
models. (Replaces: 16192, 16358, 91261)
367011–Code #1, right rear.
367012–Code #2, front
367013–Code #3, left side.
Suspension Springs
3348258
Compact direct drive
and thin twin models.
Includes: Locktite®
Adhesive. (Replaces:
63721, 63731,
389358, 3348255)
3406201
22” & 24” Compact belt drive
3351021–Nut
(1/2-13 UNC 2B
Thread)
CODE NUMBER LOCATED HERE.

87
/
Drain Hose Connectors
95440
24”, 29” Standard & 29” Large capacity
belt drive models. (Replaces: 96756,
LP928)
356739
Compact belt drive models.
357334
Belt drive models.
358805
Belt drive models. (Replaces: 358561)
285321
Required to connect (2) corrugated drain
hoses. (Replaces: 357239)
384496
Connects corrugated hose to connection.
285442
Required to connect (2) corrugated
drain hoses.
3361809
Direct drive models. (Replaces: 63206,
3349018, 3357024)
95405
47-13/16” long. V-Cogged (38˚
drive), standard capacity models.
(Replaces: 16192, 16358,
91261)
Drive Belts
96388
48” long. V-Plain (60˚ drive), large
capacity and quiet-pak models.
(Replaces: 352967)
356402
57-1/2” long. Poly-V4-rib,
compact models. (Replaces:
356403, 356404, 660373)
3934700
22” long. V-Plain (34˚ drive)
Compact models.
(Replaces: 3428097)
We Are More Than Just
Appliance Parts!
• Need Plumbing Supplies?
• Need Electrical Supplies?
• We also handle installation,
parts and accessories.
Call 1-800-482-6022
or
www.marcone.com

88
/
362901
Machine application: Compacts, portables, 24”, 29” standard,
29” large capacity, (Replaces: 16000, 76070, 76530, 80095,
84473, 84903, 99358, 357176, 358483, 359279,
362100, 366557, 367553, 384122)
363331
Machine application: Compacts, 29” Large capacity (long
agitator shaft) (Replaces: 87420, 362779, 363337)
Gearcase Assemblies
389245
Machine application: Spin drain-60 Hz. (Replaces: 62667,
63024, 385889, 389247, 3347820, 3362715)
3360629
Machine application: Neutral drain-60 Hz. (63563, 63910,
389244, 389246, 3360630)
Basket Drive Blocks
96384
24” & 29” Standard capacity models.
(Replaces: 91890, 387329, 387947)
357836
Compact models.
(Replaces: 3569947)
389140
Large capacity belt drive & direct drive
models. (Replaces: 97360, 357782)

89
Gearcase Parts (Belt Drive)
/
KEY PART # DESCRIPTION REPLACES
2. 285202 Cover, Gearcase 62685
3. 3349985 Seal, Gearcase Cover 62787, 3347188
4. 285195 Sealer, Gasket
5. 285362 Pinion, Spin 62570, 62680,
(Incl. Illus. 25) 63320, 285312
6. 356427 Seal, Spin Pinion 62683, 62684
7. 389387 Shaft, Agitator 62675, 63274,
389243
8. 90369 Ring, Retainer 90094
9. 62677 Retainer, Spring
10. 62676 Spring, Agitate
11. 285509 Gear, Agitator
(Incl. Illus. 15 & 29)
12. 62619 Washer, Agitator Gear
13. 285206 Follower, Cam
(Incl. Illus. 14)
14. 285206 Cam, Agitator
(Incl. Illus. 13)
15. 389231 Shaft, Agitator
16. 62618 Washer, Cam
17. 285205 Bearing, Thrust & Ball 16018, 85529
19. 285515 Bottom & Pinnion 62528, 62531,
Gearcase 62668, 63025,
(Incl. Illus. 15 & 29) 63167, 63999,
285194, 285291,
285392, 389229,
389230, 3360263,
3946631, 3947637
21. 285352 Seal, Thrust 63387, 286108
22. 780034 Screw, Gearcase Cover (8) 90864, 343597,
780131, 816733,
831221, 867235,
3351614, 3387181,
9417639
23. 285765 Ring, Retaining 95082
24. 285766 Washer, Thrust 62620, 62799,
62800, 285292,
389208, 3362552,
3362554, 3362555,
3362556, 3362557
25. 285362 Gear, Spin
(Incl. Illus. 5)
26. 388253 Drain-Neutral
27. 3949609 Rack, Connecting 62534, 388763
28. 62621 Actuator, Shift
29. 388815 Washer
30. 62638 Stud, Pawl
31. 285715 Spring, Spin Gear
32. 285715 Pawl, Spin Gear 62848
33. 285715 Retainer, Rack

KEY PART # DESCRIPTION REPLACES
1. 90315 Washer 62866, 120386, 240708,
287405, 487405, 487603,
489108, 680661, 786224,
791037, 791038, 866645,
867032, 869003, 869025,
980833
2. 285068 Clutch, Shaft 18930, 76220, 359460,
(Incl. Illus 1, 3 & 4) 383723
3. 90532 Pin
4. 92119 Roller 16010
5. 350659 Cover, Gearcase 87889, 367552,
(Incl. Illus. 19, 20 & 23)
6. 285037 Shaft, Agitator 75088, 81974, 84468,
(25-21/32” long) 89830, 99641, 350423,
362099, 362642, 363991
285038 Shaft, Agitator 87410, 87415, 350445,
(28-21/32” long) 350446, 362776, 362777,
363990
8. 285672 Seal, Agitator Shaft
9. 285672 Shield, Agitator Shaft
10. 285672 Spring, Agitator Shaft 95079
11. 355469 Gear, Agitator Shaft 16027, 17553
12. 285036 Shaft, Agitator 75074, 76686, 84474,
(25-21/32” long) 89019, 89020, 89829,
350422, 362098
13. 285205 Bearing, Thrust & Ball 16018, 85529
15. 75073 Gear, Sector
16. 52083 Ring, Retainer
17. 775596 Pin, Dowel 5018
18. 350920 Collar, Support (T-Bearing) 16042, 16044, 19438,
86863, 96371, 352416,
352428, 352430, 358586
19. 660883 Bearing 96853, 359274
20. 350347 Support, Yoke 93850, 356445
21. 355345 Screw, Set (5/16-18 x 1/2) 352424
22. 89997 Pulley (60˚) (V-Cogged Belt) 96248, 97802, 354069,
362490
360840 Pulley, (38˚) (V-Plain Belt) 16389, 17298, 75528,
83915, 89700, 350649
350650 Pulley, Drive (Poly-V Belt) 356155
23. 354513 Bearing 17250, 359275
24. 356512 Bolt (2) #5/16-24 x 1-1/8” 98048, 98480, 123792, 355611, 425594
25. 62735 Bolt (4) #5/16-24 x 3/4” 120741, 129741, 356599, 691983, 3349491, 4319338
26. 95089 Gasket 16002
27. 16024 Washer, Pinnion 85162, 89523, 89750, 94266
28. 84467 Pinion, Drive(Incl. Illus. 27 & 29)
29. 90369 Ring, Retainer 90094
30. 16015 Spring, Gear Fork
(Not Used on Compacts)
31. 80398 Fork, Agitator Gear 75153
(Incl. Illus. 3 & 4)
32. 76557 Rod, Connecting 14125, 82241, 89251
33. 285765 Ring, Retainer 95082
34. 95083 Washer, Retainer
35. 353397 Gear, Drive 353396, 359273
37. 362906 Bottom, Gearcase
38. 358585 Bearing, Ball
39. 355613 Bolt, #5/16-24 x 1-3/4”
40. 91939 Seal, Oil 17248, 18918, 92939, 99835
(Field fix to prevent leaking oil at the gearcase pinion shaft due to pumping condition on certain models.
90
/
Gearcase Parts-(Direct Drive)

91
/
Brake & Drive Tube Parts
KEY Part # Description Replaces
2. 62658 Ring, Thrust
3. 90939 Seal 17248, 18918,
92939, 99835
4. 356427 Seal 62683, 62684
5. 356937 Spacer
6. 64208 Tube, Drive 64027
(Incl. Illus. 3, 4, 5 & 9)
8. 285438 Shoe, Brake 64026, 64232,
285420
9. 62703 “T” Bearing, Spin Tube
10. 285658 Cap, Brake Spring (2)
11. 62647 Spring (Black) 62995
24” & 27” large Capacity
63748 Spring (Brown)
24” Compact
387806 Spring (Silver)
27” Extra Capacity
12. 285658 Sleeve, Brake Spring
13. 285283 Cam, Brake Release 62702
15. 285790 Driver, Brake Cam 62698, 62705,
63047, 63175,
63766, 64177,
64194, 285141,
285332, 385381,
285421, 285538,
387712, 388190,
3354731, 3354732,
3946793

92
/
Basket Drive & Brake Assemblies
BRAKE & DRIVE TUBE MACHINE REPLACES
APPLICATION
285752 Compacts 285667, 285710, 3934672,
3935337, 3429856
BASKET CLUTCH PULLEY MACHINE REPLACES
DRIVE & SPRING TYPE APPLICATION
BRAKE COLOR
383922 Red 60˚ Drive 29” Standard 350401, 350530, 362139,
364077
383923 Red 38˚ Drive 24” Portable 76219, 87172, 84533,
99174, 350524, 364444,
365932
383925 Green 38˚ Drive 29” Lg. Capacity 350601, 366659
383926 Gray-Black Poly-V Belt Compact 350629, 366990
383929 Green 38˚ Drive 29” Lg. Capacity 350918, 357970, 359699
383930 White 38˚ Drive 29” Standard 350923, 358364
(was Orange)
383931 White 60˚ Drive 24” Standard 350955, 358840
(was Orange)
383932 Gray-Black Poly-V Belt Compact 285030, 359175
383933 Red 38˚ Drive 24” Standard 285146, 359517
BRAKE & DRIVE TUBE MACHINE REPLACES
APPLICATION
285792 All 62656, 62659, 62706, 62959,
62993, 63390, 64033, 64135,
64197, 64234, 285209, 285542,
387948, 388951, 388952,
388953, 3347182

93
/
Basket Drive & Brake Parts
KEY Part # Description Replaces
1. 91939 Seal 17248, 18918,
92939, 99835,
62683, 62684
2. 356427 Seal 62683, 62684
3. 356937 Spacer
4. 383921 Tube, Drive-18-1/2” long 75580, 76674,
(Incl. Illus. 1, 2 & 3) 350602, 350771,
366658
383928 Tube, Drive-13-11/32” long 350919, 357965
(Incl. Illus. 1, 2 & 3)
383936 Tube, Drive-121-31/64” long 87412, 350000
(Incl. Illus. 1, 2 & 3)
5. 350507 Lining, Upper Brake 16039, 89856,
(Large Capacity Models Only) 96424, 354253
354550 Lining, Upper Brake
6. 350508 Drum, Upper Brake 16040, 75078,
(Incl. Illus. 5) 76078, 87771
350522 Drum, Upper Brake
(Incl. Illus. 5)
(Large Capacity Models Only)
7. 96409 Spring, Drive (Blue)
354275 Spring, Drive (Green)
354276 Spring, Drive (Red)
356152 Spring, Drive (Gray Black)
381046 Spring, Drive
(White was Orange)
8. 97664 Drum, Lower Brake
9. 354244 Lining, Lower Brake 96245, 21049,
21094, 356396
10. 17261 Spring
11. 92903 Yoke, Brake 18744, 89101
12. 16049 Ring, Snap
13. 357155 Disc & Lining 364441, 365931,
369116
357716 Disc & Lining 357156, 367181
(Compact & Portable models only)
17. 353320 Washer 16048, 16304,
19145
18. 16033 Bearing, Drive Pulley 16023, 355507
19. 364032 Pulley Drive (38˚) Uses 354074, 359697,
V-Cogged Belt. (Incl. Illus. 18) 365930
364034 Pulley Drive (60˚) Uses
V-Plain Belt. (Incl. Illus. 18)
366948 Pulley Drive Uses Poly-V Belt 354074, 359697,
(Incl. Illus. 18) 365930
20. 356057 Screw, Set 90046, 90880,
90965, 96791,
355343, 358931
21. 356444 Retainer, Yoke
22. 354319 Retainer, Oil
(Compact Models Only)

94
/
Centerpost Seals
54209
91938
(Replaces: 99404)
285240
Pkg. of 2 seals.
(Replaces: 355842, 356899)
359449
(Replaces: 357409, 359078,
660943, 660990)
Centerpost Bearings
285134
All belt drive models except compacts.
(Replaces: 17242, 99172, 99461,
99618, 50608, 350683)
285136
Compact belt drive models. (Replaces:
350944, 350835, 356140, 356199,
356200, 356993, 367203)
285203
All direct drive models.
Spin Tube Supports
62703
Direct drive models.
350920
Belt drive models.
(Replaces: 16042, 16044, 19438,
86863, 96371, 352416, 352428)
Agitator Studs And Screw
285284–Includes: (1) 358440 & (1) 369516
(Replaces: 358440,369516)
Centerpost Gasket
359192
Commercial models.
(Replaces: 357789, 358543)
383727
Belt drive and direct drive models
(Replaces: 21050, 62665, 96690)
Lock Nuts
21366
Direct drive, standard and large capacity
models-right hand thread.
(Replaces: 16060)
356995
Compact models-left hand thread.

95
/
Agitators–27” Super Capacity (Direct Drive)
63580–Fabric Dispenser
3355758–Cap
285551–Cap & Seal
3348855–Seal
285009–Screw
285746–Cam
80040–Dog
3363661–Bearing
3363003–Mover
285587–Spacer
3347288–Agitator
3951744–Complete Agitator Kit-White. Includes all parts
below except: Fabric dispenser and screw. Used on Whirlpool
models. Dual action. Basket mounted filter models.
below except: Fabric dispenser and cap and seal. Used on
Kenmore models.
3949498–Cap & Seal
358912–Seal
3946997–Retainer
3947922–Spacer
3947517–Agitator
3946996–Auger
80040–Cam
3946998–Dog
285810–Cam
80040–Dog

96
/
Agitators (Cont.)–27” Extra Large Capacity (Direct Drive)
3362061–Cap & Seal
358912–Seal
285009–Screw
285748–Cam
80040–Dog
3360824–Auger
285587–Spacer
389386–Agitator
285727–Complete Agitator Kit-White. Includes all parts below
except: Fabric dispenser. Used on Kenmore models. Dual action.
Basket mounted filter models.
3363661–Bearing

97
/
Agitators (Cont.)–27” Large Capacity (Direct Drive)
285551–Cap & Seal
3348855–Seal
285009–Screw
285746–Cam
80040–Dog
3363661–Bearing
3349582–Mover
285587–Spacer
3349583–Agitator
3349581–Complete Agitator Kit-Blue Green. Includes all
parts below except: Fabric dispenser cap and screw. Used on
KitchenAid models. Dual action.
below except: Both caps screw and seal. Used on Whirlpool
commercial models. Dual Action.
285550–Cap & Seal
3355758–Cap
3348855–Seal
285620–Spacer
3360279–Agitator
64002–Seal
80040–Dog
285751–Cam
285009–Screw
3349610–Mover

98
/
Agitators (Cont.)–24” & 27” Large Capacity (Direct Drive)
63580–Fabric Dispenser (White)
389142–Fabric Dispenser (Blue Green)
3359794–Fabric Dispenser (Canterbury
285551–Cap & Seal
285009–Screw
285746–Cam
80040–Dog
3363661–Bearing
285587–Spacer
285574–Complete Agitator Kit-White. Includes all
parts below except: Fabric dispenser and screw. Used
on Whirlpool models. Dual action. Basket mounted
filter models.
3357524–Complete Agitator Kit-Blue Green.
Includes all parts below except: Fabric dispenser and
screw. Used on KitchenAid models. Dual action.
Basket mounted filter models.
3352110–Complete Agitator Kit-Canterbury Blue.
Includes all parts below except: Fabric dispenser and
screw. Used on Roper models. Dual action. Basket
mounted filter models.
3355758–Cap (White)
3355760–Cap (Blue Green)(NLA) Use 3355758)
3355761–Cap (Canterbury Blue)
3348855–Seal
3350830–Agitator (White)
3357525–Agitator(Blue Green)
3352112–Agitator (Canterbury Blue)
3349019–Mover (White)
3357527–Mover (Blue Green)
3352113–Mover (Canterbury Blue)

99
/
Agitators (Cont.)
285009–Screw
63753–Filter (White)
(Replaces: 63750) Includes:
63753 Filter.
24” Large Capacity (Direct Drive)
Manual Filter
27” Large Capacity (Direct Drive)
Basket mounted filter models
285009–Screw
64210–Extension (White)
(Replaces: 3348374, 3348592)
(Replaces: 3348373, 3348591)

100
/
Agitators (Cont.)–Compact (Direct Drive)
Compact models manual filter. Regular capacity models. Basket mounted filter.
285009–Screw
285751–Cam
80040–Dog
63977–Auger (White)
64002–Seal
285620–Spacer
(Replaces: 3347666)
387095–Cap
285009–Screw
285751–Cam
80040–Dog
63977–Auger
64002–Seal
285620–Spacer
63978–Agitator

101
/
Agitators (Cont.)–Compact & Regular Capacity (Direct Drive)
387095–Cap
285009–Screw
285751–Cam
80040–Dog
63977–Auger
64002–Seal
285620–Spacer
63978–Agitator
Compact models, manual filter.
3355759–Cap (Gray)
285009–Screw
(Replaces: 62922, 63036,
3348323)
Regular capacity models. Basket mounted filter.

102
/
Agitators (Cont.)–Large Capacity (Belt Drive)
285284–Stud & Seal
285156–Cap & Stud
285065–Complete Agitator Kit-Gold. Super roto swirl splined agitator shaft. (NLA) (Replaces: 87770, 365818)
Penta Vane, splined agitator shaft.
357732–Nut
357943–Extension (White) NLA
285009–Stud
384150–Agitator (Gold)

103
/
Agitators (Cont.)–29” Standard & Large Capacity (Belt Drive)
285285–Cap & Stud
350415–Fabric
Dispenser
Standard capacity models, splined agitator shaft. Large capacity models, splined agitator shaft.
285285–Cap & Stud
350415–Cap & Stud
363633–Agitator (White) (Replaces: 88191,
97206, 357200, 364230)
383951–Agitator (White) (Replaces: 358370,
370696, 383952)

104
/
Agitators (Cont.)–24 & 29” Standard (Belt Drive)
285155–Cap & Stud
285062–Complete Agitator Kit-White. Super roto swirl,
splined agitator shaft. (Replaces: 56441, 56442, 84760,
84837, 86662, 87138, 87140, 95072, 95092, 351525,
360561, 360646, 365355, 365779)
285119–Complete Agitator Kit-White. Dual Action, Splined
agitator shaft. (Replaces: 88233, 88832, 88833, 361725,
361727, 361729, 362003, 362008, 362010, 362625,
363159, 363160, 363162, 363163, 363170, 374997,
375057)
358348–Cap & Seal
358912–Seal
285009–Screw
358691–Cam
358692–Shoe
350990–Agitator. Includes:
358691 Cam. (Replaces:
350989, 358820, 359070,
383950)
357574–Seal
358822–Auger

105
/
Agitators (Cont.)–24” & 29” Standard (Belt Drive)
Cap (Sears) NLA
Swirl vane, drive lug (hexagon).
17626–Seal
18402–Agitator (Black)
(Replaces: 18777, 85174)
350243–Stud
94565–Agitator (Black) NLA
(Replaces: 16811)
285285–Cap & Stud (Whirlpool)
17626–Seal
350243–Stud
Cap (Sears) NLA
Roto swirl, drive lug (hexagon).

106
/
Machine Base-6LSR7244EQ0
1. Screw, Bracket Mounting 273556
(10-16 x 5/8)
2. Bracket, Spring Outer (2) 64067
3. Spring Suspension (3) 63907
4. Support & Brake, Tub 33622087
5. Bracket, Spring Outer (L.F.) 64065
6. Link, Leveling Mechanism (2) 63466
7. Spring, Leveling Mechanism 62597
8. Pin, Knurled 62837
9. Foot, Rear (2) 285244
13. Bearing, Centerpost (2) 359398
14. Seal, Centerpost (3) 357409
15. Spring, Counterweight 388492
16. Pad, Plate (Pkg. of 3) 285219
17. Plate, Suspension (Includes Illus. 16) 3946509
18. Pad, Base (Pkg. of 3) 285744
19. Base, Assembly. 285771
(Incl. Illus. 6-9, 18 & 26)
21. Nut. Lock (3/8-16) 3359452
22. Foot, Front (2) 389102
23. Seal, Centerpost (2) 356934
24. Centerpost Bearing Kit 285203
(Incl. Illus. 13, 14 & 23)
25. Ring, Sound Deadening 63134
26. Retainer, Suspension Spring 63806

107
/
Agitator, Basket & Tub-6LSR7244EQ0
1. Cap, Agitator 63580
2. Screw & Washer (5-16-24 x 1) 285009
3. Clothes Mover 3363003
4. Agitator 3347288
5. Tub Ring & Gasket 3976309
6. Gasket, Tub Ring 3976308
7. Clip, Agitator 3354845
8. Bearing, Driven Cam 3363661
9. Cam Driven Short 285746
10. Dog, Agitator Clutch 285751
12. Nut, Spanner 21366
13. Basket & Balance Ring 3952504
14. Filter, Plate 3952746
15. Washer, Agitator 3355921
16. Tub (Includes Item 25) 3361596
17. Block, Basket Drive 389140
18. Gasket, Centerpost 383727
19. Hose, Pressure Switch 353244
20. Agitator Assembly (Complete) 3951744
22. Spacer, Thrust 285587
23. Barrier Cap Assembly 285551
24. Seal, Inner Cap 3348855
25. Hose, Bleach 3948705
26. Washer 3949550

108
/
Brake, Clutch, Gearcase, Motor & Pump-6LSR7244EQ0
1. Brake & Drive Tube (Complete) 285792
2. Washer, Spin Tube Thrust 63292
3. Ring, Spin Tube Support 62697
4. Ring, Retainer 285353
5. Clutch (Complete) 285785
6. Band & Lining, Clutch 285790
(Includes Illus. 7 & 8)
7. Cap, Clutch Spring (2) 62646
8. Spring, Clutch 3951303
9. Gearcase (Complete) 3949118
10. Screw, Gearcase to Base (3) 3357334
11. Plate, Motor Mount to Gearcase 62611
12. Grommet, Motor (4) 62691
13. Coupling, Motor & Isolation 285753
15. Clip, Anti-Rattle 3355454
16. Screw 3357334
17. Retainer, Motor (2) 3349637
18. Shield, Tub to Motor 3362316
19. Motor, Main Drive 3363190
20. Switch, Main Drive Motor 62850
21. Retainer, Pump (2) 62700
22. Pump (Complete) 3363892
23. Screw, 10-16 x 5/8 273556
25. Screw, 10-16 x 5/16 9420601
26. Capacitor 482156
27. Clamp, Capacitor 3949496

109
Hose Fittings & Aerator Adapters
281K
Converts faucet from 15/16”–27
internal thread to 7/8”–external
aerator thread. Fits American Standard
and Kohler faucets.
284
aerator thread.
288
internal thread to 7/8”–external aera-
tor thread. Nylon adapter with washer.
K2
Converts faucet from 3/4”–11-1/2
external thread to 7/8”–external
aerator thread.
K4
aerator thread. Fits Chicago faucets.
1159A Snap Nipple
Fits 7/8”–27 external thread to snap
coupler.
Aerator Adapters
For Internal Threaded Faucets
281K
288
284
K4
1159A
K2
LA991
Preformed valve inlet screens of 50/60
brass mesh to prevent foreign matter from
entering valve body. (Replacement for
WF100, 18-108)
Fill Valve Screens
3/4” x 3/4” male hose thread both ends
with center hex.
LA170–Brass LA171–Brass Plated
LA172–Brass
Hose Connections
LA090
Gold Stripe washers are specially
designed for use with high pressure inlet
hoses on automatic washing machines.
Also ideal for garden hoses. Sold only in
boxes of 100. 200EPT.
Hose Washers
LA100
Packaged 100 pieces per box.
(Replaces GSW300)
LA098
Pressure tested brass boiler drain cock.
Ideal for washer installations, or
wherever a 1/2” NPT inlet x 3/4” GHT
outlet is required. (Replacement for
WF100, 18-108).
Brass Boiler Drain Cock
LA099
Aluminum mesh lint trap fits washing
machine drain hoses. Wire ring clamp
included for simple installation as
illustrated. Package of 2 lint traps and
one retaining ring clamp.
(Replaces: 63210, 83-210)
Lint Trap
LA101
For joining all 15/16” I.D. and 1” I.D.
hoses in automatic washers.
(Replacement for HC-101)
Straight Hose Mender
LA103
For joining all 15/16” I.D. and 1” I.D.
hoses where sharp bends are required on
automatic washers. Use with hose clamps.
(Replacement for WF100, 18-108)
Hose Mender 90˚

110
Female Both Ends.
254–4 ft. 255–5 ft.
256–6 ft. 260–10 ft.
Hoses, Hose Clamps & Tape
Inlet & Drain
Female Both Ends, 90˚.
254A–4 ft. 255A–5 ft.
256A–6 ft. 260A–10 ft.
Extension Type–Male & Female Ends.
253B–3 ft. 255B–5 ft.
256B–6 ft.
820
Y-Hose/2 Female–1 Male.
SSD-6
Universal Washer Drain Hose. 6’ long with
1”, 1-1/8”, 1-1/4” connector.
SSDW-7
Universal Dishwasher Drain Hose. 6’.
400
50’ Bulk Drain Hose-15/16” I.D.
Hoses
300-004–Stainless Steel, 5/16” wide, 7/32” to 5/8”.
300-008–Stainless Steel, 5/16” wide, 7/16” to 1”.
611-010–Stainless Steel, 1/2” wide, 9/16” to 1-1/16”.
611-024–Stainless Steel, 1/2” wide, 1-1/16” to 2”.
611-028–Stainless Steel, 1/2” wide, 1-5/16” to 2-1/4”.
Worm Drive Type
Hose Clamps
Tape–Duct/Foil/Electrical/Teflon
469
Industrial Duct Tape, 2” x 60 yards.
488
Silver Foil Tape, 2” x 40 yards.
MA-C950
Teflon Thread Seal Tape, 1/2” x 520”.
66066
Electrical Tape, 3/4” x 60’.
LA173
Attaches to mixing valve for single hose
operation when washer is used as portable
unit or in temporary location. One male
and two female 3/4” thread connections.
(Replaces 18-455, 1455-C)
Twin Mix-Short
LA180
Plastic hose end cap, fits 3/4” male hose threads.
Hose Cap
LA182
Manufactured from rust resistant aluminum,
15/16” I.D. and 1” I.D. hose.
(Replaces: 18-107, N1000)
Goose Neck
LA183
Chrome plated with two male and one
female 3/4” hose connections. Use on
faucet to provide two outlets.
“Y” Fitting
Hose Fittings

UD48
UD48S
111
RVHAW4
4” Plastic Vent Hood, wide mouth style.
(Boxed). (PVHB)
Dryer/Bath and All Purpose Venting
DAVHA4/12
4” Aluminum Vent Hood. (Boxed). (VH4)
SVHAW4
4” White Louvered Vent Hood with 12” tail
and flange plate. (LO4-12W)
LTF
Indoor Lint Trap Kit. Includes plastic bucket
with 4” x 5’ vinyl tube and clamps. Used
when outside venting is unavailable. (LTN)
VGF1
Indoor Dryer Vent bucket and cover only.
VGF5A
Indoor Dryer Vent Kit. Complete with (1)
bucket, (1) cover, (2) clamps, (1) 4” x 5’
length of aluminum ducting. (LVT-K)
DE904
4” Aluminum 90˚ Elbow, Economy style.
(AE4)
Aluminum Elbow & Pipe
DP244
4” x 24” Aluminum Pipe, Snap-lock type.
(AP4)
AO48X/6
Semi-rigid Flexible Duct, 4” x 8’ aluminum.
(AF48B, AO48X/9)
FO450
50’ Vent Tube SUpurr FLEX metallic duct
is made of 5 layers of pure aluminum, 4”
diameter. This is the good stuff!
FLS450
4” Flexible, Aluminum/Polyester, 50’.
(SH450)
BH450W
4” Flexible, Vinyl, 50’. (EH420V)
FLS450
4” Flexible Aluminum/Polyester, 50’.
(SH450)
VC4
4” Screw Clamp. Perfect for SUpurr-FLEX
duct!
4” Clamps
MSC4100
4” Squeeze Spring Clamp. (VC4WT)
UD48
Vent Kit, 24” to 41” with 90˚ turn.
UD48S
Vent Kit, 24” to 43” straight.
Slimline Vent Kits

112
16100-SPST
Washers, Dryers, Dishwashers
15A, 125 VAC
C/vHP125VAC
IZxHP250 VAC, UR
Switches
16200-SPST
Domestic & Commercial
Washers & Dryer
15A, 125/250 VAC
C/vHP125VAC
IZxHP250 VAC, UR
16300-SPST
Washers, Dryers, Dishwashers
15A, 125/250 VAC
C/vHP125VAC
IZxHP250 VAC, UR
16400-DPST
Replacement for Whirlpool
Dryer 239453
15A, 125/250 VAC
C/vHP125VAC
IZxHP250 VAC, UR
16500
Replacement for Norge, Philco
15A, 125 VAC
C/vHP125VAC
IZxHP250 VAC, UR
16600
Long Plunger Washers, Dryers
Dishwashers
15A, 125/250 VAC
C/vHP125VAC
IZxHP250 VAC, UR
16700-SPDT
Replacement for GE Dryer
1A, 240 VAC
16801
2-Lines, 2-Circuits Replacement
for GE Dryer WE4X199
UR/ASP 4A, 240 VAC
ZcHP 120/240 VAC
16802
Icemaker Switch Replacement
for Whirlpool style UR
15A,
ZcHP 120/240 VAC
16803
Replacement For Westinghouse
Q122401, Q122402
UR 15A, 125VAC
10A., 250 VAC
ZxHP 125/250 VAC
16806
Appliance Switch Replacement for Mtg. 304575, 304576,
305753, 305754 and Speed Queen 56052
UR/CSA 125V., 10A. IZxHP 120/240 VAC,
16807
Replacement for
Speed Queen 53236
25A, 125/250 VAC
UR 1 HP125VAC
2 HP 250 VAC
DE906
Replacement for Maytag
301336, 3-1336, 302455
& 3-2455
15A, 125/250 VAC
CvHP 125VAC
IZxHP 250VAC, UR
LP210
Replacement for Whirlpool
Washers & Dryers 279347
15A, 125/250 VAC
CvHP 125VAC
IZxHP 250VAC, UR
16901
This 16901 Switch Kit contains six of our
most popular lid and door switches for
domestic washers and dryers.
Kit contains the following:
(1) 16100 (1) 16200 (2) 16300
(1) 16600 (1) 16806
Appliance Switch Kit

113
Vertical 8 Coin Chutes. 24 options from
$0 to $2 using nickels, dimes and
quarters. Quick and easy to change prices.
Thick front mounting plate to protect
from direct attack. Greater rejection of
slugs, tile and foreign coins.
20-00-000-050 $.50
20-00-000-075 $.75
20-00-000-100 $.1.00
Commercial Laundry
Coin Chutes
GREENWALD INDUSTRIES INC.
59-3200-15-25
Quartermaster 5900 Coin Meter. Square
face.
Coin Meters
59-3200-2-25
Quartermaster 5900 Coin Meter. Round
face.
76-1030-11
110V for Wascomat.
76-1030-12
110V for Wascomat.
76-1040-1
110V for Wascomat.
Start Mechanisms
8-1260-28
Multi Guard Money Box (MG3000). $70
quarter capacity. 2.4” H x 3.515”W x 5.5”L.
Fits Wascomat, GE, Speed Queen, Huebsch
and Whirlpool.
Money Boxes
8-1150-0
Ultra Guard Money Box with round lock
(UG400) $45 quarter capacity.
2.375” H x 3.515”W x 4.0”L. Fits older
Speed Queen, GE, Sears, Huebsch and IDC.
8-1240-0
8” Money Box. Fits Dexter, Huebsch and
Unimac/Speed Queen large front load
washers and dryers. $120 quarter capacity.
2.4” H x 3.5”W x 7.8”L. Fits older Speed
Queen, GE, Sears, Huebsch and IDC.
8-1210-0
Ultra Guard High Security Money Box
(UG400A0). $70 quarter capacity.
2.375” H x 3.515”W x 5.5”L. Fits
Wascomat, GE, Speed Queen, Huebsch and
Whirlpool.
Slide Extension Bolts
68-1164–Extension for Whirlpool washers.
68-1184–Extension for Sears/Kenmore washers.
84-1135–Extension for Whirlpool dryers.
87-1033–Extension for Speed Queen washers.
74-94-2–Extension for GE washers.
75-1014–Extension for GE dryers.
77-83-7–Chute Bolt, Replacement chute bolt for GE, Maytag, Speed Queen, Sears and Wascomat.
77-83-8–Chute Bolt, Replacement chute bolt for Whirlpool.

114
GREENWALD INDUSTRIES INC.
APPLICATION TYPE TUBULAR SENTINEL SENTINELL II COBRA MEDECO DUO ABLOY RAMPART
ADC
Stack: Triangle Box 12.69” T Shaft 8-1000-38 77-1055-38 91-1055-38 77-1054-38 77-1034-38 77-1034-38 77-1035-38
DEXTER
Stack Money Box Stud 8.83” 8-1001-59 77-1045-59 91-1045-59
Money Box Stud 2.12” 8-1181 91-1168
Money Box Stud 2.38” 8-1001-53 91-1045-53 77-1047-53
Money Box Stud 6.6” 8-1001-60 77-1045-60 91-1045-60
GENERAL ELECTRIC
Service Door Cam 74-1027-31-GR100 87-1228-31 87-1228-31 91-1228-31 77-1092 87-1260
Service Door 2X Cam 74-1047-31-GR100 74-1049-31 91-1049-31 74-1062-1
Machine Top Stud 1.81” 87-1235-31-GR100
HOYT
Money Box 6.7” T Shaft 8-1000-32
Money Box Stud 9.75” 8-1001-11
Money Box Stud 8.06” 77-1047-23 77-1044-23
IDC
Money Box Stud 8.06” 77-1044-23 91-1044-23 77-1047-23
IPSO
Money Box 13.1” T Shaft 77-1060
MAYTAG
Access Door 1/75” T Shaft 8-1000-40 91-1055-40
MDG32PC Stack
Service Door CAM 85-1017-31 85-1016-31 85-101
Service Door Lock Only 7-06-31 91-1101-31 77-1025 77-1004-2 77-1068
Service Door Lock Only 7-35-31-MX7*
Money Box CAM/Kit Kit 1810 Kit 1810 Kit 1808
Money Box Lock Only 7-02 91-1101 77-1085 77-1075 77-1004-2 77-1058
Money Box 5.5” T Shaft 8-1000-22 77-1055-22 91-1055-22 77-1054-22 77-1037-22 77-1034-22 77-1035-22
Money Box 9” T Shaft 8-1000-37 77-1055-37 91-1055-37 77-1054-37 77-1037-37 77-1034-37 77-1035-37
Stack: Rectangle Box 12 18” T Shaft 8-1000-34 77-1055-34 91-1055-34 77-1054-34 77-1037-34 77-1034-34 77-1035-34
Stack: Triangle Box 12.69” T Shaft 8-1000-38 77-1055-38 91-1055-38 77-1054-38 77-1037-38 77-1034-38 77-1035-38
SEARS
Service Door Cam 68-1174-361-GR888 68-1166-31 91-1166-31 77-1091
Machine Top Stud 2.12” 8-1181 68-1168 91-1168
SPEED QUEEN
Service Door Cam 74-1027-31-GR800 87-1228-31 91-1228-31 77-1092 87-1260
Service Door Stud 1.81” 87-1235-31-GR800 87-1240-31 91-1240-31
Tumbler Dryer Cam 8-1189
Loadstart 30# Dryer Stud 7.77” 8-1001-18 77-1045-18 91-1045-18 77-1047-18 77-1044-18
Stack Dryer Stud 8.83” 8-1001-59 77-1045-59 91-1045-59
Stack Dryer 7.5” T Shaft 8-1000-33 77-1037-33 77-1034-33 77-1030-33
Superload II/Super 20 Stud 15.06” 8-1001-65 91-1045-65
Twinstar 10.76” T Shaft 8-1000-39 91-1055-39 77-1054-39 77-1035-39
UNIMAC
Service Door Lock Only 7-06
WASCOMAT
W74, 124, 184 Top Cam 85-1017
WHIRLPOOL
Service Door Cam 68-1174-31-GR777 68-1166-31 91-1166-31 77-1091 68-1181
Service Door Stud 2.12” 68-1181-31-GR777 68-1168-31 91-1168-31
8325 METER
Front Plate 60A-34-32-GR675
SECURITY SLEEVE
Security Sleeve Stud 4.81” 77-1045-65 91-1045-82
LOCK & KEY ONLY
Greenwald Money Box 7-22 77-1025 91-1101 77-1085 77-1075 77-1086 77-1058 77-1009
Other 7-06 77-1050 91-1101 77-1075 77-1086 77-1068
KEY ONLY
Greenwald Money Box 8-166-1 77-2006 91-2000 77-2018 77-2020 77-2005-9 77-2014 77-2005-11
Other 8-20 77-2006 91-2000 77-2005-5 77-2026 77-2016
Lock & Key Quick Reference

115
112
Surface Mount Range Receptacle. Rated
50 A-125/250V.
Receptacles, Adapter/Fuses
125
Surface Mount Dryer Receptacle. Rated
30 A-250V.
BP655-20
20A, 2/pk.
BP655-30
30A, 2/pk.
BP655-35
35A, 2/pk.
BP655-40
40A, 2/pk.
Cartridge Fuses
1234
Flush Mount Dryer Receptacle. Rated 30
A-250V.
1876B
Flush Mount Dryer Receptacle. Rated 30
A-250V.
419GY
Grounding Adapter, Grey vinyl
w/ground wire. Standard pack 25.
Adapter
Receptacles
BP670-3-15
Time Delay, 15A, 3/pk.
BP670-3-20
BP670-3-30
BP690-3-20
Fast Blow, 20A, 3/pk.
BP690-3-30
Fast Blow, 30A, 3/pk.
Plug Fuses (Screw Type)
Appliance Cords
433–125V, 15 A, 14G, 3-wire, 3’.
436–125V, 15 A, 14G, 3-wire, 6’.
439–125V, 15 A, 14G, 3-wire, 9’.
836–250V, 15 A, 3-wire, 6’.
839–250V, 15 A, 3-wire, 9’.
A/C & Heating Cords
400 Series
Cap
Connector
800 Series
A/C & Extension Cords
Range Cords
Dryer Cords
5614–40 A, 4’.
5615–40 A, 5’.
5616–40 A, 6’.
5604–50 A, 4’.
5605–50 A, 5’.
5606–50 A, 6’.
5600–50 A, 10’.
604*–50 A, 4’.
624*–40 A, 4’.
761–250V, 20A, 6’.
762–250V, 20A, 9’.
5604
604
1004
5654
5654–30 A, 4’.
5655–30 A, 5’.
5656–30 A, 6’.
5650–30 A, 10’.
1004*–30 A, 4’.
* Indicates 4-wire for mobile homes.

116
N8628–Ratchet Handle with Spring.
BB15–Web Strap With Roller Buckle, 2” x 15’ long.
CB15–Web Strap With Claw Buckle, 2” x 15’ long.
N8632–Dolly Web Strap, 2” x 15’ long (no buckle).
N8640–Step Guide Belt.
N8655–Wheel With Bearing.
TS50–Web Strap, 2” x 50’.
500–Furniture Pad.
Hand Truck Accessories
N.E.T.
STEVENS/
MRT
Magnesium Lightweight Dolly. 60”
high x 17” wide. Weight: 41 lbs,
load capacity: 500 lbs. One 3-ply,
2-piece, 14’ web strap w/ratchet
strap tightener, automatic strap
recoil, roller bearing crawler treads.
MRT-2R
Same as MRT, except with
double ratchet. Great for
refrigerators! Weight: 45 lbs.
HLT
Hi/Lo Tightener. Ideal for handling most
appliances. 7/8”, 16 gauge tubular steel
construction. 60” high x 16” wide. Weight:
40 lbs., load capacity: 500 lbs., 2-piece,
3-ply, 14’ strap.
P12
Vertical Rail Rubber Strip. (MRT, SRT-M-60)
BWA-M
Big Wheel Attachment for magnesium truck.
Pneumatic 10” tires. Weight: 18 lbs.
THE #1 Software Solution For
The Retail & Service Industry!
Our software handles every aspect of your business.
• Service Tracking • Price & Availability
• NARDA/NESDA • Model Number Lookup
• Point of Sale • Electronic Ordering
• Reports & Inquiry • Inventory Control
• Purchasing & Receiving • Integrated Accounting
Whether your business is small or large contact us at
1-800-SWIFTLINK (794-3854) www.swiftlink.com

117
NOTES:

Partes marcone

More Related Content

What's hot

Viewers also liked

Similar to Partes marcone

Recently uploaded

Partes marcone
