Data-Sheet
QSFP-DD 400G Base
Optical Transceiver

2. WWW.JTOPTICS.COM
8 channels full-duplex transceiver modules
Transmission data rate up to 53Gbps per channel
8x53Gbps PAM4 transmitter and PAM4 receiver
8 channels 850nm VCSEL array
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter
Power consumption <8.5W
Hot Pluggable QSFP DD form factor
Max. link length of 70m on OM3 Multimode Fiber (MMF)and
100m on OM4 MMF with FEC
MPO-16 APC connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant(lead free)
400G QSFPDD Transceiver 400GBASE-
SR8, 850nm, MPO-16, MMF
JT-400G-QSFPDD-SR8

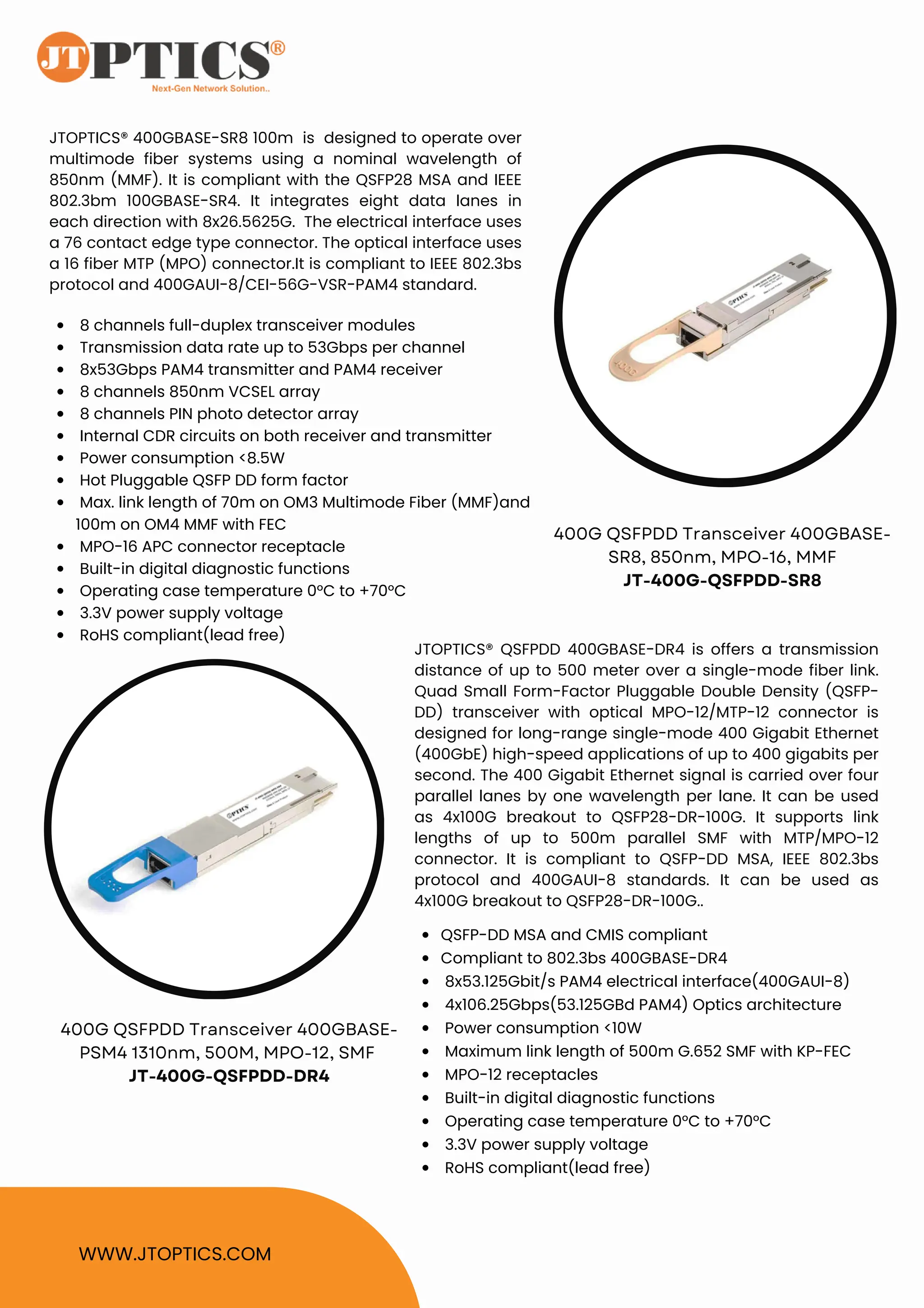

JTOPTICS® 400GBASE-SR8 100m is designed to operate over
multimode fiber systems using a nominal wavelength of
850nm (MMF). It is compliant with the QSFP28 MSA and IEEE
802.3bm 100GBASE-SR4. It integrates eight data lanes in
each direction with 8x26.5625G. The electrical interface uses
a 76 contact edge type connector. The optical interface uses
a 16 fiber MTP (MPO) connector.It is compliant to IEEE 802.3bs
protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
JTOPTICS® QSFPDD 400GBASE-DR4 is offers a transmission
distance of up to 500 meter over a single-mode fiber link.
Quad Small Form-Factor Pluggable Double Density (QSFP-
DD) transceiver with optical MPO-12/MTP-12 connector is
designed for long-range single-mode 400 Gigabit Ethernet
(400GbE) high-speed applications of up to 400 gigabits per
second. The 400 Gigabit Ethernet signal is carried over four
parallel lanes by one wavelength per lane. It can be used
as 4x100G breakout to QSFP28-DR-100G. It supports link
lengths of up to 500m parallel SMF with MTP/MPO-12
connector. It is compliant to QSFP-DD MSA, IEEE 802.3bs
protocol and 400GAUI-8 standards. It can be used as
4x100G breakout to QSFP28-DR-100G..
400G QSFPDD Transceiver 400GBASE-
PSM4 1310nm, 500M, MPO-12, SMF
JT-400G-QSFPDD-DR4
QSFP-DD MSA and CMIS compliant
Compliant to 802.3bs 400GBASE-DR4
8x53.125Gbit/s PAM4 electrical interface(400GAUI-8)
4x106.25Gbps(53.125GBd PAM4) Optics architecture
Power consumption <10W
Maximum link length of 500m G.652 SMF with KP-FEC
MPO-12 receptacles
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant(lead free)

3. WWW.JTOPTICS.COM
4 channels full-duplex transceiver modules
Transmission data rate up to 100Gbps per channel
4x100Gbps PAM4 transmitter and PAM4 receiver
Compliant with IEEE 802.3bs standard
4 channels 1310nm EML array
Internal CDR circuits on both receiver and transmitter
Power consumption < 10W
Reach up to 2 Km SMF
LC connector receptacle
Built-in digital diagnostic functions
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)
400G QSFPDD Transceiver 400GBASE-
FR4 1310nm, 2 km, LC, SMF
JT-400G-QSFPDD-FR4

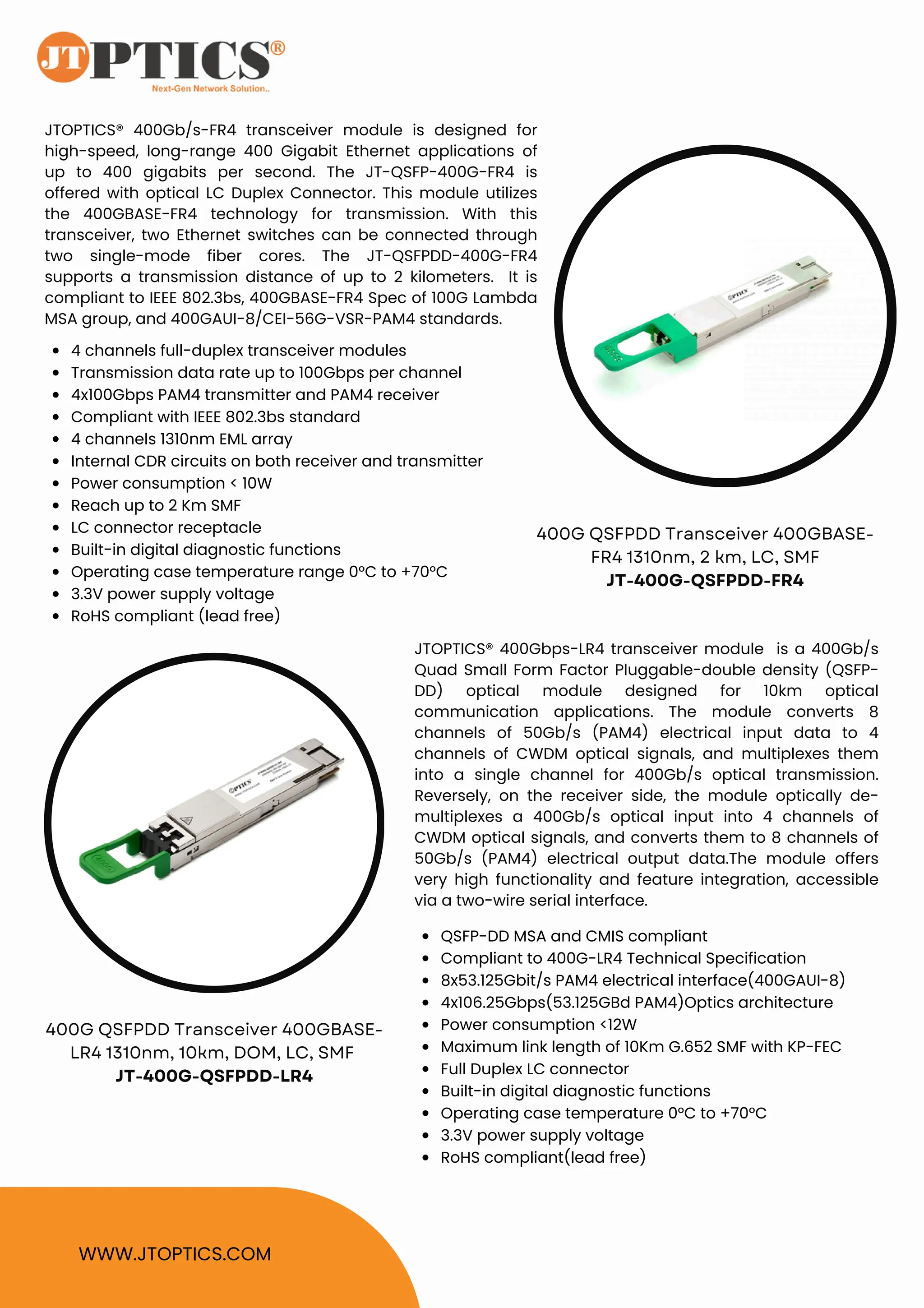

JTOPTICS® 400Gb/s-FR4 transceiver module is designed for
high-speed, long-range 400 Gigabit Ethernet applications of
up to 400 gigabits per second. The JT-QSFP-400G-FR4 is
offered with optical LC Duplex Connector. This module utilizes
the 400GBASE-FR4 technology for transmission. With this
transceiver, two Ethernet switches can be connected through
two single-mode fiber cores. The JT-QSFPDD-400G-FR4
supports a transmission distance of up to 2 kilometers. It is
compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda
MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards.
JTOPTICS® 400Gbps-LR4 transceiver module is a 400Gb/s
Quad Small Form Factor Pluggable-double density (QSFP-
DD) optical module designed for 10km optical
communication applications. The module converts 8
channels of 50Gb/s (PAM4) electrical input data to 4
channels of CWDM optical signals, and multiplexes them
into a single channel for 400Gb/s optical transmission.
Reversely, on the receiver side, the module optically de-
multiplexes a 400Gb/s optical input into 4 channels of
CWDM optical signals, and converts them to 8 channels of
50Gb/s (PAM4) electrical output data.The module offers
very high functionality and feature integration, accessible
via a two-wire serial interface.
400G QSFPDD Transceiver 400GBASE-
LR4 1310nm, 10km, DOM, LC, SMF
JT-400G-QSFPDD-LR4
QSFP-DD MSA and CMIS compliant
Compliant to 400G-LR4 Technical Specification
8x53.125Gbit/s PAM4 electrical interface(400GAUI-8)
4x106.25Gbps(53.125GBd PAM4)Optics architecture
Power consumption <12W
Maximum link length of 10Km G.652 SMF with KP-FEC
Full Duplex LC connector
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant(lead free)

4. Part No JT-400G-QSFPDD-MPO-SR8 JT-400G-QSFPDD-MPO-DR4 JT-400G-QSFPDD-LC-FR4 JT-400G-QSFPDD-LC-LR4
Description
400GBASE-SR8 QSFP-DD
PAM4 850nm 100m
400G DR4 QSFP-DD PAM4
1310nm 500m
400GBASE-FR4 QSFP-DD
PAM4 1310nm 2km
400GBASE-LR4 QSFP-DD
PAM4 1310nm 10km
Form Factor QSFP56 QSFP-DD QSFP-DD QSFP-DD
Max Data Rate 400Gbps 400Gbps 400Gbps 400Gbps
Connector MTP/MPO-16 (UPC) MTP/MPO-12 (APC) Duplex LC (UPC) Duplex LC (UPC)
Wavelength 850nm 1310nm 1310nm 1310nm
Transceiver Type VCSEL DFB CWDM EML CWDM EML
Receiver Type PIN PN PIN PIN
Tx Power (Average) -6.0 ~ +4.0 -2.9 ~ +4.0 -3.3 ~ +3.5 -2.8 ~ +5.3
Receiver Sensitivity
(Average)
≦-7.9 ≦-5.9 ≦-7.3 ≦-9.1
Operating
Temprature
0 to 70°C (32 to 158°F) 0 to 70°C (32 to 158°F) 0 to 70°C (32 to 158°F) 0 to 70°C (32 to 158°F)
Power
Consumption
≤10W ≤10W ≤ 10W ≤12W
Modulation Format PAM4 PAM4 PAM4 PAM4
Extinction Ratio 3dB 3.5dB 3.5dB 3.5dB
Protocols
IEEE 802.3cd, QSFP-DD MSA,
CMIS 4.0
IEEE 802.3bs, QSFP-DD MSA,
CMIS 4.1
IEEE 802.3bs, QSFP-DD MSA,
CMIS 4.1
IEEE 802.3bs, QSFP-DD MSA,
CMIS 4.1
DDM/DOM Supported Supported Supported Supported
Media MMF SMF SMF SMF
Max Cable
Distance
70m@OM3/100m@OM4 500m 2km 10km
Applications
IEEE
802.3cd 200GBASE-SR
IEEE 802.3bs 400GBASE-DR4
Data center network
400GBASE-FR4 Ethernet
Data center netw
400GBASE-LR4
Ethernet
Data center network
Warranty 3 years 3 years 3 years 3 years
WWW.JTOPTICS.COM

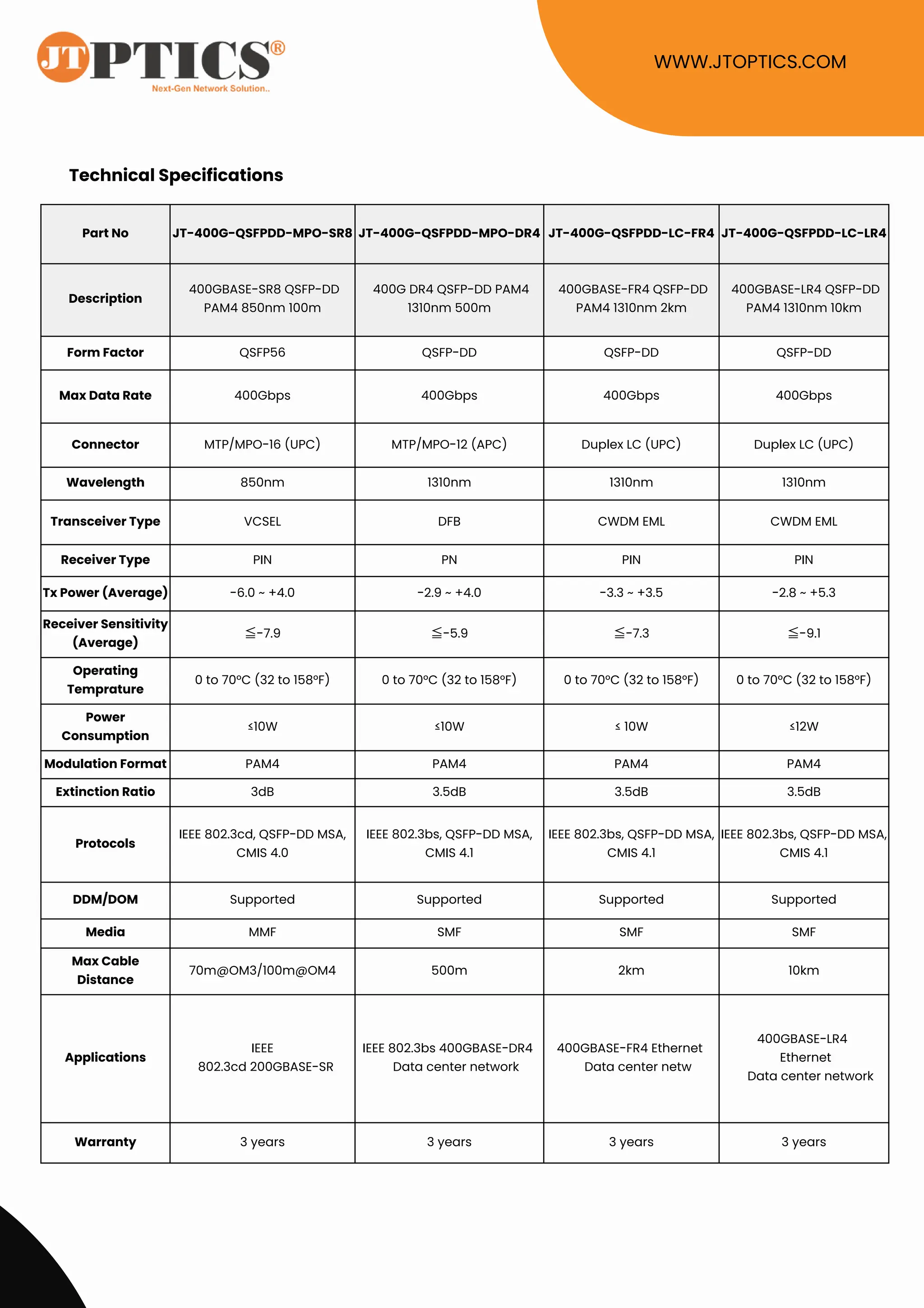

Technical Specifications

5. WWW.JTOPTICS.COM

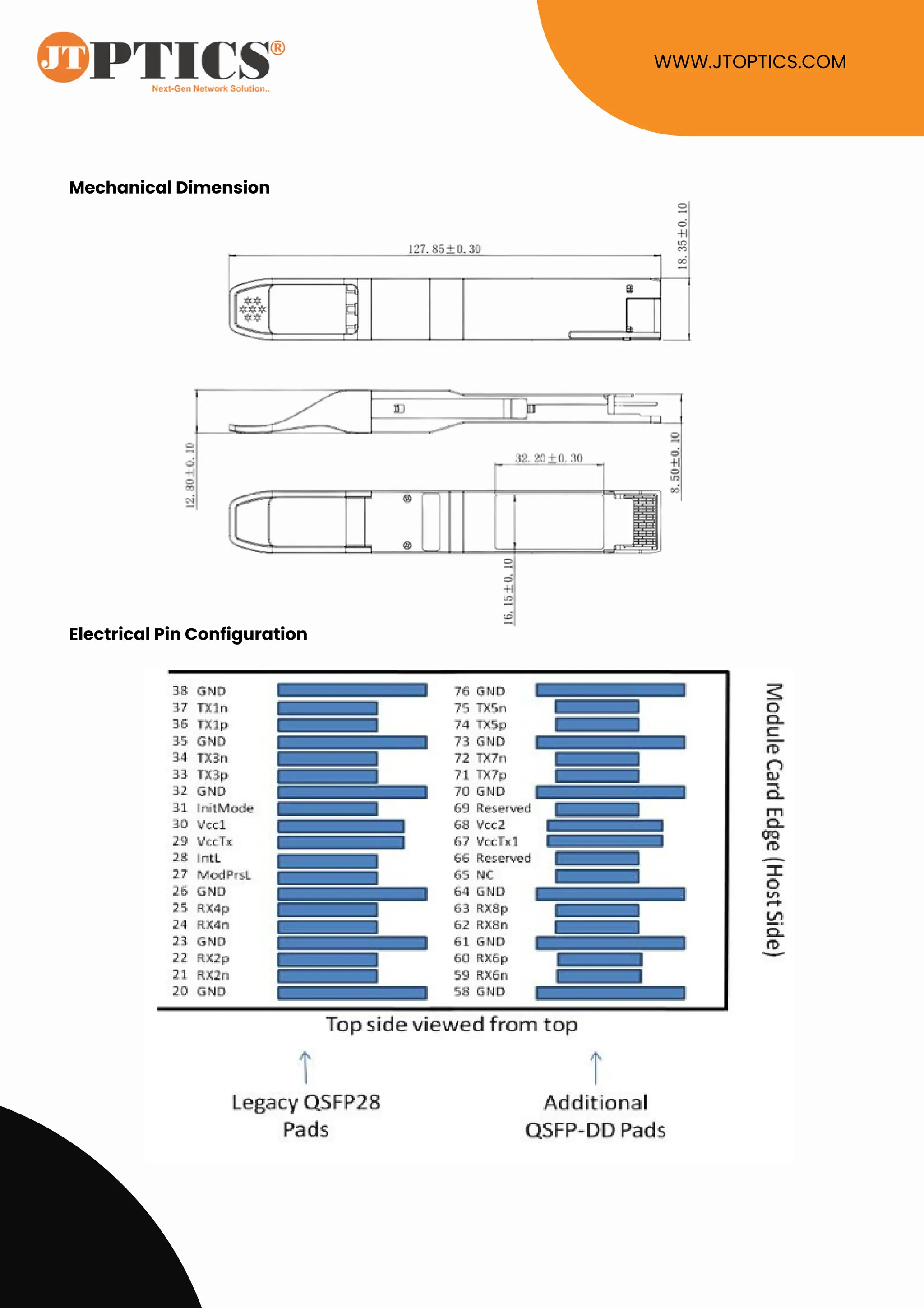

Mechanical Dimension
Electrical Pin Configuration

6. WWW.JTOPTICS.COM

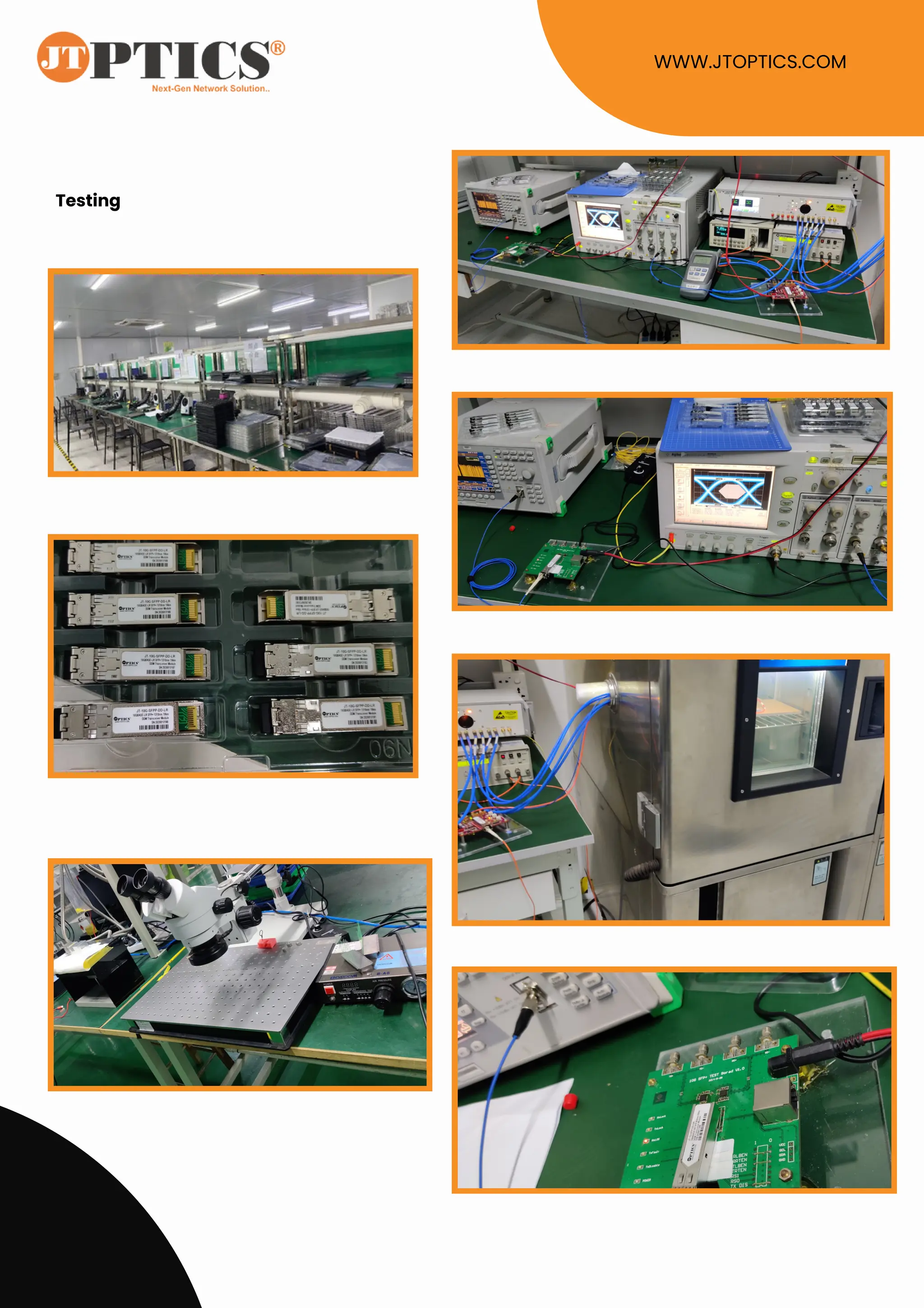

Testing
