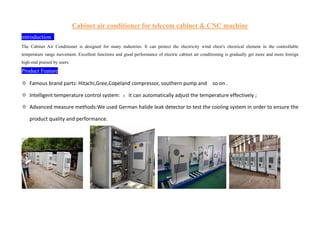

1. Cabinet air conditioner for telecom cabinet & CNC machine
Introduction
The Cabinet Air Conditioner is designed for many industries. It can protect the electricity wind chest's electrical element in the controllable
temperature range movement. Excellent functions and good performance of electric cabinet air conditioning is gradually get more and more foreign
high-end praised by users.
Product Feature
 Famous brand parts: Hitachi,Gree,Copeland compressor, southern pump and so on .
 Intelligent temperature control system: ：it can automatically adjust the temperature effectively ;
 Advanced measure methods:We used German halide leak detector to test the cooling system in order to ensure the
product quality and performance.

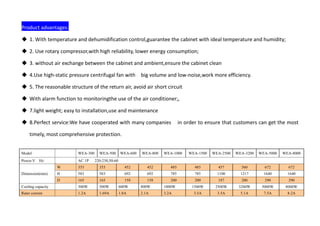

2. Product advantages:
 1. With temperature and dehumidification control,guarantee the cabinet with ideal temperature and humidity;
 2. Use rotary compressor,with high reliability, lower energy consumption;
 3. without air exchange between the cabinet and ambient,ensure the cabinet clean
 4.Use high-static pressure centrifugal fan with big volume and low-noise,work more efficiency.
 5. The reasonable structure of the return air, avoid air short circuit
 With alarm function to monitoringthe use of the air conditioner;,
 7.light weight; easy to installation,use and maintenance
 8.Perfect service:We have cooperated with many companies in order to ensure that customers can get the most
timely, most comprehensive protection.
Model WEA-300 WEA-500 WEA-600 WEA-800 WEA-1000 WEA-1500 WEA-2500 WEA-3200 WEA-5000 WEA-8000
Power.V Hz AC 1P 220-230,50-60
Dimension(mm)
W 353 353 452 452 485 485 457 560 672 672
H 583 583 692 692 785 785 1100 1217 1640 1640
D 165 165 158 158 200 200 187 200 290 290
Cooling capacity 300W 500W 600W 800W 1000W 1500W 2500W 3200W 5000W 8000W
Rater current 1.2A 1.69A 1.8A 2.1A 3.2A 3.5A 3.5A 5.1A 7.5A 8.2A

3. Test conditions:
dry bulb temperature inside electric cabinet: 35℃, wet bulb temperature: 26℃;The outside dry bulb temperature of electric cabinet is 35℃.
Rated power 241W 333W 388W 420W 707W 707W 767W 1114W 1615W 1748W
Refrigerant type
R134a
Noise 55dB 55dB 55dB 60dB 60dB 65dB 65dB 65dB 75dB 75dB
Protector level
Inner loop
IP54
Outer
loop
IP55
Temperature
setting range
25～38℃(factory setting 30℃）
Ambient
temperature
-5℃～55℃
Power connect
Triangle or terminal blocks
Weight 17Kg 20Kg 23Kg 26Kg 35Kg 35Kg 45Kg 50Kg 55Kg 60Kg
Colour RAL 7035(Light gray)
Flow
Inner loop 144m3/h 150m3/h 215m3/h 230m3/h 470m3/h 470m3/h 470m3/h 850m3/h 2000m³/h 2000m³/h
Outer
loop
314m3/h 350m3/h 314m3/h 290m3/h 470m3/h 470m3/h 1080m3/h 1300m3/h 2250m³/h 2300m³/h
Temperature
controller
Digital display

4. Air outlet
Air outlet Air inlet
Air inlet

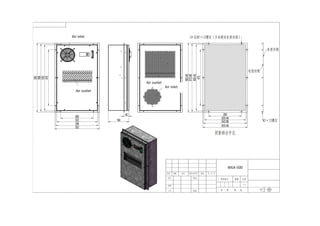

5. WEA-500
return
Air inlet
Air outlet
Air outlet
Air inlet

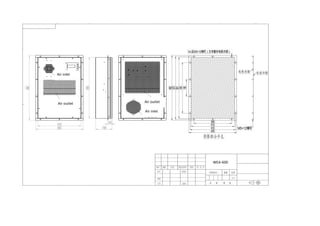

6. WEA-600
Air inlet
Air outlet
Air outlet
Air inlet

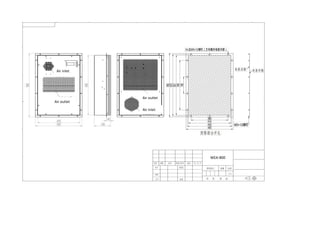

7. WEA-800
Air inlet
Air outlet
Air outlet
Air inlet

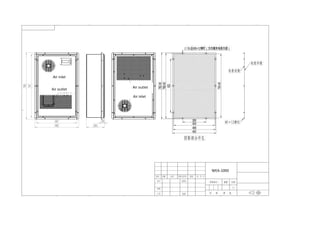

8. WEA-1000
Air outlet Air outlet
Air inlet
Air inlet

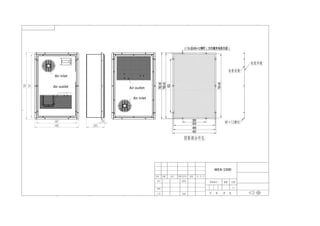

9. WEA-1500
Air outlet Air outlet
Air inlet
Air inlet

10. WEA-2500
Air inlet
Air inlet
Air outlet
Air outlet

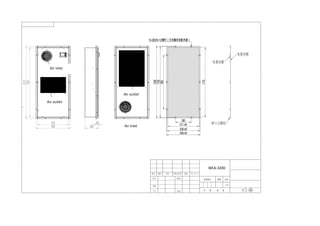

11. WEA-3200
Air inlet
Air outlet
Air inlet
Air outlet

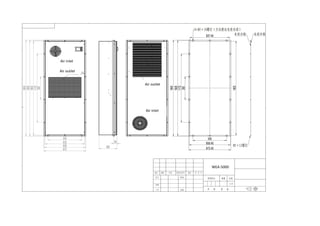

12. WEA-5000
Air outlet
Air inlet
Air inlet
Air outlet

13. WEA-8000
Air outlet
Air outlet
Air inlet
Air inlet
