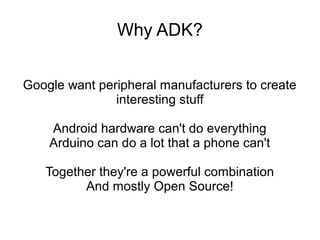

2. Why ADK?
Google want peripheral manufacturers to create
interesting stuff
Android hardware can't do everything
Arduino can do a lot that a phone can't
Together they're a powerful combination
And mostly Open Source!

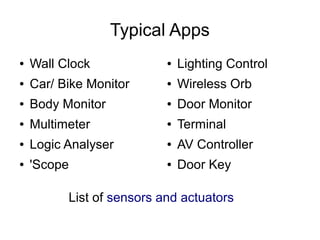

3. Typical Apps
● Wall Clock ● Lighting Control
● Car/ Bike Monitor ● Wireless Orb
● Body Monitor ● Door Monitor
● Multimeter ● Terminal
● Logic Analyser ● AV Controller
● 'Scope ● Door Key
List of sensors and actuators

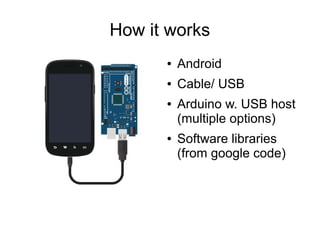

4. How it works
● Android
● Cable/ USB
● Arduino w. USB host
(multiple options)
● Software libraries
(from google code)

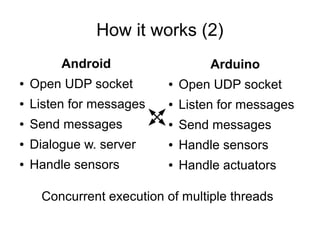

5. How it works (2)
Android Arduino
● Open UDP socket ● Open UDP socket
● Listen for messages ● Listen for messages
● Send messages ● Send messages
● Dialogue w. server ● Handle sensors
● Handle sensors ● Handle actuators
Concurrent execution of multiple threads

6. ADK 2011 vs. 2012
2011 2012
● Mega 2560 AVR ● ARM processor
● Standard shield(s) ● Clock shield combo

7. Software
Android Arduino
● Program in Java w. ● Program in C++ w.
Eclipse Arduino IDE
● Examples available ● Examples available
● Processing a ● There's an Arduino-
restricted option style IDE for the 2012
(ARM) as well

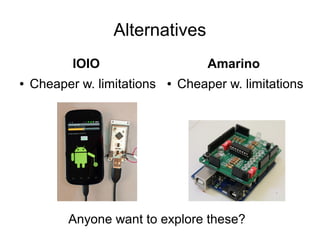

8. Alternatives
IOIO Amarino
● Cheaper w. limitations ● Cheaper w. limitations
Anyone want to explore these?

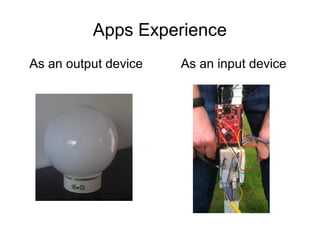

9. Apps Experience
As an output device As an input device

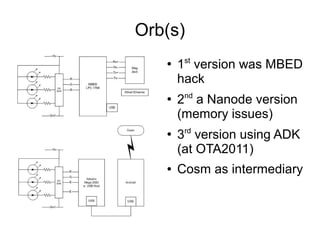

10. Orb(s)
●
1st version was MBED
hack
nd
●
2 a Nanode version
(memory issues)
●
3rd version using ADK
(at OTA2011)
● Cosm as intermediary

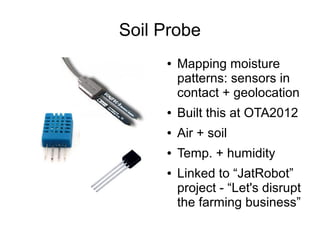

11. Soil Probe
● Mapping moisture
patterns: sensors in
contact + geolocation
● Built this at OTA2012
● Air + soil
● Temp. + humidity
● Linked to “JatRobot”
project - “Let's disrupt
the farming business”

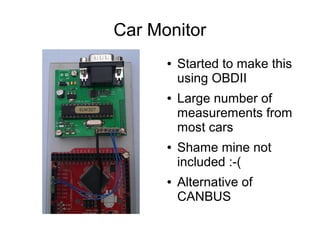

12. Car Monitor
● Started to make this
using OBDII
● Large number of
measurements from
most cars
● Shame mine not
included :-(
● Alternative of
CANBUS

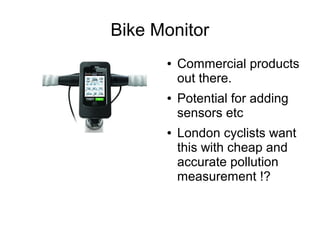

13. Bike Monitor
● Commercial products
out there.
● Potential for adding
sensors etc
● London cyclists want
this with cheap and
accurate pollution
measurement !?

14. Code
● ADK 2011 package download (zip)
● Also check board suppliers sites for examples
● e.g. Seeed Studio wiki
● IOIO from the main man
● Amarino docs/ code

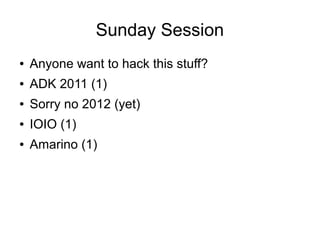

15. Sunday Session
● Anyone want to hack this stuff?
● ADK 2011 (1)
● Sorry no 2012 (yet)
● IOIO (1)
● Amarino (1)

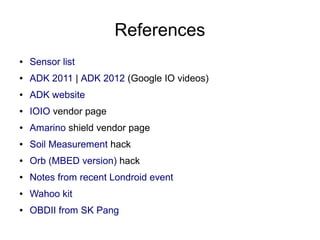

16. References
● Sensor list
● ADK 2011 | ADK 2012 (Google IO videos)
● ADK website
● IOIO vendor page
● Amarino shield vendor page
● Soil Measurement hack
● Orb (MBED version) hack
● Notes from recent Londroid event
● Wahoo kit
● OBDII from SK Pang
