Stas Ivaschenko (Senior Operations Analyst/DevOps engineer at Provectus) for OSDN conference (http://conference.osdn.org.ua)

1. provectus.com

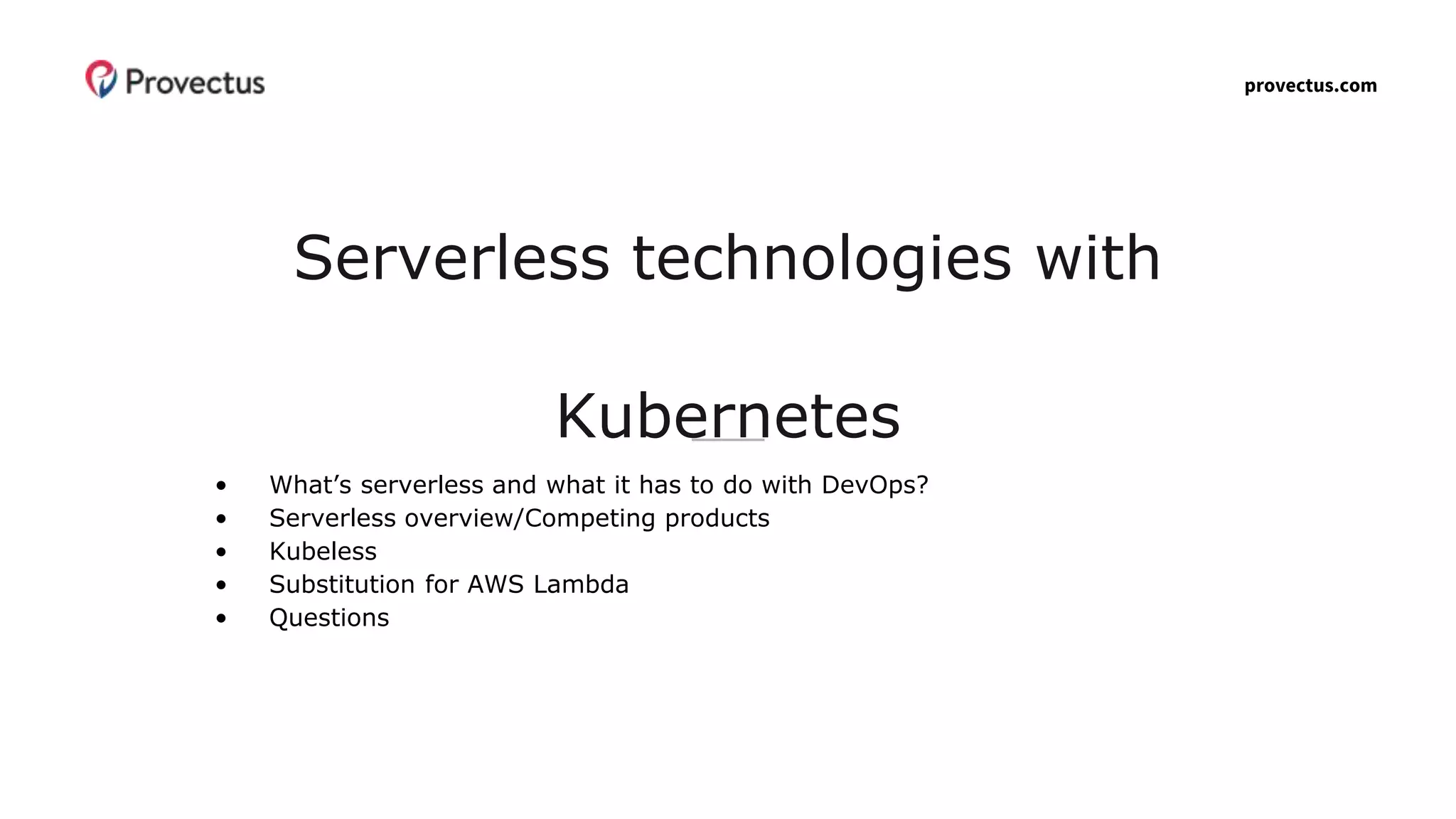

Serverless technologies with
Kubernetes
• What’s serverless and what it has to do with DevOps?
• Serverless overview/Competing products
• Kubeless
• Substitution for AWS Lambda
• Questions

2. provectus.com
Mobile & Design eCommerce DevOps & Big data
Where talents met opportunity

3. provectus.com

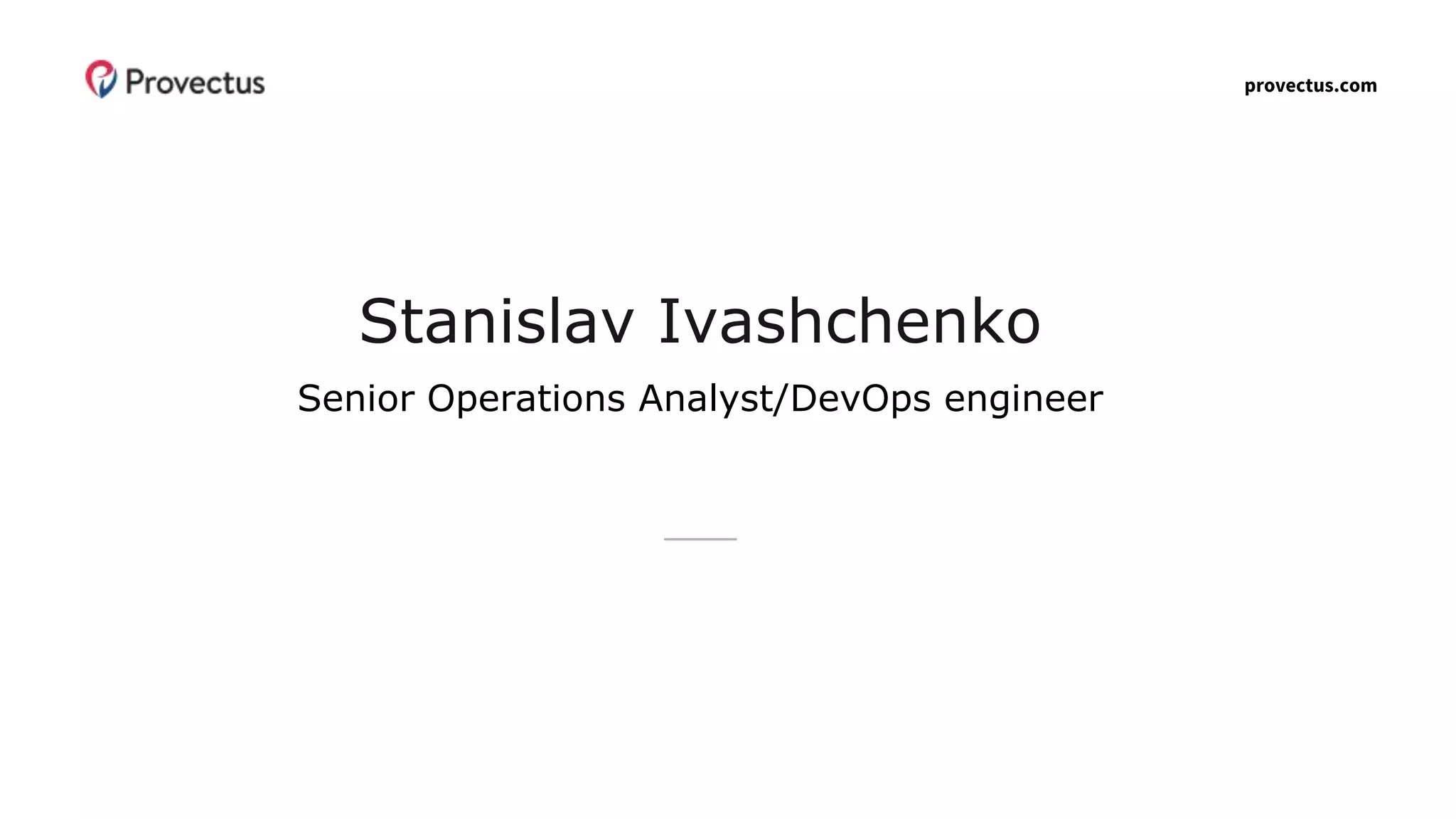

Stanislav Ivashchenko
Senior Operations Analyst/DevOps engineer

4. provectus.com

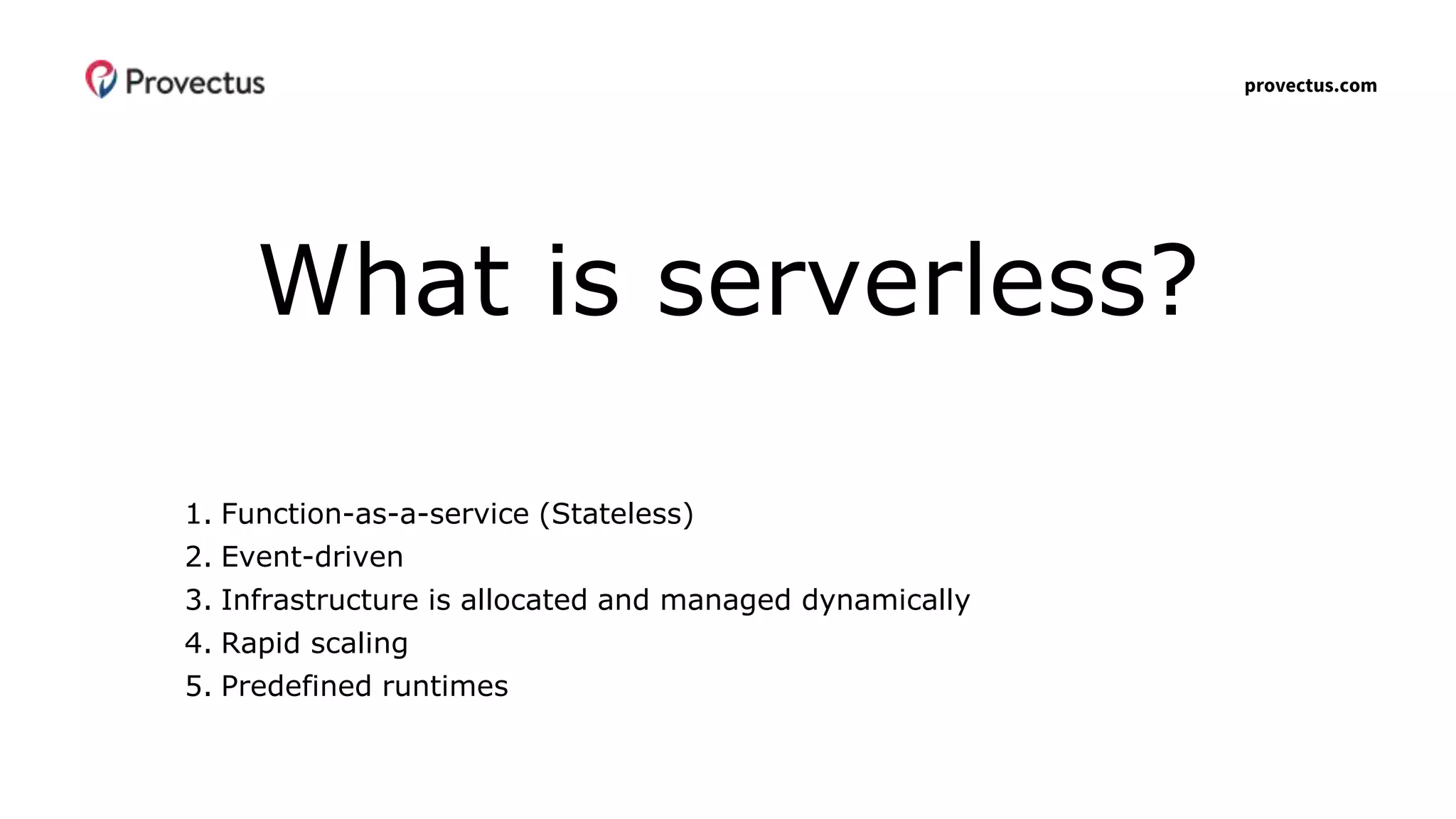

What is serverless?
1. Function-as-a-service (Stateless)
2. Event-driven
3. Infrastructure is allocated and managed dynamically
4. Rapid scaling
5. Predefined runtimes

5. provectus.com

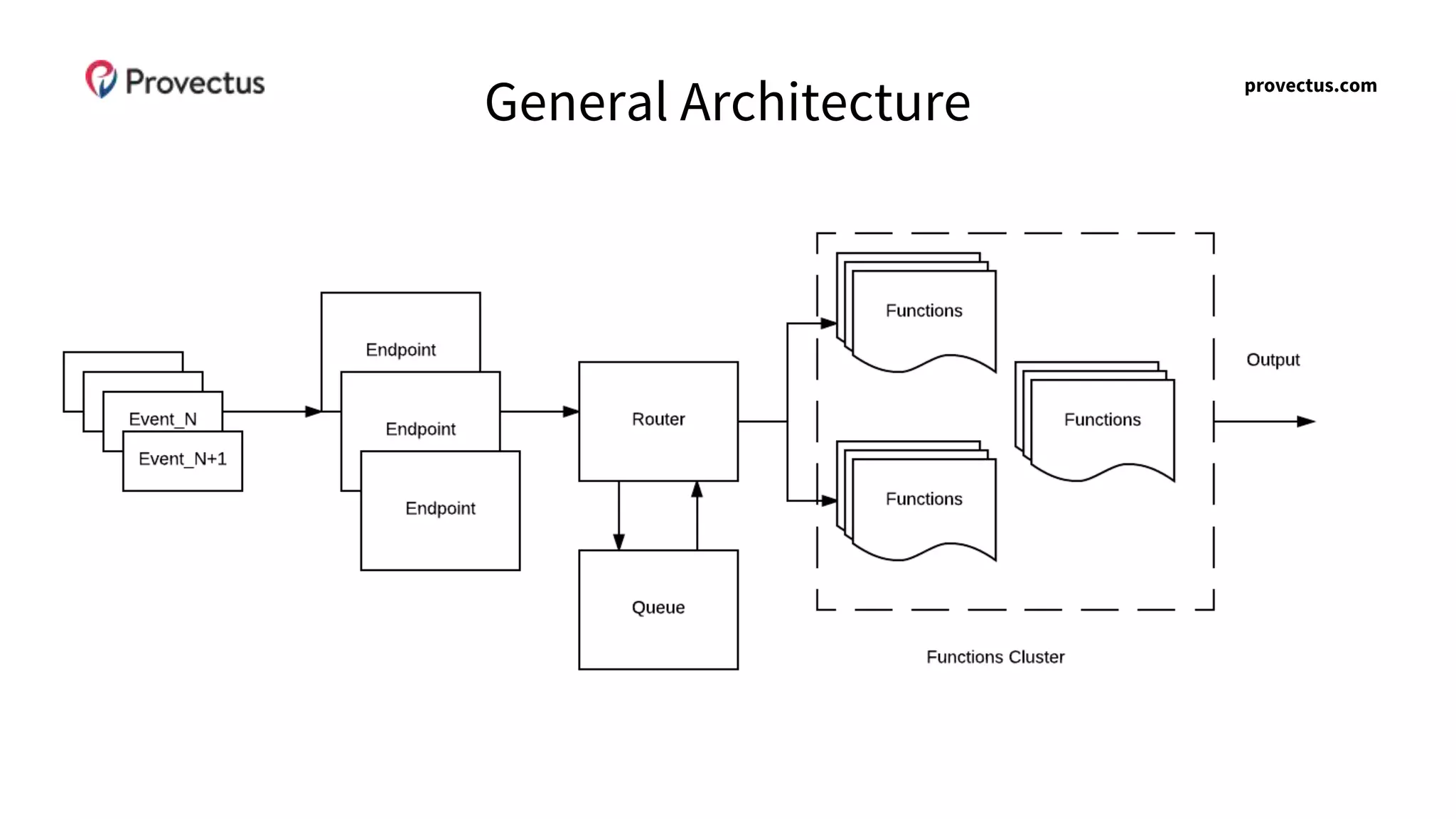

General Architecture

6. provectus.com
Players in the game today(much more not shown here)

7. provectus.com

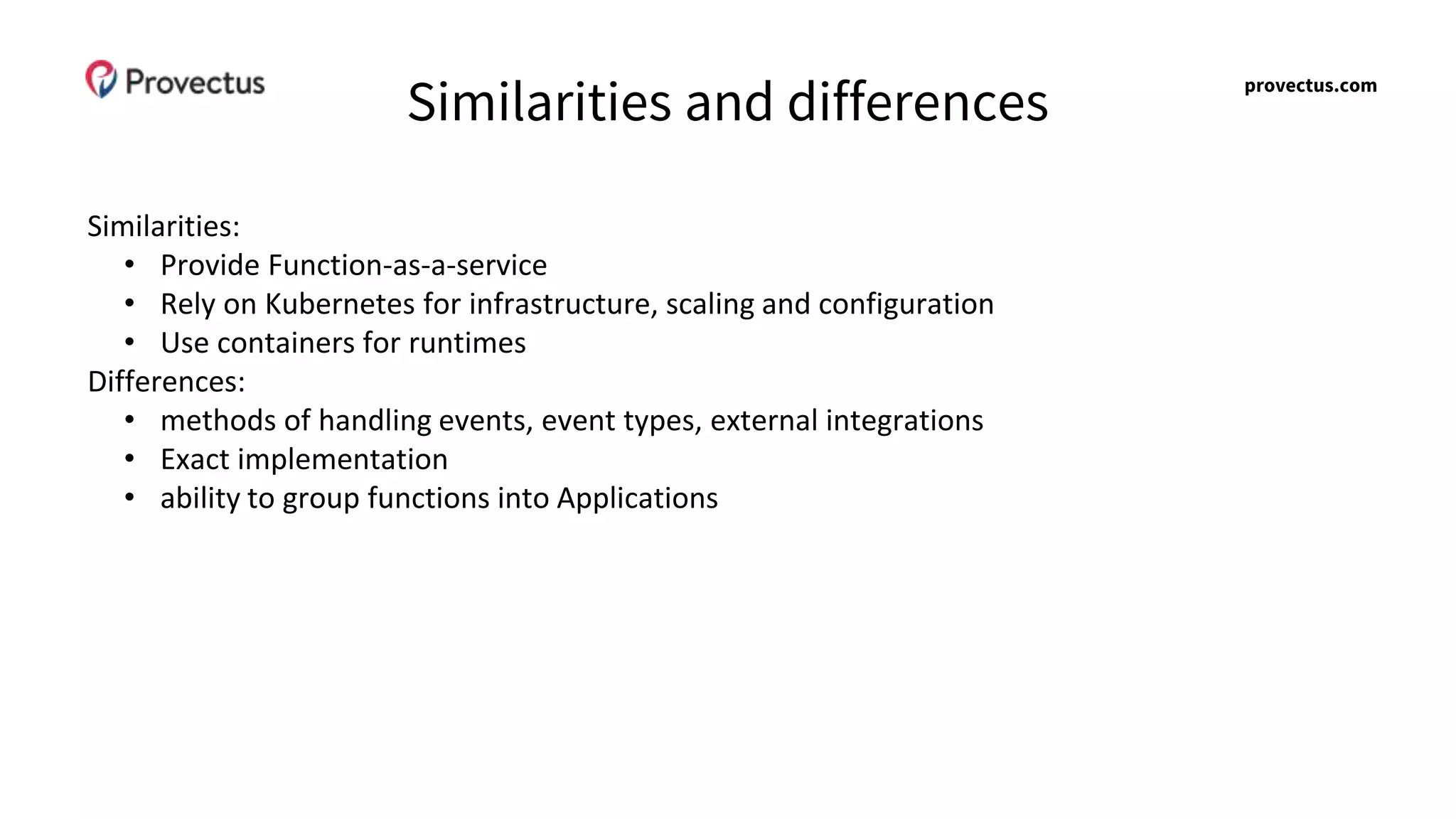

Similarities and differences
Similarities:
• Provide Function-as-a-service
• Rely on Kubernetes for infrastructure, scaling and configuration
• Use containers for runtimes
Differences:
• methods of handling events, event types, external integrations
• Exact implementation
• ability to group functions into Applications

8. provectus.com

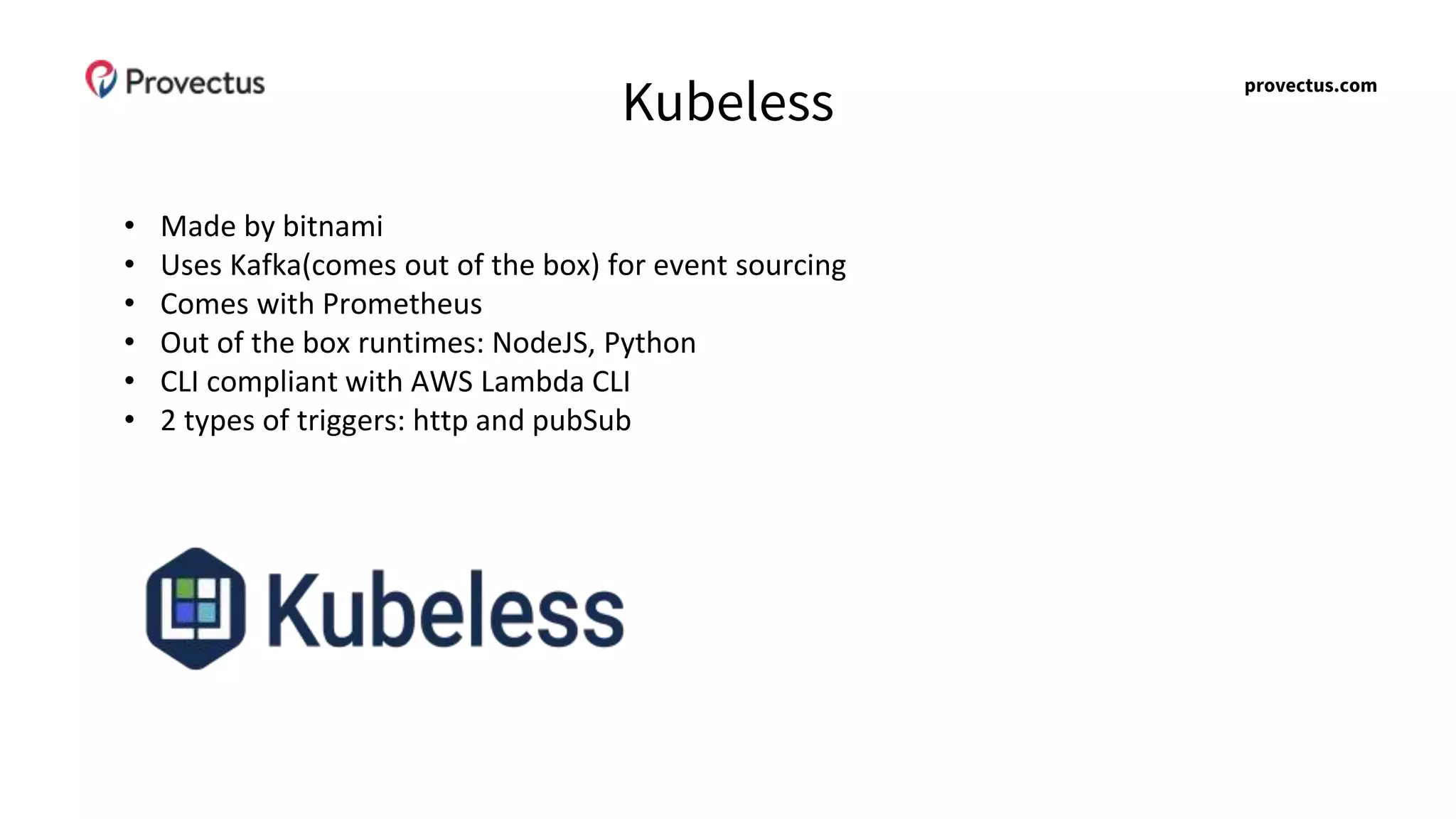

Kubeless
• Made by bitnami
• Uses Kafka(comes out of the box) for event sourcing
• Comes with Prometheus
• Out of the box runtimes: NodeJS, Python
• CLI compliant with AWS Lambda CLI
• 2 types of triggers: http and pubSub

9. provectus.com

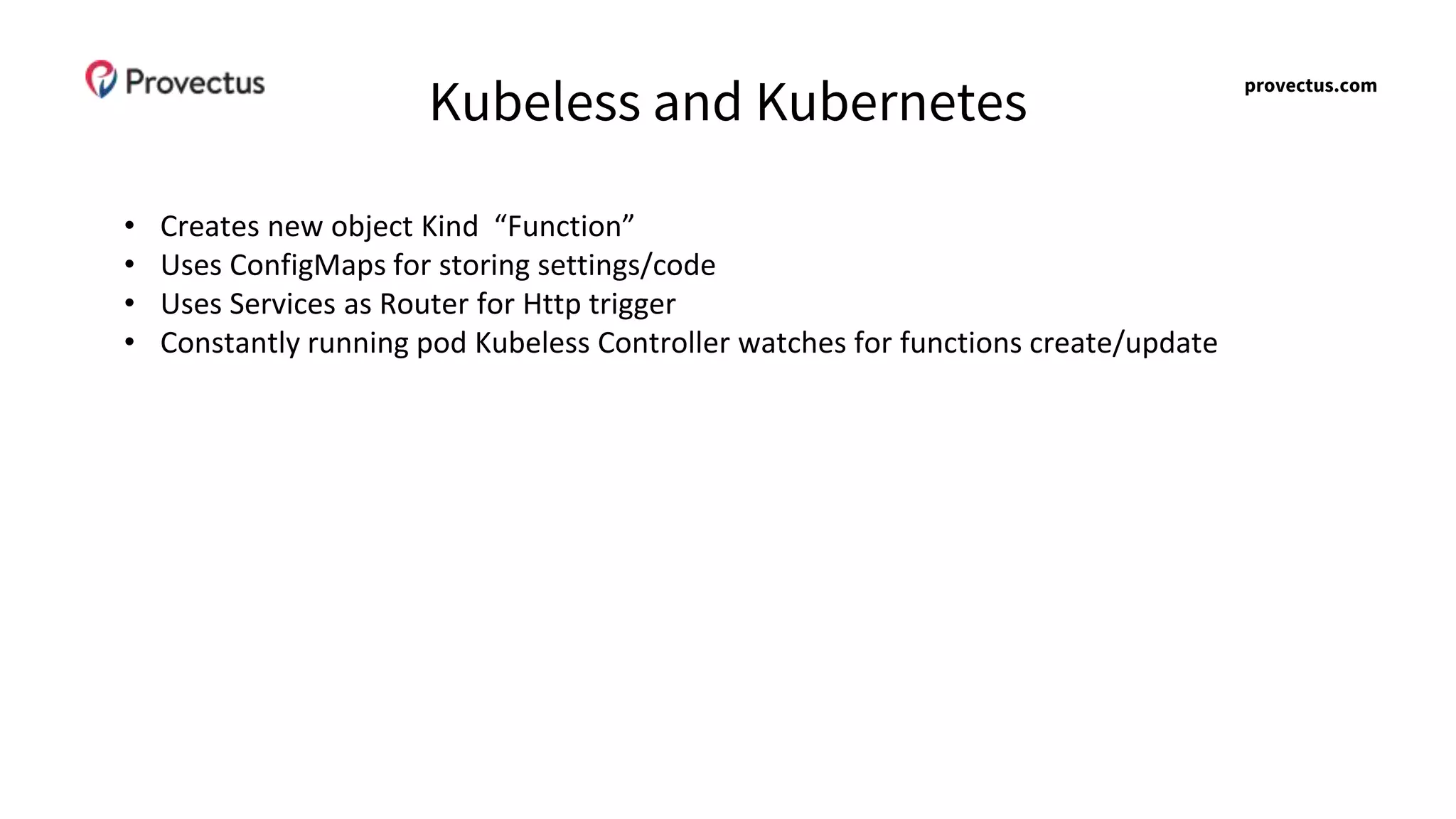

Kubeless and Kubernetes
• Creates new object Kind “Function”
• Uses ConfigMaps for storing settings/code
• Uses Services as Router for Http trigger
• Constantly running pod Kubeless Controller watches for functions create/update

10. provectus.com

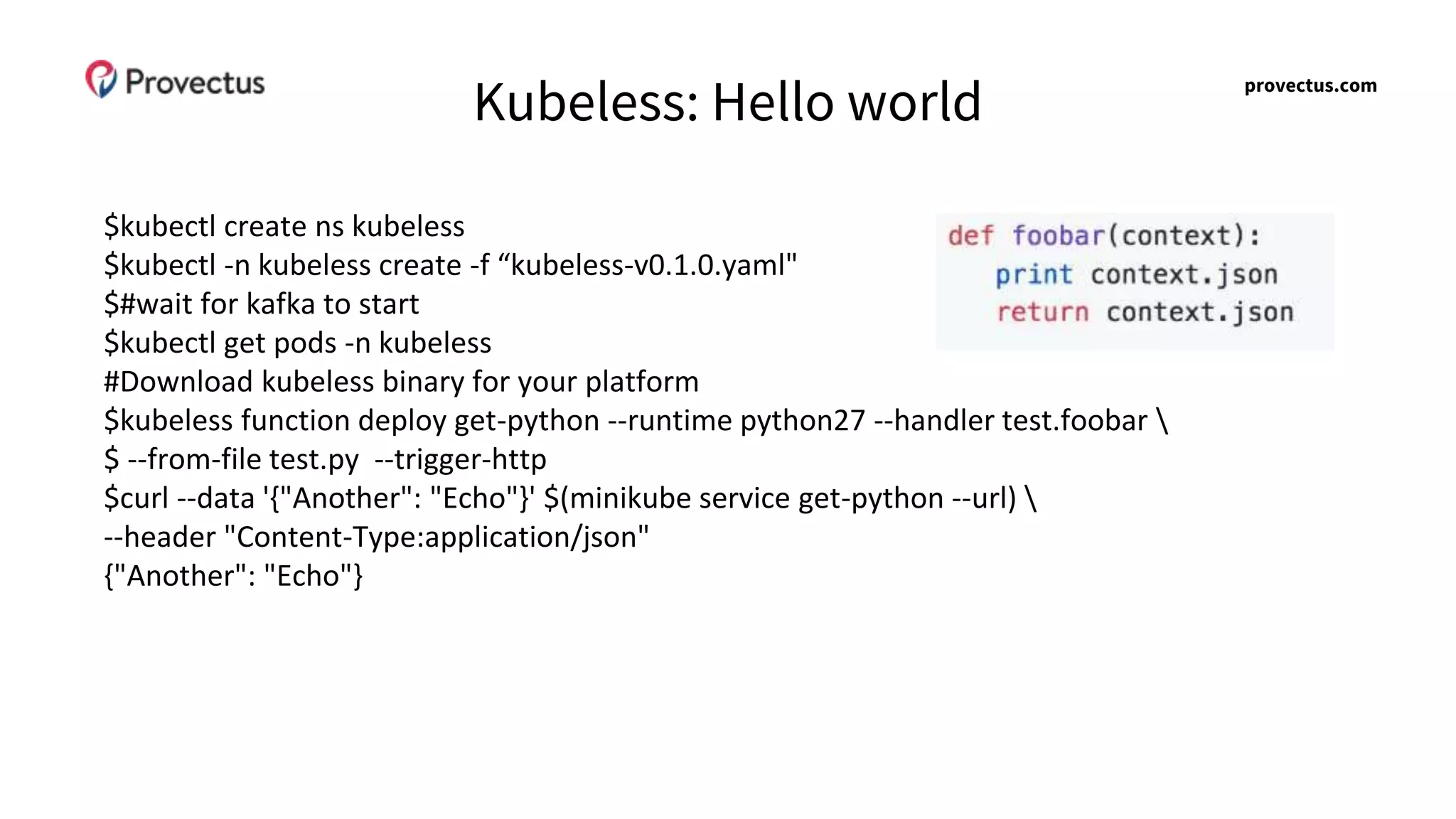

Kubeless: Hello world
$kubectl create ns kubeless
$kubectl -n kubeless create -f “kubeless-v0.1.0.yaml"
$#wait for kafka to start
$kubectl get pods -n kubeless
#Download kubeless binary for your platform
$kubeless function deploy get-python --runtime python27 --handler test.foobar
$ --from-file test.py --trigger-http
$curl --data '{"Another": "Echo"}' $(minikube service get-python --url)
--header "Content-Type:application/json"
{"Another": "Echo"}

11. provectus.com

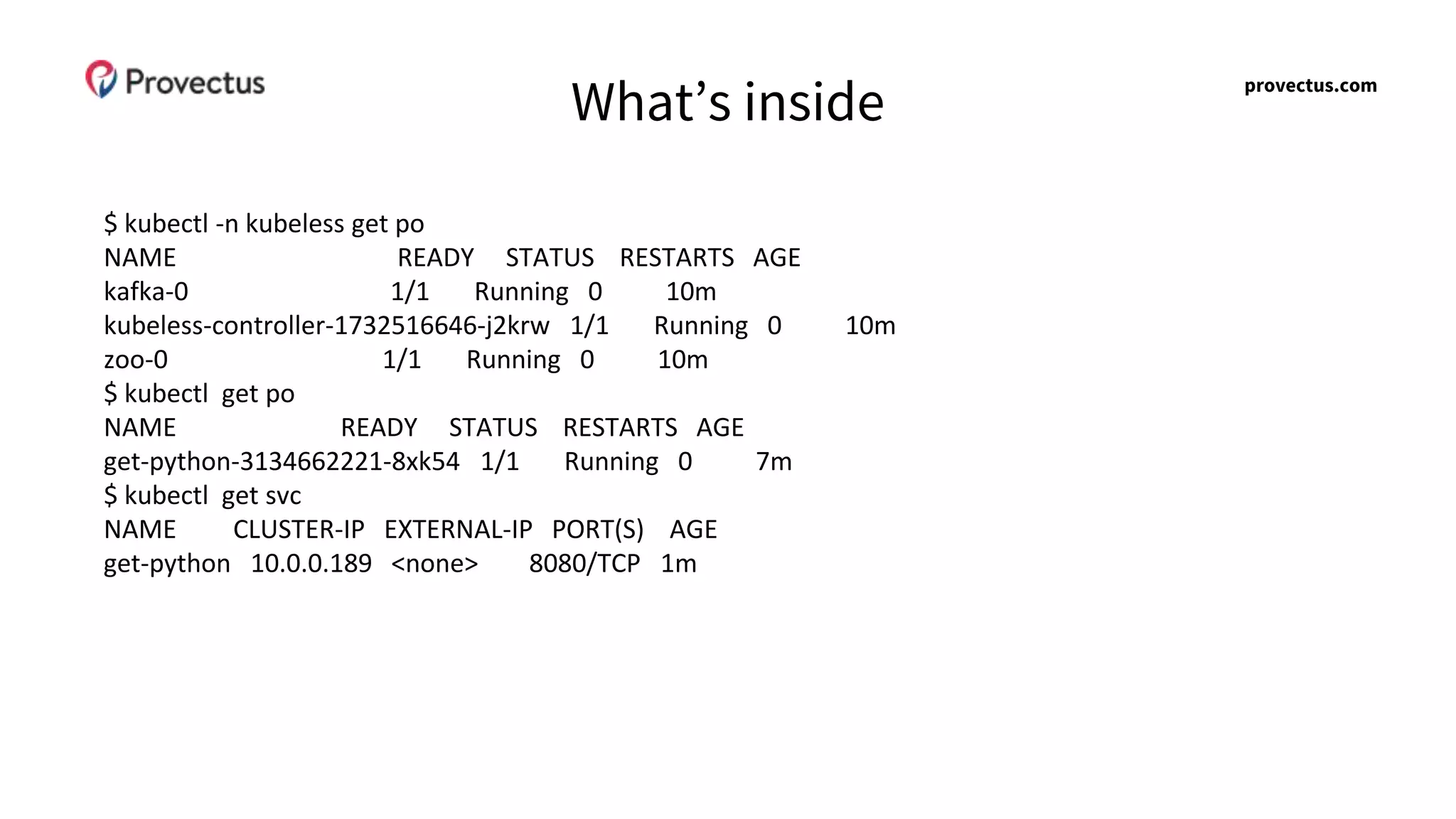

What’s inside
$ kubectl -n kubeless get po
NAME READY STATUS RESTARTS AGE
kafka-0 1/1 Running 0 10m
kubeless-controller-1732516646-j2krw 1/1 Running 0 10m
zoo-0 1/1 Running 0 10m
$ kubectl get po
NAME READY STATUS RESTARTS AGE
get-python-3134662221-8xk54 1/1 Running 0 7m
$ kubectl get svc
NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE
get-python 10.0.0.189 <none> 8080/TCP 1m

12. provectus.com

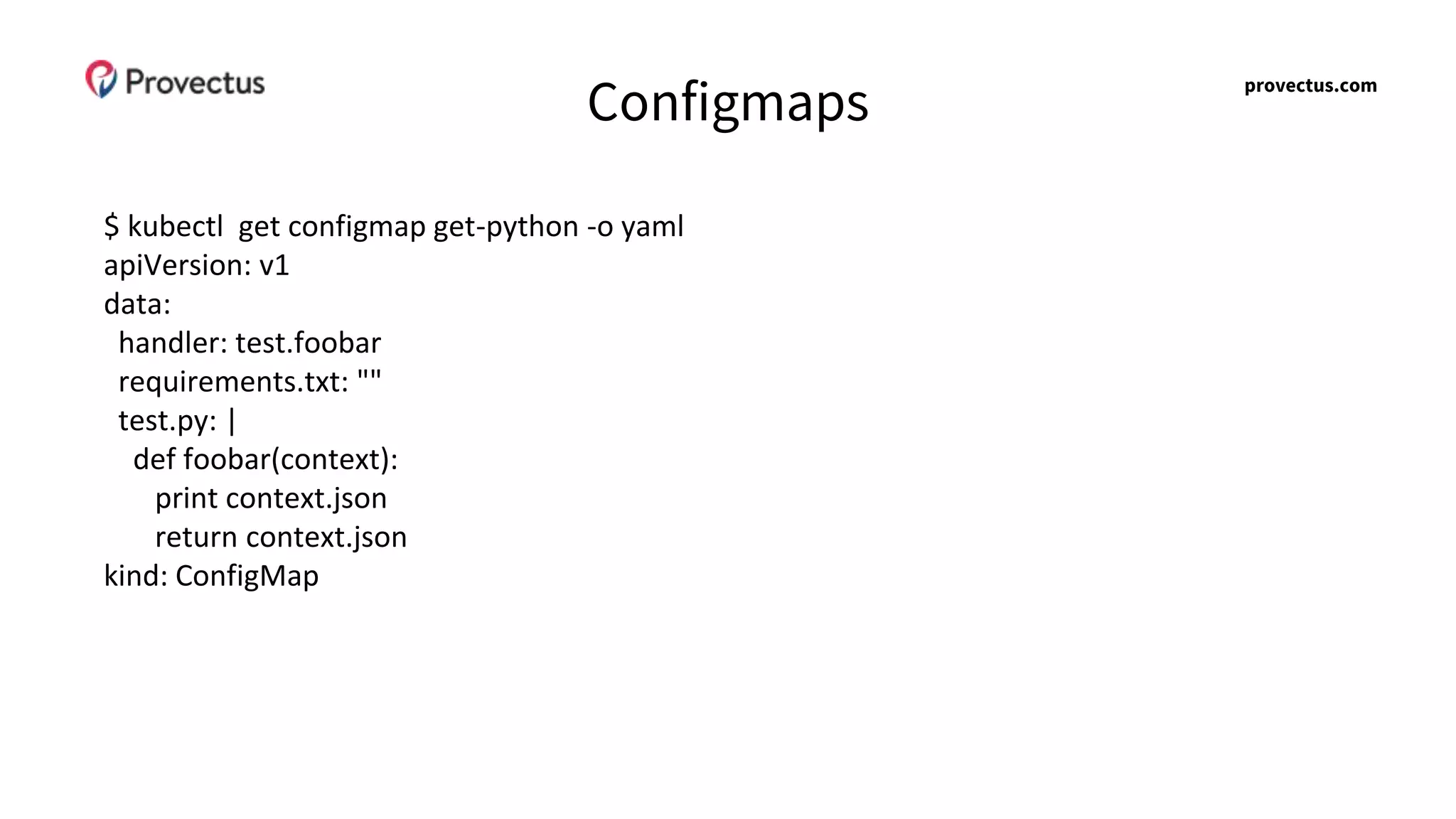

Configmaps
$ kubectl get configmap get-python -o yaml
apiVersion: v1
data:
handler: test.foobar
requirements.txt: ""
test.py: |
def foobar(context):
print context.json
return context.json
kind: ConfigMap

13. provectus.com

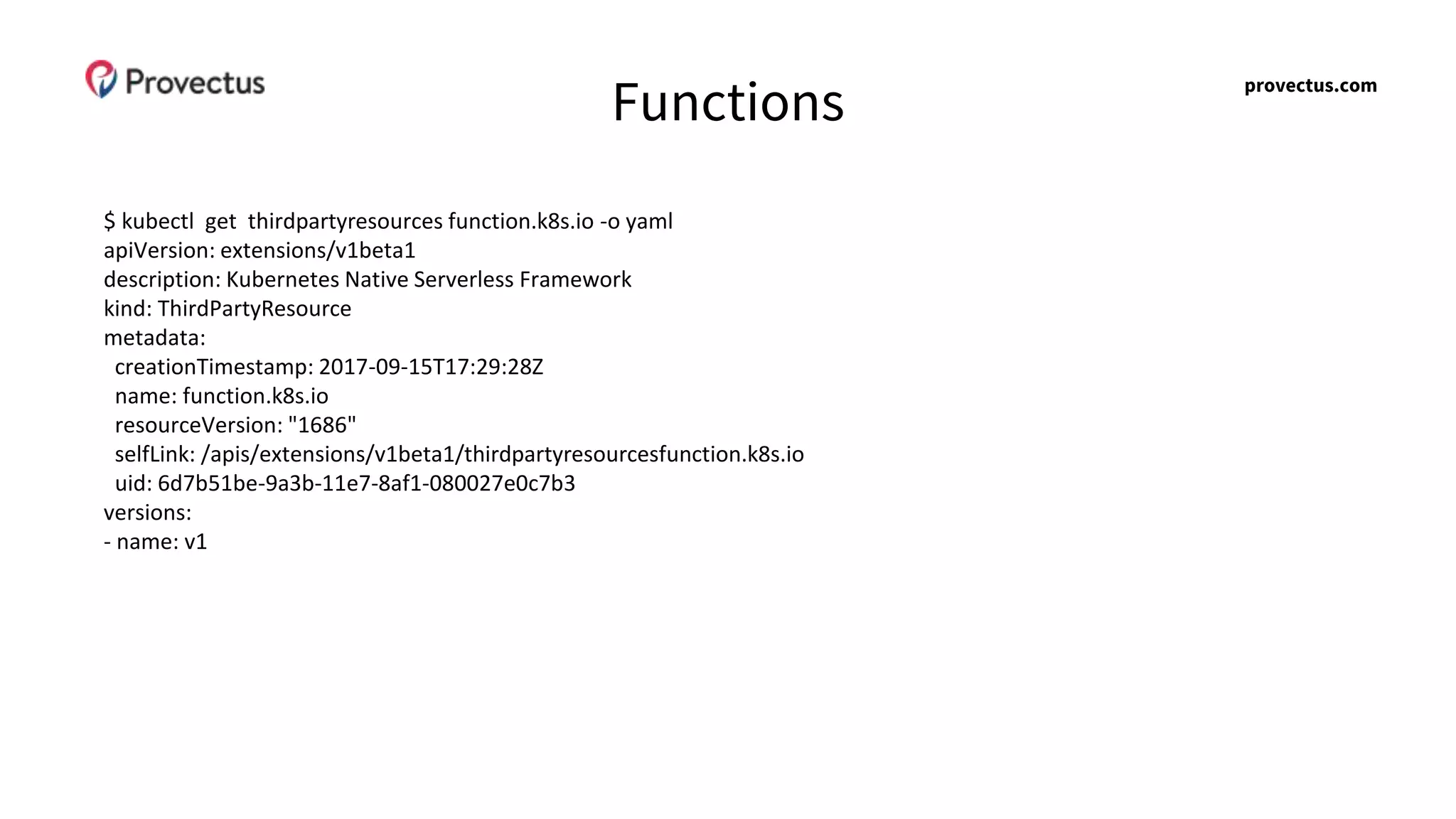

Functions
$ kubectl get thirdpartyresources function.k8s.io -o yaml
apiVersion: extensions/v1beta1
description: Kubernetes Native Serverless Framework
kind: ThirdPartyResource
metadata:
creationTimestamp: 2017-09-15T17:29:28Z
name: function.k8s.io
resourceVersion: "1686"
selfLink: /apis/extensions/v1beta1/thirdpartyresourcesfunction.k8s.io
uid: 6d7b51be-9a3b-11e7-8af1-080027e0c7b3
versions:
- name: v1

14. provectus.com

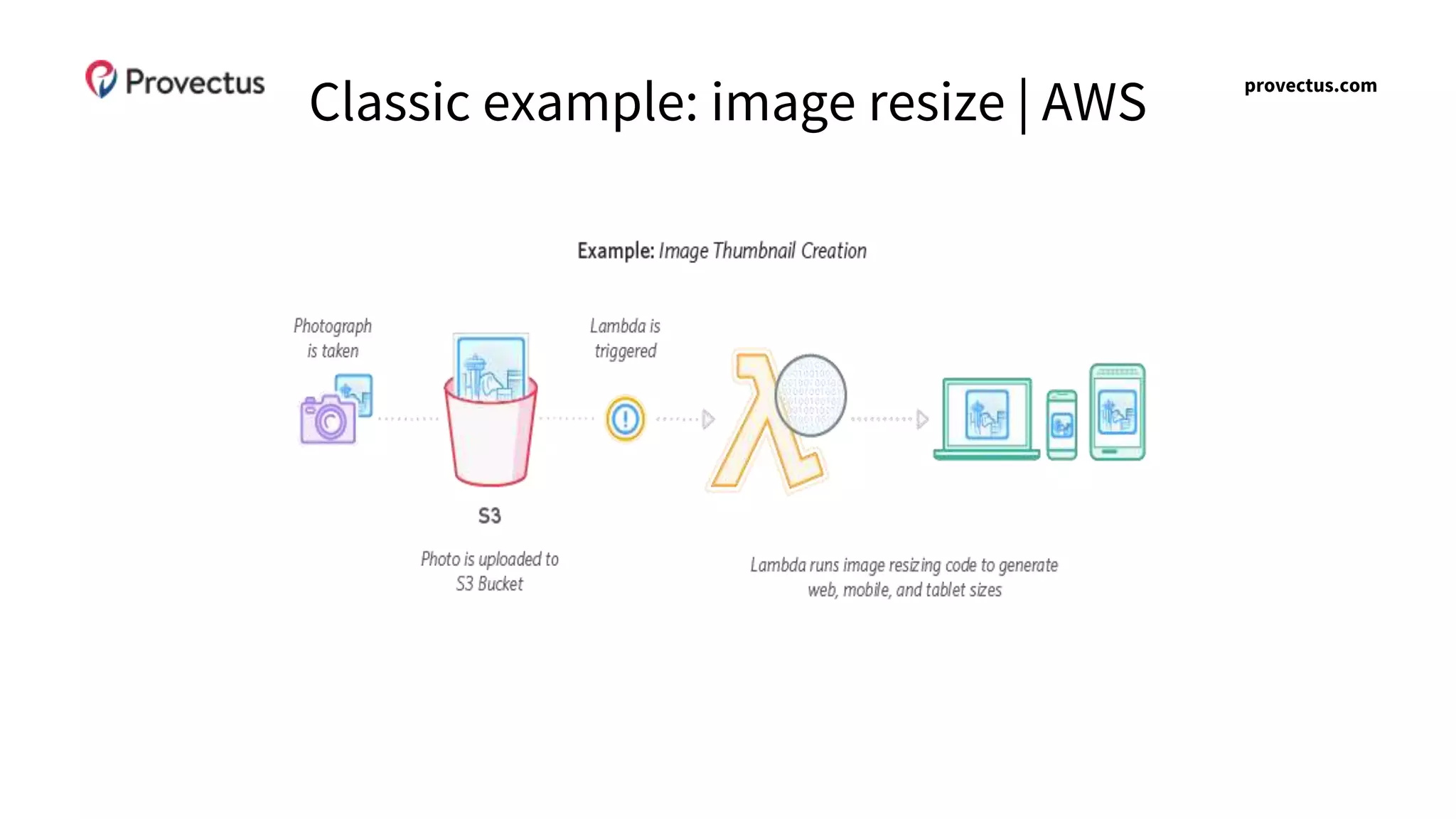

Classic example: image resize | AWS

15. provectus.com

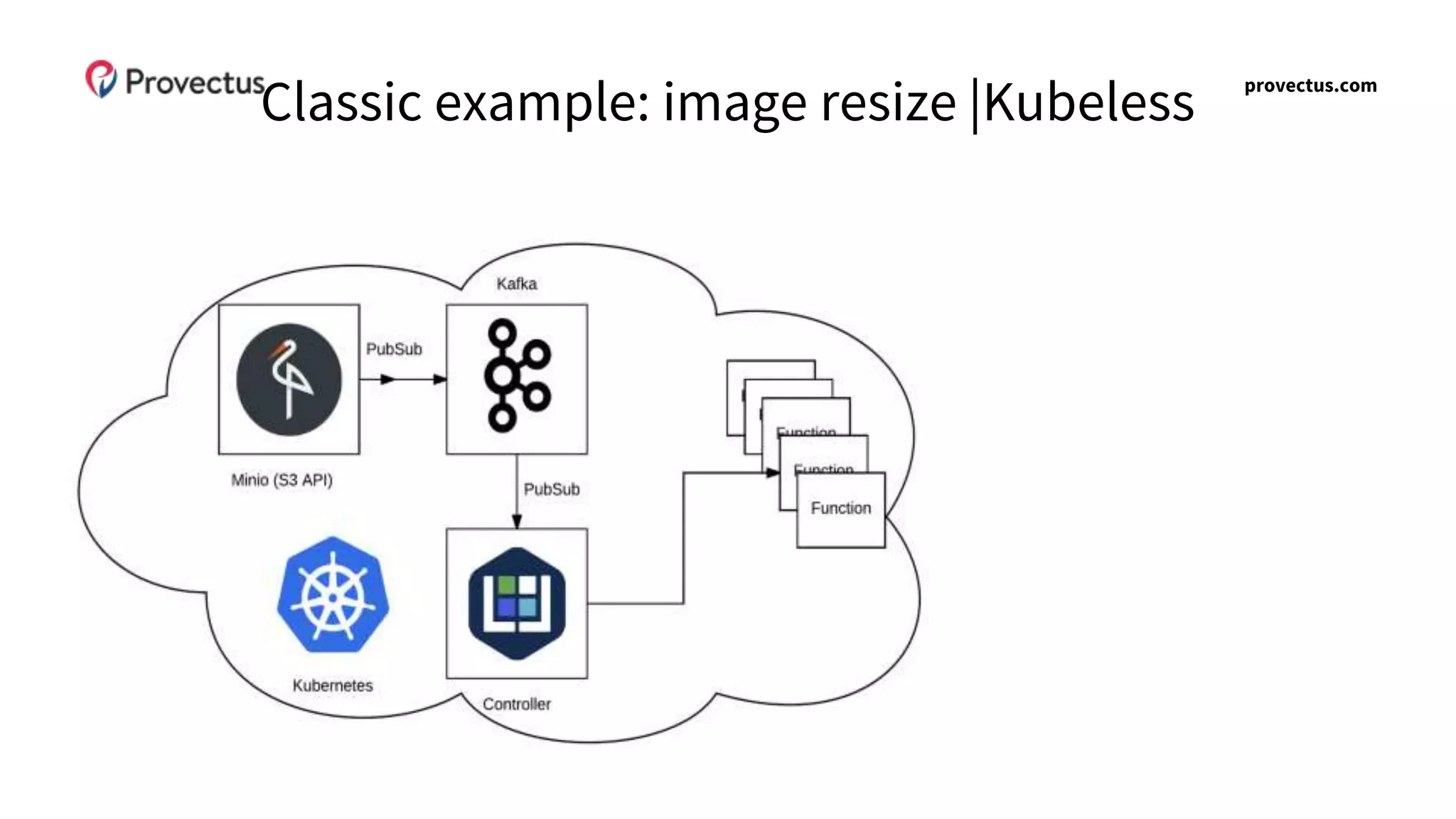

Classic example: image resize |Kubeless

16. provectus.com

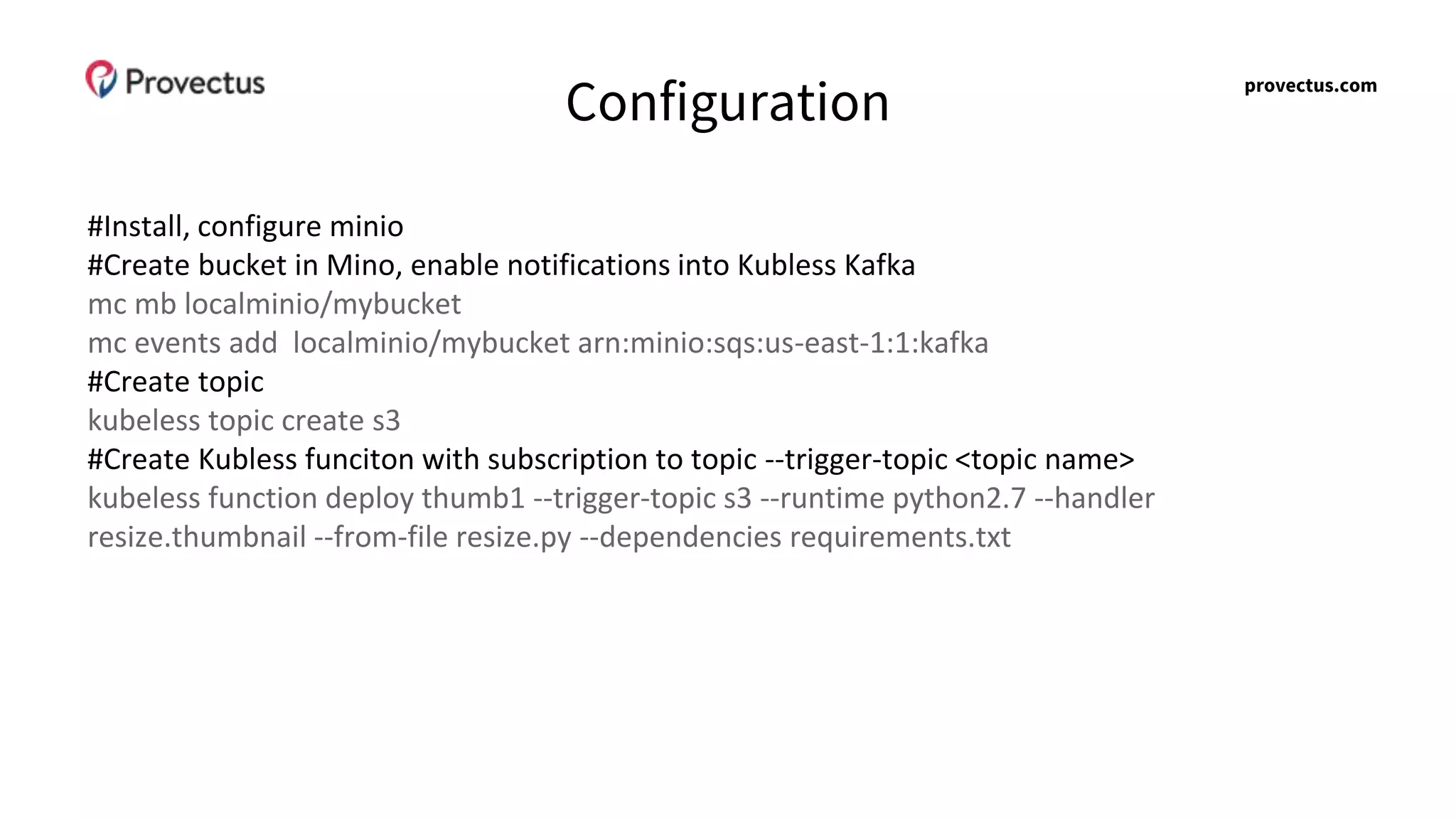

Configuration
#Install, configure minio
#Create bucket in Mino, enable notifications into Kubless Kafka
mc mb localminio/mybucket
mc events add localminio/mybucket arn:minio:sqs:us-east-1:1:kafka
#Create topic
kubeless topic create s3
#Create Kubless funciton with subscription to topic --trigger-topic <topic name>
kubeless function deploy thumb1 --trigger-topic s3 --runtime python2.7 --handler
resize.thumbnail --from-file resize.py --dependencies requirements.txt

17. provectus.com

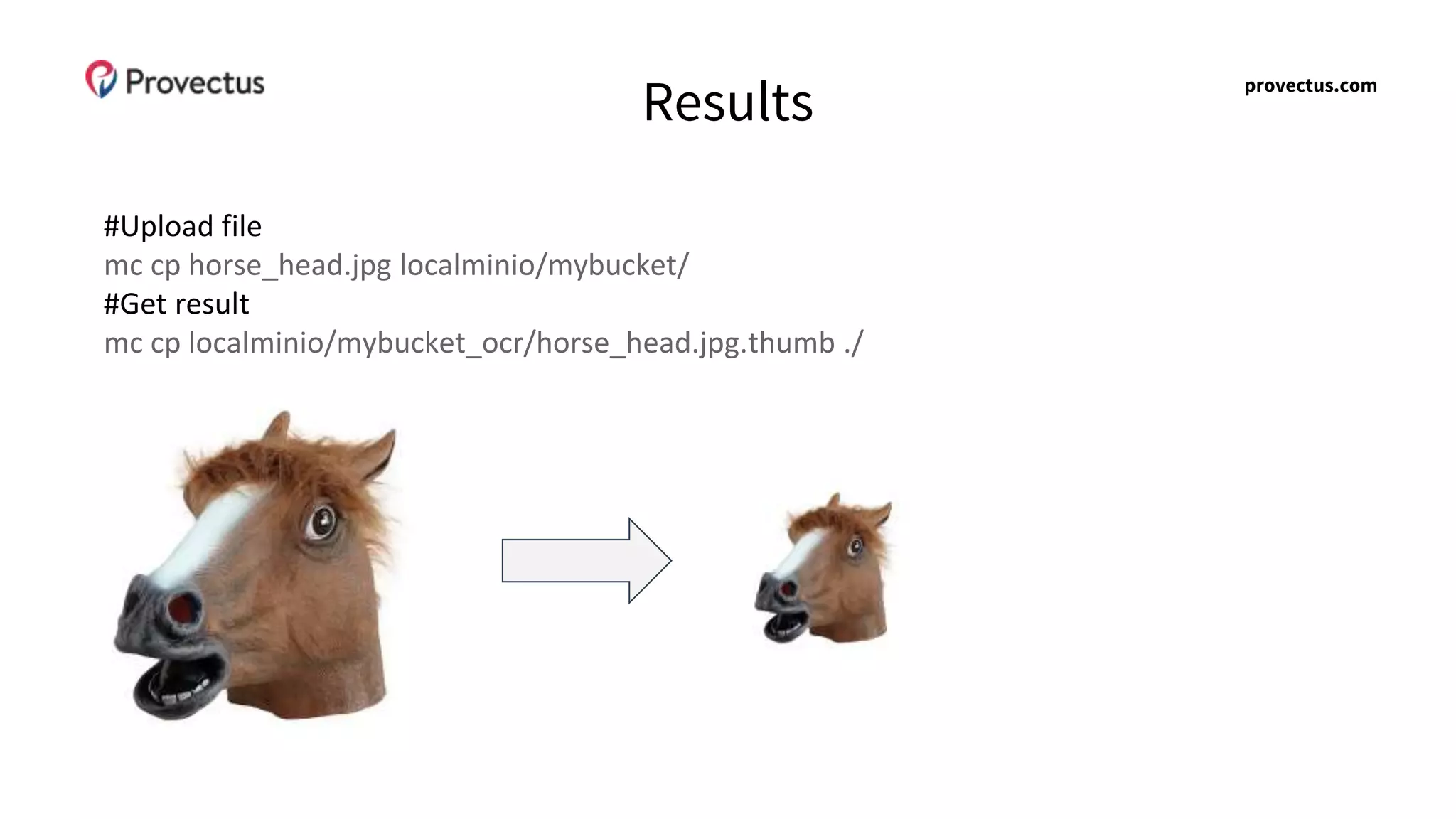

Results
#Upload file
mc cp horse_head.jpg localminio/mybucket/
#Get result
mc cp localminio/mybucket_ocr/horse_head.jpg.thumb ./

18. provectus.com

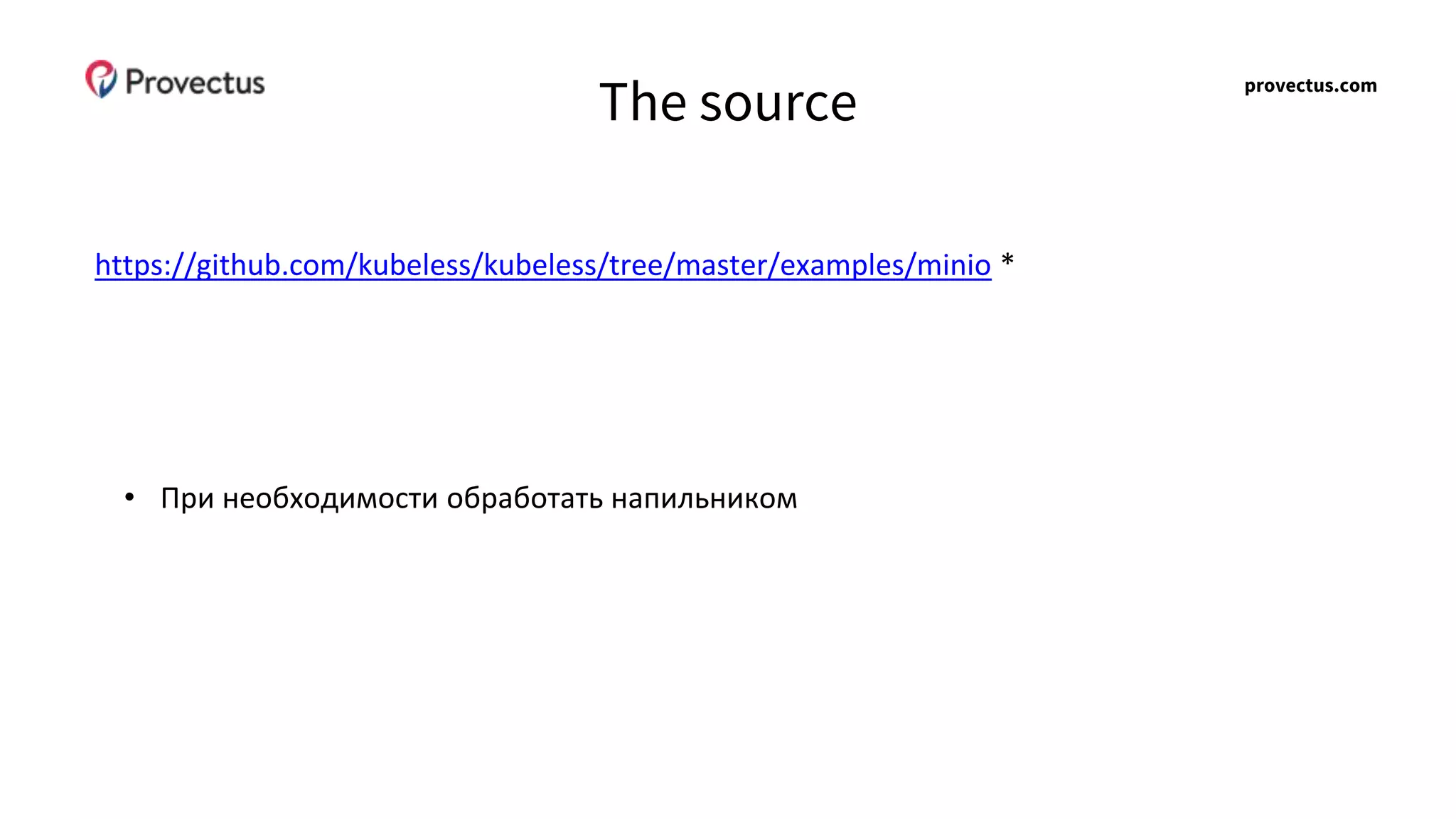

The source
https://github.com/kubeless/kubeless/tree/master/examples/minio *
• При необходимости обработать напильником

19. provectus.com
Skype:
Email:
Tel.:
provectus.com
ivaschenko.stas
sivaschenko@provectus.com
+380 679459912
Stanislav
Ivashchenko

20. provectus.com

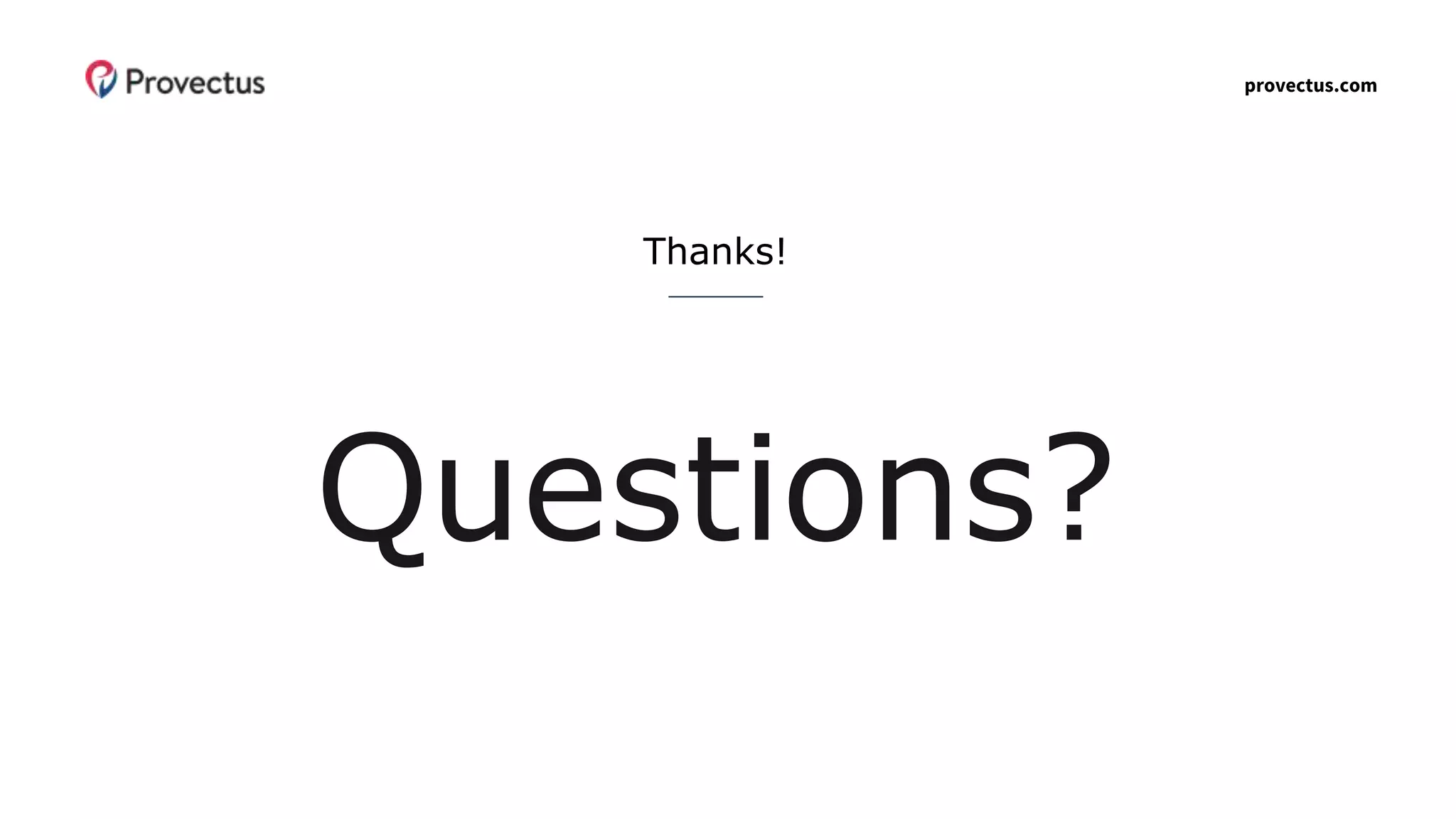

Thanks!
Questions?
