Hadoop est devenu une référence dans l’univers du BigData, et MapReduce, un nouveau paradigme pour exploiter les données. Implémenter directement les traitements de données avec MapReduce donne certainement le plus de flexibilité, mais cela revient à utiliser de l’assembleur. Cascalog est sans doute l’alternative la plus concise. Basée sur Clojure, cette solution vous laisse dans un environnement familier (la JVM) tout en vous apportant une abstraction fort utile par le biais de la programmation logique.

1. Cascalog
Programmation logique pour Hadoop
Bertrand Dechoux 13 Octobre 2012
Saturday, October 13, 2012

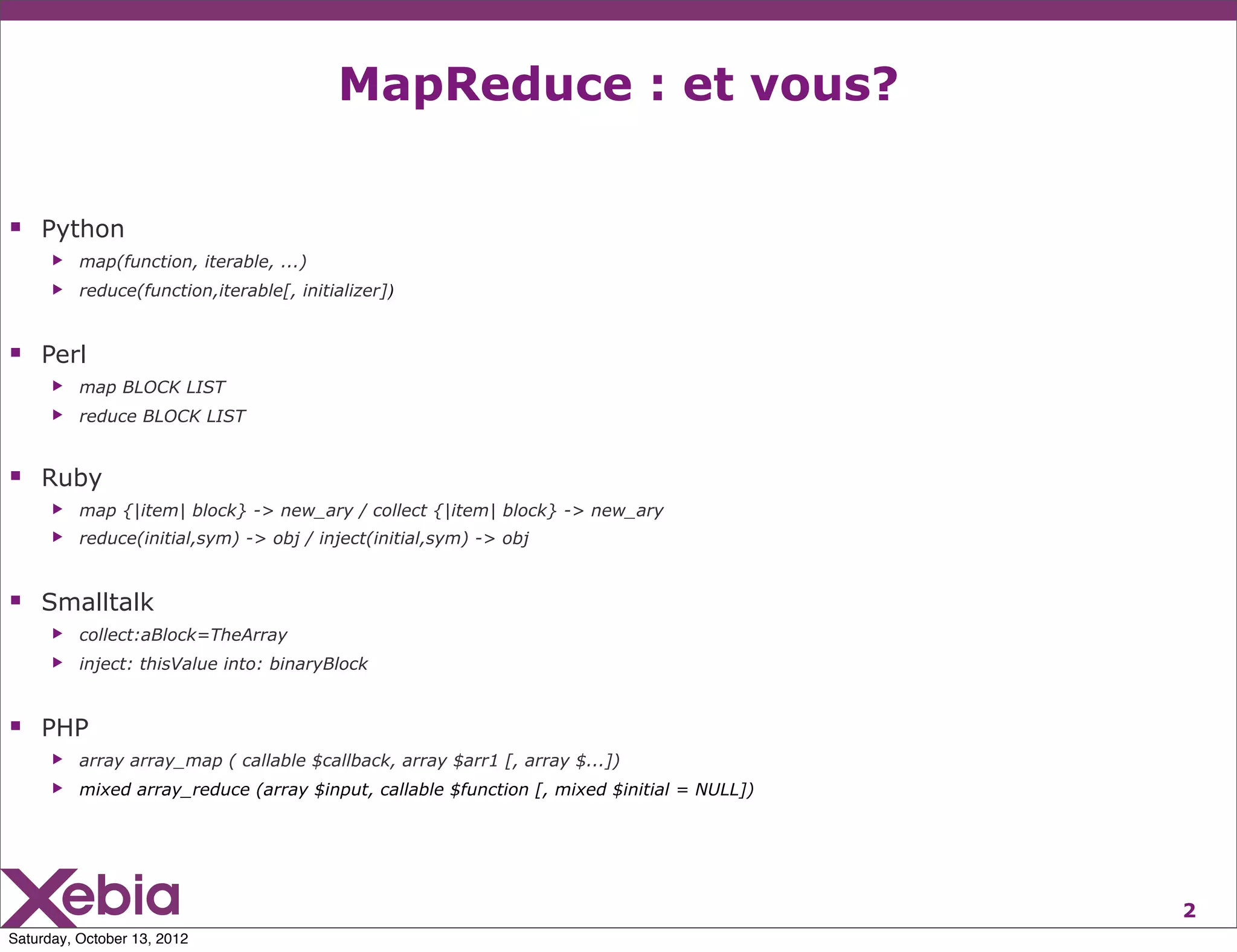

2. MapReduce : et vous?
 Python
▶ map(function, iterable, ...)
▶ reduce(function,iterable[, initializer])
 Perl
▶ map BLOCK LIST
▶ reduce BLOCK LIST
 Ruby
▶ map {|item| block} -> new_ary / collect {|item| block} -> new_ary
▶ reduce(initial,sym) -> obj / inject(initial,sym) -> obj
 Smalltalk
▶ collect:aBlock=TheArray
▶ inject: thisValue into: binaryBlock
 PHP
▶ array array_map ( callable $callback, array $arr1 [, array $...])
▶ mixed array_reduce (array $input, callable $function [, mixed $initial = NULL])
2
Saturday, October 13, 2012

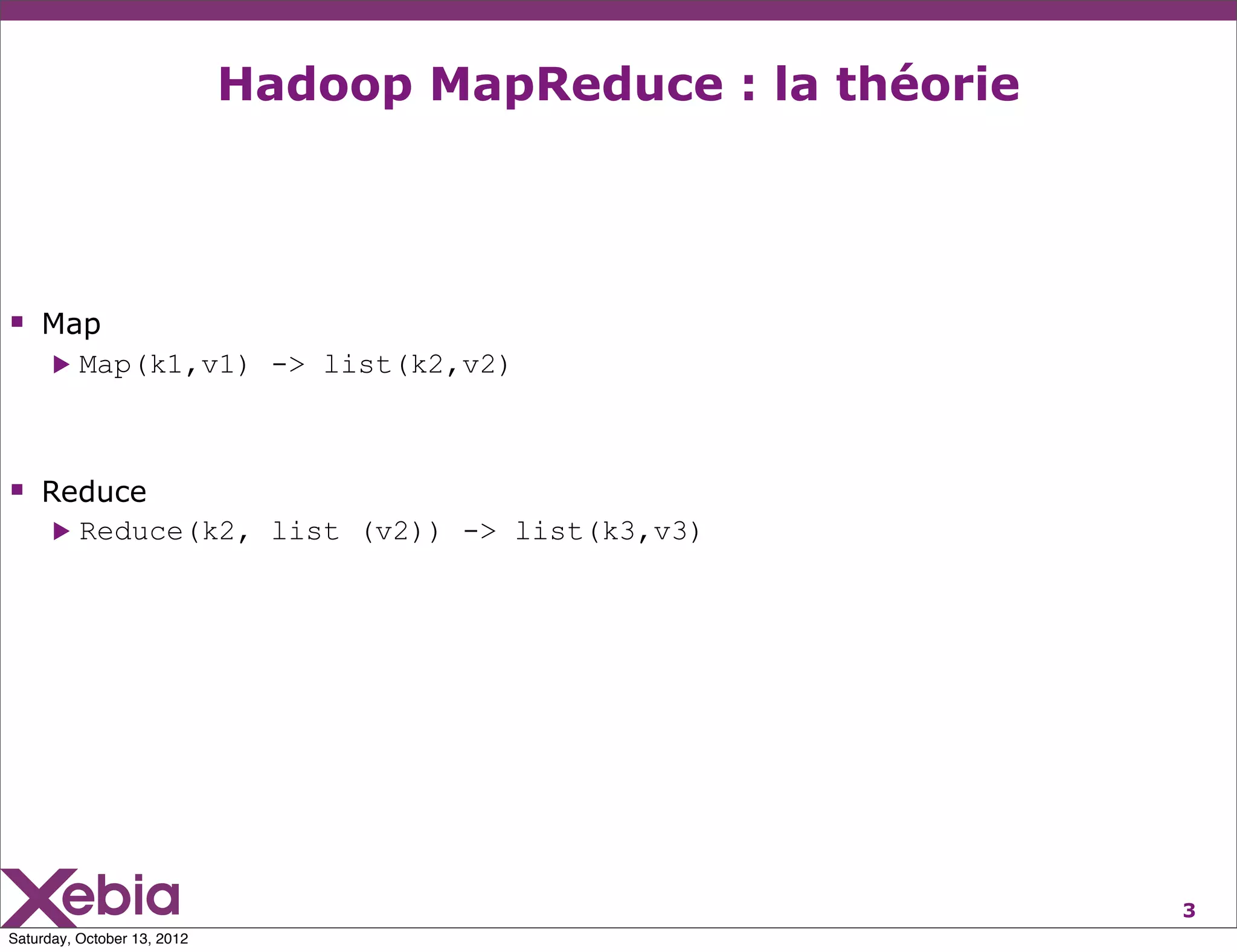

3. Hadoop MapReduce : la théorie
 Map
▶ Map(k1,v1) -> list(k2,v2)
 Reduce
▶ Reduce(k2, list (v2)) -> list(k3,v3)
3
Saturday, October 13, 2012

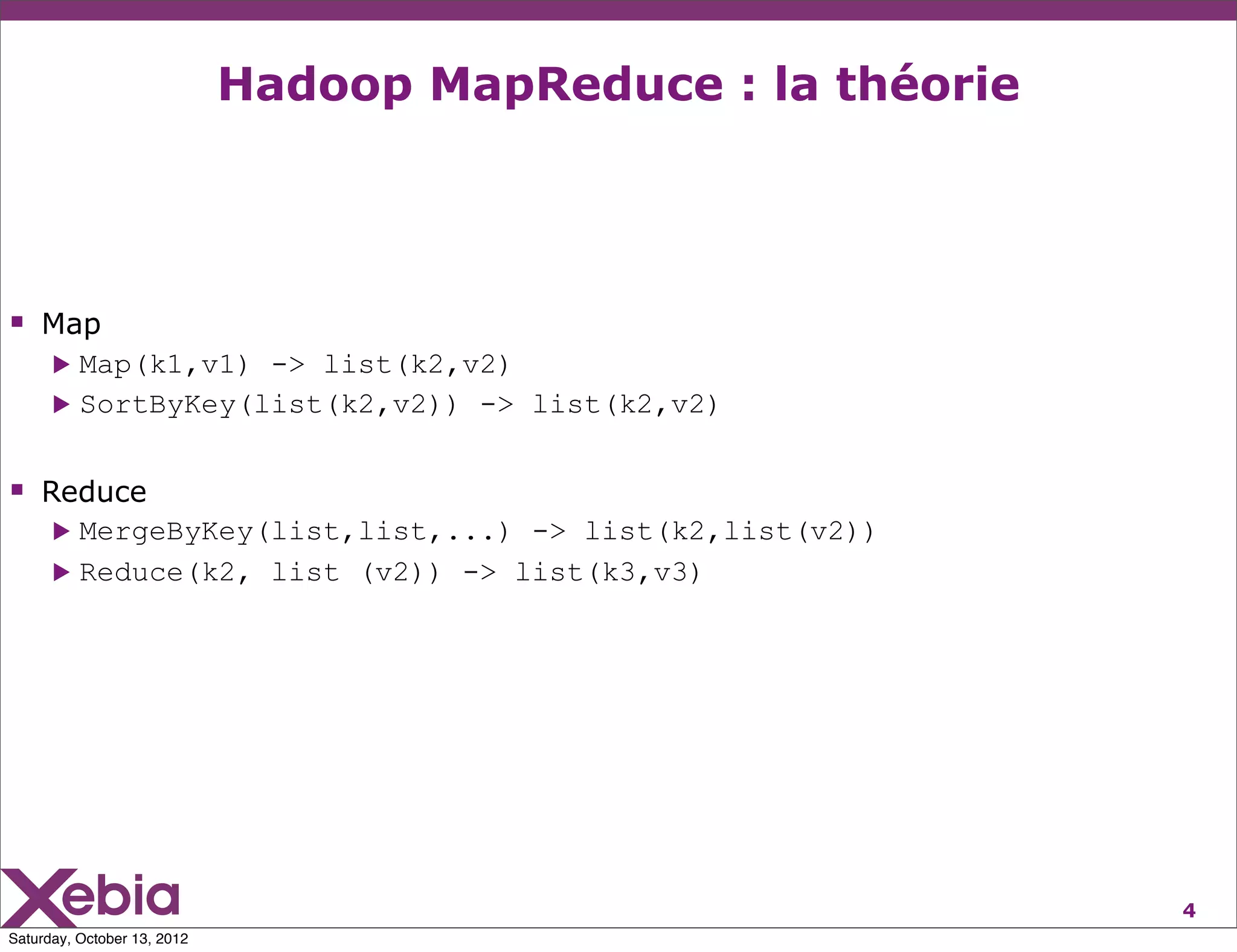

4. Hadoop MapReduce : la théorie
 Map
▶ Map(k1,v1) -> list(k2,v2)
▶ SortByKey(list(k2,v2)) -> list(k2,v2)
 Reduce
▶ MergeByKey(list,list,...) -> list(k2,list(v2))
▶ Reduce(k2, list (v2)) -> list(k3,v3)
4
Saturday, October 13, 2012

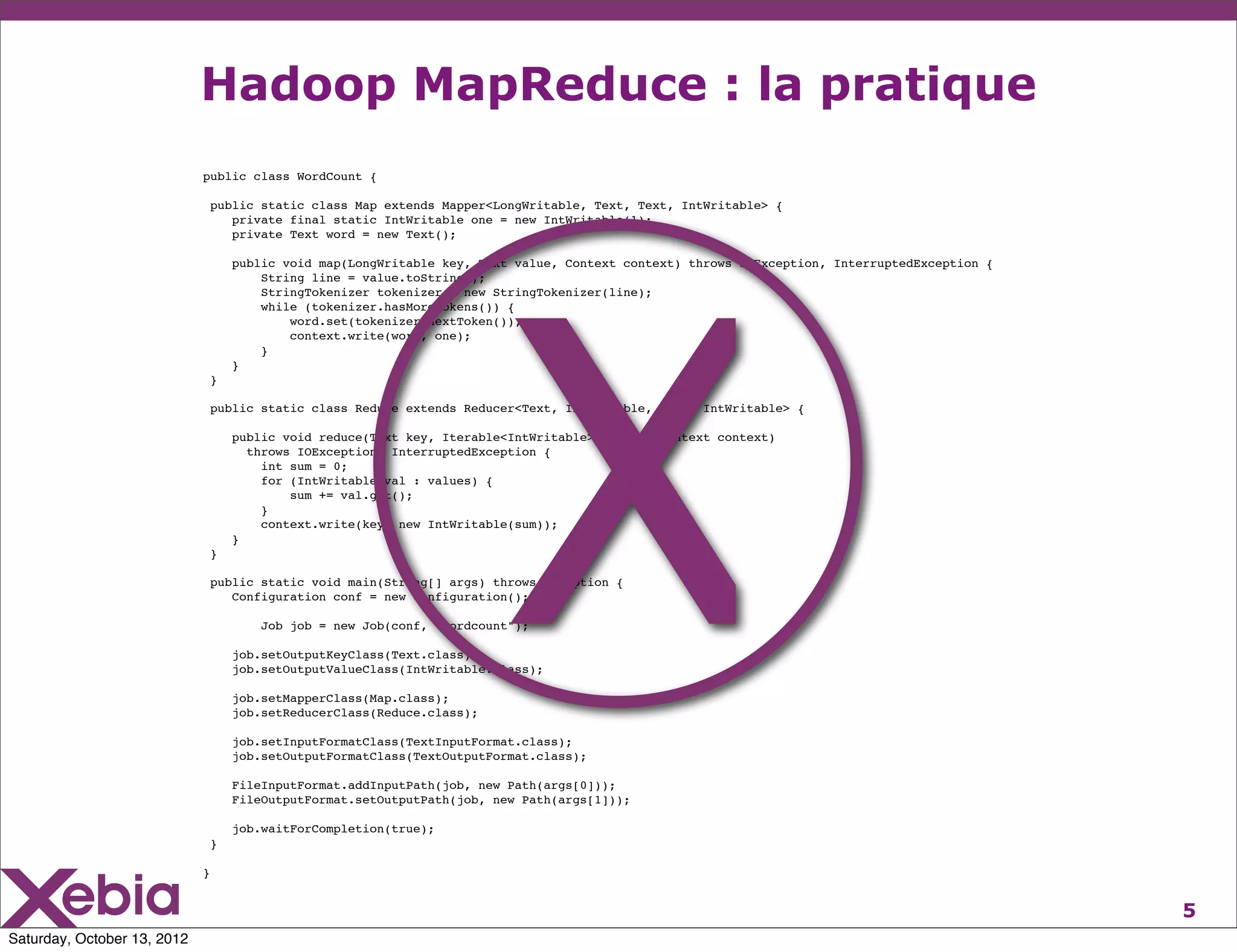

5. Hadoop MapReduce : la pratique
public class WordCount {
public static class Map extends Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
X
private Text word = new Text();
public void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
String line = value.toString();
StringTokenizer tokenizer = new StringTokenizer(line);
while (tokenizer.hasMoreTokens()) {
word.set(tokenizer.nextToken());
context.write(word, one);
}
}
}
public static class Reduce extends Reducer<Text, IntWritable, Text, IntWritable> {
public void reduce(Text key, Iterable<IntWritable> values, Context context)
throws IOException, InterruptedException {
int sum = 0;
for (IntWritable val : values) {
sum += val.get();
}
context.write(key, new IntWritable(sum));
}
}
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
Job job = new Job(conf, "wordcount");
job.setOutputKeyClass(Text.class);
job.setOutputValueClass(IntWritable.class);
job.setMapperClass(Map.class);
job.setReducerClass(Reduce.class);
job.setInputFormatClass(TextInputFormat.class);
job.setOutputFormatClass(TextOutputFormat.class);
FileInputFormat.addInputPath(job, new Path(args[0]));
FileOutputFormat.setOutputPath(job, new Path(args[1]));
job.waitForCompletion(true);
}
}
5
Saturday, October 13, 2012

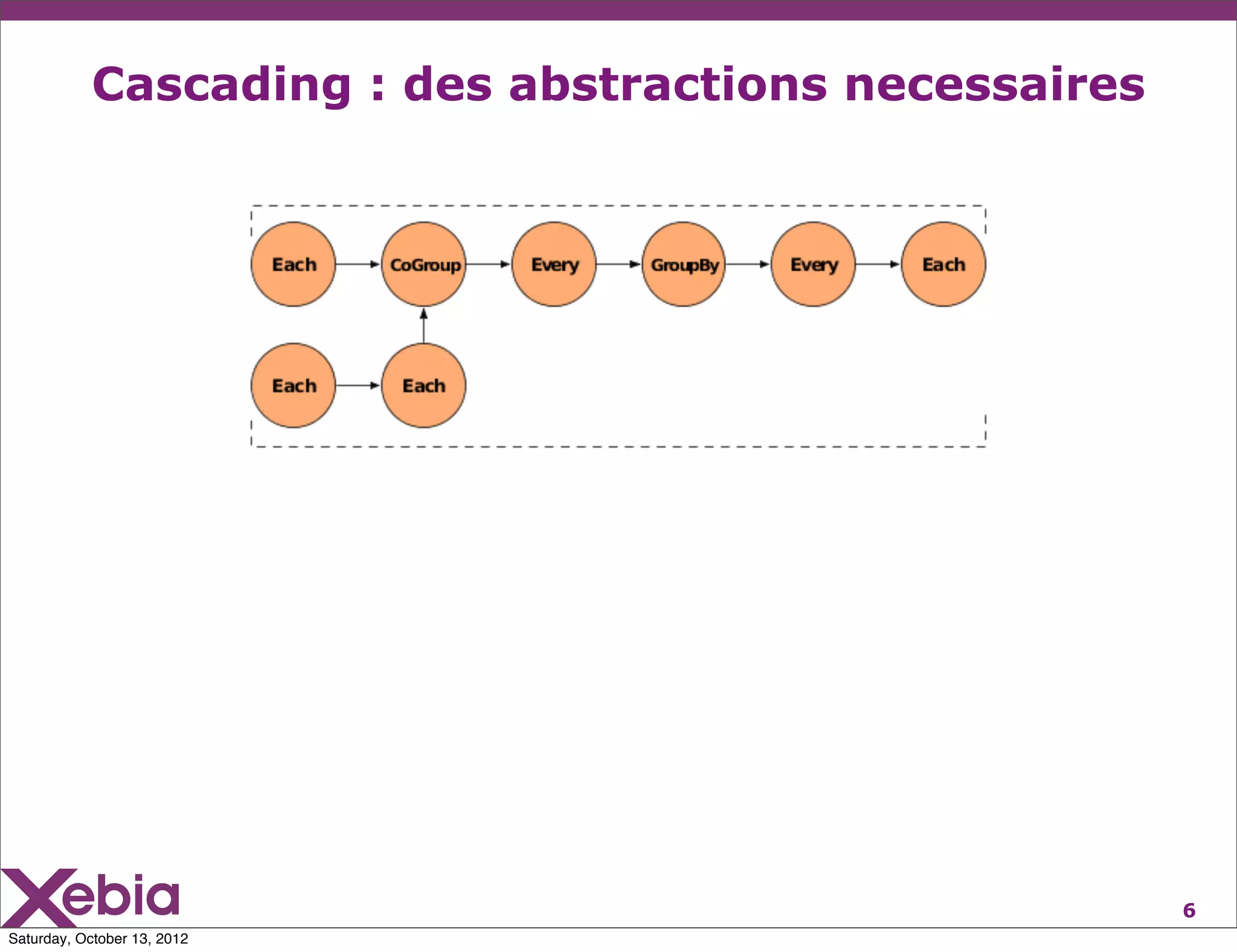

6. Cascading : des abstractions necessaires
6
Saturday, October 13, 2012

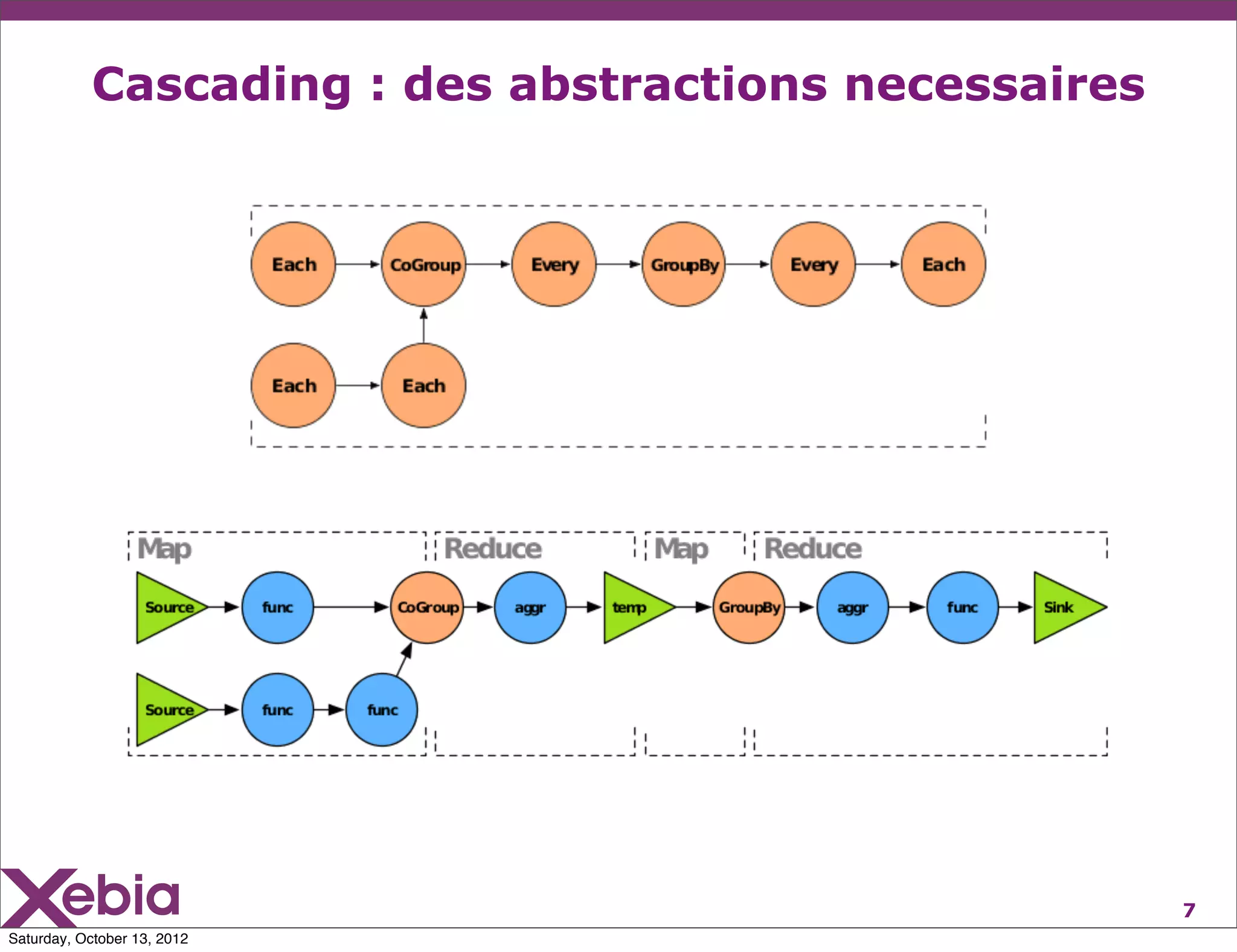

7. Cascading : des abstractions necessaires
7
Saturday, October 13, 2012

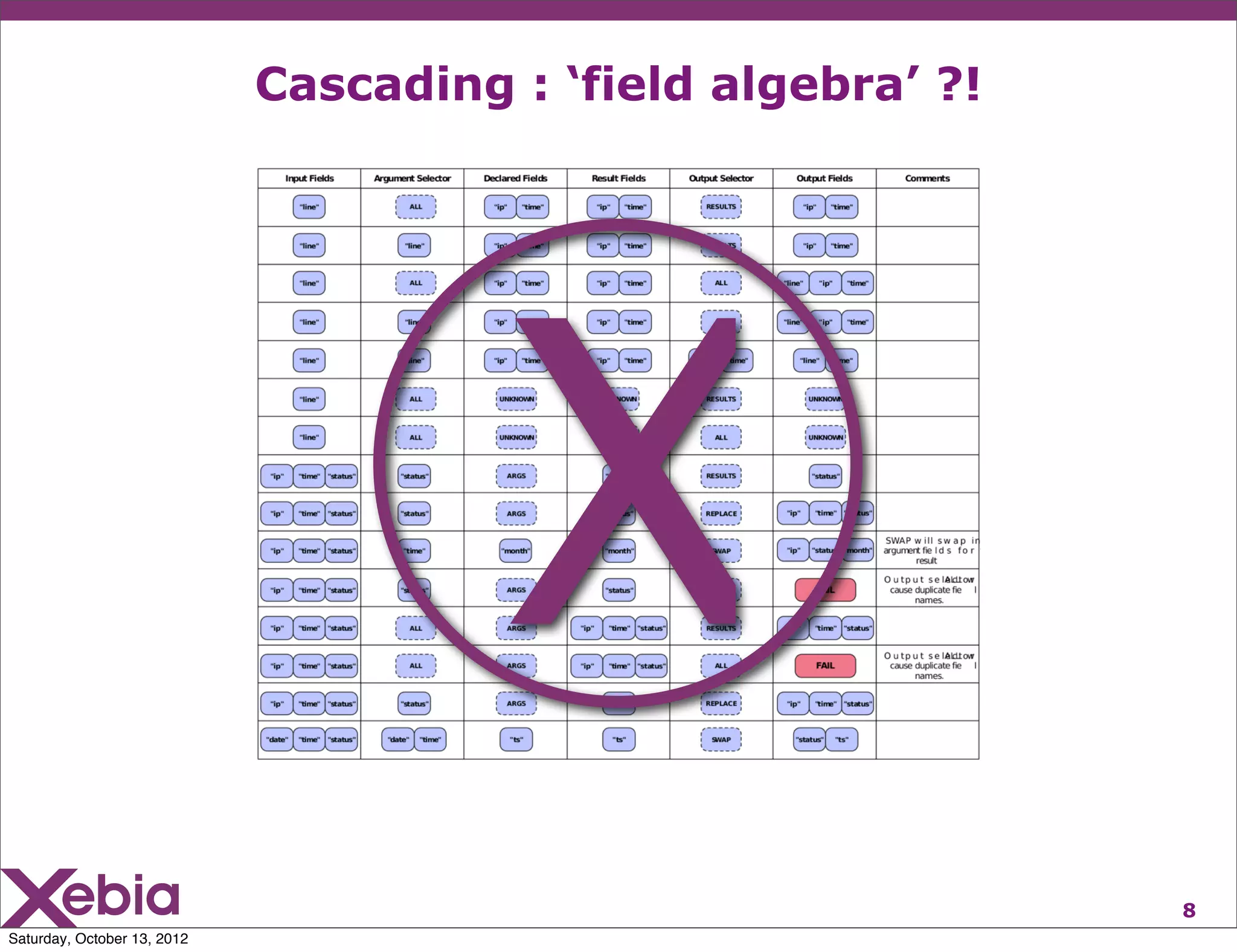

8. Cascading : ‘field algebra’ ?!
X
8
Saturday, October 13, 2012

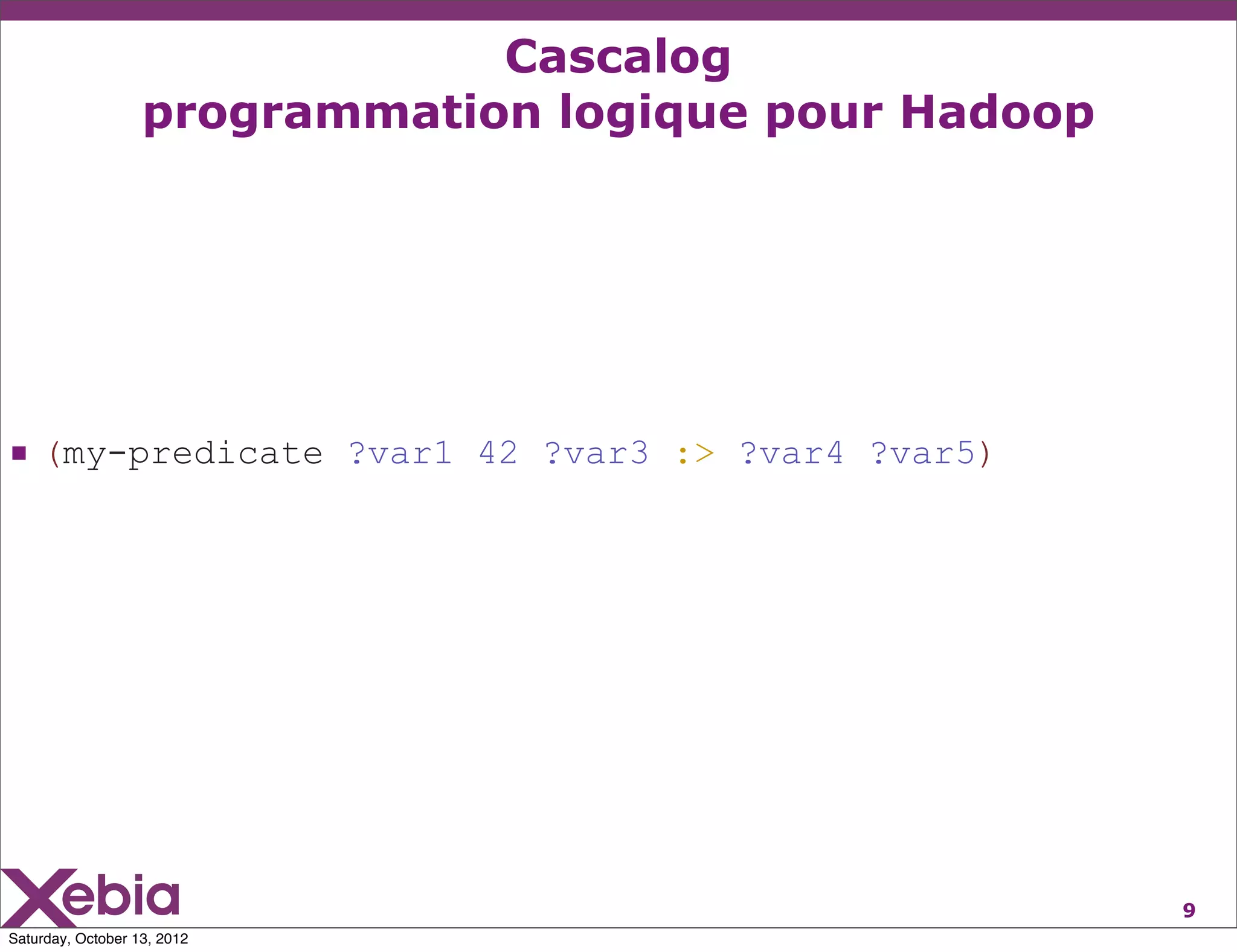

9. Cascalog
programmation logique pour Hadoop
 (my-predicate ?var1 42 ?var3 :> ?var4 ?var5)
9
Saturday, October 13, 2012

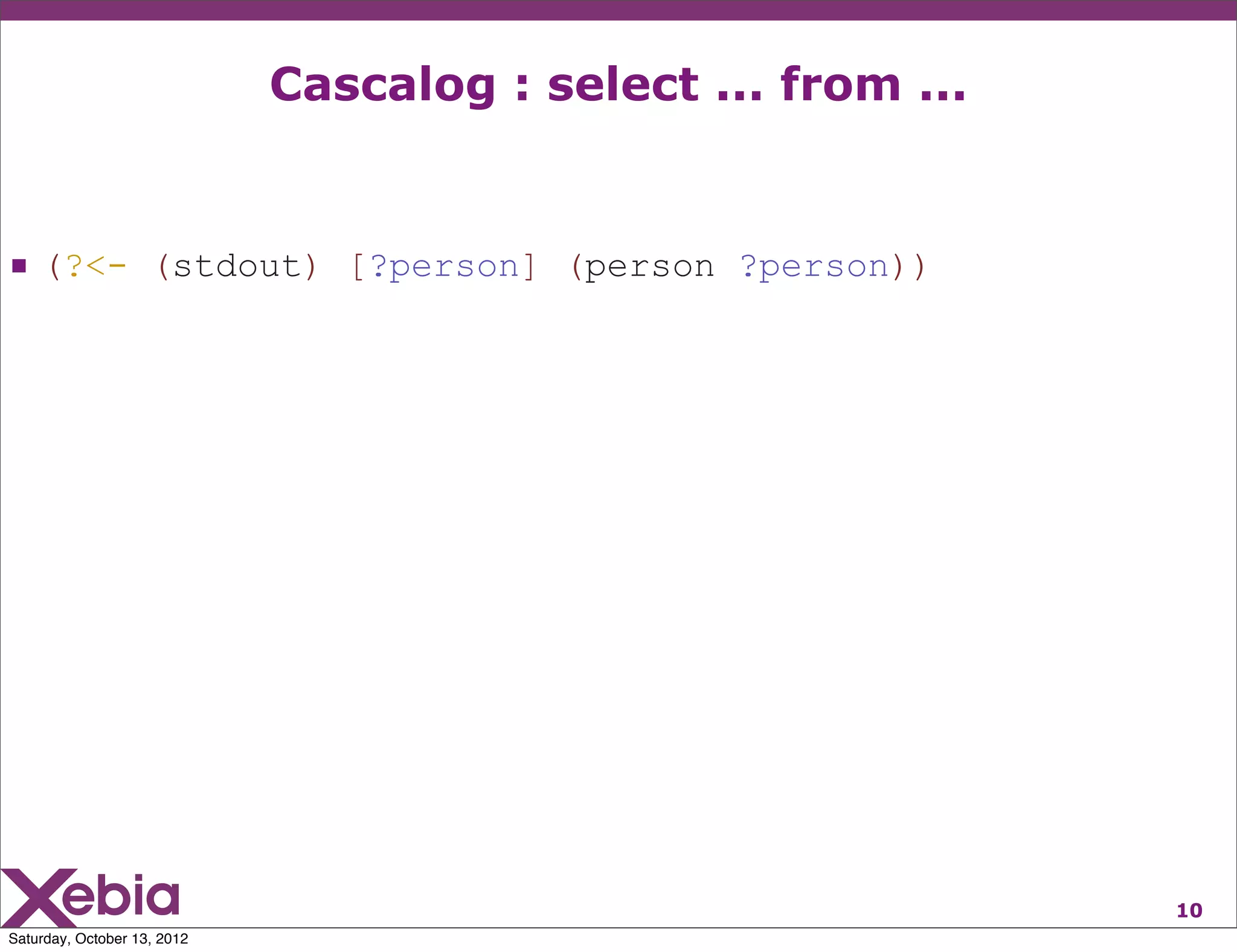

10. Cascalog : select ... from ...
 (?<- (stdout) [?person] (person ?person))
10
Saturday, October 13, 2012

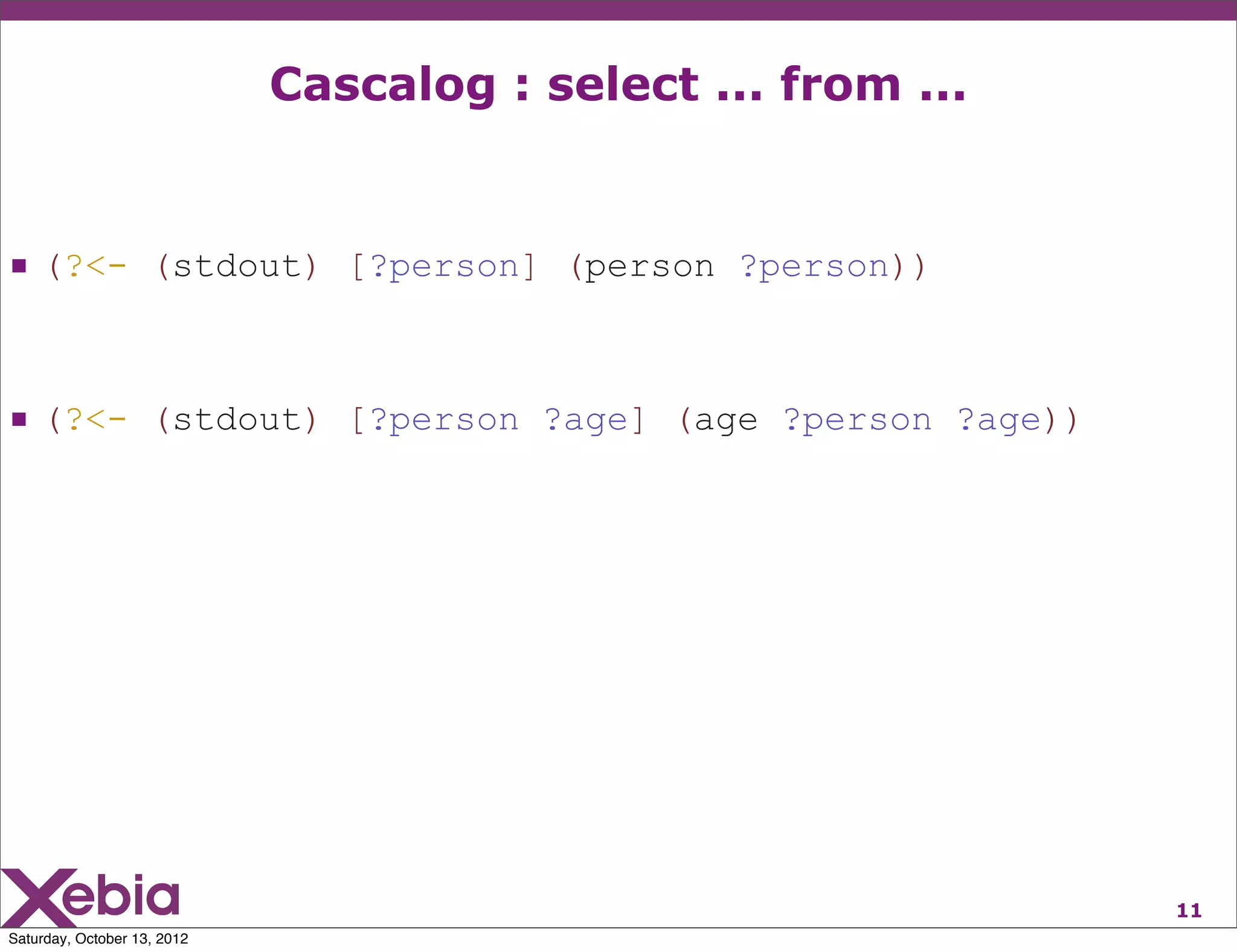

11. Cascalog : select ... from ...
 (?<- (stdout) [?person] (person ?person))
 (?<- (stdout) [?person ?age] (age ?person ?age))
11
Saturday, October 13, 2012

12. Cascalog : select ... from ...
 (?<- (stdout) [?person] (person ?person))
 (?<- (stdout) [?person ?age] (age ?person ?age))
 (?<- (stdout) [?age] (age _ ?age))
12
Saturday, October 13, 2012

13. Cascalog : select ... from ...
 (?<- (stdout) [?person] (person ?person))
 (?<- (stdout) [?person ?age] (age ?person ?age))
 (?<- (stdout) [?age] (age _ ?age))
 (?<- (stdout) [?person] (age ?person 42))
13
Saturday, October 13, 2012

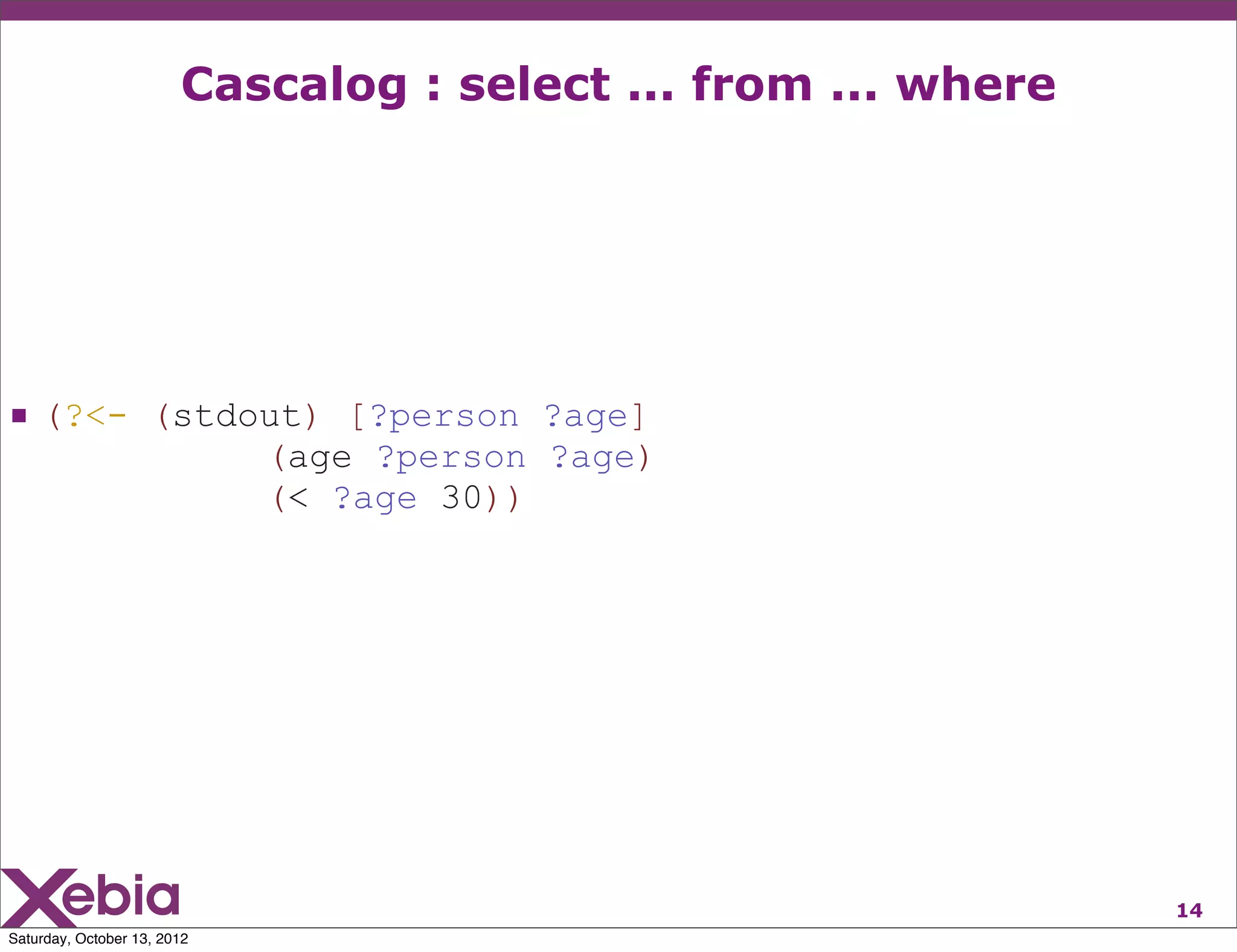

14. Cascalog : select ... from ... where
 (?<- (stdout) [?person ?age]
(age ?person ?age)
(< ?age 30))
14
Saturday, October 13, 2012

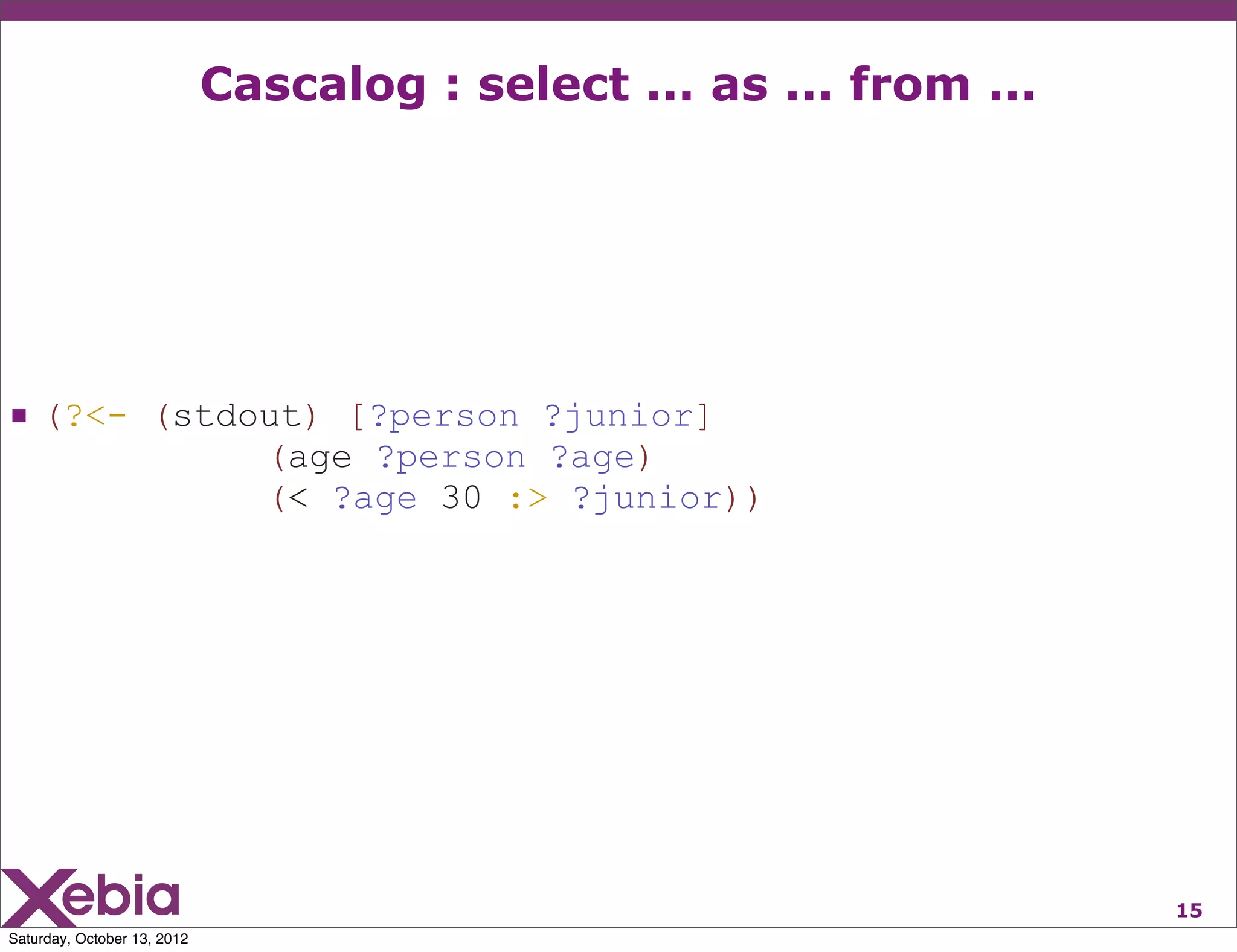

15. Cascalog : select ... as ... from ...
 (?<- (stdout) [?person ?junior]
(age ?person ?age)
(< ?age 30 :> ?junior))
15
Saturday, October 13, 2012

16. Cascalog : select count(*) from ... group by ...
 (?<- (stdout) [?count]
(age _ _)
(c/count ?count))
16
Saturday, October 13, 2012

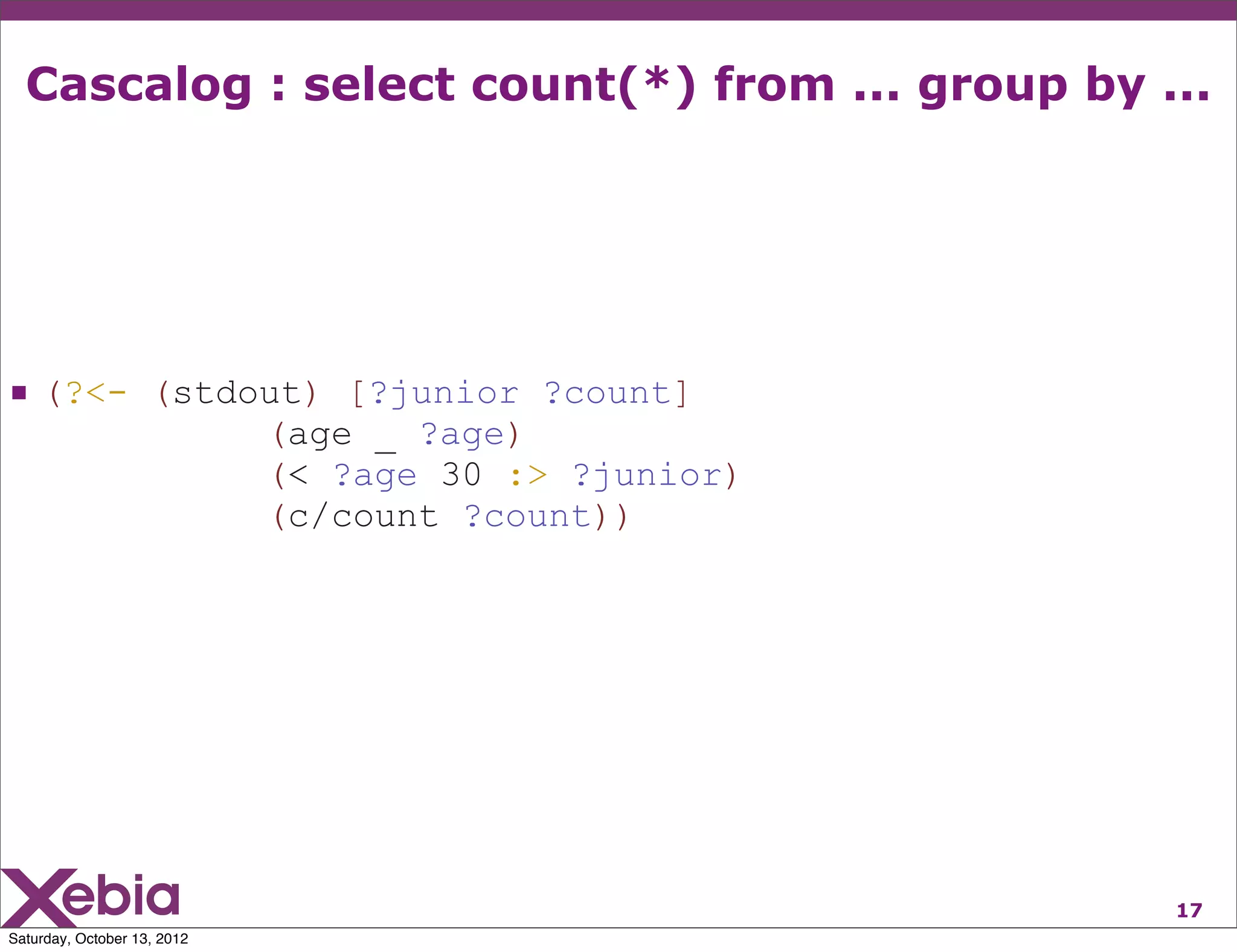

17. Cascalog : select count(*) from ... group by ...
 (?<- (stdout) [?junior ?count]
(age _ ?age)
(< ?age 30 :> ?junior)
(c/count ?count))
17
Saturday, October 13, 2012

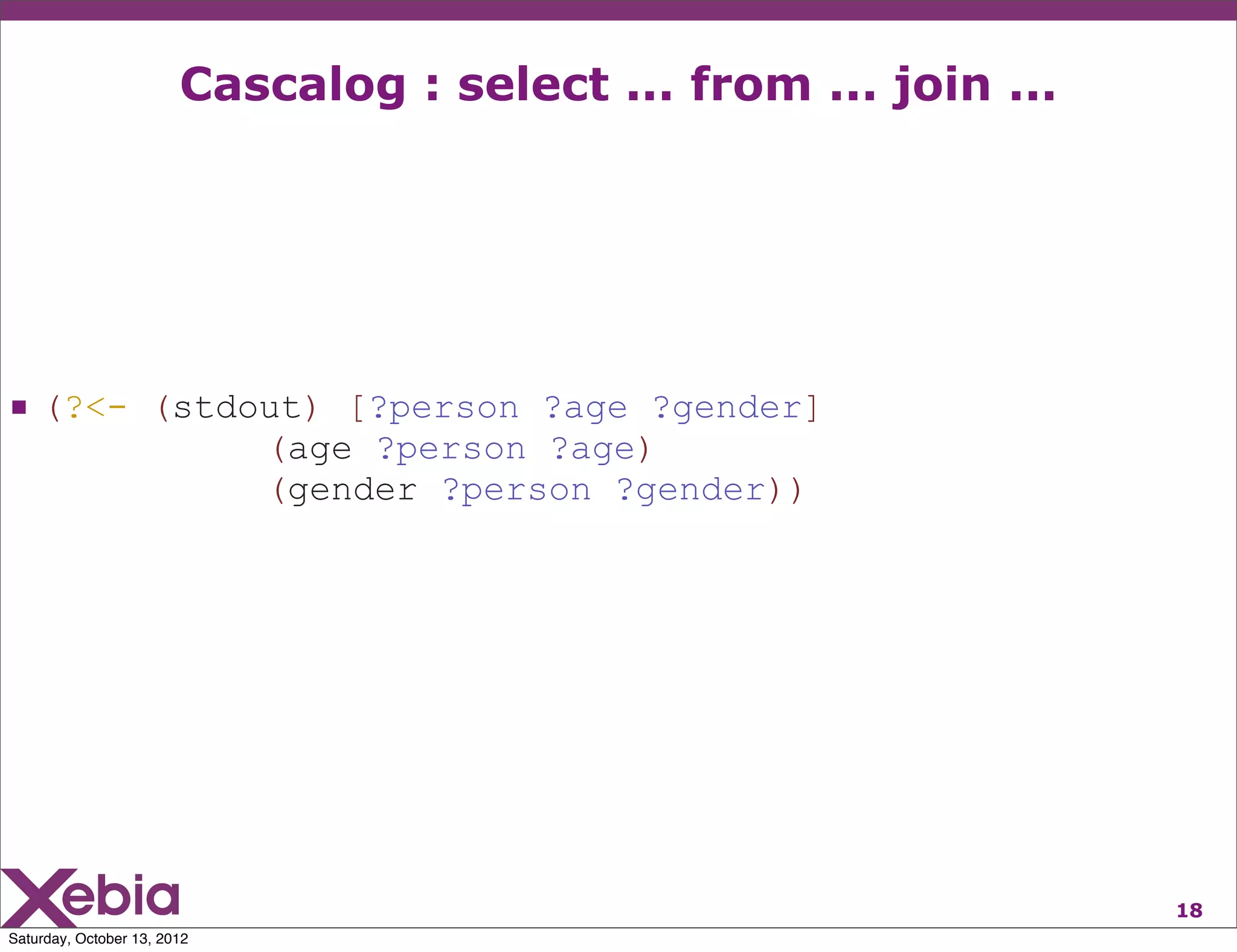

18. Cascalog : select ... from ... join ...
 (?<- (stdout) [?person ?age ?gender]
(age ?person ?age)
(gender ?person ?gender))
18
Saturday, October 13, 2012

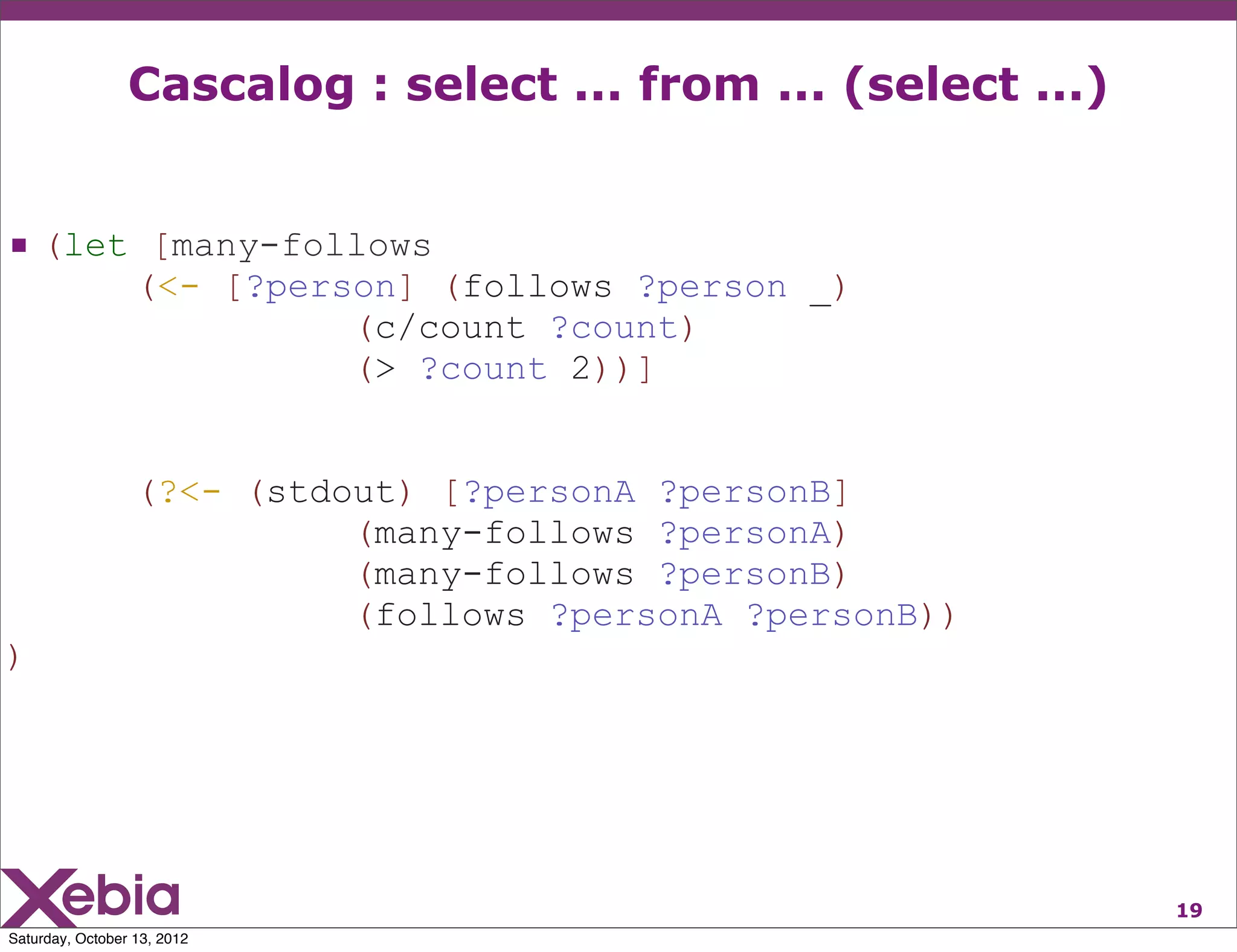

19. Cascalog : select ... from ... (select ...)
 (let [many-follows
(<- [?person] (follows ?person _)
(c/count ?count)
(> ?count 2))]
(?<- (stdout) [?personA ?personB]
(many-follows ?personA)
(many-follows ?personB)
(follows ?personA ?personB))
)
19
Saturday, October 13, 2012

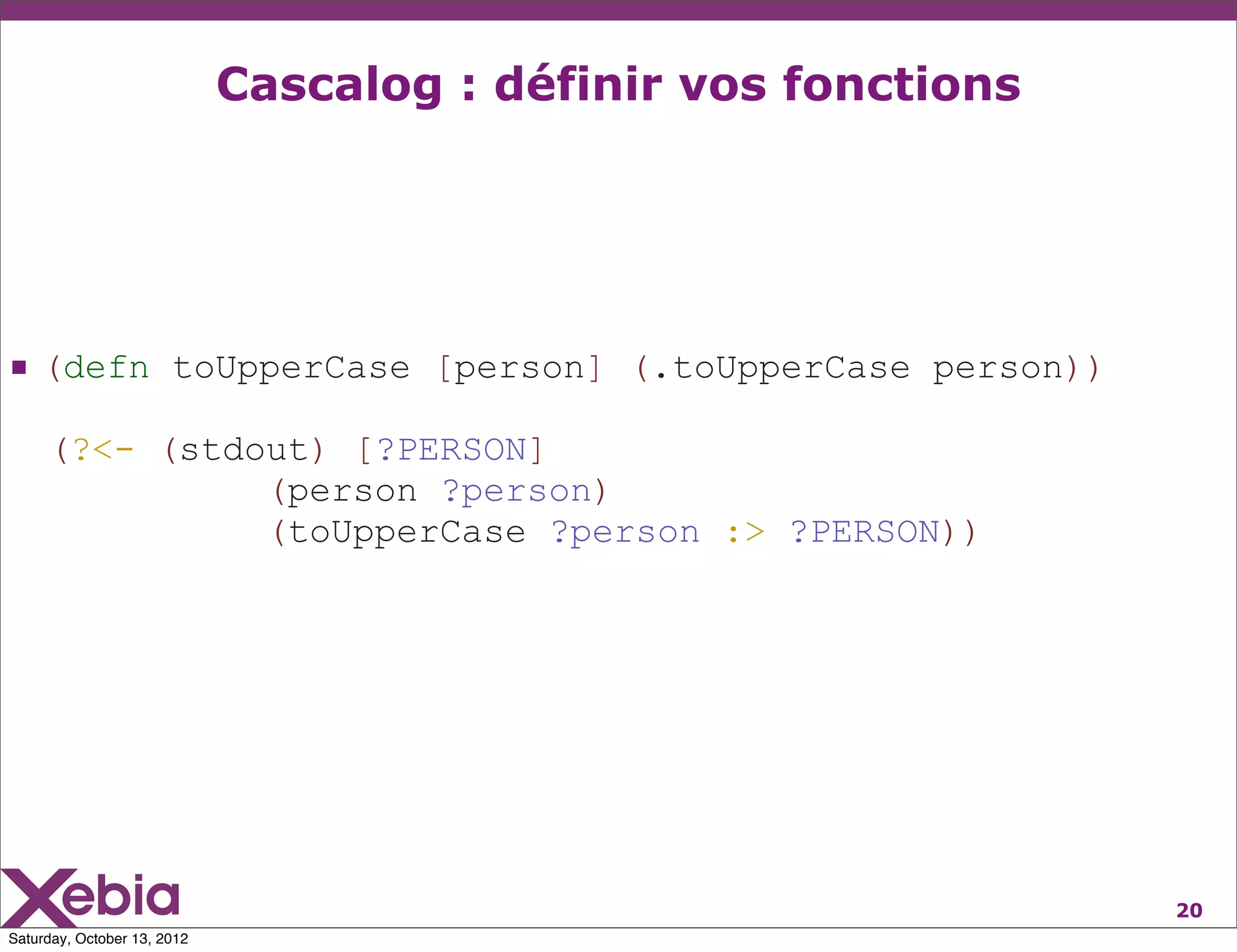

20. Cascalog : définir vos fonctions
 (defn toUpperCase [person] (.toUpperCase person))
(?<- (stdout) [?PERSON]
(person ?person)
(toUpperCase ?person :> ?PERSON))
20
Saturday, October 13, 2012

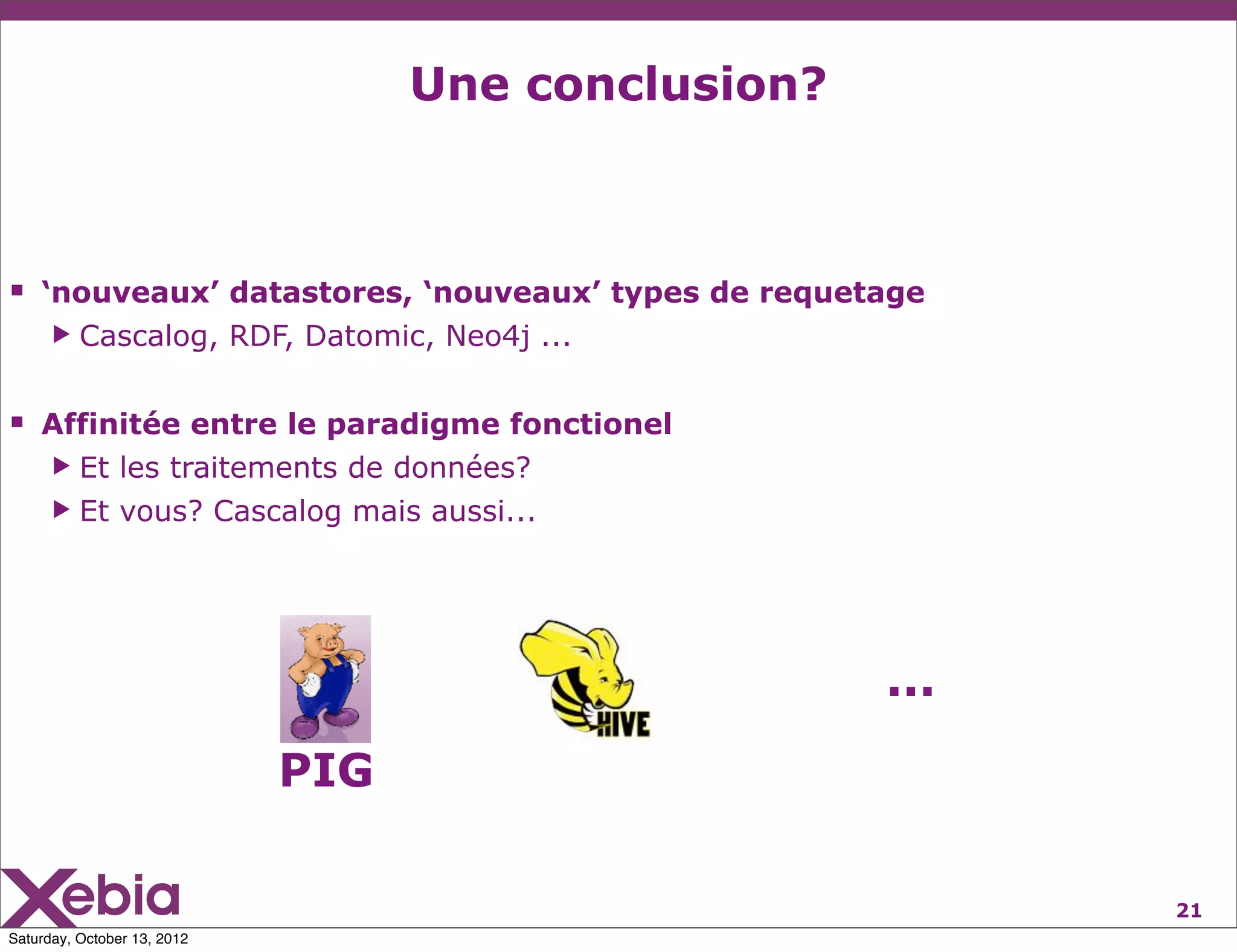

21. Une conclusion?
 ‘nouveaux’ datastores, ‘nouveaux’ types de requetage
▶ Cascalog, RDF, Datomic, Neo4j ...
 Affinitée entre le paradigme fonctionel
▶ Et les traitements de données?
▶ Et vous? Cascalog mais aussi...
...
PIG
21
Saturday, October 13, 2012

22. http://blog.xebia.fr/author/bdechoux/
@BertrandDechoux
?
