1) Stars spew out dust and gas as they die, which collects into clouds in the interstellar medium. 2) In these clouds, dust and gas coalesces due to gravity to form new stars and planetary systems, with protoplanetary disks forming around young stars. 3) The solar system formed from a protoplanetary disk around the sun over billions of years, with the planets forming and evolving into their current configurations as explained by the nebular hypothesis.

1. Origin of the Solar System

2. Stars spew out 1/2 their mass as gas & dust as they die

3. In the interstellar medium, dust and gas coalesces into clouds

4. New generations of stars (and their planets, if any) form in
these clouds

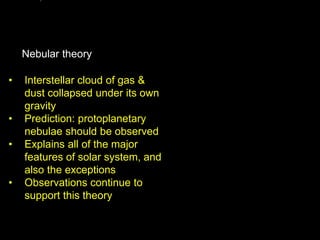

5. • Interstellar cloud of gas &
dust collapsed under its own
gravity
• Prediction: protoplanetary
nebulae should be observed
• Explains all of the major
features of solar system, and
also the exceptions
• Observations continue to
support this theory
Nebular theory

6. Protoplanetary disks

8. Protoplanetary disks last for only about 1-10 million years

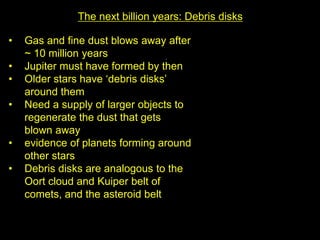

11. The next billion years: Debris disks
• Gas and fine dust blows away after
~ 10 million years
• Jupiter must have formed by then
• Older stars have ‘debris disks’
around them
• Need a supply of larger objects to
regenerate the dust that gets
blown away
• evidence of planets forming around
other stars
• Debris disks are analogous to the
Oort cloud and Kuiper belt of
comets, and the asteroid belt

12. Debris disks around stars > 100 million years old are very
common!

13. (artist’s drawing of a debris disk)

14. Zodiacal light

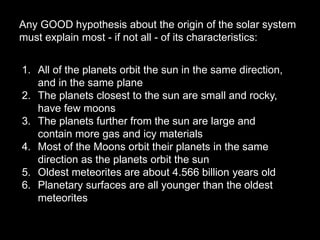

15. Any GOOD hypothesis about the origin of the solar system
must explain most - if not all - of its characteristics:
1. All of the planets orbit the sun in the same direction,
and in the same plane
2. The planets closest to the sun are small and rocky,
have few moons
3. The planets further from the sun are large and
contain more gas and icy materials
4. Most of the Moons orbit their planets in the same
direction as the planets orbit the sun
5. Oldest meteorites are about 4.566 billion years old
6. Planetary surfaces are all younger than the oldest
meteorites

16. Relative sizes of the planets

17. Sizes of the planets relative to Sun

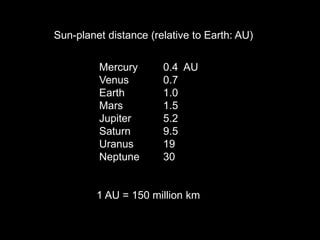

18. Sun-planet distance (relative to Earth: AU)
Mercury 0.4 AU
Venus 0.7
Earth 1.0
Mars 1.5
Jupiter 5.2
Saturn 9.5
Uranus 19
Neptune 30
1 AU = 150 million km

19. Other residents of the solar system:
1. Dwarf planets
diameter = 1000-3000 km, smaller than Moon, orbit the sun

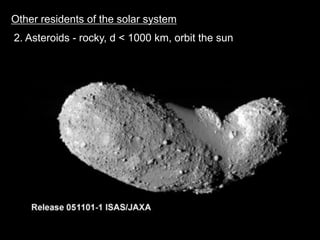

20. Other residents of the solar system
2. Asteroids - rocky, d < 1000 km, orbit the sun

21. Asteroid belt

22. Asteroids are
really quite rare…

23. 3. Comets - rock & ice, wide
range of sizes (~10 m to
100 km)
Other residents of the solar system

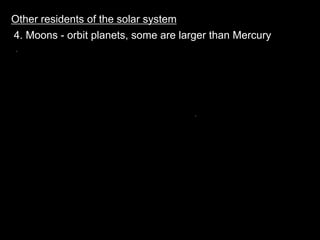

24. Other residents of the solar system
4. Moons - orbit planets, some are larger than Mercury

25. Asteroids and comets
are leftover
planetesimals
Some moons are
captured
planetesimals

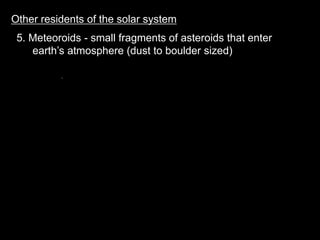

26. Other residents of the solar system
5. Meteoroids - small fragments of asteroids that enter
earth’s atmosphere (dust to boulder sized)

27. Meteor!

28. Zodiacal light

29. Any GOOD hypothesis about the origin of the solar system
must explain most - if not all - of its characteristics:
1. All of the planets orbit the sun in the same direction,
and in the same plane
2. The planets closest to the sun are small and rocky,
have few moons
3. The planets further from the sun are large and
contain more gas and icy materials
4. Most of the Moons orbit their planets in the same
direction as the planets orbit the sun
5. Oldest meteorites are about 4.566 billion years old
6. Planetary surfaces are all younger than the oldest
meteorites

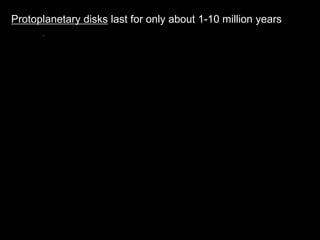

30. Protoplanetary disks last for only about 1-10 million years

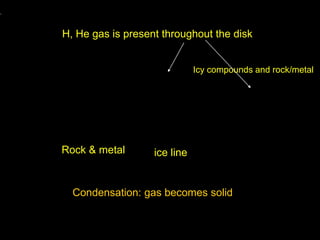

33. H, He gas is present throughout the disk
Icy compounds and rock/metal
Rock & metal ice line
Condensation: gas becomes solid

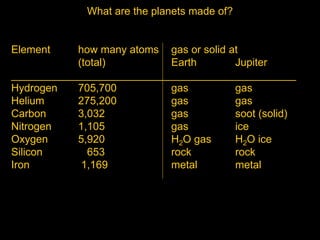

34. What are the planets made of?
Element how many atoms gas or solid at
(total) Earth Jupiter
________________________________________________
Hydrogen 705,700 gas gas
Helium 275,200 gas gas
Carbon 3,032 gas soot (solid)
Nitrogen 1,105 gas ice
Oxygen 5,920 H2O gas H2O ice
Silicon 653 rock rock
Iron 1,169 metal metal

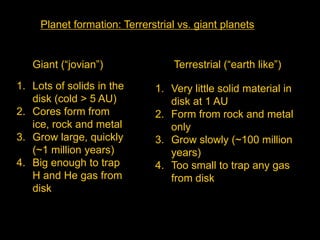

35. Planet formation: Terrerstrial vs. giant planets
Giant (“jovian”)
1. Lots of solids in the
disk (cold > 5 AU)
2. Cores form from
ice, rock and metal
3. Grow large, quickly
(~1 million years)
4. Big enough to trap
H and He gas from
disk
Terrestrial (“earth like”)
1. Very little solid material in
disk at 1 AU
2. Form from rock and metal
only
3. Grow slowly (~100 million
years)
4. Too small to trap any gas
from disk

36. Connecting the dots: From planet formation to early Earth
Computational astrophysics meets field geology!

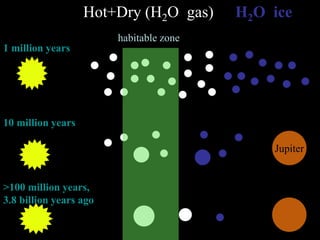

37. 1 million years
10 million years
>100 million years,
3.8 billion years ago
Hot+Dry (H2O gas) H2O ice
Jupiter
habitable zone

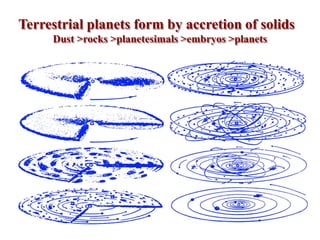

38. Terrestrial planets form by accretion of solids
Dust >rocks >planetesimals >embryos >planets

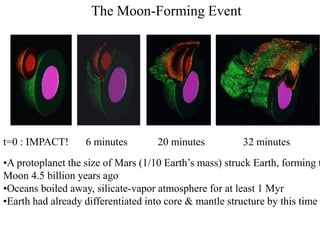

39. The Moon-Forming Event
•A protoplanet the size of Mars (1/10 Earth’s mass) struck Earth, forming t
Moon 4.5 billion years ago
•Oceans boiled away, silicate-vapor atmosphere for at least 1 Myr
•Earth had already differentiated into core & mantle structure by this time
t=0 : IMPACT! 6 minutes 20 minutes 32 minutes

41. But what if you don’t know:
• the initial number of parent & daughter atoms?
• how much of the P & D’s have entered or left the rock?

42. Solution: Isochron dating, requires a 4th measurement
(the amount of a stable isotope of one of the
elements)
48.8 Gyr
Slope = D(now)/P(now)

43. melt
solid

44. Make measurements for different minerals in rock. If
data are linear, there is a strong correlation between:
•The amount of P in each sample
•The extent to which the sample has been enriched in D

45. Stable isotope geochronology
87
Sr/
86
Sr
87Rb/86Sr

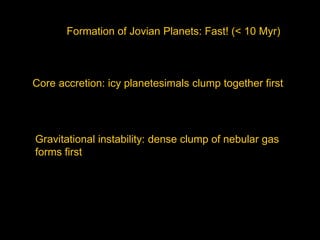

46. Formation of Jovian Planets: Fast! (< 10 Myr)
Core accretion: icy planetesimals clump together first
Gravitational instability: dense clump of nebular gas
forms first

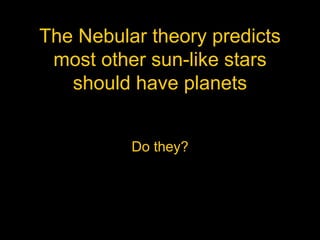

47. The Nebular theory predicts
most other sun-like stars
should have planets
Do they?

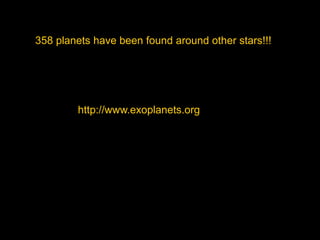

48. 358 planets have been found around other stars!!!
http://www.exoplanets.org

49. Detecting planets around other
stars: Doppler method

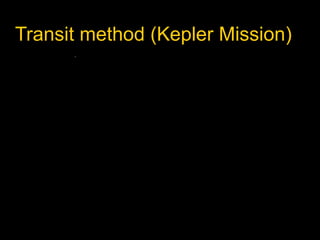

50. Transit method (Kepler Mission)
