1. © 2017 APPS ASSOCIATES LLC1 appsassociates.com
Running E-Business Suite on Oracle Cloud Infrastructure
November 4, 2017

2. © 2017 APPS ASSOCIATES LLC2

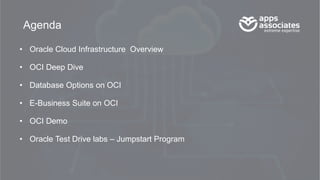

Agenda
• Oracle Cloud Infrastructure Overview
• OCI Deep Dive
• Database Options on OCI
• E-Business Suite on OCI
• OCI Demo
• Oracle Test Drive labs – Jumpstart Program

3. © 2017 APPS ASSOCIATES LLC3

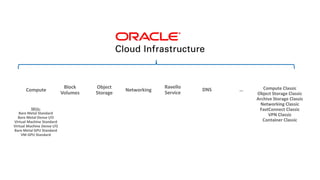

Ravello
Service
DNSCompute
Block
Volumes
Object
Storage
Networking Compute Classic
Object Storage Classic
Archive Storage Classic
Networking Classic
FastConnect Classic
VPN Classic
Container Classic
SKUs:
Bare Metal Standard
Bare Metal Dense I/O
Virtual Machine Standard
Virtual Machine Dense I/O
Bare Metal GPU Standard
VM GPU Standard
…

4. © 2017 APPS ASSOCIATES LLC4

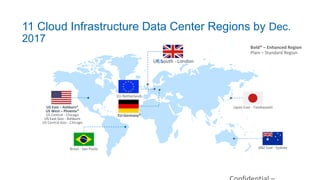

11 Cloud Infrastructure Data Center Regions by Dec.
2017
US East – Ashburn*
US West – Phoenix*
US Central - Chicago
US East Gov - Ashburn
US Central Gov - Chicago
Japan East - Tatebayashi
EU-Netherlands
UK South - London
EU-Germany*
ANZ East - SydneyBrazil - Sao Paolo
Bold* – Enhanced Region
Plain – Standard Region

5. © 2017 APPS ASSOCIATES LLC5
Oracle Cloud Infrastructure ( Bare Metal Cloud Service)

6. © 2017 APPS ASSOCIATES LLC6 © 2017 APPS ASSOCIATES LLC6

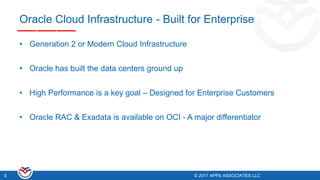

Oracle Cloud Infrastructure - Built for Enterprise
• Generation 2 or Modern Cloud Infrastructure
• Oracle has built the data centers ground up
• High Performance is a key goal – Designed for Enterprise Customers
• Oracle RAC & Exadata is available on OCI - A major differentiator

7. © 2017 APPS ASSOCIATES LLC7 © 2017 APPS ASSOCIATES LLC7
Oracle Cloud Infrastructure Services
The following components are required in migrating/installing the Enterprise Applications on
Oracle Cloud Infrastructure.
• E-Business Suite
• PeopleSoft
• JD Edwards

8. © 2017 APPS ASSOCIATES LLC8 © 2017 APPS ASSOCIATES LLC8

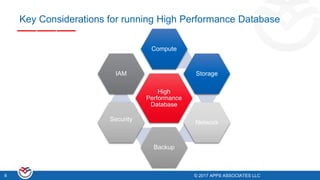

Key Considerations for running High Performance Database
High
Performance
Database
Compute
Storage
Network
Backup
Security
IAM

9. © 2017 APPS ASSOCIATES LLC9 © 2017 APPS ASSOCIATES LLC9
Oracle Cloud Infrastructure – IAM
• The Oracle Bare Metal Cloud Identity and Access Management Service (IAM) lets you control who
the access to your cloud resources. You can control what type of access a group of users have
and to which specific resources.
• Components of IAM Service
– Resource – Compute, Storage, VCN, Subnets, route tables
– User – End user to manage/use BMCS
– Group – Collection of users to perform same type of access
– Compartments - Organizing and isolating cloud resources
– Tenancy – root compartment at organization level
– Home region – Where IAM service resource is created

10. © 2017 APPS ASSOCIATES LLC10 © 2017 APPS ASSOCIATES LLC10

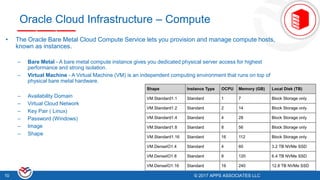

Oracle Cloud Infrastructure – Compute
• The Oracle Bare Metal Cloud Compute Service lets you provision and manage compute hosts,
known as instances.
– Bare Metal - A bare metal compute instance gives you dedicated physical server access for highest
performance and strong isolation.
– Virtual Machine - A Virtual Machine (VM) is an independent computing environment that runs on top of
physical bare metal hardware.
– Availability Domain
– Virtual Cloud Network
– Key Pair ( Linux)
– Password (Windows)
– Image
– Shape

11. © 2017 APPS ASSOCIATES LLC11 © 2017 APPS ASSOCIATES LLC11
Oracle Cloud Infrastructure- Database
• The Database Service lets you quickly launch an Oracle Database System (DB System) and
create one or more databases on it. You have full access to the features and operations available
with Oracle Database, but Oracle owns and manages the infrastructure.
– Exadata DB Systems (Exadata DB Systems require Enterprise Edition - Extreme
Performance)
• Oracle Database 11g Release 2
• Oracle Database 12c Release 1
• Oracle Database 12c Release 2
– Bare Metal DB Systems
• 1-node DB Systems
• 2-Node RAC DB Systems

12. © 2017 APPS ASSOCIATES LLC12 © 2017 APPS ASSOCIATES LLC12
Virtual Cloud Networks
• Customizable private network in Oracle Cloud Infrastructure
• Provides complete control over the network environment
• Includes Subnets, route table and gateways in which your instances run
Connectivity Options
10 Gb/Seconds+
VCN
Oracle Cloud
Subnet
10.1.3.0/24
Subnet
10.1.2.0/24
Virtual Router
DRG
CPE
CPE
CPE
Customer Site 1
Customer Site 2
Customer Site 3
Subnet
10.1.4.0/24
VPC
IP-Sec VPN
FastConnect*
MPLS*

13. © 2017 APPS ASSOCIATES LLC13 © 2017 APPS ASSOCIATES LLC13

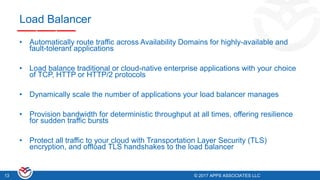

Load Balancer
• Automatically route traffic across Availability Domains for highly-available and
fault-tolerant applications
• Load balance traditional or cloud-native enterprise applications with your choice
of TCP, HTTP or HTTP/2 protocols
• Dynamically scale the number of applications your load balancer manages
• Provision bandwidth for deterministic throughput at all times, offering resilience
for sudden traffic bursts
• Protect all traffic to your cloud with Transportation Layer Security (TLS)
encryption, and offload TLS handshakes to the load balancer

14. © 2017 APPS ASSOCIATES LLC14 © 2017 APPS ASSOCIATES LLC14

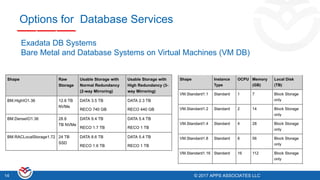

Options for Database Services
Exadata DB Systems
Bare Metal and Database Systems on Virtual Machines (VM DB)

15. © 2017 APPS ASSOCIATES LLC15 © 2017 APPS ASSOCIATES LLC15

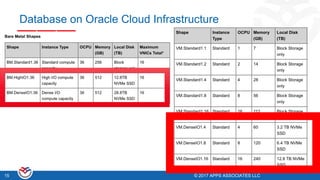

Database on Oracle Cloud Infrastructure

16. © 2017 APPS ASSOCIATES LLC16 © 2017 APPS ASSOCIATES LLC16
Backing up the database
• Backing Up to Object Storage
– Create an Object Storage bucket for the backups, generate a password for the service, install the Oracle
Database Cloud Backup Module, and then configure RMAN to send backups to the service
– Backup module is typically used to back up to the Oracle Database Backup Cloud Service, which is an
OpenStack Swift object store
– The DB System's cloud network (VCN) must be configured with an Internet Gateway
– Instead of installing the backup module and using RMAN for backups on a 1-node DB System, you can use
the dbcli command line interface to back up to Object Storage.
– Standalone backups
Note: Currently, Oracle Cloud Infrastructure does not provide the ability to attach block storage volumes to a
DB System, so you cannot back up to network attached volumes.

17. © 2017 APPS ASSOCIATES LLC17 © 2017 APPS ASSOCIATES LLC17

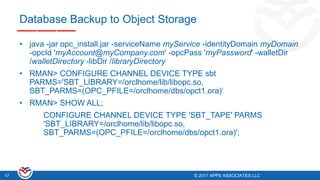

Database Backup to Object Storage
• java -jar opc_install.jar -serviceName myService -identityDomain myDomain
-opcId 'myAccount@myCompany.com' -opcPass 'myPassword' -walletDir
/walletDirectory -libDir /libraryDirectory
• RMAN> CONFIGURE CHANNEL DEVICE TYPE sbt
PARMS='SBT_LIBRARY=/orclhome/lib/libopc.so,
SBT_PARMS=(OPC_PFILE=/orclhome/dbs/opct1.ora)‘
• RMAN> SHOW ALL;
CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE' PARMS
'SBT_LIBRARY=/orclhome/lib/libopc.so,
SBT_PARMS=(OPC_PFILE=/orclhome/dbs/opct1.ora)';

18. © 2017 APPS ASSOCIATES LLC18 © 2017 APPS ASSOCIATES LLC18
Architecting Enterprise Application on OCI

19. © 2017 APPS ASSOCIATES LLC19 © 2017 APPS ASSOCIATES LLC19

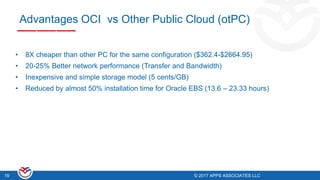

Advantages OCI vs Other Public Cloud (otPC)
• 8X cheaper than other PC for the same configuration ($362.4-$2664.95)
• 20-25% Better network performance (Transfer and Bandwidth)
• Inexpensive and simple storage model (5 cents/GB)
• Reduced by almost 50% installation time for Oracle EBS (13.6 – 23.33 hours)

20. © 2017 APPS ASSOCIATES LLC20 © 2017 APPS ASSOCIATES LLC20

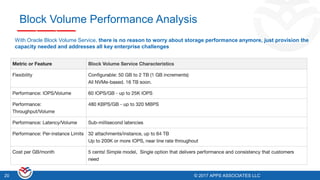

Block Volume Performance Analysis
With Oracle Block Volume Service, there is no reason to worry about storage performance anymore, just provision the
capacity needed and addresses all key enterprise challenges

21. © 2017 APPS ASSOCIATES LLC21 © 2017 APPS ASSOCIATES LLC21

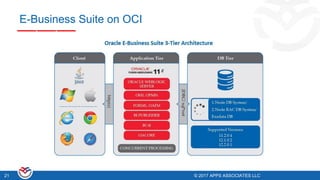

E-Business Suite on OCI

22. © 2017 APPS ASSOCIATES LLC22 © 2017 APPS ASSOCIATES LLC22

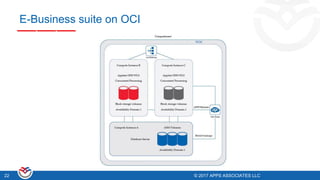

E-Business suite on OCI

23. © 2017 APPS ASSOCIATES LLC23 © 2017 APPS ASSOCIATES LLC23

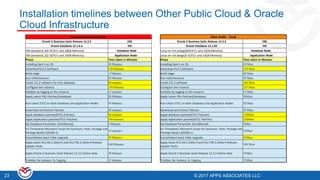

Installation timelines between Other Public Cloud & Oracle
Cloud Infrastructure
Oracle Cloud Infrastructure Other Public Cloud
Oracle E-Business Suite Release 12.2.5 EBS Oracle E-Business Suite Release 12.2.5 EBS
Oracle Database 12.1.0.2 DB Oracle Database 12.1.02 DB
VM.Standard1.4(4 OCPU's and 28GB Memory) Database Node Linux on m4.2xlarge(8VCPU's and 32GB Memory) Database Node
VM.Standard1.2(2 OCPU's and 14GB Memory) Application Node Linux on m4.xlarge(4 VCPU's and 16GB Memory) Application Node
Phase Time taken in Minutes Phase Time taken in Minutes
Installing Rpm's on OS 30 Minutes Installing Rpm's on OS 30 Mins
Download R12.2 Software 120 Minutes Download R12.2 Software 150 Mins
Build stage 5 Minutes Build stage 40 Mins
Run md5checksum 20 Minutes Run md5checksum 30 Mins
Install r12.2 software for only database 60 minutes Install r12.2 software 180 Mins
Configure the instance 150 Minutes Configure the instance 255 Mins
Validate by logging to the instance 15 minutes Validate by logging to the instance 15 Mins
Apply Latest PSU Patches(Database) 20 Minutes Apply Latest PSU Patches(Database) 30Mins
Run Latest ETCC on both Database and Application Nodes 10 Minutes Run Latest ETCC on both Database and Application Nodes 10 Mins
Download and Extract Patches 20 minutes Download and Extract Patches 30 Mins
Apply database patches(ETCC Patches) 90 minutes Apply database patches(ETCC Patches) 120Mins
Apply Application patches(ETCC Patches) 180 minutes Apply Application patches(ETCC Patches) 220Mins
Set Database Parameter (Conditional) 5 Minutes Set Database Parameter (Conditional) 5Mins
Fix Timestamp Mismatch Issues for Synonym, View, Package and
Package Body(1320300.1)
10 minutes
Fix Timestamp Mismatch Issues for Synonym, View, Package and
Package Body(1320300.1)
10Mins
Consolidated Seed Table Upgrade 30 Minutes Consolidated Seed Table Upgrade 45Mins
Apply latest R12.AD.C.Delta.9 and R12.TXK.C.Delta.9 Release
Update Packs
160 Minutes
Apply latest R12.AD.C.Delta.9 and R12.TXK.C.Delta.9 Release
Update Packs
180 Mins
Apply Oracle E-Business Suite Release 12.2.5 Online Help 30 Minutes Apply Oracle E-Business Suite Release 12.2.5 Online Help 35Mins
Validate the instance by logging 15 minutes Validate the instance by logging 15Mins

24. © 2017 APPS ASSOCIATES LLC24 © 2017 APPS ASSOCIATES LLC24
Pricing comparison between Other Public Cloud & Oracle
Other Public
Cloud
Monthly
Product Quantity Price($) Product type
EC2 1 292.8 Linux on m4.2xlarge(8VCPU's and 32GB Memory) Database Node
EC2 1 146.4 Linux on m4.xlarge(4 VCPU's and 16GB Memory) Application Node
Storage 3 78.75 300G(provisoned IOPS SSD),250G(provisoned IOPS SSD),200(Magnetic)
IOPS 2145 330GB-18000 iops,250GB-15000 iops
Elastic IP's 2 2 IP's provisoned for EC2 instances
Total 2664.95
Oracle Cloud
Infrastructure
Product Quantity Price($) Product type
Compute 1 216 VM.Standard1.4(4 OCPU's and 28GB Memory) Database Node
Compute 1 108 VM.Standard1.2(2 OCPU's and 14GB Memory) Application Node
Storage 3 38.4 256GB block volumes
IOPS 0 256GB-15360 IOPS is included in the storage cost
Elastic IP's 2 0 IP's provisoned for two compute instances
Total 362.4

25. © 2017 APPS ASSOCIATES LLC25 © 2017 APPS ASSOCIATES LLC25
OCI DEMO

26. © 2017 APPS ASSOCIATES LLC26 © 2017 APPS ASSOCIATES LLC26

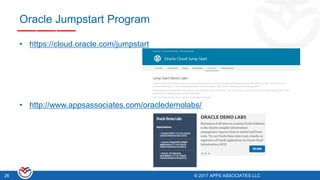

Oracle Jumpstart Program
• https://cloud.oracle.com/jumpstart
• http://www.appsassociates.com/oracledemolabs/

27. © 2017 APPS ASSOCIATES LLC27 © 2017 APPS ASSOCIATES LLC27

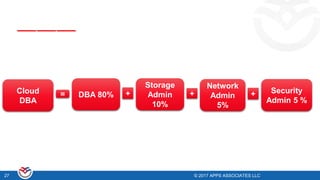

Cloud
DBA
DBA 80%
Network
Admin
5%
Storage
Admin
10%
Security
Admin 5 %
= ++ +

28. © 2017 APPS ASSOCIATES LLC28 © 2017 APPS ASSOCIATES LLC28
Q&A

29. © 2017 APPS ASSOCIATES LLC29
THANK YOU!
Suneel Yalamanchili, Krishna Chaitanya Peri
suneel.yalamanchili@appsassociates.com
+91 8008911117
chaitanya.peri@appsassociates.com
+91 9963311686
