Vasu Balla presented on running Oracle E-Business Suite on Oracle Cloud. Key points include: 1) EBS deployment on Oracle Cloud consists of middleware and database tiers running on Oracle Compute Cloud and Database Cloud Service/Exadata Cloud Service. 2) Deployment approaches include new implementations using marketplace images, and lift and shift of existing on-premises instances using remote cloning utilities and an EBS provisioning tool. 3) There are limitations around maximum database size, cloning automation, and disaster recovery that require further enhancements.

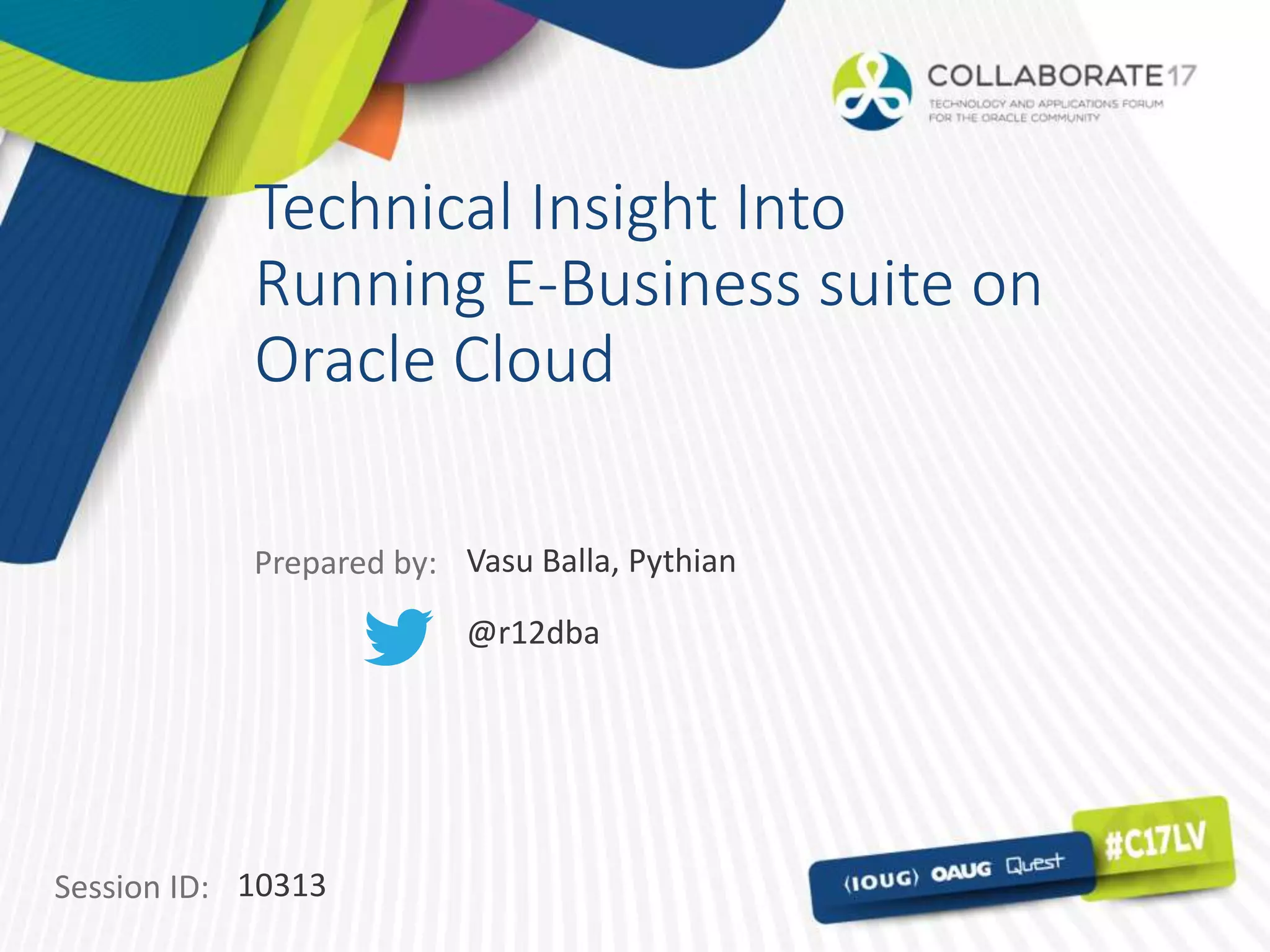

1. Session ID:
Prepared by:
Technical Insight Into
Running E-Business suite on
Oracle Cloud
10313
Vasu Balla, Pythian
@r12dba

2. April 2-6, 2017 in Las Vegas, NV USA #C17LV
About Me
Vasu Balla
• Oracle Apps Principal Consultant with Pythian
• Based out of Ottawa, Canada
• 15 Years of Oracle Apps DBA Experience
• 10 Years with Pythian
• Oracle EBS ATG Customer Advisory Board

3. April 2-6, 2017 in Las Vegas, NV USA #C17LV
ABOUT PYTHIAN
© 2014 Pythian Confidential
11,400
Pythian currently manages more
than 11,400 systems.
400+
Pythian currently employs more
than 400 people in 200 cities in
35 countries
1997
Pythian was founded in 1997
Global Leader In IT Transformation And Operational Excellence
Unparalleled Expertise
•Top 5% in databases, applications, infrastructure, Big Data, Cloud, Data
Science, and DevOps
Unmatched Certifications
•9 Oracle ACEs, 4 Oracle ACE Directors, 1 Oracle ACE Associate
•6 Microsoft MVPs, 1 Microsoft Certified Master
•5 Google Platform Qualified Developers
•1 Cloudera Champion of Big Data
•1 Mongo DB Certified DBA Associate Level
•1 DataStax Certified Partner, 1 MVP
Broad Technical Experience
•Oracle, Microsoft, MySQL, Oracle EBS, Hadoop, Cassandra, MongoDB,
virtualization, configuration management, monitoring, trending, and more.

4. April 2-6, 2017 in Las Vegas, NV USA #C17LV
• Oracle Cloud Offerings
• EBS Deployment on Oracle Cloud
• EBS Cloud Limitations
• Resources
• My Thoughts
Agenda

5. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Oracle Cloud Offerings
• Software-as-a-Service
• Sales Cloud, Finance Cloud, HCM Cloud etc.,
• Google Apps mail, Gotomeeting, Salesforce
• Platform-as-a-Service
• DBcS, Java Cloud, Integration Cloud, Mobile Cloud etc.,
• Heroku, Google App Engine, AWS Beanstack
• Infrastructure-as-a-Service
• Compute Cloud, Storage Cloud, Bare Metal Cloud etc.,
• Amazon EC2, MS Azure, Google Cloud Compute

6. April 2-6, 2017 in Las Vegas, NV USA #C17LV
What EBS Cloud Consists?
• EBS Middle Tier
• Oracle Compute Cloud ( IaaS )
• Currently only Oracle Linux is supported
• EBS Database Tier
• Oracle Compute Cloud ( IaaS )
• Database Cloud Service ( PaaS )
• Exadata Cloud Service ( PaaS )
• RAC available only with DbCS/ExCS

7. April 2-6, 2017 in Las Vegas, NV USA #C17LV
What EBS Cloud Consists? Contd…
• Oracle Traffic Director
• Oracle Compute Cloud ( IaaS )
• Load balancer software from Oracle
• No separate license required
• To be replaced with Oracle Cloud Load Balancer Service

8. April 2-6, 2017 in Las Vegas, NV USA #C17LV
What EBS Cloud Consists? Contd…
• EBS Developer VM
• Holds Developer tools like Jdeveloper, Oracle Forms n reports
• Oracle Compute Cloud ( IaaS )
• Have to VNC to this VM and run tools
• Required because of latency and security concerns
• You can spin-up how many ever you want

9. April 2-6, 2017 in Las Vegas, NV USA #C17LV
What EBS Cloud Consists? Contd…
• EBS Provisioning VM
• Oracle Compute Cloud ( IaaS )
• Chef Server
• Cookbooks, Recipes and Knife
• EBS Provisioning Tool
• Tool that interacts with Chef
• Shipped with Prov VM, cannot be downloaded separately
• One VM to Manage all your EBS Cloud instances

10. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Minimum Compute Requirements
• Compute
• Min 2 CPU for App or DB tier VMs
• DBCS
• Min 2 CPU for High Performance option
• Min 4 CPU for Extreme Performance option
• High Performance
• Multitenant, Partitioning, Real Application Testing, Advanced
Compression, Advanced Security, Label Security, Database Vault, OLAP,
Advanced Analytics, Spatial & Graph, Diagnostics Pack, Tuning Pack,
Database Lifecycle Management Pack, Data Masking and Subsetting
Pack and Cloud Management Pack are included
• Extreme Performance
• In-memory and RAC are included

11. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Supported Versions

12. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Topology Options

13. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Deployment Approach
• New implementation or Upgrade
• Use the Vision or Fresh Install Images from Marketplace
• Lift and Shift
• Use EBS Provisioning Server to deploy
• DB on Compute/DBCS/EXCS
• RAC option only available with DbCS/ExCS
• MT on Compute
• Oracle Traffic Director ( Load balancer ) on compute
• Add additional MTs

14. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Lift n Shift
Remote Clone Utility
• Delivered via patch 22336899
• Does hot backup of DB & Apps
• Can push the backup to Oracle Storage Cloud Service
• Or Stage Directory on Provisioning Server
• Configuration File – cln.props
• Invoked using “perl ebsclone.pl”

15. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Lift n Shift
Provision Tool
• Invoked using “perl ProvisionEBS.pl’
• Can deploy Fresh/Vision Instance using prebuilt oracle Images
to Compute + DBcS
• Can deploy Backup taken using RemoteClone Utility to
Compute + DBcS
• As a post step, One off DB Patches need to applied manually
• Manage Deployed Instances
• Add Node, Delete, Backup
• Workflow, OAM, SOA Integration
• Can add Stage Dir on Provisioning VM

16. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Licensing
• If you deploy EBS DB on Compute
• can use your existing EBS licenses
• Bring your own license (BYOL) model
• Just pay for used compute resources only
• If DB is deployed on DBCS or EXCS
• Can not use your existing licenses
• Need to pay for DBCS/EXCS resources used

17. April 2-6, 2017 in Las Vegas, NV USA #C17LV
Limitations
• Max Database size 12TB with cloud backup option
• Max Database size 4.6TB with local backup option(FRA)
• Need to use EXCS for larger databases
• Cloning Automation still in roadmap
• DR/Failover automation still in roadmap
• Automated patching requires EM13c with AMP

18. April 2-6, 2017 in Las Vegas, NV USA #C17LV
My Thoughts
… A Perfect MARRIAGE …
A Perfect MARRIAGE Is Just Two Imperfect People Who
Refuse To Give Up ON EACH OTHER !!!

19. April 2-6, 2017 in Las Vegas, NV USA #C17LV
References
• Getting Started with Oracle E-Business Suite on Oracle
Cloud (Doc ID 2066260.1)
• https://blogs.oracle.com/EBSandOracleCloud/

20. Q&A

21. Please Complete Your
Session Evaluation
Evaluate this session in your COLLABORATE app.
Pull up this session and tap "Session Evaluation"
to complete the survey.
Session ID: 10313
