Oracle Code Roma: NoSQL + SQL = MySQL

The document provides an overview of the MySQL Document Store, which allows for schemaless storage of documents as JSON objects in MySQL tables. Key points include: - It uses the MySQL JSON data type and existing MySQL server technology to provide a flexible document model while retaining features like ACID transactions and SQL support. - Documents can be over 1GB in size and stored as columns in rows. - The X DevAPI provides language connectors for easy CRUD operations on document collections without using SQL. - This allows a document-oriented model with the reliability, tools, and ecosystem of MySQL.

Embed presentation

Downloaded 17 times
1 / 100
2 / 1002 / 100

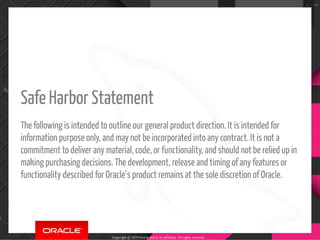

  Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purpose only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied up in making purchasing decisions. The development, release and timing of any features or functionality described for Oracle´s product remains at the sole discretion of Oracle. Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 3 / 100
about me - http://about.me/lefred Who am I ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 4 / 100
Frédéric Descamps @lefred MySQL Evangelist Hacking MySQL since 3.23 devops believer living in Belgium 🇧🇪 http://lefred.be   Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 5 / 100

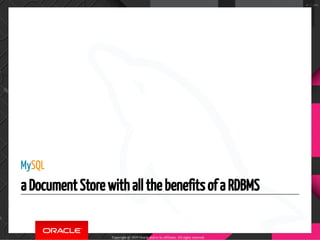

MySQL a Document Store with all the benefits of a RDBMS Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 6 / 100
Why ? Developers don´t really like SQL   Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 7 / 100
Why ? SQL can be complicated and slows down the initial development Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 8 / 100

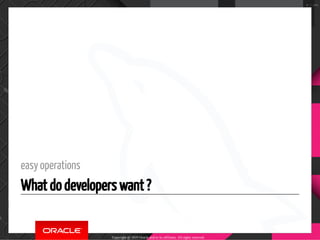

easy operations What do developers want ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 9 / 100

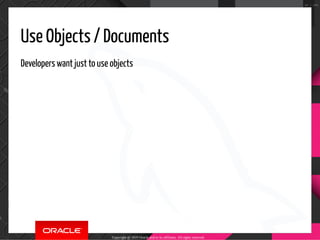

Use Objects / Documents Developers want just to use objects Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 10 / 100

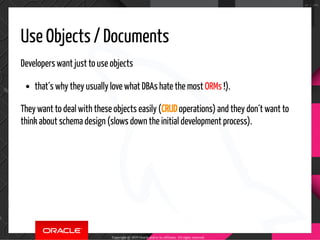

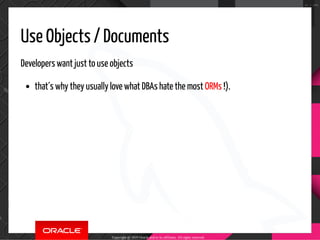

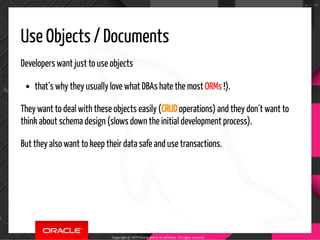

Use Objects / Documents Developers want just to use objects that´s why they usually love what DBAs hate the most ORMs !). Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 11 / 100
Use Objects / Documents Developers want just to use objects that´s why they usually love what DBAs hate the most ORMs !). They want to deal with these objects easily (CRUD operations) and they don´t want to think about schema design (slows down the initial development process). Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 12 / 100
Use Objects / Documents Developers want just to use objects that´s why they usually love what DBAs hate the most ORMs !). They want to deal with these objects easily (CRUD operations) and they don´t want to think about schema design (slows down the initial development process). But they also want to keep their data safe and use transactions. Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 13 / 100

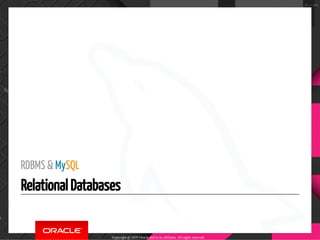

RDBMS & MySQL Relational Databases Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 14 / 100

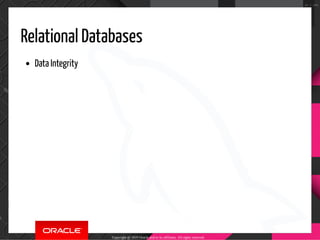

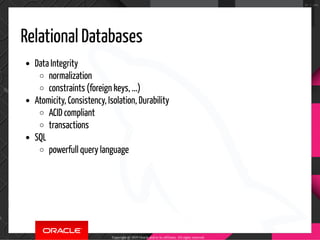

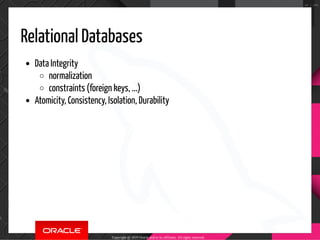

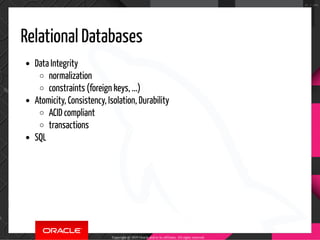

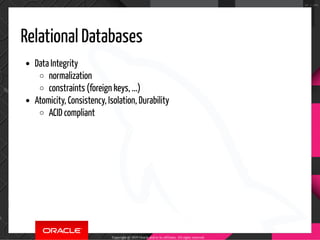

Relational Databases Data Integrity Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 15 / 100

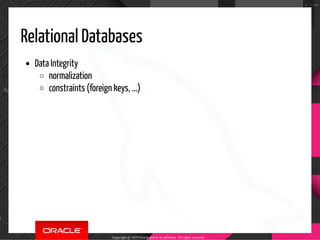

Relational Databases Data Integrity normalization Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 16 / 100
Relational Databases Data Integrity normalization constraints (foreign keys, ...) Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 17 / 100
Relational Databases Data Integrity normalization constraints (foreign keys, ...) Atomicity, Consistency, Isolation, Durability Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 18 / 100
Relational Databases Data Integrity normalization constraints (foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 19 / 100
Relational Databases Data Integrity normalization constraints (foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant transactions Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 20 / 100
Relational Databases Data Integrity normalization constraints (foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant transactions SQL Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 21 / 100
Relational Databases Data Integrity normalization constraints (foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant transactions SQL powerfull query language Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 22 / 100

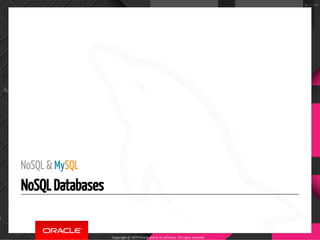

NoSQL & MySQL NoSQL Databases Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 23 / 100

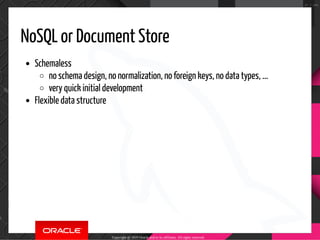

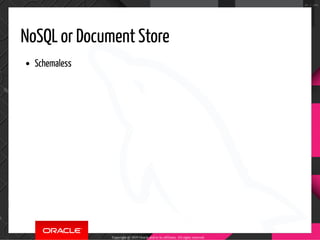

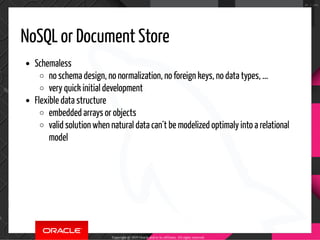

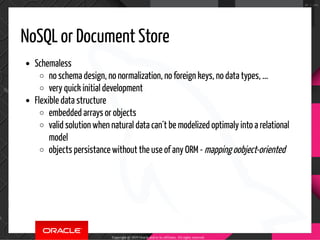

NoSQL or Document Store Schemaless Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 24 / 100

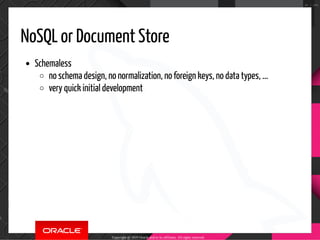

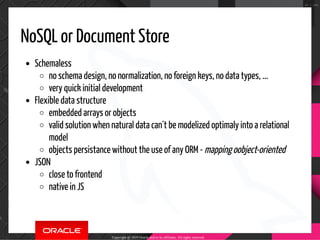

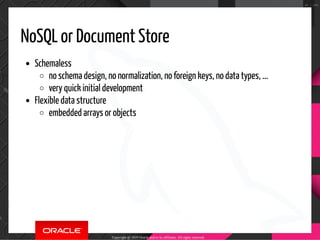

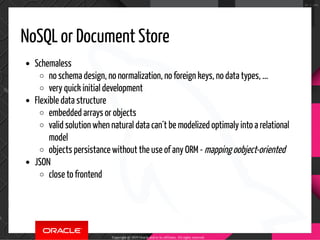

NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 25 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 26 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 27 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 28 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 29 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 30 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 31 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON close to frontend Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 32 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON close to frontend native in JS Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 33 / 100
NoSQL or Document Store Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON close to frontend native in JS easy to learn Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 34 / 100

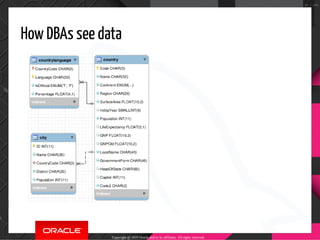

How DBAs see data Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 35 / 100

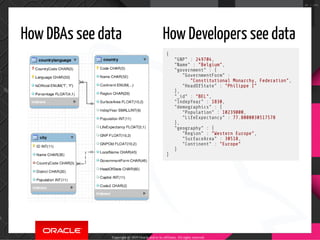

How DBAs see data How Developers see data { "GNP" : 249704, "Name" : "Belgium", "government" : { "GovernmentForm" : "Constitutional Monarchy, Federation", "HeadOfState" : "Philippe I" }, "_id" : "BEL", "IndepYear" : 1830, "demographics" : { "Population" : 10239000, "LifeExpectancy" : 77.8000030517578 }, "geography" : { "Region" : "Western Europe", "SurfaceArea" : 30518, "Continent" : "Europe" } } Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 36 / 100
What if there was a way to provide both SQL and NoSQL on one stable platform that has proven stability on well know technology with a large Community and a diverse ecosystem ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 37 / 100

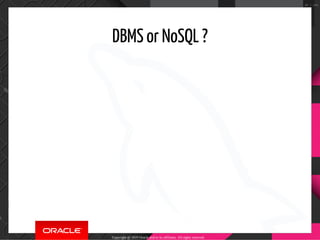

DBMS or NoSQL ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 38 / 100
DBMS or NoSQL ? Why not both ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 39 / 100

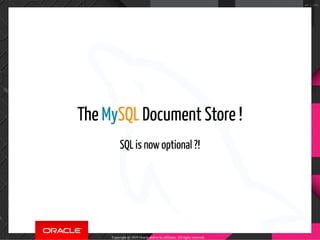

The MySQL Document Store ! SQL is now optional ?! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 40 / 100
SQL is now optional ?! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 41 / 100

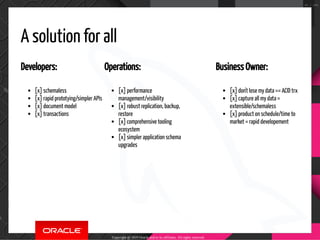

Developers: [x] schemaless [x] rapid prototying/simpler APIs [x] document model [x] transactions Operations: [x] performance management/visibility [x] robust replication, backup, restore [x] comprehensive tooling ecosystem [x] simpler application schema upgrades Business Owner: [x] don't lose my data == ACID trx [x] capture all my data = extensible/schemaless [x] product on schedule/time to market = rapid developement A solution for all Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 42 / 100

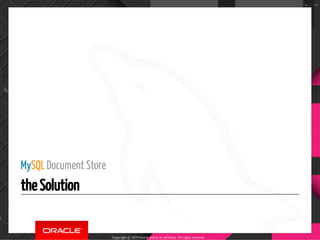

MySQL Document Store the Solution Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 43 / 100

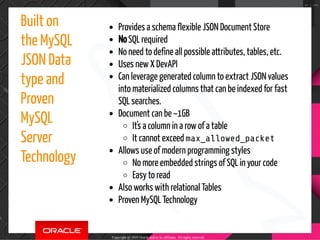

Built on the MySQL JSON Data type and Proven MySQL Server Technology Provides a schema flexible JSON Document Store No SQL required No need to define all possible attributes, tables, etc. Uses new X DevAPI Can leverage generated column to extract JSON values into materialized columns that can be indexed for fast SQL searches. Document can be ~1GB It's a column in a row of a table It cannot exceed max_allowed_packet Allows use of modern programming styles No more embedded strings of SQL in your code Easy to read Also works with relational Tables Proven MySQL Technology Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 44 / 100
X Protocol Connectors Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 45 / 100

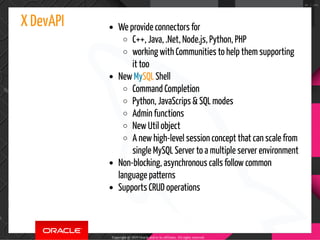

X DevAPI We provide connectors for C++, Java, .Net, Node.js, Python, PHP working with Communities to help them supporting it too New MySQL Shell Command Completion Python, JavaScrips & SQL modes Admin functions New Util object A new high-level session concept that can scale from single MySQL Server to a multiple server environment Non-blocking, asynchronous calls follow common language patterns Supports CRUD operations Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 46 / 100

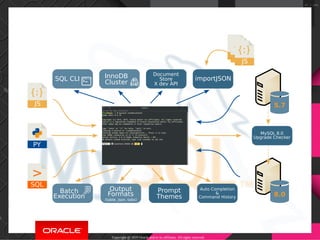

PY JS SQL > MySQL 8.0 Upgrade Checker Auto Completion & Command History Output Formats (table, json, tabs) Prompt Themes Batch Execution 5.7 8.0 JS Document Store X dev API SQL CLI InnoDB Cluster importJSON JSJS Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 47 / 100

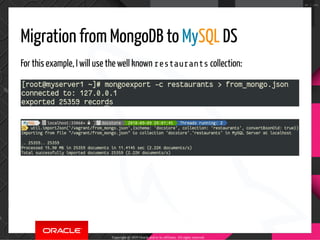

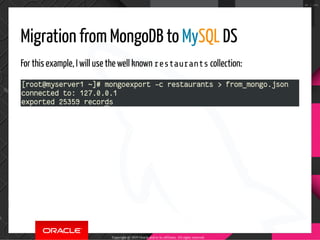

Migration from MongoDB to MySQL DS For this example, I will use the well known restaurants collection: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 48 / 100
Migration from MongoDB to MySQL DS For this example, I will use the well known restaurants collection: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 49 / 100
Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 50 / 100
Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 51 / 100

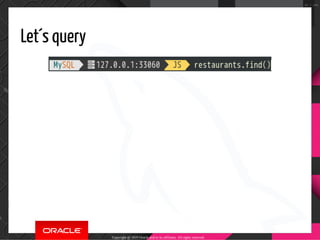

Let´s query Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 52 / 100
Let´s query That´s too much records to show it here... let´s limit it Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 53 / 100

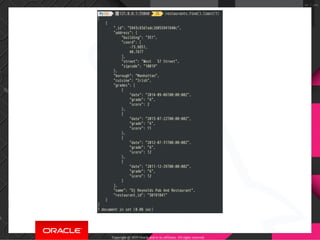

Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 54 / 100
Some more examples Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 55 / 100
Some more examples Let´s add a selection criteria: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 56 / 100

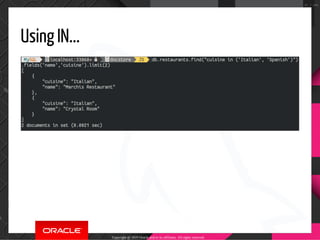

Using IN... Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 57 / 100

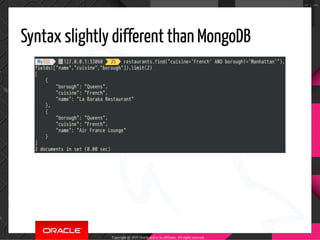

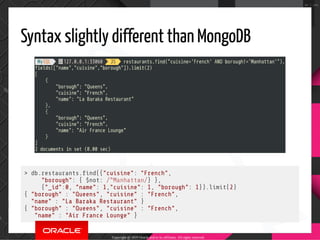

Syntax slightly different than MongoDB Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 58 / 100
Syntax slightly different than MongoDB > db.restaurants. nd({"cuisine": "French", "borough": { $not: /^Manhattan/} }, {"_id":0, "name": 1,"cuisine": 1, "borough": 1}).limit(2) { "borough" : "Queens", "cuisine" : "French", "name" : "La Baraka Restaurant" } { "borough" : "Queens", "cuisine" : "French", "name" : "Air France Lounge" } Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 59 / 100

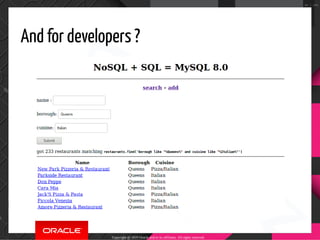

And for developers ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 60 / 100

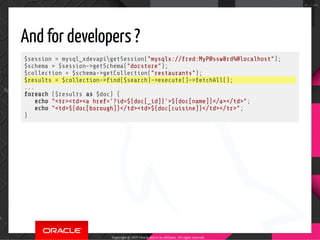

And for developers ? $session = mysql_xdevapigetSession("mysqlx://fred:MyP@ssw0rd%@localhost"); $schema = $session->getSchema("docstore"); $collection = $schema->getCollection("restaurants"); $results = $collection-> nd($search)->execute()->fetchAll(); ... foreach ($results as $doc) { echo "<tr><td><a href='?id=${doc[_id]}'>${doc[name]}</a></td>"; echo "<td>${doc[borough]}</td><td>${doc[cuisine]}</td></tr>"; } Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 61 / 100
And for developers ? $session = mysql_xdevapigetSession("mysqlx://fred:MyP@ssw0rd%@localhost"); $schema = $session->getSchema("docstore"); $collection = $schema->getCollection("restaurants"); $results = $collection-> nd($search)->execute()->fetchAll(); ... foreach ($results as $doc) { echo "<tr><td><a href='?id=${doc[_id]}'>${doc[name]}</a></td>"; echo "<td>${doc[borough]}</td><td>${doc[cuisine]}</td></tr>"; }   Easy, using only CRUD operations ! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 62 / 100

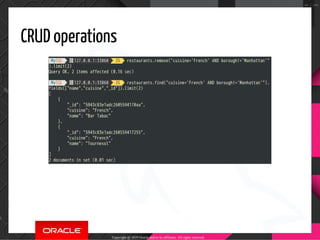

CRUD operations Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 63 / 100

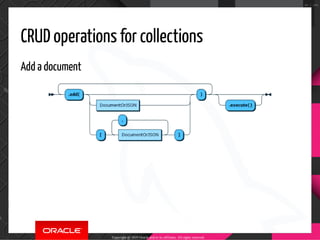

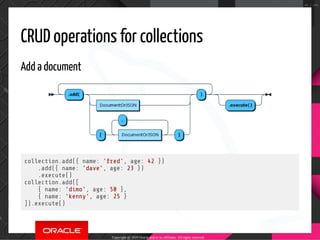

CRUD operations for collections Add a document Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 64 / 100
CRUD operations for collections Add a document collection.add({ name: 'fred', age: 42 }) .add({ name: 'dave', age: 23 }) .execute() collection.add([ { name: 'dimo', age: 50 }, { name: 'kenny', age: 25 } ]).execute() Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 65 / 100

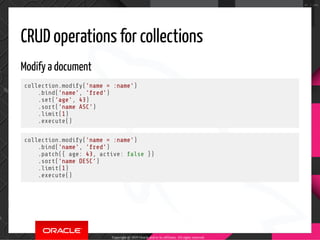

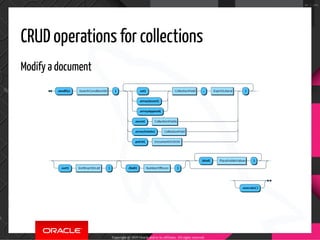

CRUD operations for collections Modify a document Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 66 / 100
CRUD operations for collections Modify a document collection.modify('name = :name') .bind('name', 'fred') .set('age', 43) .sort('name ASC') .limit(1) .execute() collection.modify('name = :name') .bind('name', 'fred') .patch({ age: 43, active: false }) .sort('name DESC') .limit(1) .execute() Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 67 / 100

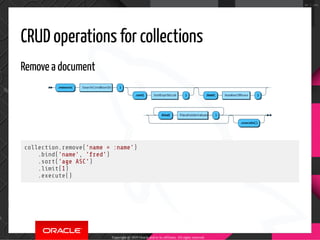

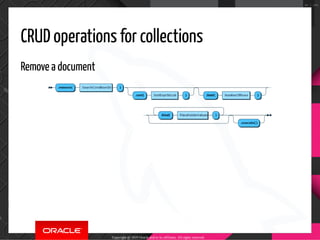

CRUD operations for collections Remove a document Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 68 / 100
CRUD operations for collections Remove a document collection.remove('name = :name') .bind('name', 'fred') .sort('age ASC') .limit(1) .execute() Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 69 / 100

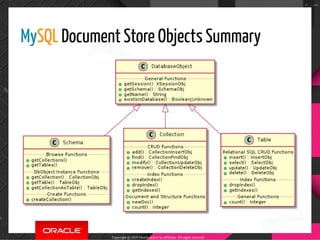

MySQL Document Store Objects Summary Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 70 / 100

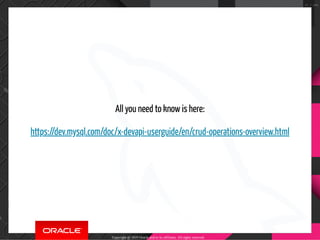

All you need to know is here: https://dev.mysql.com/doc/x-devapi-userguide/en/crud-operations-overview.html Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 71 / 100

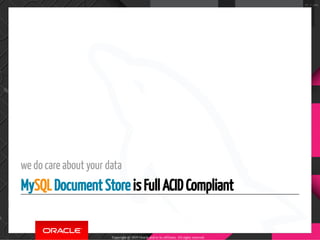

we do care about your data MySQL Document Store is Full ACID Compliant Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 72 / 100

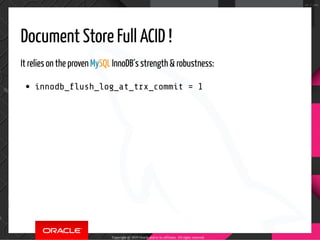

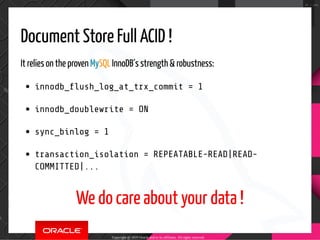

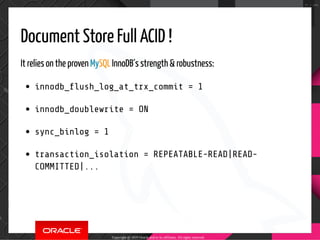

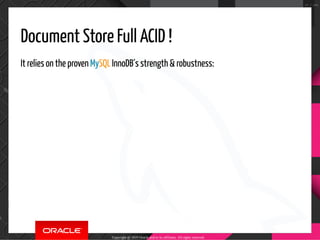

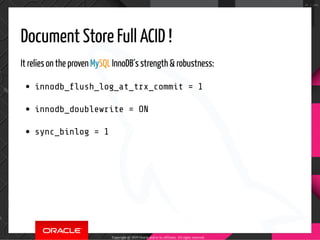

Document Store Full ACID ! It relies on the proven MySQL InnoDB´s strength & robustness: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 73 / 100
Document Store Full ACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 74 / 100
Document Store Full ACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 75 / 100
Document Store Full ACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON sync_binlog = 1 Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 76 / 100
Document Store Full ACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON sync_binlog = 1 transaction_isolation = REPEATABLE-READ|READ- COMMITTED|... Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 77 / 100
Document Store Full ACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON sync_binlog = 1 transaction_isolation = REPEATABLE-READ|READ- COMMITTED|... We do care about your data ! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 78 / 100

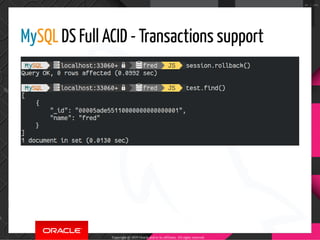

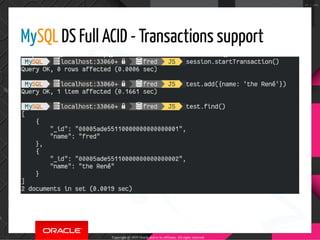

MySQL DS Full ACID - Transactions support Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 79 / 100
MySQL DS Full ACID - Transactions support Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 80 / 100

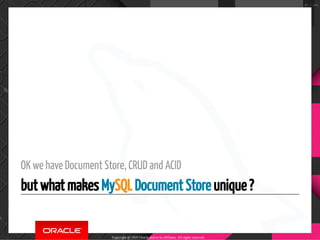

OK we have Document Store, CRUD and ACID but what makes MySQL Document Store unique ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 81 / 100

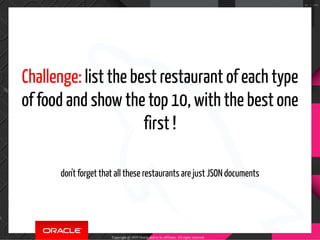

Challenge: list the best restaurant of each type of food and show the top 10, with the best one first !   don't forget that all these restaurants are just JSON documents Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 82 / 100

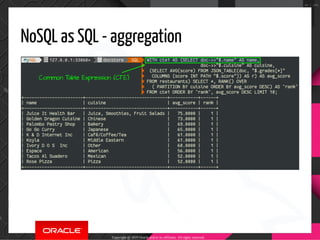

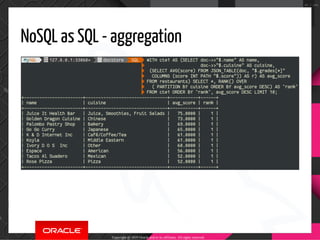

NoSQL as SQL - aggregation Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 83 / 100
NoSQL as SQL - aggregation Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 84 / 100
NoSQL as SQL - aggregation Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 85 / 100

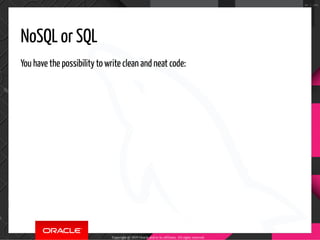

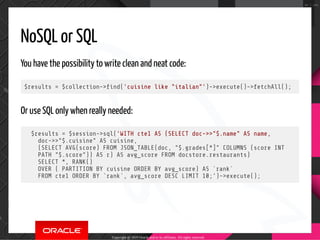

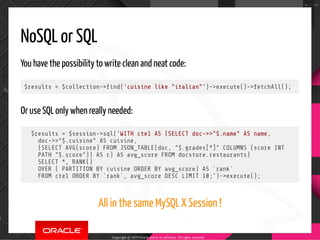

NoSQL or SQL You have the possibility to write clean and neat code: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 86 / 100

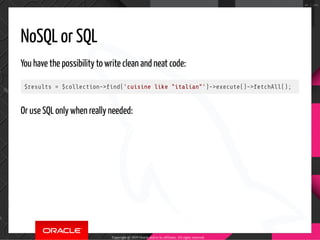

NoSQL or SQL You have the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 87 / 100
NoSQL or SQL You have the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Or use SQL only when really needed: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 88 / 100
NoSQL or SQL You have the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Or use SQL only when really needed: $results = $session->sql('WITH cte1 AS (SELECT doc->>"$.name" AS name, doc->>"$.cuisine" AS cuisine, (SELECT AVG(score) FROM JSON_TABLE(doc, "$.grades[*]" COLUMNS (score INT PATH "$.score")) AS r) AS avg_score FROM docstore.restaurants) SELECT *, RANK() OVER ( PARTITION BY cuisine ORDER BY avg_score) AS `rank` FROM cte1 ORDER BY `rank`, avg_score DESC LIMIT 10;')->execute(); Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 89 / 100
NoSQL or SQL You have the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Or use SQL only when really needed: $results = $session->sql('WITH cte1 AS (SELECT doc->>"$.name" AS name, doc->>"$.cuisine" AS cuisine, (SELECT AVG(score) FROM JSON_TABLE(doc, "$.grades[*]" COLUMNS (score INT PATH "$.score")) AS r) AS avg_score FROM docstore.restaurants) SELECT *, RANK() OVER ( PARTITION BY cuisine ORDER BY avg_score) AS `rank` FROM cte1 ORDER BY `rank`, avg_score DESC LIMIT 10;')->execute(); All in the same MySQL X Session ! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 90 / 100

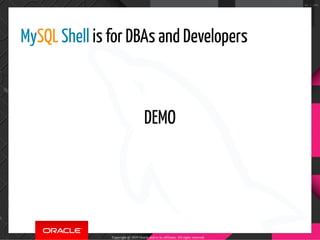

MySQL Shell is for DBAs and Developers     DEMO Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 91 / 100

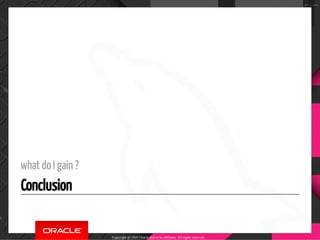

what do I gain ? Conclusion Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 92 / 100

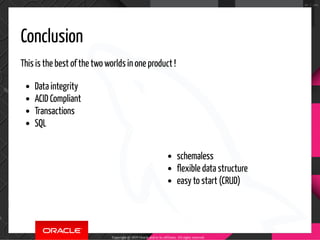

schemaless flexible data structure easy to start (CRUD) Conclusion This is the best of the two worlds in one product ! Data integrity ACID Compliant Transactions SQL Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 93 / 100
94 / 100
Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 95 / 100

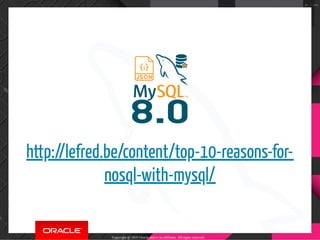

http://lefred.be/content/top-10-reasons-for- nosql-with-mysql/ Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 96 / 100
Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 97 / 100
  May 9th, 2019 Hotel NH Collection Roma Giustiniano Via Virgilio, 1 E/F/G, 0019 ROMA MySQL Day Roma You are invited to listen last news on MySQL 8.0, watch demos and be in contact with the MySQL Italian Team! http://bit.ly/MySQLDayRoma2019 Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 98 / 100
Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 99 / 100
Thank you ! Any Questions ? share your 💕 for MySQL on social media using @mysql #MySQL8isGreat #MySQL Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 100 / 100

More Related Content

PDF
PyConX - Python & MySQL 8.0 Document Store
byFrederic Descamps

PDF
MySQL 8.0 Document Store - how to mix NoSQL & SQL in MySQL 8.0
byFrederic Descamps

PDF
MySQL Shell: the best DBA tool ?
byFrederic Descamps

PDF
How to write efficient and correct MySQL recipes for you configuration manage...
byFrederic Descamps

PDF
DataOpsbarcelona 2019: Deep dive into MySQL Group Replication... the magic e...
byFrederic Descamps

PDF
MySQL New York Meetup: MySQL 8.0 Document Store - How to mix NoSQL & SQL in ...
byFrederic Descamps

PDF
MySQL Shell : the best DBA tool ?
byFrederic Descamps

PDF
MySQL Group Replication: the magic explained v.2
byFrederic Descamps

PyConX - Python & MySQL 8.0 Document Store
byFrederic Descamps

MySQL 8.0 Document Store - how to mix NoSQL & SQL in MySQL 8.0
byFrederic Descamps

MySQL Shell: the best DBA tool ?
byFrederic Descamps

How to write efficient and correct MySQL recipes for you configuration manage...
byFrederic Descamps

DataOpsbarcelona 2019: Deep dive into MySQL Group Replication... the magic e...
byFrederic Descamps

MySQL New York Meetup: MySQL 8.0 Document Store - How to mix NoSQL & SQL in ...
byFrederic Descamps

MySQL Shell : the best DBA tool ?
byFrederic Descamps

MySQL Group Replication: the magic explained v.2
byFrederic Descamps


What's hot

PDF
MySQL Day Virtual: Best Practices Tips - Upgrading to MySQL 8.0
byFrederic Descamps

PDF
MySQL InnoDB Cluster - Advanced Configuration & Operations
byFrederic Descamps

PDF
How to operate MySQL InnoDB Cluster with MySQL Shell
byFrederic Descamps

PDF
MySQL Group Replication: Handling Network Glitches - Best Practices
byFrederic Descamps

PDF
MySQL 8.0 InnoDB Cluster - Easiest Tutorial
byFrederic Descamps

PDF
MySQL : State of the Dolphin May 2019
byFrederic Descamps

PDF
MySQL 8.0 : High Availability Solution for Everybody
byFrederic Descamps

PDF
Looking Inside the MySQL 8.0 Document Store
byFrederic Descamps

PDF
MySQL Document Store - How to replace a NoSQL database by MySQL without effor...
byFrederic Descamps

PDF
OpenExpo Virtual Experience 2020: MySQL 8.0 Document Store - Discovery of a n...
byFrederic Descamps

PDF
Oracle Open World Middle East - MySQL 8 a Giant Leap for SQL
byFrederic Descamps

PDF
the State of the Dolphin - October 2020
byFrederic Descamps

PDF
State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
byFrederic Descamps

PDF
Python and MySQL 8.0 Document Store
byFrederic Descamps

PDF
MySQL Tech Café #8: MySQL 8.0 for Python Developers
byFrederic Descamps

PDF
MySQL Shell - the best DBA tool ?
byFrederic Descamps

PPTX
PHP, The X DevAPI, and the MySQL Document Store -- Benelux PHP Confernece 2019
byDave Stokes

PDF
MySQL Shell: the best DBA tool !
byFrederic Descamps

PDF
MySQL Database Service Webinar - Installing WordPress in OCI with MDS
byFrederic Descamps

PDF
Percona Live Europe 2018 MySQL Group Replication... the magic explained
byFrederic Descamps

MySQL Day Virtual: Best Practices Tips - Upgrading to MySQL 8.0
byFrederic Descamps

MySQL InnoDB Cluster - Advanced Configuration & Operations
byFrederic Descamps

How to operate MySQL InnoDB Cluster with MySQL Shell
byFrederic Descamps

MySQL Group Replication: Handling Network Glitches - Best Practices
byFrederic Descamps

MySQL 8.0 InnoDB Cluster - Easiest Tutorial
byFrederic Descamps

MySQL : State of the Dolphin May 2019
byFrederic Descamps

MySQL 8.0 : High Availability Solution for Everybody
byFrederic Descamps

Looking Inside the MySQL 8.0 Document Store
byFrederic Descamps

MySQL Document Store - How to replace a NoSQL database by MySQL without effor...
byFrederic Descamps

OpenExpo Virtual Experience 2020: MySQL 8.0 Document Store - Discovery of a n...
byFrederic Descamps

Oracle Open World Middle East - MySQL 8 a Giant Leap for SQL
byFrederic Descamps

the State of the Dolphin - October 2020
byFrederic Descamps

State of the Dolphin 2020 - 25th Anniversary of MySQL with 8.0.20
byFrederic Descamps

Python and MySQL 8.0 Document Store
byFrederic Descamps

MySQL Tech Café #8: MySQL 8.0 for Python Developers
byFrederic Descamps

MySQL Shell - the best DBA tool ?
byFrederic Descamps

PHP, The X DevAPI, and the MySQL Document Store -- Benelux PHP Confernece 2019
byDave Stokes

MySQL Shell: the best DBA tool !
byFrederic Descamps

MySQL Database Service Webinar - Installing WordPress in OCI with MDS
byFrederic Descamps

Percona Live Europe 2018 MySQL Group Replication... the magic explained
byFrederic Descamps


Similar to Oracle Code Roma: NoSQL + SQL = MySQL

PDF
MySQL 8.0 Document Store - Discovery of a New World
byFrederic Descamps

PDF
MySQL 8.0, what's new ? - Forum PHP 2018
byOlivier DASINI

PDF
MySQL JSON Document Store - A Document Store with all the benefits of a Trans...
byOlivier DASINI

PDF
MySQL 8.0 - What's New ?
byOlivier DASINI

PDF
MySQL Document Store (Oracle Code Warsaw 2018)
byVittorio Cioe

PDF
Oracle Open World 2018 / Code One : MySQL 8.0 Document Store
byFrederic Descamps

PDF
pre-FOSDEM MySQL day, February 2018 - MySQL Document Store
byFrederic Descamps

PDF
MySQL User Group NL: MySQL 8.0 Document Store- NoSQL with all the benefits of...
byFrederic Descamps

PDF
DataOps barcelona - MySQL 8.0 document store: NoSQL with all the benefits of ...
byFrederic Descamps

PDF
Oracle Code Event - MySQL JSON Document Store
byMark Swarbrick

PDF
Introduction to MySQL Document Store
byFrederic Descamps

PPTX
A Step by Step Introduction to the MySQL Document Store
byDave Stokes

PDF
MySQL Document Store - A Document Store with all the benefts of a Transactona...
byOlivier DASINI

PDF
MySQL Document Store - when SQL & NoSQL live together... in peace!
byFrederic Descamps

PDF
MySQL Day Paris 2018 - MySQL JSON Document Store
byOlivier DASINI

ODP
Perchè potresti aver bisogno di un database NoSQL anche se non sei Google o F...
byCodemotion

PDF
MySQL Day Paris 2016 - MySQL as a Document Store
byOlivier DASINI

PDF
MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...
byDave Stokes

PDF
SQL, NoSQL, Distributed SQL: Choose your DataStore carefully
byMd Kamaruzzaman

PDF
Heterogenous Persistence
byJervin Real

MySQL 8.0 Document Store - Discovery of a New World
byFrederic Descamps

MySQL 8.0, what's new ? - Forum PHP 2018
byOlivier DASINI

MySQL JSON Document Store - A Document Store with all the benefits of a Trans...
byOlivier DASINI

MySQL 8.0 - What's New ?
byOlivier DASINI

MySQL Document Store (Oracle Code Warsaw 2018)
byVittorio Cioe

Oracle Open World 2018 / Code One : MySQL 8.0 Document Store
byFrederic Descamps

pre-FOSDEM MySQL day, February 2018 - MySQL Document Store
byFrederic Descamps

MySQL User Group NL: MySQL 8.0 Document Store- NoSQL with all the benefits of...
byFrederic Descamps

DataOps barcelona - MySQL 8.0 document store: NoSQL with all the benefits of ...
byFrederic Descamps

Oracle Code Event - MySQL JSON Document Store
byMark Swarbrick

Introduction to MySQL Document Store
byFrederic Descamps

A Step by Step Introduction to the MySQL Document Store
byDave Stokes

MySQL Document Store - A Document Store with all the benefts of a Transactona...
byOlivier DASINI

MySQL Document Store - when SQL & NoSQL live together... in peace!
byFrederic Descamps

MySQL Day Paris 2018 - MySQL JSON Document Store
byOlivier DASINI

Perchè potresti aver bisogno di un database NoSQL anche se non sei Google o F...
byCodemotion

MySQL Day Paris 2016 - MySQL as a Document Store
byOlivier DASINI

MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...
byDave Stokes

SQL, NoSQL, Distributed SQL: Choose your DataStore carefully
byMd Kamaruzzaman

Heterogenous Persistence
byJervin Real


More from Frederic Descamps

PDF
Pi Day 2022 - from IoT to MySQL HeatWave Database Service
byFrederic Descamps

PDF
State of the Dolphin - May 2022
byFrederic Descamps

PDF
Deploying Magento on OCI with MDS
byFrederic Descamps

PDF
Percona Live 2022 - MySQL Shell for Visual Studio Code
byFrederic Descamps

PDF
MySQL Day Roma - MySQL Shell and Visual Studio Code Extension
byFrederic Descamps

PDF
Percona Live 2022 - MySQL Architectures
byFrederic Descamps

PDF
MySQL Shell for DBAs
byFrederic Descamps

PDF
MySQL Router REST API
byFrederic Descamps

PDF
MySQL Innovation & Cloud Day - Document Store avec MySQL HeatWave Database Se...
byFrederic Descamps

PDF
RivieraJUG - MySQL Indexes and Histograms
byFrederic Descamps

PDF
Open Source 101 2022 - MySQL Indexes and Histograms
byFrederic Descamps

PDF
State of The Dolphin - May 2021
byFrederic Descamps

PDF
Les nouveautés de MySQL 8.0
byFrederic Descamps

PDF
Les nouveautés de MySQL 8.0
byFrederic Descamps

PDF
RivieraJUG - MySQL 8.0 - What's new for developers.pdf
byFrederic Descamps

PDF
FOSDEM 2022 MySQL Devroom: MySQL 8.0 - Logical Backups, Snapshots and Point-...
byFrederic Descamps

PDF
LinuxFest Northwest 2022 - The Evolution of a MySQL Database System
byFrederic Descamps

PDF
Percona Live 2022 - The Evolution of a MySQL Database System
byFrederic Descamps

PDF
Confoo 2022 - le cycle d'une instance MySQL
byFrederic Descamps

PDF
MySQL User Group NL - MySQL 8
byFrederic Descamps

Pi Day 2022 - from IoT to MySQL HeatWave Database Service
byFrederic Descamps

State of the Dolphin - May 2022
byFrederic Descamps

Deploying Magento on OCI with MDS
byFrederic Descamps

Percona Live 2022 - MySQL Shell for Visual Studio Code
byFrederic Descamps

MySQL Day Roma - MySQL Shell and Visual Studio Code Extension
byFrederic Descamps

Percona Live 2022 - MySQL Architectures
byFrederic Descamps

MySQL Shell for DBAs
byFrederic Descamps

MySQL Router REST API
byFrederic Descamps

MySQL Innovation & Cloud Day - Document Store avec MySQL HeatWave Database Se...
byFrederic Descamps

RivieraJUG - MySQL Indexes and Histograms
byFrederic Descamps

Open Source 101 2022 - MySQL Indexes and Histograms
byFrederic Descamps

State of The Dolphin - May 2021
byFrederic Descamps

Les nouveautés de MySQL 8.0
byFrederic Descamps

Les nouveautés de MySQL 8.0
byFrederic Descamps

RivieraJUG - MySQL 8.0 - What's new for developers.pdf
byFrederic Descamps

FOSDEM 2022 MySQL Devroom: MySQL 8.0 - Logical Backups, Snapshots and Point-...
byFrederic Descamps

LinuxFest Northwest 2022 - The Evolution of a MySQL Database System
byFrederic Descamps

Percona Live 2022 - The Evolution of a MySQL Database System
byFrederic Descamps

Confoo 2022 - le cycle d'une instance MySQL
byFrederic Descamps

MySQL User Group NL - MySQL 8
byFrederic Descamps


Recently uploaded

PDF
Skills to Pass the UiPath Agentic Automation Associate (UiAAA) Certification
byUiPathCommunity

PPTX
Code Like Bro -A guide for better Coding
byMadan Panthi

PPTX
AI Meets DBA Transforming Database Administration with Intelligence
byGeoPITS Global Pvt Ltd

PPTX
Apache Kafka 101 for Techies in IT dep.pptx
byamulyareddyk97

PPTX
AI and Digital Transformation Solutions.
byBuildingblocks

PDF
apidays Australia 2025 | The Strategic Role of APIs in Digital Transformation
byapidays

PDF
Safer’s Picks: Recent FME Enhancements with Big Everyday Impact
bySafe Software

PDF
Why Are Cloud Migration Services Essential for Modern Business Growth?
byGeoPITS Global Pvt Ltd

PPTX
API Gateway Architecture - Technical Report 2026
byPowersoft2026

PDF
apidays Australia 2025 | User Brainpower vs. AI Blind Spots in API Docs
byapidays

PPTX
AI in Marine Insurance Future of Smarter Risk, Faster Claims & Safer Shipping...
byAutomationEdge Technologies

PDF
CISO_2027_Playbook: Sovereign AI Resilience & Quantum-Proof Identity
bySaraDavis91

PDF
Transcript: What ONIX can do: Leveraging metadata to support the discoverabil...
byBookNet Canada

PDF
How PayPal Account Verification Works – Complete Guide for Online Businesses
byjhdhj3989

PDF
What ONIX can do: Leveraging metadata to support the discoverability of First...
byBookNet Canada

PPTX
6G and Non-Terrestrial Networks (NTN) Testing.pptx
byXRComm

DOCX
Best Web to Learn About Buying Verified Skrill Accounts (Los Angeles).docx
byhttps://topsellerit.com/product/buy-verified-binance-accounts/

PPTX
Spacecraft Guidance Quick Research Guide by Arthur Morgan
byArthur Morgan

PDF
Agentic AI Roadmap 2026: Mastering Autonomous AI Workflows and Systems
byAeafat Ahmed Mubin

PDF
Ethical AI applied to publishing: Presenting wâsikan kisewâtisiwin, an AI too...
byBookNet Canada

Skills to Pass the UiPath Agentic Automation Associate (UiAAA) Certification
byUiPathCommunity

Code Like Bro -A guide for better Coding
byMadan Panthi

AI Meets DBA Transforming Database Administration with Intelligence
byGeoPITS Global Pvt Ltd

Apache Kafka 101 for Techies in IT dep.pptx
byamulyareddyk97

AI and Digital Transformation Solutions.
byBuildingblocks

apidays Australia 2025 | The Strategic Role of APIs in Digital Transformation
byapidays

Safer’s Picks: Recent FME Enhancements with Big Everyday Impact
bySafe Software

Why Are Cloud Migration Services Essential for Modern Business Growth?
byGeoPITS Global Pvt Ltd

API Gateway Architecture - Technical Report 2026
byPowersoft2026

apidays Australia 2025 | User Brainpower vs. AI Blind Spots in API Docs
byapidays

AI in Marine Insurance Future of Smarter Risk, Faster Claims & Safer Shipping...
byAutomationEdge Technologies

CISO_2027_Playbook: Sovereign AI Resilience & Quantum-Proof Identity
bySaraDavis91

Transcript: What ONIX can do: Leveraging metadata to support the discoverabil...
byBookNet Canada

How PayPal Account Verification Works – Complete Guide for Online Businesses
byjhdhj3989

What ONIX can do: Leveraging metadata to support the discoverability of First...
byBookNet Canada

6G and Non-Terrestrial Networks (NTN) Testing.pptx
byXRComm

Best Web to Learn About Buying Verified Skrill Accounts (Los Angeles).docx
byhttps://topsellerit.com/product/buy-verified-binance-accounts/

Spacecraft Guidance Quick Research Guide by Arthur Morgan
byArthur Morgan

Agentic AI Roadmap 2026: Mastering Autonomous AI Workflows and Systems
byAeafat Ahmed Mubin

Ethical AI applied to publishing: Presenting wâsikan kisewâtisiwin, an AI too...
byBookNet Canada


Oracle Code Roma: NoSQL + SQL = MySQL

  • 1.
  • 2.
    2 / 1002/ 100
  • 3.
      Safe Harbor Statement Thefollowing is intended to outline our general product direction. It is intended for information purpose only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied up in making purchasing decisions. The development, release and timing of any features or functionality described for Oracle´s product remains at the sole discretion of Oracle. Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 3 / 100
  • 4.
    about me -http://about.me/lefred Who am I ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 4 / 100
  • 5.
    Frédéric Descamps @lefred MySQL Evangelist HackingMySQL since 3.23 devops believer living in Belgium 🇧🇪 http://lefred.be   Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 5 / 100
  • 6.
    MySQL a Document Storewith all the benefits of a RDBMS Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 6 / 100
  • 7.
    Why ? Developers don´treally like SQL   Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 7 / 100
  • 8.
    Why ? SQL canbe complicated and slows down the initial development Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 8 / 100
  • 9.
    easy operations What dodevelopers want ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 9 / 100
  • 10.
    Use Objects /Documents Developers want just to use objects Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 10 / 100
  • 11.
    Use Objects /Documents Developers want just to use objects that´s why they usually love what DBAs hate the most ORMs !). Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 11 / 100
  • 12.
    Use Objects /Documents Developers want just to use objects that´s why they usually love what DBAs hate the most ORMs !). They want to deal with these objects easily (CRUD operations) and they don´t want to think about schema design (slows down the initial development process). Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 12 / 100
  • 13.
    Use Objects /Documents Developers want just to use objects that´s why they usually love what DBAs hate the most ORMs !). They want to deal with these objects easily (CRUD operations) and they don´t want to think about schema design (slows down the initial development process). But they also want to keep their data safe and use transactions. Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 13 / 100
  • 14.
    RDBMS & MySQL RelationalDatabases Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 14 / 100
  • 15.
    Relational Databases Data Integrity Copyright@ 2019 Oracle and/or its affiliates. All rights reserved. 15 / 100
  • 16.
    Relational Databases Data Integrity normalization Copyright@ 2019 Oracle and/or its affiliates. All rights reserved. 16 / 100
  • 17.
    Relational Databases Data Integrity normalization constraints(foreign keys, ...) Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 17 / 100
  • 18.
    Relational Databases Data Integrity normalization constraints(foreign keys, ...) Atomicity, Consistency, Isolation, Durability Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 18 / 100
  • 19.
    Relational Databases Data Integrity normalization constraints(foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 19 / 100
  • 20.
    Relational Databases Data Integrity normalization constraints(foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant transactions Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 20 / 100
  • 21.
    Relational Databases Data Integrity normalization constraints(foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant transactions SQL Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 21 / 100
  • 22.
    Relational Databases Data Integrity normalization constraints(foreign keys, ...) Atomicity, Consistency, Isolation, Durability ACID compliant transactions SQL powerfull query language Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 22 / 100
  • 23.
    NoSQL & MySQL NoSQLDatabases Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 23 / 100
  • 24.
    NoSQL or DocumentStore Schemaless Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 24 / 100
  • 25.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 25 / 100
  • 26.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 26 / 100
  • 27.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 27 / 100
  • 28.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 28 / 100
  • 29.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 29 / 100
  • 30.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 30 / 100
  • 31.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 31 / 100
  • 32.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON close to frontend Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 32 / 100
  • 33.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON close to frontend native in JS Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 33 / 100
  • 34.
    NoSQL or DocumentStore Schemaless no schema design, no normalization, no foreign keys, no data types, ... very quick initial development Flexible data structure embedded arrays or objects valid solution when natural data can´t be modelized optimaly into a relational model objects persistance without the use of any ORM - mapping oobject-oriented JSON close to frontend native in JS easy to learn Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 34 / 100
  • 35.
    How DBAs seedata Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 35 / 100
  • 36.
    How DBAs seedata How Developers see data { "GNP" : 249704, "Name" : "Belgium", "government" : { "GovernmentForm" : "Constitutional Monarchy, Federation", "HeadOfState" : "Philippe I" }, "_id" : "BEL", "IndepYear" : 1830, "demographics" : { "Population" : 10239000, "LifeExpectancy" : 77.8000030517578 }, "geography" : { "Region" : "Western Europe", "SurfaceArea" : 30518, "Continent" : "Europe" } } Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 36 / 100
  • 37.
    What if therewas a way to provide both SQL and NoSQL on one stable platform that has proven stability on well know technology with a large Community and a diverse ecosystem ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 37 / 100
  • 38.
    DBMS or NoSQL? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 38 / 100
  • 39.
    DBMS or NoSQL? Why not both ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 39 / 100
  • 40.
    The MySQL DocumentStore ! SQL is now optional ?! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 40 / 100
  • 41.
    SQL is nowoptional ?! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 41 / 100
  • 42.
    Developers: [x] schemaless [x] rapidprototying/simpler APIs [x] document model [x] transactions Operations: [x] performance management/visibility [x] robust replication, backup, restore [x] comprehensive tooling ecosystem [x] simpler application schema upgrades Business Owner: [x] don't lose my data == ACID trx [x] capture all my data = extensible/schemaless [x] product on schedule/time to market = rapid developement A solution for all Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 42 / 100
  • 43.
    MySQL Document Store theSolution Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 43 / 100
  • 44.
    Built on the MySQL JSONData type and Proven MySQL Server Technology Provides a schema flexible JSON Document Store No SQL required No need to define all possible attributes, tables, etc. Uses new X DevAPI Can leverage generated column to extract JSON values into materialized columns that can be indexed for fast SQL searches. Document can be ~1GB It's a column in a row of a table It cannot exceed max_allowed_packet Allows use of modern programming styles No more embedded strings of SQL in your code Easy to read Also works with relational Tables Proven MySQL Technology Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 44 / 100
  • 45.
    X Protocol Connectors Copyright@ 2019 Oracle and/or its affiliates. All rights reserved. 45 / 100
  • 46.
    X DevAPI Weprovide connectors for C++, Java, .Net, Node.js, Python, PHP working with Communities to help them supporting it too New MySQL Shell Command Completion Python, JavaScrips & SQL modes Admin functions New Util object A new high-level session concept that can scale from single MySQL Server to a multiple server environment Non-blocking, asynchronous calls follow common language patterns Supports CRUD operations Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 46 / 100
  • 47.
    PY JS SQL > MySQL 8.0 Upgrade Checker AutoCompletion & Command History Output Formats (table, json, tabs) Prompt Themes Batch Execution 5.7 8.0 JS Document Store X dev API SQL CLI InnoDB Cluster importJSON JSJS Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 47 / 100
  • 48.
    Migration from MongoDBto MySQL DS For this example, I will use the well known restaurants collection: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 48 / 100
  • 49.
    Migration from MongoDBto MySQL DS For this example, I will use the well known restaurants collection: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 49 / 100
  • 50.
    Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 50 / 100
  • 51.
    Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 51 / 100
  • 52.
    Let´s query Copyright @2019 Oracle and/or its affiliates. All rights reserved. 52 / 100
  • 53.
    Let´s query That´s toomuch records to show it here... let´s limit it Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 53 / 100
  • 54.
    Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 54 / 100
  • 55.
    Some more examples Copyright@ 2019 Oracle and/or its affiliates. All rights reserved. 55 / 100
  • 56.
    Some more examples Let´sadd a selection criteria: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 56 / 100
  • 57.
    Using IN... Copyright @2019 Oracle and/or its affiliates. All rights reserved. 57 / 100
  • 58.
    Syntax slightly differentthan MongoDB Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 58 / 100
  • 59.
    Syntax slightly differentthan MongoDB > db.restaurants. nd({"cuisine": "French", "borough": { $not: /^Manhattan/} }, {"_id":0, "name": 1,"cuisine": 1, "borough": 1}).limit(2) { "borough" : "Queens", "cuisine" : "French", "name" : "La Baraka Restaurant" } { "borough" : "Queens", "cuisine" : "French", "name" : "Air France Lounge" } Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 59 / 100
  • 60.
    And for developers? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 60 / 100
  • 61.
    And for developers? $session = mysql_xdevapigetSession("mysqlx://fred:MyP@ssw0rd%@localhost"); $schema = $session->getSchema("docstore"); $collection = $schema->getCollection("restaurants"); $results = $collection-> nd($search)->execute()->fetchAll(); ... foreach ($results as $doc) { echo "<tr><td><a href='?id=${doc[_id]}'>${doc[name]}</a></td>"; echo "<td>${doc[borough]}</td><td>${doc[cuisine]}</td></tr>"; } Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 61 / 100
  • 62.
    And for developers? $session = mysql_xdevapigetSession("mysqlx://fred:MyP@ssw0rd%@localhost"); $schema = $session->getSchema("docstore"); $collection = $schema->getCollection("restaurants"); $results = $collection-> nd($search)->execute()->fetchAll(); ... foreach ($results as $doc) { echo "<tr><td><a href='?id=${doc[_id]}'>${doc[name]}</a></td>"; echo "<td>${doc[borough]}</td><td>${doc[cuisine]}</td></tr>"; }   Easy, using only CRUD operations ! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 62 / 100
  • 63.
    CRUD operations Copyright @2019 Oracle and/or its affiliates. All rights reserved. 63 / 100
  • 64.
    CRUD operations forcollections Add a document Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 64 / 100
  • 65.
    CRUD operations forcollections Add a document collection.add({ name: 'fred', age: 42 }) .add({ name: 'dave', age: 23 }) .execute() collection.add([ { name: 'dimo', age: 50 }, { name: 'kenny', age: 25 } ]).execute() Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 65 / 100
  • 66.
    CRUD operations forcollections Modify a document Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 66 / 100
  • 67.
    CRUD operations forcollections Modify a document collection.modify('name = :name') .bind('name', 'fred') .set('age', 43) .sort('name ASC') .limit(1) .execute() collection.modify('name = :name') .bind('name', 'fred') .patch({ age: 43, active: false }) .sort('name DESC') .limit(1) .execute() Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 67 / 100
  • 68.
    CRUD operations forcollections Remove a document Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 68 / 100
  • 69.
    CRUD operations forcollections Remove a document collection.remove('name = :name') .bind('name', 'fred') .sort('age ASC') .limit(1) .execute() Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 69 / 100
  • 70.
    MySQL Document StoreObjects Summary Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 70 / 100
  • 71.
    All you needto know is here: https://dev.mysql.com/doc/x-devapi-userguide/en/crud-operations-overview.html Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 71 / 100
  • 72.
    we do careabout your data MySQL Document Store is Full ACID Compliant Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 72 / 100
  • 73.
    Document Store FullACID ! It relies on the proven MySQL InnoDB´s strength & robustness: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 73 / 100
  • 74.
    Document Store FullACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 74 / 100
  • 75.
    Document Store FullACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 75 / 100
  • 76.
    Document Store FullACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON sync_binlog = 1 Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 76 / 100
  • 77.
    Document Store FullACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON sync_binlog = 1 transaction_isolation = REPEATABLE-READ|READ- COMMITTED|... Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 77 / 100
  • 78.
    Document Store FullACID ! It relies on the proven MySQL InnoDB´s strength & robustness: innodb_ ush_log_at_trx_commit = 1 innodb_doublewrite = ON sync_binlog = 1 transaction_isolation = REPEATABLE-READ|READ- COMMITTED|... We do care about your data ! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 78 / 100
  • 79.
    MySQL DS FullACID - Transactions support Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 79 / 100
  • 80.
    MySQL DS FullACID - Transactions support Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 80 / 100
  • 81.
    OK we haveDocument Store, CRUD and ACID but what makes MySQL Document Store unique ? Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 81 / 100
  • 82.
    Challenge: list thebest restaurant of each type of food and show the top 10, with the best one first !   don't forget that all these restaurants are just JSON documents Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 82 / 100
  • 83.
    NoSQL as SQL- aggregation Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 83 / 100
  • 84.
    NoSQL as SQL- aggregation Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 84 / 100
  • 85.
    NoSQL as SQL- aggregation Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 85 / 100
  • 86.
    NoSQL or SQL Youhave the possibility to write clean and neat code: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 86 / 100
  • 87.
    NoSQL or SQL Youhave the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 87 / 100
  • 88.
    NoSQL or SQL Youhave the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Or use SQL only when really needed: Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 88 / 100
  • 89.
    NoSQL or SQL Youhave the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Or use SQL only when really needed: $results = $session->sql('WITH cte1 AS (SELECT doc->>"$.name" AS name, doc->>"$.cuisine" AS cuisine, (SELECT AVG(score) FROM JSON_TABLE(doc, "$.grades[*]" COLUMNS (score INT PATH "$.score")) AS r) AS avg_score FROM docstore.restaurants) SELECT *, RANK() OVER ( PARTITION BY cuisine ORDER BY avg_score) AS `rank` FROM cte1 ORDER BY `rank`, avg_score DESC LIMIT 10;')->execute(); Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 89 / 100
  • 90.
    NoSQL or SQL Youhave the possibility to write clean and neat code: $results = $collection-> nd('cuisine like "italian"')->execute()->fetchAll(); Or use SQL only when really needed: $results = $session->sql('WITH cte1 AS (SELECT doc->>"$.name" AS name, doc->>"$.cuisine" AS cuisine, (SELECT AVG(score) FROM JSON_TABLE(doc, "$.grades[*]" COLUMNS (score INT PATH "$.score")) AS r) AS avg_score FROM docstore.restaurants) SELECT *, RANK() OVER ( PARTITION BY cuisine ORDER BY avg_score) AS `rank` FROM cte1 ORDER BY `rank`, avg_score DESC LIMIT 10;')->execute(); All in the same MySQL X Session ! Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 90 / 100
  • 91.
    MySQL Shell isfor DBAs and Developers     DEMO Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 91 / 100
  • 92.
    what do Igain ? Conclusion Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 92 / 100
  • 93.
    schemaless flexible data structure easyto start (CRUD) Conclusion This is the best of the two worlds in one product ! Data integrity ACID Compliant Transactions SQL Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 93 / 100
  • 94.
  • 95.
    Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 95 / 100
  • 96.
    http://lefred.be/content/top-10-reasons-for- nosql-with-mysql/ Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 96 / 100
  • 97.

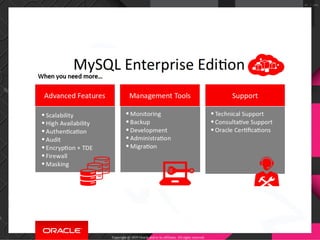

    Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 97 / 100
  • 98.
      May 9th,2019 Hotel NH Collection Roma Giustiniano Via Virgilio, 1 E/F/G, 0019 ROMA MySQL Day Roma You are invited to listen last news on MySQL 8.0, watch demos and be in contact with the MySQL Italian Team! http://bit.ly/MySQLDayRoma2019 Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 98 / 100
  • 99.
    Copyright @ 2019Oracle and/or its affiliates. All rights reserved. 99 / 100
  • 100.
    Thank you ! AnyQuestions ? share your 💕 for MySQL on social media using @mysql #MySQL8isGreat #MySQL Copyright @ 2019 Oracle and/or its affiliates. All rights reserved. 100 / 100
