The presentation discussed managing experiments and feature flags across Optimizely and a software application. It began with an experimentation maturity curve showing increasing levels of experimentation from executional to a culture of experimentation. Examples were given of how Optimizely was used at different levels from managing datafiles to consolidating projects and increasing automated testing. Takeaways included passing datafiles between front-end and back-end for performance, caching datafiles in memcache, and improving quality through easy user testing and automated tests.

2. Developer Night
Sponsored by

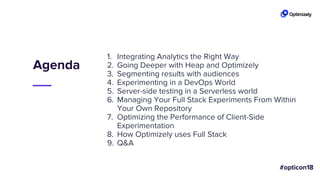

3. Agenda
1. Integrating Analytics the Right Way
2. Going Deeper with Heap and Optimizely
3. Segmenting results with audiences
4. Experimenting in a DevOps World
5. Server-side testing in a Serverless world
6. Managing Your Full Stack Experiments From Within
Your Own Repository
7. Optimizing the Performance of Client-Side
Experimentation
8. How Optimizely uses Full Stack
9. Q&A

4. Integrating Analytics the
Right Way
Rocky McGredy
Solutions Engineer, Optimizely
Ali Baker
Technical Support Engineer, Optimizely

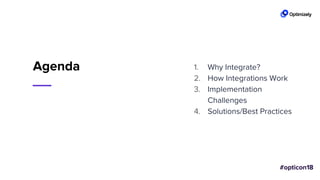

5. 1. Why Integrate?
2. How Integrations Work
3. Implementation
Challenges
4. Solutions/Best Practices
Agenda

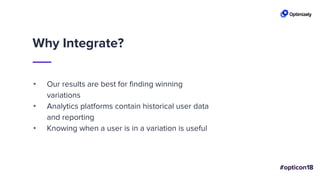

6. Why Integrate?
• Our results are best for finding winning
variations
• Analytics platforms contain historical user data
and reporting
• Knowing when a user is in a variation is useful

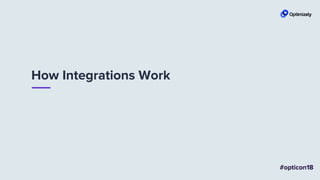

7. How Integrations Work

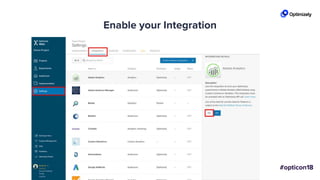

8. Enable your Integration

9. Enable your Integration

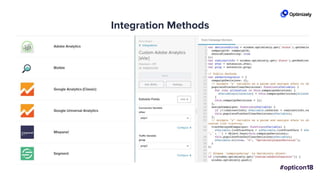

10. Integration Methods

11. Decisions!Decisions!

12. Implementation
Challenges

13. Reporting Differences

14. Implementation Considerations
Timing Differences Tag Managers Tracking Variables

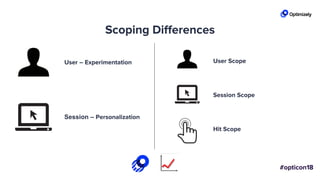

15. Scoping Differences
User – Experimentation
Session – Personalization
User Scope
Session Scope
Hit Scope

16. Variables in Reporting
Event Tracking Audience Segments Report Filtering

17. Solutions &
Best Practices

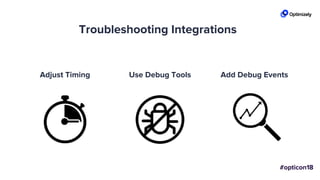

18. Troubleshooting Integrations
Adjust Timing Use Debug Tools Add Debug Events

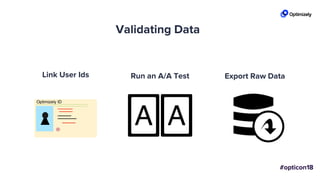

19. Link User Ids Run an A/A Test Export Raw Data
Validating Data

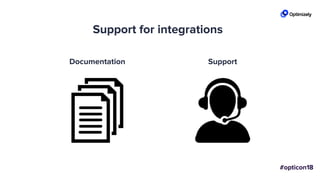

20. Support for integrations
SupportDocumentation

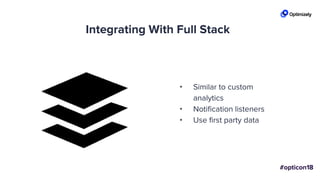

21. Integrating With Full Stack
• Similar to custom
analytics
• Notification listeners
• Use first party data

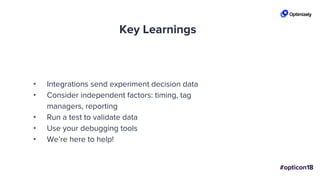

22. Key Learnings
• Integrations send experiment decision data
• Consider independent factors: timing, tag
managers, reporting
• Run a test to validate data
• Use your debugging tools
• We’re here to help!

23. Diving Deeper with Heap
and Optimizely
Taylor Udell
Lead Solutions Architect, Heap

24. What is Heap? A behavioral analytics platform
that has revolutionized
collecting and managing data
without implementing any
tracking calls

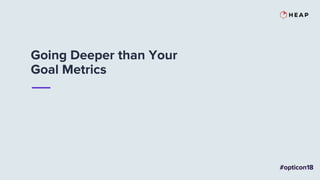

25. Going Deeper than Your
Goal Metrics

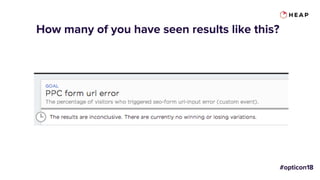

26. How many of you have seen results like this?

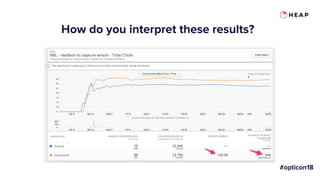

27. How do you interpret these results?

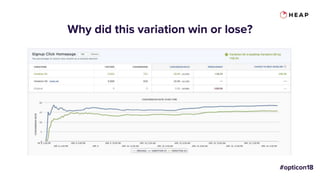

28. Why did this variation win or lose?

29. How are all my metrics connected?

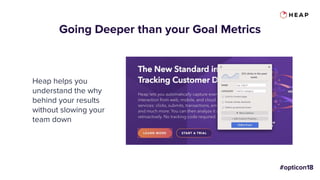

30. Going Deeper than your Goal Metrics
Heap helps you
understand the why
behind your results
without slowing your
team down

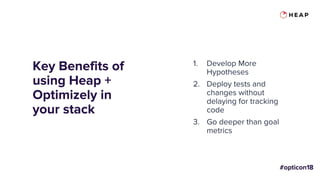

31. Key Benefits of
using Heap +
Optimizely in
your stack
1. Develop More
Hypotheses
2. Deploy tests and
changes without
delaying for tracking
code
3. Go deeper than goal
metrics

32. Segmenting results with
Optimizely audiences
Michal Fasanek
Technical Support Engineer, Optimizely

33. What’s this presentation
about?

34. Custom Analytics
Integrations
• For building your own analytics
integrations on top of Optimizely
X Web
• Great for sending Optimizely
data to 3rd party analytics
platforms

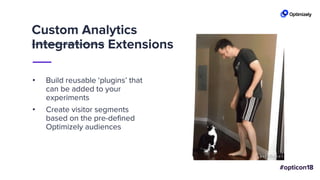

35. Custom Analytics
Integrations Extensions
• Build reusable ‘plugins’ that
can be added to your
experiments
• Create visitor segments
based on the pre-defined
Optimizely audiences

36. • Create custom attributes that
correspond with your audiences
• Add them to an experiment
• Create audiences matching the
segments you care about
How does it work?
• Build the custom analytics
extension and add it to the
experiment

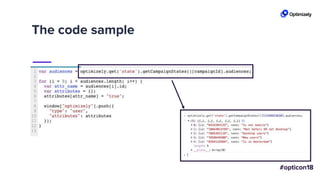

37. The code sample

39. Why is this awesome?
• You can re-purpose audiences that
are already used for targeting
• No additional costs
• Works automatically across the
entire project

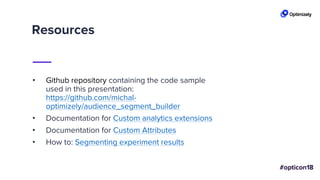

40. Resources
• Github repository containing the code sample
used in this presentation:
https://github.com/michal-
optimizely/audience_segment_builder
• Documentation for Custom analytics extensions
• Documentation for Custom Attributes
• How to: Segmenting experiment results

41. Experimenting in a
DevOps World
Joy Scharmen
Director DevOps, Optimizely
All life DevOps is an experiment.
The more experiments you make
the better.
-Ralph Waldo Emerson, sort of

42. DevOps is built on a powerful
foundation of experiments.

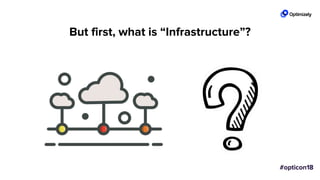

43. But first, what is “Infrastructure”?

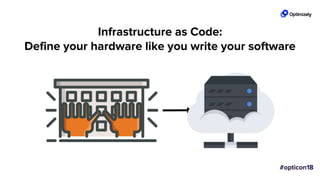

44. Infrastructure as Code:
Define your hardware like you write your software

45. Experiment with your Infrastructure

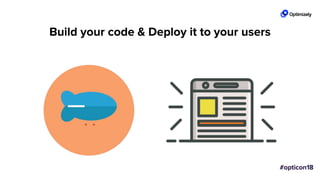

46. Build your code & Deploy it to your users

47. Continuous Integration & Continuous Deployment:
Continuous Experimentation

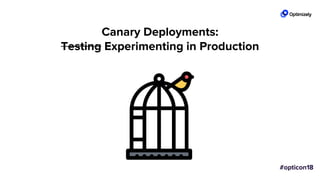

48. Canary Deployments:
Testing Experimenting in Production

49. Feature Flags:
Turning it off and on again

50. Blue/Green Deployment:
Experiment down to your server layer

51. Benefits of DevOps Experimentation!

52. Server-side testing in a
Serverless world
Andreas Bloomquist
Sr. Solutions Engineer

53. Serverless
Computing
FaaS

54. • Easier: Run your backend code without concern for provisioning,
managing, or scaling your own server architecture
• Cheaper*: Ephemeral resources - only pay for your event driven
code execution time
• Flexible: Manage functions as microservices
What is serverless (or FaaS) anyway?

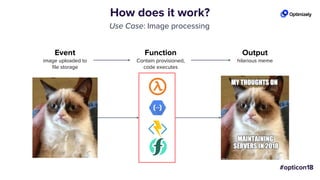

55. How does it work?
Use Case: Image processing
Output
hilarious meme
Function
Contain provisioned,
code executes
Event
image uploaded to
file storage

56. Serverless: Not just
for hobbyists
Encode media files from S3
Streamline real-time
processing of interdependent
data sets
Lowered costs by ~66% with
serverless vending machine
loyalty service

58. let’s experiment!

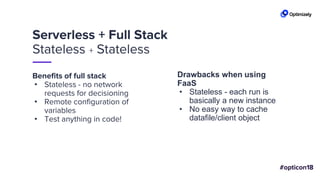

59. Serverless + Full Stack
Stateless + Stateless
Benefits of full stack
• Stateless - no network
requests for decisioning
• Remote configuration of
variables
• Test anything in code!
Drawbacks when using
FaaS
• Stateless - each run is
basically a new instance
• No easy way to cache
datafile/client object

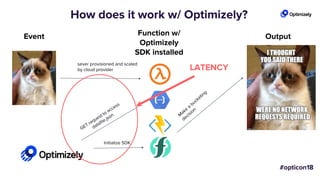

60. How does it work w/ Optimizely?
OutputFunction w/
Optimizely
SDK installed
Event
Initialize SDK
sever provisioned and scaled
by cloud provider LATENCY

62. Overcoming latency in FaaS

63. Option 1

65. Option 2

66. stay in your
network

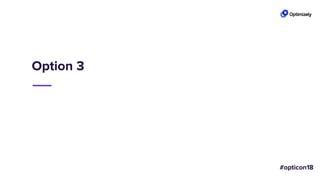

67. Option 3

68. do your
homework

69. fool me once...

70. Stateless !== stateless

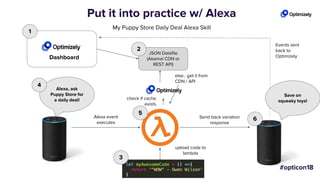

72. Put it into practice w/ Alexa
else.. get it from
CDN / API
Alexa event
executes
Send back variation
response
My Puppy Store Daily Deal Alexa Skill
Alexa, ask
Puppy Store for
a daily deal!
Dashboard
1
check if cache
exists
Events sent
back to
Optimizely
Save on
squeaky toys!
upload code to
lambda
JSON Datafile
(Akamai CDN or
REST API)
2
3
4
5
6

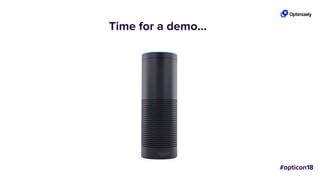

73. Time for a demo...

74. Optimizing the Performance of
Client-Side Experimentation
Spencer Wilson
Software Engineer, Optimizely

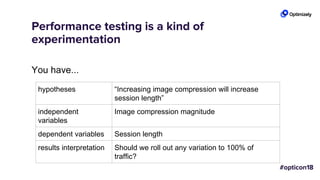

76. Performance testing is a kind of
experimentation
You have...
hypotheses “Increasing image compression will increase
session length”
independent
variables
Image compression magnitude
dependent variables Session length
results interpretation Should we roll out any variation to 100% of
traffic?

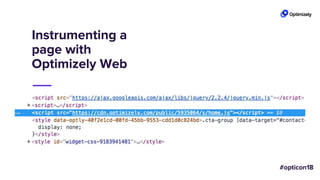

77. Instrumenting a
page with
Optimizely Web

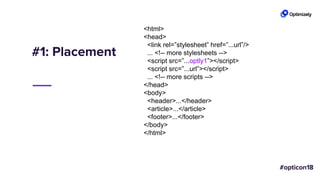

78. #1: Placement
<html>
<head>
<link rel=”stylesheet” href=”...url”/>
... <!-- more stylesheets -->
<script src=”...optly1”></script>
<script src=”...url”></script>
... <!-- more scripts -->
</head>
<body>
<header>...</header>
<article>...</article>
<footer>...</footer>
</body>
</html>

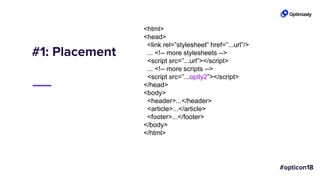

79. #1: Placement
<html>
<head>
<link rel=”stylesheet” href=”...url”/>
... <!-- more stylesheets -->
<script src=”...url”></script>
... <!-- more scripts -->
<script src=”...optly2”></script>
</head>
<body>
<header>...</header>
<article>...</article>
<footer>...</footer>
</body>
</html>

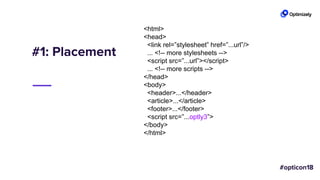

80. #1: Placement
<html>
<head>
<link rel=”stylesheet” href=”...url”/>
... <!-- more stylesheets -->
<script src=”...url”></script>
... <!-- more scripts -->
</head>
<body>
<header>...</header>
<article>...</article>
<footer>...</footer>
<script src=”...optly3”>
</body>
</html>

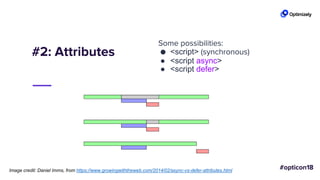

81. #2: Attributes
Some possibilities:
● <script> (synchronous)
● <script async>
● <script defer>
Image credit: Daniel Imms, from https://www.growingwiththeweb.com/2014/02/async-vs-defer-attributes.html

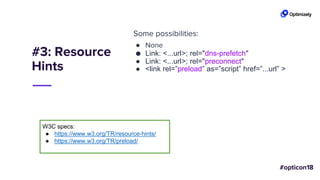

82. #3: Resource
Hints
Some possibilities:
● None
● Link: <...url>; rel="dns-prefetch"
● Link: <...url>; rel="preconnect"
● <link rel=”preload” as=”script” href=”...url” >
W3C specs:
● https://www.w3.org/TR/resource-hints/
● https://www.w3.org/TR/preload/

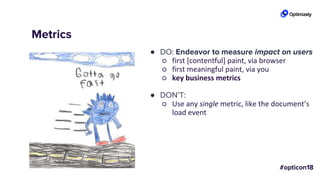

83. Metrics
● DO: Endeavor to measure impact on users
○ first [contentful] paint, via browser
○ first meaningful paint, via you
○ key business metrics
● DON’T:
○ Use any single metric, like the document’s
load event

84. L I V E D E M O

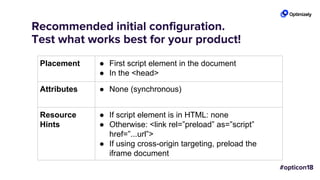

85. Recommended initial configuration.
Test what works best for your product!
Placement ● First script element in the document
● In the <head>
Attributes ● None (synchronous)
Resource
Hints
● If script element is in HTML: none
● Otherwise: <link rel=”preload” as=”script”
href=”...url”>
● If using cross-origin targeting, preload the
iframe document

86. More #PerfThings
Performance Workshop
Tomorrow, Brera 2, 12pm
Performance Certification
$100 → Free w/code OPTICON18
Performance Whitepaper
/resources/optimizing-performance/

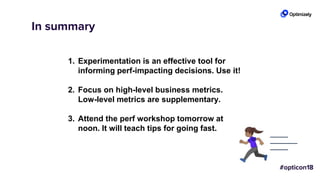

87. In summary
1. Experimentation is an effective tool for
informing perf-impacting decisions. Use it!
2. Focus on high-level business metrics.
Low-level metrics are supplementary.
3. Attend the perf workshop tomorrow at
noon. It will teach tips for going fast.

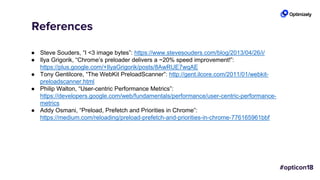

88. References
● Steve Souders, “I <3 image bytes”: https://www.stevesouders.com/blog/2013/04/26/i/
● Ilya Grigorik, “Chrome’s preloader delivers a ~20% speed improvement!”:
https://plus.google.com/+IlyaGrigorik/posts/8AwRUE7wqAE
● Tony Gentilcore, “The WebKit PreloadScanner”: http://gent.ilcore.com/2011/01/webkit-
preloadscanner.html
● Philip Walton, “User-centric Performance Metrics”:
https://developers.google.com/web/fundamentals/performance/user-centric-performance-
metrics
● Addy Osmani, “Preload, Prefetch and Priorities in Chrome”:
https://medium.com/reloading/preload-prefetch-and-priorities-in-chrome-776165961bbf

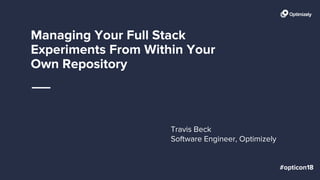

89. Managing Your Full Stack
Experiments From Within Your
Own Repository
Travis Beck
Software Engineer, Optimizely

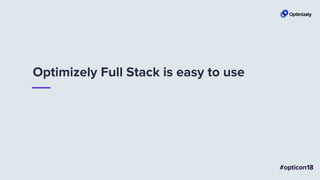

90. Optimizely Full Stack is easy to use

91. But do Developers want to have to switch
in and out of yet another web app?

92. Can we make it easier?

93. A New Feature:
turbo_mode
We want to test it out on low risk users
If it works, then roll it out to everyone

94. Testing the New Feature
attributes = {'plan': 'basic', 'language': 'en'}
enabled = optimizely_client.is_feature_enabled('turbo_mode', user_id, attributes)
if enabled:
# feature implementation
... later ...
optimizely_client.track(‘task_complete', user_id, attributes)
tags = {‘value’: 100}
optimizely_client.track(‘completion_time', user_id, attributes, tags)

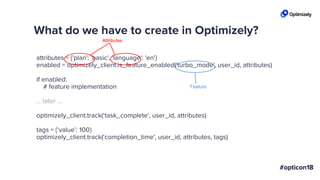

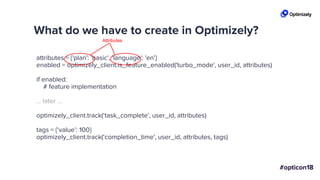

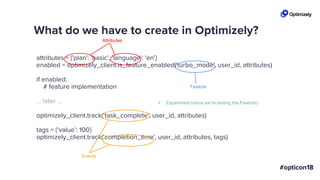

95. What do we have to create in Optimizely?
attributes = {'plan': 'basic', 'language': 'en'}
enabled = optimizely_client.is_feature_enabled('turbo_mode', user_id, attributes)
if enabled:
# feature implementation
... later ...
optimizely_client.track(‘task_complete', user_id, attributes)
tags = {‘value’: 100}
optimizely_client.track(‘completion_time', user_id, attributes, tags)
Attributes

96. What do we have to create in Optimizely?
attributes = {'plan': 'basic', 'language': 'en'}
enabled = optimizely_client.is_feature_enabled('turbo_mode', user_id, attributes)
if enabled:
# feature implementation
... later ...
optimizely_client.track(‘task_complete', user_id, attributes)
tags = {‘value’: 100}
optimizely_client.track(‘completion_time', user_id, attributes, tags)
Attributes
Feature

97. What do we have to create in Optimizely?
attributes = {'plan': 'basic', 'language': 'en'}
enabled = optimizely_client.is_feature_enabled('turbo_mode', user_id, attributes)
if enabled:
# feature implementation
... later ...
optimizely_client.track(‘task_complete', user_id, attributes)
tags = {‘value’: 100}
optimizely_client.track(‘completion_time', user_id, attributes, tags)
Attributes
Feature
Events

98. What do we have to create in Optimizely?
attributes = {'plan': 'basic', 'language': 'en'}
enabled = optimizely_client.is_feature_enabled('turbo_mode', user_id, attributes)
if enabled:
# feature implementation
... later ...
optimizely_client.track(‘task_complete', user_id, attributes)
tags = {‘value’: 100}
optimizely_client.track(‘completion_time', user_id, attributes, tags)
Attributes
Feature
Events
+ Experiment (since we’re testing the Feature)

99. What do we have to create in Optimizely?
attributes = {'plan': 'basic', 'language': 'en'}
enabled = optimizely_client.is_feature_enabled('turbo_mode', user_id, attributes)
if enabled:
# feature implementation
... later ...
optimizely_client.track(‘task_complete', user_id, attributes)
tags = {‘value’: 100}
optimizely_client.track(‘completion_time', user_id, attributes, tags)
Attributes
Feature
Events
+ Experiment (since we’re testing the Feature)
+ Audience (for targeting)

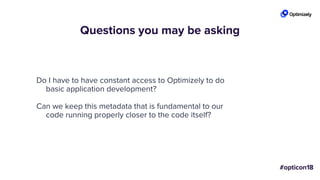

100. Questions you may be asking
Do I have to have constant access to Optimizely to do
basic application development?
Can we keep this metadata that is fundamental to our
code running properly closer to the code itself?

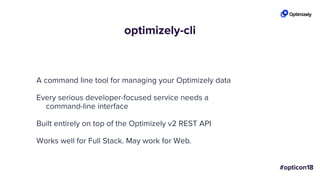

101. optimizely-cli
A command line tool for managing your Optimizely data
Every serious developer-focused service needs a
command-line interface
Built entirely on top of the Optimizely v2 REST API
Works well for Full Stack. May work for Web.

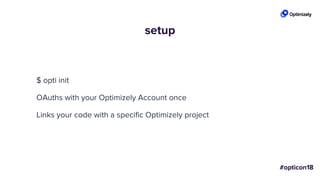

102. setup
$ opti init
OAuths with your Optimizely Account once
Links your code with a specific Optimizely project

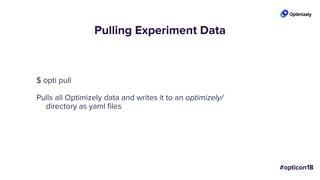

103. Pulling Experiment Data
$ opti pull
Pulls all Optimizely data and writes it to an optimizely/
directory as yaml files

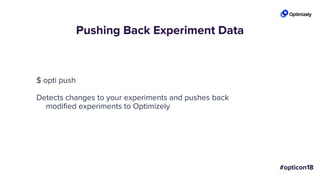

104. Pushing Back Experiment Data
$ opti push
Detects changes to your experiments and pushes back
modified experiments to Optimizely

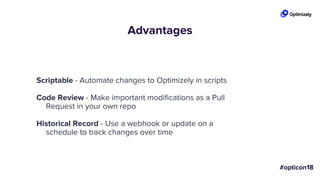

105. Advantages
Scriptable - Automate changes to Optimizely in scripts
Code Review - Make important modifications as a Pull
Request in your own repo
Historical Record - Use a webhook or update on a
schedule to track changes over time

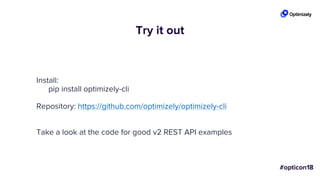

106. Try it out
Install:
pip install optimizely-cli
Repository: https://github.com/optimizely/optimizely-cli
Take a look at the code for good v2 REST API examples

107. Journey Up Mt. Experimentation
Ali Rizvi, Software Engineer
Mike Ng, Software Engineer

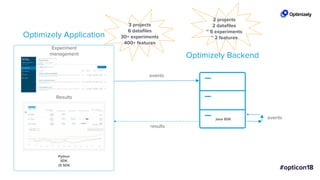

110. Results
Experiment
management
Optimizely Application
Optimizely Backend
Java SDK
Python
SDK
JS SDK
events
events
results
3 projects
6 datafiles
30+ experiments
400+ features
2 projects
2 datafiles
~ 5 experiments
~ 2 features

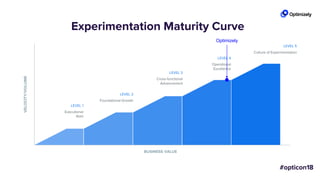

111. BUSINESS VALUE
VELOCITY/VOLUME
LEVEL 1
Executional
Start
LEVEL 2
Foundational Growth
LEVEL 3
Cross-functional
Advancement
LEVEL 4
Operational
Excellence
LEVEL 5
Culture of Experimentation
Experimentation Maturity Curve
Optimizely

112. How did we get here?

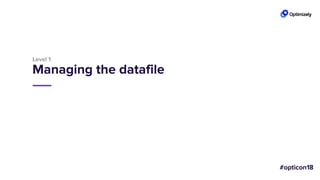

115. Level 1
Managing the datafile

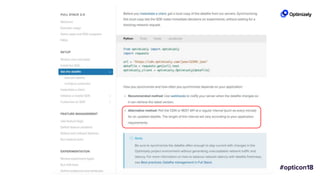

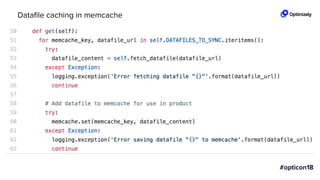

118. Datafile caching in memcache

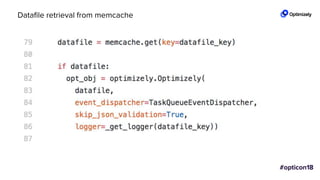

119. Datafile retrieval from memcache

120. Level 1
Event dispatching

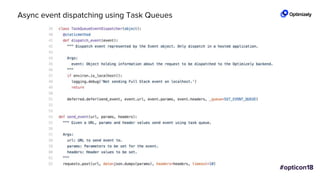

123. Async event dispatching using Task Queues

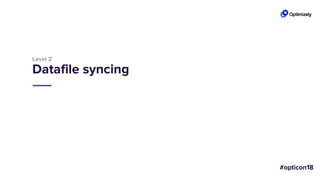

124. Level 2
Datafile syncing

125. Consolidating datafile between backend and frontend
App Engine App
(Python)
Frontend
(Browser)

126. Level 3
Convenience methods

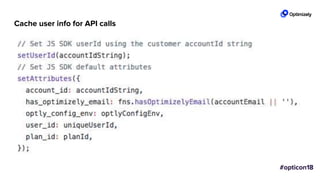

127. Cache user info for API calls

128. isFeatureEnabled call in product...

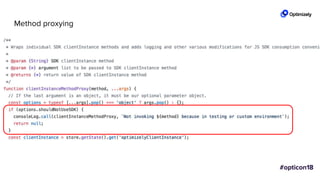

129. Method proxying

130. Continued...

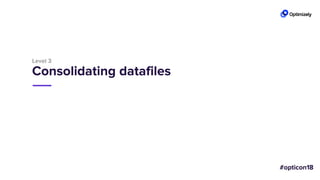

131. Level 3

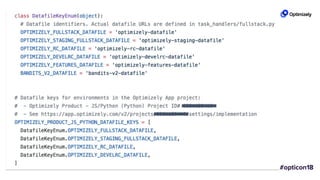

Consolidating datafiles

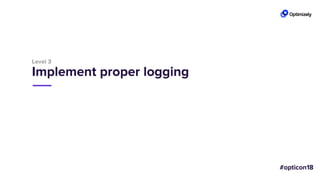

133. Level 3
Implement proper logging

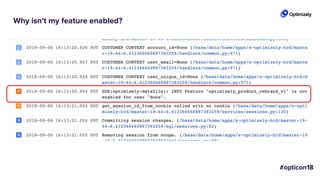

134. Why isn't my feature enabled?

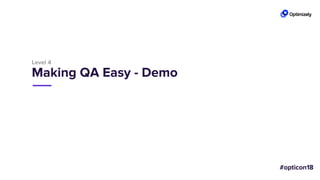

135. Level 4
Making QA Easy - Demo

136. Reaching the next stage
• Consolidate projects
• Use environments across all projects
• Experiments / Feature Flags cleanup
• Increase automated test coverage of all experiment
paths

137. Takeaways
Performance
- Pass datafile between frontend to backend
- Cache datafile in memcache - can also cache instance of Optimizely if appropriate
Quality
- Make it easy for users to QA your features and tests
- Write automated tests for the different forks/paths created for experiments
Productivity
- Make it easy for developers to run experiments with wrapper/convenience methods
- Always include a logger with the implementation

138. Q&A

139. Thank you!Thank You!
