OpenStack at SJTU: Predictive Data Mining in Clinical Medicine with Dynamical HPC
- 1. OpenStack at SJTU Predictive Data Mining in Clinical Medicine with Dynamical HPC SHUQUAN HUANG, 99CLOUD <HUANG.SHUQUAN@99CLOUD.NET> DR LUO XUAN, SHANGHAI JIAO TONG UNIVERSITY <XLUO@SJTU.EDU.CN> DR YIH LEONG SUN, INTEL CORPORATION <YIH.LEONG.SUN@INTEL.COM>

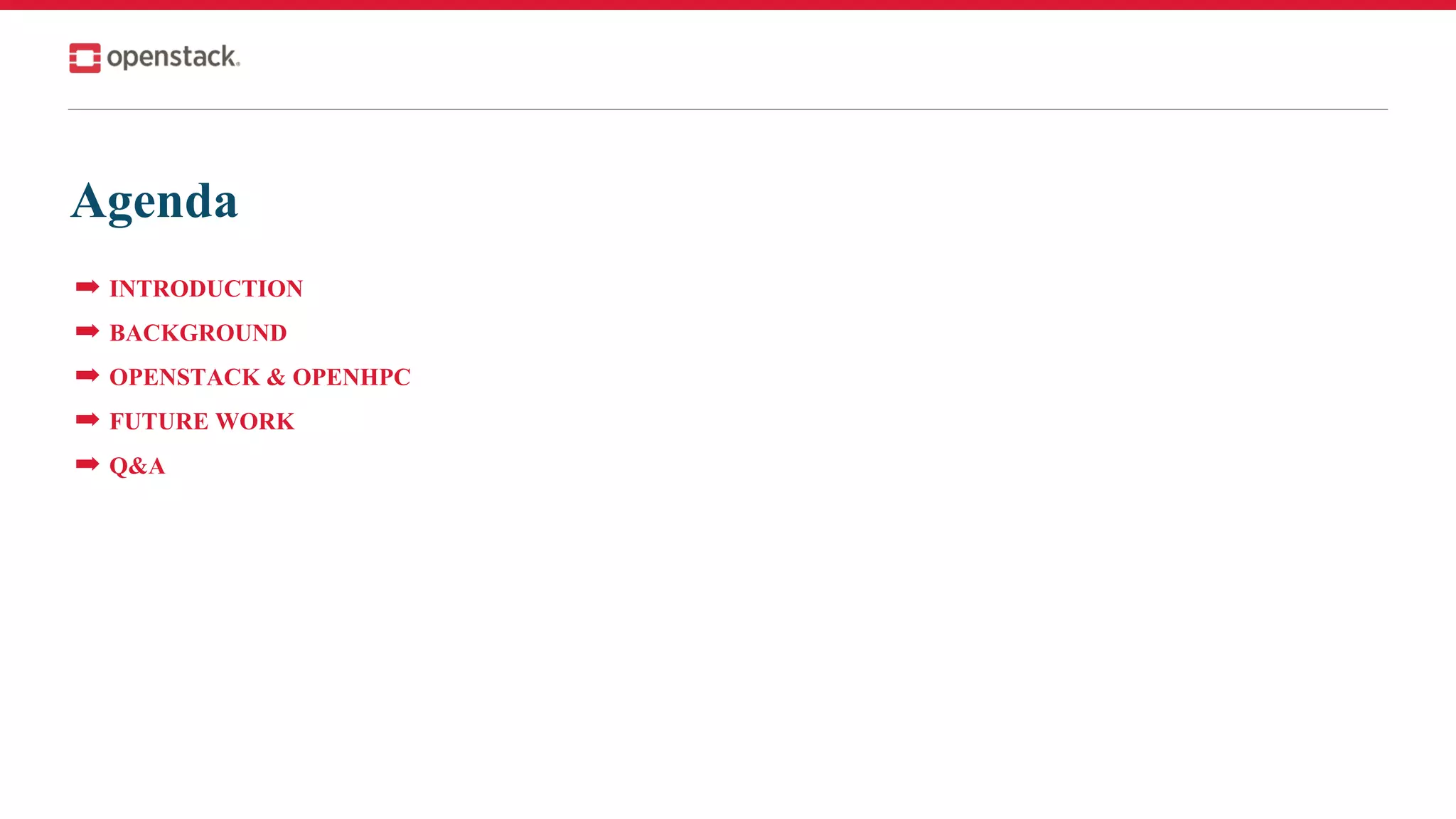

- 2. Agenda ➡ INTRODUCTION ➡ BACKGROUND ➡ OPENSTACK & OPENHPC ➡ FUTURE WORK ➡ Q&A

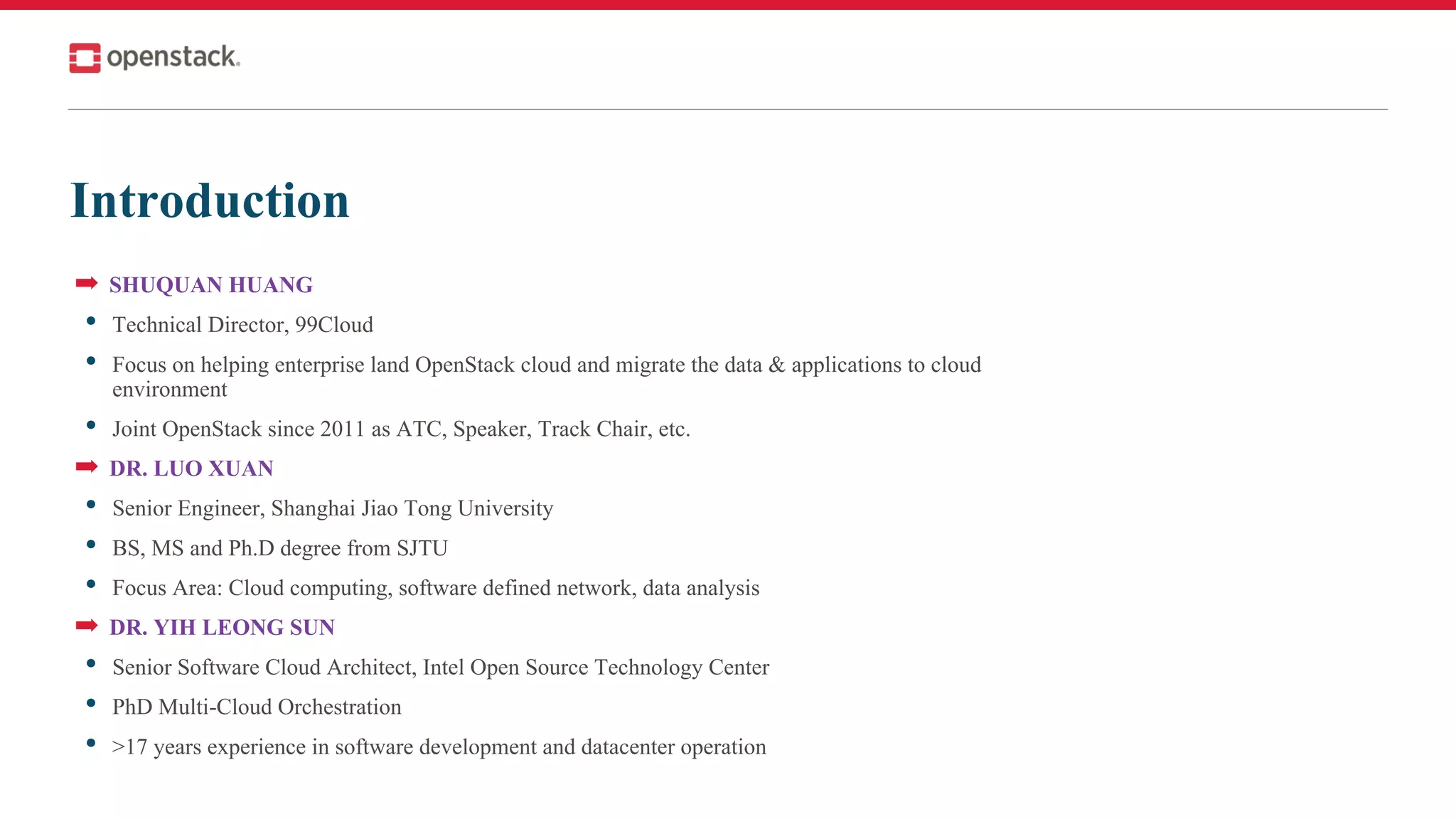

- 3. Introduction ➡ SHUQUAN HUANG • Technical Director, 99Cloud • Focus on helping enterprise land OpenStack cloud and migrate the data & applications to cloud environment • Joint OpenStack since 2011 as ATC, Speaker, Track Chair, etc. ➡ DR. LUO XUAN • Senior Engineer, Shanghai Jiao Tong University • BS, MS and Ph.D degree from SJTU • Focus Area: Cloud computing, software defined network, data analysis ➡ DR. YIH LEONG SUN • Senior Software Cloud Architect, Intel Open Source Technology Center • PhD Multi-Cloud Orchestration • >17 years experience in software development and datacenter operation

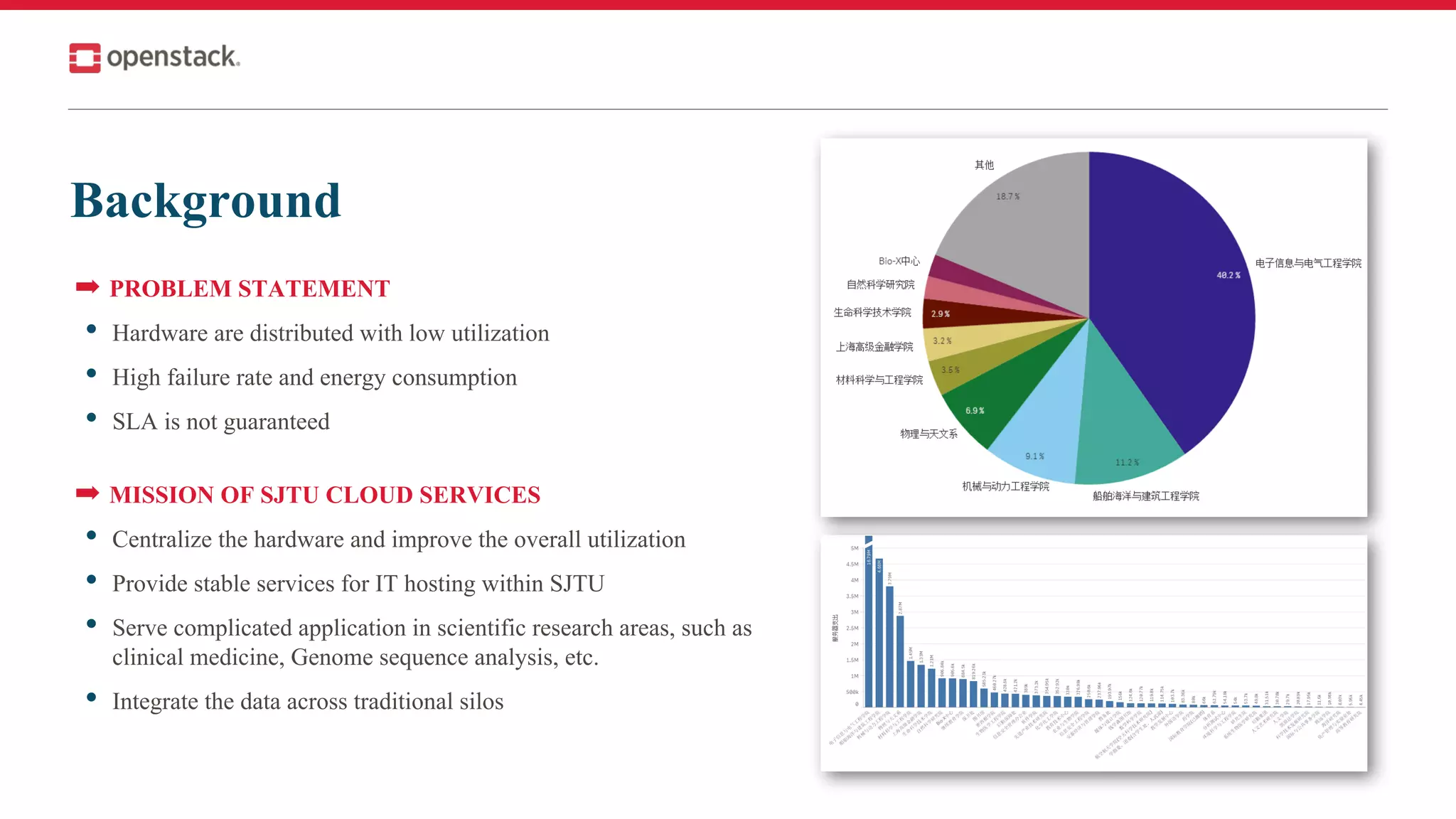

- 4. Background ➡ PROBLEM STATEMENT • Hardware are distributed with low utilization • High failure rate and energy consumption • SLA is not guaranteed ➡ MISSION OF SJTU CLOUD SERVICES • Centralize the hardware and improve the overall utilization • Provide stable services for IT hosting within SJTU • Serve complicated application in scientific research areas, such as clinical medicine, Genome sequence analysis, etc. • Integrate the data across traditional silos

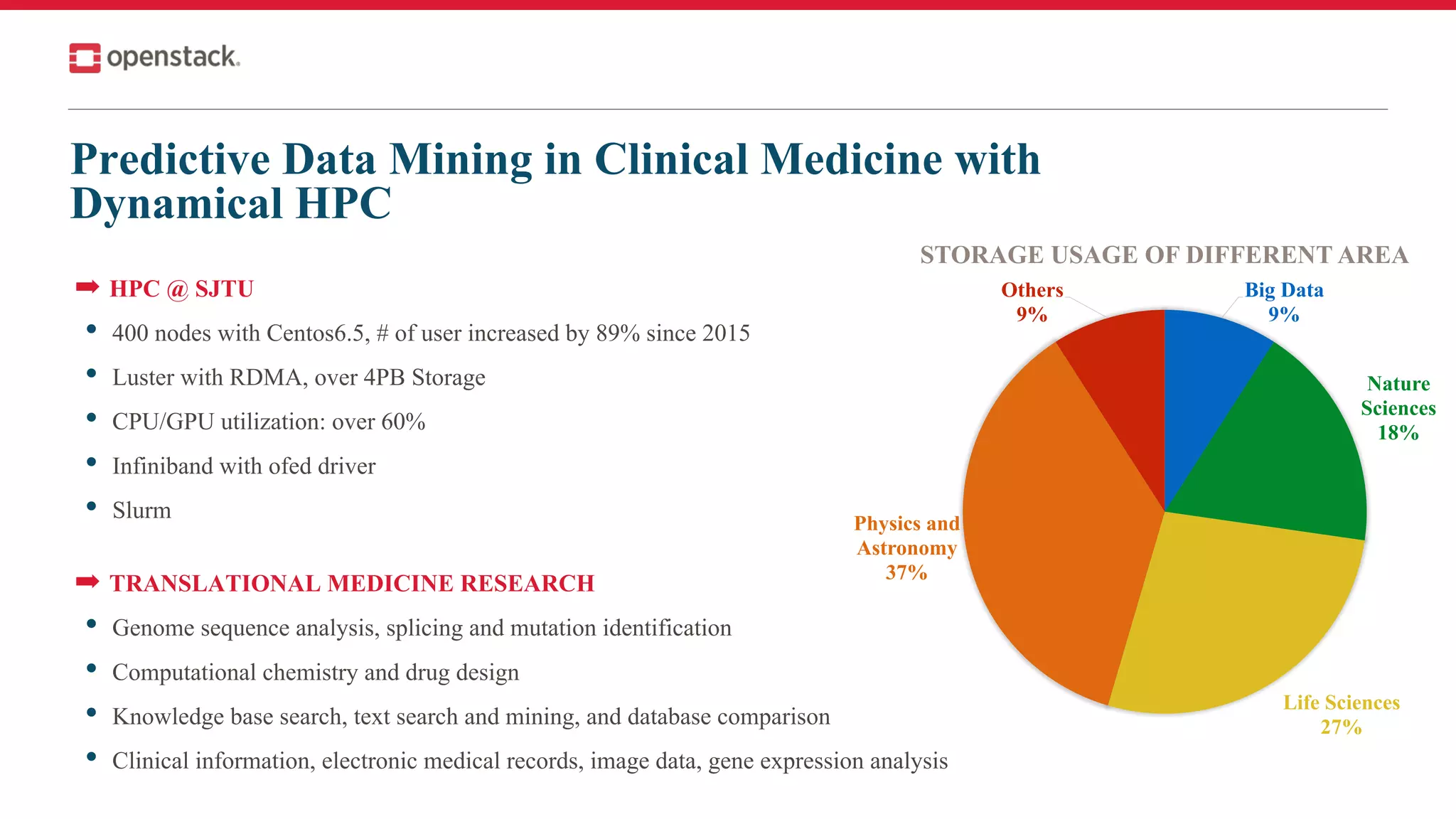

- 5. Predictive Data Mining in Clinical Medicine with Dynamical HPC ➡ HPC @ SJTU • 400 nodes with Centos6.5, # of user increased by 89% since 2015 • Luster with RDMA, over 4PB Storage • CPU/GPU utilization: over 60% • Infiniband with ofed driver • Slurm ➡ TRANSLATIONAL MEDICINE RESEARCH • Genome sequence analysis, splicing and mutation identification • Computational chemistry and drug design • Knowledge base search, text search and mining, and database comparison • Clinical information, electronic medical records, image data, gene expression analysis Big Data 9% Nature Sciences 18% Life Sciences 27% Physics and Astronomy 37% Others 9% STORAGE USAGE OF DIFFERENT AREA

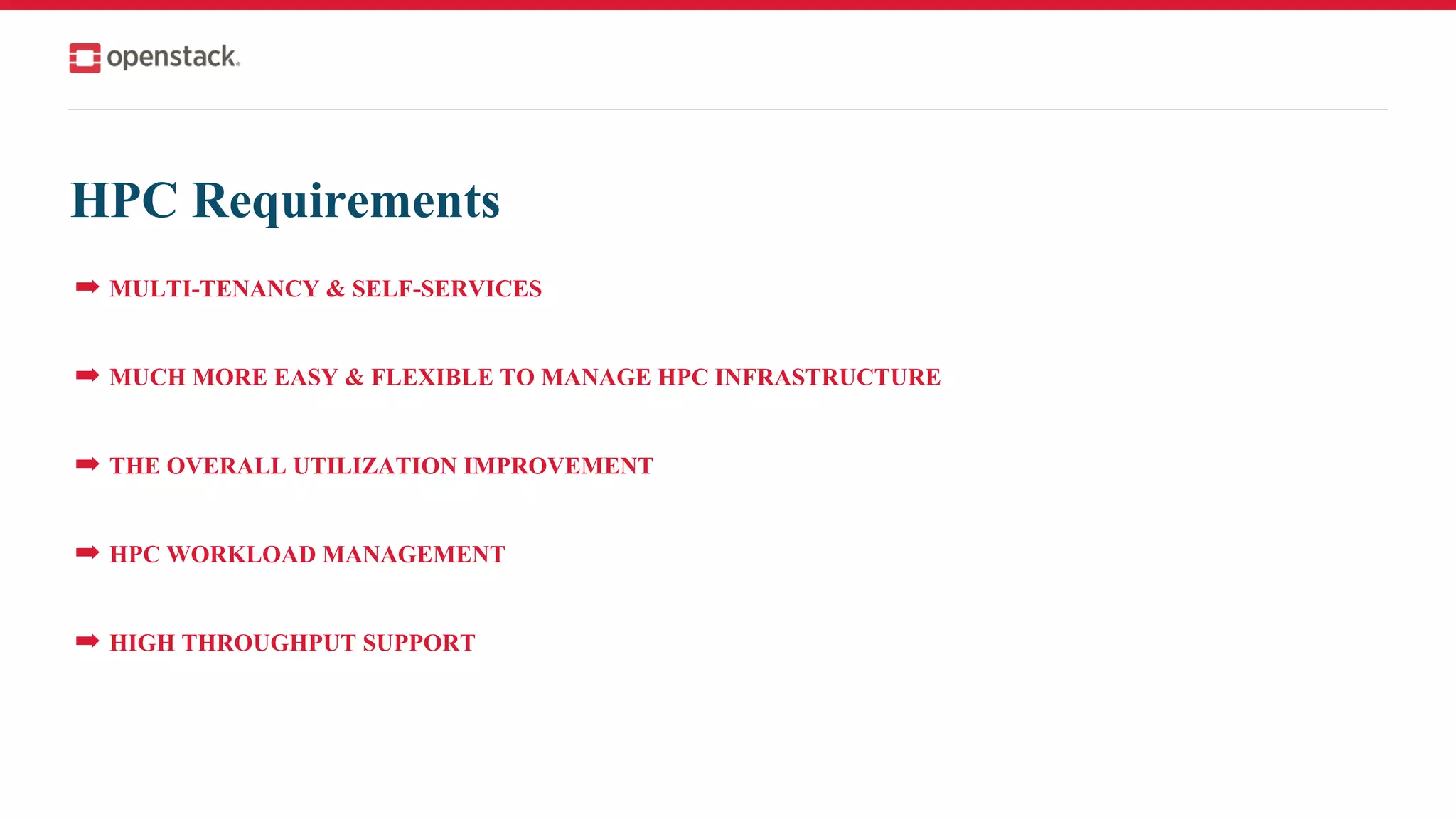

- 6. HPC Requirements ➡ MULTI-TENANCY & SELF-SERVICES ➡ MUCH MORE EASY & FLEXIBLE TO MANAGE HPC INFRASTRUCTURE ➡ THE OVERALL UTILIZATION IMPROVEMENT ➡ HPC WORKLOAD MANAGEMENT ➡ HIGH THROUGHPUT SUPPORT

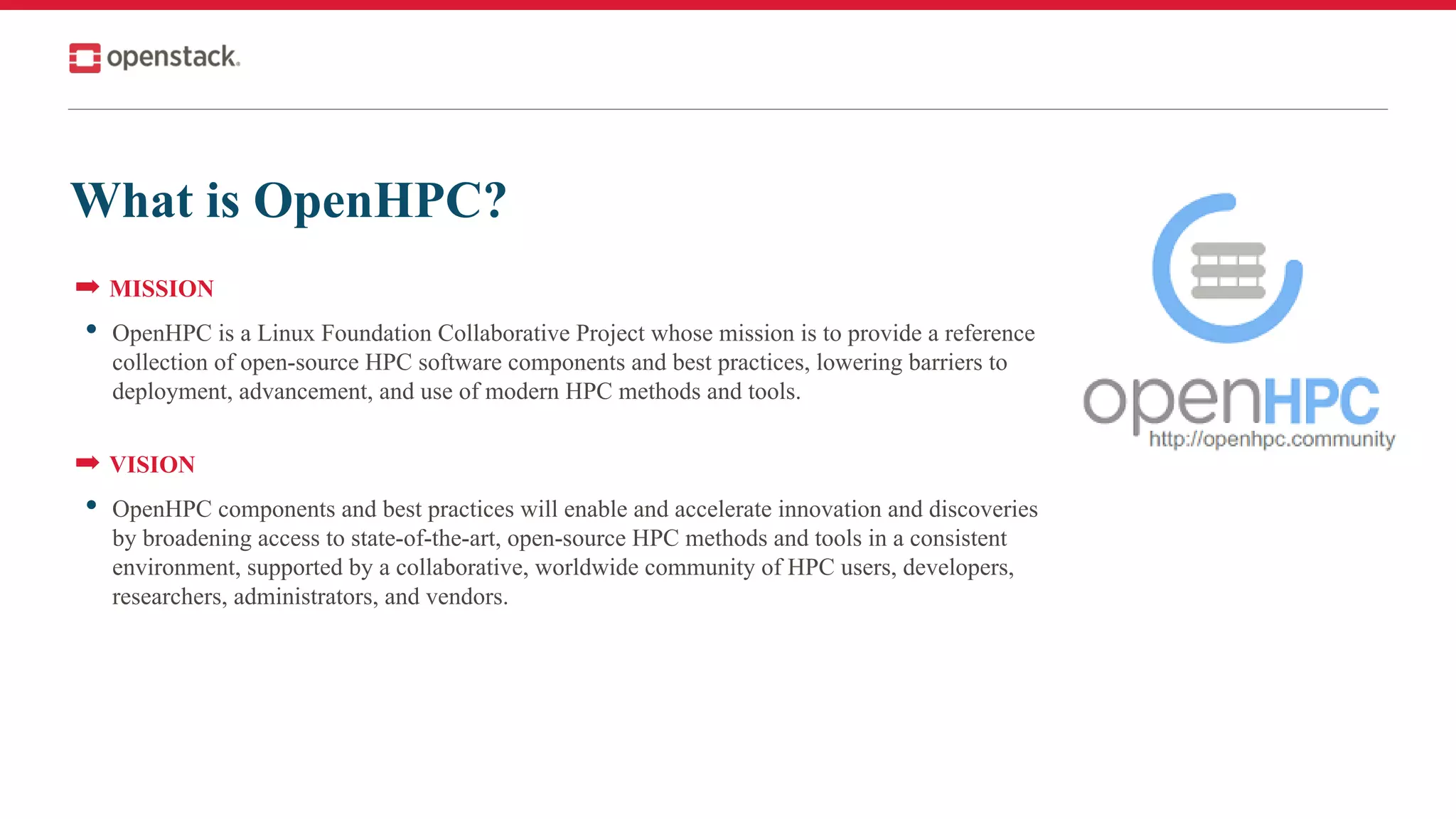

- 7. What is OpenHPC? ➡ MISSION • OpenHPC is a Linux Foundation Collaborative Project whose mission is to provide a reference collection of open-source HPC software components and best practices, lowering barriers to deployment, advancement, and use of modern HPC methods and tools. ➡ VISION • OpenHPC components and best practices will enable and accelerate innovation and discoveries by broadening access to state-of-the-art, open-source HPC methods and tools in a consistent environment, supported by a collaborative, worldwide community of HPC users, developers, researchers, administrators, and vendors.
- 8. Who contributed to OpenHPC?

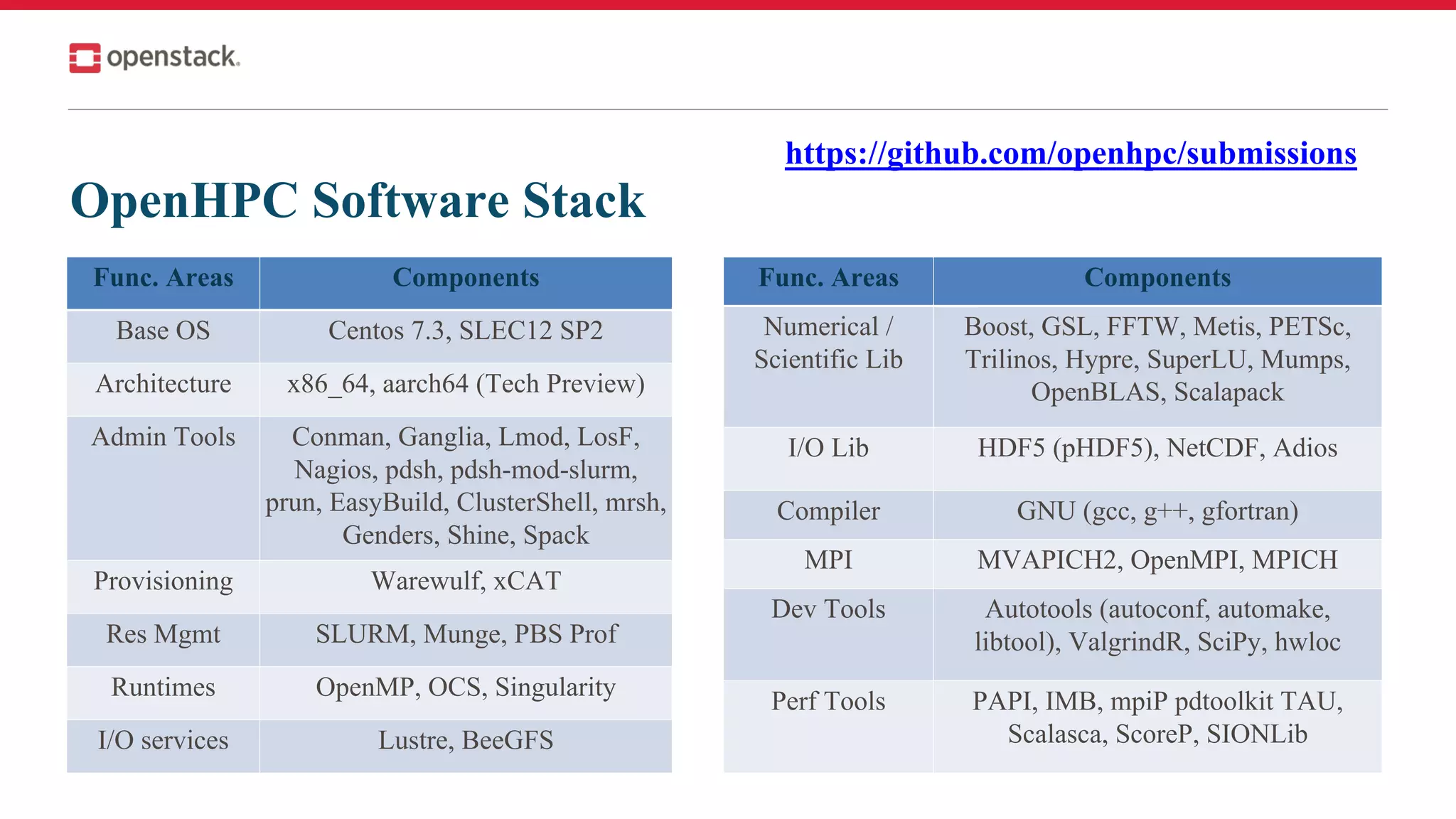

- 9. OpenHPC Software Stack Func. Areas Components Base OS Centos 7.3, SLEC12 SP2 Architecture x86_64, aarch64 (Tech Preview) Admin Tools Conman, Ganglia, Lmod, LosF, Nagios, pdsh, pdsh-mod-slurm, prun, EasyBuild, ClusterShell, mrsh, Genders, Shine, Spack Provisioning Warewulf, xCAT Res Mgmt SLURM, Munge, PBS Prof Runtimes OpenMP, OCS, Singularity I/O services Lustre, BeeGFS Func. Areas Components Numerical / Scientific Lib Boost, GSL, FFTW, Metis, PETSc, Trilinos, Hypre, SuperLU, Mumps, OpenBLAS, Scalapack I/O Lib HDF5 (pHDF5), NetCDF, Adios Compiler GNU (gcc, g++, gfortran) MPI MVAPICH2, OpenMPI, MPICH Dev Tools Autotools (autoconf, automake, libtool), ValgrindR, SciPy, hwloc Perf Tools PAPI, IMB, mpiP pdtoolkit TAU, Scalasca, ScoreP, SIONLib https://github.com/openhpc/submissions

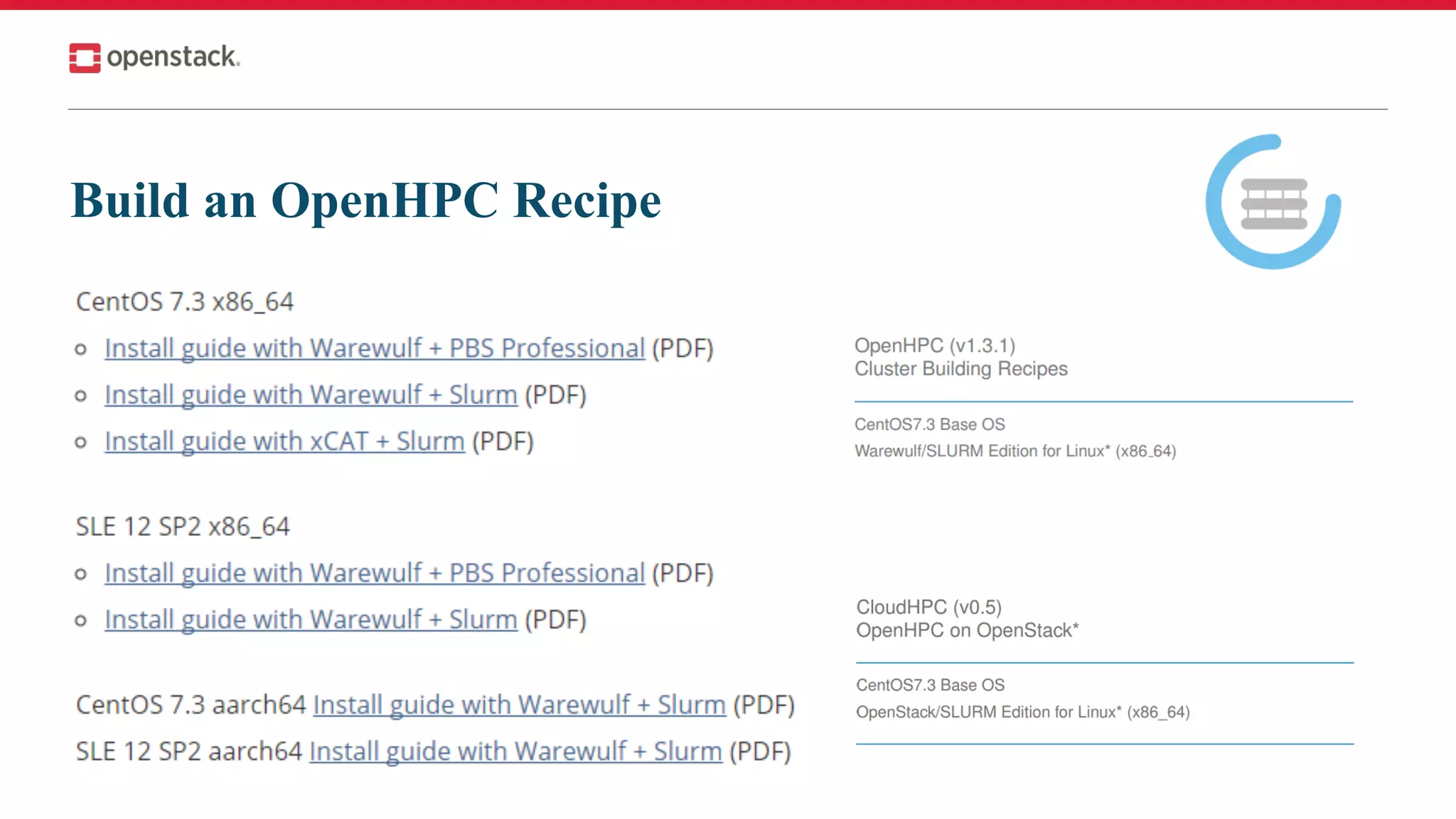

- 10. Build an OpenHPC Recipe
- 11. +
- 12. HPC as a Service Controller HPC Head Node HPC Compute Node HPC Compute Node HPC Compute Node High Speed Fabric / HPC Data Interface BMC interface Provisioning interface External Network

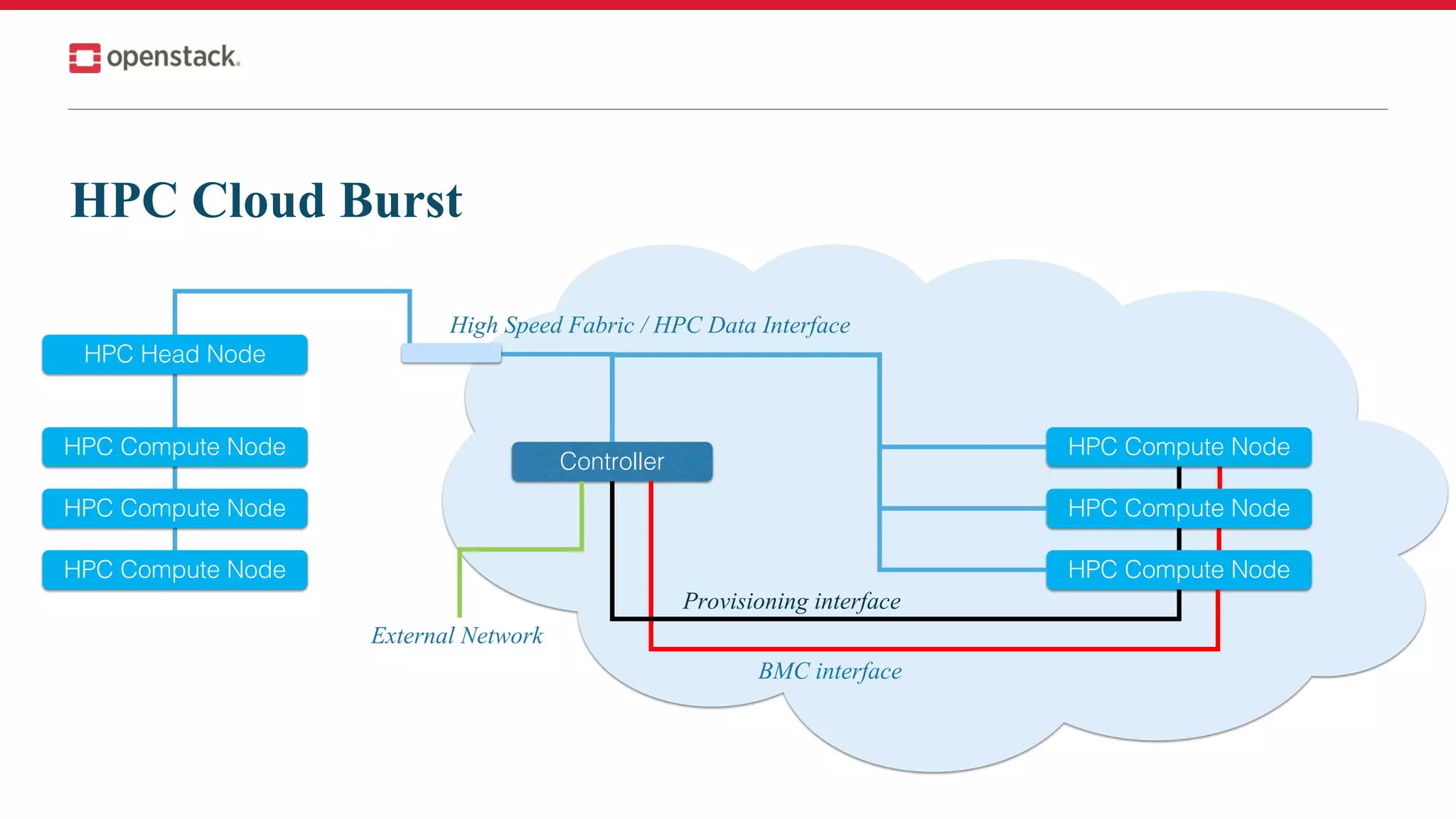

- 13. HPC Cloud Burst Controller HPC Compute Node HPC Compute Node HPC Compute Node High Speed Fabric / HPC Data Interface BMC interface Provisioning interface External Network HPC Head Node HPC Compute Node HPC Compute Node HPC Compute Node

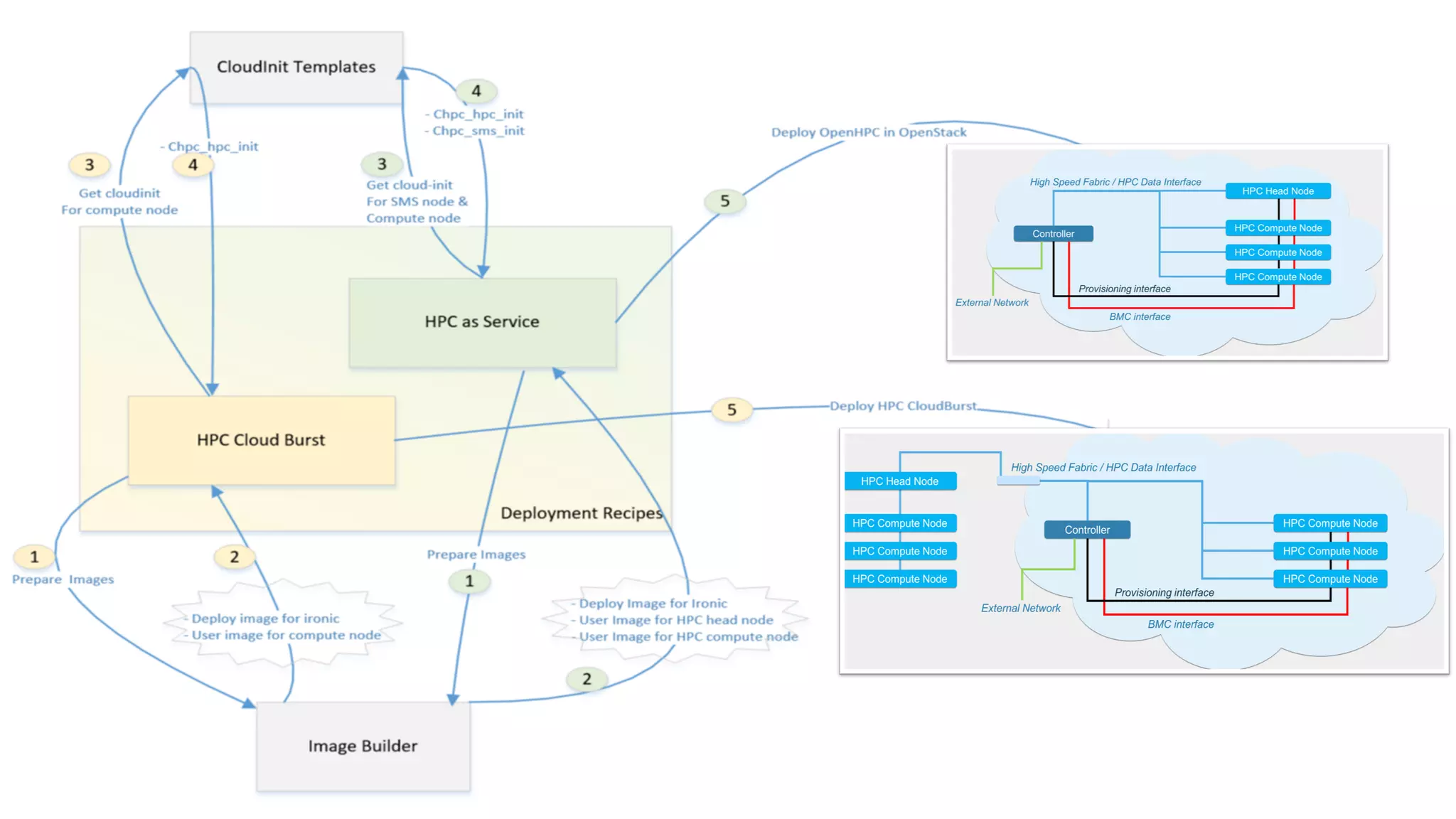

- 14. HPC as a Service
- 15. HPC Cloud Toolkit https://github.com/hpc-cloud-toolkit/ostack-hpc➡ RELEASE 0.7 • Tested OS: Centos 7.3 • OpenStack version: OpenStack Ocata • OpenHPC version: 1.3.1 ➡ MAILING LIST • hpc-cloud-toolkit-users (https://groups.io/g/hpc-cloud-toolkit-users) • for general questions, discussions, a suggestion to the project by users. • Hpc-cloud-toolkit-devel (https://groups.io/g/hpc-cloud-toolkit-devel) • for developers contributing the hpc-cloud-toolkit.
