- The document discusses challenges with analyzing data stored in MongoDB, a NoSQL database, using typical analyst tools which expect structured data. - It presents an open-source solution to synchronize data from MongoDB to PostgreSQL in real-time, and extract the MongoDB schema to normalize it for analysis in SQL and tools like Superset. - The stack includes MongoDB Connector to replicate data to PostgreSQL, Pymongo-Schema to define the MongoDB schema, and Doc-manager to translate the data model for PostgreSQL. This allows analysts to work with the data using standard SQL and BI tools.

1. By OCTO & The RefinersPierre-Alain Jachiet - Aurélien Gervasi
PEN S URCE
ANALYTICS
on MONGO DB
with Schema

2. Pierre-Alain Jachiet Aurélien Gervasi
DATA
SCIENTIST

3. Data strategist Applied mathematician
Analysts, with developer skills
DATA
SCIENTIST

4. DATA
PROCESSOR
Data strategist Applied mathematician
Analysts, with developer skills

5. “
the major activity in the data science process is
identifying, accessing and preparing data
for analysis

6. From MongoDB data … to Superset Colors

7. OCTO TECHNOLOGY > THERE IS A BETTER WAY
So ! What's the point with
MongoDB ?>

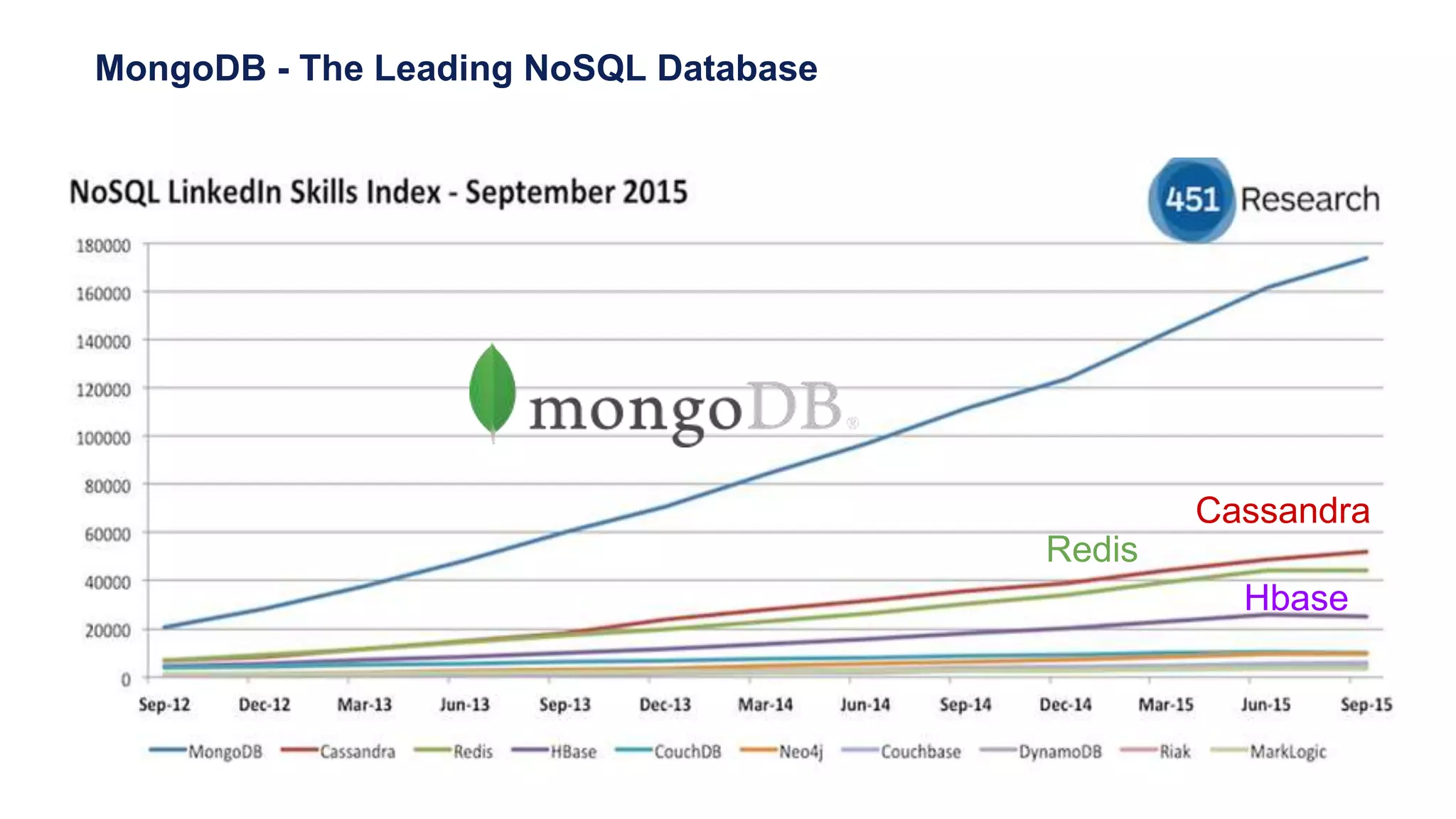

8. MongoDB - The Leading NoSQL Database
Cassandra
Redis
Hbase

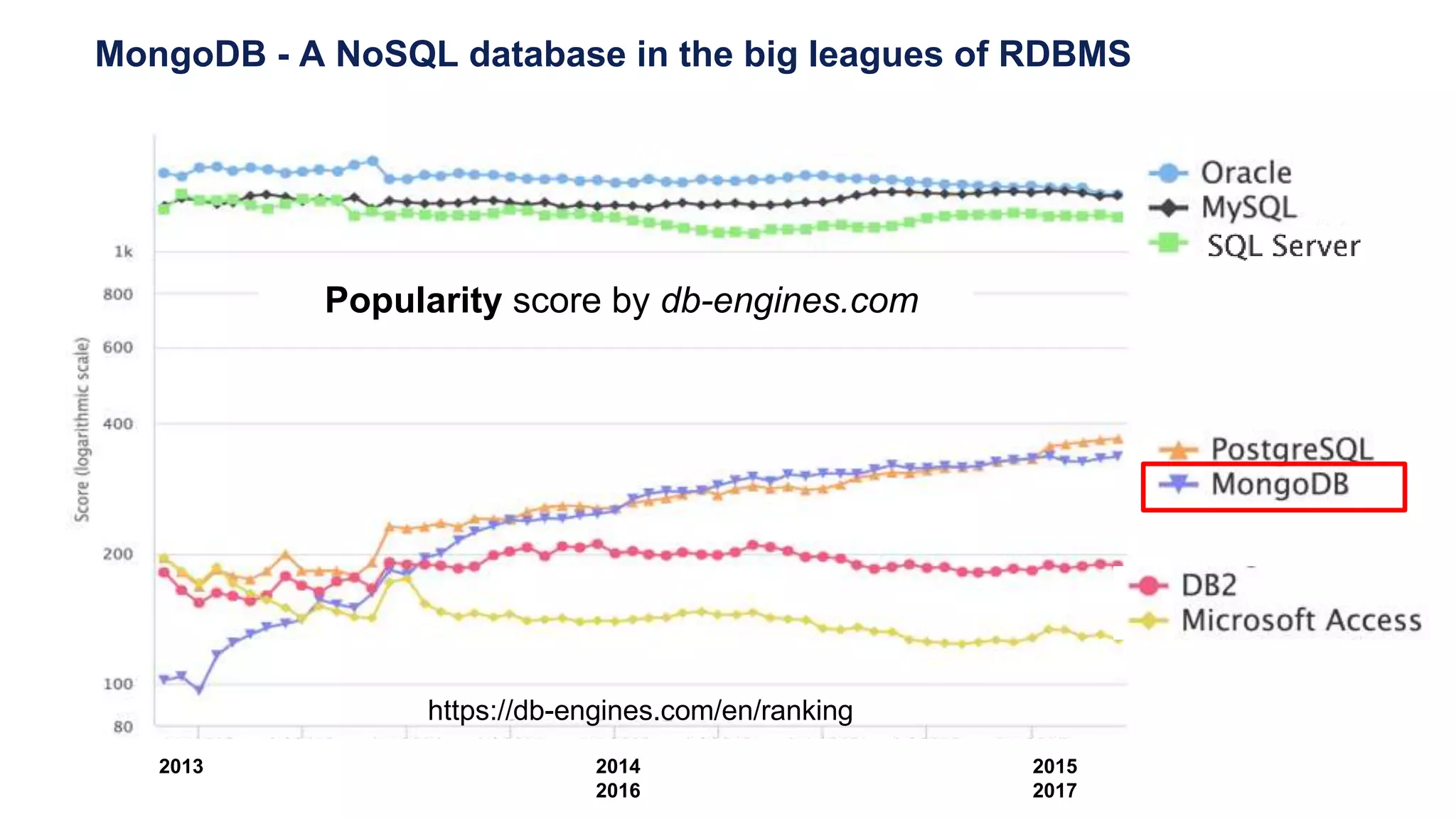

9. MongoDB - A NoSQL database in the big leagues of RDBMS
2013 2014 2015
2016 2017
https://db-engines.com/en/ranking
Popularity score by db-engines.com

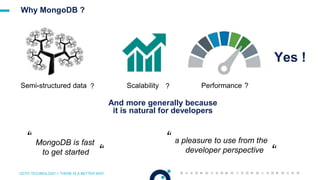

10. OCTO TECHNOLOGY > THERE IS A BETTER WAY

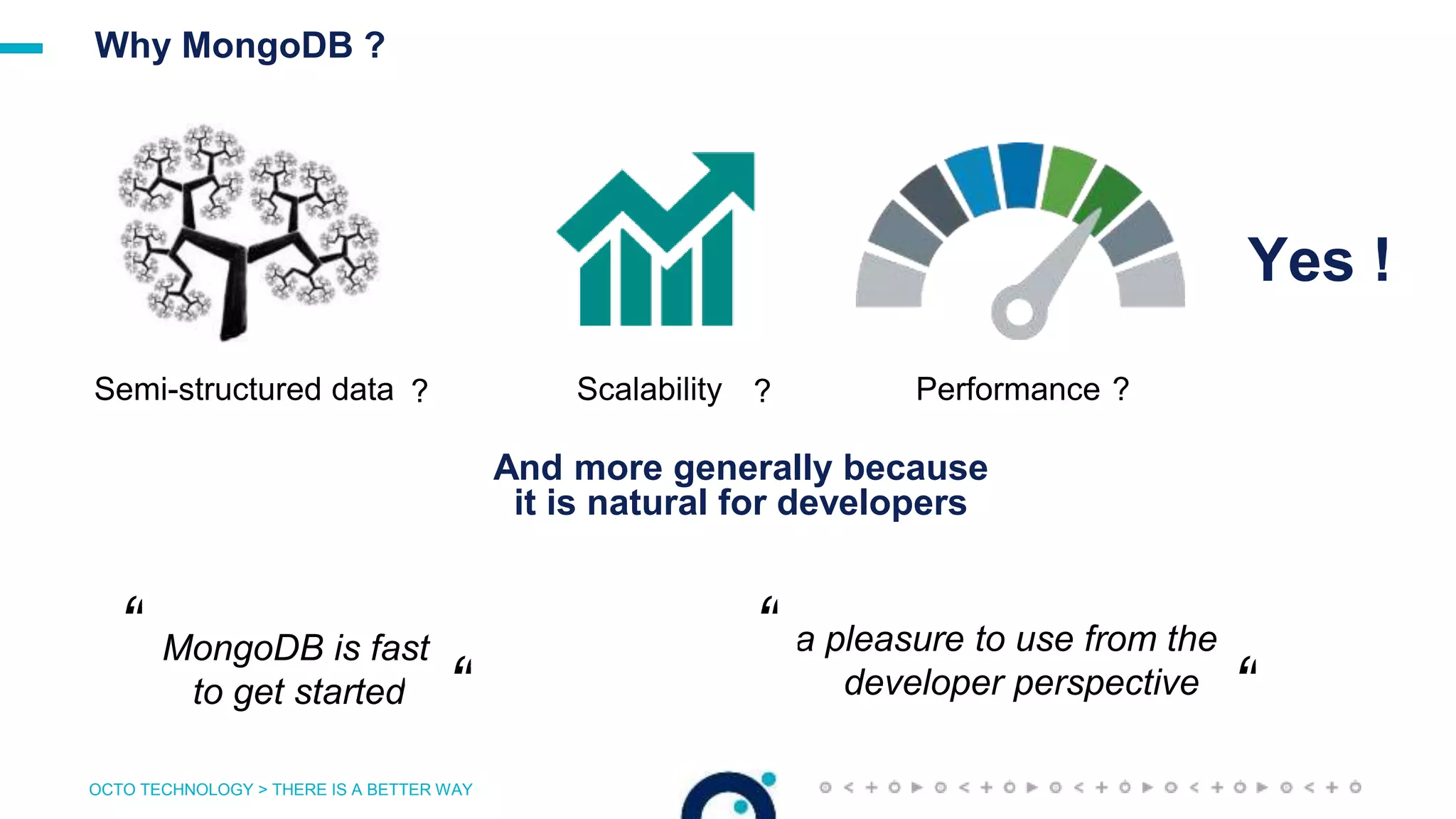

Why MongoDB ?
Yes !
Semi-structured data ? Performance ?Scalability ?
And more generally because
it is natural for developers
a pleasure to use from the
developer perspective
“
“
“ MongoDB is fast
to get started “

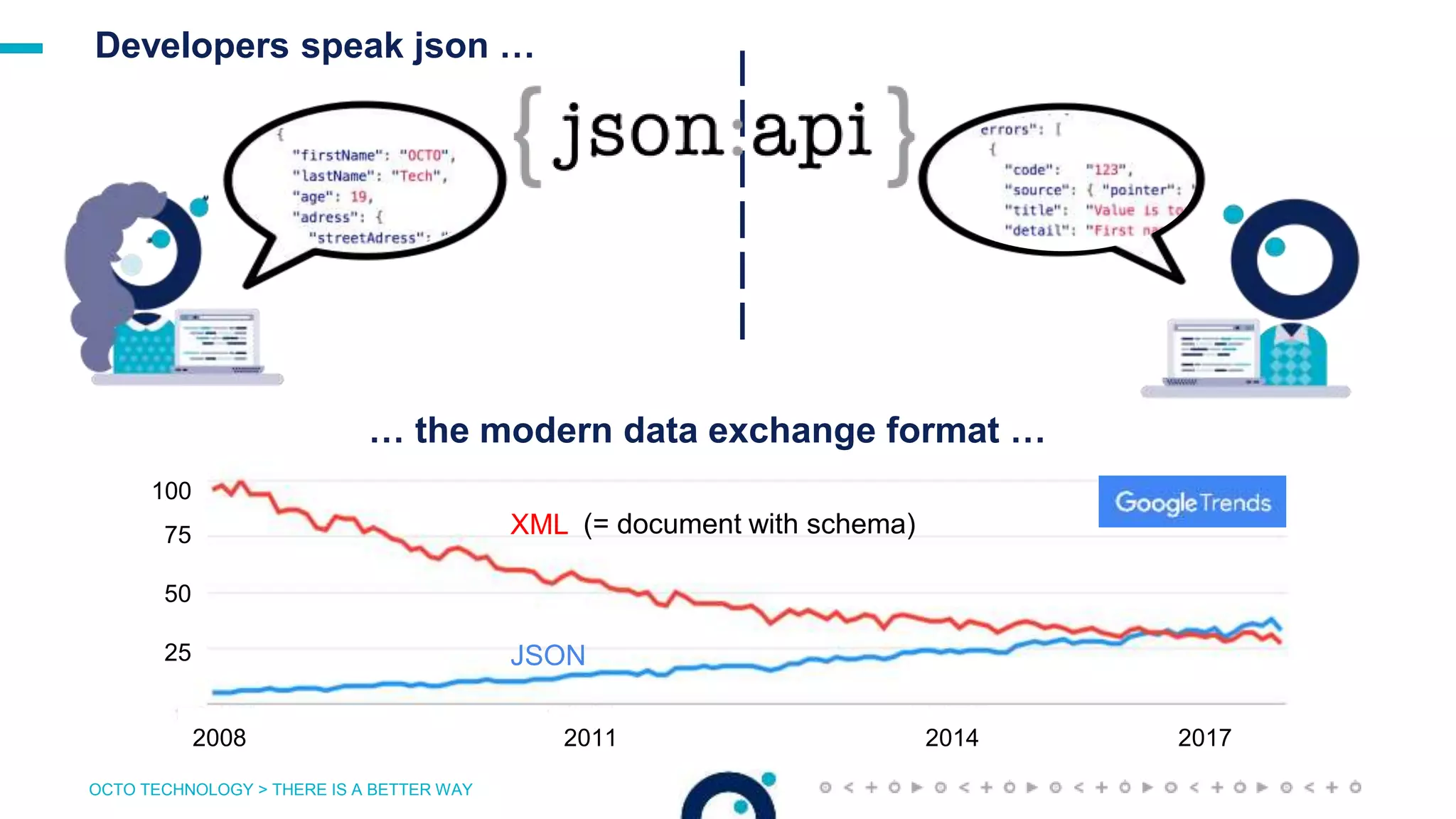

11. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Developers speak json …
XML
JSON
100
75
50
25
2008 2011 2014 2017
(= document with schema)
… the modern data exchange format …

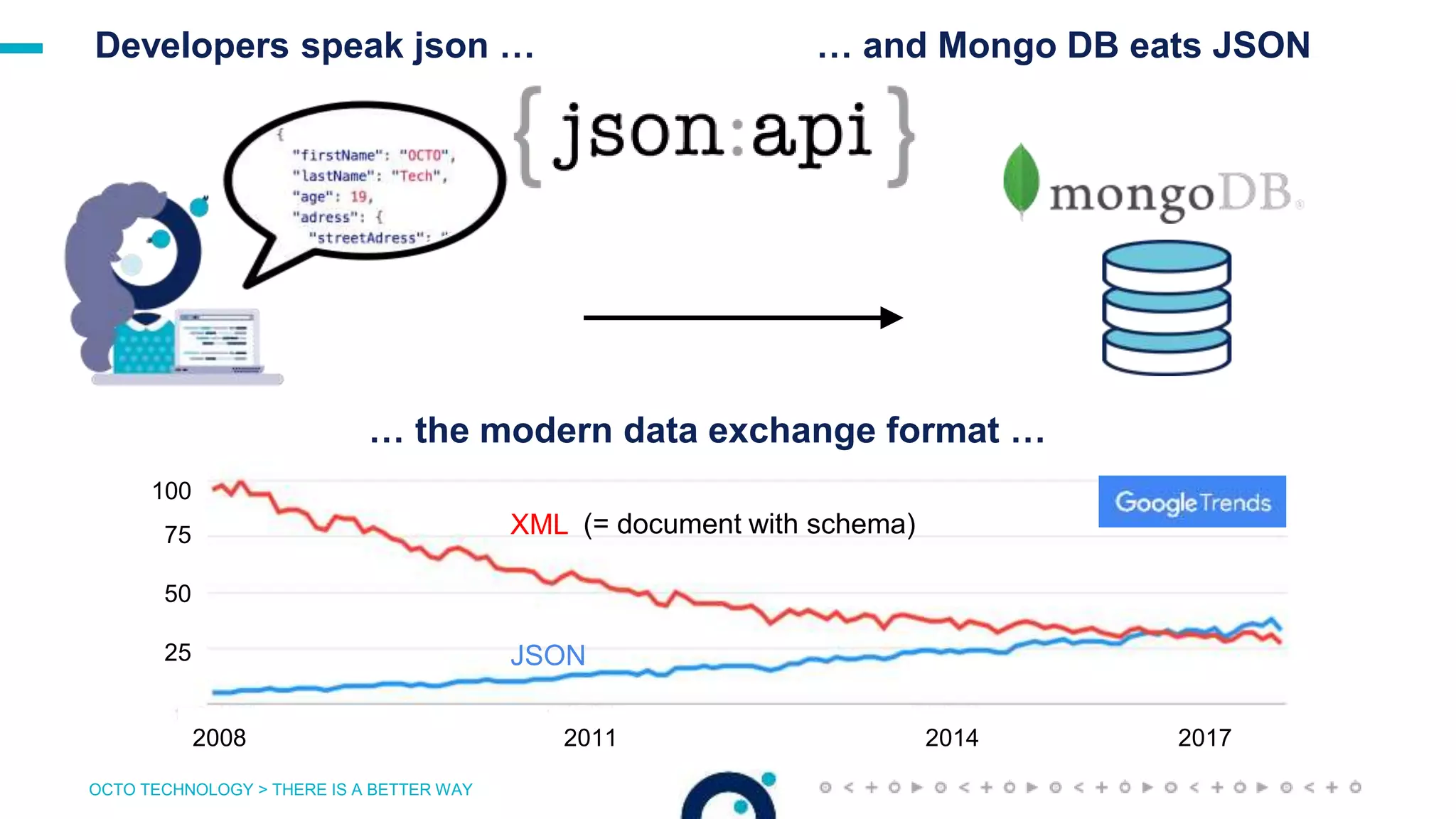

12. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Developers speak json …
XML
JSON
100
75
50
25
2008 2011 2014 2017
(= document with schema)
… the modern data exchange format …
… and Mongo DB eats JSON

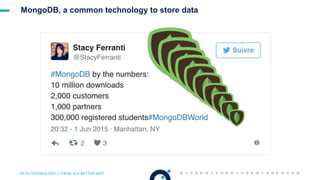

13. OCTO TECHNOLOGY > THERE IS A BETTER WAY

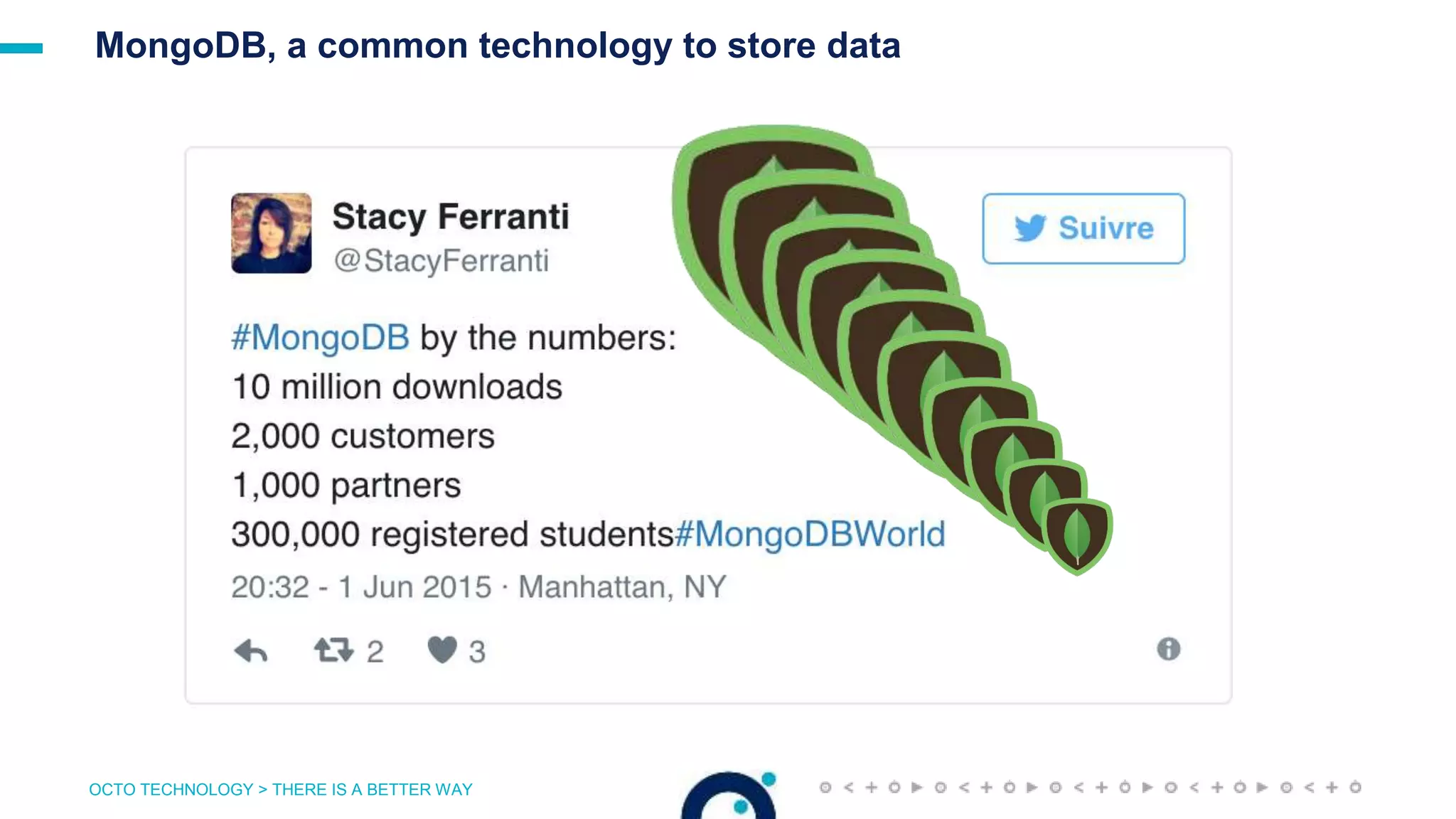

MongoDB, a common technology to store data

14. OCTO TECHNOLOGY > THERE IS A BETTER WAY
So far, so good>

15. And, one day,
someone has a dream…
So far, so good.
But times goes on and data goes in.
AI

16. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Please ! An analyst for this data !
Hey !

17. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Please ! An analyst for this data !
But NoSQL / json data is not
natural for analysts
?

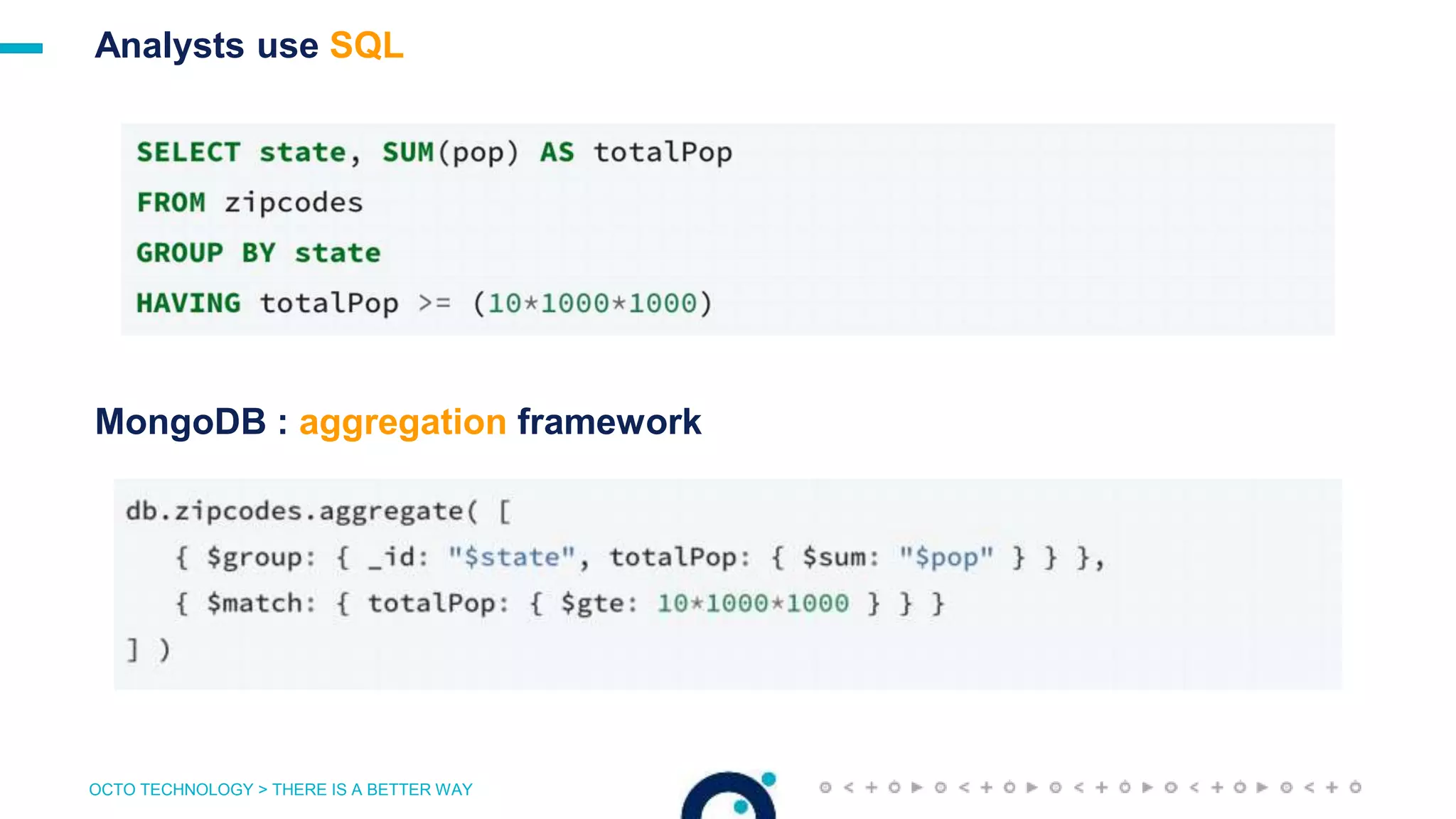

18. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Analysts use SQL
MongoDB : aggregation framework

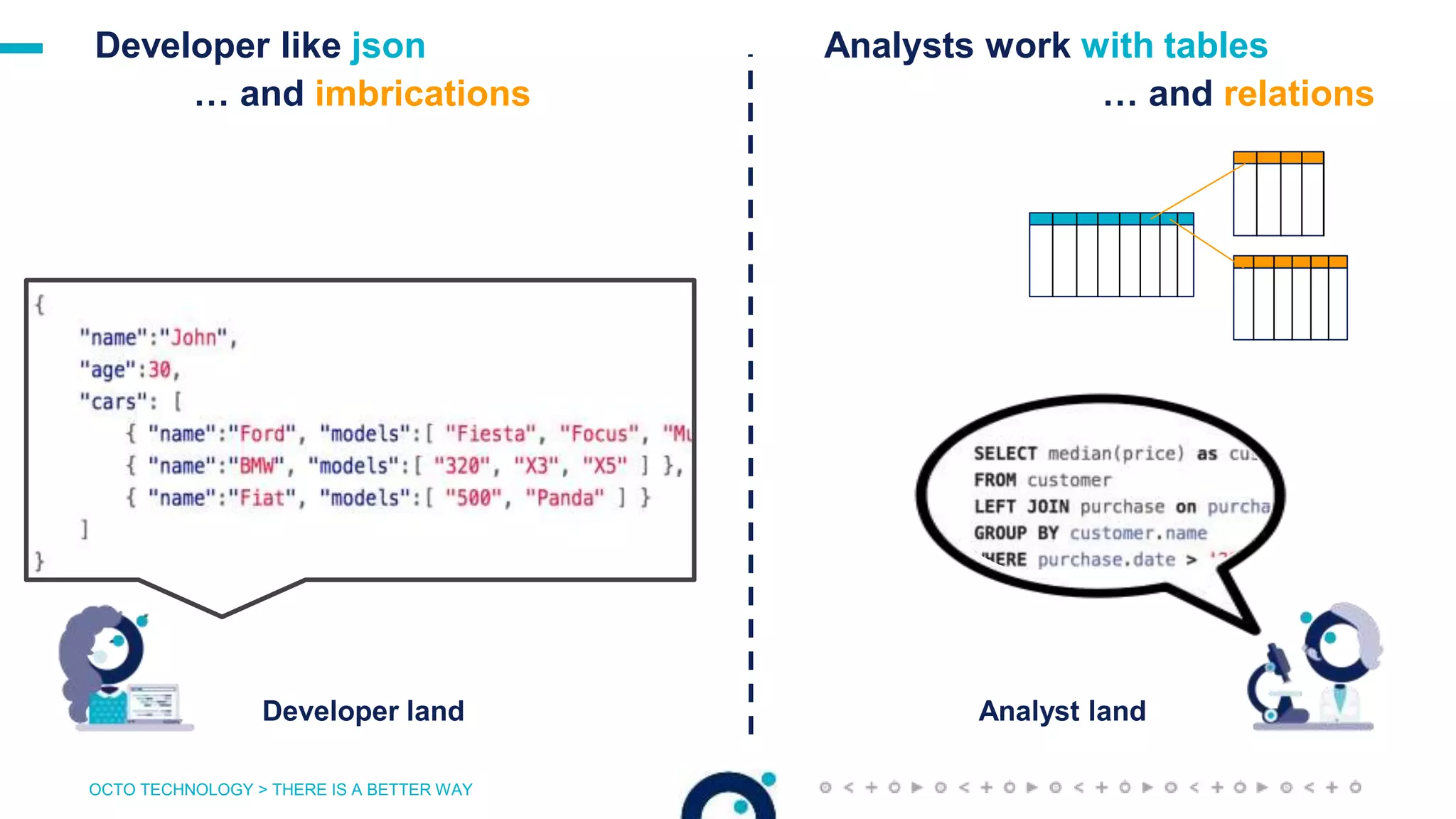

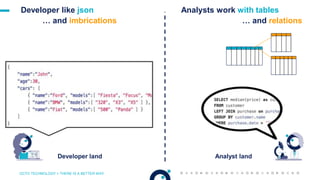

19. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Analysts work with tables
Analyst land
… and relations
Developer land
Developer like json
… and imbrications

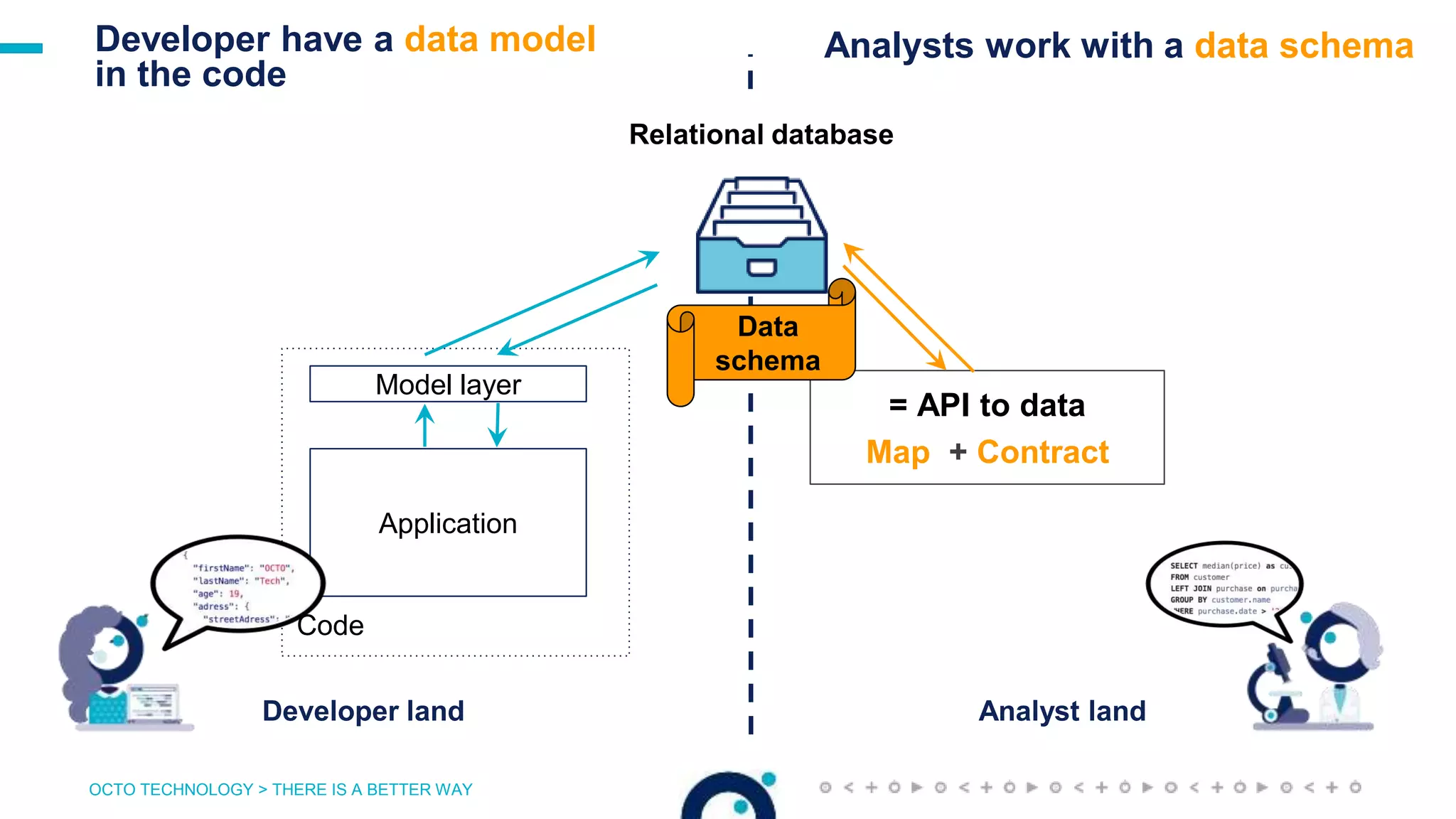

20. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Relational database
Code
Model layer
Application
= API to data
Map + Contract
Data
schema
Analyst landDeveloper land
Analysts work with a data schemaDeveloper have a data model
in the code

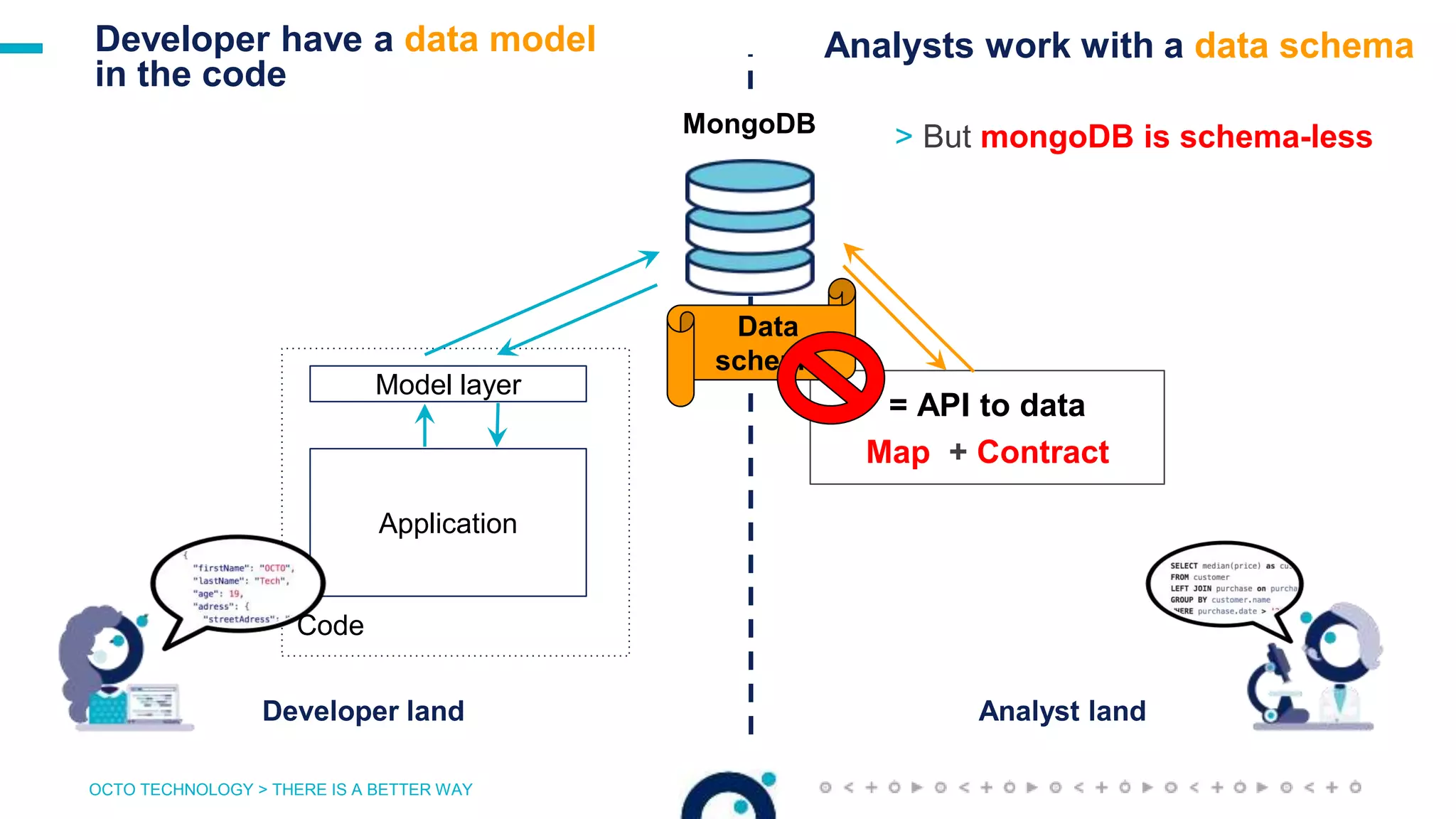

21. OCTO TECHNOLOGY > THERE IS A BETTER WAY
MongoDB
Code
Model layer
Application
= API to data
Map + Contract
Data
schema
Analyst landDeveloper land
> But mongoDB is schema-less
Analysts work with a data schemaDeveloper have a data model
in the code

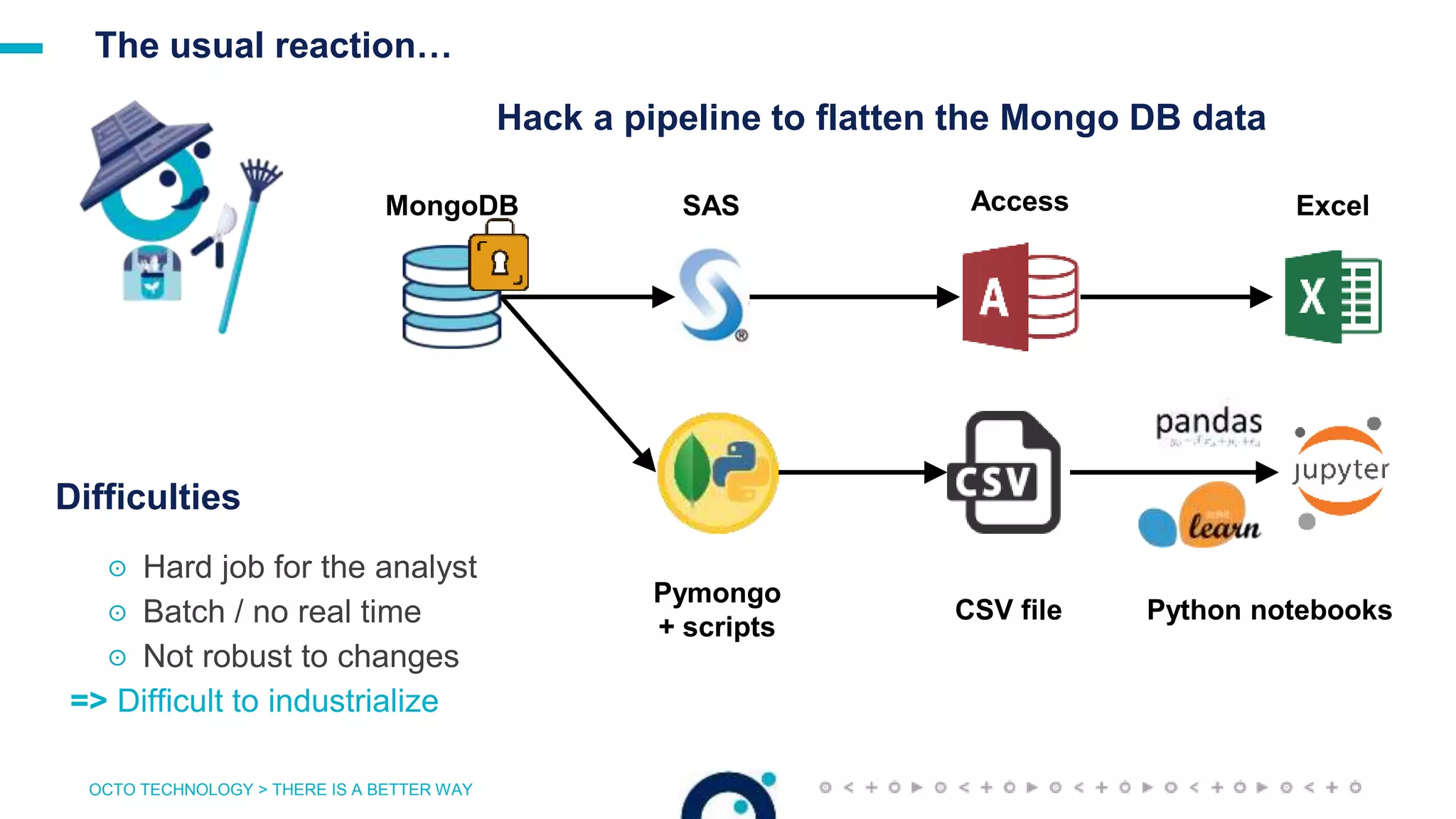

22. OCTO TECHNOLOGY > THERE IS A BETTER WAY

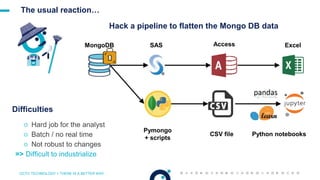

The usual reaction…
MongoDB ExcelAccessSAS
Hack a pipeline to flatten the Mongo DB data
Pymongo
+ scripts
Python notebooksCSV file
Difficulties
☉ Hard job for the analyst
☉ Batch / no real time
☉ Not robust to changes
=> Difficult to industrialize

23. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Mongo DB enterprise
solution>

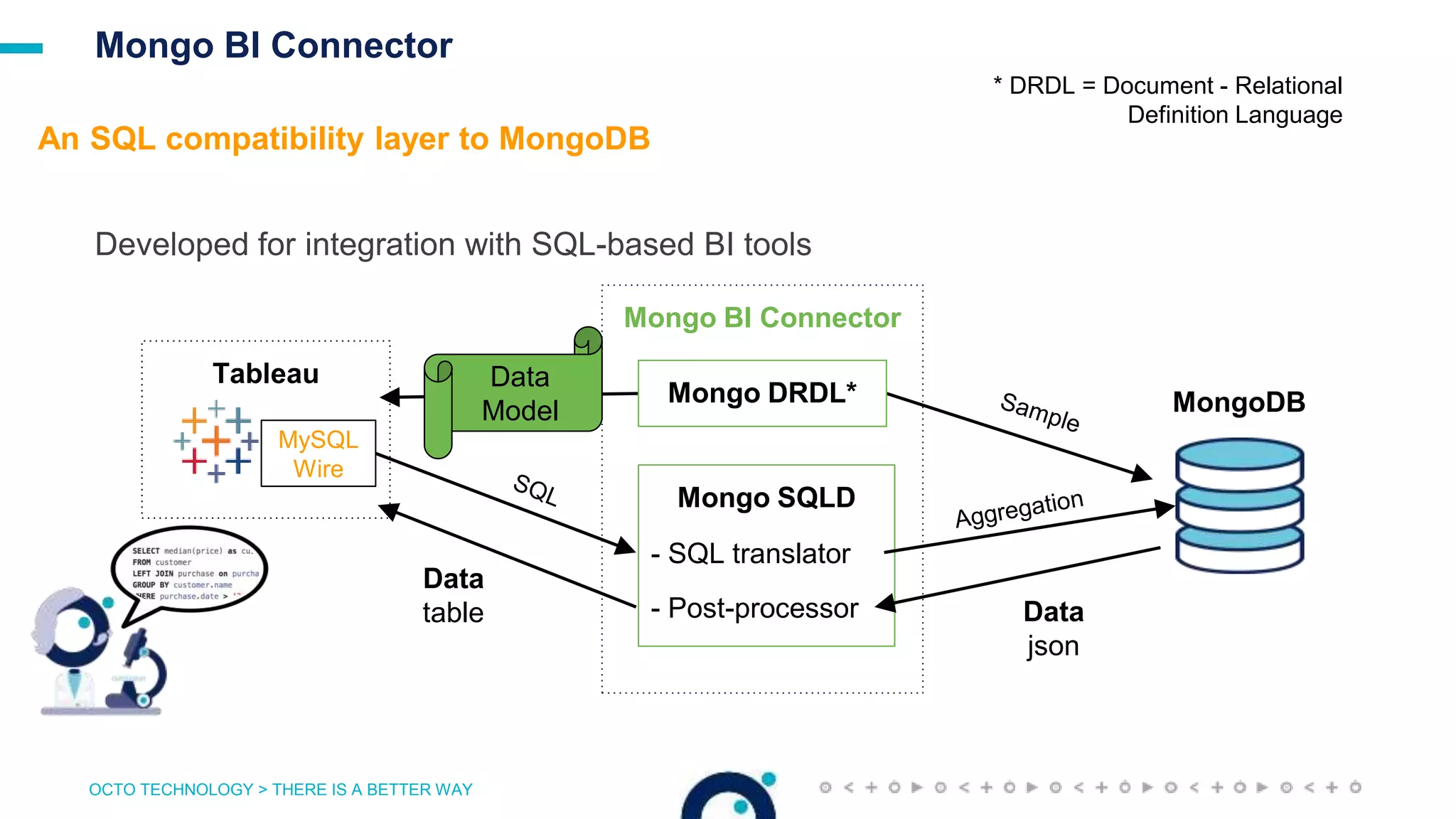

24. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Mongo BI Connector
Mongo BI Connector
Developed for integration with SQL-based BI tools
An SQL compatibility layer to MongoDB
Mongo SQLD
MongoDB
Data
Model
Tableau
MySQL
Wire
* DRDL = Document - Relational
Definition Language
Mongo DRDL*
- SQL translator
Data
table - Post-processor Data
json

25. OCTO TECHNOLOGY > THERE IS A BETTER WAY

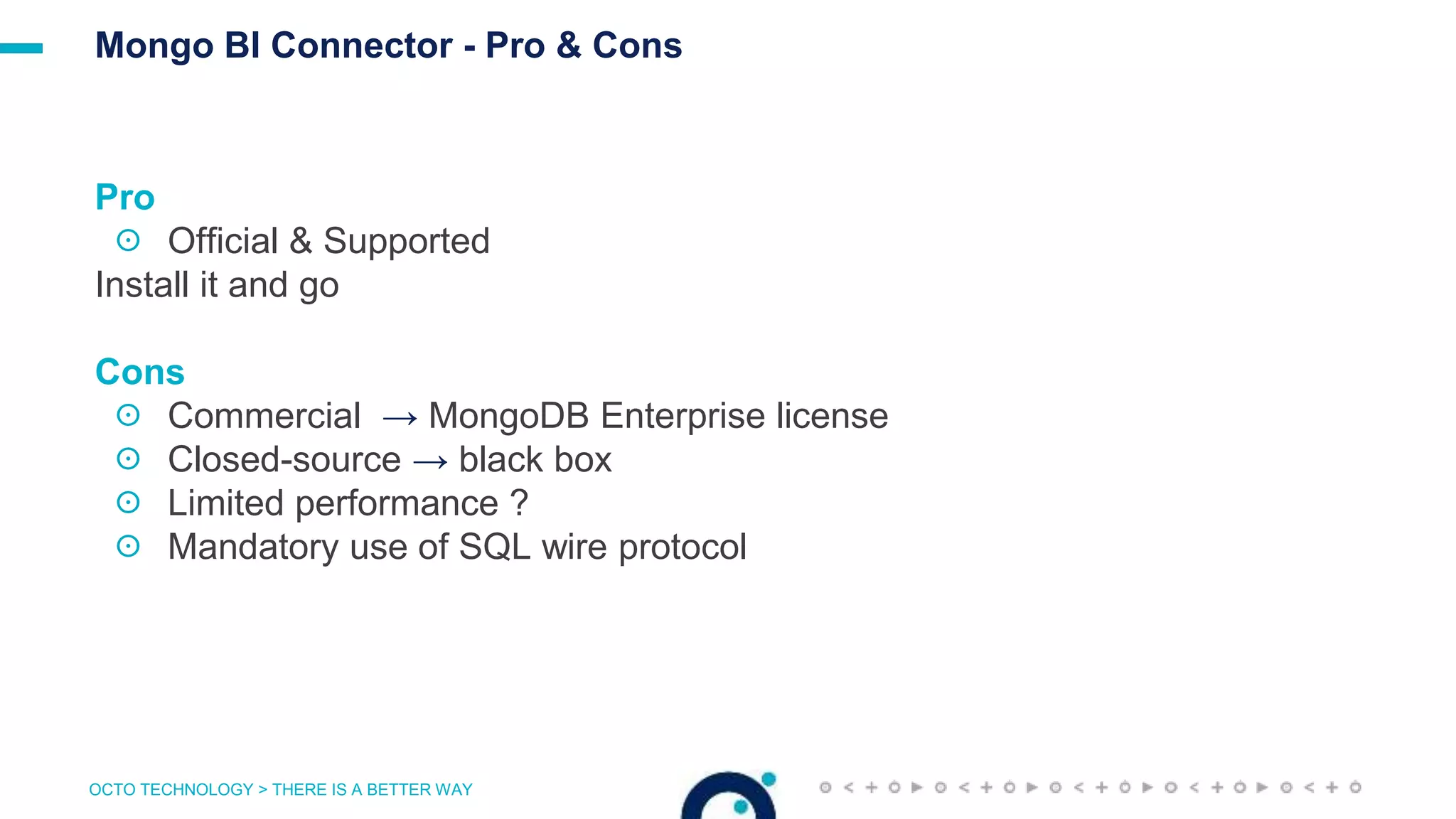

Mongo BI Connector - Pro & Cons
Pro
☉ Official & Supported
Install it and go
Cons
☉ Commercial → MongoDB Enterprise license
☉ Closed-source → black box
☉ Limited performance ?
☉ Mandatory use of SQL wire protocol

26. OCTO TECHNOLOGY > THERE IS A BETTER WAY
An open-source
solution ?>

27. OCTO TECHNOLOGY > THERE IS A BETTER WAY

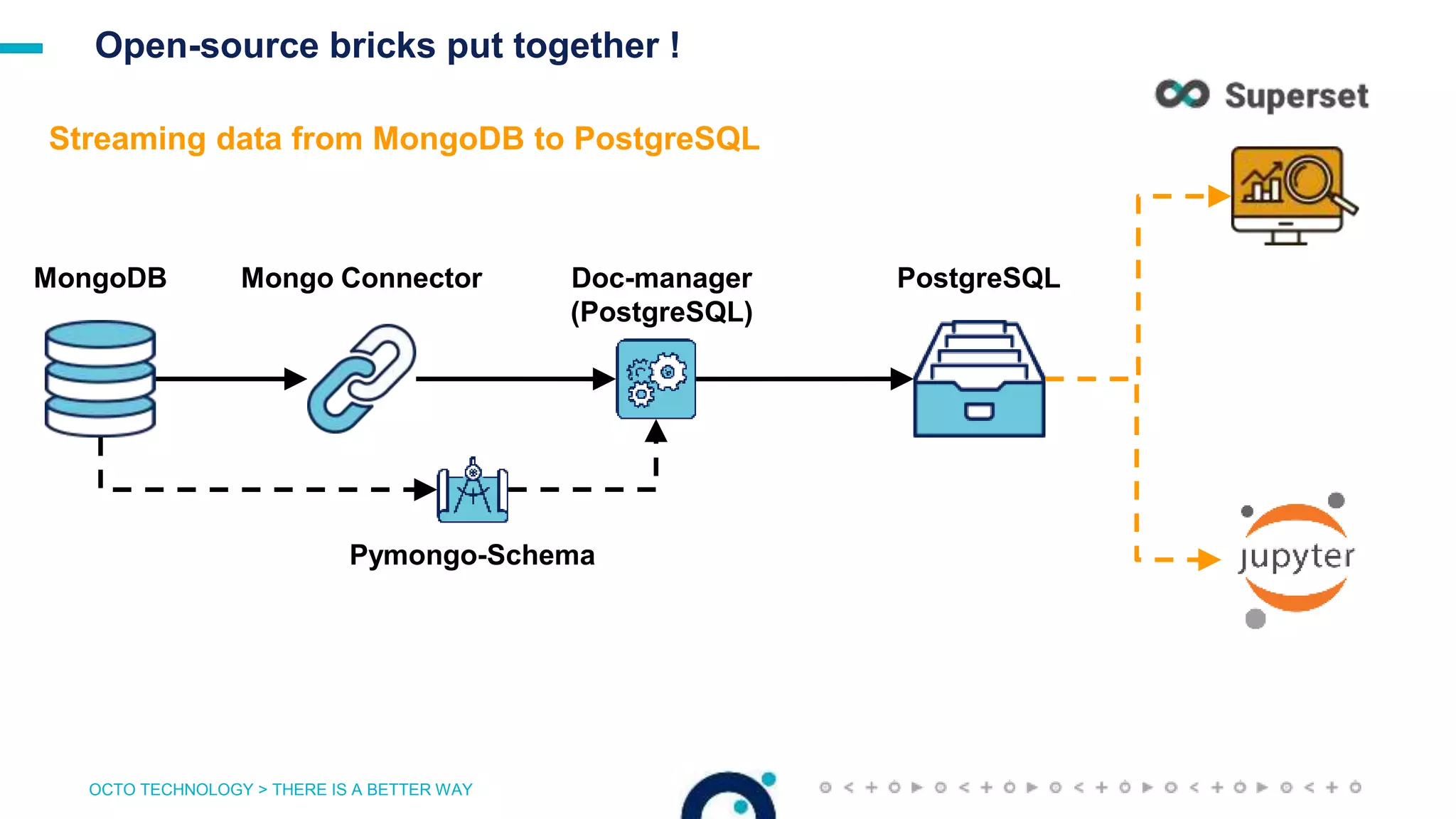

Open-source bricks put together !
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager
(PostgreSQL)
Streaming data from MongoDB to PostgreSQL

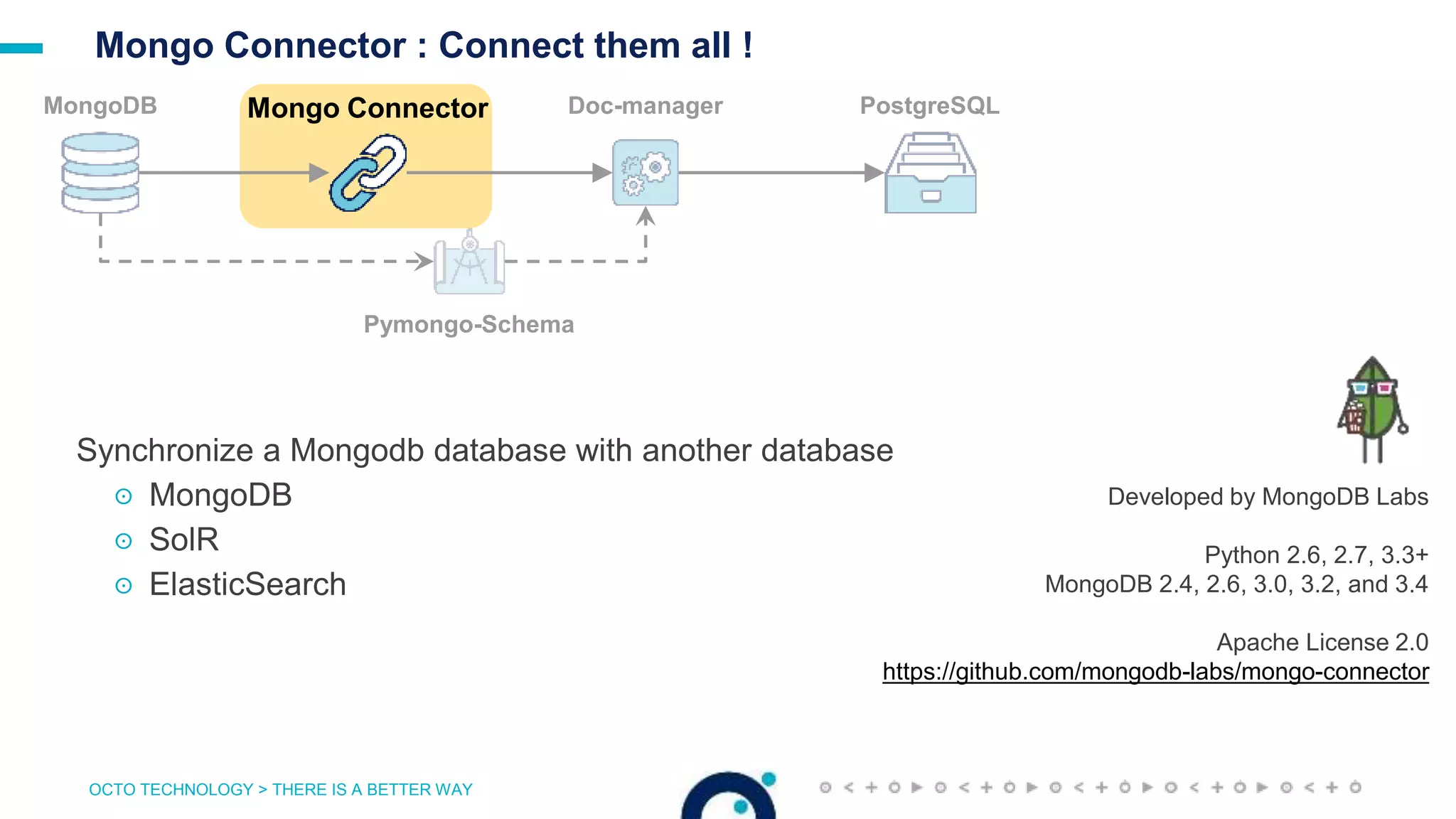

28. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Mongo Connector : Connect them all !
Developed by MongoDB Labs
Python 2.6, 2.7, 3.3+
MongoDB 2.4, 2.6, 3.0, 3.2, and 3.4
Apache License 2.0
https://github.com/mongodb-labs/mongo-connector
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager
Synchronize a Mongodb database with another database
☉ MongoDB
☉ SolR
☉ ElasticSearch

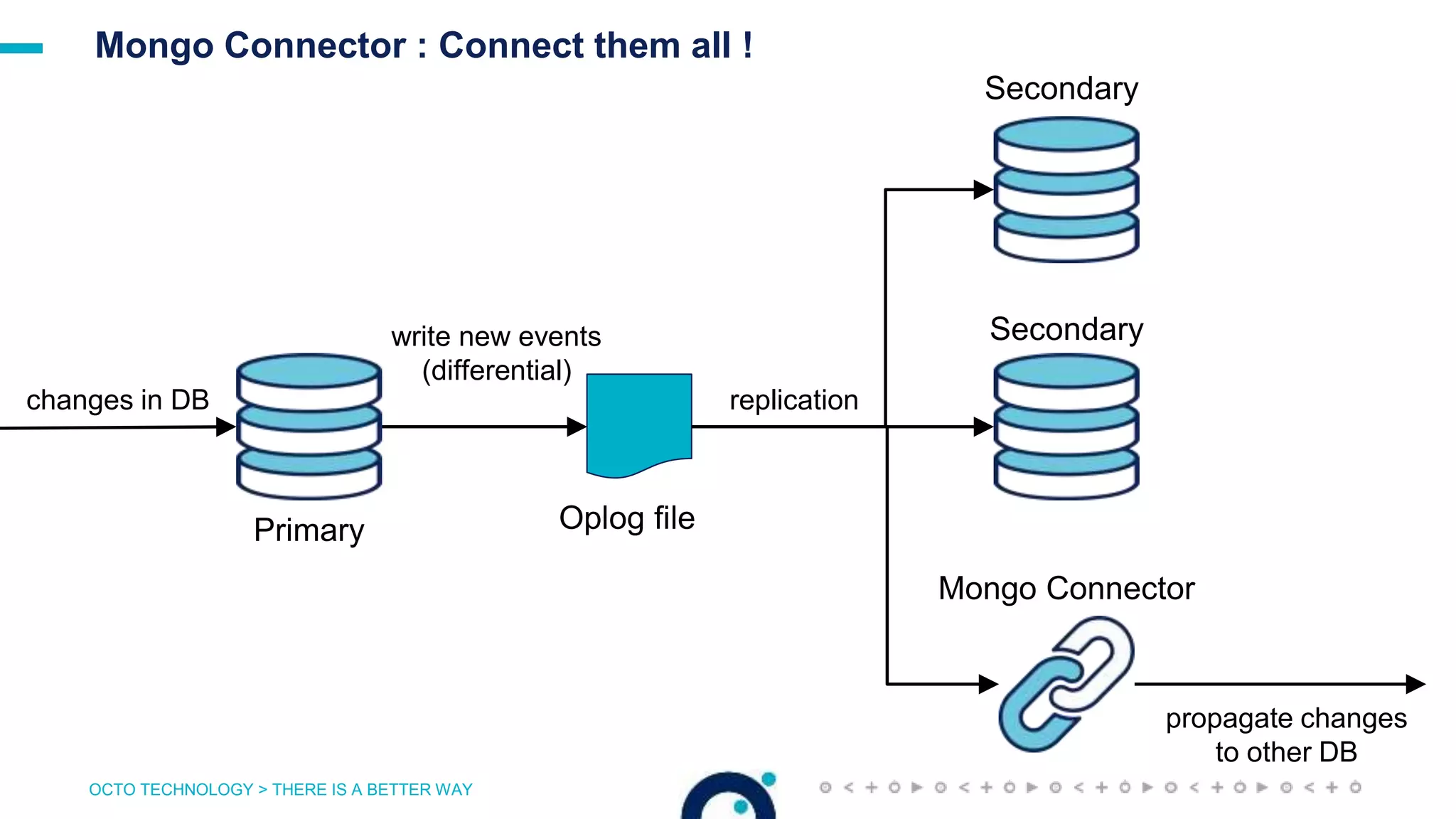

29. OCTO TECHNOLOGY > THERE IS A BETTER WAY

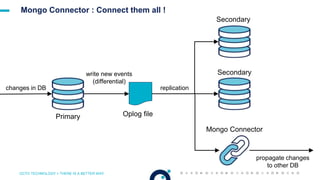

Mongo Connector : Connect them all !
changes in DB
write new events
(differential)
replication
Oplog file
propagate changes
to other DB
Primary
Secondary
Secondary
Mongo Connector

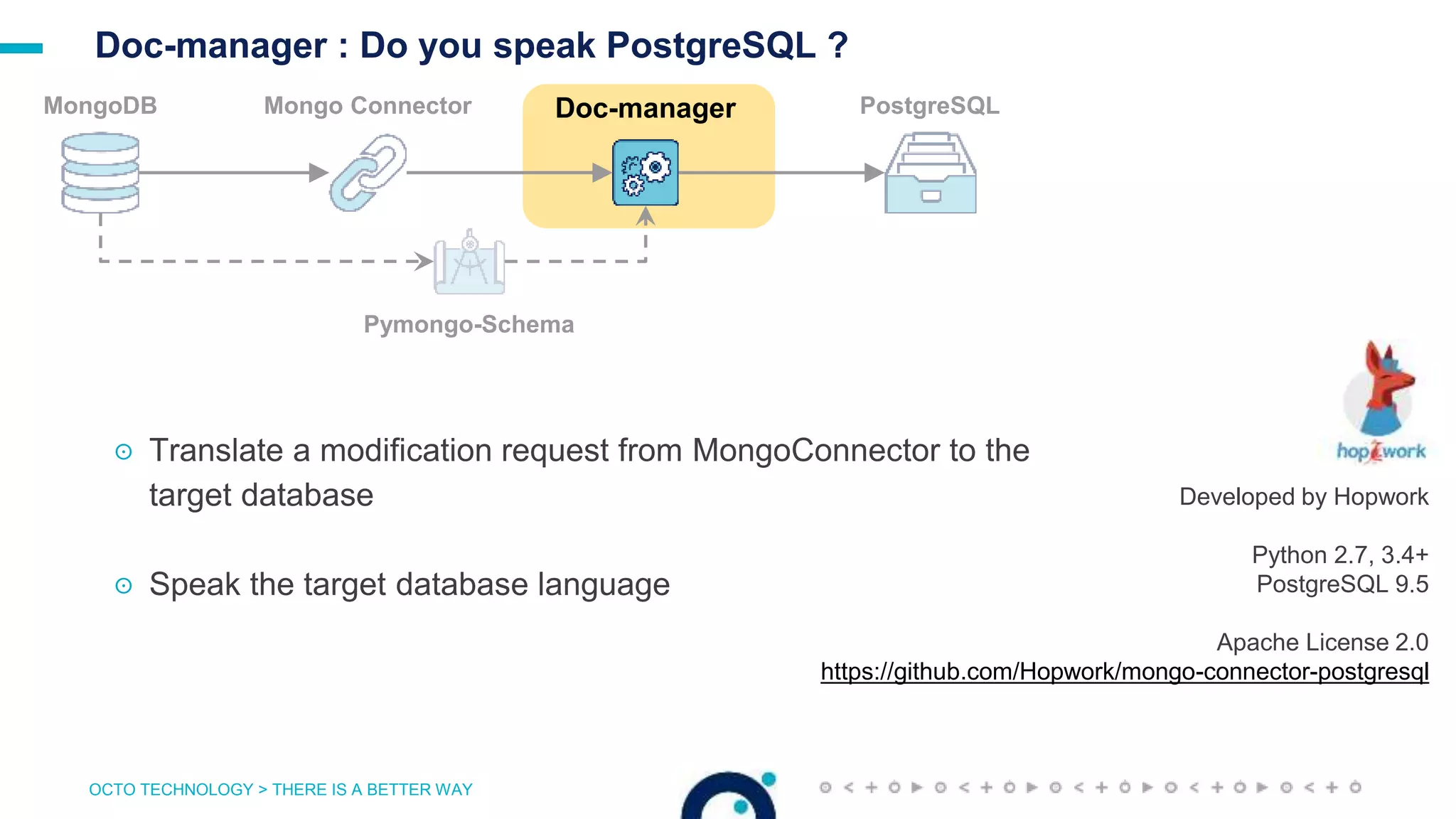

30. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Doc-manager : Do you speak PostgreSQL ?
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager
Developed by Hopwork
Python 2.7, 3.4+
PostgreSQL 9.5
Apache License 2.0
https://github.com/Hopwork/mongo-connector-postgresql
☉ Translate a modification request from MongoConnector to the
target database
☉ Speak the target database language

31. OCTO TECHNOLOGY > THERE IS A BETTER WAY
{
_id: “12”,
f1: “fu”,
f2: true,
f3: 42,
f4: {
sf1: “pyparis”
sf2: 2017
},
f5: [
“fu”,
“bar”,
“fubar”
]
}

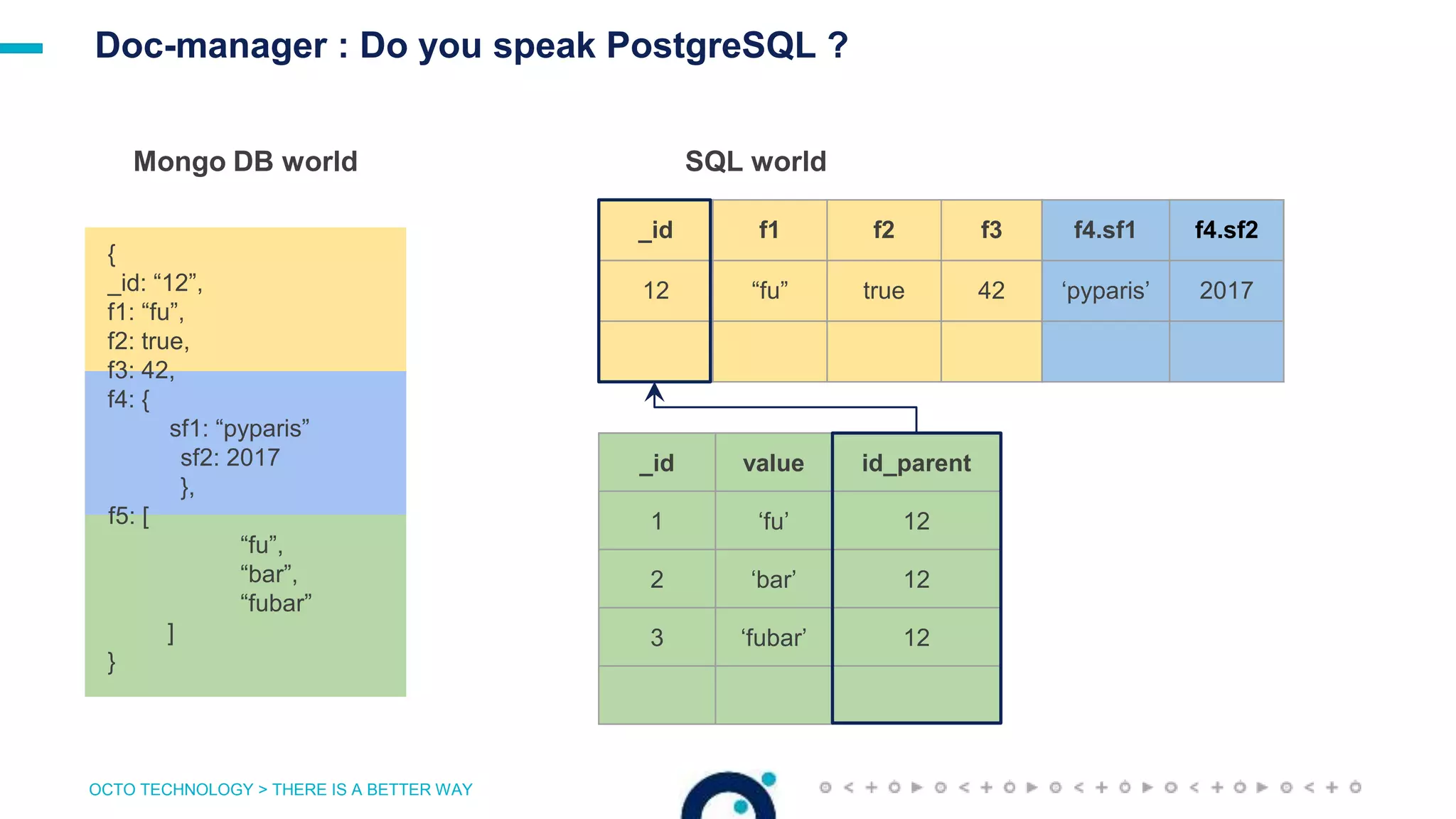

Doc-manager : Do you speak PostgreSQL ?
_id f1 f2 f3
12 “fu” true 42
_id value id_parent
1 ‘fu’ 12
2 ‘bar’ 12
3 ‘fubar’ 12
f4.sf1 f4.sf2
‘pyparis’ 2017
Mongo DB world SQL world

32. OCTO TECHNOLOGY > THERE IS A BETTER WAY

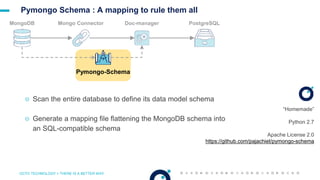

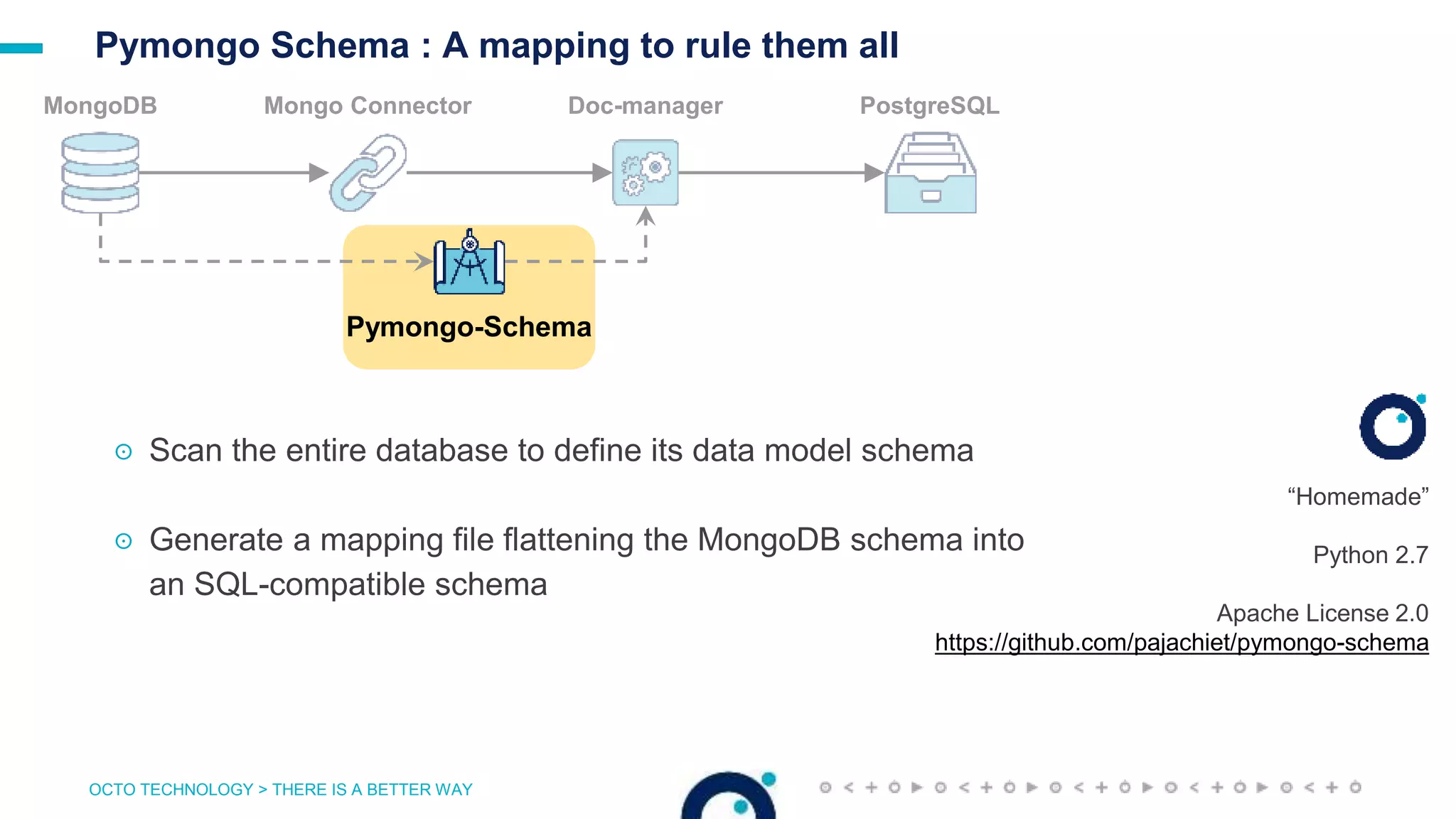

Pymongo Schema : A mapping to rule them all
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager
“Homemade”
Python 2.7
Apache License 2.0
https://github.com/pajachiet/pymongo-schema
☉ Scan the entire database to define its data model schema
☉ Generate a mapping file flattening the MongoDB schema into
an SQL-compatible schema

33. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Demo>

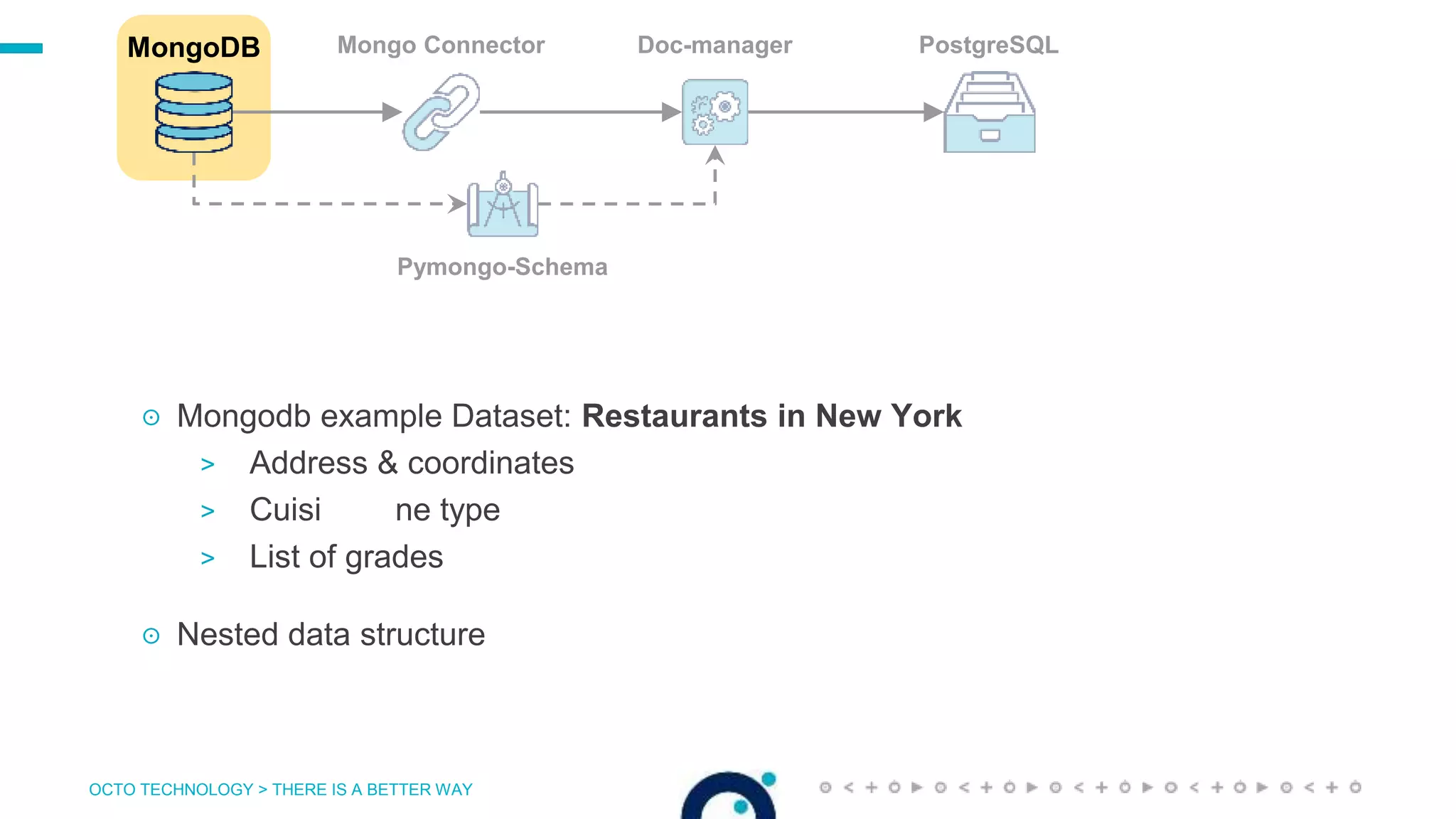

34. OCTO TECHNOLOGY > THERE IS A BETTER WAY
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager

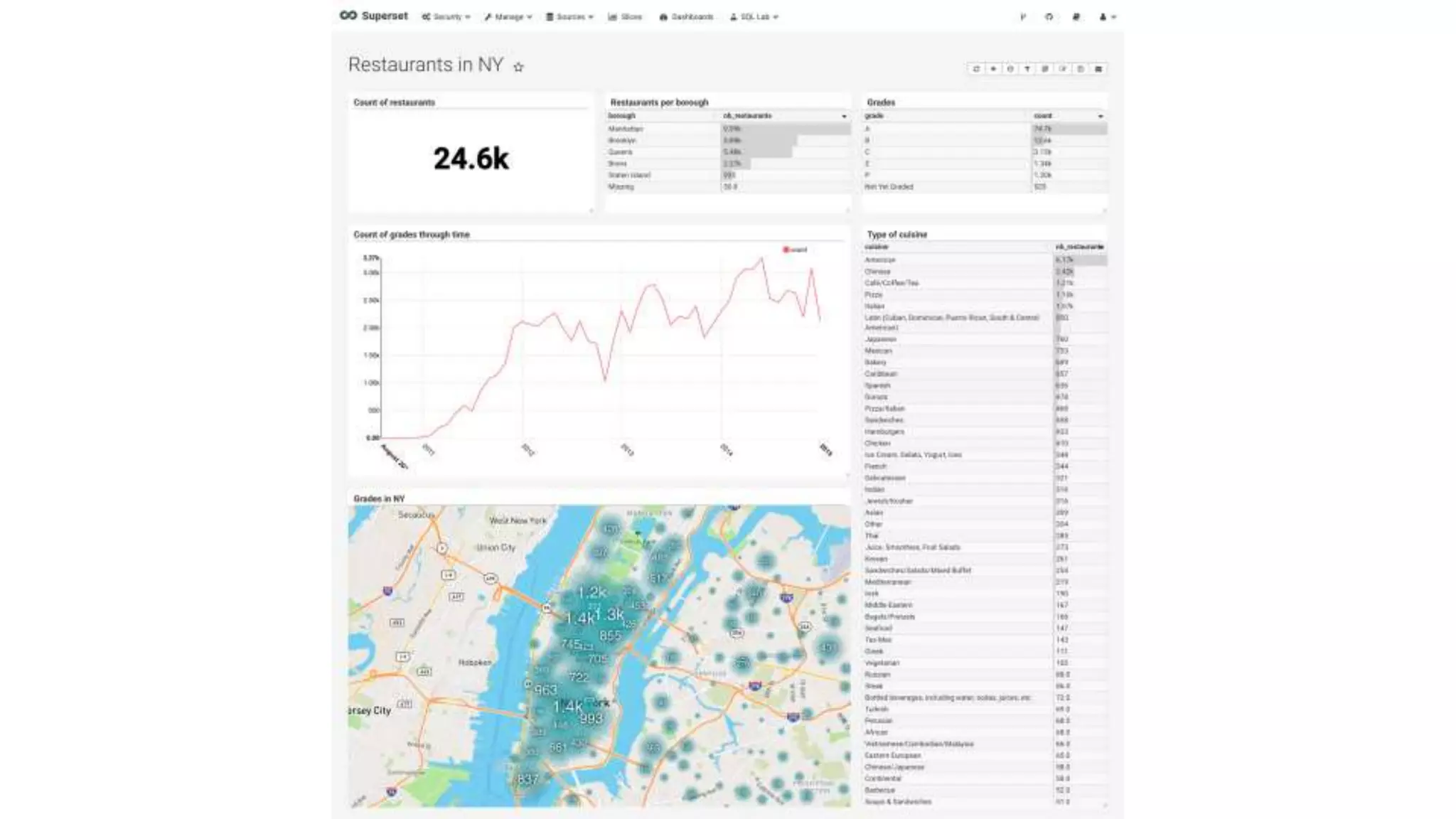

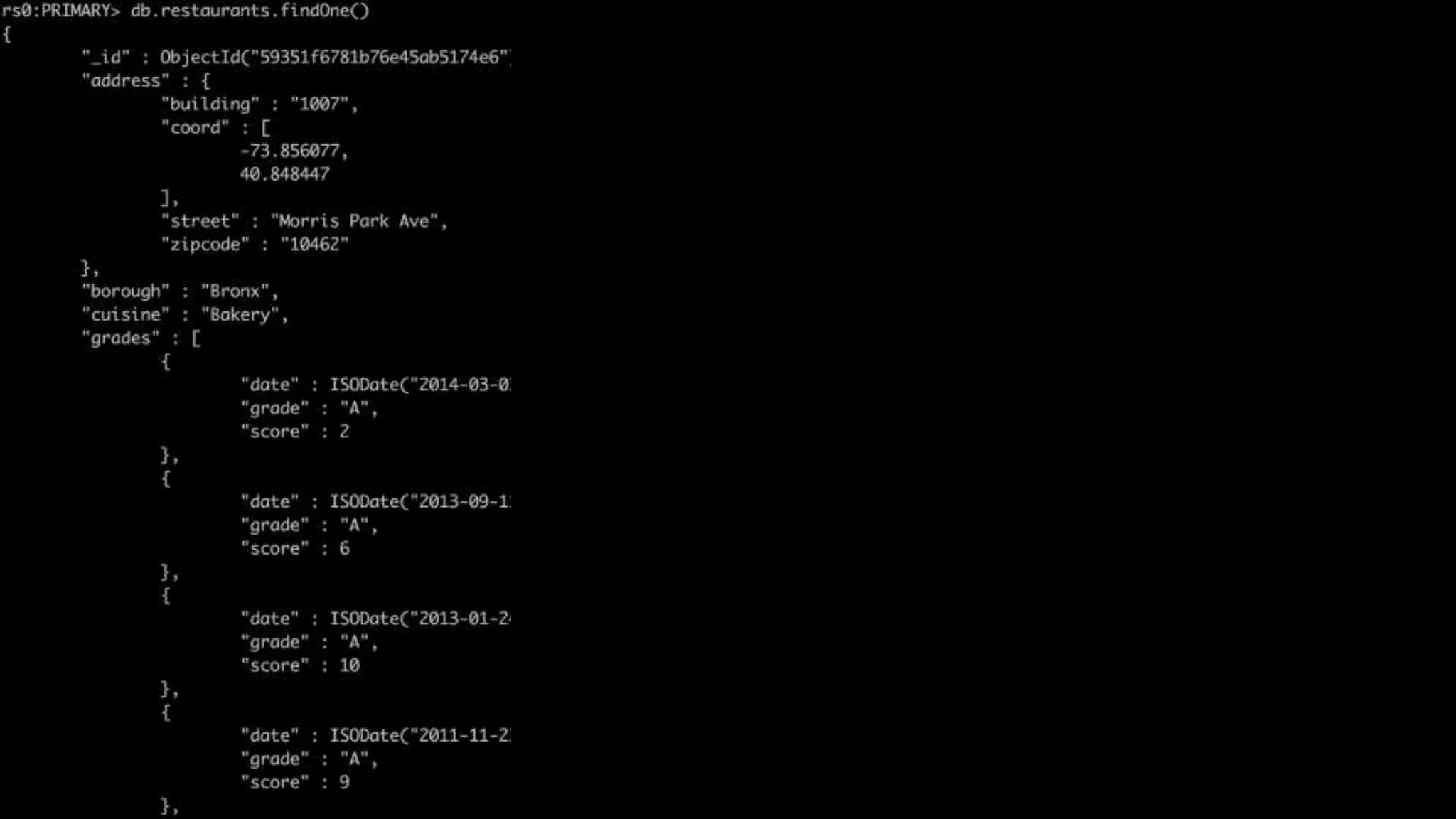

☉ Mongodb example Dataset: Restaurants in New York
> Address & coordinates
> Cuisi ne type
> List of grades
☉ Nested data structure

35. OCTO TECHNOLOGY > THERE IS A BETTER WAY

36. OCTO TECHNOLOGY > THERE IS A BETTER WAY
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager

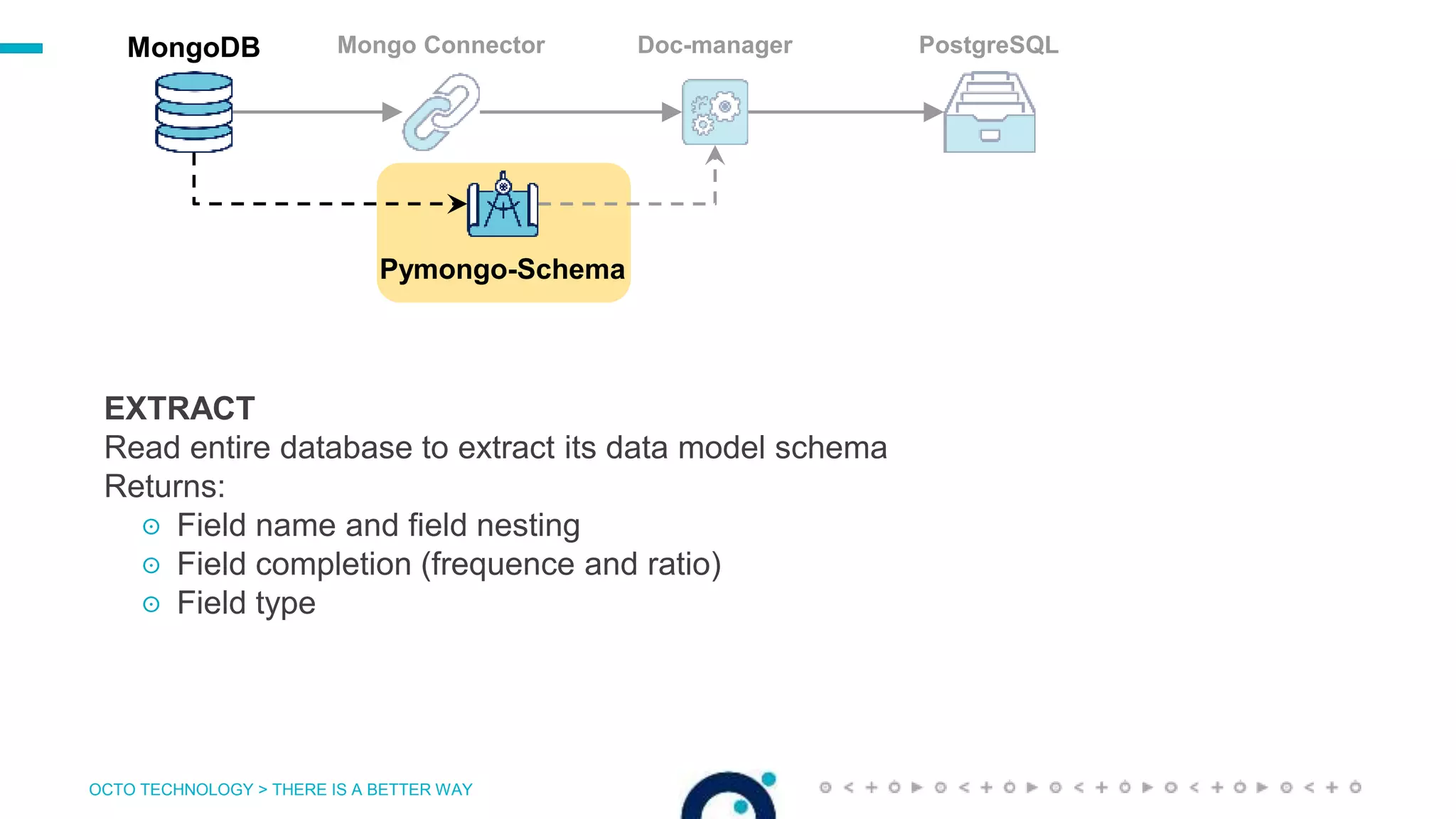

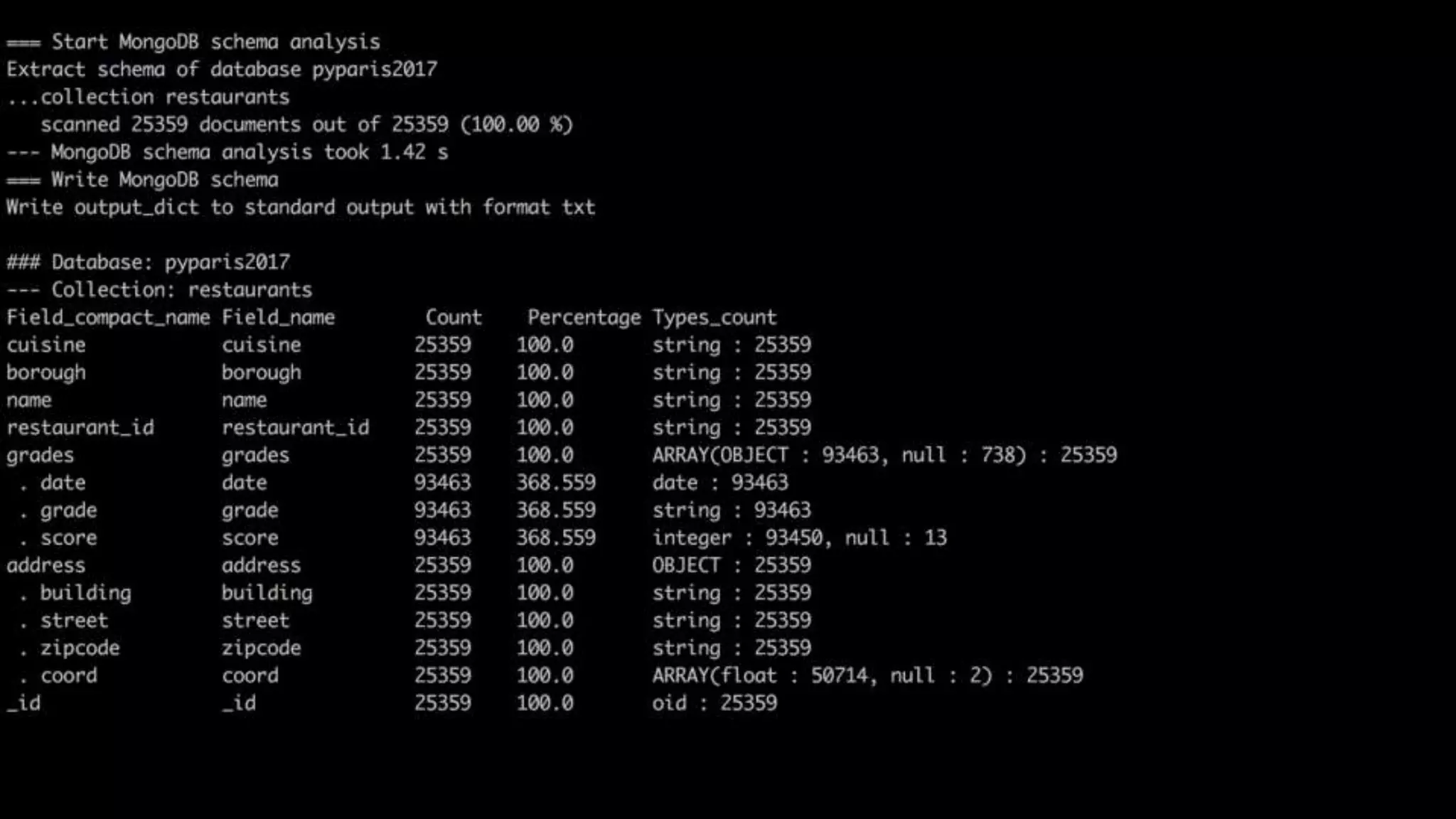

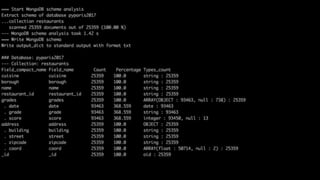

EXTRACT
Read entire database to extract its data model schema
Returns:
☉ Field name and field nesting
☉ Field completion (frequence and ratio)
☉ Field type

37. OCTO TECHNOLOGY > THERE IS A BETTER WAY

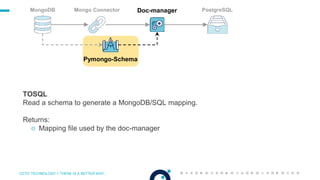

38. OCTO TECHNOLOGY > THERE IS A BETTER WAY
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager

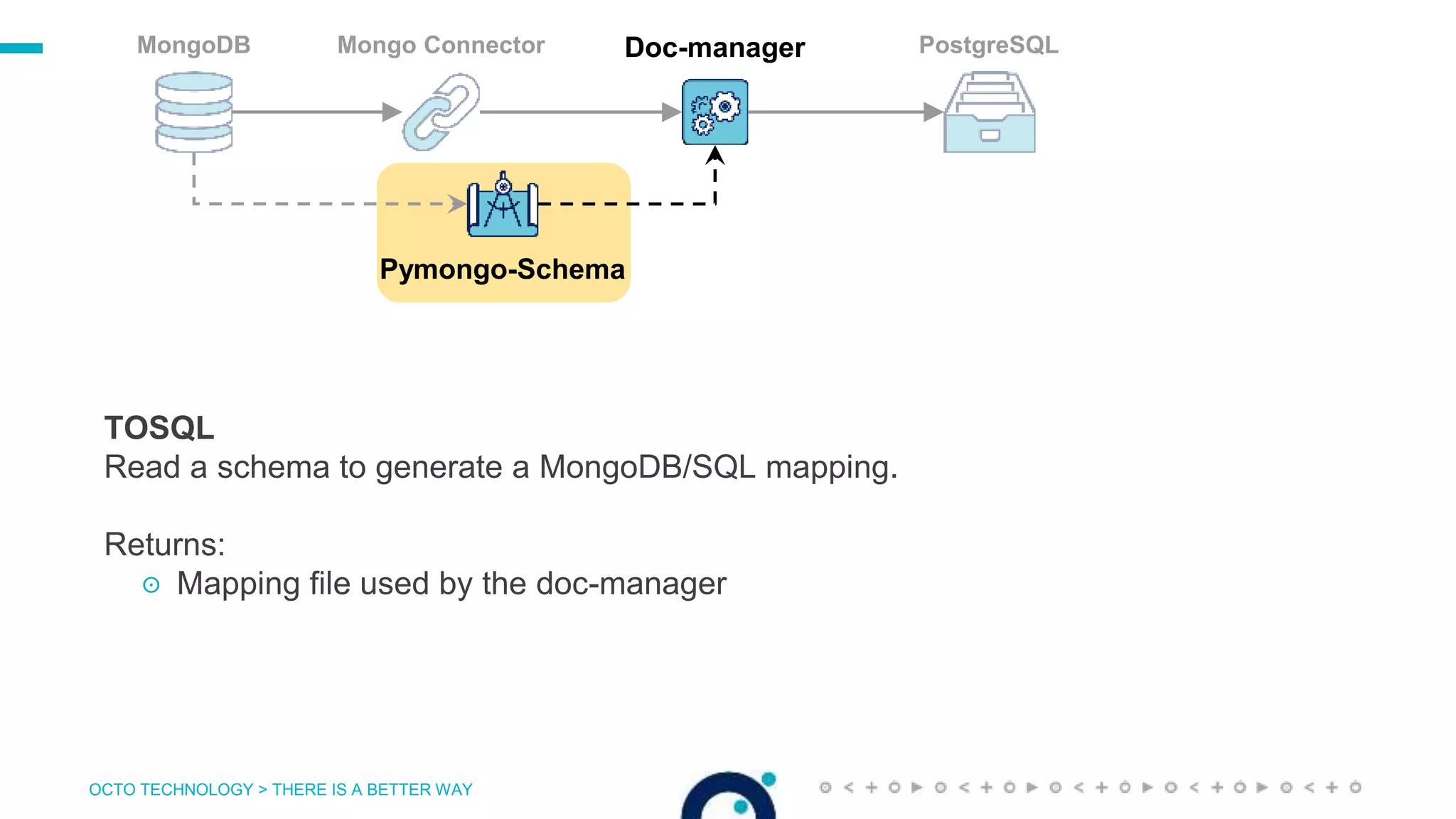

TOSQL
Read a schema to generate a MongoDB/SQL mapping.
Returns:
☉ Mapping file used by the doc-manager

39. OCTO TECHNOLOGY > THERE IS A BETTER WAY

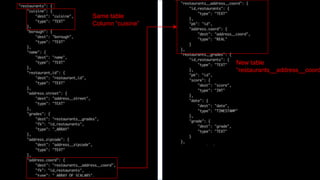

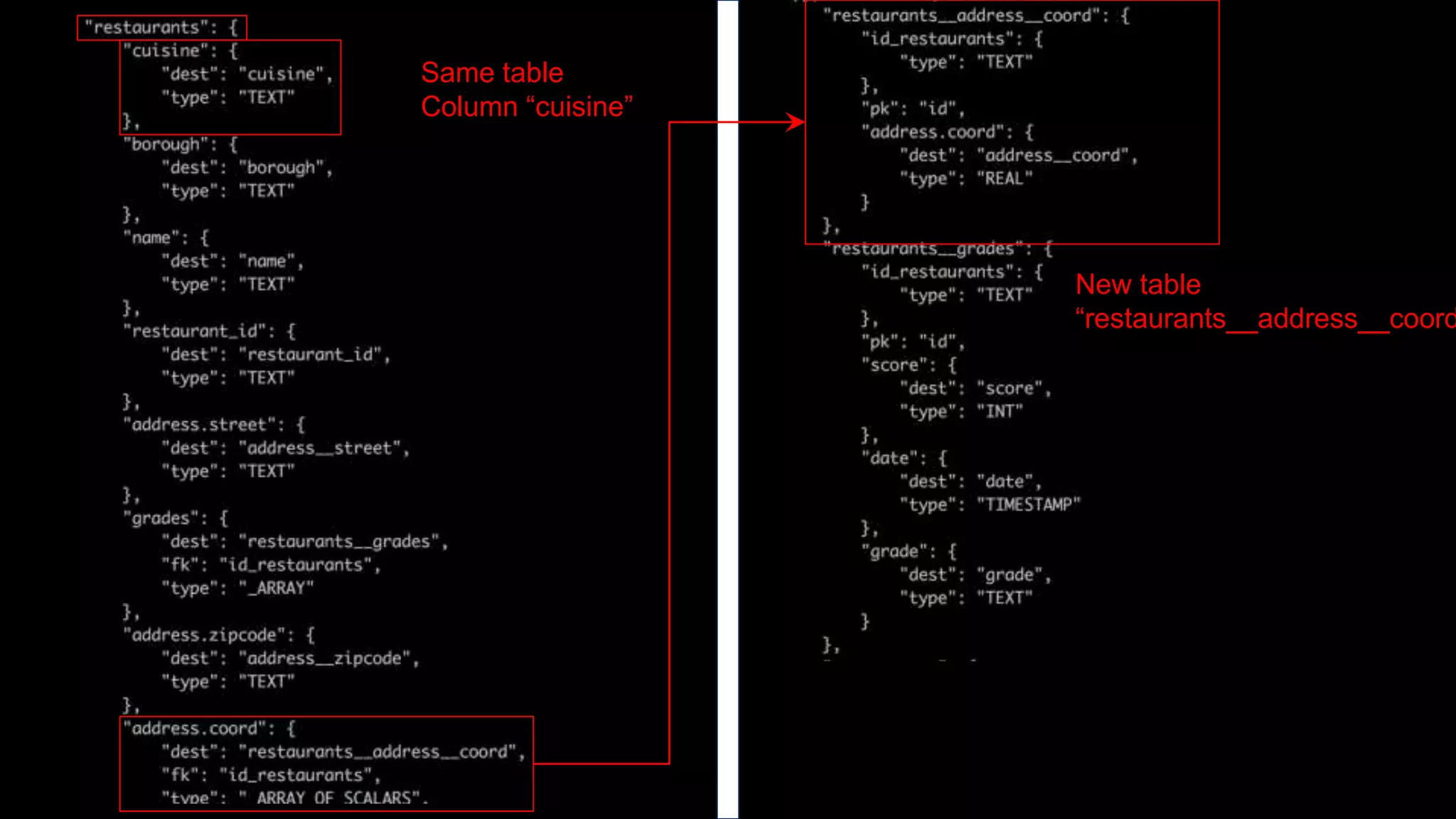

Same table
Column “cuisine”
New table
“restaurants__address__coord

40. OCTO TECHNOLOGY > THERE IS A BETTER WAY
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager

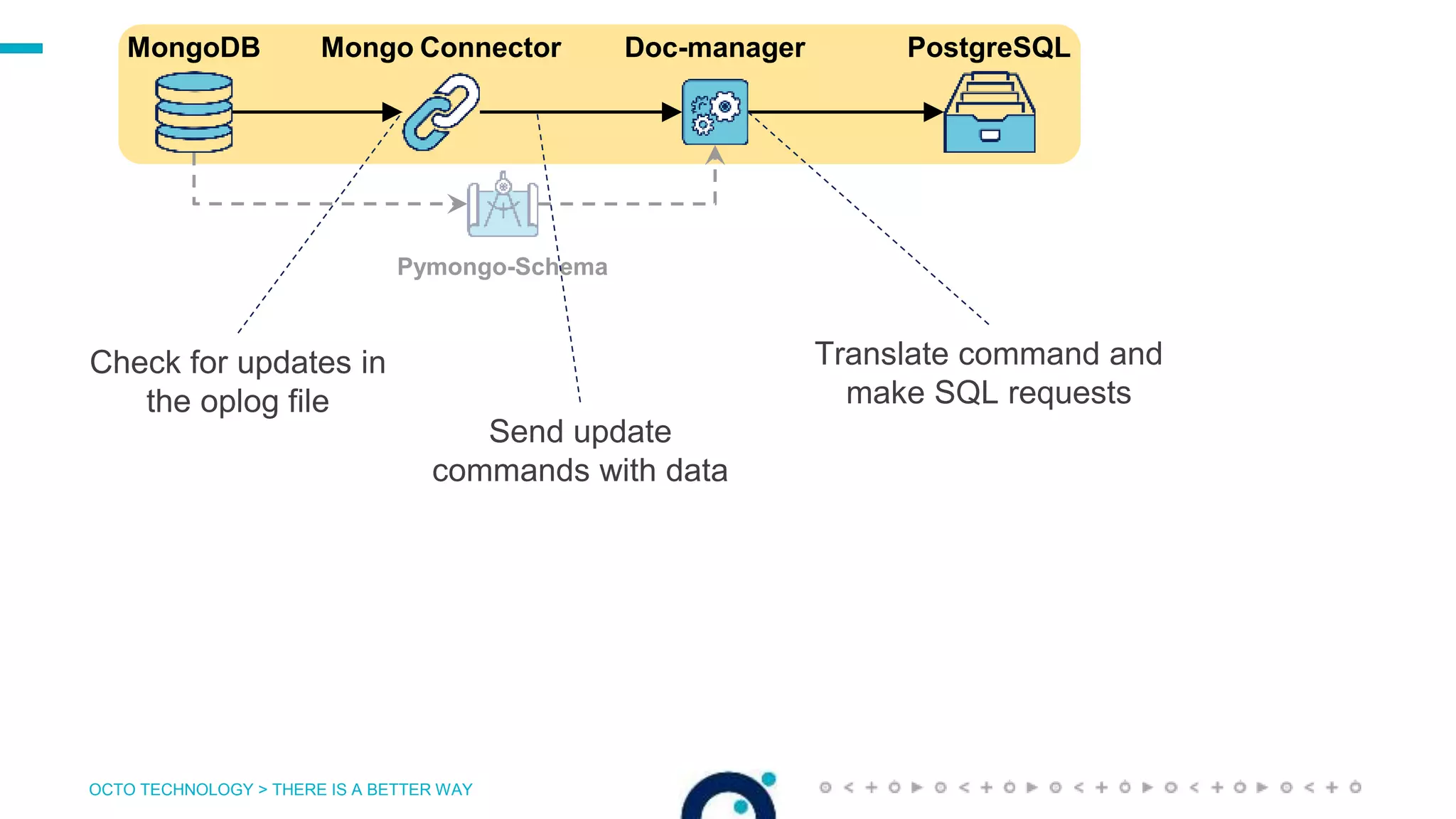

Check for updates in
the oplog file
Send update
commands with data
Translate command and
make SQL requests

41. OCTO TECHNOLOGY > THERE IS A BETTER WAY

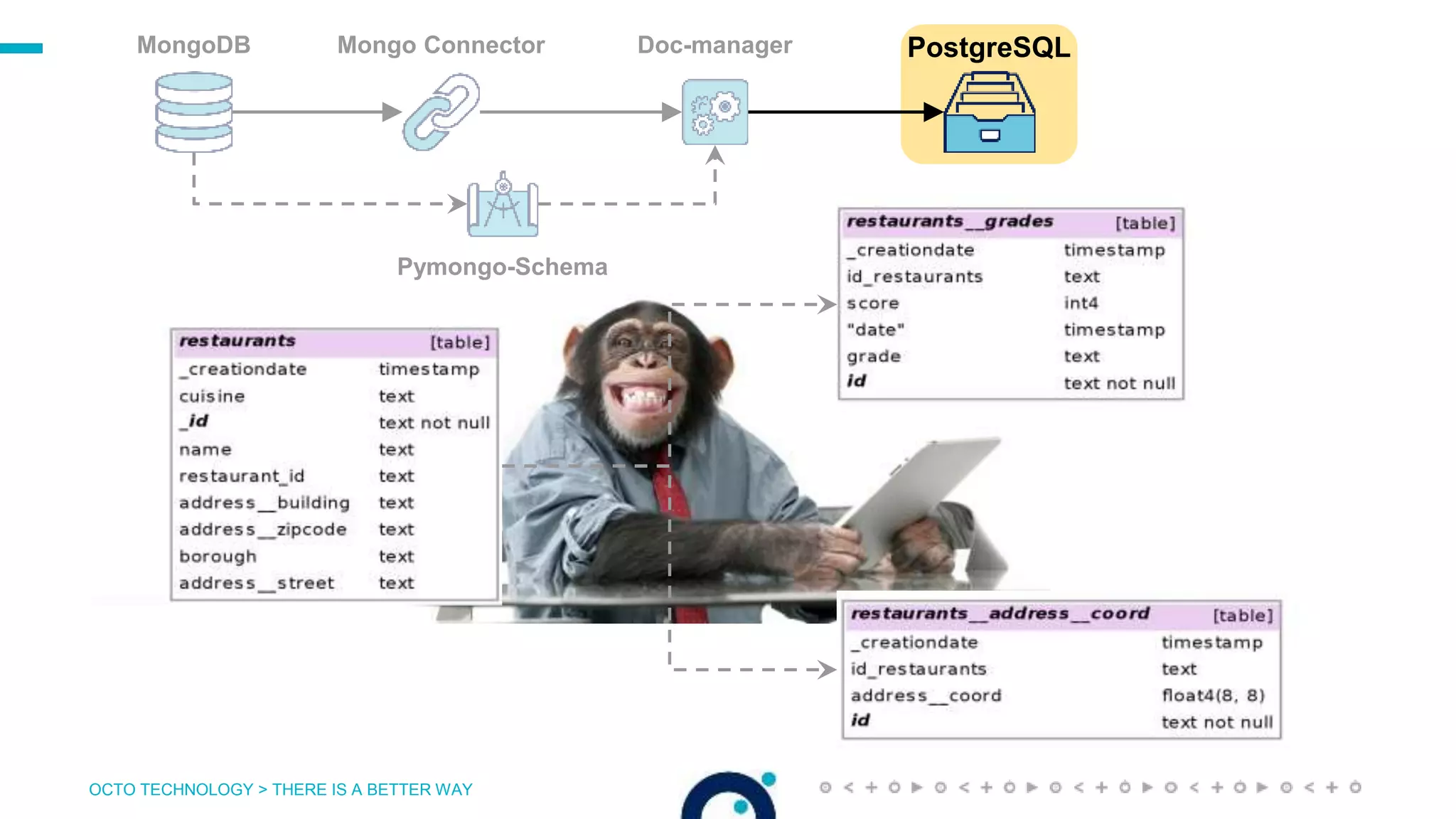

PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager

42. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Time to play with your
analytics tools>

43. OCTO TECHNOLOGY > THERE IS A BETTER WAY

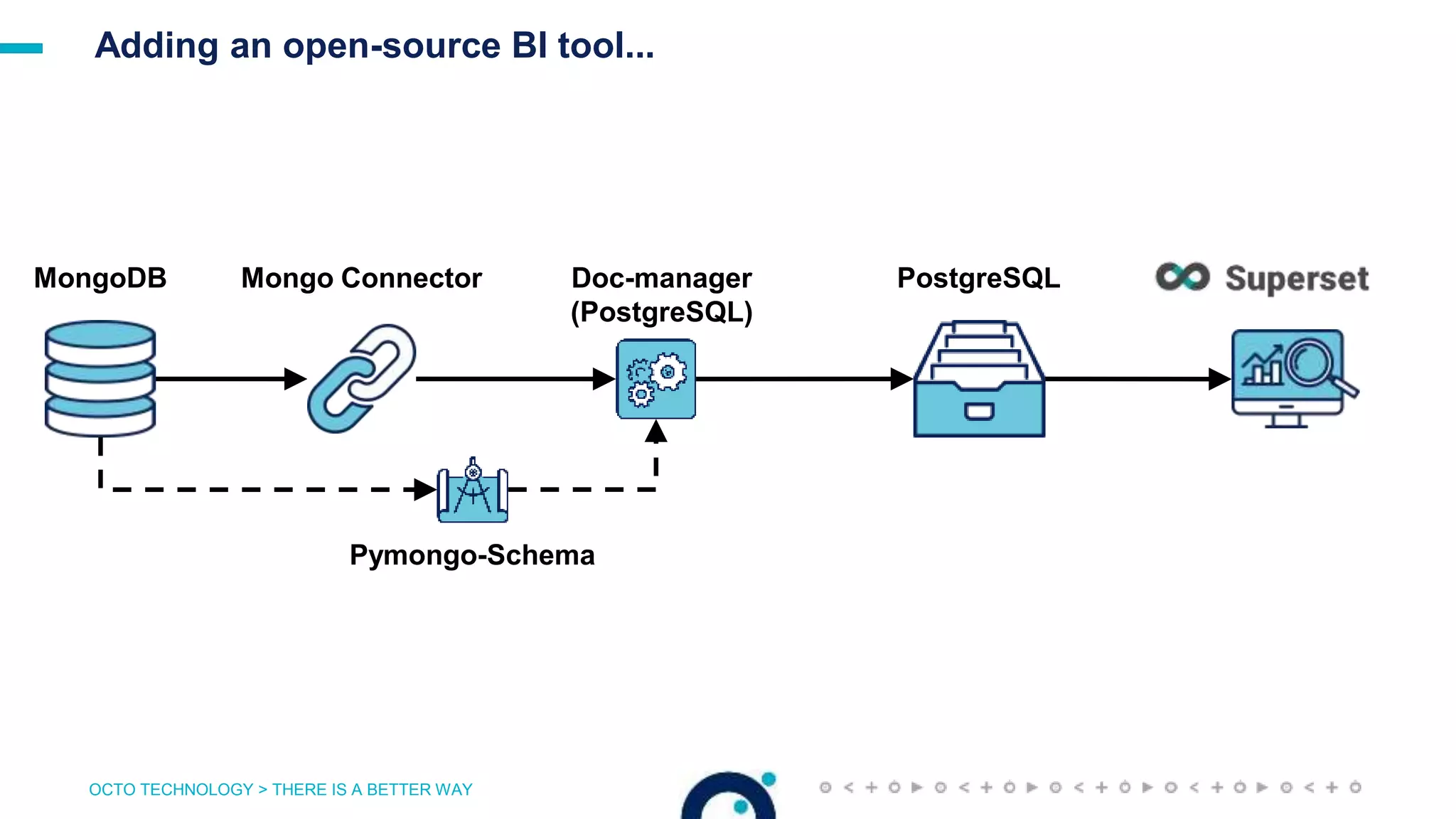

Adding an open-source BI tool...
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager
(PostgreSQL)

44. OCTO TECHNOLOGY > THERE IS A BETTER WAY

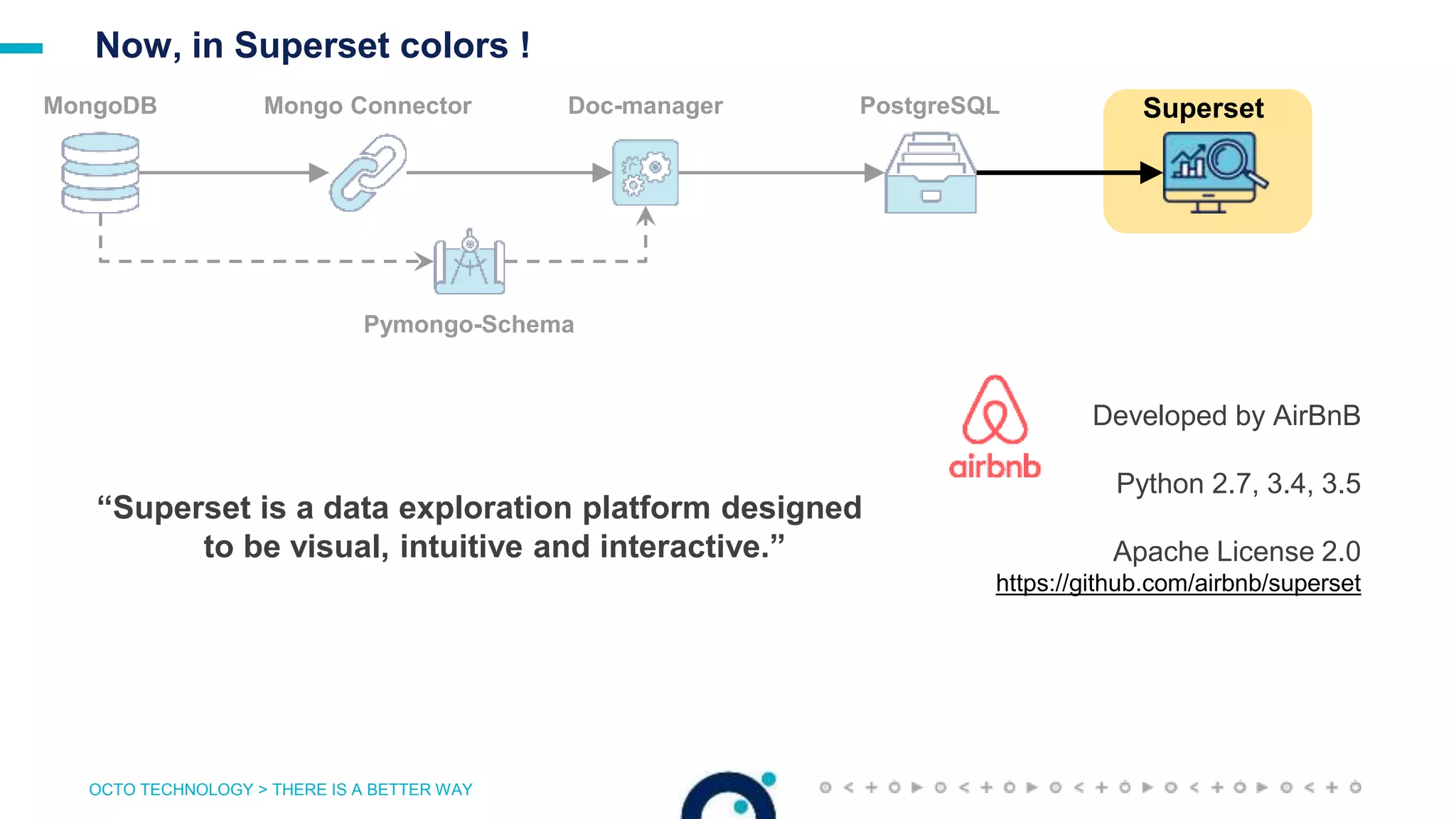

Now, in Superset colors !
“Superset is a data exploration platform designed
to be visual, intuitive and interactive.”
PostgreSQLMongoDB Mongo Connector
Pymongo-Schema
Doc-manager
Developed by AirBnB
Python 2.7, 3.4, 3.5
Apache License 2.0
https://github.com/airbnb/superset
Superset

47. OCTO TECHNOLOGY > THERE IS A BETTER WAY

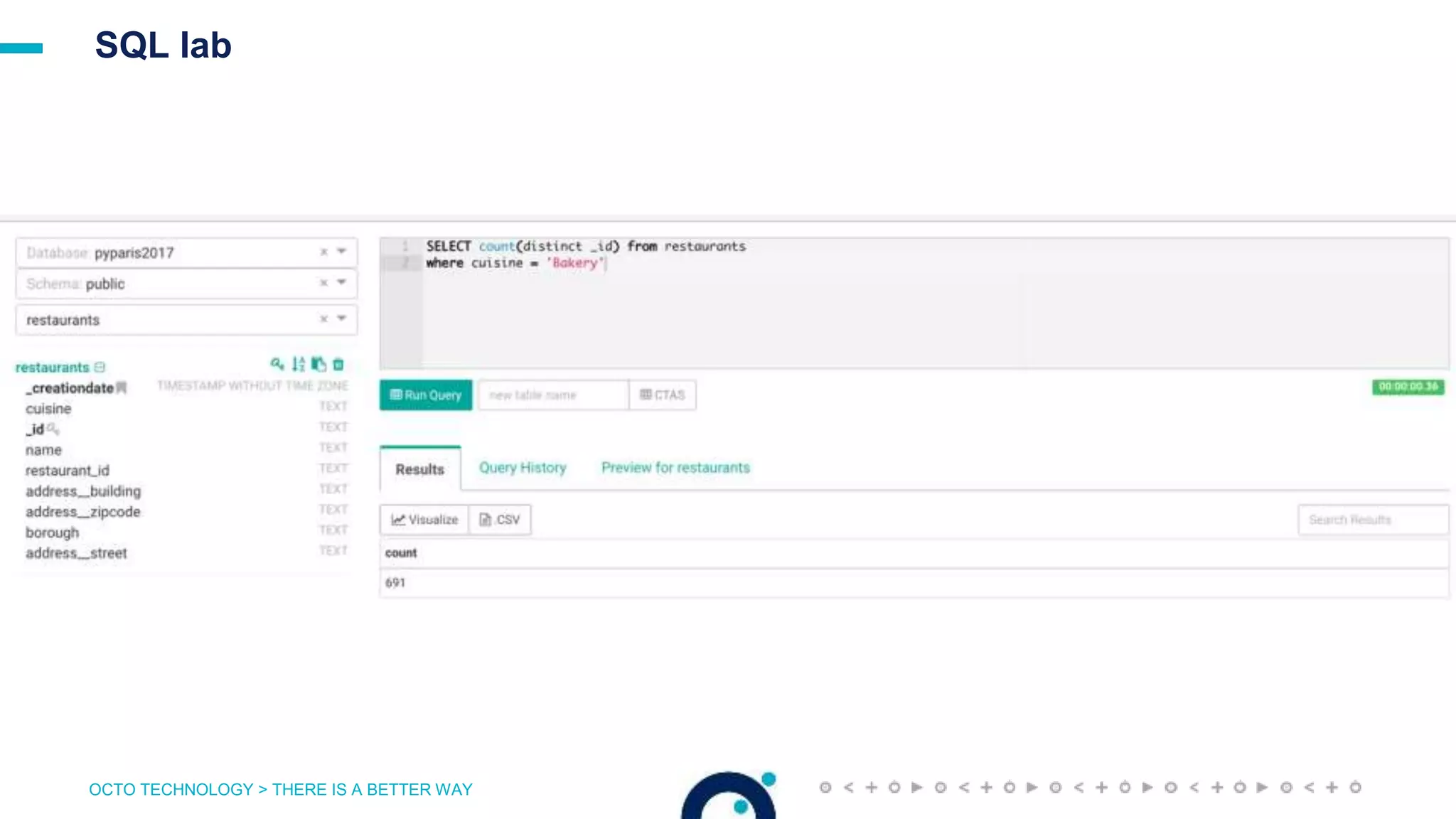

SQL lab

48. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Wrap up>

49. OCTO TECHNOLOGY > THERE IS A BETTER WAY

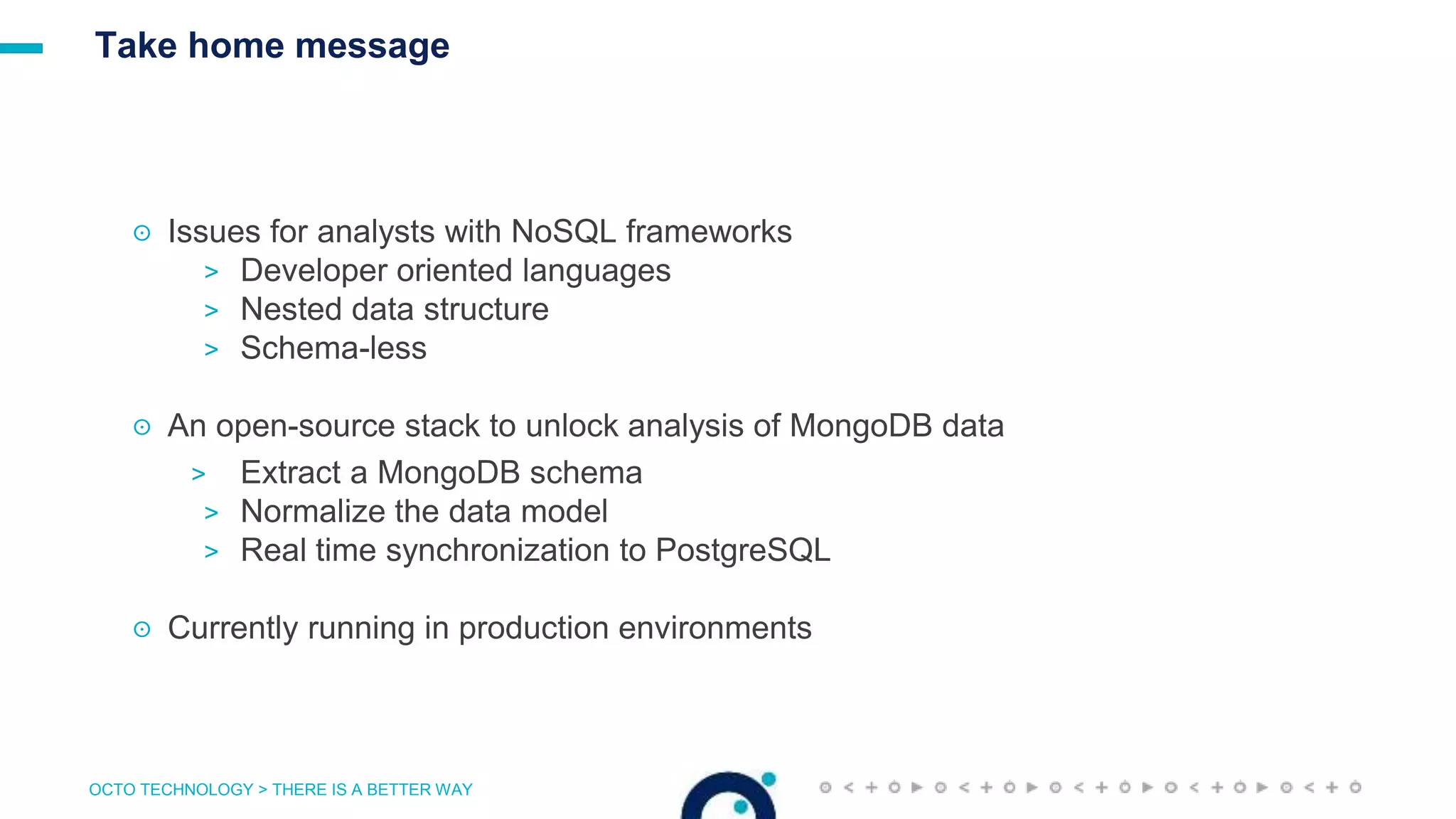

Take home message
☉ Issues for analysts with NoSQL frameworks
> Developer oriented languages
> Nested data structure
> Schema-less
☉ An open-source stack to unlock analysis of MongoDB data
> Extract a MongoDB schema
> Normalize the data model
> Real time synchronization to PostgreSQL
☉ Currently running in production environments

50. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Come, use and contribute ! :)
pajachiet@octo.com
agervasi@octo.com
https://github.com/mongodb-labs/mongo-connector
https://github.com/Hopwork/mongo-connector-postgresql
https://github.com/pajachiet/pymongo-schema
https://github.com/airbnb/superset

52. OCTO TECHNOLOGY > THERE IS A BETTER WAY
Bien rappeler qu’on est sur une stack open-source
☉ Collaborative
☉ Gratuite
But hey ! It’s Open-Source !

53. OCTO TECHNOLOGY > THERE IS A BETTER WAY 53OCTO TECHNOLOGY > THERE IS A BETTER WAY
« J’analyse mes données
pour me comprendre »
« J’apprends
automatiquement à réaliser
des tâches complexes à partir
des données »
« Je me dote d’outils avancés
me permettant des analyses
complexes et interactives »
Dataviz
Search
Statistics
Organisation pilotée
par la donnée
Learning

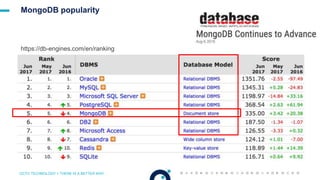

54. OCTO TECHNOLOGY > THERE IS A BETTER WAY

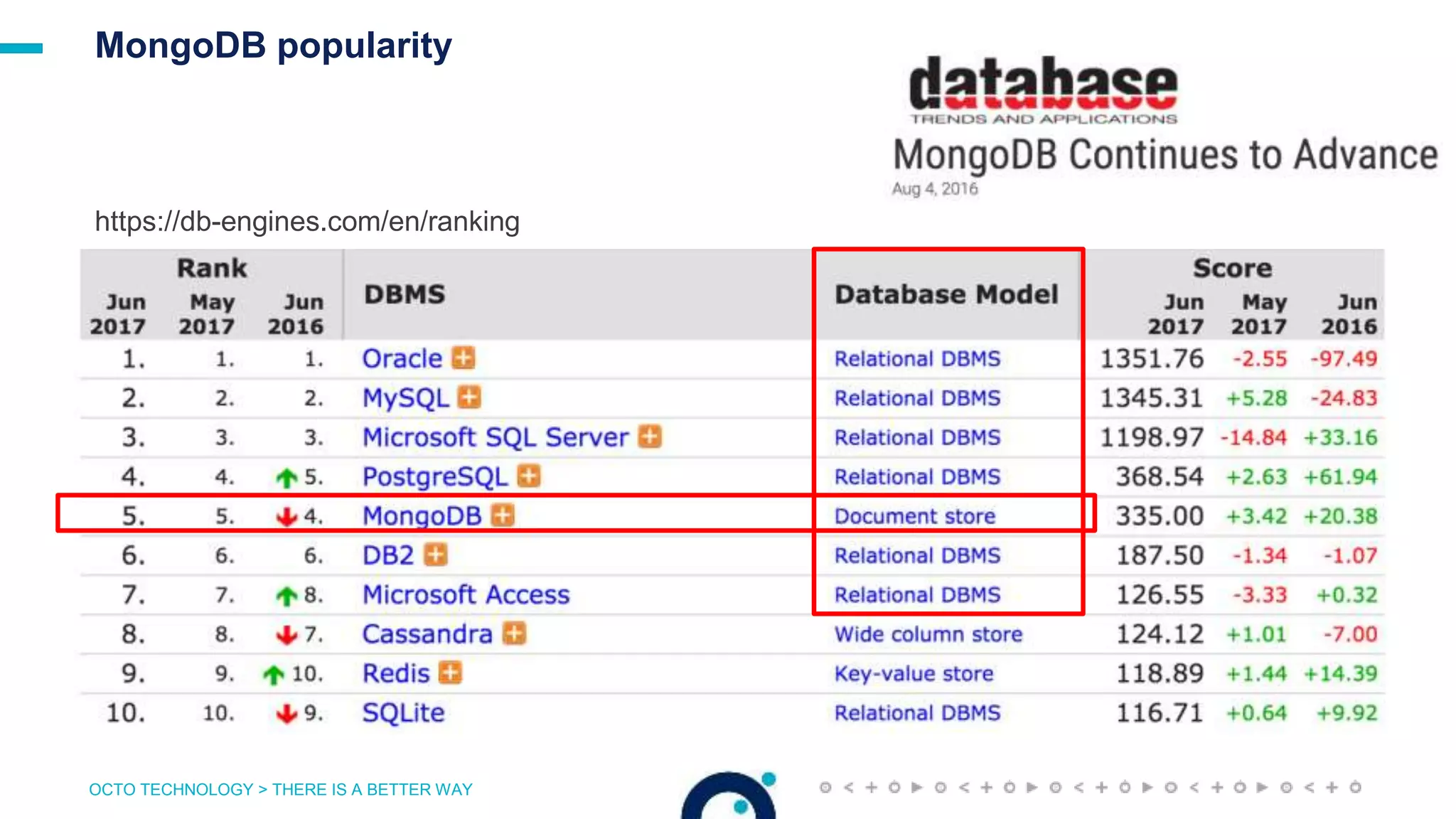

MongoDB popularity
https://db-engines.com/en/ranking

55. OCTO TECHNOLOGY > THERE IS A BETTER WAY

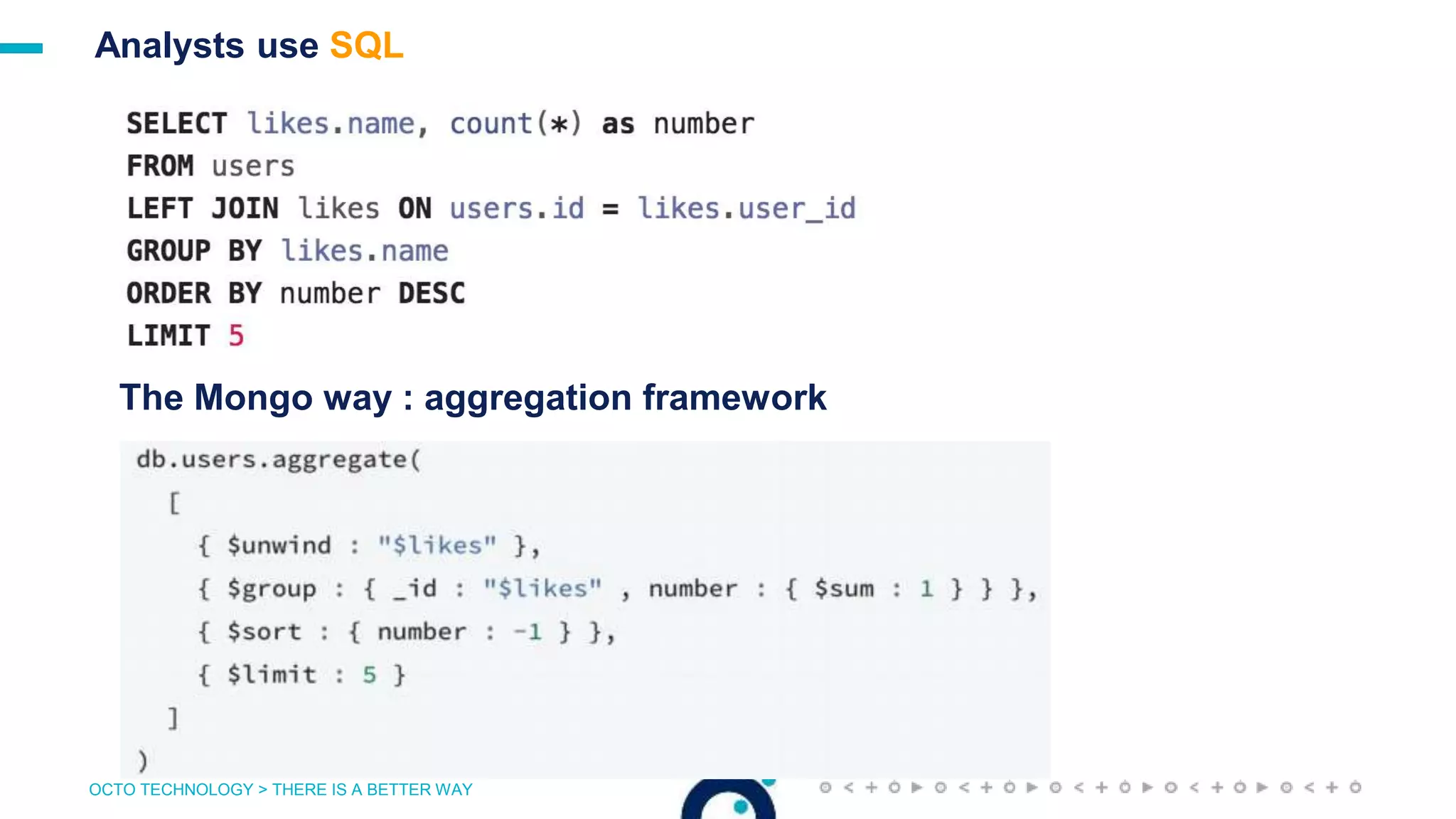

Analysts use SQL
The Mongo way : aggregation framework

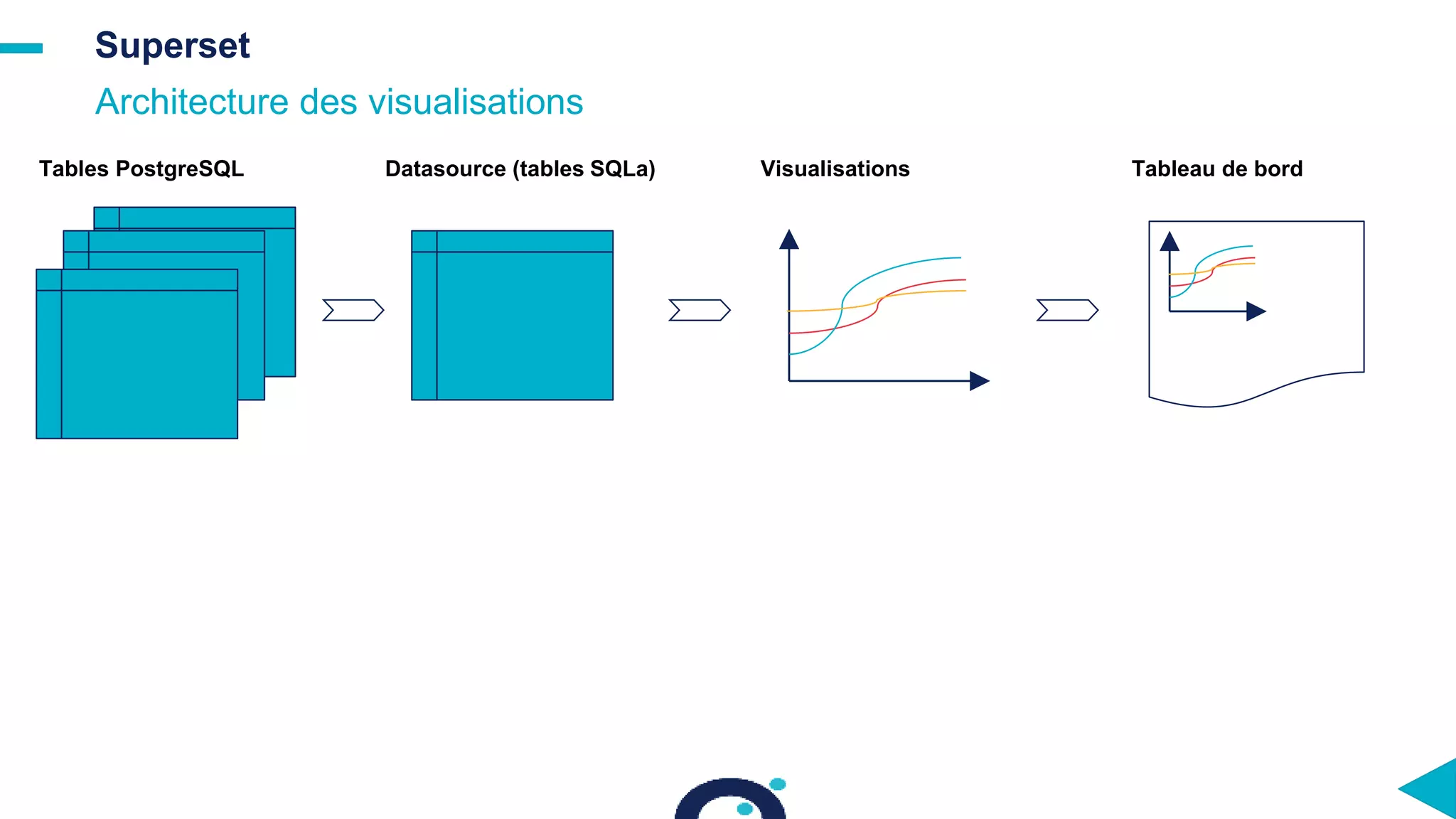

56. Superset
Architecture des visualisations
Datasource (tables SQLa)Tables PostgreSQL Visualisations Tableau de bord

57. OCTO TECHNOLOGY > THERE IS A BETTER WAY

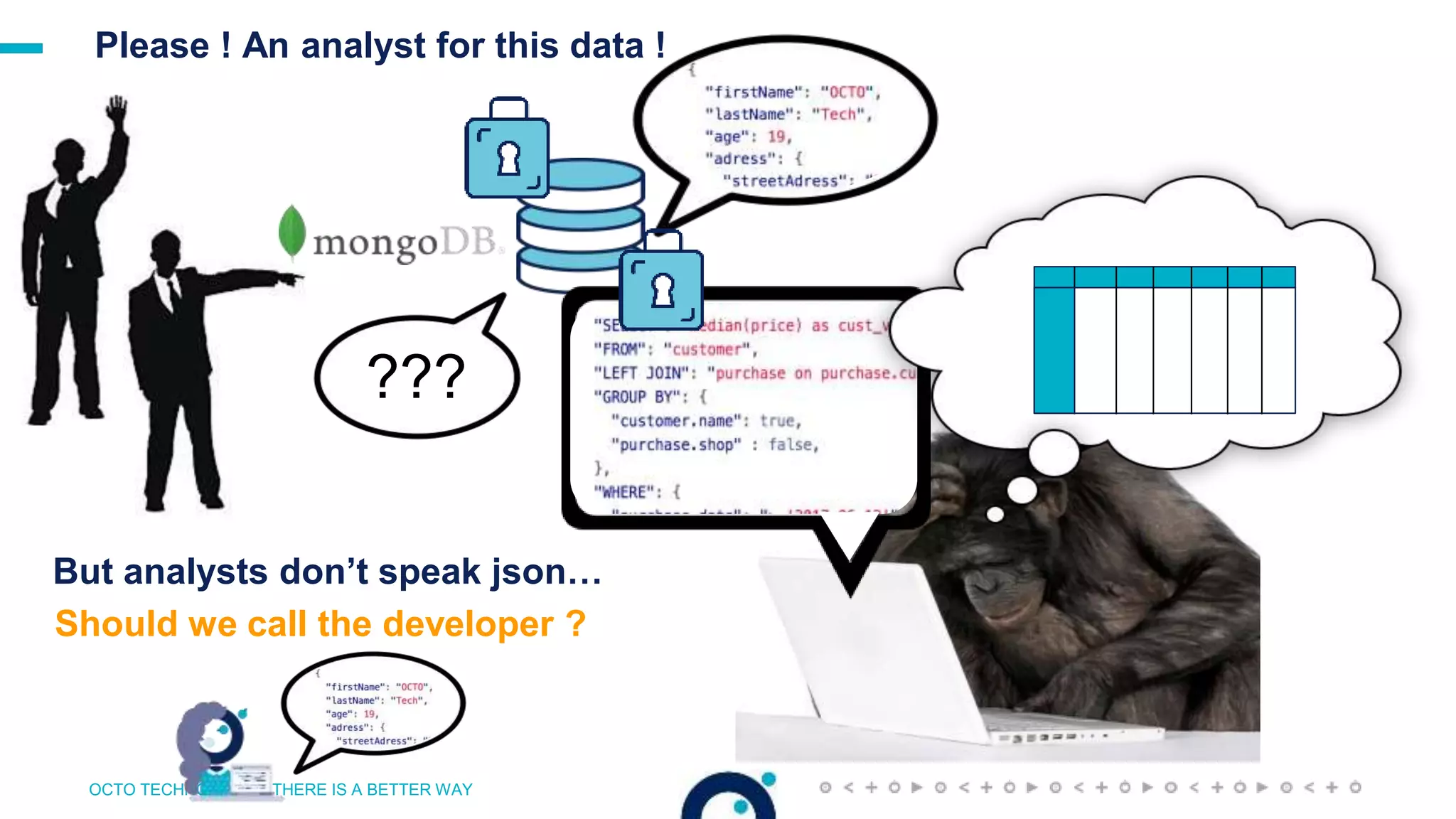

Please ! An analyst for this data !
But analysts don’t speak json…
??? ?
Should we call the developer ?
