1. Open Source Software for
Industry 4.0
Ian Skerrett
Eclipse Foundation

2. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

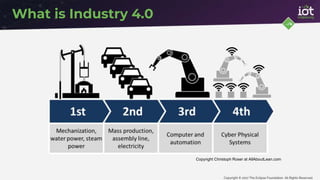

What is Industry 4.0
Copyright Christoph Roser at AllAboutLean.com

3. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Industry 4.0 Drivers
● Predictive Maintenance
● Flexible Manufacturing and Customization
● Global Supply Chain integration
● Better safety and productivity
EUR 78 Billion Industry by 2025

4. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

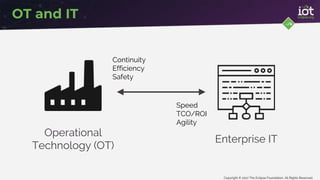

OT and IT
Operational
Technology (OT)
Enterprise IT
Continuity
Efficiency
Safety
Speed
TCO/ROI
Agility

5. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Brownfield vs Greenfield

6. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

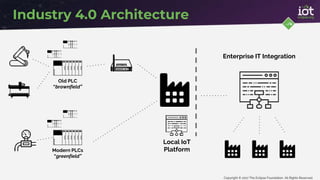

Industry 4.0 Architecture
Old PLC
“brownfield”
Modern PLCs
“greenfield”
Enterprise IT Integration
Local IoT
Platform

7. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

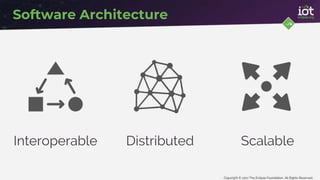

Software Architecture
Interoperable Distributed Scalable

8. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

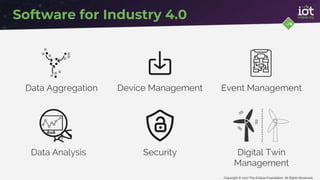

Software for Industry 4.0
Data Aggregation Device Management Event Management
Data Analysis Security Digital Twin
Management

9. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

10. Eclipse IoT Today
2.4M 30 250+ 132K
lines of code projects developers monthly
visitors

11. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Data Aggregation
Consistent data via open standards
● OPC-UA - a communication protocol for industrial automation
○ Eclipse Milo is a Java implementation of OPC-UA stack,
including client and server
● MQTT - general purpose messaging protocol for IoT
○ Eclipse Paho provides MQTT client libraries (Java, C/C++,
JavaScript, Python, etc)
○ Eclipse Mosquitto provides MQTT broker
implementation

12. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

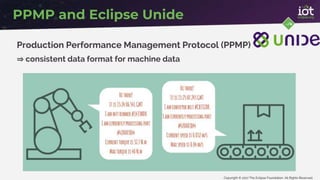

Production Performance Management Protocol (PPMP)
PPMP and Eclipse Unide
⇒ consistent data format for machine data

13. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Data Aggregation
PLC Development
● Existing systems are often closed
and proprietary systems
● Difficult to create flexible
manufacturing processes with
existing PLC environments
● New standards allow for more open
and distributed development (IEC
61499)
PLC

14. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Eclipse 4DIAC
Development tool for
distributed control applications
according to IEC 61499
Independent execution environment
for IEC 61499 control applications
4diac-ide
Target system
Execution Environment
Control Applications
4diac-rte

15. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

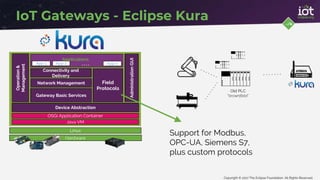

IoT Gateways - Eclipse Kura
Support for Modbus,
OPC-UA, Siemens S7,
plus custom protocols
Java VM
OSGi Application Container
Device Abstraction
Gateway Basic Services
Field
Protocols
Connectivity and
Delivery
AdministrationGUI
Operation&
Management
Linux
Hardware
App 2 App n. . . .
Applications
App 1
Network Management
Old PLC
“brownfield”

16. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Device Management
Remote update and configuration of devices
important for scalability and security.
OMA LightweightM2M (LWM2M) provides a device
management standard
Eclipse Leshan and Eclipse Wakaama implement
LWM2M

17. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

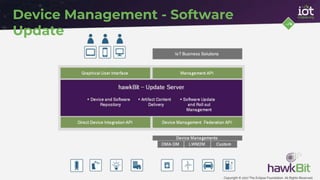

Device Management - Software
Update

18. Copyright © 2017 The Eclipse Foundation. All Rights Reserved

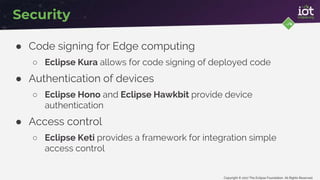

Security
● Code signing for Edge computing
○ Eclipse Kura allows for code signing of deployed code
● Authentication of devices
○ Eclipse Hono and Eclipse Hawkbit provide device
authentication
● Access control
○ Eclipse Keti provides a framework for integration simple
access control

19. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Event Management
AMQP 1.0
Eclipse Hono
Connect. Command. Control
API Endpoints
Auth Service
Device Registry
Protocol Adapters
Business
Applications
Devices
Devices
AMQP 1.0
AMQP 1.0
AMQP 1.0
HTTP, MQTT

20. Copyright © 2016 The Eclipse Foundation. All Rights Reserved
IOT CLOUD PLATFORM
Connectivity
MessageRouting
OS / PaaS
Device
Management
Data
Management
Event Management,
Analytics & UI
Device
Registry
Application
Enablement

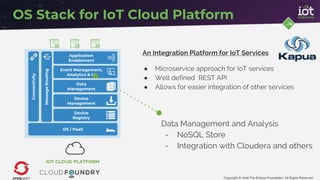

OS Stack for IoT Cloud Platform
An Integration Platform for IoT Services
Data Management and Analysis
- NoSQL Store
- Integration with Cloudera and others
● Microservice approach for IoT services
● Well defined REST API
● Allows for easier integration of other services

21. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Digital Twin
Eclipse Ditto: Device-as-a-Service
- A unified resource-based API that can be used to
interact with devices
- Abstracting from the complexity of different device
types and how devices are connected
- State management for physical devices
- Device and sensor properties like temperature,
location, level, fault information, etc.
Configuration properties of sensors and actors like
thresholds, intervals, ranges, toggles and limits, etc
Image credit: GE
Power & Water

22. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Industry 4.0 Testbed
Problem Statement
●Industrial equipment deployed on factory floors
today use a wide variety of protocols that allows
them to be controlled and expose their condition
●It makes it hard to process production
performance data in an efficient way, and virtually
impossible to implement Industry 4.0 practices
such as predictive maintenance.

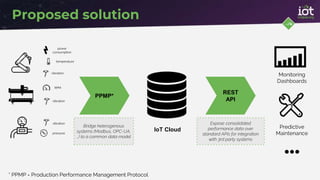

23. Proposed solution
PPMP*
power
consumption
temperature
vibration
RPM
vibration
vibration
pressure
* PPMP = Production Performance Management Protocol
REST
API
Monitoring
Dashboards
Predictive
Maintenance
Bridge heterogenous
systems (Modbus, OPC-UA,
…) to a common data model
Expose consolidated
performance data over
standard APIs for integration
with 3rd party systems
IoT Cloud

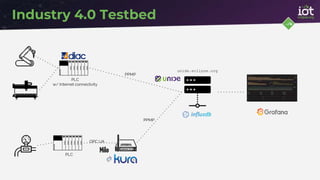

24. Industry 4.0 Testbed
PLC
w/ Internet connectivity
PLC
OPC UA
PPMP
PPMP
unide.eclipse.org

25. Testbed Participants

26. Copyright © 2016 The Eclipse Foundation. All Rights Reserved
Industry 4.0 White Paper

27. Copyright © 2016 The Eclipse Foundation. All Rights Reserved
Our community

28. Copyright © 2016 The Eclipse Foundation. All Rights Reserved

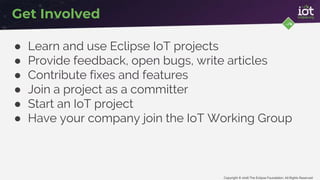

Get Involved
● Learn and use Eclipse IoT projects
● Provide feedback, open bugs, write articles
● Contribute fixes and features
● Join a project as a committer
● Start an IoT project
● Have your company join the IoT Working Group

29. Copyright © 2016 The Eclipse Foundation. All Rights Reserved
Thank You!
Ian Skerrett
@ianskerrett
ian.skerrett@eclipse-foundation.org

30. Copyright © 2016 The Eclipse Foundation. All Rights Reserved
Backup

31. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Safety and Security

32. Copyright © 2017 The Eclipse Foundation. All Rights Reserved
Digital Twin
Image credit: GE Power & Water
