This document summarizes a presentation about integrating Apache Camel with Eclipse Kura to enable message routing capabilities for IoT gateways. Eclipse Kura is an OSGi-based IoT gateway framework, while Apache Camel is a message routing framework. The presentation discusses how Camel provides many connectors that are useful for Kura, and how Camel's Enterprise Integration Patterns can help with common routing needs like throttling, routing, and load balancing. Examples are provided showing how to define Camel routes within Kura that can invoke REST APIs, display WiFi networks, and start data syncing based on network connectivity.

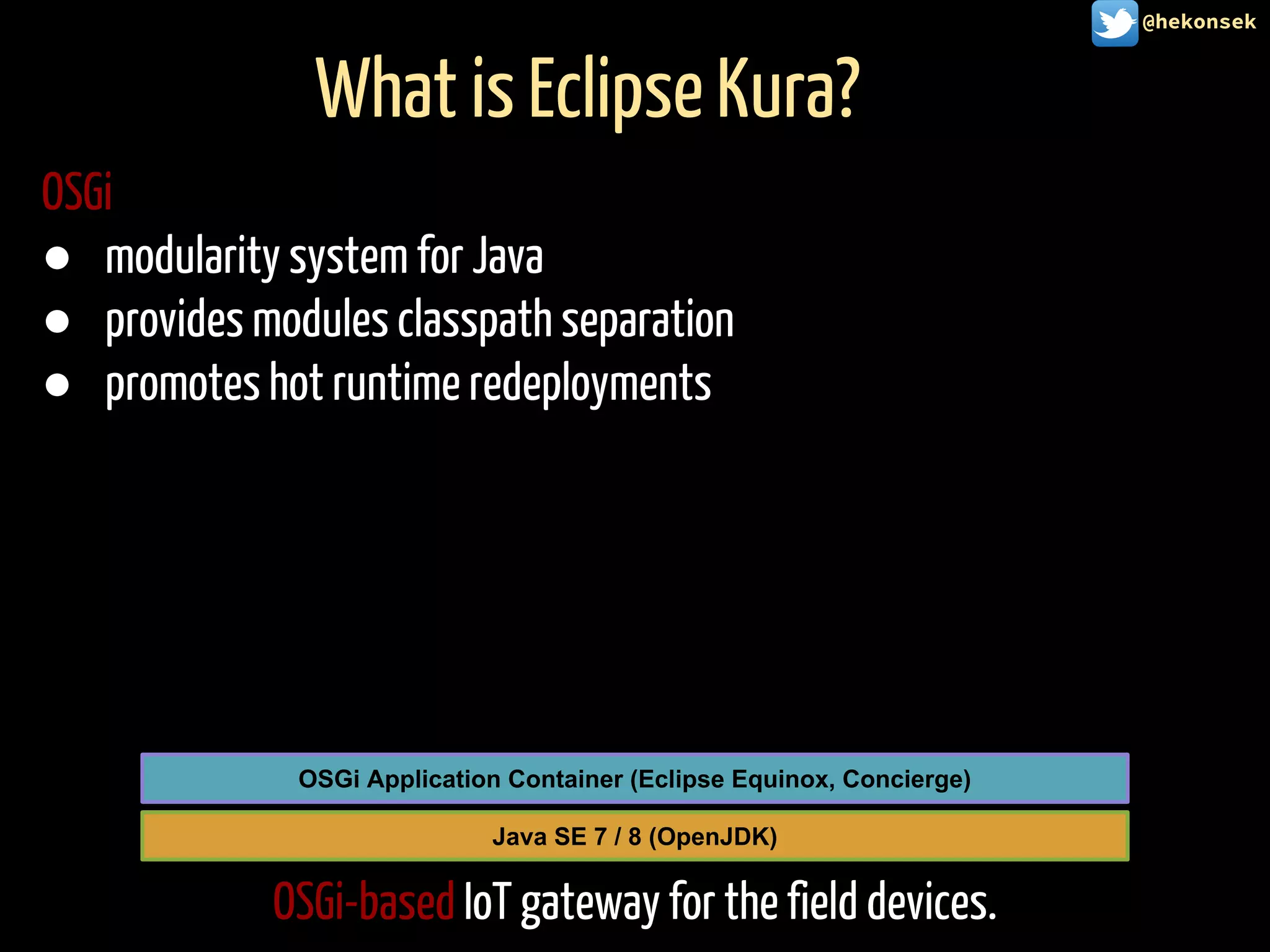

7. OSGi-based IoT gateway for the field devices.
OSGi
● modularity system for Java
● provides modules classpath separation
● promotes hot runtime redeployments
What is Eclipse Kura?
OSGi Application Container (Eclipse Equinox, Concierge)
Java SE 7 / 8 (OpenJDK)
@hekonsek

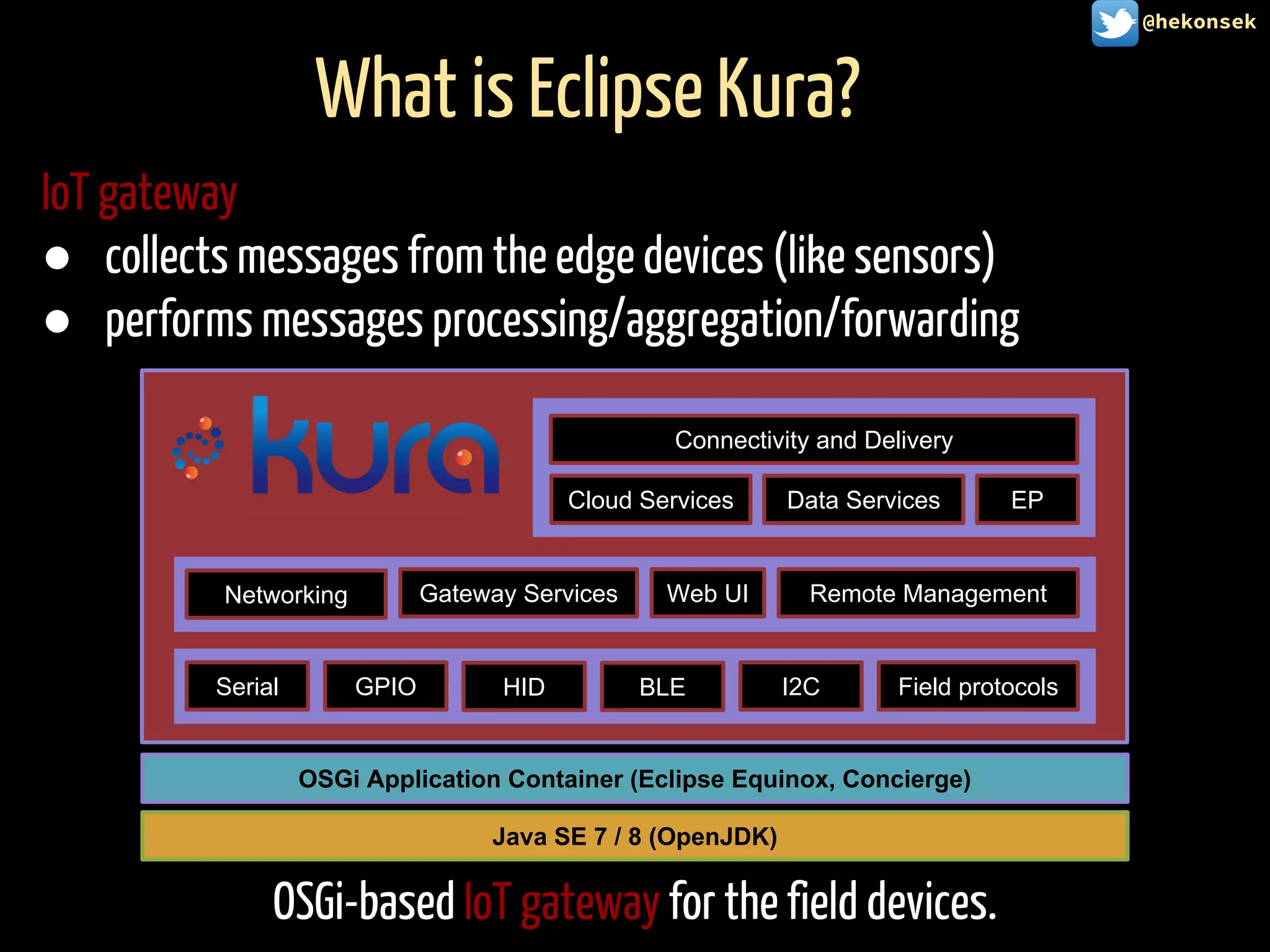

8. What is Eclipse Kura?
IoT gateway
● collects messages from the edge devices (like sensors)
● performs messages processing/aggregation/forwarding
OSGi-based IoT gateway for the field devices.
OSGi Application Container (Eclipse Equinox, Concierge)
Java SE 7 / 8 (OpenJDK)
Serial GPIO HID BLE I2C Field protocols
Networking Gateway Services Web UI Remote Management
Cloud Services Data Services EP
Connectivity and Delivery
@hekonsek

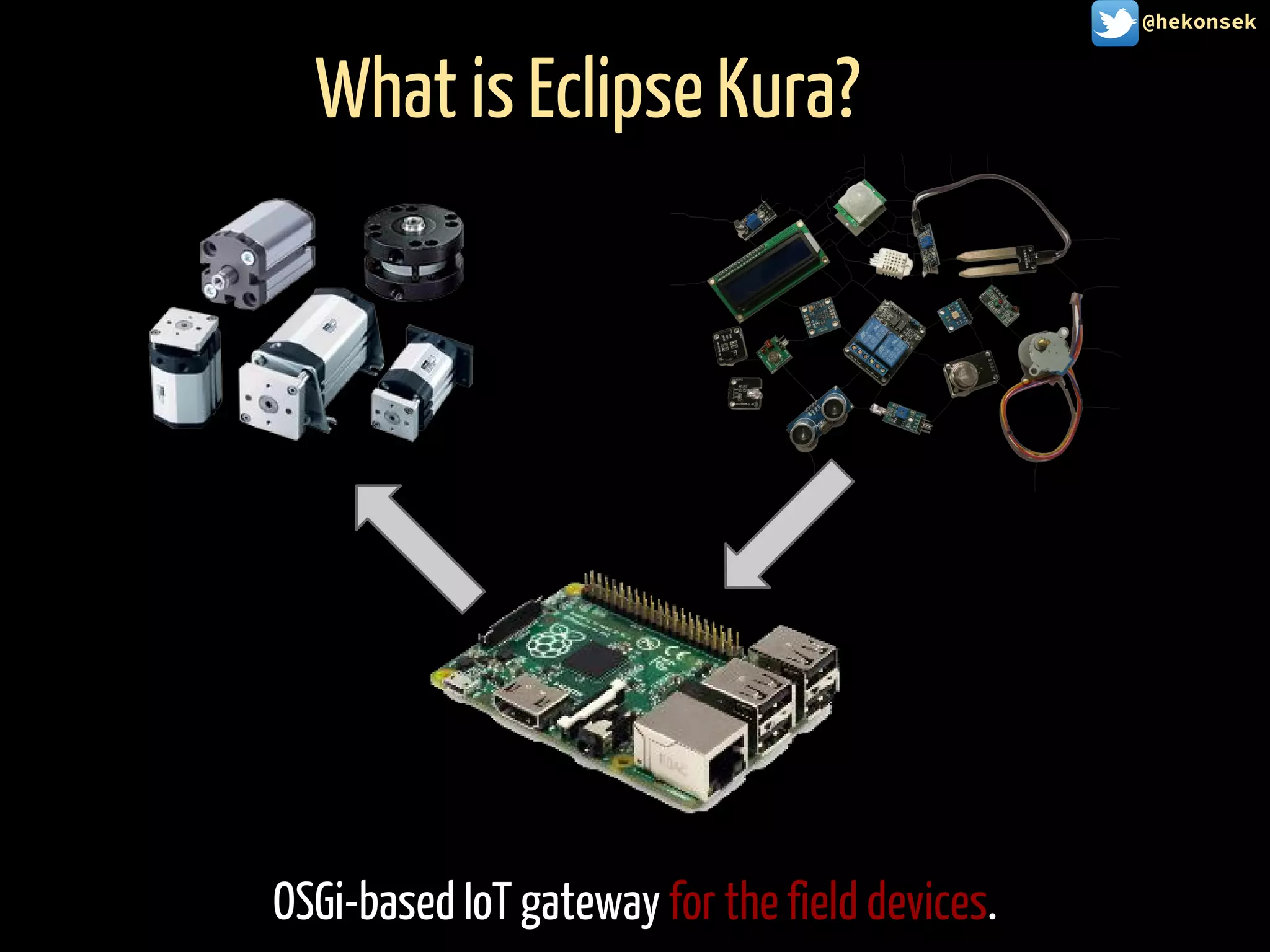

9. What is Eclipse Kura?
OSGi-based IoT gateway for the field devices.
@hekonsek
14. How to orchestrate messages flow.
What is message routing?
● Apache Camel
● Spring Integration
● Mule
@hekonsek

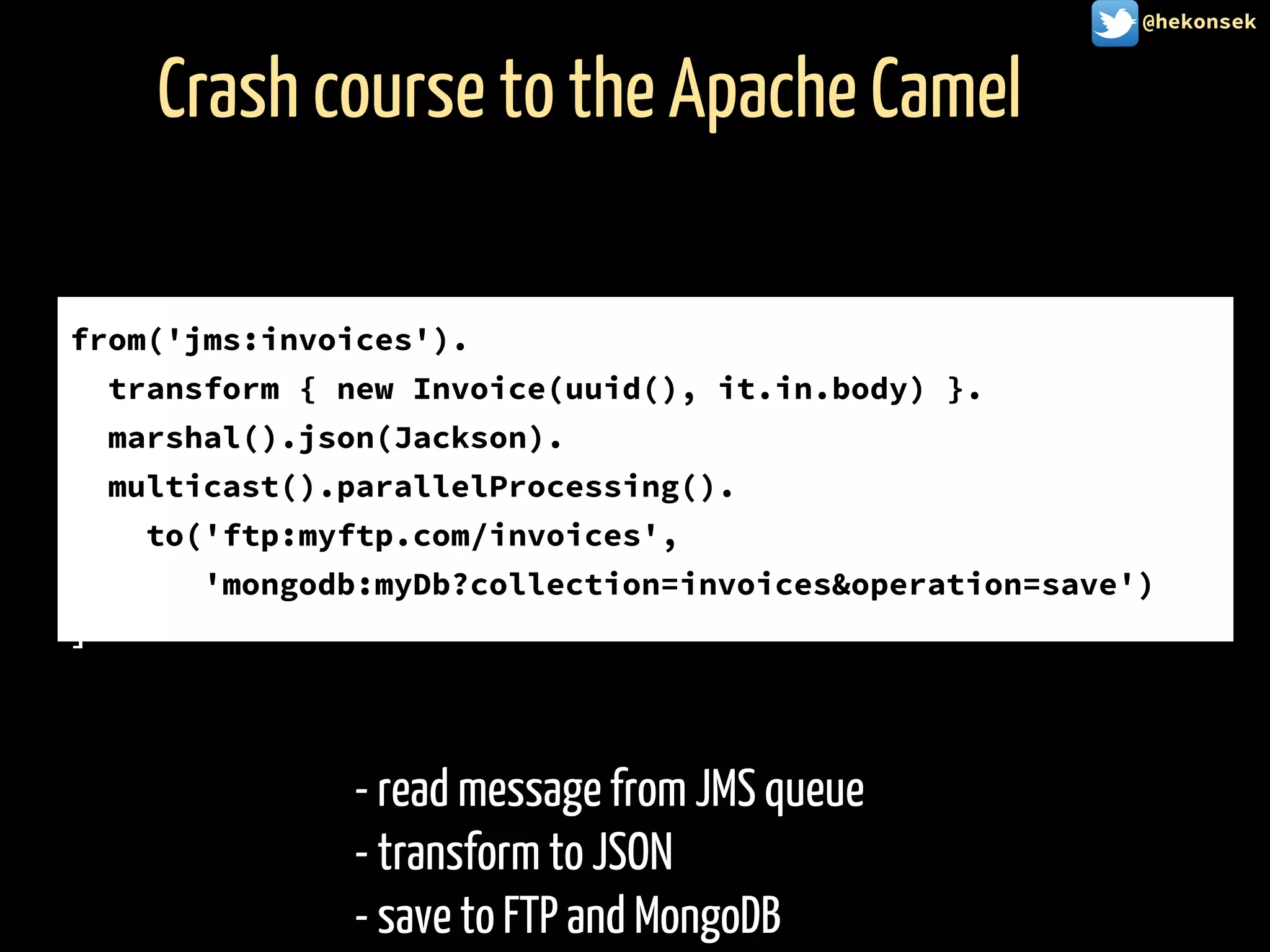

15. - read message from JMS queue
- transform to JSON
- save to FTP and MongoDB
Crash course to the Apache Camel
from('jms:invoices').
transform { new Invoice(uuid(), it.in.body) }.
marshal().json(Jackson).
multicast().parallelProcessing().
to('ftp:myftp.com/invoices',
'mongodb:myDb?collection=invoices&operation=save')
]
@hekonsek

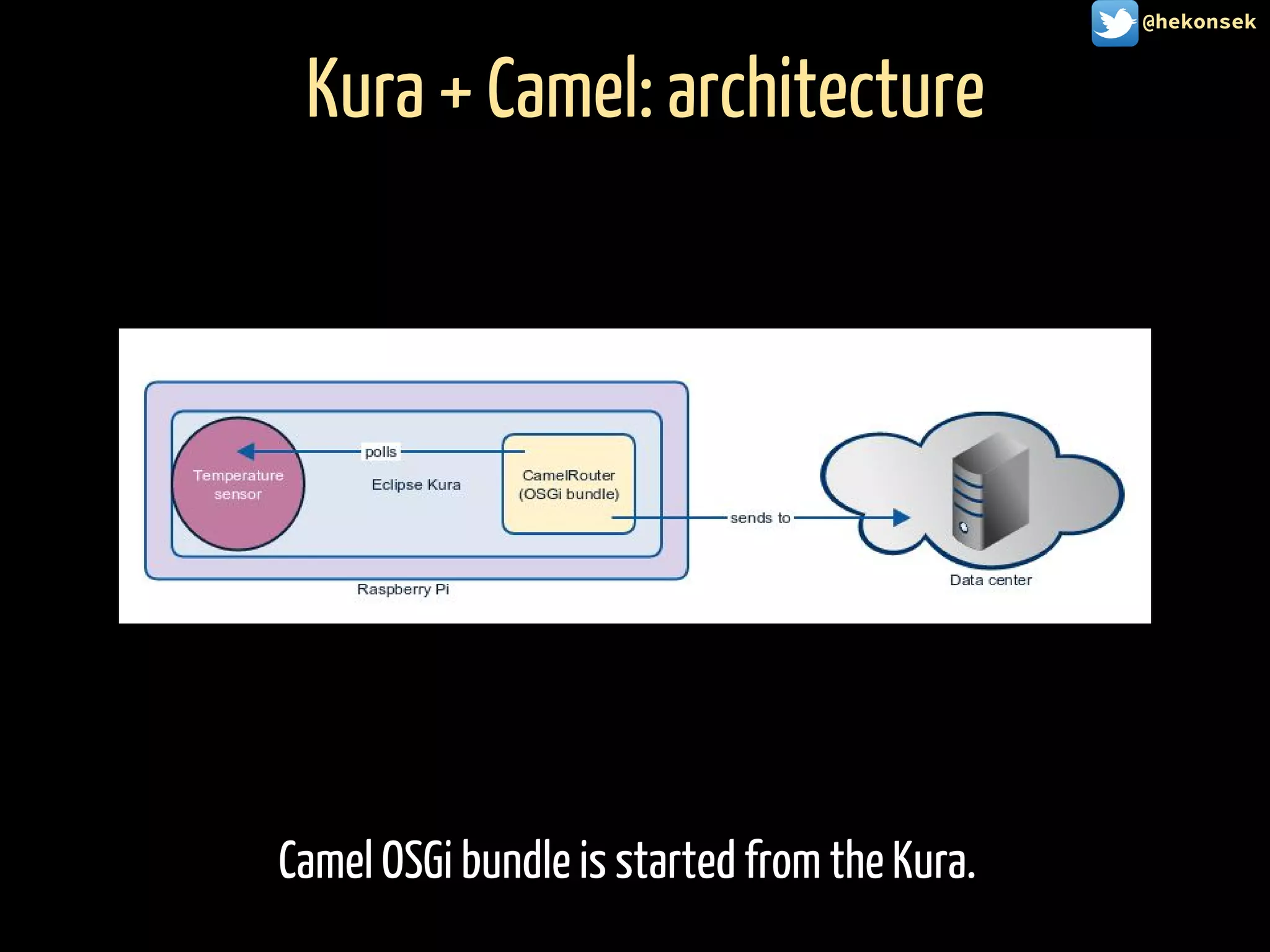

25. Camel OSGi bundle is started from the Kura.
Kura + Camel: architecture
@hekonsek

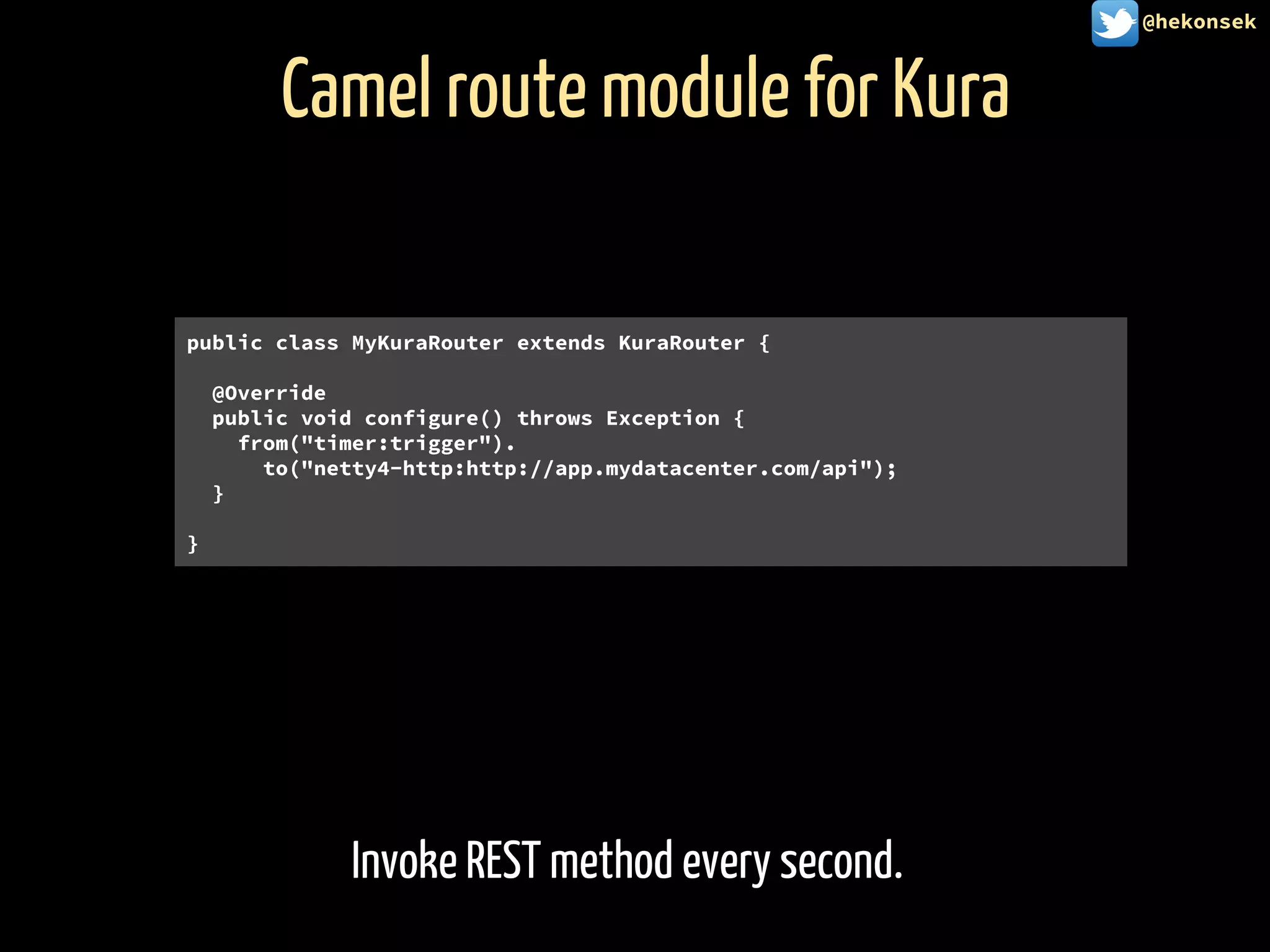

26. Invoke REST method every second.
Camel route module for Kura
public class MyKuraRouter extends KuraRouter {
@Override
public void configure() throws Exception {
from("timer:trigger").
to("netty4-http:http://app.mydatacenter.com/api");
}
}
@hekonsek
27. Just deploy the route as the OSGi bundle and enjoy Camel running the Kura.
Concerned about the lifecycle?
@hekonsek

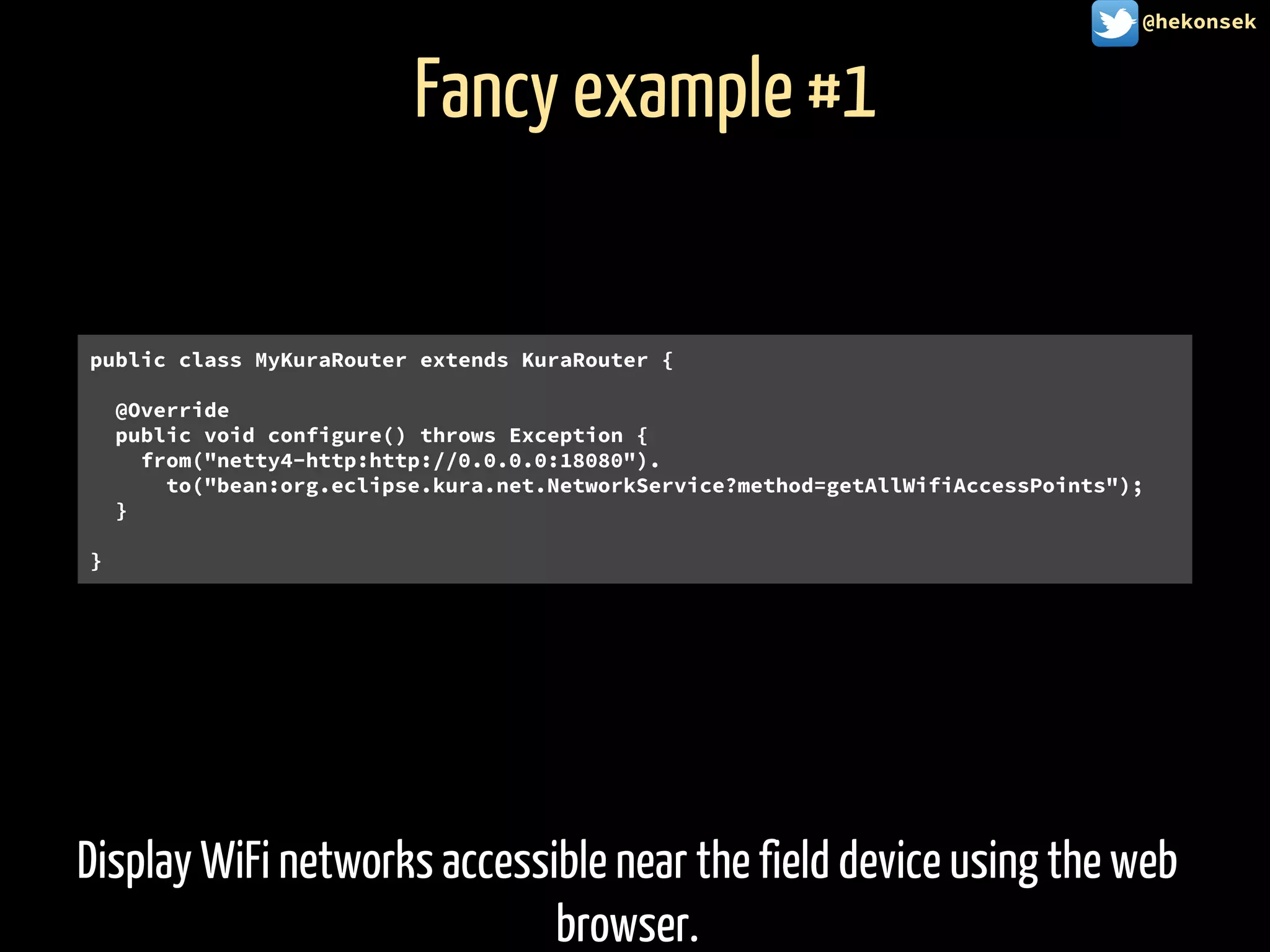

28. Display WiFi networks accessible near the field device using the web
browser.
Fancy example #1
public class MyKuraRouter extends KuraRouter {
@Override
public void configure() throws Exception {
from("netty4-http:http://0.0.0.0:18080").
to("bean:org.eclipse.kura.net.NetworkService?method=getAllWifiAccessPoints");
}
}
@hekonsek

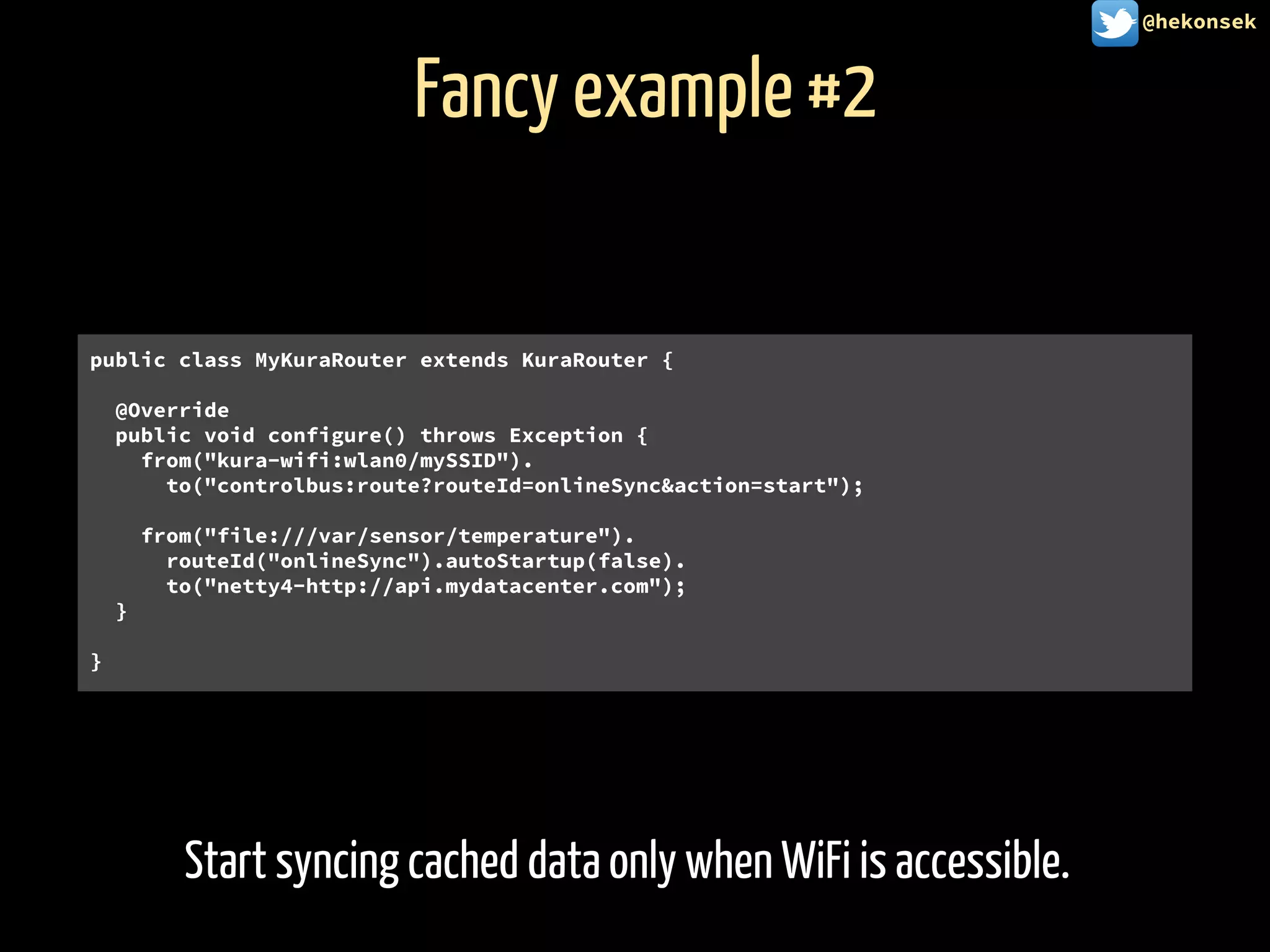

29. Start syncing cached data only when WiFi is accessible.
Fancy example #2
public class MyKuraRouter extends KuraRouter {
@Override
public void configure() throws Exception {
from("kura-wifi:wlan0/mySSID").
to("controlbus:route?routeId=onlineSync&action=start");
from("file:///var/sensor/temperature").
routeId("onlineSync").autoStartup(false).
to("netty4-http://api.mydatacenter.com");
}
}
@hekonsek

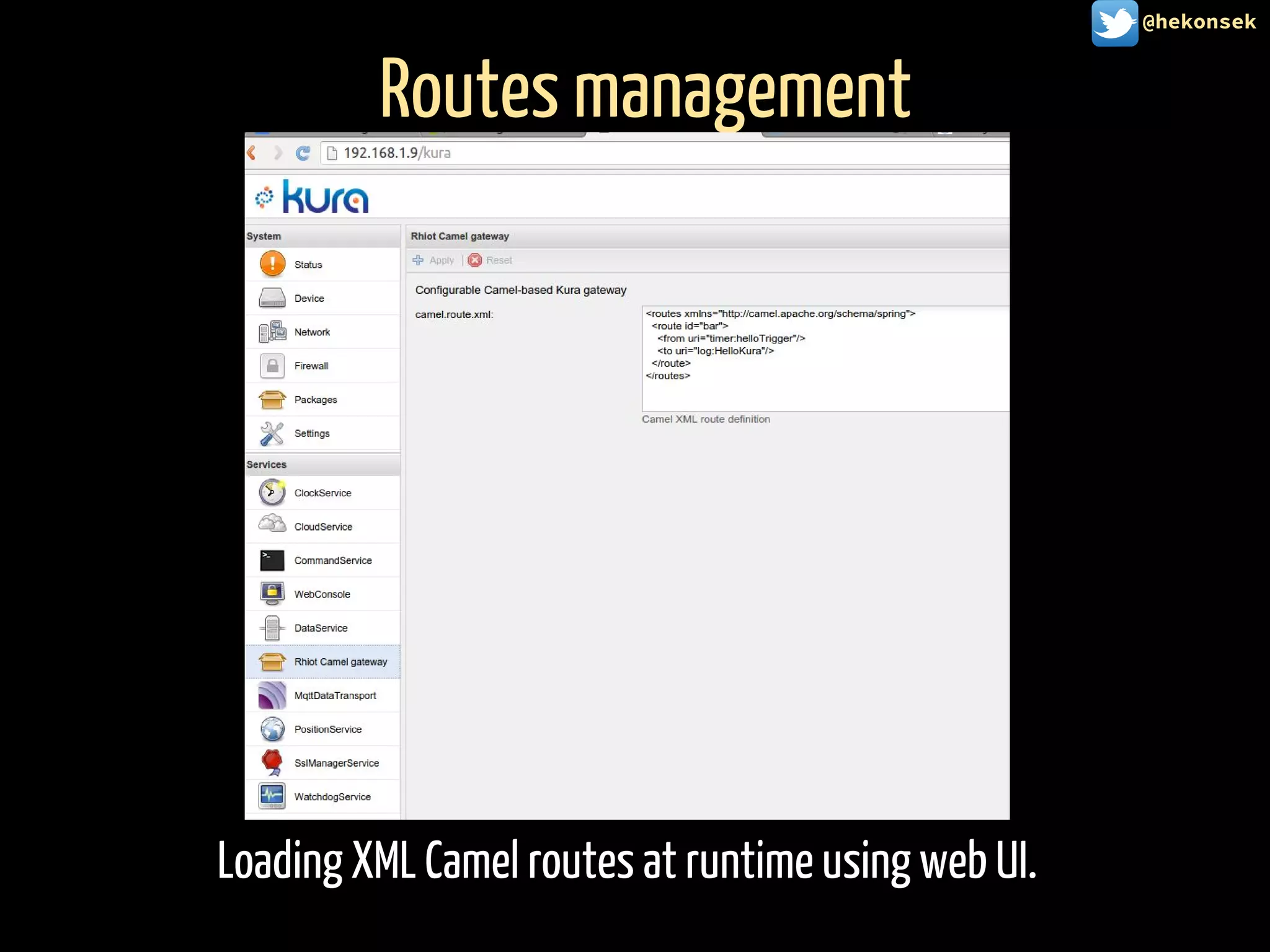

30. Loading XML Camel routes at runtime using web UI.
Routes management
@hekonsek

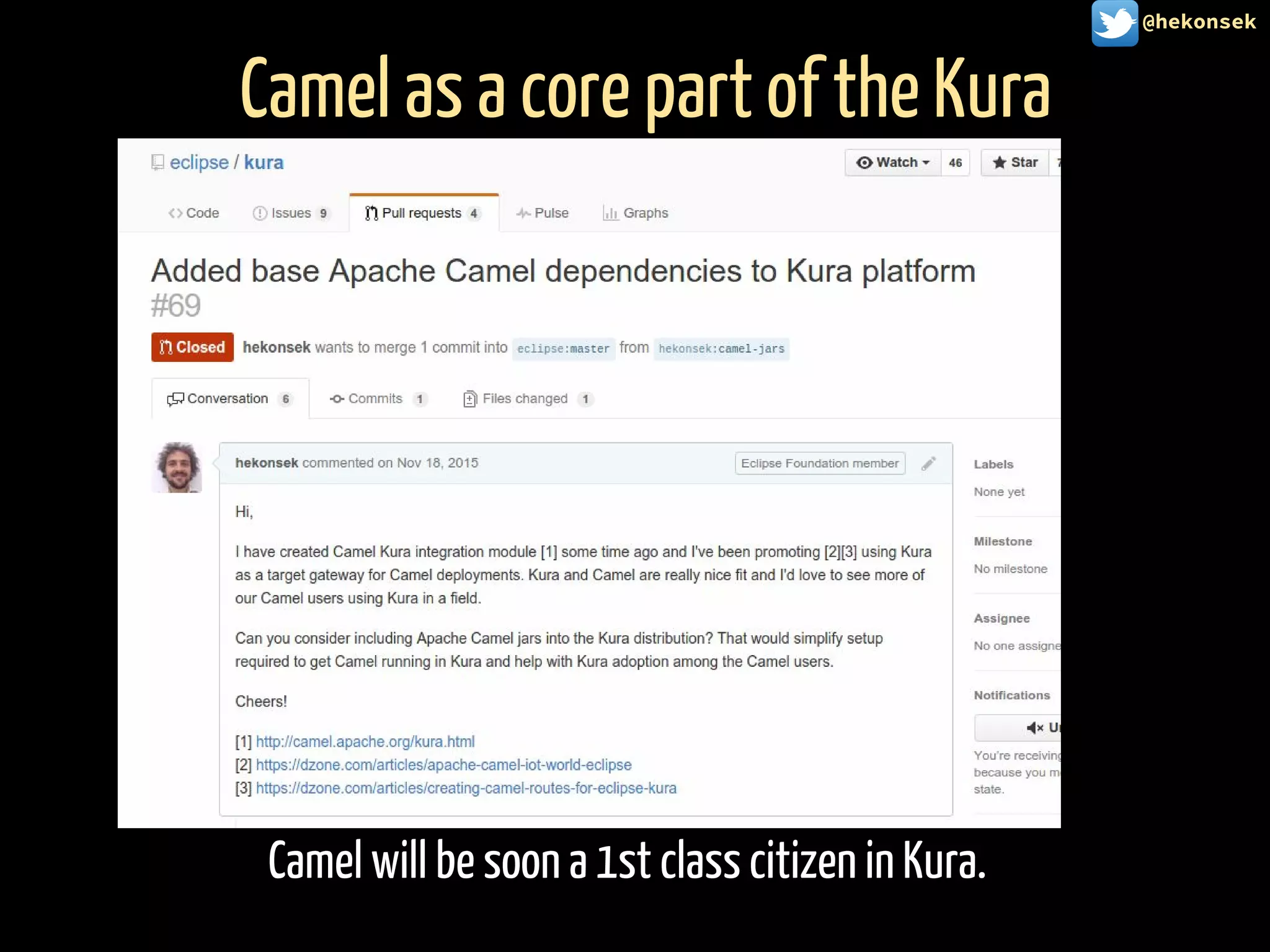

31. Camel will be soon a 1st class citizen in Kura.
Camel as a core part of the Kura
@hekonsek

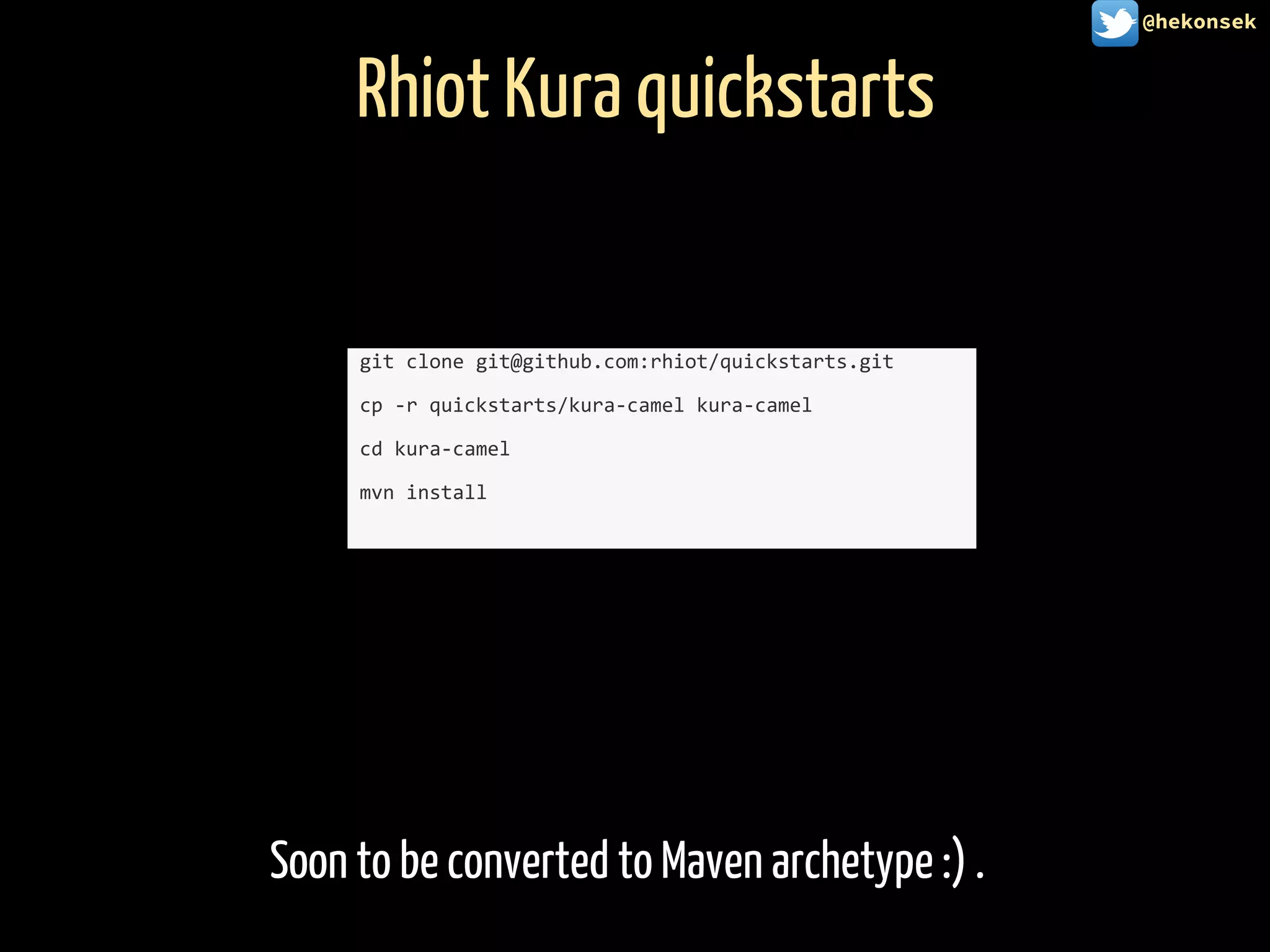

33. Soon to be converted to Maven archetype :) .
Rhiot Kura quickstarts
@hekonsek
git clone git@github.com:rhiot/quickstarts.git
cp -r quickstarts/kura-camel kura-camel
cd kura-camel
mvn install

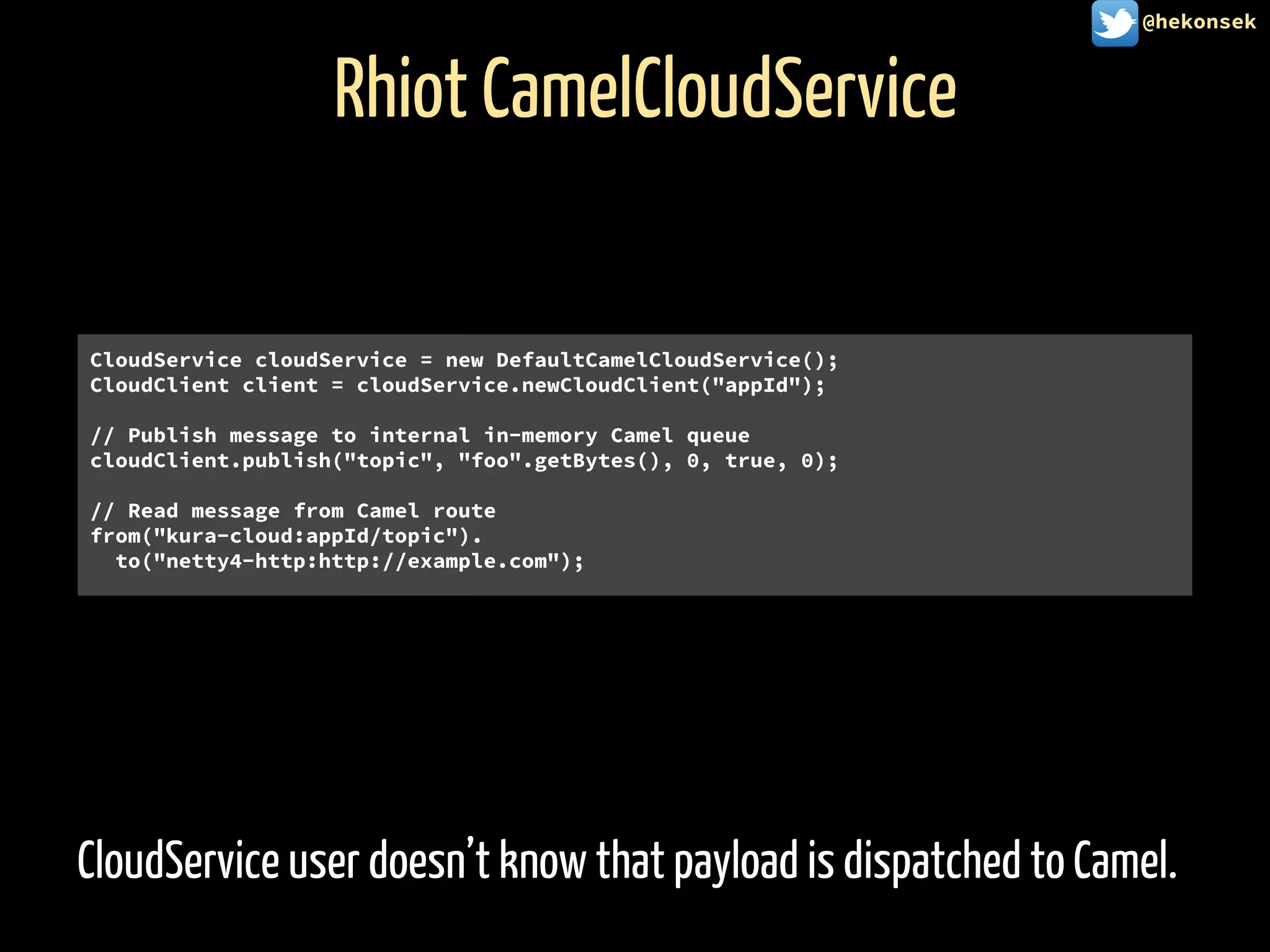

34. CloudService user doesn’t know that payload is dispatched to Camel.
Rhiot CamelCloudService
@hekonsek
CloudService cloudService = new DefaultCamelCloudService();
CloudClient client = cloudService.newCloudClient("appId");
// Publish message to internal in-memory Camel queue
cloudClient.publish("topic", "foo".getBytes(), 0, true, 0);
// Read message from Camel route
from("kura-cloud:appId/topic").
to("netty4-http:http://example.com");

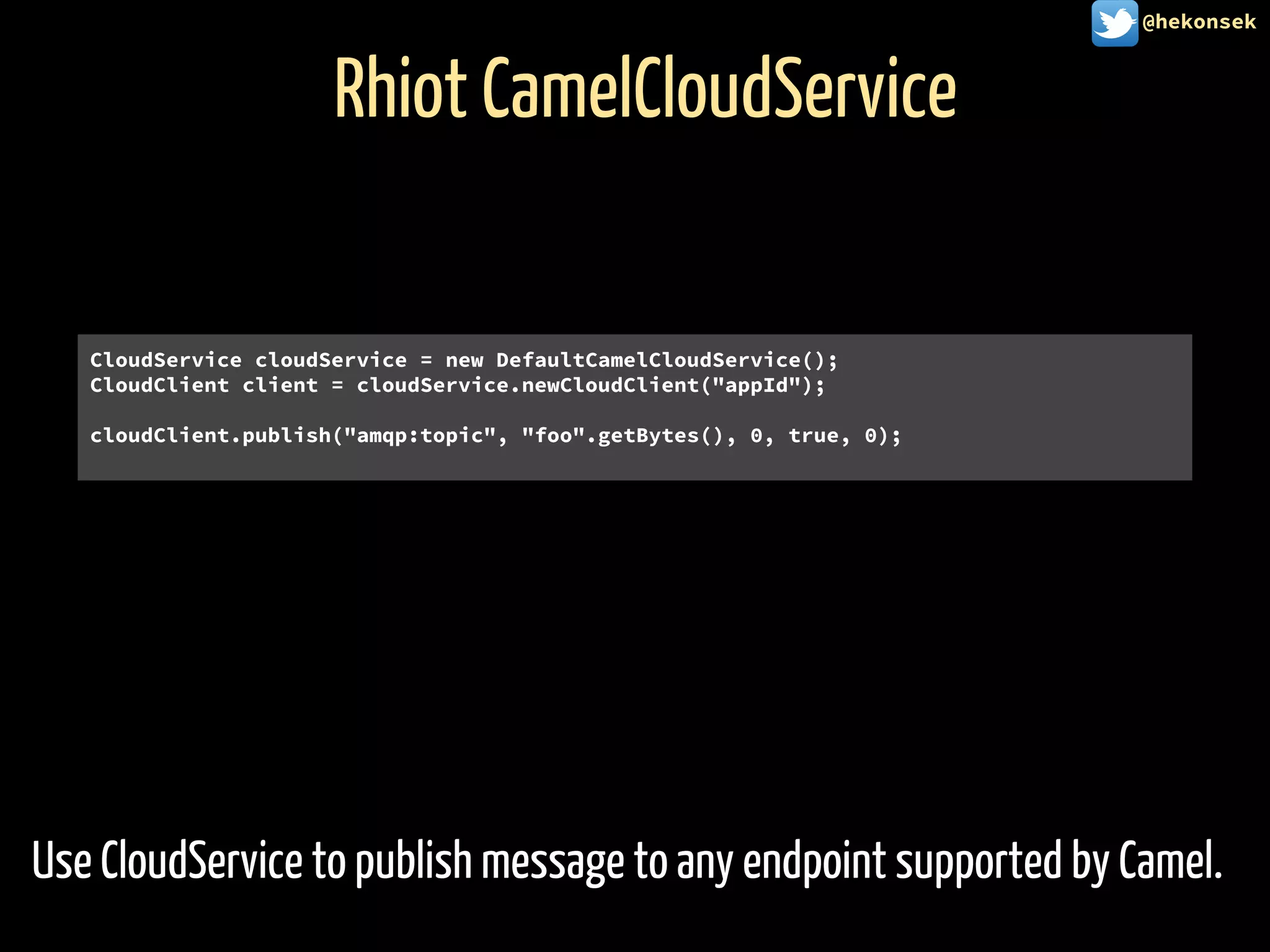

35. Use CloudService to publish message to any endpoint supported by Camel.
Rhiot CamelCloudService
@hekonsek
CloudService cloudService = new DefaultCamelCloudService();
CloudClient client = cloudService.newCloudClient("appId");
cloudClient.publish("amqp:topic", "foo".getBytes(), 0, true, 0);
