Lecture 03 focuses on key concepts of Object-Oriented Programming (OOP) such as abstraction, classes, inheritance, method overriding, and the differences between composition and aggregation. It explains how abstraction simplifies complex systems by capturing only relevant details and introduces the concept of classes as templates for creating objects. The lecture also covers inheritance relationships, reuse through class extensions, and the advantages and challenges of multiple inheritance in OOP.

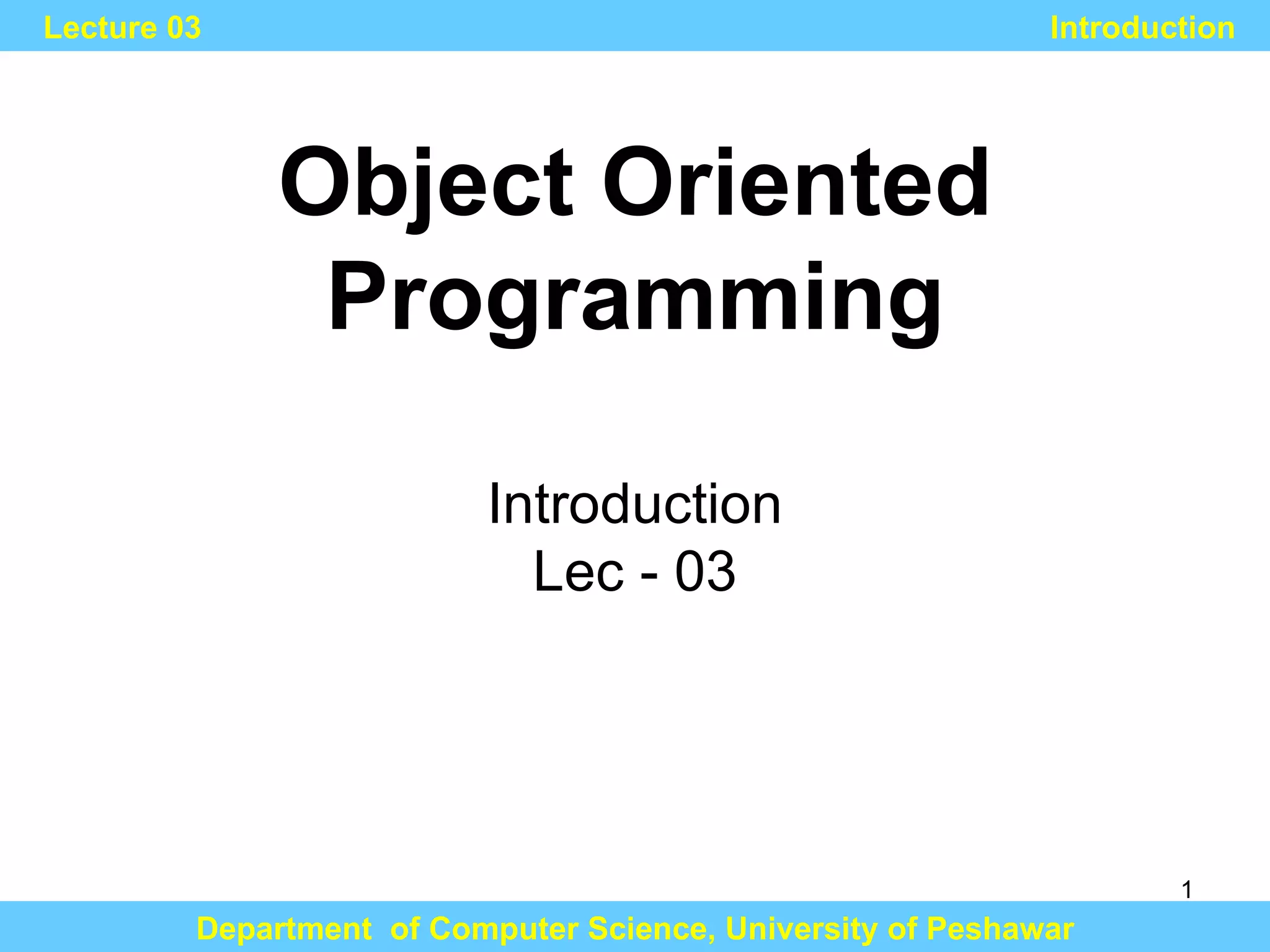

1. Object Oriented Programming Department of Computer Science, University of Peshawar Lecture 03 Introduction Introduction Lec - 03

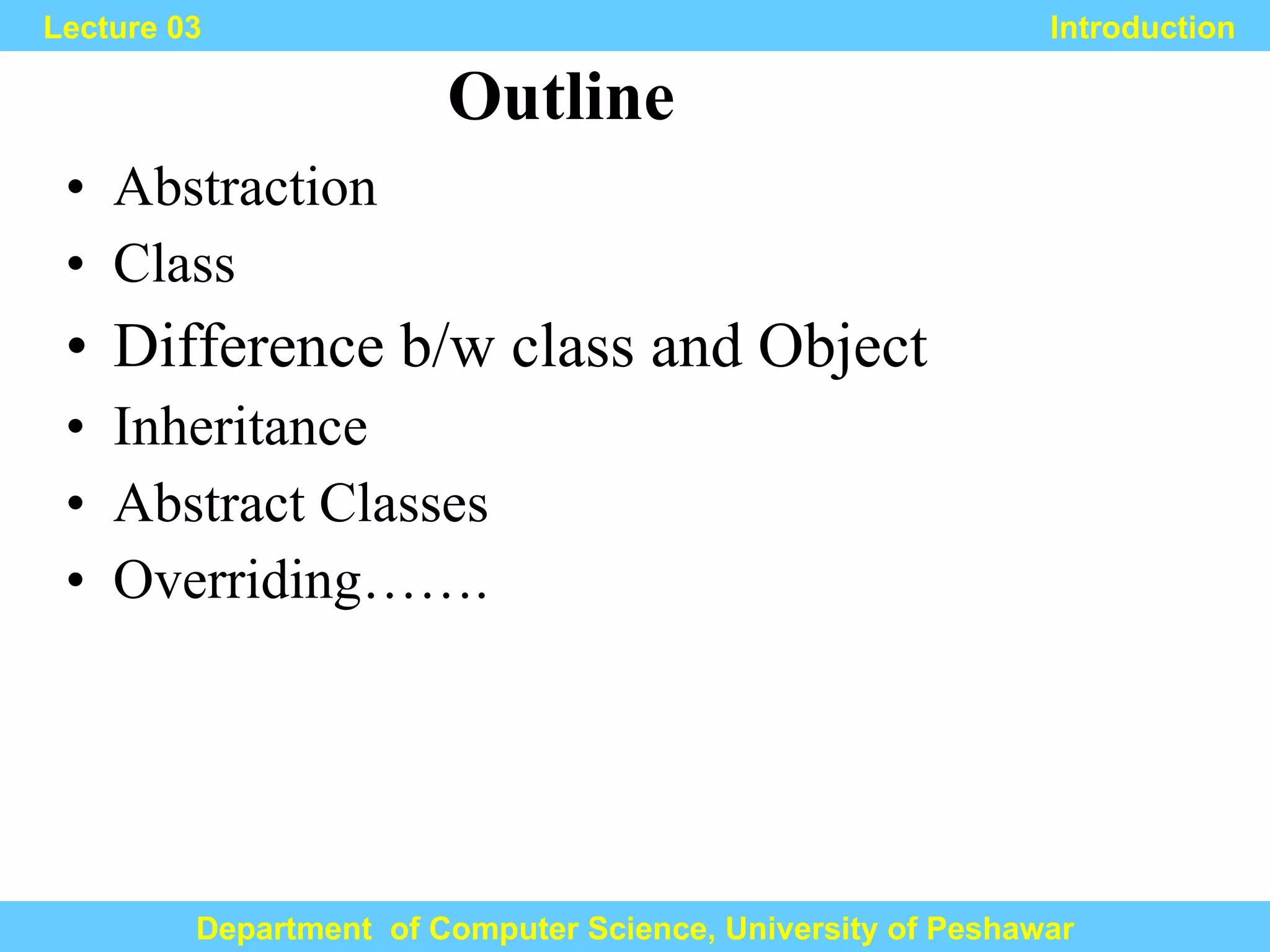

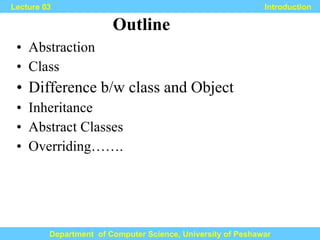

2. Outline Abstraction Class Difference b/w class and Object Inheritance Abstract Classes Overriding……. Lecture 03 Introduction Department of Computer Science, University of Peshawar

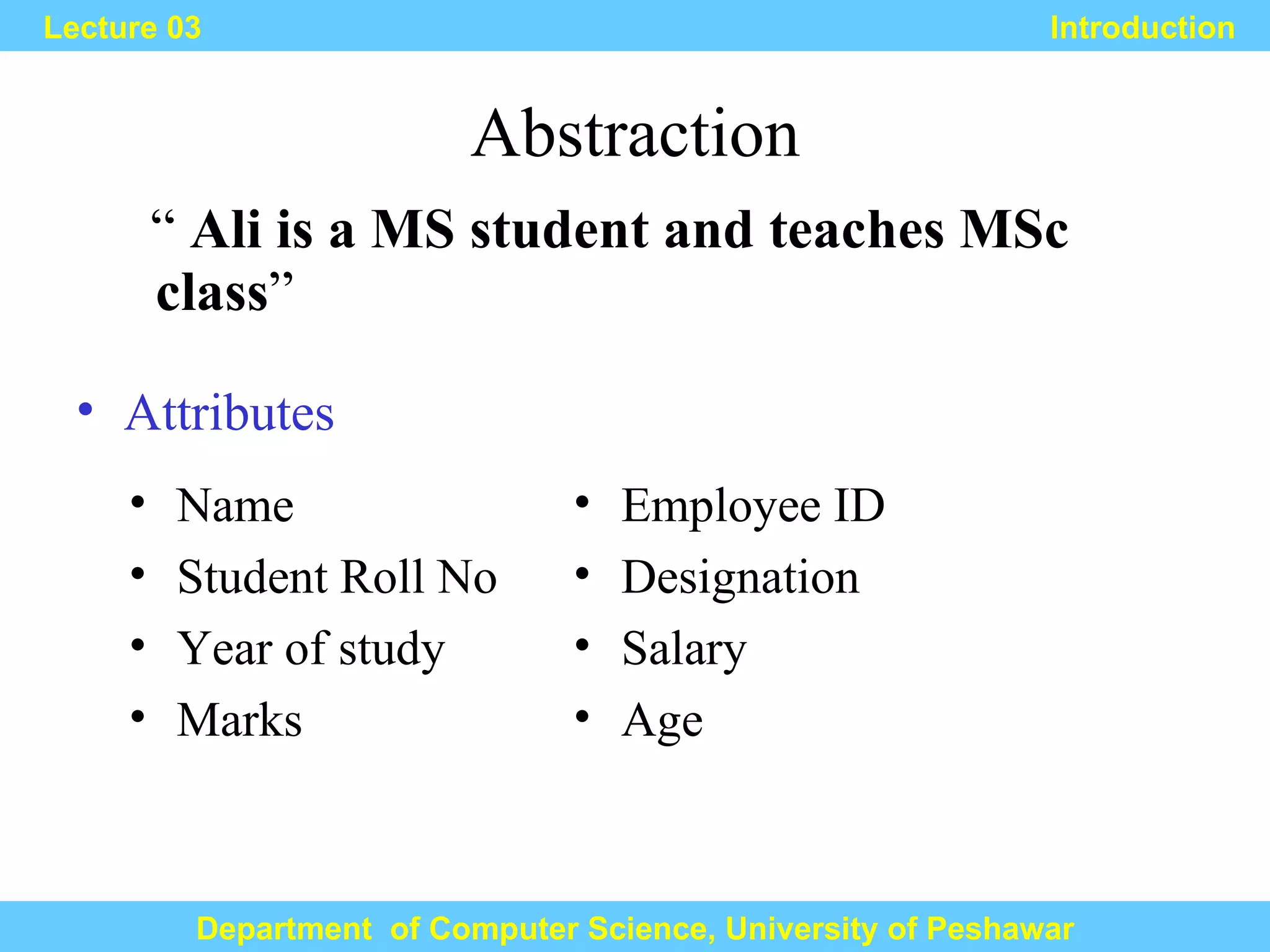

3. Abstraction “ Ali is a MS student and teaches MSc class ” Lecture 03 Introduction Department of Computer Science, University of Peshawar Attributes Name Student Roll No Year of study Marks Employee ID Designation Salary Age

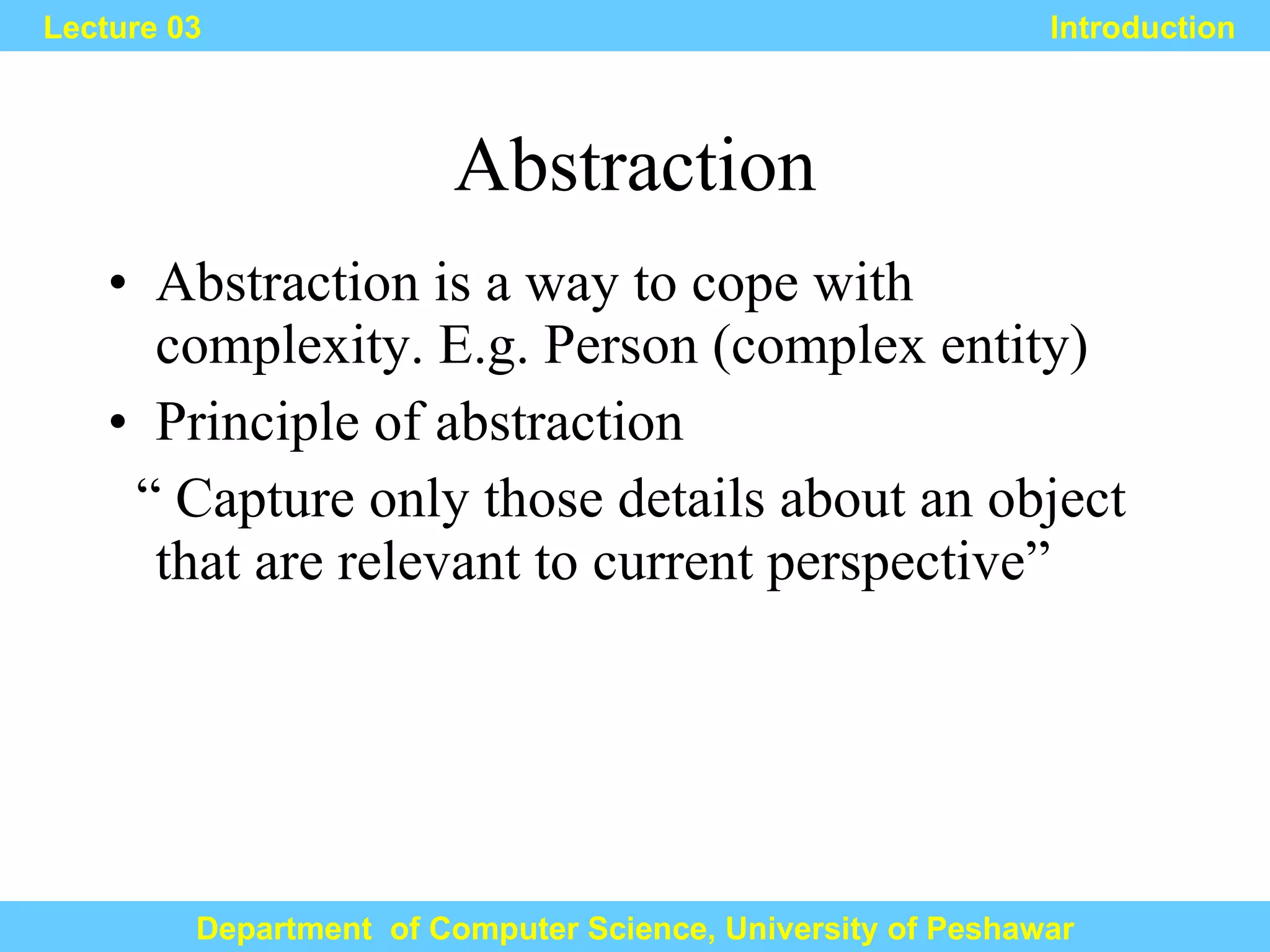

4. Abstraction Abstraction is a way to cope with complexity. E.g. Person (complex entity) Principle of abstraction “ Capture only those details about an object that are relevant to current perspective” Lecture 02 Introduction Department of Computer Science, University of Peshawar Lecture 03 Introduction

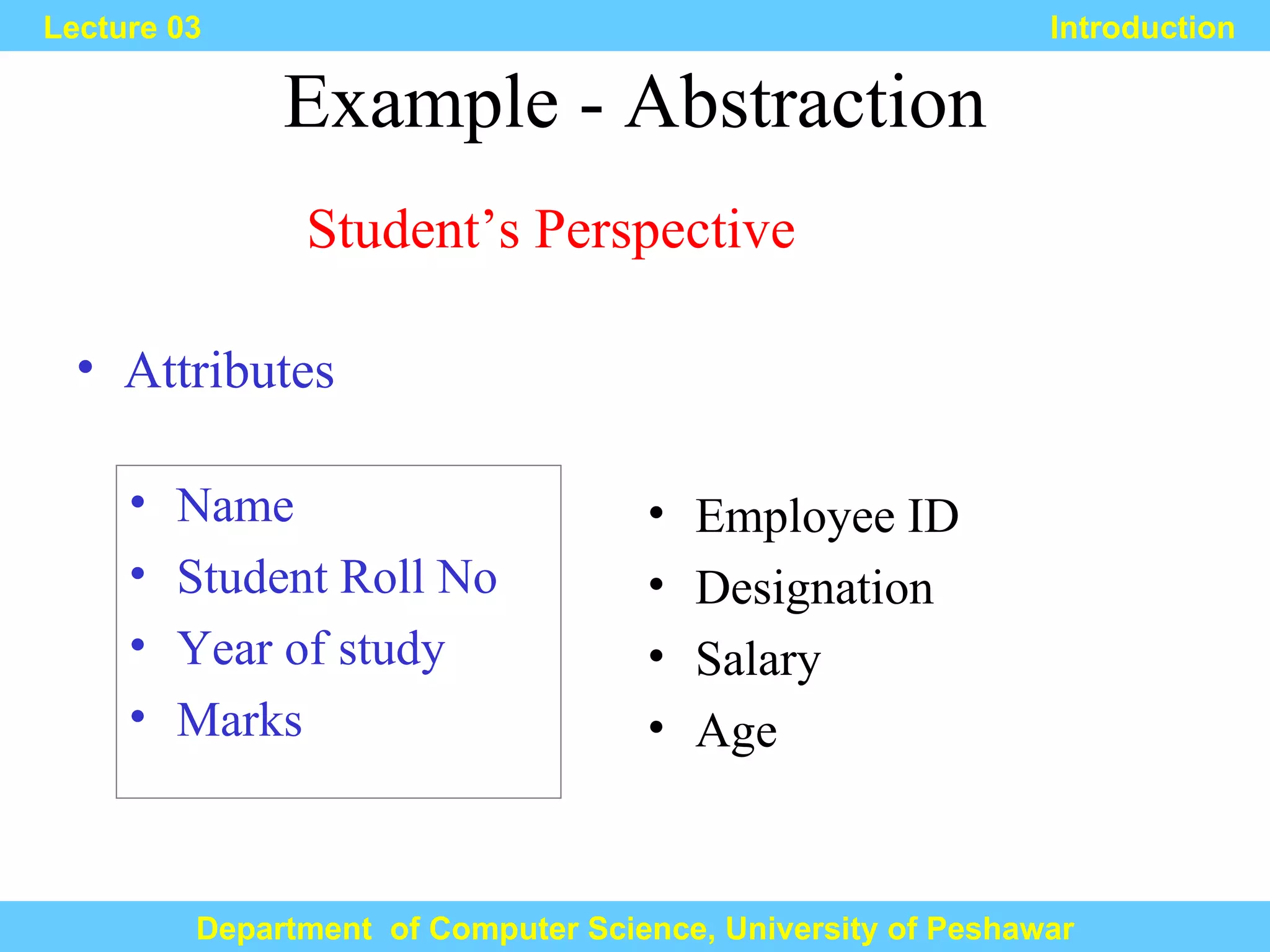

5. Example - Abstraction Student’s Perspective Lecture 03 Introduction Department of Computer Science, University of Peshawar Attributes Name Student Roll No Year of study Marks Employee ID Designation Salary Age

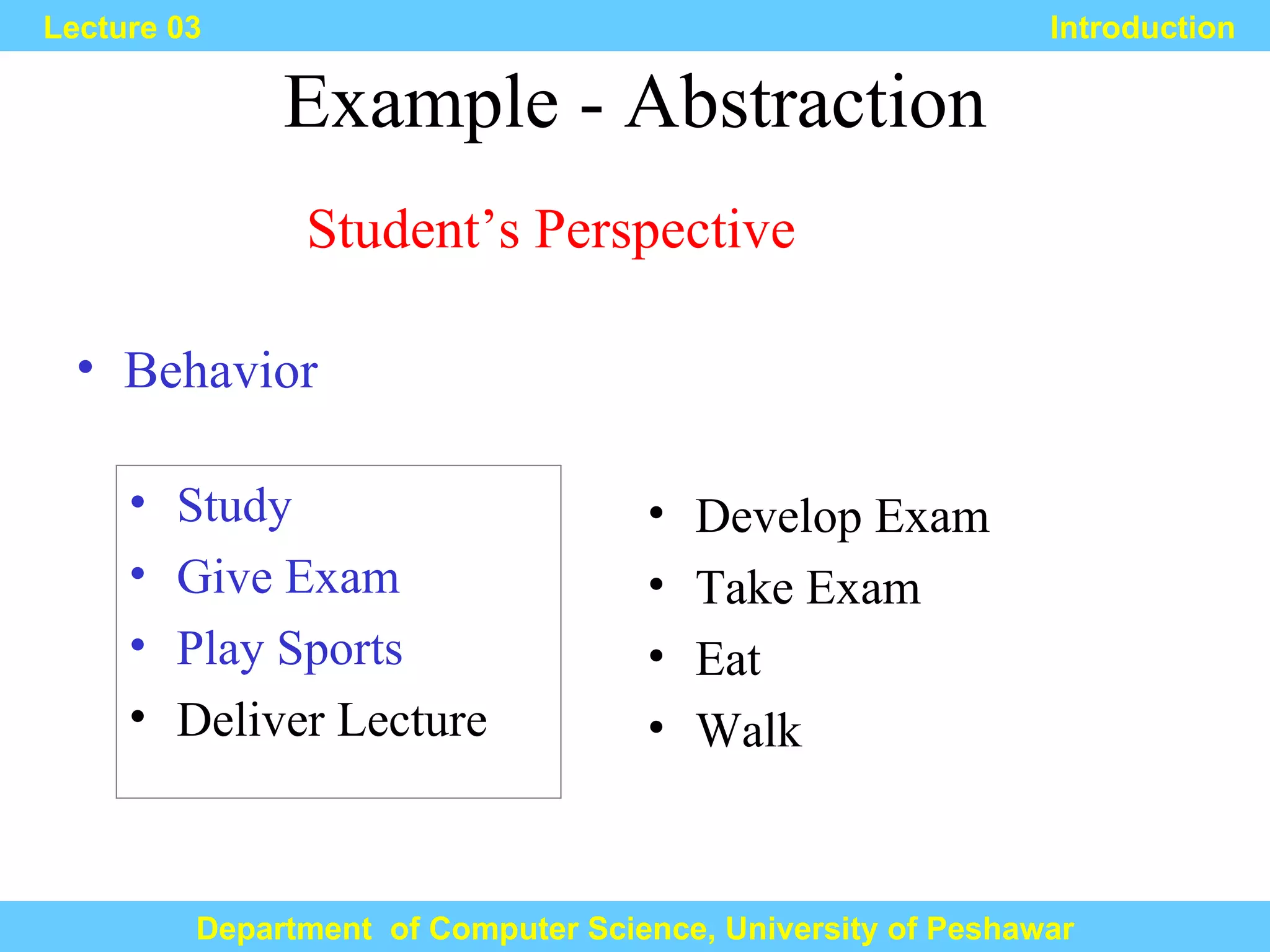

6. Example - Abstraction Student’s Perspective Lecture 03 Introduction Department of Computer Science, University of Peshawar Behavior Study Give Exam Play Sports Deliver Lecture Develop Exam Take Exam Eat Walk

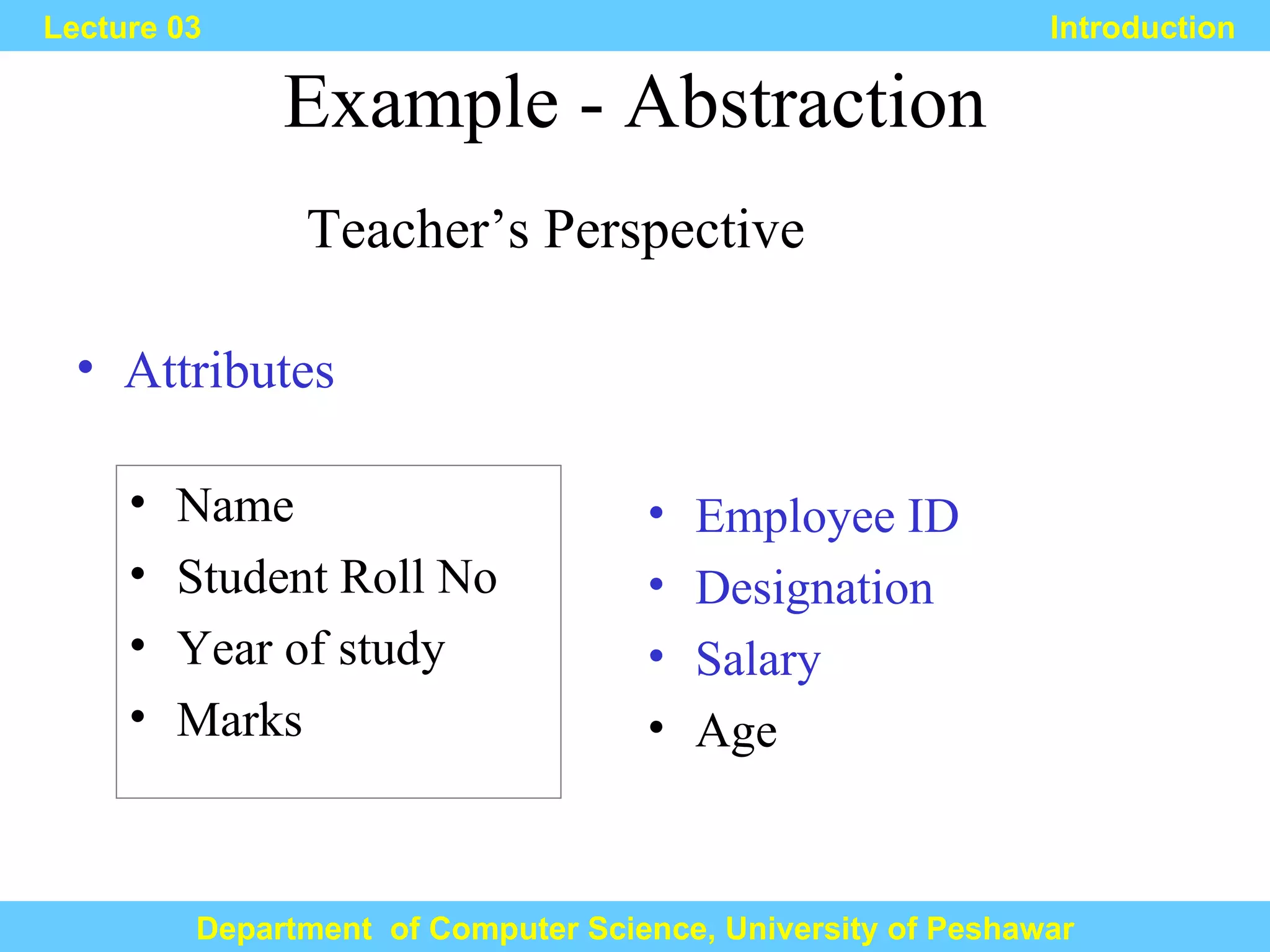

7. Example - Abstraction Teacher’s Perspective Lecture 03 Introduction Department of Computer Science, University of Peshawar Attributes Name Student Roll No Year of study Marks Employee ID Designation Salary Age

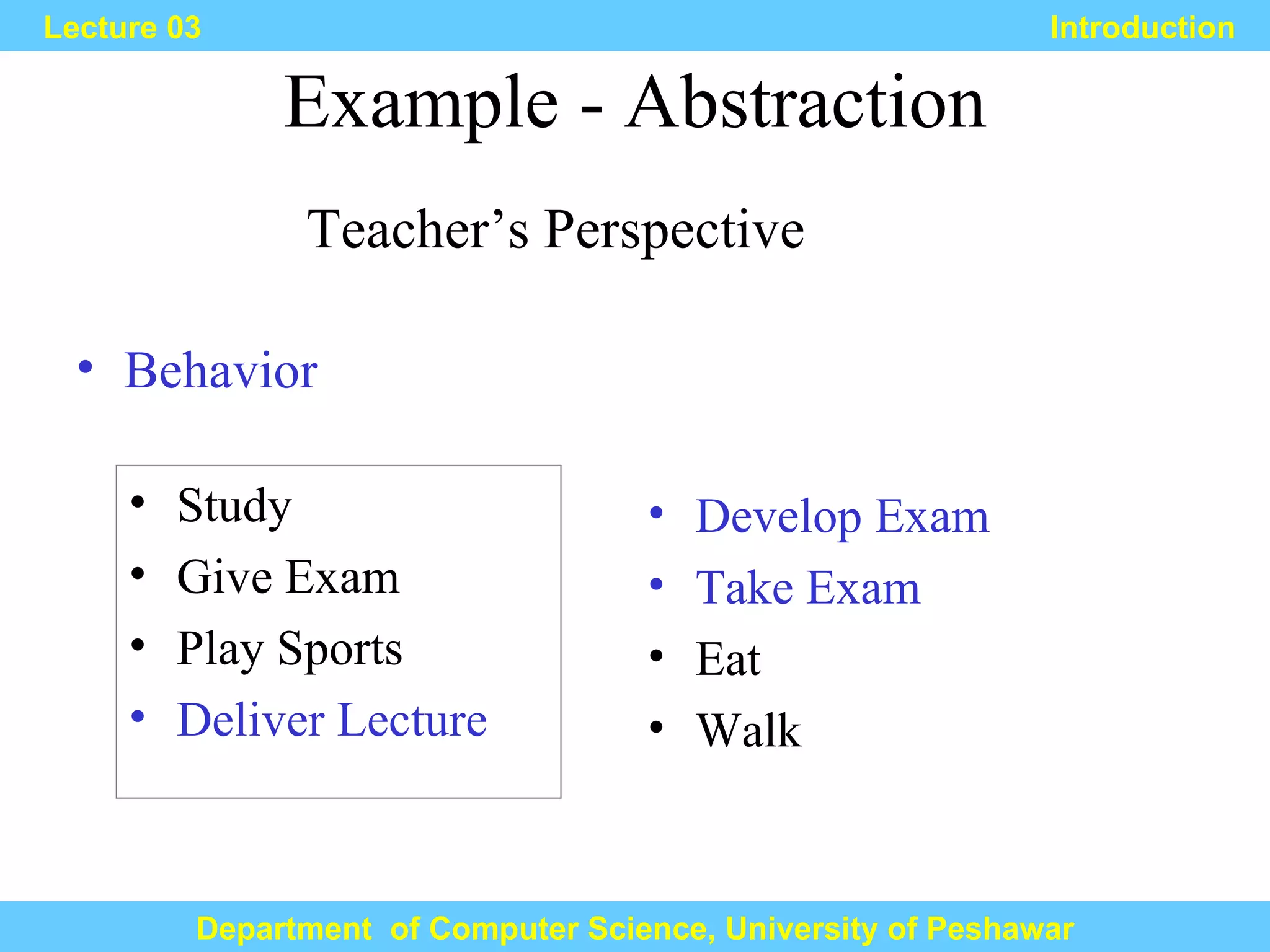

8. Example - Abstraction Teacher’s Perspective Lecture 03 Introduction Department of Computer Science, University of Peshawar Behavior Study Give Exam Play Sports Deliver Lecture Develop Exam Take Exam Eat Walk

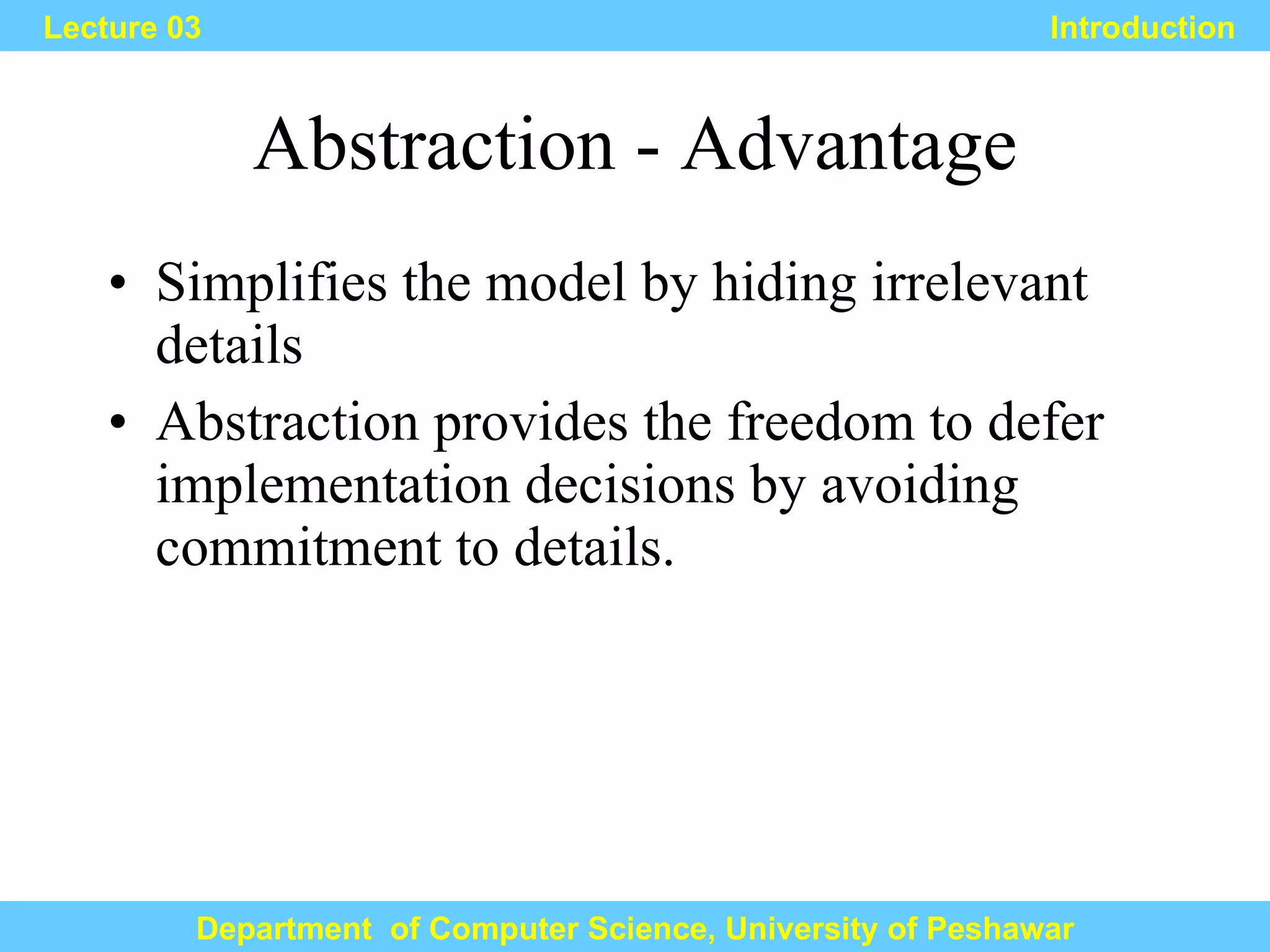

9. Abstraction - Advantage Simplifies the model by hiding irrelevant details Abstraction provides the freedom to defer implementation decisions by avoiding commitment to details. Lecture 03 Introduction Department of Computer Science, University of Peshawar

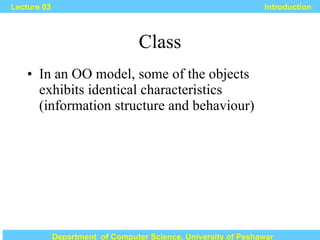

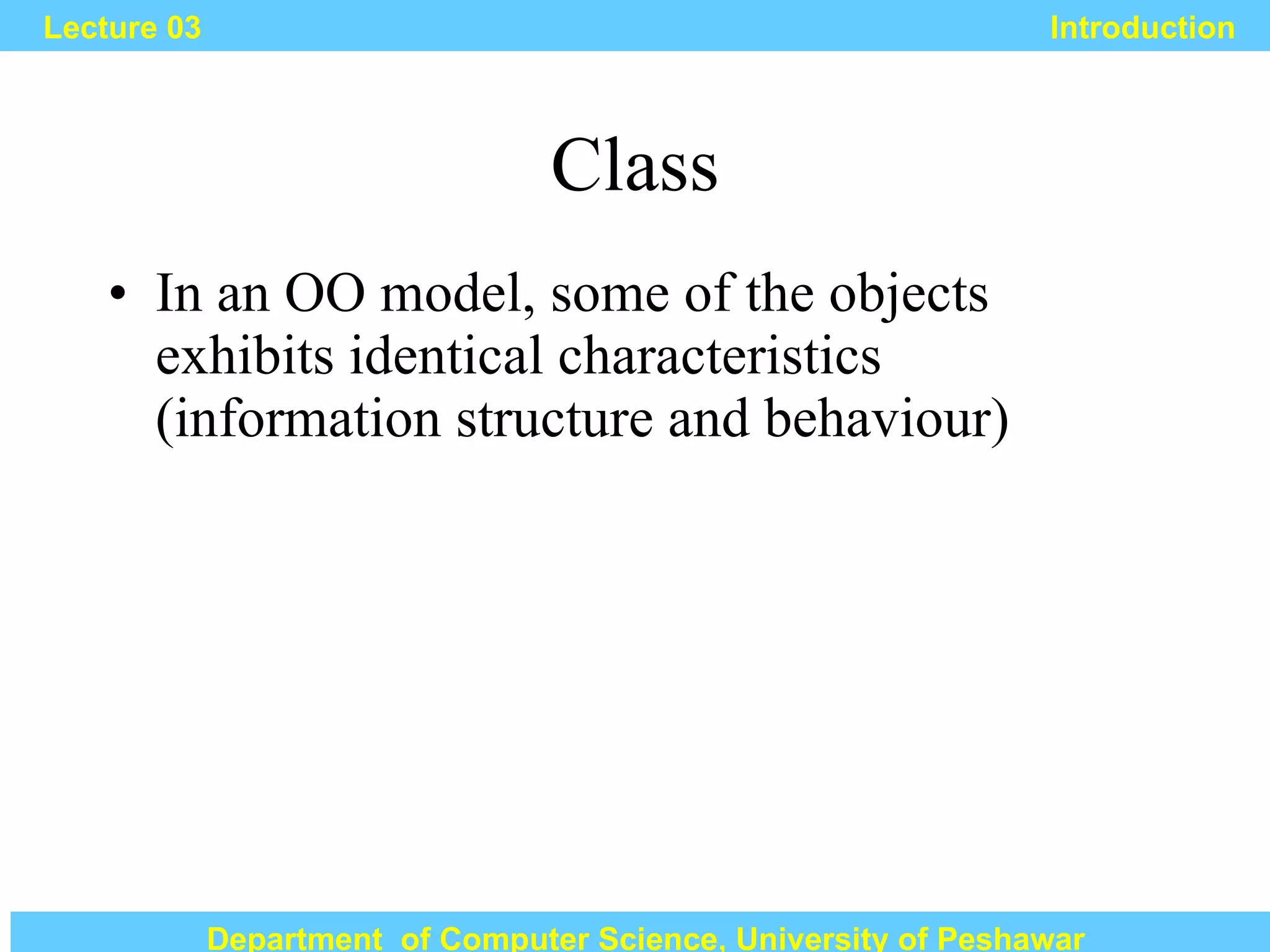

10. Class In an OO model, some of the objects exhibits identical characteristics (information structure and behaviour)

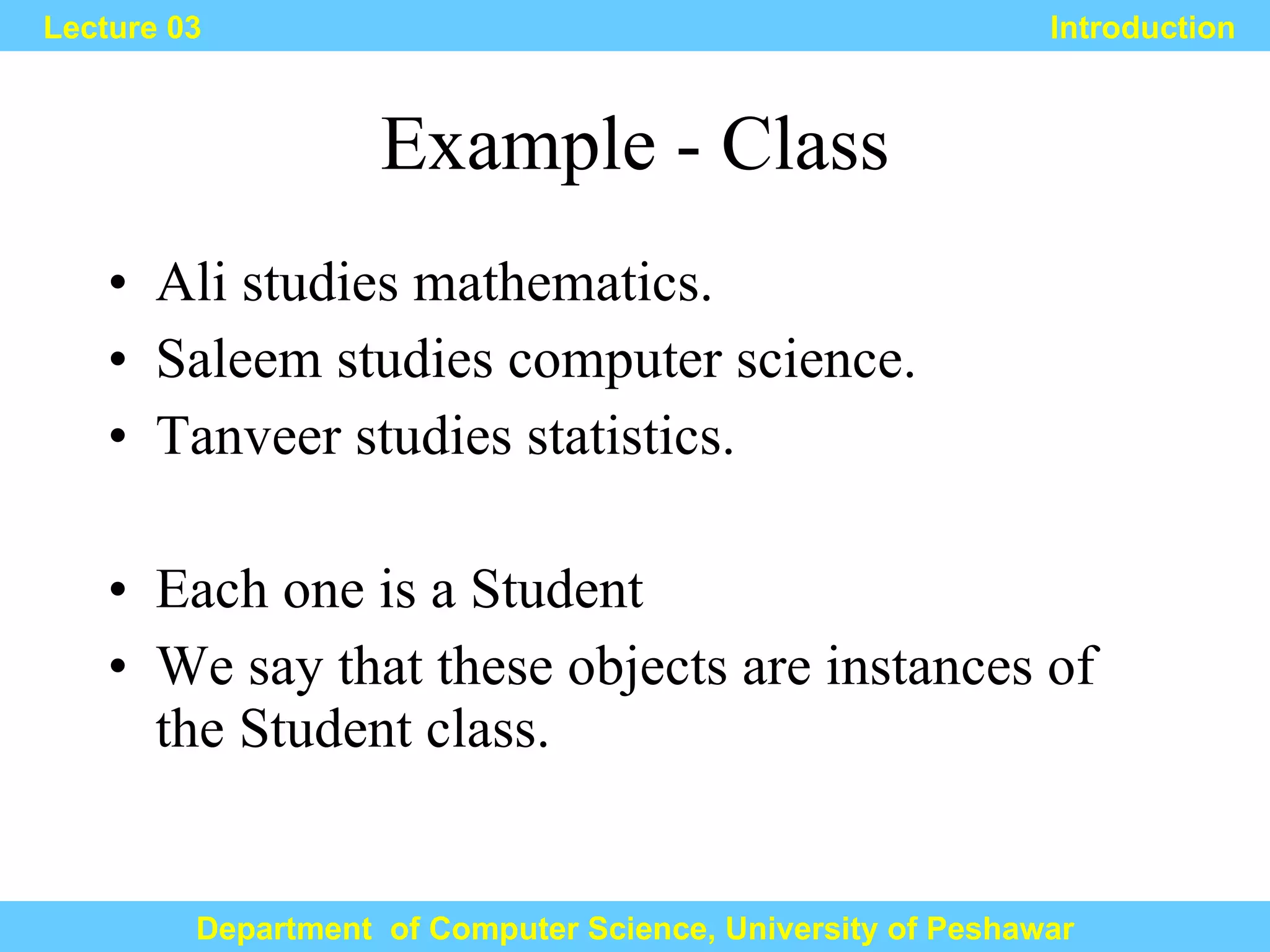

11. Example - Class Ali studies mathematics. Saleem studies computer science. Tanveer studies statistics. Each one is a Student We say that these objects are instances of the Student class. Lecture 03 Introduction Department of Computer Science, University of Peshawar

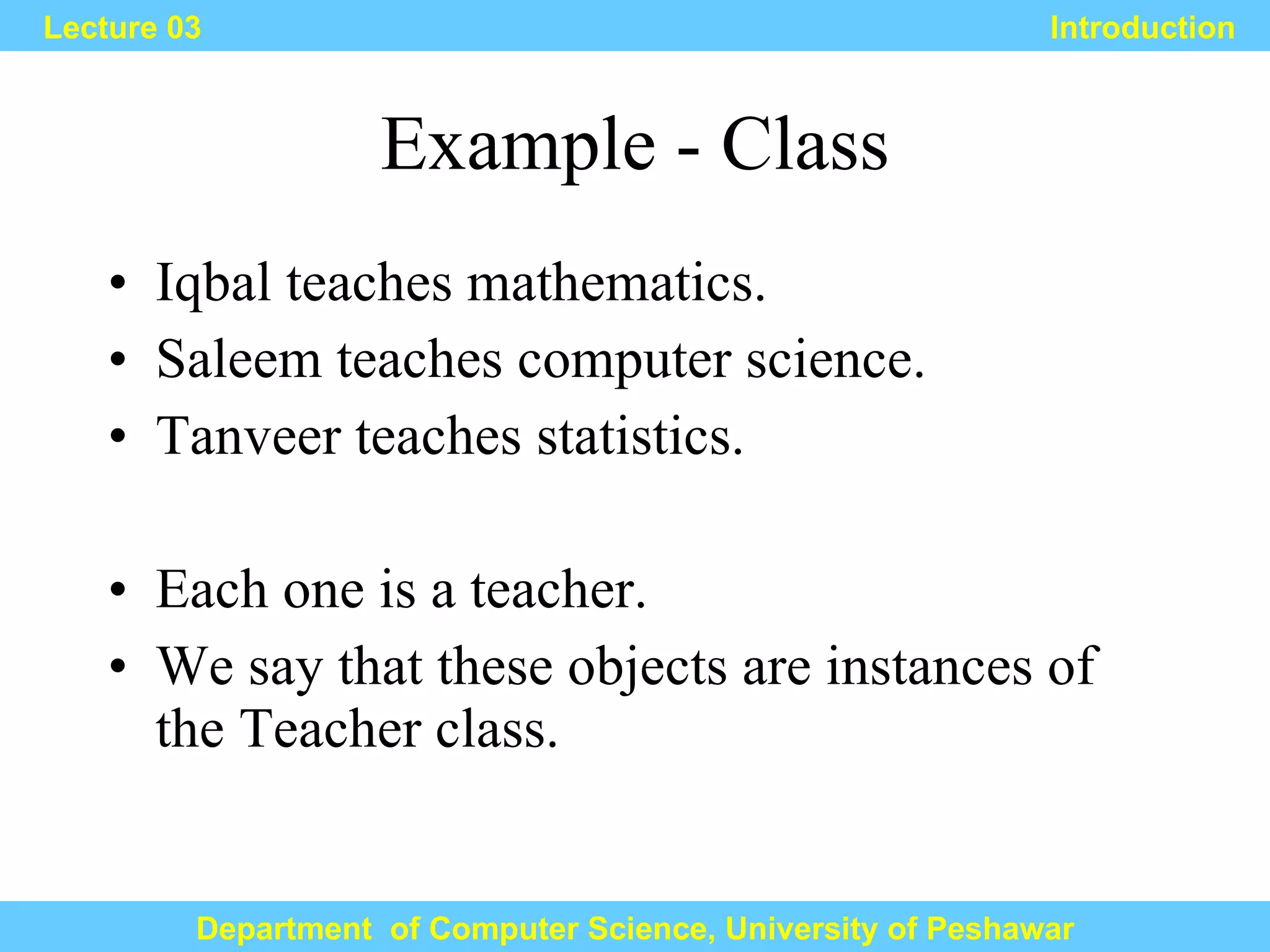

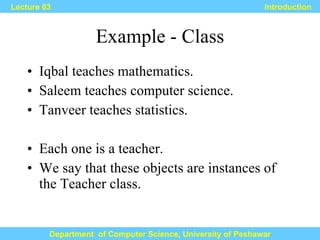

12. Example - Class Iqbal teaches mathematics. Saleem teaches computer science. Tanveer teaches statistics. Each one is a teacher. We say that these objects are instances of the Teacher class. Lecture 03 Introduction Department of Computer Science, University of Peshawar

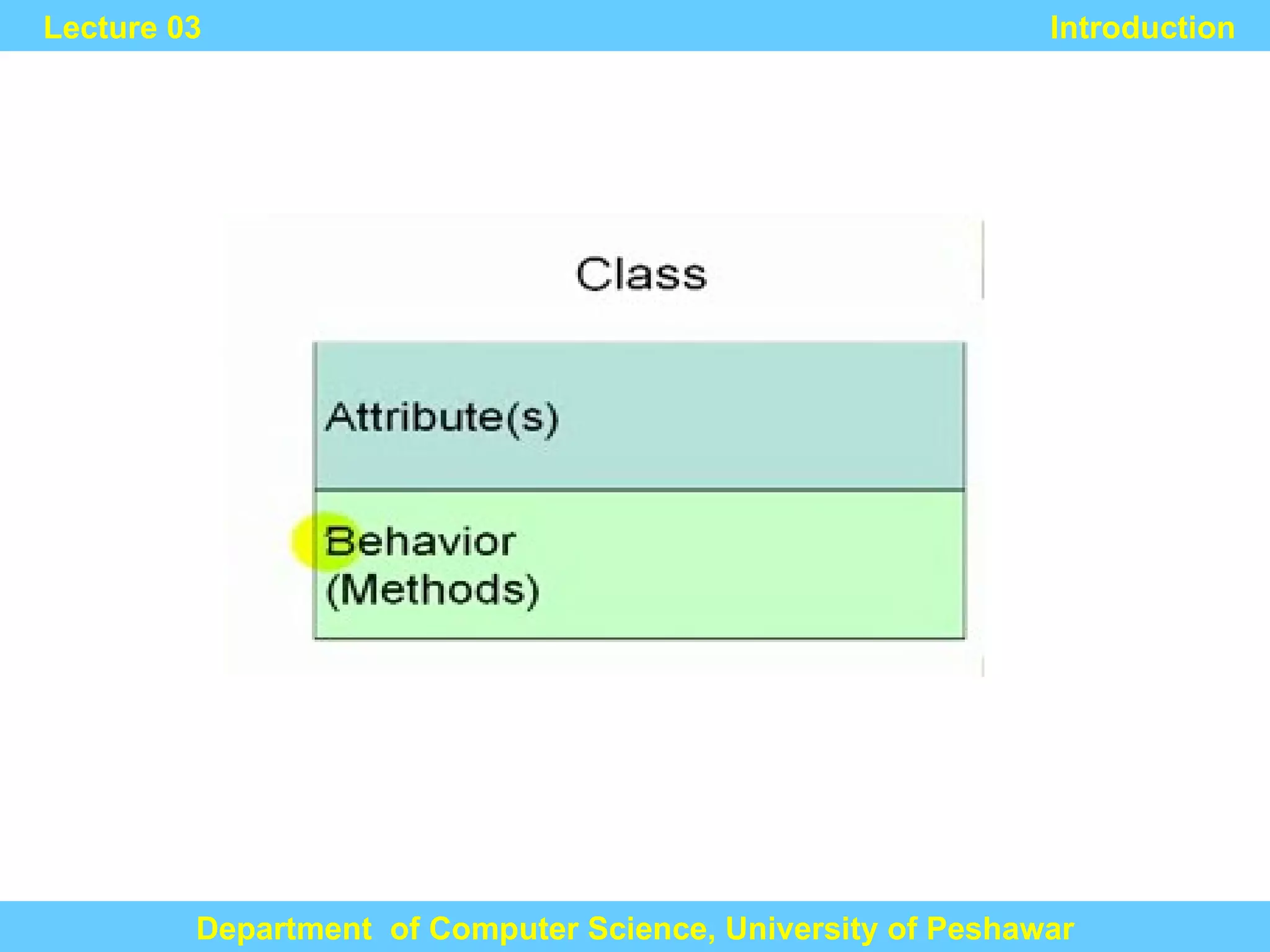

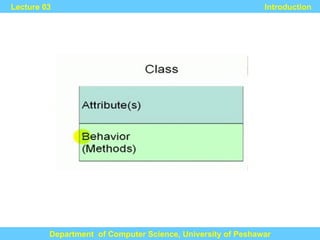

13. Lecture 03 Introduction Department of Computer Science, University of Peshawar

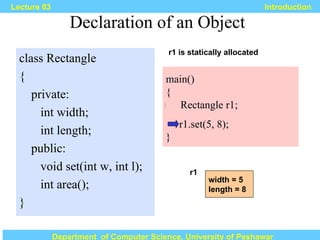

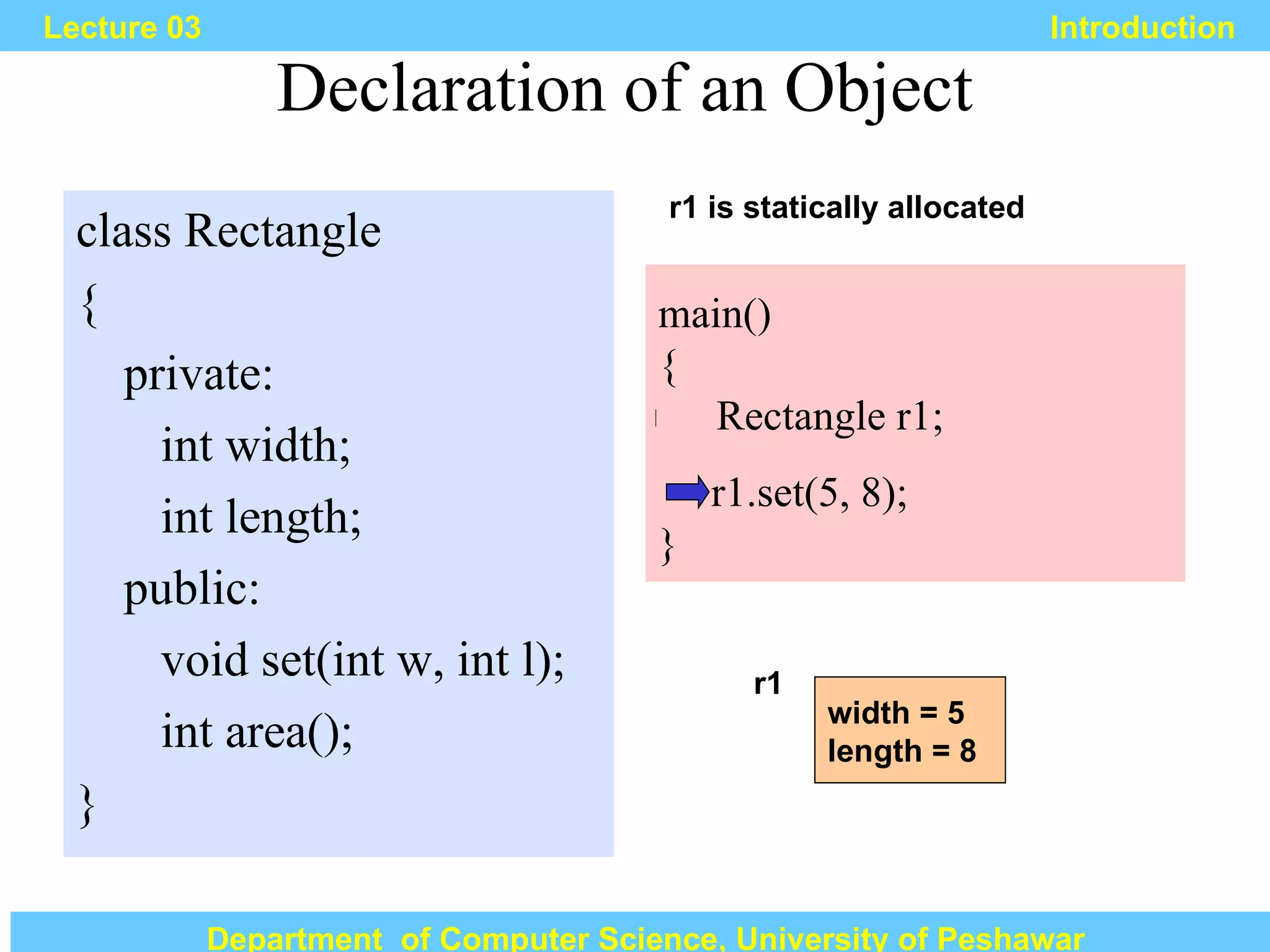

14. Declaration of an Object class Rectangle { private: int width; int length; public: void set(int w, int l); int area(); } main() { Rectangle r1; r1.set(5, 8); } r1 is statically allocated width length r1 width = 5 length = 8 Lecture 03 Introduction

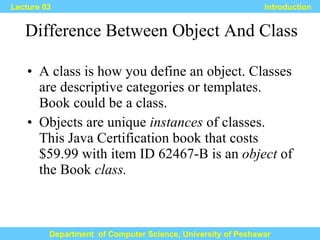

15. Difference Between Object And Class A class is how you define an object. Classes are descriptive categories or templates. Book could be a class. Objects are unique instances of classes. This Java Certification book that costs $59.99 with item ID 62467-B is an object of the Book class. Lecture 03 Introduction Department of Computer Science, University of Peshawar

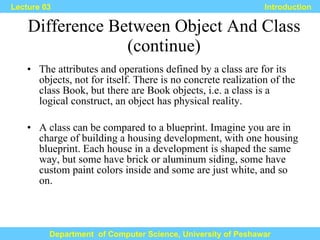

16. Difference Between Object And Class (continue) The attributes and operations defined by a class are for its objects, not for itself. There is no concrete realization of the class Book, but there are Book objects, i.e. a class is a logical construct, an object has physical reality. A class can be compared to a blueprint. Imagine you are in charge of building a housing development, with one housing blueprint. Each house in a development is shaped the same way, but some have brick or aluminum siding, some have custom paint colors inside and some are just white, and so on. Lecture 03 Introduction Department of Computer Science, University of Peshawar

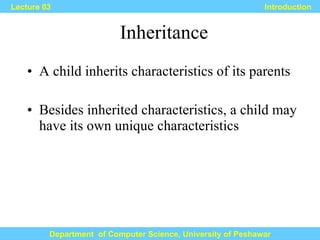

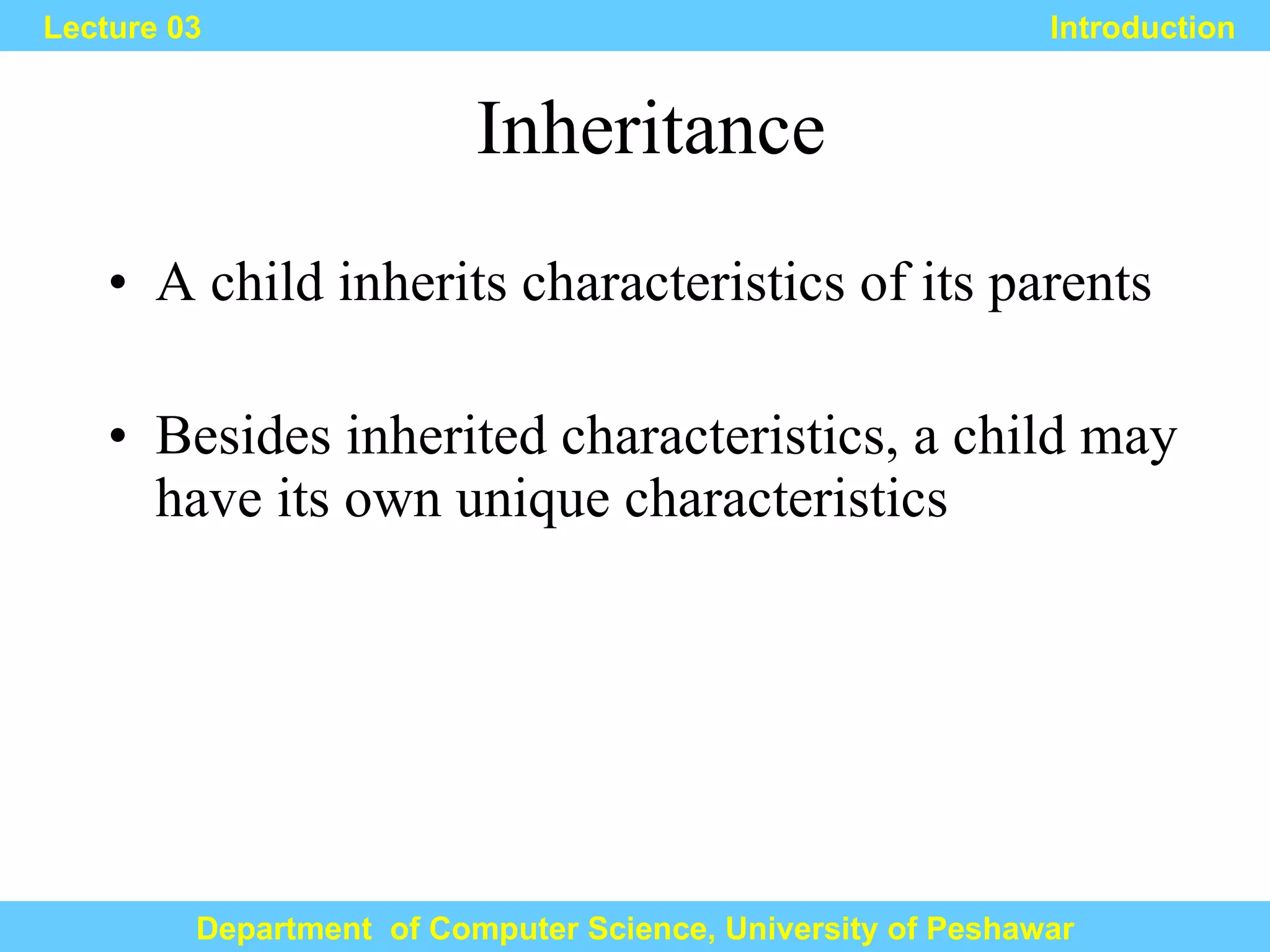

17. Inheritance A child inherits characteristics of its parents Besides inherited characteristics, a child may have its own unique characteristics Lecture 03 Introduction Department of Computer Science, University of Peshawar

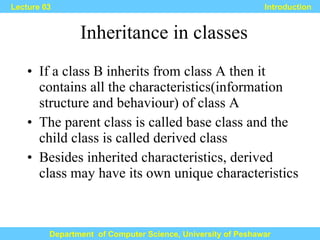

18. Inheritance in classes If a class B inherits from class A then it contains all the characteristics(information structure and behaviour) of class A The parent class is called base class and the child class is called derived class Besides inherited characteristics, derived class may have its own unique characteristics Lecture 03 Introduction Department of Computer Science, University of Peshawar

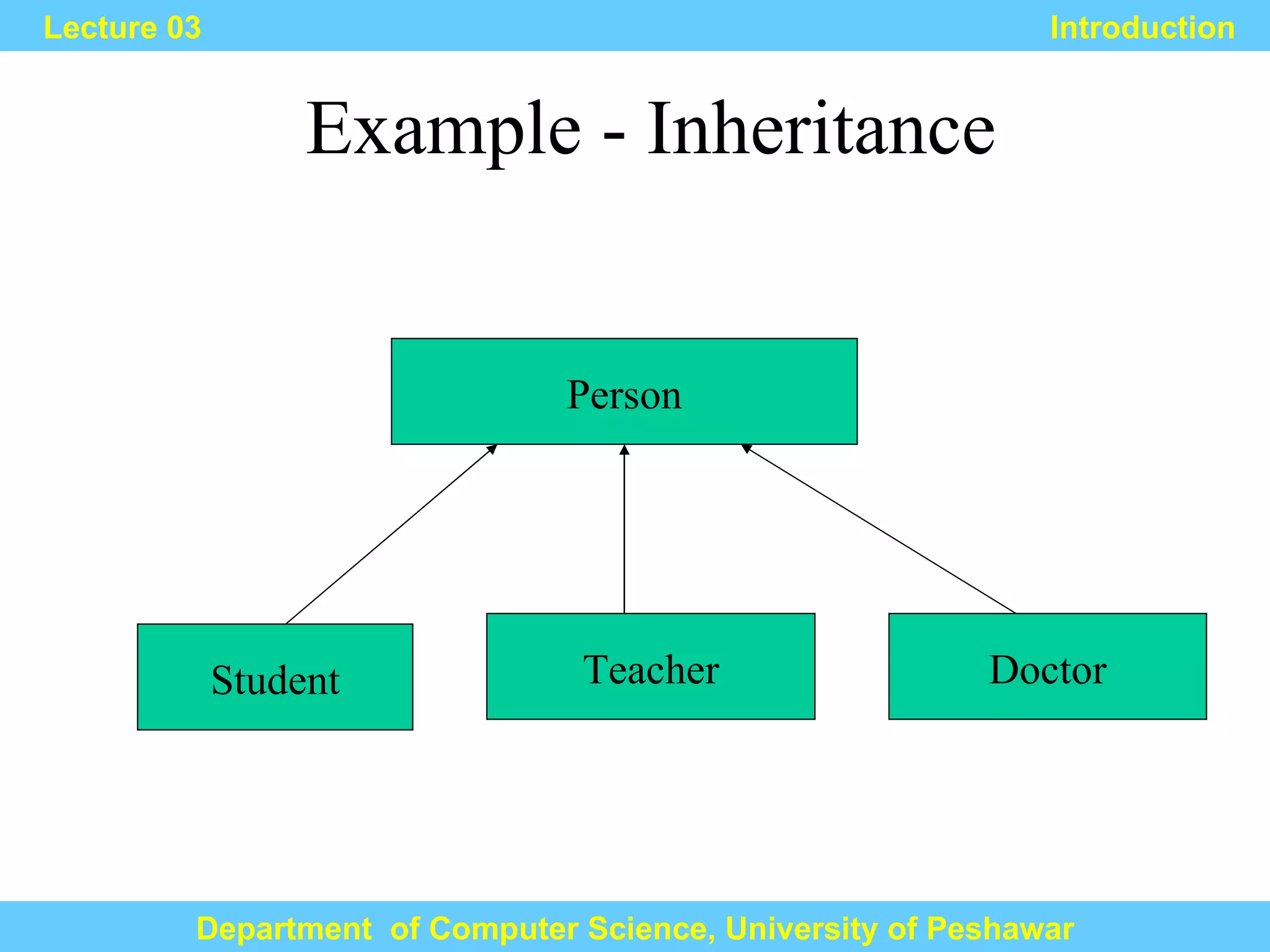

19. Example - Inheritance Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Teacher Student Doctor

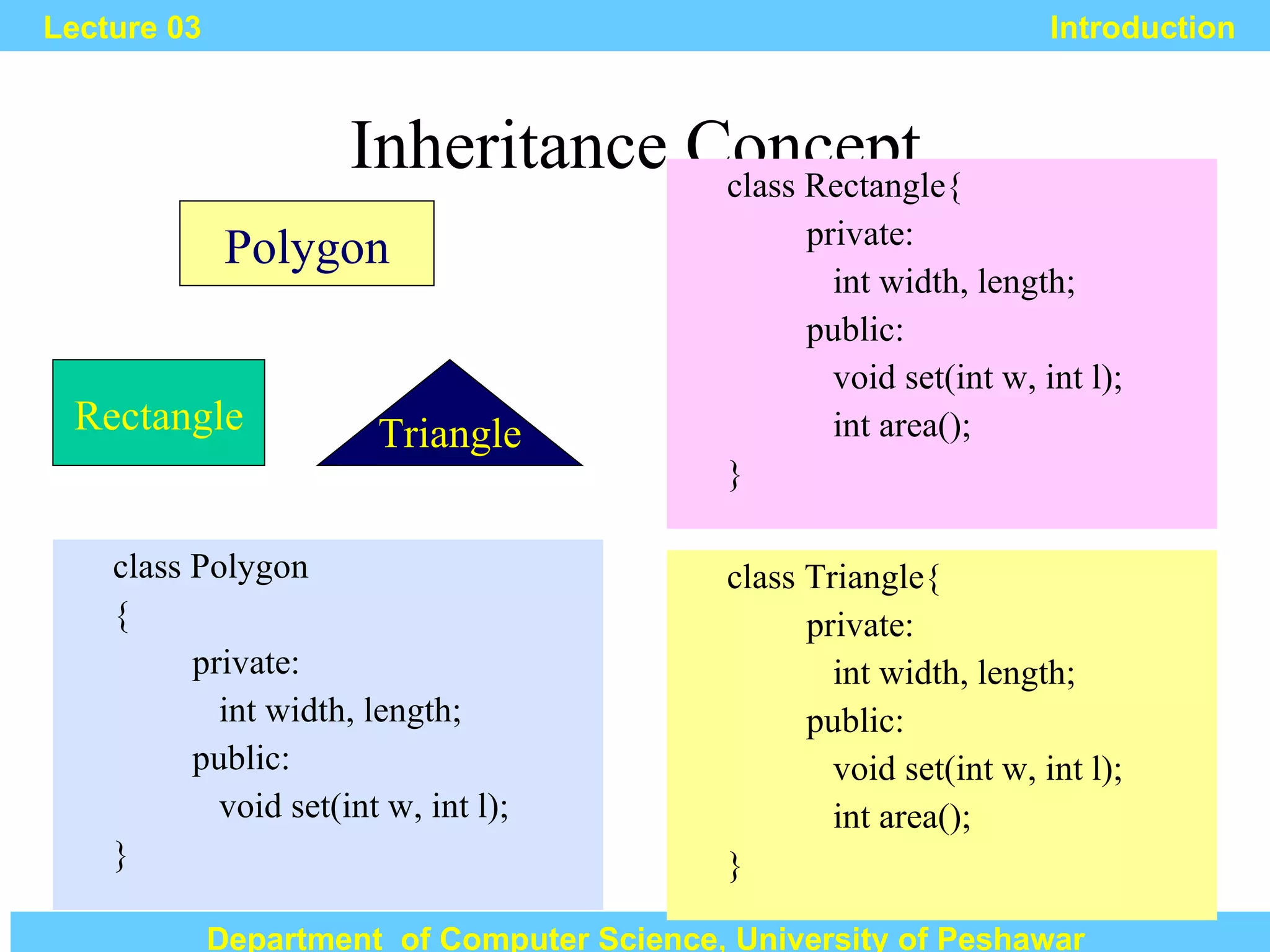

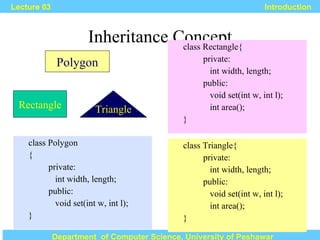

20. Inheritance Concept Rectangle Triangle Polygon class Polygon { private: int width, length; public: void set(int w, int l); } class Rectangle{ private: int width, length; public: void set(int w, int l); int area(); } class Triangle{ private: int width, length; public: void set(int w, int l); int area(); } Lecture 03 Introduction

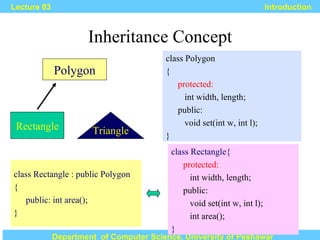

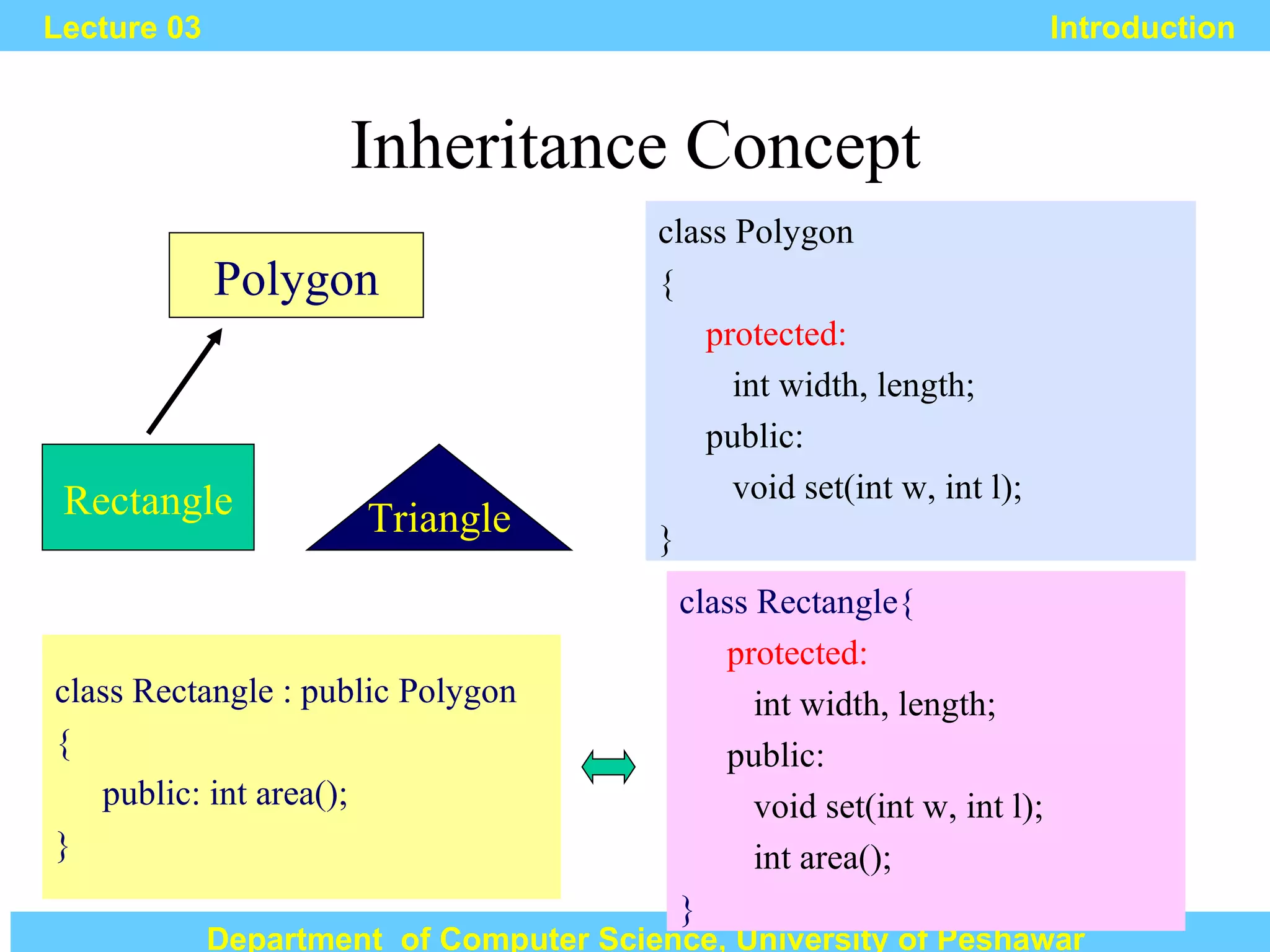

21. Inheritance Concept Rectangle Triangle Polygon class Polygon { protected: int width, length; public: void set(int w, int l); } class Rectangle : public Polygon { public: int area(); } class Rectangle{ protected: int width, length; public: void set(int w, int l); int area(); } Lecture 03 Introduction

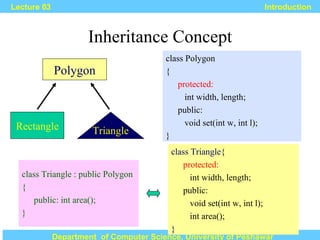

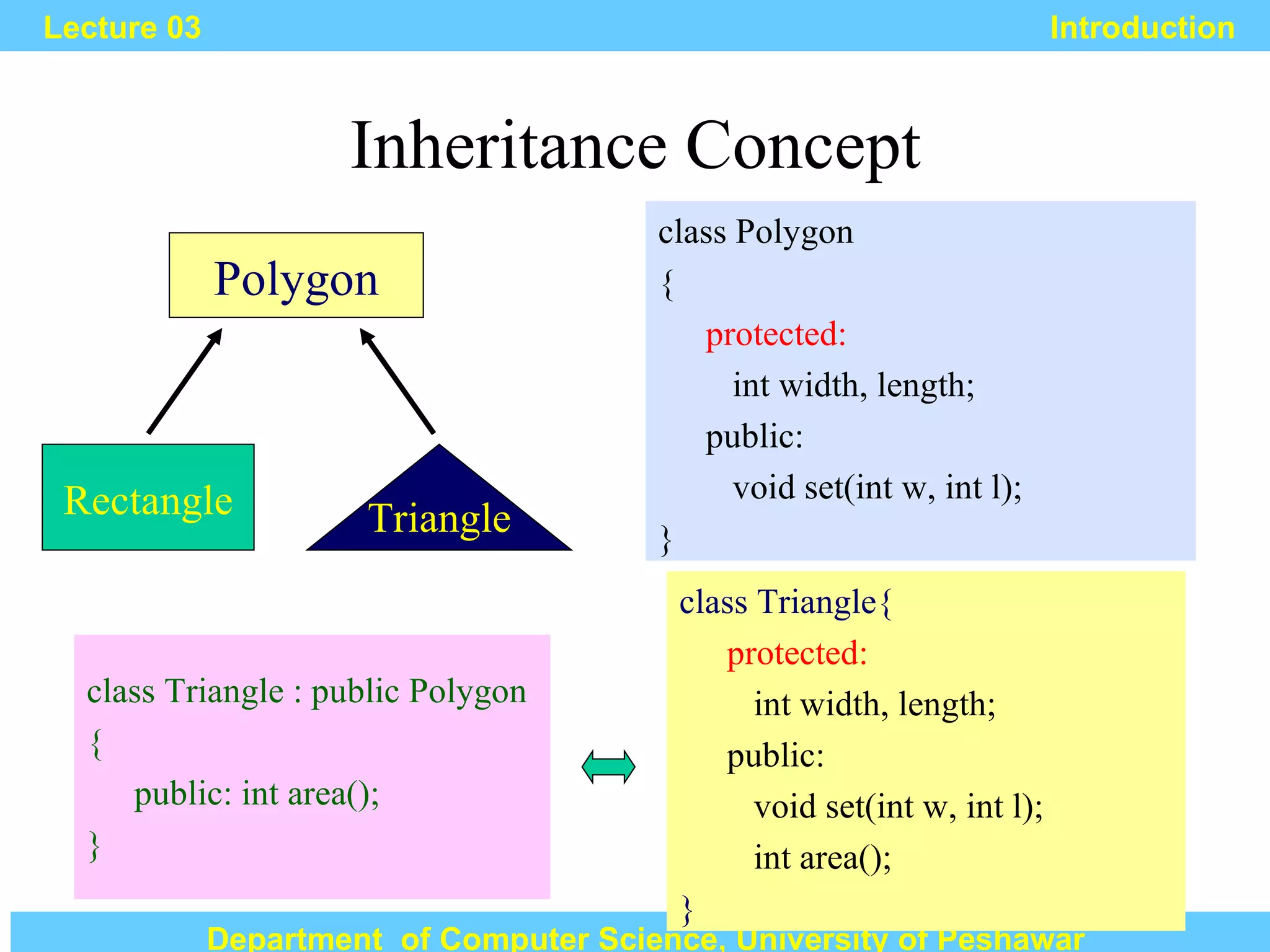

22. Inheritance Concept Rectangle Triangle Polygon class Polygon { protected: int width, length; public: void set(int w, int l); } class Triangle : public Polygon { public: int area(); } class Triangle{ protected: int width, length; public: void set(int w, int l); int area(); } Lecture 03 Introduction

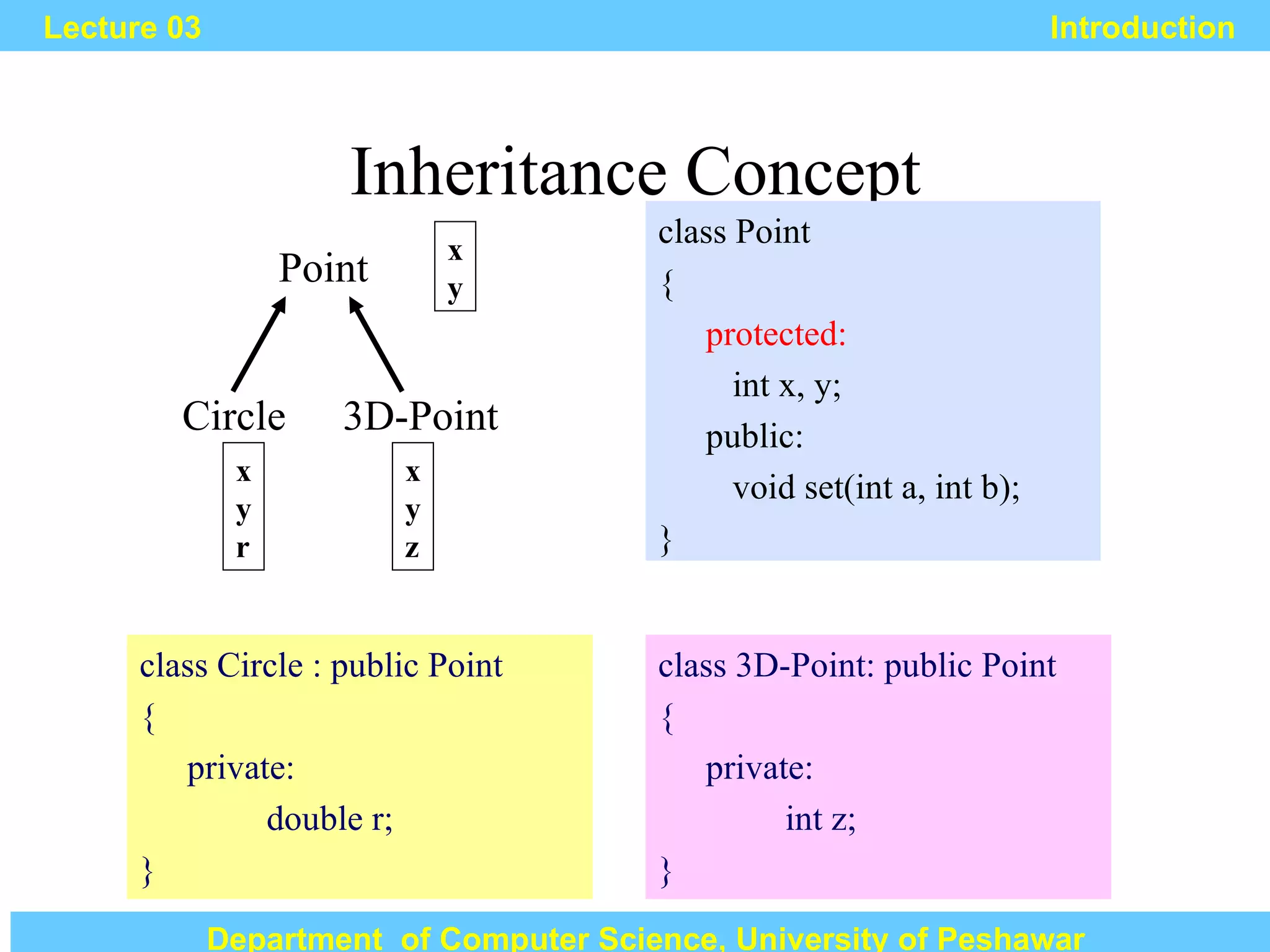

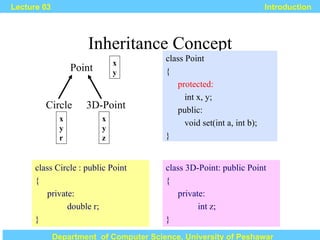

23. Inheritance Concept Point Circle 3D-Point class Point { protected: int x, y; public: void set(int a, int b); } class Circle : public Point { private: double r; } class 3D-Point: public Point { private: int z; } x y x y r x y z Lecture 03 Introduction

24. Augmenting the original class Specializing the original class Inheritance Concept RealNumber ComplexNumber ImaginaryNumber Rectangle Triangle Polygon Point Circle real imag real imag 3D-Point Lecture 03 Introduction

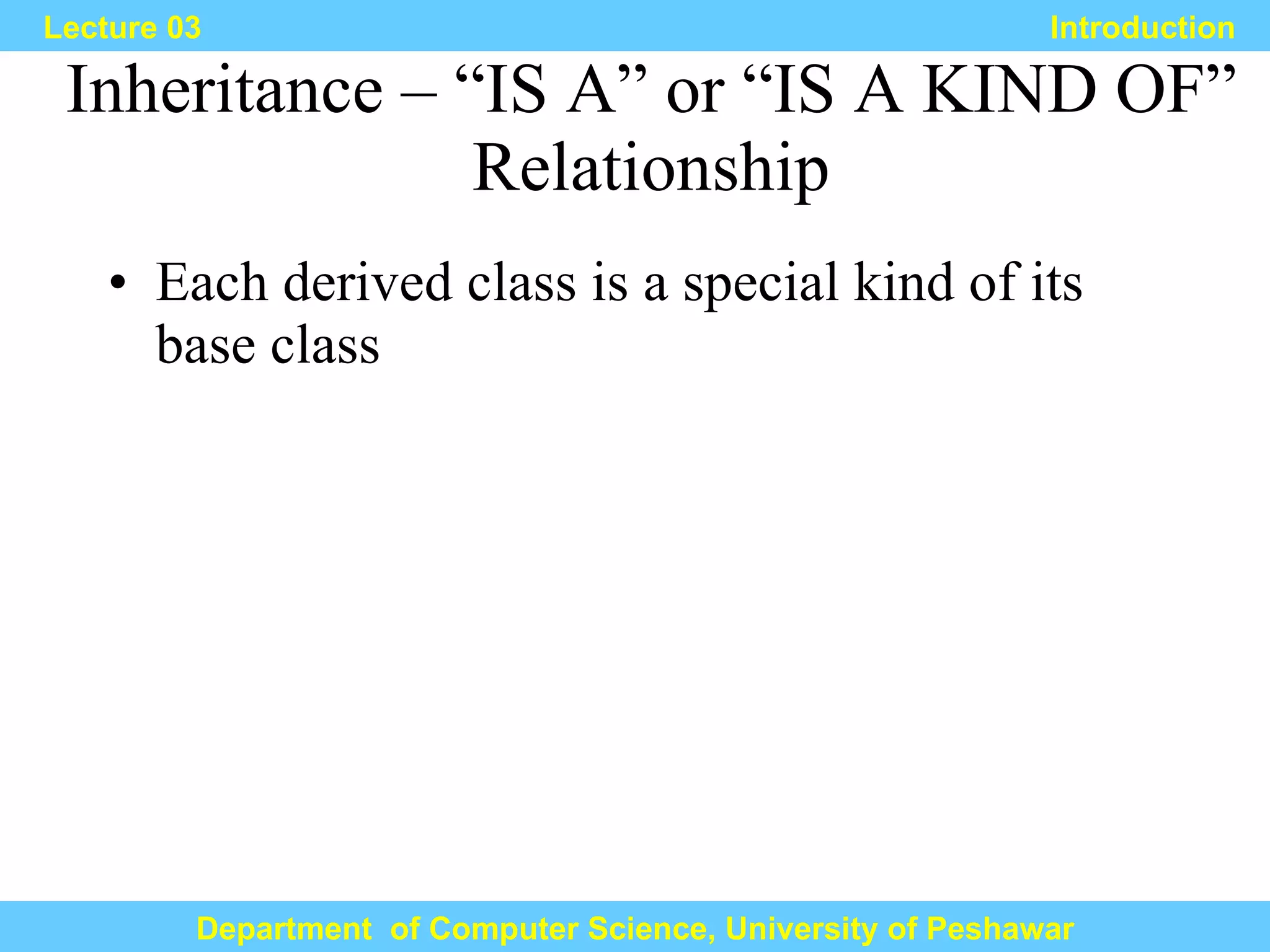

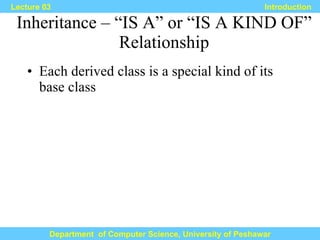

25. Inheritance – “IS A” or “IS A KIND OF” Relationship Each derived class is a special kind of its base class Lecture 03 Introduction Department of Computer Science, University of Peshawar

26. Example – “IS A” Relatioship Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Program Study_year Study Heldexam Teacher designation salary Teach Take_exam Doctor designation salary Check up prescribe

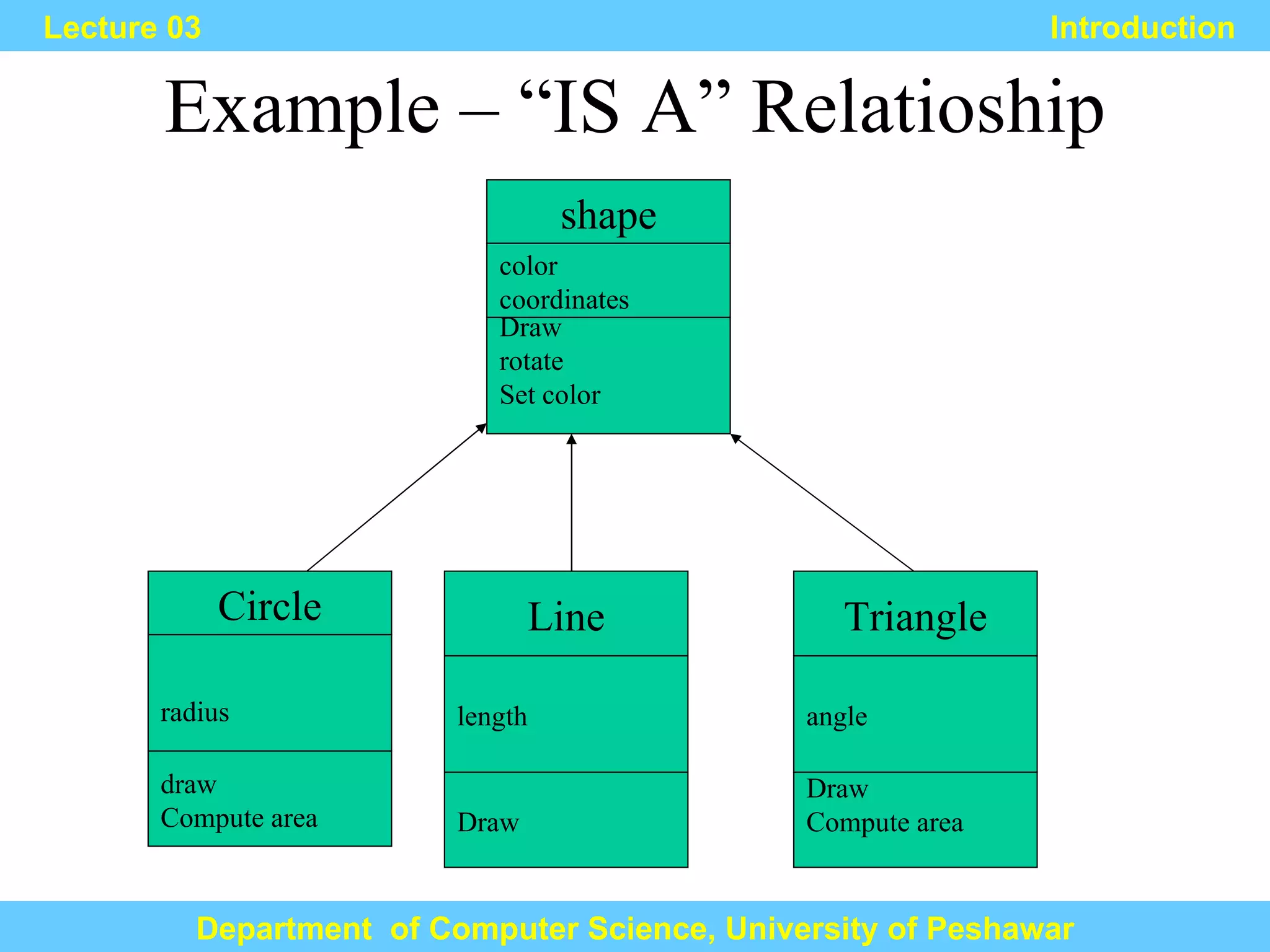

27. Example – “IS A” Relatioship Lecture 03 Introduction Department of Computer Science, University of Peshawar shape color coordinates Draw rotate Set color Circle radius draw Compute area Line length Draw Triangle angle Draw Compute area

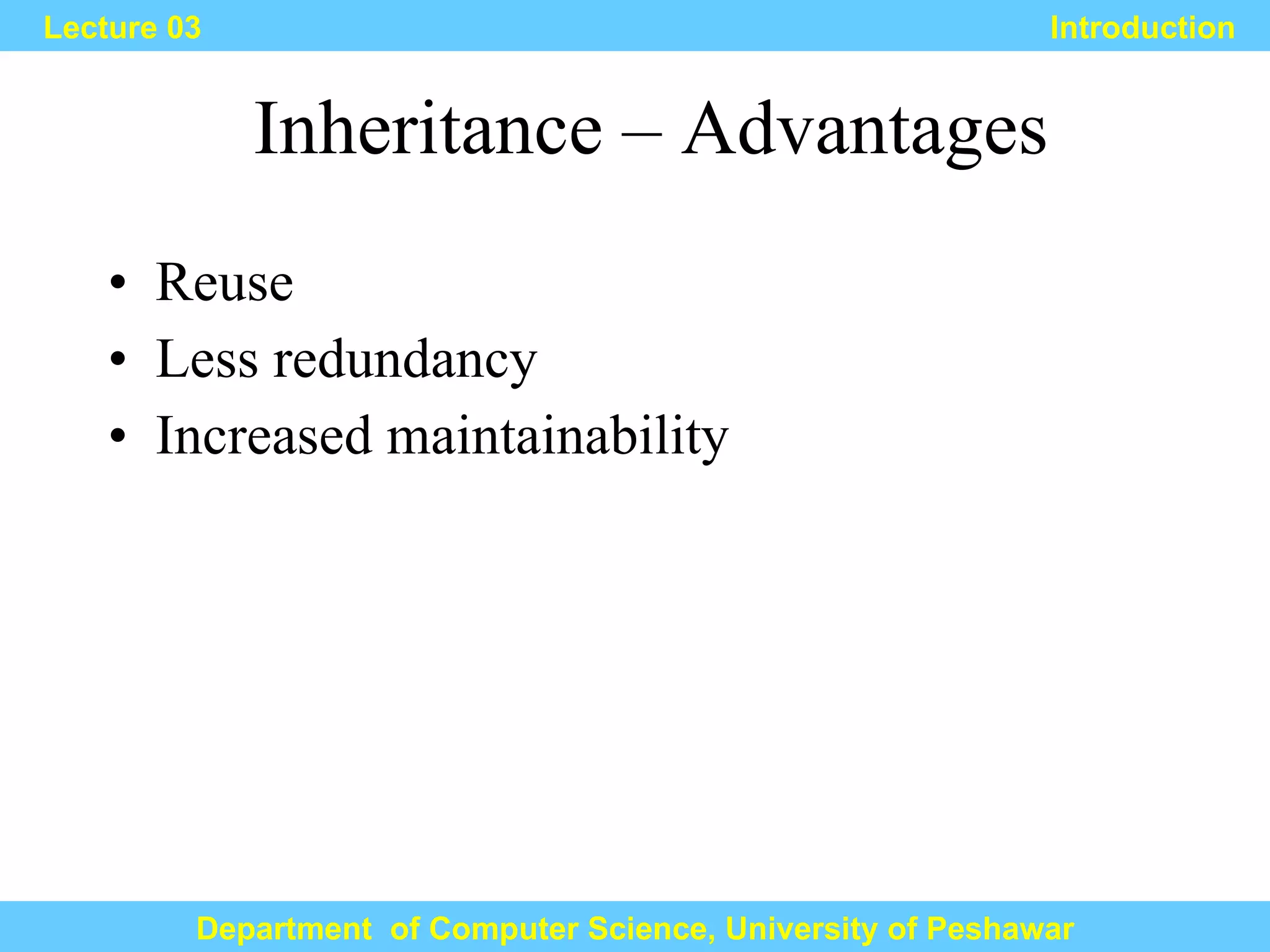

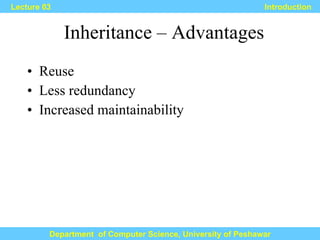

28. Inheritance – Advantages Reuse Less redundancy Increased maintainability Lecture 03 Introduction Department of Computer Science, University of Peshawar

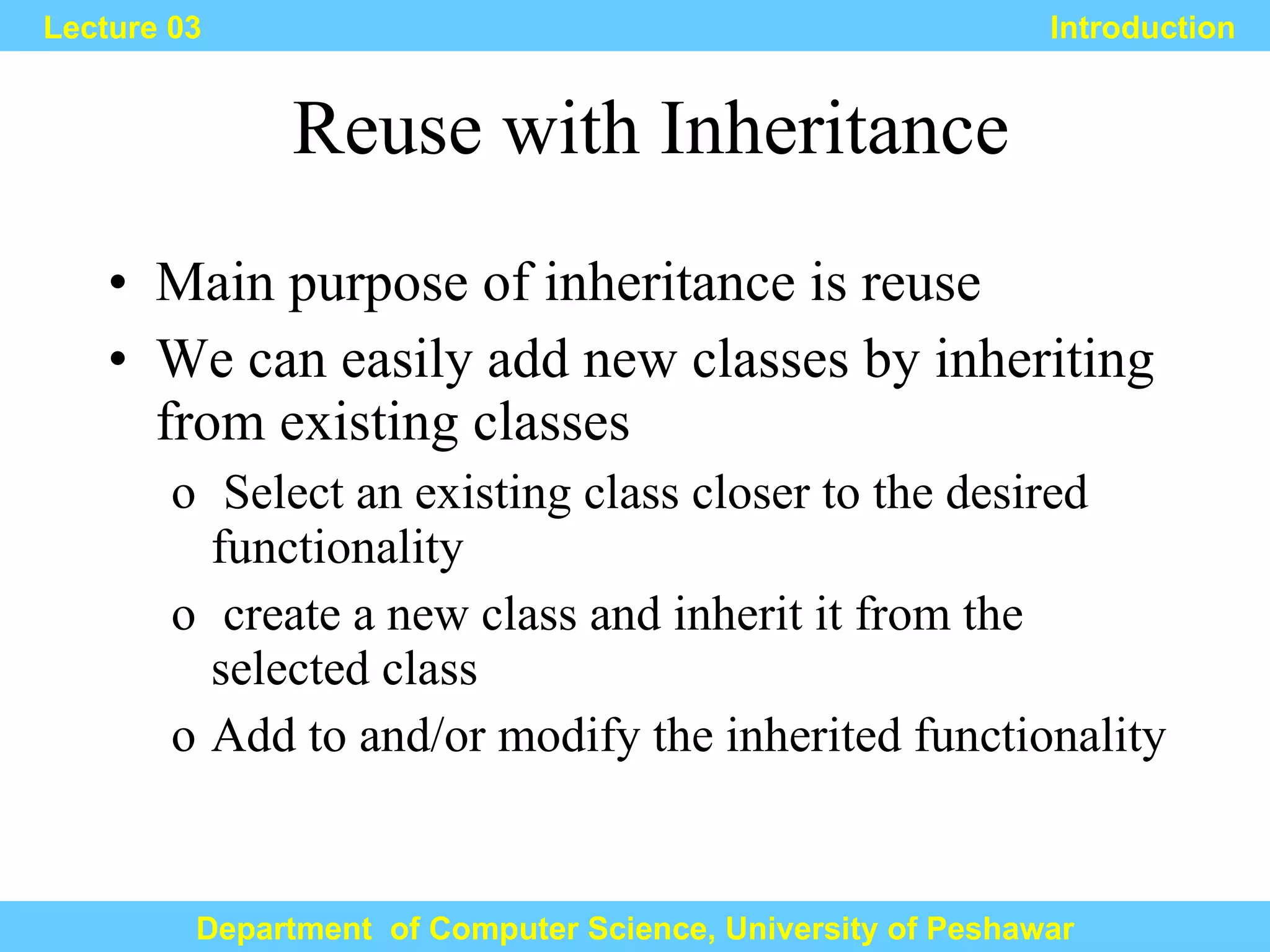

29. Reuse with Inheritance Main purpose of inheritance is reuse We can easily add new classes by inheriting from existing classes Select an existing class closer to the desired functionality create a new class and inherit it from the selected class Add to and/or modify the inherited functionality Lecture 03 Introduction Department of Computer Science, University of Peshawar

30. Example Reuse Lecture 03 Introduction Department of Computer Science, University of Peshawar Shape color coordinates Draw rotate Set color Circle radius draw Compute area Line length Draw Triangle angle Draw Compute area

31. Example – “IS A” Relatioship Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Program Study_year Study Heldexam Teacher designation salary Teach Take_exam Doctor designation salary Check up prescribe

32. Example – “IS A” Relatioship Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Program Study_year Study Heldexam Teacher designation salary Teach Take_exam Doctor designation salary Check up prescribe

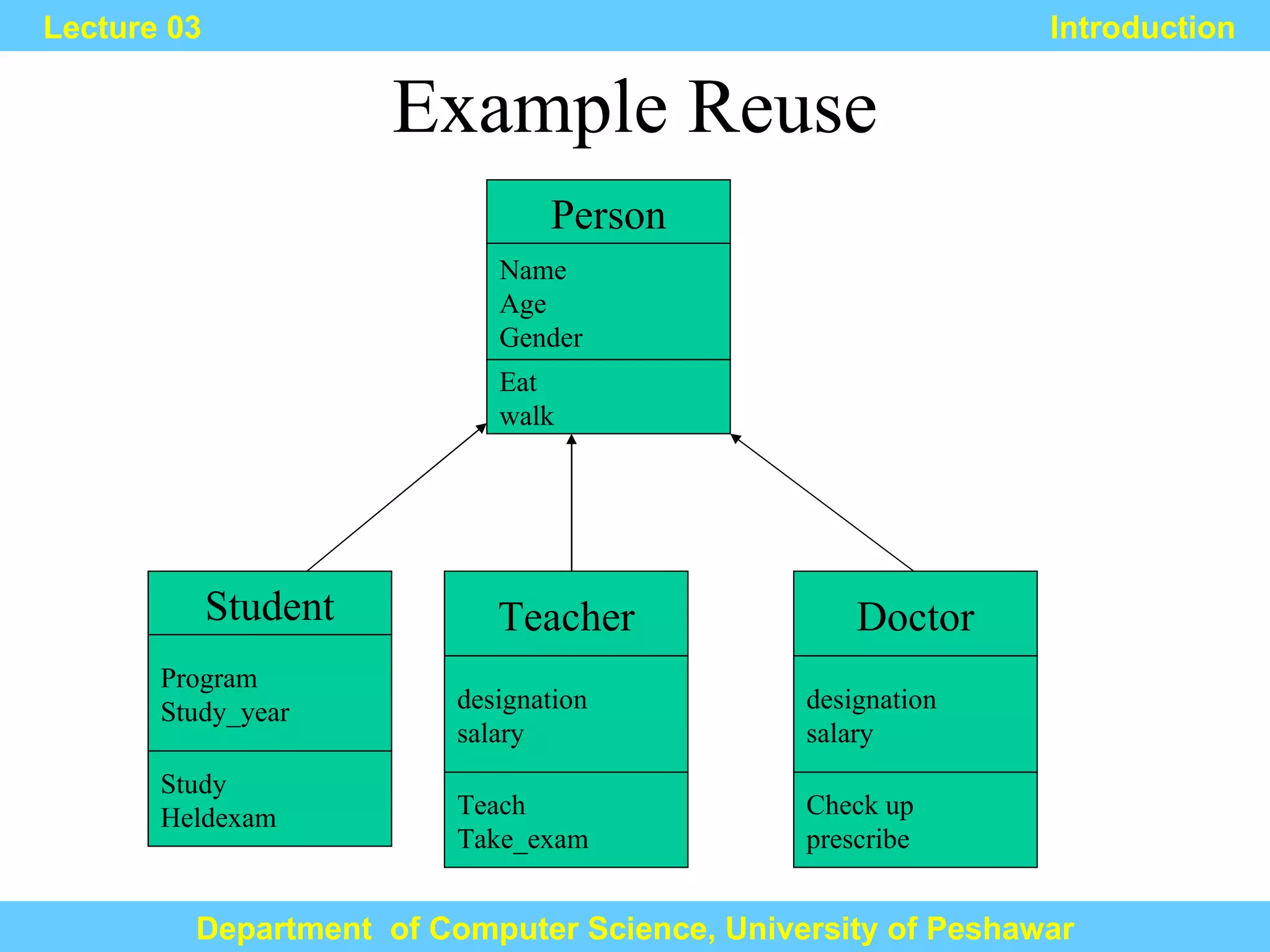

33. Example Reuse Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Program Study_year Study Heldexam Teacher designation salary Teach Take_exam Doctor designation salary Check up prescribe

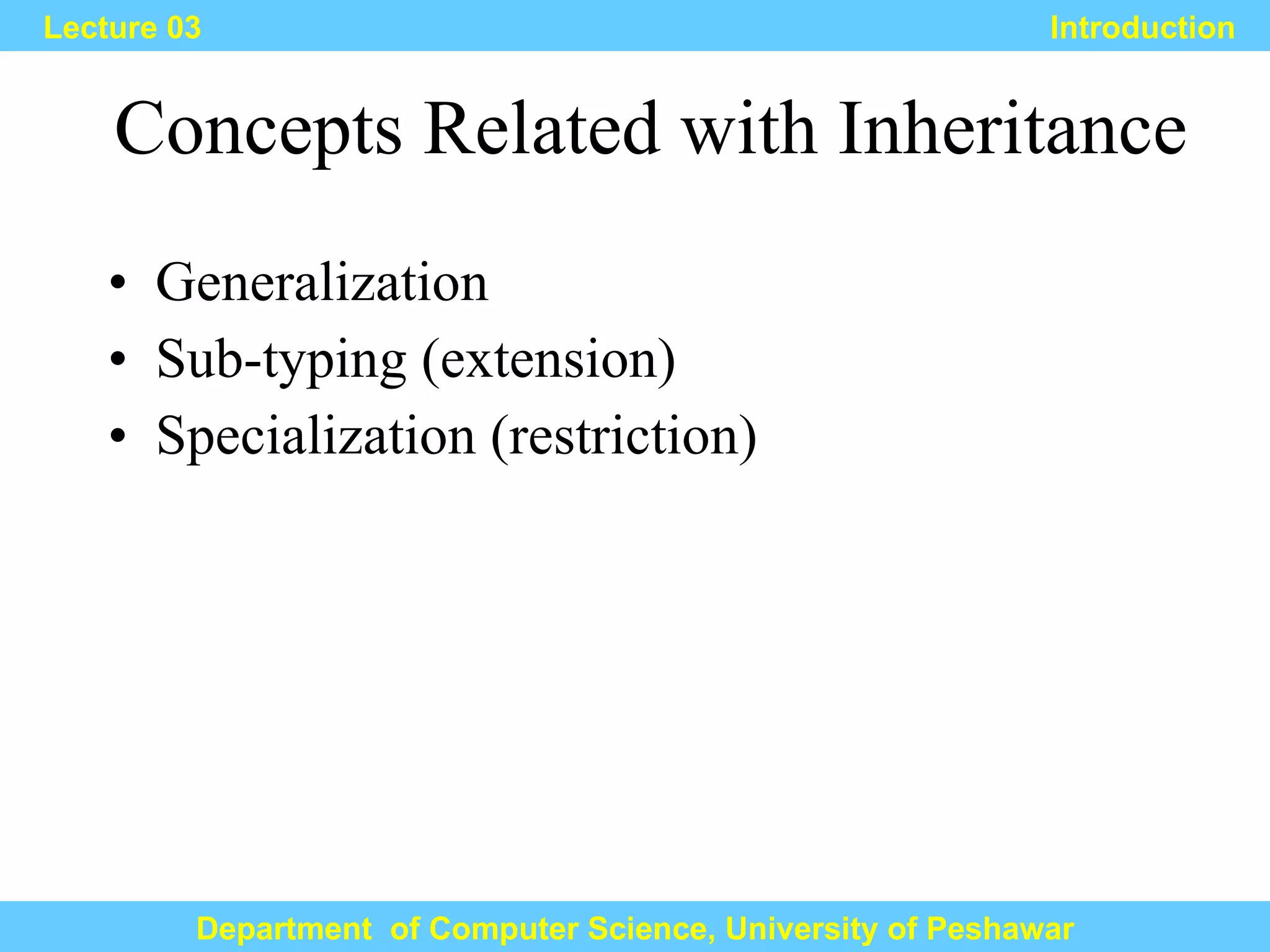

34. Concepts Related with Inheritance Generalization Sub-typing (extension) Specialization (restriction) Lecture 03 Introduction Department of Computer Science, University of Peshawar

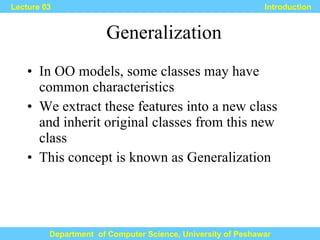

35. Generalization In OO models, some classes may have common characteristics We extract these features into a new class and inherit original classes from this new class This concept is known as Generalization Lecture 03 Introduction Department of Computer Science, University of Peshawar

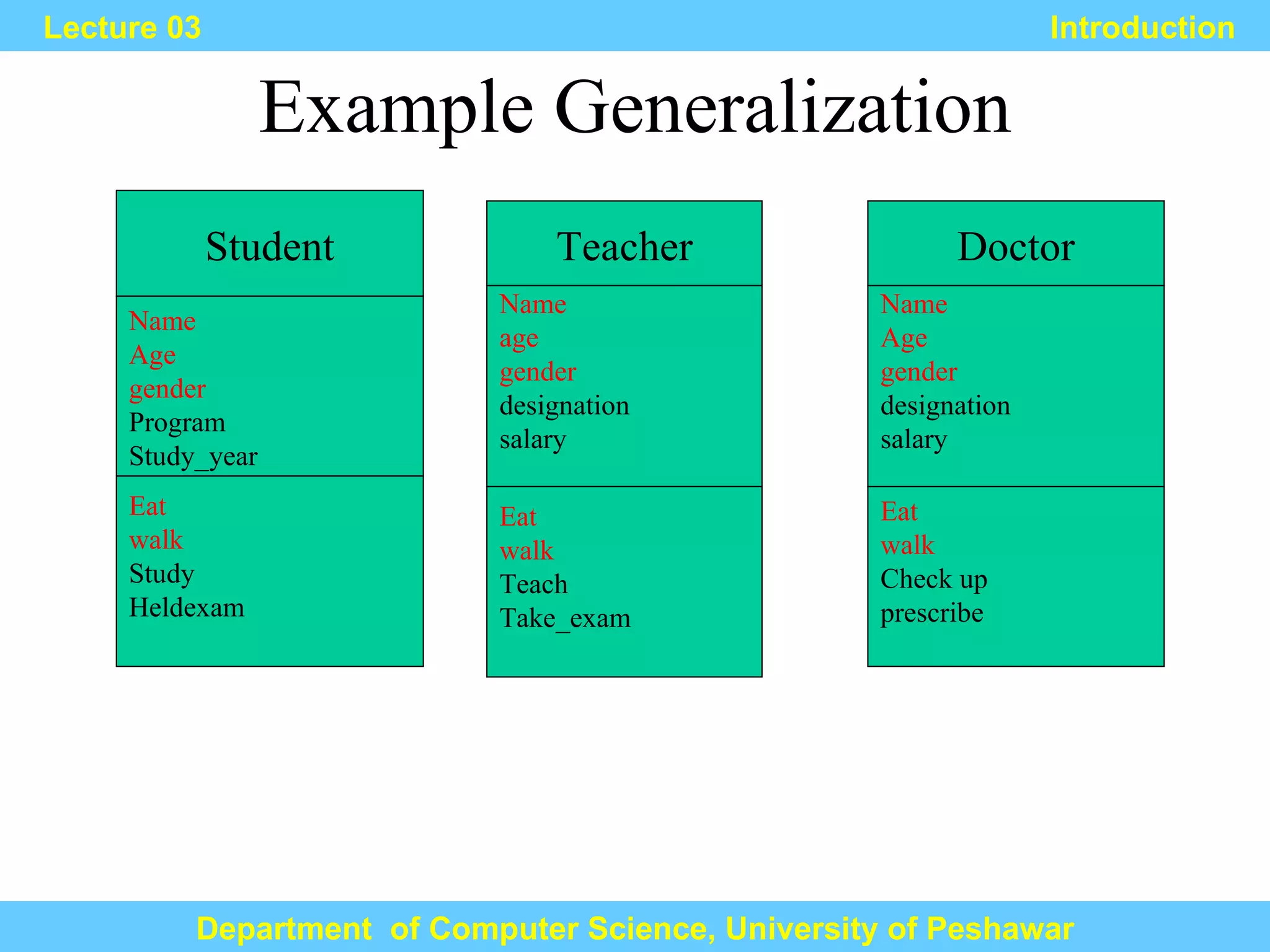

36. Example Generalization Lecture 03 Introduction Department of Computer Science, University of Peshawar Student Name Age gender Program Study_year Eat walk Study Heldexam Teacher Name age gender designation salary Eat walk Teach Take_exam Doctor Name Age gender designation salary Eat walk Check up prescribe

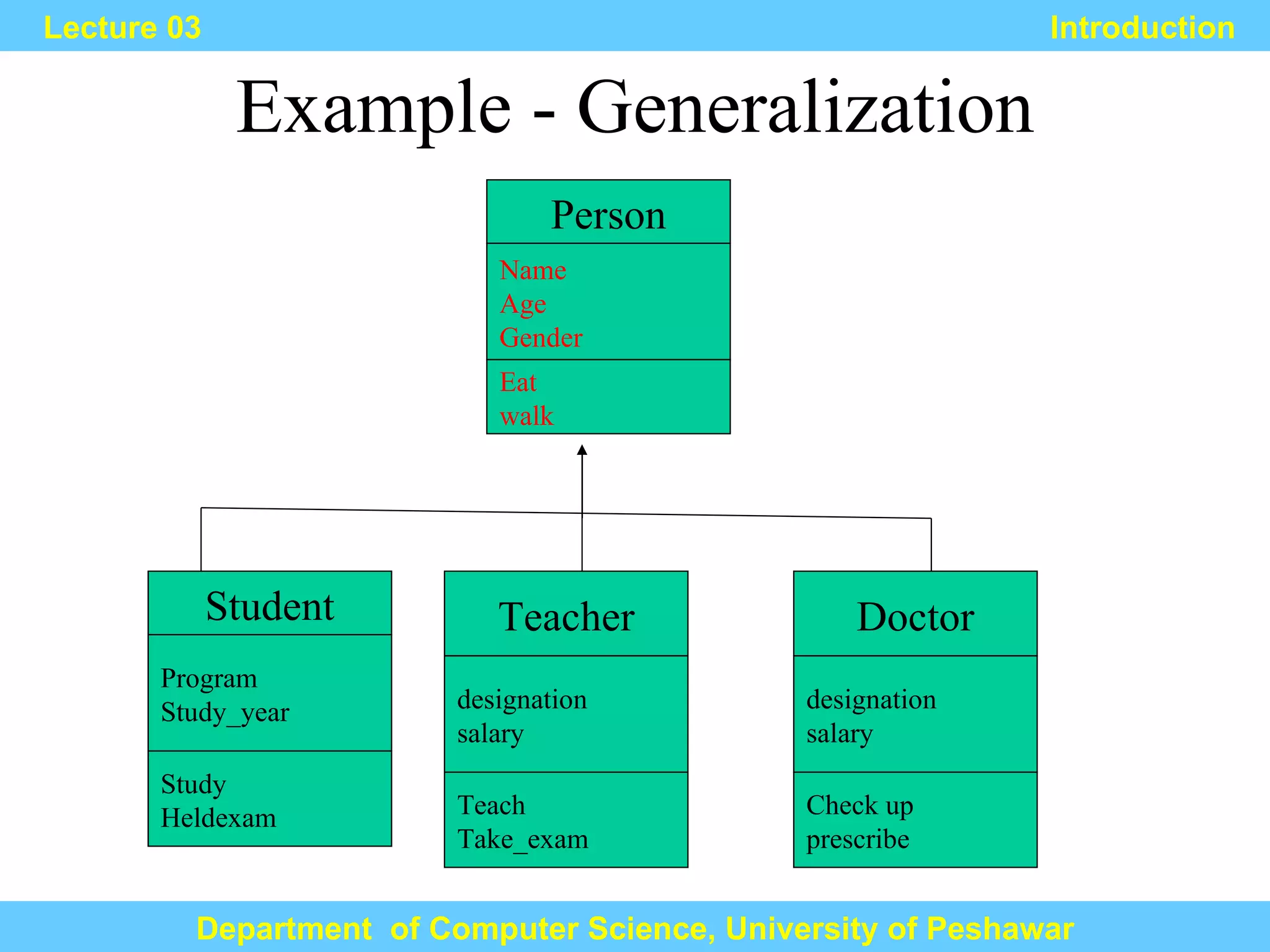

37. Example - Generalization Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Program Study_year Study Heldexam Teacher designation salary Teach Take_exam Doctor designation salary Check up prescribe

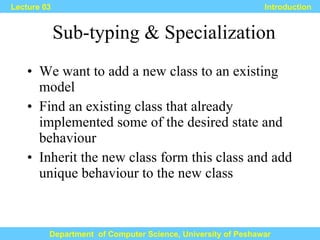

38. Sub-typing & Specialization We want to add a new class to an existing model Find an existing class that already implemented some of the desired state and behaviour Inherit the new class form this class and add unique behaviour to the new class Lecture 03 Introduction Department of Computer Science, University of Peshawar

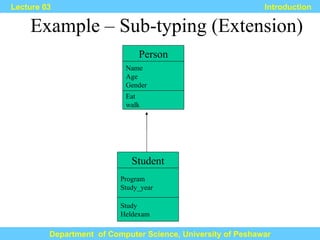

39. Example – Sub-typing (Extension) Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Program Study_year Study Heldexam

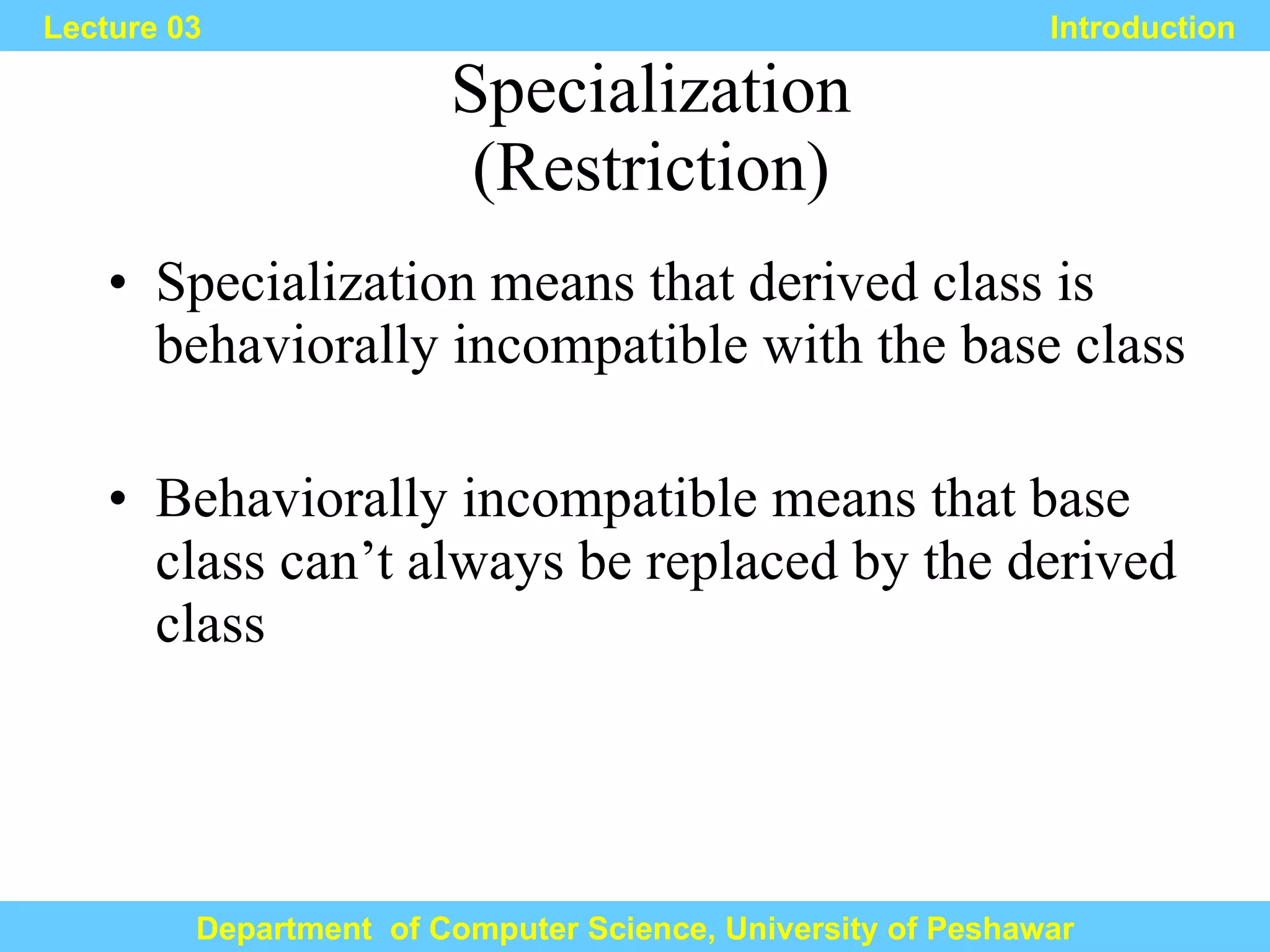

40. Specialization (Restriction) Specialization means that derived class is behaviorally incompatible with the base class Behaviorally incompatible means that base class can’t always be replaced by the derived class Lecture 03 Introduction Department of Computer Science, University of Peshawar

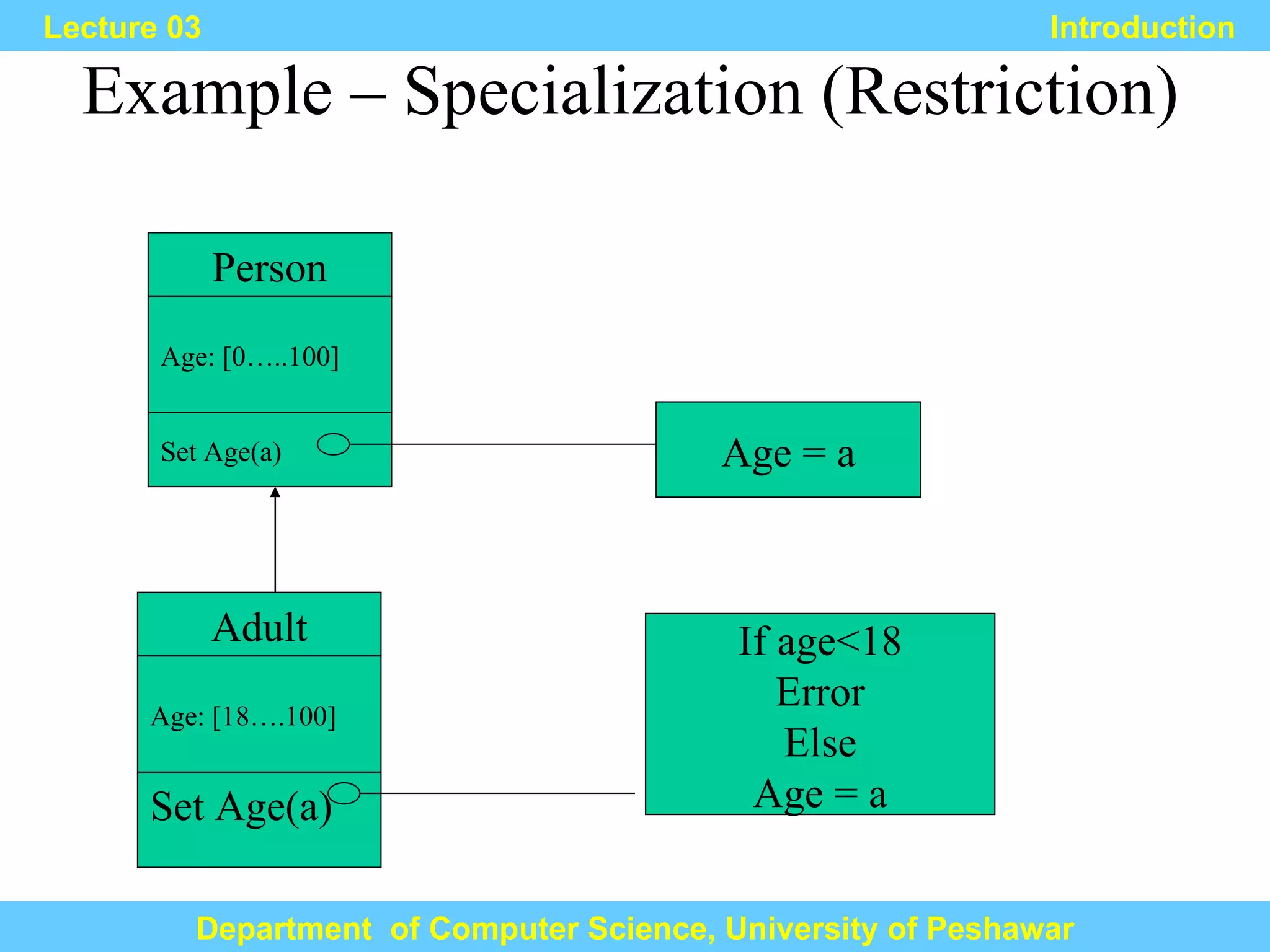

41. Example – Specialization (Restriction) Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Age: [0…..100] Set Age(a) Adult Age: [18….100] Set Age(a) Age = a If age<18 Error Else Age = a

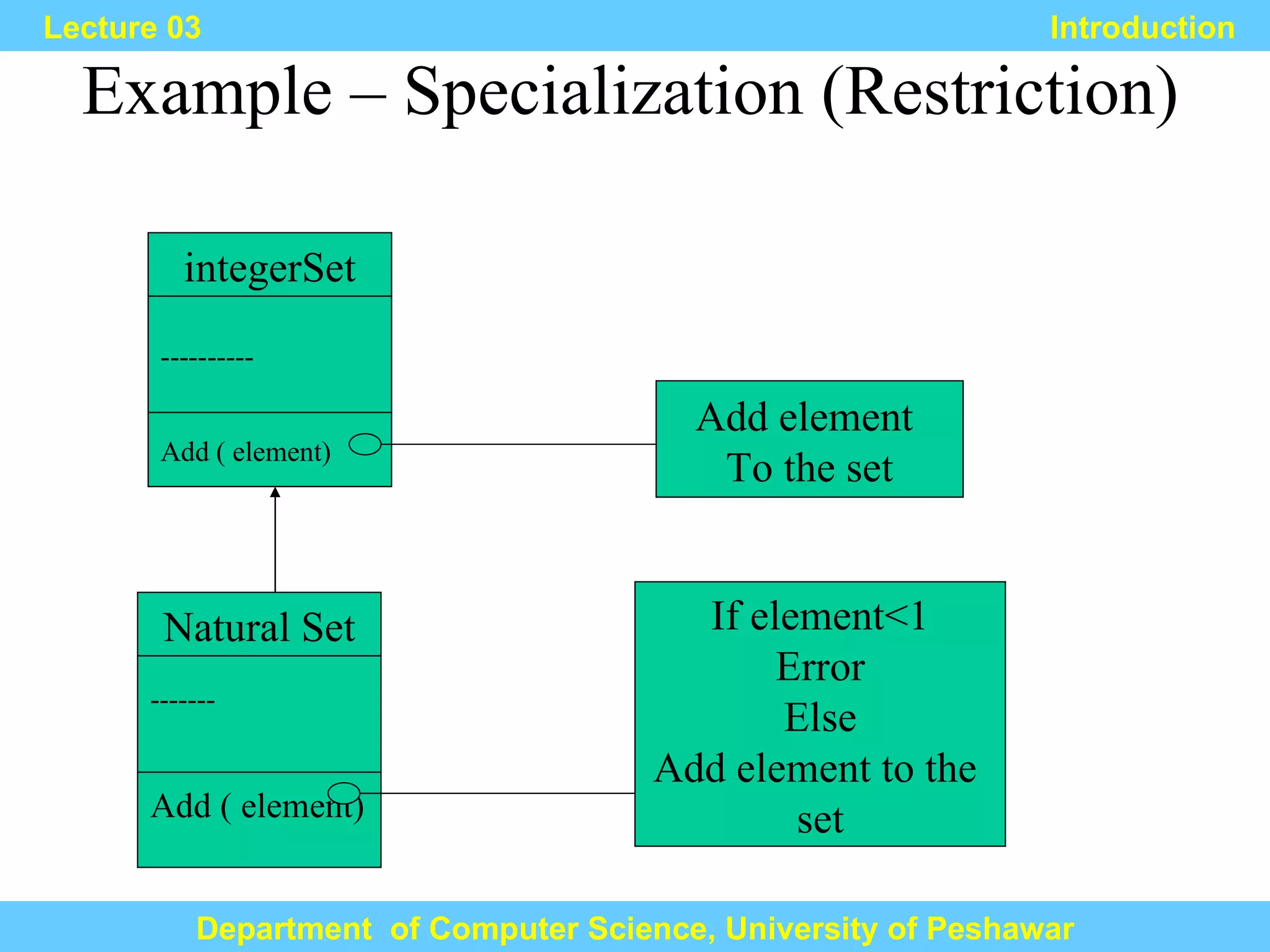

42. Example – Specialization (Restriction) Lecture 03 Introduction Department of Computer Science, University of Peshawar integerSet ---------- Add ( element) Natural Set ------- Add ( element) Add element To the set If element<1 Error Else Add element to the set

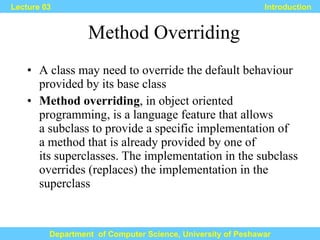

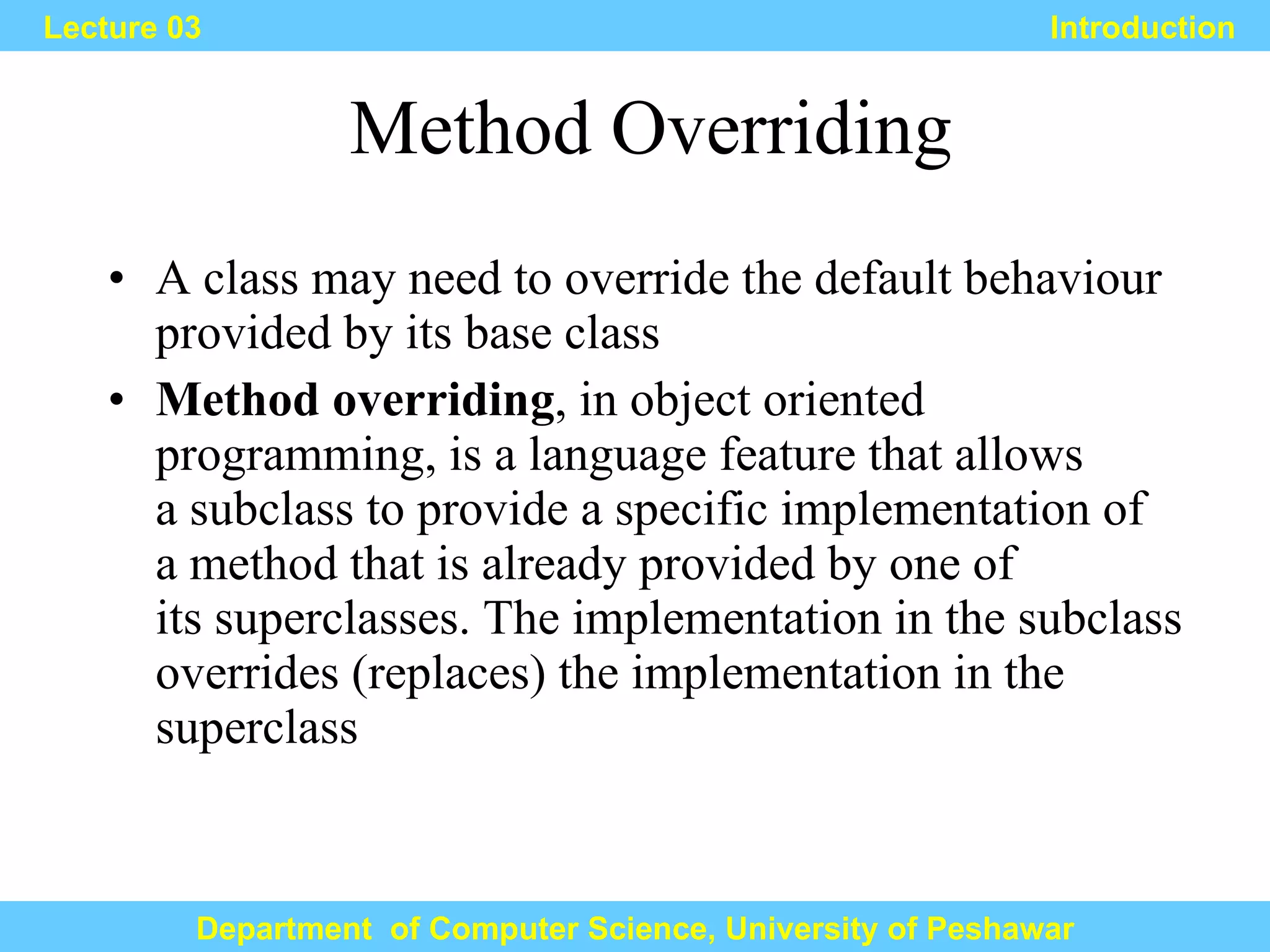

43. Method Overriding A class may need to override the default behaviour provided by its base class Method overriding , in object oriented programming, is a language feature that allows a subclass to provide a specific implementation of a method that is already provided by one of its superclasses. The implementation in the subclass overrides (replaces) the implementation in the superclass Lecture 03 Introduction Department of Computer Science, University of Peshawar

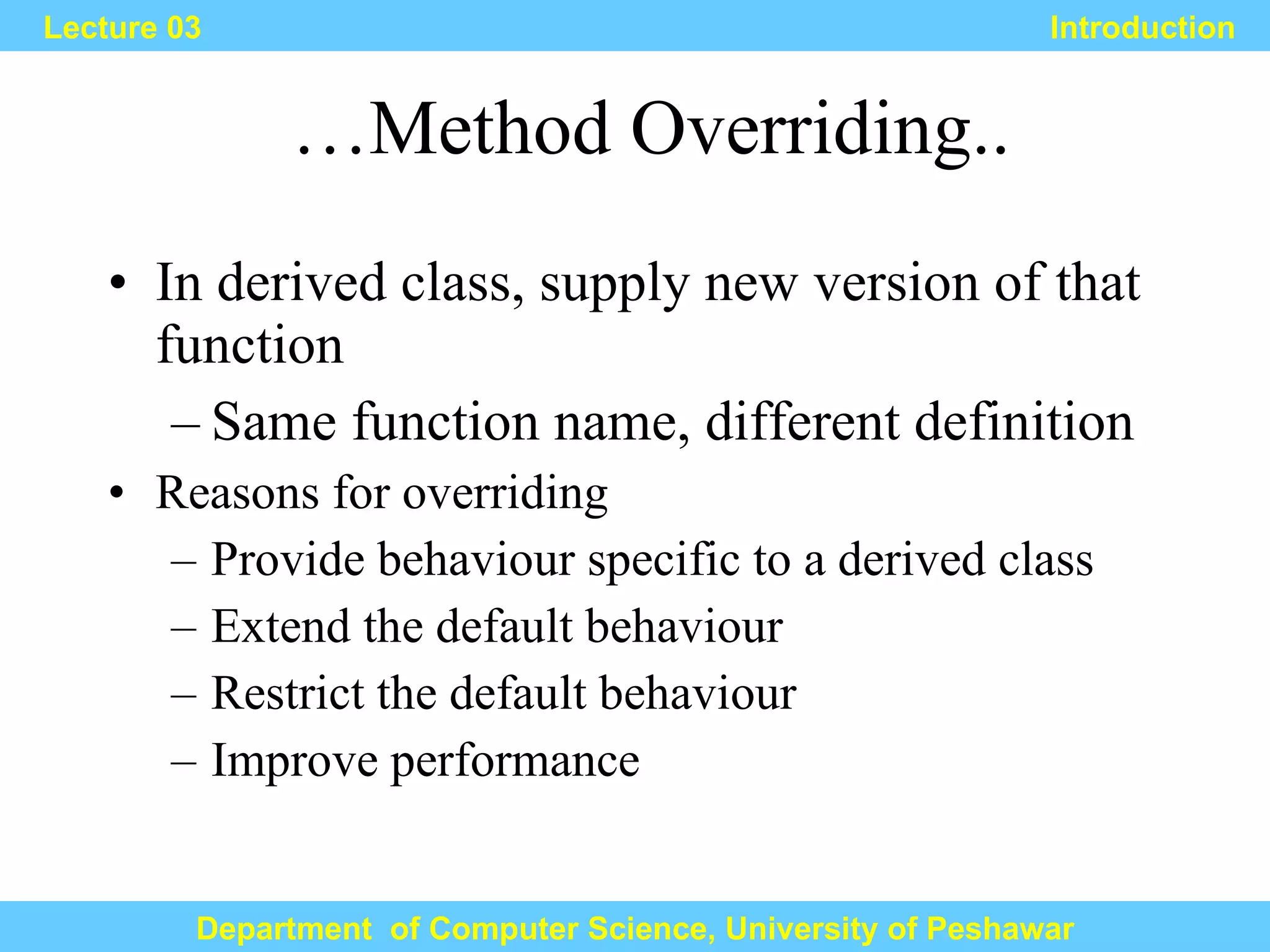

44. … Method Overriding.. In derived class, supply new version of that function Same function name, different definition Reasons for overriding Provide behaviour specific to a derived class Extend the default behaviour Restrict the default behaviour Improve performance Lecture 03 Introduction Department of Computer Science, University of Peshawar

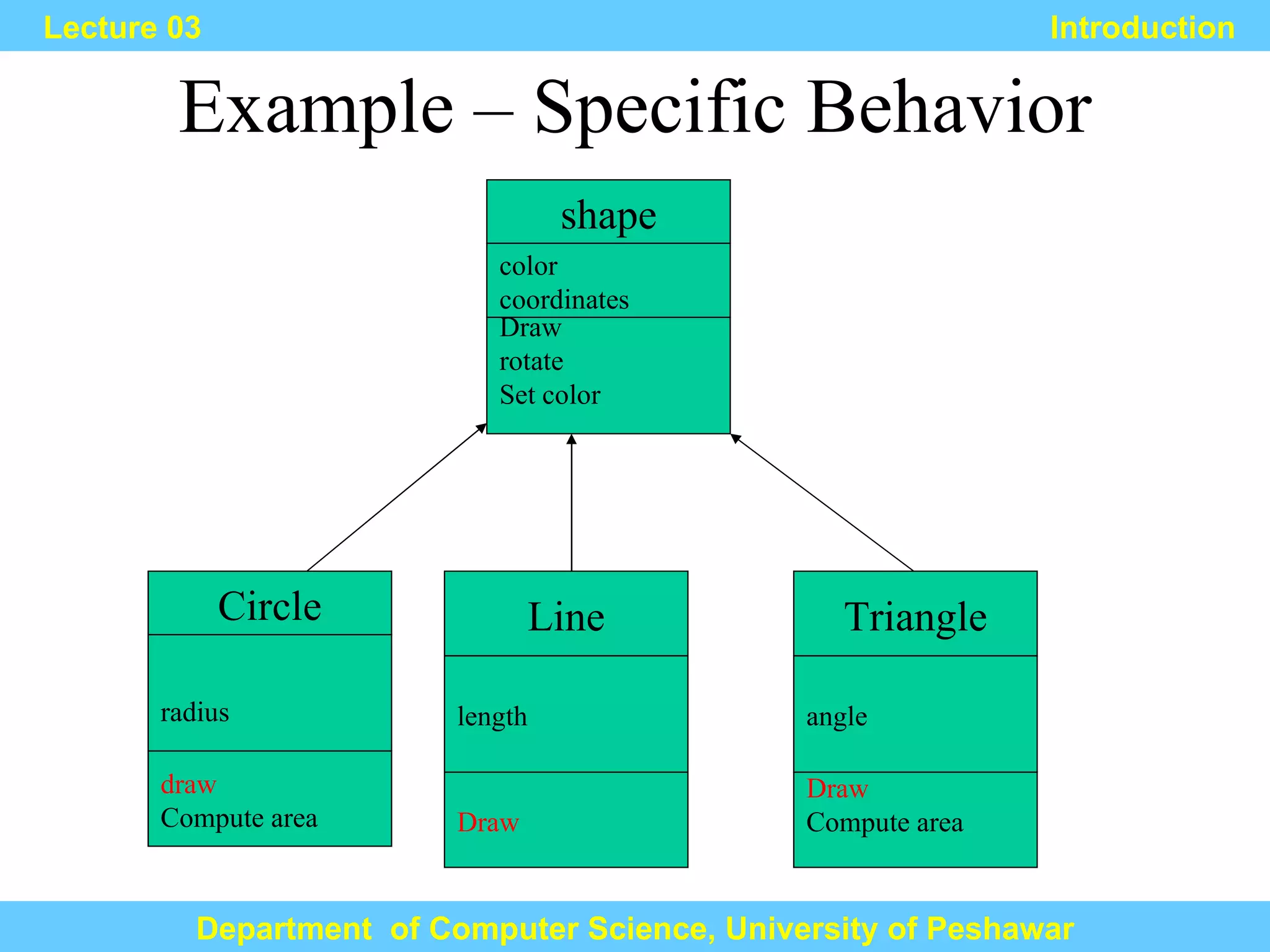

45. Example – Specific Behavior Lecture 03 Introduction Department of Computer Science, University of Peshawar shape color coordinates Draw rotate Set color Circle radius draw Compute area Line length Draw Triangle angle Draw Compute area

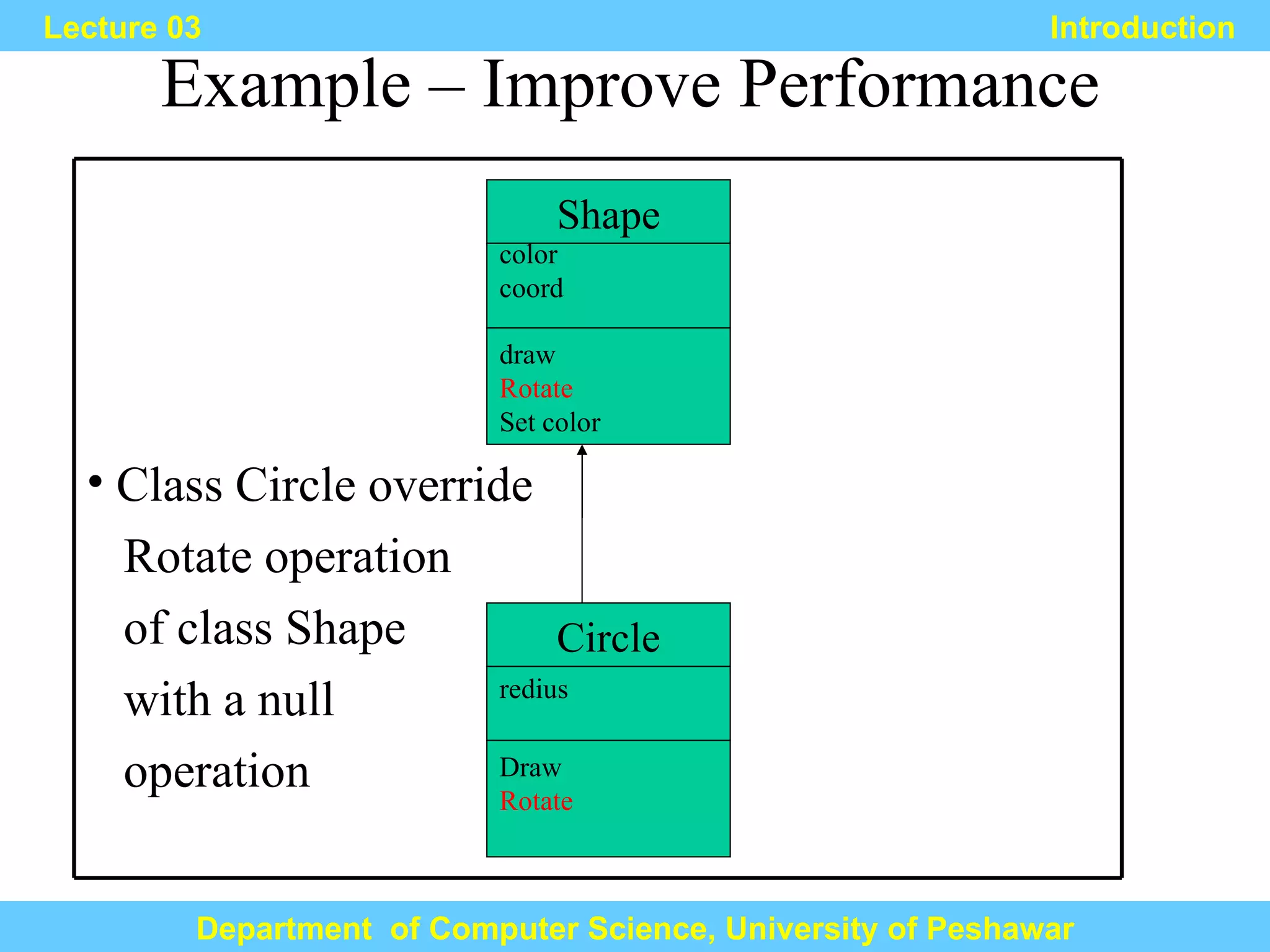

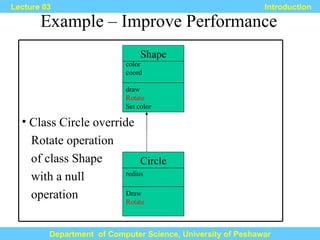

46. Example – Improve Performance Lecture 03 Introduction Department of Computer Science, University of Peshawar Shape color coord draw Rotate Set color Circle redius Draw Rotate Class Circle override Rotate operation of class Shape with a null operation

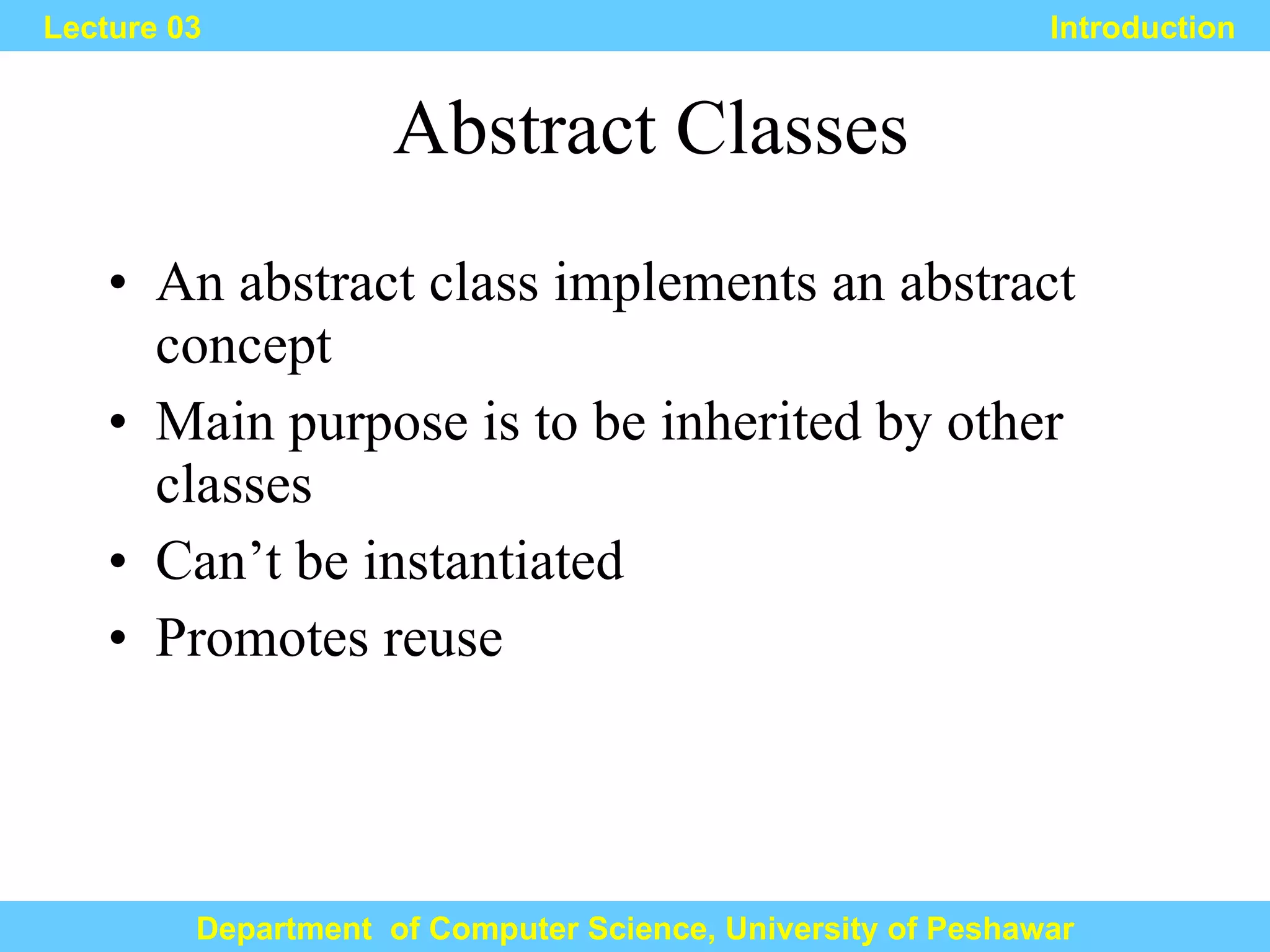

47. Abstract Classes An abstract class implements an abstract concept Main purpose is to be inherited by other classes Can’t be instantiated Promotes reuse Lecture 03 Introduction Department of Computer Science, University of Peshawar

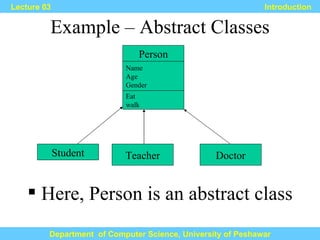

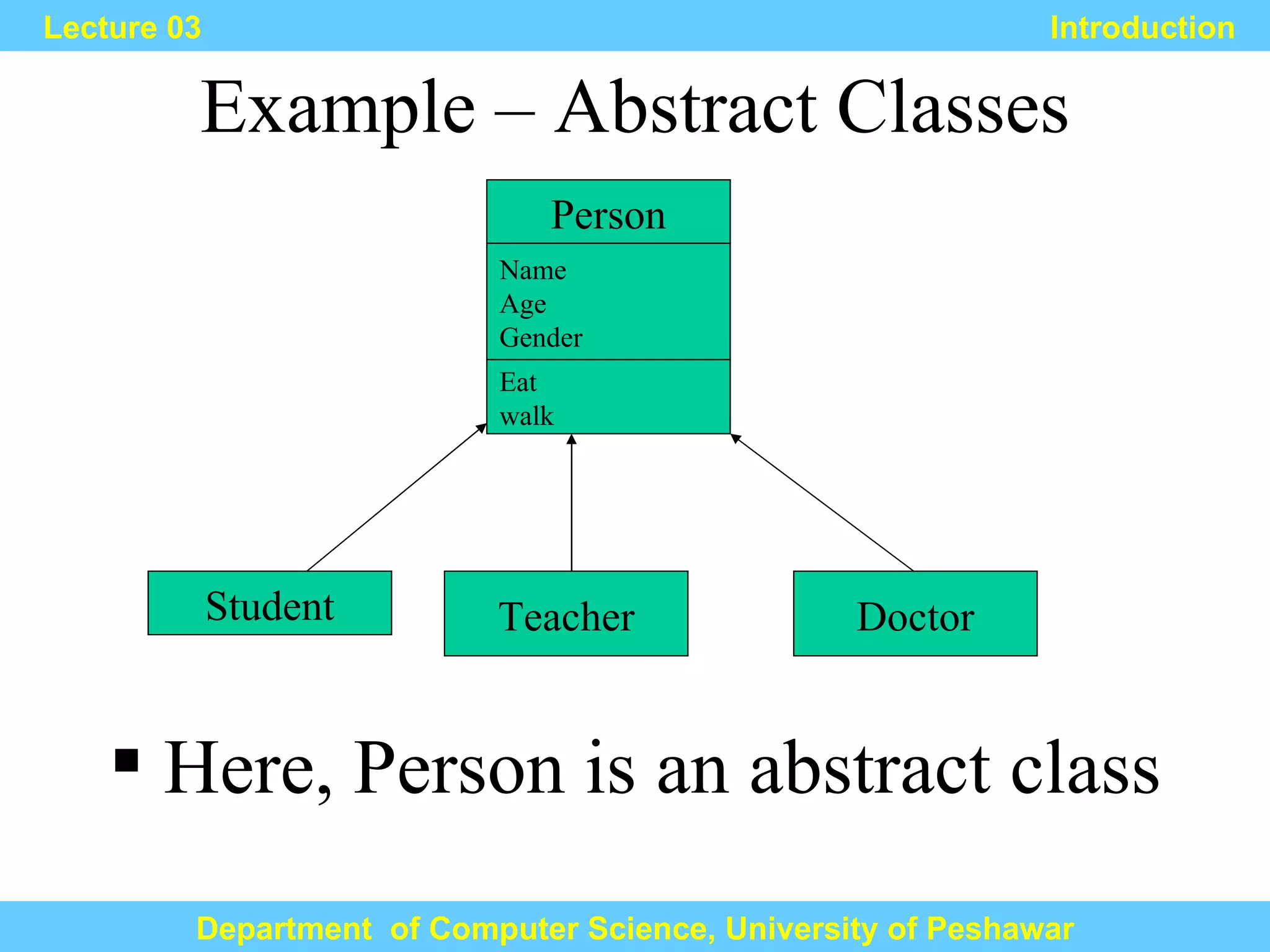

48. Example – Abstract Classes Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Teacher Doctor Here, Person is an abstract class

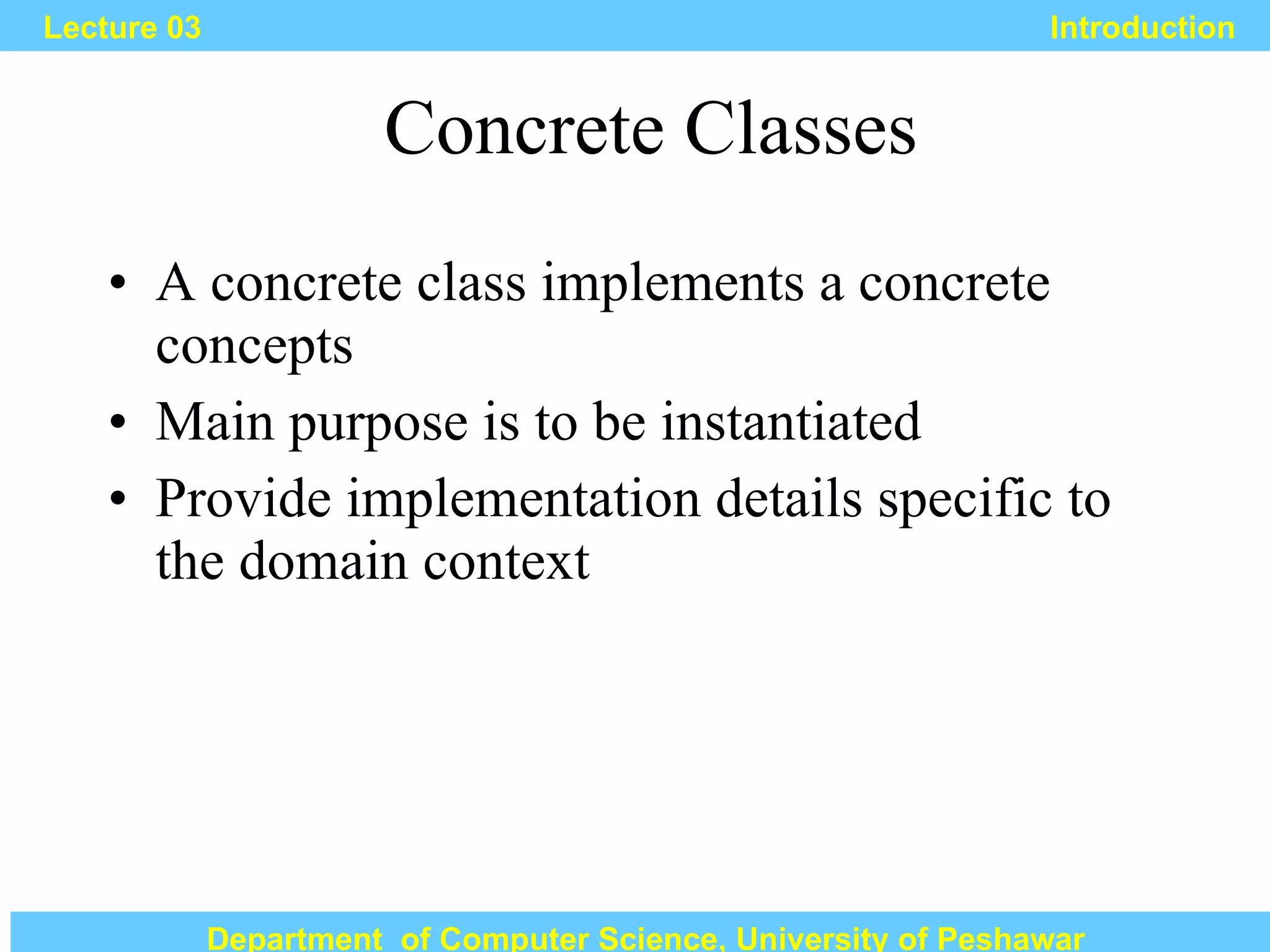

49. Concrete Classes A concrete class implements a concrete concepts Main purpose is to be instantiated Provide implementation details specific to the domain context Lecture 03 Introduction

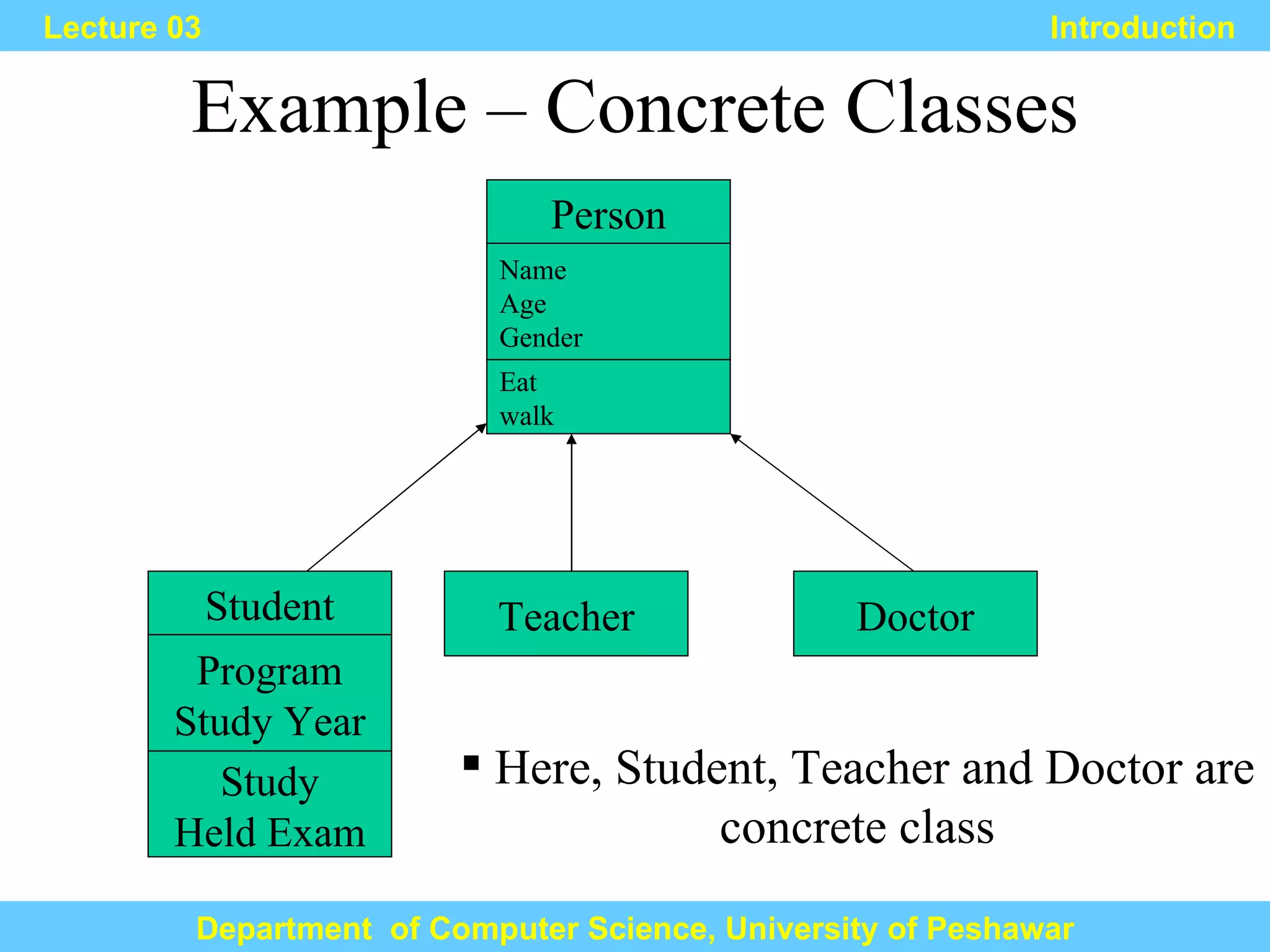

50. Example – Concrete Classes Lecture 03 Introduction Department of Computer Science, University of Peshawar Person Name Age Gender Eat walk Student Teacher Doctor Here, Student, Teacher and Doctor are concrete class Program Study Year Study Held Exam

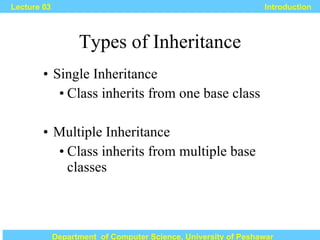

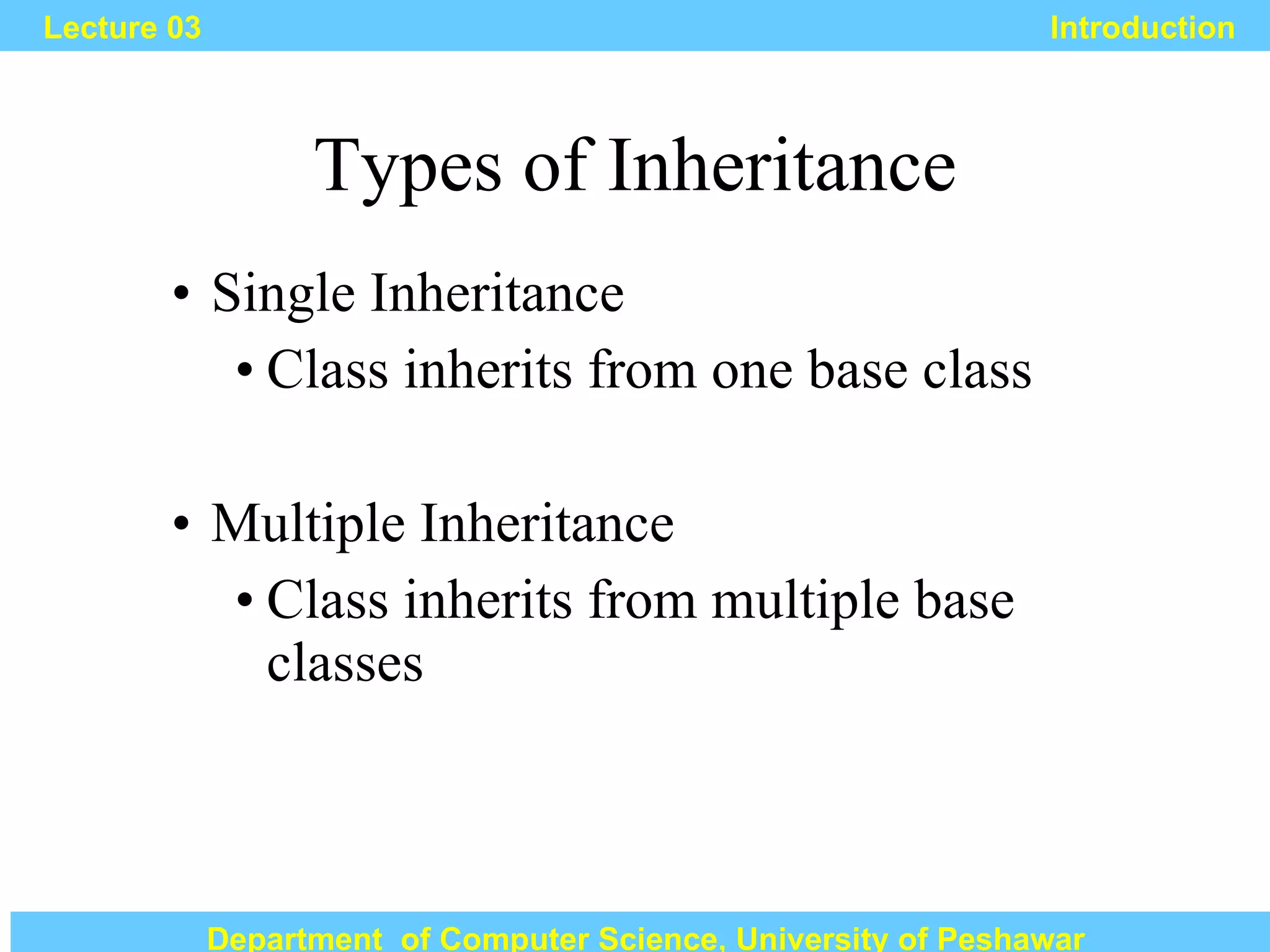

51. Types of Inheritance Single Inheritance Class inherits from one base class Multiple Inheritance Class inherits from multiple base classes

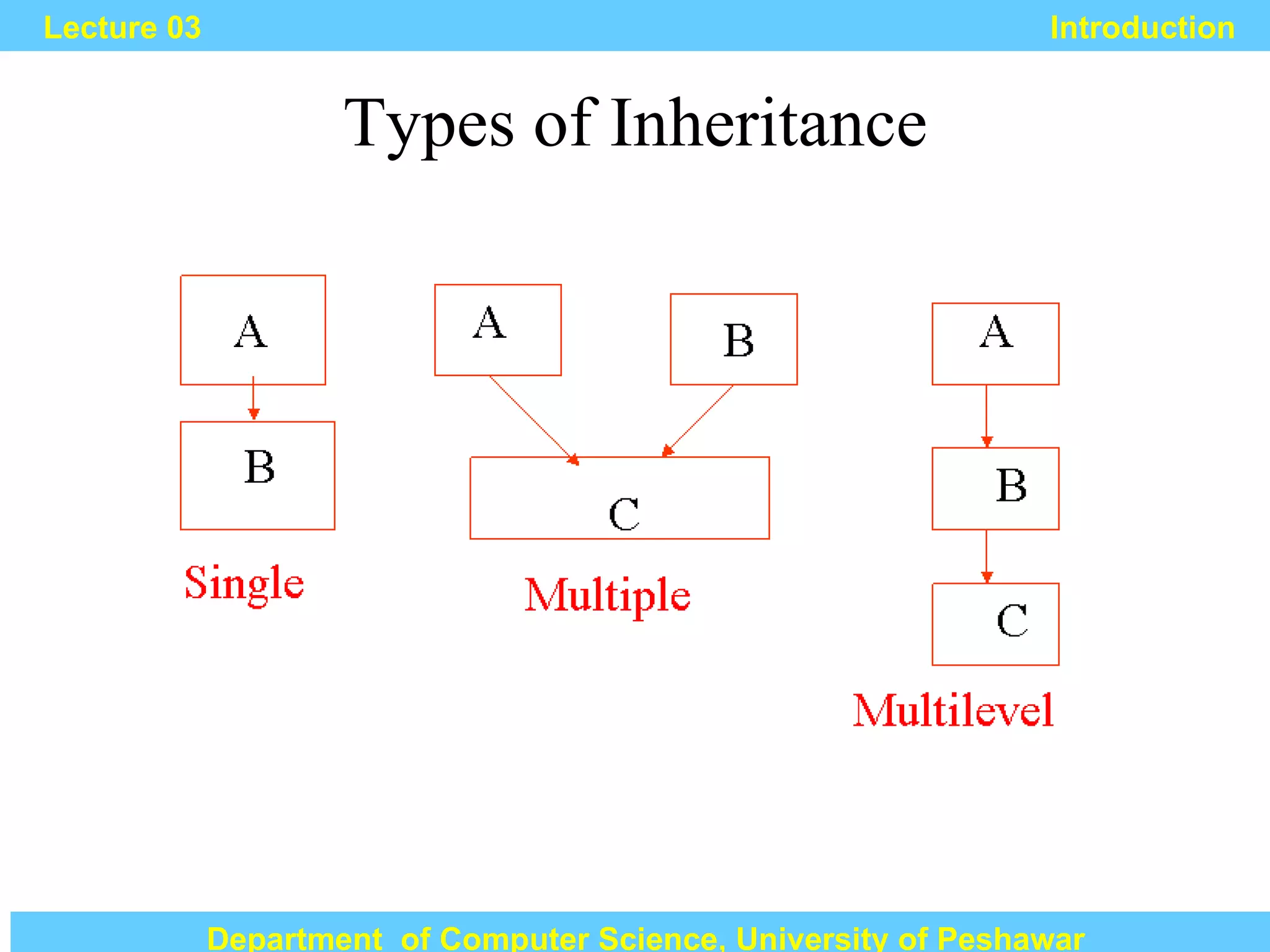

52. Types of Inheritance

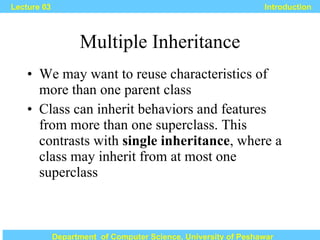

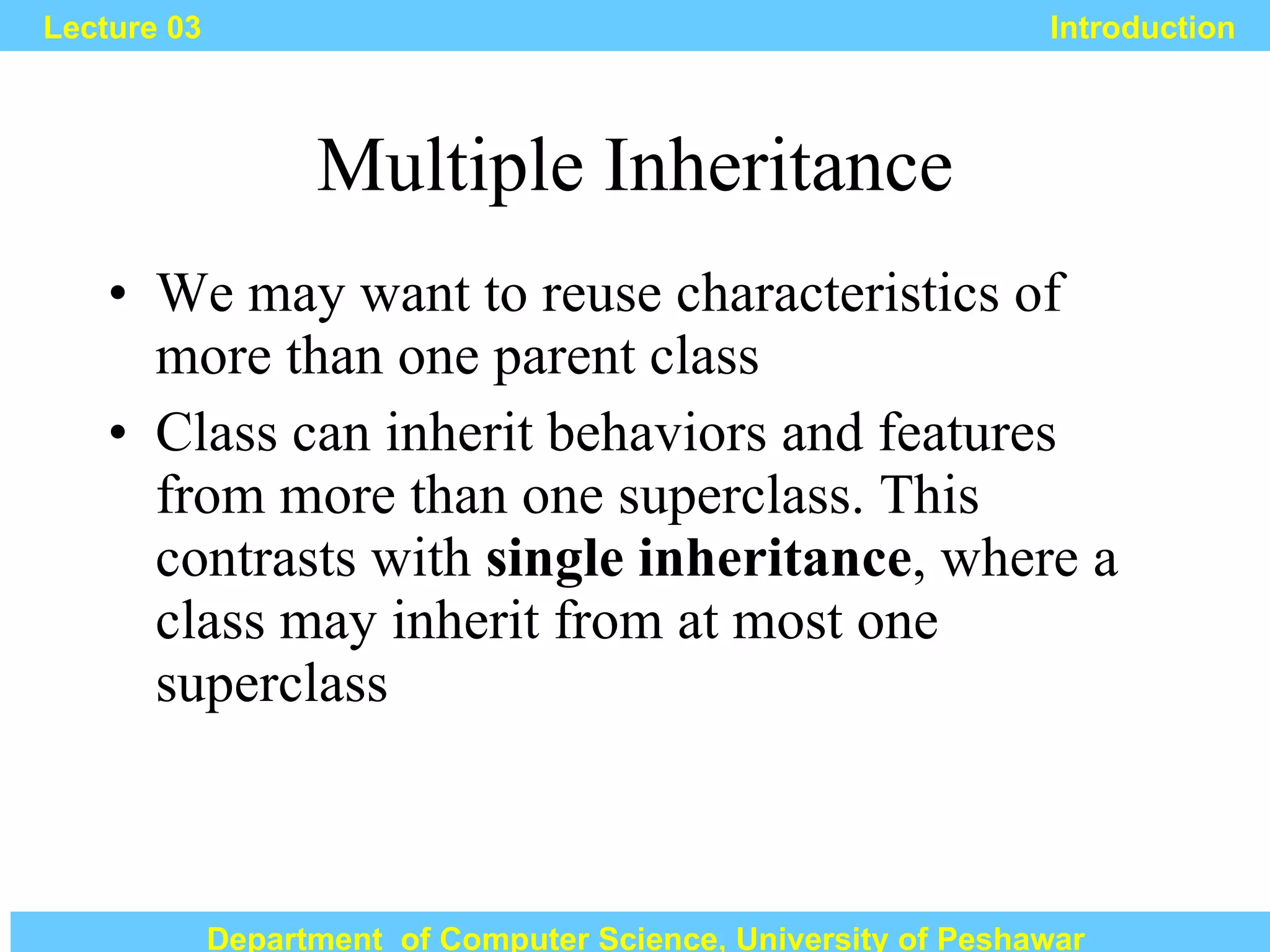

53. Multiple Inheritance We may want to reuse characteristics of more than one parent class Class can inherit behaviors and features from more than one superclass. This contrasts with single inheritance , where a class may inherit from at most one superclass

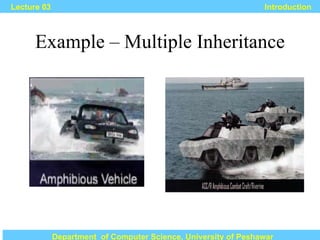

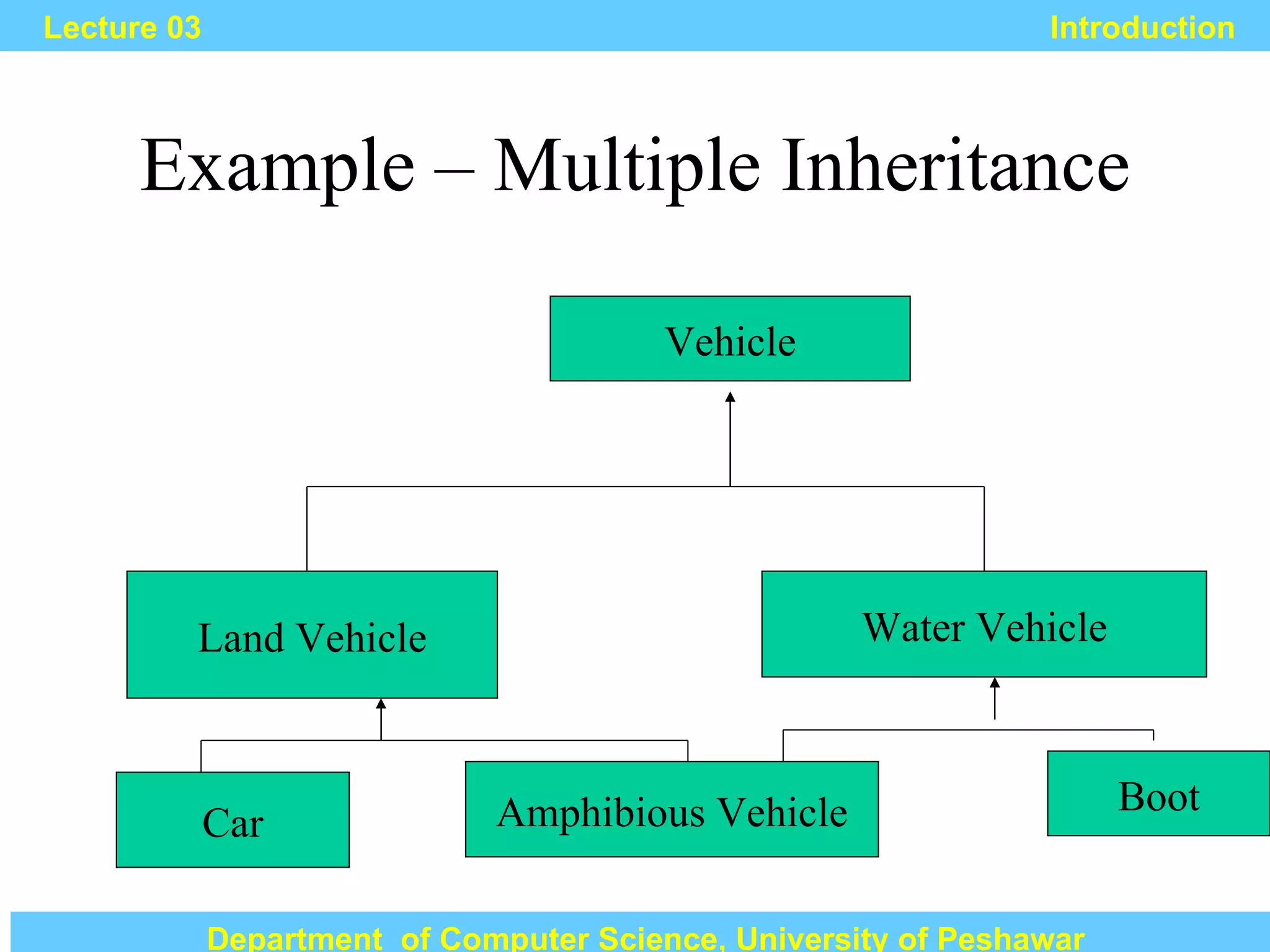

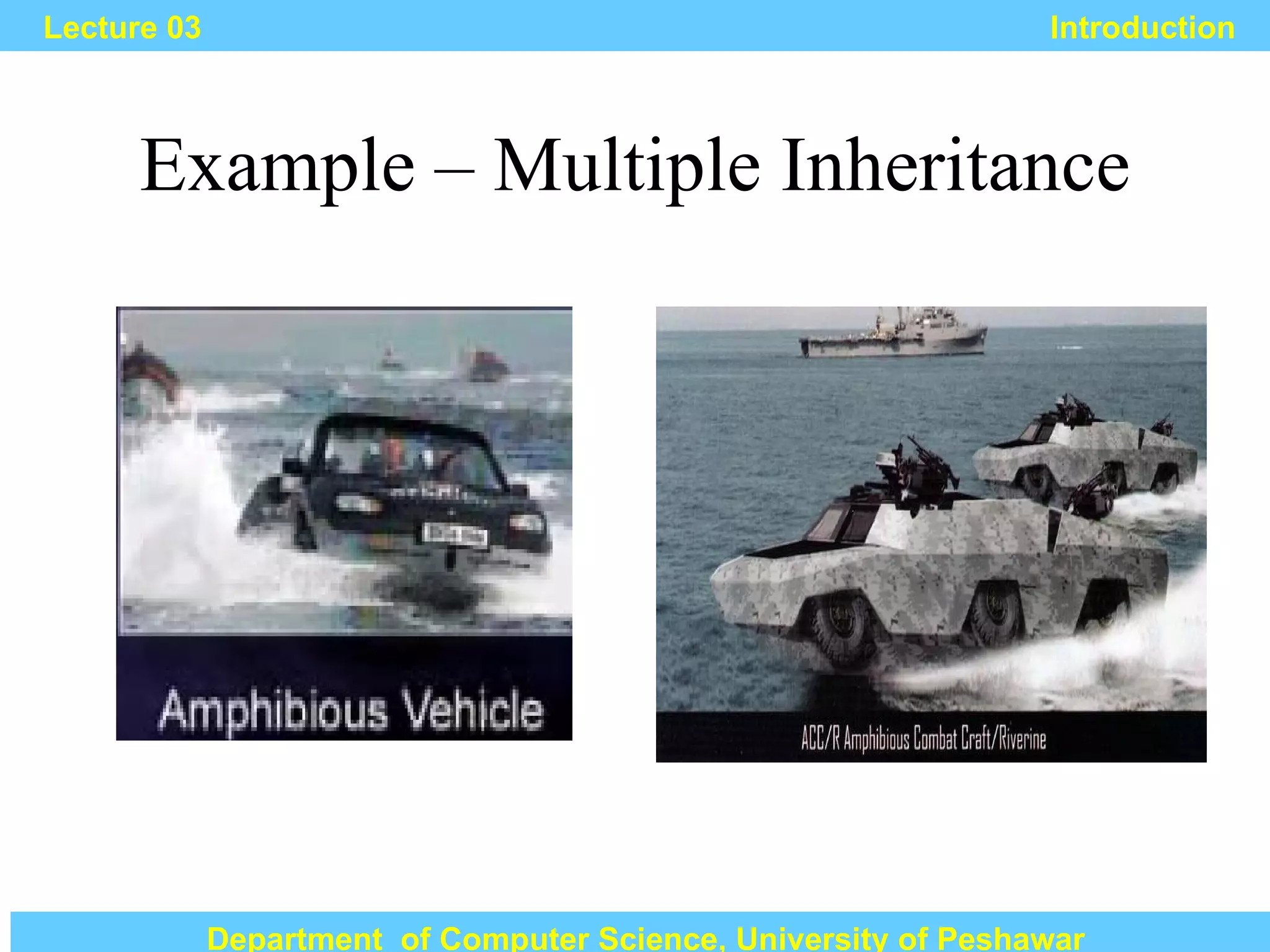

54. Example – Multiple Inheritance

55. Example – Multiple Inheritance Land Vehicle Vehicle Water Vehicle Car Amphibious Vehicle Boot

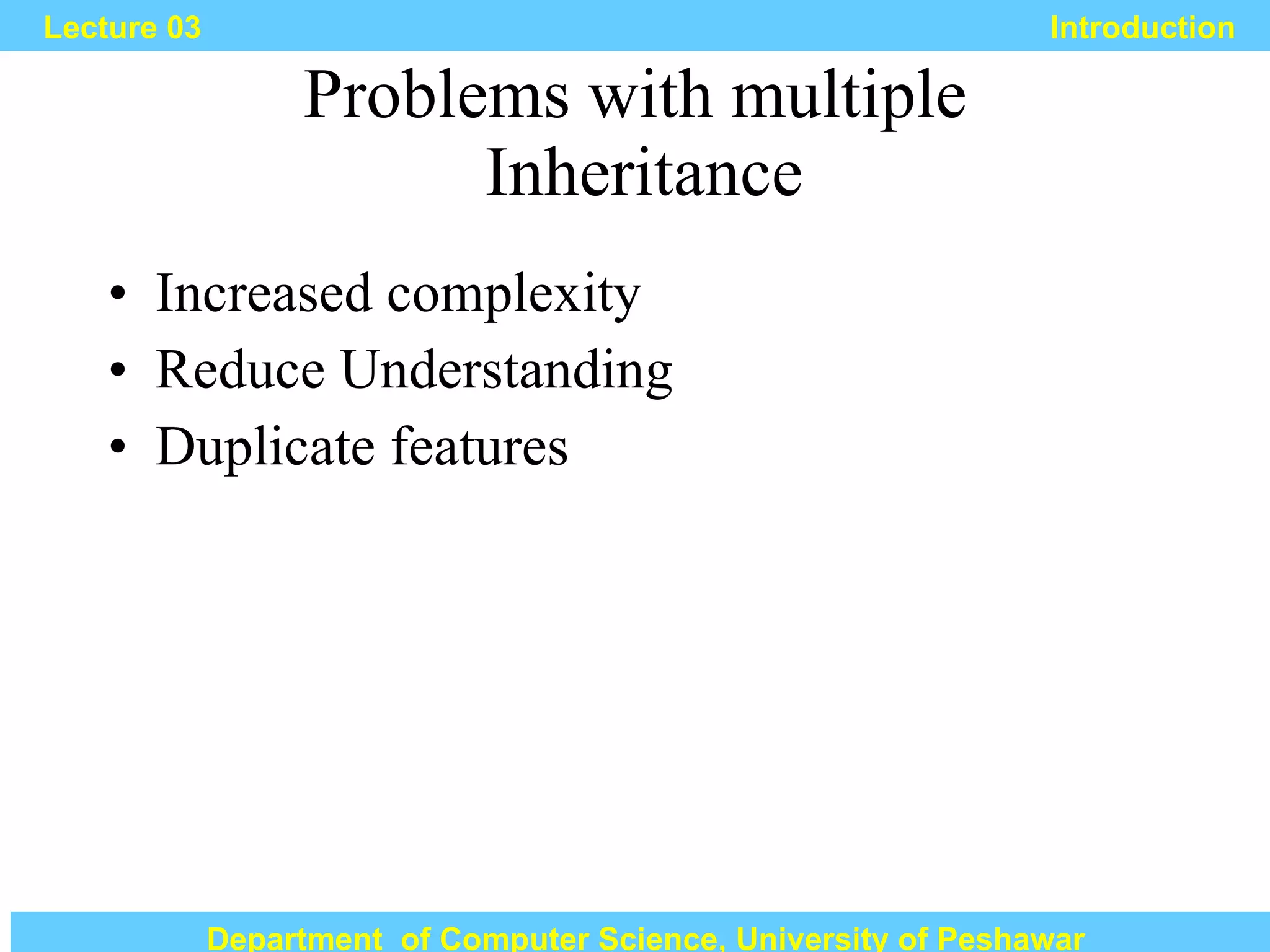

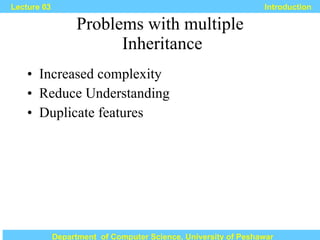

56. Problems with multiple Inheritance Increased complexity Reduce Understanding Duplicate features

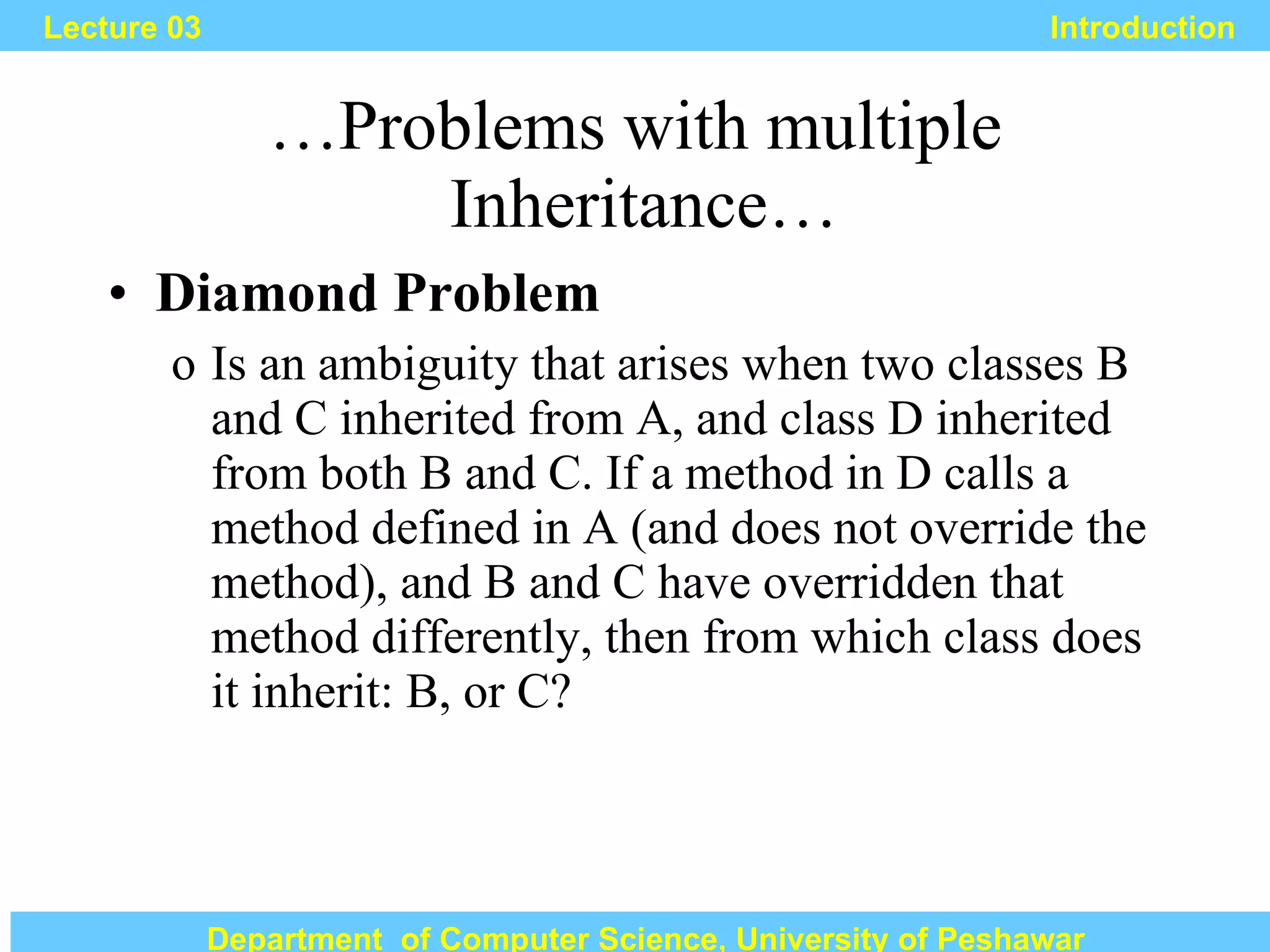

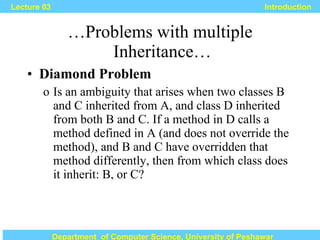

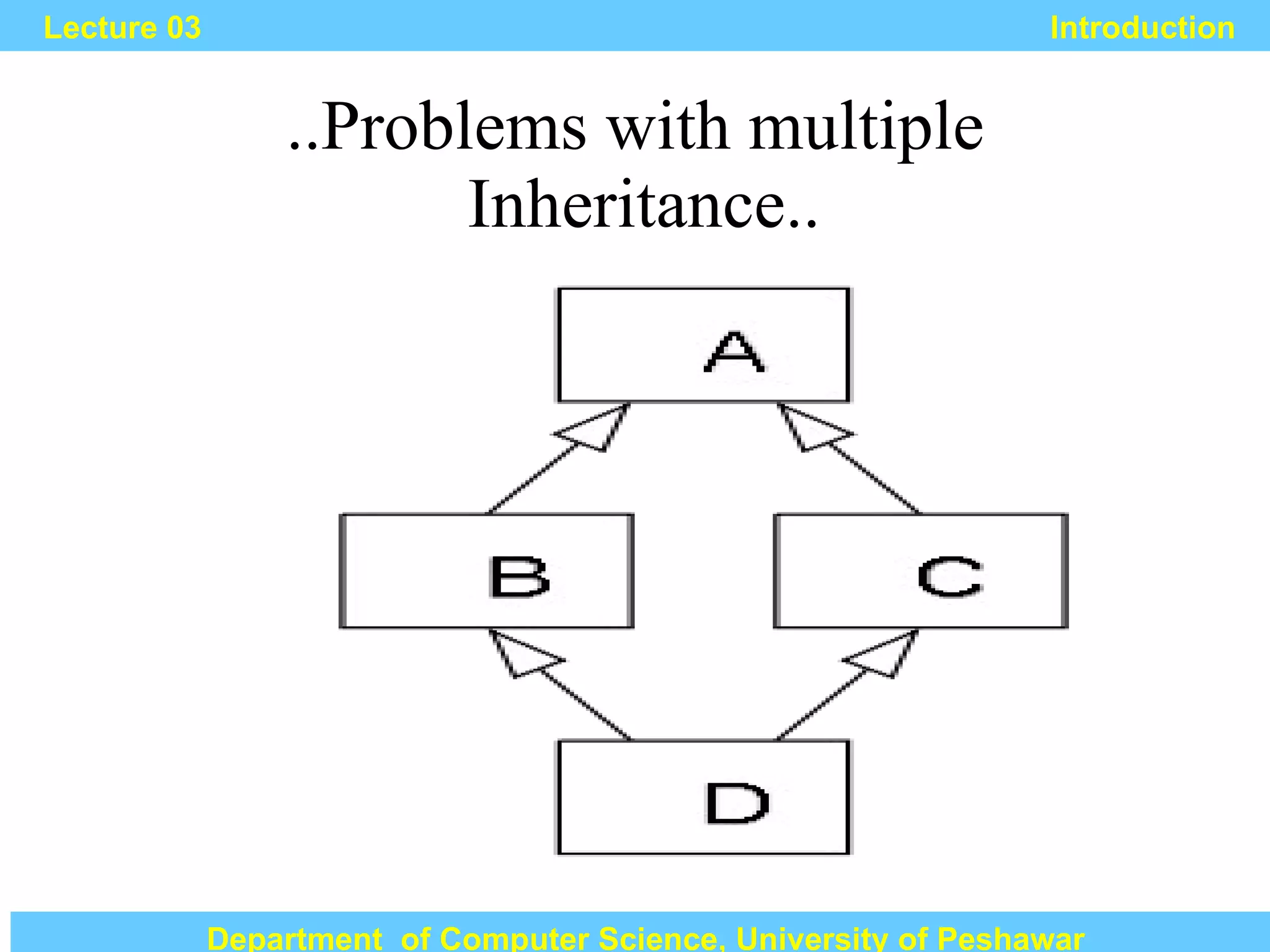

57. … Problems with multiple Inheritance… Diamond Problem Is an ambiguity that arises when two classes B and C inherited from A, and class D inherited from both B and C. If a method in D calls a method defined in A (and does not override the method), and B and C have overridden that method differently, then from which class does it inherit: B, or C?

58. ..Problems with multiple Inheritance..

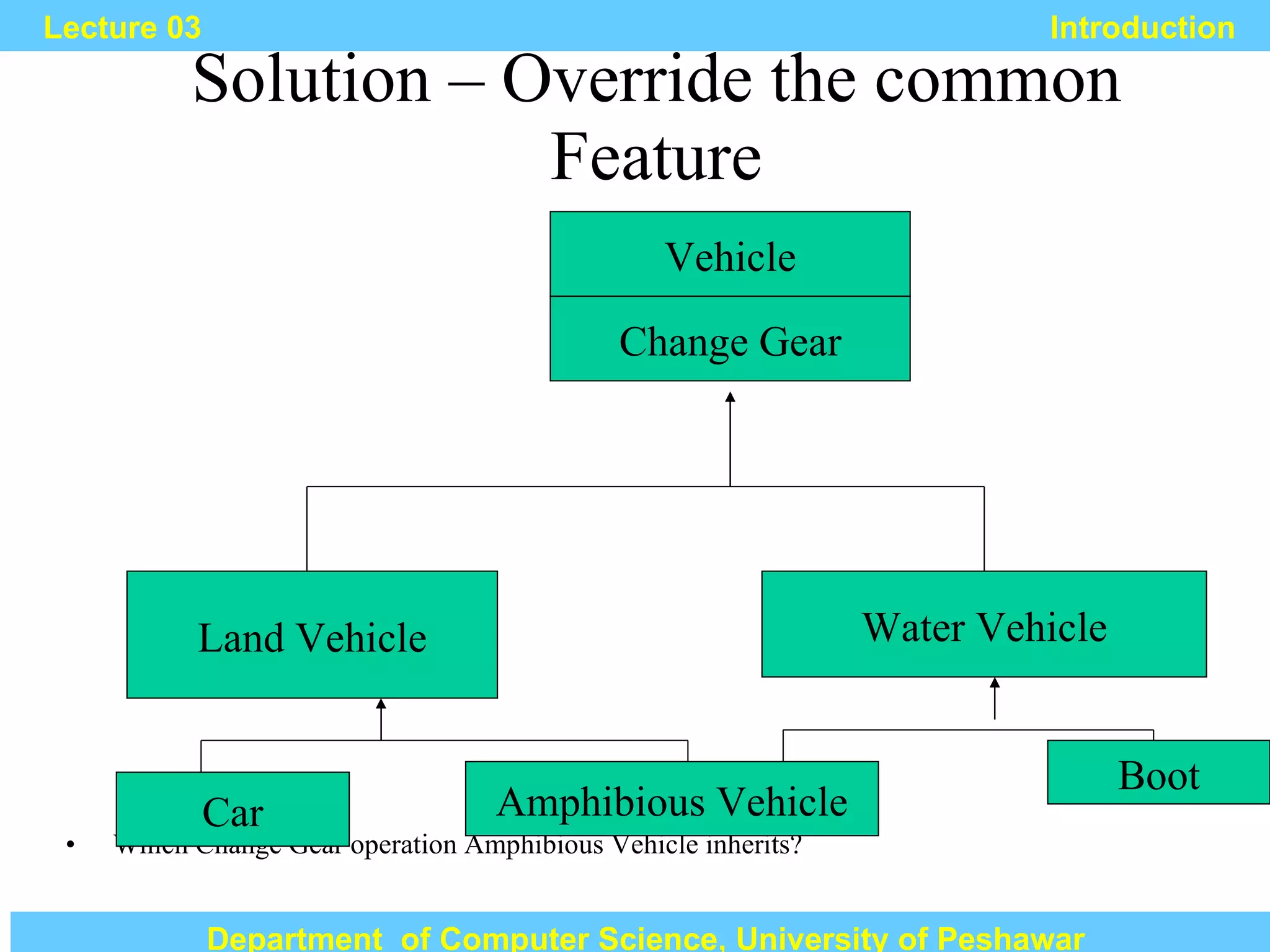

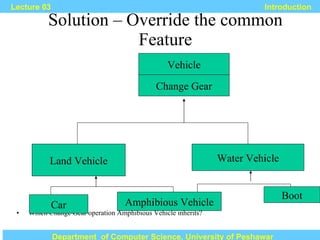

59. Solution – Override the common Feature Which Change Gear operation Amphibious Vehicle inherits? Land Vehicle Change Gear Water Vehicle Car Amphibious Vehicle Boot Vehicle

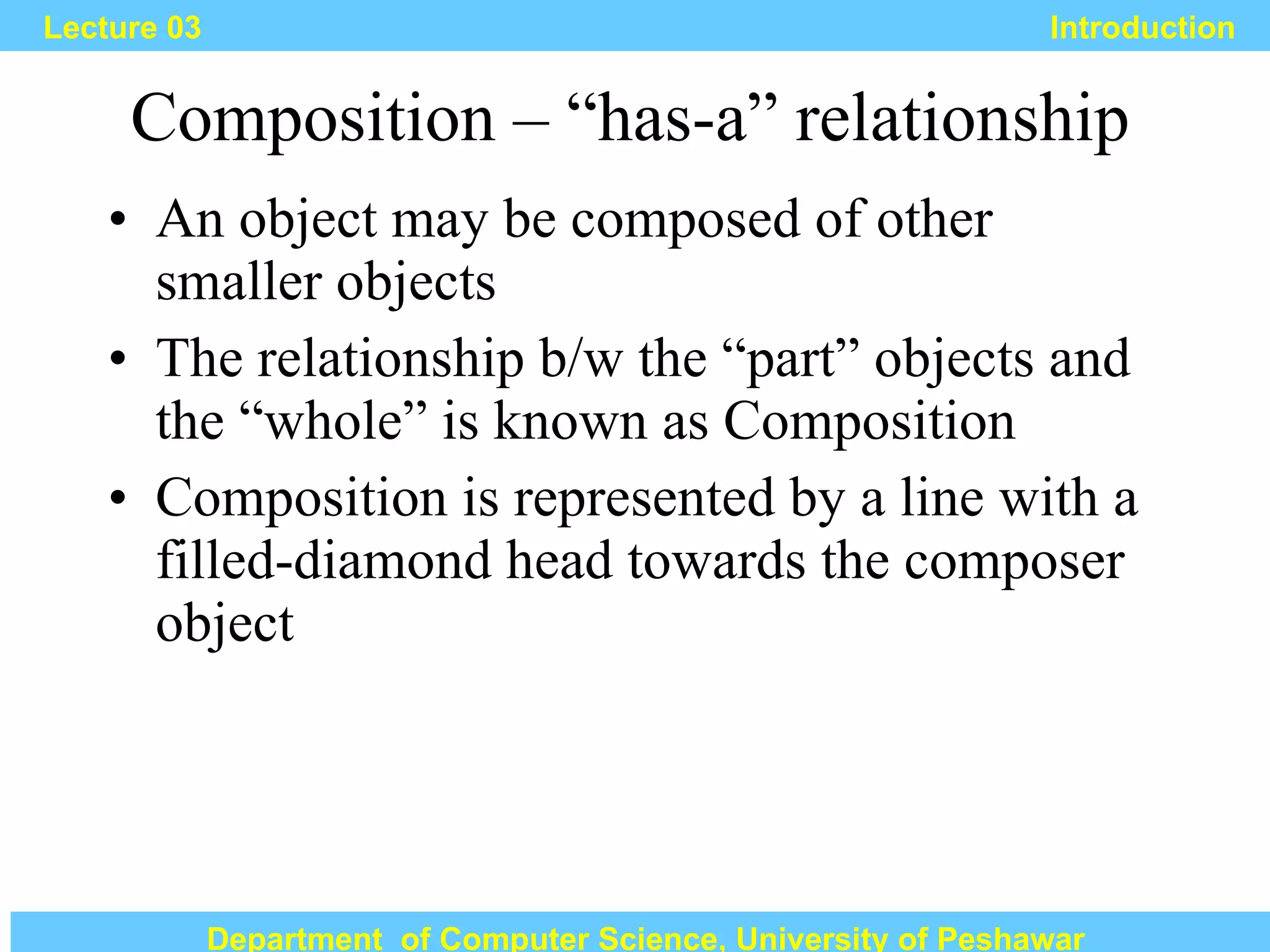

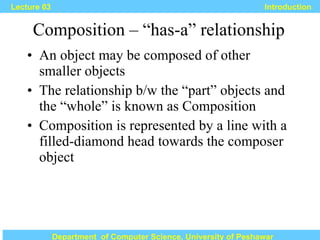

60. Composition – “has-a” relationship An object may be composed of other smaller objects The relationship b/w the “part” objects and the “whole” is known as Composition Composition is represented by a line with a filled-diamond head towards the composer object

61. Example – Composition of Ali 1 2 2 1 Head Ali Arms legs Head

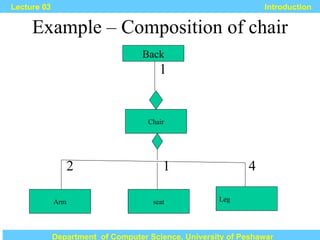

62. Example – Composition of chair 1 2 1 4 Lecture 03 Introduction Back Chair Arm seat Leg

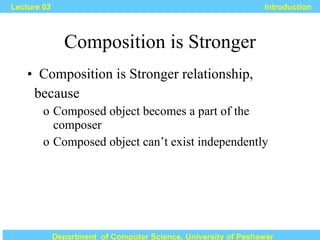

63. Composition is Stronger Composition is Stronger relationship, because Composed object becomes a part of the composer Composed object can’t exist independently

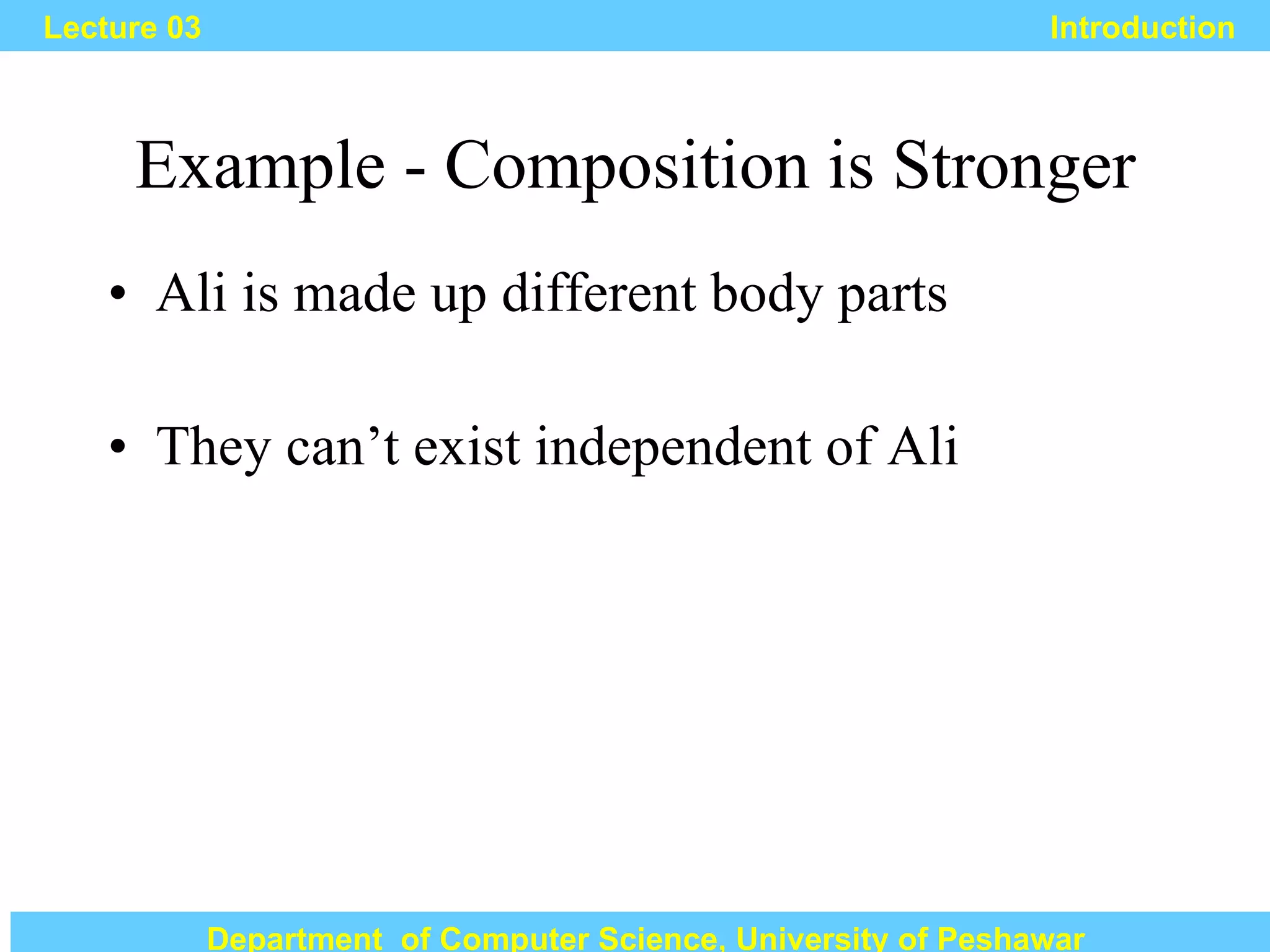

64. Example - Composition is Stronger Ali is made up different body parts They can’t exist independent of Ali

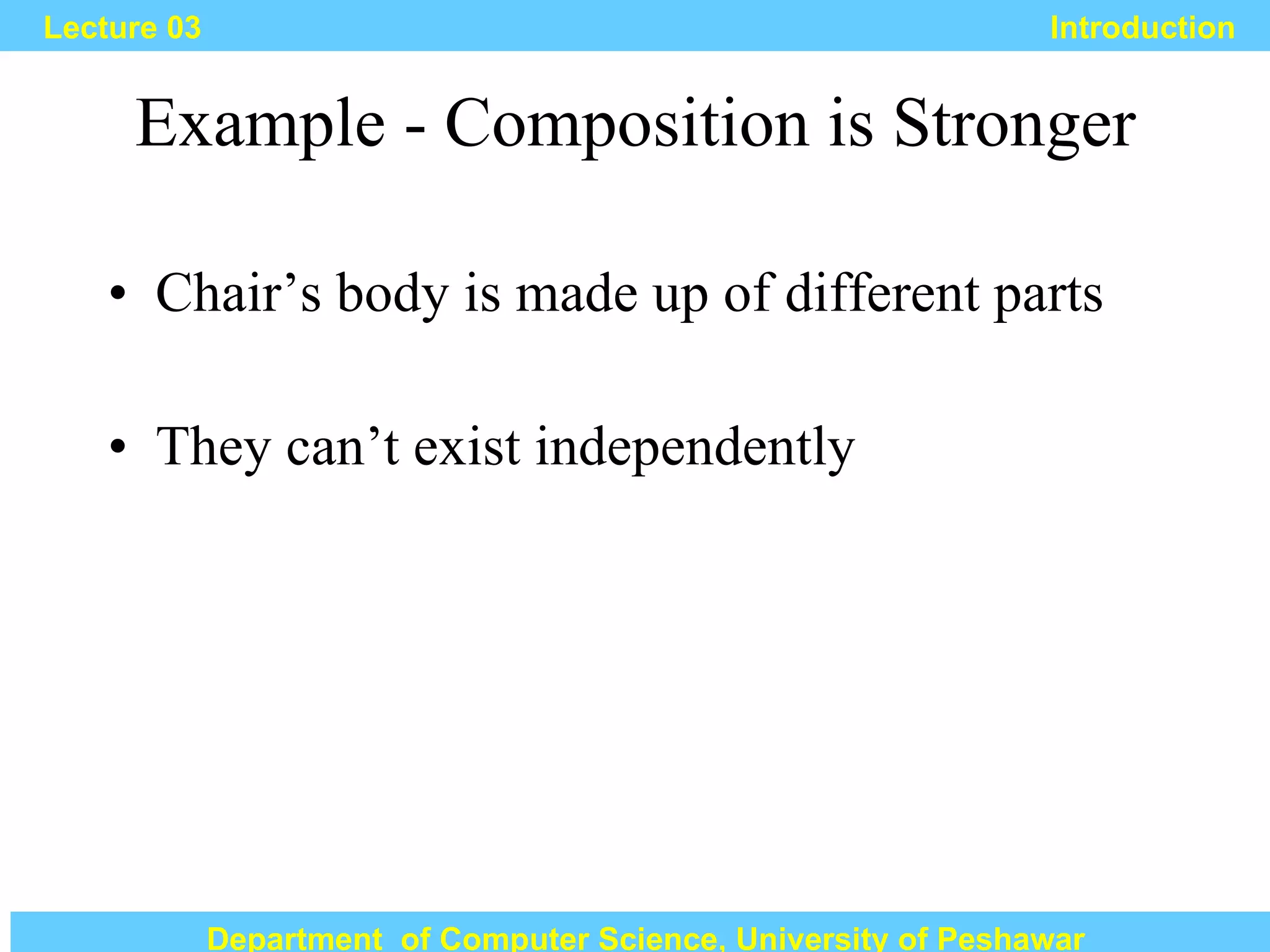

65. Example - Composition is Stronger Chair’s body is made up of different parts They can’t exist independently

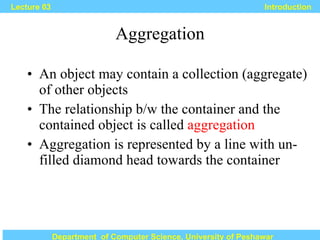

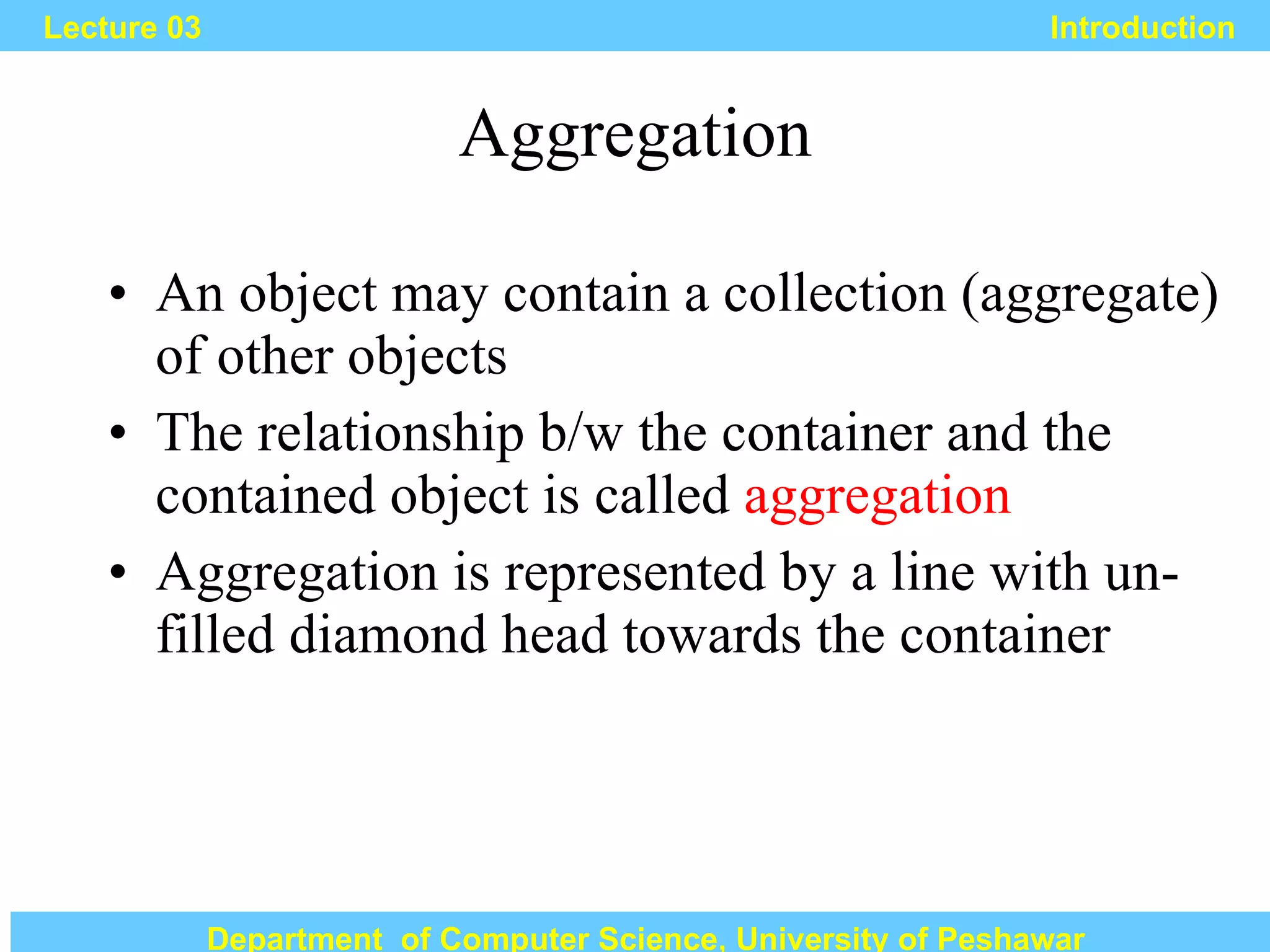

66. Aggregation An object may contain a collection (aggregate) of other objects The relationship b/w the container and the contained object is called aggregation Aggregation is represented by a line with un-filled diamond head towards the container

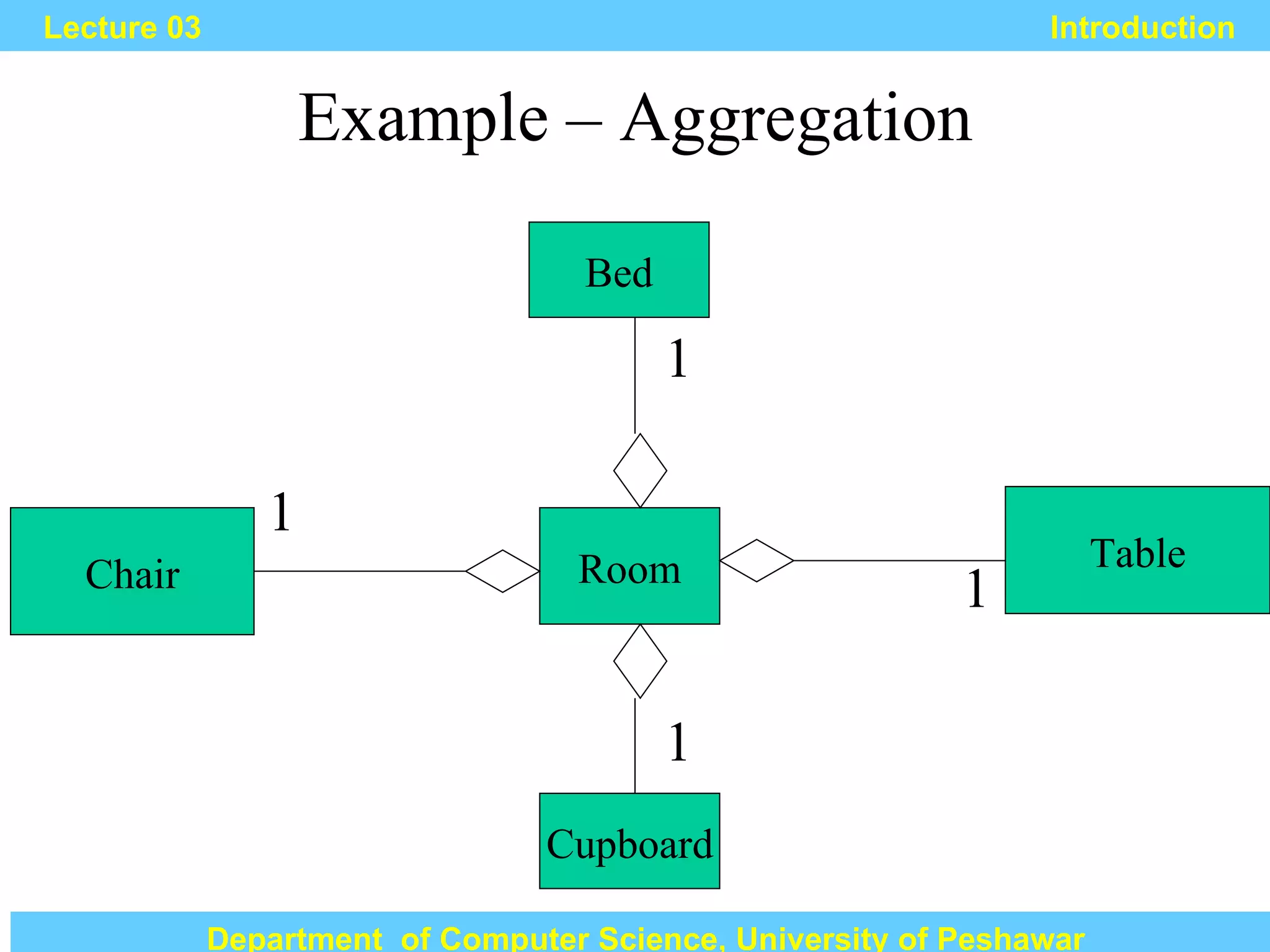

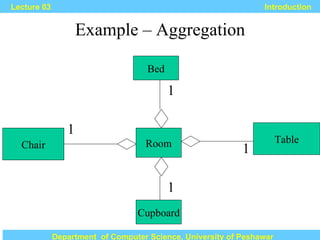

67. Example – Aggregation 1 1 1 1 Bed Room Chair Table Cupboard

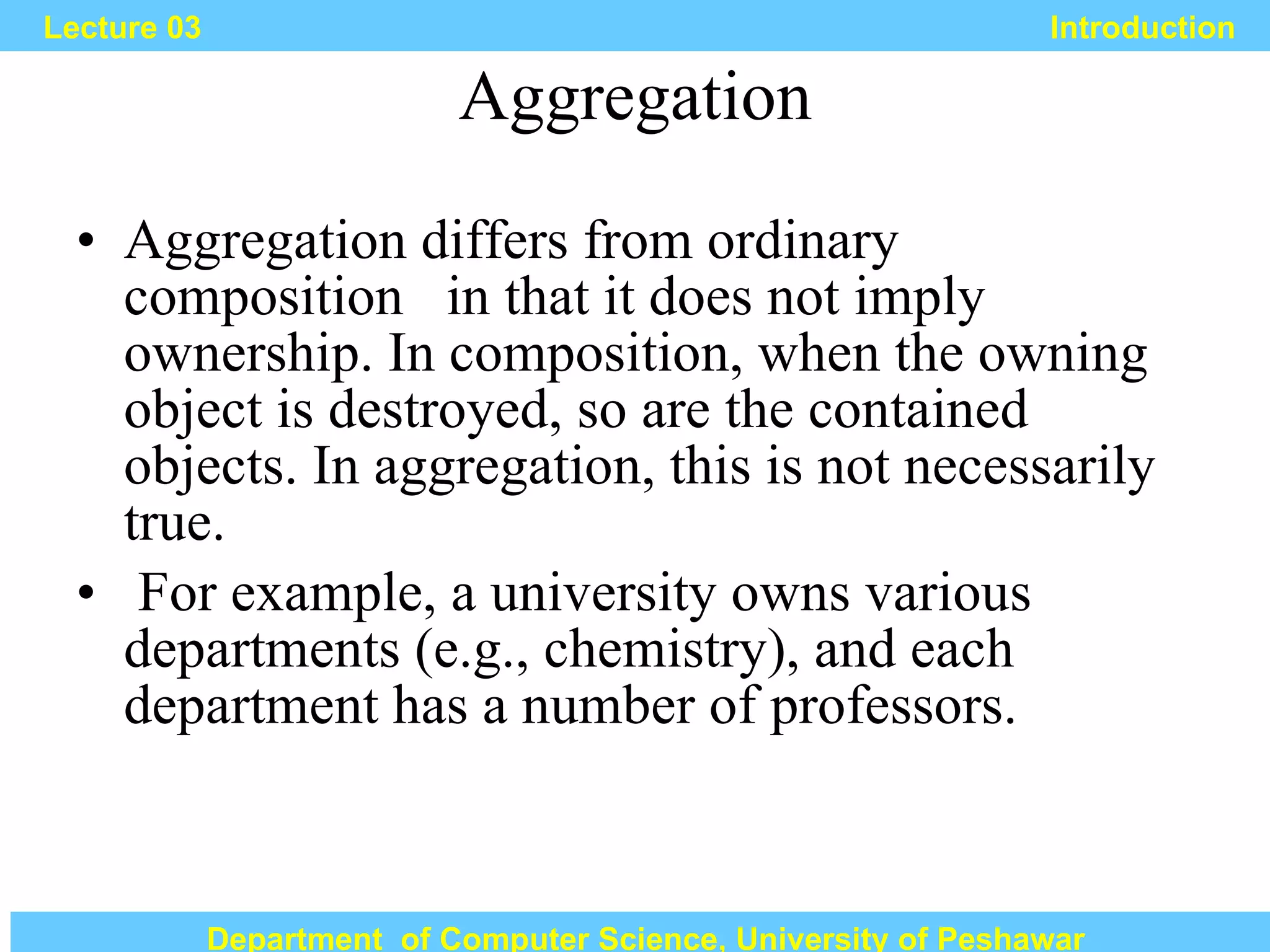

68. Aggregation Aggregation differs from ordinary composition in that it does not imply ownership. In composition, when the owning object is destroyed, so are the contained objects. In aggregation, this is not necessarily true. For example, a university owns various departments (e.g., chemistry), and each department has a number of professors.

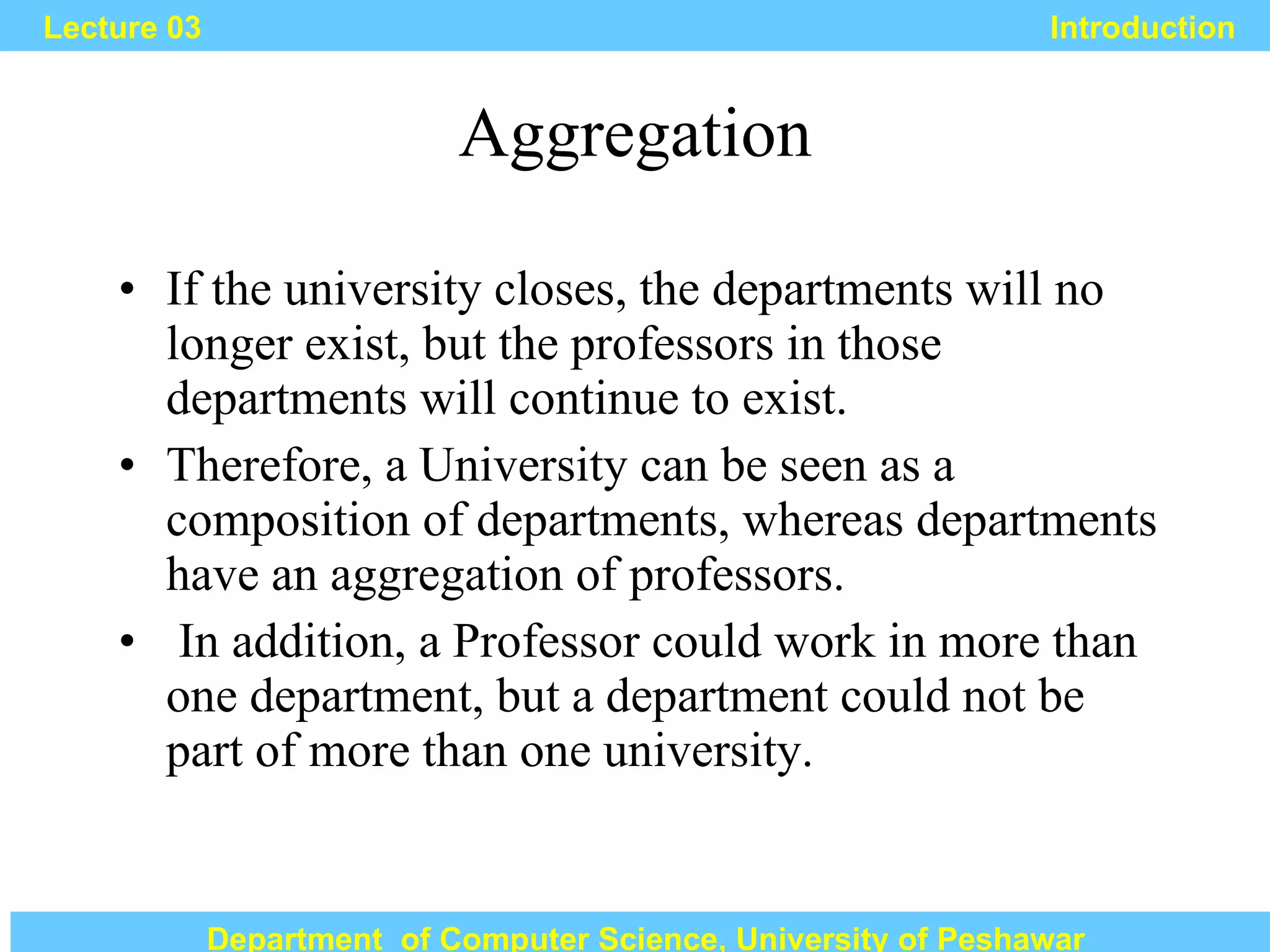

69. Aggregation If the university closes, the departments will no longer exist, but the professors in those departments will continue to exist. Therefore, a University can be seen as a composition of departments, whereas departments have an aggregation of professors. In addition, a Professor could work in more than one department, but a department could not be part of more than one university.

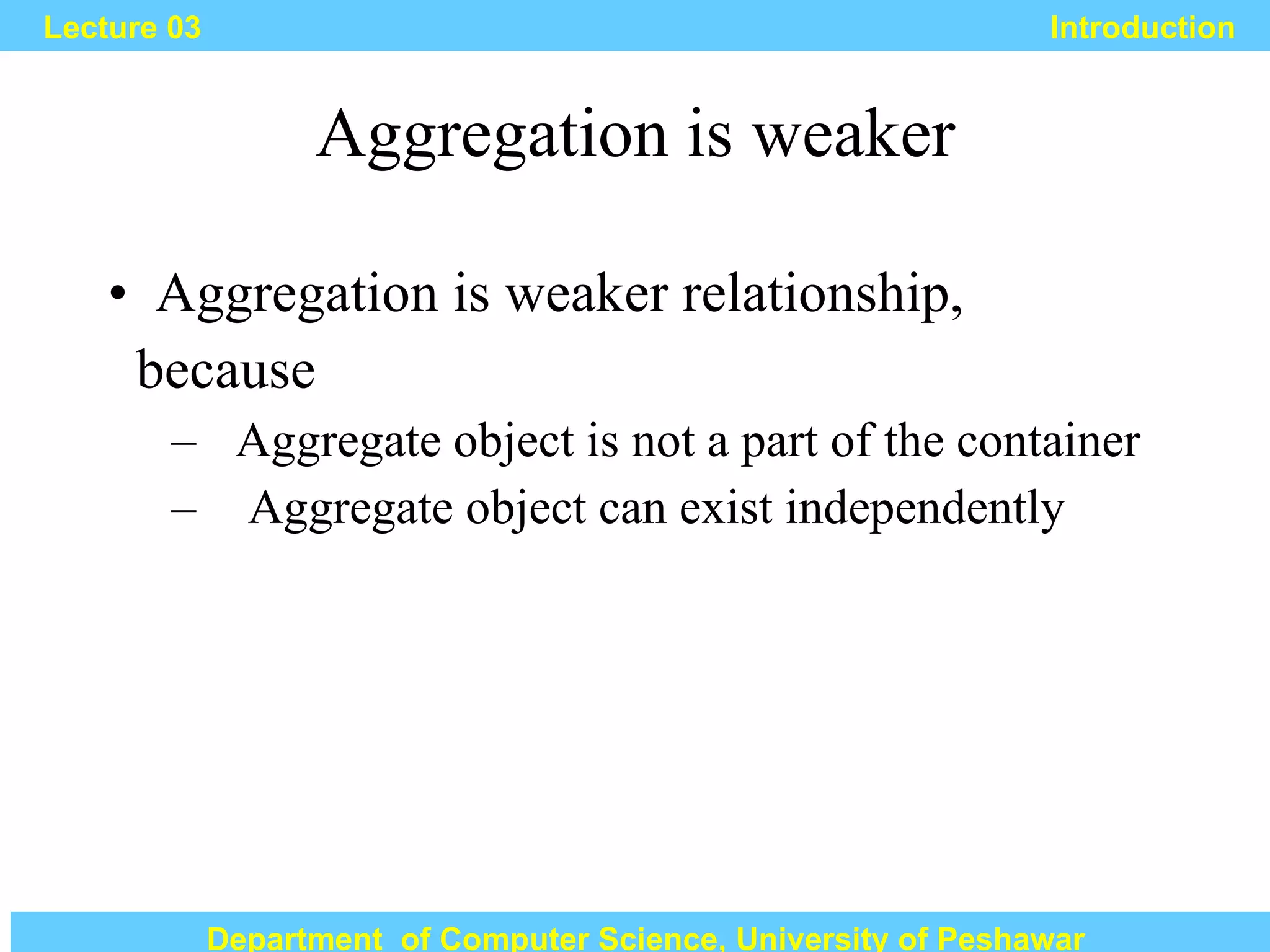

70. Aggregation is weaker Aggregation is weaker relationship, because Aggregate object is not a part of the container Aggregate object can exist independently

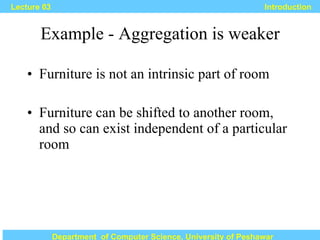

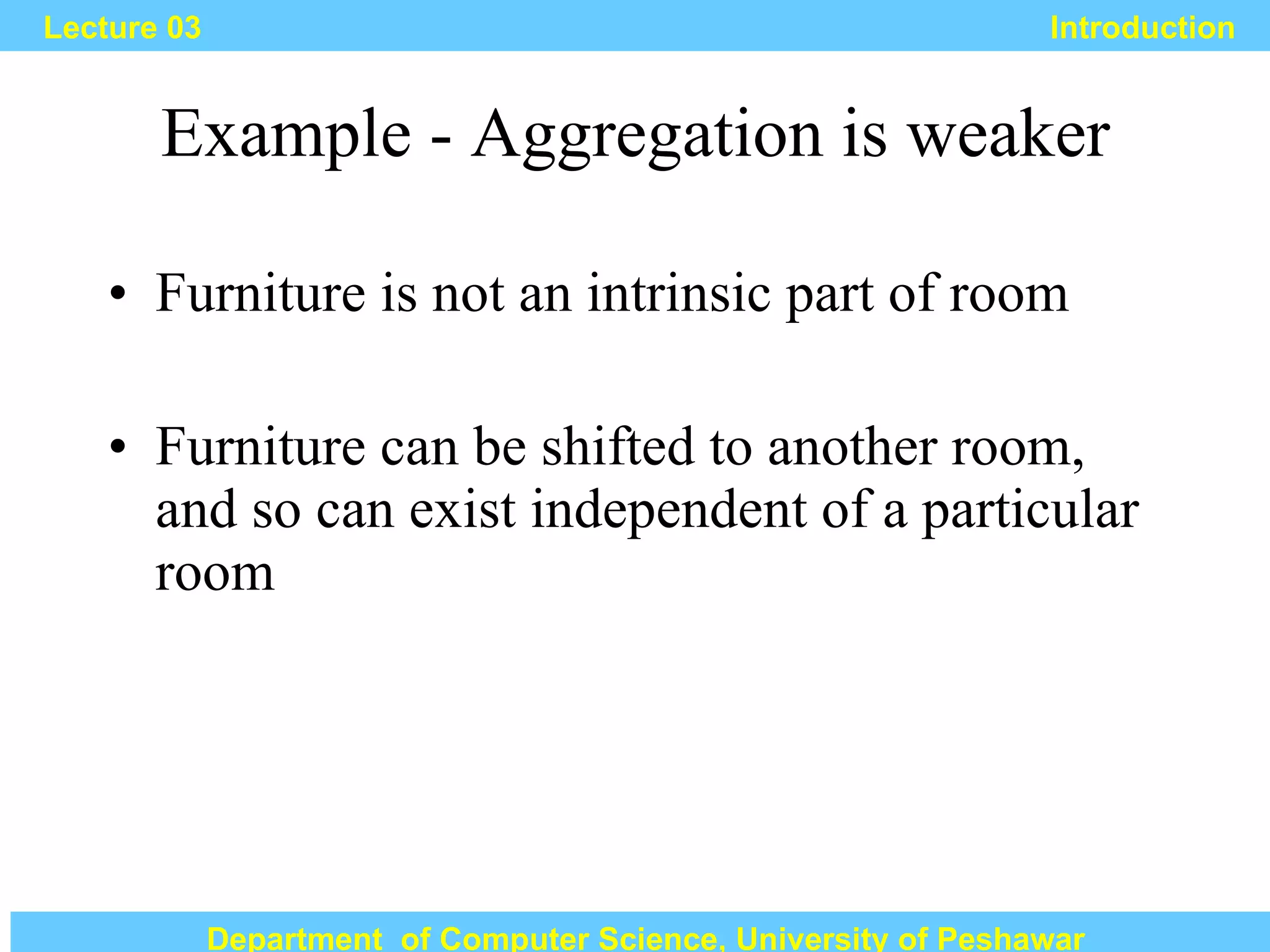

71. Example - Aggregation is weaker Furniture is not an intrinsic part of room Furniture can be shifted to another room, and so can exist independent of a particular room

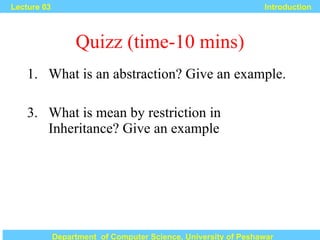

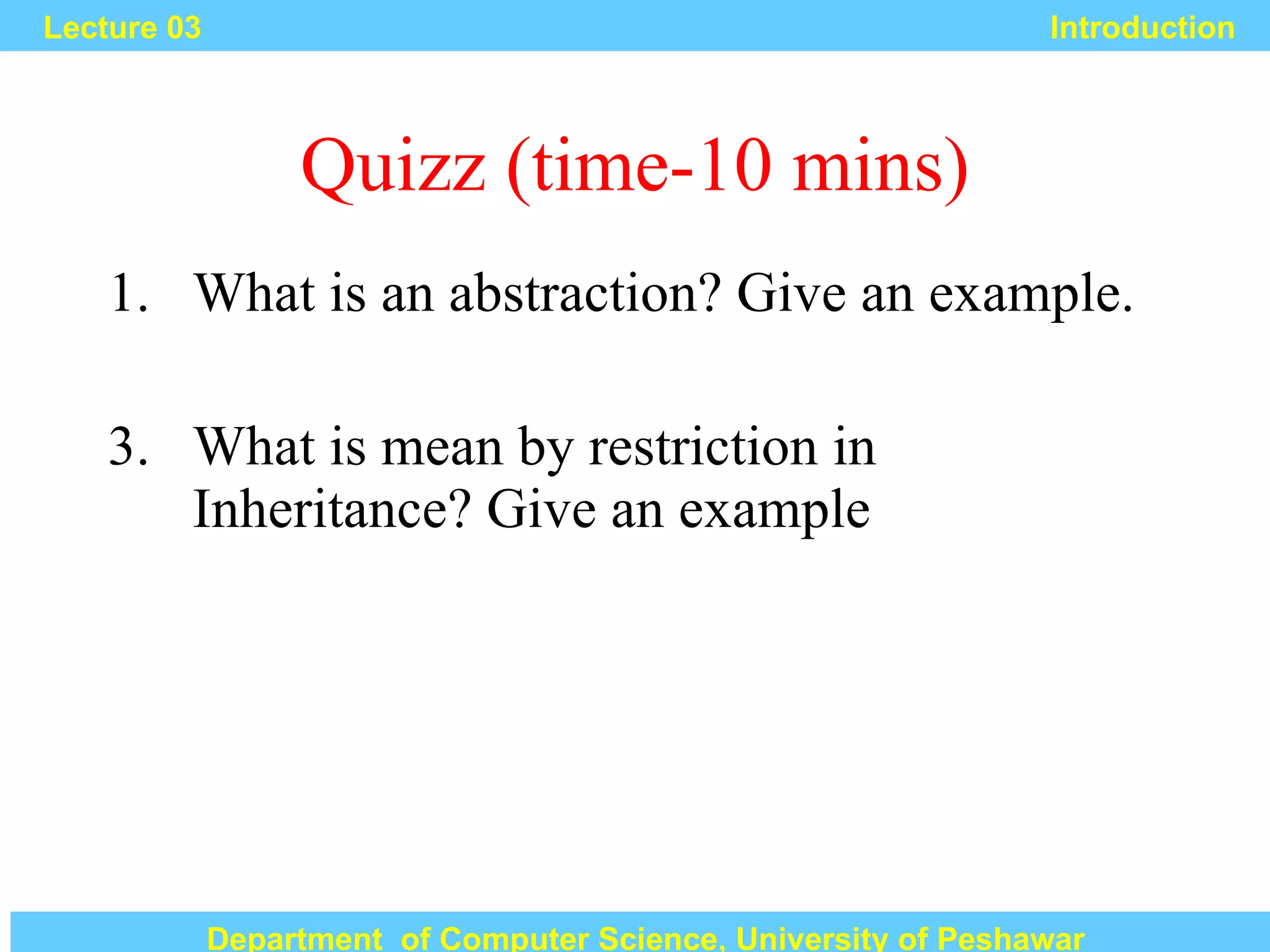

72. Quizz (time-10 mins) What is an abstraction? Give an example. What is mean by restriction in Inheritance? Give an example

73. Questions ? Thanks Lecture 03 Introduction
