Object-Oriented Programming
Concepts in Java
PJ Dillon
CS401

Slides adapted from Dr. Ramirez

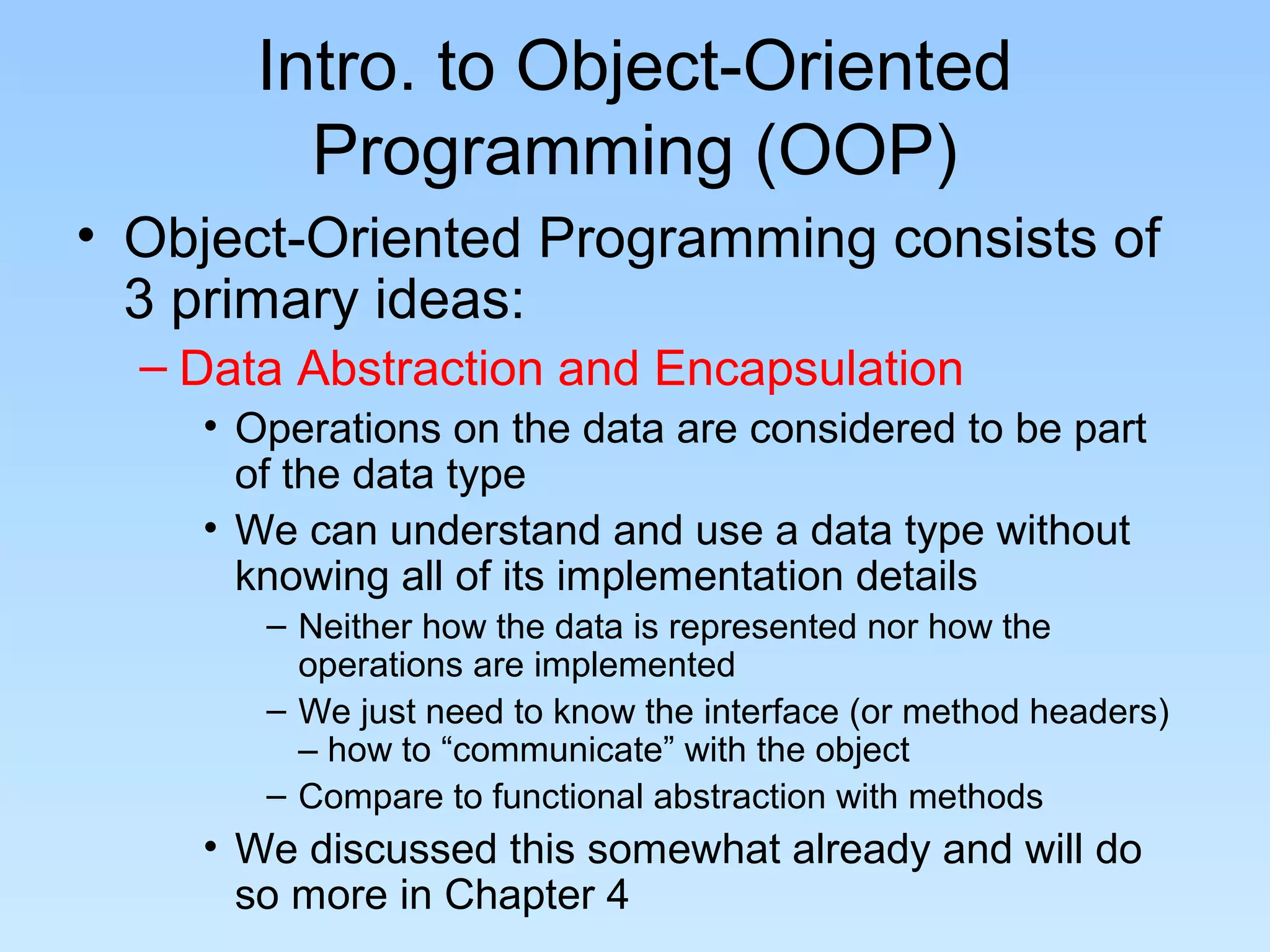

Intro. to Object-Oriented
Programming (OOP)
• Object-Oriented Programming consists of
3 primary ideas:
– Data Abstraction and Encapsulation
• Operations on the data are considered to be part
of the data type
• We can understand and use a data type without
knowing all of its implementation details
– Neither how the data is represented nor how the
operations are implemented
– We just need to know the interface (or method headers)
– how to “communicate” with the object
– Compare to functional abstraction with methods
• We discussed this somewhat already and will do
so more in Chapter 4

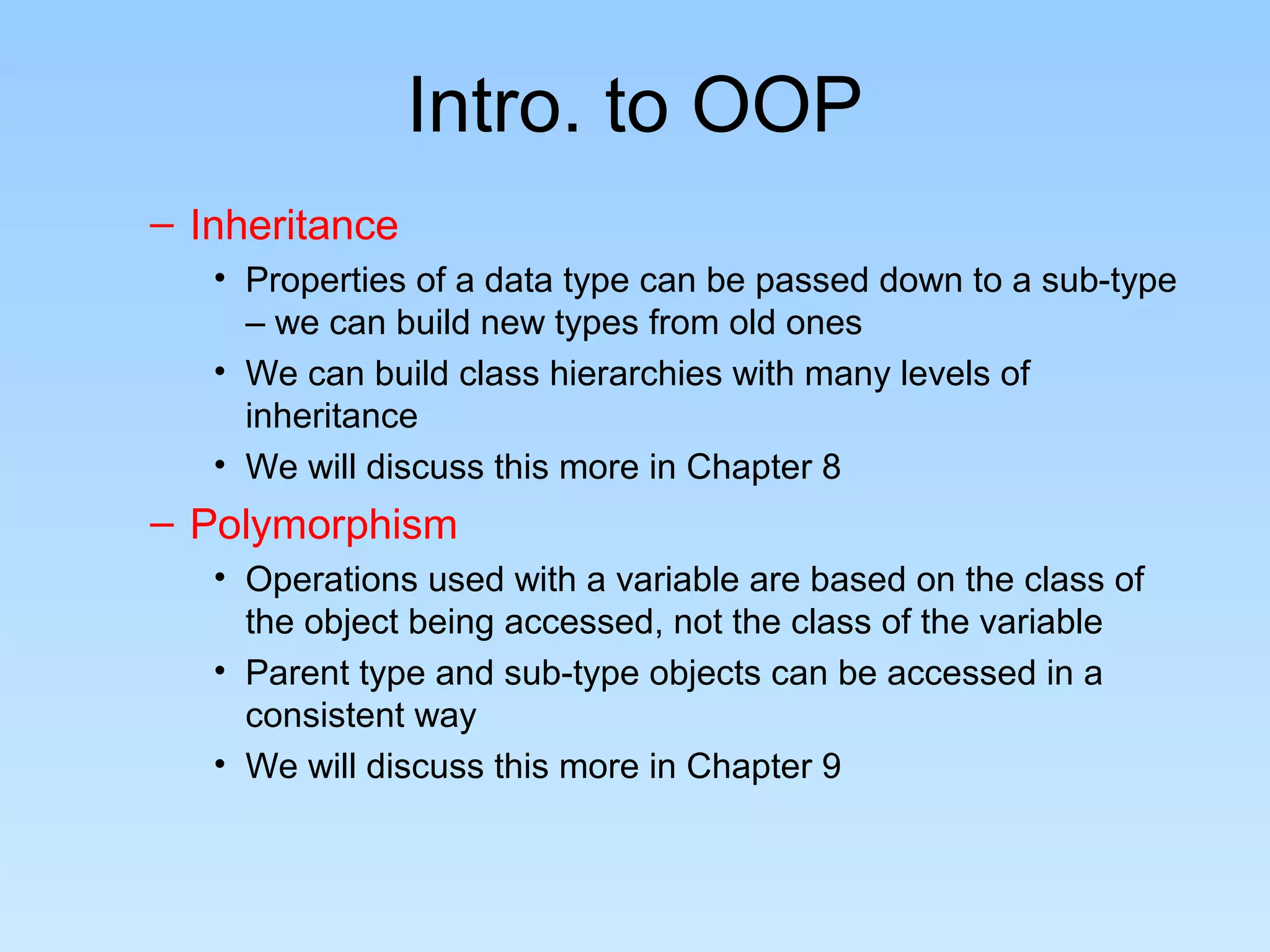

Intro. to OOP
– Inheritance
• Properties of a data type can be passed down to a sub-type
– we can build new types from old ones
• We can build class hierarchies with many levels of
inheritance
• We will discuss this more in Chapter 8
– Polymorphism
• Operations used with a variable are based on the class of
the object being accessed, not the class of the variable
• Parent type and sub-type objects can be accessed in a
consistent way
• We will discuss this more in Chapter 9

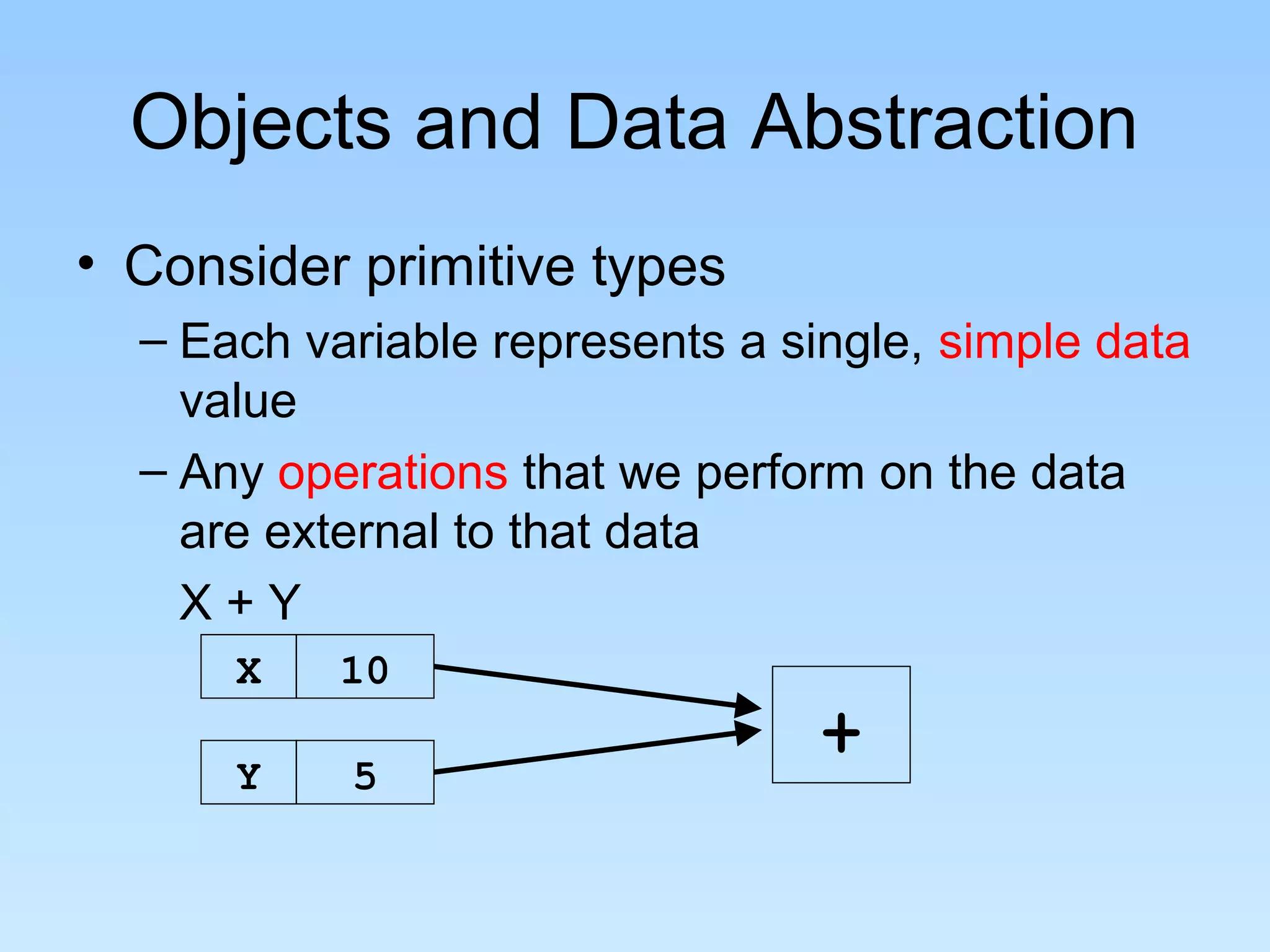

Objects and Data Abstraction
• Consider primitive types
– Each variable represents a single, simple data
value
– Any operations that we perform on the data
are external to that data
X+Y
X 10
+
Y 5

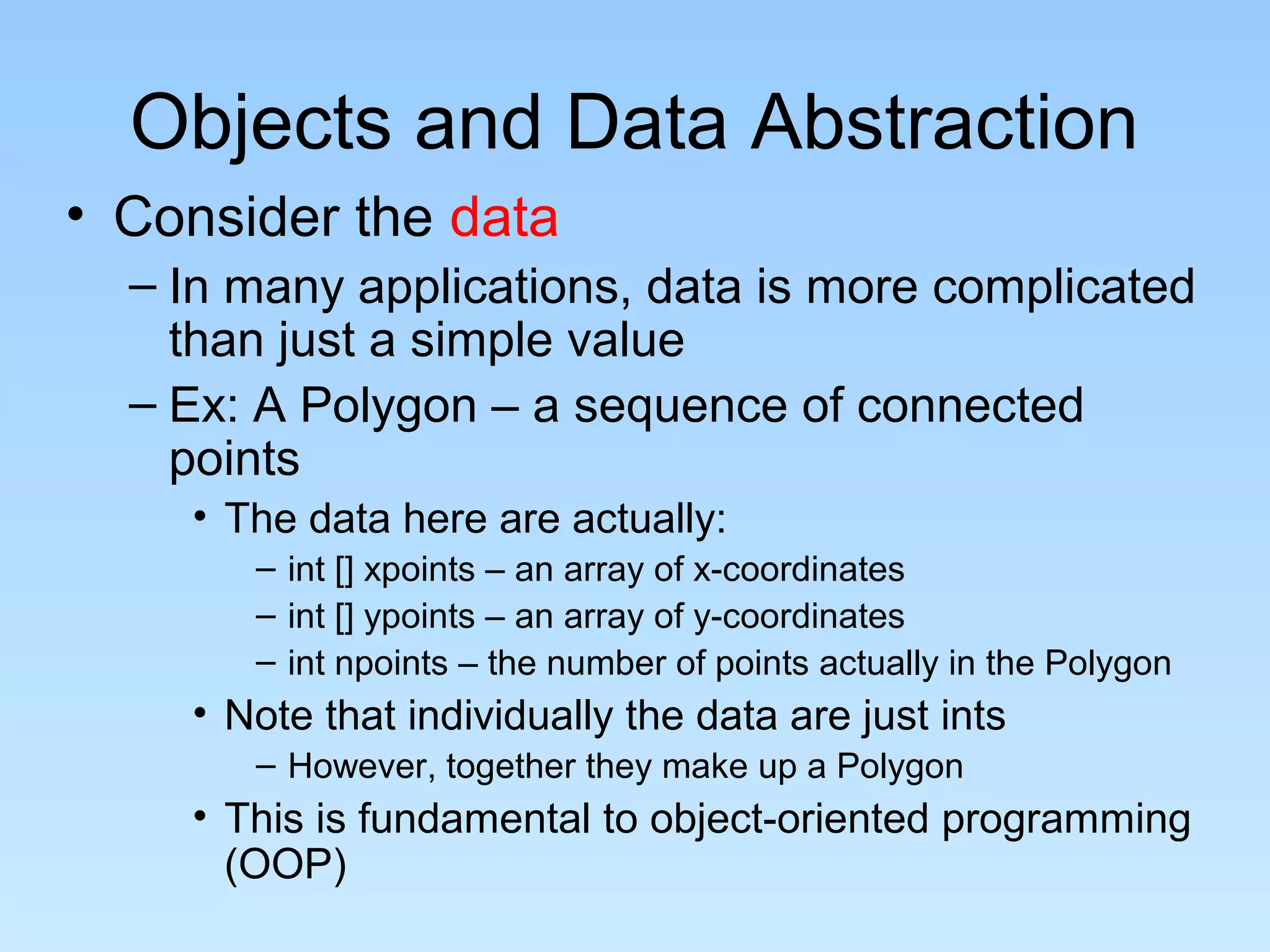

• Consider the data
– In many applications, data is more complicated
than just a simple value
– Ex: A Polygon – a sequence of connected
points
• The data here are actually:
– int [] xpoints – an array of x-coordinates
– int [] ypoints – an array of y-coordinates
– int npoints – the number of points actually in the Polygon
• Note that individually the data are just ints
– However, together they make up a Polygon
• This is fundamental to object-oriented programming
(OOP)

• Consider the operations
– Now consider operations that a Polygon can
do
• Note how that is stated – we are seeing what a
Polygon CAN DO rather than WHAT CAN BE
DONE to it
• This is another fundamental idea of OOP – objects
are ACTIVE rather than PASSIVE
• Ex:
– void addPoint(int x, int y) – add a new point to Polygon
– boolean contains(double x, double y) – is point (x,y)
within the boundaries of the Polygon
– void translate(int deltaX, int deltaY) – move all points in
the Polygon by deltaX and deltaY

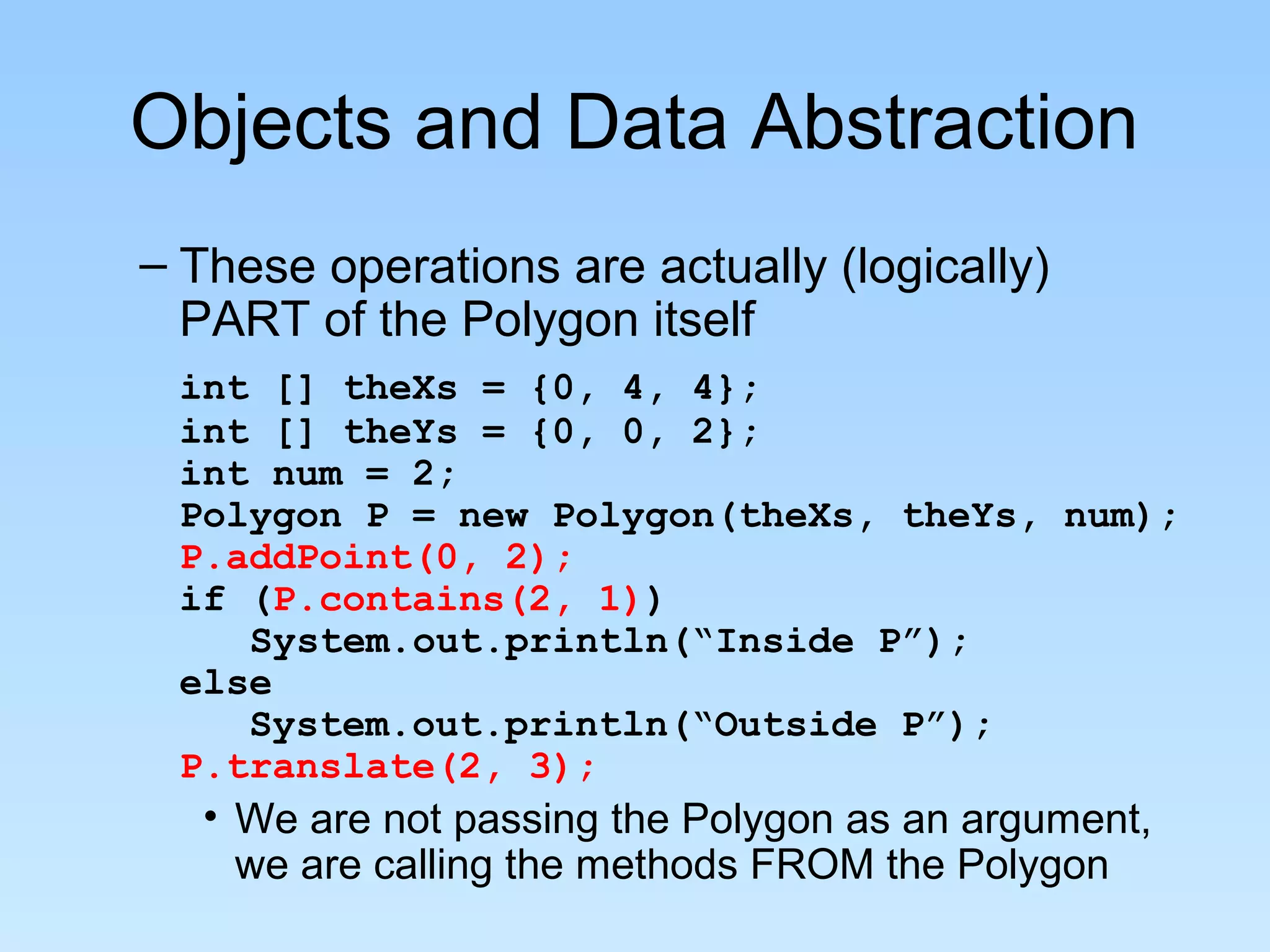

– These operations are actually (logically)
PART of the Polygon itself
int [] theXs = {0, 4, 4};
int [] theYs = {0, 0, 2};
int num = 2;
Polygon P = new Polygon(theXs, theYs, num);
P.addPoint(0, 2);
if (P.contains(2, 1))
System.out.println(“Inside P”);
else
System.out.println(“Outside P”);
P.translate(2, 3);
• We are not passing the Polygon as an argument,
we are calling the methods FROM the Polygon

– Objects enable us to combine the data and
operations of a type together into a single
entity
P
xpoints [0,4,4,0]
ypoints [0,0,2,2]
npoints 4
Thus, the operations
are always implicitly addPoint()
acting on the contains()
object’s data translate()
Ex: translate means
translate the points
that make up P

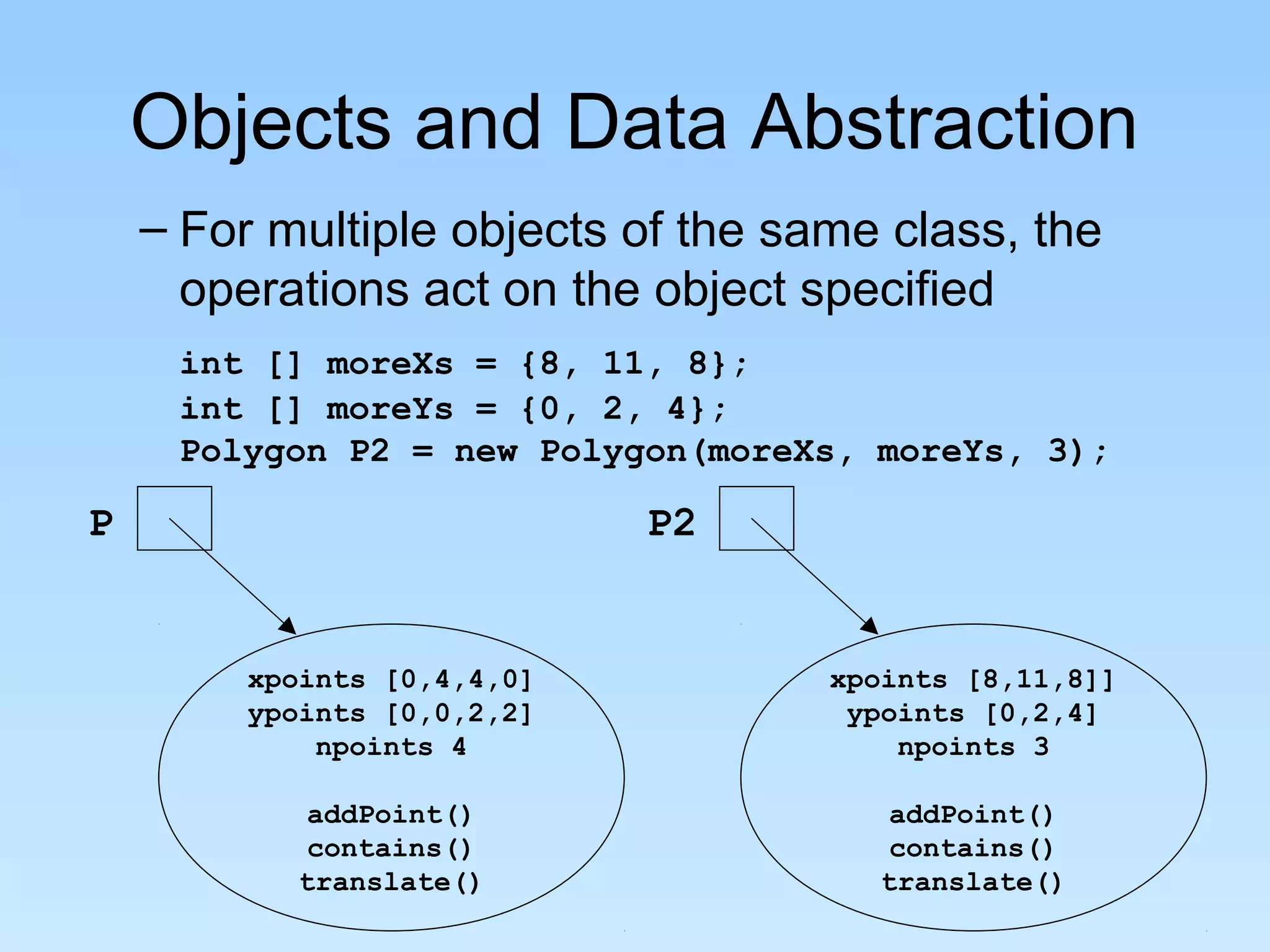

– For multiple objects of the same class, the
operations act on the object specified
int [] moreXs = {8, 11, 8};
int [] moreYs = {0, 2, 4};
Polygon P2 = new Polygon(moreXs, moreYs, 3);

P P2

xpoints [0,4,4,0] xpoints [8,11,8]]
ypoints [0,0,2,2] ypoints [0,2,4]
npoints 4 npoints 3

addPoint() addPoint()
contains() contains()
translate() translate()

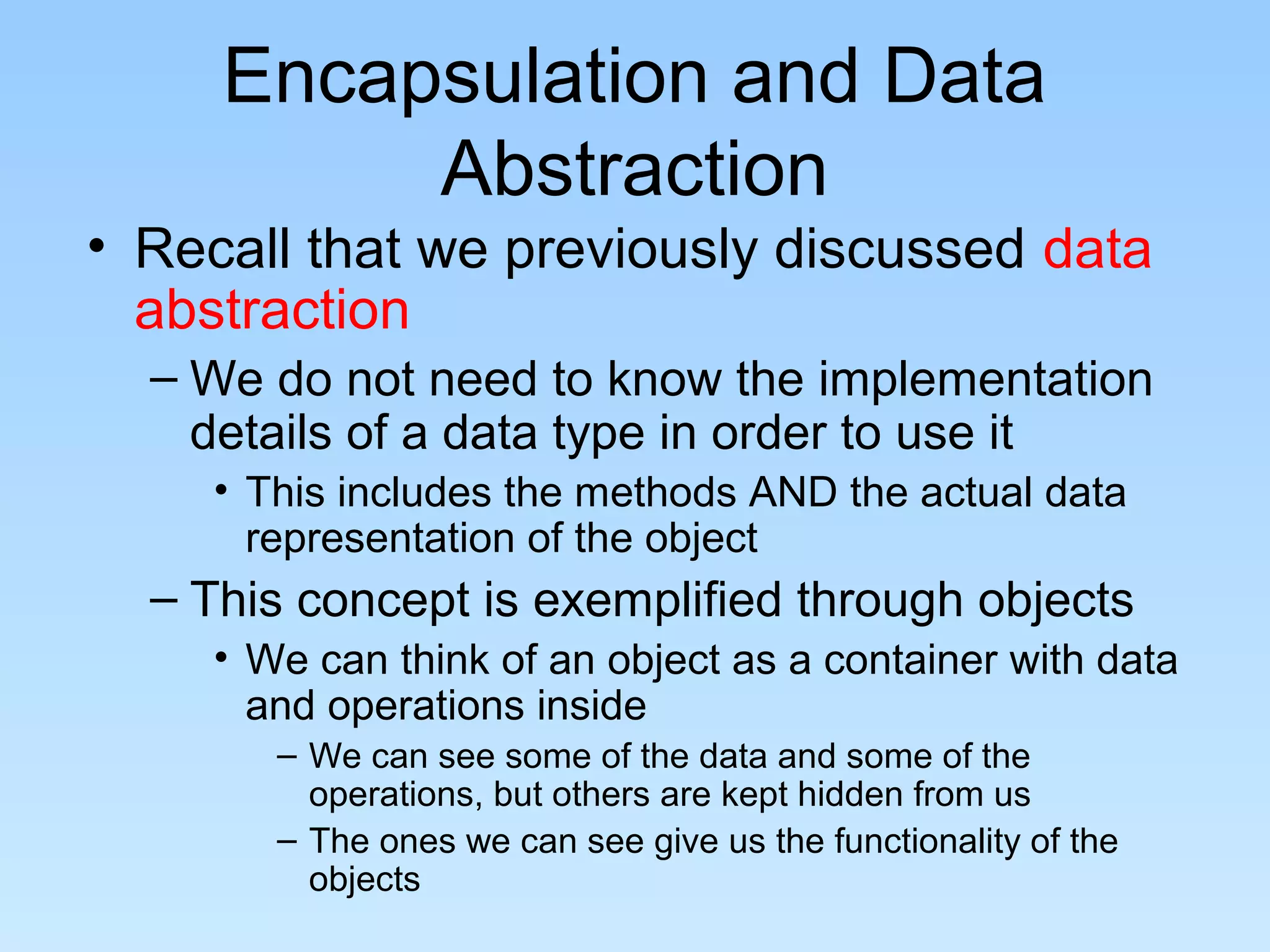

Encapsulation and Data
Abstraction
• Recall that we previously discussed data
abstraction
– We do not need to know the implementation
details of a data type in order to use it
• This includes the methods AND the actual data
representation of the object
– This concept is exemplified through objects
• We can think of an object as a container with data
and operations inside
– We can see some of the data and some of the
operations, but others are kept hidden from us
– The ones we can see give us the functionality of the
objects

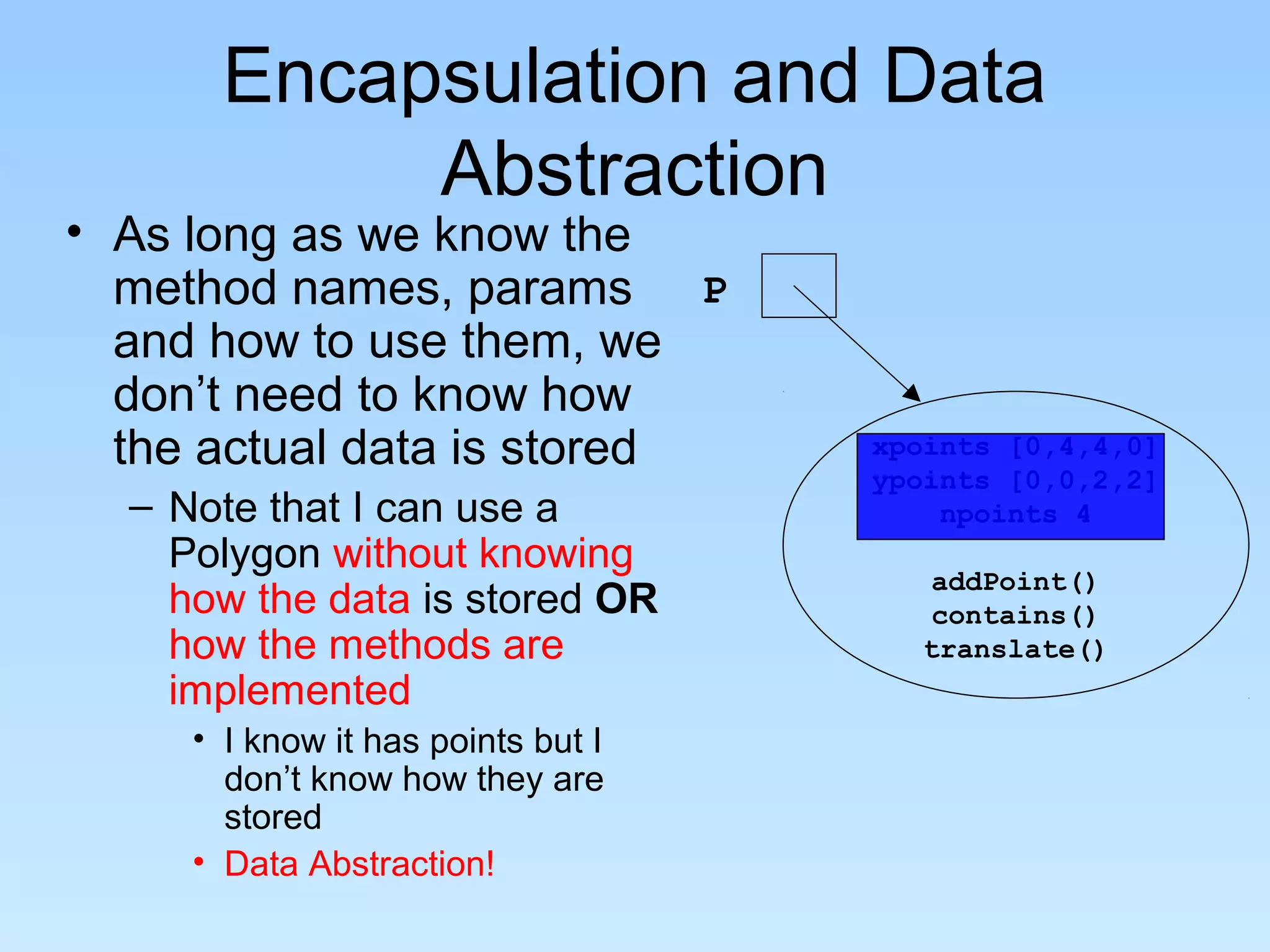

Encapsulation and Data
Abstraction
• As long as we know the
method names, params P
and how to use them, we
don’t need to know how
the actual data is stored xpoints [0,4,4,0]
ypoints [0,0,2,2]
– Note that I can use a npoints 4
Polygon without knowing
addPoint()
how the data is stored OR contains()
how the methods are translate()
implemented
• I know it has points but I
don’t know how they are
stored
• Data Abstraction!

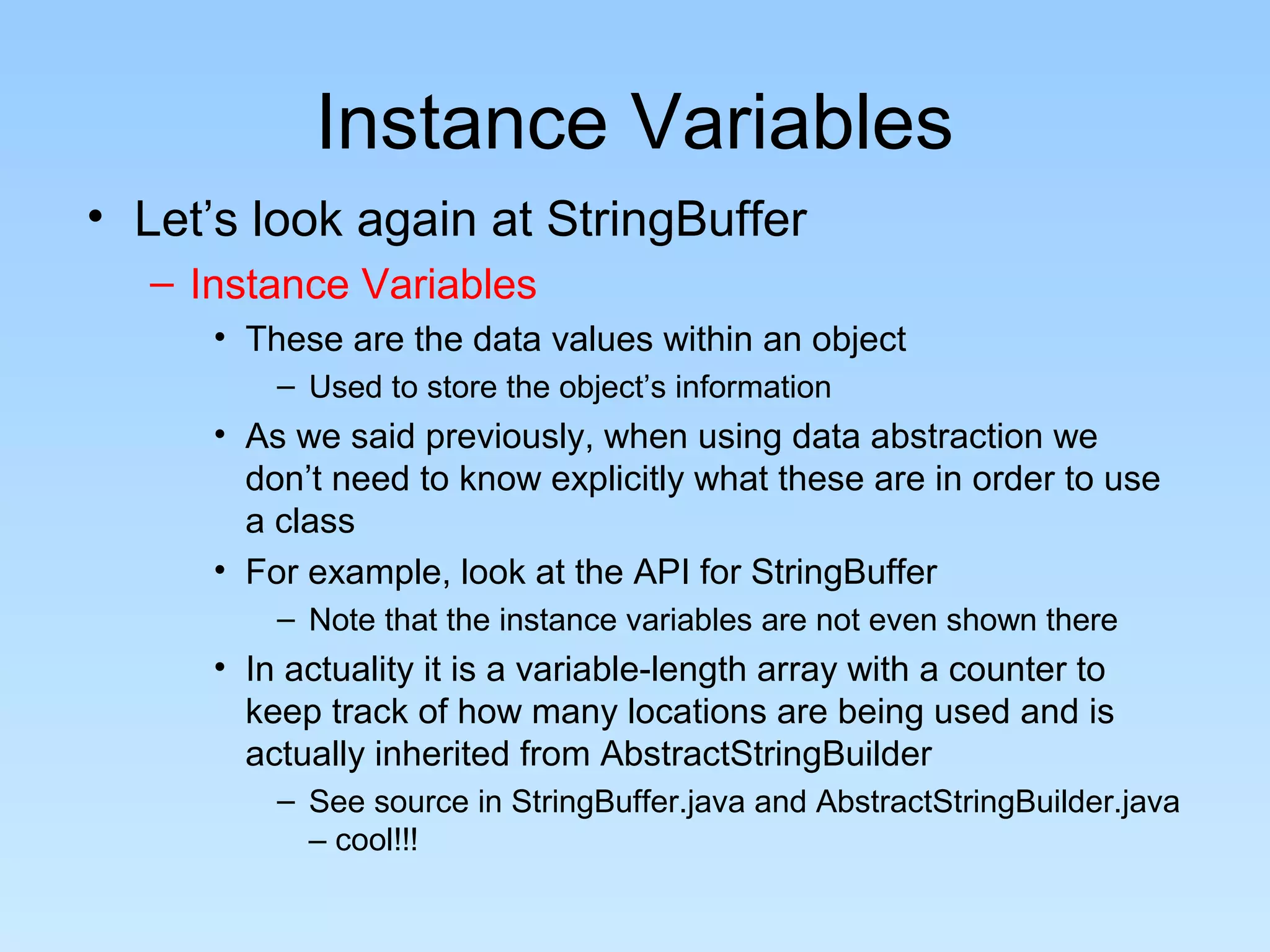

Instance Variables
• Let’s look again at StringBuffer
– Instance Variables
• These are the data values within an object
– Used to store the object’s information
• As we said previously, when using data abstraction we
don’t need to know explicitly what these are in order to use
a class
• For example, look at the API for StringBuffer
– Note that the instance variables are not even shown there
• In actuality it is a variable-length array with a counter to
keep track of how many locations are being used and is
actually inherited from AbstractStringBuilder
– See source in StringBuffer.java and AbstractStringBuilder.java
– cool!!!

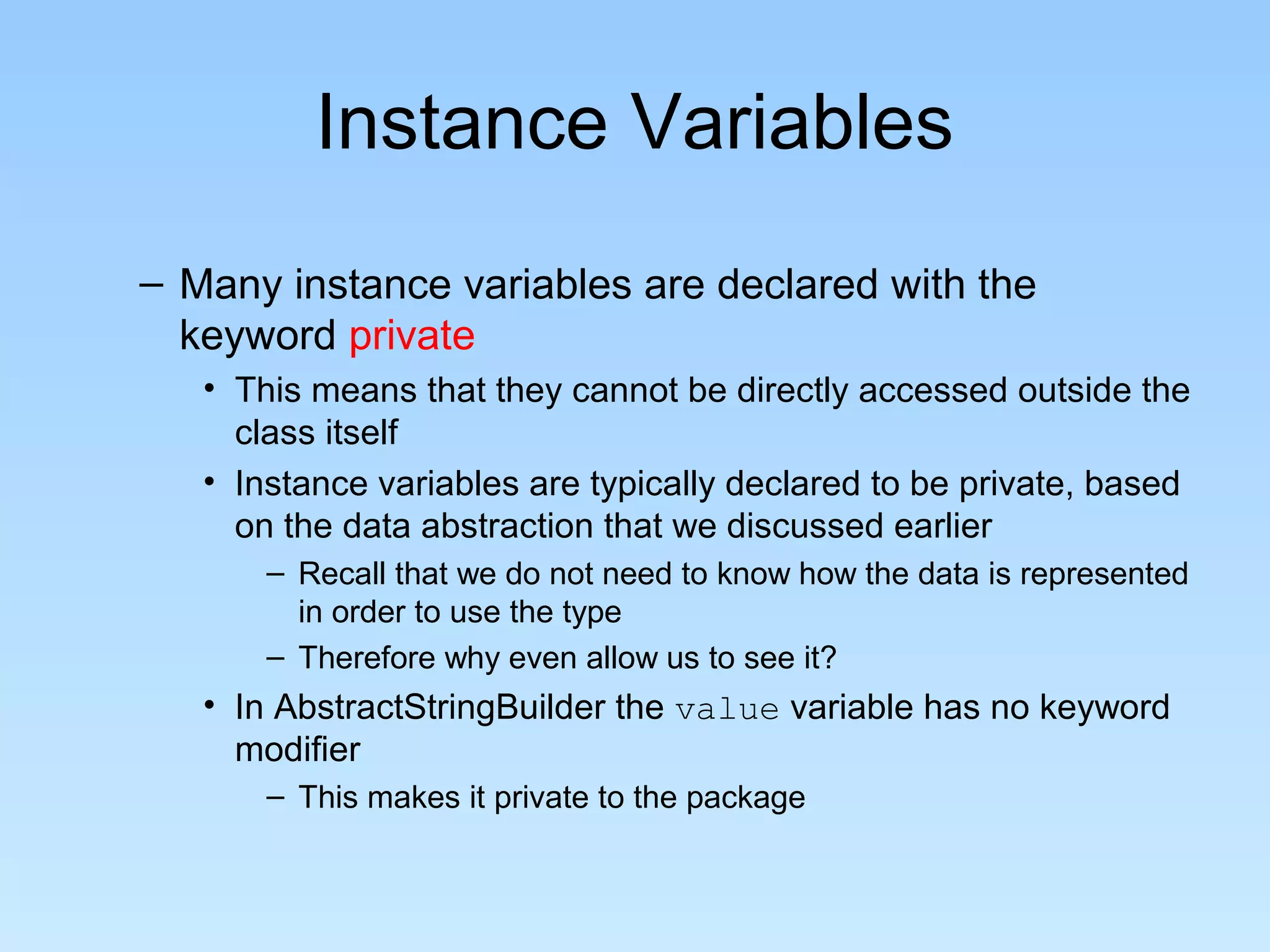

Instance Variables
– Many instance variables are declared with the
keyword private
• This means that they cannot be directly accessed outside the
class itself
• Instance variables are typically declared to be private, based
on the data abstraction that we discussed earlier
– Recall that we do not need to know how the data is represented
in order to use the type
– Therefore why even allow us to see it?
• In AbstractStringBuilder the value variable has no keyword
modifier
– This makes it private to the package

Class Methods vs. Instance
Methods
– Recall that methods we discussed before
were called class methods (or static methods)
• These were not associated with any object
– Now, however we WILL associate methods
with objects (as shown with Polygon)
– These methods are called instance methods
because they are associated with individual
instances (or objects) of a class
StringBuffer B = new StringBuffer(“this is “);
B.append(“really fun stuff!”);
System.out.println(B.toString());

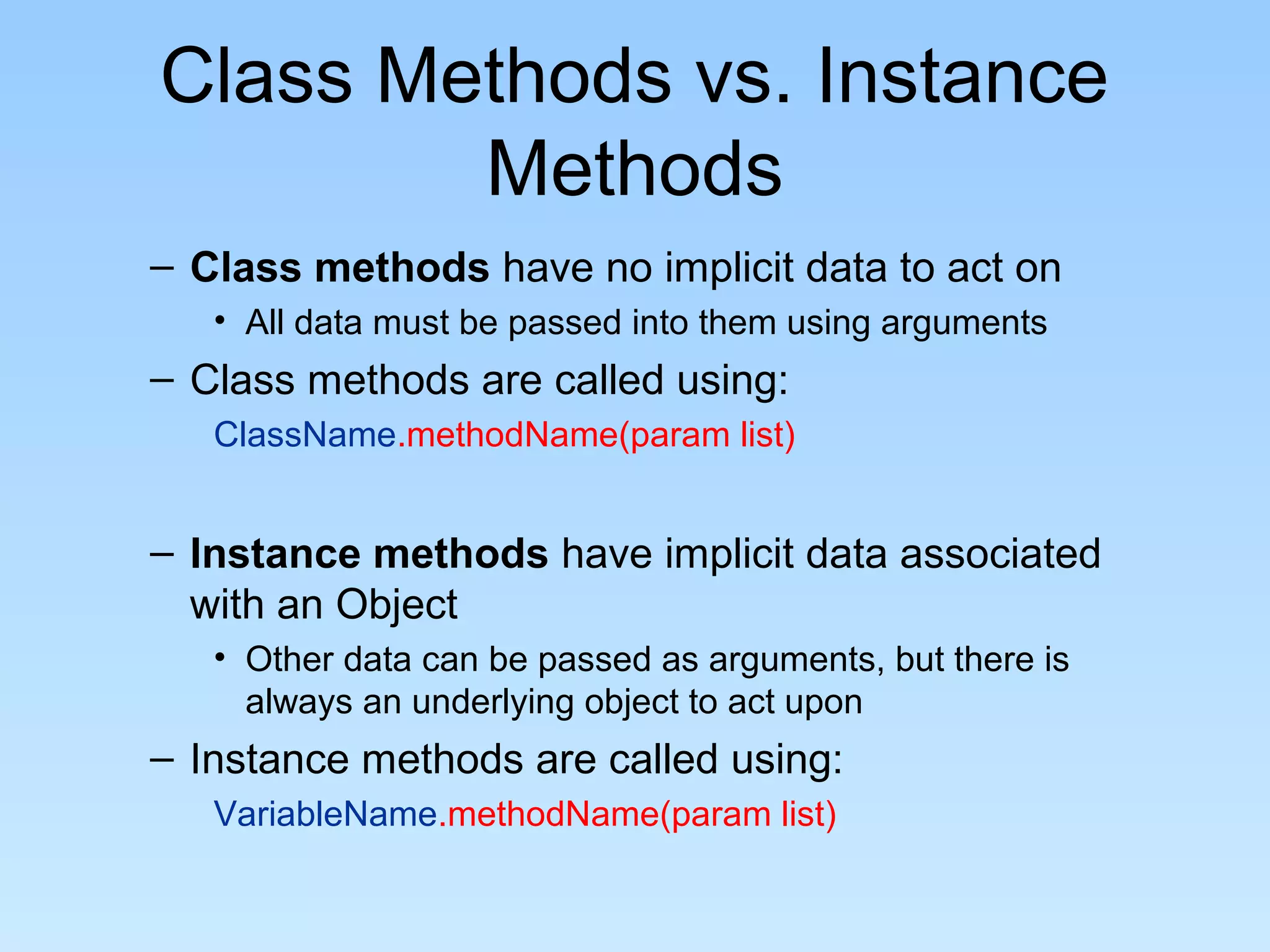

Class Methods vs. Instance
Methods
– Class methods have no implicit data to act on
• All data must be passed into them using arguments
– Class methods are called using:
ClassName.methodName(param list)

– Instance methods have implicit data associated
with an Object
• Other data can be passed as arguments, but there is
always an underlying object to act upon
– Instance methods are called using:
VariableName.methodName(param list)

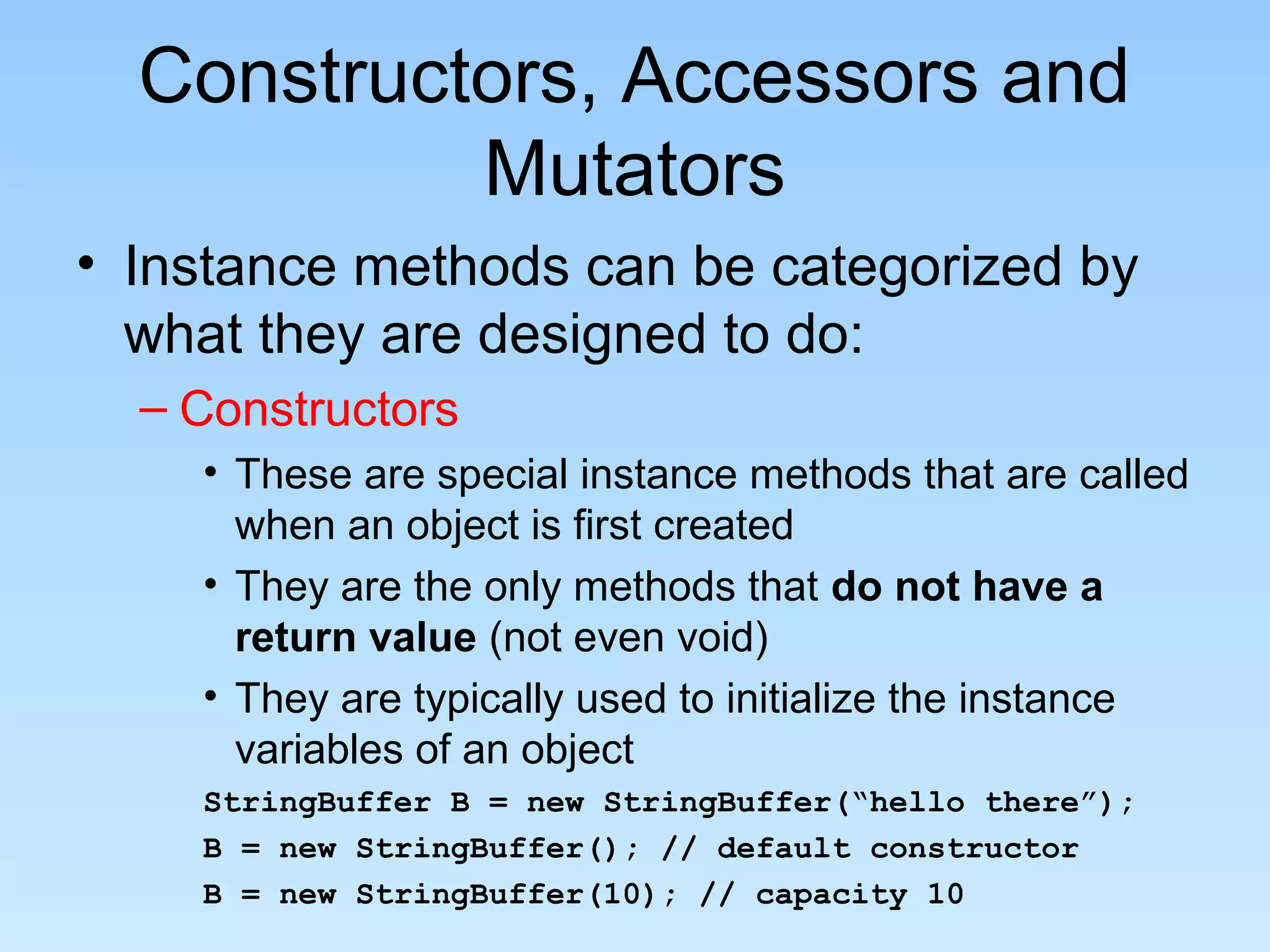

Constructors, Accessors and
Mutators
• Instance methods can be categorized by
what they are designed to do:
– Constructors
• These are special instance methods that are called
when an object is first created
• They are the only methods that do not have a
return value (not even void)
• They are typically used to initialize the instance
variables of an object
StringBuffer B = new StringBuffer(“hello there”);
B = new StringBuffer(); // default constructor
B = new StringBuffer(10); // capacity 10

Mutators

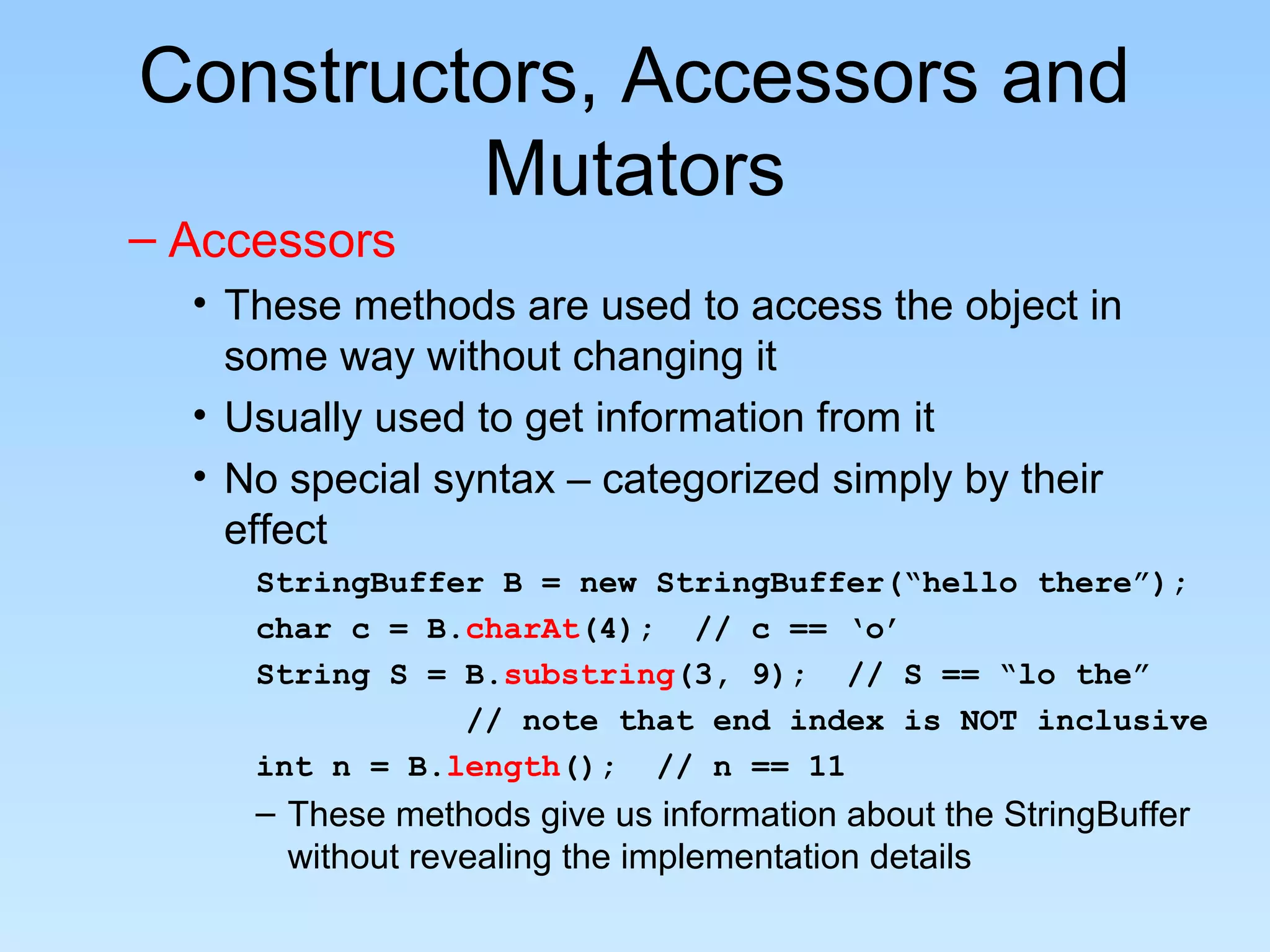

– Accessors
• These methods are used to access the object in
some way without changing it
• Usually used to get information from it
• No special syntax – categorized simply by their
effect
StringBuffer B = new StringBuffer(“hello there”);
char c = B.charAt(4); // c == ‘o’
String S = B.substring(3, 9); // S == “lo the”
// note that end index is NOT inclusive
int n = B.length(); // n == 11
– These methods give us information about the StringBuffer
without revealing the implementation details

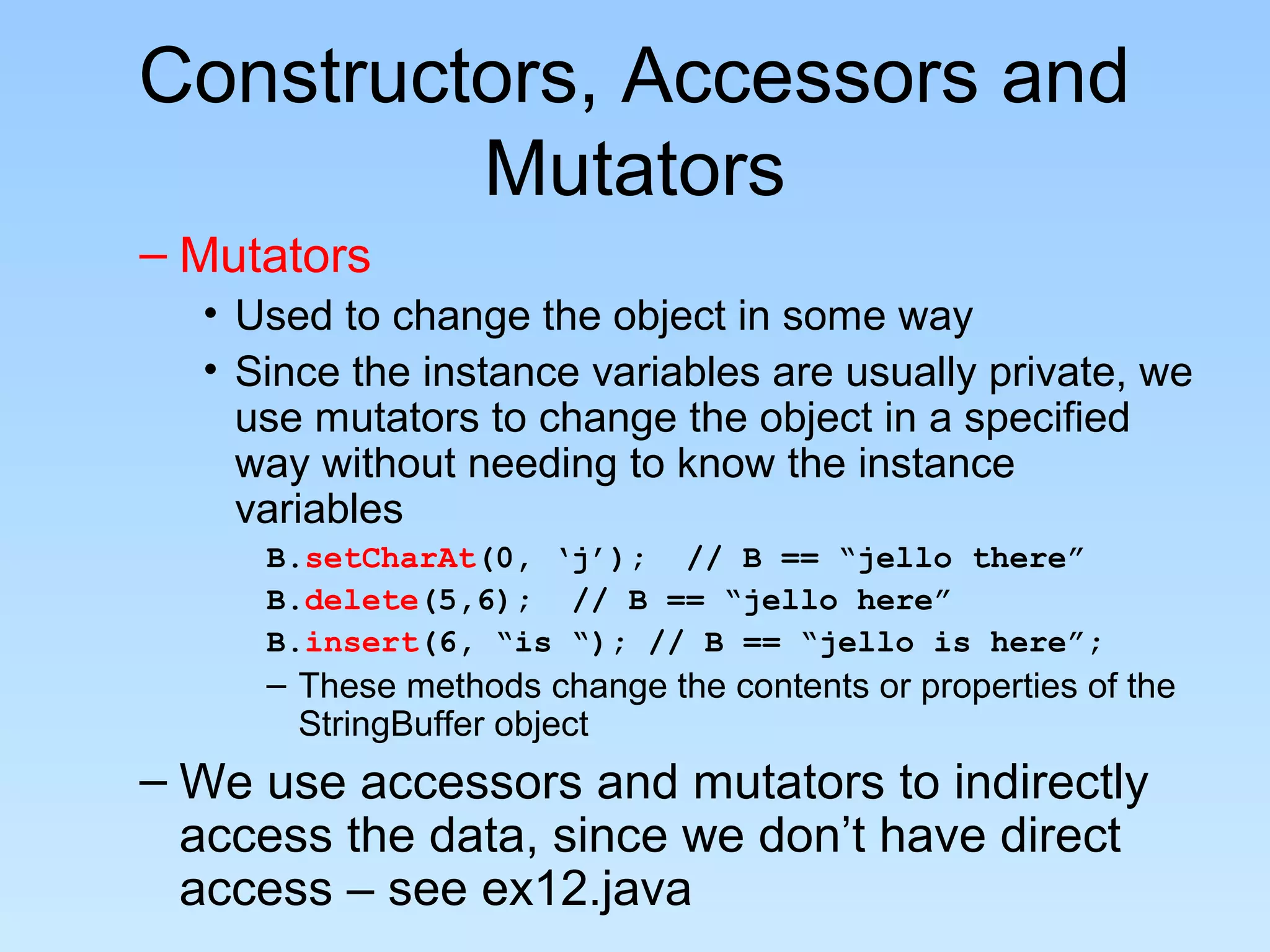

Mutators
– Mutators
• Used to change the object in some way
• Since the instance variables are usually private, we
use mutators to change the object in a specified
way without needing to know the instance
variables
B.setCharAt(0, ‘j’); // B == “jello there”
B.delete(5,6); // B == “jello here”
B.insert(6, “is “); // B == “jello is here”;
– These methods change the contents or properties of the
StringBuffer object
– We use accessors and mutators to indirectly
access the data, since we don’t have direct
access – see ex12.java

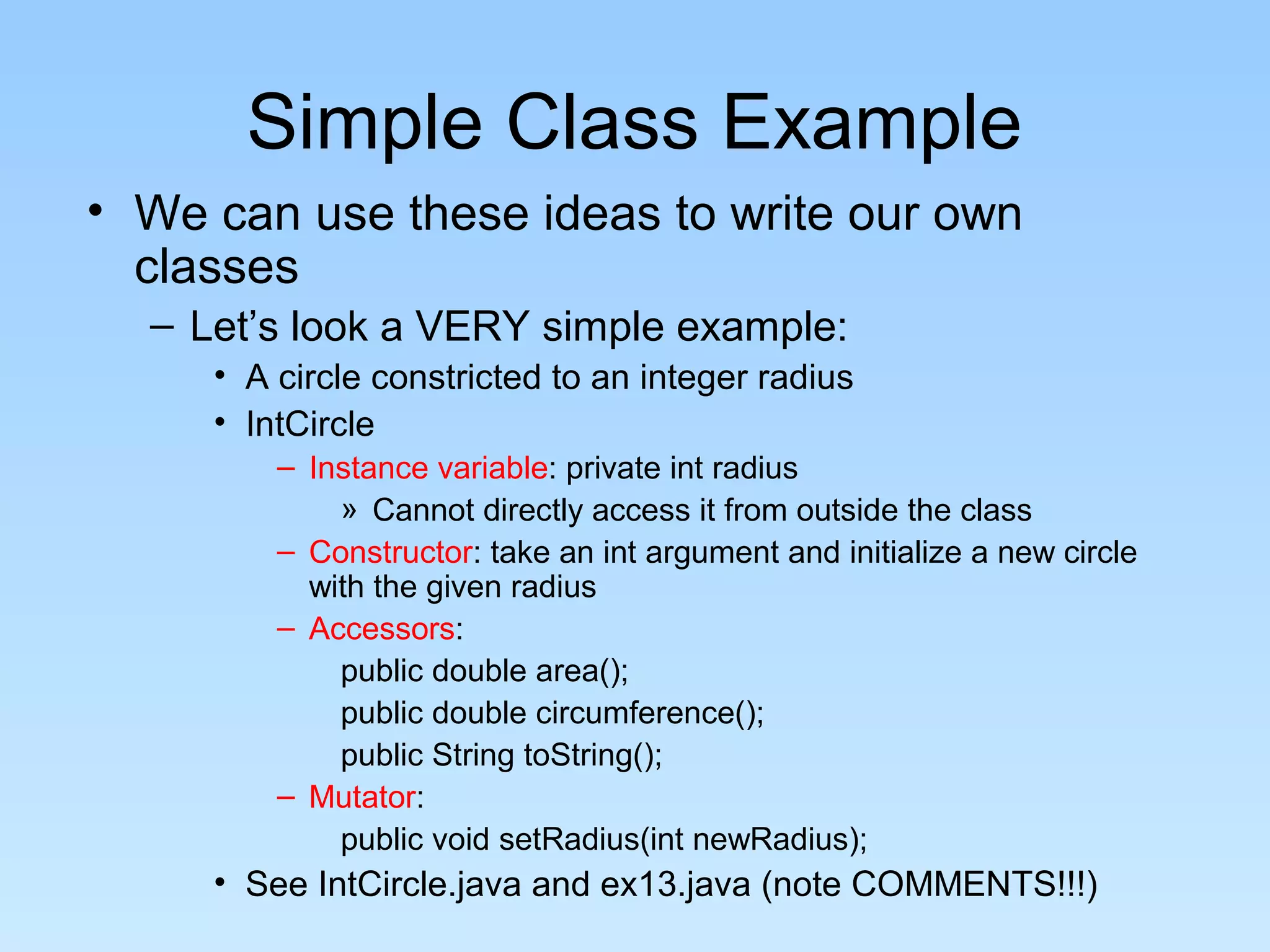

Simple Class Example
• We can use these ideas to write our own
classes
– Let’s look a VERY simple example:
• A circle constricted to an integer radius
• IntCircle
– Instance variable: private int radius
» Cannot directly access it from outside the class
– Constructor: take an int argument and initialize a new circle
with the given radius
– Accessors:
public double area();
public double circumference();
public String toString();
– Mutator:
public void setRadius(int newRadius);
• See IntCircle.java and ex13.java (note COMMENTS!!!)

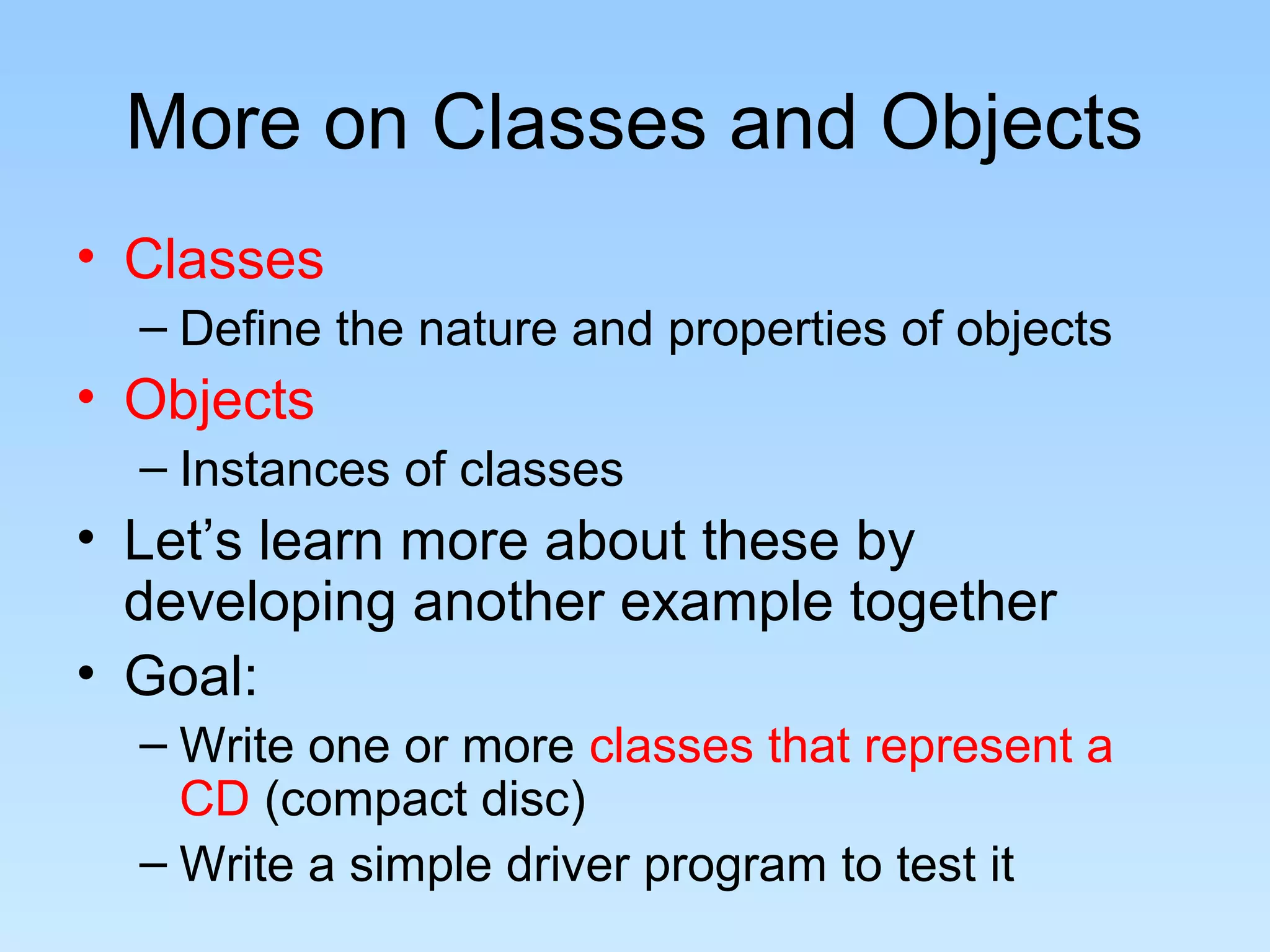

More on Classes and Objects
• Classes
– Define the nature and properties of objects
• Objects
– Instances of classes
• Let’s learn more about these by
developing another example together
• Goal:
– Write one or more classes that represent a
CD (compact disc)
– Write a simple driver program to test it

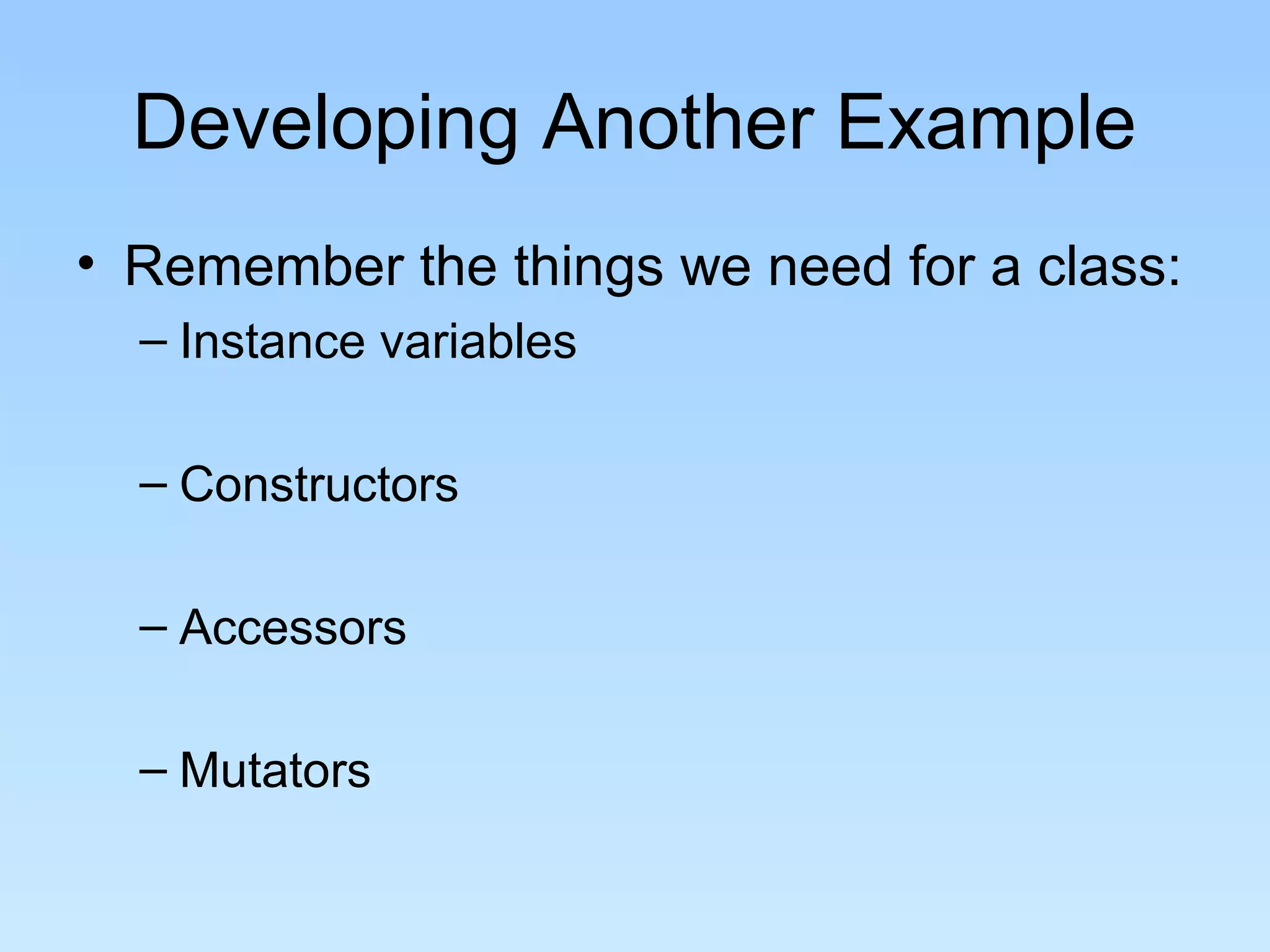

Developing Another Example
• Remember the things we need for a class:
– Instance variables

– Constructors

– Accessors

– Mutators

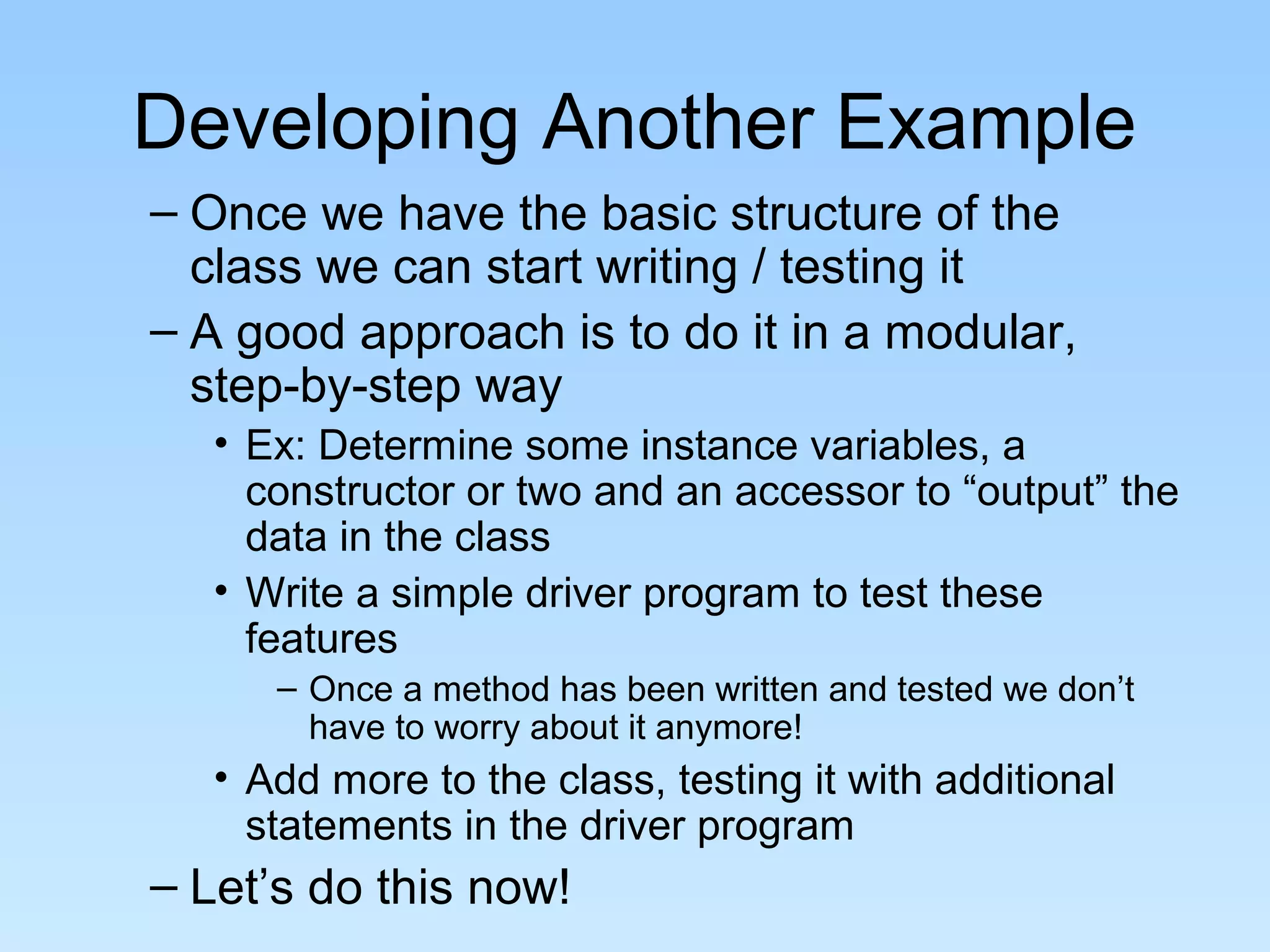

Developing Another Example
– Once we have the basic structure of the
class we can start writing / testing it
– A good approach is to do it in a modular,
step-by-step way
• Ex: Determine some instance variables, a
constructor or two and an accessor to “output” the
data in the class
• Write a simple driver program to test these
features
– Once a method has been written and tested we don’t
have to worry about it anymore!
• Add more to the class, testing it with additional
statements in the driver program
– Let’s do this now!

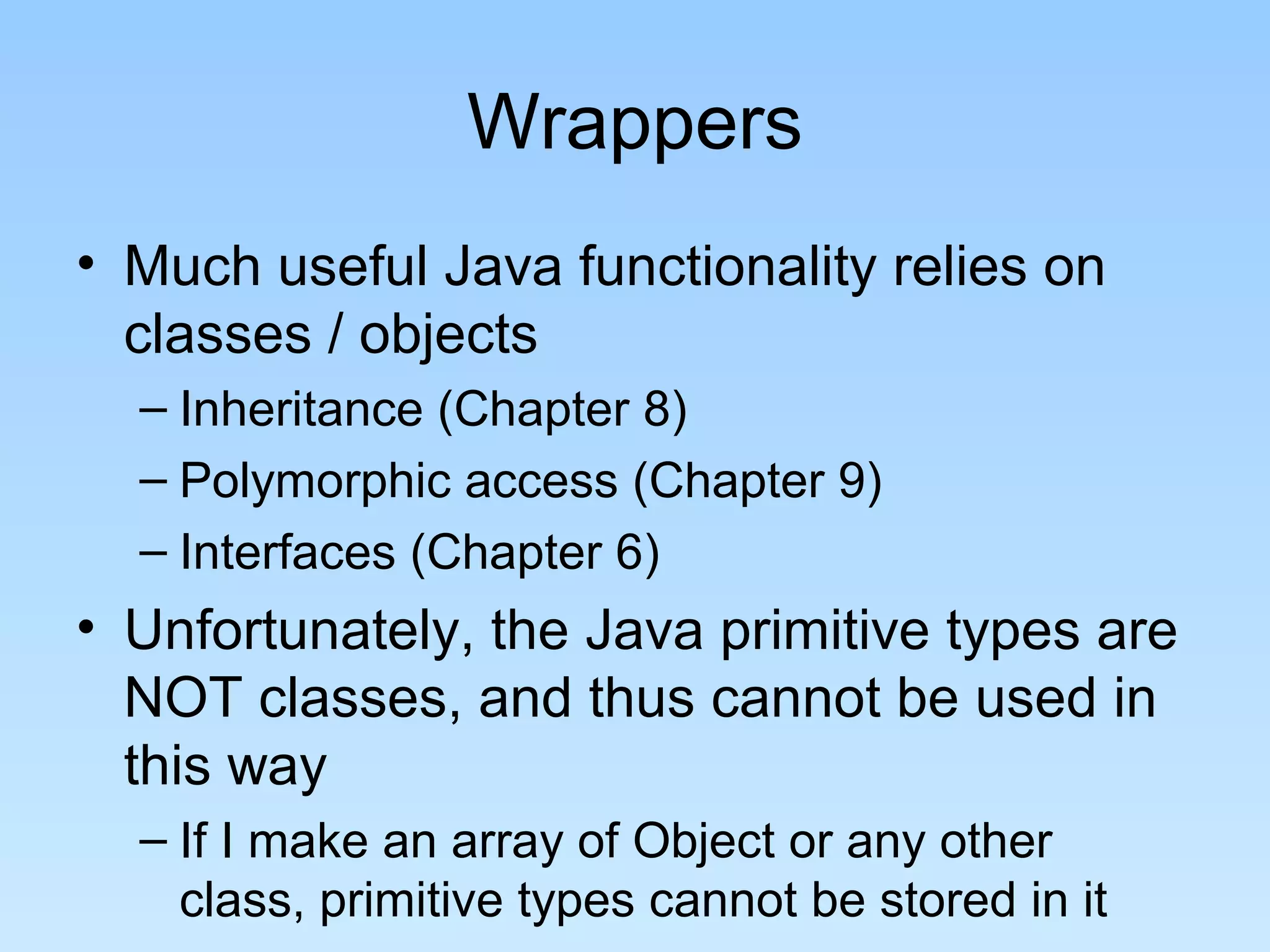

Wrappers
• Much useful Java functionality relies on
classes / objects
– Inheritance (Chapter 8)
– Polymorphic access (Chapter 9)
– Interfaces (Chapter 6)
• Unfortunately, the Java primitive types are
NOT classes, and thus cannot be used in
this way
– If I make an array of Object or any other
class, primitive types cannot be stored in it

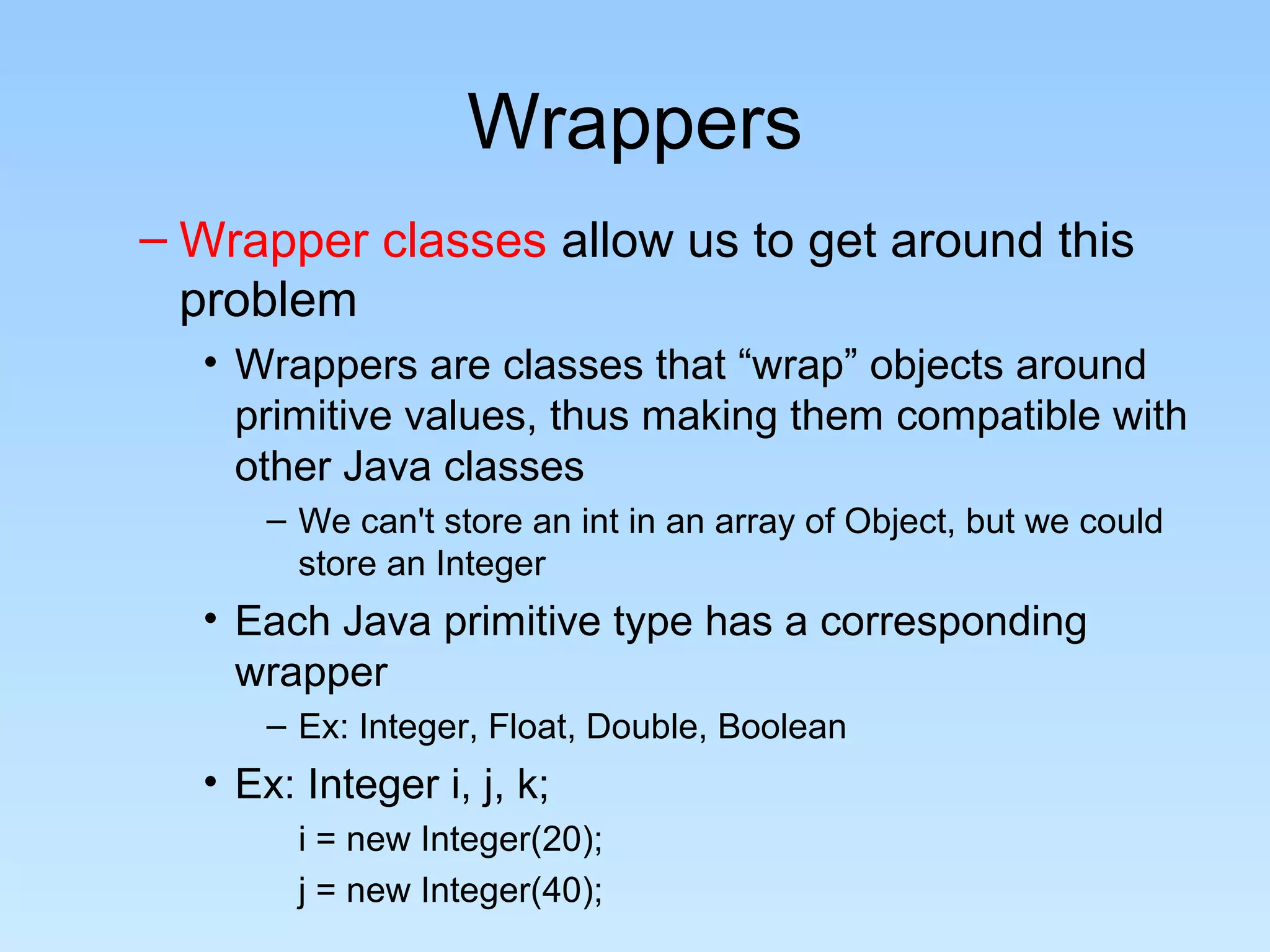

Wrappers
– Wrapper classes allow us to get around this
problem
• Wrappers are classes that “wrap” objects around
primitive values, thus making them compatible with
other Java classes
– We can't store an int in an array of Object, but we could
store an Integer
• Each Java primitive type has a corresponding
wrapper
– Ex: Integer, Float, Double, Boolean
• Ex: Integer i, j, k;
i = new Integer(20);
j = new Integer(40);

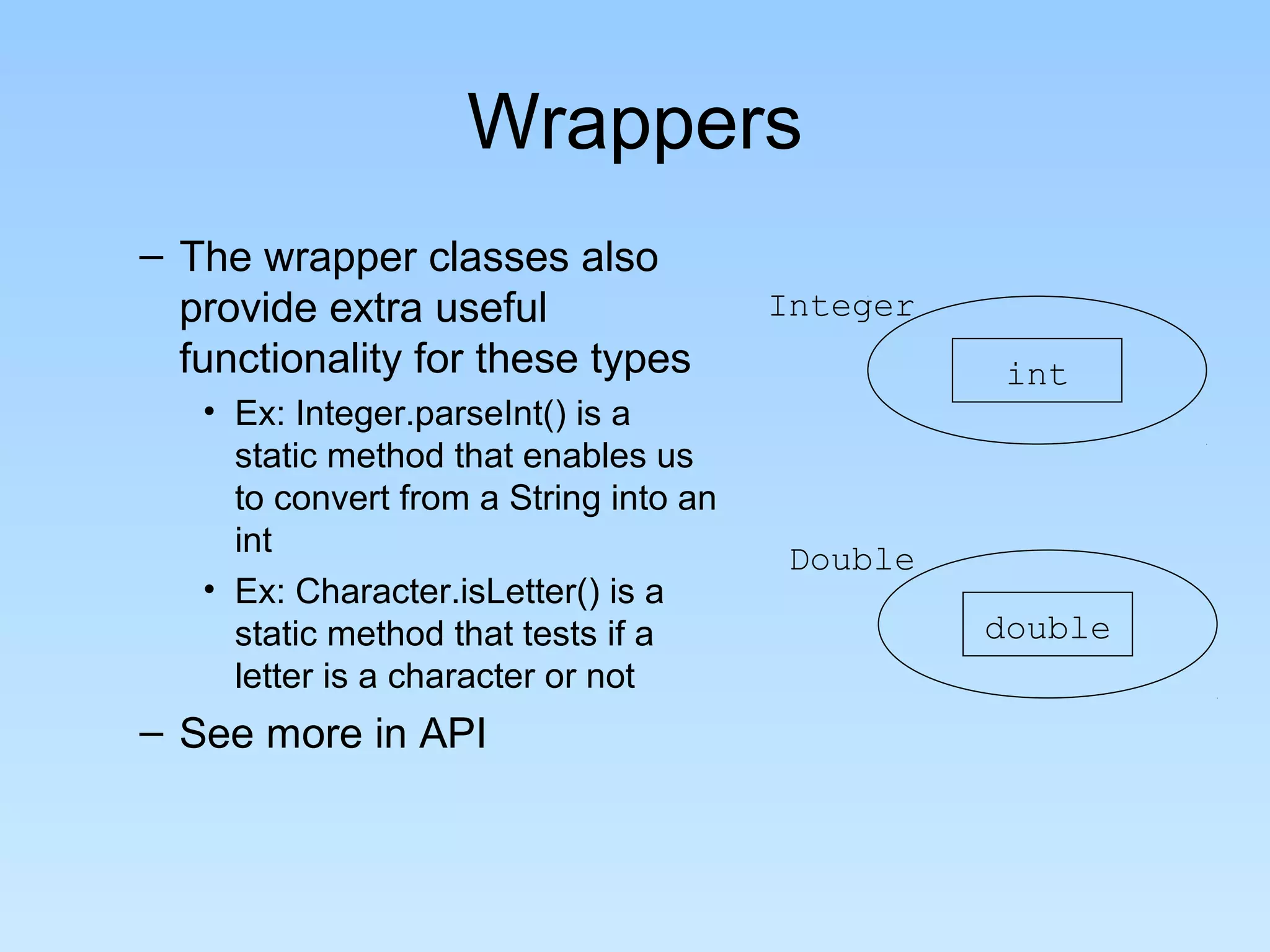

Wrappers
– The wrapper classes also
provide extra useful Integer
functionality for these types int
• Ex: Integer.parseInt() is a
static method that enables us
to convert from a String into an
int Double
• Ex: Character.isLetter() is a
static method that tests if a double
letter is a character or not
– See more in API

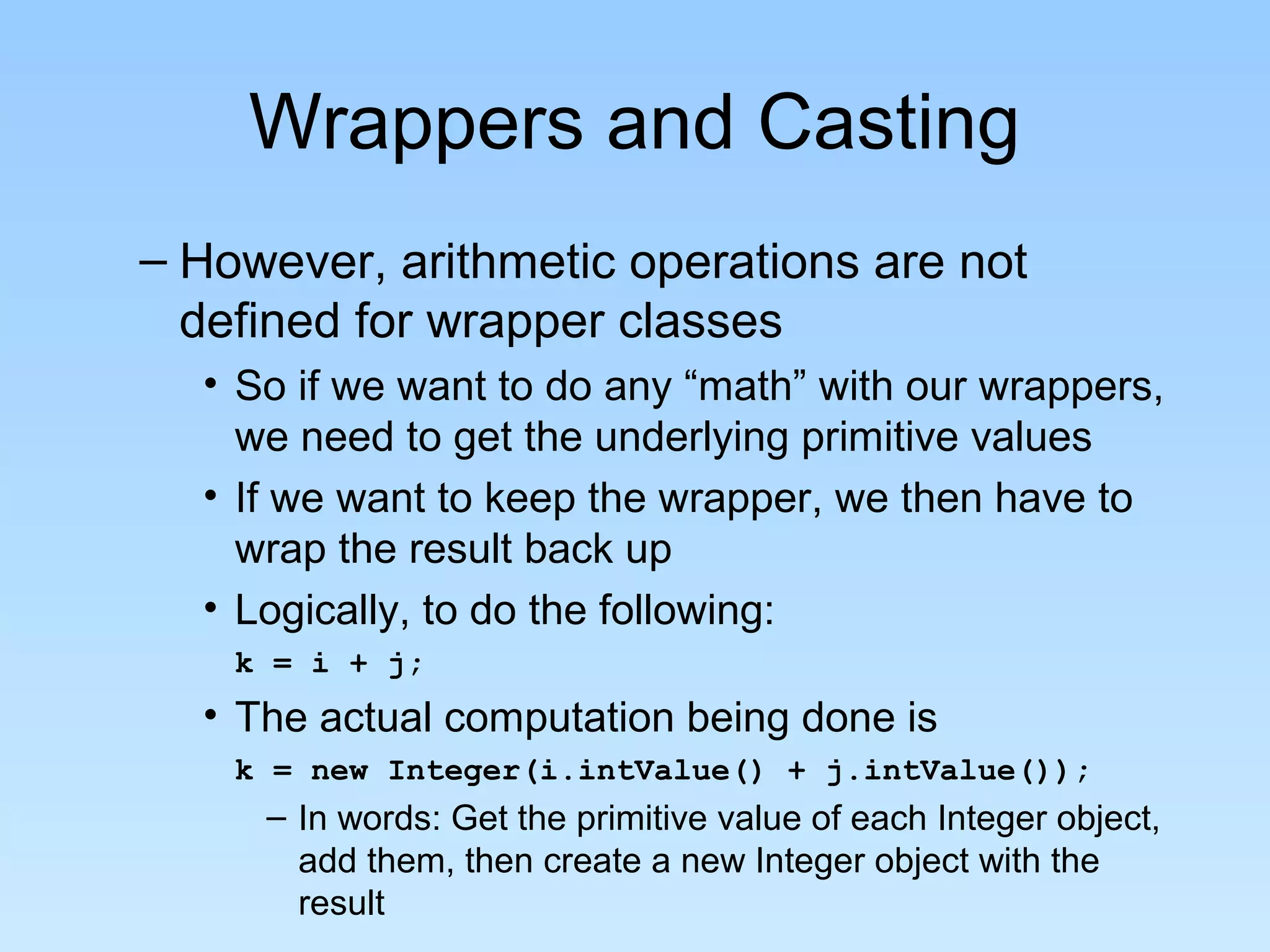

Wrappers and Casting
– However, arithmetic operations are not
defined for wrapper classes
• So if we want to do any “math” with our wrappers,
we need to get the underlying primitive values
• If we want to keep the wrapper, we then have to
wrap the result back up
• Logically, to do the following:
k = i + j;
• The actual computation being done is
k = new Integer(i.intValue() + j.intValue());
– In words: Get the primitive value of each Integer object,
add them, then create a new Integer object with the
result

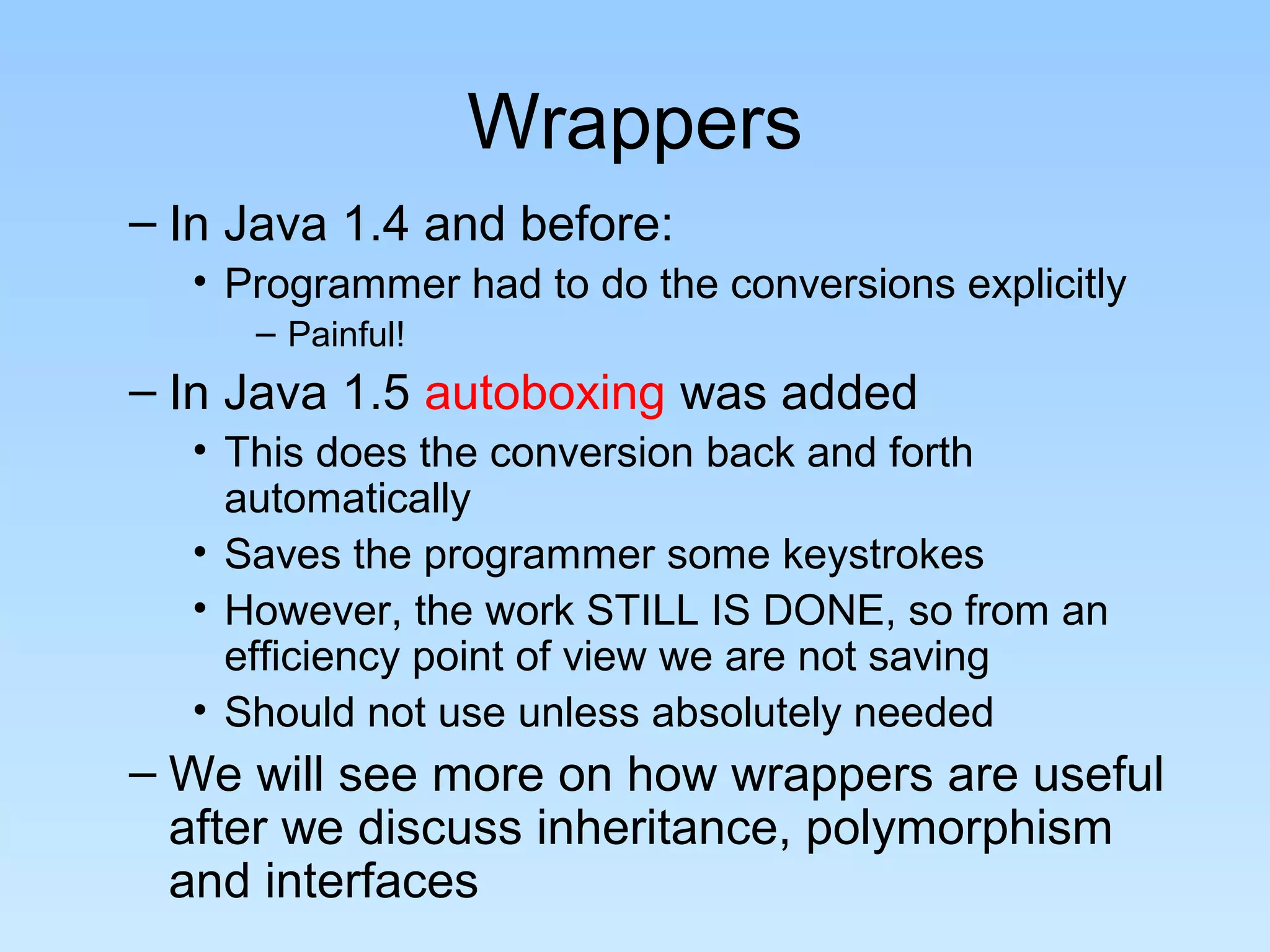

Wrappers
– In Java 1.4 and before:
• Programmer had to do the conversions explicitly
– Painful!
– In Java 1.5 autoboxing was added
• This does the conversion back and forth
automatically
• Saves the programmer some keystrokes
• However, the work STILL IS DONE, so from an
efficiency point of view we are not saving
• Should not use unless absolutely needed
– We will see more on how wrappers are useful
after we discuss inheritance, polymorphism
and interfaces

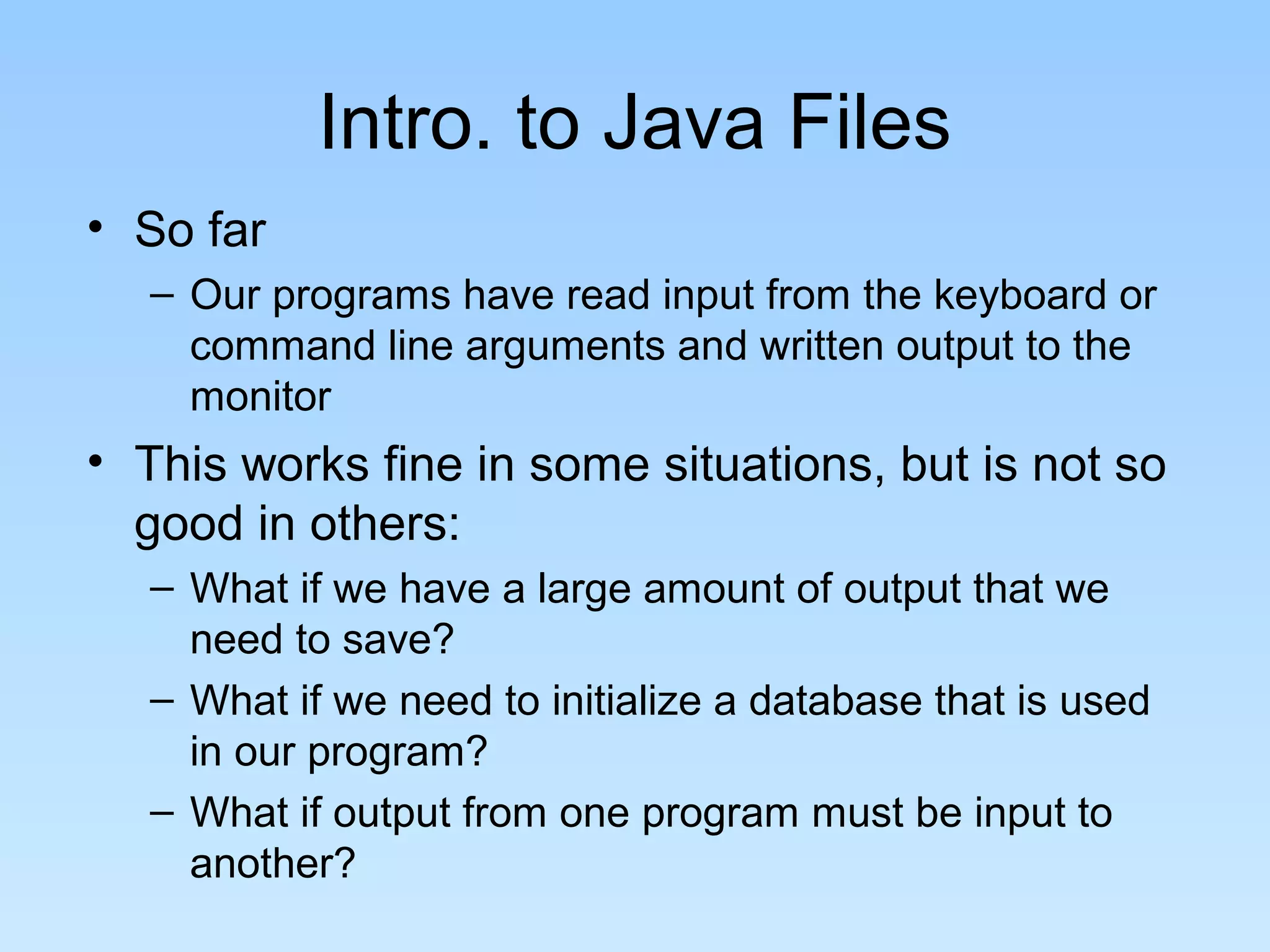

Intro. to Java Files
• So far
– Our programs have read input from the keyboard or
command line arguments and written output to the
monitor
• This works fine in some situations, but is not so
good in others:
– What if we have a large amount of output that we
need to save?
– What if we need to initialize a database that is used
in our program?
– What if output from one program must be input to
another?

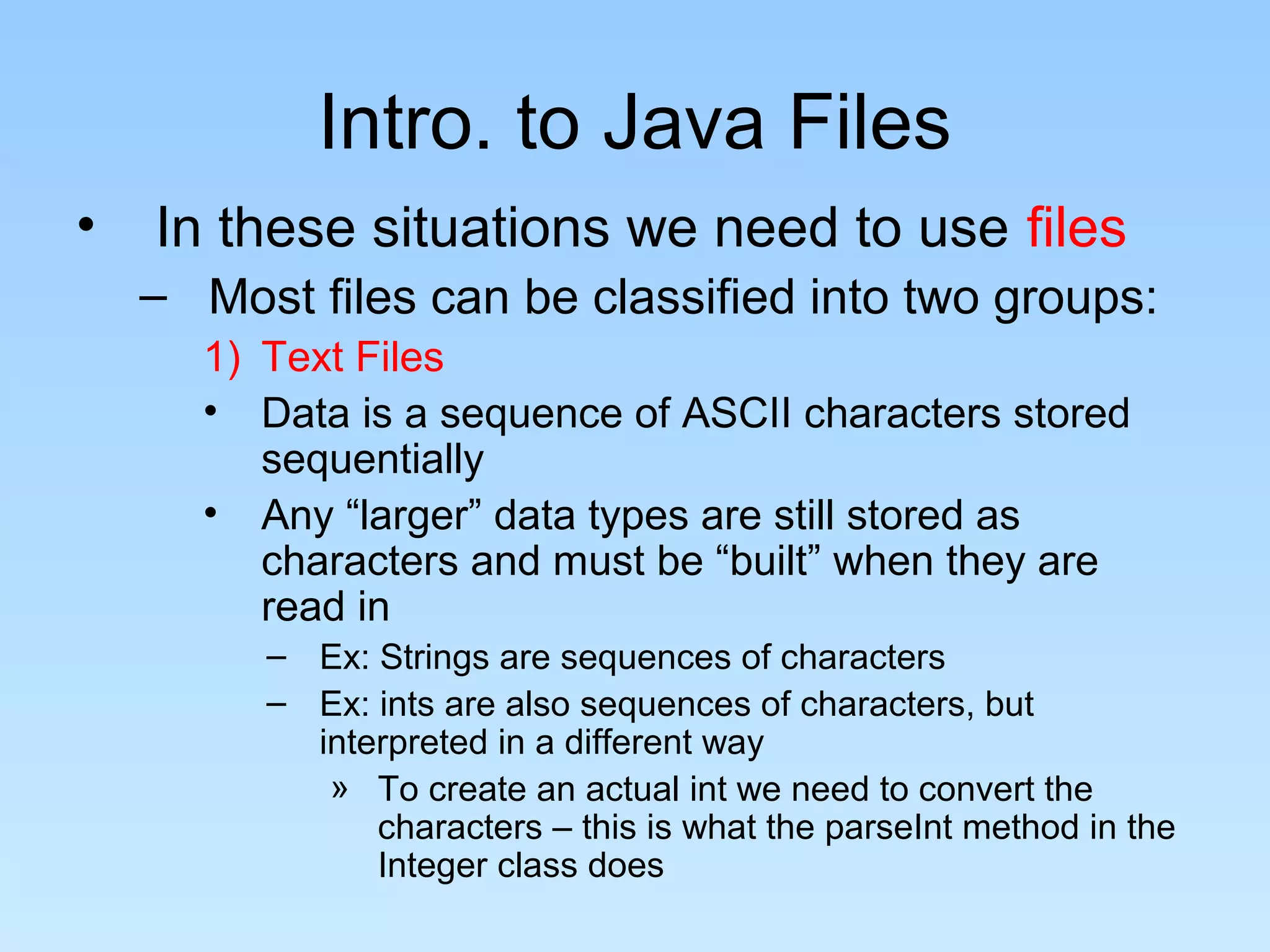

Intro. to Java Files
• In these situations we need to use files
– Most files can be classified into two groups:
1) Text Files
• Data is a sequence of ASCII characters stored
sequentially
• Any “larger” data types are still stored as
characters and must be “built” when they are
read in
– Ex: Strings are sequences of characters
– Ex: ints are also sequences of characters, but
interpreted in a different way
» To create an actual int we need to convert the
characters – this is what the parseInt method in the
Integer class does

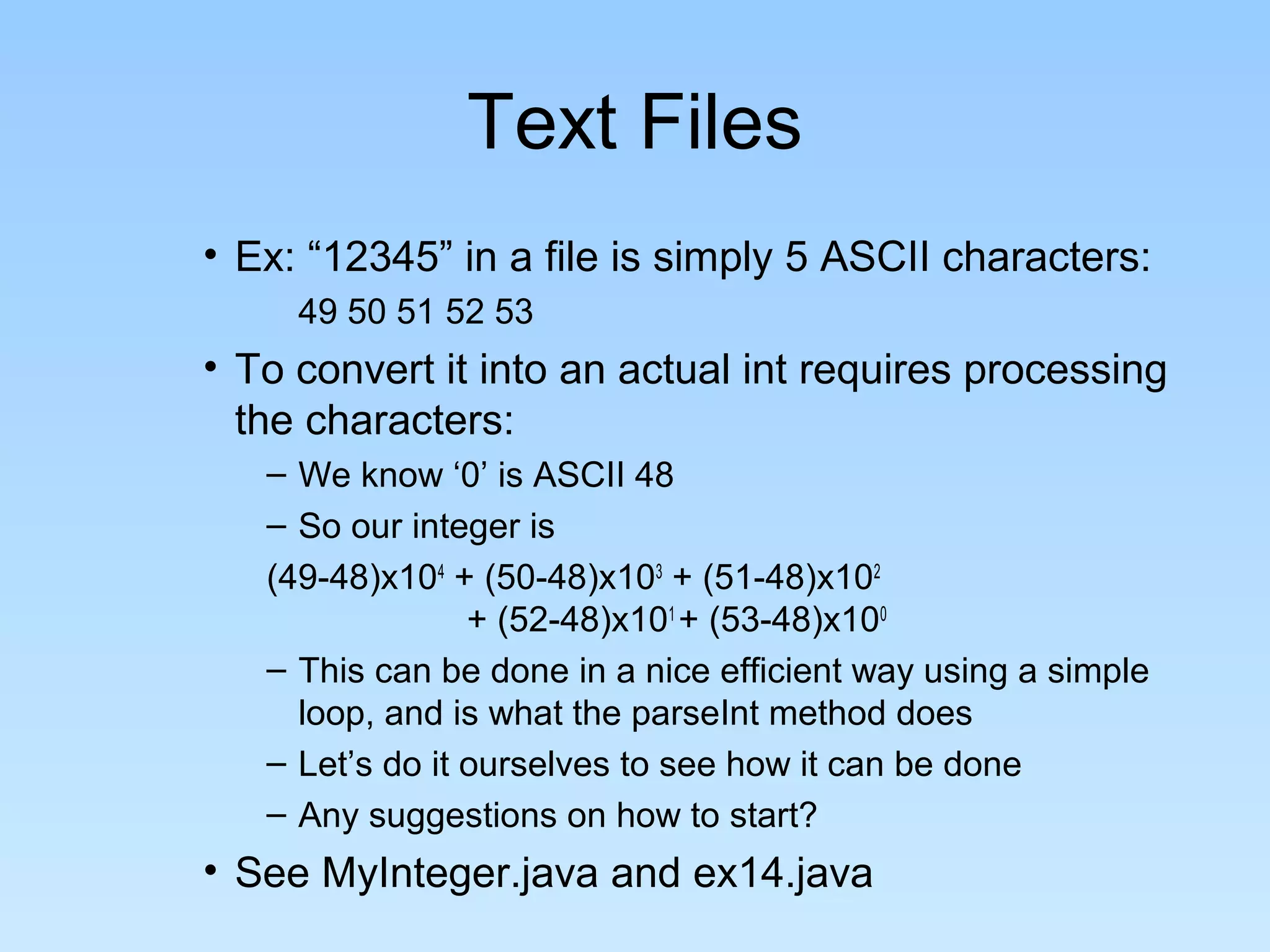

Text Files
• Ex: “12345” in a file is simply 5 ASCII characters:
49 50 51 52 53
• To convert it into an actual int requires processing
the characters:
– We know ‘0’ is ASCII 48
– So our integer is
(49-48)x104 + (50-48)x103 + (51-48)x102
+ (52-48)x101 + (53-48)x100
– This can be done in a nice efficient way using a simple
loop, and is what the parseInt method does
– Let’s do it ourselves to see how it can be done
– Any suggestions on how to start?
• See MyInteger.java and ex14.java

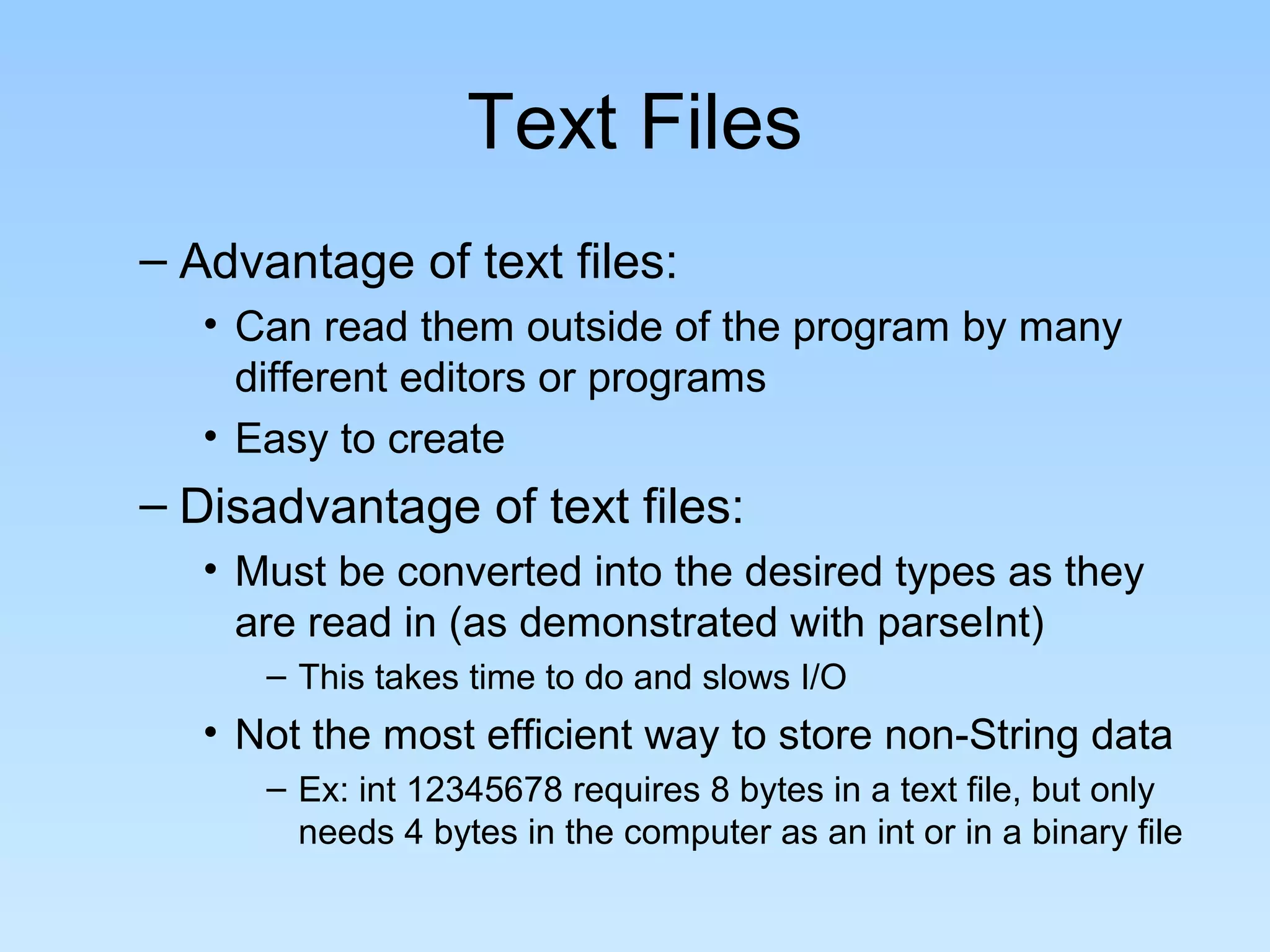

Text Files
– Advantage of text files:
• Can read them outside of the program by many
different editors or programs
• Easy to create
– Disadvantage of text files:
• Must be converted into the desired types as they
are read in (as demonstrated with parseInt)
– This takes time to do and slows I/O
• Not the most efficient way to store non-String data
– Ex: int 12345678 requires 8 bytes in a text file, but only
needs 4 bytes in the computer as an int or in a binary file

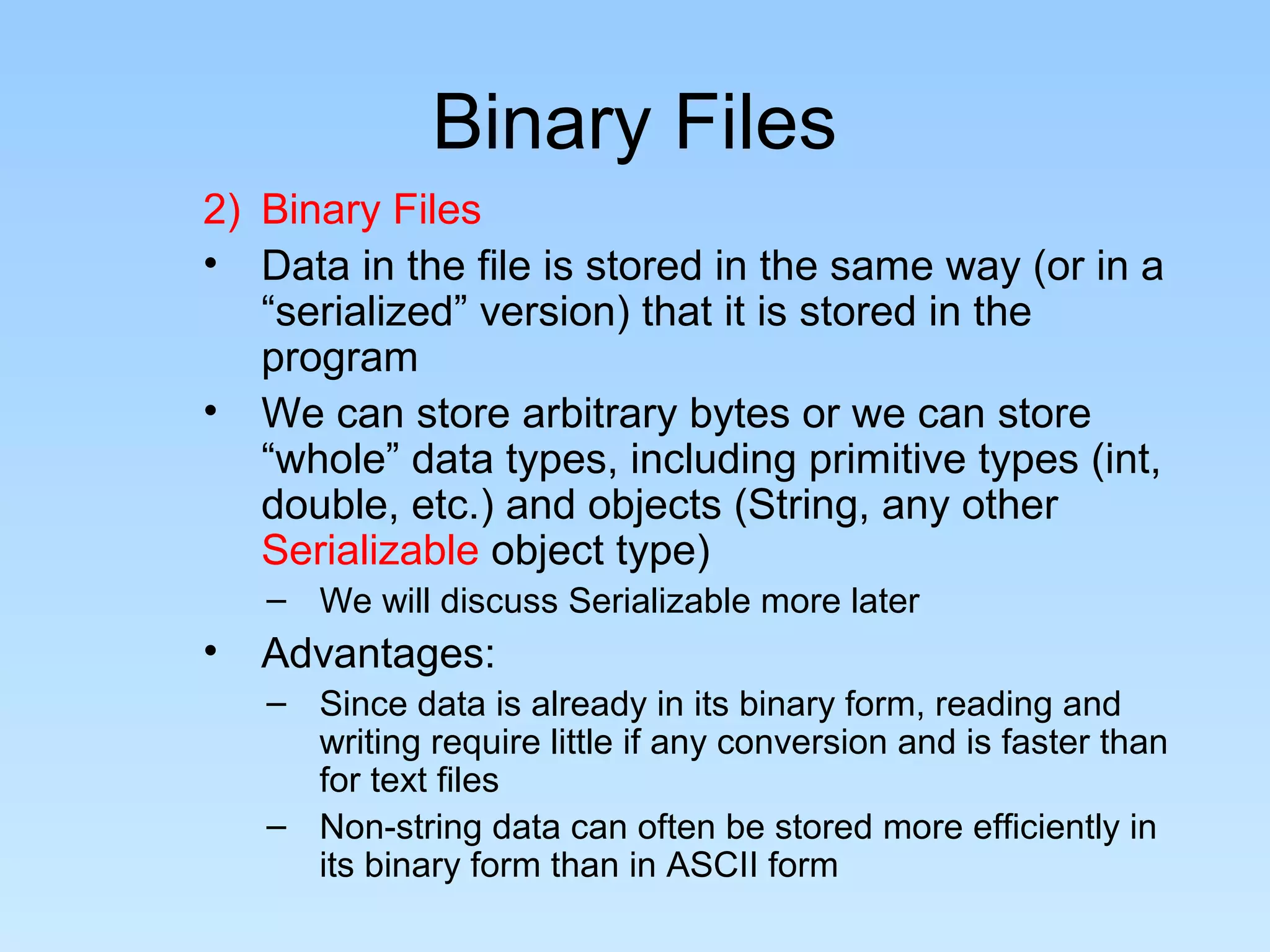

Binary Files
2) Binary Files
• Data in the file is stored in the same way (or in a
“serialized” version) that it is stored in the
program
• We can store arbitrary bytes or we can store
“whole” data types, including primitive types (int,
double, etc.) and objects (String, any other
Serializable object type)
– We will discuss Serializable more later
• Advantages:
– Since data is already in its binary form, reading and
writing require little if any conversion and is faster than
for text files
– Non-string data can often be stored more efficiently in
its binary form than in ASCII form

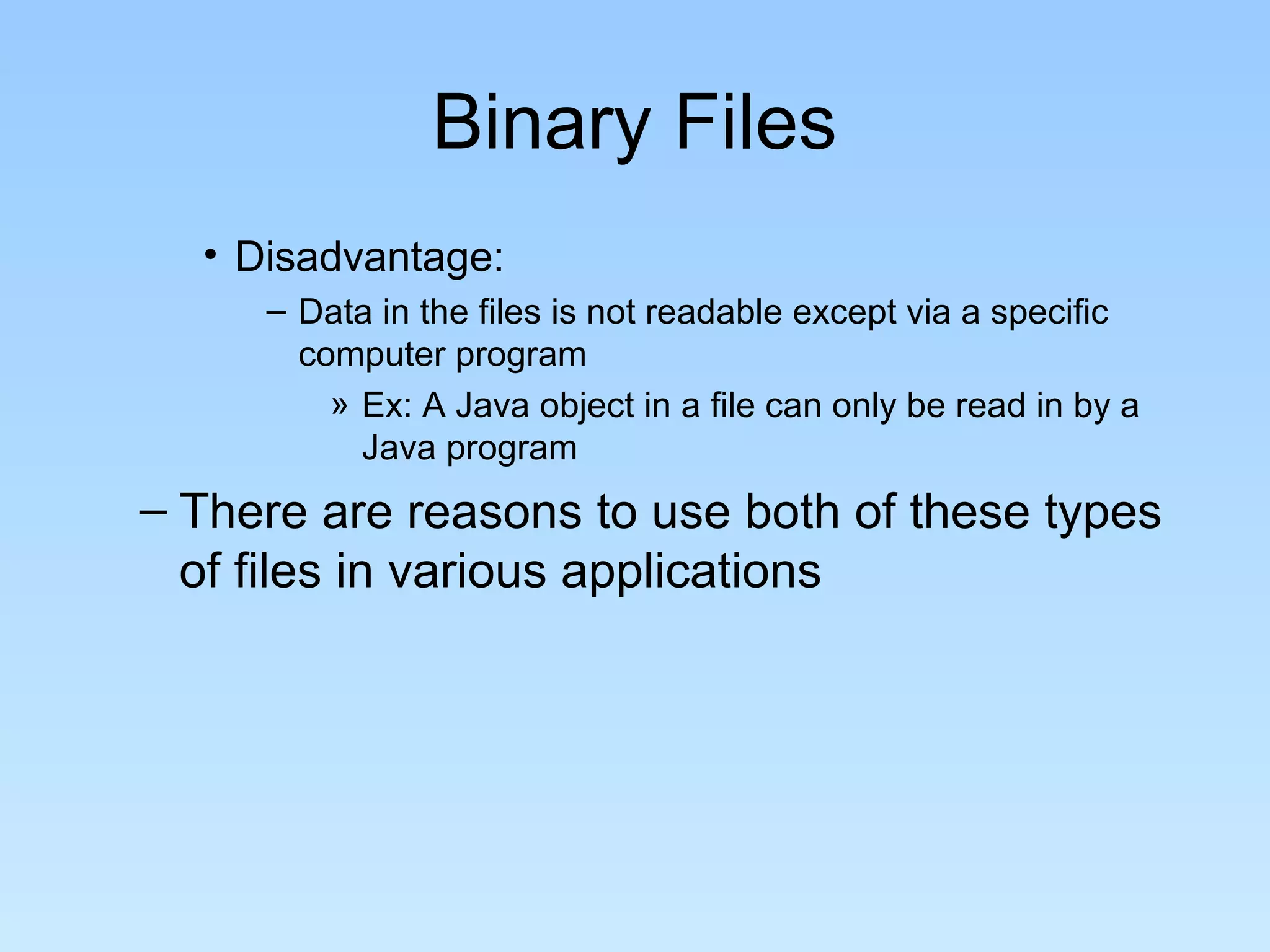

Binary Files
• Disadvantage:
– Data in the files is not readable except via a specific
computer program
» Ex: A Java object in a file can only be read in by a
Java program
– There are reasons to use both of these types
of files in various applications

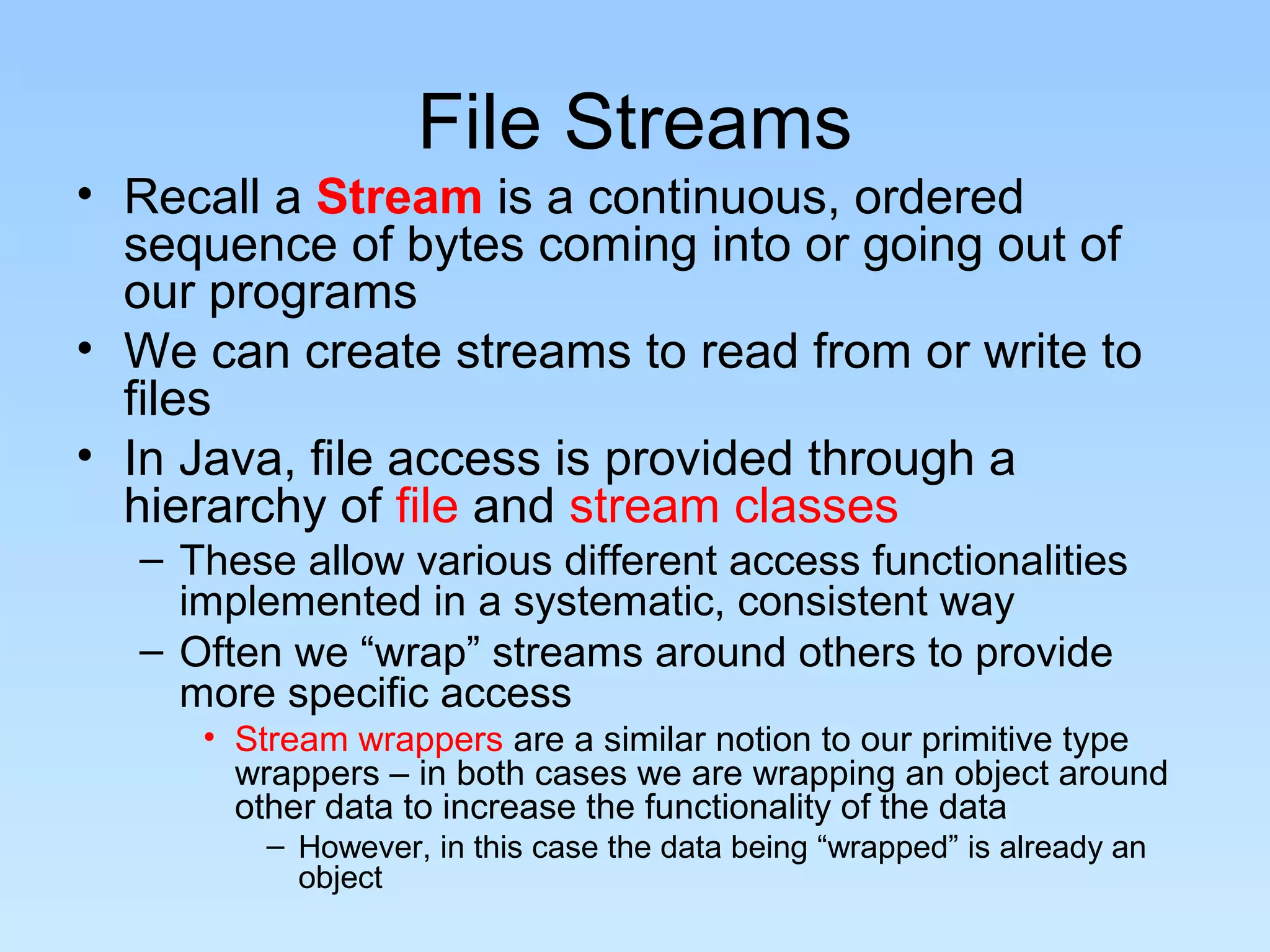

File Streams
• Recall a Stream is a continuous, ordered
sequence of bytes coming into or going out of
our programs
• We can create streams to read from or write to
files
• In Java, file access is provided through a
hierarchy of file and stream classes
– These allow various different access functionalities
implemented in a systematic, consistent way
– Often we “wrap” streams around others to provide
more specific access
• Stream wrappers are a similar notion to our primitive type
wrappers – in both cases we are wrapping an object around
other data to increase the functionality of the data
– However, in this case the data being “wrapped” is already an
object

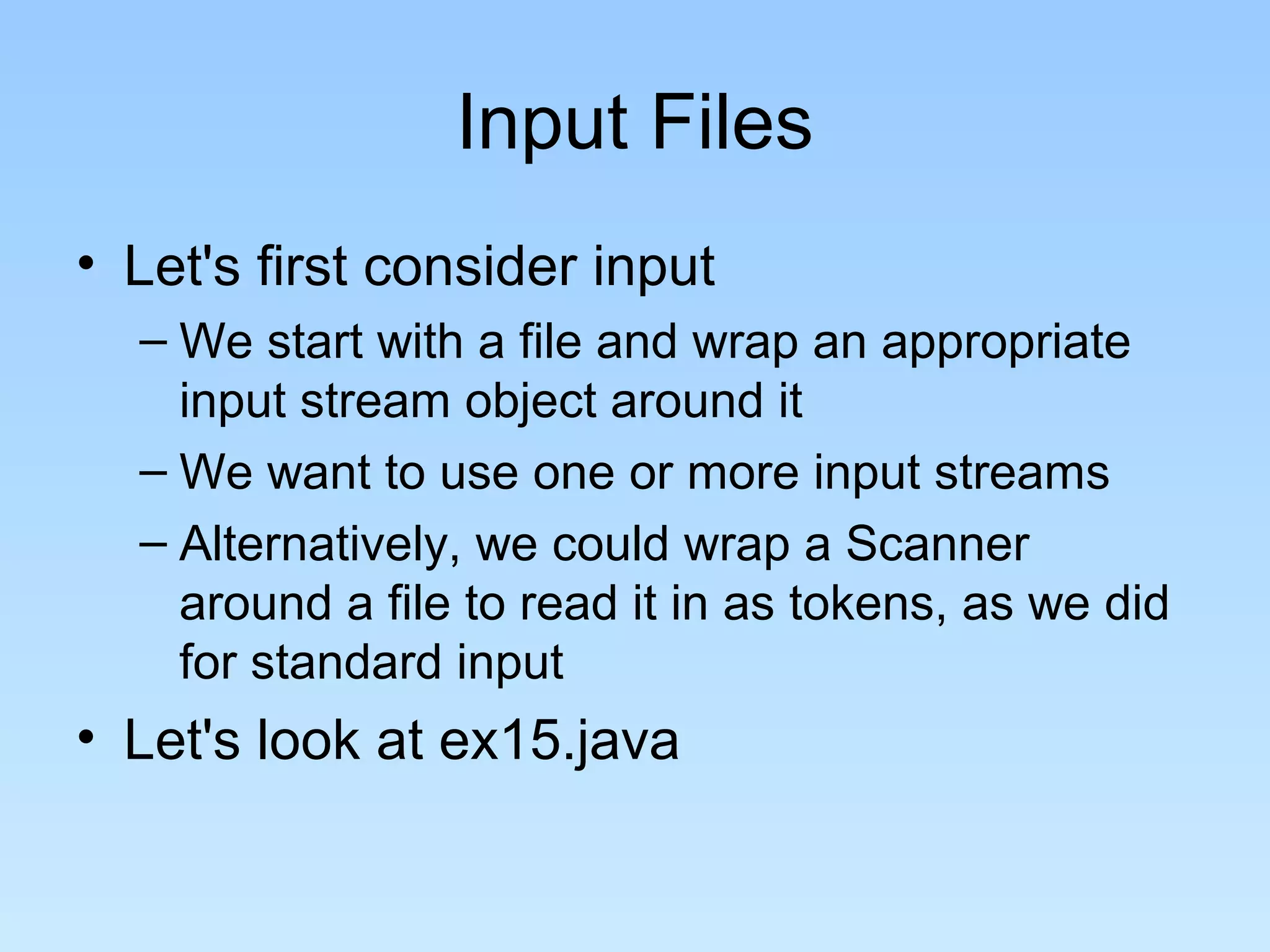

Input Files
• Let's first consider input
– We start with a file and wrap an appropriate
input stream object around it
– We want to use one or more input streams
– Alternatively, we could wrap a Scanner
around a file to read it in as tokens, as we did
for standard input
• Let's look at ex15.java

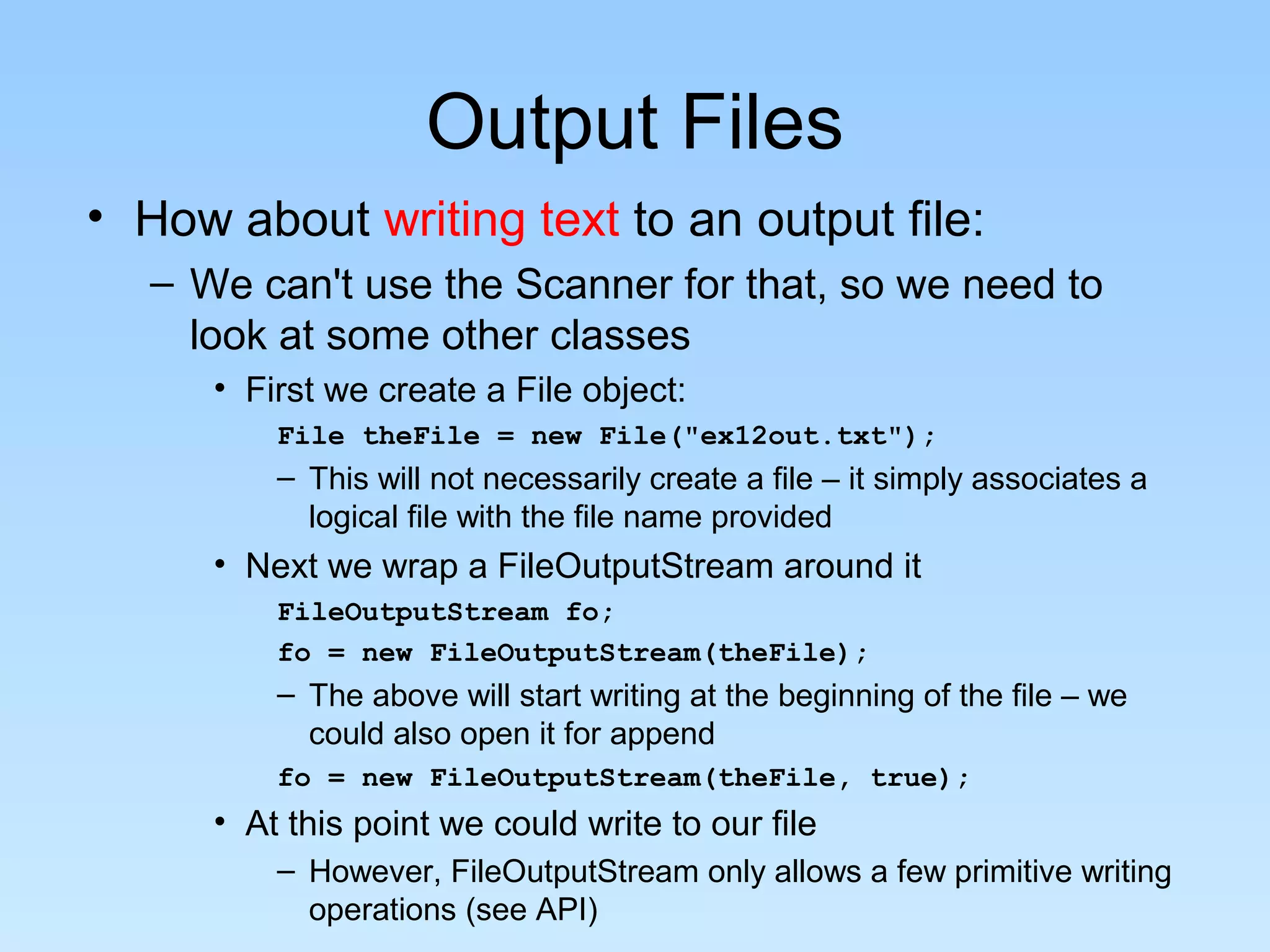

Output Files
• How about writing text to an output file:
– We can't use the Scanner for that, so we need to
look at some other classes
• First we create a File object:
File theFile = new File("ex12out.txt");
– This will not necessarily create a file – it simply associates a
logical file with the file name provided
• Next we wrap a FileOutputStream around it
FileOutputStream fo;
fo = new FileOutputStream(theFile);
– The above will start writing at the beginning of the file – we
could also open it for append
fo = new FileOutputStream(theFile, true);
• At this point we could write to our file
– However, FileOutputStream only allows a few primitive writing
operations (see API)

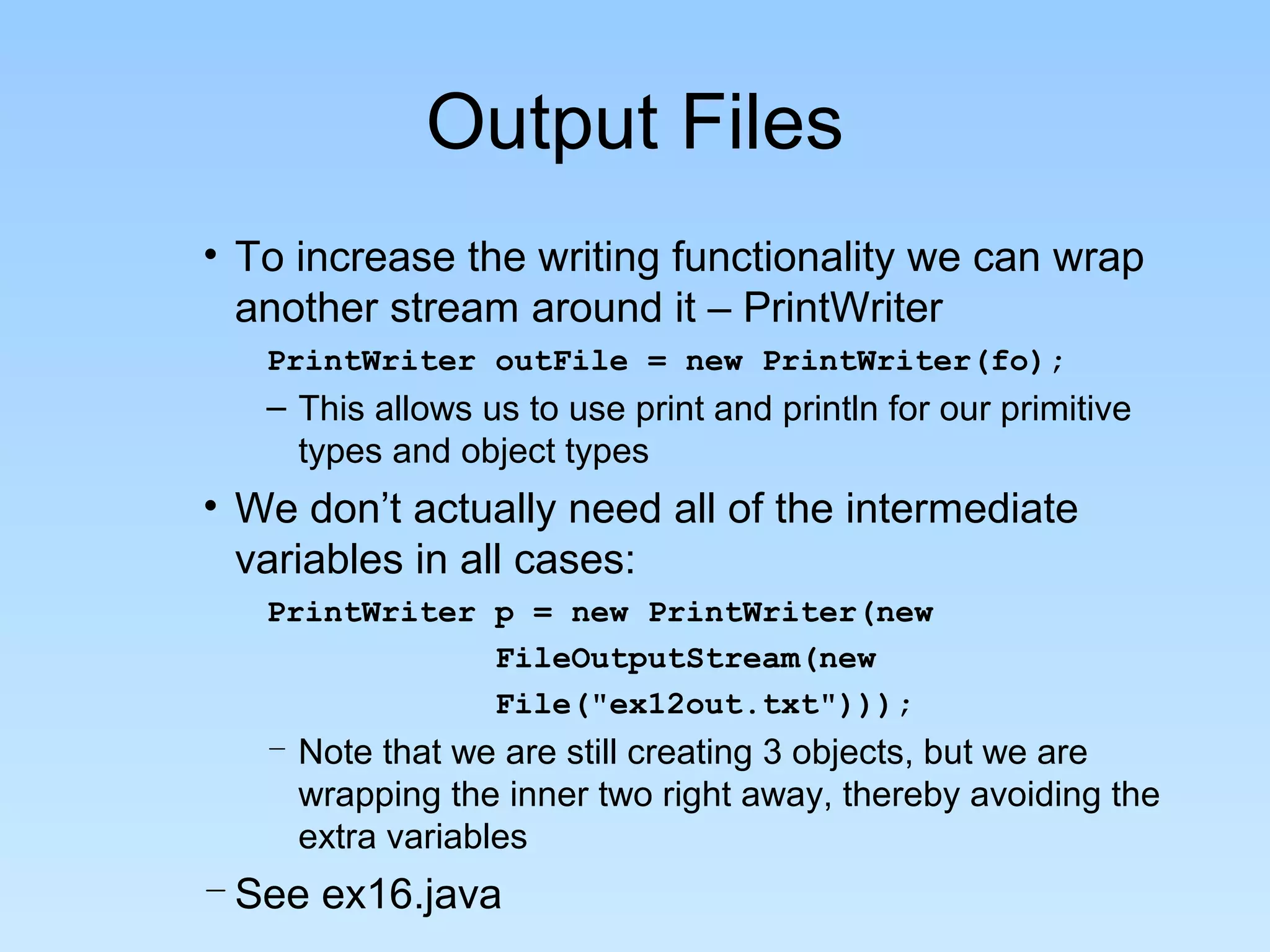

Output Files
• To increase the writing functionality we can wrap
another stream around it – PrintWriter
PrintWriter outFile = new PrintWriter(fo);
– This allows us to use print and println for our primitive
types and object types
• We don’t actually need all of the intermediate
variables in all cases:
PrintWriter p = new PrintWriter(new
FileOutputStream(new
File("ex12out.txt")));
– Note that we are still creating 3 objects, but we are
wrapping the inner two right away, thereby avoiding the
extra variables
– See ex16.java

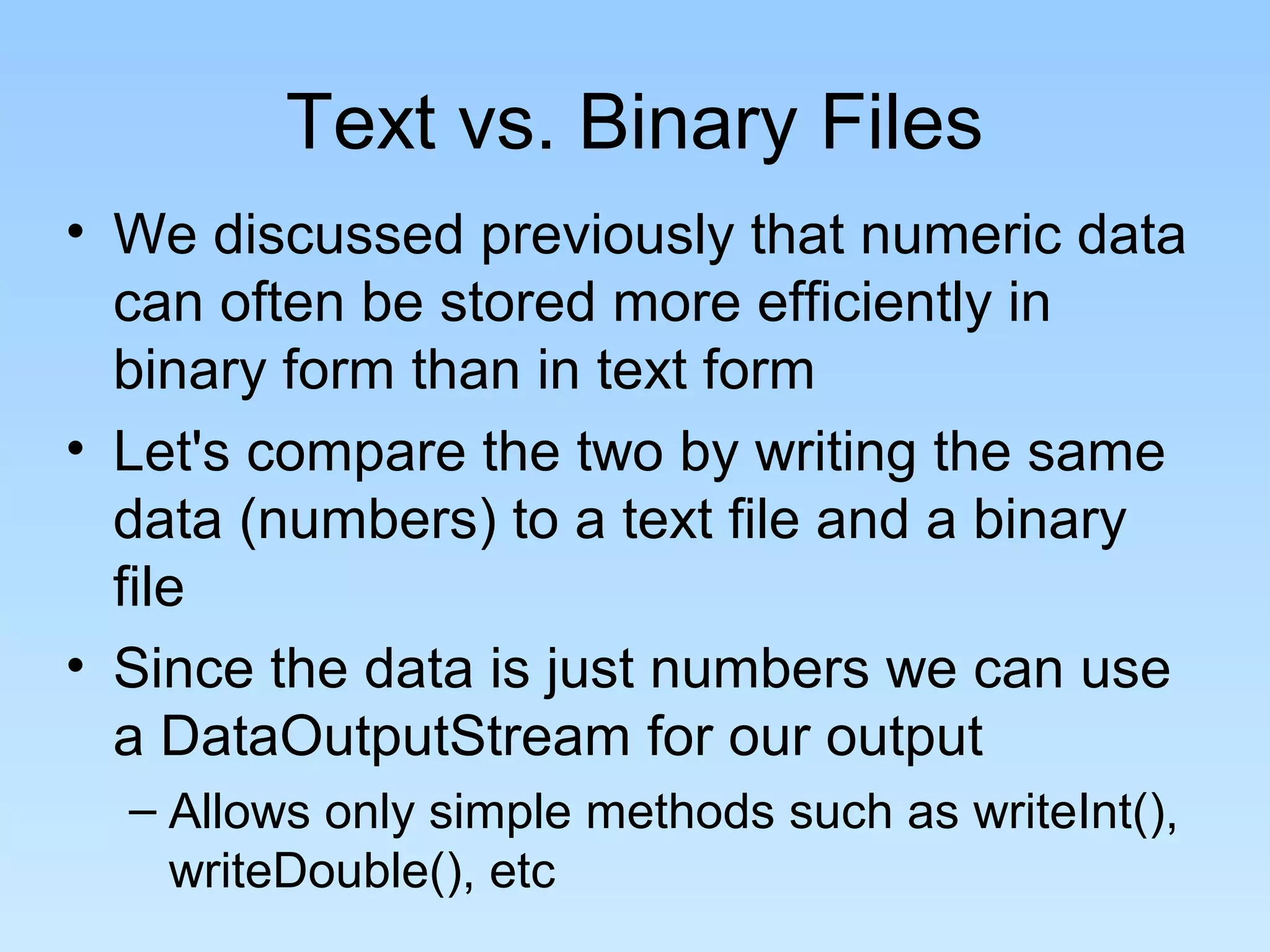

Text vs. Binary Files
• We discussed previously that numeric data
can often be stored more efficiently in
binary form than in text form
• Let's compare the two by writing the same
data (numbers) to a text file and a binary
file
• Since the data is just numbers we can use
a DataOutputStream for our output
– Allows only simple methods such as writeInt(),
writeDouble(), etc

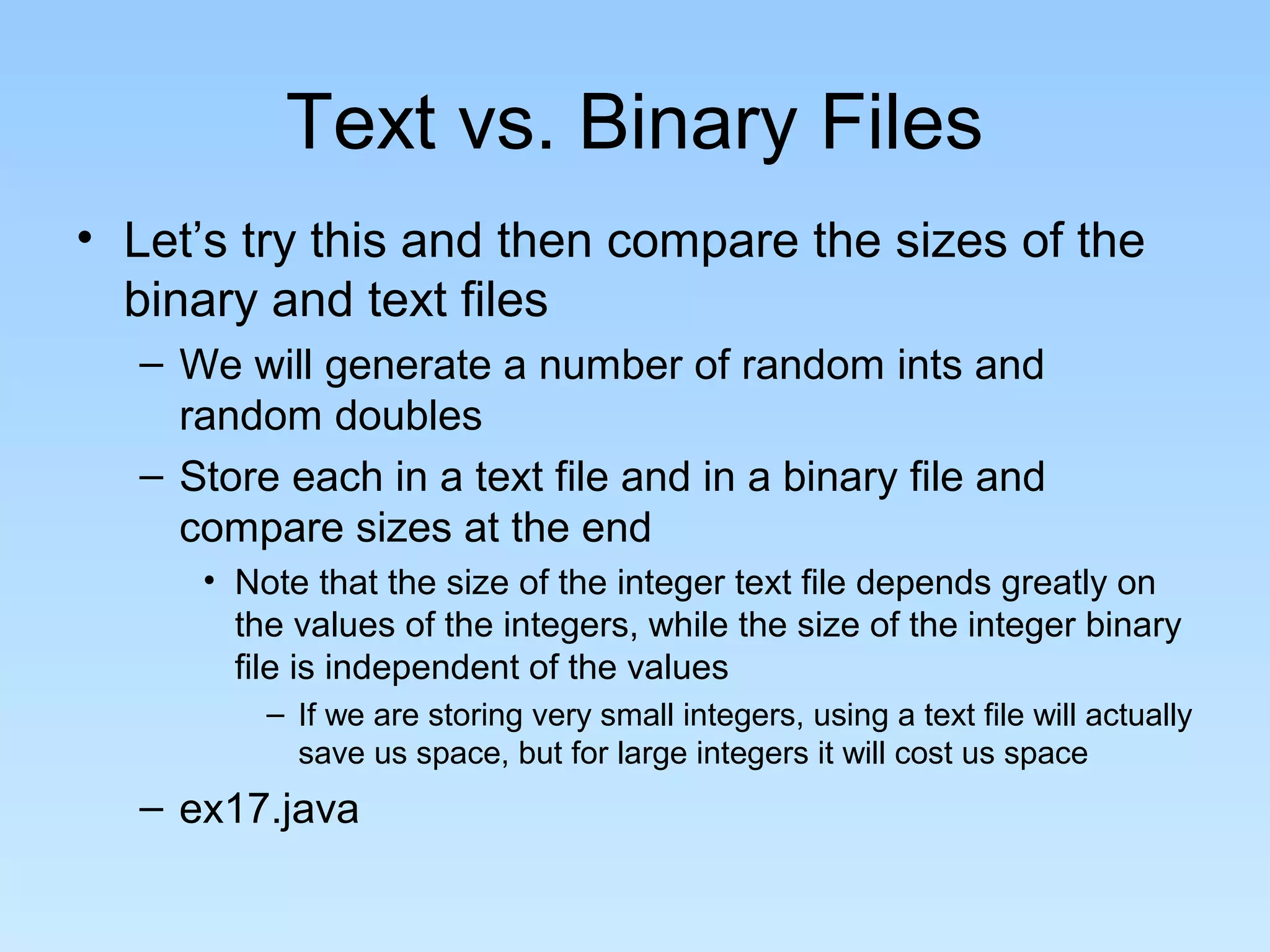

Text vs. Binary Files
• Let’s try this and then compare the sizes of the
binary and text files
– We will generate a number of random ints and
random doubles
– Store each in a text file and in a binary file and
compare sizes at the end
• Note that the size of the integer text file depends greatly on
the values of the integers, while the size of the integer binary
file is independent of the values
– If we are storing very small integers, using a text file will actually
save us space, but for large integers it will cost us space
– ex17.java

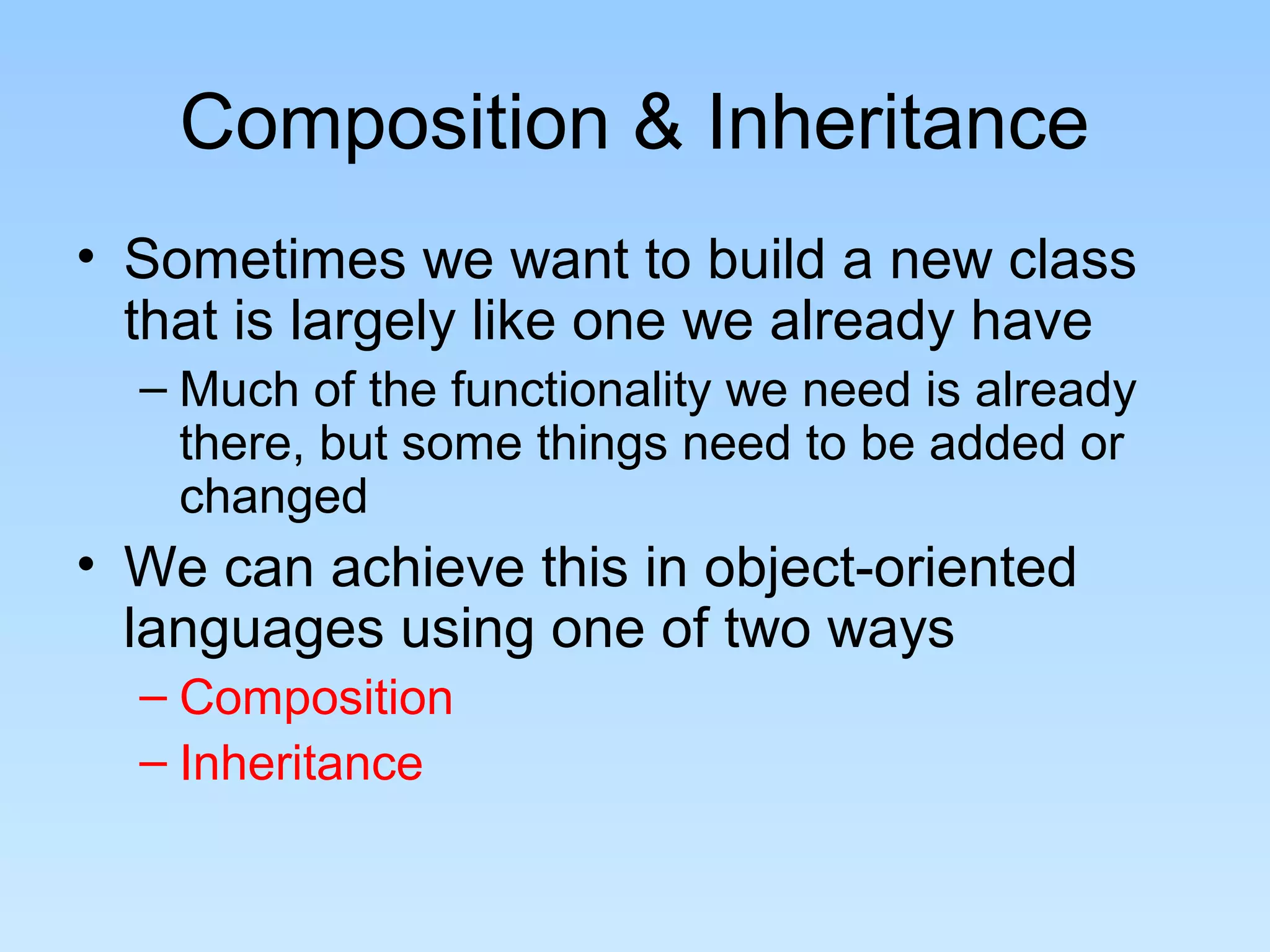

Composition & Inheritance
• Sometimes we want to build a new class
that is largely like one we already have
– Much of the functionality we need is already
there, but some things need to be added or
changed
• We can achieve this in object-oriented
languages using one of two ways
– Composition
– Inheritance

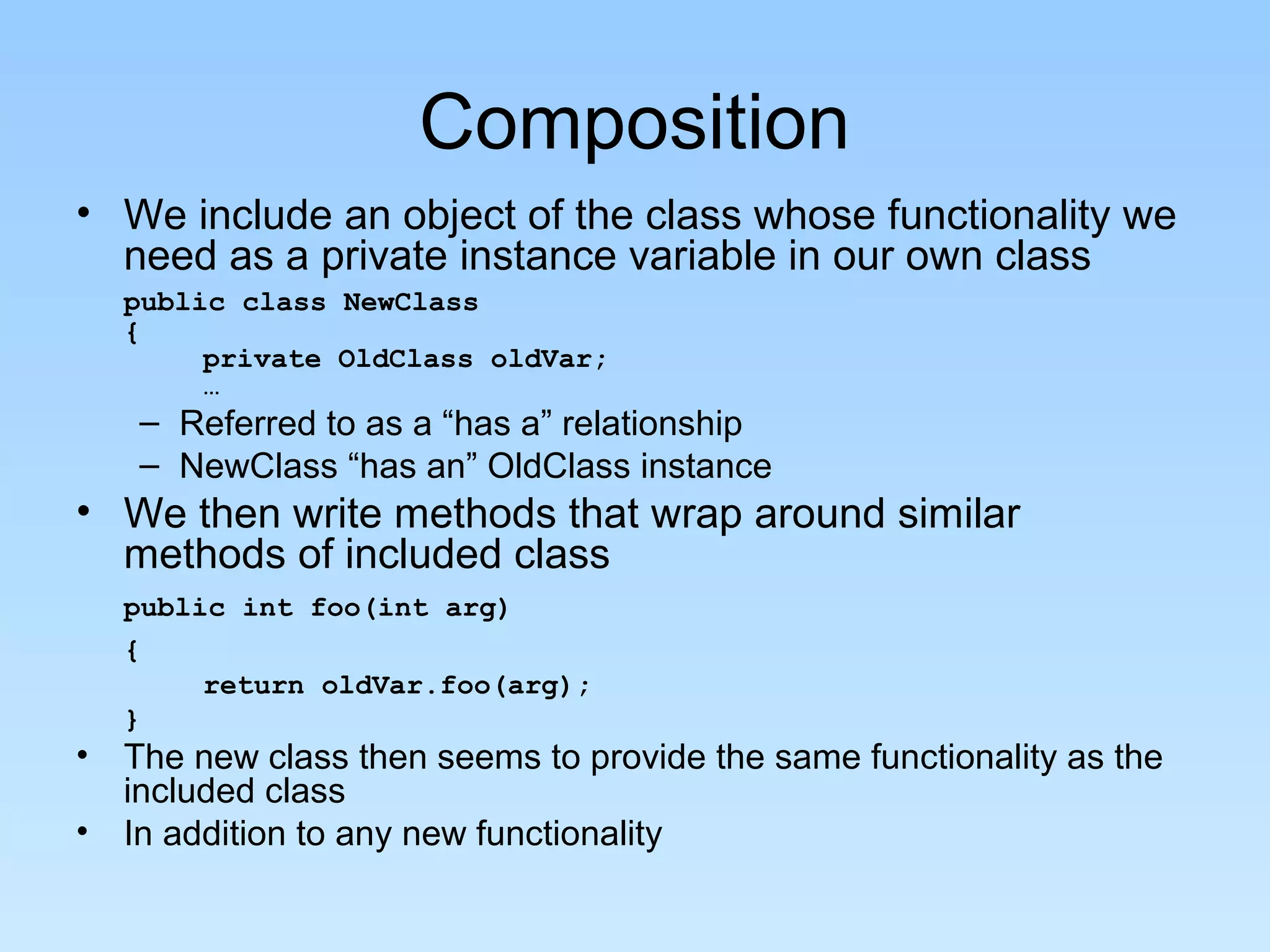

Composition
• We include an object of the class whose functionality we
need as a private instance variable in our own class
public class NewClass
{
private OldClass oldVar;
…
– Referred to as a “has a” relationship
– NewClass “has an” OldClass instance
• We then write methods that wrap around similar
methods of included class
public int foo(int arg)
{
return oldVar.foo(arg);
}
• The new class then seems to provide the same functionality as the
included class
• In addition to any new functionality

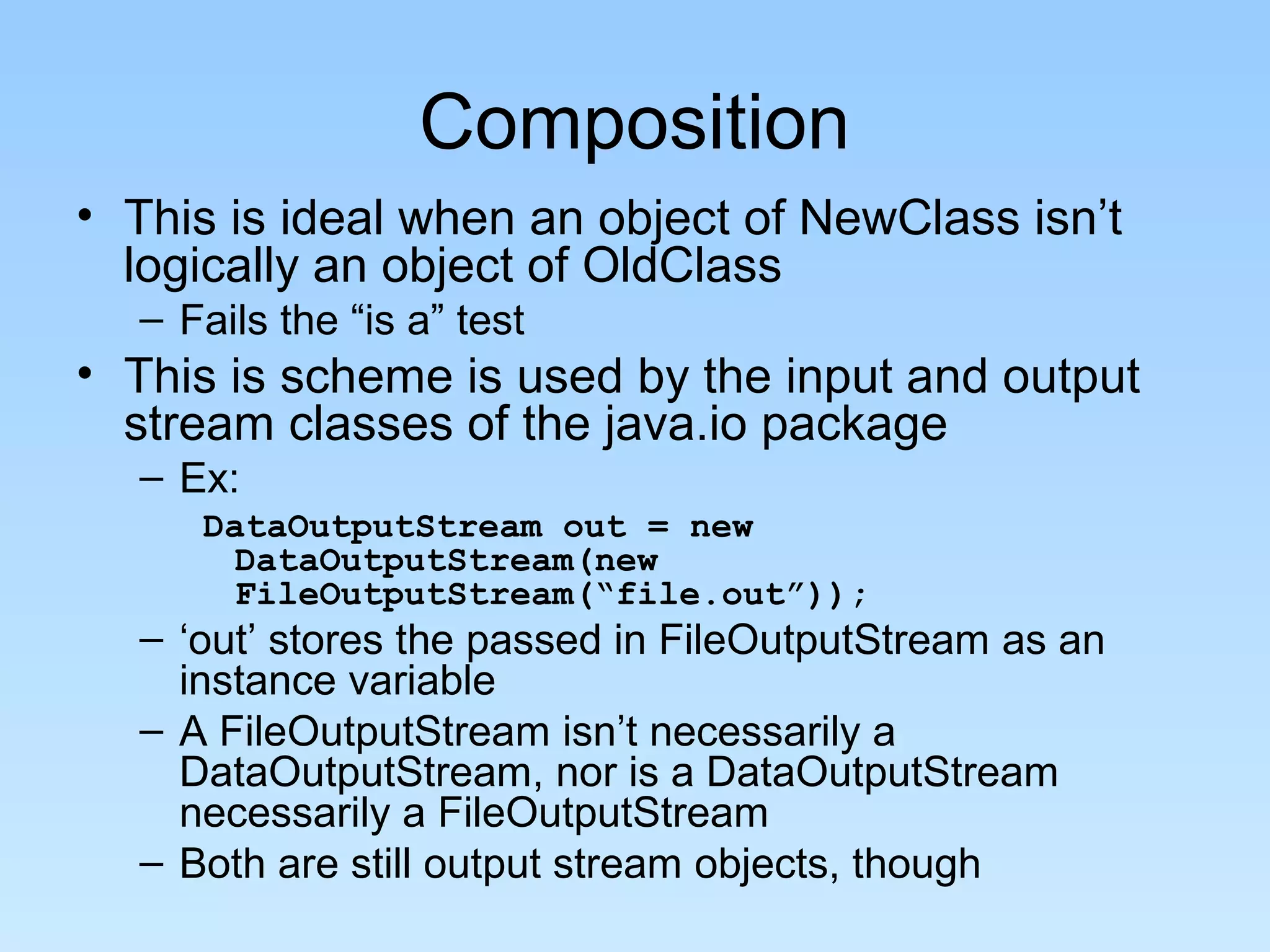

Composition
• This is ideal when an object of NewClass isn’t
logically an object of OldClass
– Fails the “is a” test
• This is scheme is used by the input and output
stream classes of the java.io package
– Ex:
DataOutputStream out = new
DataOutputStream(new
FileOutputStream(“file.out”));
– ‘out’ stores the passed in FileOutputStream as an
instance variable
– A FileOutputStream isn’t necessarily a
DataOutputStream, nor is a DataOutputStream
necessarily a FileOutputStream
– Both are still output stream objects, though

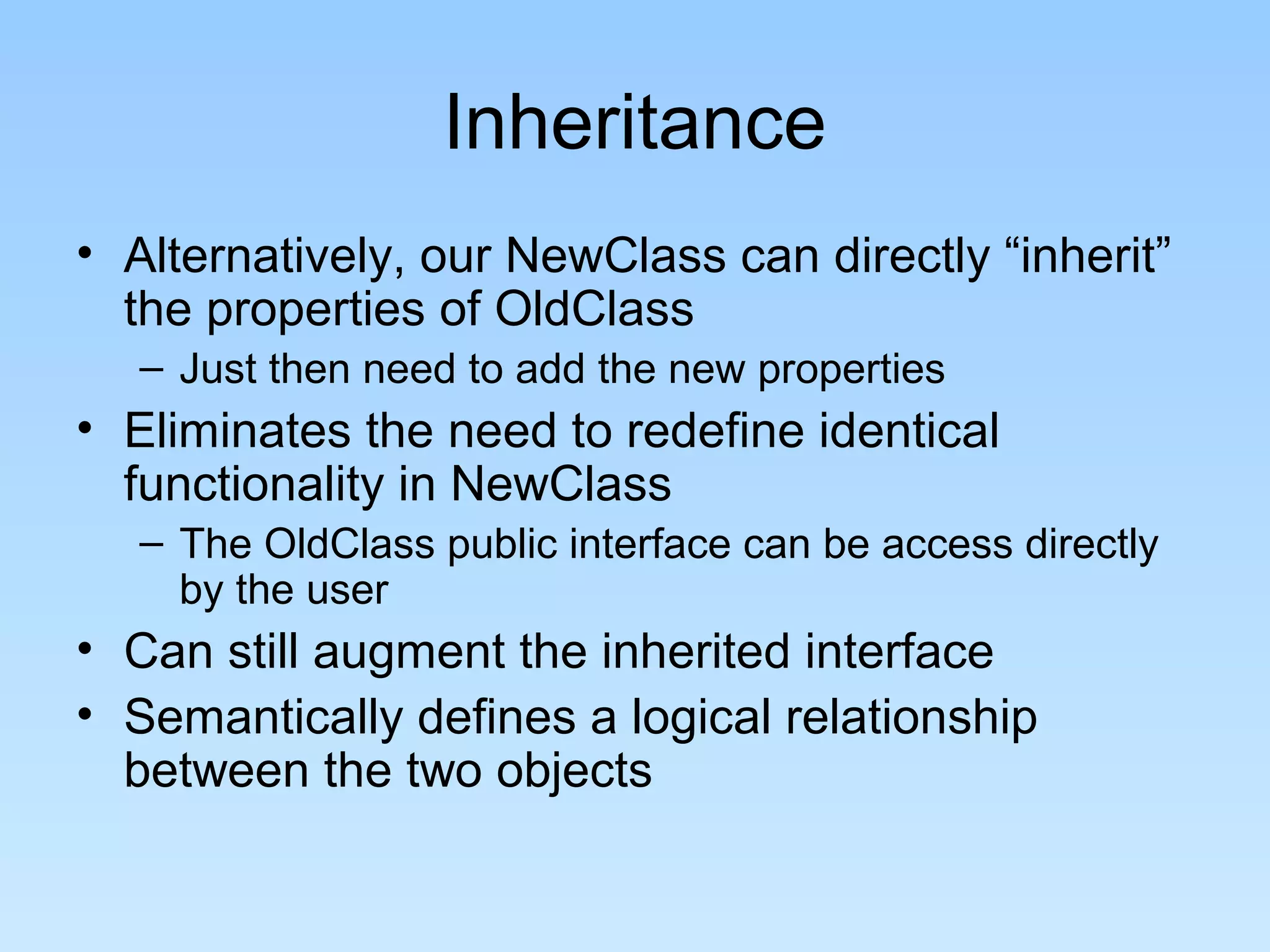

Inheritance
• Alternatively, our NewClass can directly “inherit”
the properties of OldClass
– Just then need to add the new properties
• Eliminates the need to redefine identical
functionality in NewClass
– The OldClass public interface can be access directly
by the user
• Can still augment the inherited interface
• Semantically defines a logical relationship
between the two objects

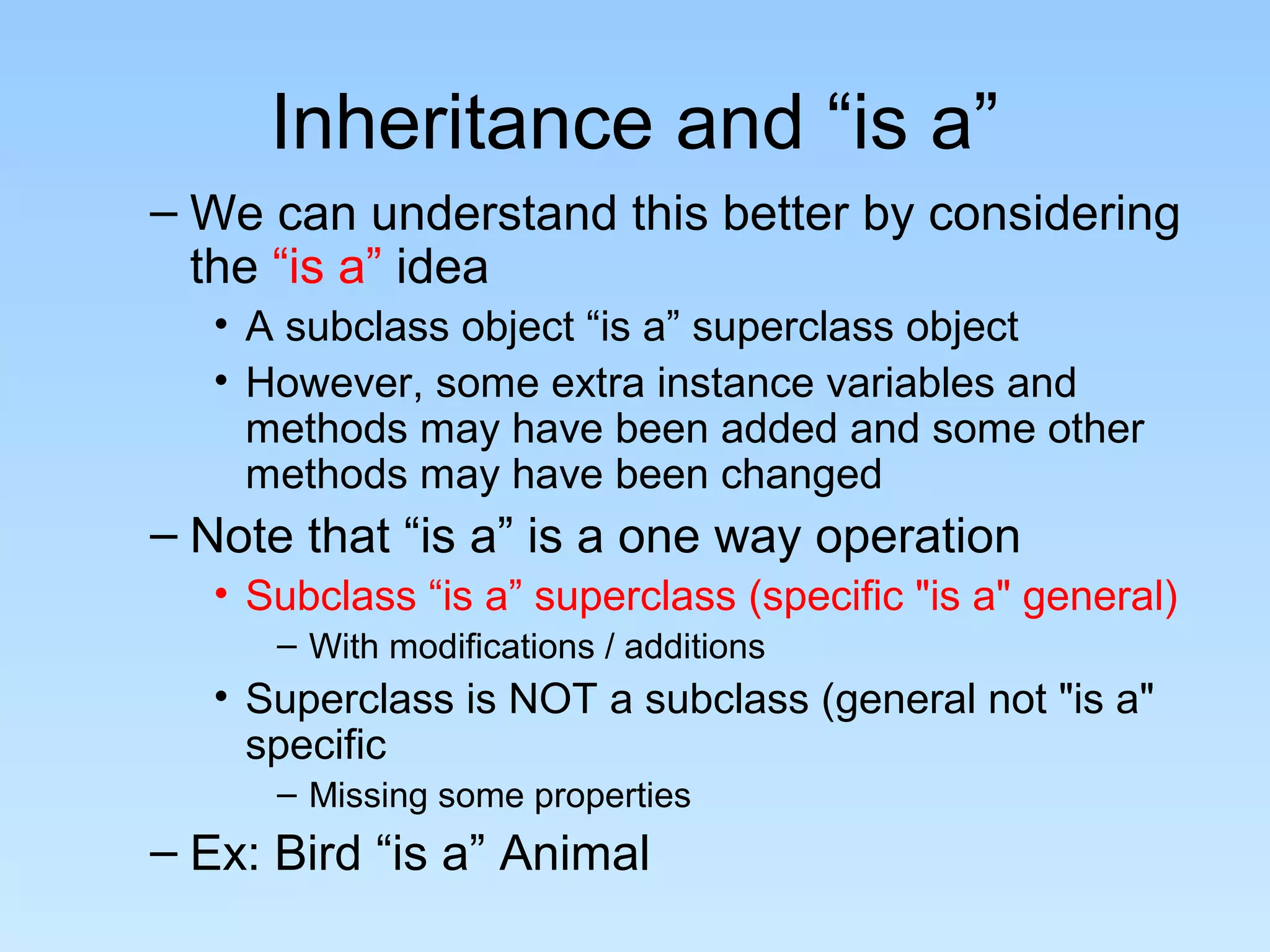

Inheritance and “is a”
– We can understand this better by considering
the “is a” idea
• A subclass object “is a” superclass object
• However, some extra instance variables and
methods may have been added and some other
methods may have been changed
– Note that “is a” is a one way operation
• Subclass “is a” superclass (specific "is a" general)
– With modifications / additions
• Superclass is NOT a subclass (general not "is a"
specific
– Missing some properties
– Ex: Bird “is a” Animal

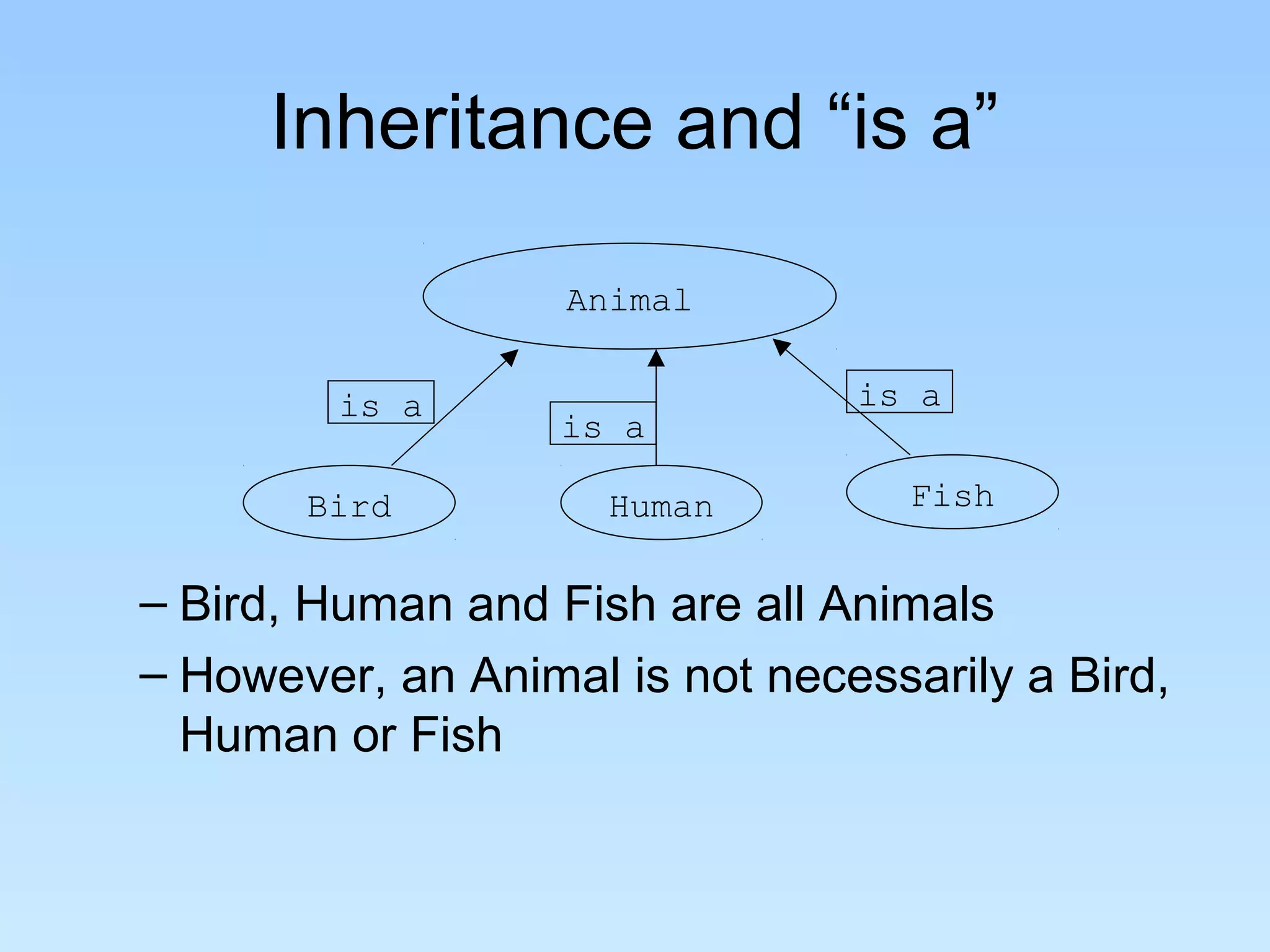

Inheritance and “is a”

Animal

is a is a
is a

Bird Human Fish

– Bird, Human and Fish are all Animals
– However, an Animal is not necessarily a Bird,
Human or Fish

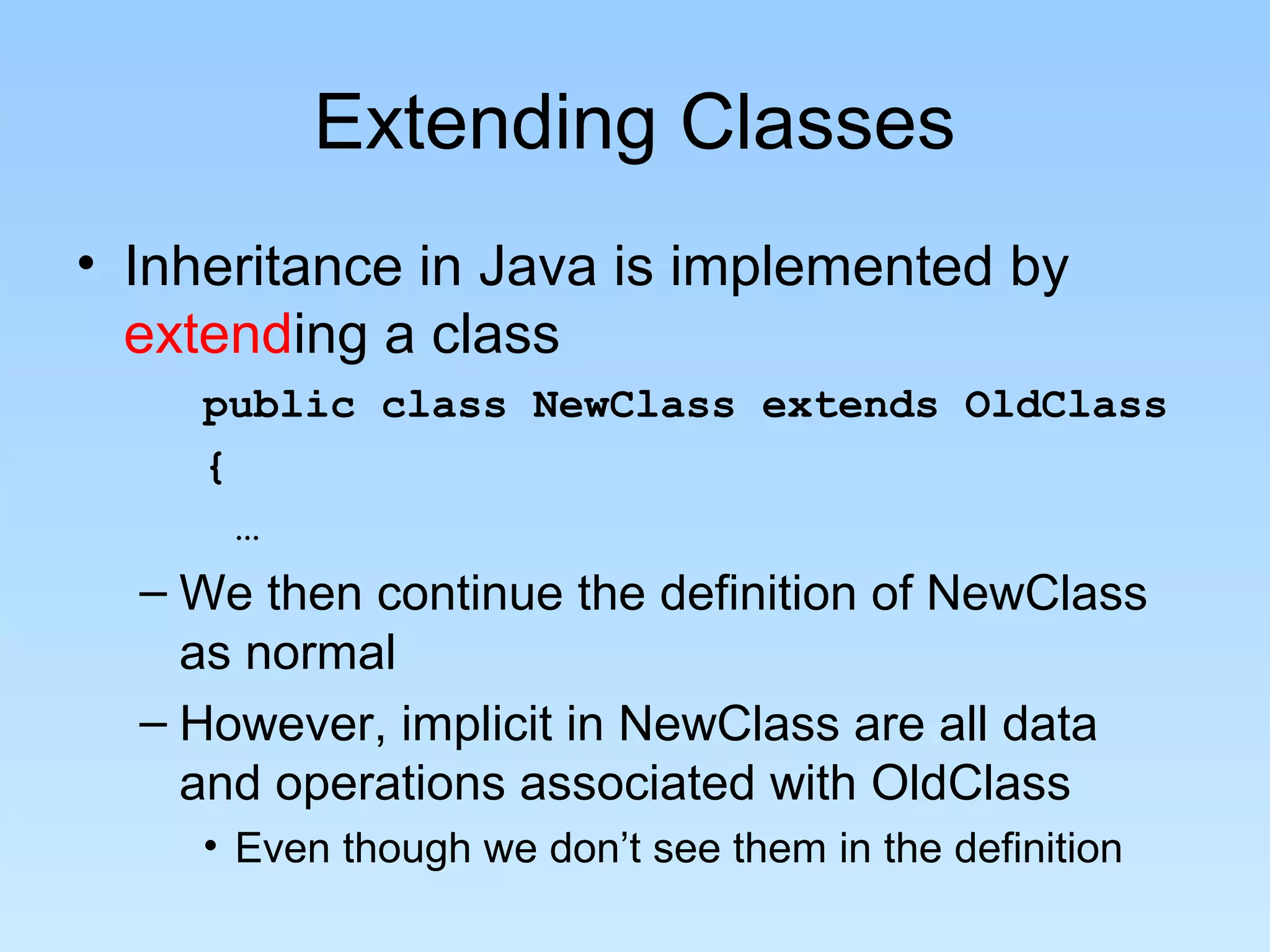

Extending Classes
• Inheritance in Java is implemented by
extending a class
public class NewClass extends OldClass
{
…
– We then continue the definition of NewClass
as normal
– However, implicit in NewClass are all data
and operations associated with OldClass
• Even though we don’t see them in the definition

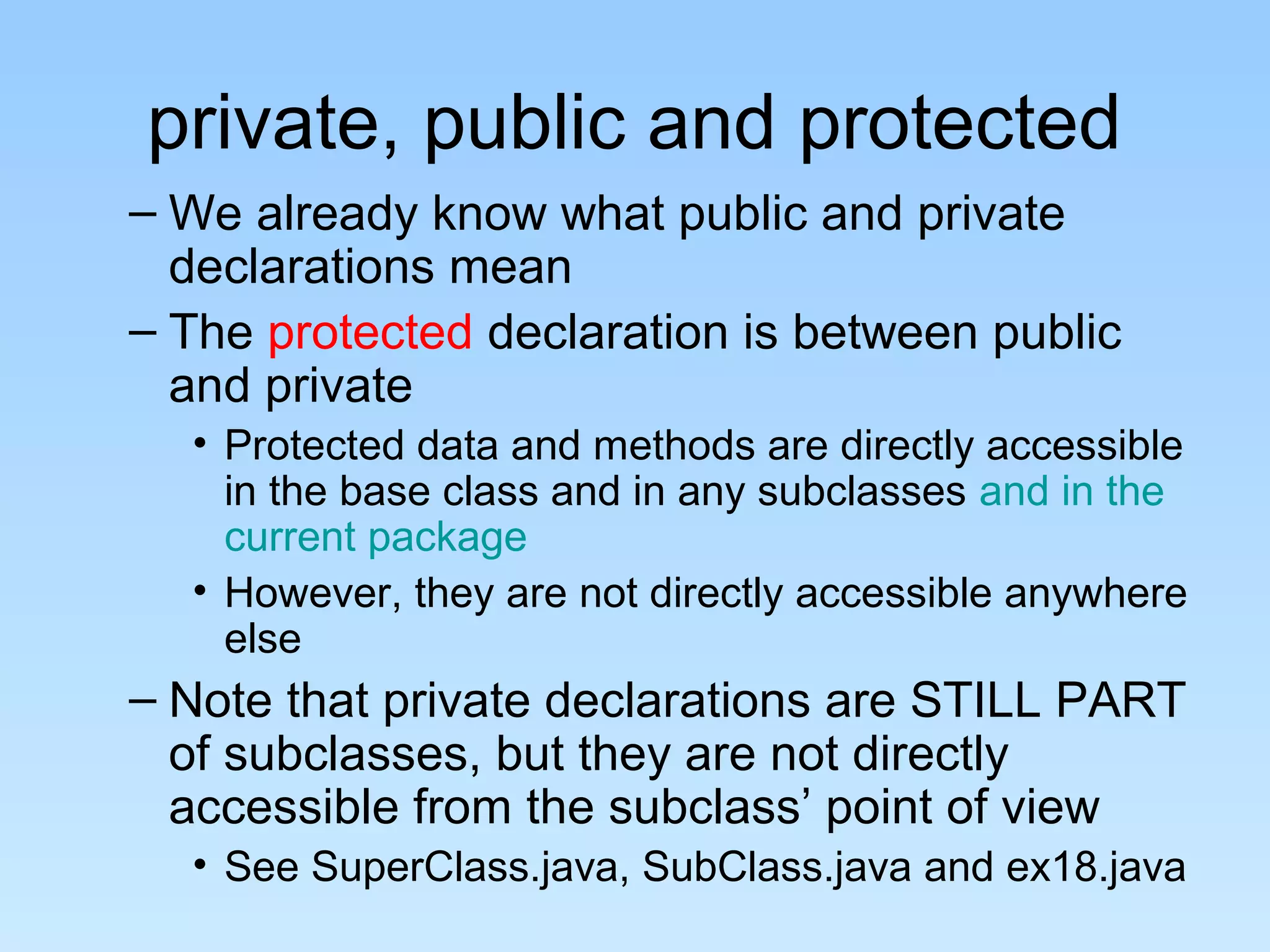

private, public and protected
– We already know what public and private
declarations mean
– The protected declaration is between public
and private
• Protected data and methods are directly accessible
in the base class and in any subclasses and in the
current package
• However, they are not directly accessible anywhere
else
– Note that private declarations are STILL PART
of subclasses, but they are not directly
accessible from the subclass’ point of view
• See SuperClass.java, SubClass.java and ex18.java

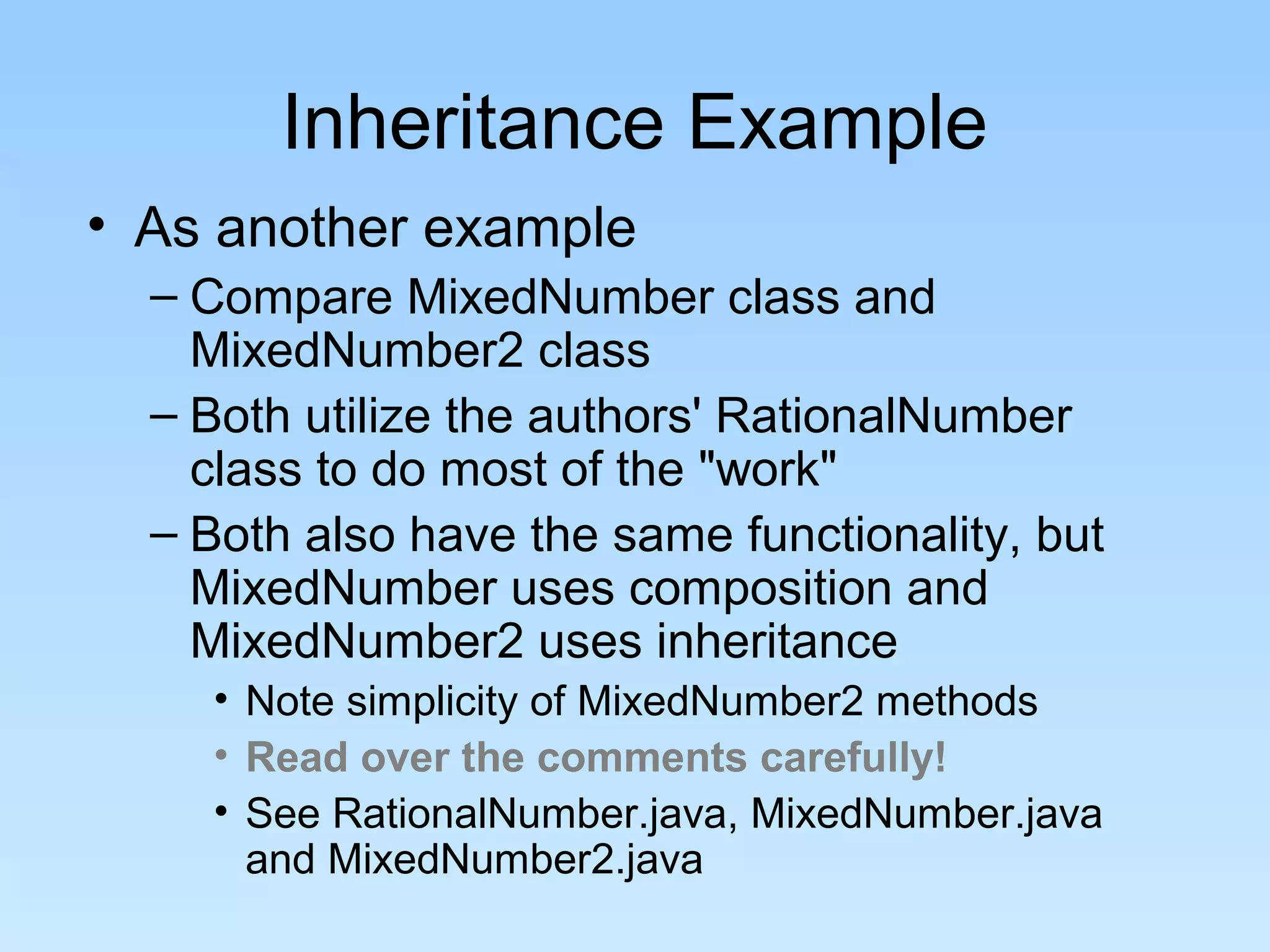

Inheritance Example
• As another example
– Compare MixedNumber class and
MixedNumber2 class
– Both utilize the authors' RationalNumber
class to do most of the "work"
– Both also have the same functionality, but
MixedNumber uses composition and
MixedNumber2 uses inheritance
• Note simplicity of MixedNumber2 methods
• Read over the comments carefully!
• See RationalNumber.java, MixedNumber.java
and MixedNumber2.java

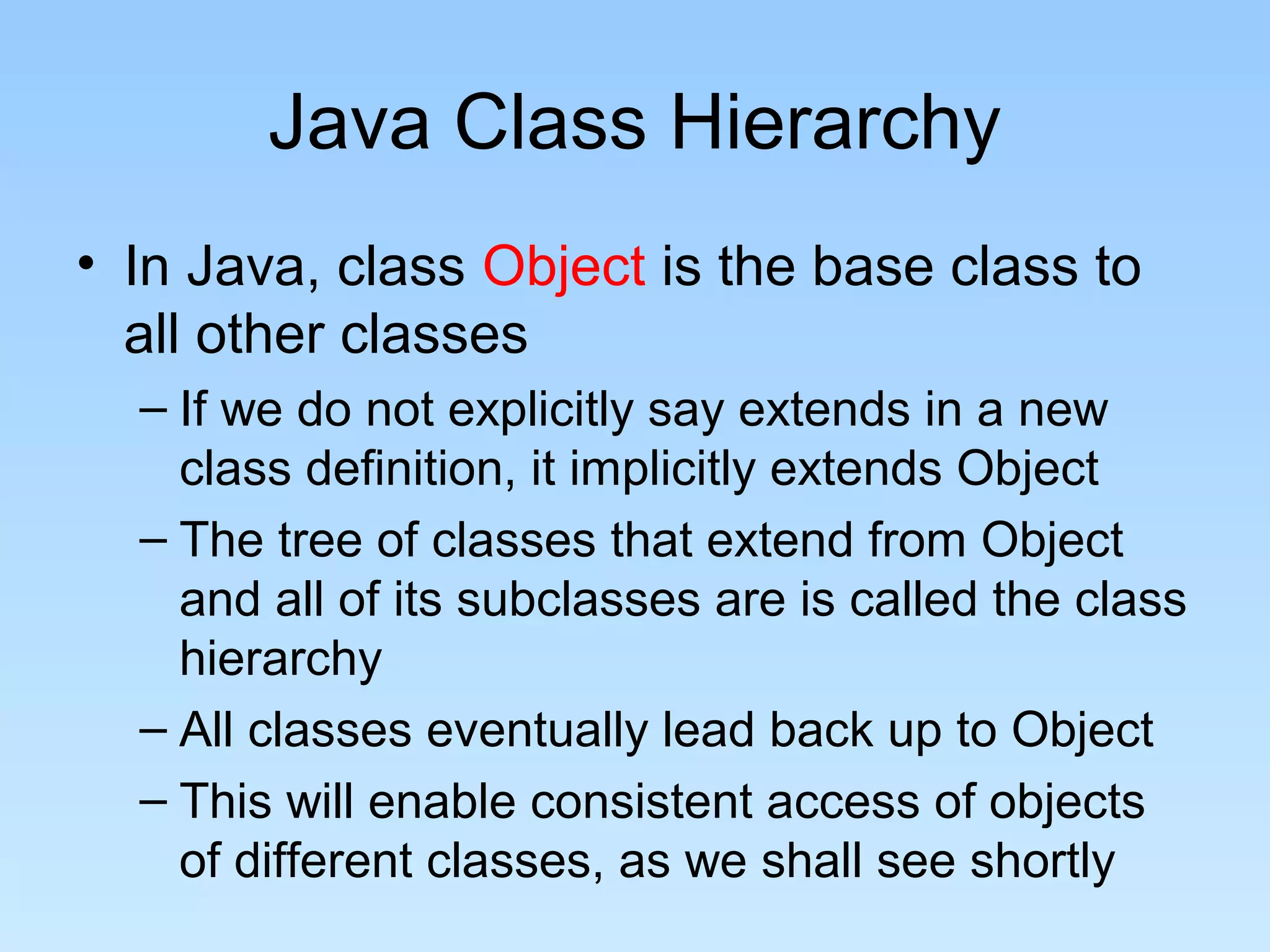

Java Class Hierarchy
• In Java, class Object is the base class to
all other classes
– If we do not explicitly say extends in a new
class definition, it implicitly extends Object
– The tree of classes that extend from Object
and all of its subclasses are is called the class
hierarchy
– All classes eventually lead back up to Object
– This will enable consistent access of objects
of different classes, as we shall see shortly

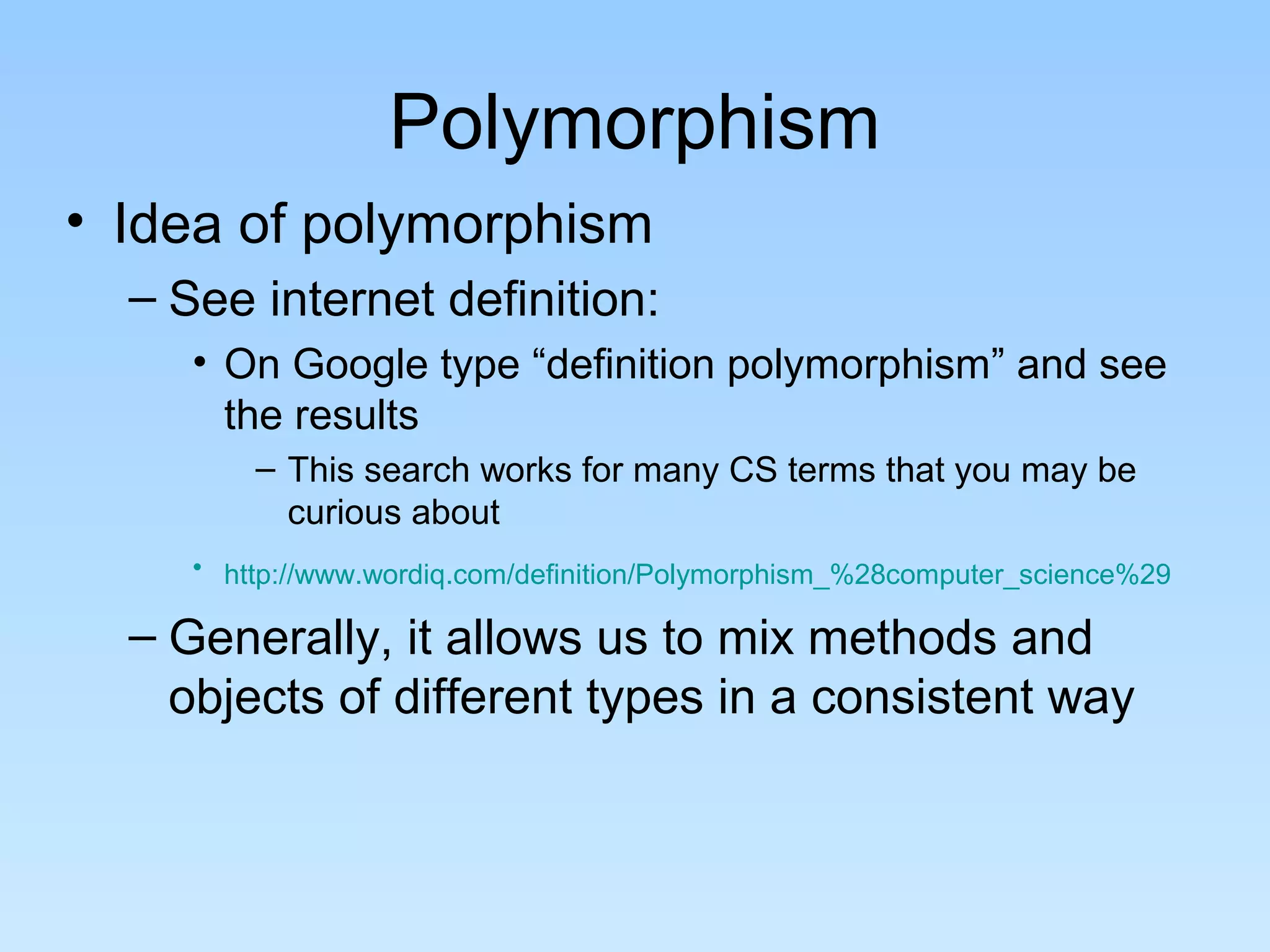

Polymorphism
• Idea of polymorphism
– See internet definition:
• On Google type “definition polymorphism” and see
the results
– This search works for many CS terms that you may be
curious about
• http://www.wordiq.com/definition/Polymorphism_%28computer_science%29

– Generally, it allows us to mix methods and
objects of different types in a consistent way

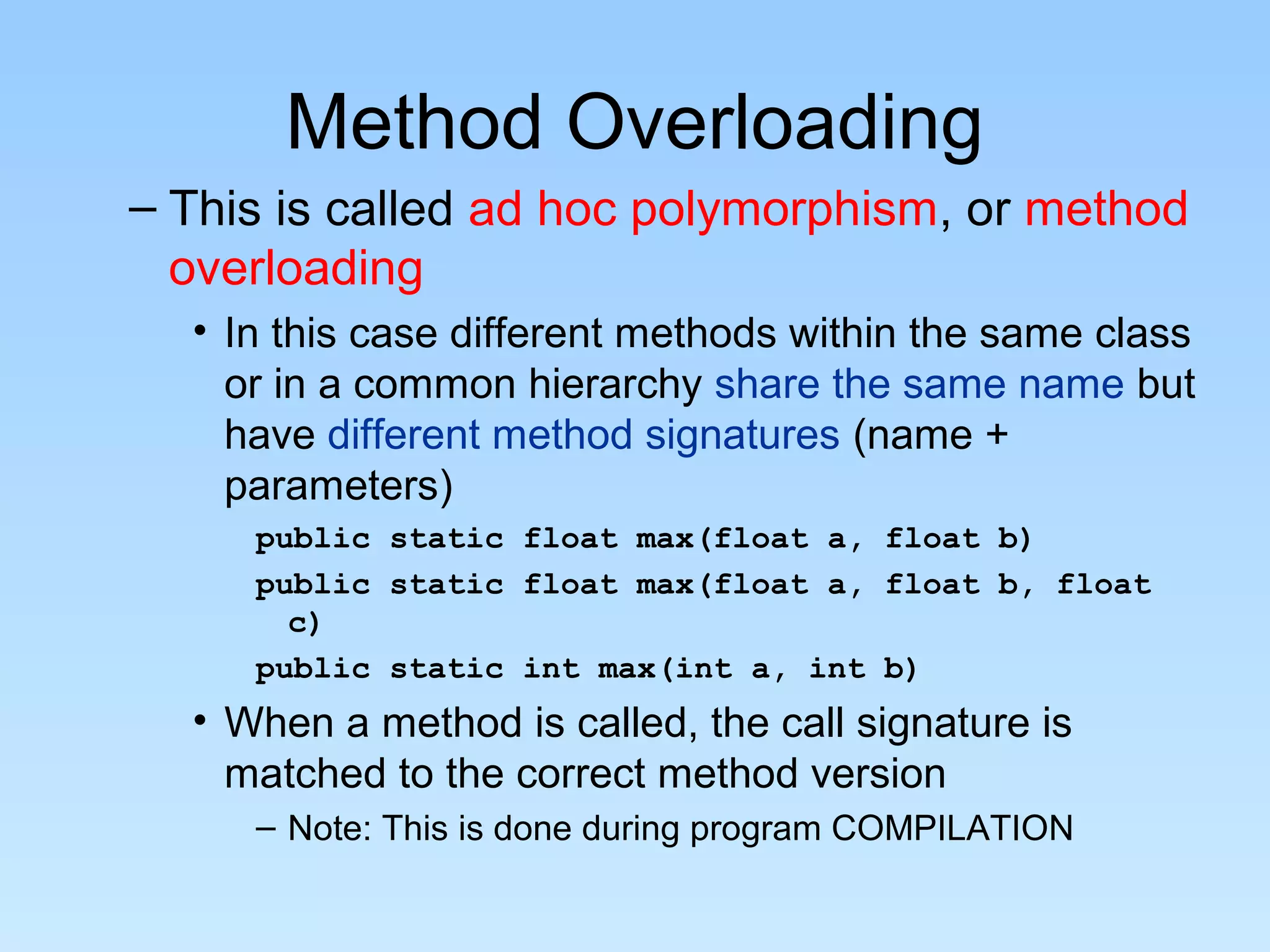

Method Overloading
– This is called ad hoc polymorphism, or method
overloading
• In this case different methods within the same class
or in a common hierarchy share the same name but
have different method signatures (name +
parameters)
public static float max(float a, float b)
public static float max(float a, float b, float
c)
public static int max(int a, int b)
• When a method is called, the call signature is
matched to the correct method version
– Note: This is done during program COMPILATION

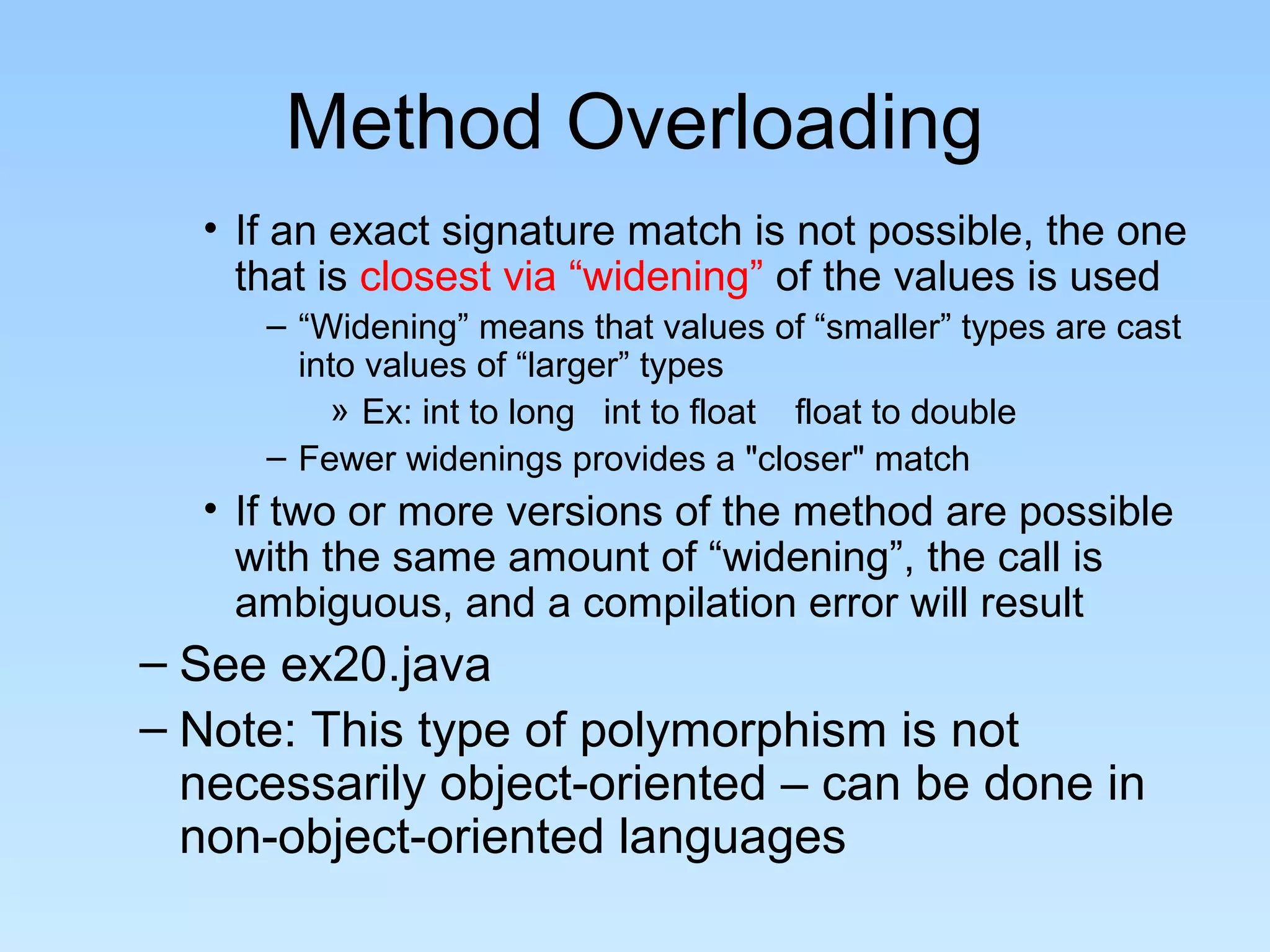

Method Overloading
• If an exact signature match is not possible, the one
that is closest via “widening” of the values is used
– “Widening” means that values of “smaller” types are cast
into values of “larger” types
» Ex: int to long int to float float to double
– Fewer widenings provides a "closer" match
• If two or more versions of the method are possible
with the same amount of “widening”, the call is
ambiguous, and a compilation error will result
– See ex20.java
– Note: This type of polymorphism is not
necessarily object-oriented – can be done in
non-object-oriented languages

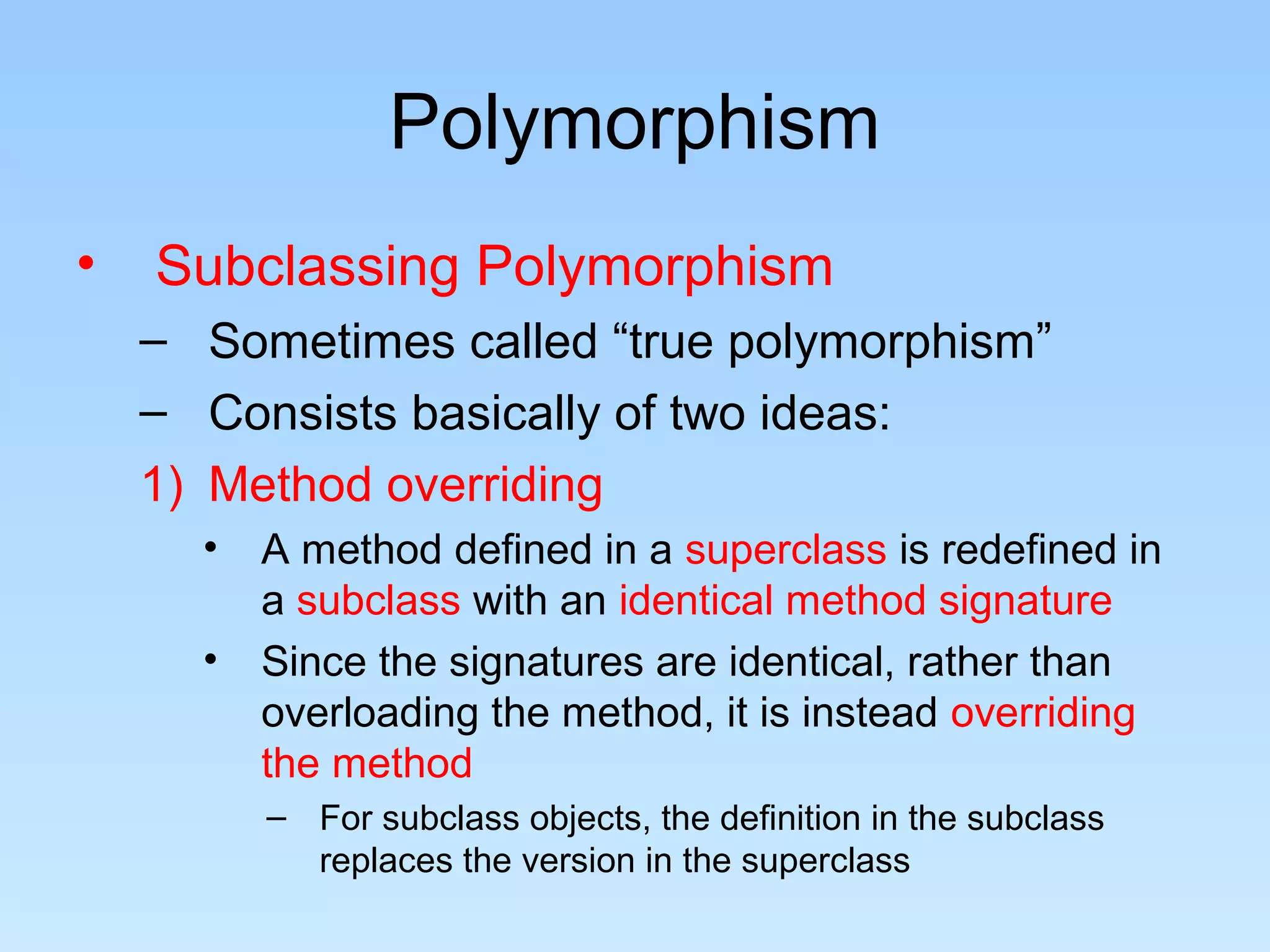

Polymorphism
• Subclassing Polymorphism
– Sometimes called “true polymorphism”
– Consists basically of two ideas:
1) Method overriding
• A method defined in a superclass is redefined in
a subclass with an identical method signature
• Since the signatures are identical, rather than
overloading the method, it is instead overriding
the method
– For subclass objects, the definition in the subclass
replaces the version in the superclass

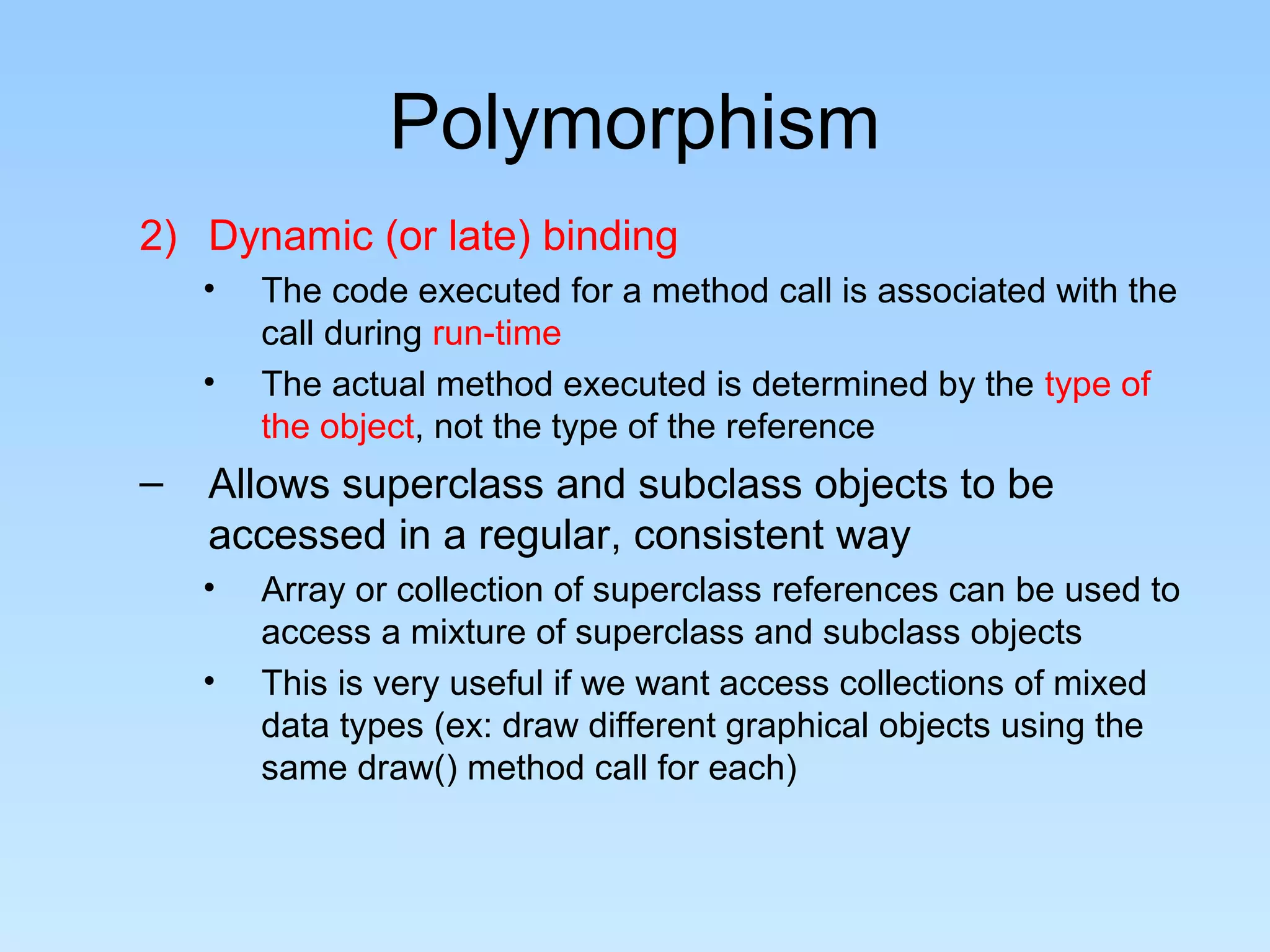

Polymorphism
2) Dynamic (or late) binding
• The code executed for a method call is associated with the
call during run-time
• The actual method executed is determined by the type of
the object, not the type of the reference
– Allows superclass and subclass objects to be
accessed in a regular, consistent way
• Array or collection of superclass references can be used to
access a mixture of superclass and subclass objects
• This is very useful if we want access collections of mixed
data types (ex: draw different graphical objects using the
same draw() method call for each)

Polymorphism
• Ex. Each subclass overrides
the move() method in its own
way
Animal [] A = new Animal[3];
A[0] = new Bird();
A[1] = new Person();
A[2] = new Fish();
for (int i = 0; i < A.length; i++) move() move()
A[i].move();

• References are all the same, but
objects are not
• Method invoked is that associated move()
with the OBJECT, NOT with the
reference

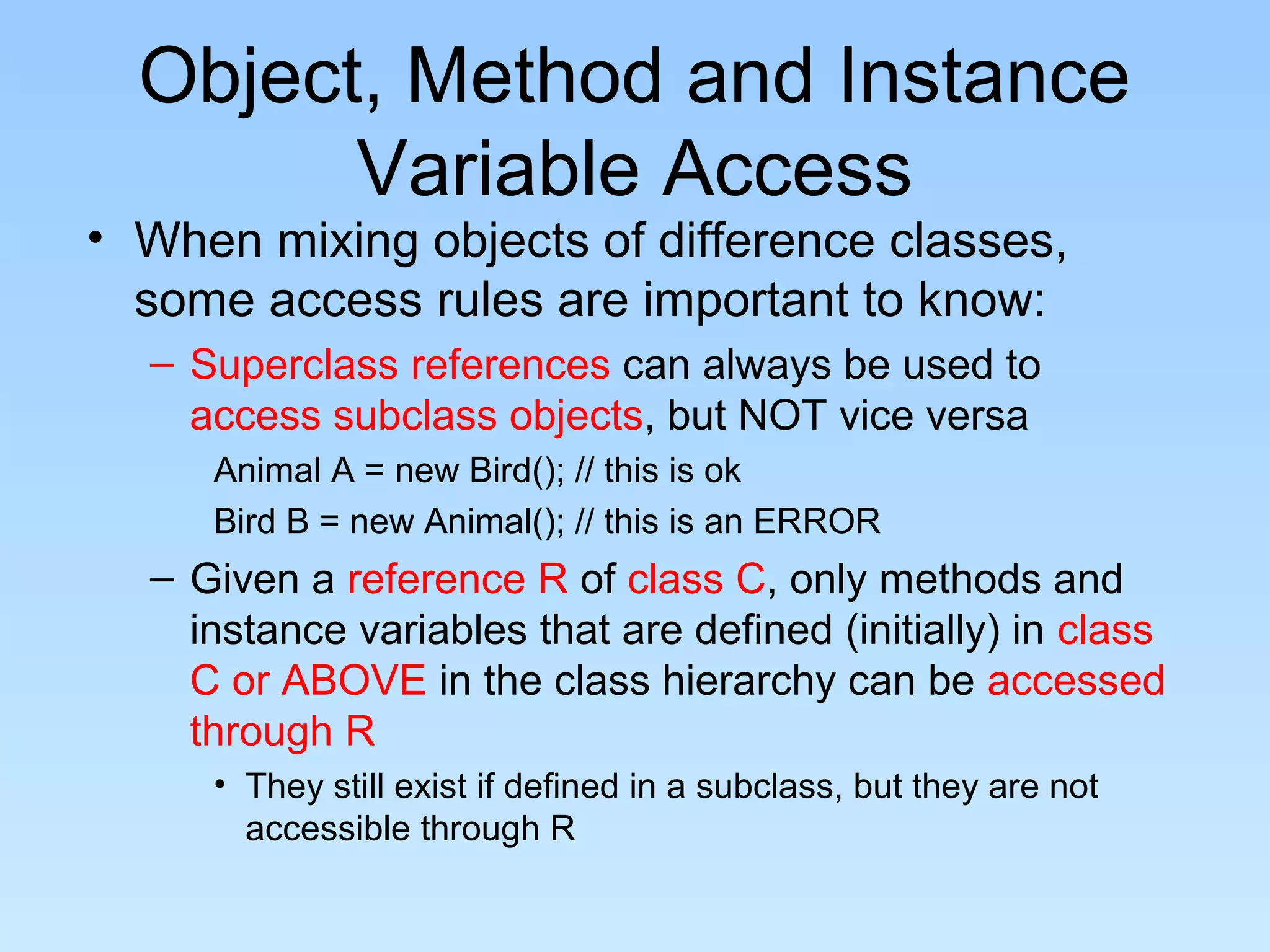

Object, Method and Instance
Variable Access
• When mixing objects of difference classes,
some access rules are important to know:
– Superclass references can always be used to
access subclass objects, but NOT vice versa
Animal A = new Bird(); // this is ok
Bird B = new Animal(); // this is an ERROR
– Given a reference R of class C, only methods and
instance variables that are defined (initially) in class
C or ABOVE in the class hierarchy can be accessed
through R
• They still exist if defined in a subclass, but they are not
accessible through R

Variable Access

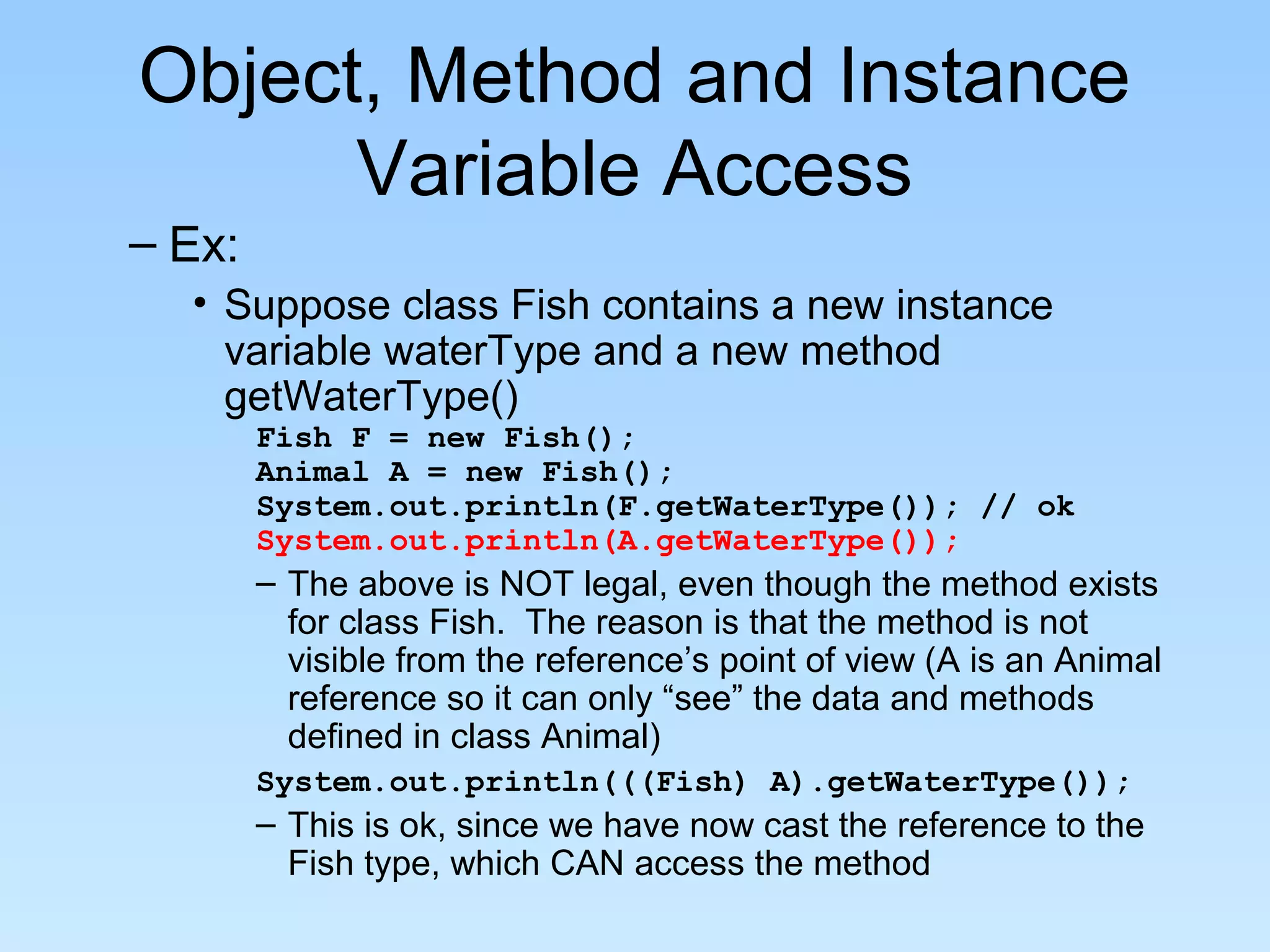

– Ex:
• Suppose class Fish contains a new instance
variable waterType and a new method
getWaterType()
Fish F = new Fish();
Animal A = new Fish();
System.out.println(F.getWaterType()); // ok
System.out.println(A.getWaterType());
– The above is NOT legal, even though the method exists
for class Fish. The reason is that the method is not
visible from the reference’s point of view (A is an Animal
reference so it can only “see” the data and methods
defined in class Animal)
System.out.println(((Fish) A).getWaterType());
– This is ok, since we have now cast the reference to the
Fish type, which CAN access the method

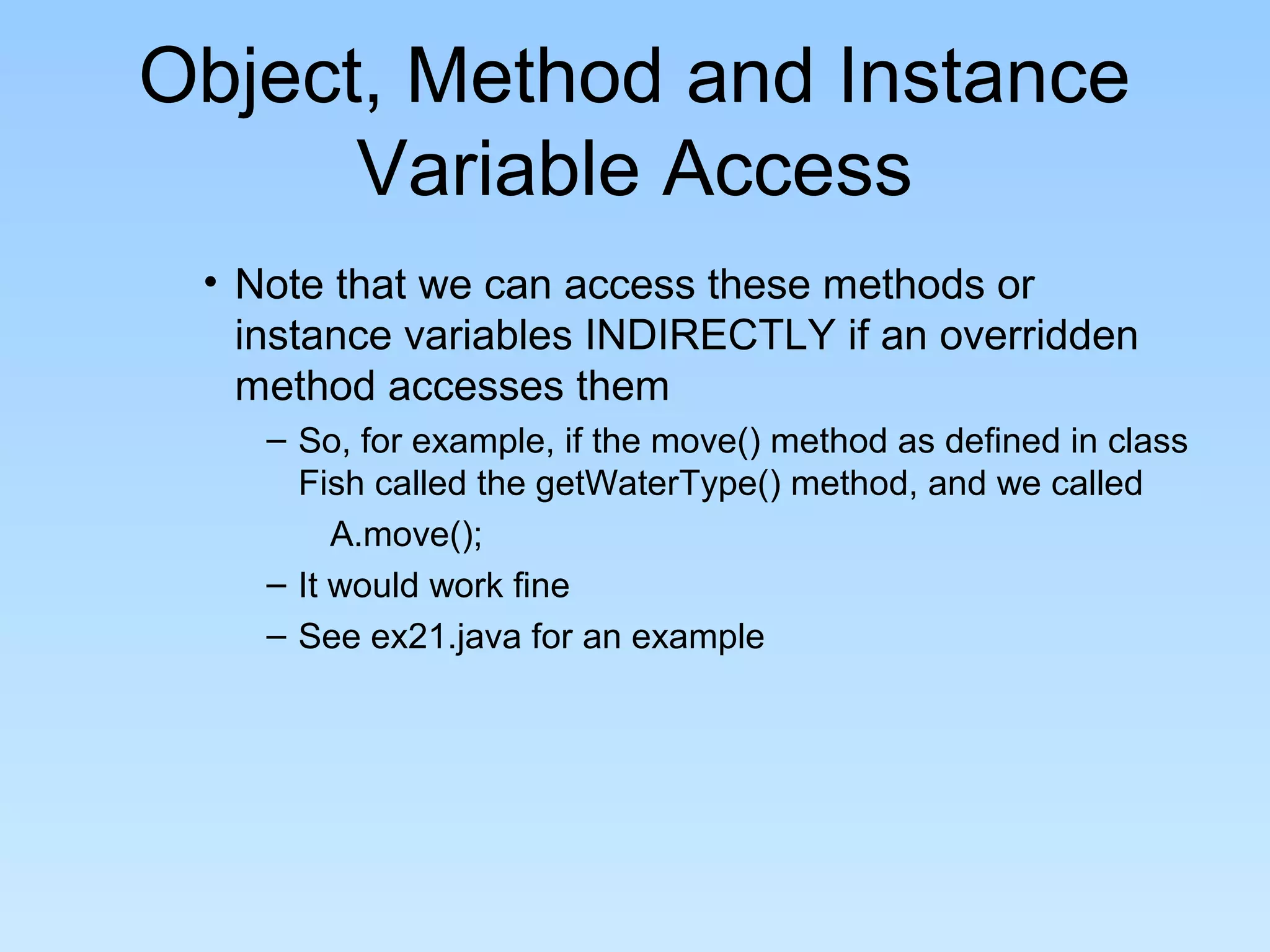

Variable Access
• Note that we can access these methods or
instance variables INDIRECTLY if an overridden
method accesses them
– So, for example, if the move() method as defined in class
Fish called the getWaterType() method, and we called
A.move();
– It would work fine
– See ex21.java for an example

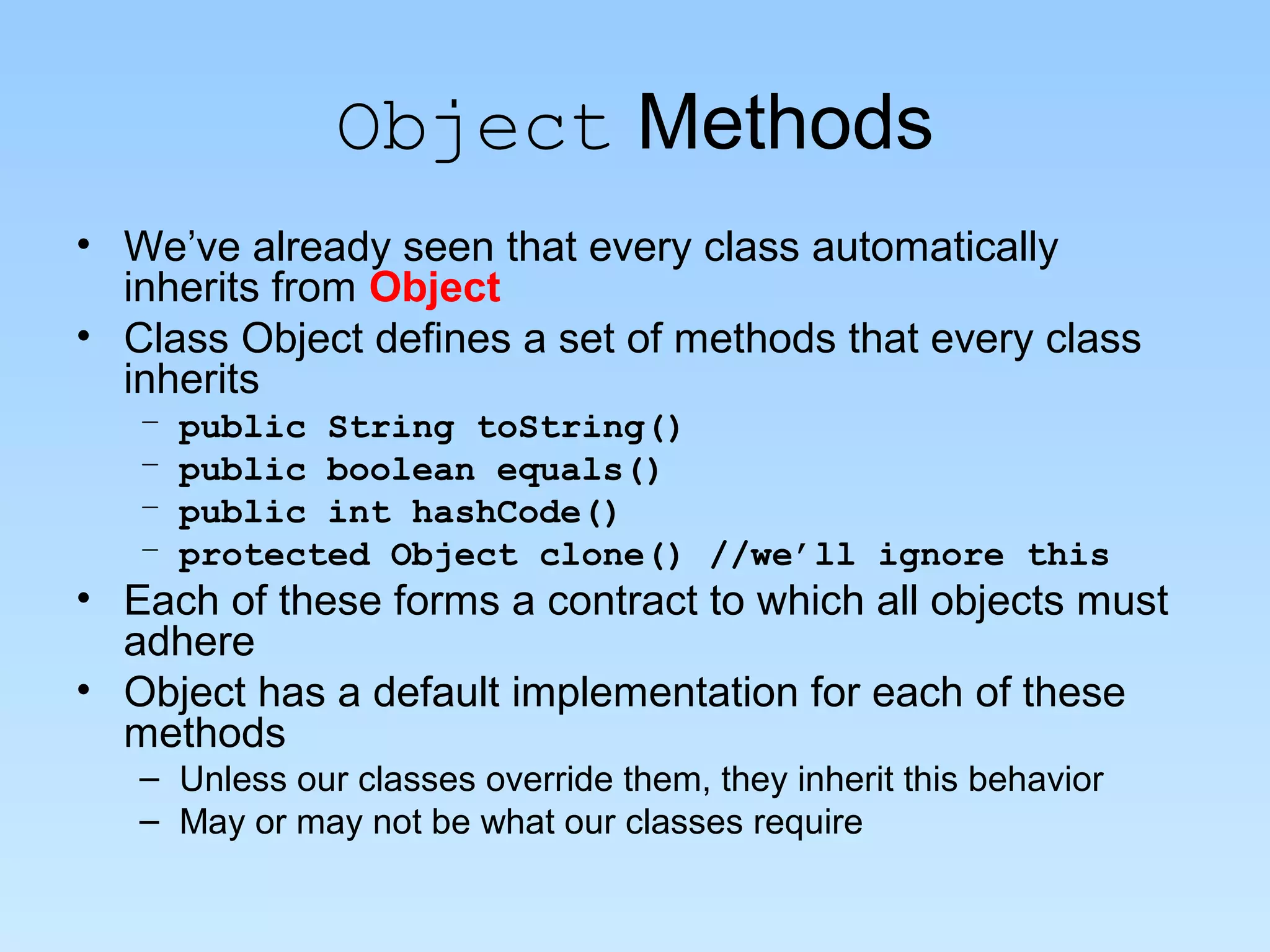

Object Methods
• We’ve already seen that every class automatically
inherits from Object
• Class Object defines a set of methods that every class
inherits
– public String toString()
– public boolean equals()
– public int hashCode()
– protected Object clone() //we’ll ignore this
• Each of these forms a contract to which all objects must
adhere
• Object has a default implementation for each of these
methods
– Unless our classes override them, they inherit this behavior
– May or may not be what our classes require

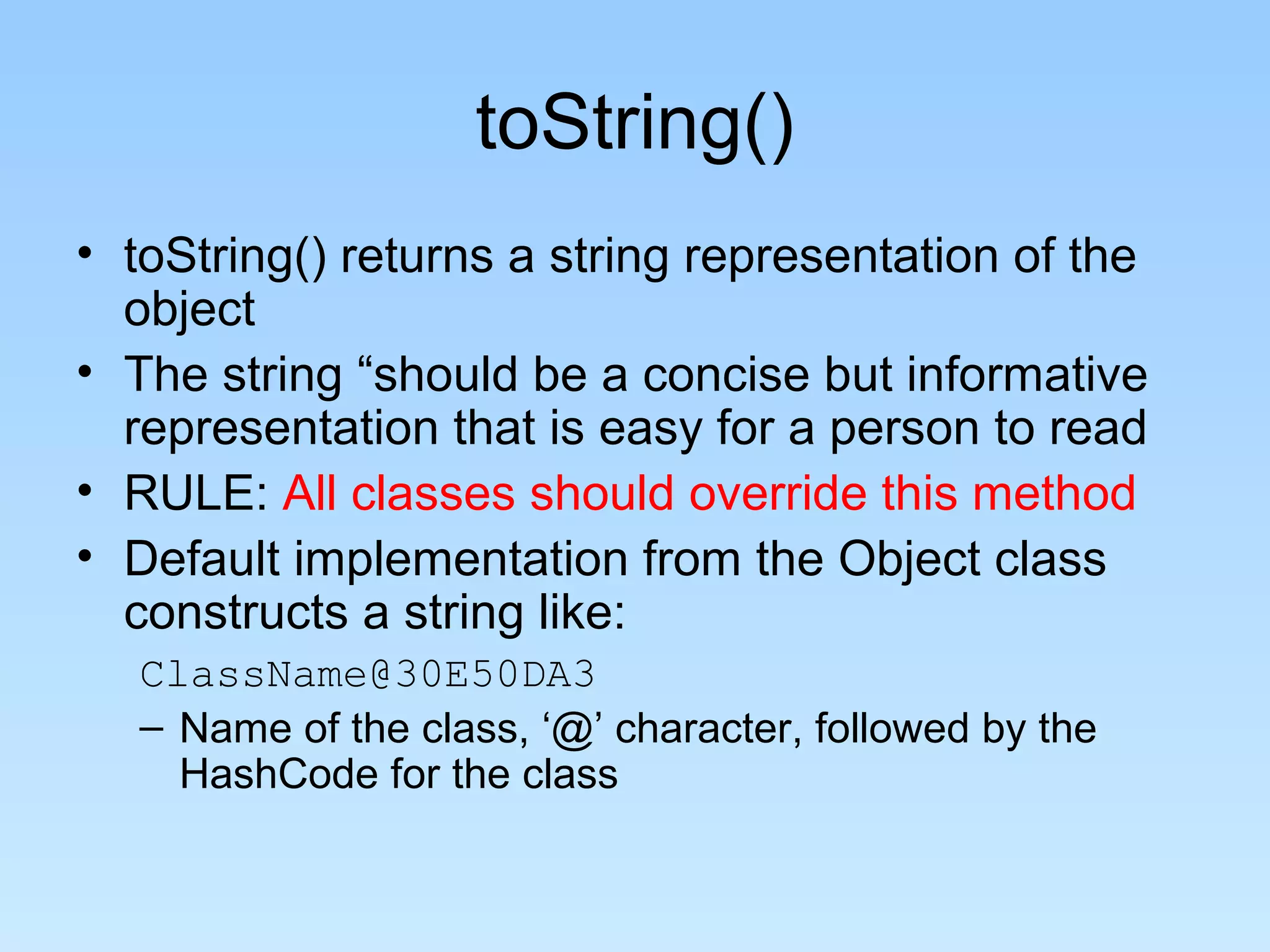

toString()
• toString() returns a string representation of the
object
• The string “should be a concise but informative
representation that is easy for a person to read
• RULE: All classes should override this method
• Default implementation from the Object class
constructs a string like:
ClassName@30E50DA3
– Name of the class, ‘@’ character, followed by the
HashCode for the class

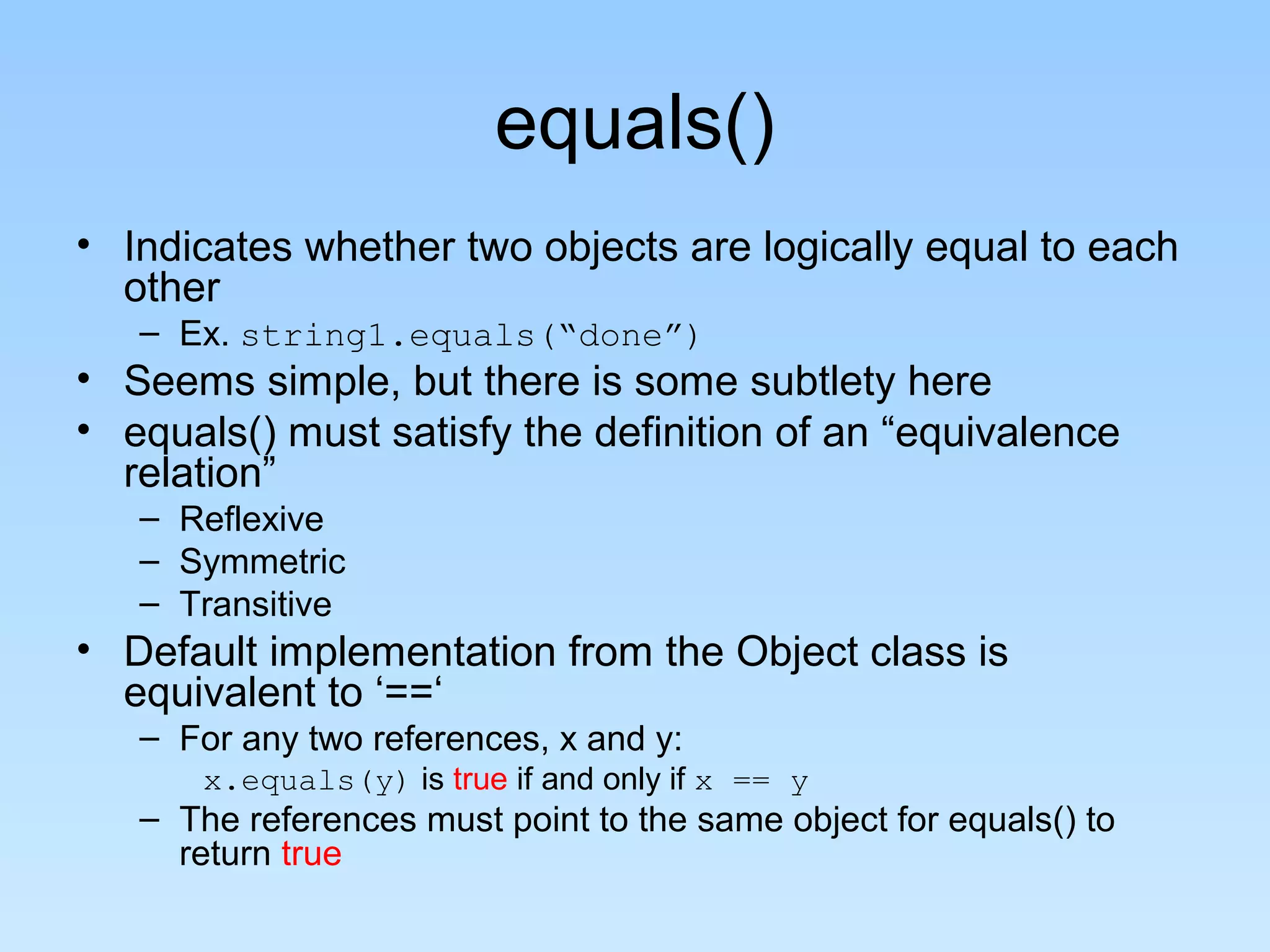

equals()
• Indicates whether two objects are logically equal to each
other
– Ex. string1.equals(“done”)
• Seems simple, but there is some subtlety here
• equals() must satisfy the definition of an “equivalence
relation”
– Reflexive
– Symmetric
– Transitive
• Default implementation from the Object class is
equivalent to ‘==‘
– For any two references, x and y:
x.equals(y) is true if and only if x == y
– The references must point to the same object for equals() to
return true

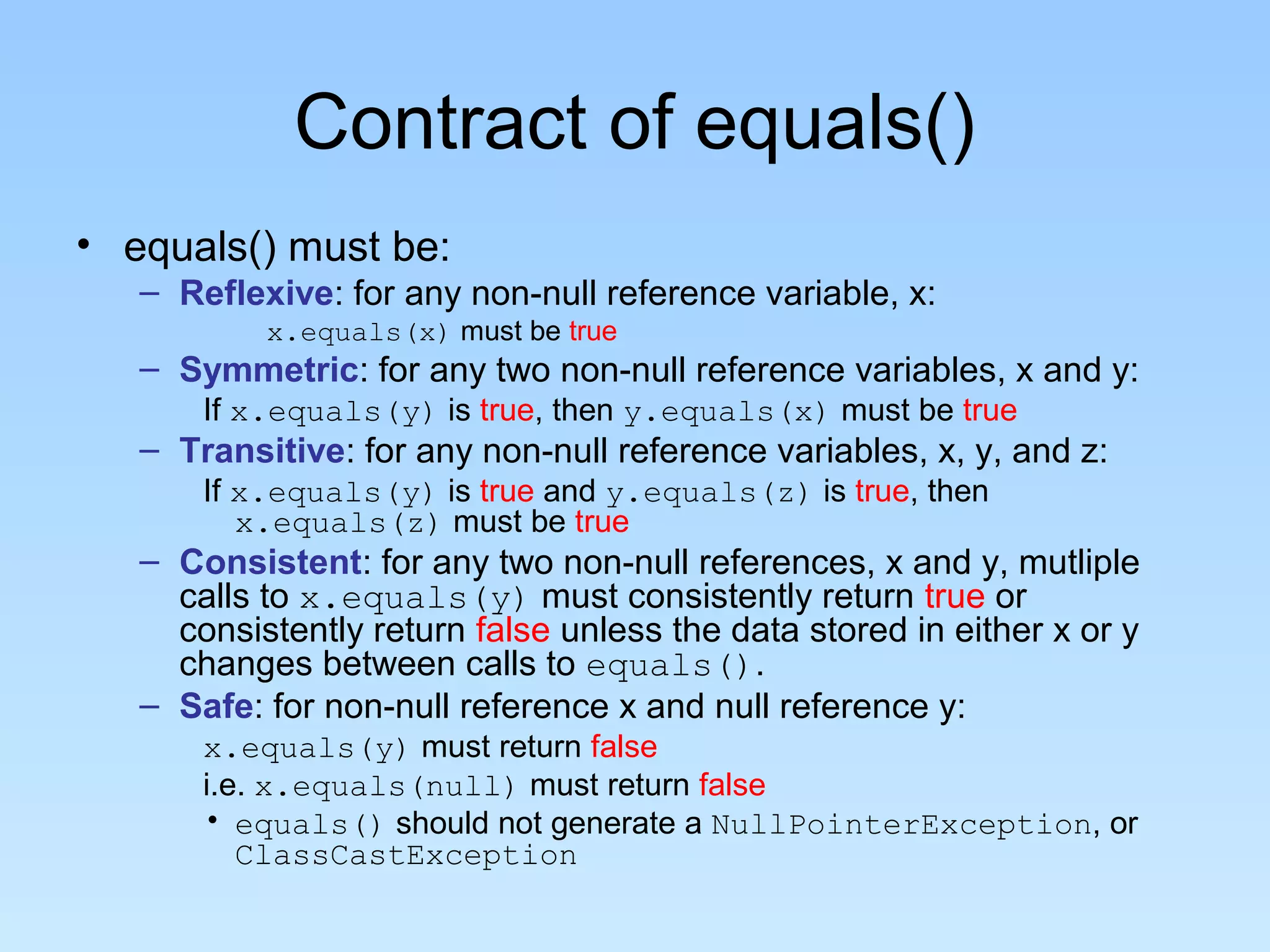

Contract of equals()
• equals() must be:
– Reflexive: for any non-null reference variable, x:
x.equals(x) must be true
– Symmetric: for any two non-null reference variables, x and y:
If x.equals(y) is true, then y.equals(x) must be true
– Transitive: for any non-null reference variables, x, y, and z:
If x.equals(y) is true and y.equals(z) is true, then
x.equals(z) must be true
– Consistent: for any two non-null references, x and y, mutliple
calls to x.equals(y) must consistently return true or
consistently return false unless the data stored in either x or y
changes between calls to equals().
– Safe: for non-null reference x and null reference y:
x.equals(y) must return false
i.e. x.equals(null) must return false
• equals() should not generate a NullPointerException, or
ClassCastException

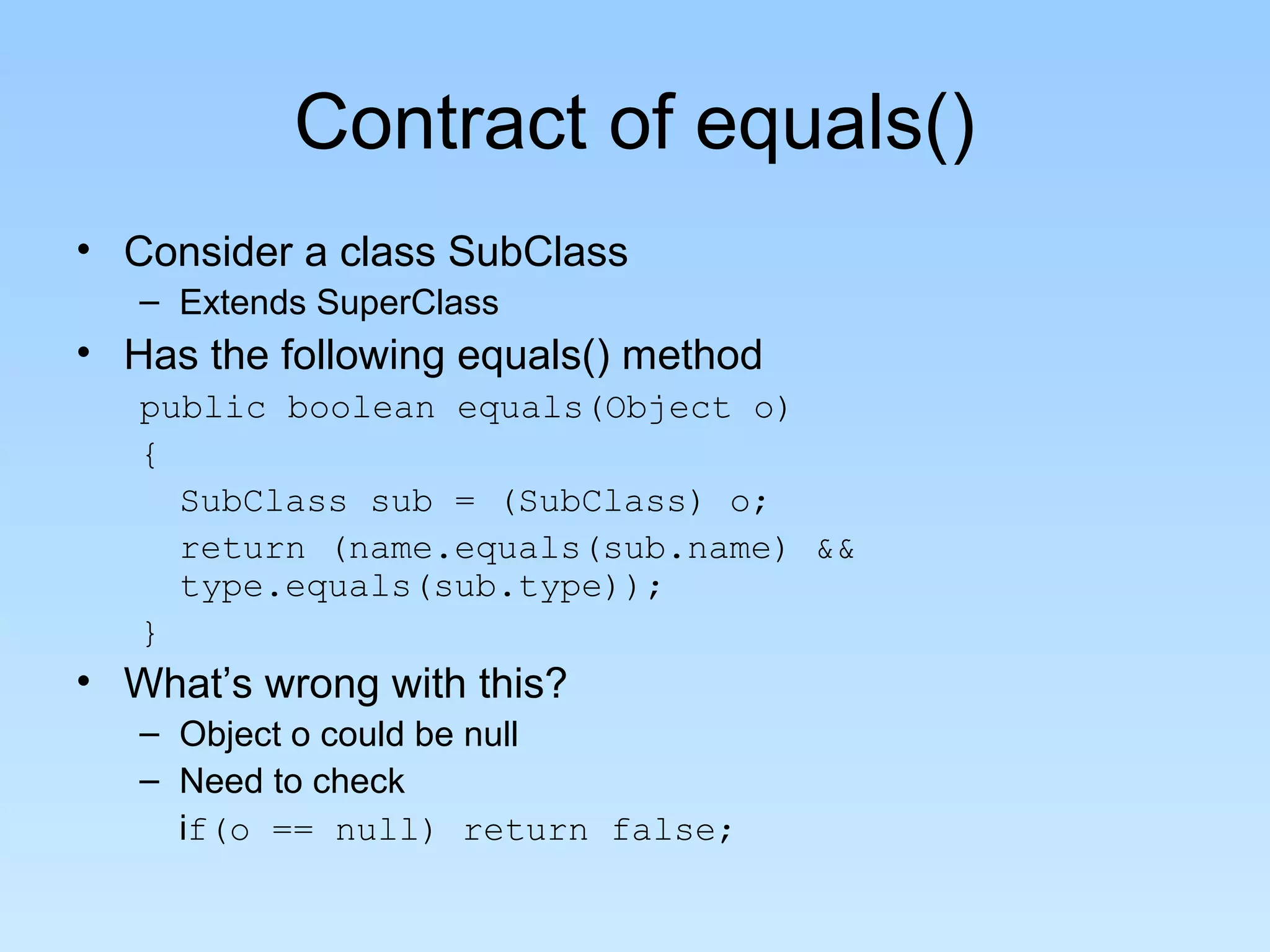

• Consider a class SubClass
– Extends SuperClass
• Has the following equals() method
public boolean equals(Object o)
{
SubClass sub = (SubClass) o;
return (name.equals(sub.name) &&
type.equals(sub.type));
}
• What’s wrong with this?
– Object o could be null
– Need to check
if(o == null) return false;

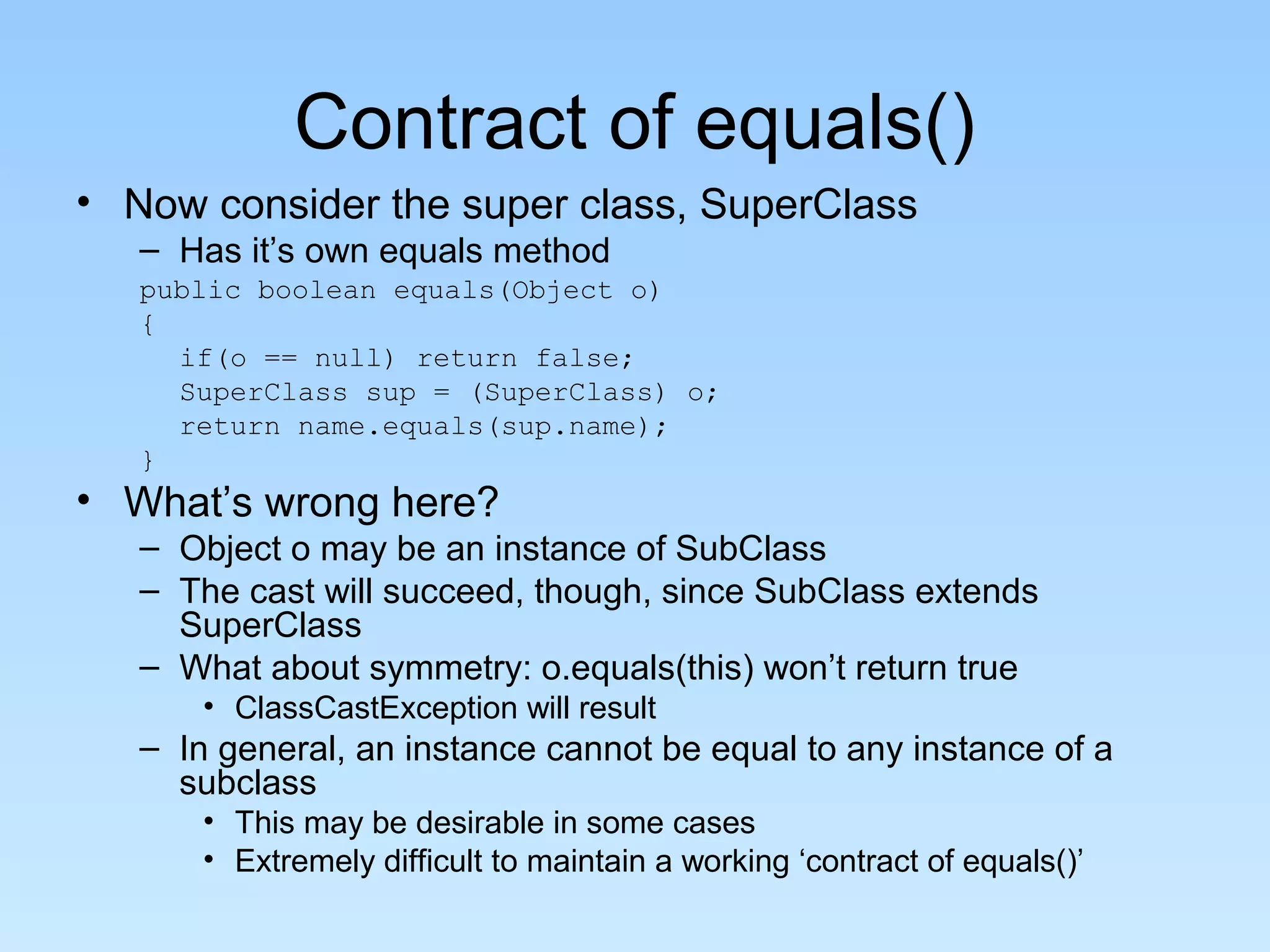

• Now consider the super class, SuperClass
– Has it’s own equals method
{
SuperClass sup = (SuperClass) o;
return name.equals(sup.name);
}
• What’s wrong here?
– Object o may be an instance of SubClass
– The cast will succeed, though, since SubClass extends
SuperClass
– What about symmetry: o.equals(this) won’t return true
• ClassCastException will result
– In general, an instance cannot be equal to any instance of a
subclass
• This may be desirable in some cases
• Extremely difficult to maintain a working ‘contract of equals()’

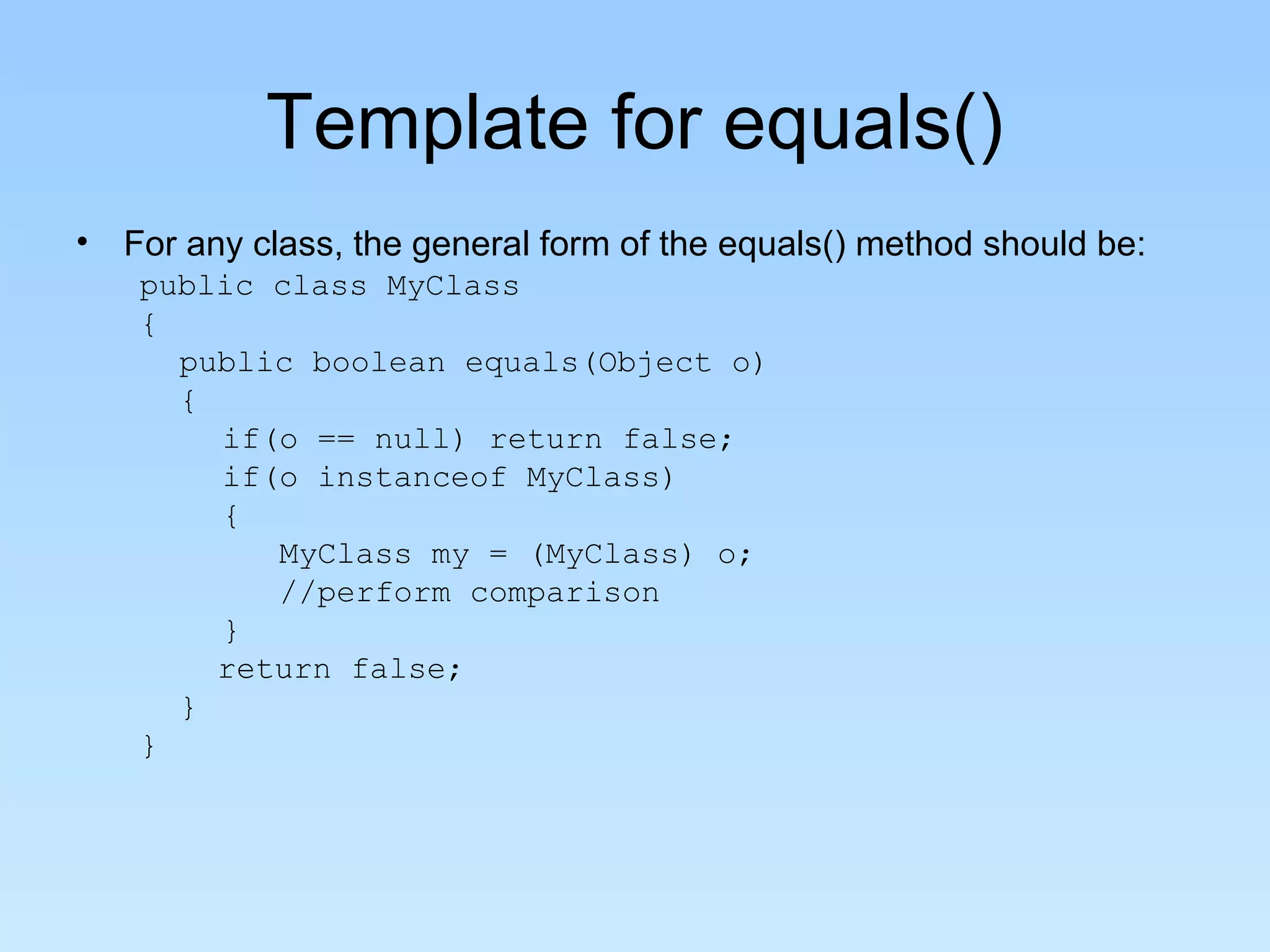

Template for equals()
• For any class, the general form of the equals() method should be:
public class MyClass
{
{
if(o instanceof MyClass)
{
MyClass my = (MyClass) o;
//perform comparison
}
return false;
}
}

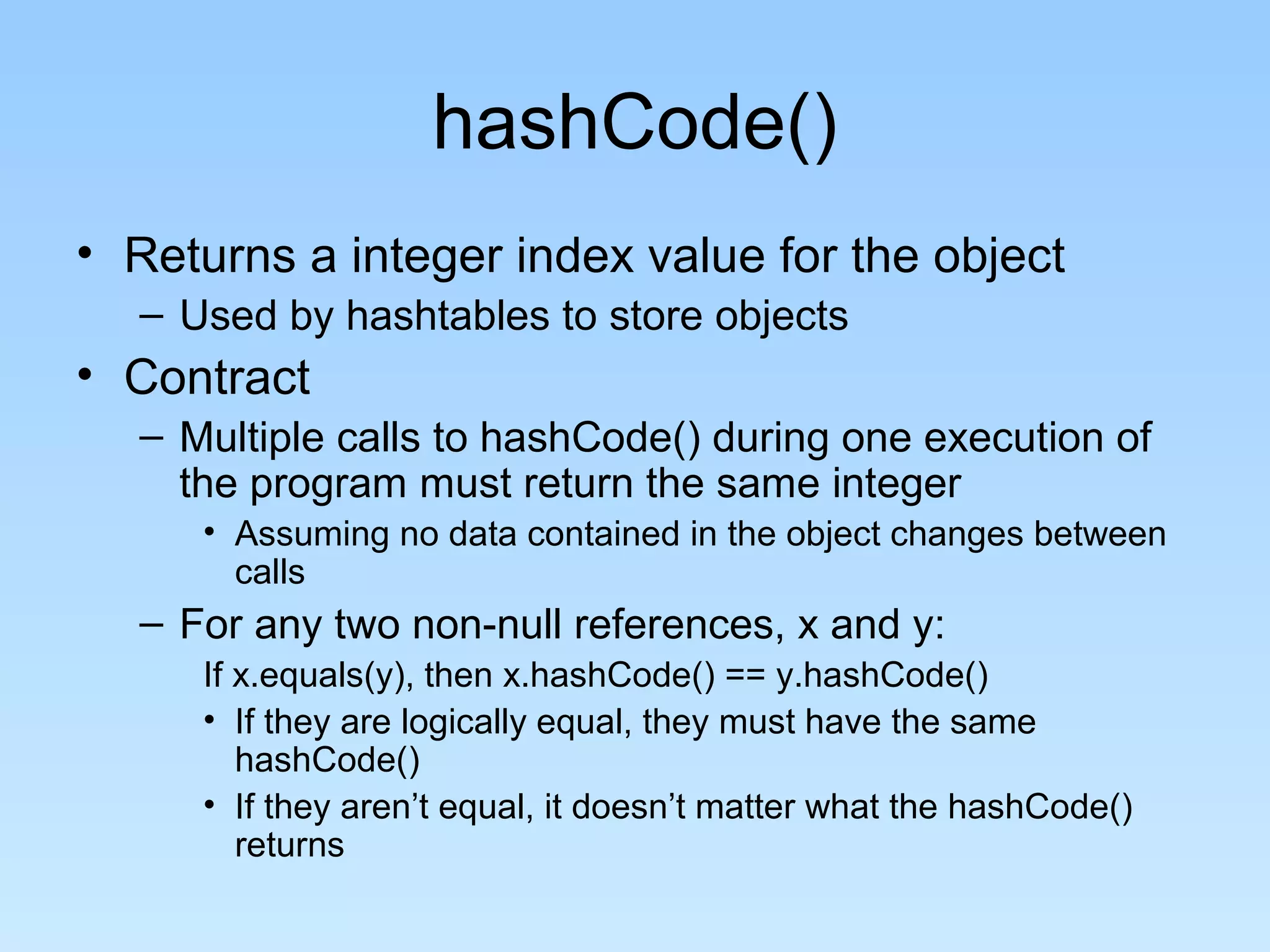

hashCode()
• Returns a integer index value for the object
– Used by hashtables to store objects
• Contract
– Multiple calls to hashCode() during one execution of
the program must return the same integer
• Assuming no data contained in the object changes between
calls
– For any two non-null references, x and y:
If x.equals(y), then x.hashCode() == y.hashCode()
• If they are logically equal, they must have the same
hashCode()
• If they aren’t equal, it doesn’t matter what the hashCode()
returns

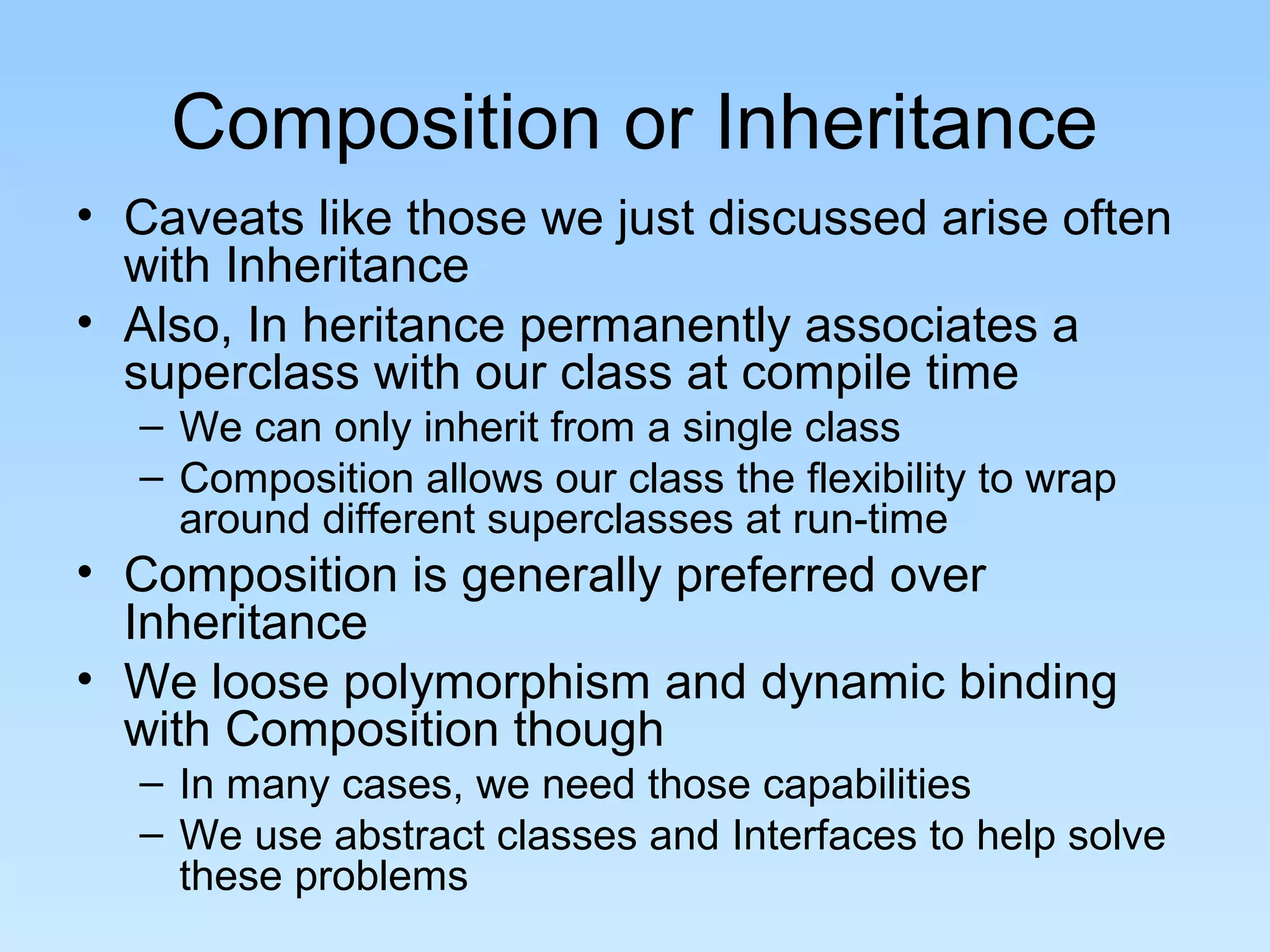

Composition or Inheritance
• Caveats like those we just discussed arise often
with Inheritance
• Also, In heritance permanently associates a
superclass with our class at compile time
– We can only inherit from a single class
– Composition allows our class the flexibility to wrap
around different superclasses at run-time
• Composition is generally preferred over
Inheritance
• We loose polymorphism and dynamic binding
with Composition though
– In many cases, we need those capabilities
– We use abstract classes and Interfaces to help solve
these problems

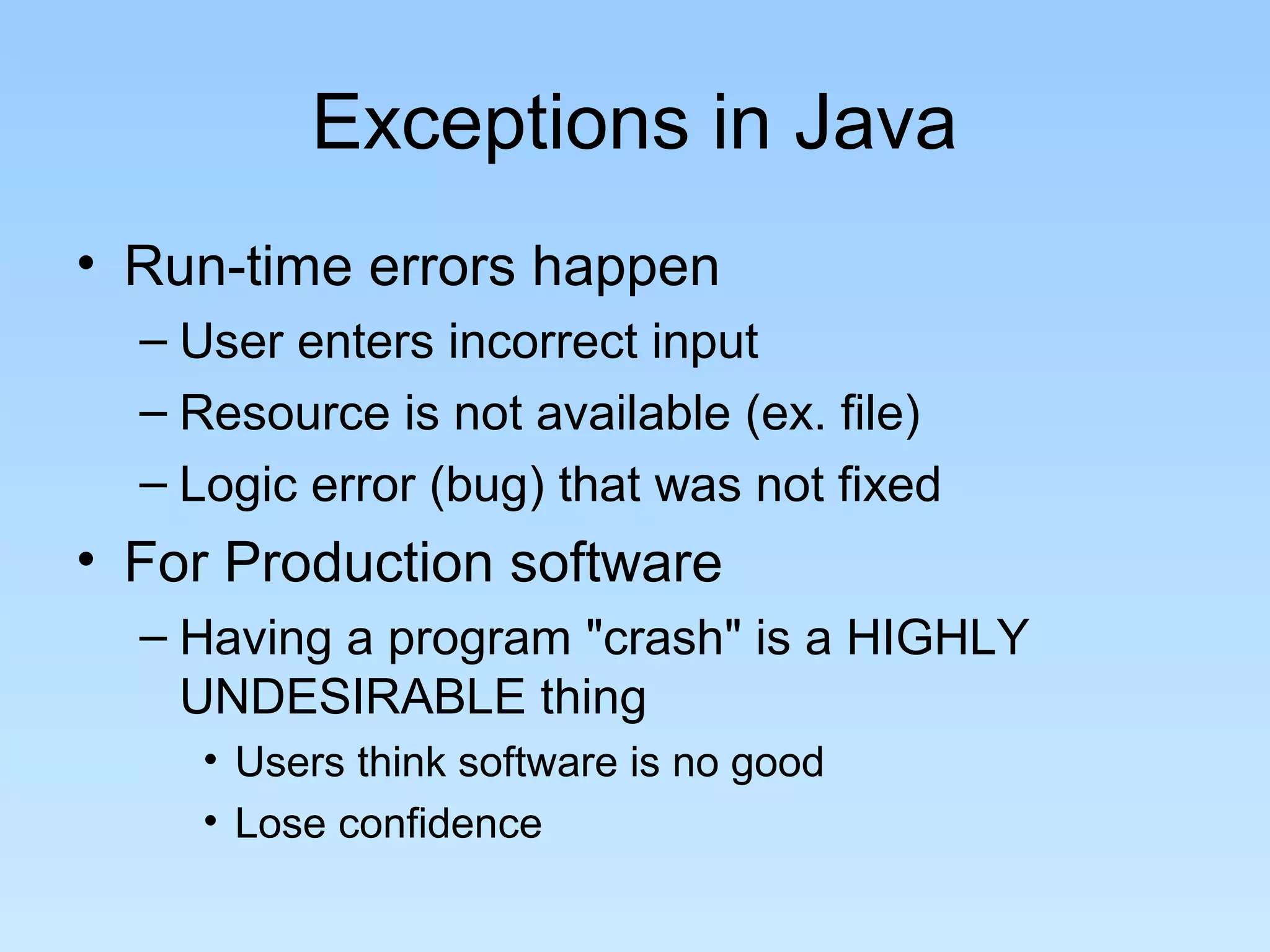

Exceptions in Java
• Run-time errors happen
– User enters incorrect input
– Resource is not available (ex. file)
– Logic error (bug) that was not fixed
• For Production software
– Having a program "crash" is a HIGHLY
UNDESIRABLE thing
• Users think software is no good
• Lose confidence

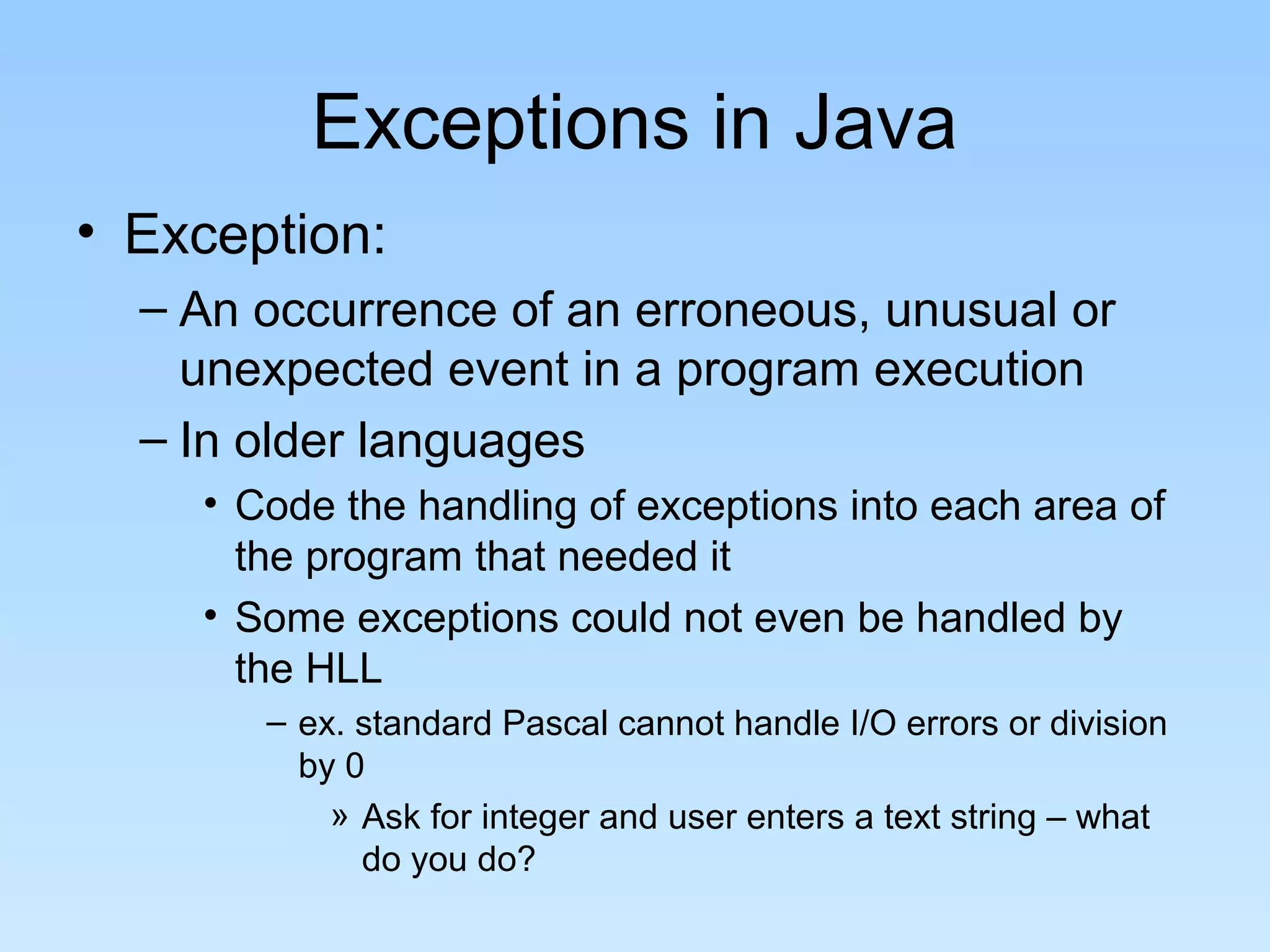

Exceptions in Java
• Exception:
– An occurrence of an erroneous, unusual or
unexpected event in a program execution
– In older languages
• Code the handling of exceptions into each area of
the program that needed it
• Some exceptions could not even be handled by
the HLL
– ex. standard Pascal cannot handle I/O errors or division
by 0
» Ask for integer and user enters a text string – what
do you do?

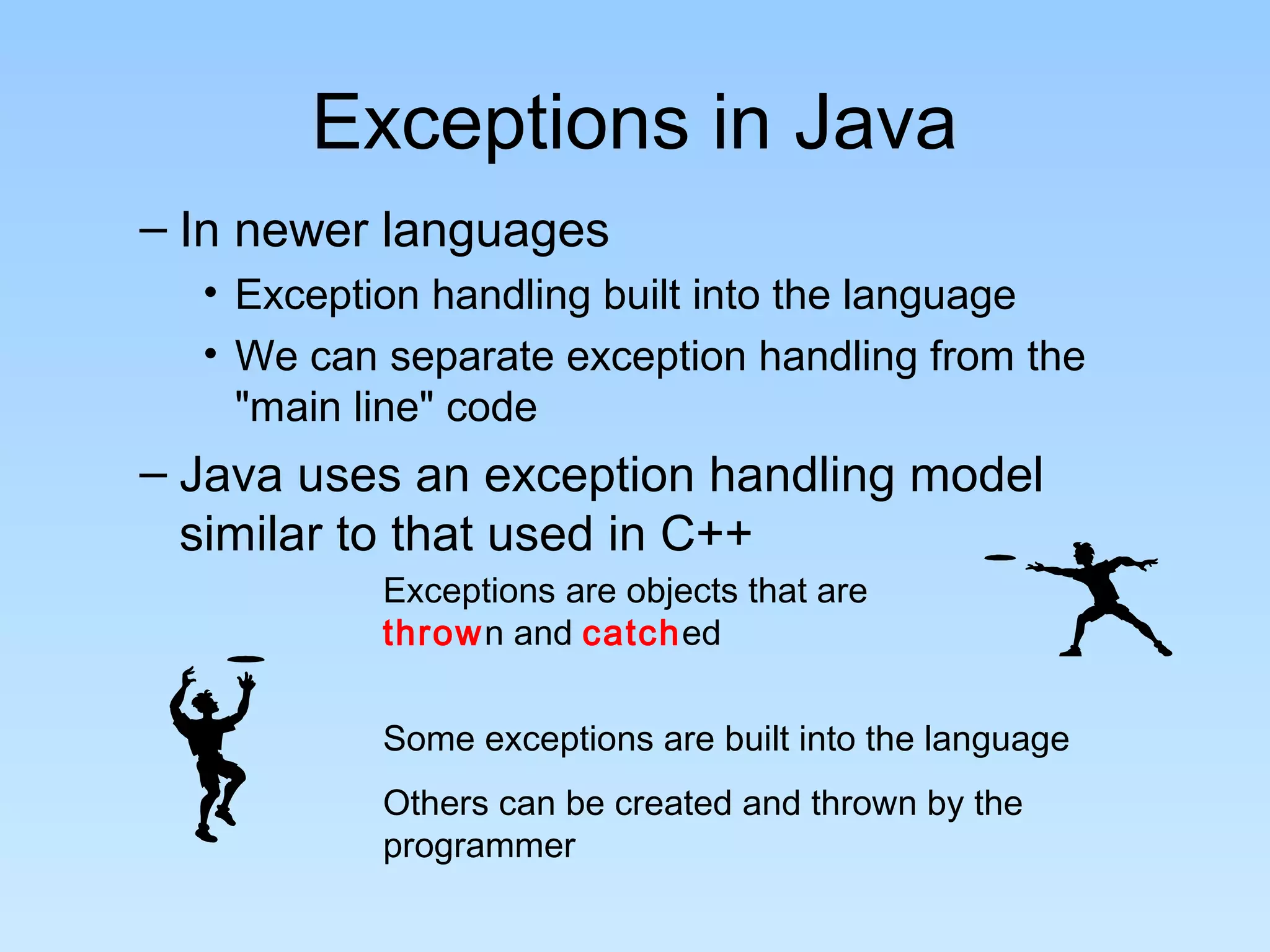

Exceptions in Java
– In newer languages
• Exception handling built into the language
• We can separate exception handling from the
"main line" code
– Java uses an exception handling model
similar to that used in C++
Exceptions are objects that are
thrown and catched

Some exceptions are built into the language
Others can be created and thrown by the
programmer

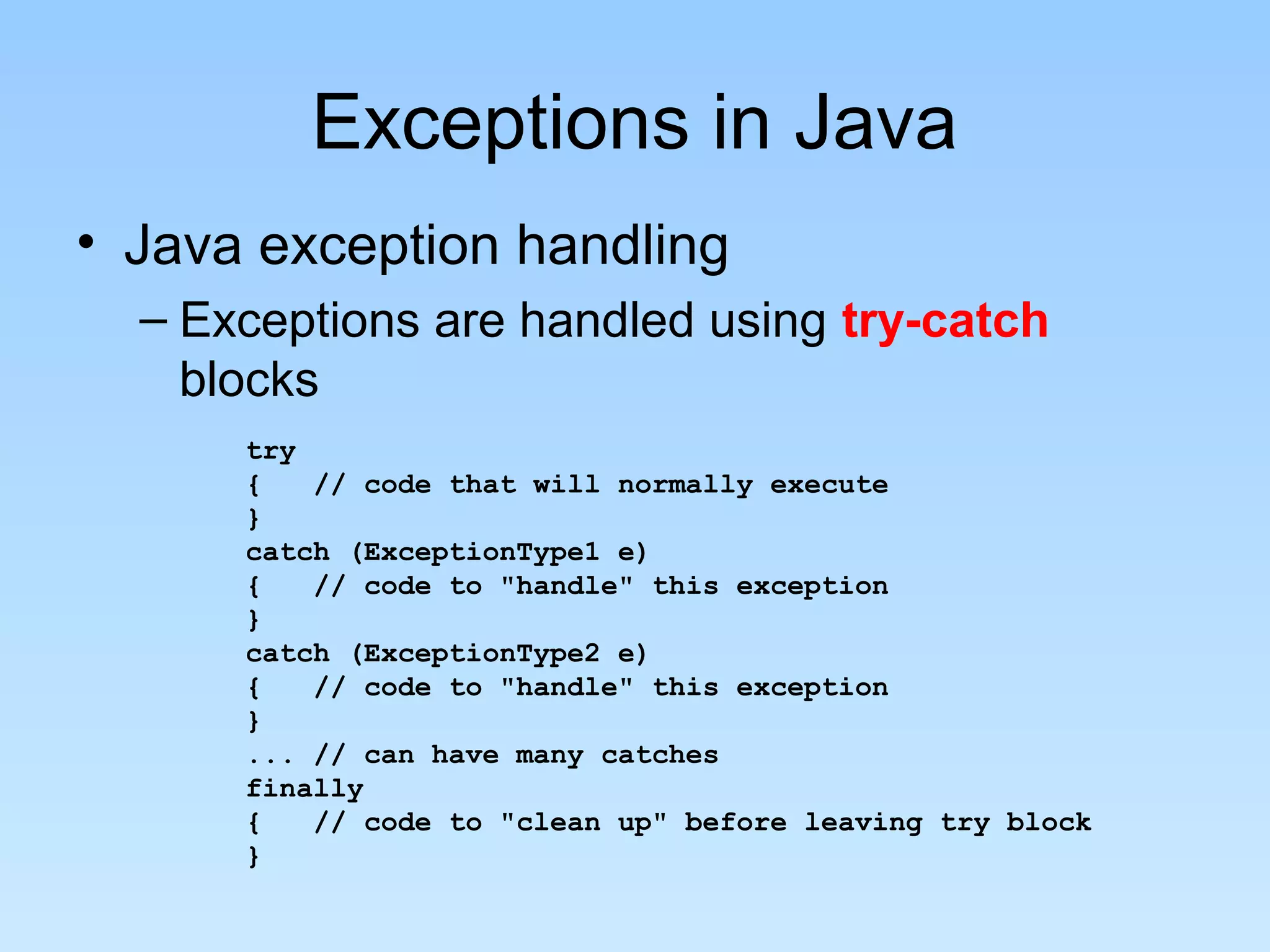

Exceptions in Java
• Java exception handling
– Exceptions are handled using try-catch
blocks
try
{ // code that will normally execute
}
catch (ExceptionType1 e)
{ // code to "handle" this exception
}
catch (ExceptionType2 e)
{ // code to "handle" this exception
}
... // can have many catches
finally
{ // code to "clean up" before leaving try block
}

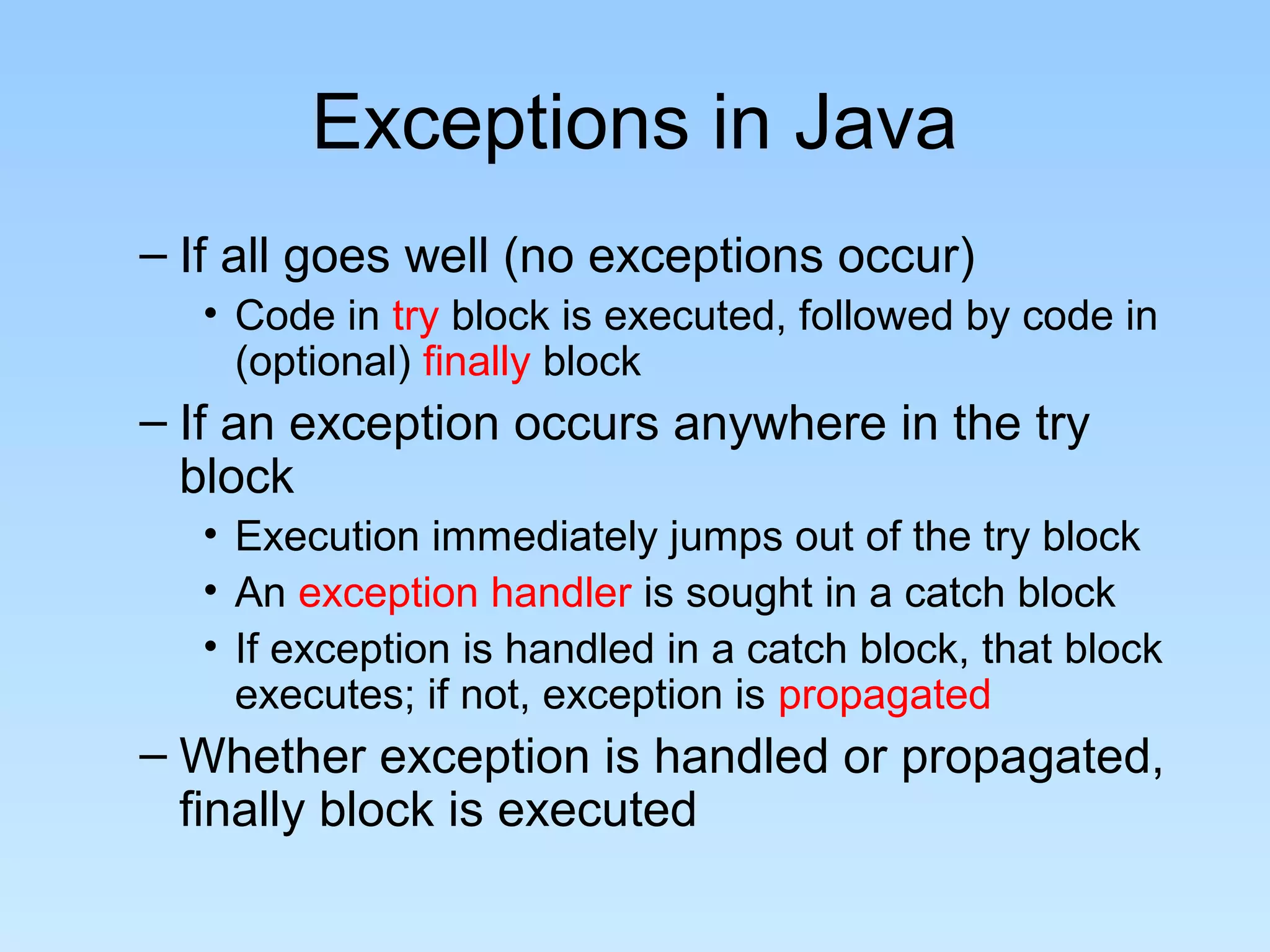

Exceptions in Java
– If all goes well (no exceptions occur)
• Code in try block is executed, followed by code in
(optional) finally block
– If an exception occurs anywhere in the try
block
• Execution immediately jumps out of the try block
• An exception handler is sought in a catch block
• If exception is handled in a catch block, that block
executes; if not, exception is propagated
– Whether exception is handled or propagated,
finally block is executed

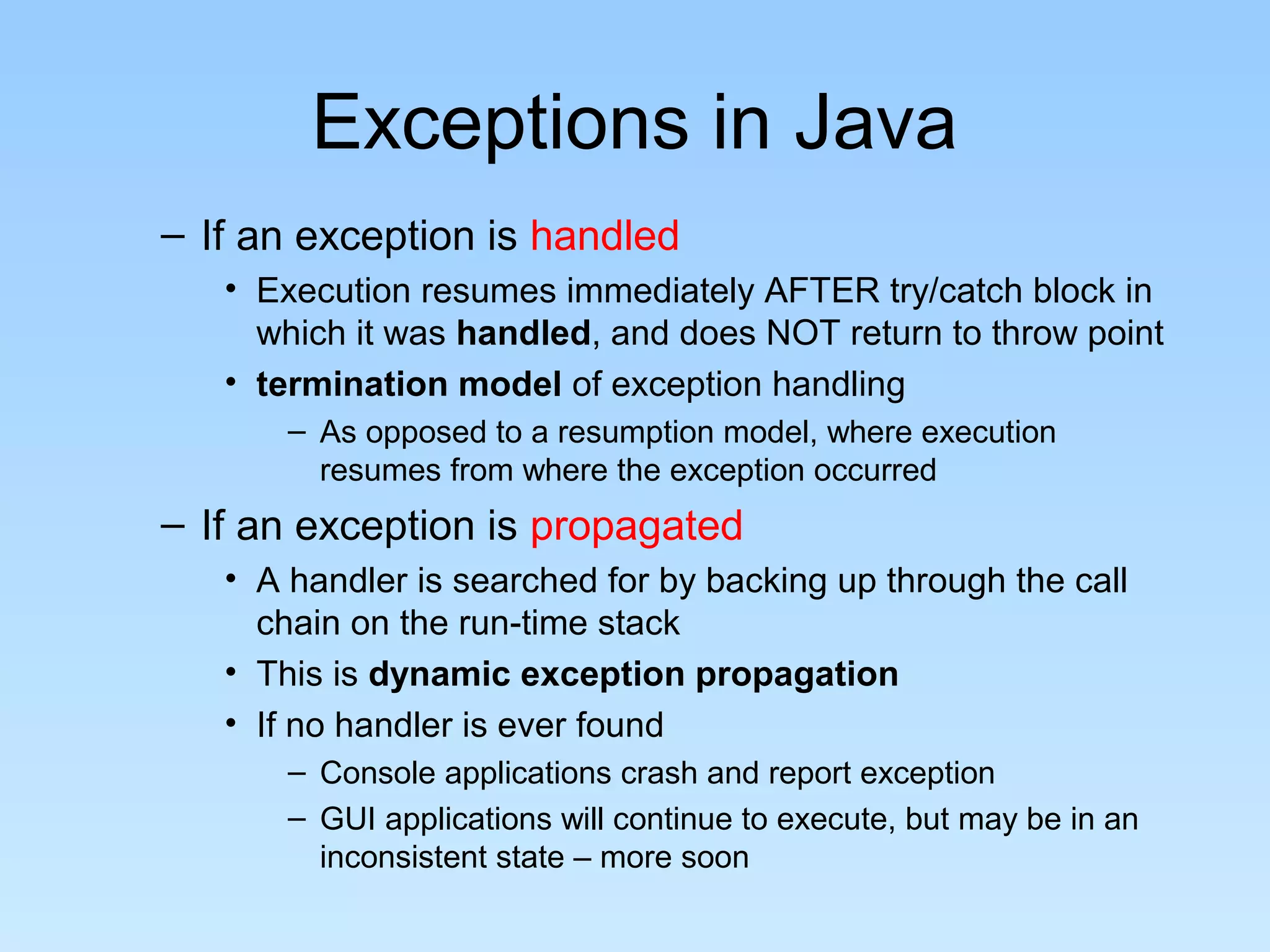

Exceptions in Java
– If an exception is handled
• Execution resumes immediately AFTER try/catch block in
which it was handled, and does NOT return to throw point
• termination model of exception handling
– As opposed to a resumption model, where execution
resumes from where the exception occurred
– If an exception is propagated
• A handler is searched for by backing up through the call
chain on the run-time stack
• This is dynamic exception propagation
• If no handler is ever found
– Console applications crash and report exception
– GUI applications will continue to execute, but may be in an
inconsistent state – more soon

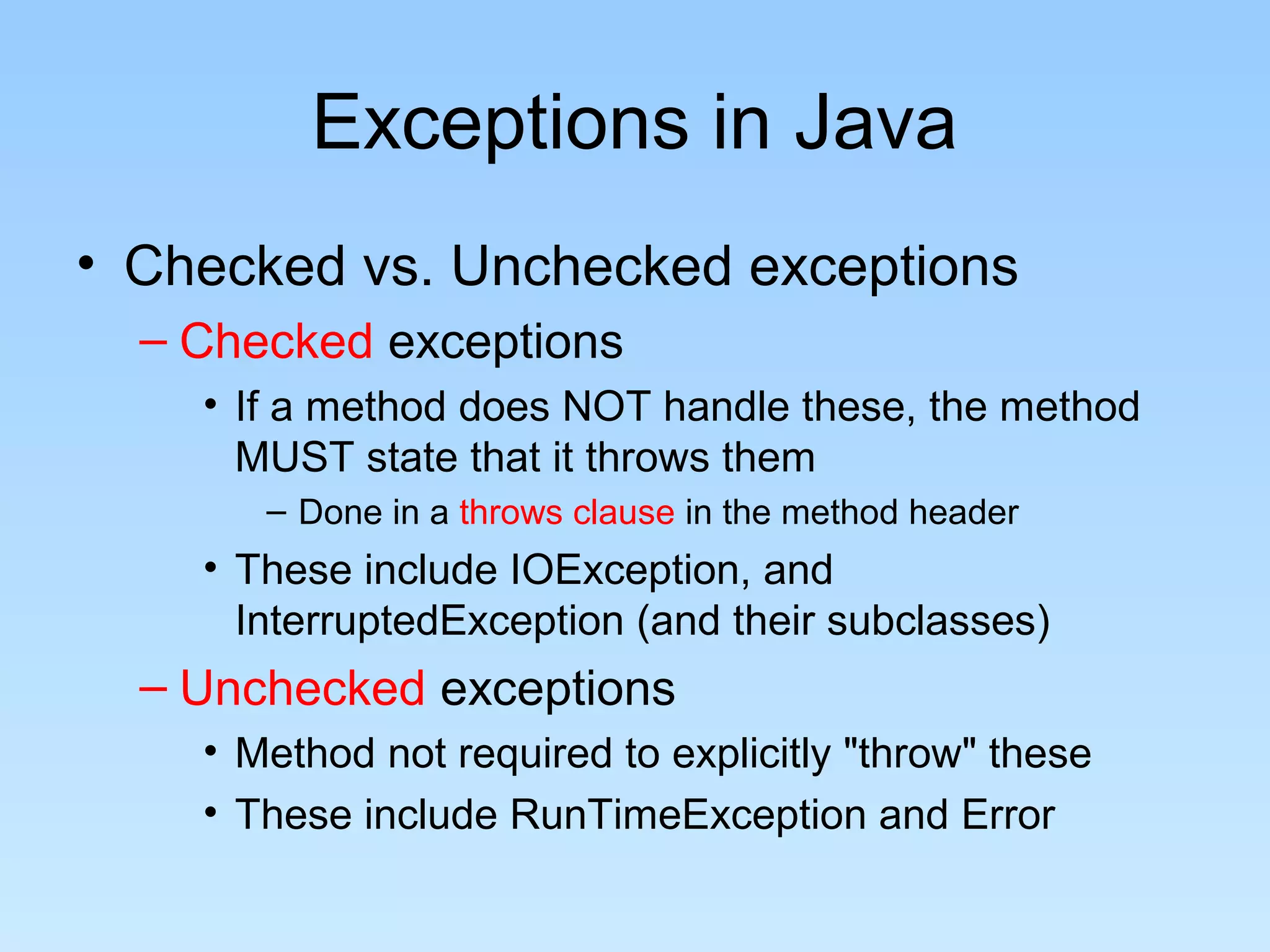

Exceptions in Java
• Checked vs. Unchecked exceptions
– Checked exceptions
• If a method does NOT handle these, the method
MUST state that it throws them
– Done in a throws clause in the method header
• These include IOException, and
InterruptedException (and their subclasses)
– Unchecked exceptions
• Method not required to explicitly "throw" these
• These include RunTimeException and Error

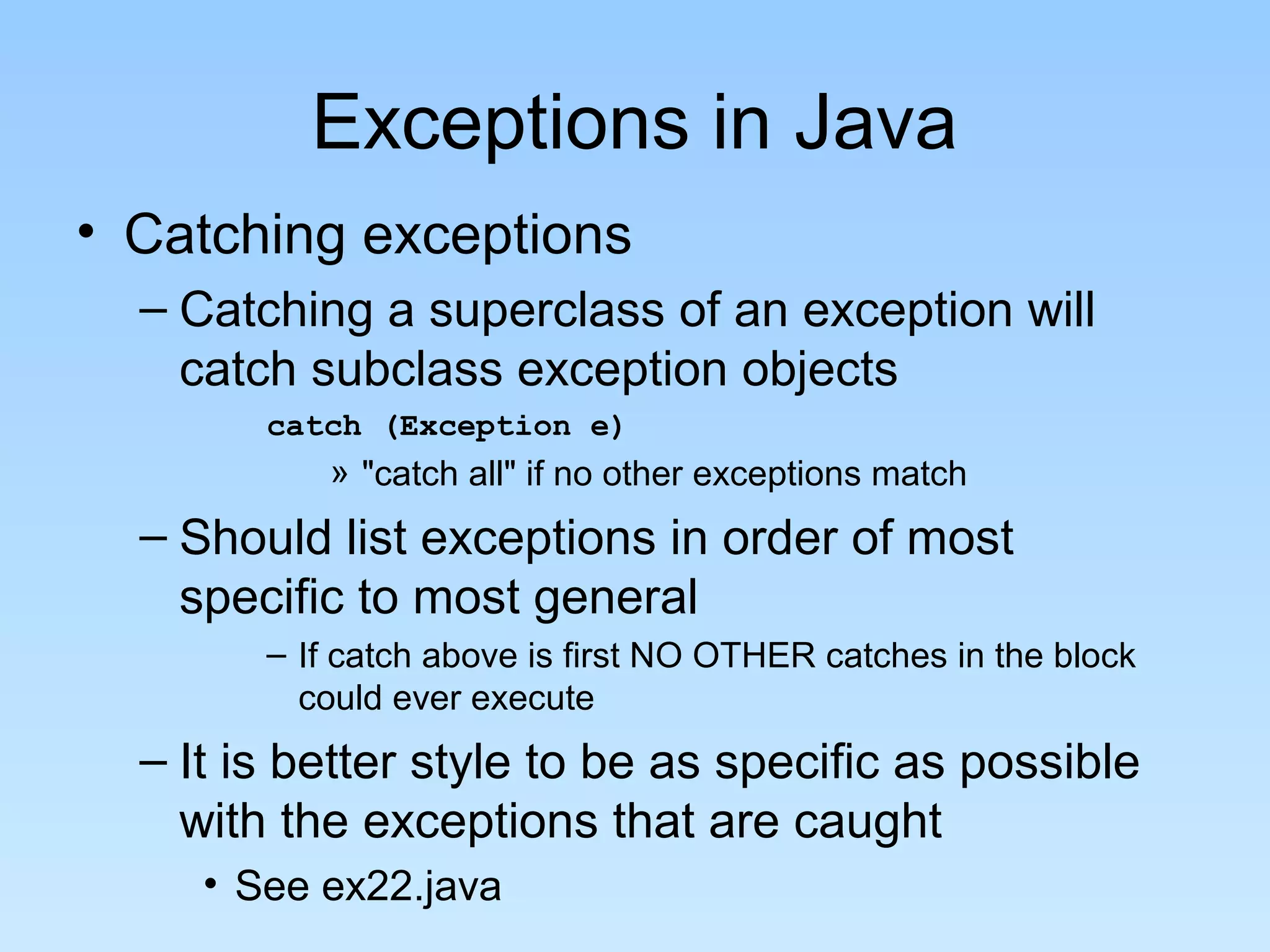

Exceptions in Java
• Catching exceptions
– Catching a superclass of an exception will
catch subclass exception objects
catch (Exception e)
» "catch all" if no other exceptions match
– Should list exceptions in order of most
specific to most general
– If catch above is first NO OTHER catches in the block
could ever execute
– It is better style to be as specific as possible
with the exceptions that are caught
• See ex22.java

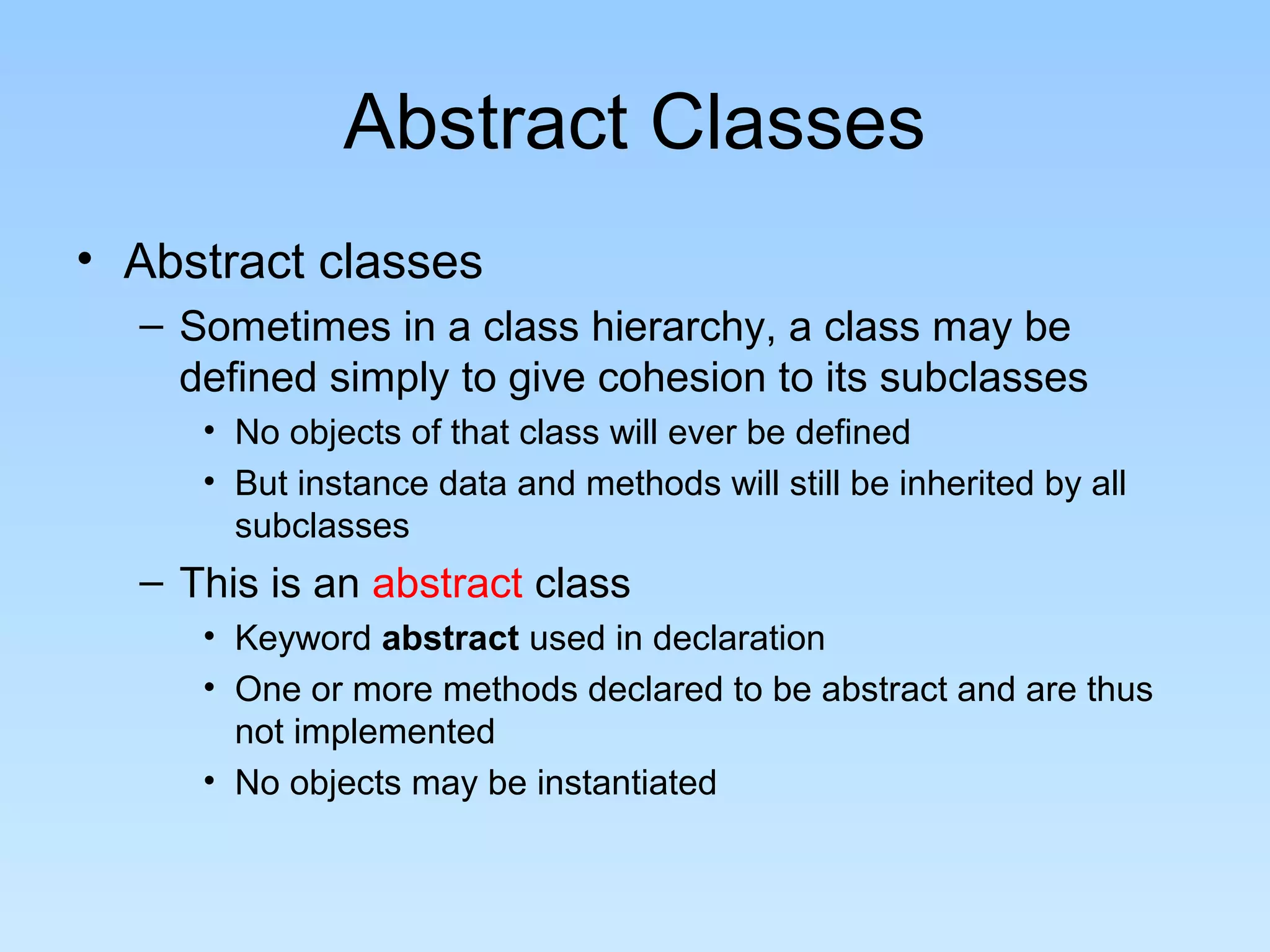

Abstract Classes
• Abstract classes
– Sometimes in a class hierarchy, a class may be
defined simply to give cohesion to its subclasses
• No objects of that class will ever be defined
• But instance data and methods will still be inherited by all
subclasses
– This is an abstract class
• Keyword abstract used in declaration
• One or more methods declared to be abstract and are thus
not implemented
• No objects may be instantiated

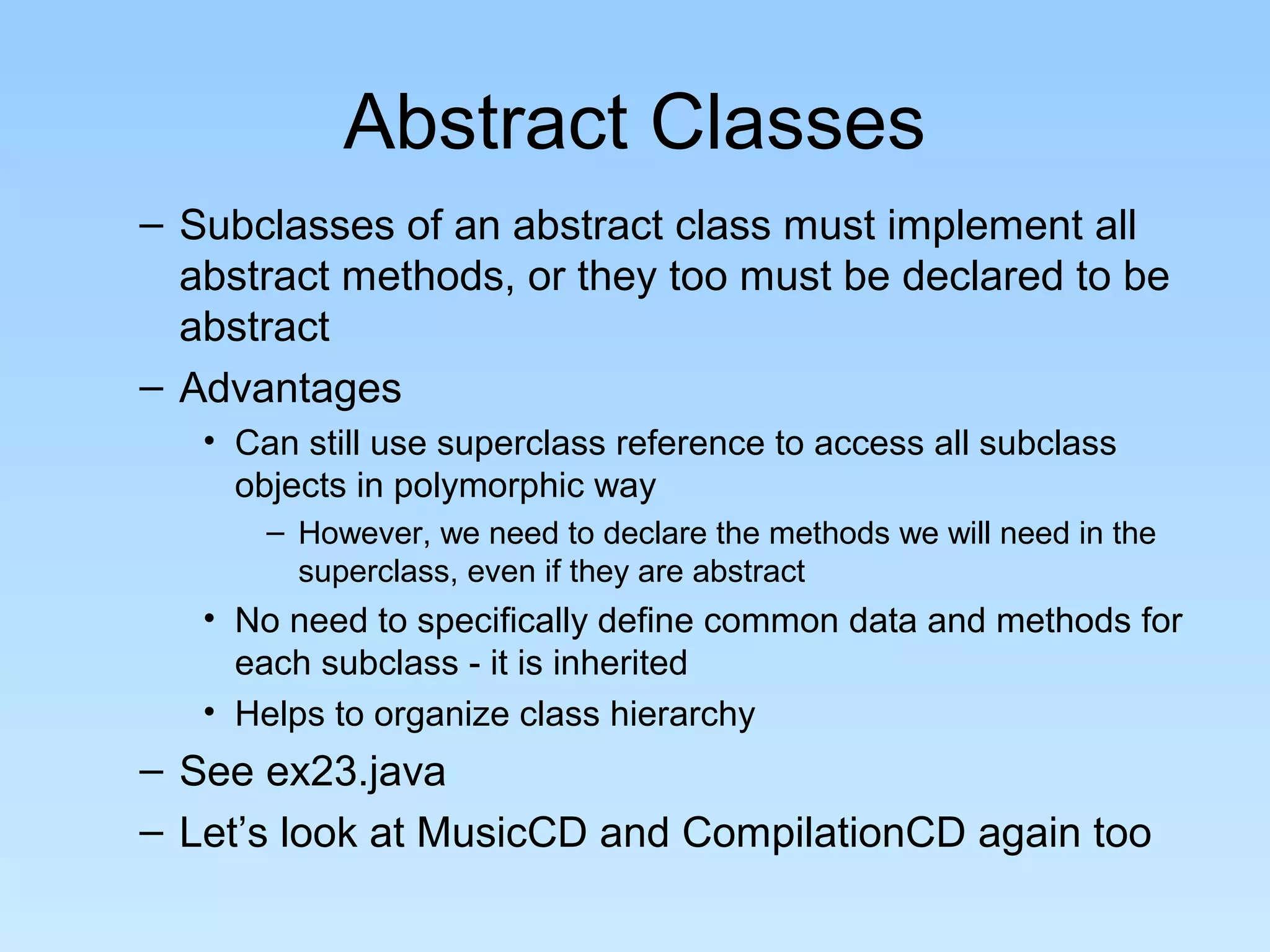

Abstract Classes
– Subclasses of an abstract class must implement all
abstract methods, or they too must be declared to be
abstract
– Advantages
• Can still use superclass reference to access all subclass
objects in polymorphic way
– However, we need to declare the methods we will need in the
superclass, even if they are abstract
• No need to specifically define common data and methods for
each subclass - it is inherited
• Helps to organize class hierarchy
– See ex23.java
– Let’s look at MusicCD and CompilationCD again too

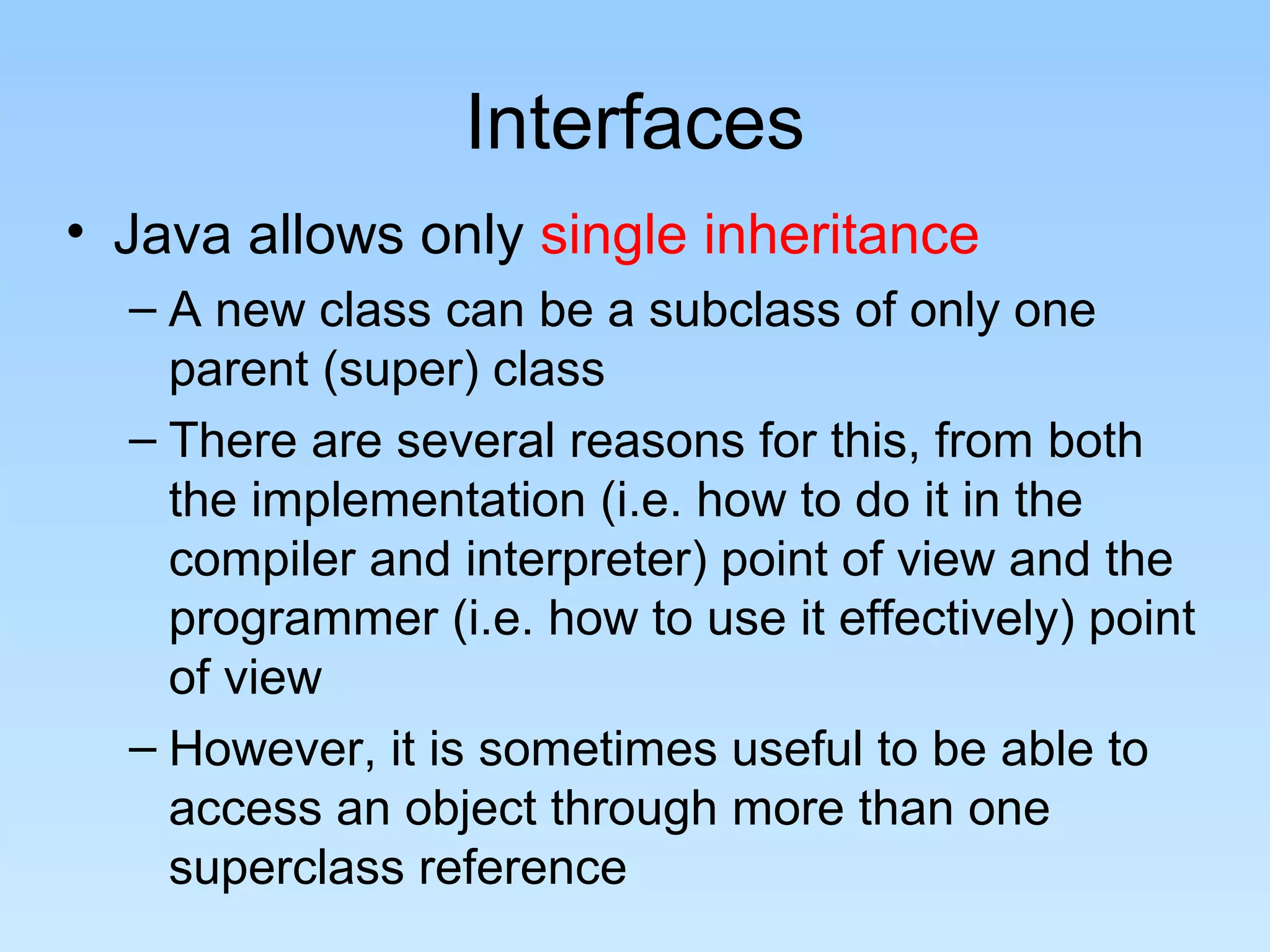

Interfaces
• Java allows only single inheritance
– A new class can be a subclass of only one
parent (super) class
– There are several reasons for this, from both
the implementation (i.e. how to do it in the
compiler and interpreter) point of view and the
programmer (i.e. how to use it effectively) point
of view
– However, it is sometimes useful to be able to
access an object through more than one
superclass reference

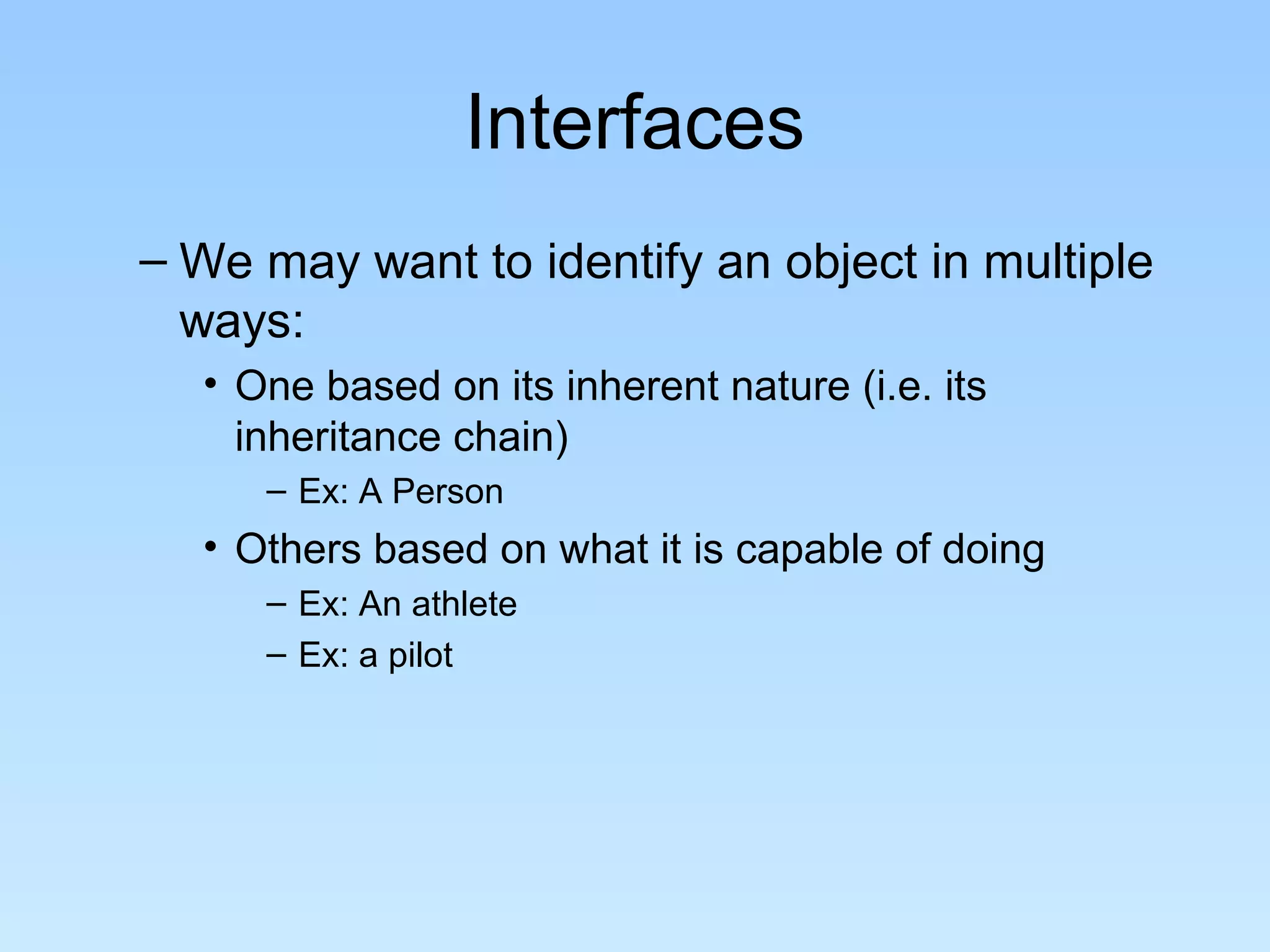

Interfaces
– We may want to identify an object in multiple
ways:
• One based on its inherent nature (i.e. its
inheritance chain)
– Ex: A Person
• Others based on what it is capable of doing
– Ex: An athlete
– Ex: a pilot

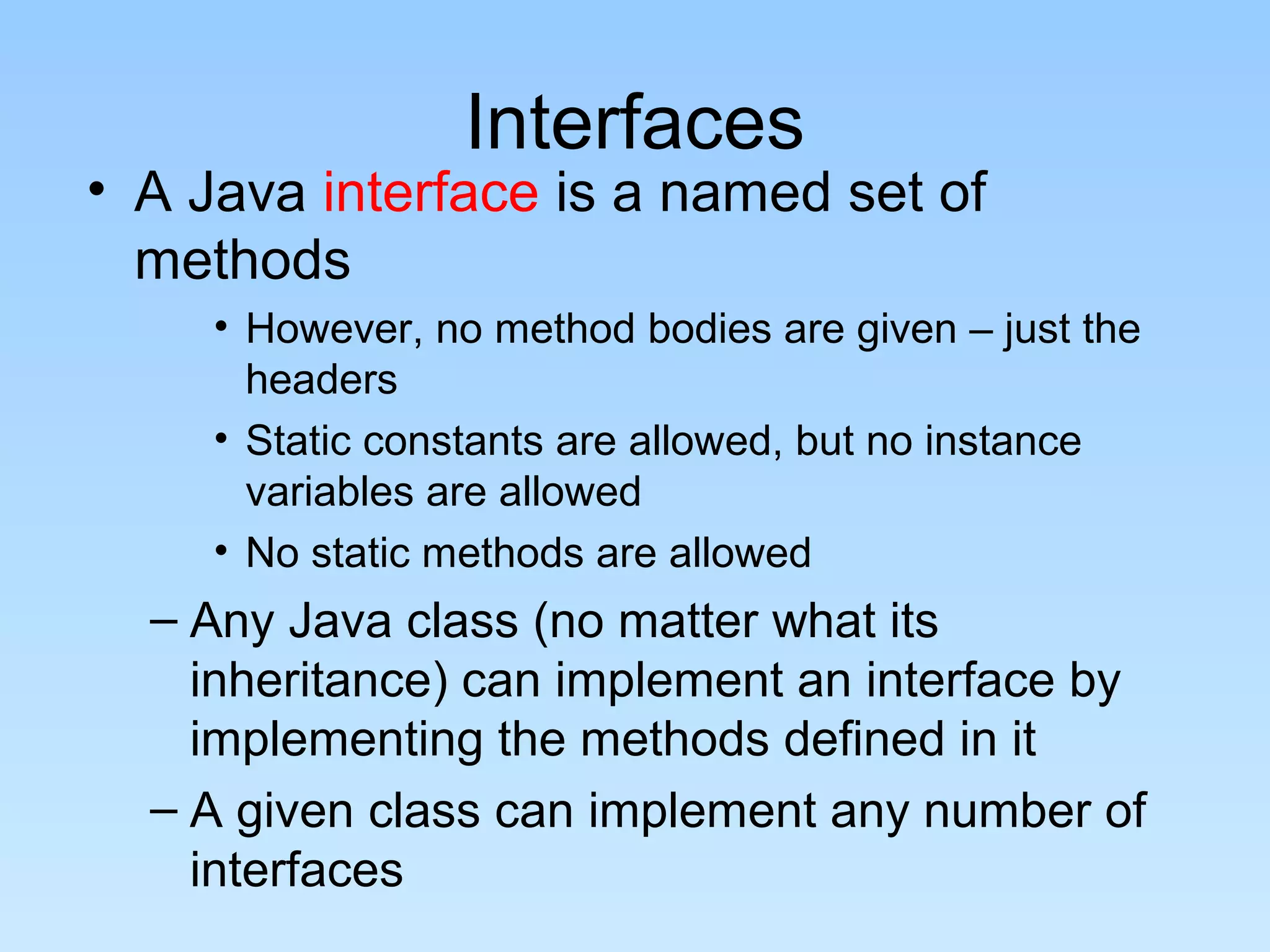

Interfaces
• A Java interface is a named set of
methods
• However, no method bodies are given – just the
headers
• Static constants are allowed, but no instance
variables are allowed
• No static methods are allowed
– Any Java class (no matter what its
inheritance) can implement an interface by
implementing the methods defined in it
– A given class can implement any number of
interfaces

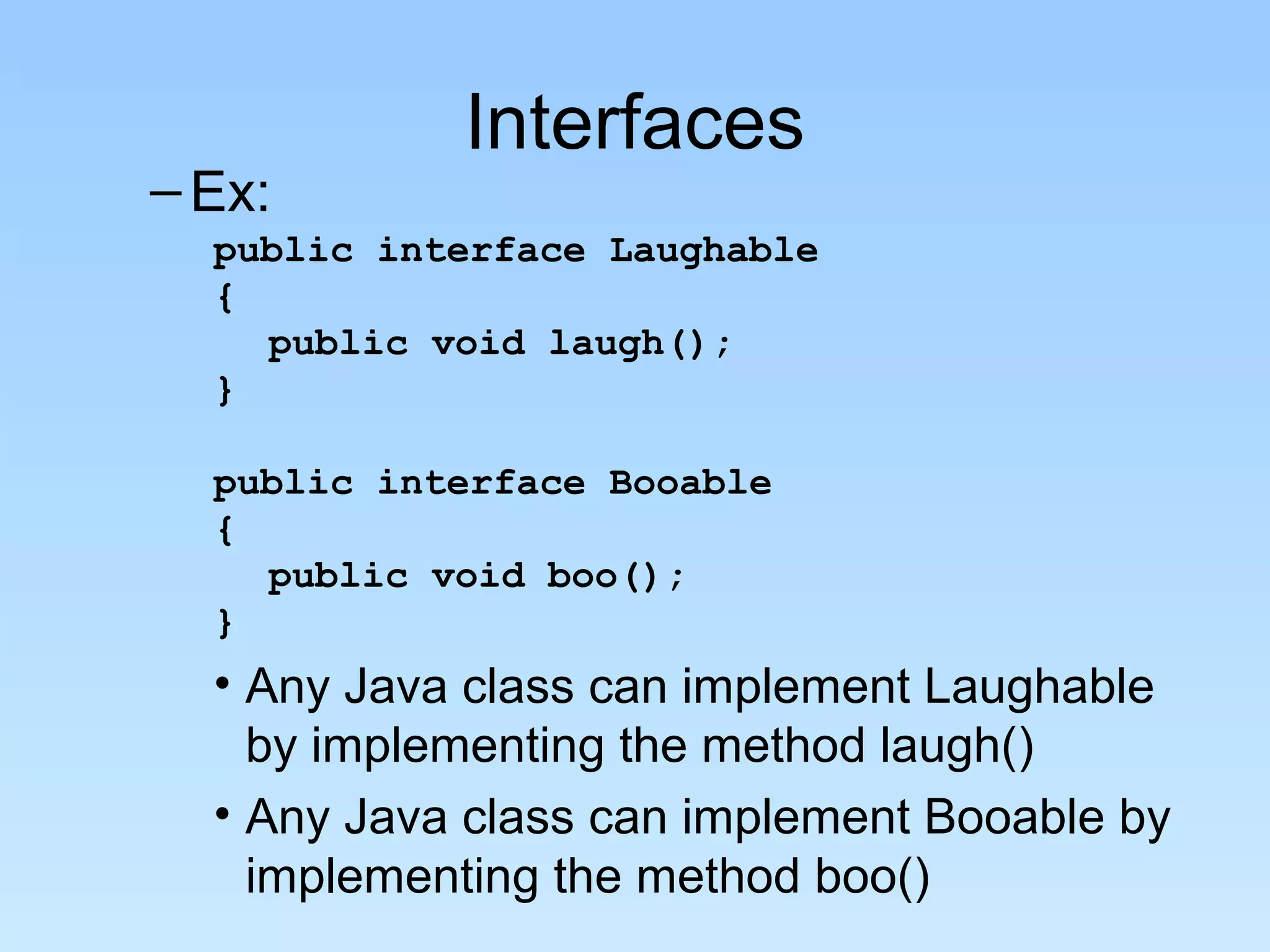

Interfaces
– Ex:
public interface Laughable
{
public void laugh();
}

public interface Booable
{
public void boo();
}
• Any Java class can implement Laughable
by implementing the method laugh()
• Any Java class can implement Booable by
implementing the method boo()

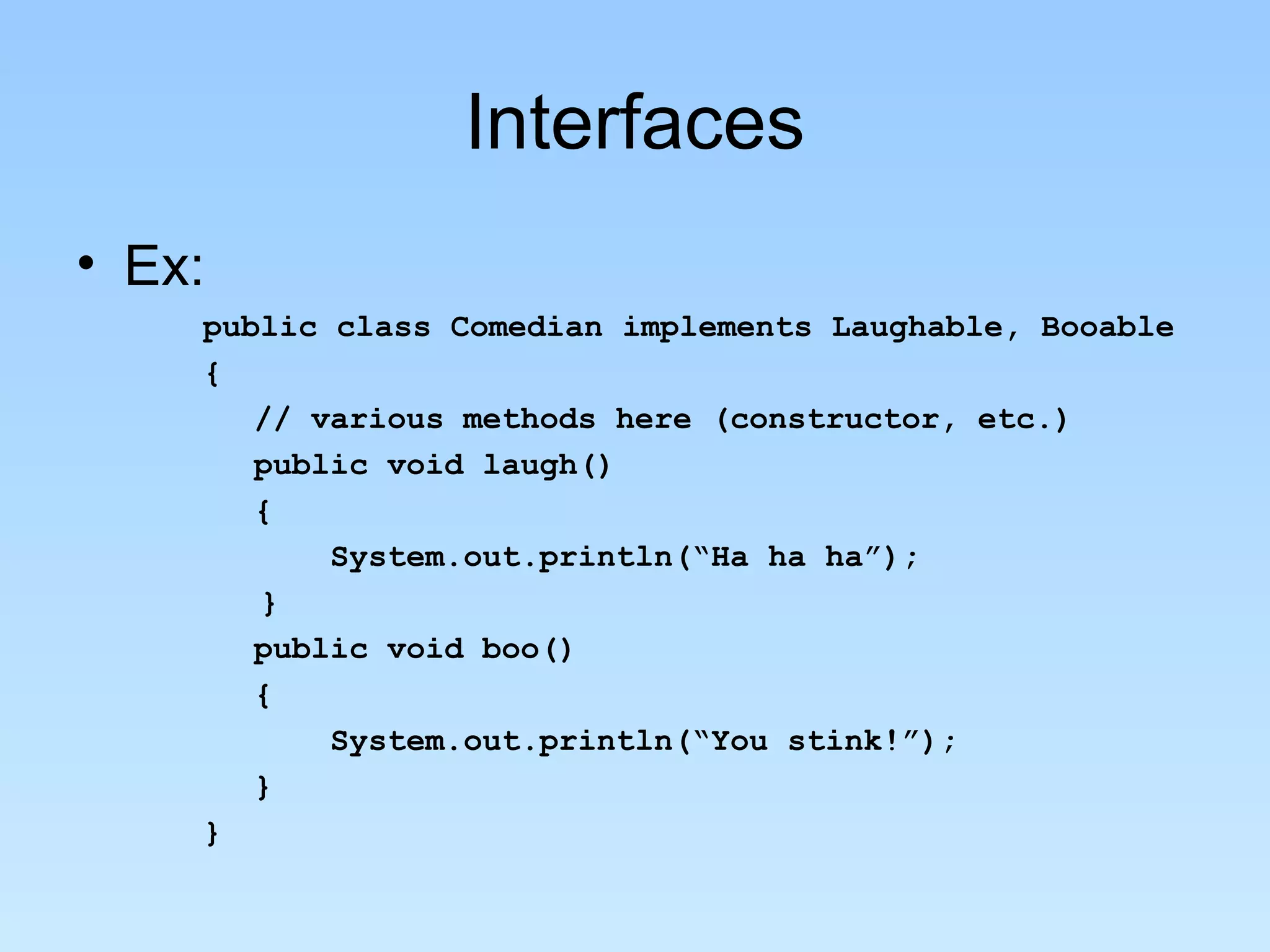

Interfaces
• Ex:
public class Comedian implements Laughable, Booable
{
// various methods here (constructor, etc.)
public void laugh()
{
System.out.println(“Ha ha ha”);
}
public void boo()
{
System.out.println(“You stink!”);
}
}

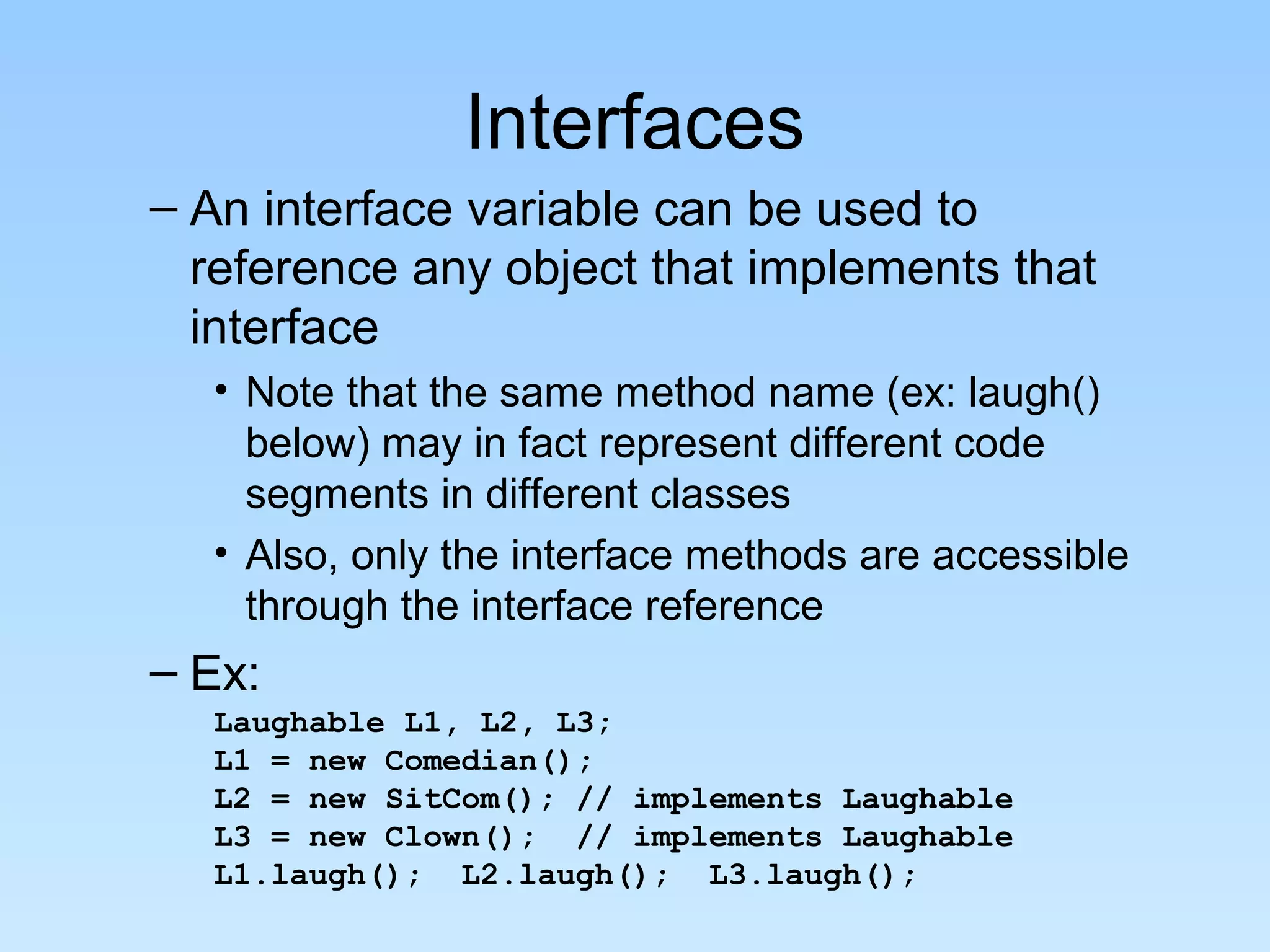

Interfaces
– An interface variable can be used to
reference any object that implements that
interface
• Note that the same method name (ex: laugh()
below) may in fact represent different code
segments in different classes
• Also, only the interface methods are accessible
through the interface reference
– Ex:
Laughable L1, L2, L3;
L1 = new Comedian();
L2 = new SitCom(); // implements Laughable
L3 = new Clown(); // implements Laughable
L1.laugh(); L2.laugh(); L3.laugh();

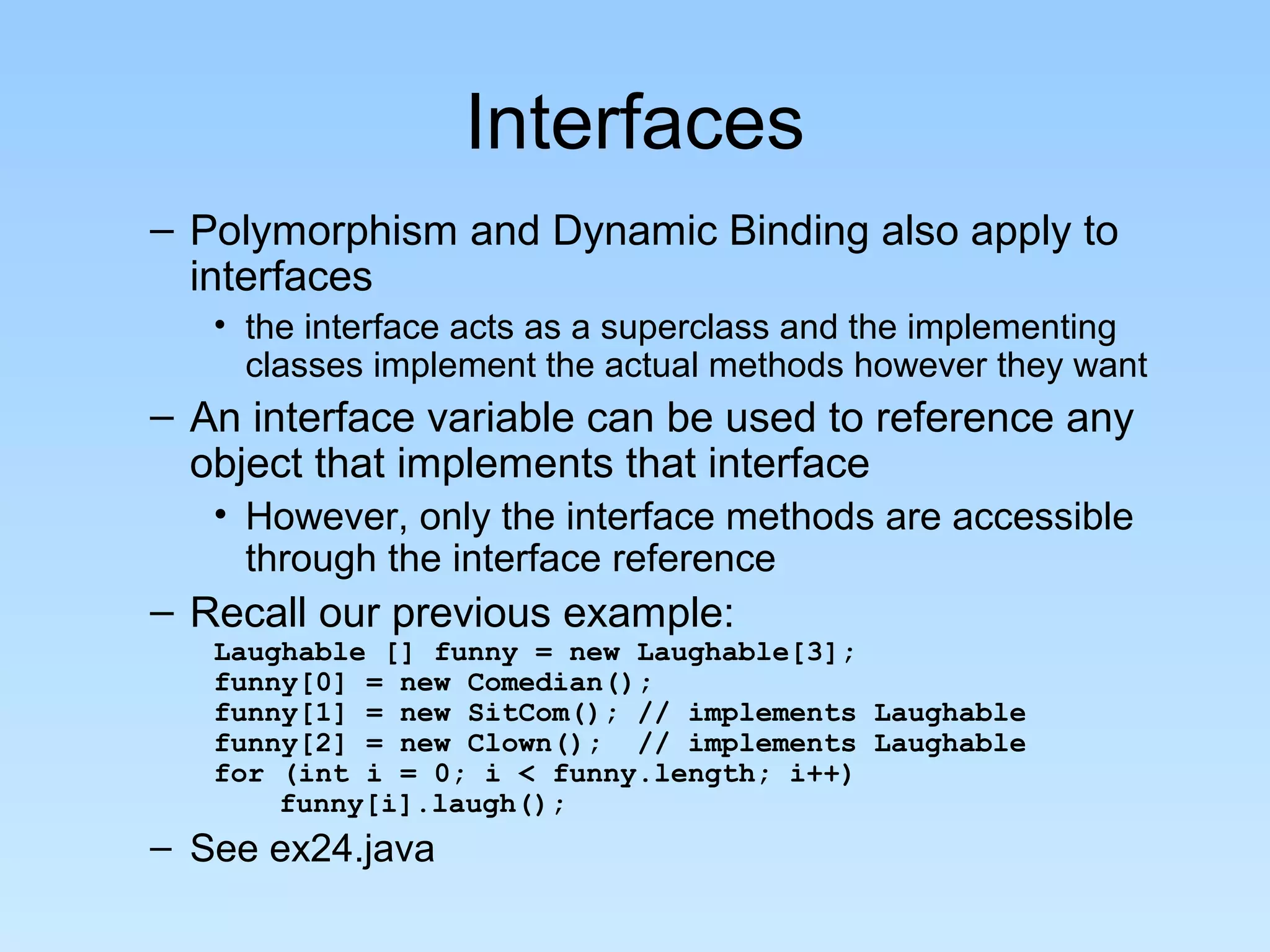

Interfaces
– Polymorphism and Dynamic Binding also apply to
interfaces
• the interface acts as a superclass and the implementing
classes implement the actual methods however they want
– An interface variable can be used to reference any
object that implements that interface
• However, only the interface methods are accessible
through the interface reference
– Recall our previous example:
Laughable [] funny = new Laughable[3];
funny[0] = new Comedian();
funny[1] = new SitCom(); // implements Laughable
funny[2] = new Clown(); // implements Laughable
for (int i = 0; i < funny.length; i++)
funny[i].laugh();
– See ex24.java

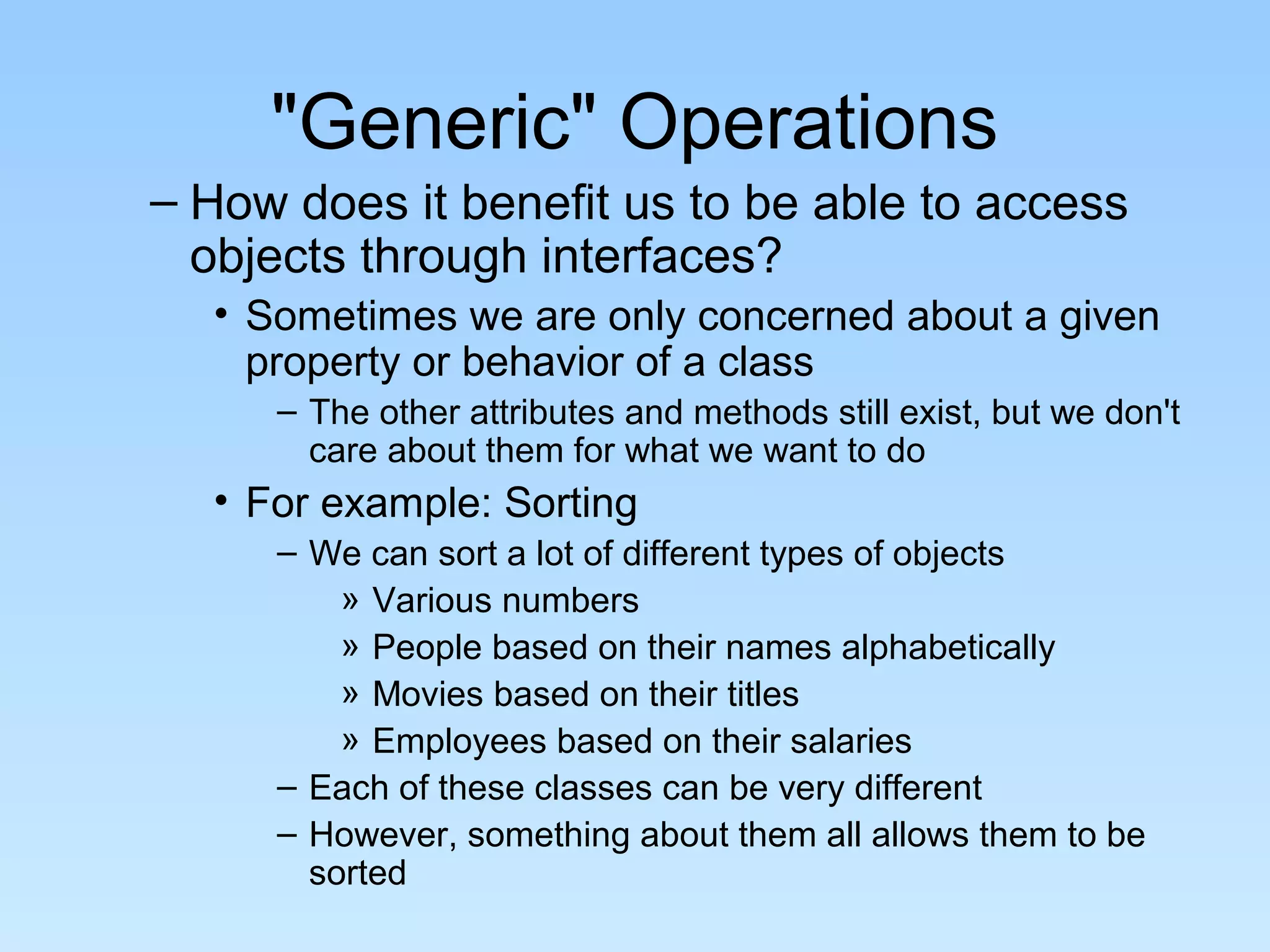

"Generic" Operations
– How does it benefit us to be able to access
objects through interfaces?
• Sometimes we are only concerned about a given
property or behavior of a class
– The other attributes and methods still exist, but we don't
care about them for what we want to do
• For example: Sorting
– We can sort a lot of different types of objects
» Various numbers
» People based on their names alphabetically
» Movies based on their titles
» Employees based on their salaries
– Each of these classes can be very different
– However, something about them all allows them to be
sorted

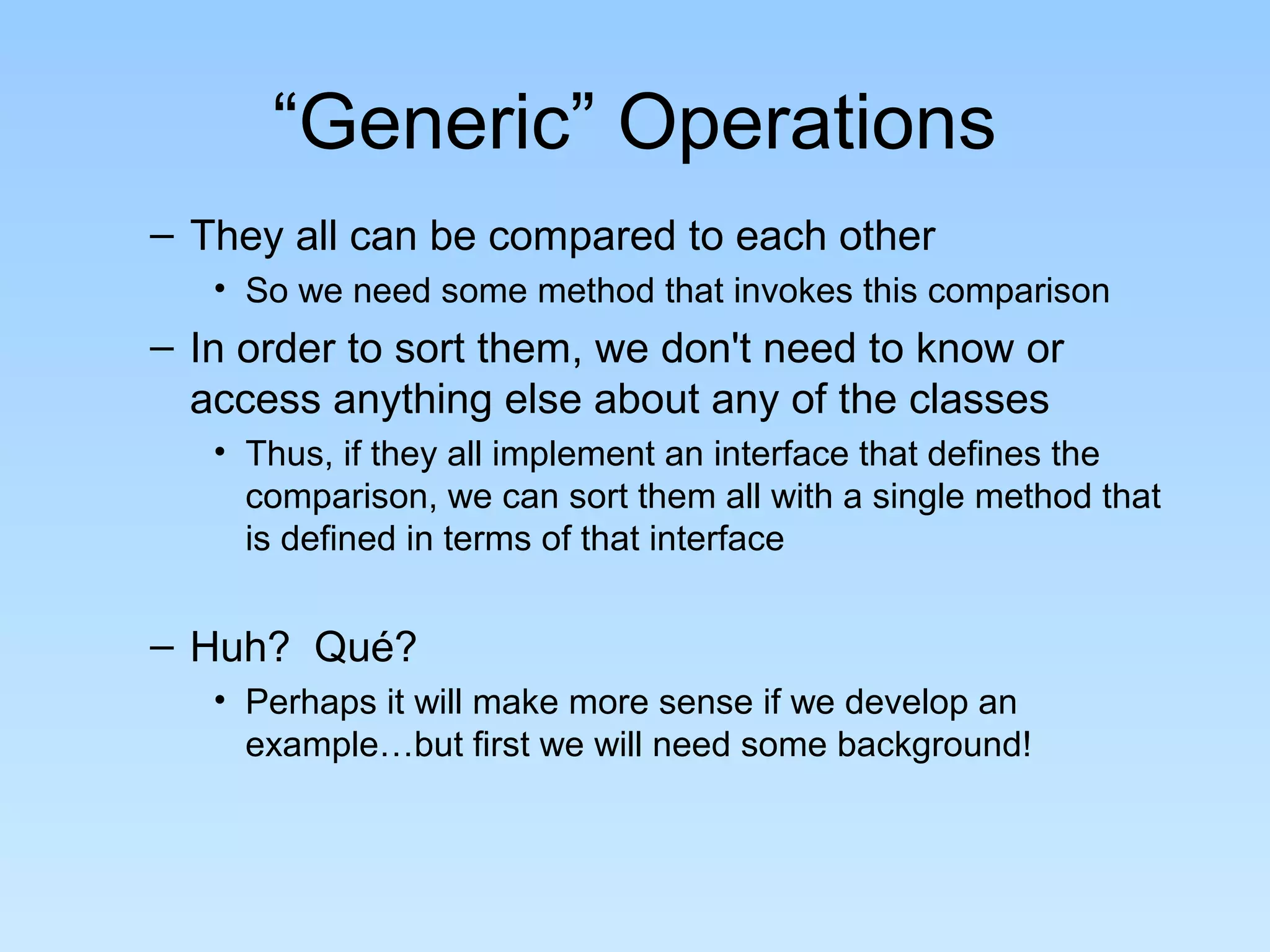

“Generic” Operations
– They all can be compared to each other
• So we need some method that invokes this comparison
– In order to sort them, we don't need to know or
access anything else about any of the classes
• Thus, if they all implement an interface that defines the
comparison, we can sort them all with a single method that
is defined in terms of that interface

– Huh? Qué?
• Perhaps it will make more sense if we develop an
example…but first we will need some background!

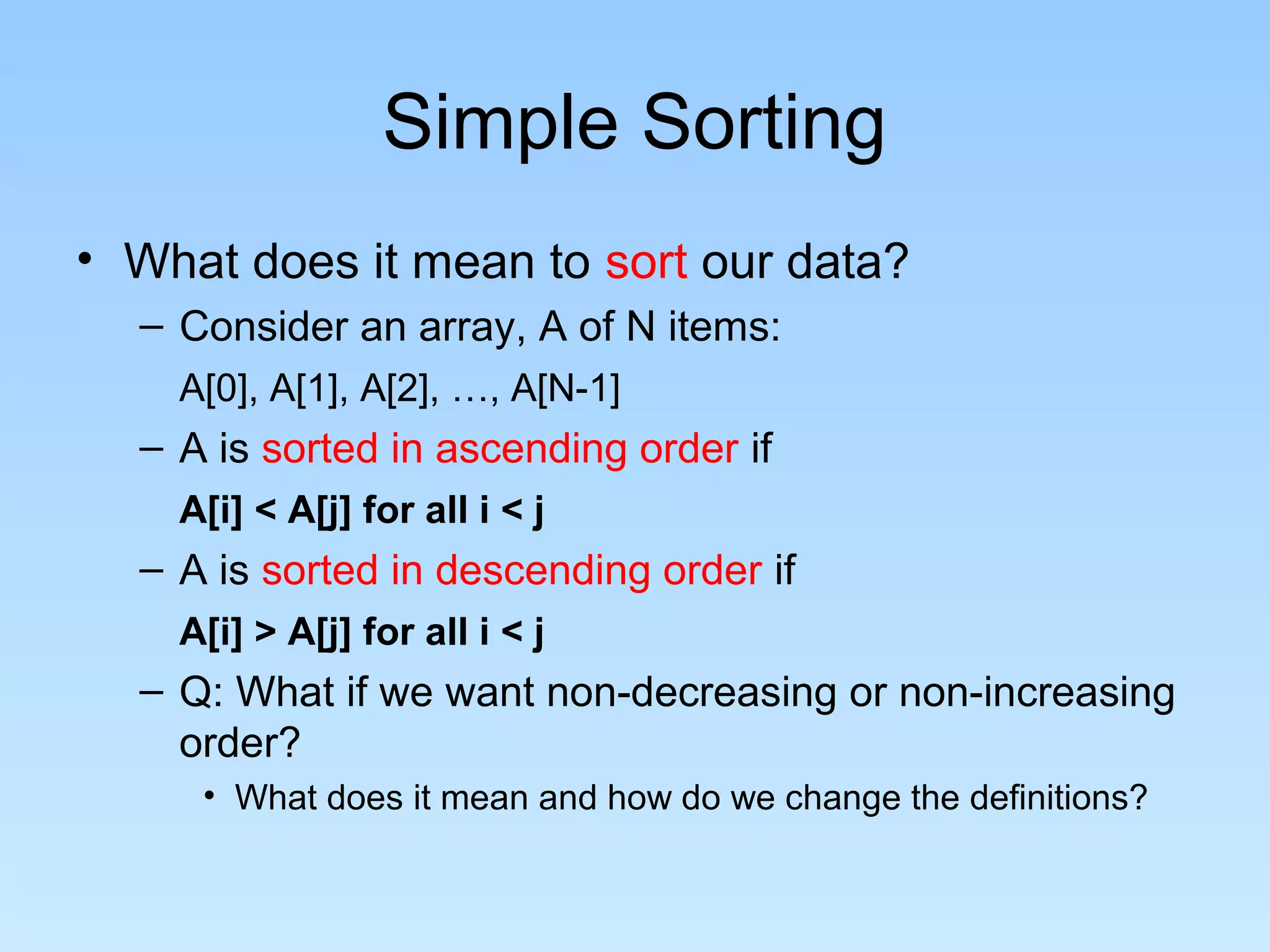

Simple Sorting
• What does it mean to sort our data?
– Consider an array, A of N items:
A[0], A[1], A[2], …, A[N-1]
– A is sorted in ascending order if
A[i] < A[j] for all i < j
– A is sorted in descending order if
A[i] > A[j] for all i < j
– Q: What if we want non-decreasing or non-increasing
order?
• What does it mean and how do we change the definitions?

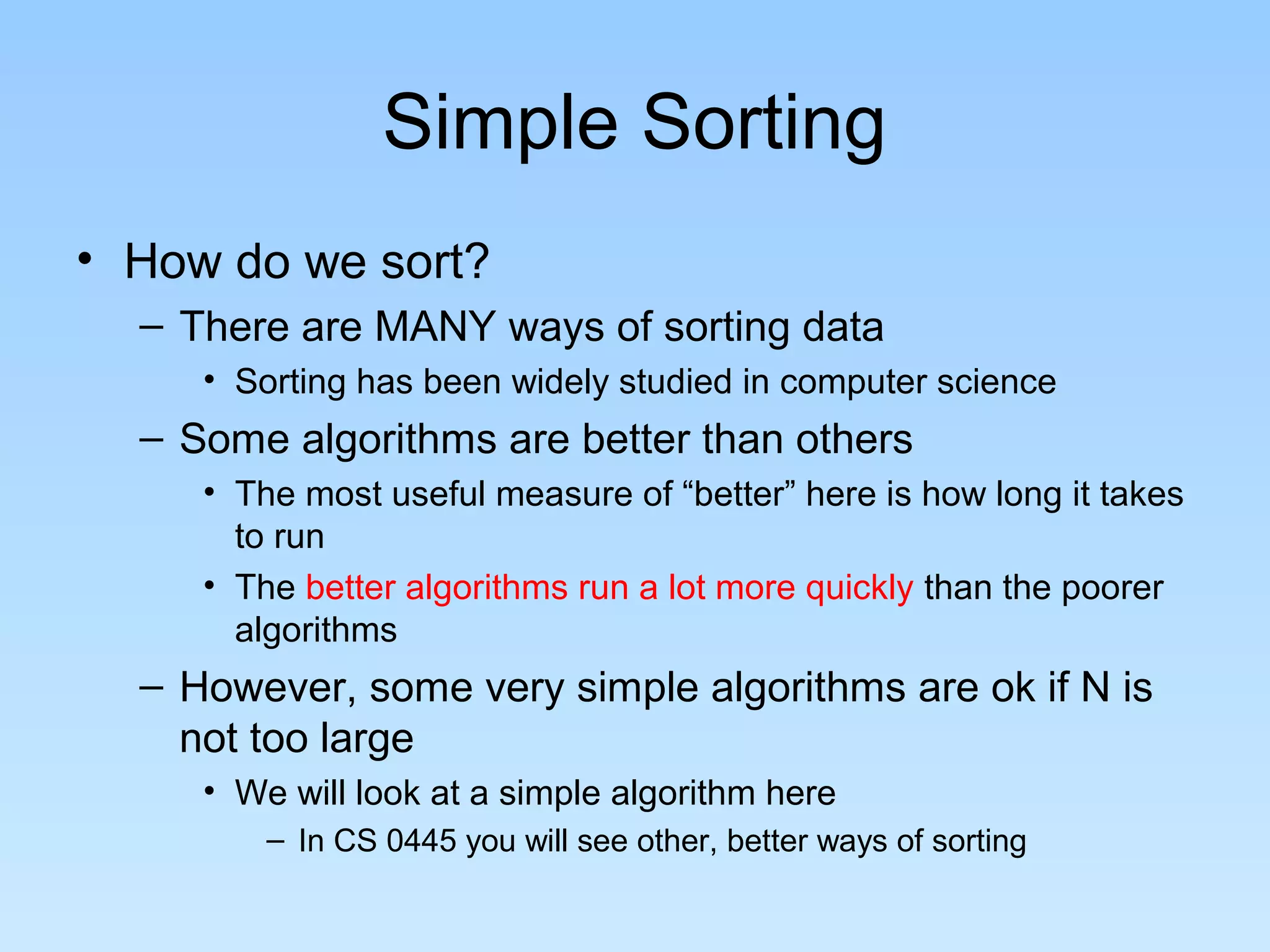

Simple Sorting
• How do we sort?
– There are MANY ways of sorting data
• Sorting has been widely studied in computer science
– Some algorithms are better than others
• The most useful measure of “better” here is how long it takes
to run
• The better algorithms run a lot more quickly than the poorer
algorithms
– However, some very simple algorithms are ok if N is
not too large
• We will look at a simple algorithm here
– In CS 0445 you will see other, better ways of sorting

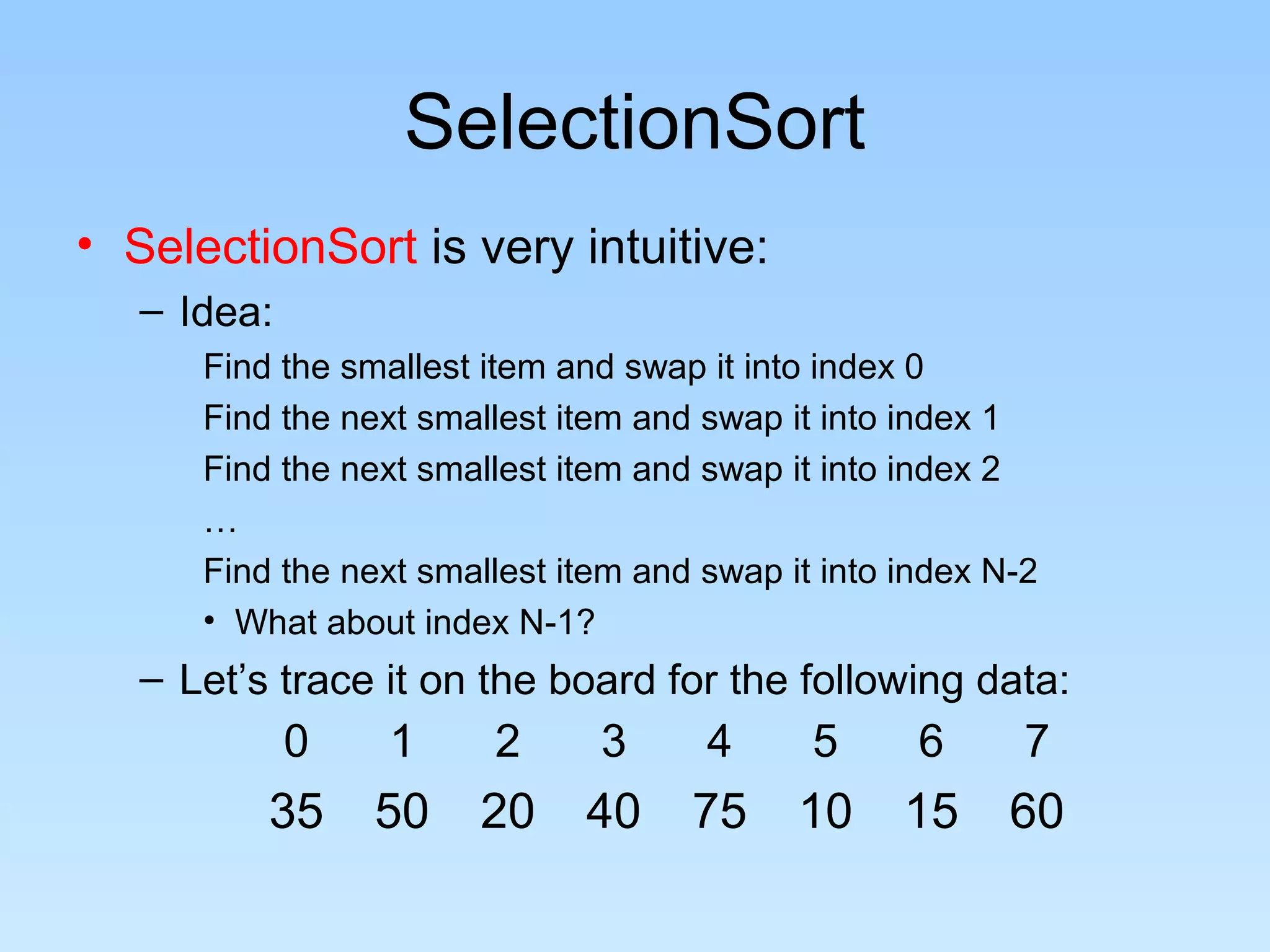

SelectionSort
• SelectionSort is very intuitive:
– Idea:
Find the smallest item and swap it into index 0
Find the next smallest item and swap it into index 1
Find the next smallest item and swap it into index 2
…
Find the next smallest item and swap it into index N-2
• What about index N-1?
– Let’s trace it on the board for the following data:
0 1 2 3 4 5 6 7
35 50 20 40 75 10 15 60

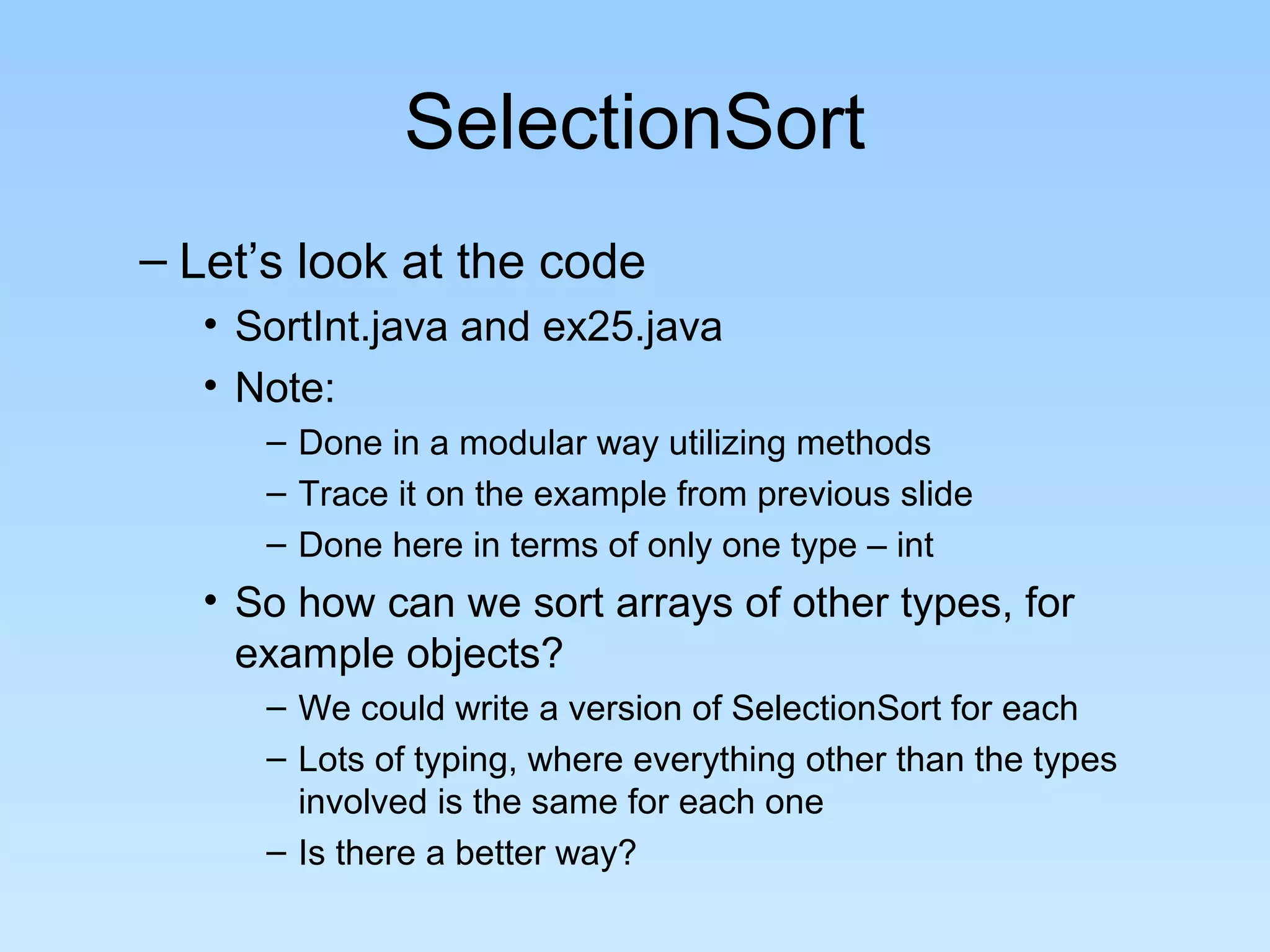

SelectionSort
– Let’s look at the code
• SortInt.java and ex25.java
• Note:
– Done in a modular way utilizing methods
– Trace it on the example from previous slide
– Done here in terms of only one type – int
• So how can we sort arrays of other types, for
example objects?
– We could write a version of SelectionSort for each
– Lots of typing, where everything other than the types
involved is the same for each one
– Is there a better way?

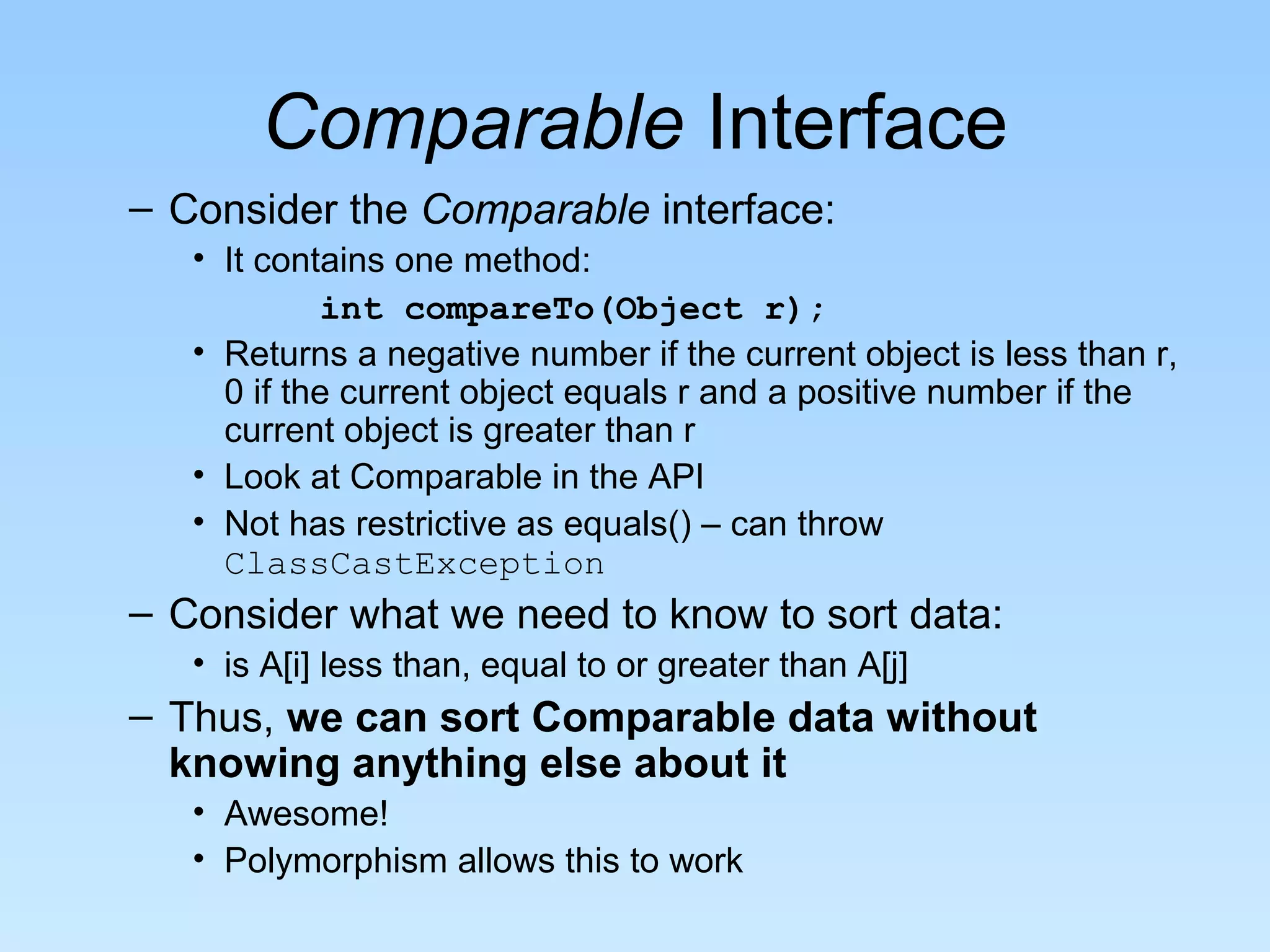

Comparable Interface
– Consider the Comparable interface:
• It contains one method:
int compareTo(Object r);
• Returns a negative number if the current object is less than r,
0 if the current object equals r and a positive number if the
current object is greater than r
• Look at Comparable in the API
• Not has restrictive as equals() – can throw
ClassCastException
– Consider what we need to know to sort data:
• is A[i] less than, equal to or greater than A[j]
– Thus, we can sort Comparable data without
knowing anything else about it
• Awesome!
• Polymorphism allows this to work

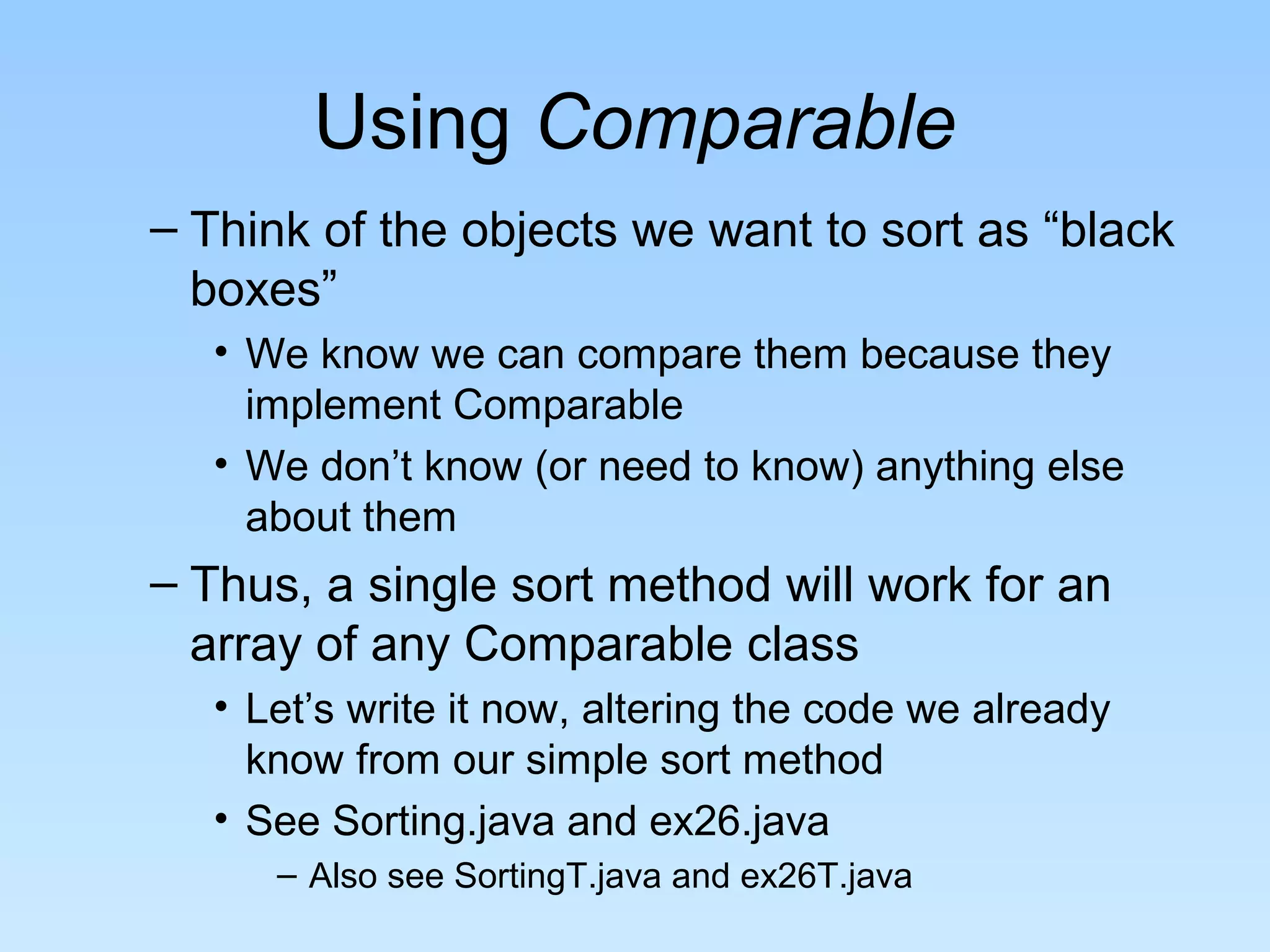

Using Comparable
– Think of the objects we want to sort as “black
boxes”
• We know we can compare them because they
implement Comparable
• We don’t know (or need to know) anything else
about them
– Thus, a single sort method will work for an
array of any Comparable class
• Let’s write it now, altering the code we already
know from our simple sort method
• See Sorting.java and ex26.java
– Also see SortingT.java and ex26T.java

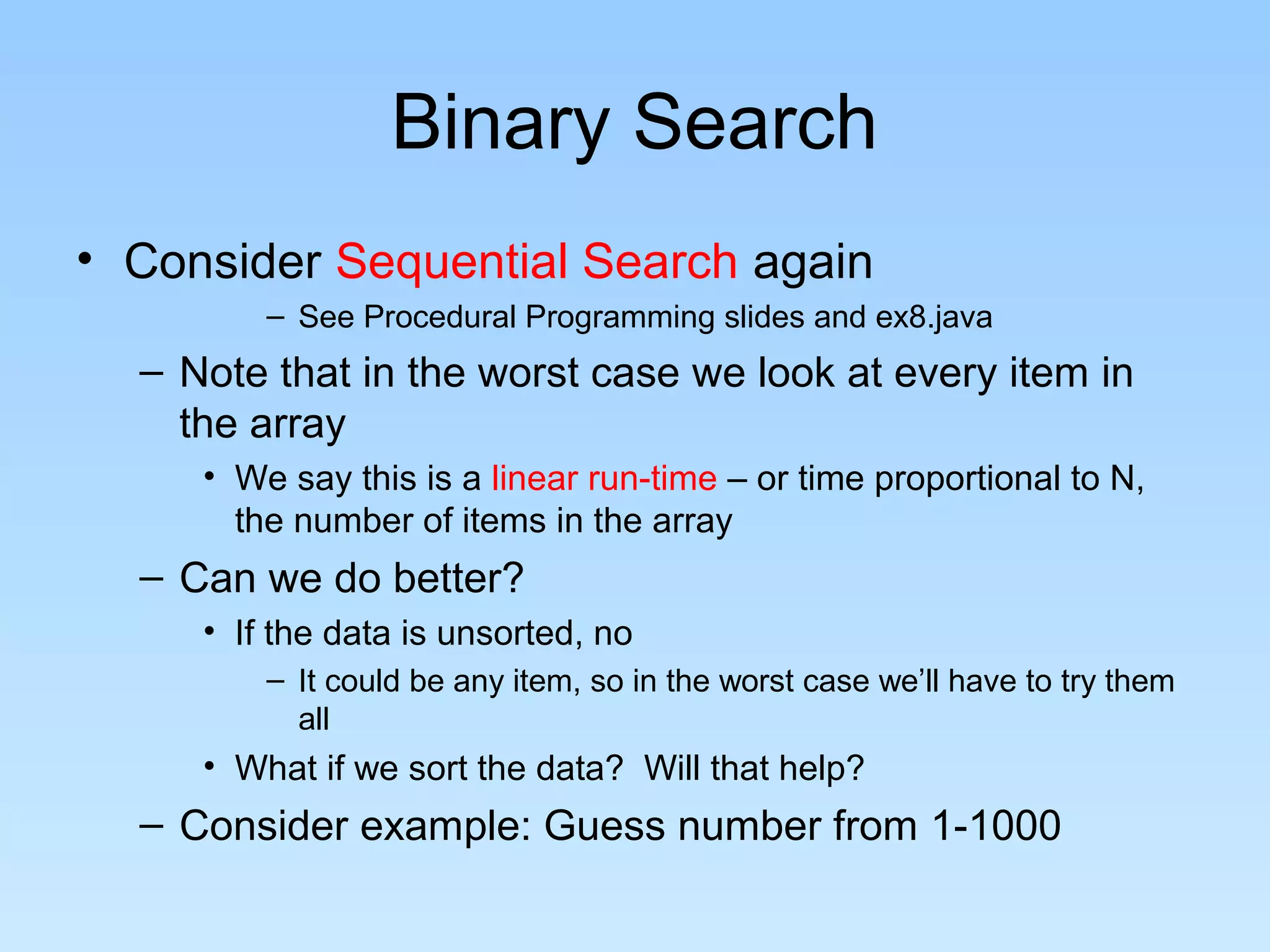

Binary Search
• Consider Sequential Search again
– See Procedural Programming slides and ex8.java
– Note that in the worst case we look at every item in
the array
• We say this is a linear run-time – or time proportional to N,
the number of items in the array
– Can we do better?
• If the data is unsorted, no
– It could be any item, so in the worst case we’ll have to try them
all
• What if we sort the data? Will that help?
– Consider example: Guess number from 1-1000

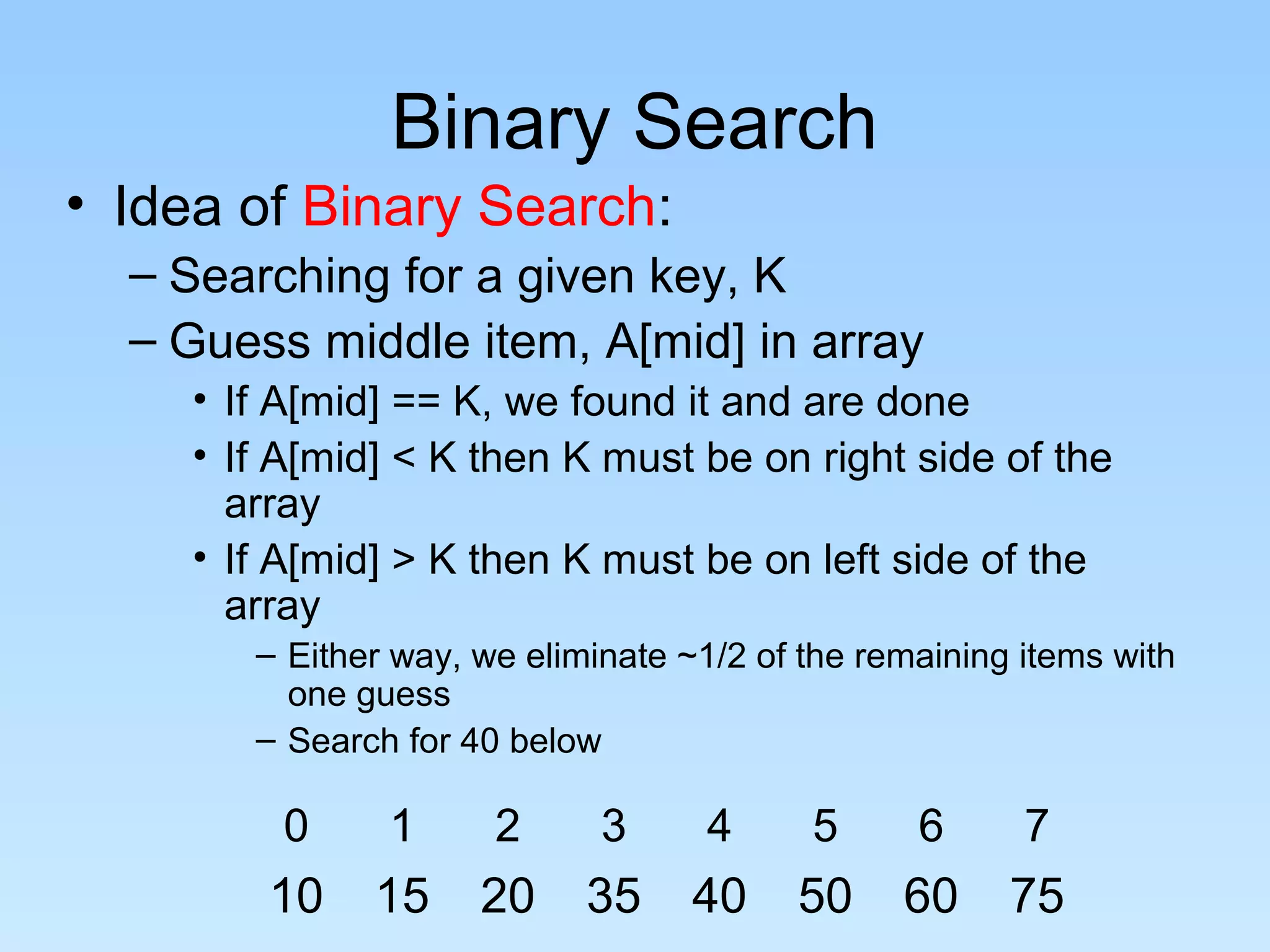

Binary Search
• Idea of Binary Search:
– Searching for a given key, K
– Guess middle item, A[mid] in array
• If A[mid] == K, we found it and are done
• If A[mid] < K then K must be on right side of the
array
• If A[mid] > K then K must be on left side of the
array
– Either way, we eliminate ~1/2 of the remaining items with
one guess
– Search for 40 below

0 1 2 3 4 5 6 7
10 15 20 35 40 50 60 75

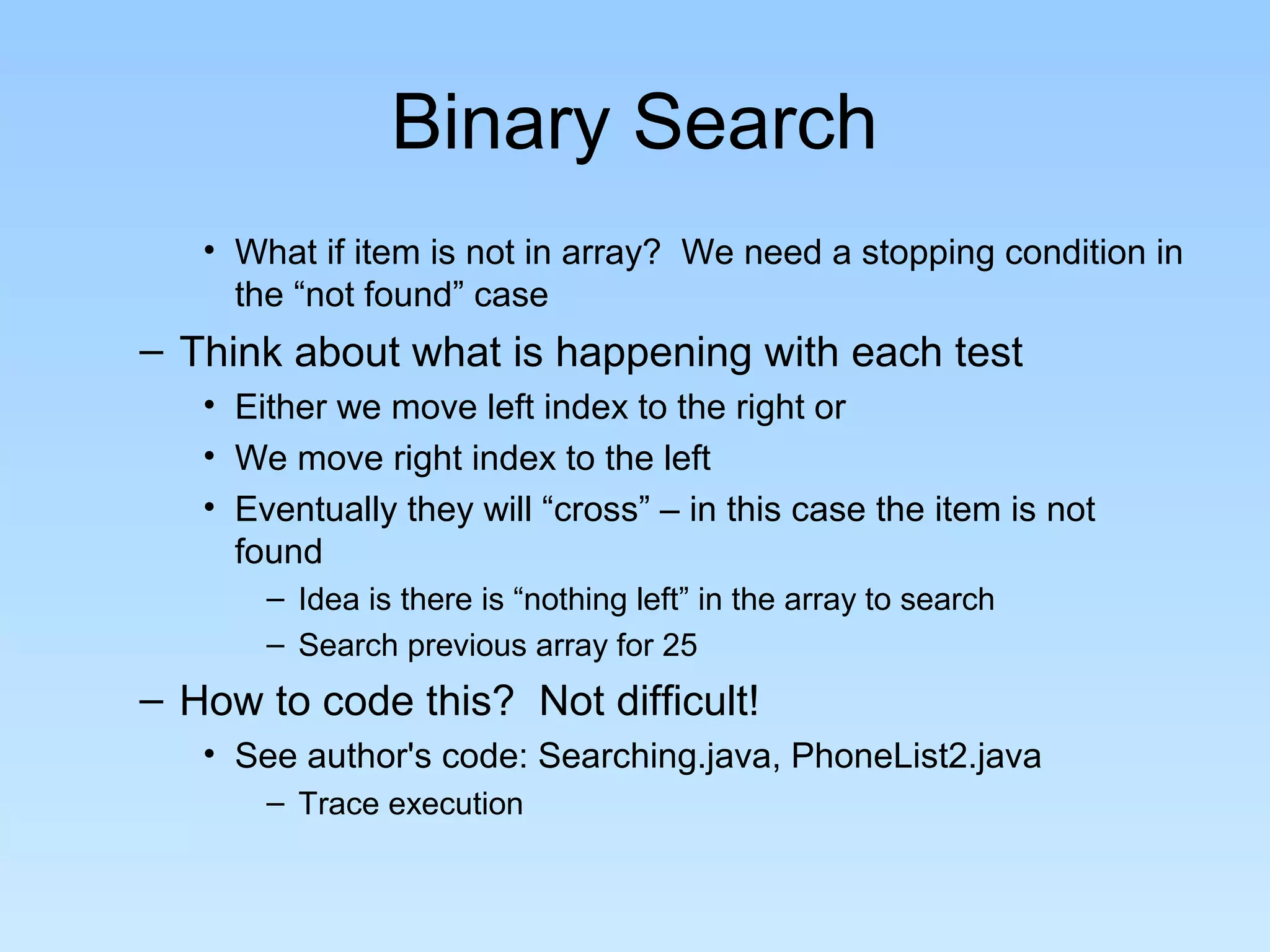

Binary Search
• What if item is not in array? We need a stopping condition in
the “not found” case
– Think about what is happening with each test
• Either we move left index to the right or
• We move right index to the left
• Eventually they will “cross” – in this case the item is not
found
– Idea is there is “nothing left” in the array to search
– Search previous array for 25
– How to code this? Not difficult!
• See author's code: Searching.java, PhoneList2.java
– Trace execution

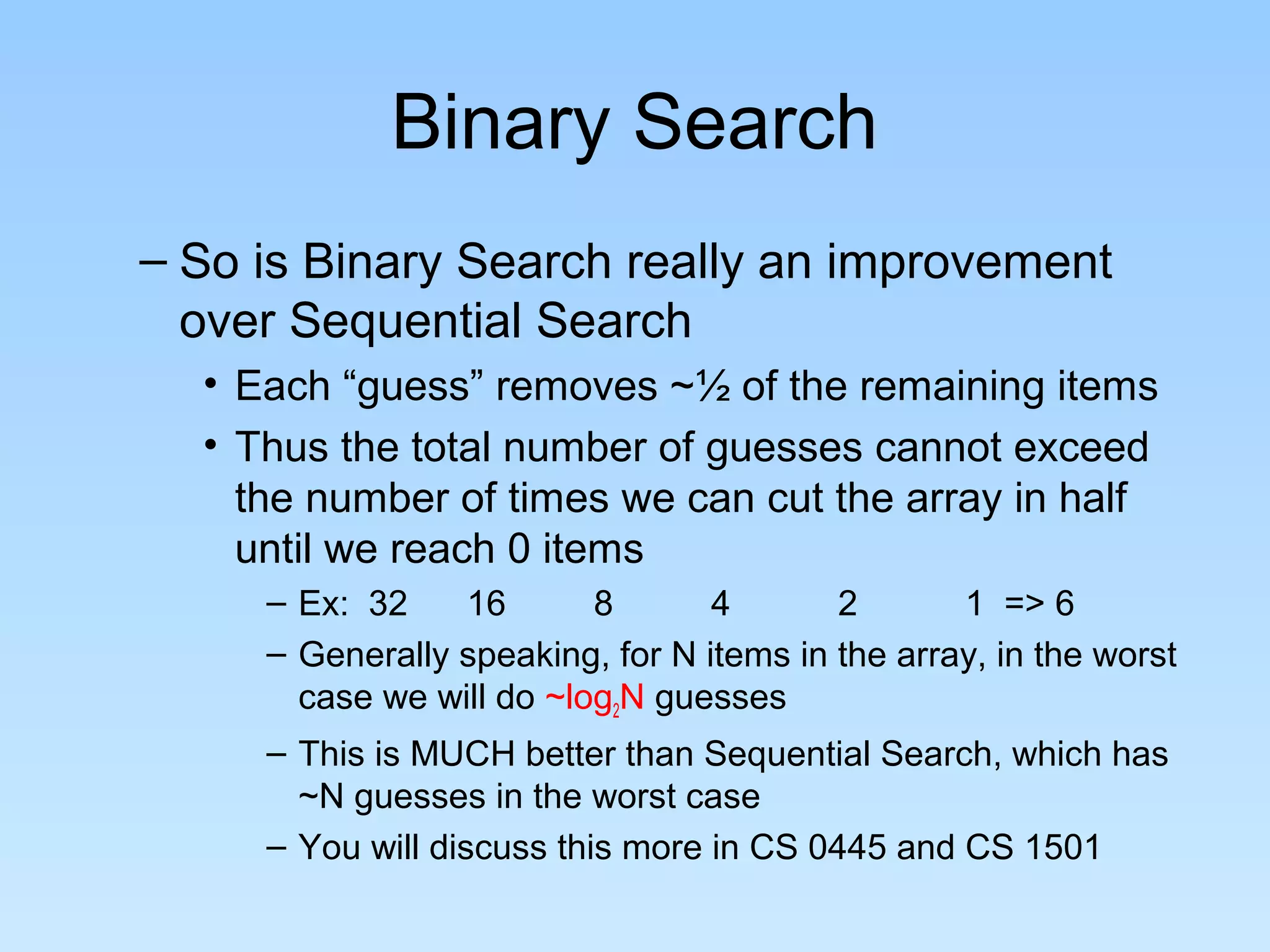

Binary Search
– So is Binary Search really an improvement
over Sequential Search
• Each “guess” removes ~½ of the remaining items
• Thus the total number of guesses cannot exceed
the number of times we can cut the array in half
until we reach 0 items
– Ex: 32 16 8 4 2 1 => 6
– Generally speaking, for N items in the array, in the worst
case we will do ~log2N guesses
– This is MUCH better than Sequential Search, which has
~N guesses in the worst case
– You will discuss this more in CS 0445 and CS 1501

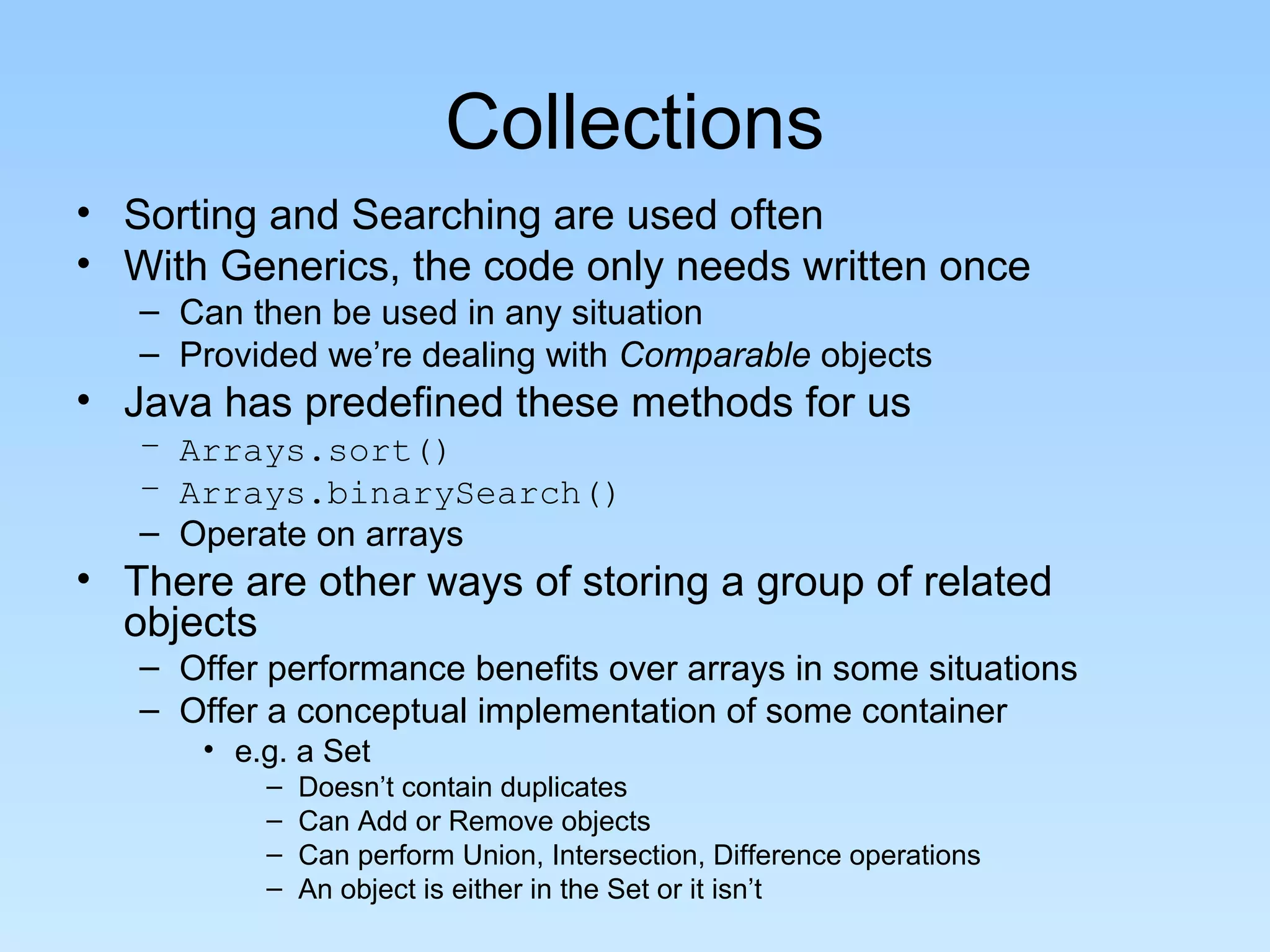

Collections
• Sorting and Searching are used often
• With Generics, the code only needs written once
– Can then be used in any situation
– Provided we’re dealing with Comparable objects
• Java has predefined these methods for us
– Arrays.sort()
– Arrays.binarySearch()
– Operate on arrays
• There are other ways of storing a group of related
objects
– Offer performance benefits over arrays in some situations
– Offer a conceptual implementation of some container
• e.g. a Set
– Doesn’t contain duplicates
– Can Add or Remove objects
– Can perform Union, Intersection, Difference operations
– An object is either in the Set or it isn’t

Collections
• Java refers to these as “Collections”
– Containers of other data objects
– “Collect” related objects into a single object
• Provides conceptual view of the container
– Consider a File System for example
• Directory Tree of Files
• Independent of Storage media (Hard Disk, CD, Flash Drive)
• Collections are similar
– Separate Interface with which we access the stored objects from the
Implementation
• Used often enough that Java provides standard implementation of
each type of Collection
– Collection
• List (Vector)
• Set
– SortedSet
• Queue
– Map (Hashtable)
• SortedMap
– Stack
• See Java API

List
• What is a List?
– Let’s consider lists we make in every day life
– What kinds are there?
– What information does each store?
– How can we access and change each?
• A List is a sequence of items or objects
– A container of them
– Implied arbitrary order of the elements
– Size shrinks and grows with the number of items in the list
– We can access an element if we know its position in the List
– We can insert an item to any position
– We can remove an item from any position

List Implementation
• We now have a concept of a List
– A scheme by which we store and access elements in the List
– This is defined by the List Interface in Java
• See Java API
• Notice add(), get(), remove(), contains()
• Assumes objects have well defined equals() method
• This defines the behavior of a List
– In order to use a list, though, we need implement it
• There are two common concrete implementations
– ArrayList
• Uses a private array to store and order the elements
– LinkedList
• Uses a chain of nodes, each of which stores a single item
• When to use each requires knowledge of the
implementation

ArrayList
• We use an array to store the items in the List
– Arrays have a fixed size
– List has an arbitrary size
– If our list has n elements, we need an array of size n or MORE
• We can leave extra empty spaces to store elements added later
• We can resize the array if we need more space
• List needs to maintain an order to the elements
– Array does this for us
• But consider
– Inserting or adding an element
• Need free the index where the element is to be stored
• Need to keep maintain the same order with the new element added
• Requires shifting some elements to higher indices
– Removing an element
• Array now has an unused index
• Have to shift elements to lower indices to keep ordering
– A lot of shifting!!!
• NOTE: The Vector class provides the same implementation, but
provides synchronization for multithreaded applications (slower)

LinkedList
• The strict array indexing causes this need for shifting
– Can we avoid this?
• Consider this class
public class Node
{
private Object value;
private Node next;
…
}
• Each Node contains a reference to another Node
– Forms a chain of Nodes
• If we keep a reference to the first Node, we can access any of them
by repeatedly accessing the ‘next’ reference
– Show on board
– Getting element at position I requires us to traverse the chain
• Disadvantage over an array
• Consider adding, and removing elements again

Which and How to Use
• ArrayList when
– Add and remove mostly from end of list
– Perform a lot of additions
• LinkedList when
– Frequent additions and removals at arbitrary
positions, especially beginning
• This is discussed further in CS 0445
• We want to hide the implementation of a
collection as much as possible
– We only care that we have List
– List Interface provides this abstraction
– See ex27.java

Set
• Similar to a List except
– No order to the elements
– Cannot contain duplicate objects
• A Set is a collection of objects that cannot contain duplicates
– No two objects o1 and o2 in a Set can exist such that o1.equals(o2)
is true
– Care must be taken when storing mutable objects
• Cannot change data in an object that makes o1.equals(o2) true after
they’ve been added to the Set
• Operations on a Set
– Add an element – add()
– Remove an element – remove()
– Test for inclusion – contains()
– Union (combine elements from two Sets) – addAll()
– Intersection (keep elements two Sets have in common) – retainAll()
– Difference (keep elements not found in a second Set) – removeAll()
• Implementations
– HashSet stores elements in a “Hashtable”
– LinkedHashSet: similar to HashSet
– TreeSet stores elements in a Binary Tree

HashSet
• Imagine implementing a Set with an array
– To maintain the constraint that the Set doesn’t contain duplicates, we’d
have to do something like:
for(int i = 0; i < count; i++)
if(array[i].equals(newElement))
return; //don’t add new element
array[count++] = newElement;
– We have to check each item before knowing if a duplicate existed in the
array
• What if we could know the index where a duplicate would be stored
if it was in the Set?
– Just check the element(s) at that index with equals()
– Add the new Element if not there
• This is how a Hashtable works
– Uses newElement.hashCode() to find index
• Notice the need for the contract of equals() and hashCode()
– Why?

Iterators
• We’ve seen two types of Collections so far
– List
– Set
• Recall how often we’ve used the following code with
arrays
for(int i = 0; i < array.length; i++)
{…}
– Loop “for each” element of the array
– Use variable ‘i’ to keep track of position in the array
• This is a common and needed operation for any
Collection
– How do we do this when a Collection has no implied order?
– How do we do this in a common way for any type of Collection?
• An Iterator is a object that can traverse over and provide
access to each element
– User doesn’t know how it finds the next element

Using Iterators
• Iterator class defines two methods
– hasNext()
• returns true if there is another element to examine
– next()
• returns the current element as an Object
• Prepares the iterator to return the next element
• Loop then looks like:
for(Iterator i=collect.iterator(); i.hasNext();)
{
MyClass item = (MyClass) i.next();
…//Process the item
}
• Java provides a shorthand version of this, called “foreach” loop:
for(Object o : collect)
{
MyClass item = (MyClass) o;
… // Process the item
}
– No need to explicitly declare an Iterator
– “collect” variable must be an instance of a class that implements Iterable
interface
• See ex28.java

Order in Sets
• The HashSet Class is the simplest implementation of
the Set interface
– Iterator can return the elements in any particular order
– Can be chaotic
• It can be advantageous to ensure an Iterator returns the
elements is some consistent order
• Two implementations of the Set Interface do this
– LinkedHashSet
• Like HashSet
• Iterator returns elements in the order in which they were added to
the Set
– TreeSet
• Iterator returns elements in sorted order
• Requires stored objects to be Comparable
• Elements actually stored in sorted order in a binary tree
• See ex28b.java

Queue
• We often don’t need to be able to modify all a Collection’s elements
– Can even be advantageous to prevent access to every element
– Force modification of the Collection according to specific rules
• A queue is an ordered collection of objects that:
– Allows new items to be added only to the end
– Allows items to be removed only from the front
– Similar to a waiting line
– First item added to the end is the first item removed from the front (FIFO
ordering – First In, First Out)
– No other item can be removed until the first item is removed
• Implementation
– How could we implement a Queue?
– An array could impose the needed ordering
• Would require a lot of shifting
• Circular array is still cumbersome
– LinkedList class also implements the Queue interface
• Ideal for a Queue
• Why?
• See ex28c.java

Stack
• Consider a stack of plates on a spring in a bin in
a cafeteria
– When a plate is added, spring compresses, hiding all
plates below
– Only plate that can be removed is the top plate
• The last one that was added
– This is the behavior of a Stack
• A Stack is a data structure where objects can
only be added to or removed from the top
– Last item added is the first to be removed
– LIFO ordering – Last In, First Out

Stack Implementation
• How would this best be implemented?
– Array
– Linked list
• Either would be efficient
• Array doesn’t require the extra storage of saving a
reference to each object
• java.util.Stack is a concrete class
– Can create instances of it
– Ex:
Collection collection = new Stack();
Stack stack = new Stack();
• See ex28d.java

Map
• The Map Interface differs from a Collection
• Defines a mapping from one set of objects to another
– Like a function in Mathematics: y = f(x)
– Given an object, x, the map returns an object, y
– Refer to x as the key
• An array fits this description
– Maps an int to an object stored in the array
– Each int uniquely identifies and is associated with one of the
objects
• A Map allows us to impose a logical relationship
between an object and its index (key)
– Ex:
• The title a CD could be the index of our AbstractCD class
• A Person’s name could index their phone number (Phone Book)

Map Implementation
• Recall our discussion of a Set
– Used hashCode() to store object in array
– Used compareTo() to order object in tree
• We now have two objects
– One is the key for other
– Use hashCode() of key to find location to store the other object
– Use compareTo() of key to order second object in a binary tree
– Indexing object then needs to have well defined equals(),
hashCode(), and compareTo()
– Stored object doesn’t have to be as strictly implemented
• Analogous Map Implementations to Set
– HashMap
– LinkedHashMap
– TreeMap
• Implements SortedMap Interface
• See ex29.java

Iterating over a Map
• A Map is a complex data structure
– Keys
– Values
• The keySet() method returns a Set containing all the
keys stored in the Map
– Map cannot contain duplicate keys
– Iterate over this Set
• The values() method returns a Collection of all
objects that have an associated key
– May contain duplicate objects
– Iterate over this collection
• The entrySet() method returns a Set of all the (key,
value) pairs
– Each object in the Set is of the type Map.Entry
– Iterate over this Set

Generics
• From the previous slides
– Each collection or Iterator returns an Object
– Necessary since it is designed to work for any kind of object
– Requires us to cast the reference to an instance that we need
– Ex:
List list = new LinkedList();
list.add(“Some Pig”);
String s = (String) list.get(0);
String t = (String) list.iterator().next();
• The cast can be annoy
• The list may also not really contain Strings
• We’d like to force the List to only contain specific types
– We wouldn’t need the cast
– We could be sure what type of objects the List contained
• This is where “Generics” works well

Generics
• We “parameterize” the instance of our List with
the type of object we expect it to contain using
the <> syntax
– Ex
List<String> list = new
LinkedList<String>();
list.add(“Some Pig”);
String s = list.get(0);
String t = list.iterator().next();
– Declares a “List of Strings” instead of a simple List
– Compiler can now ensure only Strings are added to
this particular list
– We no longer need the casts

Writing a Generic Class
• Use the <> syntax in the class defintion
public interface List<E>
{
void add(E x);
}
• This is similar to declaring parameters in a
method
– Called Formal Type Parameters
• The <E> declares that a type must be used
when an instance is created
– The type is then used in place of anywhere the ‘E’ is
used in the class definition
• e.g. add(E x);

Subtyping with Generics
• Consider the following code:
List<String> listS = new
ArrayList<String>();
List<Object> listO = listS;
• Is this legal?
– A String is an Object
– A list of Strings is a list of Objects
• What if we call: listO.add(new Object());
– We’ve added something to the list that isn’t a String
– Compiler thinks it’s a List of Object, though
– Can’t allow assignment statement
• If class Foo extends Bar, List<Foo> is not a List<Bar>
– This is kind of restrictive

Wildcards in Generics
• Ex: In ex28, we had the method:
public void printCollection(Collection c) {
for(Object o : c)
System.out.println(o);
}
• To Parameterize this code, we might try:
public void printCollection(Collection<Object> c) {
for(Object o : c)
}
• With the subtype restriction, we can’t pass
anything other than List<Object>
– Not very helpful
– We can handle any type of List, though
• Use Wildcard, ?, in this situation

Wildcards in Generics
• Ex:
public void printCollection(Collection<?> c){
for(Object o : c)
}
• Call this a “Collection of unknown type”
– Any type of Collection can now match this
– Can iterate with type Object
• Any type can be cast to Object – this is safe
• This lets read from the Collection but not modify
– e.g. c.add(new Object()); will fail to compile
– Not sure of the actual type of the Collection
• See ex30.java

Bounded Wildcards
• Recall our Animal, Fish, Bird, Person classes
• We’d like to write a method like:
public void printAnimals(Collection<Animal> c) {
for(Animal a : c) {
a.characteristics();
a.move();
}
}
• This can then only accept a Collection of Animal
• If we use a wildcard (‘?’), we lose access to the
move() and characteristics() methods

Bounded Wildcards
• The solution is a bounded wildcard:
printAnimals(Collection<? extends Animal> c) {
for(Animal a : c) {
a.characteristics();
a.move();
}
}
• Stated as a “Collection of any subtype of Animal”
– Can pass a List of Person
• Know that the objects in the Collection are at least
Animals
– Iterator can then be a reference to Animal
– Polymorphism will call the appropriate instance method
• Unable to add any new objects to the Collection
• See ex31.java

Bounded Wildcards
• The ‘? extends MyClass’ syntax defines an
upper bound
• Likewise, ‘? super MyClass’ can define a
lower bound
– Means any class that is a superclass of class T
– E.g. Comparable<? super T>
• Dealing with a comparable object that can compare itself with
any superclass of T
• See next example

Generic Methods
• Suppose we want to write a method copies an array into a
Collection:
public void fromAtoC(Object[] a, Collection<?> c) {
for(Object o : a)
c.add(o);}
• We’ve already learned that we can’t do this with the wildcard
• We can use generic methods
public <T> void fromAtoC(T[] a, Collection<T> c) {
for(T o : a)
c.add(o);}
• All the same wildcard rules apply
public <T> listCopy(List<? extends T> source,
List<T> dest){}
• When to use:
– Notice the dependency between the types in the parameters
– If the dependency does not exist, you should use wildcards instead
– Also used if the return type of the method is type dependent
• See again SortingT.java, ex26T.java, and also ex32

Oop

More Related Content

What's hot

Viewers also liked

Similar to Oop

Recently uploaded

Oop

Editor's Notes
