1. A platform to build real-time social applications Diana Cheng (formerly also: Laurent Eschenauer and Alard Weisscher) Over The Air - London, September 10, 2010

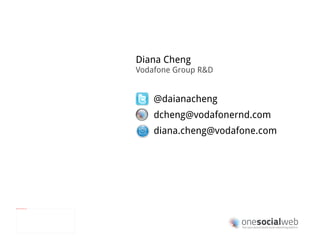

2. Diana Cheng Vodafone Group R&D @daianacheng [email_address] [email_address]

10. Onesocialweb : a free, open and decentralized social networking platform

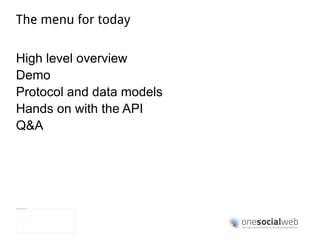

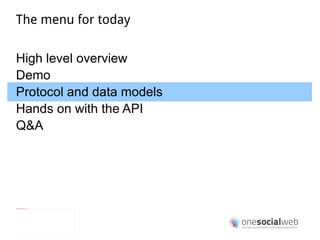

11. The menu for today High level overview Demo Protocol and data models Hands on with the API Q&A

12. The menu for today High level overview Demo Protocol and data models Hands on with the API Q&A

13. Can we make social communications as simple and universal as email ? Facebook 360 MySpace Google whatever.com Friending and following across networks

14. One identity and yet multiple communities

15. Data portability

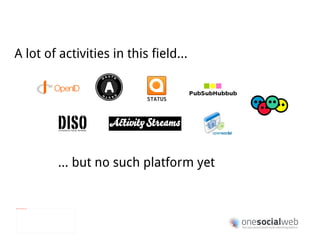

16. A lot of activities in this field... … but no such platform yet

17. protocol platform user experience

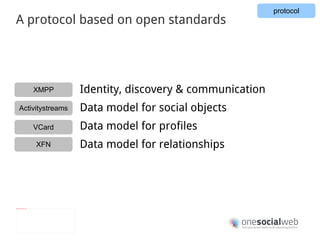

18. A protocol based on open standards Identity, discovery & communication Data model for social objects Data model for profiles Data model for relationships protocol XMPP Activitystreams VCard XFN

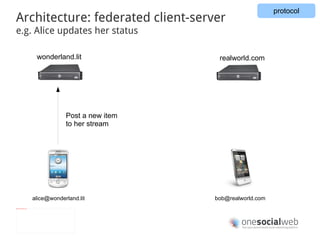

19. [email_address] [email_address] wonderland.lit realworld.com Post a new item to her stream Architecture: federated client-server e.g. Alice updates her status protocol

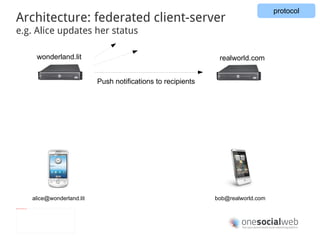

20. [email_address] [email_address] wonderland.lit realworld.com Push notifications to recipients Architecture: federated client-server e.g. Alice updates her status protocol

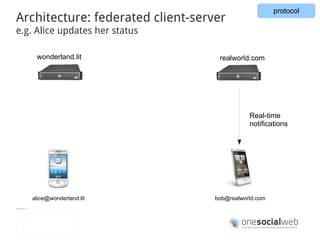

21. [email_address] [email_address] wonderland.lit realworld.com Real-time notifications Architecture: federated client-server e.g. Alice updates her status protocol

22. [email_address] wonderland.lit realworld.com Request profile of bob@realworld.com Architecture: federated client-server e.g. Alice looks up Bob's profile protocol

23. [email_address] wonderland.lit realworld.com Request is forwarded to Bob's domain on [email_address] behalf. Architecture: federated client-server e.g. Alice looks up Bob's profile protocol

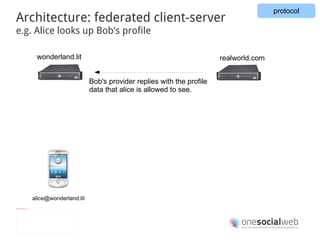

24. [email_address] wonderland.lit realworld.com Bob's provider replies with the profile data that alice is allowed to see. Architecture: federated client-server e.g. Alice looks up Bob's profile protocol

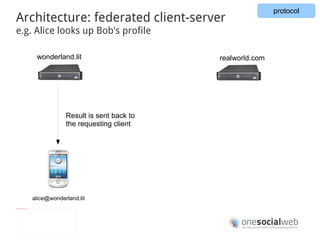

25. [email_address] wonderland.lit realworld.com Result is sent back to the requesting client Architecture: federated client-server e.g. Alice looks up Bob's profile protocol

26. An open source platform End to end platform server backend, client libraries for desktop and mobile Open source Apache 2 license http://github.com/onesocialweb Java 30% code reuse between components Web client written in GWT (Java compiled to Javascript) platform Already available. Easy to setup. Join our growing community to experiment with us and get involved via our mailing list !

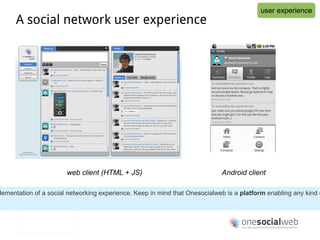

27. A social network user experience web client (HTML + JS) Android client user experience This is just one implementation of a social networking experience. Keep in mind that Onesocialweb is a platform enabling any kind of social applications.

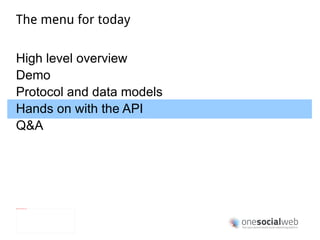

28. The menu for today High level overview Demo Protocol and data models Hands on with the API Q&A

29. The menu for today High level overview Demo Protocol and data models Hands on with the API Q&A

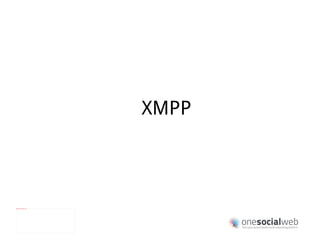

30. XMPP

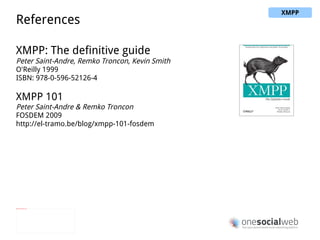

31. References XMPP: The definitive guide Peter Saint-Andre, Remko Troncon, Kevin Smith O'Reilly 1999 ISBN: 978-0-596-52126-4 XMPP 101 Peter Saint-Andre & Remko Troncon FOSDEM 2009 http://el-tramo.be/blog/xmpp-101-fosdem XMPP

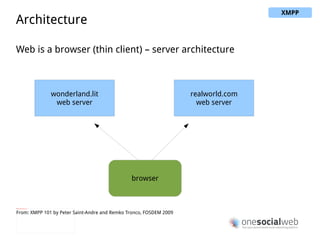

32. Architecture Web is a browser (thin client) – server architecture From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 wonderland.lit web server realworld.com web server browser XMPP

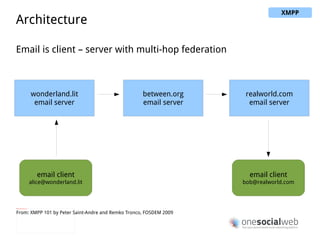

33. Architecture Email is client – server with multi-hop federation From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 wonderland.lit email server realworld.com email server email client [email_address] between.org email server email client [email_address] XMPP

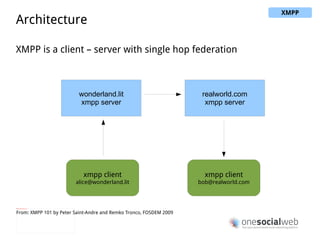

34. Architecture XMPP is a client – server with single hop federation From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 wonderland.lit xmpp server realworld.com xmpp server xmpp client [email_address] xmpp client [email_address] XMPP

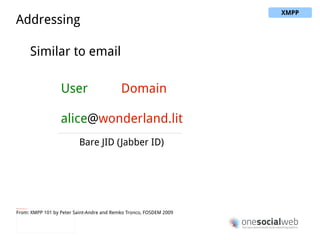

35. Similar to email Addressing User Domain alice @ wonderland.lit Bare JID (Jabber ID) From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

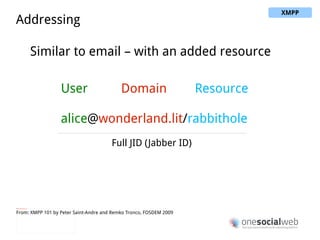

36. Similar to email – with an added resource Addressing User Domain Resource alice @ wonderland.lit / rabbithole Full JID (Jabber ID) From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

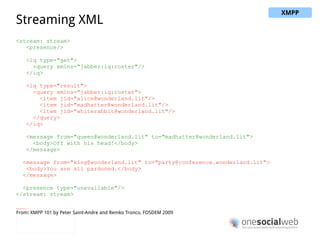

37. Streaming XML <stream: stream> <presence/> <iq type=&quot;get&quot;> <query xmlns=&quot;jabber:iq:roster&quot;/> </iq> <iq type=&quot;result&quot;> <query xmlns=&quot;jabber:iq:roster&quot;> <item jid=&quot;alice@wonderland.lit&quot;/> <item jid=&quot;madhatter@wonderland.lit&quot;/> <item jid=&quot;whiterabbit@wonderland.lit&quot;/> </query> </iq> <message from=&quot;queen@wonderland.lit&quot; to=&quot;madhatter@wonderland.lit&quot;> <body>Off with his head!</body> </message> <message from=&quot; [email_address] &quot; to=&quot;party@conference.wonderland.lit&quot;> <body>You are all pardoned.</body> </message> <presence type=&quot;unavailable&quot;/> </stream: stream> From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

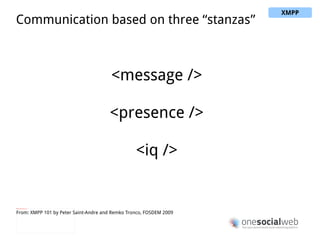

38. Communication based on three “stanzas” <message /> <presence /> <iq /> From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

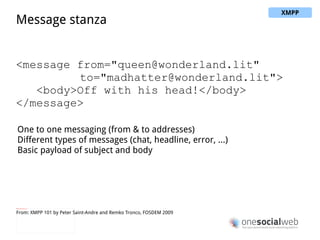

39. Message stanza <message from=&quot;queen@wonderland.lit&quot; to=&quot;madhatter@wonderland.lit&quot;> <body>Off with his head!</body> </message> One to one messaging (from & to addresses) Different types of messages (chat, headline, error, …) Basic payload of subject and body From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

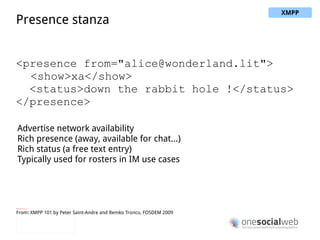

40. Presence stanza <presence from=&quot;alice@wonderland.lit&quot;> <show>xa</show> <status>down the rabbit hole !</status> </presence> Advertise network availability Rich presence (away, available for chat...) Rich status (a free text entry) Typically used for rosters in IM use cases From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

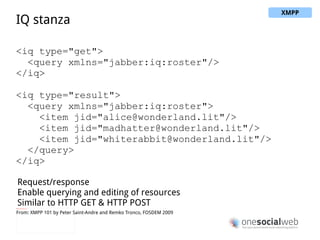

41. IQ stanza <iq type=&quot;get&quot;> <query xmlns=&quot;jabber:iq:roster&quot;/> </iq> <iq type=&quot;result&quot;> <query xmlns=&quot;jabber:iq:roster&quot;> <item jid=&quot;alice@wonderland.lit&quot;/> <item jid=&quot;madhatter@wonderland.lit&quot;/> <item jid=&quot;whiterabbit@wonderland.lit&quot;/> </query> </iq> Request/response Enable querying and editing of resources Similar to HTTP GET & HTTP POST From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

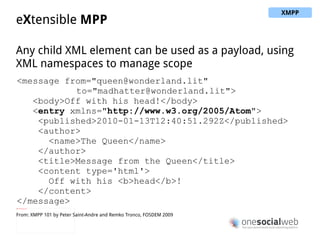

42. e X tensible MPP Any child XML element can be used as a payload, using XML namespaces to manage scope <message from=&quot;queen@wonderland.lit&quot; to=&quot;madhatter@wonderland.lit&quot;> <body>Off with his head!</body> < entry xmlns=&quot; http://www.w3.org/2005/Atom &quot;> <published>2010-01-13T12:40:51.292Z</published> <author> <name>The Queen</name> </author> <title>Message from the Queen</title> <content type='html'> Off with his <b>head</b>! </content> </message> From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

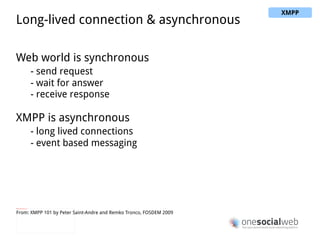

43. Long-lived connection & asynchronous Web world is synchronous - send request - wait for answer - receive response XMPP is a synchronous - long lived connections - event based messaging From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009 XMPP

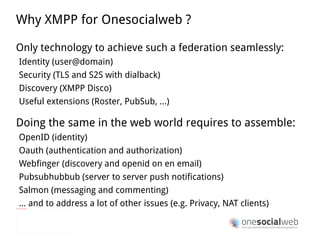

44. Why XMPP for Onesocialweb ? Only technology to achieve such a federation seamlessly: Identity ( [email_address] )

45. Security (TLS and S2S with dialback)

46. Discovery (XMPP Disco)

47. Useful extensions (Roster, PubSub, …) Doing the same in the web world requires to assemble: OpenID (identity)

48. Oauth (authentication and authorization)

49. Webfinger (discovery and openid on en email)

50. Pubsubhubbub (server to server push notifications)

51. Salmon (messaging and commenting)

52. … and to address a lot of other issues (e.g. Privacy, NAT clients)

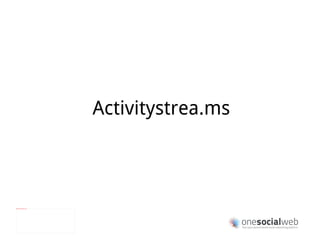

53. Activitystrea.ms

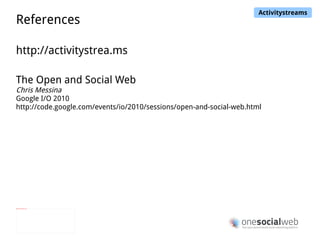

54. References http://activitystrea.ms The Open and Social Web Chris Messina Google I/O 2010 http://code.google.com/events/io/2010/sessions/open-and-social-web.html Activitystreams

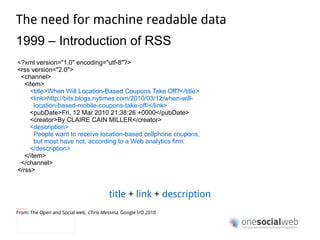

55. The need for machine readable data 1999 – Introduction of RSS <?xml version=&quot;1.0&quot; encoding=&quot;utf-8&quot;?> <rss version=&quot;2.0&quot;> <channel> <item> <title>When Will Location-Based Coupons Take Off?</title> <link>http://bits.blogs.nytimes.com/2010/03/12/when-will- location-based-mobile-coupons-take-off/</link> <pubDate>Fri, 12 Mar 2010 21:38:26 +0000</pubDate> <creator>By CLAIRE CAIN MILLER</creator> <description> People want to receive location-based cellphone coupons, but most have not, according to a Web analytics firm. </description> </item> </channel> </rss> title + link + description From: The Open and Social web, Chris Messina , Google I/O 2010

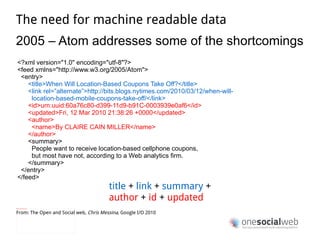

56. The need for machine readable data 2005 – Atom addresses some of the shortcomings <?xml version=&quot;1.0&quot; encoding=&quot;utf-8&quot;?> <feed xmlns=&quot;http://www.w3.org/2005/Atom&quot;> <entry> <title>When Will Location-Based Coupons Take Off?</title> <link rel=”alternate”>http://bits.blogs.nytimes.com/2010/03/12/when-will- location-based-mobile-coupons-take-off/</link> <id>urn:uuid:60a76c80-d399-11d9-b91C-0003939e0af6</id> <updated>Fri, 12 Mar 2010 21:38:26 +0000</updated> <author> <name>By CLAIRE CAIN MILLER</name> </author> <summary> People want to receive location-based cellphone coupons, but most have not, according to a Web analytics firm. </summary> </entry> </feed> title + link + summary + author + id + updated From: The Open and Social web, Chris Messina , Google I/O 2010

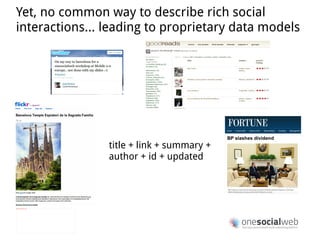

57. Yet, no common way to describe rich social interactions... leading to proprietary data models title + link + summary + author + id + updated

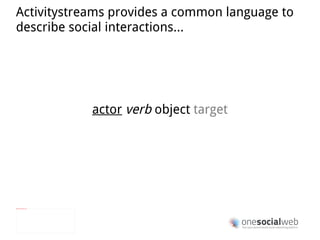

58. Activitystreams provides a common language to describe social interactions... actor verb object target

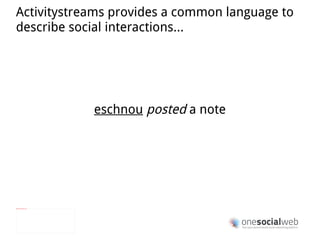

59. Activitystreams provides a common language to describe social interactions... eschnou posted a note

60. Activitystreams provides a common language to describe social interactions... eschnou posted a picture to an album

61. Activitystreams provides a common language to describe social interactions... eschnou liked a video

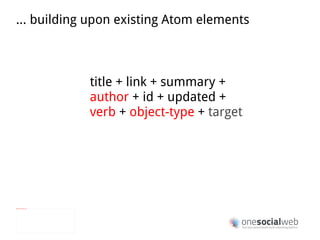

62. … building upon existing Atom elements title + link + summary + author + id + updated + verb + object-type + target

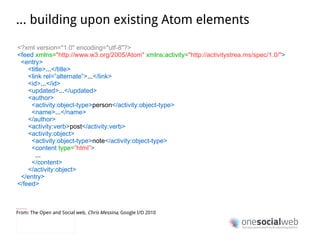

63. … building upon existing Atom elements <?xml version=&quot;1.0&quot; encoding=&quot;utf-8&quot;?> <feed xmlns= &quot;http://www.w3.org/2005/Atom&quot; xmlns:activity= &quot;http://activitystrea.ms/spec/1.0/&quot; > <entry> <title> ... </title> <link rel=”alternate”> ... </link> <id> ... </id> <updated> ... </updated> <author> <activity:object-type> person </activity:object-type> <name> ... </name> </author> <activity:verb> post </activity:verb> <activity:object> <activity:object-type> note </activity:object-type> <content type= ”html” > ... </content> </activity:object> </entry> </feed> From: The Open and Social web, Chris Messina , Google I/O 2010

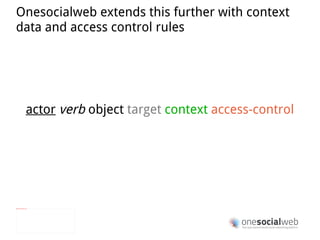

64. Onesocialweb extends this further with context data and access control rules actor verb object target context access-control

65. Onesocialweb extends it further with context data and access control rules eschnou took a picture in Barcelona , it can be seen visible by 'friends'

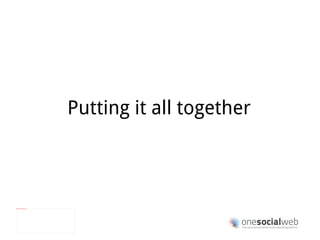

66. Putting it all together

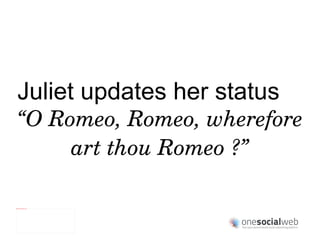

67. Juliet updates her status “ O Romeo, Romeo, wherefore art thou Romeo ?”

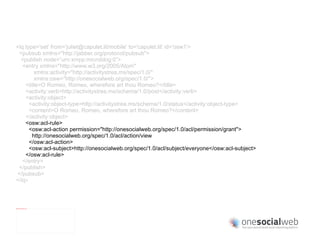

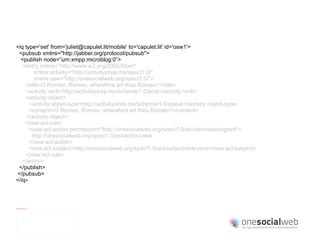

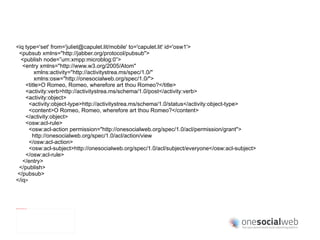

68. <iq type='set' from='juliet@capulet.lit/mobile' to='capulet.lit' id='osw1'> <pubsub xmlns=&quot; http://jabber.org/protocol/pubsub &quot;> <publish node=”urn:xmpp:microblog:0”> <entry xmlns=&quot;http://www.w3.org/2005/Atom&quot; xmlns:activity=&quot;http://activitystrea.ms/spec/1.0/&quot; xmlns:osw=&quot;http://onesocialweb.org/spec/1.0/&quot;> <title>O Romeo, Romeo, wherefore art thou Romeo?</title> <activity:verb>http://activitystrea.ms/schema/1.0/post</activity:verb> <activity:object> <activity:object-type> http://activitystrea.ms/schema/1.0/status </activity:object-type> <content>O Romeo, Romeo, wherefore art thou Romeo?</content> </activity:object> <osw:acl-rule> <osw:acl-action permission=&quot;http://onesocialweb.org/spec/1.0/acl/permission/grant&quot;> http://onesocialweb.org/spec/1.0/acl/action/view </osw:acl-action> <osw:acl-subject>http://onesocialweb.org/spec/1.0/acl/subject/everyone</osw:acl-subject> </osw:acl-rule> </entry> </publish> </pubsub> </iq >

69. <iq type='set' from='juliet@capulet.lit/mobile' to='capulet.lit' id='osw1'> <pubsub xmlns=&quot; http://jabber.org/protocol/pubsub &quot;> <publish node=”urn:xmpp:microblog:0”> <entry xmlns=&quot;http://www.w3.org/2005/Atom&quot; xmlns:activity=&quot;http://activitystrea.ms/spec/1.0/&quot; xmlns:osw=&quot;http://onesocialweb.org/spec/1.0/&quot;> <title>O Romeo, Romeo, wherefore art thou Romeo?</title> <activity:verb>http://activitystrea.ms/schema/1.0/post</activity:verb> <activity:object> <activity:object-type> http://activitystrea.ms/schema/1.0/status </activity:object-type> <content>O Romeo, Romeo, wherefore art thou Romeo?</content> </activity:object> <osw:acl-rule> <osw:acl-action permission=&quot;http://onesocialweb.org/spec/1.0/acl/permission/grant&quot;> http://onesocialweb.org/spec/1.0/acl/action/view </osw:acl-action> <osw:acl-subject>http://onesocialweb.org/spec/1.0/acl/subject/everyone</osw:acl-subject> </osw:acl-rule> </entry> </publish> </pubsub> </iq >
