SeaBeyond 2011 ProcessOne - Diana Cheng: OneSocialWeb

A platform to build real-time social applications

Diana Cheng
(formerly also: Laurent Eschenauer and Alard
Weisscher)
SeaBeyond - Paris, February 3, 2011

Diana Cheng
Vodafone Group R&D

@daianacheng
dcheng@vodafonernd.com
diana.cheng@vodafone.com

Onesocialweb: a free, open and
decentralized social networking platform

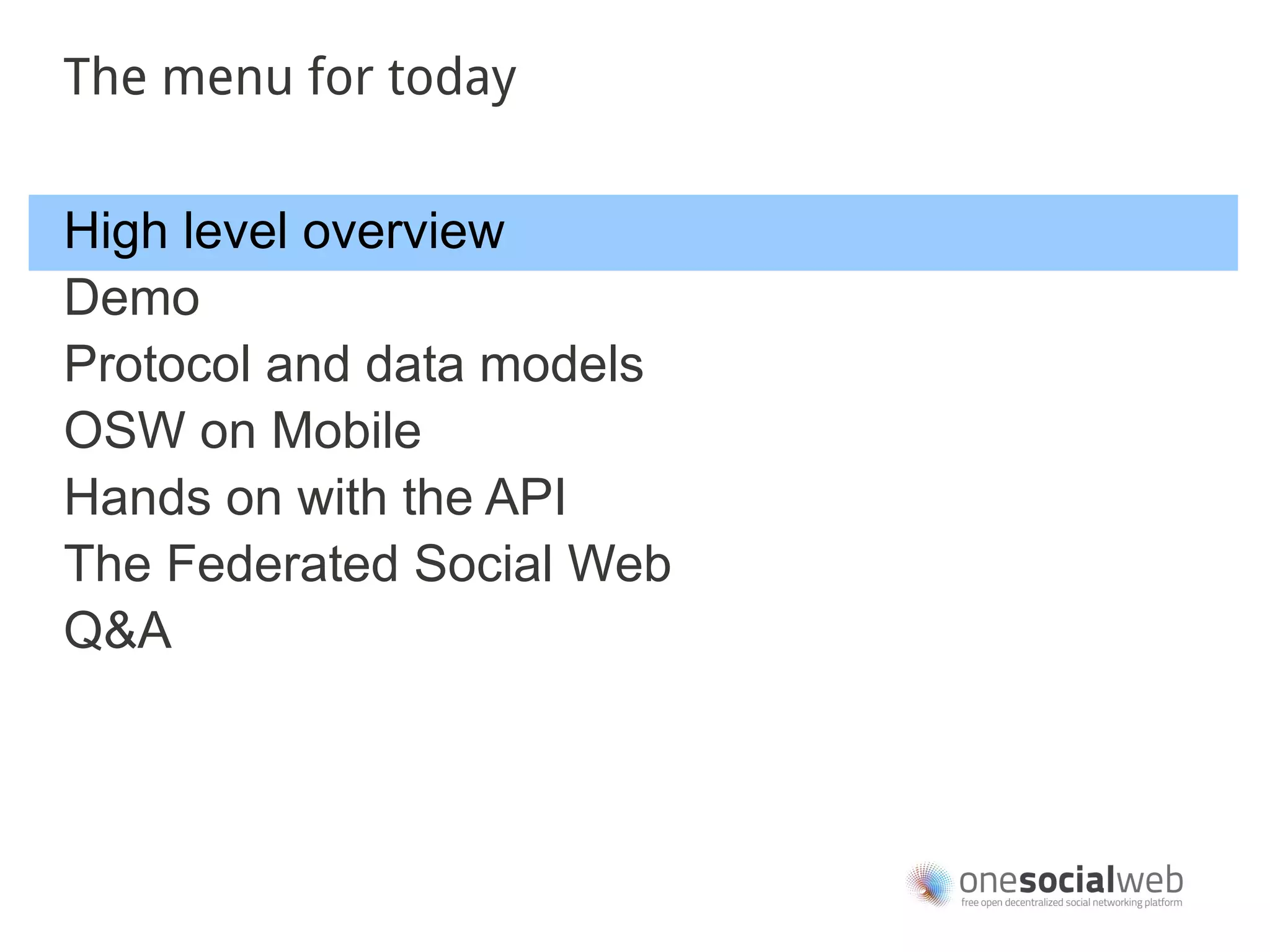

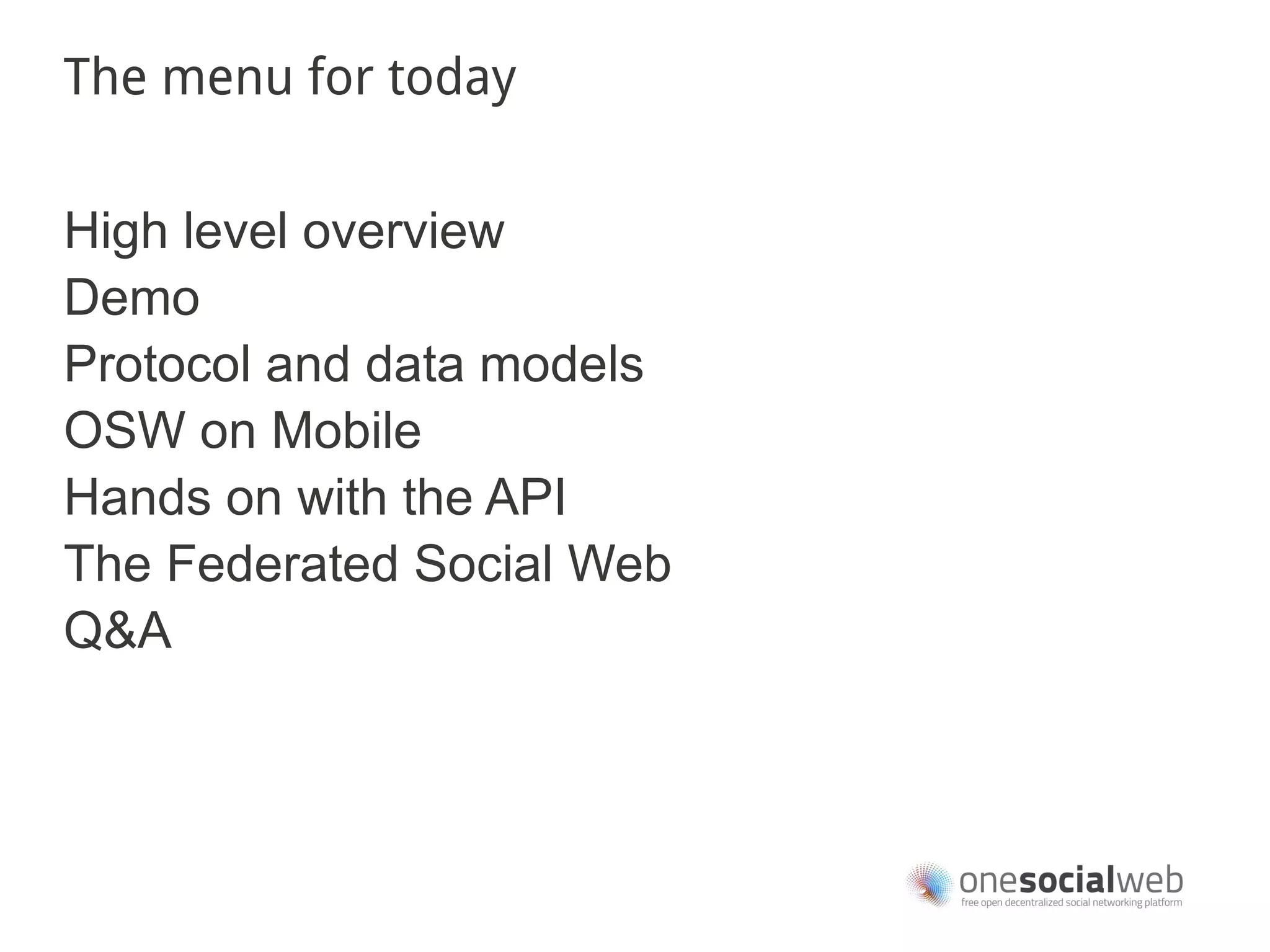

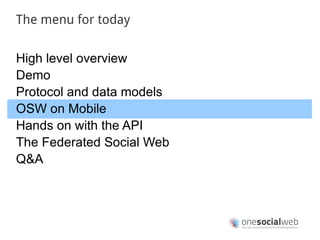

The menu for today

High level overview
Demo
Protocol and data models
OSW on Mobile
Hands on with the API
The Federated Social Web
Q&A

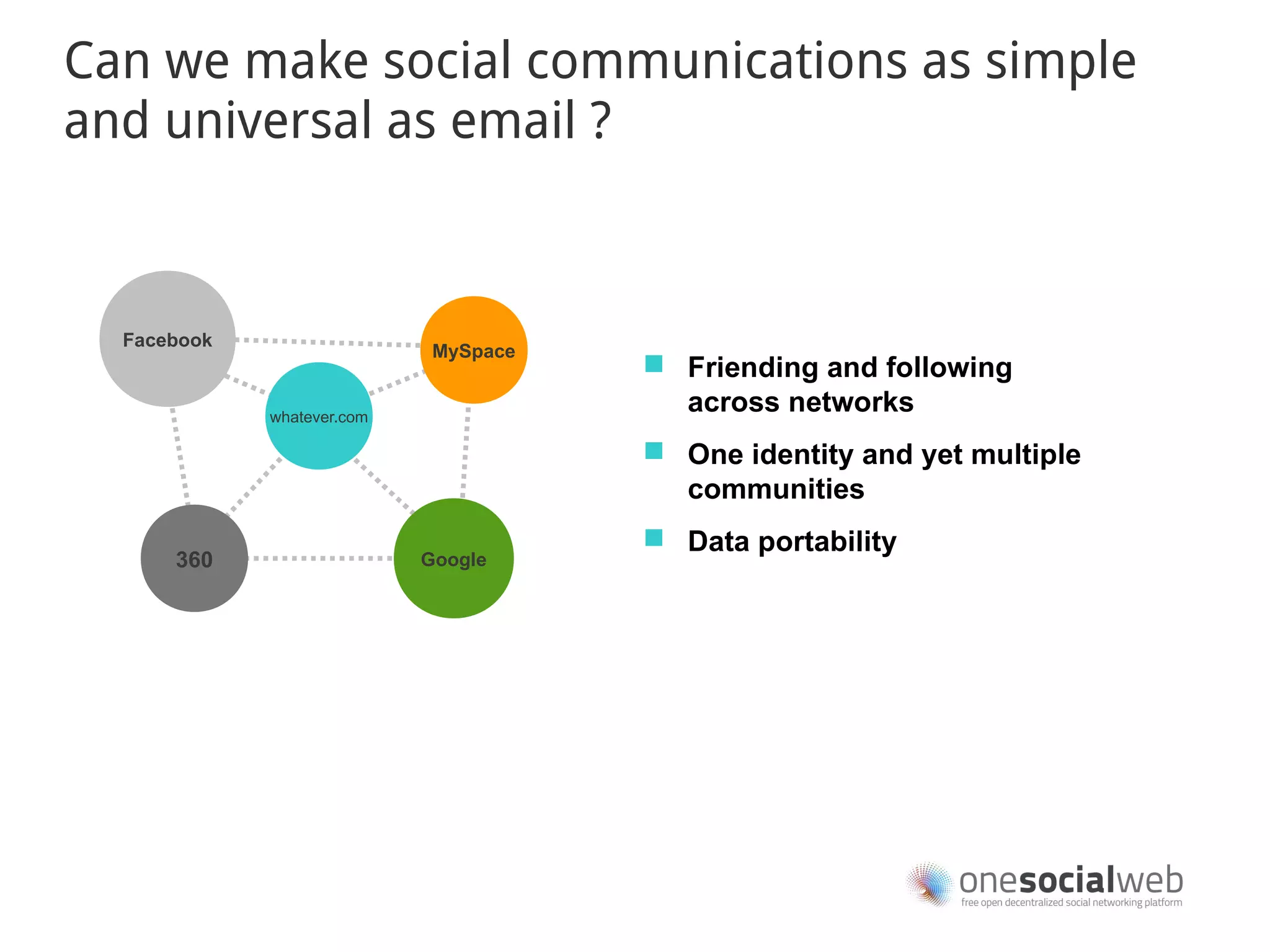

Can we make social communications as simple
and universal as email ?

Facebook
MySpace
 Friending and following
whatever.com
across networks
 One identity and yet multiple
communities
 Data portability
360 Google

A lot of activities in this field...

… but no such platform yet

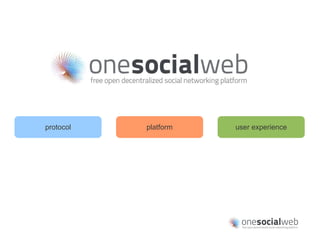

protocol platform user experience

protocol

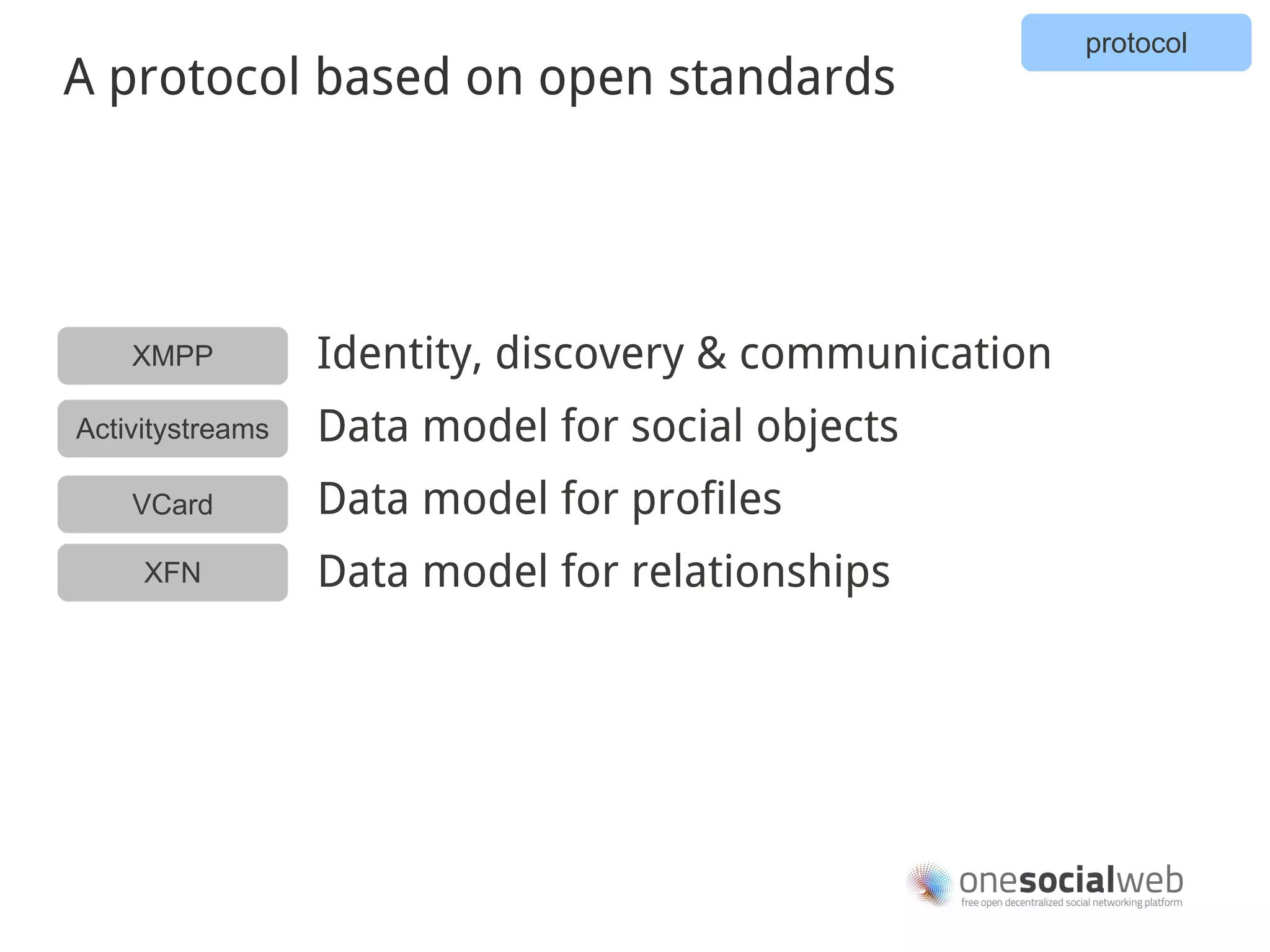

A protocol based on open standards

XMPP Identity, discovery & communication
Activitystreams Data model for social objects
VCard Data model for profiles
XFN Data model for relationships

protocol

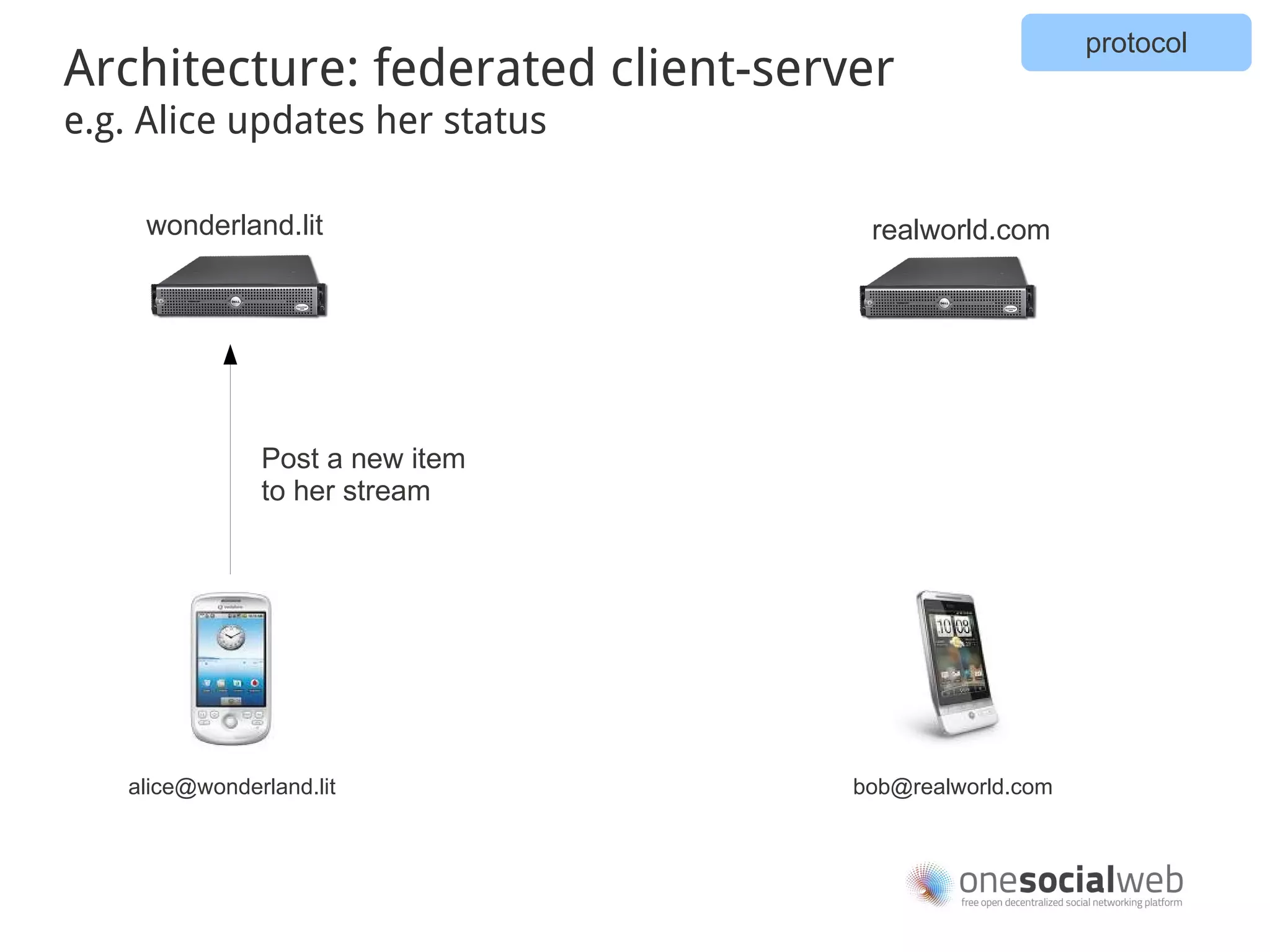

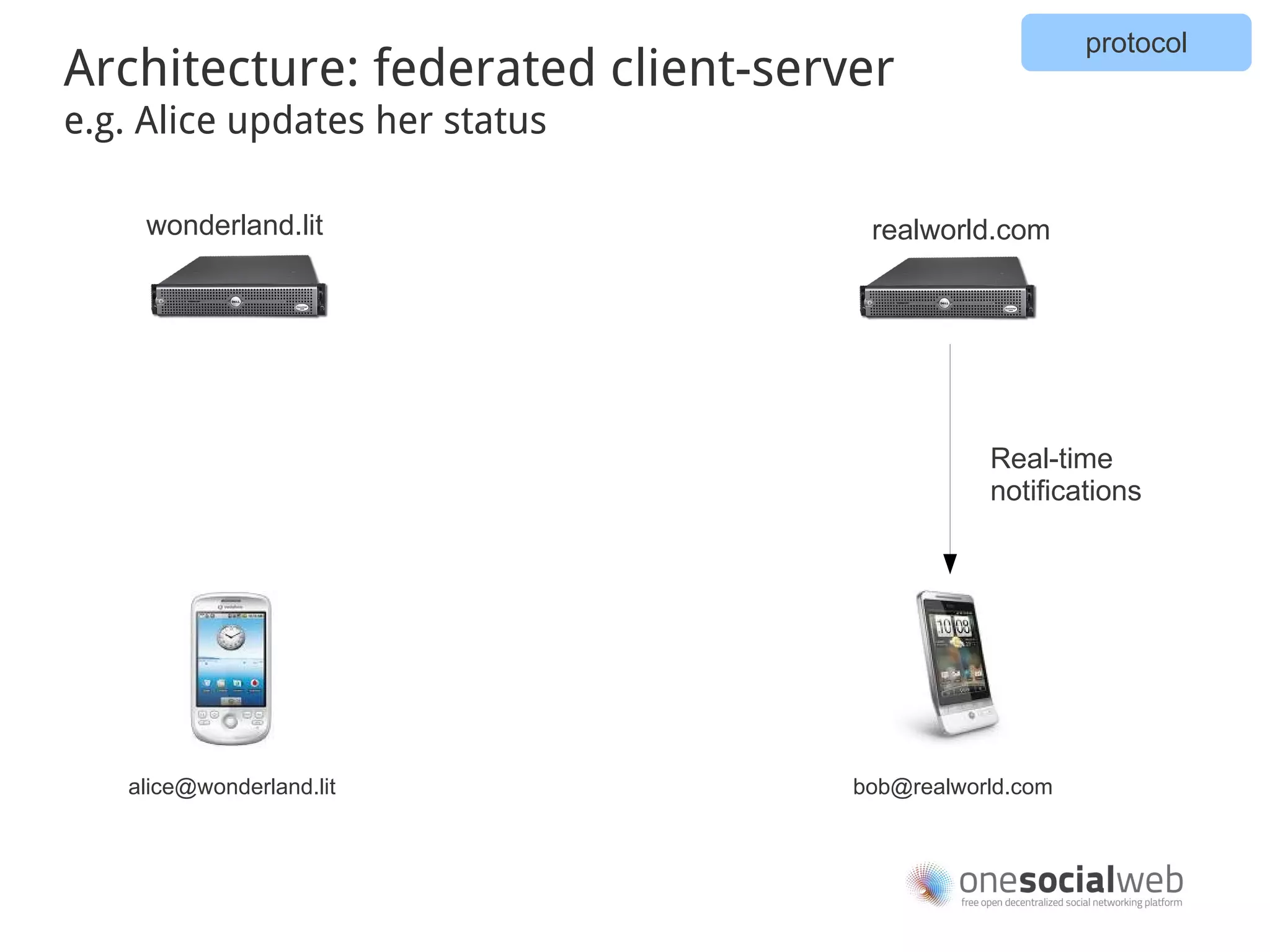

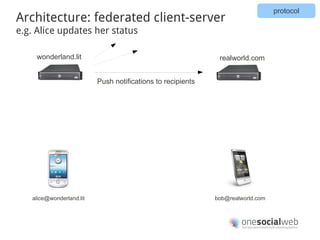

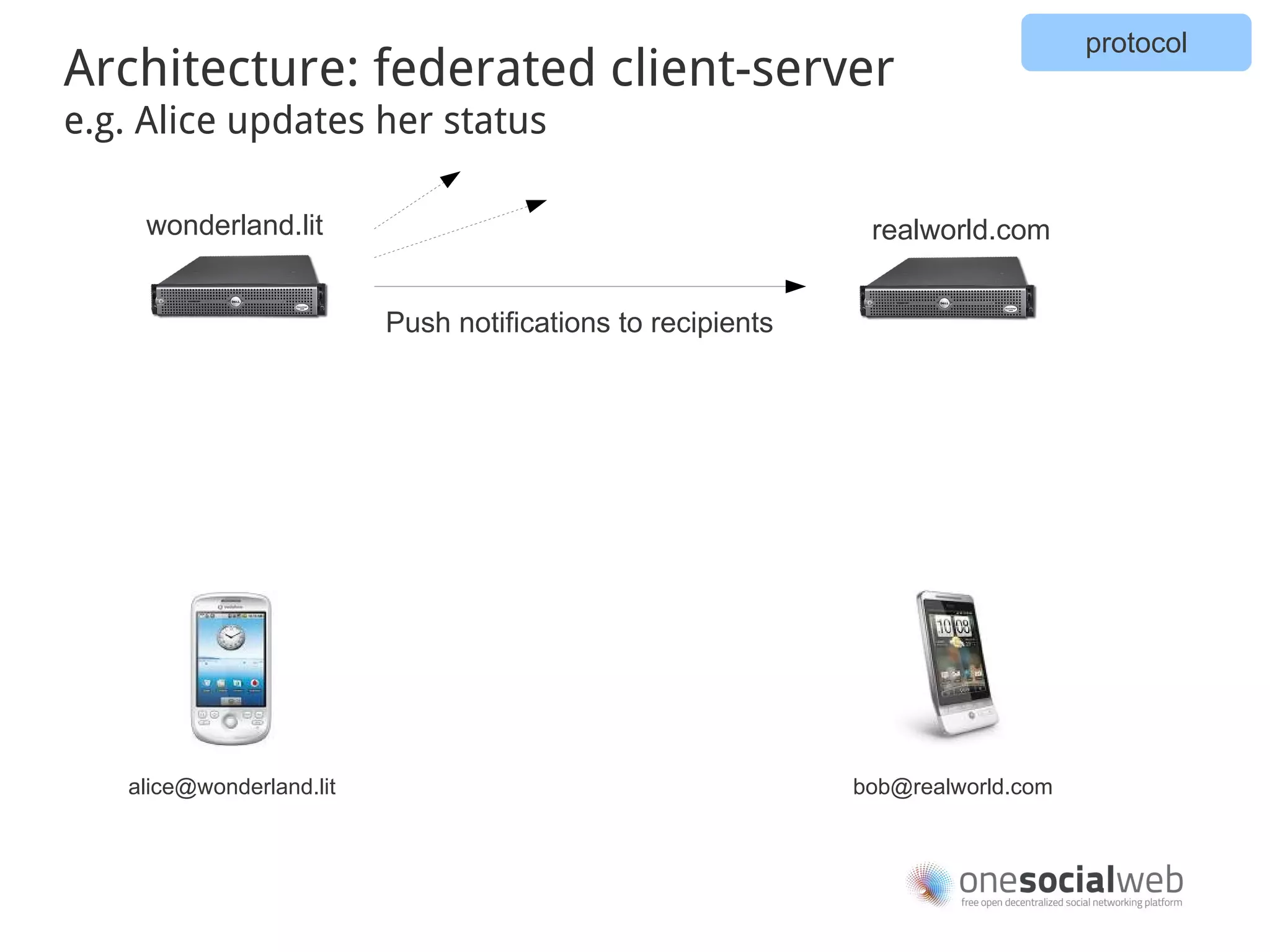

Architecture: federated client-server
e.g. Alice updates her status

wonderland.lit realworld.com

Post a new item
to her stream

alice@wonderland.lit bob@realworld.com

protocol


Push notifications to recipients


protocol


Real-time
notifications


protocol

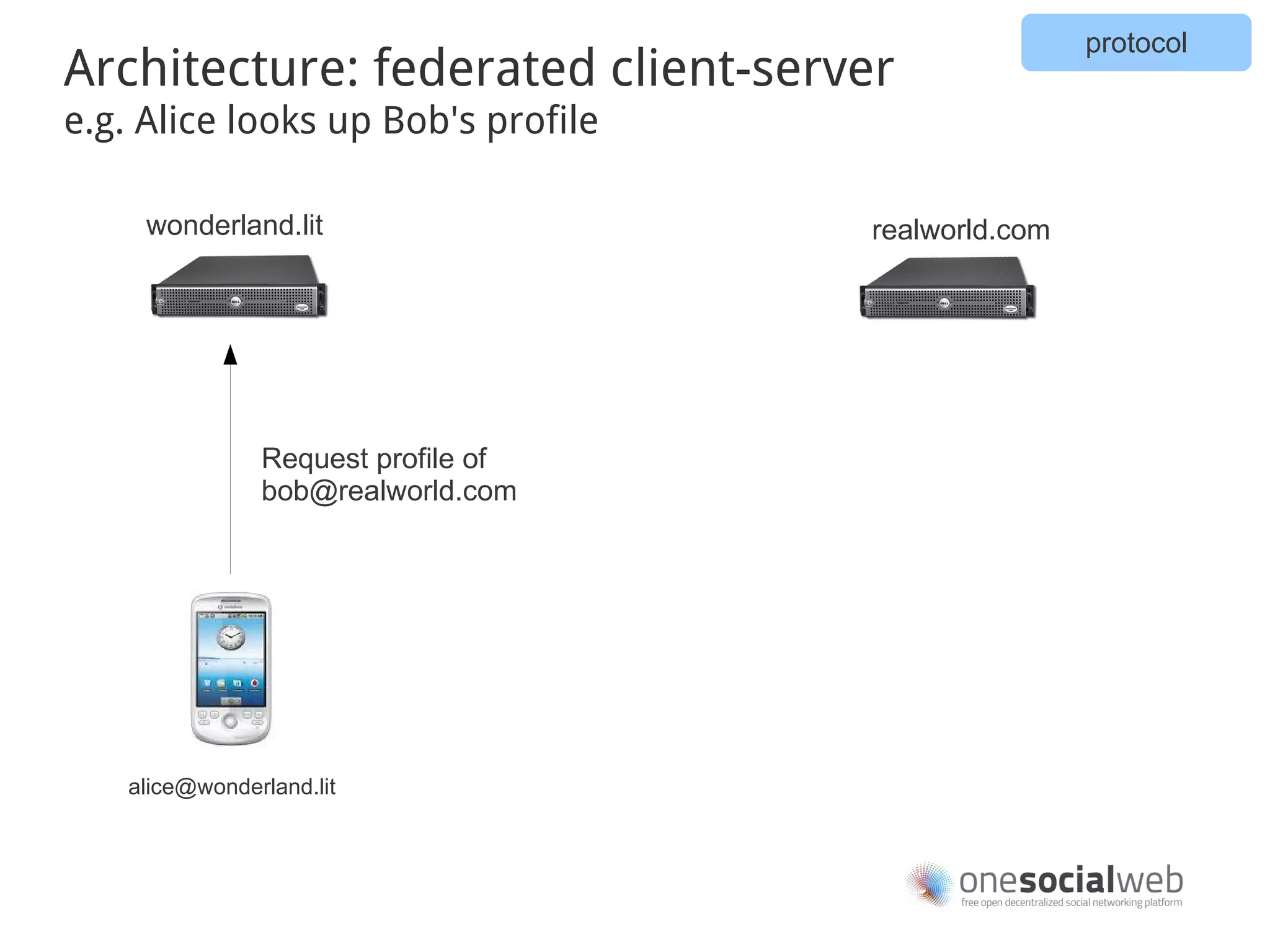

e.g. Alice looks up Bob's profile


Request profile of
bob@realworld.com

alice@wonderland.lit

protocol


Request is forwarded to Bob's domain
on alice@wonderland.lit behalf.

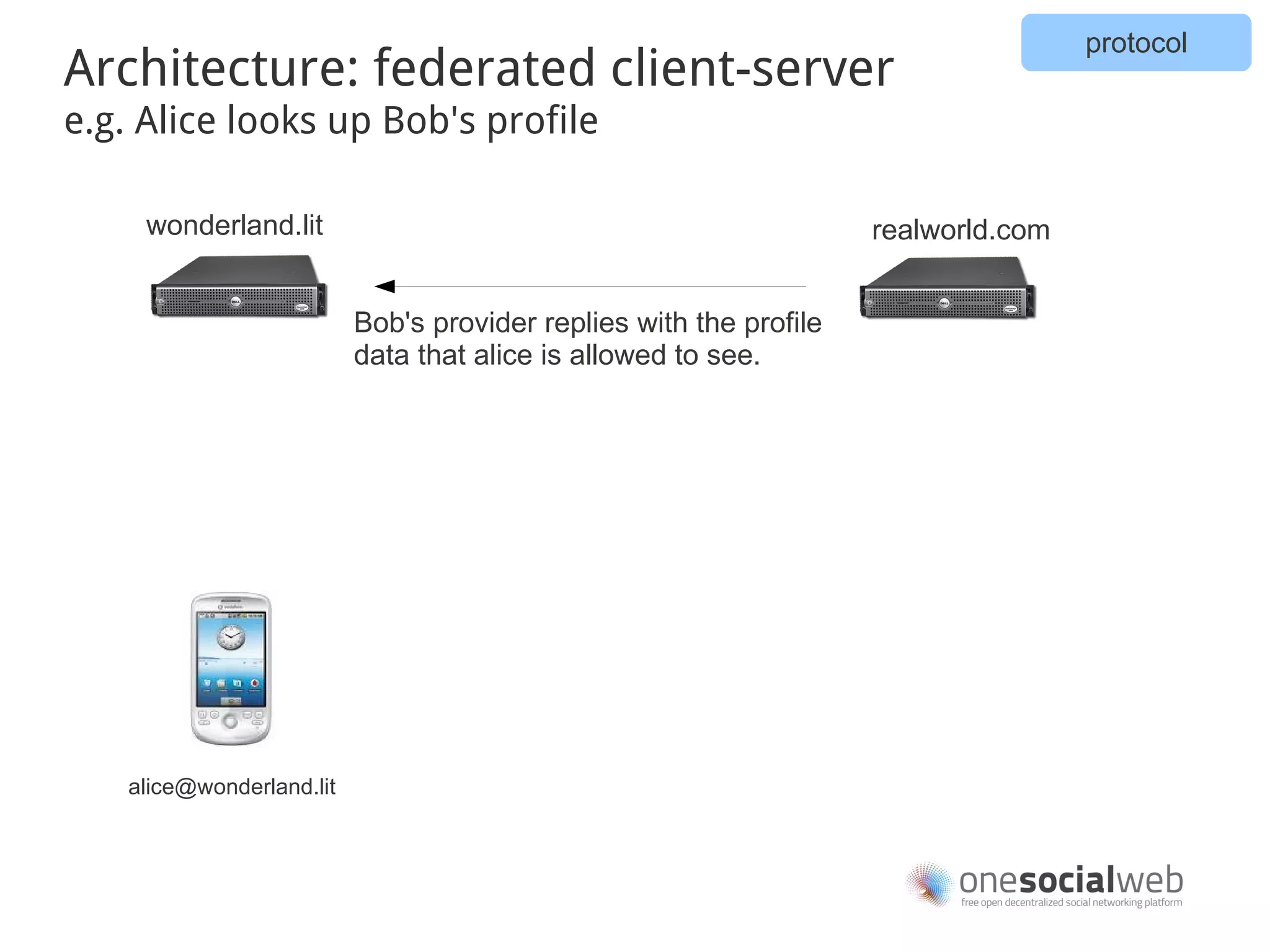

protocol


Bob's provider replies with the profile
data that alice is allowed to see.


protocol


Result is sent back to
the requesting client

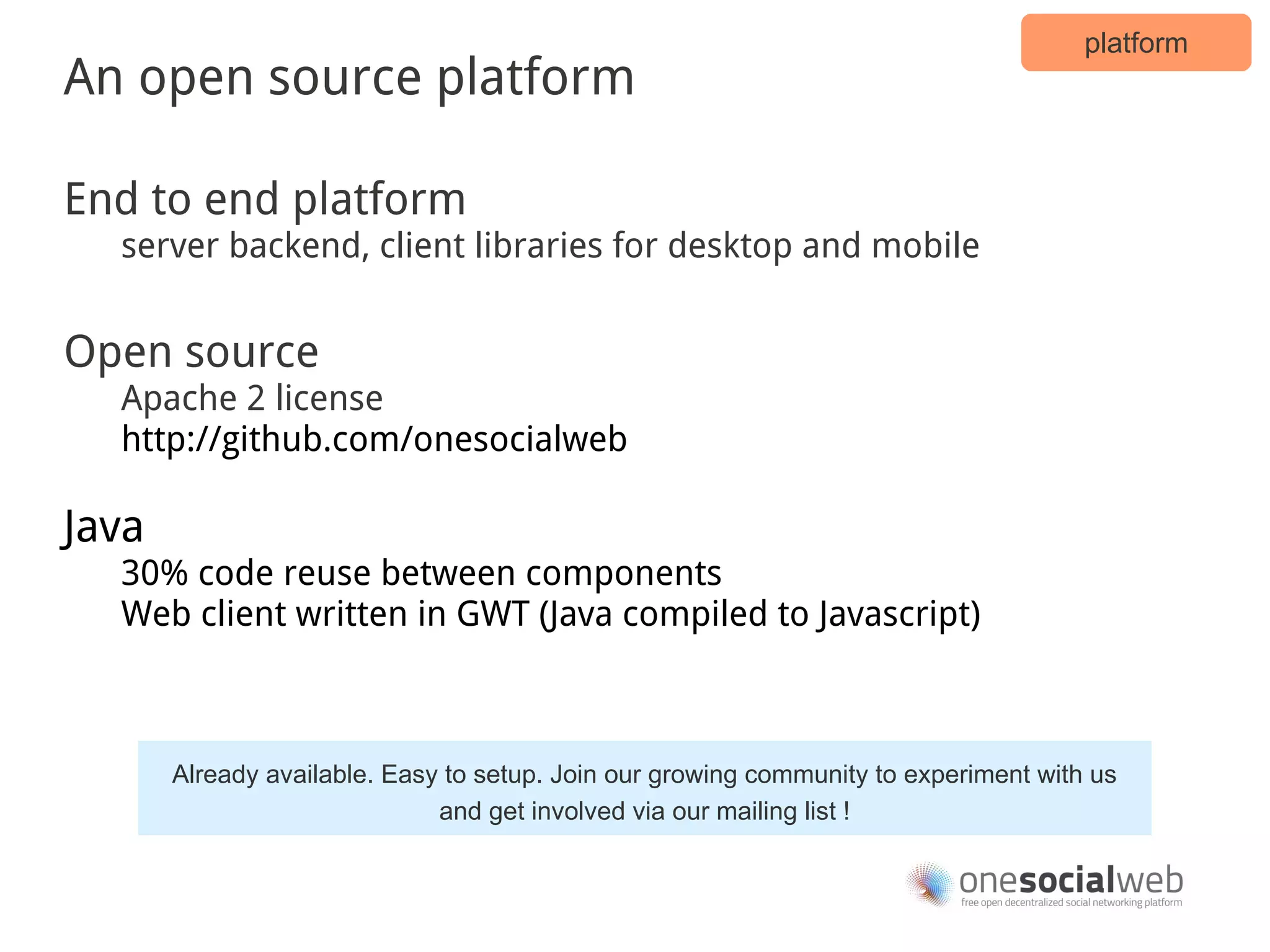

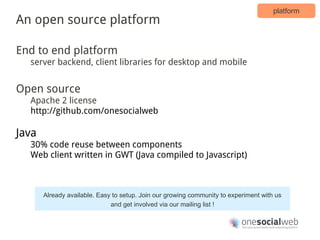

platform
An open source platform

End to end platform
server backend, client libraries for desktop and mobile

Open source
Apache 2 license
http://github.com/onesocialweb

Java
30% code reuse between components
Web client written in GWT (Java compiled to Javascript)

Already available. Easy to setup. Join our growing community to experiment with us
and get involved via our mailing list !

user experience

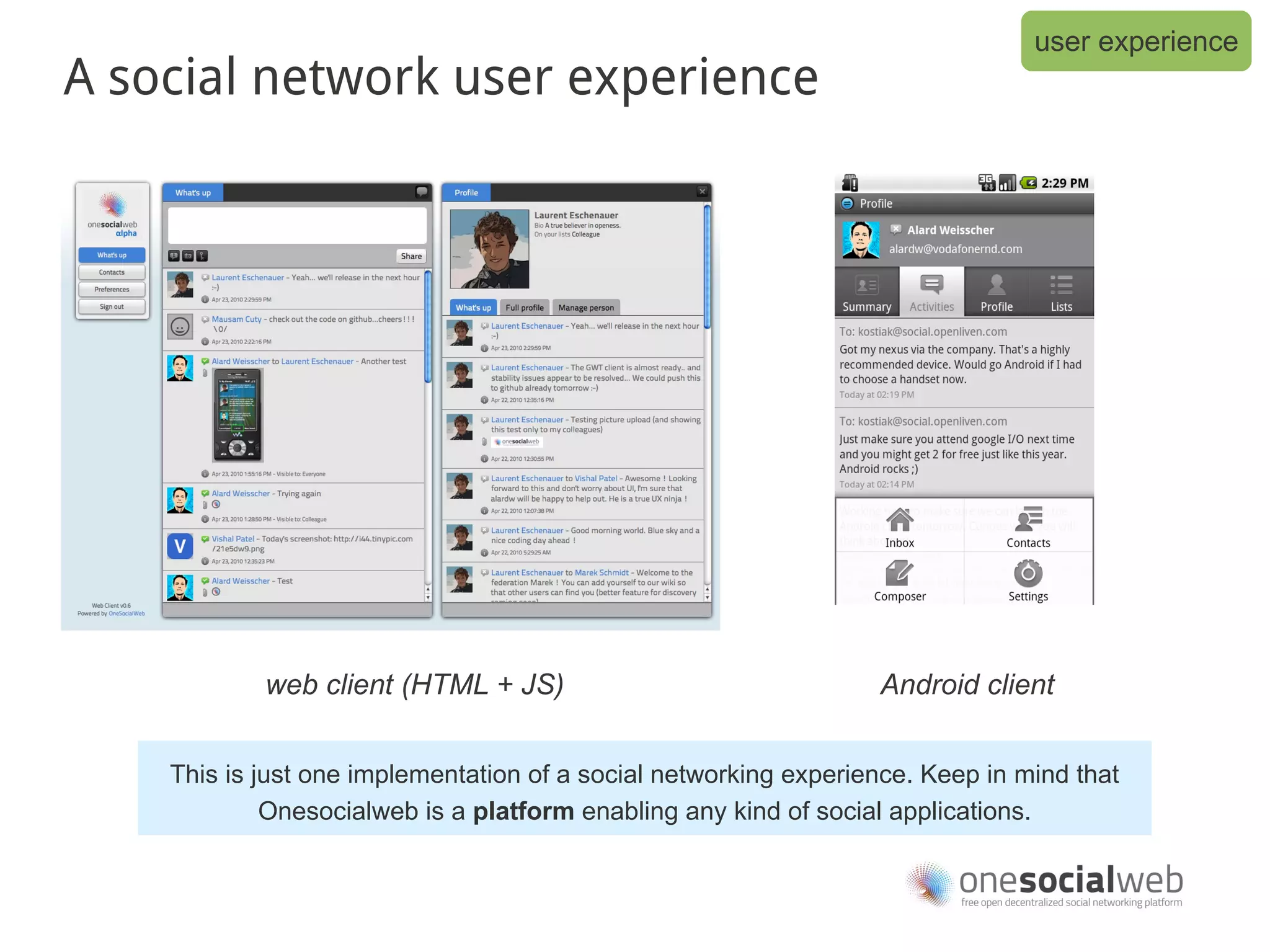

A social network user experience

web client (HTML + JS) Android client

This is just one implementation of a social networking experience. Keep in mind that
Onesocialweb is a platform enabling any kind of social applications.

user experience

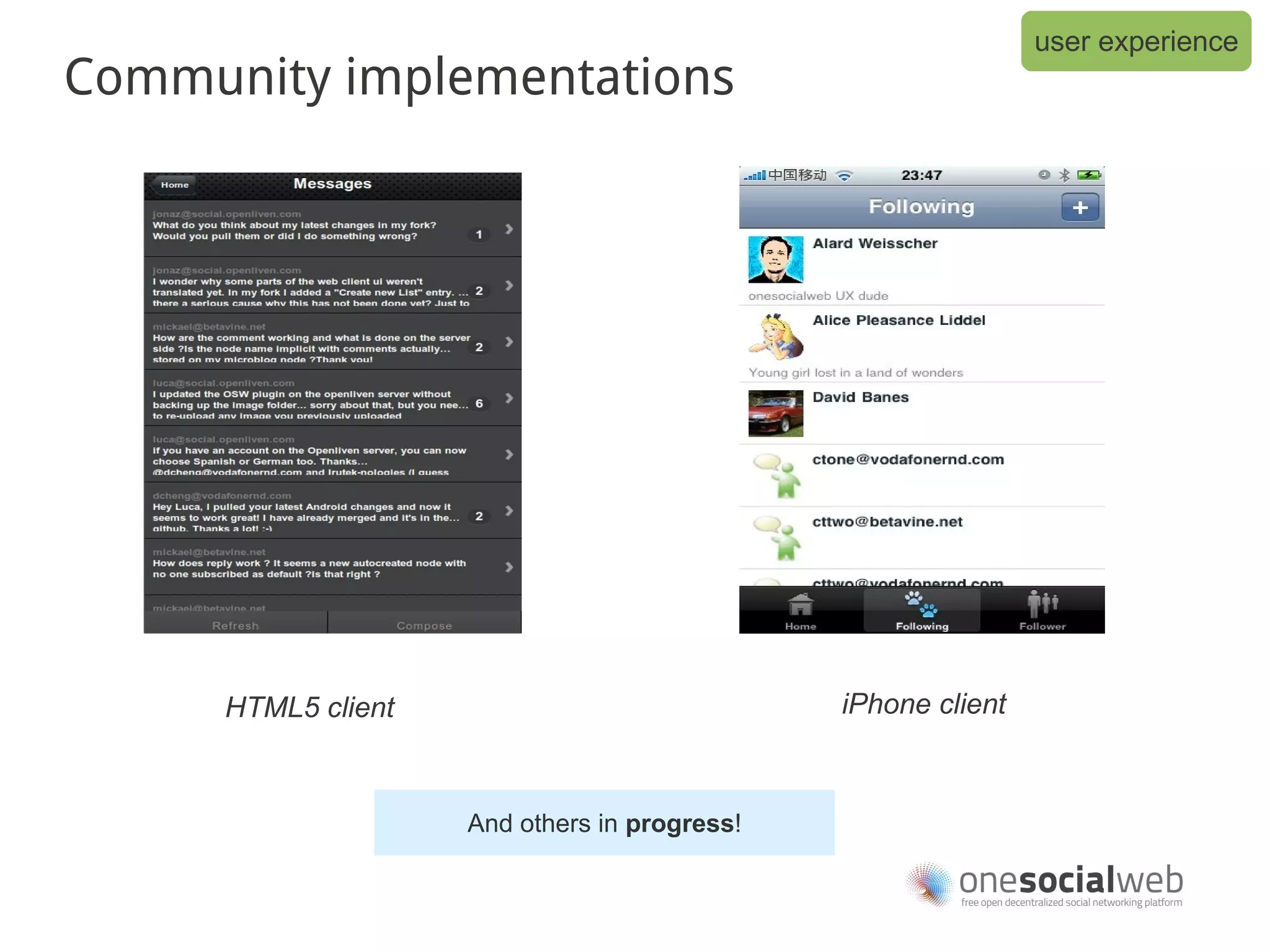

Community implementations

HTML5 client iPhone client

And others in progress!

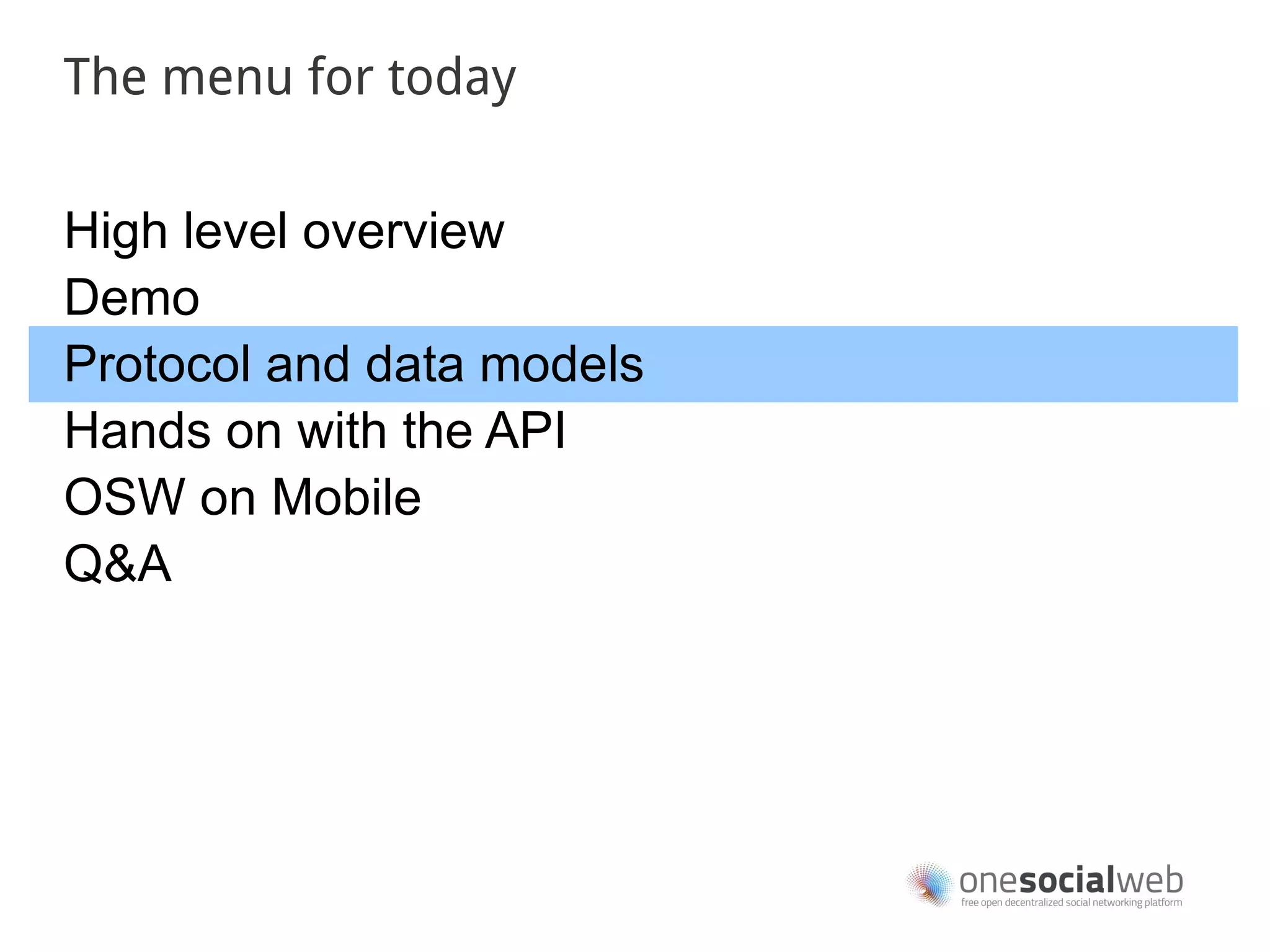

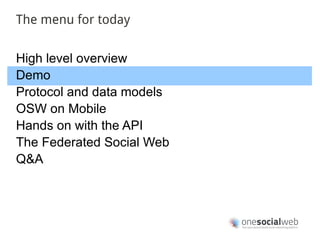

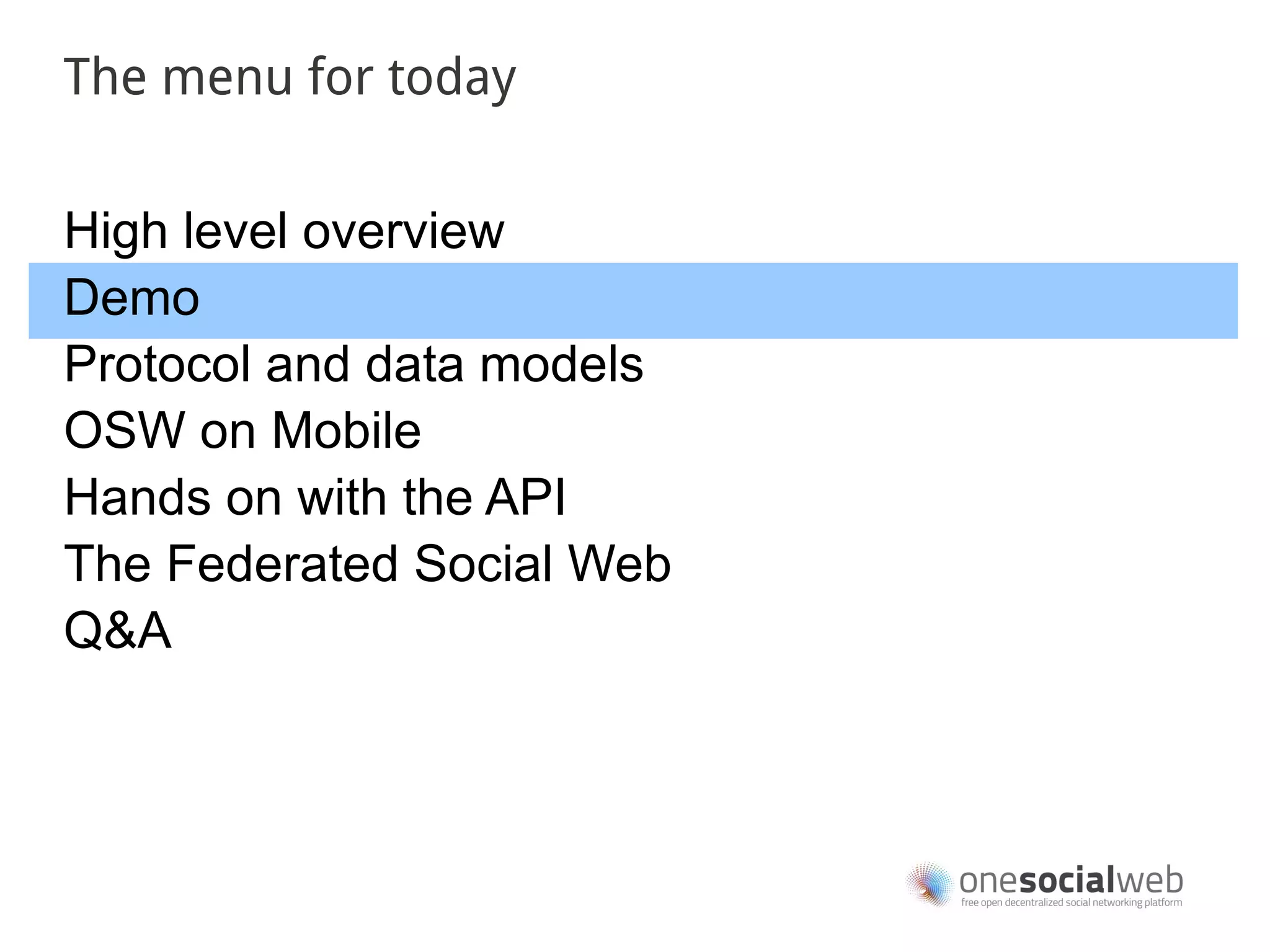

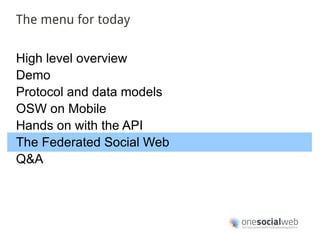

The menu for today

High level overview
Demo
Protocol and data models
Hands on with the API
OSW on Mobile
Q&A

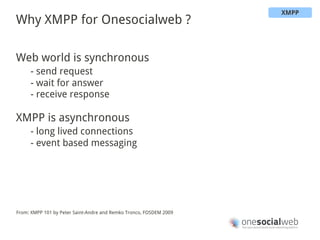

XMPP
Why XMPP for Onesocialweb ?

Web world is synchronous
- send request
- wait for answer
- receive response

XMPP is asynchronous
- long lived connections
- event based messaging

From: XMPP 101 by Peter Saint-Andre and Remko Tronco, FOSDEM 2009

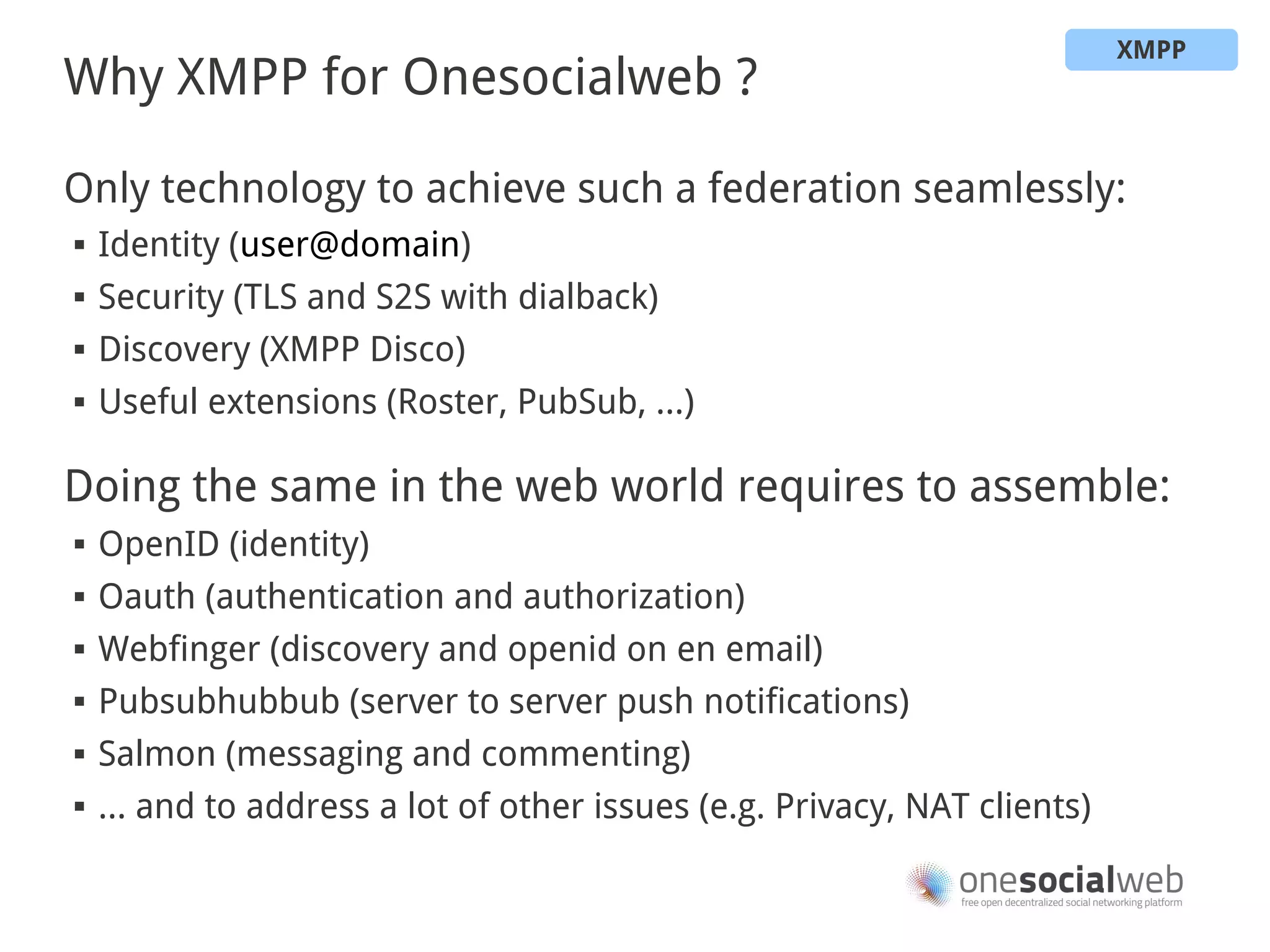

XMPP
Why XMPP for Onesocialweb ?

Only technology to achieve such a federation seamlessly:
 Identity (user@domain)
 Security (TLS and S2S with dialback)
 Discovery (XMPP Disco)
 Useful extensions (Roster, PubSub, …)

Doing the same in the web world requires to assemble:
 OpenID (identity)
 Oauth (authentication and authorization)
 Webfinger (discovery and openid on en email)
 Pubsubhubbub (server to server push notifications)
 Salmon (messaging and commenting)
 … and to address a lot of other issues (e.g. Privacy, NAT clients)

Activitystreams
References

http://activitystrea.ms

The Open and Social Web
Chris Messina
Google I/O 2010
http://code.google.com/events/io/2010/sessions/open-and-social-web.html

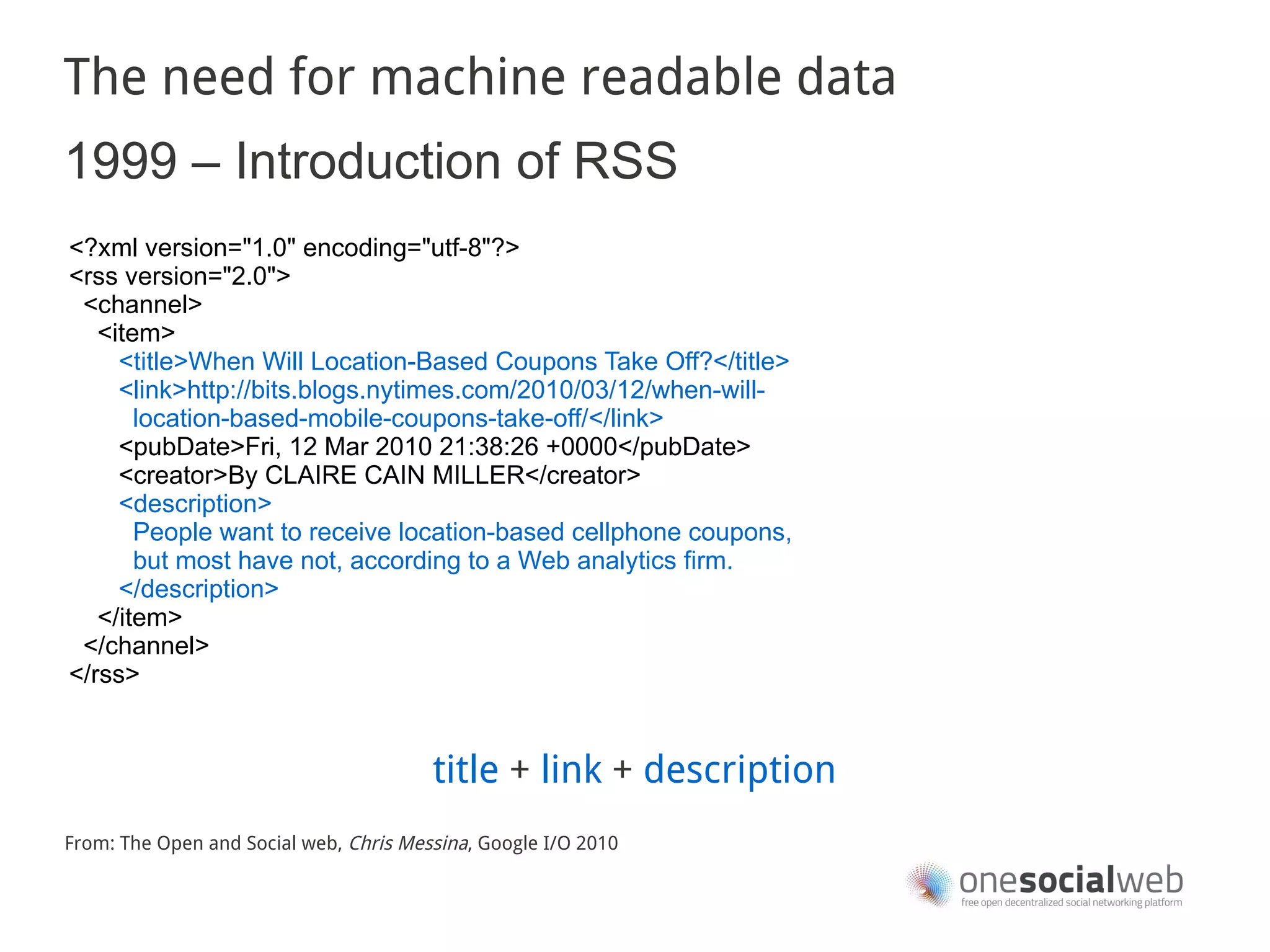

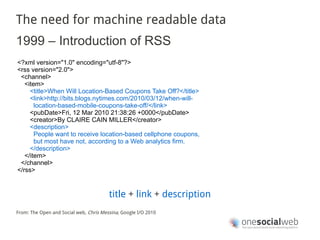

The need for machine readable data
1999 – Introduction of RSS
<?xml version="1.0" encoding="utf-8"?>
<rss version="2.0">
<channel>
<item>
<title>When Will Location-Based Coupons Take Off?</title>
<link>http://bits.blogs.nytimes.com/2010/03/12/when-will-
location-based-mobile-coupons-take-off/</link>
<pubDate>Fri, 12 Mar 2010 21:38:26 +0000</pubDate>
<creator>By CLAIRE CAIN MILLER</creator>
<description>
People want to receive location-based cellphone coupons,
but most have not, according to a Web analytics firm.
</description>
</item>
</channel>
</rss>

title + link + description
From: The Open and Social web, Chris Messina, Google I/O 2010

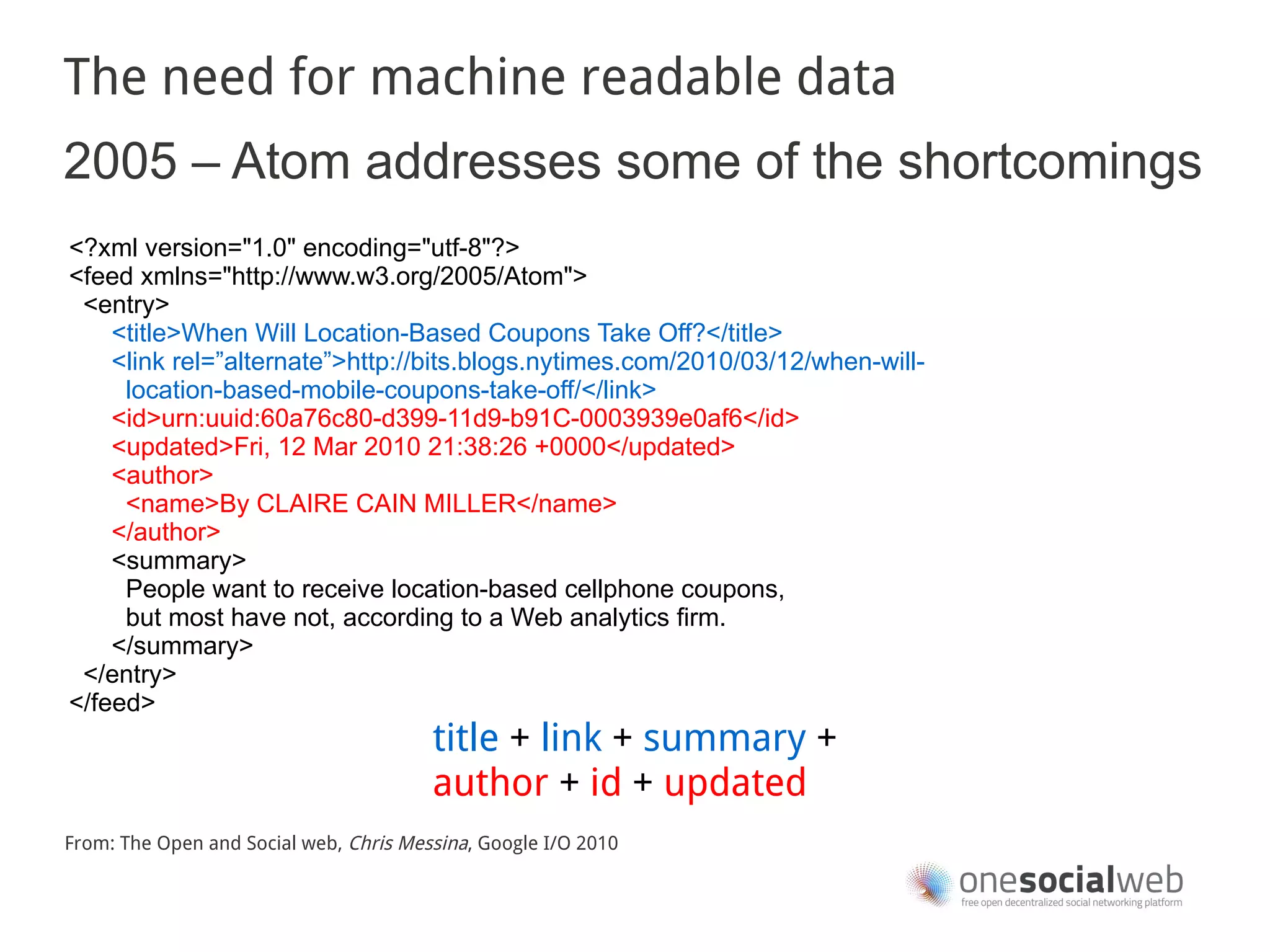

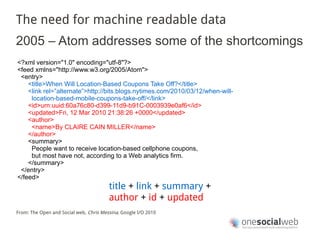

The need for machine readable data
2005 – Atom addresses some of the shortcomings
<feed xmlns="http://www.w3.org/2005/Atom">
<entry>
<title>When Will Location-Based Coupons Take Off?</title>
<link rel=”alternate”>http://bits.blogs.nytimes.com/2010/03/12/when-will-
location-based-mobile-coupons-take-off/</link>
<id>urn:uuid:60a76c80-d399-11d9-b91C-0003939e0af6</id>
<updated>Fri, 12 Mar 2010 21:38:26 +0000</updated>
<author>
<name>By CLAIRE CAIN MILLER</name>
</author>
<summary>
People want to receive location-based cellphone coupons,
but most have not, according to a Web analytics firm.
</summary>
</entry>
</feed>
title + link + summary +
author + id + updated

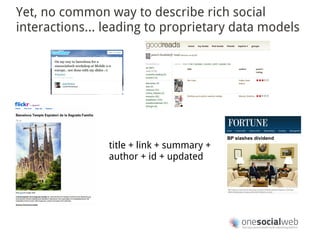

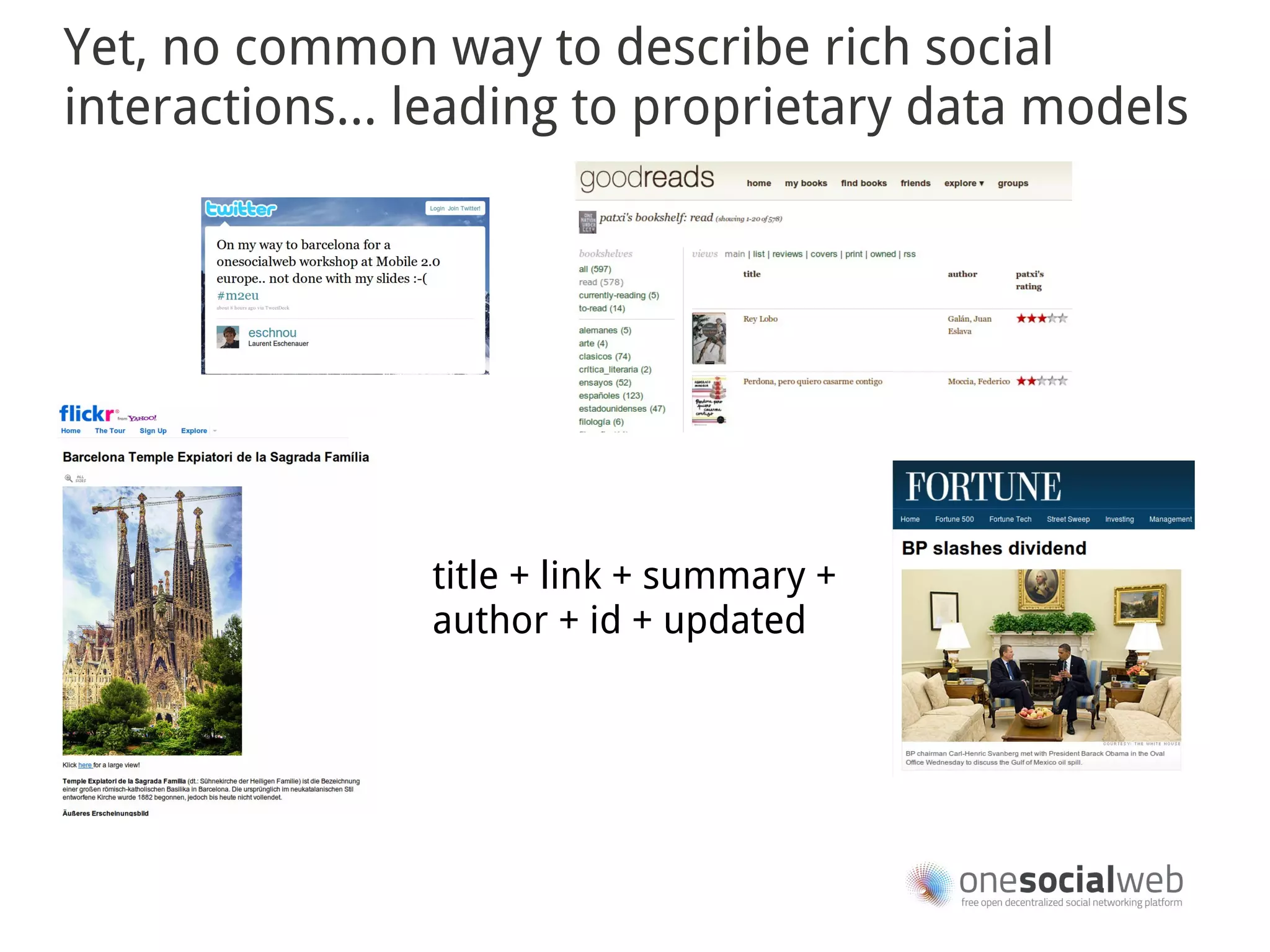

Yet, no common way to describe rich social
interactions... leading to proprietary data models

author + id + updated

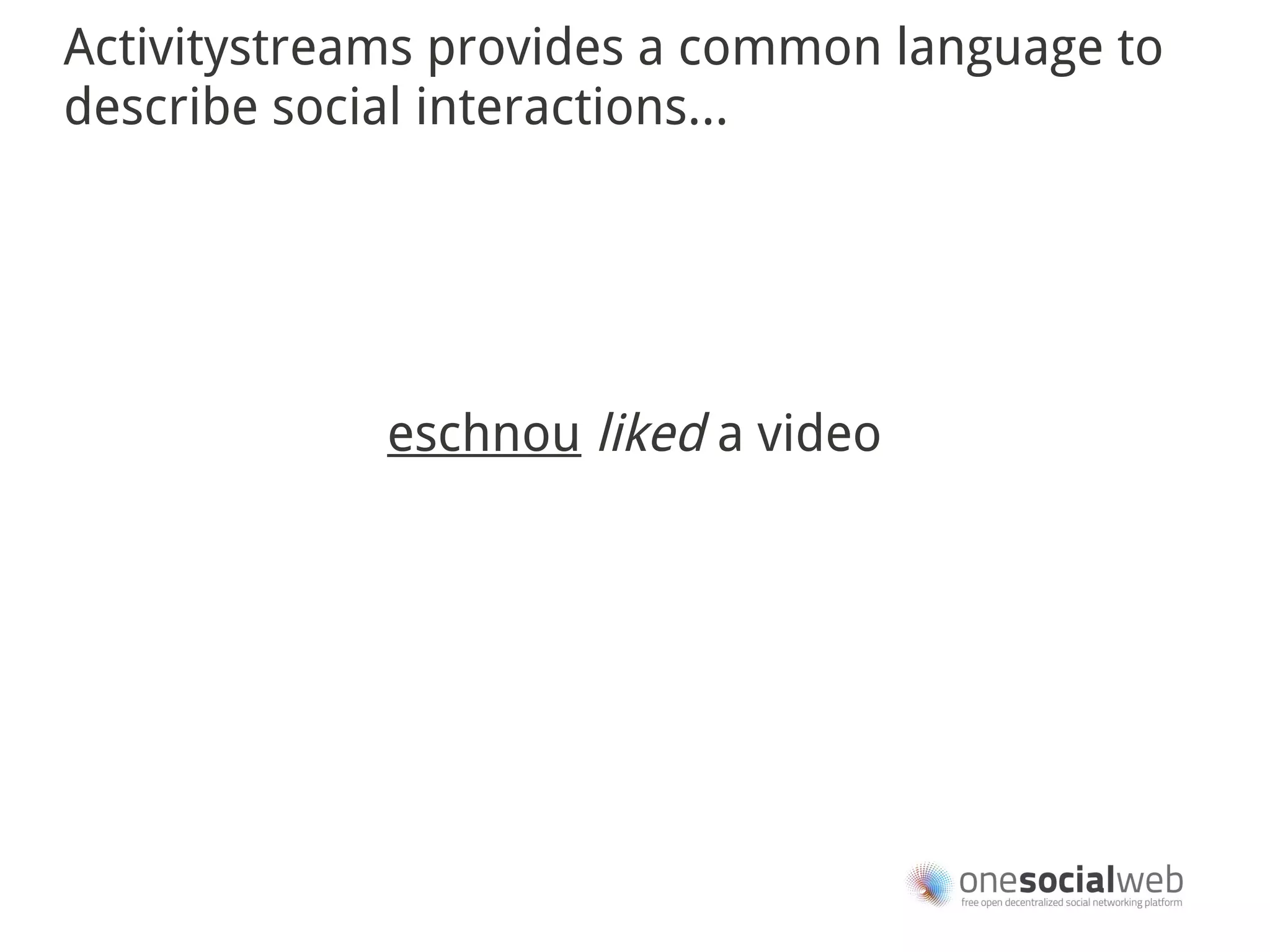

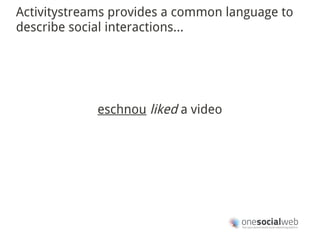

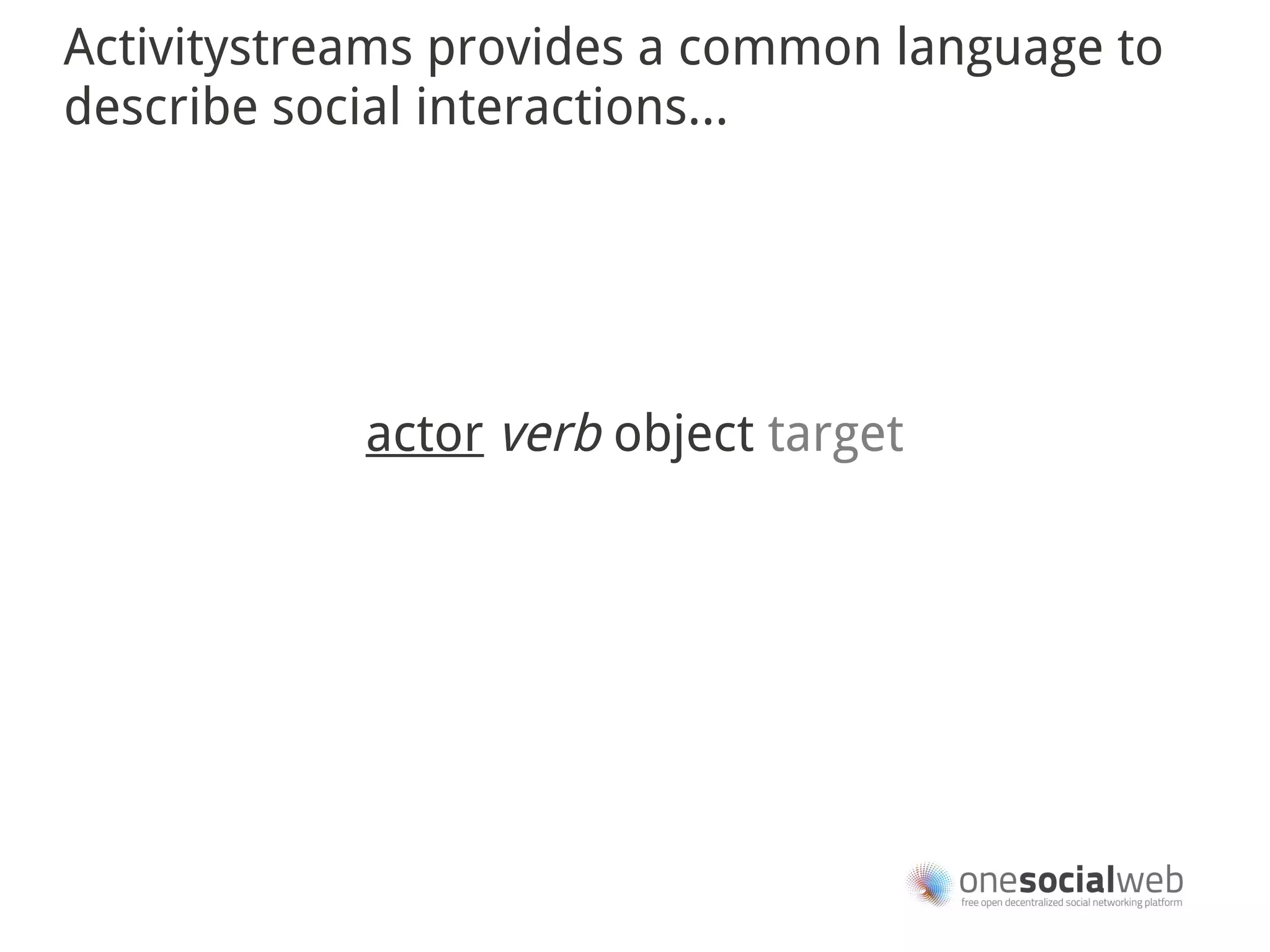

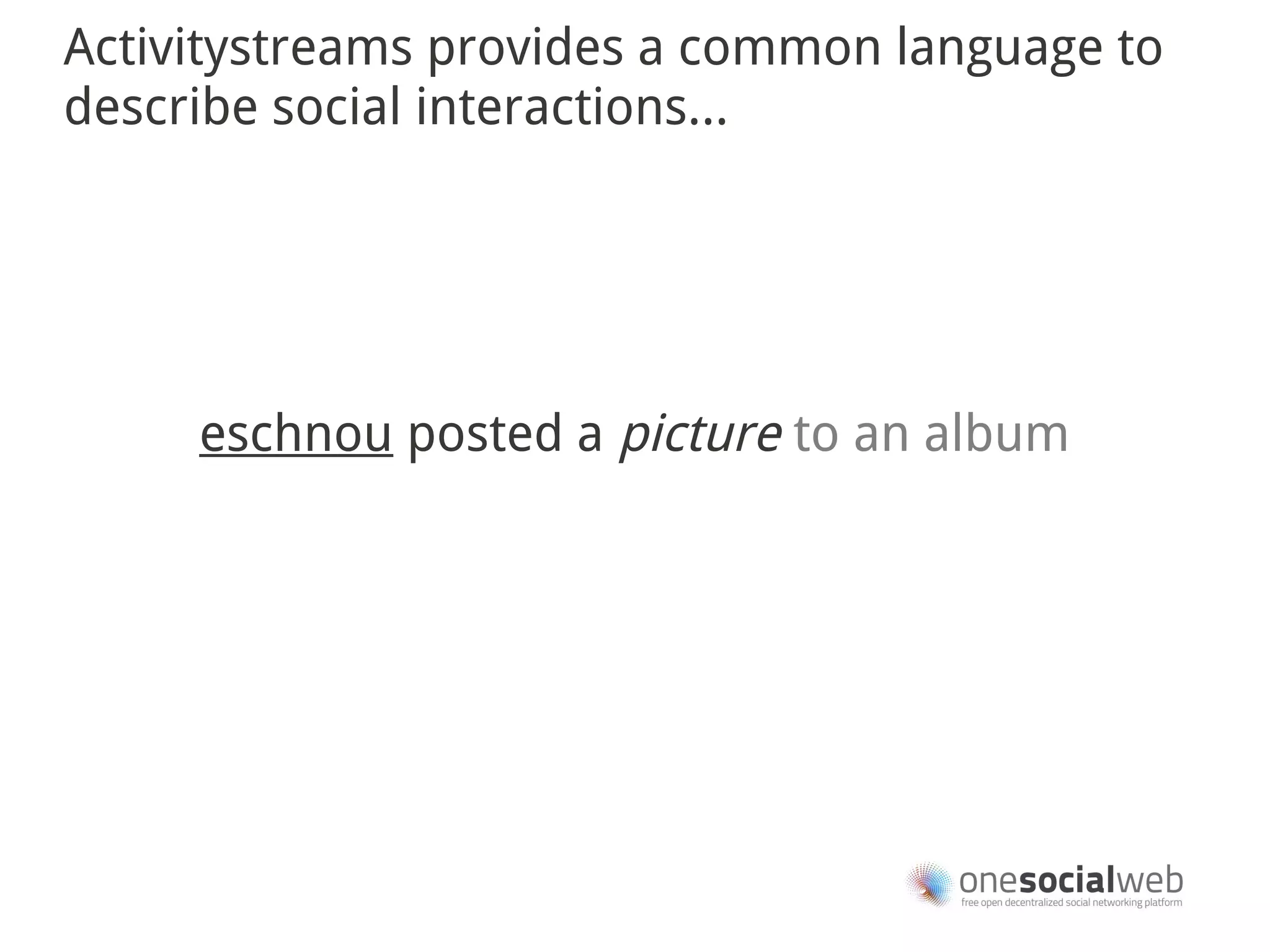

Activitystreams provides a common language to
describe social interactions...

actor verb object target


eschnou posted a note


eschnou posted a picture to an album


eschnou liked a video

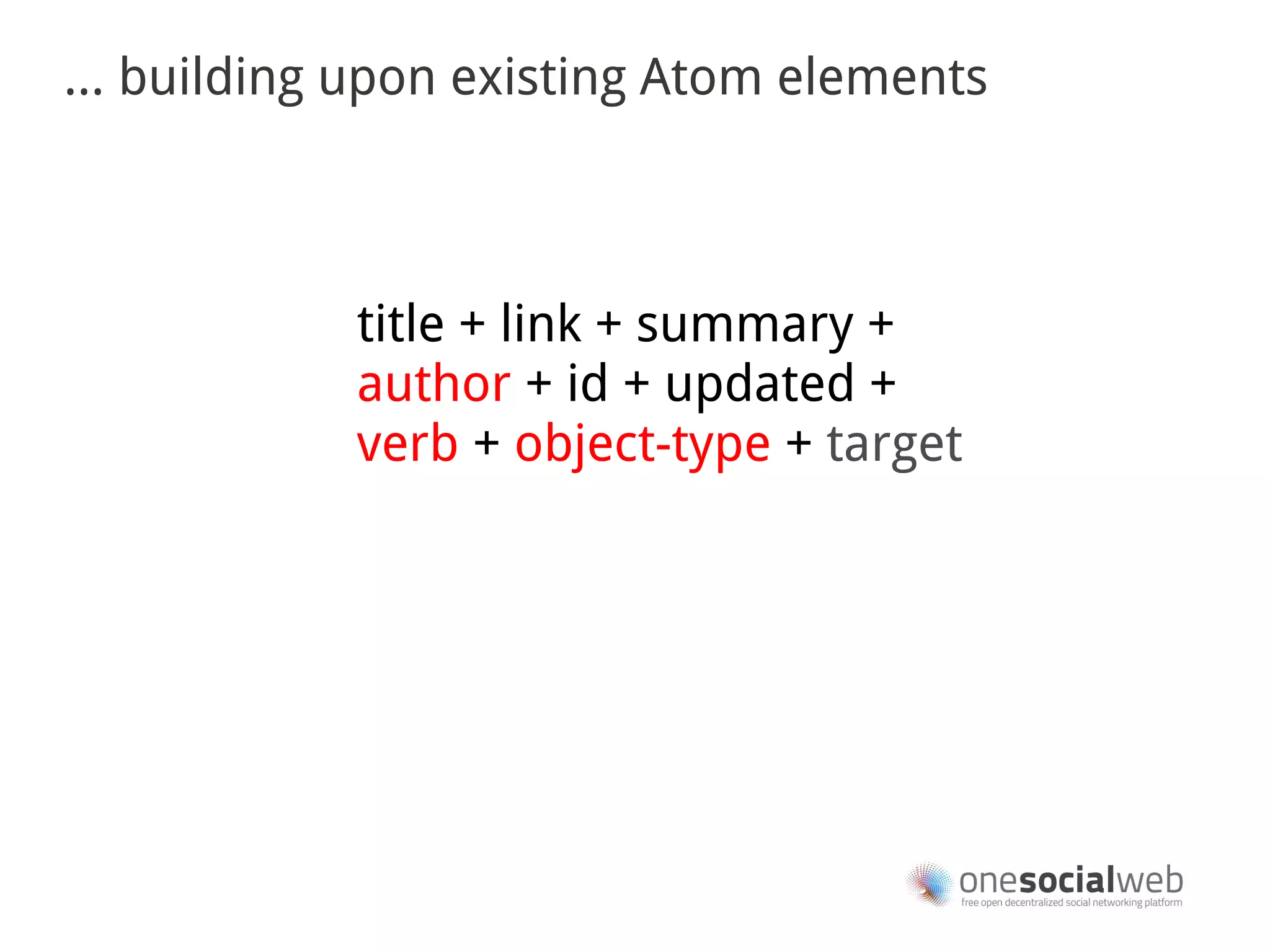

… building upon existing Atom elements

author + id + updated +
verb + object-type + target

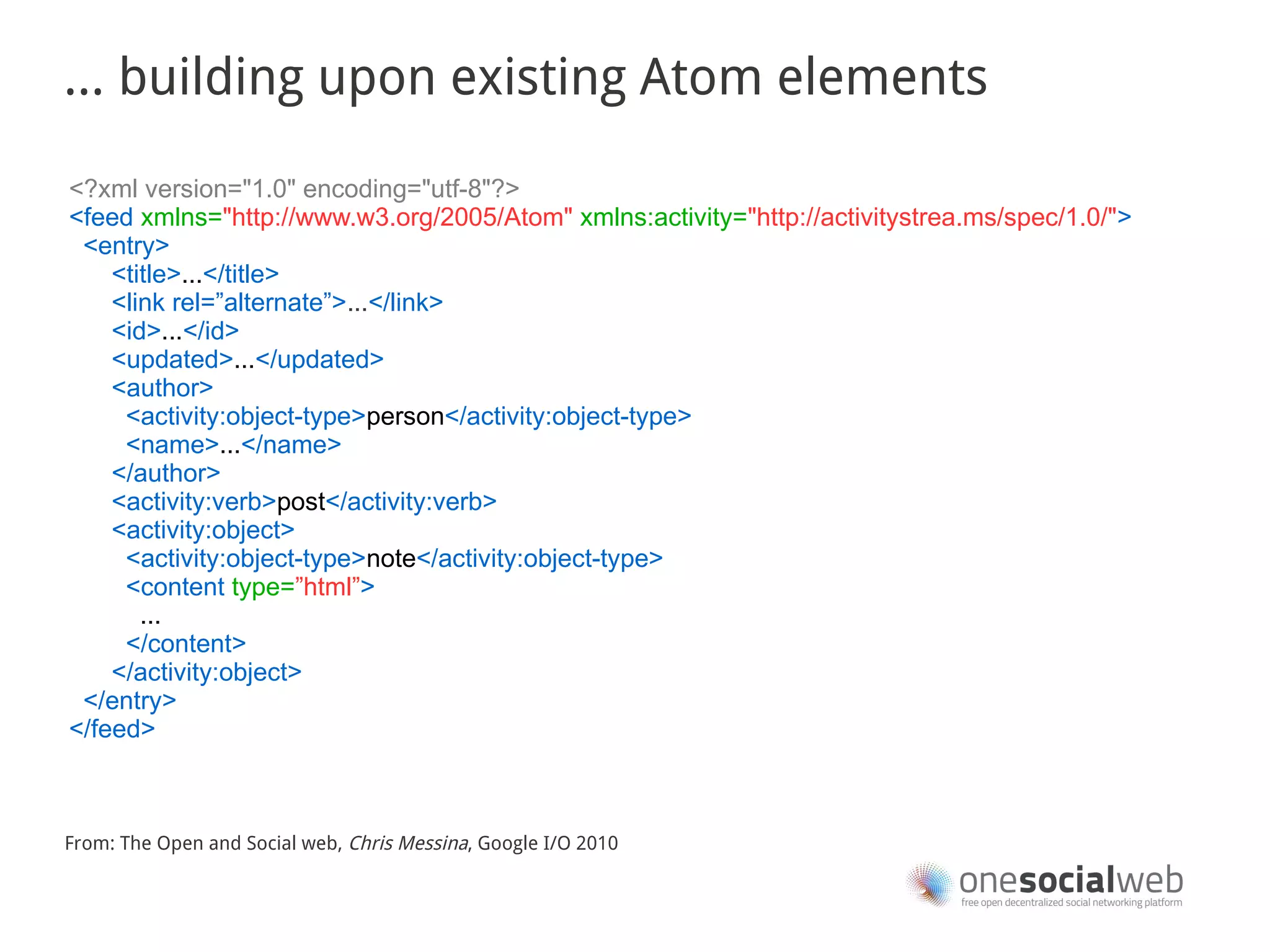

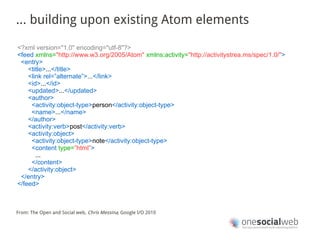

… building upon existing Atom elements

<feed xmlns="http://www.w3.org/2005/Atom" xmlns:activity="http://activitystrea.ms/spec/1.0/">
<entry>
<title>...</title>
<link rel=”alternate”>...</link>
<id>...</id>
<updated>...</updated>
<author>
<activity:object-type>person</activity:object-type>
<name>...</name>
</author>
<activity:verb>post</activity:verb>
<activity:object>
<activity:object-type>note</activity:object-type>
<content type=”html”>
...
</content>
</activity:object>
</entry>
</feed>

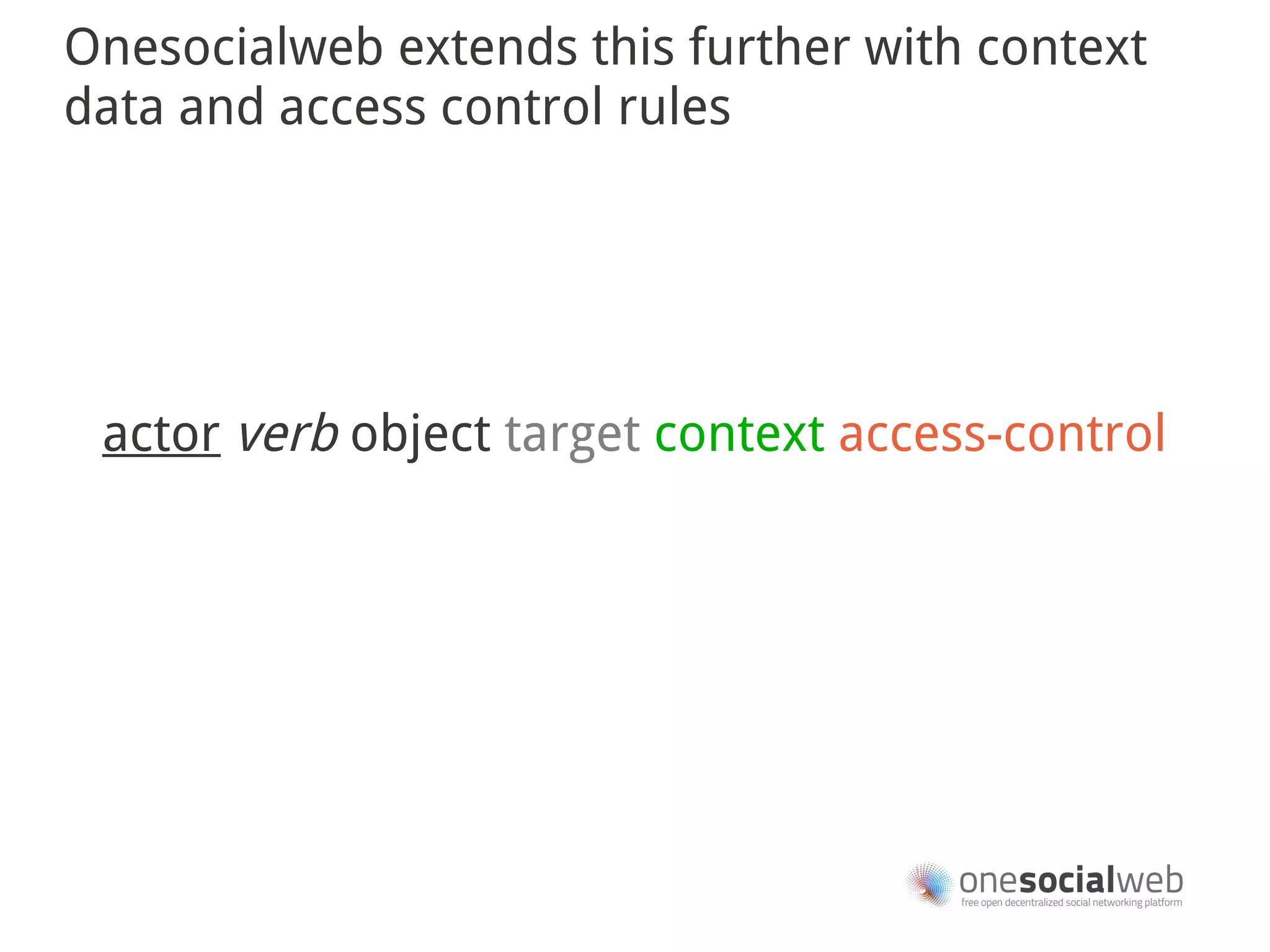

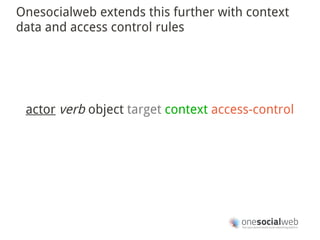

Onesocialweb extends this further with context
data and access control rules

actor verb object target context access-control

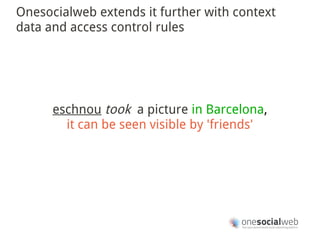

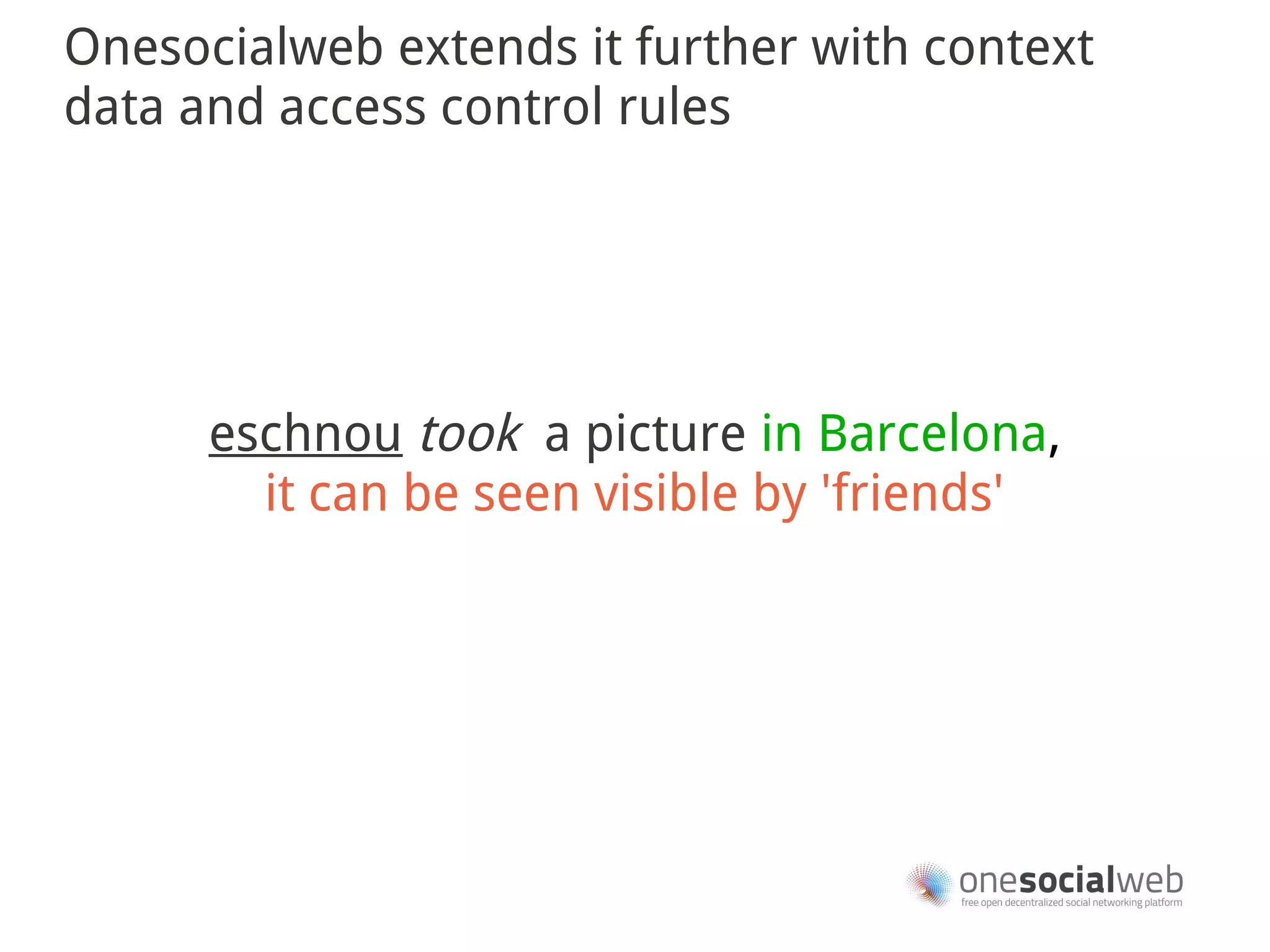

Onesocialweb extends it further with context
data and access control rules

eschnou took a picture in Barcelona,
it can be seen visible by 'friends'

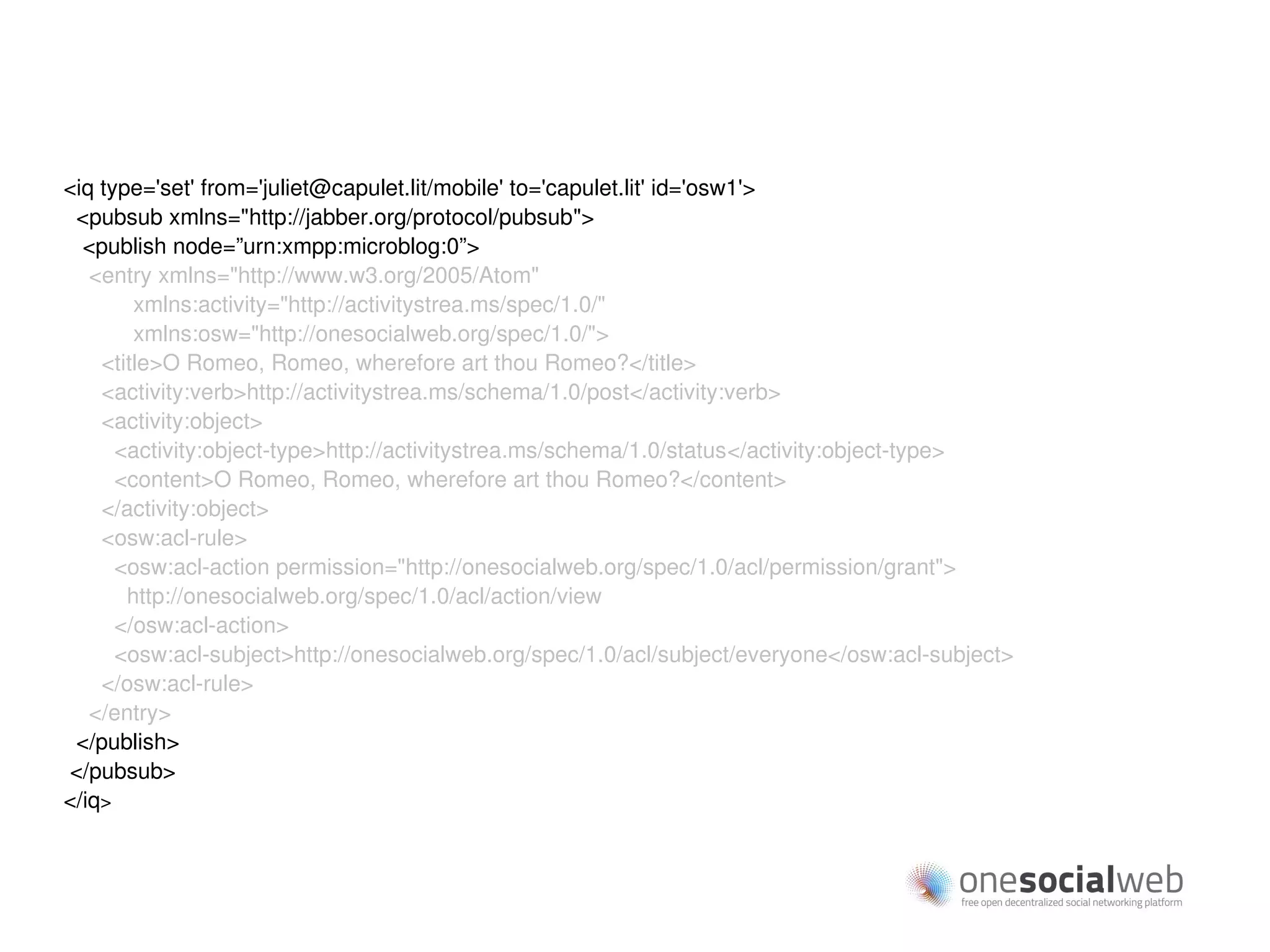

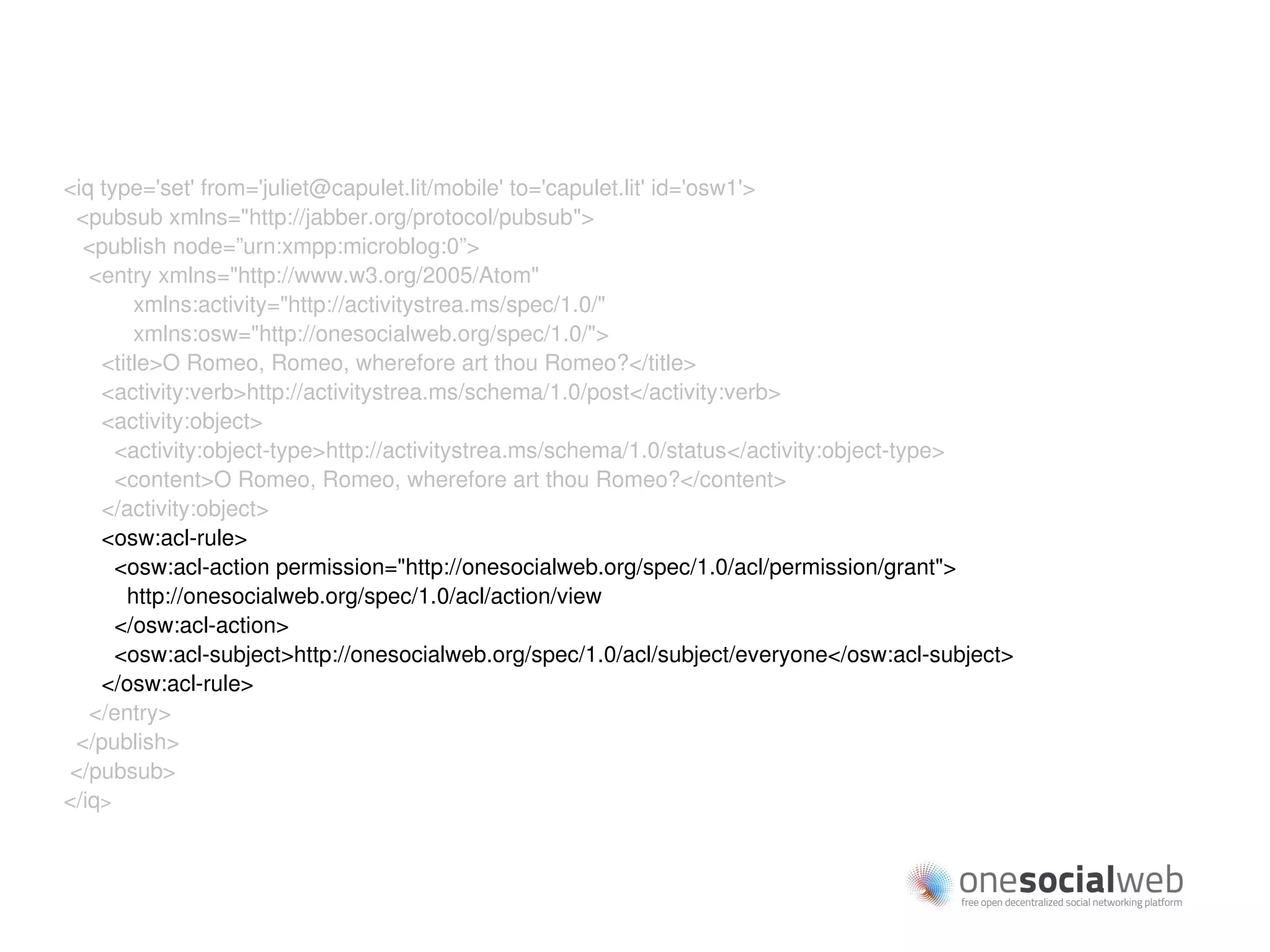

Juliet updates her status
“O Romeo, Romeo, wherefore
art thou Romeo ?”

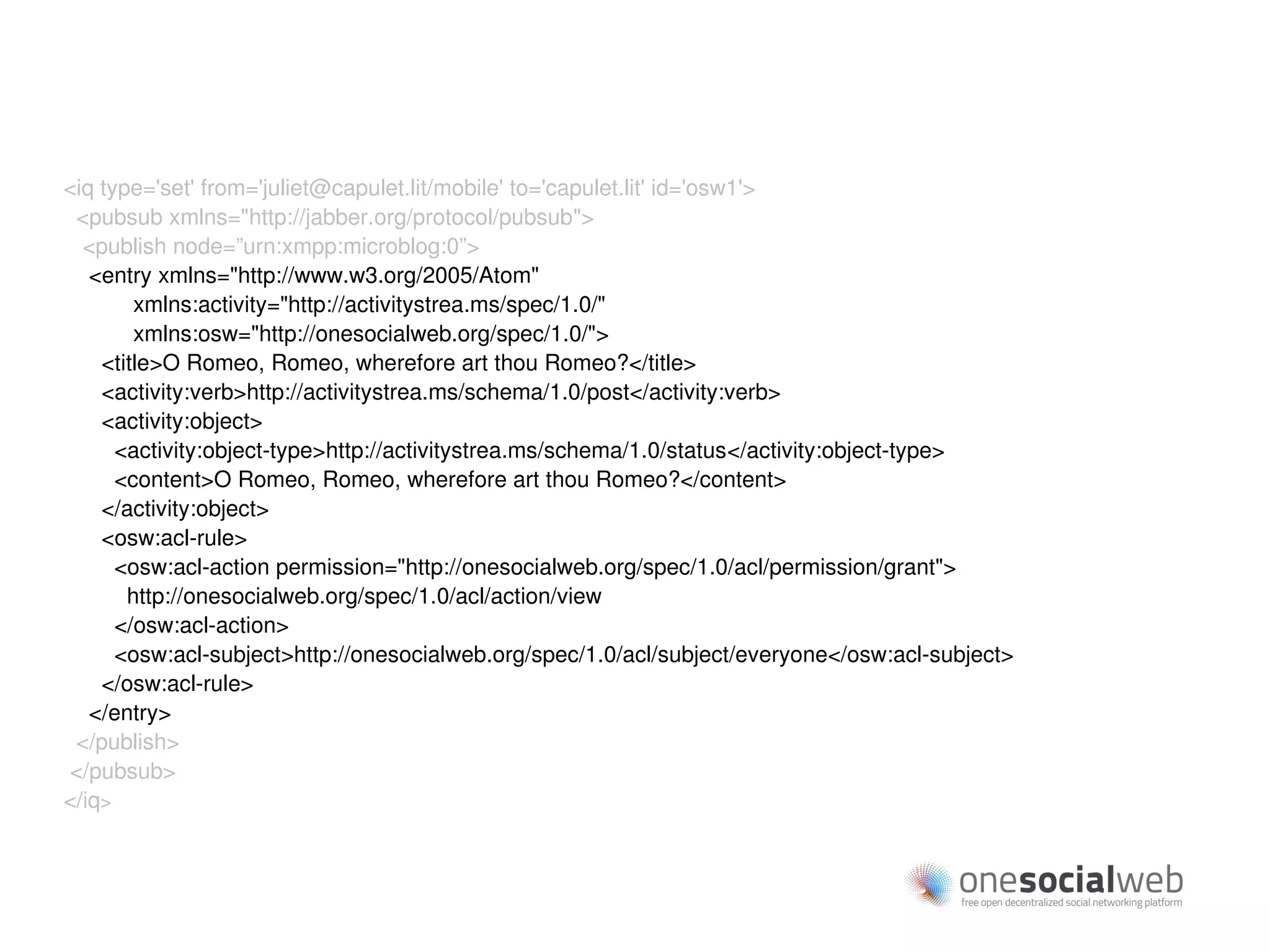

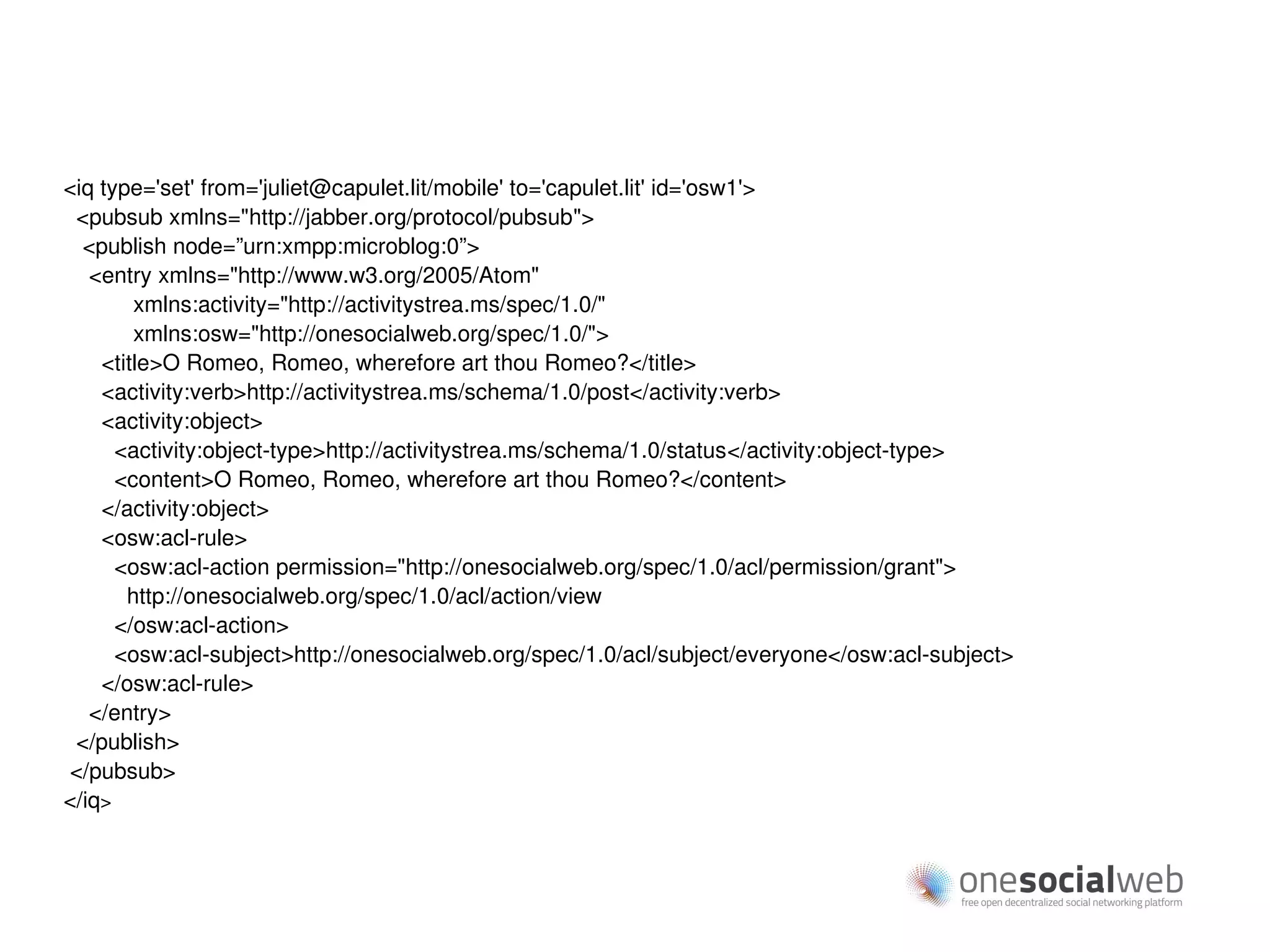

<iq type='set' from='juliet@capulet.lit/mobile' to='capulet.lit' id='osw1'>
<pubsub xmlns="http://jabber.org/protocol/pubsub">
<publish node=”urn:xmpp:microblog:0”>
<entry xmlns="http://www.w3.org/2005/Atom"
xmlns:activity="http://activitystrea.ms/spec/1.0/"
xmlns:osw="http://onesocialweb.org/spec/1.0/">
<title>O Romeo, Romeo, wherefore art thou Romeo?</title>
<activity:verb>http://activitystrea.ms/schema/1.0/post</activity:verb>
<activity:object>
<activity:object-type>http://activitystrea.ms/schema/1.0/status</activity:object-type>
<content>O Romeo, Romeo, wherefore art thou Romeo?</content>
</activity:object>
<osw:acl-rule>
<osw:acl-action permission="http://onesocialweb.org/spec/1.0/acl/permission/grant">
http://onesocialweb.org/spec/1.0/acl/action/view
</osw:acl-action>
<osw:acl-subject>http://onesocialweb.org/spec/1.0/acl/subject/everyone</osw:acl-subject>
</osw:acl-rule>
</entry>
</publish>
</pubsub>
</iq>

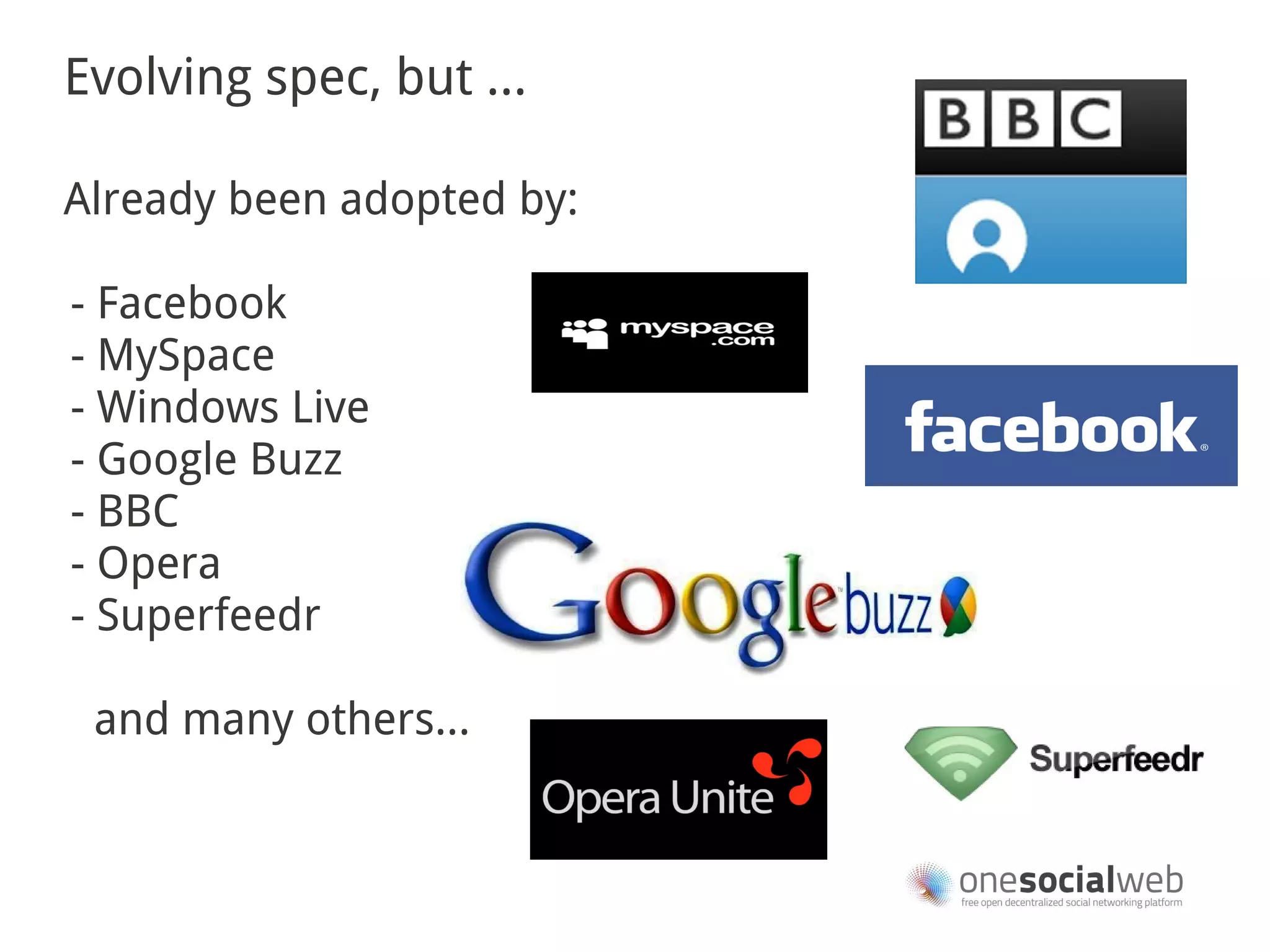

Evolving spec, but ...

Already been adopted by:

- Facebook
- MySpace
- Windows Live
- Google Buzz
- BBC
- Opera
- Superfeedr

and many others...

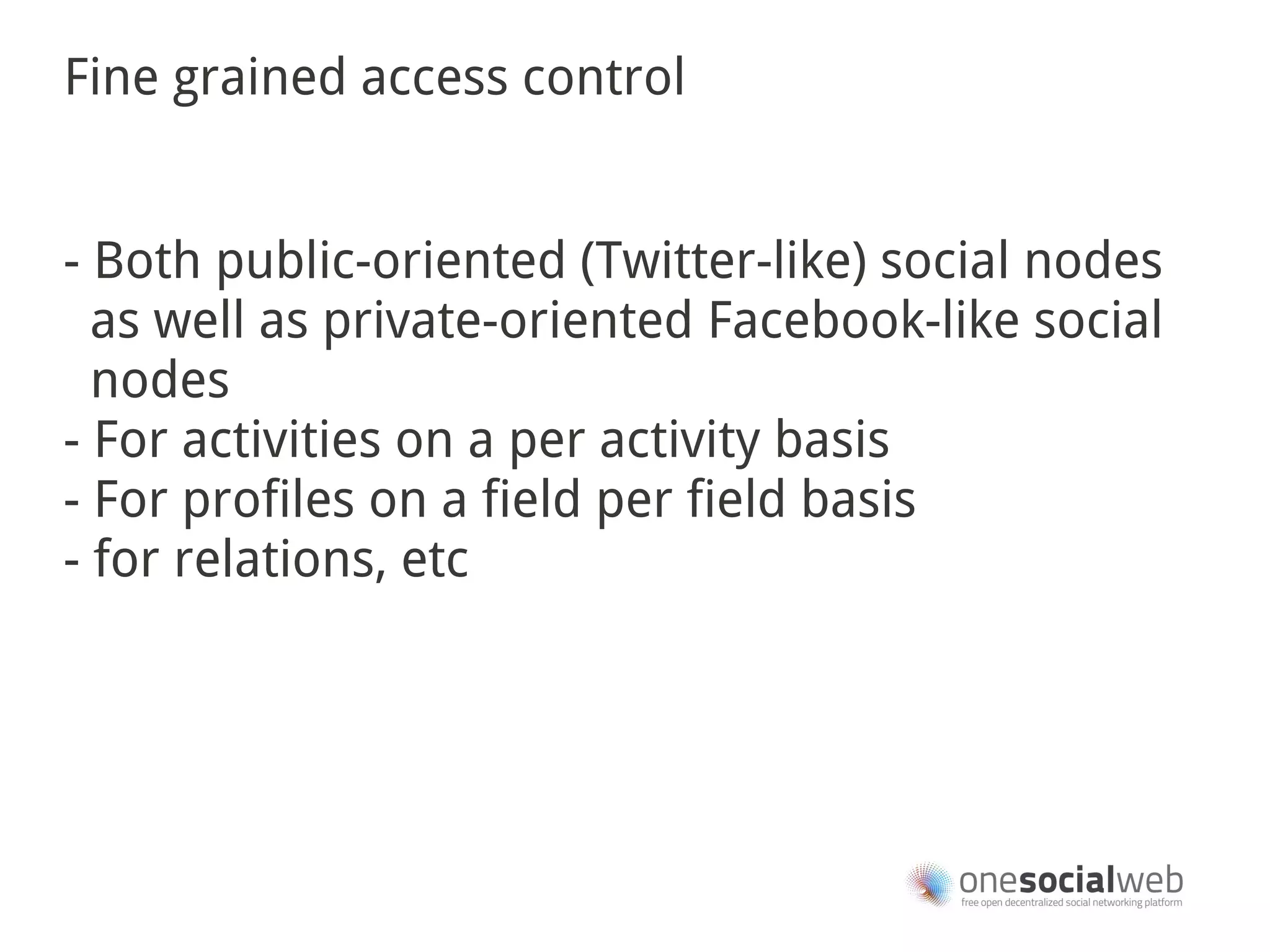

Fine grained access control

- Both public-oriented (Twitter-like) social nodes
as well as private-oriented Facebook-like social
nodes
- For activities on a per activity basis
- For profiles on a field per field basis
- for relations, etc

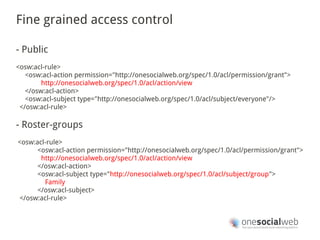

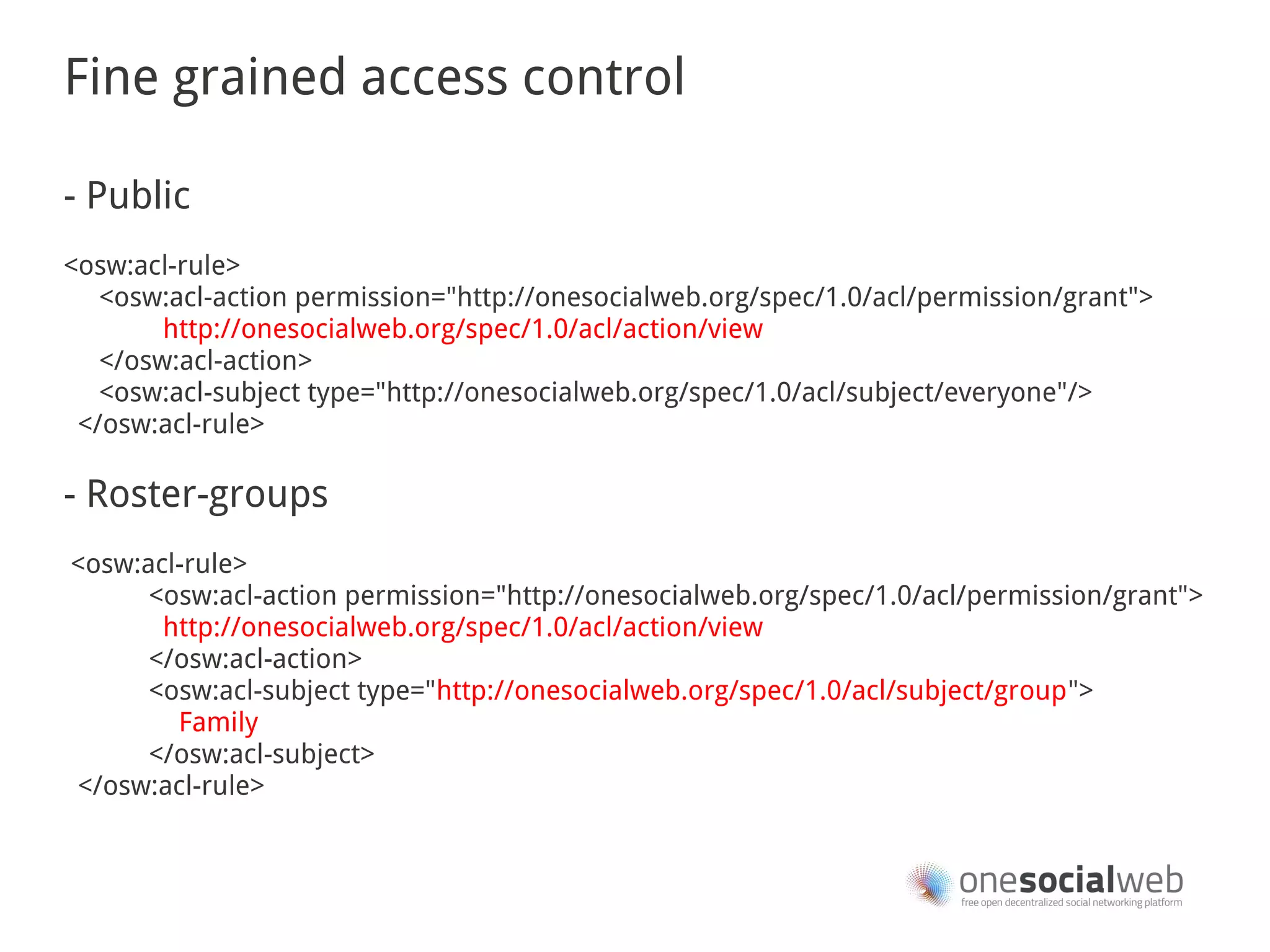

Fine grained access control

- Public
<osw:acl-rule>
</osw:acl-action>
<osw:acl-subject type="http://onesocialweb.org/spec/1.0/acl/subject/everyone"/>
</osw:acl-rule>

- Roster-groups
<osw:acl-rule>
</osw:acl-action>
<osw:acl-subject type="http://onesocialweb.org/spec/1.0/acl/subject/group">
Family
</osw:acl-subject>
</osw:acl-rule>

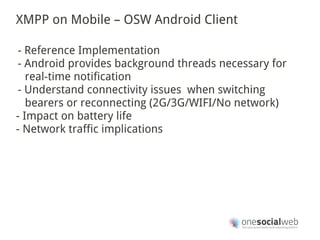

XMPP on Mobile – OSW Android Client

- Reference Implementation
- Android provides background threads necessary for
real-time notification
- Understand connectivity issues when switching
bearers or reconnecting (2G/3G/WIFI/No network)
- Impact on battery life
- Network traffic implications

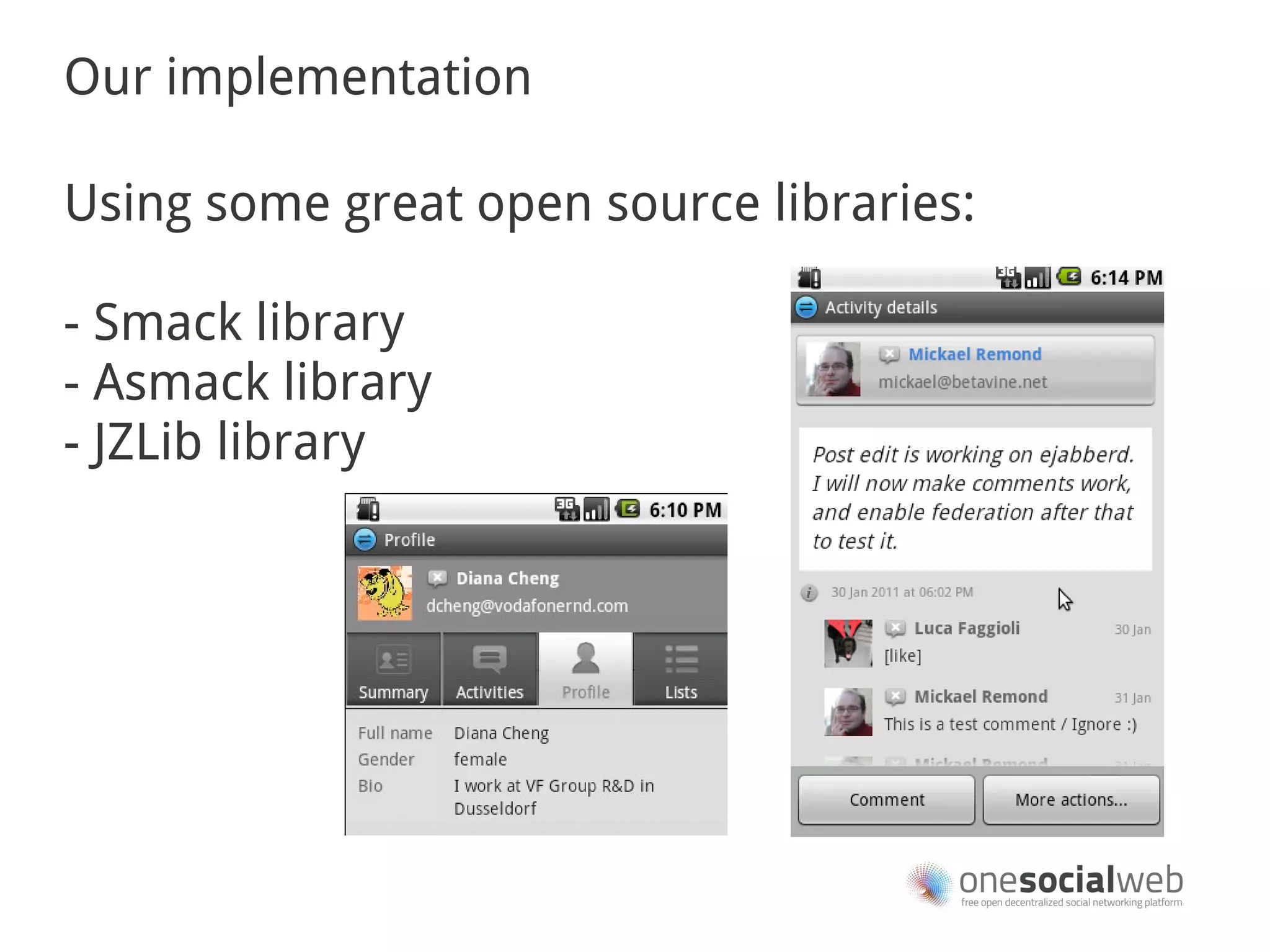

Our implementation

Using some great open source libraries:

- Smack library
- Asmack library
- JZLib library

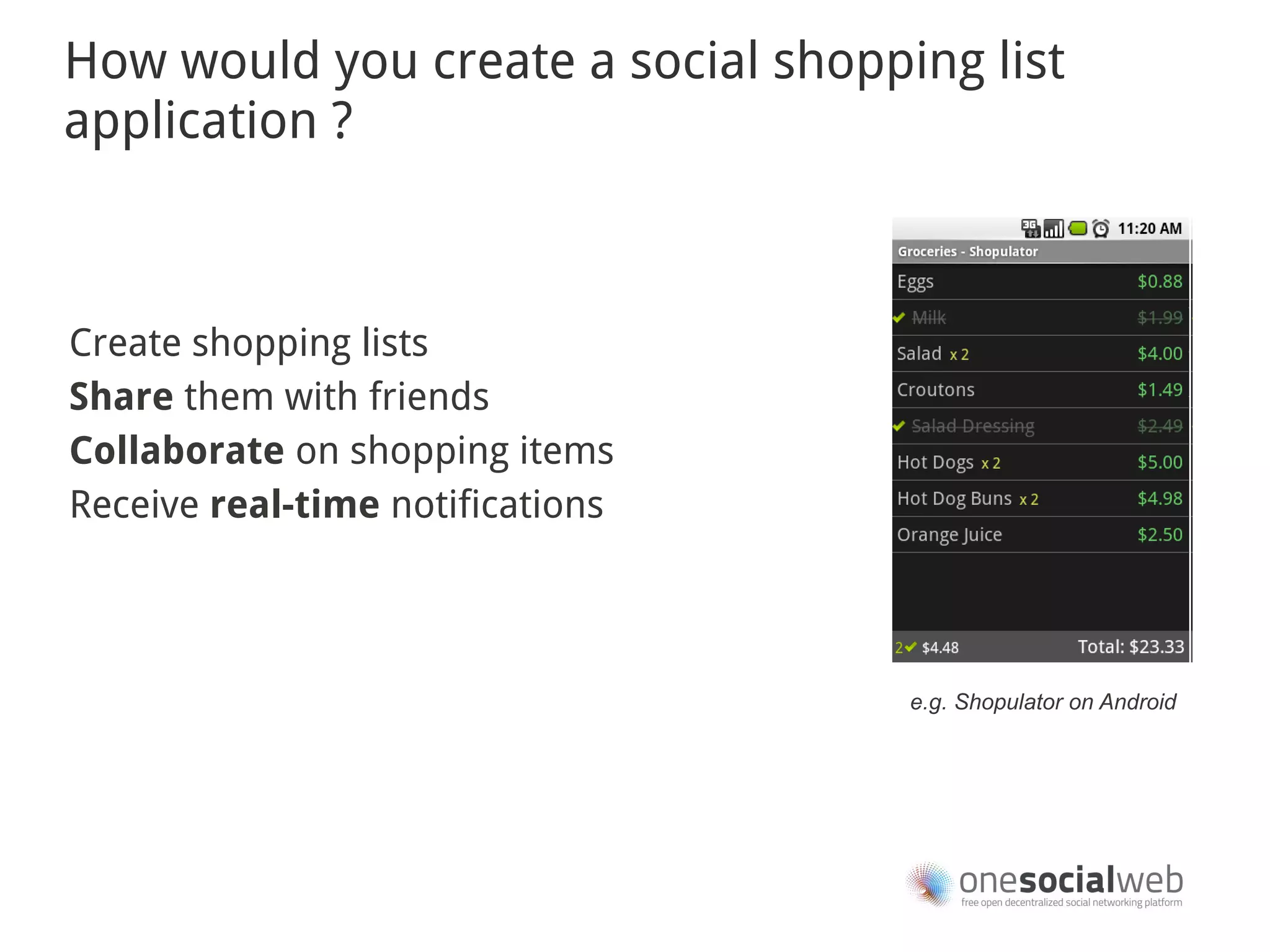

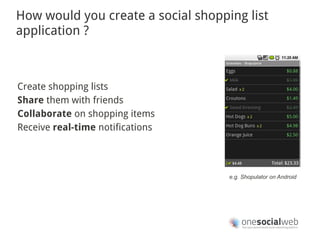

How would you create a social shopping list
application ?

Create shopping lists
Share them with friends
Collaborate on shopping items
Receive real-time notifications

e.g. Shopulator on Android

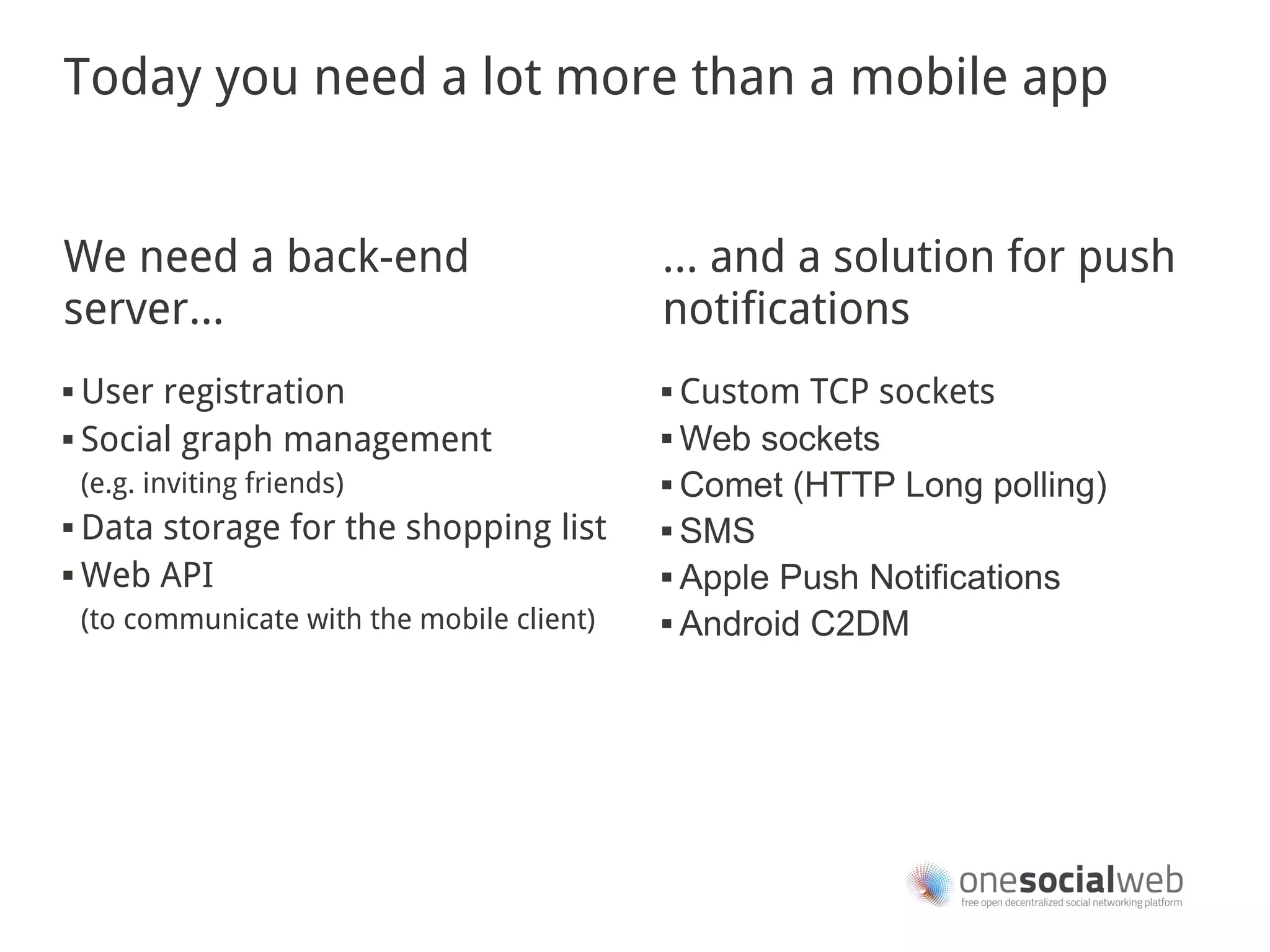

Today you need a lot more than a mobile app

We need a back-end … and a solution for push
server... notifications
 User registration  Custom TCP sockets
 Social graph management  Web sockets

(e.g. inviting friends)  Comet (HTTP Long polling)

 Data storage for the shopping list  SMS

 Web API  Apple Push Notifications

(to communicate with the mobile client)  Android C2DM

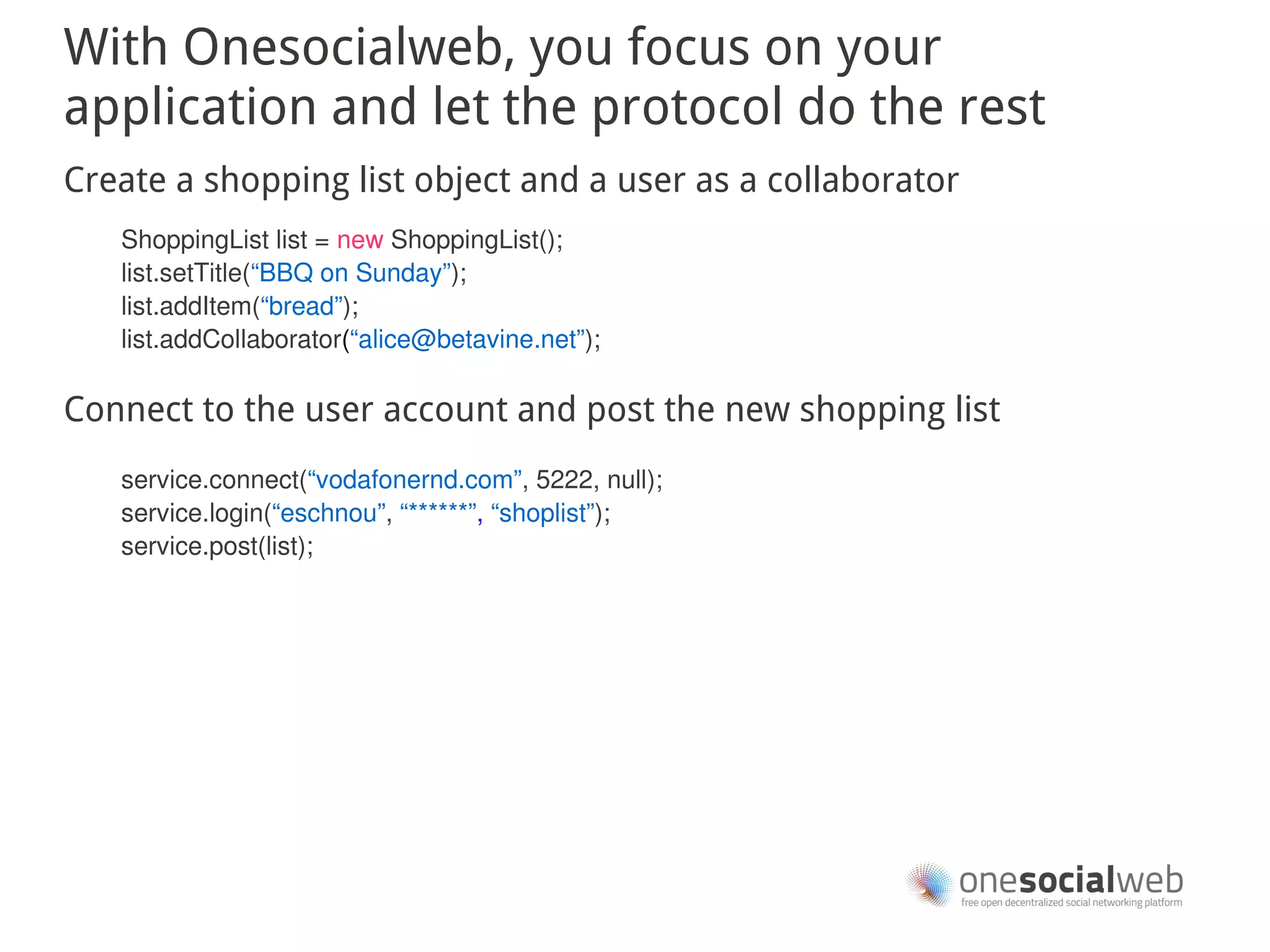

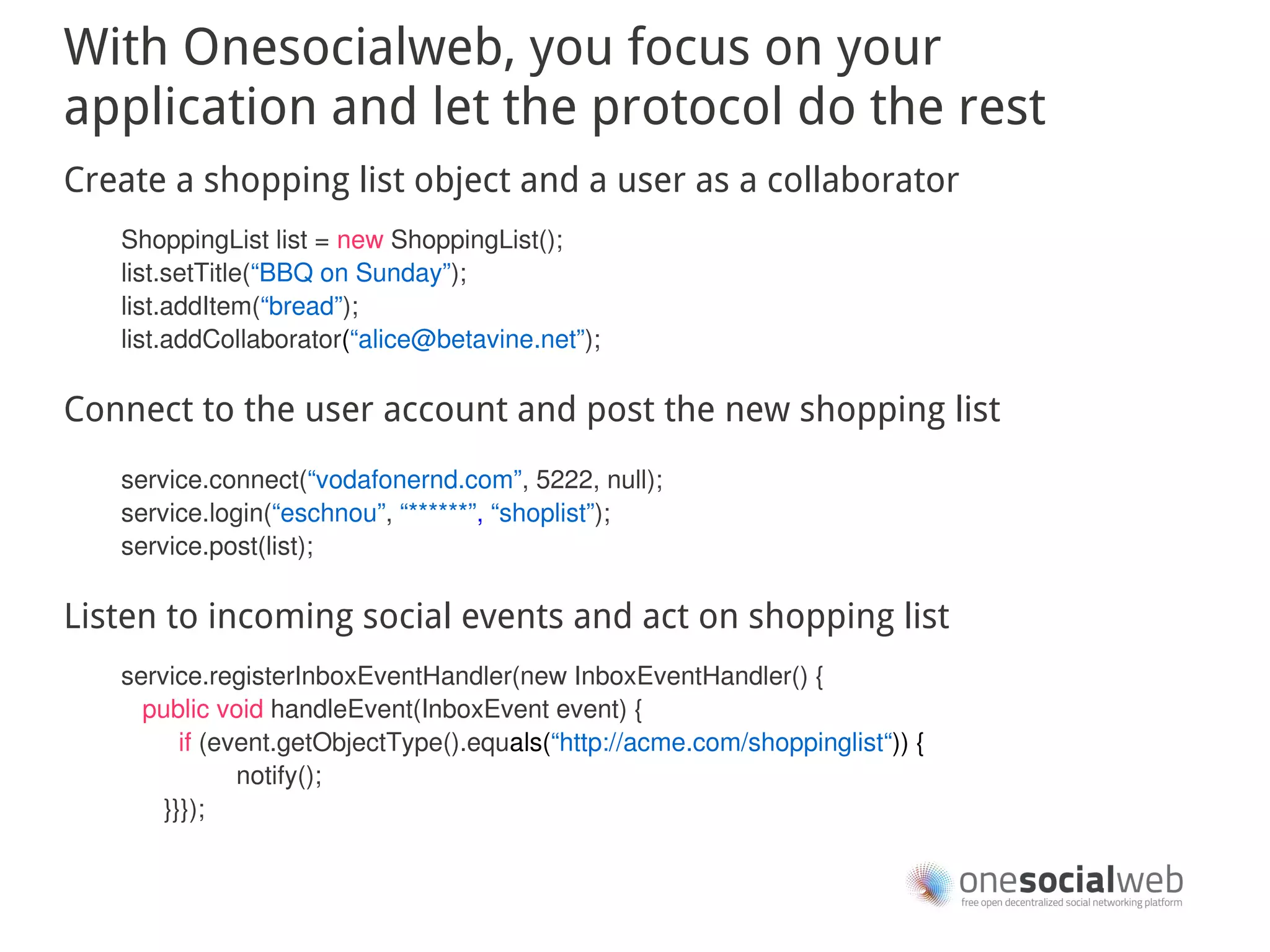

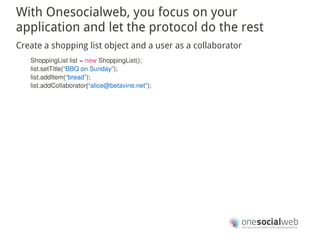

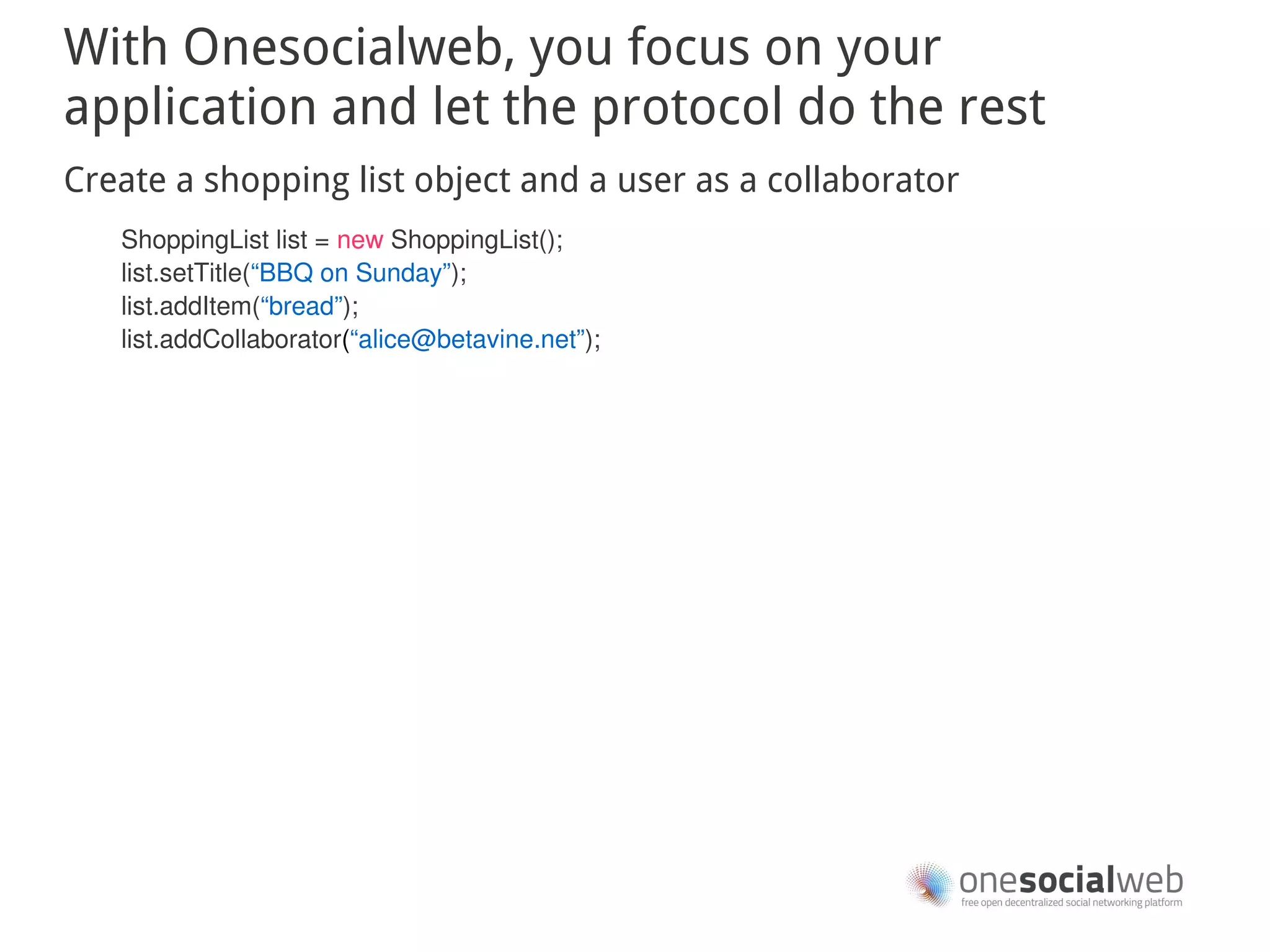

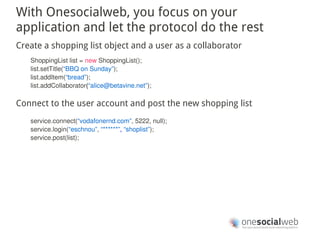

With Onesocialweb, you focus on your
application and let the protocol do the rest
Create a shopping list object and a user as a collaborator
ShoppingList list = new ShoppingList();
list.setTitle(“BBQ on Sunday”);
list.addItem(“bread”);
list.addCollaborator(“alice@betavine.net”);


Connect to the user account and post the new shopping list
service.connect(“vodafonernd.com”, 5222, null);
service.login(“eschnou”, “******”, “shoplist”);
service.post(list);


Connect to the user account and post the new shopping list
service.connect(“vodafonernd.com”, 5222, null);
service.login(“eschnou”, “******”, “shoplist”);
service.post(list);

Listen to incoming social events and act on shopping list
service.registerInboxEventHandler(new InboxEventHandler() {
public void handleEvent(InboxEvent event) {
if (event.getObjectType().equals(“http://acme.com/shoppinglist“)) {
notify();
}}});

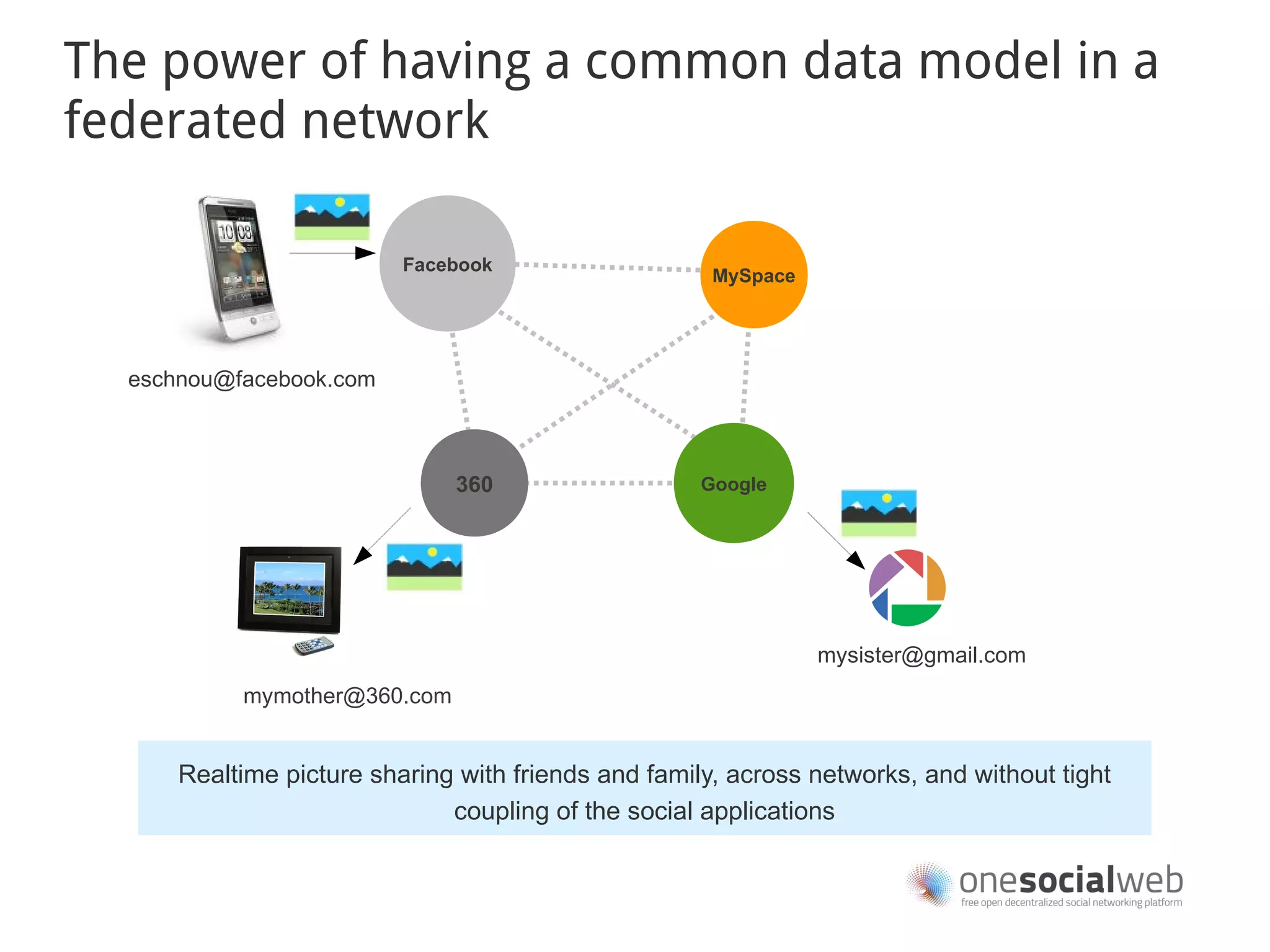

The power of having a common data model in a
federated network

Facebook
MySpace

eschnou@facebook.com

360 Google

mysister@gmail.com
mymother@360.com

Realtime picture sharing with friends and family, across networks, and without tight
coupling of the social applications

Federated Social Web & SWAT

- Federated Social Web Summit, June 2010 in Portland
- June 2011 in Berlin
- SWAT- Social Web Acid Test

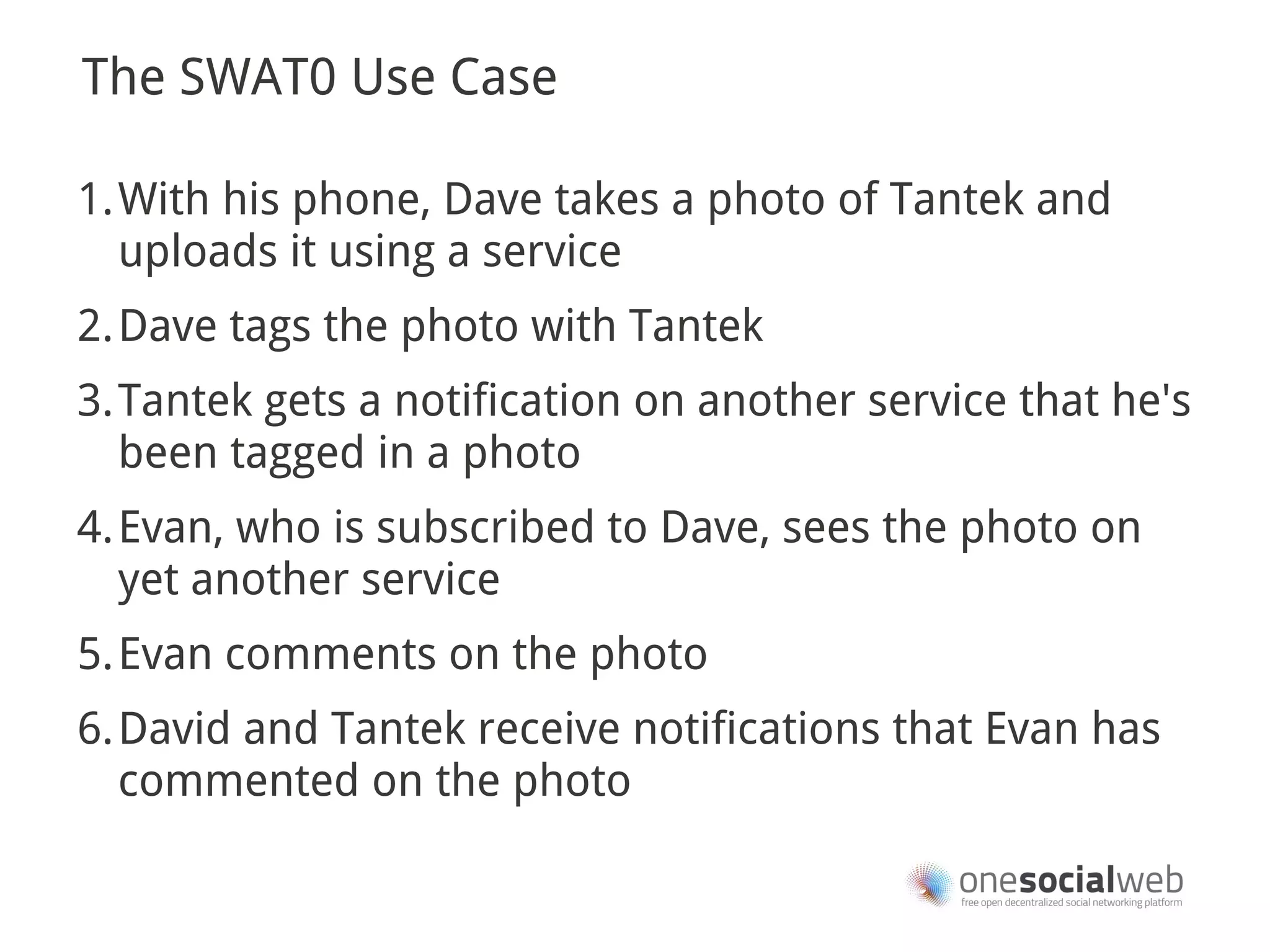

The SWAT0 Use Case

1.With his phone, Dave takes a photo of Tantek and
uploads it using a service
2.Dave tags the photo with Tantek
3.Tantek gets a notification on another service that he's
been tagged in a photo
4.Evan, who is subscribed to Dave, sees the photo on
yet another service
5.Evan comments on the photo
6.David and Tantek receive notifications that Evan has
commented on the photo

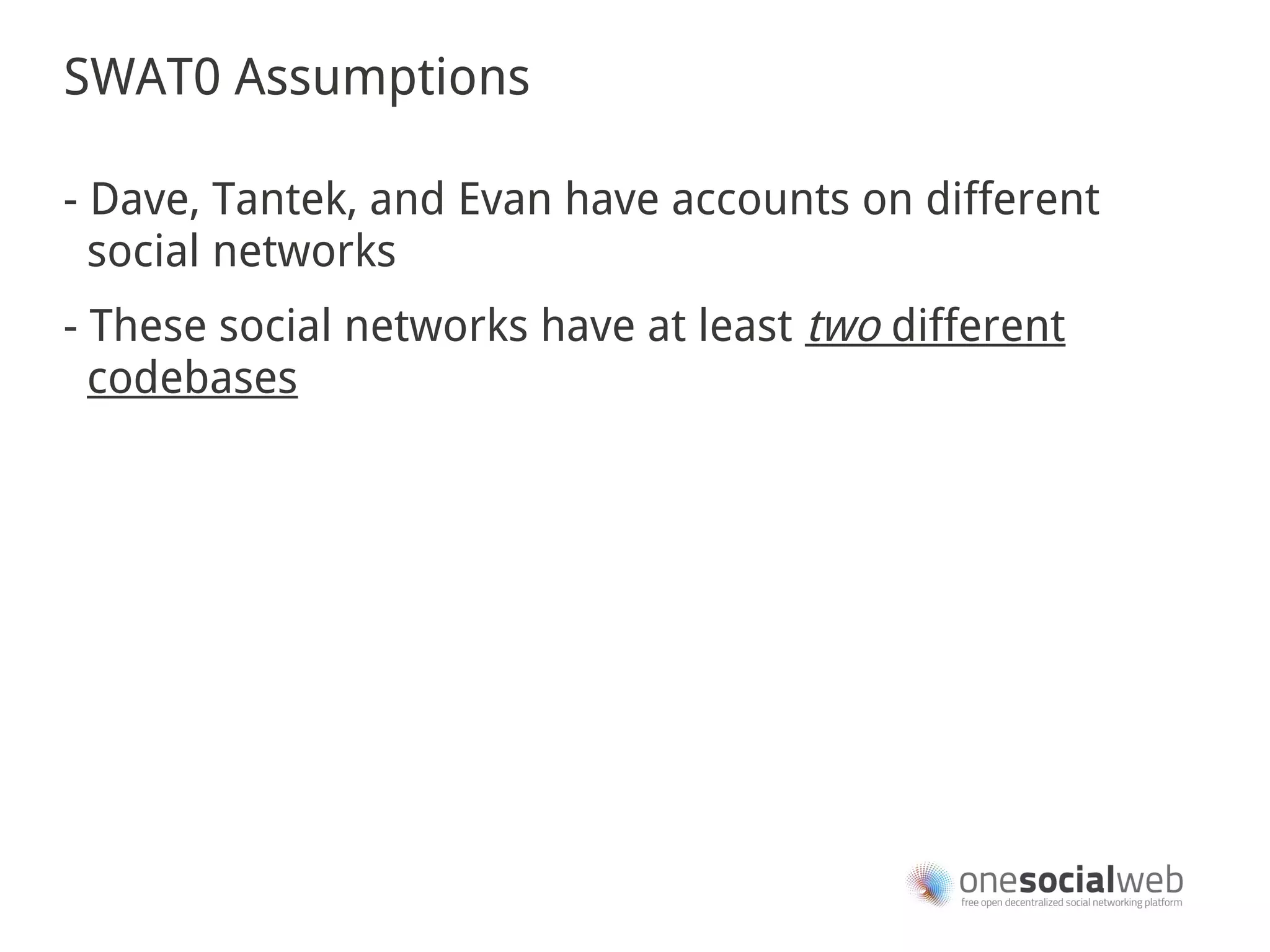

SWAT0 Assumptions

- Dave, Tantek, and Evan have accounts on different
social networks
- These social networks have at least two different
codebases

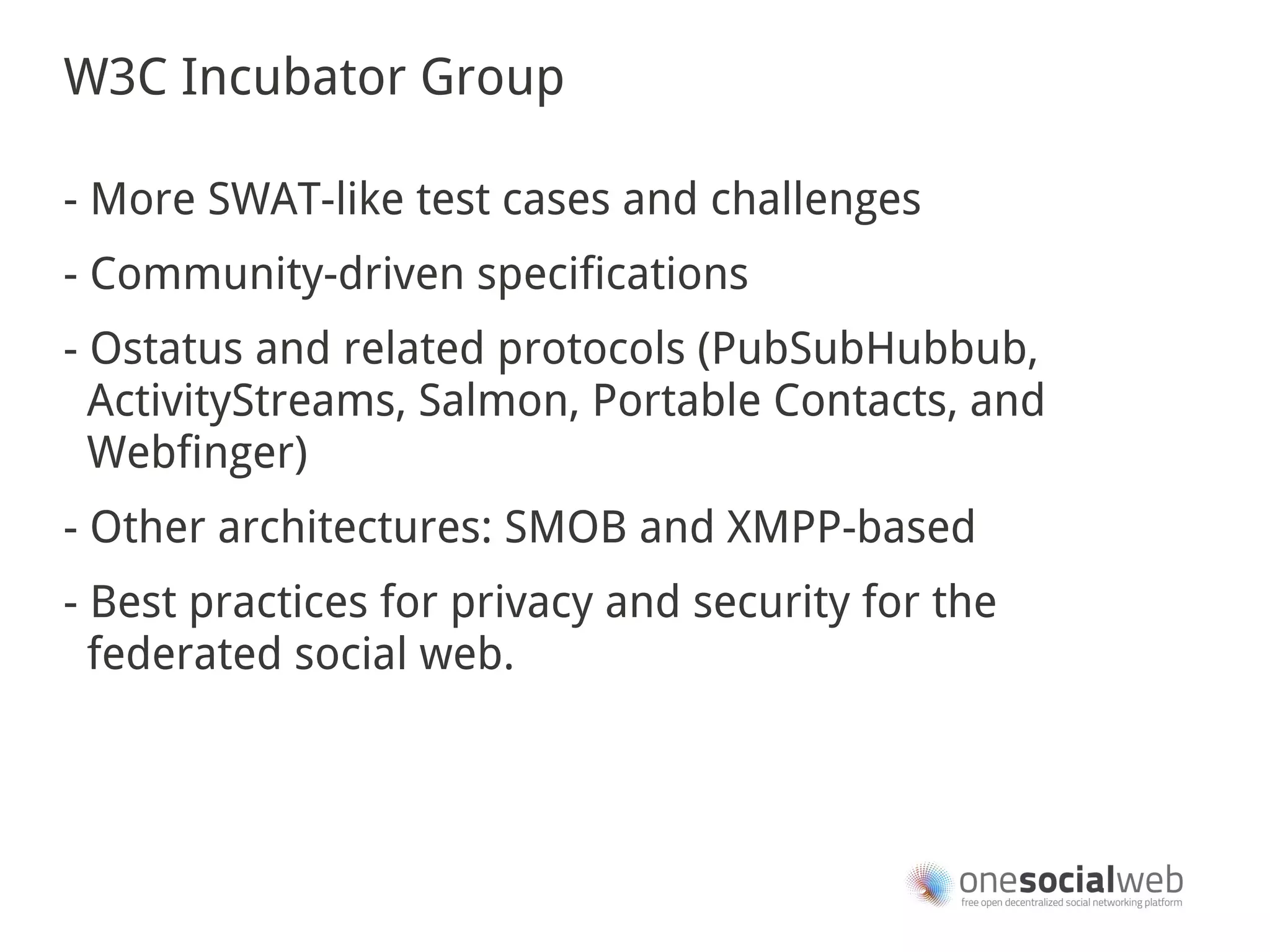

W3C Incubator Group

- More SWAT-like test cases and challenges
- Community-driven specifications
- Ostatus and related protocols (PubSubHubbub,
ActivityStreams, Salmon, Portable Contacts, and
Webfinger)
- Other architectures: SMOB and XMPP-based
- Best practices for privacy and security for the
federated social web.

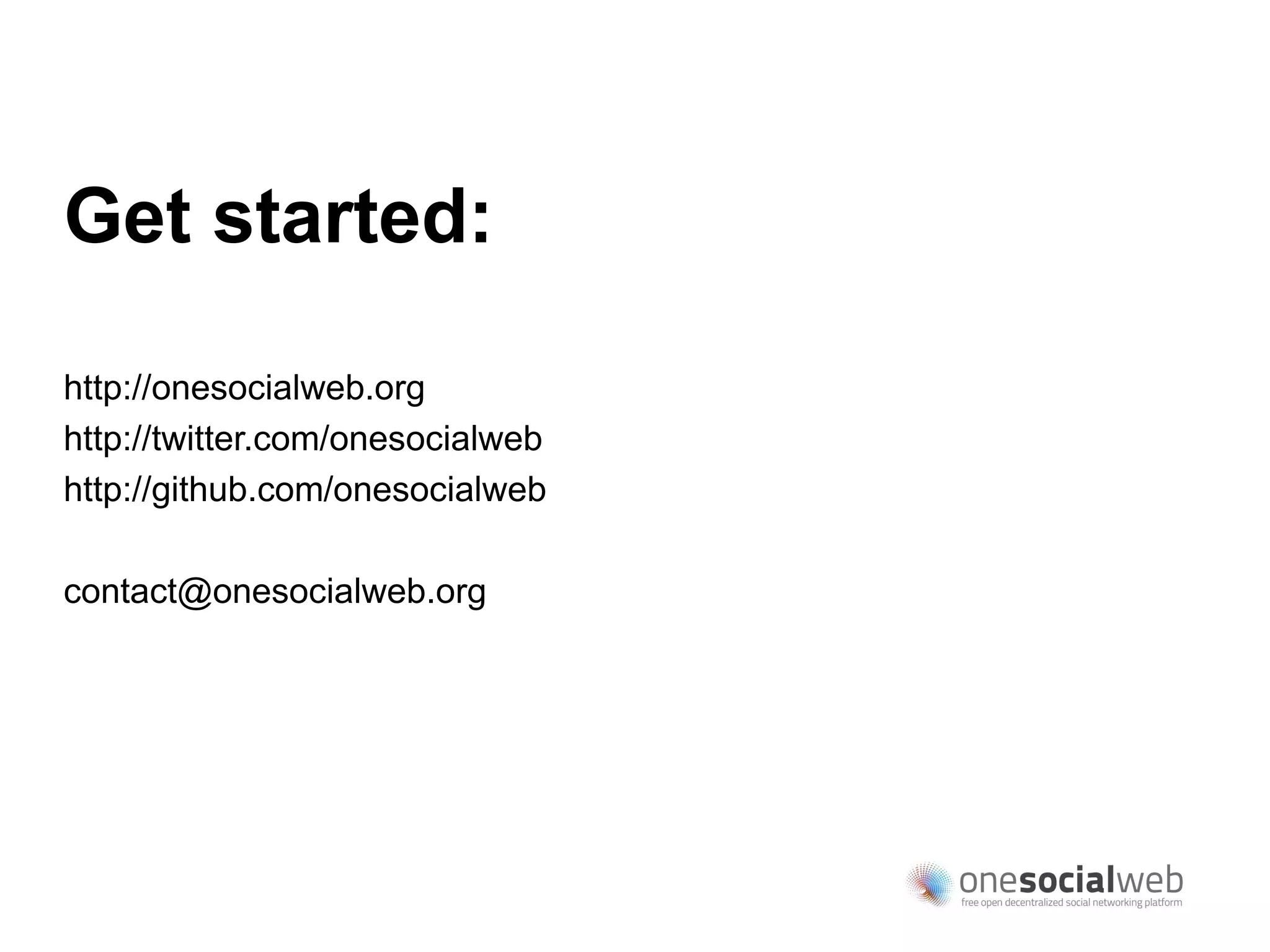

Get started:

http://onesocialweb.org
http://twitter.com/onesocialweb
http://github.com/onesocialweb

contact@onesocialweb.org

SeaBeyond 2011 ProcessOne - Diana Cheng: OneSocialWeb

More Related Content

Viewers also liked

Similar to SeaBeyond 2011 ProcessOne - Diana Cheng: OneSocialWeb

SeaBeyond 2011 ProcessOne - Diana Cheng: OneSocialWeb
