1. Open Mainframe Project
Summer internship
Blockchain technology
Laszlo Szoboszlai
Linux Foundation
Date of presentation (02/11/2016)
Session <?>

2. • Introduction to Blockchain technology and the project
• Structure of a chaincode
• Personal approach to writing HumanityCoins chaincode
• Demo (if everything goes well)
Agenda

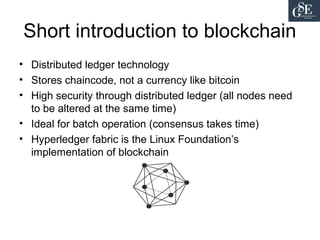

3. Short introduction to blockchain
• Distributed ledger technology
• Stores chaincode, not a currency like bitcoin
• High security through distributed ledger (all nodes need
to be altered at the same time)
• Ideal for batch operation (consensus takes time)
• Hyperledger fabric is the Linux Foundation’s
implementation of blockchain

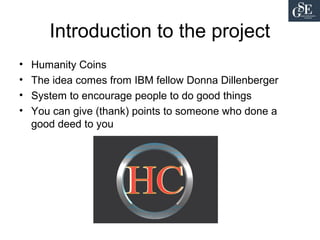

4. Introduction to the project
• Humanity Coins
• The idea comes from IBM fellow Donna Dillenberger
• System to encourage people to do good things
• You can give (thank) points to someone who done a
good deed to you

5. Introduction to the project
(technical details)
• Three levels of thanks: small(1 point), medium (5 pts)
and large (10 points)
• An optional message can be added to the thank
• Points and messages are stored on the ledger
• Front end (mobile) application can access the ledger
through rest API (under development)
• Tweeting auditor to ensure fair use of the system

6. My work through the project
• Setting up development environment (Golang, docker etc…)
• Testing different settings of networks by increasing security level
• Creating a shell script to start up four validating peers with security,
encryption and consensus enabled, similar to IBM’s High Security
Business Network
• Writing the chaincode, the application written on top of hyperledger
infrastructure
• Github code:
• HumanityCoins chaincode encapsulated in a hyperledger peer as a
docker container:

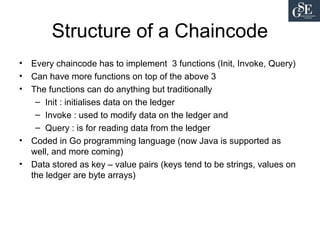

7. Structure of a Chaincode
• Every chaincode has to implement 3 functions (Init, Invoke, Query)
• Can have more functions on top of the above 3
• The functions can do anything but traditionally
– Init : initialises data on the ledger
– Invoke : used to modify data on the ledger and
– Query : is for reading data from the ledger
• Coded in Go programming language (now Java is supported as
well, and more coming)
• Data stored as key – value pairs (keys tend to be strings, values on
the ledger are byte arrays)

8. Implementation of chaincode
(unusual functions)
• Let’s call it addThanks instead of Invoke
• Three types of Query: getUser, getKeys and getRandomUser
instead of a single query

9. Implementation of the
chaincode
(data structures)
• Structs are converted to a
JSON object before written to the ledger
• Each user has a thanklist stored where the
name of the thanker, the type of the thank
and a short message is stored
• In order to make getRandomUser() easier
the user names are stored in a separate
struct as well (KeyList)

10. Implementation of the
chaincode
(init function)
• Init is used to initialise the users with their starting points
• Usernames and initial points are passed through args
• Requires even number of parameters
• KeylistObj is filled simultaneously

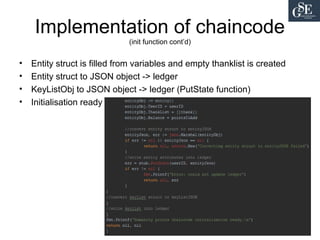

11. Implementation of chaincode
(init function cont’d)
• Entity struct is filled from variables and empty thanklist is created
• Entity struct to JSON object -> ledger
• KeyListObj to JSON object -> ledger (PutState function)
• Initialisation ready

12. Testing
• Tried to follow TDD principles
• After initial skeleton chaincode I created a test script in bash ( first
time all tests failed)
• Tweaked all the functions to pass all the tests
• Extended the chaincode with the extra functions (getKeys(),
getRandomUser() ) but first I created the test scenarios that needed
to be passed
• Finally everything was green

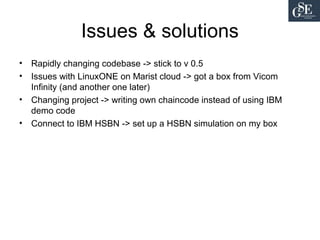

13. Issues & solutions
• Rapidly changing codebase -> stick to v 0.5
• Issues with LinuxONE on Marist cloud -> got a box from Vicom
Infinity (and another one later)
• Changing project -> writing own chaincode instead of using IBM
demo code
• Connect to IBM HSBN -> set up a HSBN simulation on my box

14. Future work
• Rewards part of chaincode and app (ie Coffee shop
gives free cup of coffee to people over 1000 points)
• Integration with smart meters
• Port to IBM Bluemix
• Connect with Zos connect

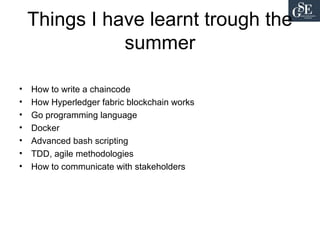

15. Things I have learnt trough the
summer
• How to write a chaincode
• How Hyperledger fabric blockchain works
• Go programming language
• Docker
• Advanced bash scripting
• TDD, agile methodologies
• How to communicate with stakeholders

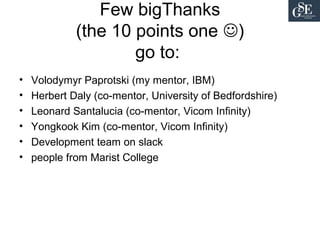

16. Few bigThanks
(the 10 points one )
go to:
• Volodymyr Paprotski (my mentor, IBM)
• Herbert Daly (co-mentor, University of Bedfordshire)
• Leonard Santalucia (co-mentor, Vicom Infinity)
• Yongkook Kim (co-mentor, Vicom Infinity)
• Development team on slack
• people from Marist College

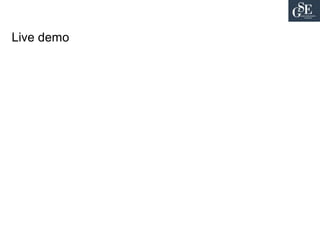

17. Live demo

18. Session feedback
• Please submit your feedback at
http://conferences.gse.org.uk/2016/feedback/nn
• Session is nn
This is the last
slide in the deck
