off grid solar product UNIVPO

www.univ-power.com
UNIVPO (China) No.223 Songshan Rd., SND,Suzhou, 215129, China
T: +86 512 6690 7181 F: +86 512 6690 7402 Email: sales@univ-power.com
Solar for Everyone
OFF GRID
SOLAR
PRODUCTS

DC/AC INVERTER
SOLAR HYBRID INVERTER
SOLAR POWER KIT
SOLAR CHARGE CONTROLLER
03-12
13-14
15-16
17-20

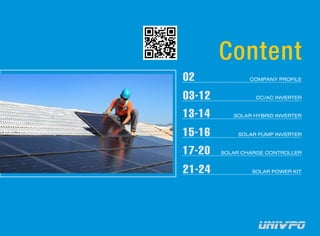

Content
COMPANY PROFILE02
21-24
SOLAR PUMP INVERTER

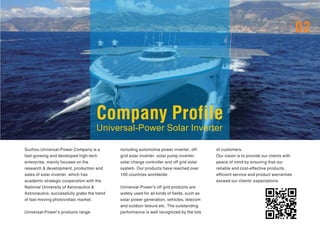

Company Profile
Universal-Power Solar Inverter
02
Suzhou Universal-Power Company is a
fast-growing and developed high-tech
enterprise, mainly focuses on the
research & development, production and
sales of solar inverter, which has
academic strategic cooperation with the
National University of Aeronautics &
Astronautics, successfully grabs the trend
of fast moving photovoltaic market.
Universal-Power’s products range
including automotive power inverter, off-
grid solar inverter, solar pump inverter,
solar charge controller and off grid solar
system. Our products have reached over
100 countries worldwide.
Universal-Power's off grid products are
widely used for all kinds of fields, such as
solar power generation, vehicles, telecom
and outdoor leisure etc. The outstanding
performance is well recognized by the lots
of customers.
Our vision is to provide our clients with
peace of mind by ensuring that our
reliable and cost-effective products,
efficient service and product warranties
exceed our clients' expectations.

UNIVPO (China) No.223 Songshan Rd., SND,
Suzhou, 215100, China
Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
03
sales@univ-power.com
www.univ-power.com
150W-600W ELF Series Inverters include 150W & 300W pure sine wave
inverter, and 300W,500W & 600W modified sine wave inverters, they are
with unique attractive arc appearance which are completely designed by
our R & D team.
150W-600W
ELF Series
Pure/Modified Sine Wave
Inverter
Features Overload protection
Output short -circuit protection
Reverse Porlarity Protection
1X1A and 1X2A 5V USB
Plastic Arc Housing with streamline shape
Low battery alarm
Low battery shut down
High voltage shut down
LED indicator showing power status and fault
Soft Start
DC/AC Isolated
CE Approval

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
04
www.univ-power.com

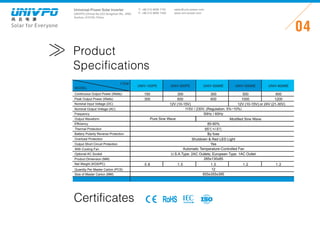

Product
Specifications
MODEL
ITEM
Certificates RoHS
Continuous Output Power (Watts)
Peak Output Power (Watts)
Nominal Input Voltage (DC)
Nominal Output Voltage (AC)
Frequency
Output Waveform
Efciency
Thermal Protection
Overload Protection
Battery Polarity Reverse Protection
Output Short Circuit Protection
With Cooling Fan
Optional AC Socket
Product Dimension (MM)
Net Weight (KGS/PC)
Quantity Per Master Carton (PCS)
Size of Master Carton (MM)
115V / 230V, (Regulation: 5%~10%)
50Hz / 60Hz
Pure Sine Wave
85-90%
65℃+/-5℃
Shutdown & Red LED Light
By fuse
Yes
Automatic Temperature-Controlled Fan
U.S.A.Type: 2AC Outlets; European Type: 1AC Outlet
285x130x85
1.5
12
655x355x395
12V(10-15V) or 24V(21-30V)
150
300
300
600
300
600
500
1000
600
1200
Modied Sine Wave
0.8 1.0 1.2 1.2
UNIV-150PE UNIV-300PE UNIV-300ME UNIV-500ME UNIV-600ME
12V(10-15V)

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
05
www.univ-power.com

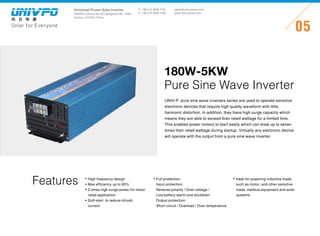

UNIV-P pure sine wave inverters series are used to operate sensitive
electronic devices that require high quality waveform with little
harmonic distortion. In addition, they have high surge capacity which
means they are able to exceed their rated wattage for a limited time.
This enables power motors to start easily which can draw up to seven
times their rated wattage during startup. Virtually any electronic device
will operate with the output from a pure sine wave inverter.
180W-5KW
Pure Sine Wave Inverter
Features Full protection:
Input protection:
Reverse polarity / Over voltage /
Low battery alarm and shutdown
Output protection:
Short circuit / Overload / Over temperature
High frequency design
Max efficiency up to 90%
2 times high surge power for motor
rated application
Soft-start to reduce inhush
current
Ideal for powering inductive loads
such as motor, and other sensitive
loads, medical equipment and solar
systems.

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
06
www.univ-power.com

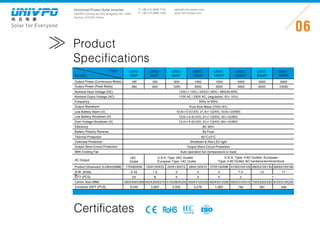

Product
Specifications
MODEL
ITEM UNIV-
180P
UNIV-
300P
UNIV-
600P
UNIV-
1000P
UNIV-
1500P
UNIV-
2000P
UNIV-
3000P
UNIV-
5000P
Output Power (Continuous Watts)
Output Power (Peak Watts)
Nominal Ouput Voltage (AC)
Frequency
Output Waveform
Low Battery Alarm (V)
Low Battery Shutdown (V)
Over Voltage Shutdown (V)
Efficiency
With Cooling Fan
AC Output
Product Dimension (LxWxH)(MM)
N.W. (KGS)
P
QTY (PCS)
Carton Size (MM)
Container 20FT (PCS)
180
360
300
600
600
1200
15001000
3000
2000
40002000
5000
10000
3000
6000
50Hz or 60Hz
10.8+/-0.5(12V); 21.8+/-1(24V); 43.6+/-2(48V)
10.6+/-0.5(12V); 21+/-1(24V); 42+/-2(48V)
15.5+/-0.5(12V); 31+/-1(24V); 60+/-2(48V)
85~90%
Overload Protection Shutdown Red LED light
Battery Polarity Reverse By Fuse
Auto-operation fan (temperature or load)
Pure Sine Wave (THD3%)
12V(11-15V) / 24V(21-30V) / 48V(42-60V)
115V AC / 230V AC, (regulation: 5%~10%)
Thermal Protection 65°C±5°C
1AC
Outlet
U.S.A. Type: 2AC Outlets
European Type: 1AC Outlet
U.S.A. Type: 4 AC Outlets European
Type: 2 AC Outlet, AC hardwire terminal block
420X400X360 400X350X270 410X360X250 450X410X250 490X401X290 590X310X410
9,240 5,920 3,032 2,476 1,920 746
750X330X250 810X310X250
481 446
0.45 1.2 2 3 4 7.5 12
20 8 4 2 1
17
4 4
170X80X58 150X150X53 250X150X72 290X150X72 370X150X88 410X210X100 480X210X130 560X210X160
Certificates RoHS

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
07
www.univ-power.com
Features

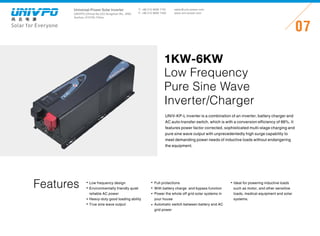

UNIV-KP-L inverter is a combination of an inverter, battery charger and
AC auto-transfer switch, which is with a conversion efficiency of 88%. It
features power factor corrected, sophisticated multi-stage charging and
pure sine wave output with unprecedentedly high surge capability to
meet demanding power needs of inductive loads without endangering
the equipment.
1KW-6KW
Low Frequency
Pure Sine Wave
Inverter/Charger
Low frequency design
Environmentally friendly quiet
reliable AC power
Heavy-duty good loading ability
True sine wave output
Full protections
With battery charge and bypass function
Power the whole off grid solar systems in
your house
Automatic switch between battery and AC
grid power
Ideal for powering inductive loads
such as motor, and other sensitive
loads, medical equipment and solar
systems.

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
08
www.univ-power.com

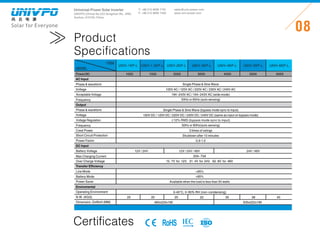

Power(W)
AC Input
Phase waveform
Acceptable Voltage
Frequency
Output
MODEL
ITEM
1000 2000 5000 6000
Voltage
Product
Specifications
Certificates RoHS
Phase waveform
Voltage Regulation
Frequency
Voltage
Crest Power
Short Circuit Protection
Power Factor
DC Input
Battery Voltage
Max Charging Current
Over Charge Voltage
Transfer Efficiency
Line Mode
Battery Mode
Power Saver
Enviromental
Operating Environment
N.W. (KGS)
Dimension, DxWxH (MM)
Single Phase Sine Wave
100V AC / 120V AC / 220V AC / 230V AC / 240V AC
194~243V AC / 164~243V AC (wide mode)
50Hz or 60Hz (auto sensing)
Single Phase Sine Wave (bypass mode sync to input)
100V DC / 120V DC / 220V DC / 230V DC / 240V DC (same as input on bypass mode)
±10% RMS (bypass mode sync to input)
50Hz or 60Hz(auto sensing)
3 times of ratings
Shutdown after 10 minutes
0.9-1.0
12V / 24V 24V / 48V
20A~75A
15.7V for 12V, 31.4V for 24V, 62.8V for 48V
95%
85%
Available when the load is less than 50 watts
0-40°C, 0-95% RH (non-condensing)
20 22 38 40
460x220x190 635x222x190
UNIV-2KP-L UNIV-3KP-L
4000
35
UNIV-5KP-L UNIV-6KP-LUNIV-4KP-L
1500 3000
UNIV-1.5KP-LUNIV-1KP-L
12V / 24V / 48V
20 20

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
09
www.univ-power.com
150W-1500W
Modified Sine Wave
Inverter
Features
UNIV-M modified sine wave inverters series (modified square wave or step
wave) approximate a pure sine waveform. Modified sine wave inverters are
designed to satisfy the efficiency requirements of the photovoltaic system
while being less expensive than pure sine waveform inverters. These
inverters are capable of operating a wide variety of loads; electronic and
household items including but not limited to TV, VCR, and satellite
receiver, computers, and printers.
Ideal for powering simple office
equipments, household appliances,
portable electronics and loads from
your car, truck, boat, RV etc.
Full protection:
Input protection:
Reverse polarity / Over voltage / Battery
low alarm and shutdown
Output protection:
Short circuit / Overload / Over temperature

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
10
www.univ-power.com

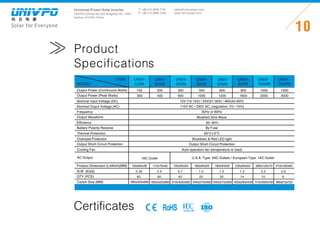

Product
Specifications
MODEL
ITEM
Output Power (Peak Watts)
Nominal Ouput Voltage (AC)
Frequency
Output Waveform
Efficiency
Cooling Fan
AC Output
N.W. (KGS)
QTY (PCS)
Carton Size (MM)
150
300
300
600
600
1200
15001000
30002000
50Hz or 60Hz
85~90%
Overload Protection Shutdown Red LED light
Output Short Circuit Protection Output Short Circuit Protection
Auto-operation fan (temperature or load)
Modified Sine Wave
12V (10-15V) / 24V(21-30V) / 48V(42-60V)
Thermal Protection 65°C±5°C
1AC Outlet U.S.A. Type: 2AC Outlets / European Type: 1AC Outlet
485x420x660
0.4 0.7
80
100x64x38 150x94x54
Certificates RoHS
UNIV-
1500M
200
400
500
1000
800
1600
110x70x46
0.35
80
485x420x660
40
610x420x565
1.0
180x94x55
20
640x270x560
1.0
180x94x55
20
640x270x560
1.2
235x94x54
14
405x295x430
2.0
260x120x70
10
410x300x430
3.0
410x165x65
6
465x215x125
UNIV-
150M
UNIV-
300M
UNIV-
600M
UNIV-
800M
UNIV-
200M
UNIV-
500M
UNIV-
1000M

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
11
www.univ-power.com

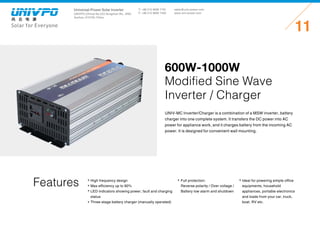

600W-1000W
Modified Sine Wave
Inverter / Charger
Features
UNIV-MC Inverter/Charger is a combination of a MSW inverter, battery
charger into one complete system. It transfers the DC power into AC
power for appliance work, and it charges battery from the incoming AC
power. It is designed for convenient wall mounting.
LED indicators showing power, fault and charging
status
Three-stage battery charger (manually operated)
Full protection:
Reverse polarity / Over voltage /
Battery low alarm and shutdown
Ideal for powering simple office
equipments, household
appliances, portable electronics
and loads from your car, truck,
boat, RV etc.

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
12
www.univ-power.com

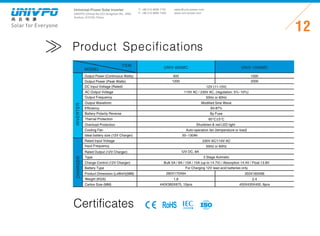

Product Specifications
INVERTERCHARGER
MODEL
ITEM
UNIV-600MC UNIV-1000MC
DC Input Voltage (Rated)
AC Output Voltage
Output Frequency
Output Waveform
Ideal battery size (12V Charger)
Rated Input Voltage
Input Frequency
Rated Output (12V Charger)
Type
Charge Control (12V Charger)
600
1200
1000
2000Output Power (Peak Watts)
12V (11-15V)
50Hz or 60Hz
Modified Sine Wave
Cooling Fan Auto-operation fan (temperature or load)
Efficiency 83-87%
Overload Protection Shutdown red LED light
50~130Ah
230V AC/110V AC
50Hz or 60Hz
Bulk 5A / 8A / 10A / 15A (up to 14.7V) / Absorption 14.4V / Float 13.8V
12V DC, 8A
3 Stage Autmatic
Thernal Protection 65°C±5°C
Battery Type
Weight (KGS)
Carton Size (MM)
For Charging 12V lead acid batteries only
282X170X64 355X165X66
1.8
440X360X675, 10pcs
2.4
455X435X400, 6pcs
Certificates RoHS

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
13
www.univ-power.com

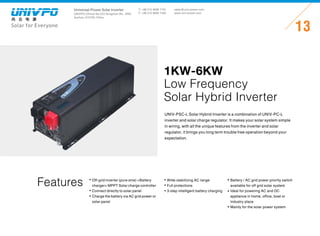

Features
UNIV-PSC-L Solar Hybrid Inverter is a combination of UNIV-PC-L
inverter and solar charge regulator. It makes your solar system simple
in wiring, with all the unique features from the inverter and solar
regulator, it brings you long term trouble free operation beyond your
expectation.
1KW-6KW
Low Frequency
Solar Hybrid Inverter
Off-grid inverter (pure sine) +Battery
charger+ MPPT Solar charge controller
Connect directly to solar panel
Charge the battery via AC grid power or
solar panel
Wide stabilizing AC range
Full protections
3-step intelligent battery charging
Battery / AC grid power priority switch
available for off grid solar system
Ideal for powering AC and DC
appliance in home, office, boat or
industry place
Mainly for the solar power system

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
14
www.univ-power.com

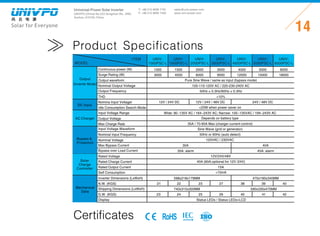

MODEL
ITEM
Output
(Inverter Mode)
Continuous power (W)
Surge Rating (W)
Output waveform
THD
DC Input
Nomina Input Voltagel
Idle Consumption Search Mode
AC Charger
Input Voltage Range
Output Voltage
Max Charge Rate
Input Voltage Waveform
Nominal Input Frequency
Nominal Voltage
Max Bypass Current
Bypass over Load Current
Solar
Charge
Controller
Rated Voltage
Rated Charge Current
Rated Output Current
Self Consumption
Mechanical
Data
Inverter Dimensions (LxWxH)
Shipping Dimensions (LxWxH)
G.W. (KGS)
Display
UNIV-
1000PSC-L
UNIV-
1500PSC-L
UNIV-
2000PSC-L
UNIV-
3000PSC-L
UNIV-
4000PSC-L
UNIV-
5000PSC-L
UNIV-
6000PSC-L
1000 1500 2000 3000 4000 5000 6000
3000 4500 6000 9000 12000 15000 18000
Pure Sine Wave / same as input (bypass mode)
10%
12V / 24V DC 12V / 24V / 48V DC 24V / 48V DC
25W when power saver on
Wide: 90~135V AC / 164~243V AC; Narraw: 100~135VAC / 194~243V AC
Depends on battery type
35A / 70-90A Max (charger current control)
Sine Wave (grid or generator)
50Hz or 60Hz (auto detect)
120VAC / 230VAC
30A 40A
35A: alarm 45A: alarm
12V/24V/48V
15A
10mA
598x218x179MM 470x190x340MM
21 22 23 27 39 40
740x315x300MM 590x330x475MM
23 24 25 29 41 42
Status LEDs / Status LEDs+LCD
40A (60A,optional for 12V /24V)
38
40
Certificates RoHS
Bypass
Protection
Nominal Output Voltage
Output Frequency
100-110-120V AC / 220-230-240V AC
50Hz ± 0.3Hz/60Hz ± 0.3Hz
N.W. (KGS)

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
15
www.univ-power.com

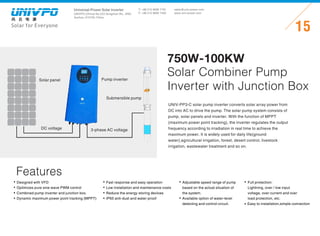

Features
UNIV-PP3-C solar pump inverter converts solar array power from
DC into AC to drive the pump. The solar pump system consists of
pump, solar panels and inverter. With the function of MPPT
(maximum power point tracking), the inverter regulates the output
frequency according to irradiation in real time to achieve the
maximum power. It is widely used for daily life(ground
water),agricultural irrigation, forest, desert control, livestock
irrigation, wastewater treatment and so on.
750W-100KW
Solar Combiner Pump
Inverter with Junction Box
Fast response and easy operation
Low installation and maintenance costs
Reduce the energy storing devices
IP65 anti-dust and water-proof
Adjustable speed range of pump
based on the actual situation of
the system.
Available option of water-level
detecting and control circuit.
Full protection:
Lightning, over / low input
voltage, over current and over
load protection, etc.
Easy to installation,simple connection
Solar panel
DC voltage
Pump inverter
Submersible pump
3-phase AC voltage
Designed with VFD
Optimizes pure sine wave PWM control
Combined pump inverter and junction box.
Dynamic maximum power point tracking (MPPT)

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
16
www.univ-power.com
Certificates RoHS

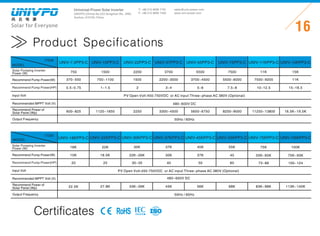

MODEL
ITEM
UNIV-37PP3-C
Recommend Pump Power(W)
Input Volt
Recommended MPPT Volt (V)
Recommend Power of
Solar Panel (Wp)
Output Frequency
480~600V DC
PV Open Volt:450-750VDC or AC input:Three−phase AC 380V (Optional)
50Hz / 60Hz
UNIV-55PP3-C UNIV-75PP3-C UNIV-11KPP3-C UNIV-15KPP3-C
UNIV-18KPP3-C
3700 5500 7500 11K 15K
3300~4500 5650~6750 8250~9000 11250~13800
22.5K
MODEL
ITEM
UNIV-22KPP3-C
480~600V DC
50Hz / 60Hz
UNIV-30KPP3-C UNIV-37KPP3-C UNIV-45KPP3-C UNIV-55KPP3-C UNIV-75KPP3-C
30K 37K 45K 55K 75K
27.8K 33K~39K 45K 56K 68K 83K~98K
18K
16.5K~19.5K
UNIV-7.5PP3-C UNIV-15PP3-C UNIV-22PP3-C
750 1500 2200
600~825 1125~1650 2250
Solar Pumping Inverter
Power (W)
Recommend Pump Power(HP)
Recommend Pump Power(W)
Input Volt
Recommended MPPT Volt (V)
Recommend Power of
Solar Panel (Wp)
Output Frequency
Recommend Pump Power(HP)
2200~3000 3700~4500 5500~6000 7500~9200 11K370~550 750~1100 1500
3~4 5~6 7.5~8 10~12.5 15~18.50.5~0.75 1~1.5 2
PV Open Volt:450-750VDC or AC input:Three−phase AC 380V (Optional)
15K
20
22K
18.5K
25
22K~26K 30K 37K 45 55K~65K
30~35 40 50 60 73~86
Solar Pumping Inverter
Power (W)
UNIV-100KPP3-C
100K
113K~140K
75K~93K
100~124

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
17
www.univ-power.com
Features

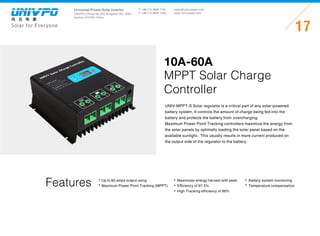

UNIV-MPPT-S Solar regulator is a critical part of any solar-powered
battery system. It controls the amount of charge being fed into the
battery and protects the battery from overcharging.
Maximum Power Point Tracking controllers maximize the energy from
the solar panels by optimally loading the solar panel based on the
available sunlight. This usually results in more current produced on
the output side of the regulator to the battery.
10A-60A
MPPT Solar Charge
Controller
Up to 60 amps output using
Maximum Power Point Tracking (MPPT)
Maximizes energy harvest with peak
Efficiency of 97.5%
High Tracking efficiency of 99%
Battery system monitoring
Temperature compensation

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
18
www.univ-power.com

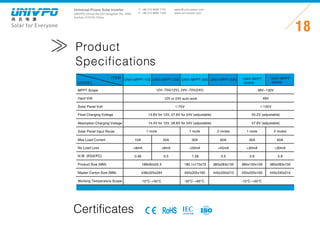

MODEL
MPPT Scope
Input Volt
Solar Panel Volt
Float Charging Voltage
Absorption Charging Voltage
Solar Panel Input Route
Max Load Current
No Load Loss
N.W. (KGS/PC)
Product Size (MM)
Master Carton Size (MM)
Working Temperature Scope
UNIV-MPPT-10S UNIV-MPPT-20S UNIV-MPPT-30S UNIV-MPPT-60S UNIV-MPPT
-30S48
UNIV-MPPT
-60S48
12V~70V(12V), 24V~70V(24V) 48V~130V
12V or 24V auto work 48V
≤70V ≤130V
13.8V for 12V, 27.6V for 24V (adjustable) 55.2V (adjustable)
14.4V for 12V, 28.8V for 24V (adjustable) 57.6V (adjustable)
1 route 1 route 2 routes 1 route 2 routes
10A
8mA
0.46
188x92x55.3
438x325x284
20A
0.5
-10°C~+50°C
30A
1.56
180.1x170x72
450x205x160
60A
5.5
380x283x100
445x330x210
30A
2.6
380x150x100
450x205x160
60A
5.9
380x283x100
445x330x210
8mA 20mA 45mA 30mA 30mA
ITEM
Product
Specifications
Certificates RoHS
-10°C~+50°C-35°C~+65°C

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
19
www.univ-power.com

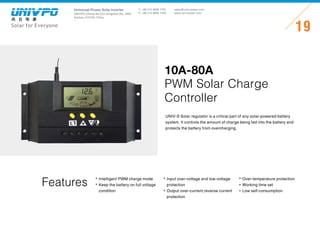

Features
UNIV-S Solar regulator is a critical part of any solar-powered battery
system. It controls the amount of charge being fed into the battery and
protects the battery from overcharging.
10A-80A
PWM Solar Charge
Controller
Intelligent PWM charge mode
Keep the battery on full voltage
condition
Input over-voltage and low-voltage
protection
Output over-current,reverse current
protection
Over-temperature protection
Working time set
Low self-consumption

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
20
www.univ-power.com

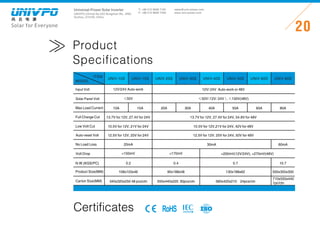

MODEL
ITEM
Input Volt
Max Load Current
Full Charge Cut
Low Volt Cut
Auto-reset Volt
No Load Loss
Volt Drop
N.W.(KGS/PC)
Product Size(MM)
Solar Panel Volt
Carton Size(MM)
UNIV-20S UNIV-30S UNIV-50S UNIV-60S UNIV-80SUNIV-40SUNIV-10S UNIV-15S
12V/ 24V Auto-work or 48V12V/24V Auto-work
≤50V(12V/24V ),≤100V(48V)≤50V
30A 50A 60A 80A20A10A 15A 40A
13.7V for 12V, 27.4V for 24V
20mA
0.2
340x320x250 48 pcs/ctn
13.7V for 12V, 27.4V for 24V, 54.8V for 48V
10.5V for 12V, 21V for 24V
12.5V for 12V, 25V for 24V, 50V for 48V
30mA
0.4
90x188x48
550x440x220 30pcs/ctn
150mV
0.7
130x188x62
560x420x210 24pcs/ctn
710x550x440
1pc/ctn
60mA
10.7
500x350x300
12.5V for 12V, 25V for 24V
10.5V for 12V,21V for 24V, 42V for 48V
170mV 200mV(12V/24V), 270mV(48V)
108x103x46
Product
Specifications
Certificates RoHS

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
21
www.univ-power.com

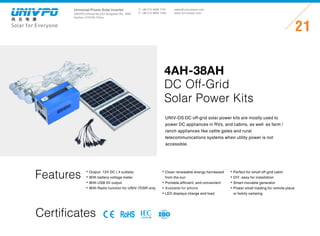

Features Output: 12V DC ( 4 outlets)
With battery voltage meter
With USB 5V output
With Radio function for UNIV-7DSR only
Clean renewable energy harnessed
from the sun
Portable,efficient,and convenient
Available for iphone
LED displays charge and load
Perfect for small off-grid cabin
DIY,easy for installation
Smart movable generator
Power small loading for remote place
or family camping
UNIV-DS DC off-grid solar power kits are mostly used to
power DC appliances in RVs,and cabins,as well as farm /
ranch appliances like cattle gates and rural
telecommunications systems when utility power is not
accessible.
4AH-38AH
DC Off-Grid
Solar Power Kits
Certificates RoHS

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
22
www.univ-power.com

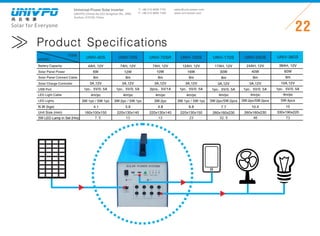

MODEL
ITEM
UNIV-4DS UNIV-7DS UNIV-12DS
Battery Capacity
Solar Panel Power
Solar Panel Connect Cable
Solar Charge Controller
LED Lights
LED Light Cable
N.W (kgs)
Unit Size (mm)
4AH, 12V 7AH, 12V 12AH, 12V
6W 12W 16W
8m 8m 8m
3A,12V 3A,12V 3A,12V
3W:1pc / 5W:1pc 3W:2pc / 5W:1pc 3W:1pc / 5W:1pc
4m/pc 4m/pc 4m/pc
4.1 5.6 6.8
160x100x150 220x130x140 220x130x150
UNIV-7DSR
7AH, 12V
10W
8m
3A,12V
3W:2pc
4m/pc
4.8
220x130x140
USB Port 1pc，5V/0.5A 2pcs，5V/1A1pc，5V/0.5A 1pc，5V/0.5A
UNIV-17DS
17AH, 12V
30W
8m
3A,12V
4m/pc
7.7
3W:2pc/5W:2pcs
260x160x230
1pc，5V/0.5A
UNIV-24DS
24AH, 12V
40W
8m
3A,12V
4m/pc
10.4
3W:2pc/5W:2pcs
260x160x230
1pc，5V/0.5A
UNIV-38DS
38AH, 12V
60W
8m
10A,12V
4m/pc
5W:4pcs
330x190x220
15
1pc，5V/0.5A
5W LED Lamp in Set (Hrs) 7.5 13 23 32.5 46 7313

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
23
www.univ-power.com

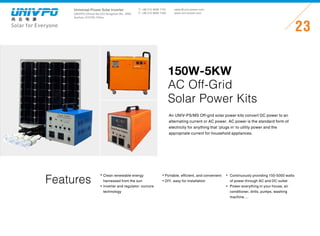

Features
An UNIV-PS/MS Off-grid solar power kits convert DC power to an
alternating current or AC power. AC power is the standard form of
electricity for anything that ‘plugs in’ to utility power and the
appropriate current for household appliances.
150W-5KW
AC Off-Grid
Solar Power Kits
Clean renewable energy
harnessed from the sun
Inverter and regulator: ourcore
technology
Portable, efficient, and convenient
DIY, easy for installation
Continuously providing 150-5000 watts
of power through AC and DC outlet
Power everything in your house, air
conditioner, drills, pumps, washing
machine....

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
24
www.univ-power.com

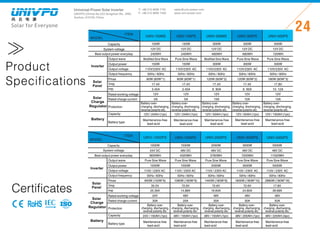

MODEL
ITEM
UNIV-150MS UNIV-150PS UNIV-300MS UNIV-300PS UNIV-500PS
Pmax
Vmp
Imp
Rated working voltage
Rated charge current
Protection
Solar
Solar
Panel
Capacity
Battery type
Charge
Regulator
Battery
60W (60W*1) 60W (60W*1) 120W (60W*2) 120W (60W*2) 180W (60W*3)
17.4V 17.4V 17.4V 17.4V 17.8V
3.45A 3.45A 6.90A 6.90A 10.12A
12V 12V 12V 12V 12V
5A 5A 10A 10A 15A
Battery over-
charging, discharging,
reverse polarity etc.
Battery over-
Battery over-
Battery over-
Battery over-
12V / 24AH (1pc) 12V / 24AH (1pc)
Maintenance-free
lead-acid
12V / 50AH (1pc) 12V / 50AH (1pc) 12V / 150AH (1pc)
Maintenance-free
lead-acid
Maintenance-free
lead-acid
Maintenance-free
lead-acid
Maintenance-free
lead-acid
Capacity
System voltage
Best output power everyday
Output wave
Output power
Output voltage
Output frequency
Inverter
150W 150W 300W 300W 500W
12V DC
240WH
Modified Sine Wave Modified Sine Wave
150W 150W 300W 300W 500W
110V/230V AC 110V/230V AC 110V/230V AC 110V/230V AC 110V/230V AC
50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz
240WH 480WH 480WH 720WH
12V DC 12V DC 12V DC 12V DC
Pure Sine Wave Pure Sine WavePure Sine Wave
Product
Specifications
Certificates
RoHS
MODEL
ITEM
Pmax
Vmp
Imp
Rated working voltage
Rated charge current
Protection
Solar
Solar
Panel
Capacity
Battery type
Charge
Regulator
Battery
Capacity
System voltage
Best output power everyday
Output wave
Output power
Output voltage
Output frequency
Inverter
UNIV-1500PS UNIV-2000PS UNIV-3000PS UNIV-5000PSUNIV-1000PS
1000W 1500W 2000W 3000W
24V DC
3600WH
1000W 1500W 2000W 3000W 5000W
110V / 230V AC 110V / 230V AC 110V / 230V AC 110V / 230V AC 110V / 230V AC
4320WH 5760WH 7200WH 11520WH
48V DC 48V DC 48V DC 48V DC
Pure Sine Wave
50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz
900W (150W*6) 1080W (180W*6) 1440W (180W*8) 1800W (180W*10) 2880W (180W*16)
35.5V 72.6V 72.6V 72.6V 17.8V
25.35A 14.88A 19.84A 24.80A 39.68A
24V 48V 48V 48V 48V
30A 20A 30A 30A 50A
24V / 150AH (1pc) 48V / 100AH (1pc)
Maintenance-free
lead-acid
48V / 150AH (1pc) 48V / 200AH (1pc) 48V / 220AH (4pc)
Maintenance-free
lead-acid
Maintenance-free
lead-acid
Maintenance-free
lead-acid
Maintenance-free
lead-acid
Pure Sine WavePure Sine WavePure Sine WavePure Sine Wave
Battery over-
5000W
Battery over-
Battery over-
Battery over-
Battery over-

Solar for Everyone
T: +86 512 6690 7181
F: +86 512 6690 7402
25
www.univ-power.com

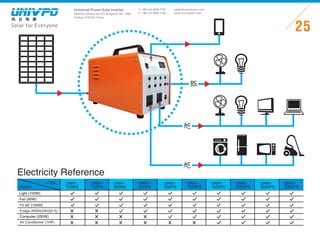

MODEL
ITEM
Light (100W)
Fan (60W)
TV 42' (100W)
Electricity Reference
UNIV-
150MS
UNIV-
150PS
UNIV-
300MS
UNIV-
300PS
UNIV-
500PS
UNIV-
1000PS
UNIV-
1500PS
UNIV-
2000PS
UNIV-
3000PS
UNIV-
5000PS
Fridge (KWH/24H)(0.5)
Air Conditioner (1HP)
Computer (250W)
DC
AC
AC

off grid solar product UNIVPO

More Related Content

What's hot

Viewers also liked

Similar to off grid solar product UNIVPO

off grid solar product UNIVPO
