REST APIs for FDMEE and Cloud Data Management allow external clients to execute jobs like rules, batches, and reports from the cloud or on-premises. The APIs use common standards like HTTP requests and JSON payloads to trigger processes via URL endpoints. Developers can leverage the APIs in various technologies like Excel, PowerShell, RPA tools, and mobile apps to automate tasks and integrate FDMEE/CDM with other systems. While some APIs are publicly documented, others can be discovered and provide more advanced capabilities around refreshing metadata, importing/exporting data, and custom script execution.

2. REST APIs for FDMEE and
Cloud Data Management
Francisco Amores – inlumi Group
June 13, 2018

3. • Domain Lead – Master Data and
Integration @inlumi
• 12 years (From HAL to Cloud)
• Based in Malaga (Spain)
• Trail Running Lover
• Blogger
That’s me

4. EPM Roadmap
Methodology
Process
Improvement
Best Practices
Design & Build
Test & Roll Out
Go-Live Support
Performance Testing
Training
Managed Services
Hosting
Cloud Solutions
24x7 Support
Advisory Implementation Operations

5. WE
FOLLOW
THE SUN

6. FDMEE
On-Prem?
Cloud Data
Management?
EPM
Automate for
DM?
REST APIs for
DM?

7. Menu of the Day
Why Today’s Session?
I’m new to REST
REST APIs for FDMEE/CDM
The Next Level
Q&A

8. Why today’s topic?
The IT world is changing and
the clouds are constantly flying
over us
There is an important need to
integrate Cloud-Cloud and
Cloud-On Prem worlds
APIs are not a privilege
anymore, but a common need
FDMEE and Cloud Data
Management are part of
change

9. I’m new to What’s a Web Service?
What’s REST?
What’s JSON?
REST APIs

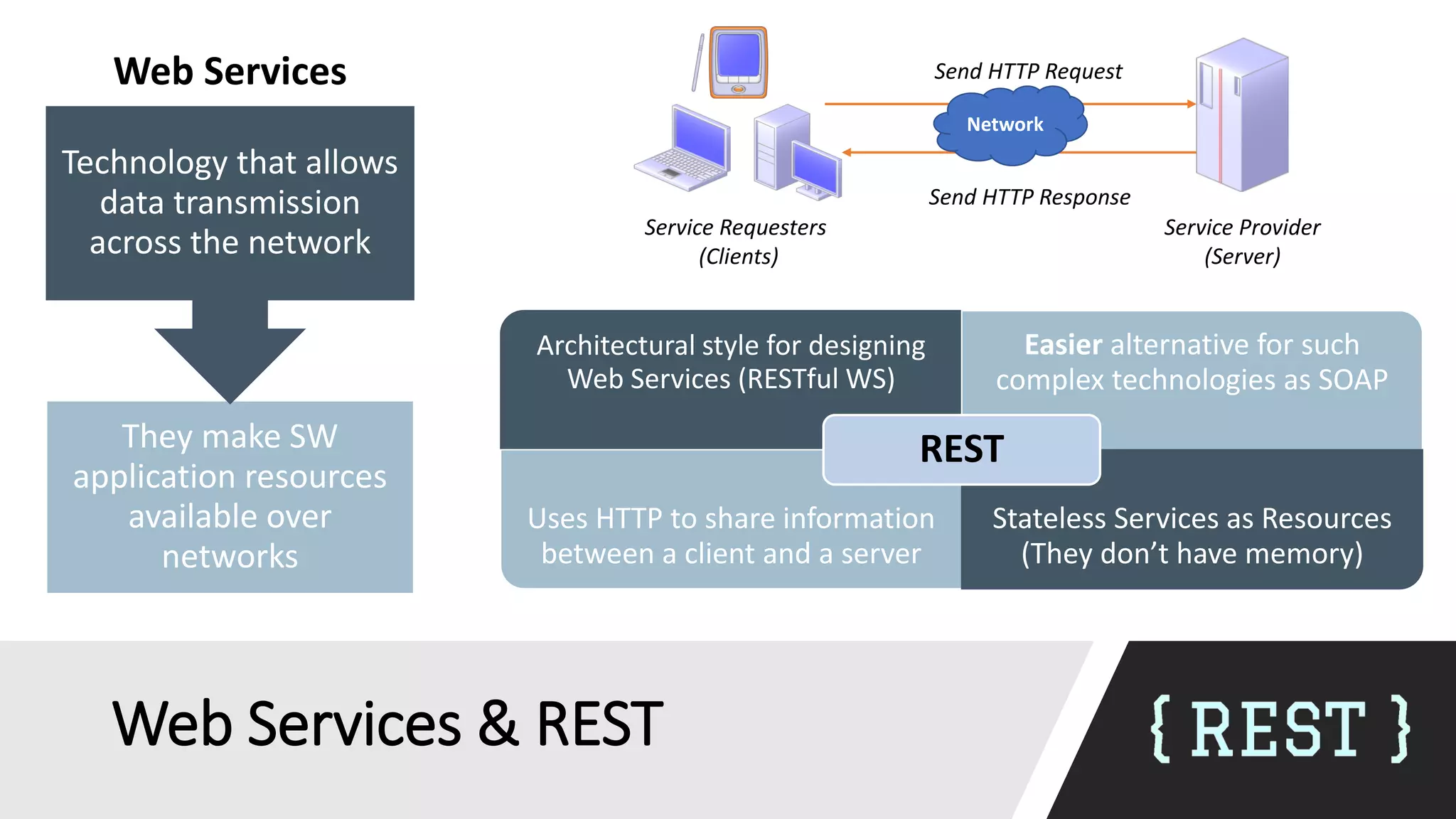

10. Web Services & REST
They make SW
application resources
available over
networks
Technology that allows
data transmission
across the network
Network
Send HTTP Request
Send HTTP Response
Service Requesters
(Clients)
Service Provider
(Server)
Architectural style for designing
Web Services (RESTful WS)
Easier alternative for such
complex technologies as SOAP
Uses HTTP to share information
between a client and a server
Stateless Services as Resources
(They don’t have memory)
REST
Web Services

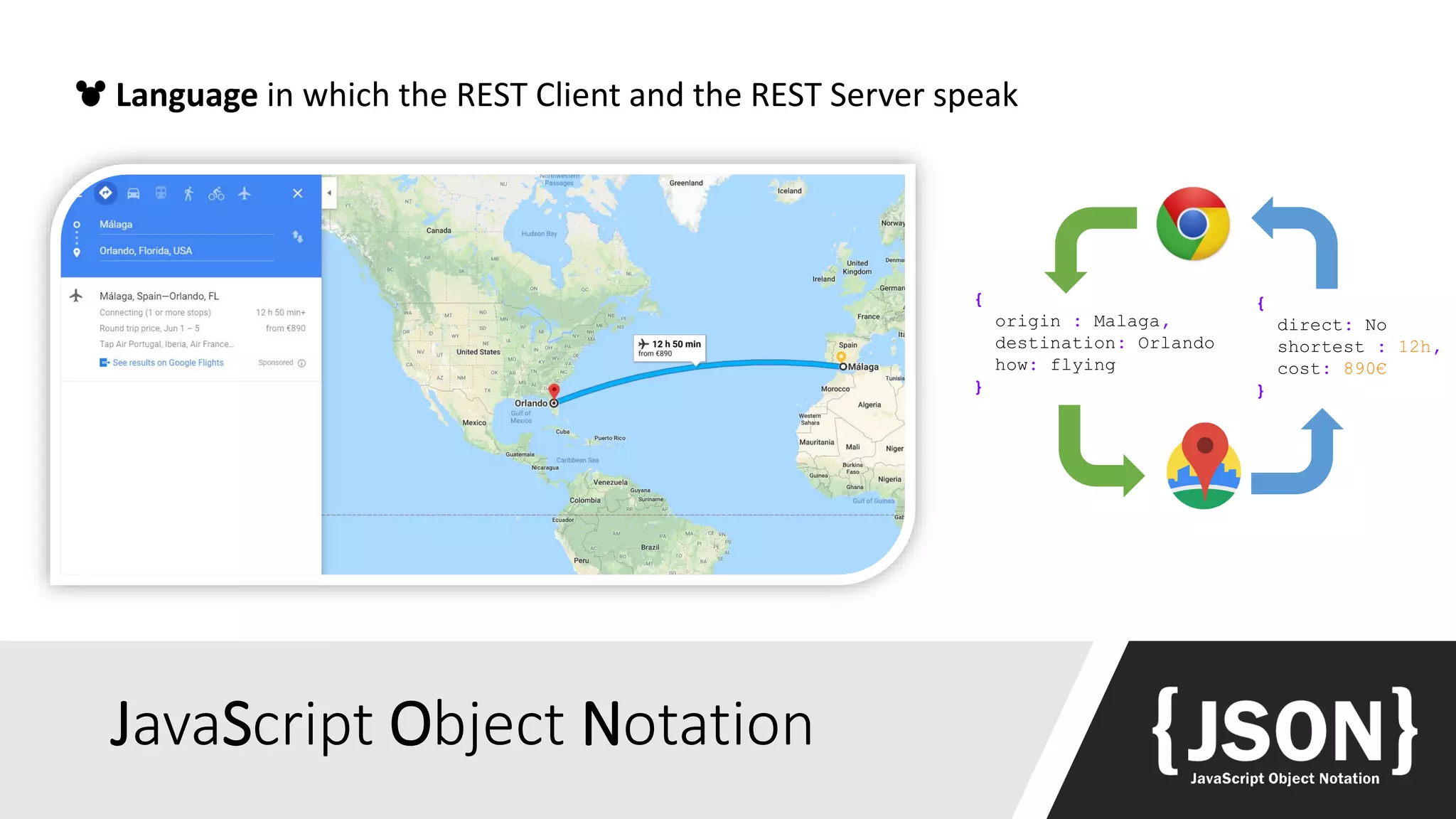

11. JavaScript Object Notation
Language in which the REST Client and the REST Server speak
{
origin : Malaga,
destination: Orlando
how: flying
}
{
direct: No
shortest : 12h,
cost: 890€
}

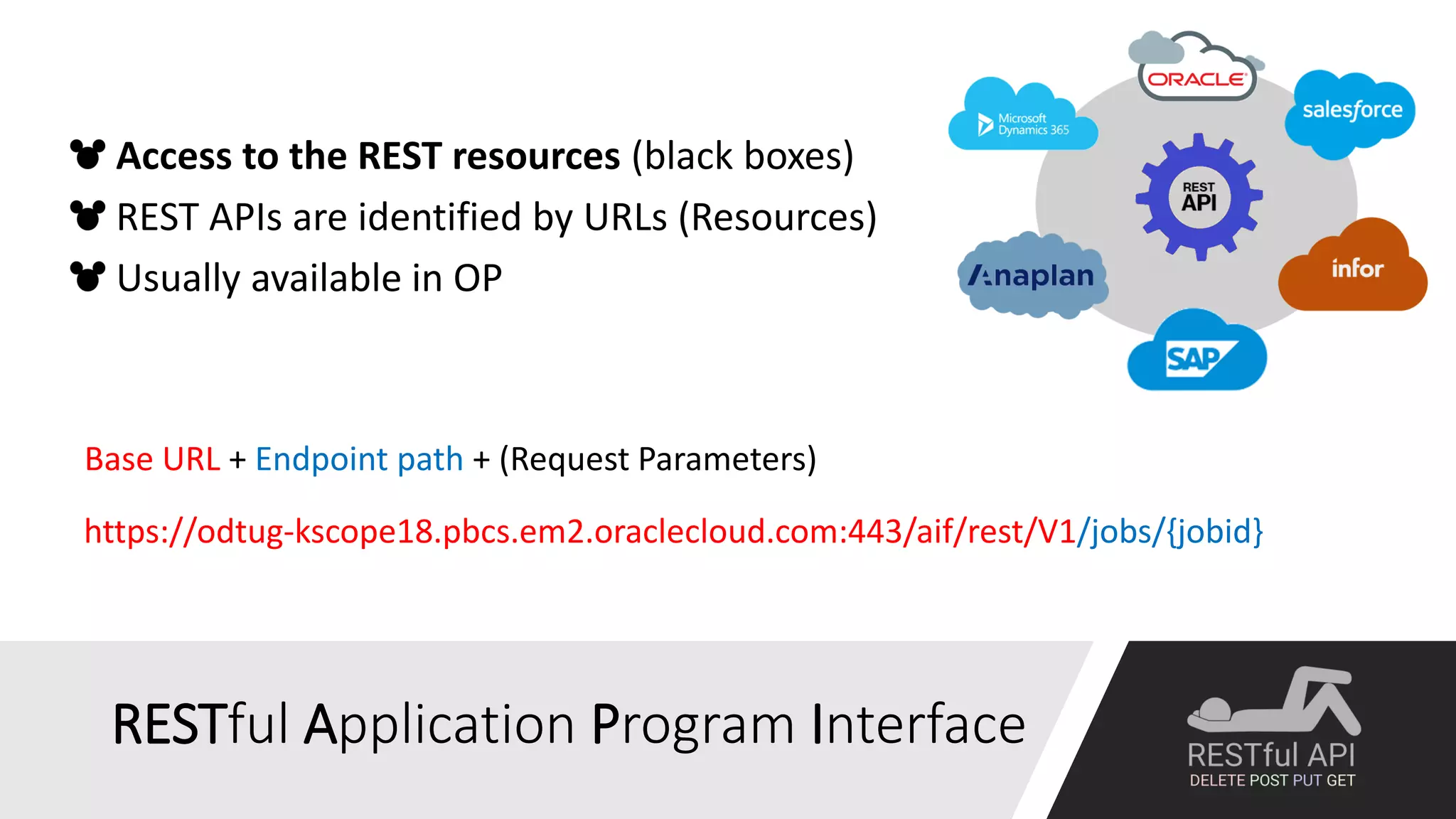

12. RESTful Application Program Interface
Base URL + Endpoint path + (Request Parameters)
https://odtug-kscope18.pbcs.em2.oraclecloud.com:443/aif/rest/V1/jobs/{jobid}
Access to the REST resources (black boxes)
REST APIs are identified by URLs (Resources)
Usually available in OP

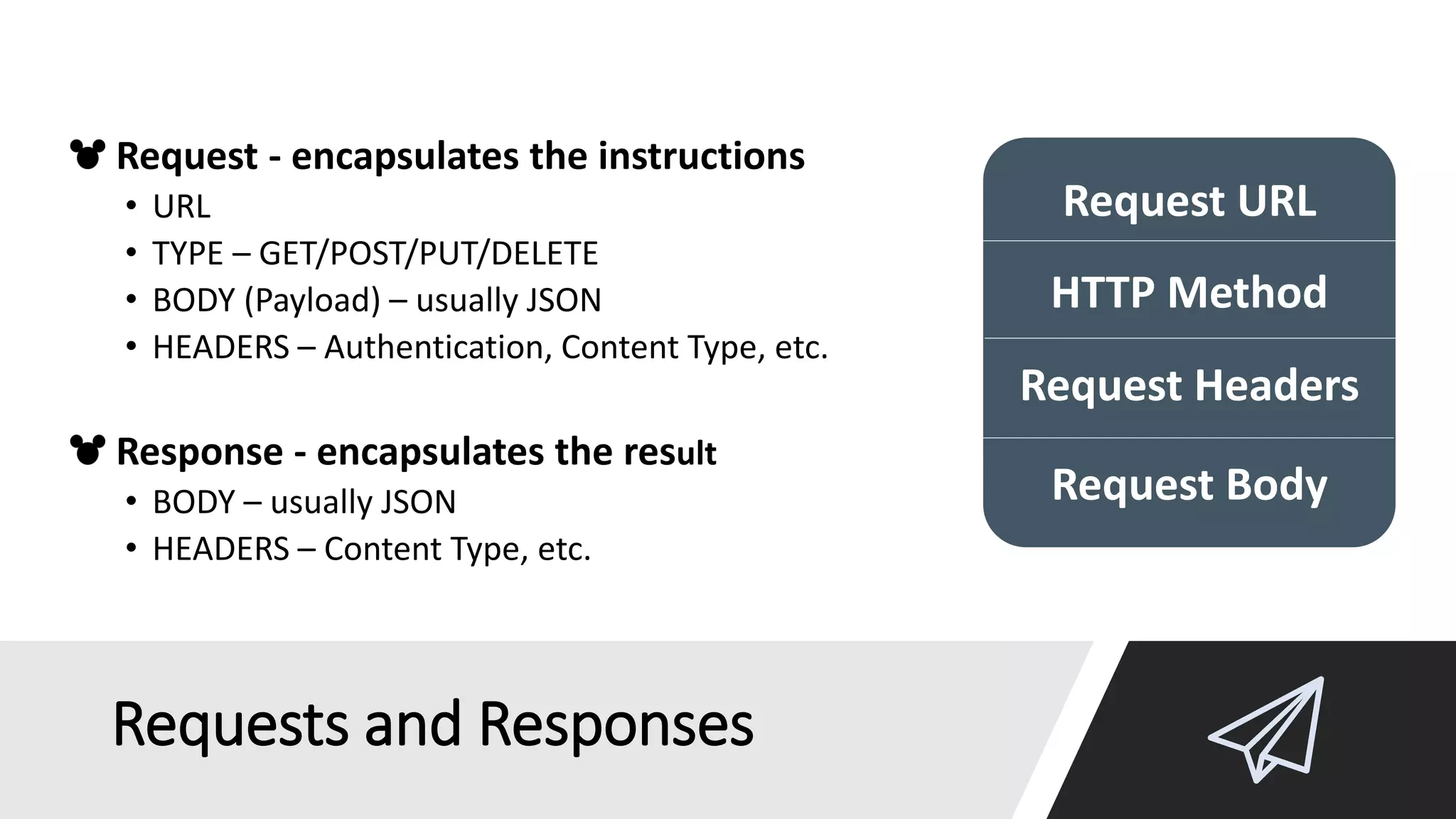

13. Requests and Responses
Request - encapsulates the instructions
• URL
• TYPE – GET/POST/PUT/DELETE
• BODY (Payload) – usually JSON
• HEADERS – Authentication, Content Type, etc.
Response - encapsulates the result
• BODY – usually JSON
• HEADERS – Content Type, etc.
Request URL
HTTP Method
Request Headers
Request Body

14. REST Clients
Advanced REST Client
HTTPBot
Programming/Scripting Languages Web Clients

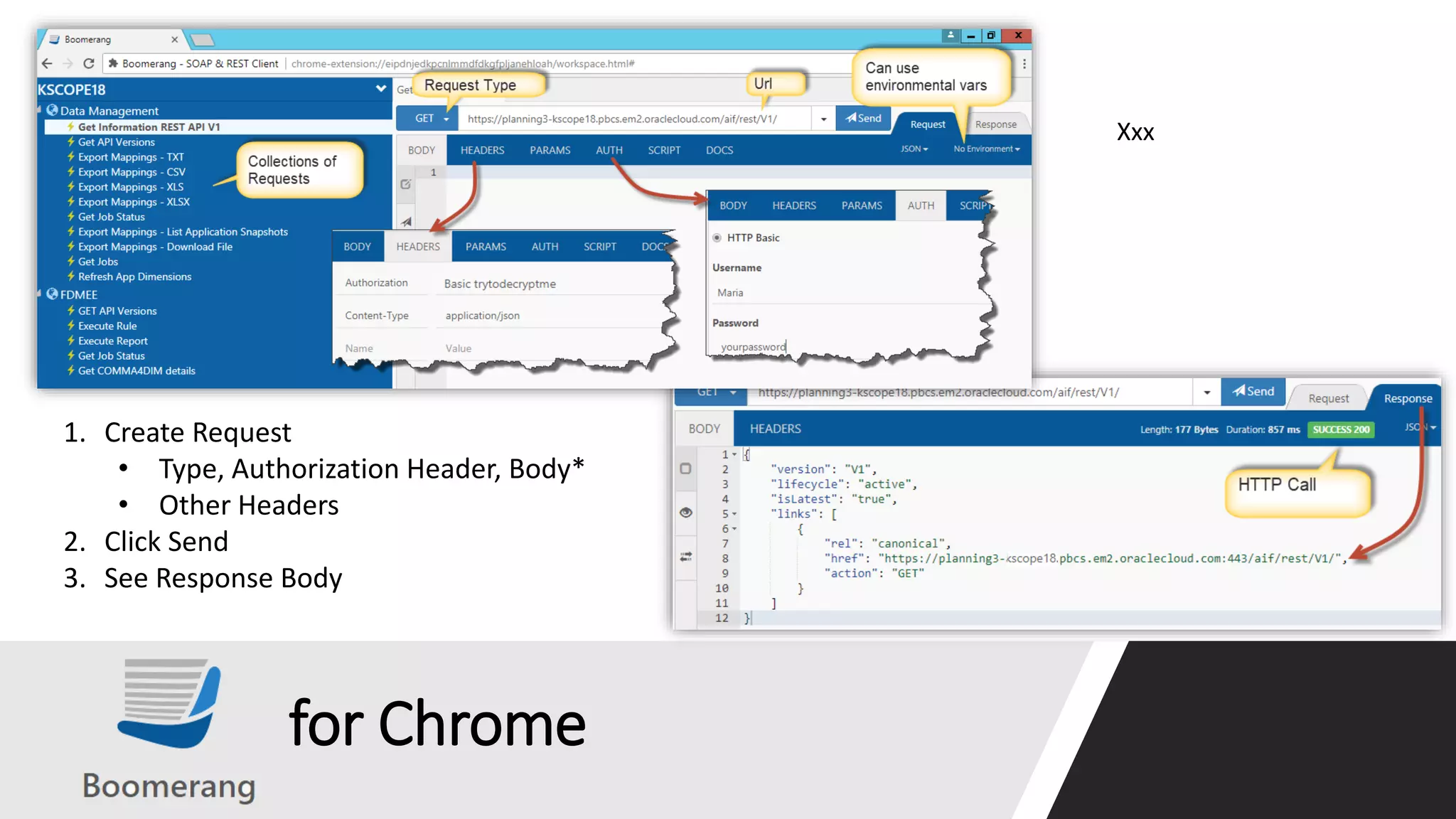

15. for Chrome
1. Create Request
• Type, Authorization Header, Body*
• Other Headers
2. Click Send
3. See Response Body
Xxx

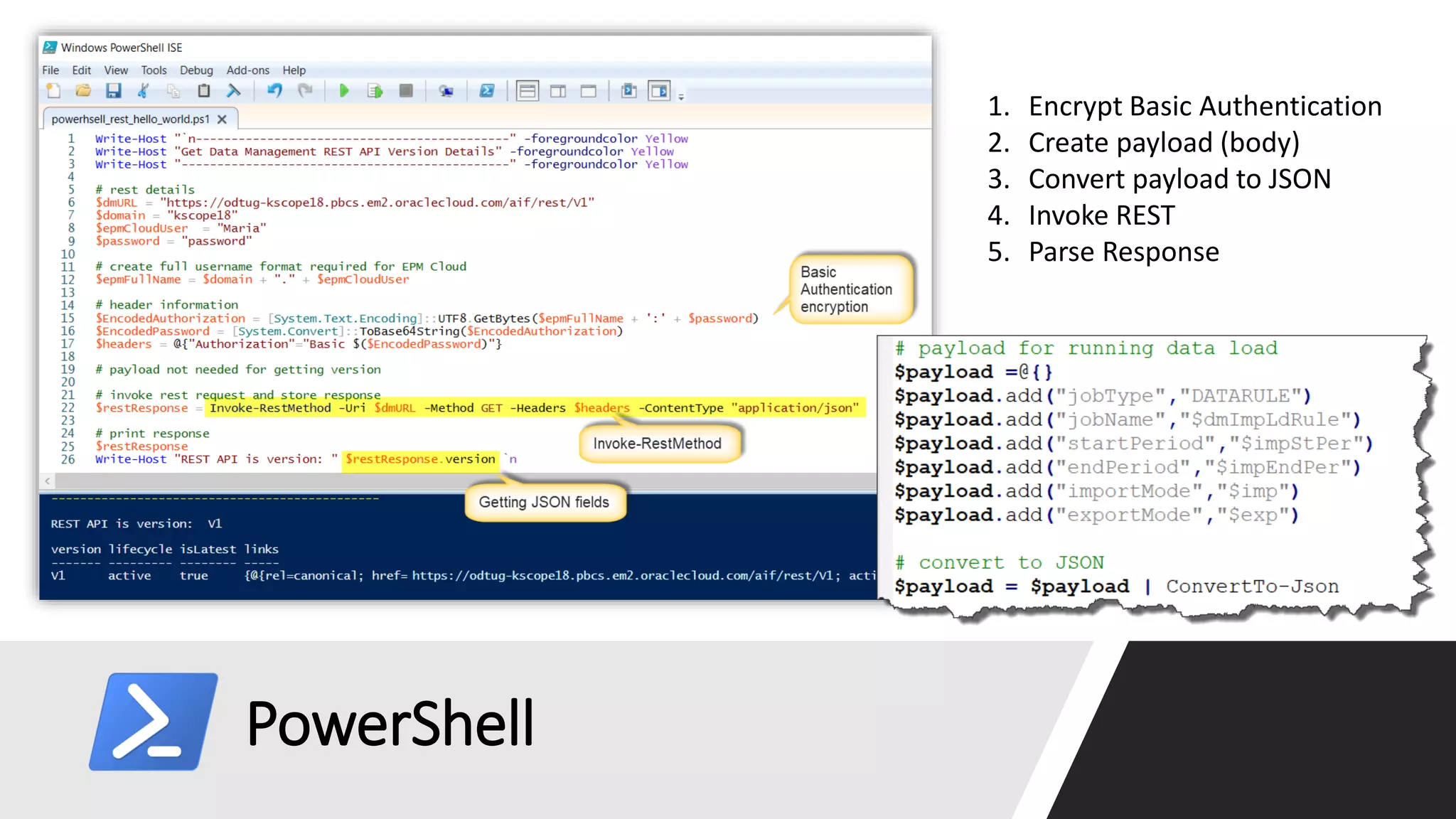

16. PowerShell
1. Encrypt Basic Authentication
2. Create payload (body)
3. Convert payload to JSON
4. Invoke REST
5. Parse Response

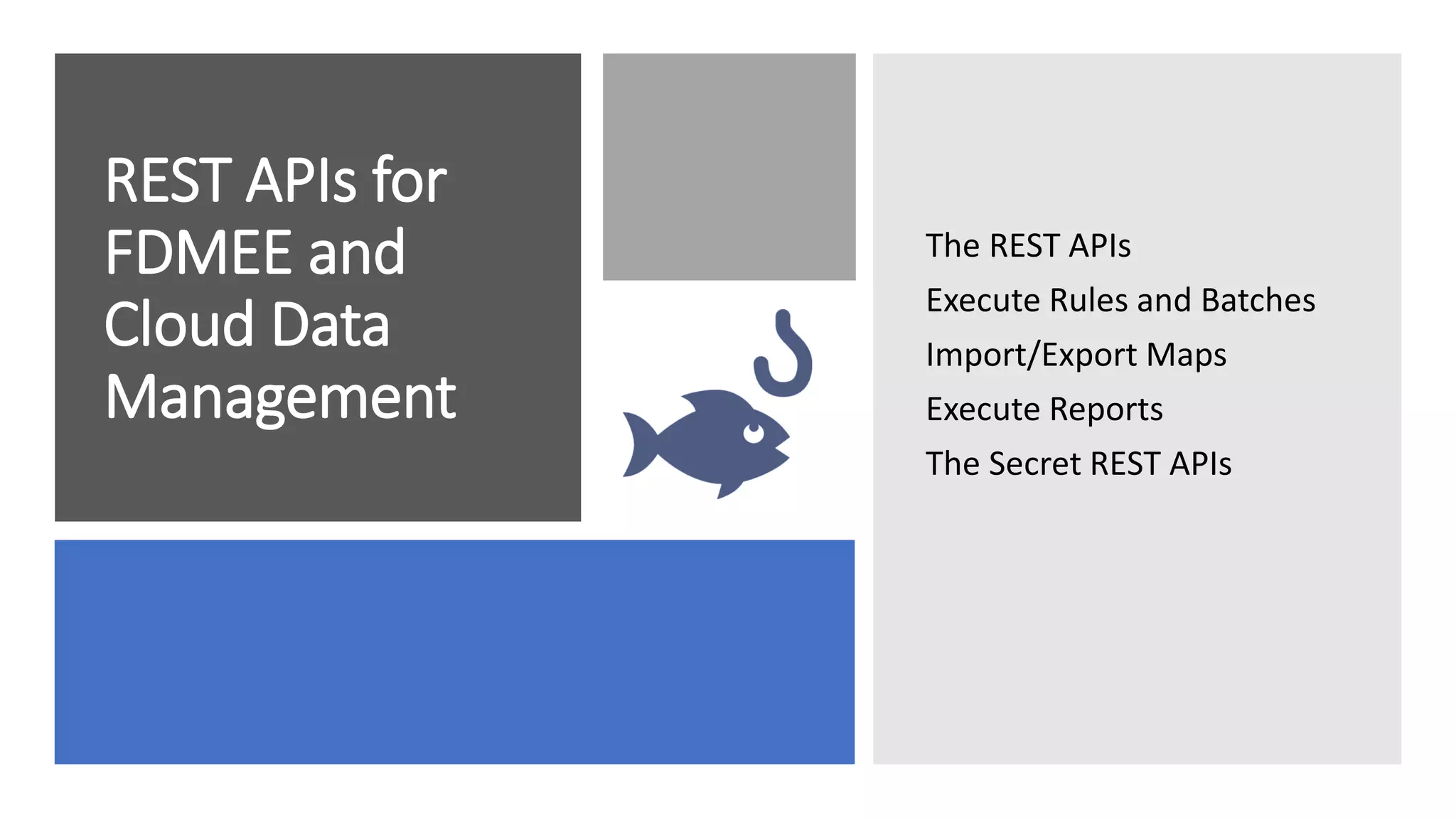

17. REST APIs for
FDMEE and
Cloud Data
Management
The REST APIs
Execute Rules and Batches
Import/Export Maps
Execute Reports
The Secret REST APIs

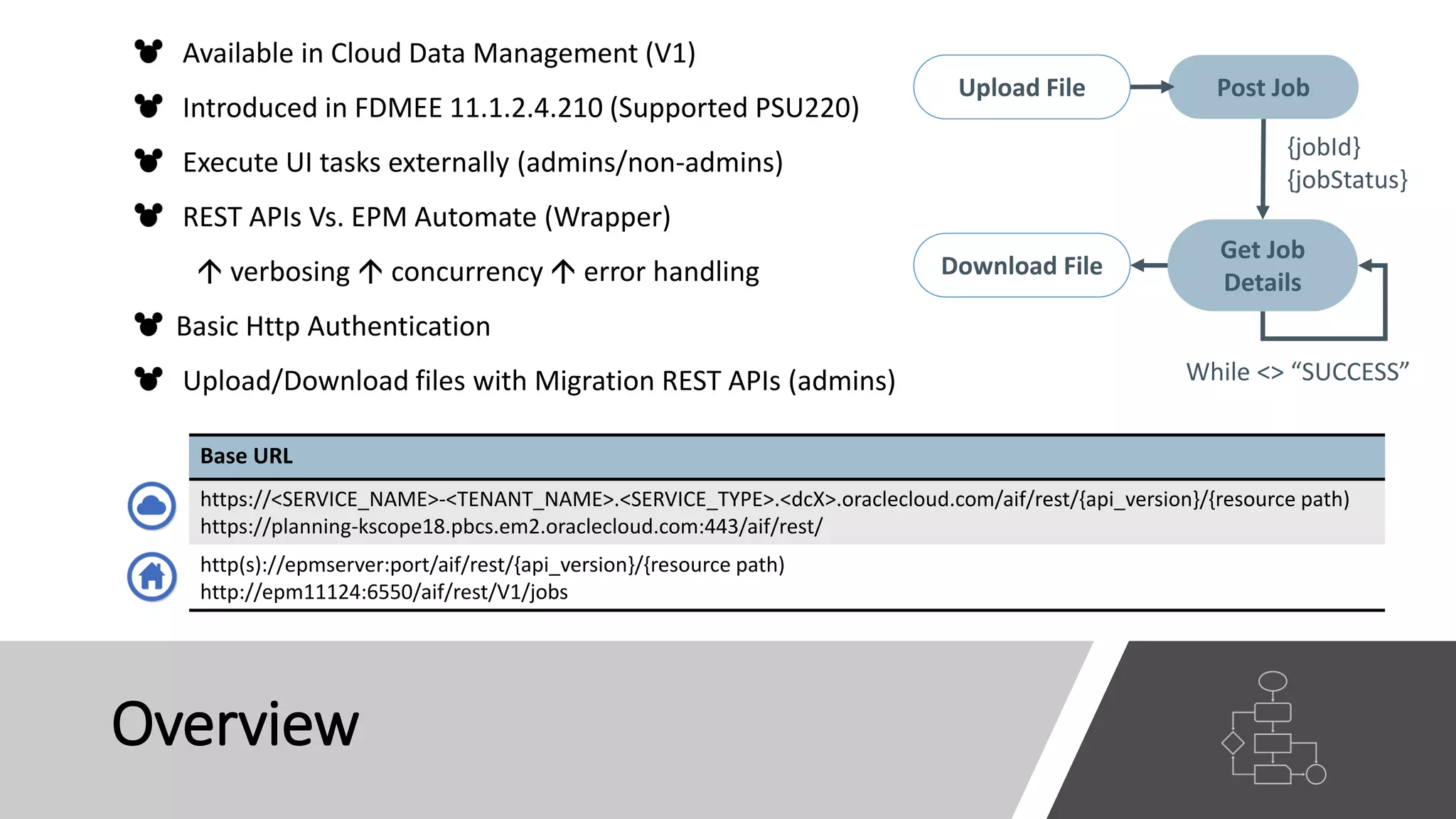

18. Overview
Post Job
Get Job
Details
{jobId}
{jobStatus}
While <> “SUCCESS”
Available in Cloud Data Management (V1)
Introduced in FDMEE 11.1.2.4.210 (Supported PSU220)
Execute UI tasks externally (admins/non-admins)
REST APIs Vs. EPM Automate (Wrapper)
 verbosing  concurrency  error handling
Basic Http Authentication
Upload/Download files with Migration REST APIs (admins)
Base URL
https://<SERVICE_NAME>-<TENANT_NAME>.<SERVICE_TYPE>.<dcX>.oraclecloud.com/aif/rest/{api_version}/{resource path)
https://planning-kscope18.pbcs.em2.oraclecloud.com:443/aif/rest/
http(s)://epmserver:port/aif/rest/{api_version}/{resource path)
http://epm11124:6550/aif/rest/V1/jobs
Upload File
Download File

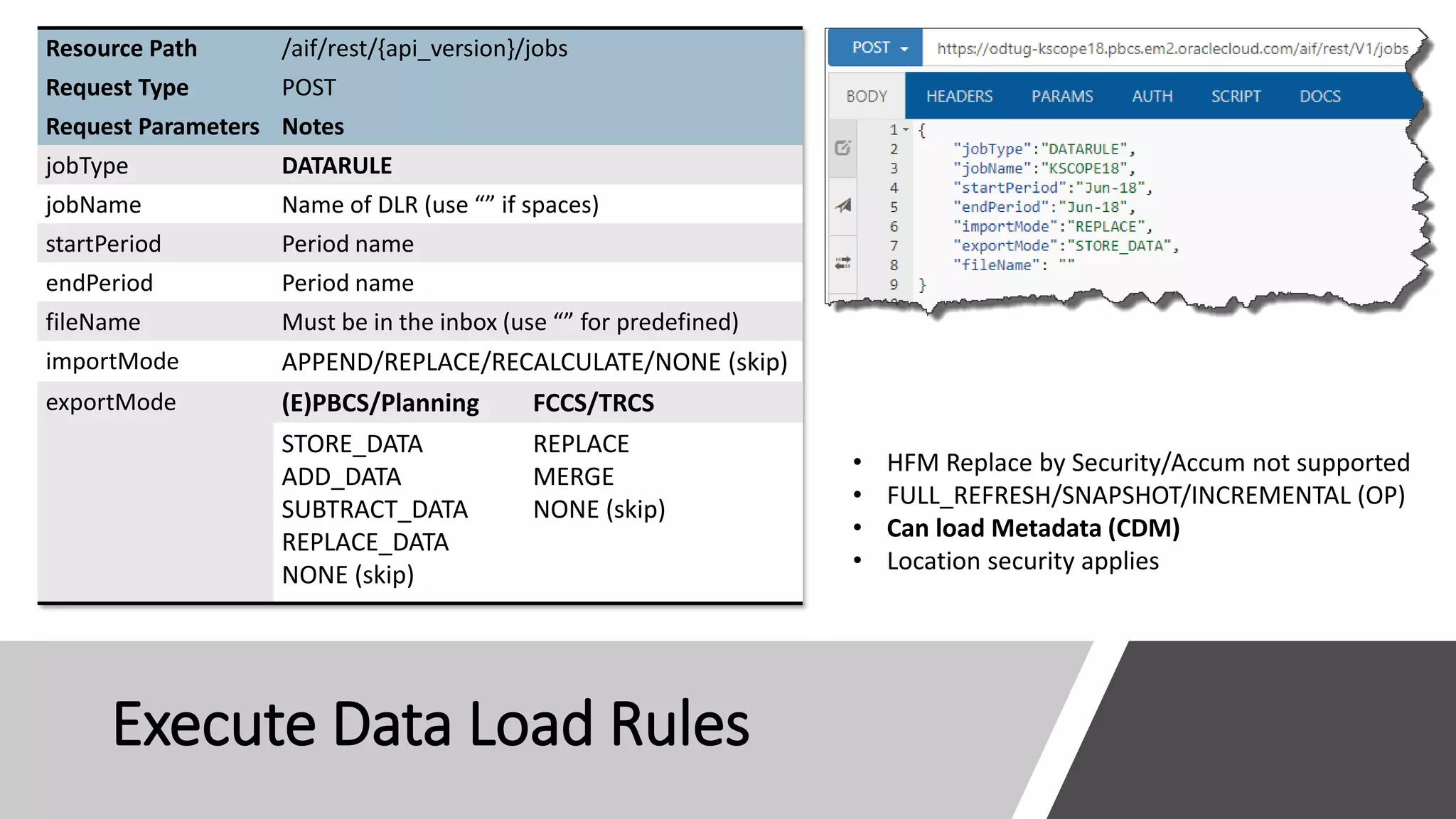

19. Execute Data Load Rules
Resource Path /aif/rest/{api_version}/jobs
Request Type POST
Request Parameters Notes
jobType DATARULE
jobName Name of DLR (use “” if spaces)
startPeriod Period name
endPeriod Period name
fileName Must be in the inbox (use “” for predefined)
importMode APPEND/REPLACE/RECALCULATE/NONE (skip)
exportMode (E)PBCS/Planning FCCS/TRCS
STORE_DATA
ADD_DATA
SUBTRACT_DATA
REPLACE_DATA
NONE (skip)
REPLACE
MERGE
NONE (skip)
• HFM Replace by Security/Accum not supported
• FULL_REFRESH/SNAPSHOT/INCREMENTAL (OP)
• Can load Metadata (CDM)
• Location security applies

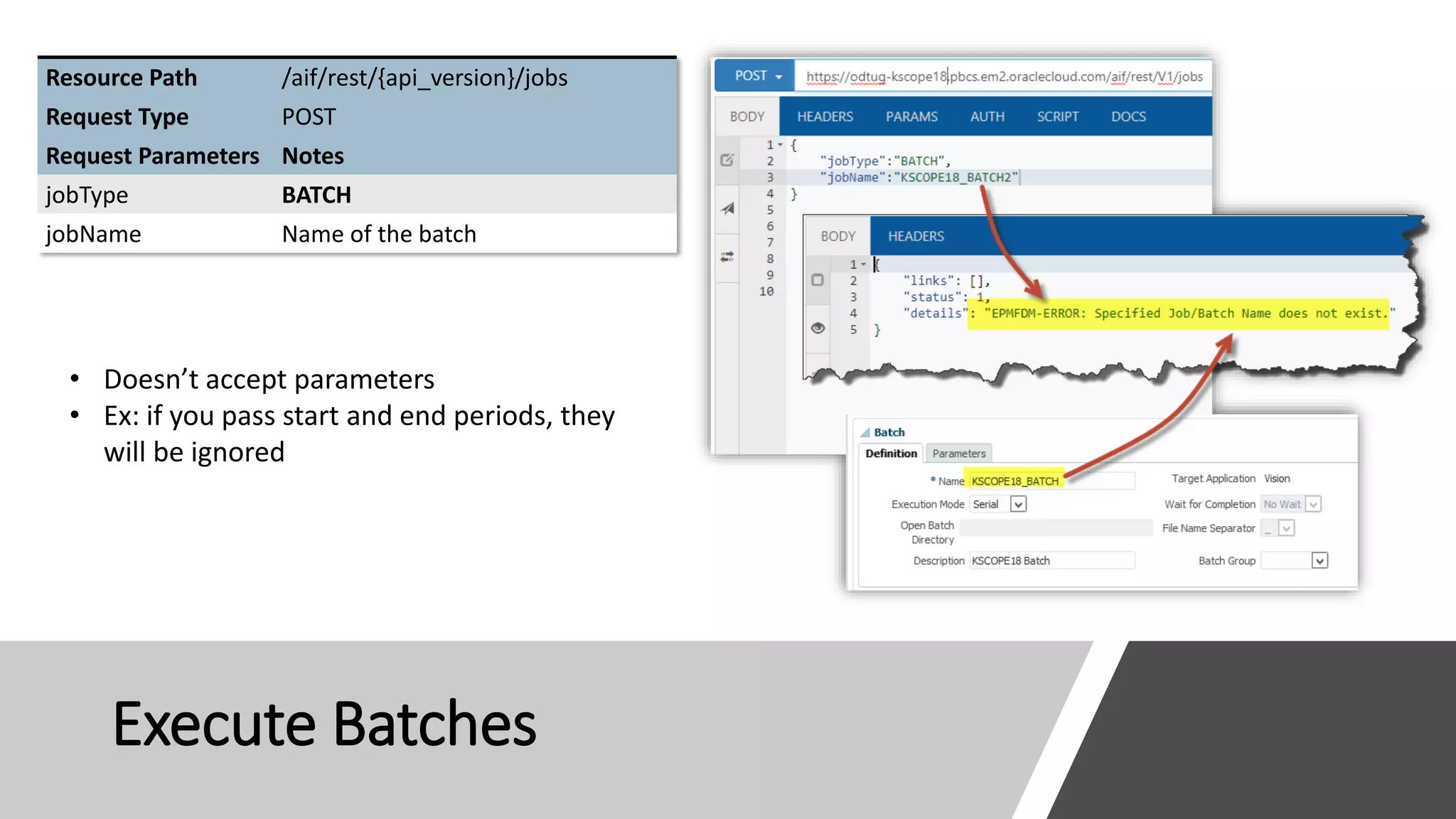

20. Execute Batches
Resource Path /aif/rest/{api_version}/jobs
Request Type POST
Request Parameters Notes
jobType BATCH
jobName Name of the batch
• Doesn’t accept parameters
• Ex: if you pass start and end periods, they
will be ignored

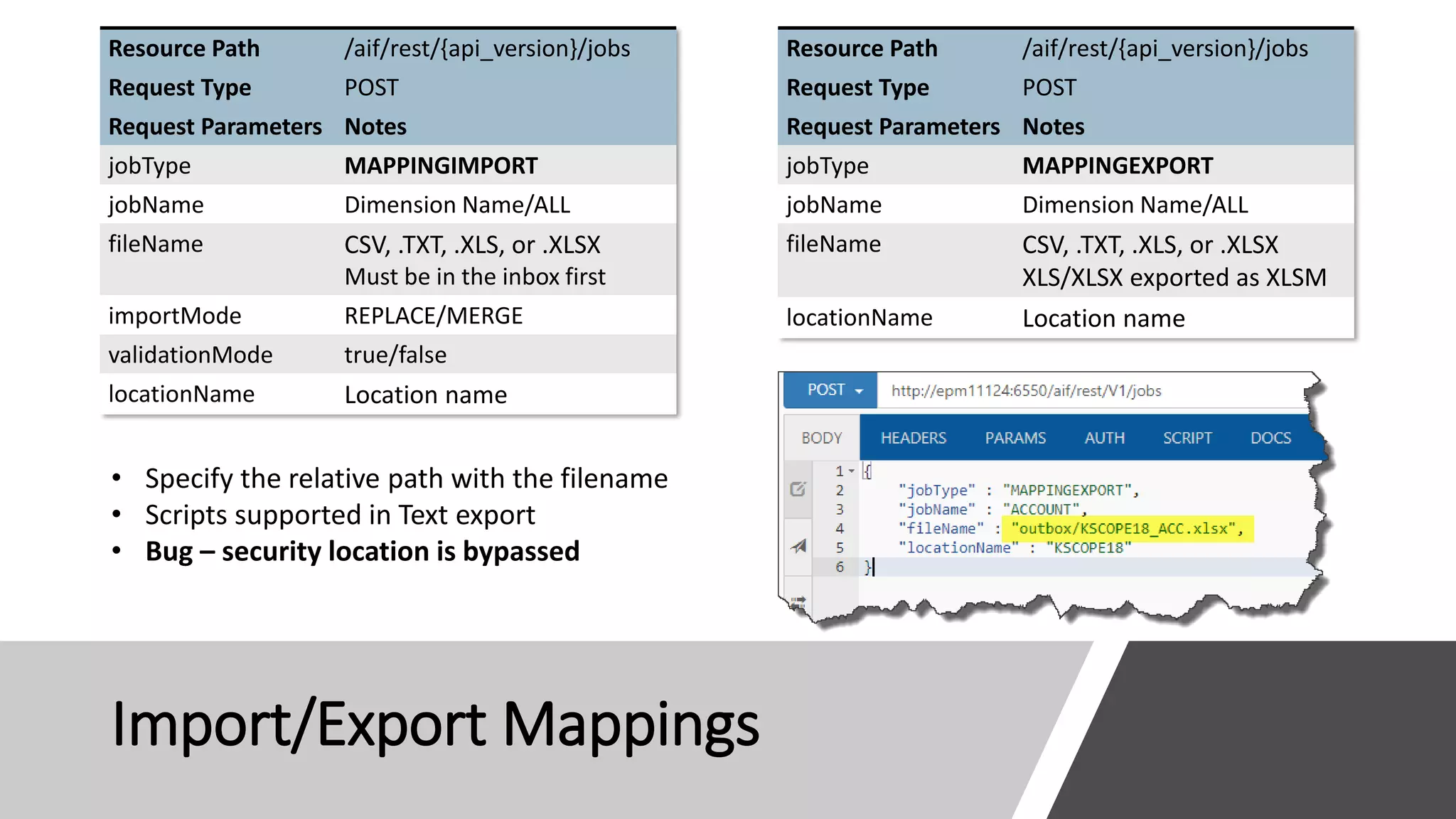

21. Import/Export Mappings
Resource Path /aif/rest/{api_version}/jobs
Request Type POST
Request Parameters Notes
jobType MAPPINGIMPORT
jobName Dimension Name/ALL
fileName CSV, .TXT, .XLS, or .XLSX
Must be in the inbox first
importMode REPLACE/MERGE
validationMode true/false
locationName Location name
• Specify the relative path with the filename
• Scripts supported in Text export
• Bug – security location is bypassed
Resource Path /aif/rest/{api_version}/jobs
Request Type POST
Request Parameters Notes
jobType MAPPINGEXPORT
jobName Dimension Name/ALL
fileName CSV, .TXT, .XLS, or .XLSX
XLS/XLSX exported as XLSM
locationName Location name

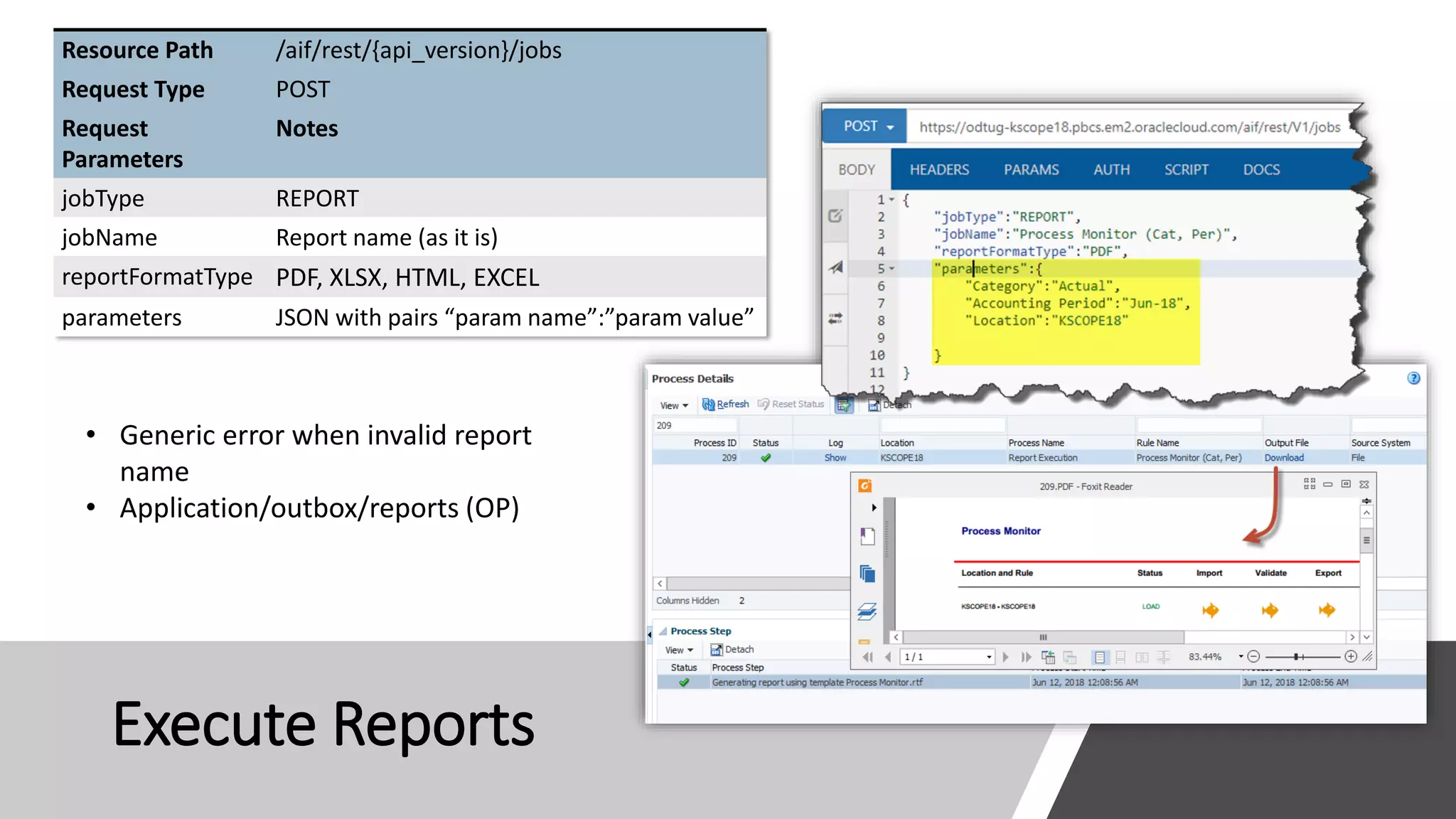

22. Execute Reports
Resource Path /aif/rest/{api_version}/jobs
Request Type POST
Request
Parameters
Notes
jobType REPORT
jobName Report name (as it is)
reportFormatType PDF, XLSX, HTML, EXCEL
parameters JSON with pairs “param name”:”param value”
• Generic error when invalid report
name
• Application/outbox/reports (OP)

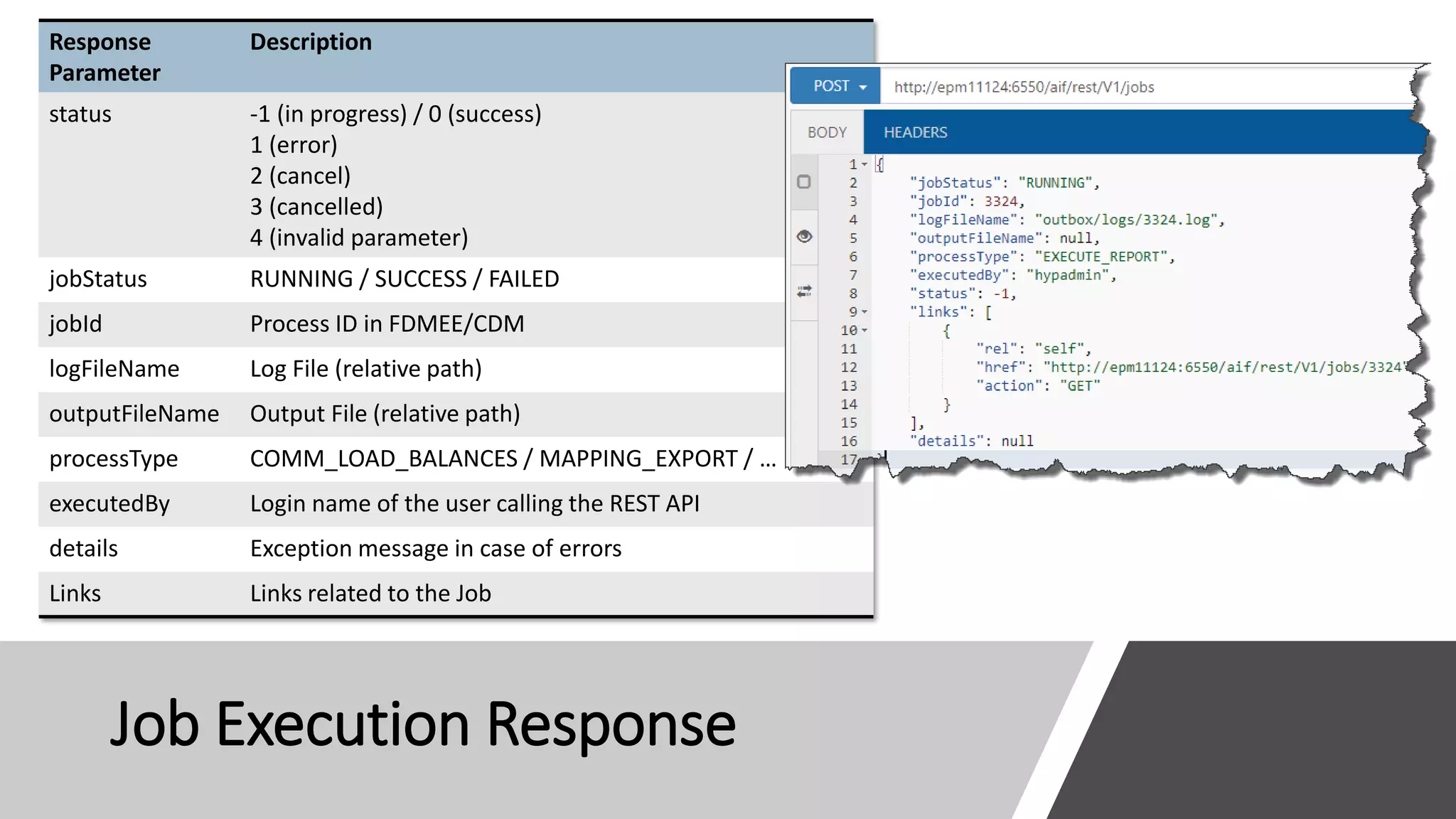

23. Job Execution Response
Response
Parameter
Description
status -1 (in progress) / 0 (success)
1 (error)
2 (cancel)
3 (cancelled)
4 (invalid parameter)
jobStatus RUNNING / SUCCESS / FAILED
jobId Process ID in FDMEE/CDM
logFileName Log File (relative path)
outputFileName Output File (relative path)
processType COMM_LOAD_BALANCES / MAPPING_EXPORT / …
executedBy Login name of the user calling the REST API
details Exception message in case of errors
Links Links related to the Job

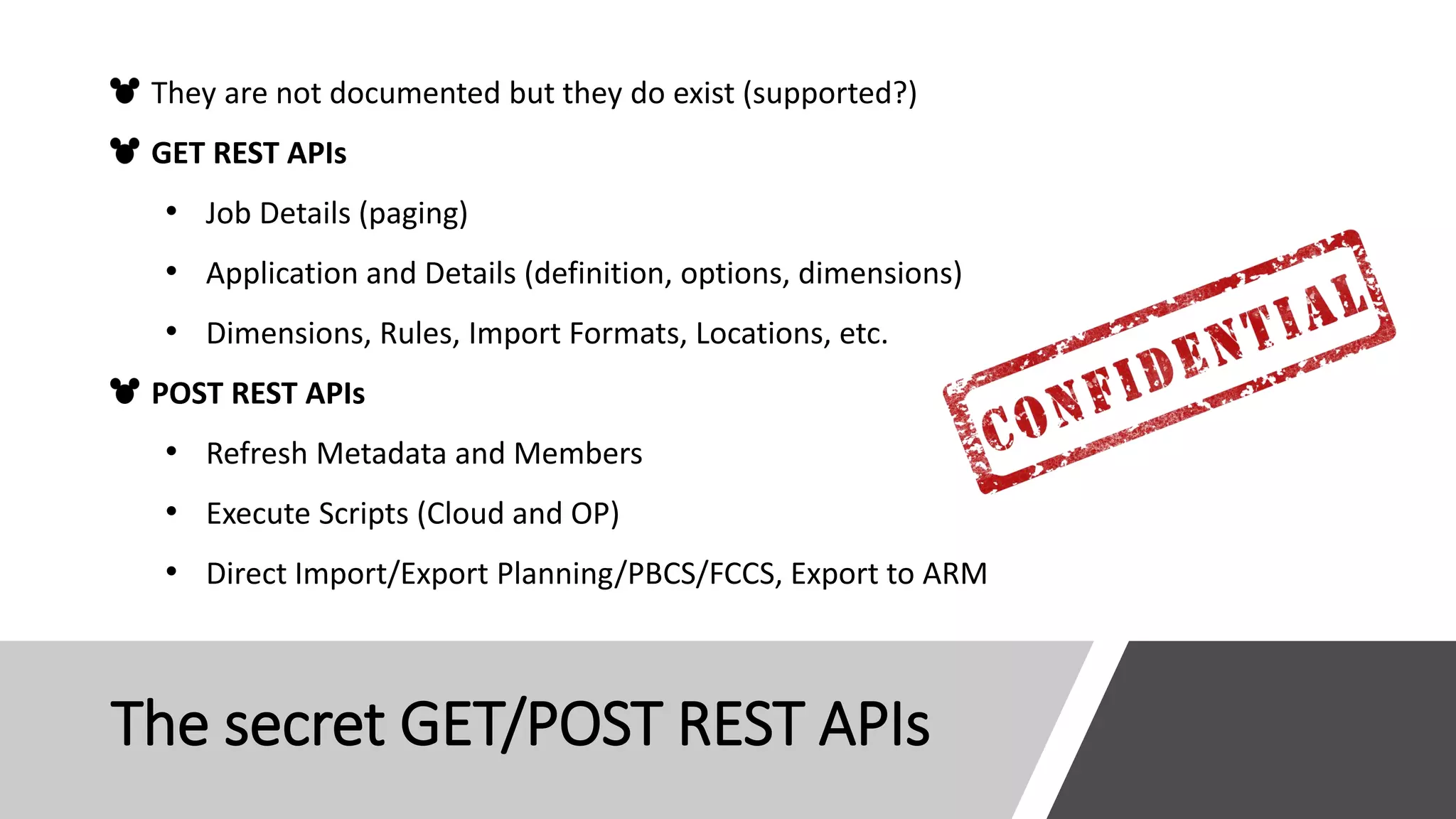

24. The secret GET/POST REST APIs
They are not documented but they do exist (supported?)
GET REST APIs
• Job Details (paging)
• Application and Details (definition, options, dimensions)
• Dimensions, Rules, Import Formats, Locations, etc.
POST REST APIs
• Refresh Metadata and Members
• Execute Scripts (Cloud and OP)
• Direct Import/Export Planning/PBCS/FCCS, Export to ARM

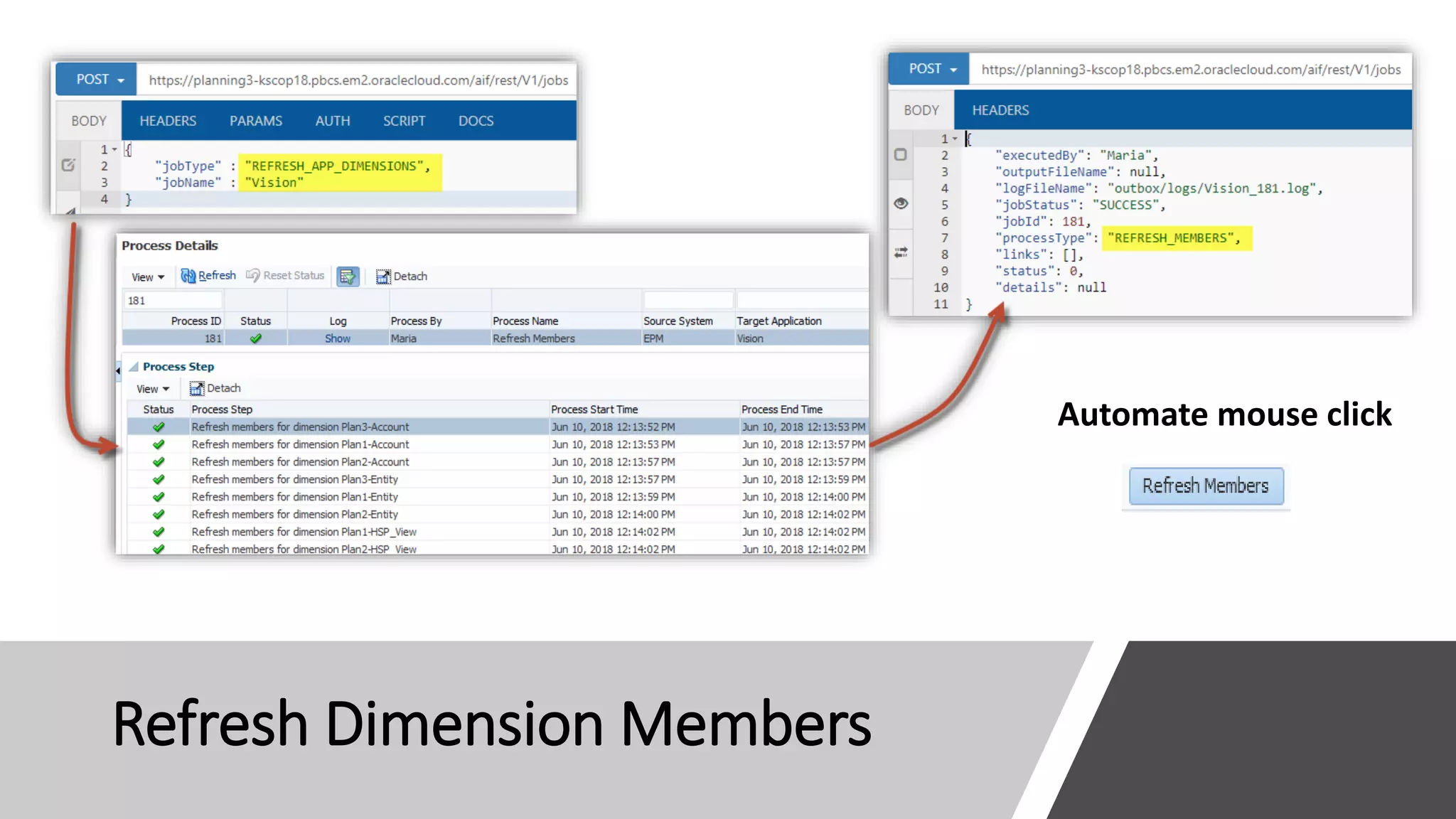

25. Refresh Dimension Members
Automate mouse click

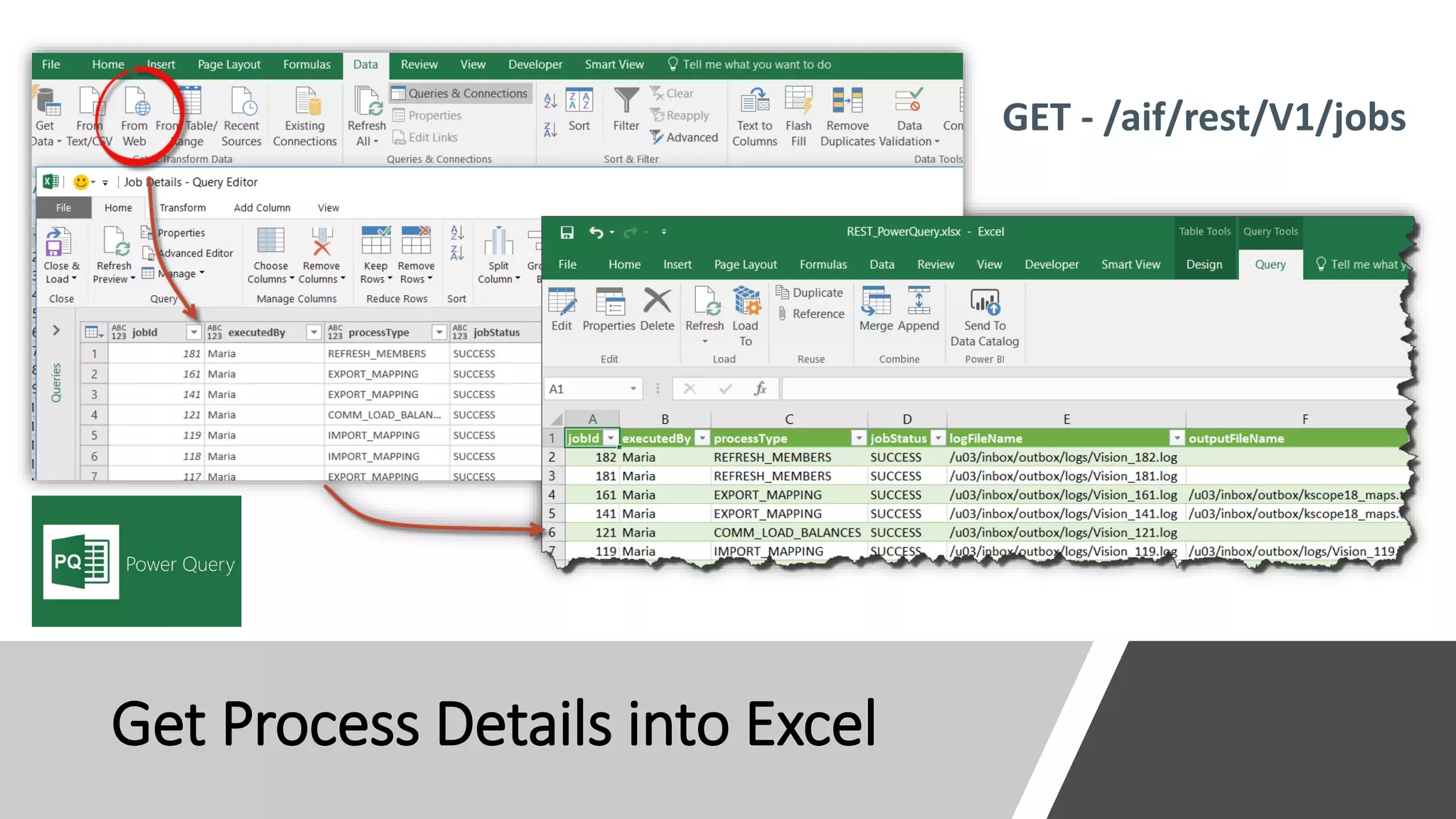

26. Get Process Details into Excel
GET - /aif/rest/V1/jobs

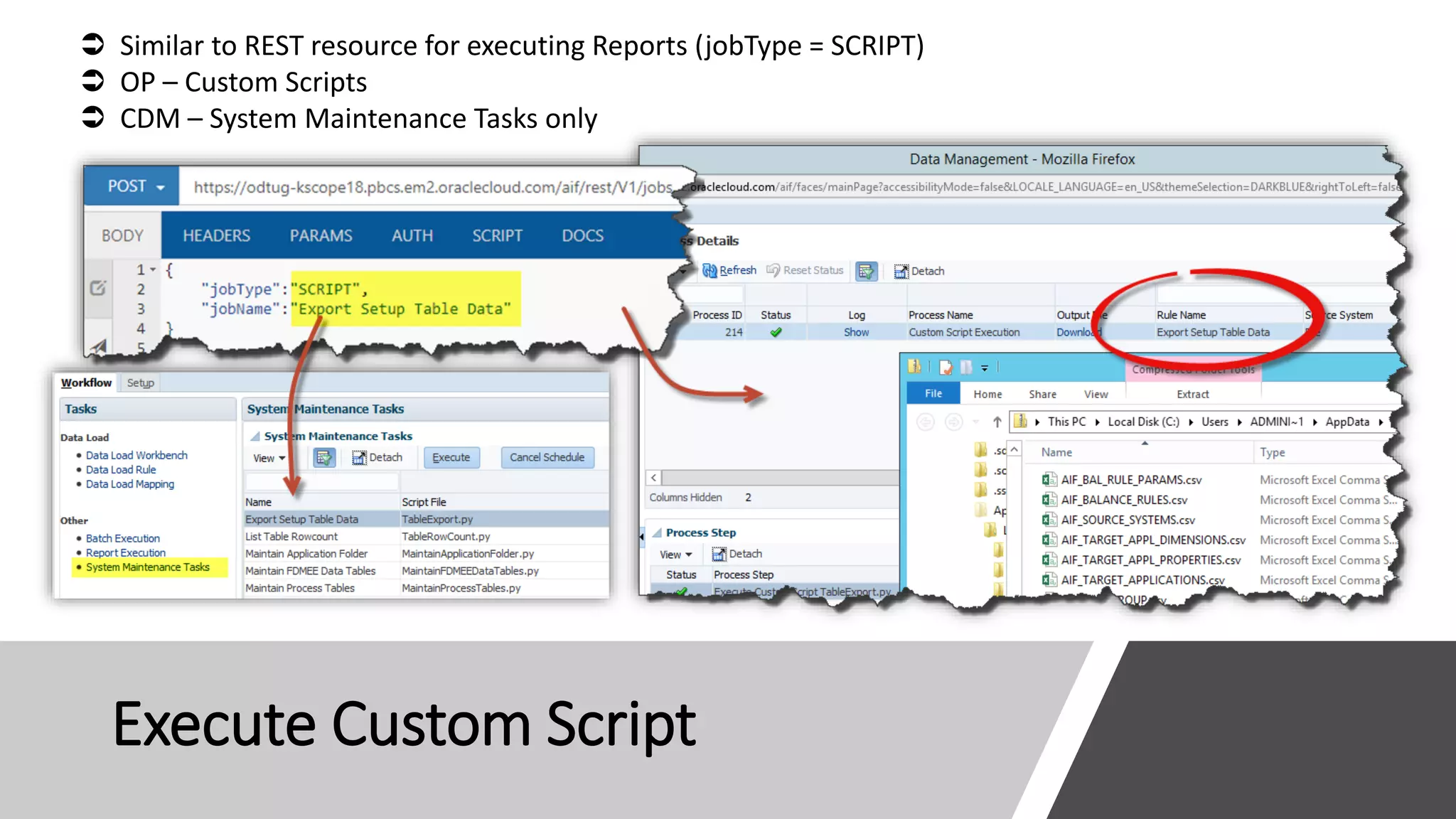

27. Execute Custom Script
 Similar to REST resource for executing Reports (jobType = SCRIPT)
 OP – Custom Scripts
 CDM – System Maintenance Tasks only

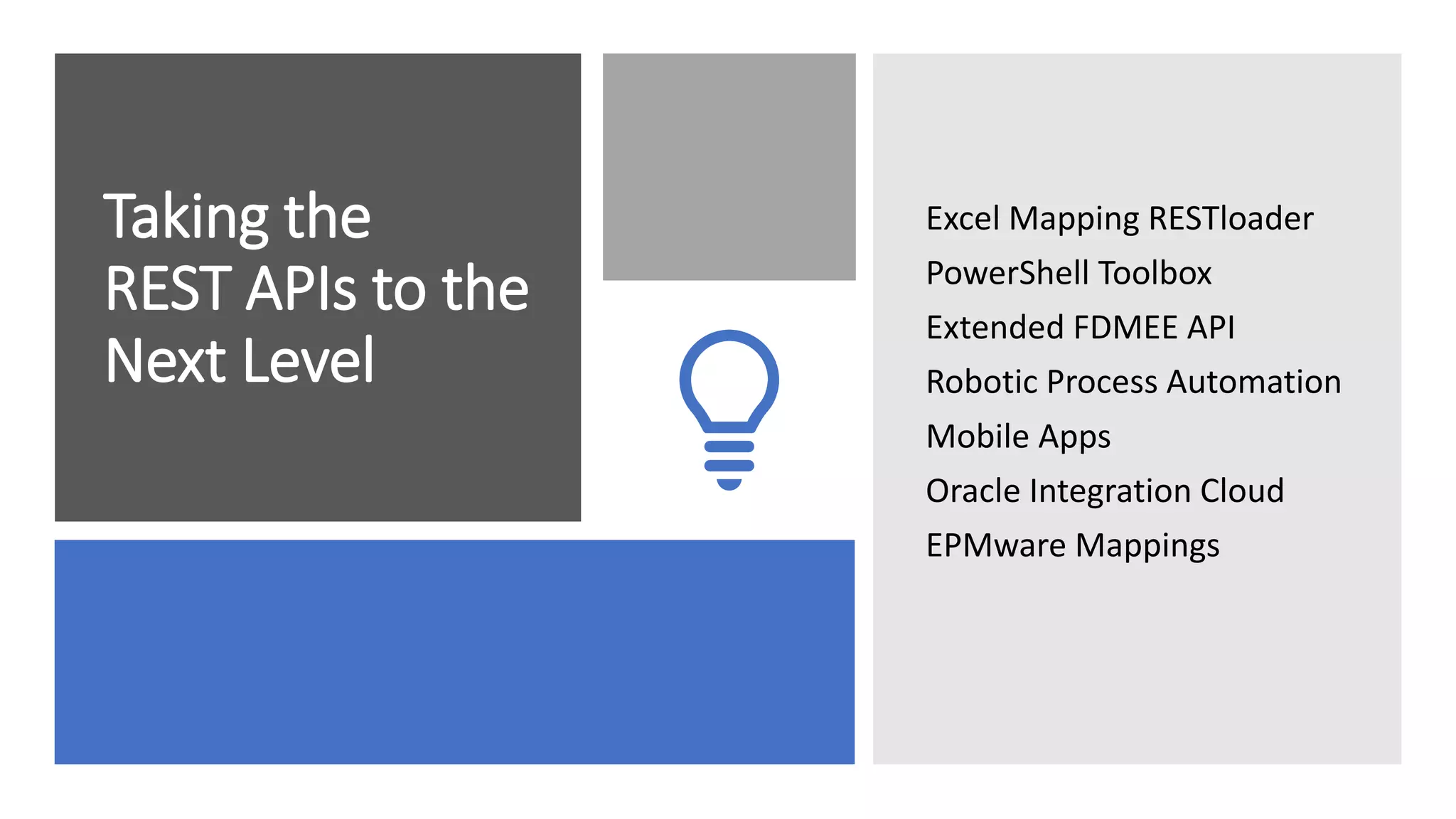

28. Taking the
REST APIs to the
Next Level
Excel Mapping RESTloader
PowerShell Toolbox
Extended FDMEE API
Robotic Process Automation
Mobile Apps
Oracle Integration Cloud
EPMware Mappings

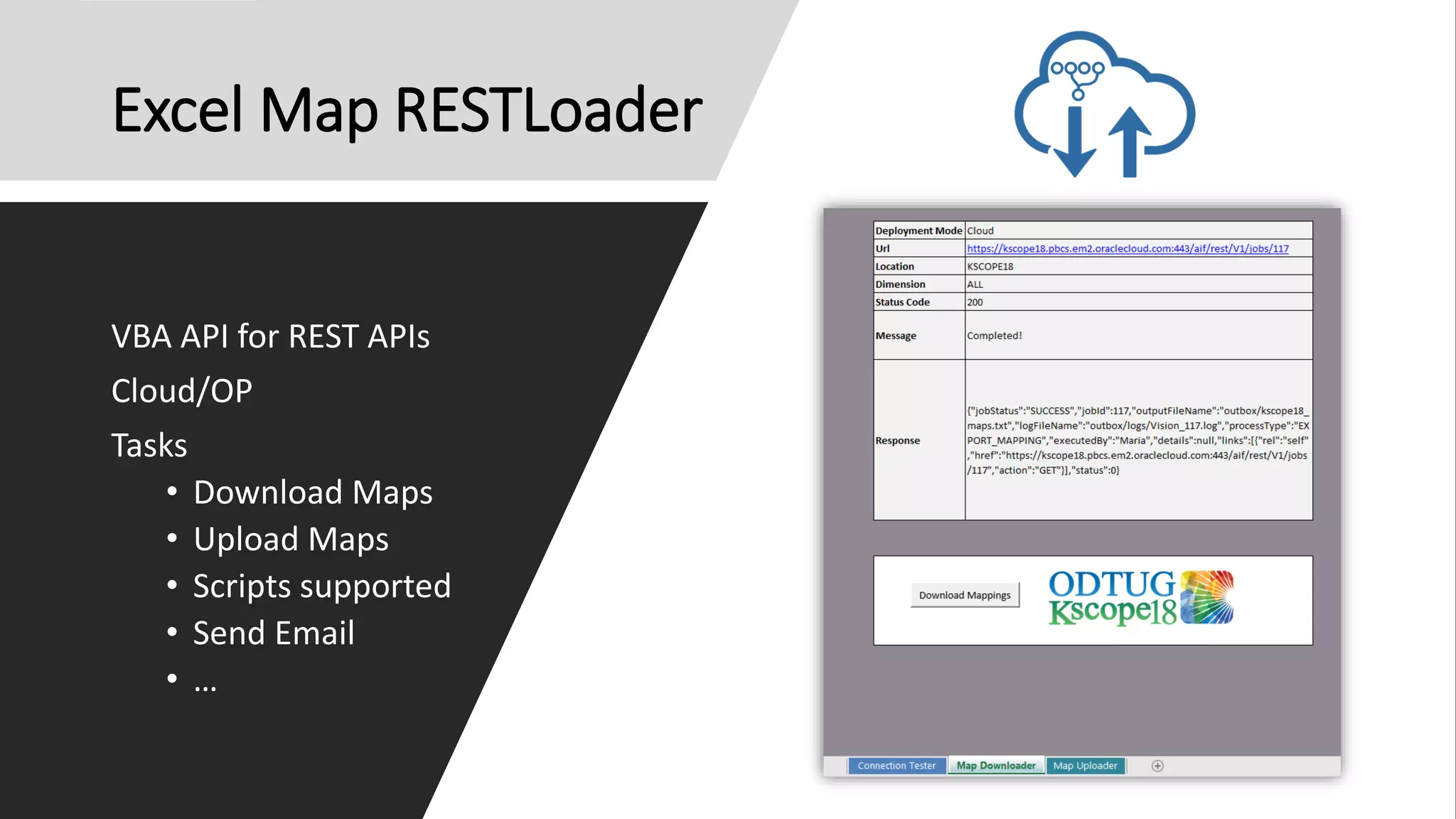

29. Excel Map RESTLoader
VBA API for REST APIs
Cloud/OP
Tasks
• Download Maps
• Upload Maps
• Scripts supported
• Send Email
• …

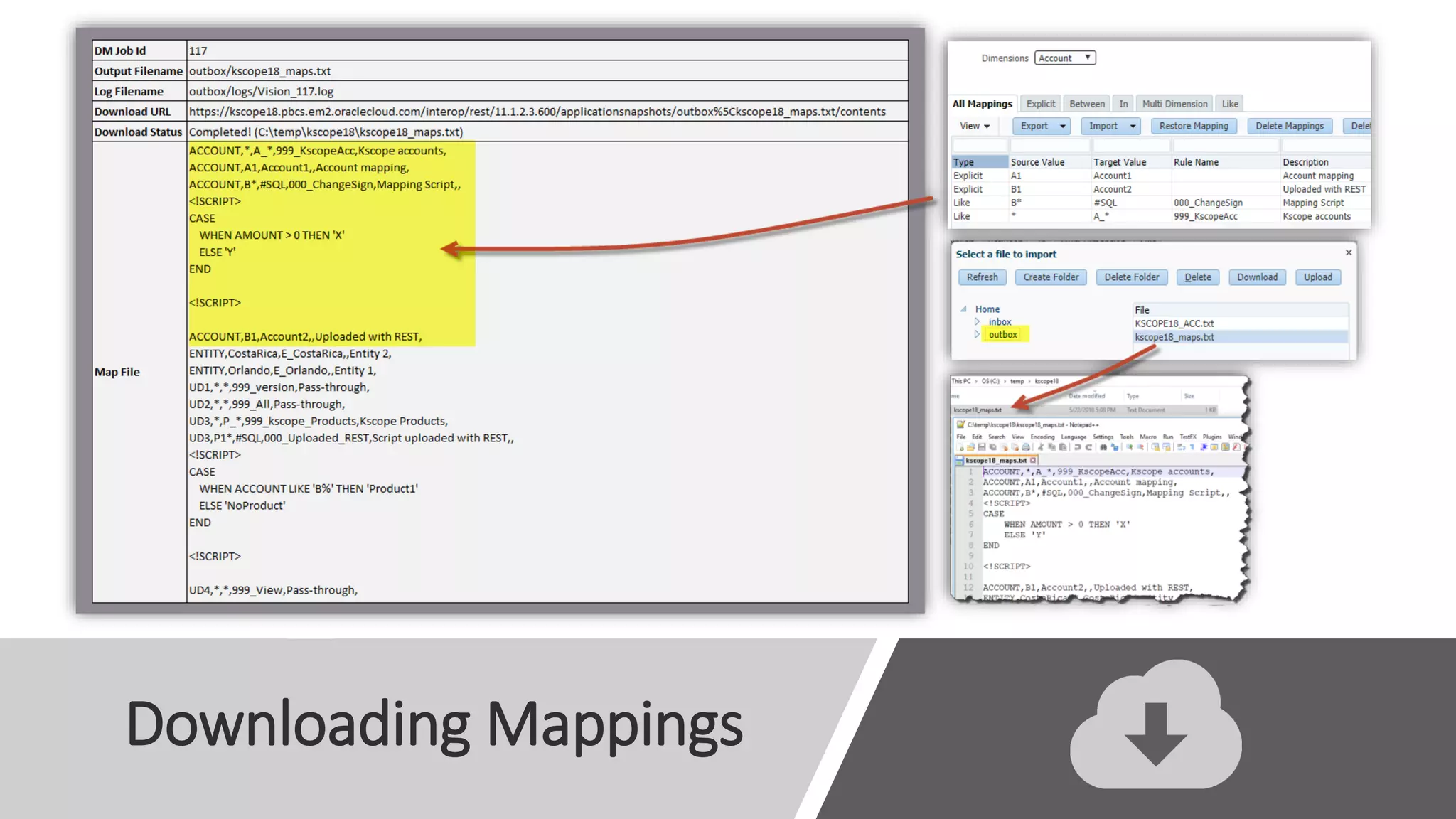

30. Downloading Mappings

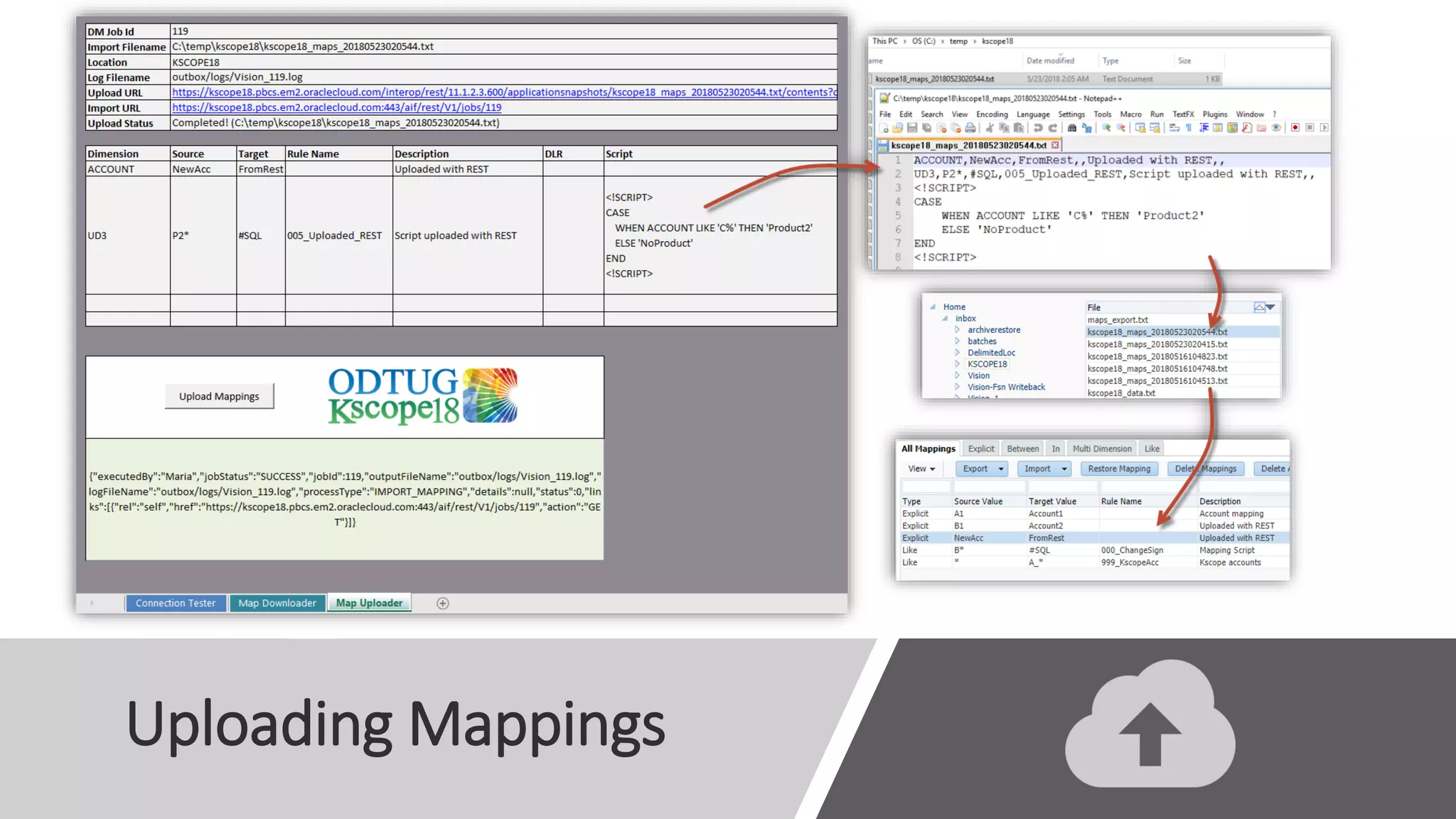

31. Uploading Mappings

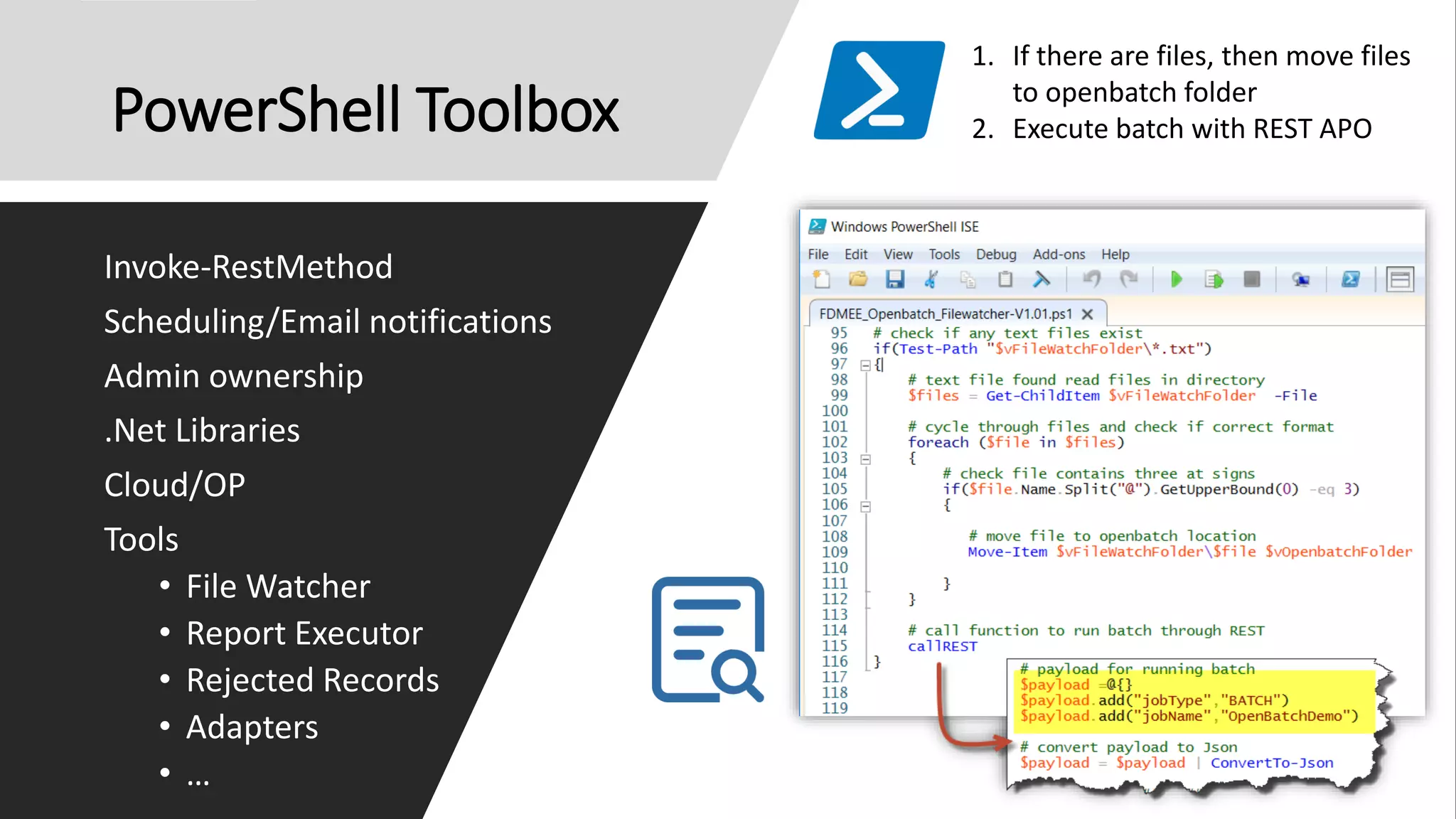

32. PowerShell Toolbox
Invoke-RestMethod
Scheduling/Email notifications
Admin ownership
.Net Libraries
Cloud/OP
Tools
• File Watcher
• Report Executor
• Rejected Records
• Adapters
• …
1. If there are files, then move files
to openbatch folder
2. Execute batch with REST APO

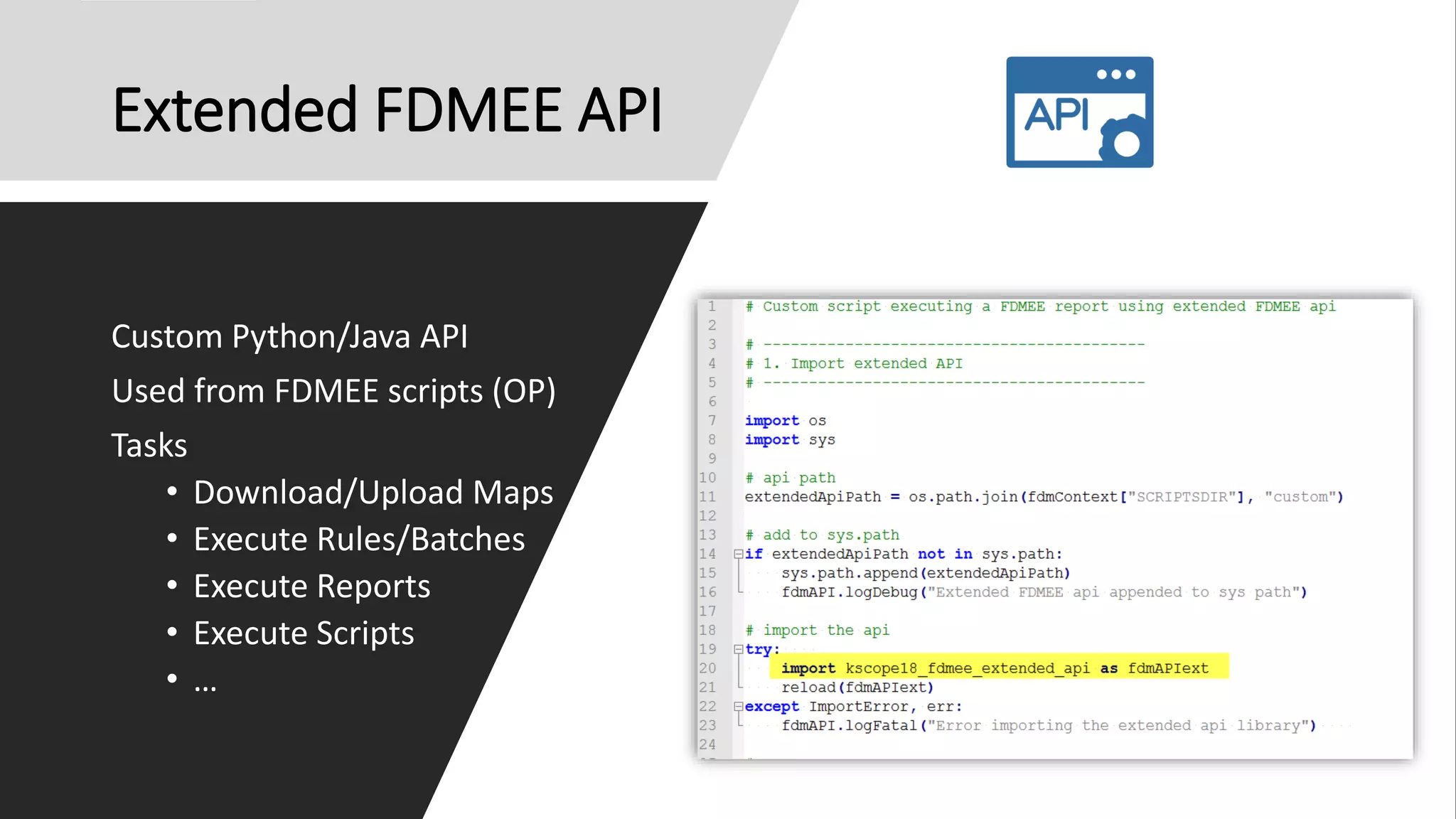

33. Extended FDMEE API
Custom Python/Java API
Used from FDMEE scripts (OP)
Tasks
• Download/Upload Maps
• Execute Rules/Batches
• Execute Reports
• Execute Scripts
• …

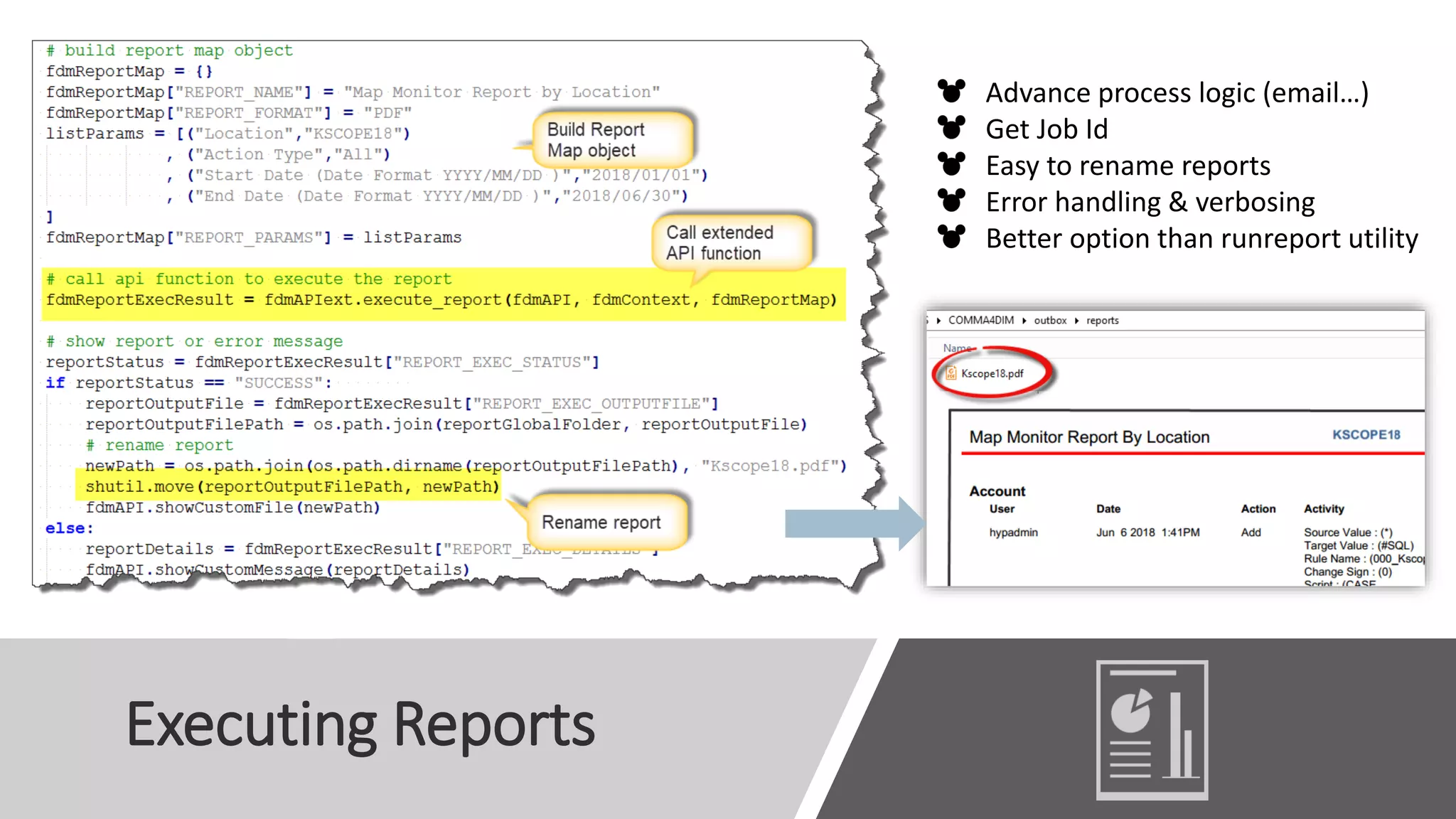

34. Executing Reports
Advance process logic (email…)
Get Job Id
Easy to rename reports
Error handling & verbosing
Better option than runreport utility

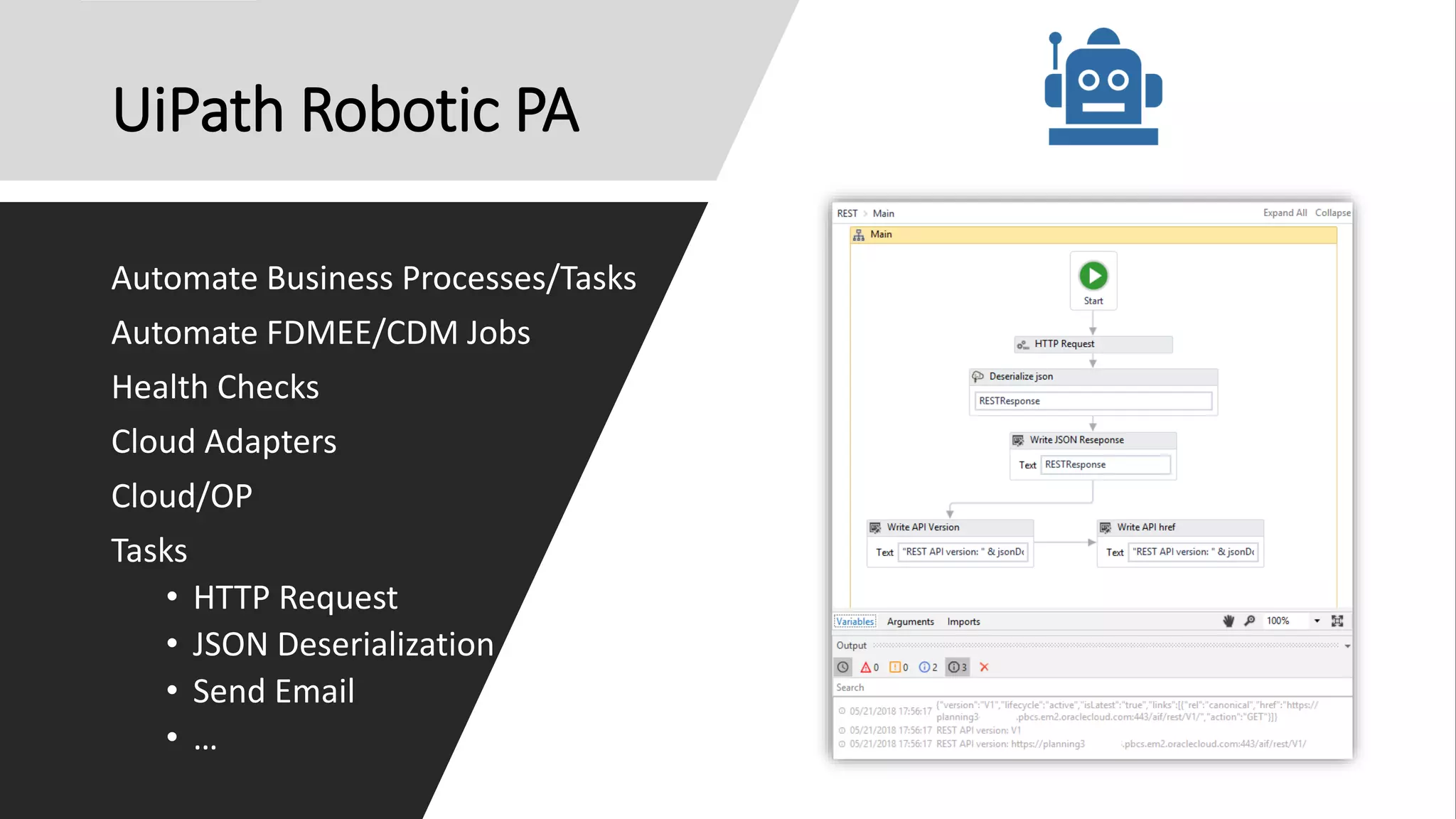

35. UiPath Robotic PA
Automate Business Processes/Tasks
Automate FDMEE/CDM Jobs
Health Checks
Cloud Adapters
Cloud/OP
Tasks
• HTTP Request
• JSON Deserialization
• Send Email
• …

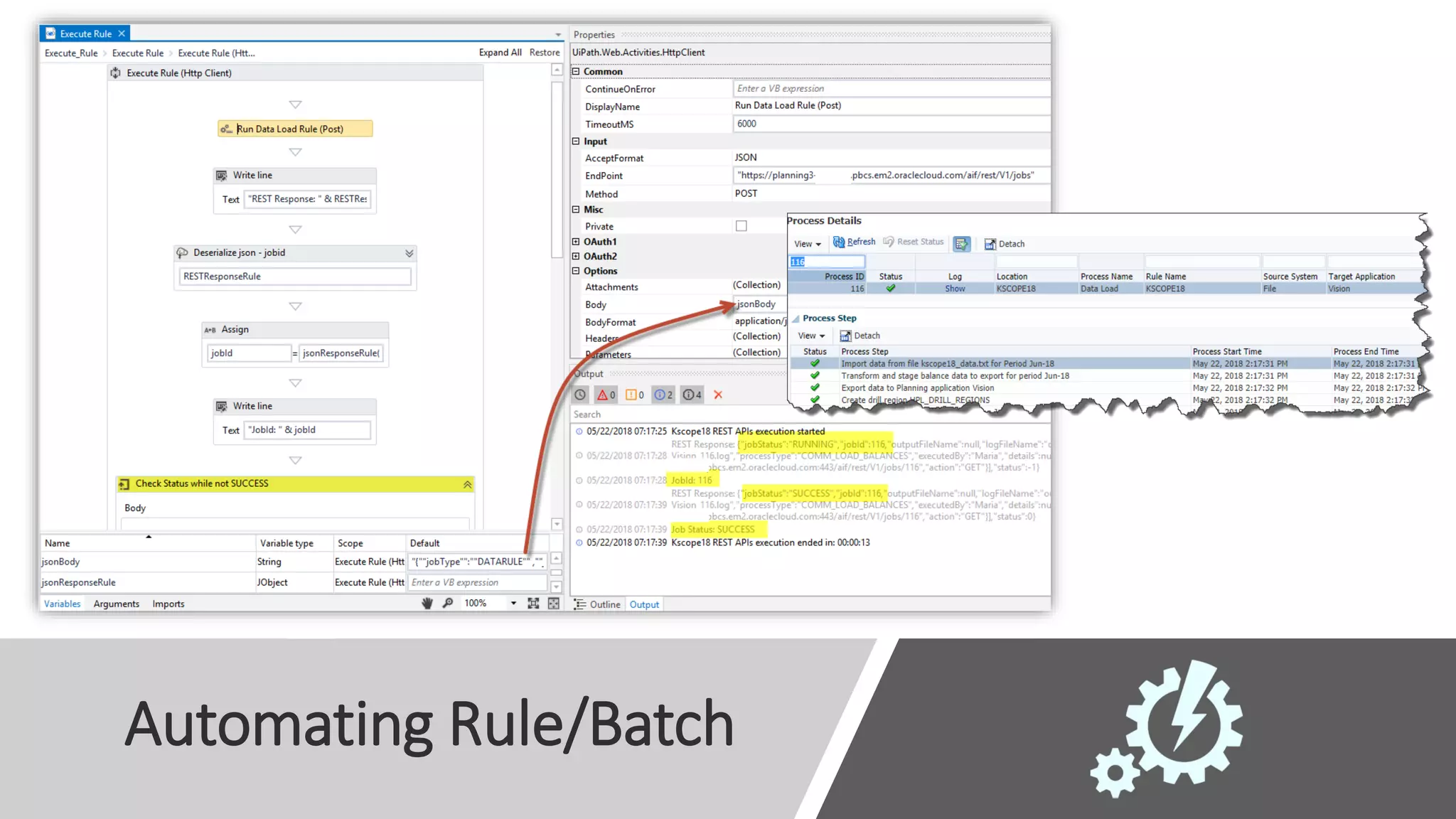

36. Automating Rule/Batch

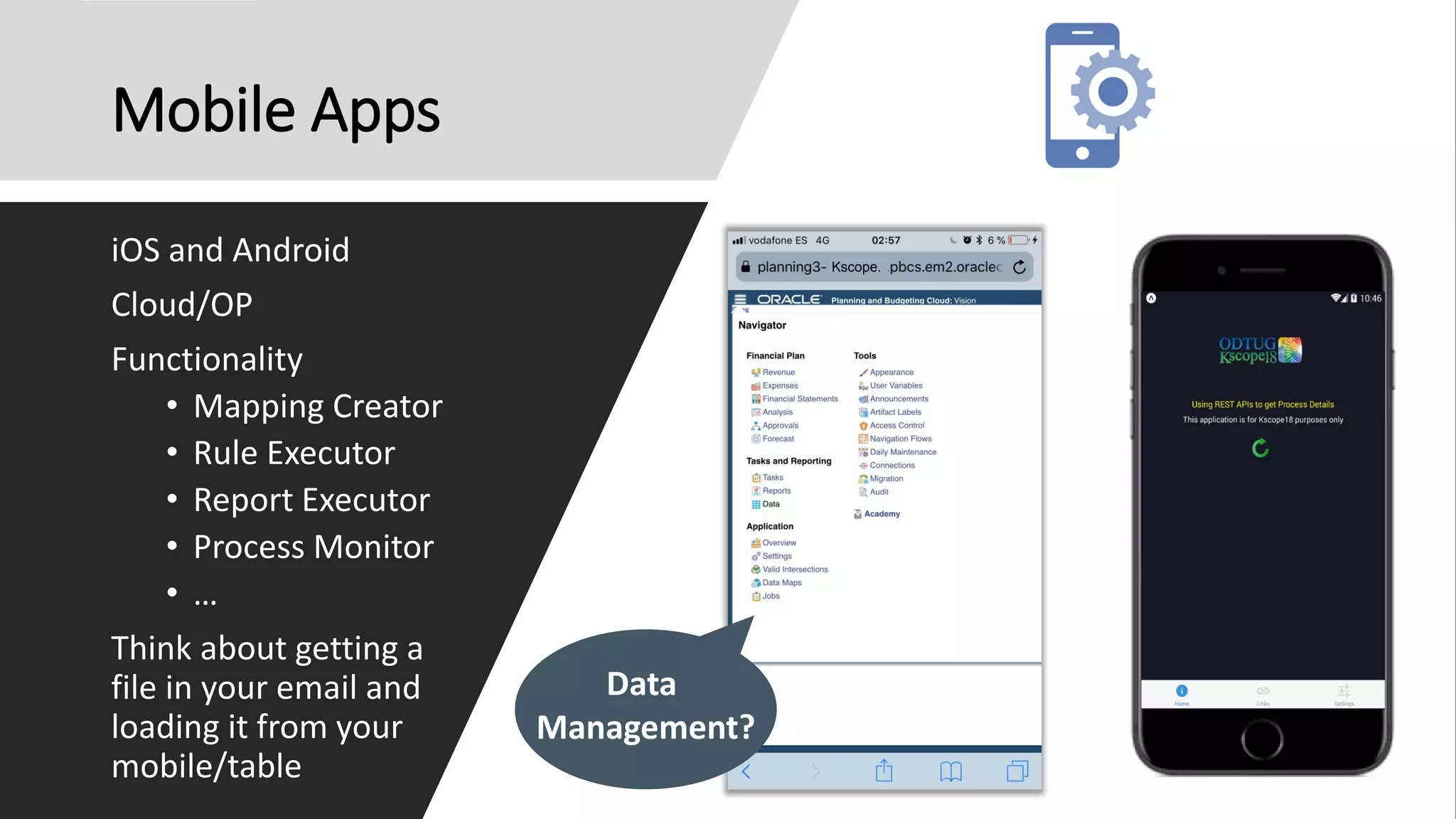

37. Mobile Apps
iOS and Android
Cloud/OP
Functionality
• Mapping Creator
• Rule Executor
• Report Executor
• Process Monitor
• …
Think about getting a
file in your email and
loading it from your
mobile/table
Data
Management?
Kscope.

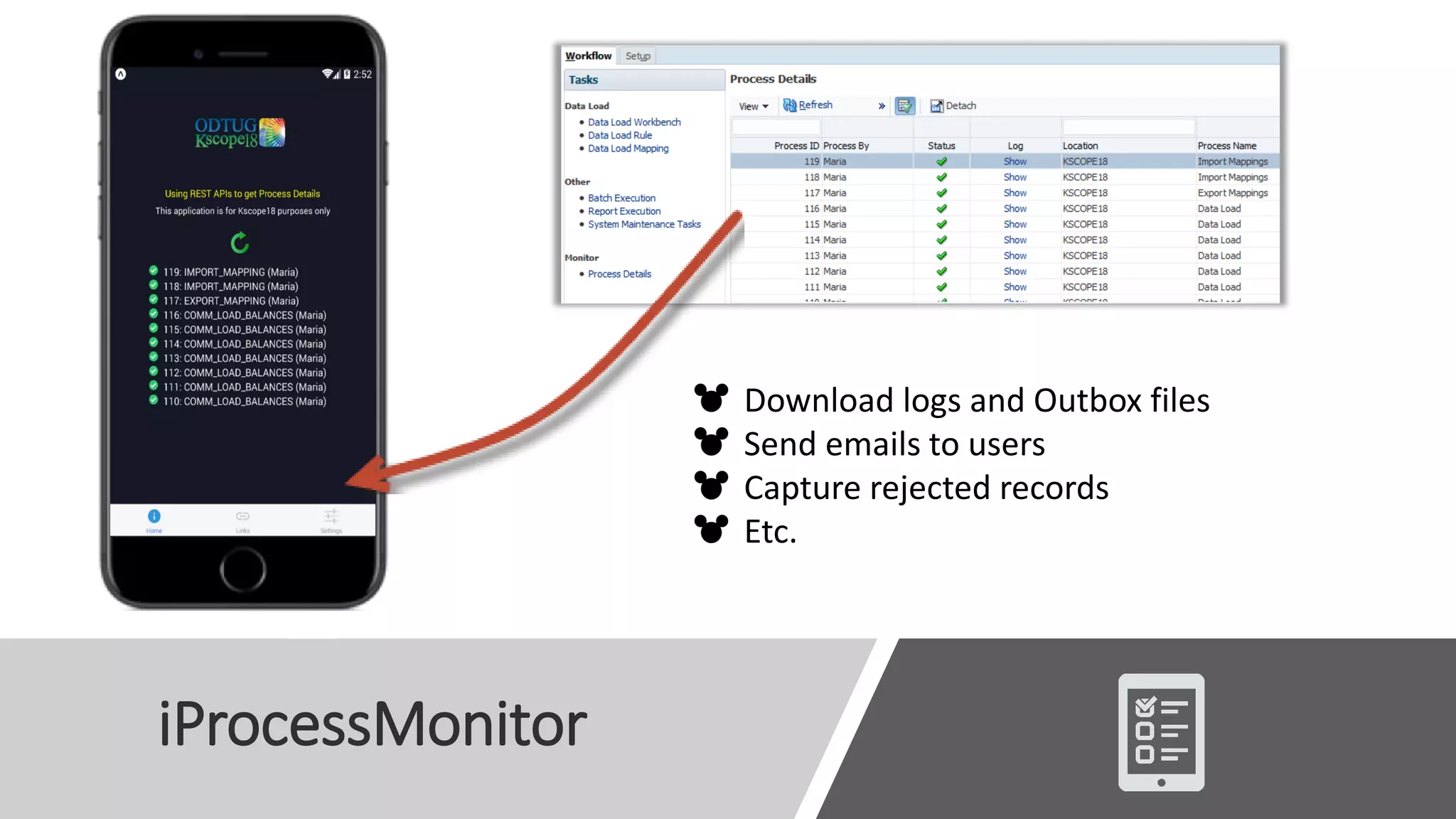

38. iProcessMonitor
Download logs and Outbox files
Send emails to users
Capture rejected records
Etc.

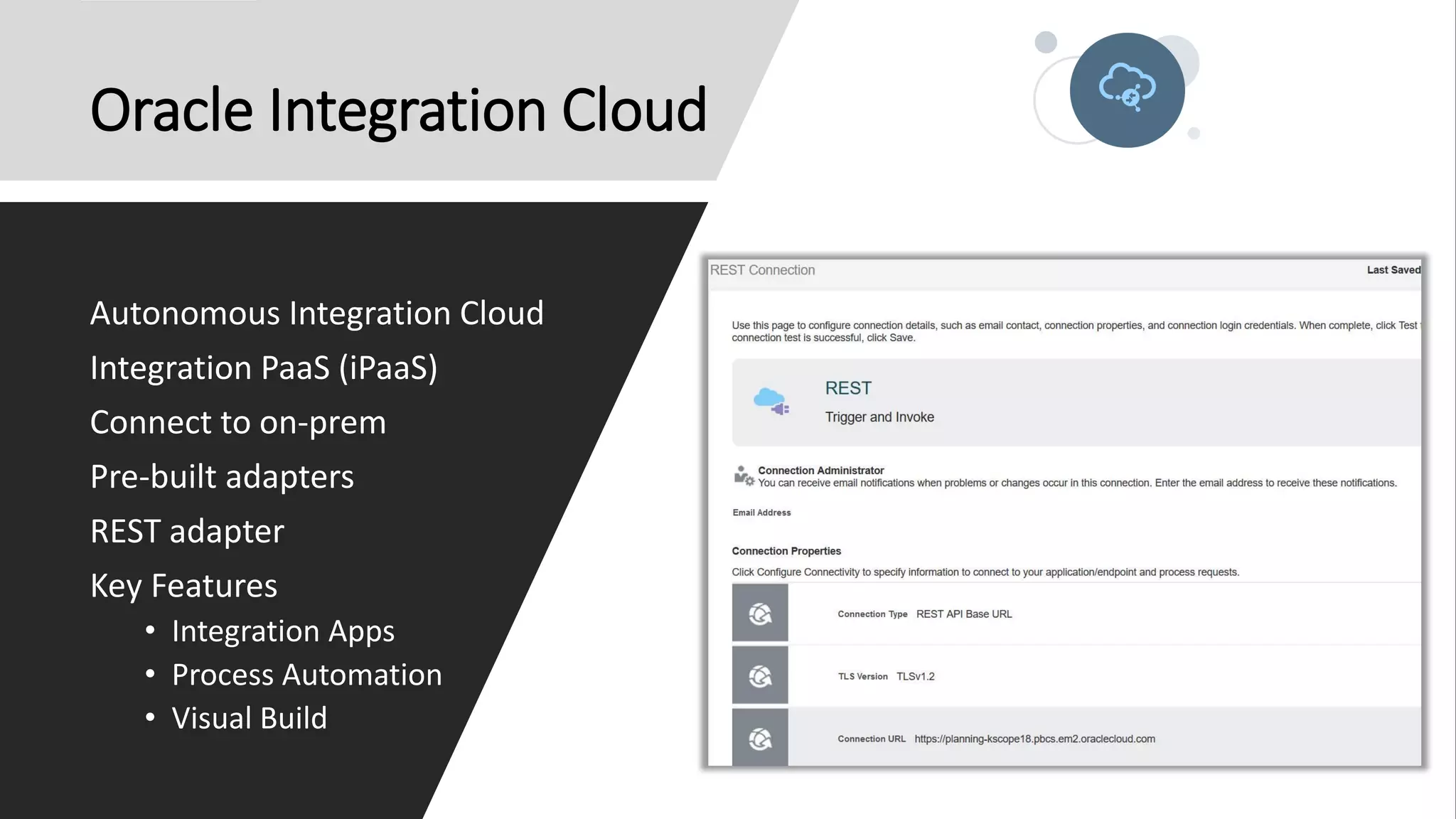

39. Oracle Integration Cloud
Autonomous Integration Cloud
Integration PaaS (iPaaS)
Connect to on-prem
Pre-built adapters
REST adapter
Key Features
• Integration Apps
• Process Automation
• Visual Build

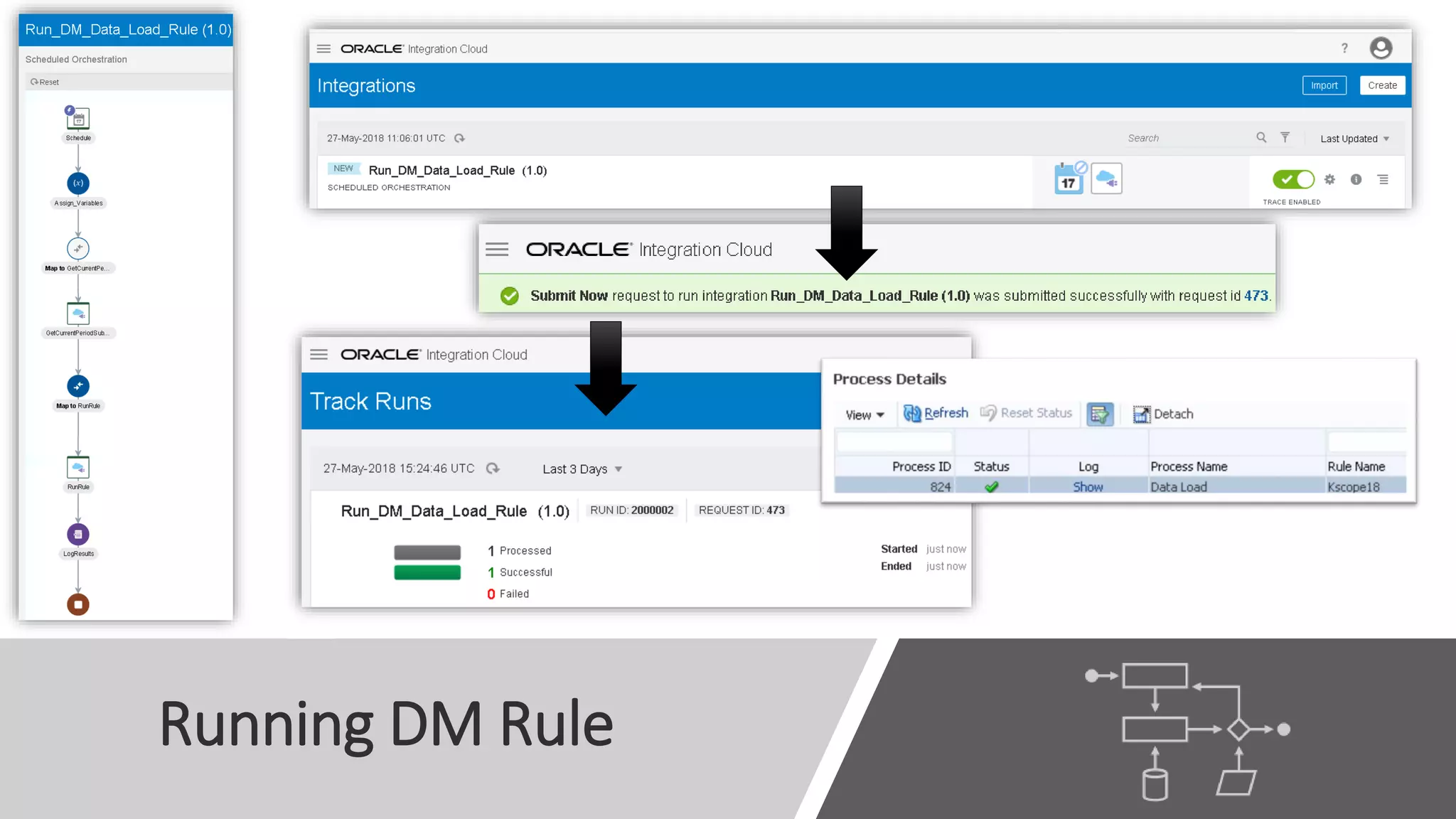

40. Running DM Rule

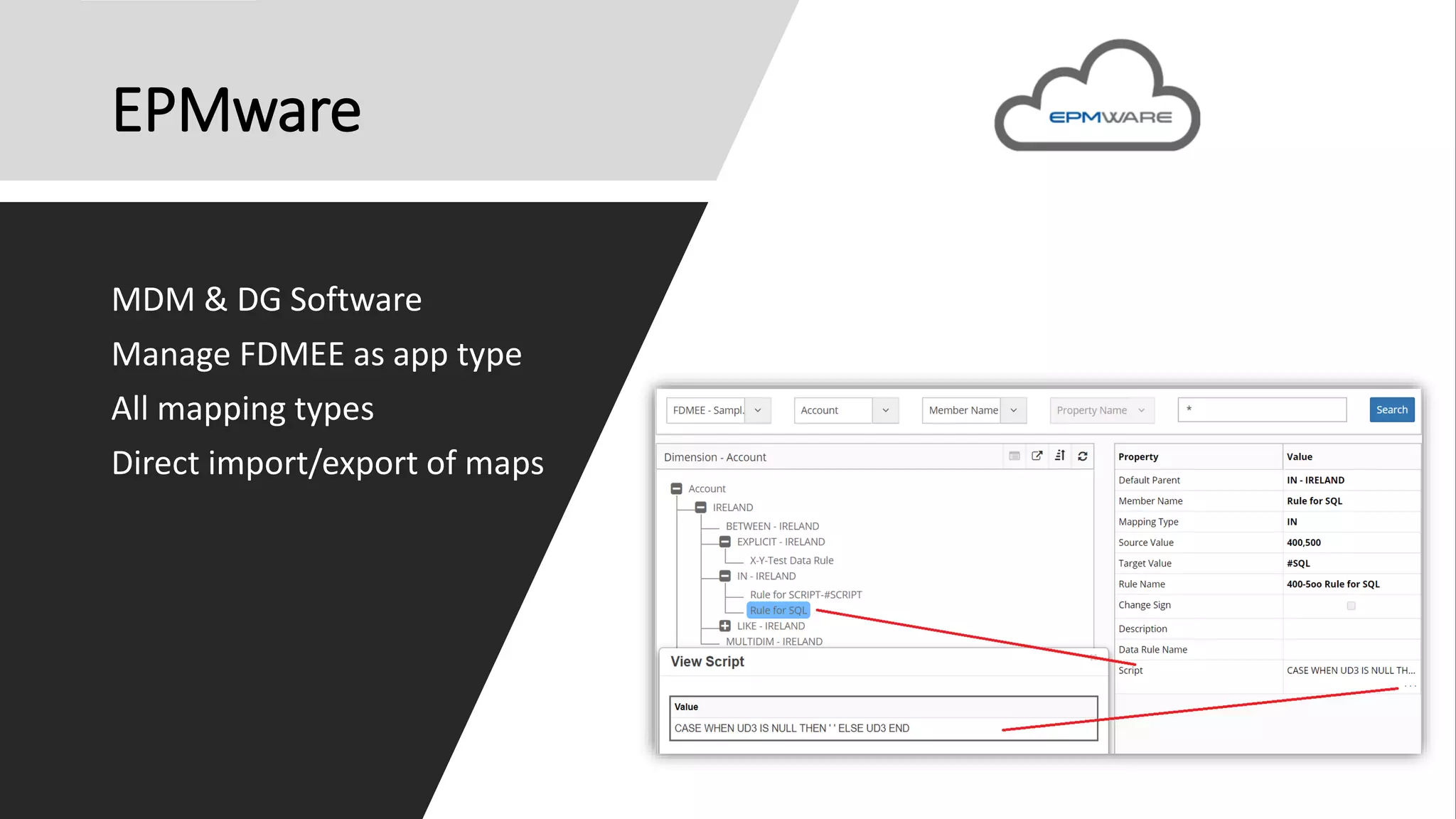

41. EPMware
MDM & DG Software
Manage FDMEE as app type
All mapping types
Direct import/export of maps

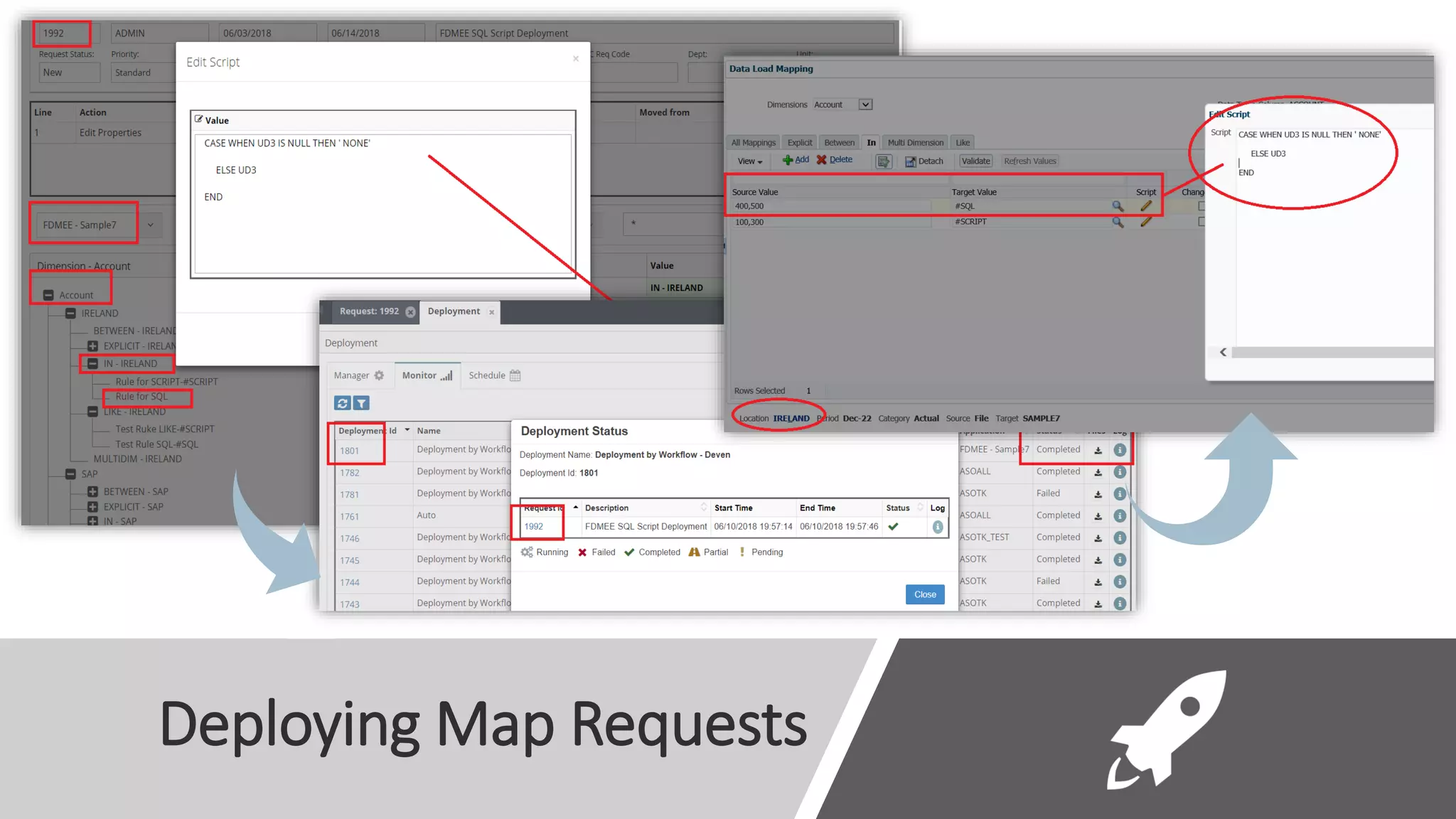

42. Deploying Map Requests

43. REST APIs for
FDMEE and CDM
are used to execute
jobs from external
clients
1
REST APIs can be
used in different
types of
deployment: cloud,
on-prem, and hybrid
2
As always, creativity
plays a very
important role
3

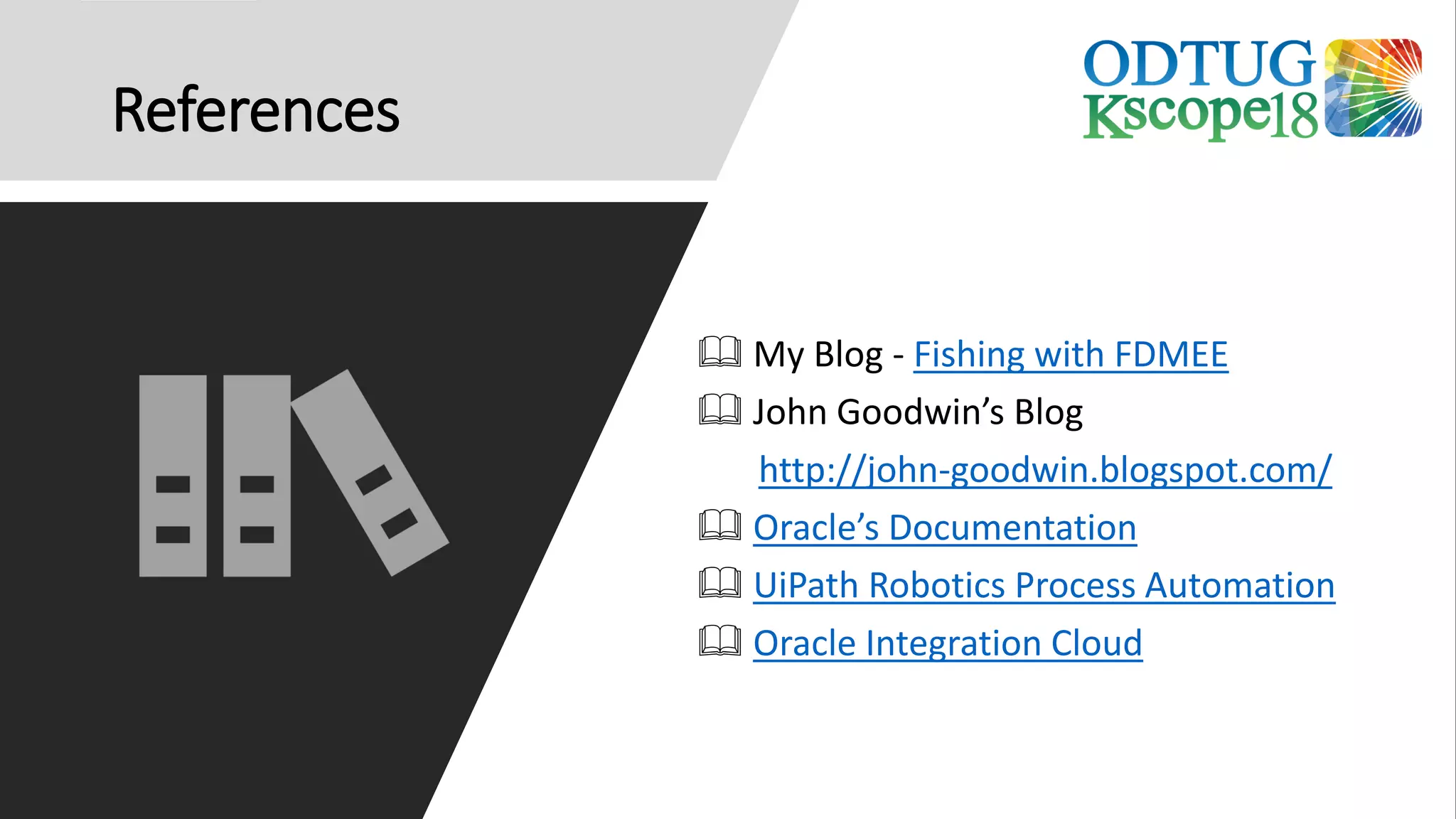

44. References
 My Blog - Fishing with FDMEE
 John Goodwin’s Blog
http://john-goodwin.blogspot.com/
 Oracle’s Documentation
 UiPath Robotics Process Automation
 Oracle Integration Cloud

45. Q&A

46. Francisco Amores
francisco.amores@inlumi.com
http://fishingwithfdmee.blogspot.com
@akafdmee
