1. Network Debugging
Organizational Communications
and Technologies
Prithvi Rao
H. John Heinz III School of Public
Policy and Management
Carnegie Mellon University

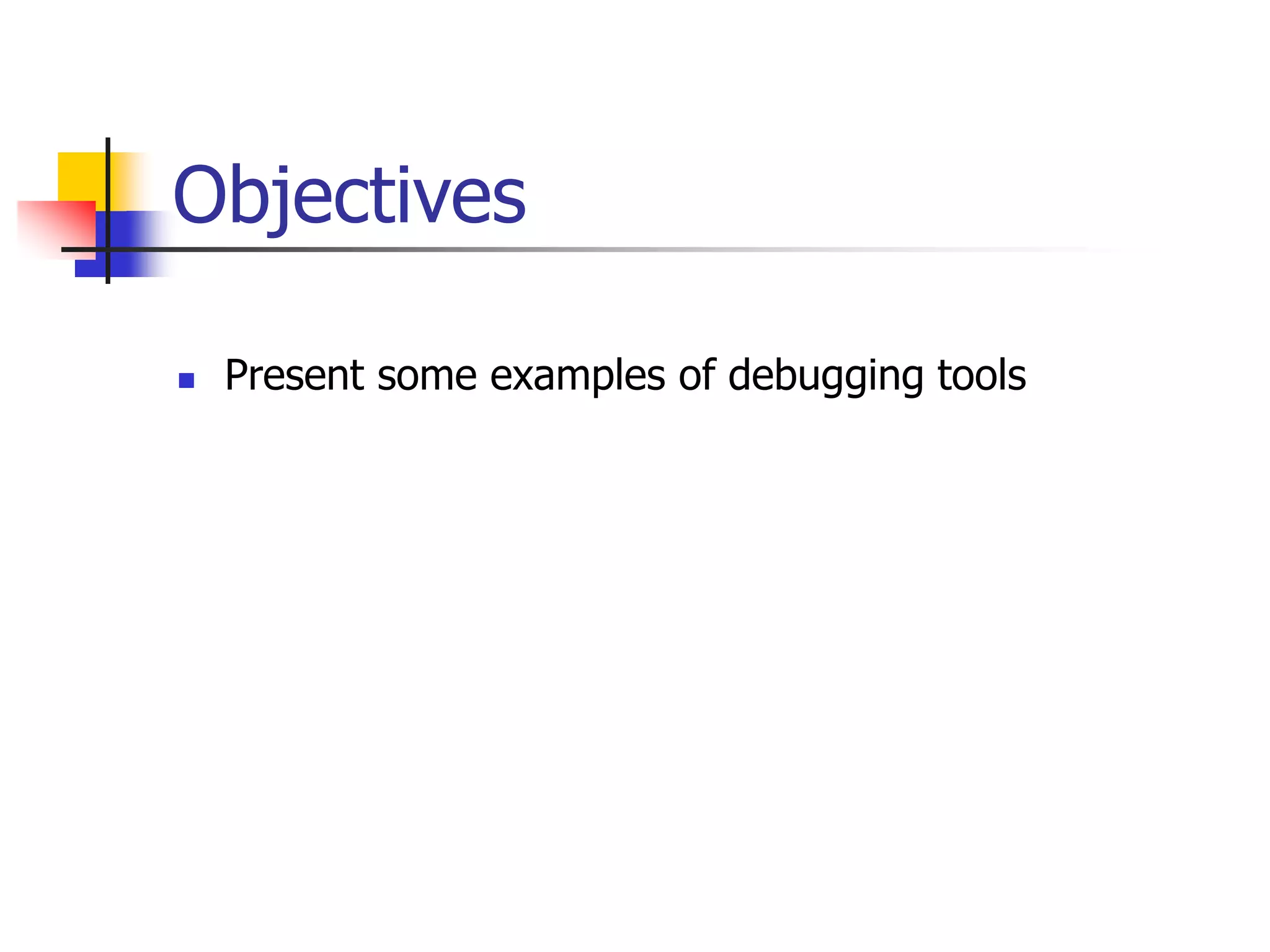

2. Objectives
 Present some examples of debugging tools

3. Readings
Suggested reading: Class notes
Practical Internetworking with TCP/IP
and UNIX (not required)

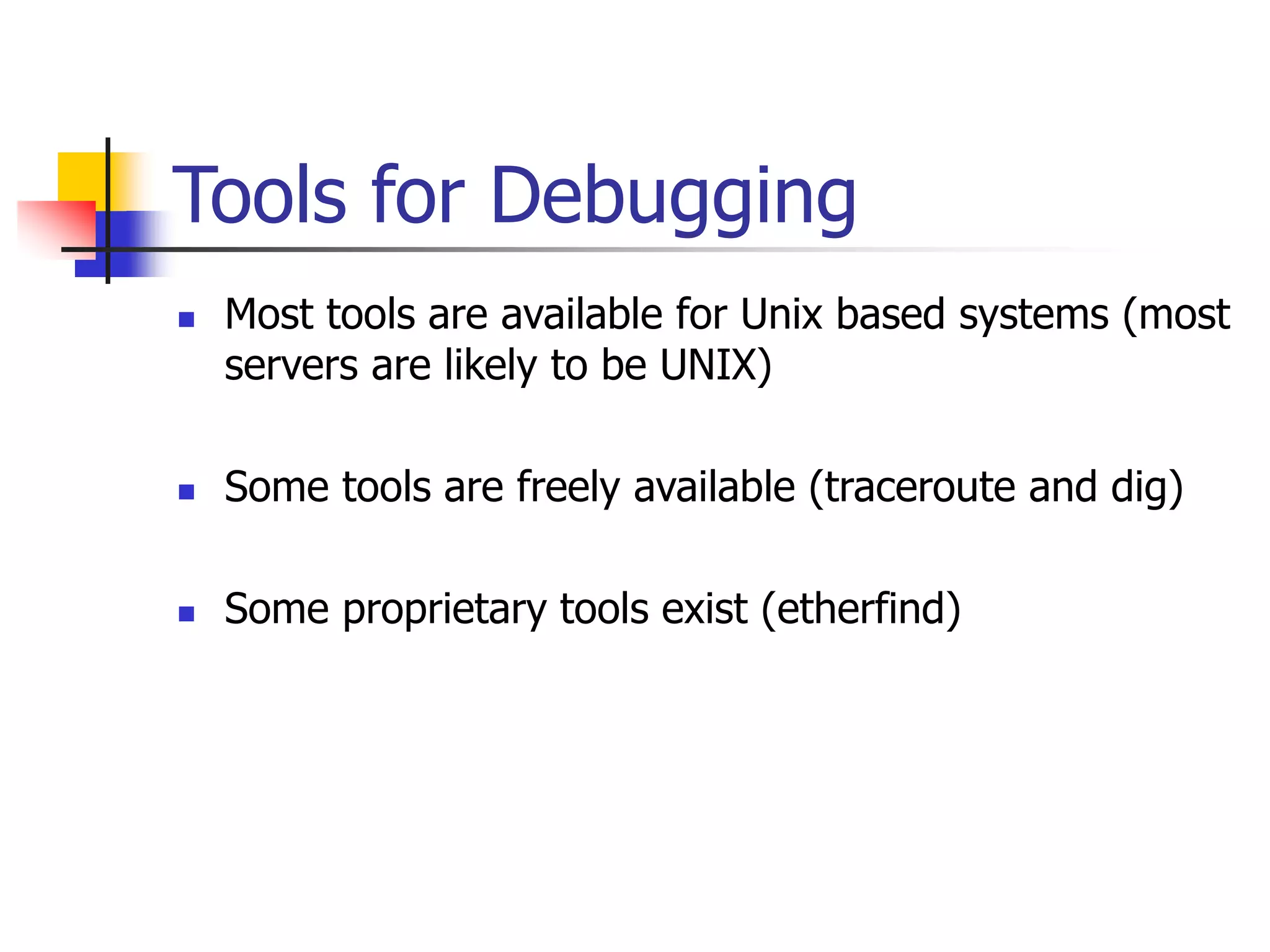

4. Tools for Debugging
 Most tools are available for Unix based systems (most
servers are likely to be UNIX)
 Some tools are freely available (traceroute and dig)
 Some proprietary tools exist (etherfind)

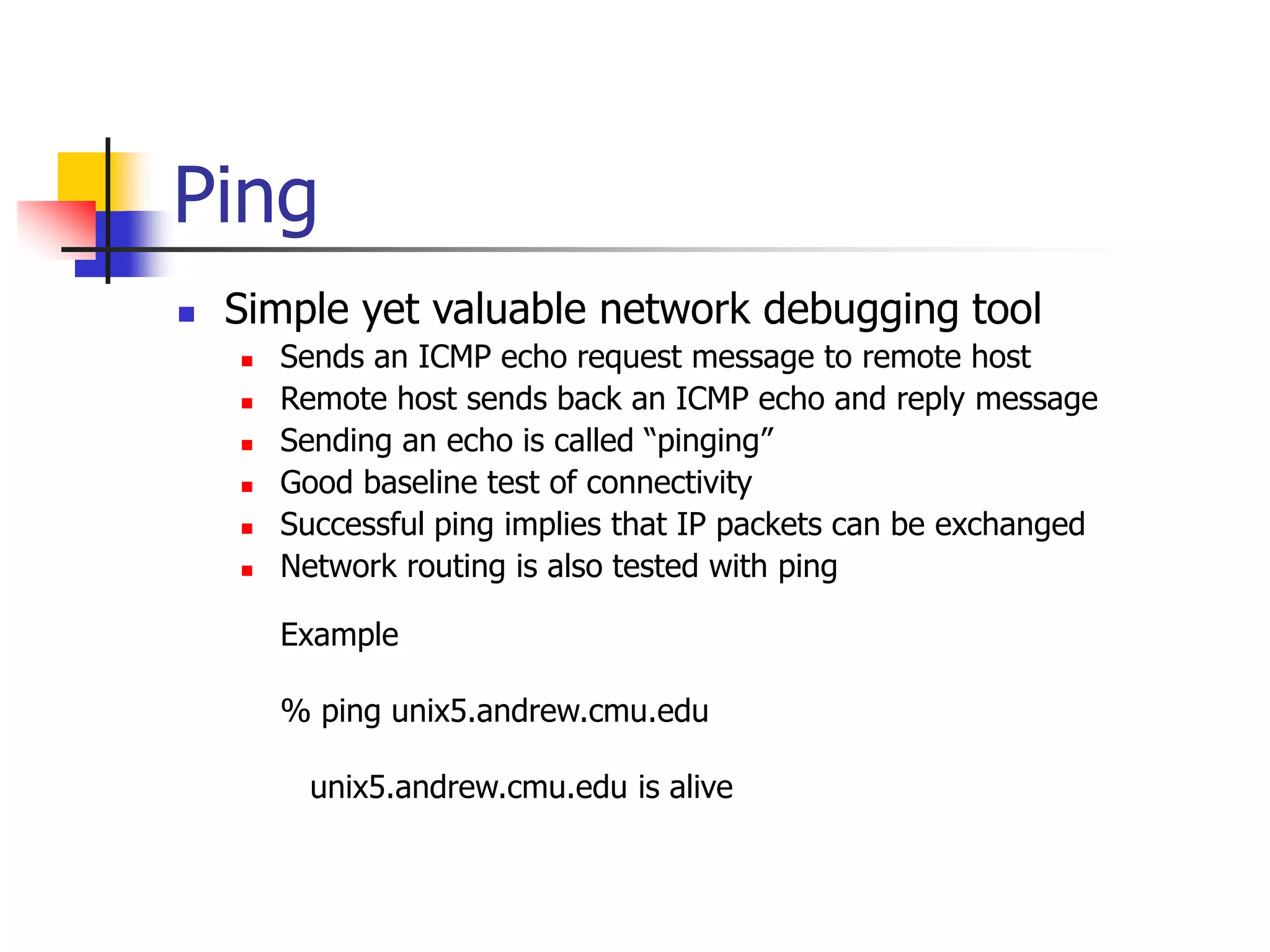

5. Ping
 Simple yet valuable network debugging tool
 Sends an ICMP echo request message to remote host
 Remote host sends back an ICMP echo and reply message
 Sending an echo is called “pinging”
 Good baseline test of connectivity
 Successful ping implies that IP packets can be exchanged
 Network routing is also tested with ping
Example
% ping unix5.andrew.cmu.edu
unix5.andrew.cmu.edu is alive

6. Ping
 Variant of first form of ping
Example
% ping -s akasha.tic.com 5
no response from akasha.tic.com
64 bytes from akasha.tic.com (192.12.23.130) icmp_seq = 0, time = 6 ms
64 bytes from akasha.tic.com (192.12.23.130) icmp_seq = 1, time = 5 ms
64 bytes from akasha.tic.com (192.12.23.130) icmp_seq =2, time = 5 ms
In this case command times out after 5 seconds

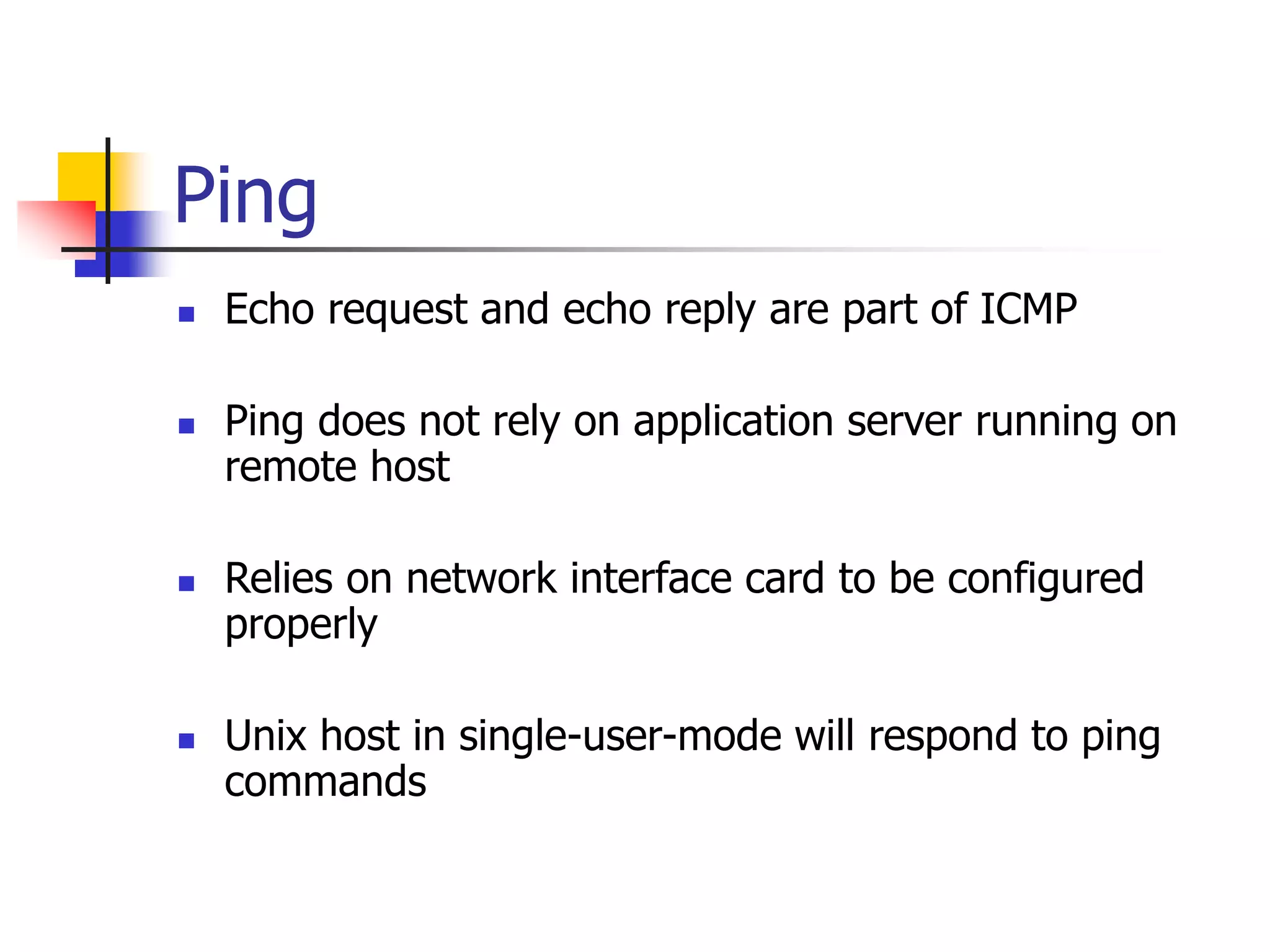

7. Ping
 Echo request and echo reply are part of ICMP
 Ping does not rely on application server running on
remote host
 Relies on network interface card to be configured
properly
 Unix host in single-user-mode will respond to ping
commands

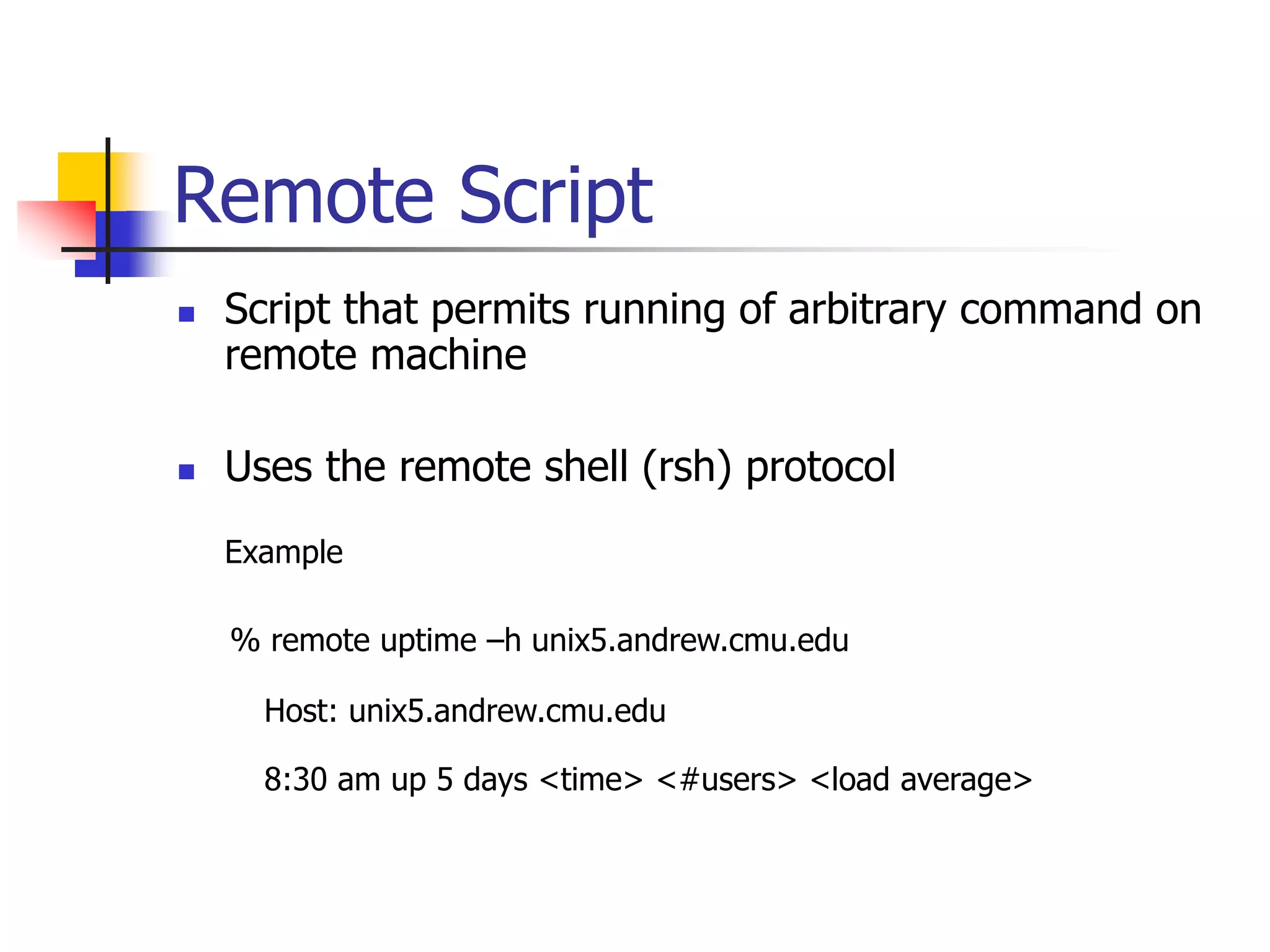

8. Remote Script
 Script that permits running of arbitrary command on
remote machine
 Uses the remote shell (rsh) protocol
Example
% remote uptime –h unix5.andrew.cmu.edu
Host: unix5.andrew.cmu.edu
8:30 am up 5 days <time> <#users> <load average>

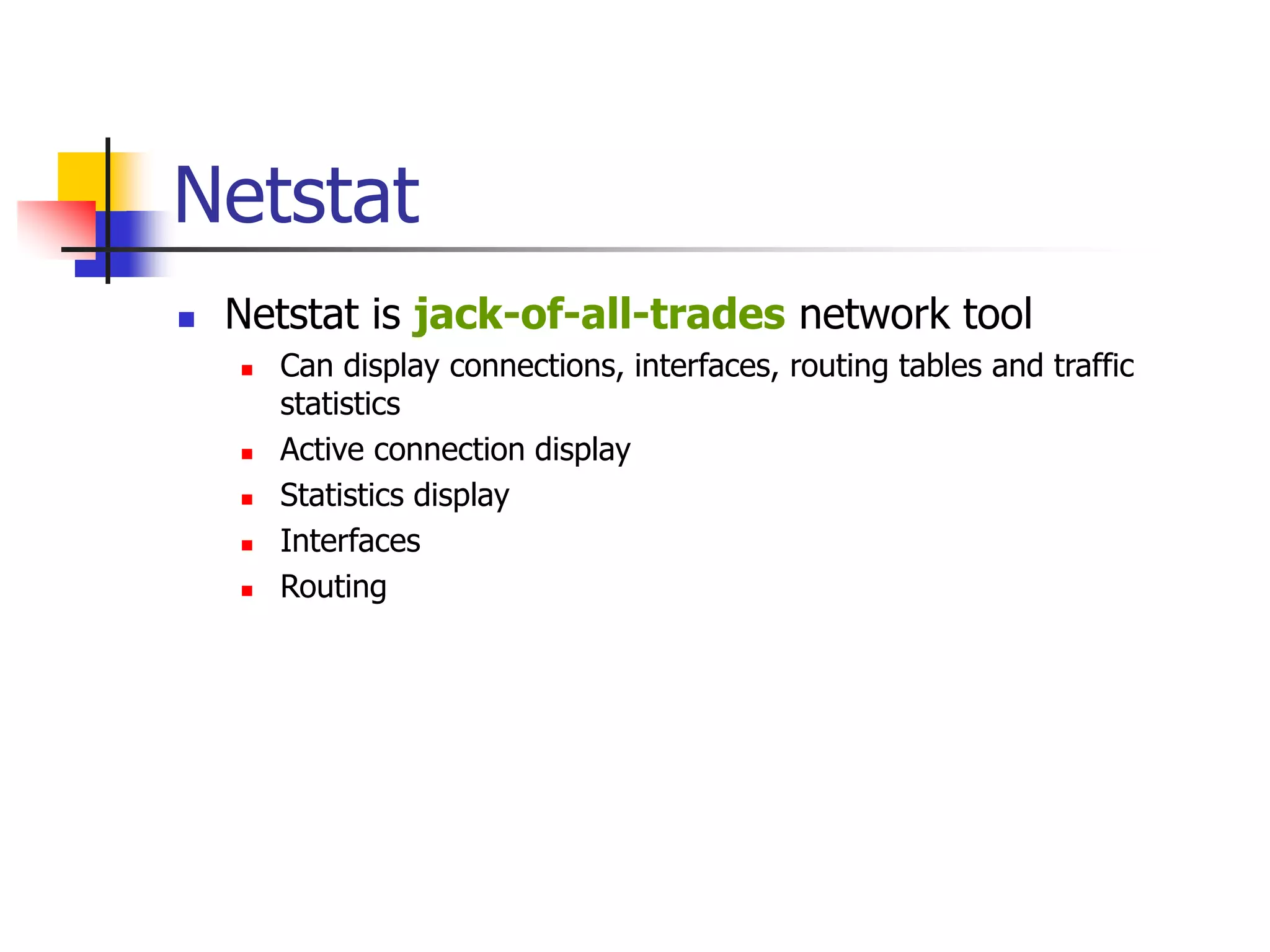

9. Netstat
 Netstat is jack-of-all-trades network tool
 Can display connections, interfaces, routing tables and traffic
statistics
 Active connection display
 Statistics display
 Interfaces
 Routing

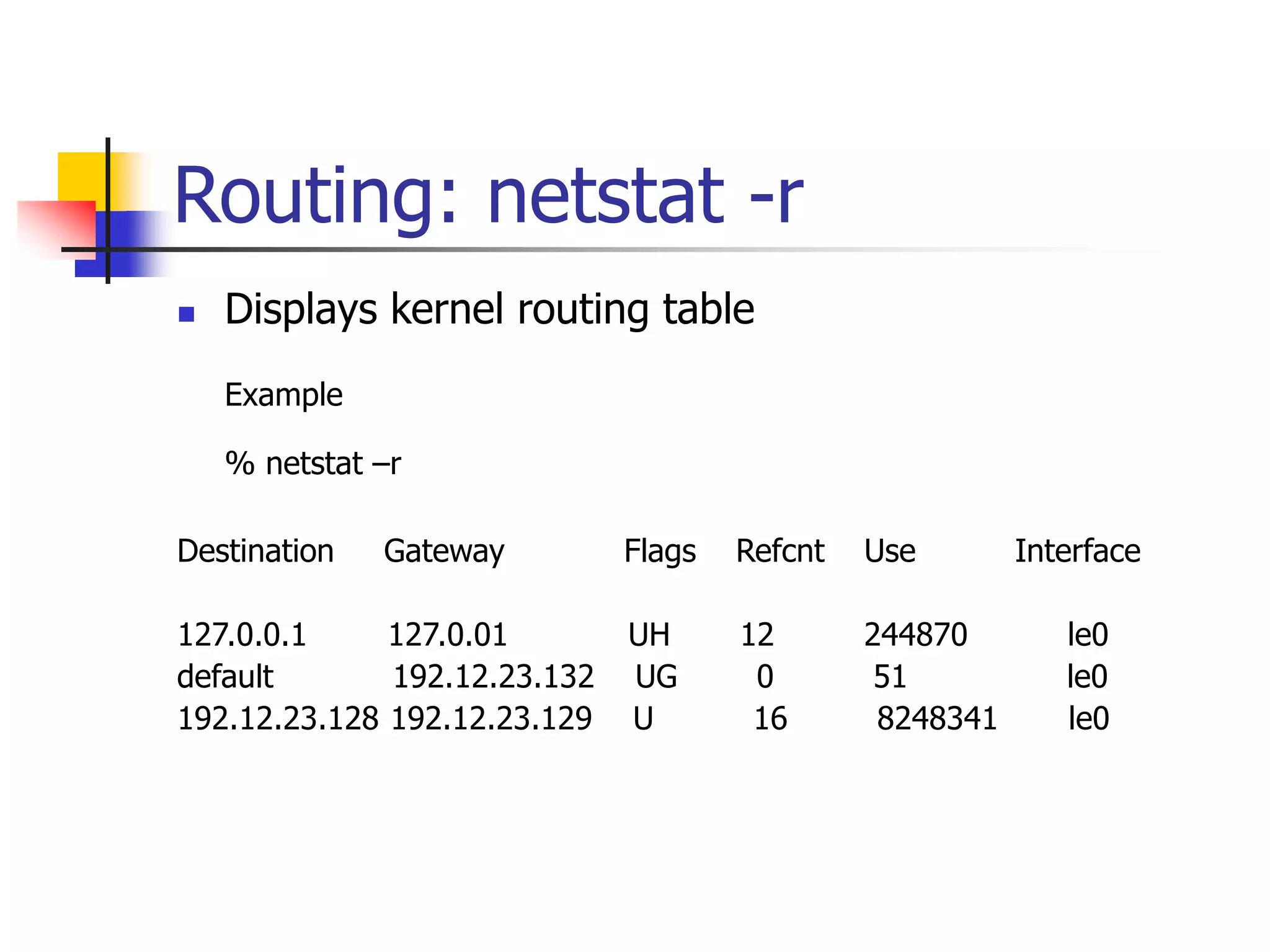

10. Routing: netstat -r
 Displays kernel routing table
Example
% netstat –r
Destination Gateway Flags Refcnt Use Interface
127.0.0.1 127.0.01 UH 12 244870 le0
default 192.12.23.132 UG 0 51 le0
192.12.23.128 192.12.23.129 U 16 8248341 le0

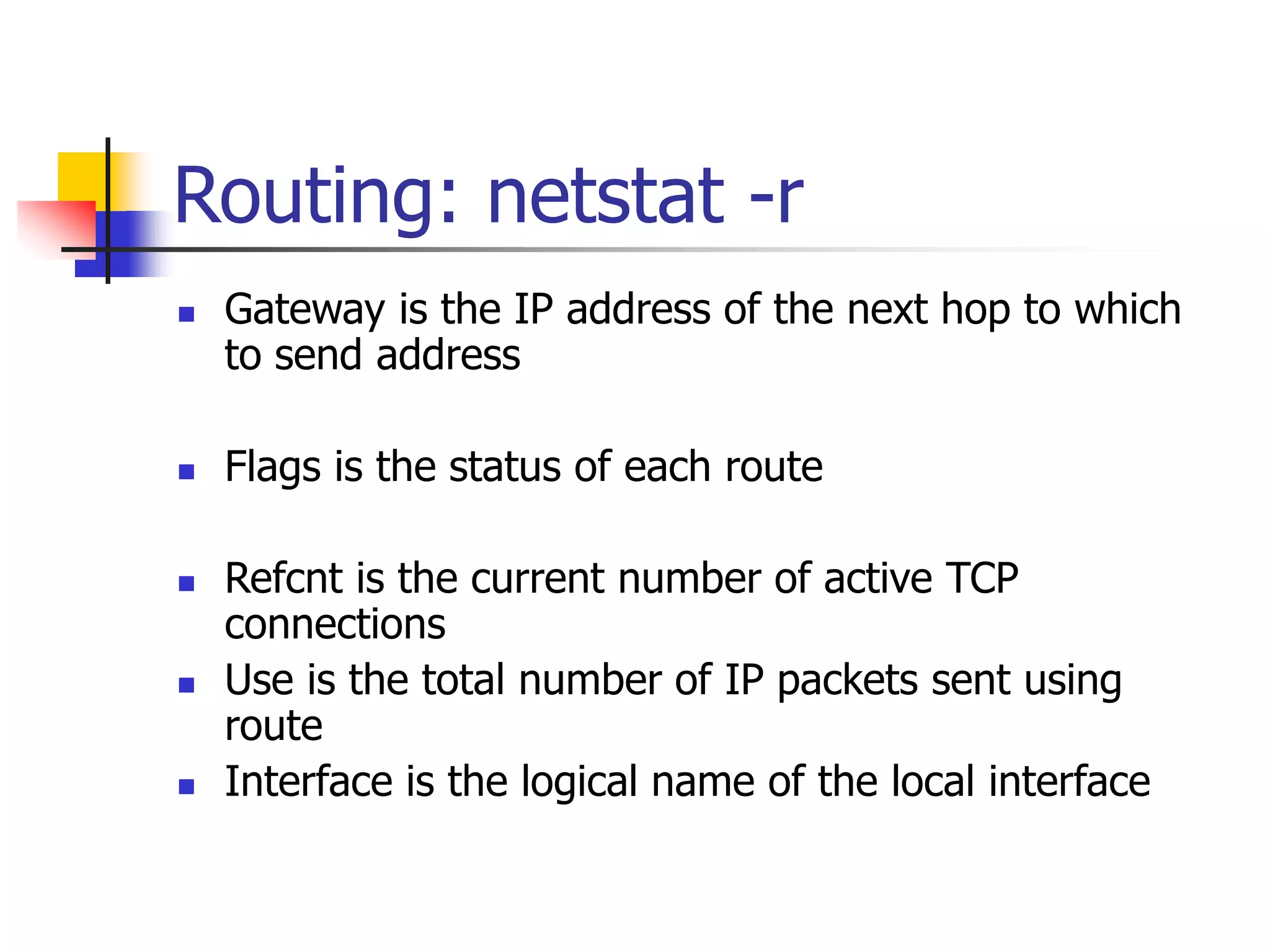

11. Routing: netstat -r
 Gateway is the IP address of the next hop to which
to send address
 Flags is the status of each route
 Refcnt is the current number of active TCP
connections
 Use is the total number of IP packets sent using
route
 Interface is the logical name of the local interface

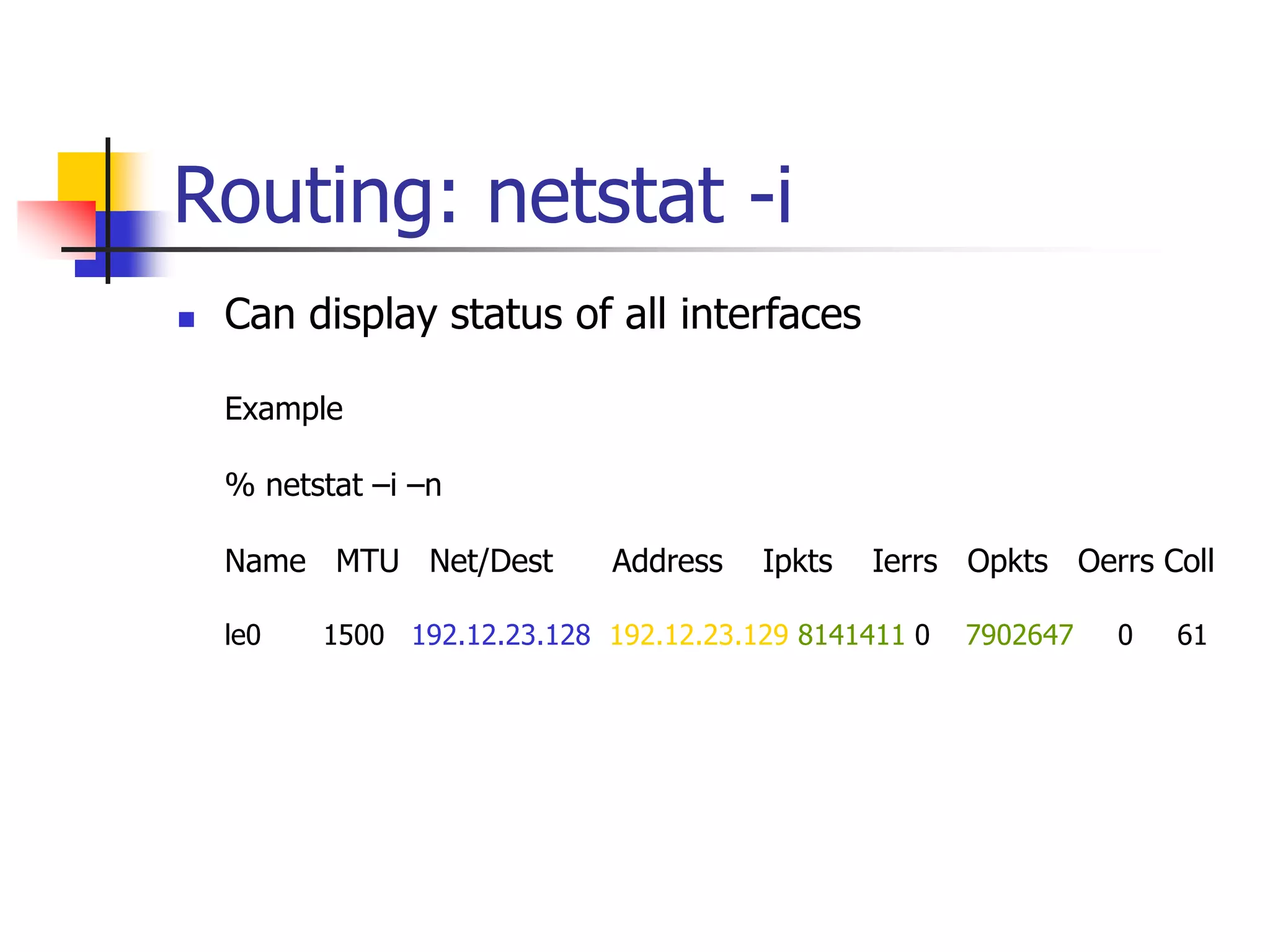

12. Routing: netstat -i
 Can display status of all interfaces
Example
% netstat –i –n
Name MTU Net/Dest Address Ipkts Ierrs Opkts Oerrs Coll
le0 1500 192.12.23.128 192.12.23.129 8141411 0 7902647 0 61

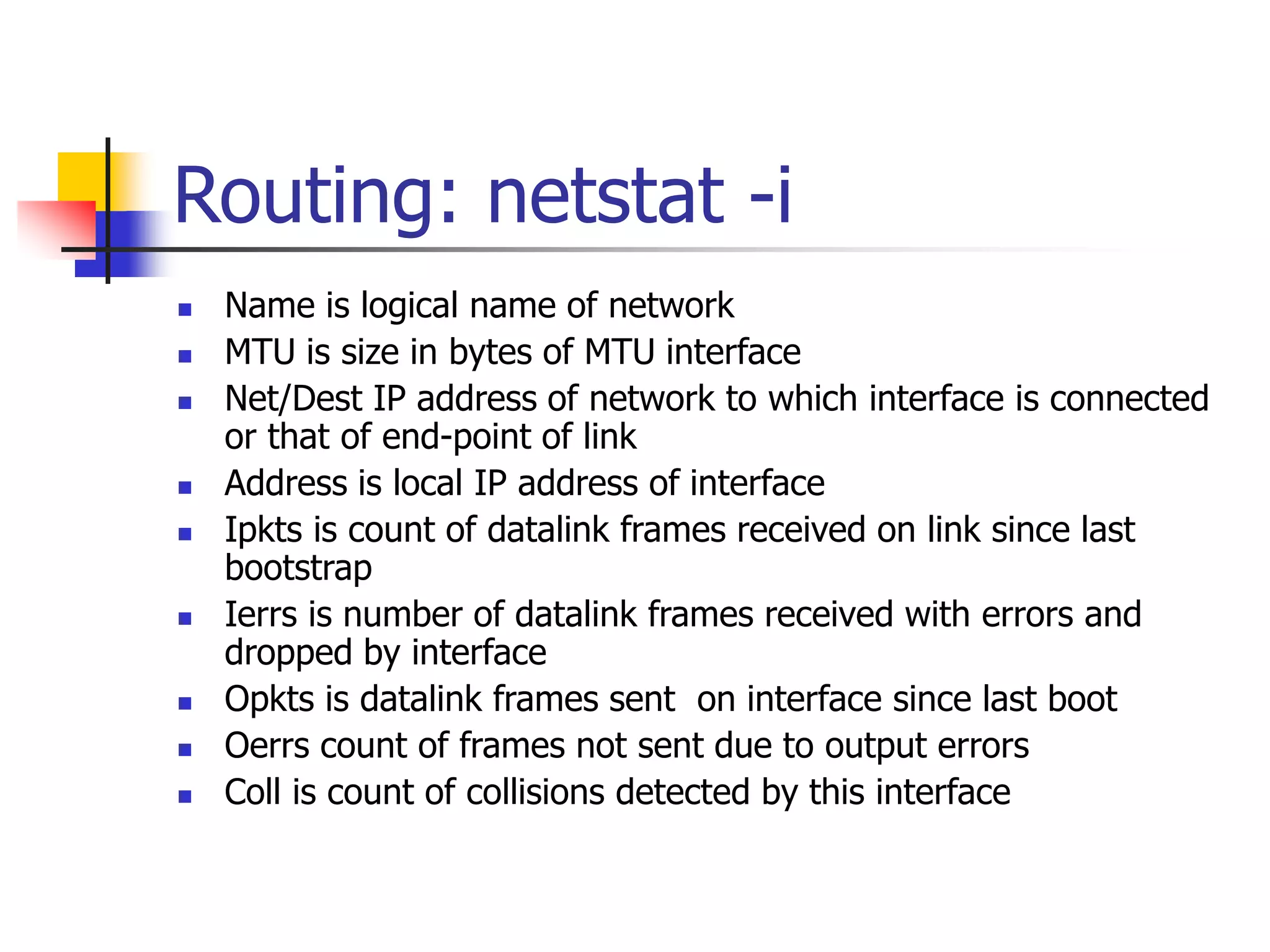

13. Routing: netstat -i
 Name is logical name of network
 MTU is size in bytes of MTU interface
 Net/Dest IP address of network to which interface is connected
or that of end-point of link
 Address is local IP address of interface
 Ipkts is count of datalink frames received on link since last
bootstrap
 Ierrs is number of datalink frames received with errors and
dropped by interface
 Opkts is datalink frames sent on interface since last boot
 Oerrs count of frames not sent due to output errors
 Coll is count of collisions detected by this interface

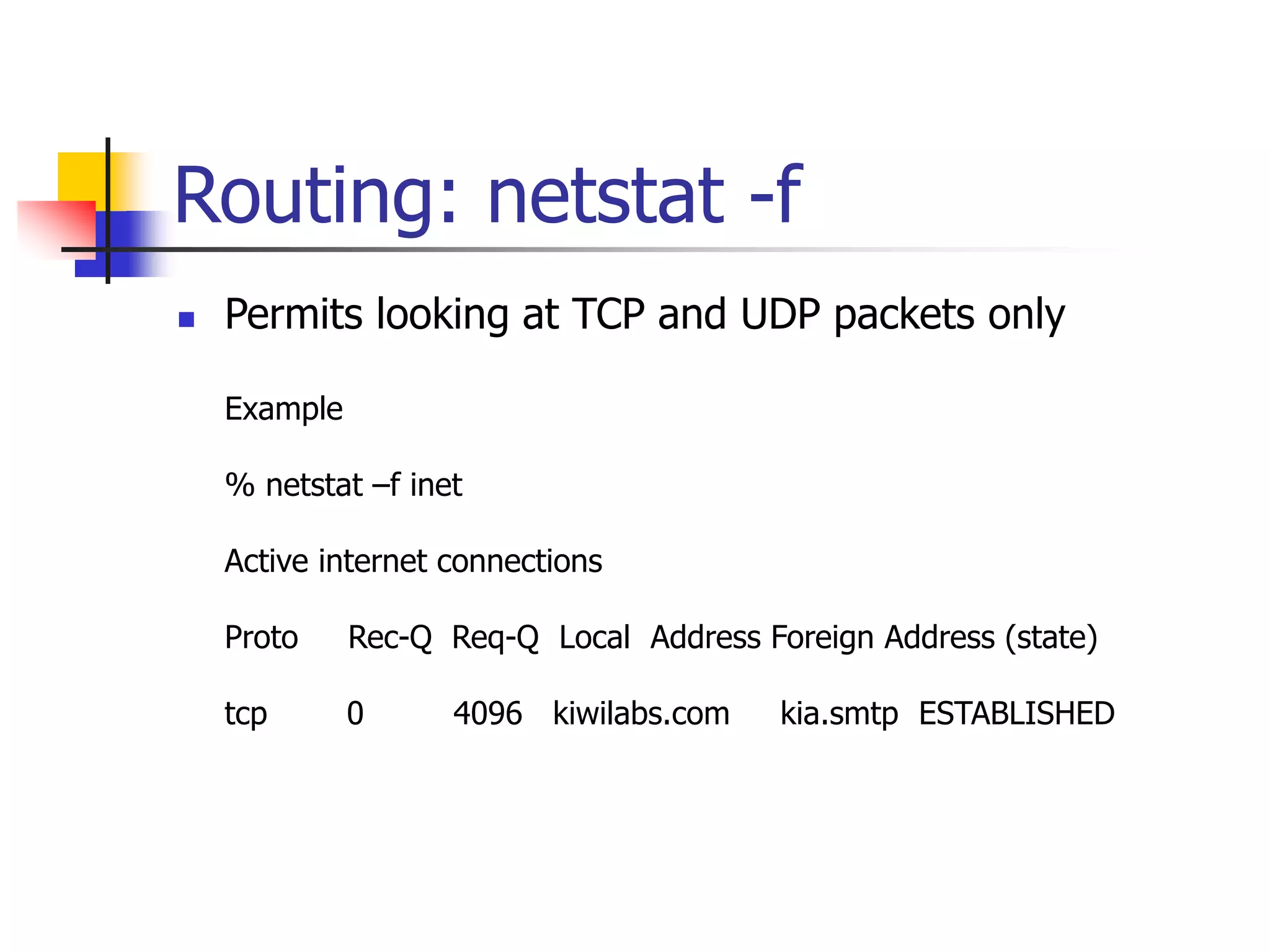

14. Routing: netstat -f
 Permits looking at TCP and UDP packets only
Example
% netstat –f inet
Active internet connections
Proto Rec-Q Req-Q Local Address Foreign Address (state)
tcp 0 4096 kiwilabs.com kia.smtp ESTABLISHED

15. Routing: netstat -f
 Proto is the protocol (TCP or UDP)
 Recv-Q number of bytes in socket input queue
 Send-Q number of bytes in socket output queue
 Local address set of period separated names
 Foreign address is remote socket address given in
format of local address
 (state) is current state of TCP connection. Field is
always empty for UDP connections

16. Traceroute
 Traces route an IP packet takes to destination host
 Takes single hostname argument and lists all intermediate router
 Sends three UDP messages encapsulated in an IP packet and
records the round-trip time in milliseconds for each message sent
to intermediate router
 Lost message or router that does not respond is denoted with a “*”
Example
% traceroute unix5.andrew.cmu.edu

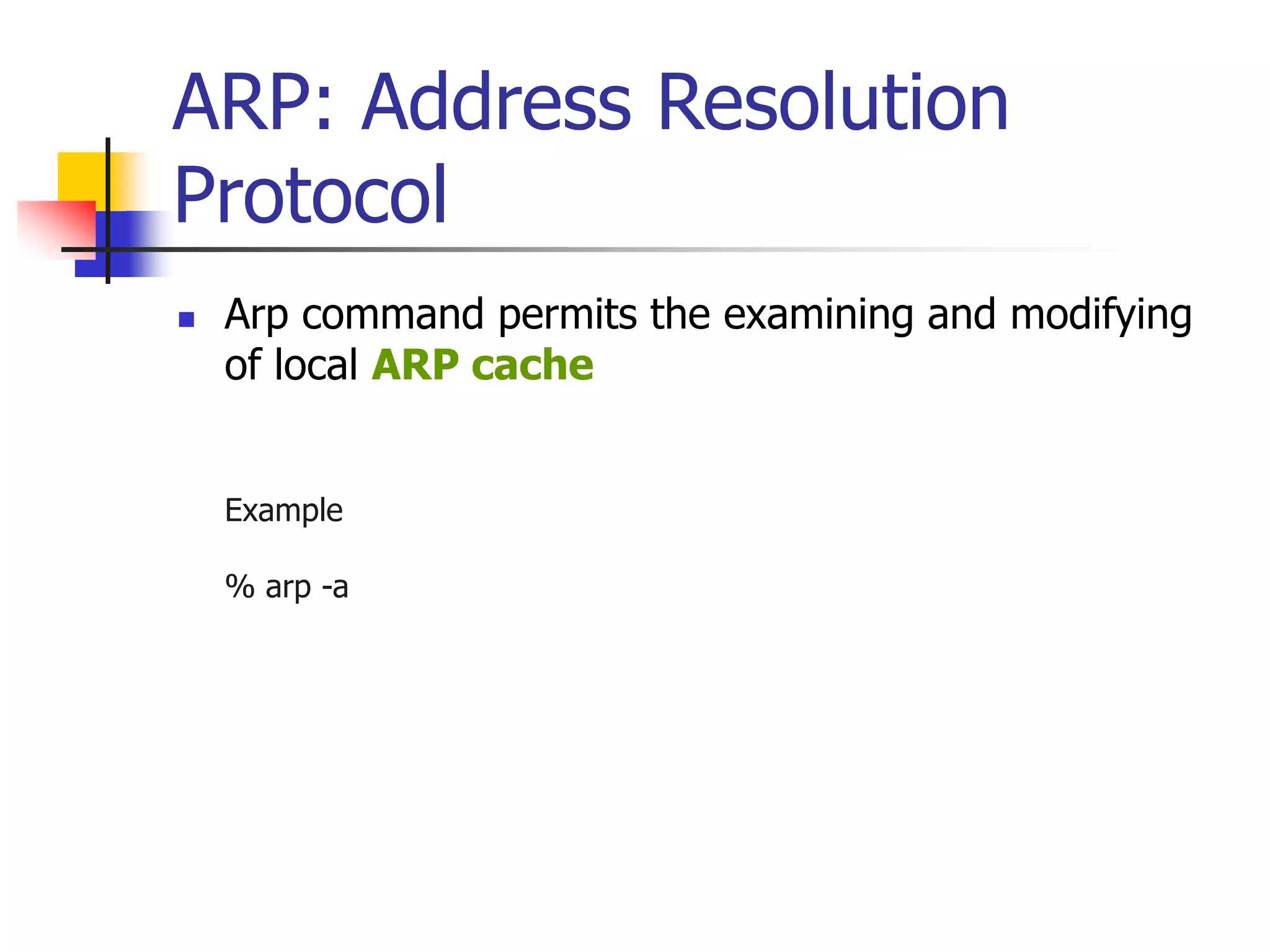

17. ARP: Address Resolution
Protocol
 Arp command permits the examining and modifying
of local ARP cache
Example
% arp -a

18. Etherfind
 Specific to Sun for tracing Ethernet frames
 Performs functions of a network analyzer
 Output can be piped to other unix tools (grep, awk, sed)
 Can display selective frames
 Mainly useful for TCP/IIP
Example
% etherfind –i le0 –v –t greater 0

19. nslookup
 Simple tool for querying DNS servers
 Without arguments user is prompted for queries
Example
% nslookup <unix5>
> unix5
> ls kiwilabs.com
> set type = pttr
> set type = any

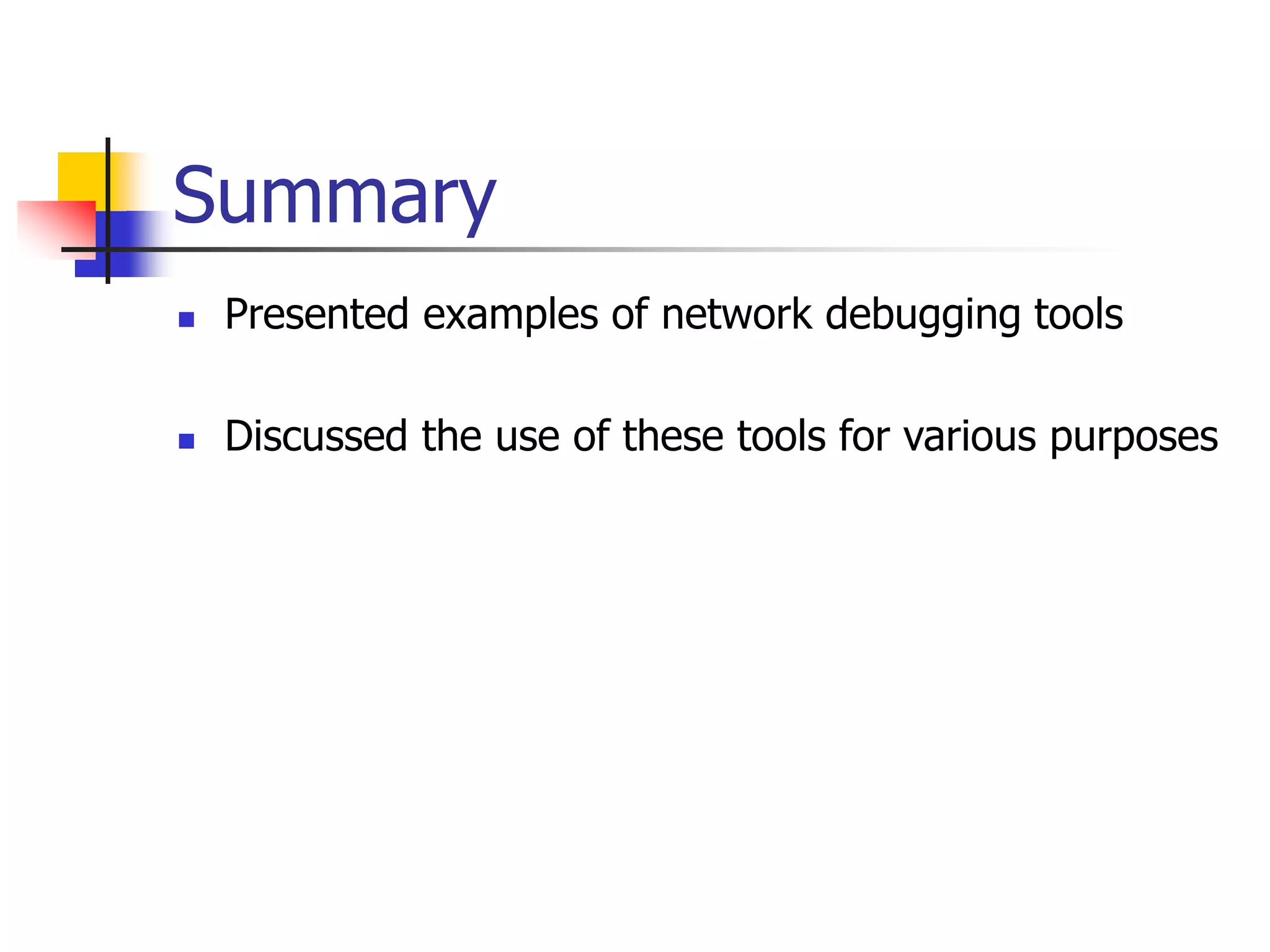

20. Summary
 Presented examples of network debugging tools
 Discussed the use of these tools for various purposes
