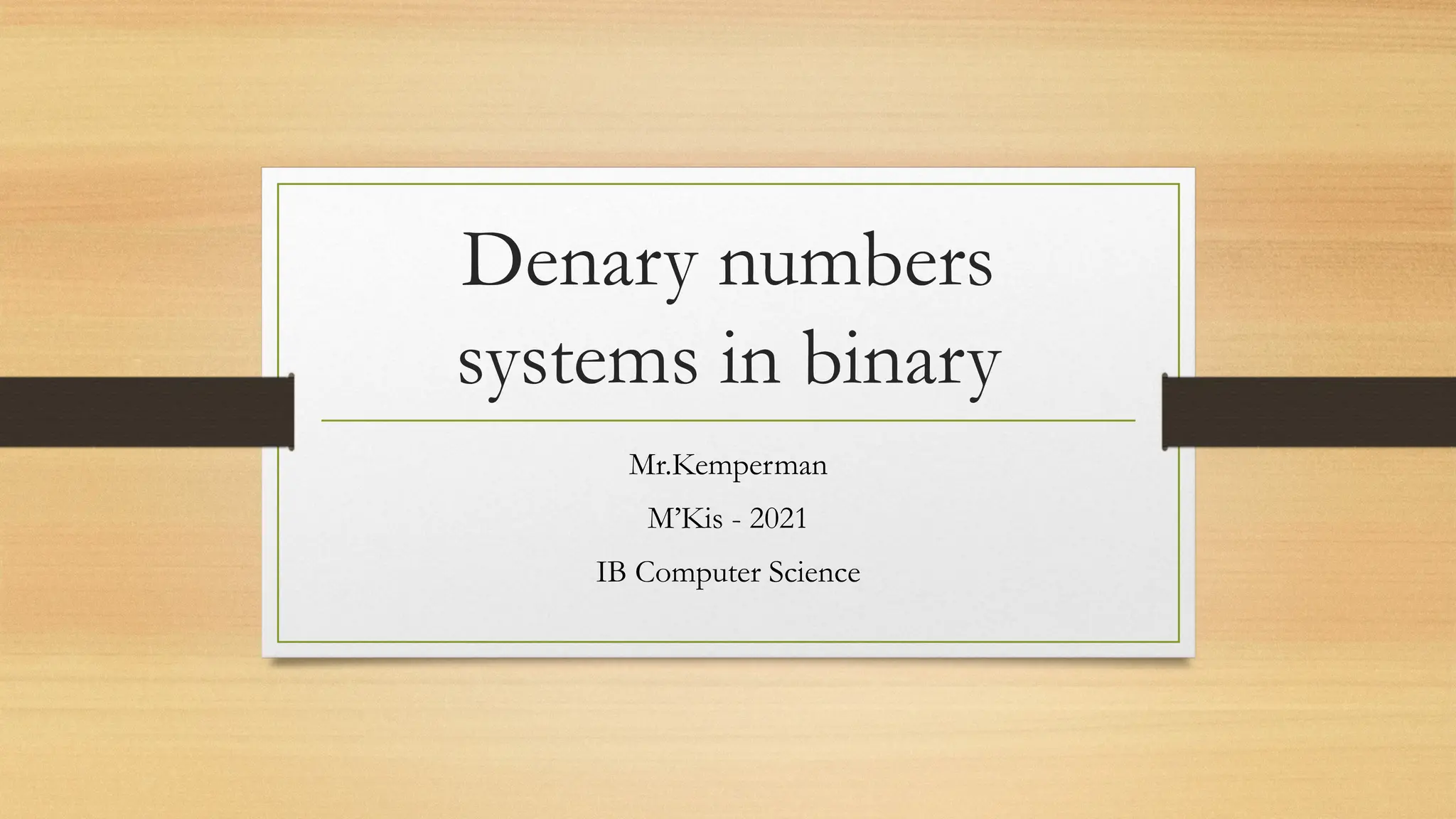

1. Denary numbers
systems in binary
Mr.Kemperman
M’Kis - 2021
IB Computer Science

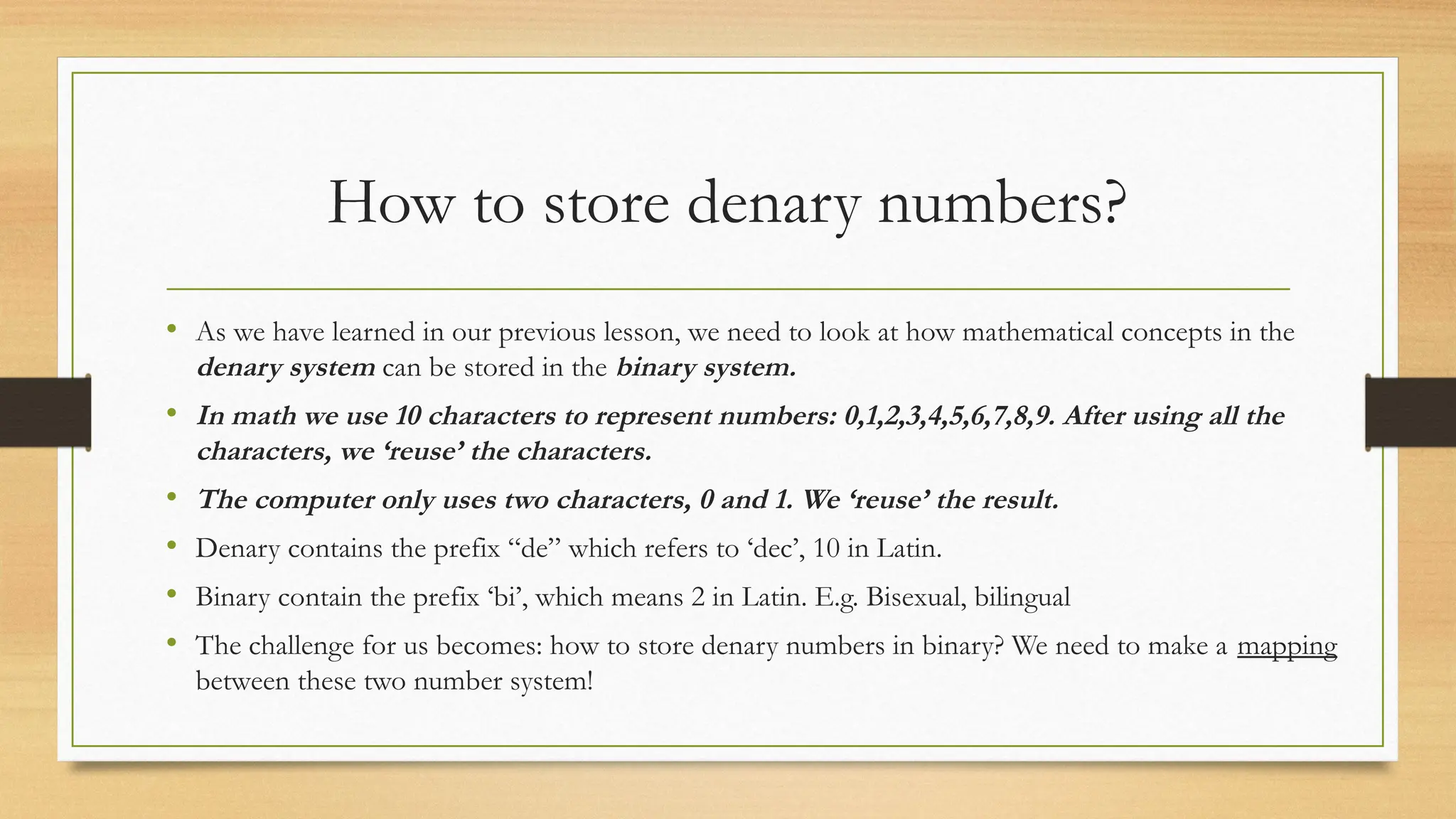

2. How to store denary numbers?
• As we have learned in our previous lesson, we need to look at how mathematical concepts in the
denary system can be stored in the binary system.
• In math we use 10 characters to represent numbers: 0,1,2,3,4,5,6,7,8,9. After using all the
characters, we ‘reuse’ the characters.
• The computer only uses two characters, 0 and 1. We ‘reuse’ the result.
• Denary contains the prefix “de” which refers to ‘dec’, 10 in Latin.
• Binary contain the prefix ‘bi’, which means 2 in Latin. E.g. Bisexual, bilingual
• The challenge for us becomes: how to store denary numbers in binary? We need to make a mapping
between these two number system!

3. How to convert to binary……
• Natural numbers = {1,2,3,……}. In CS we call these unsigned integers.
• Integer = whole numbers. Unsigned = only positive (sign is – or +).
• Whole numbers = {…,-2,-1,0,1,2….}. Signed integers in CS.
• Decimals like 3.14, 0.5, -0.25, -0.00001, 3x10-10
• Real numbers like e, sqrt(2) or pi? Irrational numbers?
• What about the operations? 3+4, 0.5x-0.2, 3x4, 0/0?
• What about 10 Modulo 3 = 1? In CS 10 % 3 = 1

4. Terminology and concepts
• B2D = Binary to Denary conversion.
• Denary uses a base 10, Binary uses base 2. This is the fundamental principal used for conversion.
• Let’s define some terminology first:
• 0111010010111 is called a binary string (=sequence of 0’s and 1’s)
• A bit is one position in a binary string and can either 0 or 1.
• 0101 0010 is a binary string comprised of eight bits and is called a byte.
• A byte is comprised of 2 nibbles (half byte = nibble = 4 bits).
• A binary string has to be read from right to left.
• The right most bit in a binary string is called the Least Significant Bit (LSB)
• The left most bit in a binary string is called the Most Significant Bit (MSB)

5. Representing values in binary: how many
different values can you store in n bits?
 One bit can represent two values.
 Every bit added double the number of representations.
 How many different values can you store in 3 bits?
 #values = 23
= 8 representations
 E.g. how many denary numbers can you represent in 3
 bits? Well, 8.
 What is the biggest signed integer you can store? 7.
 What is the smallest signed integer you can store? 1.
 Denary 0 = Binary 0 ! If you use three bits:
 010 = 0002

6. Conversion B2D
• B2D = Binary to Denary (aka Decimal) conversion.
• Straight forward, as we have seen (right).
• If you need to answer the question:
• How many bits do I need to represent 7810 ?
• Well, find a factor of 2 that exceeds 78. Why exceeds?
• 24
= 2x2x2x2 = 16, 78>16, so 4 bits is not enough.
• 26
= 2x2x2x2x2x2 = 64, still too low, so 27
= 128!
• 7 bits needed to represent 78!

7. Conversion D2B
• D2B = Denary to Binary conversion
• Let’s take 7810 , pronounced ‘denary seventy-eight’. We know we need
7 bits to store this. The computer doesn’t use 7 bits, but the working
unit is byte.
• 7810 = 64 + 8 + 4 + 2, right? Why am I using these numbers? Let’s
rewrite.
• 7810 = 1x64 + 0x32 + 0x16 + 1x8 +1x4 +1x2 + 0x1. Look’s familiar,
doesn’t it.
• All denary numbers can be written as a sum of powers of 2.
• Once you’ve done that, you just copy the 0 and 1’s.
• 10011102 is the binary representation of denary 78.

9. It’s not that hard, Tweety.
Keep on dividing by two until you
reach 1.
Write 1 if number is odd.
Write 0 if number is even.
1 is the remainder after division.
0 if there is no remainder.
Your answer is binary is shown from
bottom to top!
157 / 2 = 78 rem 1
78 / 2 = 39 rem 0
39 / 2 = 19 rem 1
19 /2 = 9 rem 1
And so on……
Read remainders bottom to top!
.

11. Let’s apply this flowchart to
45 denary! Dry-run this algorithm!
Get X  X = 45
X > 1? Yes!
Calculate X / 2 and X = 45, so 45 / 2.
Find quotient (Q) and remainder (R). Well:
Q = 22, R = 1, because 22x2 + 1 = 45
Next step:
X becomes 22 (X = quotient = 22)
Y is the result, the binary string.
We add the remainder, which is 1.
Y is printed (means put on the screen).
We follow the flowchart….
X = 22, X>1, Yes!!
Find quotient and remainder…
22 / 2 = 11, Q = 11 and R = 0
………and we following the same ‘loop’
We stop when X=0 or X=1,
because we are done.

12. Classwork / Homework B2D, D2B conversions
• No calculators allowed this time! Write down all your steps on how you get
the answer.
• Convert the following denary numbers to binary: 55, 134, 64, 1025, 800
• Convert the following binary strings to denary: 10000001, 0001001, 1001,
1111111, 1010101, 01010101.
• Design a flowchart in draw.io for B2D conversion. Input X is a binary string,
Output Y is the denary equivalent.
