The NozzleCrocodile is a contactless injector pulse reader that can be used in vehicle monitoring systems. It reads signals from injector control wires to monitor fuel consumption for small commercial vehicles without CAN bus data. It has a basic cable length of 0.7m and dimensions of 60x41x21mm. It can operate from 4.5-5.5V or 10-50V and between -40-85°C. Installation requires opening the case, placing injector wires on the reading surface, closing until it clicks, and connecting wires to the telematics unit and vehicle electrical network.

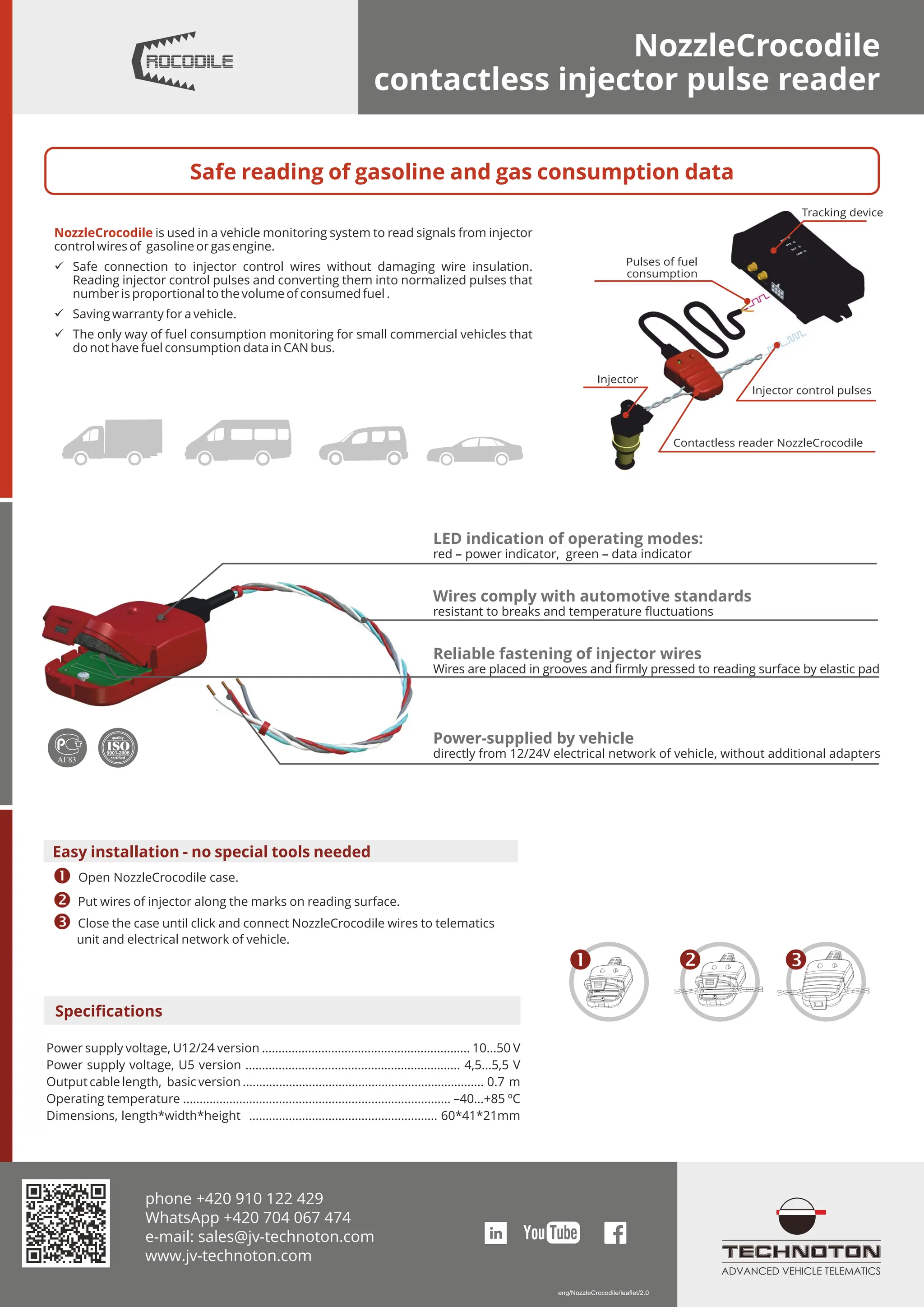

1. NozzleCrocodile
contactless injector pulse reader
АГ83
Specifications
Output cable length, basic version ......................................................................... 0.7 m
Dimensions, length*width*height ......................................................... 60*41*21mm
Power supply voltage, U5 version ................................................................. 4,5...5,5 V
Operating temperature ................................................................................. –40…+85 ºC
Power supply voltage, U12/24 version ............................................................... 10...50 V
Tracking device
Contactless reader NozzleCrocodile
Pulses of fuel
consumption
Injector control pulses
Injector
ь Safe connection to injector control wires without damaging wire insulation.
Reading injector control pulses and converting them into normalized pulses that
number is proportional to the volume of consumed fuel .
NozzleCrocodile is used in a vehicle monitoring system to read signals from injector
control wires of gasoline or gas engine.
ь The only way of fuel consumption monitoring for small commercial vehicles that
do not have fuel consumption data in CAN bus.
ь Saving warranty for a vehicle.
LED indication of operating modes:
red – power indicator, green – data indicator
Wires comply with automotive standards
resistant to breaks and temperature fluctuations
Reliable fastening of injector wires
Wires are placed in grooves and firmly pressed to reading surface by elastic pad
Power-supplied by vehicle
directly from 12/24V electrical network of vehicle, without additional adapters
Њ Ќ Ћ
Safe reading of gasoline and gas consumption data
eng/NozzleCrocodile/leaflet/2.0
phone +420 910 122 429
WhatsApp +420 704 067 474
e-mail: sales@jv-technoton.com
www.jv-technoton.com
ADVANCED VEHICLE TELEMATICS
Easy installation - no special tools needed
Њ Open NozzleCrocodile case.
Ќ Put wires of injector along the marks on reading surface.
Ћ Close the case until click and connect NozzleCrocodile wires to telematics
unit and electrical network of vehicle.
