CANCrocodile is a contactless reader that can read signals from vehicle data buses without damaging wire insulation. It provides protection of vehicle electronic systems, saves warranty costs, and is quickly and easily installed without configuration. The device operates from 10-50V, is compatible with various bus protocols, and has a mini LED version with reduced dimensions. Installation involves opening the case, placing CAN wires along marks, closing the case until it clicks, and connecting wires to the telematics unit and vehicle electrical network.

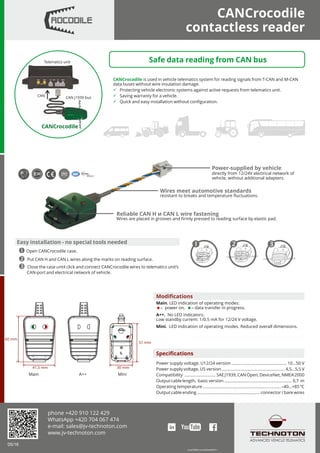

1. CANCrocodile
contactless reader
05/18
eng/CANCrocodile/leaflet/2.1
CANCrocodile is used in vehicle telematics system for reading signals from T-CAN and M-CAN
data buses without wire insulation damage.
ь Protecting vehicle electronic systems against active requests from telematics unit.
ь Saving warranty for a vehicle.
ь Quick and easy installation without configuration.
Modifications
Main. LED indication of operating modes:
=– power on, – data transfer in progress.
=
A++. No LED indicators.
Low standby current: 1/0.5 mA for 12/24 V voltage.
Mini. LED indication of operating modes. Reduced overall dimensions.
Specifications
Power supply voltage, U12/24 version ................................................ 10...50 V
Power supply voltage, U5 version ....................................................... 4,5...5,5 V
Compatibility ........................... SAE J1939, CAN Open, DeviceNet, NMEA 2000
Output cable length, basic version ........................................................... 0,7 m
Operating temperature .................................................................... –40…+85 ºC
Output cable ending ....................................................... connector / bare wires
CAN j1939 bus
CAN
Telematics unit
CANCrocodile
Easy installation - no special tools needed
ЊOpen CANCrocodile case.
Ќ Put CAN H and CAN L wires along the marks on reading surface.
Ћ Close the case until click and connect CANCrocodile wires to telematics unit’s
CAN-port and electrical network of vehicle.
Power-supplied by vehicle
directly from 12/24V electrical network of
vehicle, without additional adapters.
Wires meet automotive standards
resistant to breaks and temperature fluctuations.
Reliable CAN H и CAN L wire fastening
Wires are placed in grooves and firmly pressed to reading surface by elastic pad.
41,5 mm 30 mm
51 mm
60 mm
Safe data reading from CAN bus
Њ Ќ Ћ
Main А++ Mini
